The Effects of Fibrotic Cell Type and Its Density on Atrial Fibrillation Dynamics: An In Silico Study
Abstract
:1. Introduction
2. Materials and Methods
2.1. Atrial Myocyte under Atrial Fibrillation Remodeling
2.2. Fibroblast, Myofibroblast and Fibrocyte Model
2.3. Diffuse Fibrosis in a 3D Model of Human Atria
2.4. Model of Electrical Propagation
2.5. Stimulation Protocol and Simulation Setup
2.6. Electrograms and Dominant Frequency
3. Results
3.1. Conduction Velocity and Action Potential Duration
3.2. Propagation Dynamics during AF without Fibrosis
3.3. Propagation Dynamics in the Right Atrium during AF with Fibrosis
3.4. Propagation Dynamics in the Left Atrium during AF with Fibrosis
3.5. Electrograms and DF Analysis
4. Discussion
5. Limitations
6. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Nattel, S.; Harada, M. Atrial remodeling and atrial fibrillation: Recent advances and translational perspectives. J. Am. Coll. Cardiol. 2014, 63, 2335–2345. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Stewart, S.; Murphy, N.; Walker, A.; McGuire, A.; McMurray, J.J.V. Cost of an emerging epidemic: An economic analysis of atrial fibrillation in the UK. Heart 2004, 90, 286–292. [Google Scholar] [CrossRef] [Green Version]
- Andrade, J.; Khairy, P.; Dobrev, D.; Nattel, S. The Clinical Profile and Pathophysiology of Atrial Fibrillation. Circ. Res. 2014, 114, 1453–1468. [Google Scholar] [CrossRef] [PubMed]
- Haissaguerre, M.; Jais, P.; Shah, D.C.; Takahashi, A.; Hocini, M.; Quiniou, G.; Garrigue, S.; Le Mouroux, A.; Le Métayer, P.; Clémenty, J. Spontaneous Initiation of Atrial Fibrillation by Ectopic Beats Originating in the Pulmonary Veins. N. Engl. J. Med. 1998, 339, 659–666. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Moe, G.K.; Rheinboldt, W.C.; Abildskov, J. A computer model of atrial fibrillation. Am. Heart J. 1964, 67, 200–220. [Google Scholar] [CrossRef]
- Jalife, J. Mother rotors and fibrillatory conduction: A mechanism of atrial fibrillation. Cardiovasc. Res. 2002, 54, 204–216. [Google Scholar] [CrossRef] [Green Version]
- Wijffels, M.C.; Kirchhof, C.J.; Dorland, R.; Allessie, M.A. Atrial fibrillation begets atrial fibrillation. A study in awake chronically instrumented goats. Circulation 1995, 92, 1954–1968. [Google Scholar] [CrossRef]
- Allessie, M.; Ausma, J.; Schotten, U. Electrical, contractile and structural remodeling during atrial fibrillation. Cardiovasc. Res. 2002, 54, 230–246. [Google Scholar] [CrossRef]
- Jalife, J.; Kaur, K. Atrial remodeling, fibrosis, and atrial fibrillation. Trends Cardiovasc. Med. 2015, 25, 475–484. [Google Scholar] [CrossRef] [Green Version]
- Newby, D.E.; Mannucci, P.M.; Tell, G.S.; Baccarelli, A.A.; Brook, R.D.; Donaldson, K.; Forastiere, F.; Franchini, M.; Franco, O.H.; Graham, I.; et al. Expert position paper on air pollution and cardiovascular disease. Eur. Heart J. 2015, 36, 83–93. [Google Scholar] [CrossRef] [Green Version]
- Liu, Y.; Goodson, J.M.; Zhang, B.; Chin, M.T. Air pollution and adverse cardiac remodeling: Clinical effects and basic mechanisms. Front. Physiol. 2015, 6, 162. [Google Scholar] [CrossRef] [Green Version]
- Brook, R.D.; Rajagopalan, S.; Pope, C.A.; Brook, J.R.; Bhatnagar, A.; Diez-Roux, A.V.; Holguin, F.; Hong, Y.; Luepker, R.V.; Mittleman, M.A.; et al. Particulate Matter Air Pollution and Cardiovascular Disease. Circulation 2010, 121, 2331–2378. [Google Scholar] [CrossRef] [Green Version]
- de Oliveira-Fonoff, A.M.; Mady, C.; Pessoa, F.G.; Fonseca, K.C.B.; Salemi, V.M.C.; Fernandes, F.; Saldiva, P.H.N.; Ramires, F.J.A. The role of air pollution in myocardial remodeling. PLoS ONE 2017, 12, e0176084. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Rohr, S. Myofibroblasts in diseased hearts: New players in cardiac arrhythmias? Hear. Rhythm 2009, 6, 848–856. [Google Scholar] [CrossRef] [PubMed]
- Xu, J.; Cui, G.; Esmailian, F.; Plunkett, M.; Marelli, D.; Ardehali, A.; Odim, J.; Laks, H.; Sen, L. Atrial Extracellular Matrix Remodeling and the Maintenance of Atrial Fibrillation. Circulation 2004, 109, 363–368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Fukumoto, K.; Habibi, M.; Ipek, E.G.; Zahid, S.; Khurram, I.M.; Zimmerman, S.L.; Zipunnikov, V.; Spragg, D.; Ashikaga, H.; Trayanova, N.; et al. Association of Left Atrial Local Conduction Velocity with Late Gadolinium Enhancement on Cardiac Magnetic Resonance in Patients with Atrial Fibrillation. Circ. Arrhythm. Electrophysiol. 2016, 9, e002897. [Google Scholar] [CrossRef] [Green Version]
- Burstein, B.; Comtois, P.; Michael, G.; Nishida, K.; Villeneuve, L.; Yeh, Y.-H.; Nattel, S. Changes in Connexin Expression and the Atrial Fibrillation Substrate in Congestive Heart Failure. Circ. Res. 2009, 105, 1213–1222. [Google Scholar] [CrossRef] [Green Version]
- Akoum, N.; Daccarett, M.; McGann, C.; Segerson, N.; Vergara, G.; Kuppahally, S.; Badger, T.; Burgon, N.; Haslam, T.; Kholmovski, E.; et al. Atrial fibrosis helps select the appropriate patient and strategy in catheter ablation of atrial fibrillation: A DE-MRI guided approach. J. Cardiovasc. Electrophysiol. 2011, 22, 16–22. [Google Scholar] [CrossRef]
- de Jong, S.; van Veen, T.A.B.; van Rijen, H.V.M.; de Bakker, J.M.T. Fibrosis and Cardiac Arrhythmias. J. Cardiovasc. Pharmacol. 2011, 57, 630–638. [Google Scholar] [CrossRef]
- de Bakker, J.M.; van Capelle, F.J.; Janse, M.J.; Tasseron, S.; Vermeulen, J.T.; de Jonge, N.; Lahpor, J.R. Slow conduction in the infarcted human heart. “Zigzag” course of activation. Circulation 1993, 88, 915–926. [Google Scholar] [CrossRef] [Green Version]
- Kawara, T.; Derksen, R.; de Groot, J.R.; Coronel, R.; Tasseron, S.; Linnenbank, A.C.; Hauer, R.N.W.; Kirkels, H.; Janse, M.J.; de Bakker, J.M.T. Activation Delay after Premature Stimulation in Chronically Diseased Human Myocardium Relates to the Architecture of Interstitial Fibrosis. Circulation 2001, 104, 3069–3075. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ten Tusscher, K.H.W.J.; Panfilov, A.V. Influence of diffuse fibrosis on wave propagation in human ventricular tissue. EP Eur. 2007, 9, vi38–vi45. [Google Scholar] [CrossRef] [PubMed]
- Xie, X.; Liu, Y.; Gao, S.; Wu, B.; Hu, X.; Chen, J. Possible Involvement of Fibrocytes in Atrial Fibrosis in Patients With Chronic Atrial Fibrillation. Circ. J. 2014, 78, 338–344. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Rücker-Martin, C. Dedifferentiation of atrial myocytes during atrial fibrillation: Role of fibroblast proliferation in vitro. Cardiovasc. Res. 2002, 55, 38–52. [Google Scholar] [CrossRef]
- Camelliti, P.; Green, C.R.; LeGrice, I.; Kohl, P. Fibroblast network in rabbit sinoatrial node: Structural and functional identification of homogeneous and heterogeneous cell coupling. Circ. Res. 2004, 94, 828–835. [Google Scholar] [CrossRef] [Green Version]
- Camelliti, P.; Borg, T.; Kohl, P. Structural and functional characterisation of cardiac fibroblasts. Cardiovasc. Res. 2005, 65, 40–51. [Google Scholar] [CrossRef]
- Chilton, L.; Giles, W.R.; Smith, G.L. Evidence of intercellular coupling between co-cultured adult rabbit ventricular myocytes and myofibroblasts. J. Physiol. 2007, 583, 225–236. [Google Scholar] [CrossRef]
- Aujla, P.K.; Kassiri, Z. Diverse origins and activation of fibroblasts in cardiac fibrosis. Cell. Signal. 2021, 78, 109869. [Google Scholar] [CrossRef]
- Yue, L.; Xie, J.; Nattel, S. Molecular determinants of cardiac fibroblast electrical function and therapeutic implications for atrial fibrillation. Cardiovasc. Res. 2011, 89, 744–753. [Google Scholar] [CrossRef] [Green Version]
- Cabanas-grandío, P.; Bisbal, F. Current Role and Future Prospects of Magnetic Resonance Imaging in the Field of Atrial Fibrillation Ablation. J. Atr. Fibrillation 2015, 8, 1281. [Google Scholar] [CrossRef]
- Miragoli, M.; Gaudesius, G.; Rohr, S. Electrotonic Modulation of Cardiac Impulse Conduction by Myofibroblasts. Circ. Res. 2006, 98, 801–810. [Google Scholar] [CrossRef] [Green Version]
- Miragoli, M.; Glukhov, A.V. Atrial Fibrillation and Fibrosis: Beyond the Cardiomyocyte Centric View. BioMed Res. Int. 2015, 2015, 798768. [Google Scholar] [CrossRef] [Green Version]
- Krul, S.P.J.; Berger, W.R.; Smit, N.W.; van Amersfoorth, S.C.M.; Driessen, A.H.G.; van Boven, W.J.; Fiolet, J.W.T.; van Ginneken, A.C.G.; van der Wal, A.C.; de Bakker, J.M.T.; et al. Atrial Fibrosis and Conduction Slowing in the Left Atrial Appendage of Patients Undergoing Thoracoscopic Surgical Pulmonary Vein Isolation for Atrial Fibrillation. Circ. Arrhythm. Electrophysiol. 2015, 8, 288–295. [Google Scholar] [CrossRef] [Green Version]
- Miragoli, M.; Salvarani, N.; Rohr, S. Myofibroblasts Induce Ectopic Activity in Cardiac Tissue. Circ. Res. 2007, 101, 755–758. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mori, L.; Bellini, A.; Stacey, M.A.; Schmidt, M.; Mattoli, S. Fibrocytes contribute to the myofibroblast population in wounded skin and originate from the bone marrow. Exp. Cell Res. 2005, 304, 81–90. [Google Scholar] [CrossRef] [PubMed]
- Lin, R.-J.; Su, Z.-Z.; Liang, S.-M.; Chen, Y.-Y.; Shu, X.-R.; Nie, R.-Q.; Wang, J.-F.; Xie, S.-L. Role of Circulating Fibrocytes in Cardiac Fibrosis. Chin. Med. J. 2016, 129, 326–331. [Google Scholar] [CrossRef] [PubMed]
- Jalife, J. Mechanisms of persistent atrial fibrillation. Curr. Opin. Cardiol. 2014, 29, 20–27. [Google Scholar] [CrossRef] [PubMed]
- Courtemanche, M.; Ramirez, R.J.; Nattel, S. Ionic mechanisms underlying human atrial action potential properties: Insights from a mathematical model. Am. J. Physiol.-Heart Circ. Physiol. 1998, 275, H301–H321. [Google Scholar] [CrossRef]
- Kneller, J.; Zou, R.; Vigmond, E.J.; Wang, Z.; Leon, L.J.; Nattel, S. Cholinergic Atrial Fibrillation in a Computer Model of a Two-Dimensional Sheet of Canine Atrial Cells With Realistic Ionic Properties. Circ. Res. 2002, 90, E73–E87. [Google Scholar] [CrossRef] [Green Version]
- Caballero, R.; de la Fuente, M.G.; Gómez, R.; Barana, A.; Amorós, I.; Dolz-Gaitón, P.; Osuna, L.; Almendral, J.; Atienza, F.; Fernández-Avilés, F.; et al. In Humans, Chronic Atrial Fibrillation Decreases the Transient Outward Current and Ultrarapid Component of the Delayed Rectifier Current Differentially on Each Atria and Increases the Slow Component of the Delayed Rectifier Current in Both. J. Am. Coll. Cardiol. 2010, 55, 2346–2354. [Google Scholar] [CrossRef] [Green Version]
- Bosch, R.F.; Zeng, X.; Grammer, J.B.; Popovic, K.; Mewis, C.; Kühlkamp, V. Ionic mechanisms of electrical remodeling in human atrial fibrillation. Cardiovasc. Res. 1999, 44, 121–131. [Google Scholar] [CrossRef]
- Van Wagoner, D.R.; Pond, A.L.; Lamorgese, M.; Rossie, S.S.; McCarthy, P.M.; Nerbonne, J.M. Atrial L-type Ca2+ currents and human atrial fibrillation. Circ. Res. 1999, 85, 428–436. [Google Scholar] [CrossRef] [Green Version]
- Colman, M.A.; Aslanidi, O.V.; Kharche, S.; Boyett, M.R.; Garratt, C.; Hancox, J.C.; Zhang, H. Pro-arrhythmogenic effects of atrial fibrillation-induced electrical remodelling: Insights from the three-dimensional virtual human atria. J. Physiol. 2013, 591, 4249–4272. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Martinez-Mateu, L.; Romero, L.; Ferrer-Albero, A.; Sebastian, R.; Rodríguez Matas, J.F.; Jalife, J.; Berenfeld, O.; Saiz, J. Factors affecting basket catheter detection of real and phantom rotors in the atria: A computational study. PLoS Comput. Biol. 2018, 14, e1006017. [Google Scholar] [CrossRef] [PubMed]
- Andrew MacCannell, K.; Bazzazi, H.; Chilton, L.; Shibukawa, Y.; Clark, R.B.; Giles, W.R. A Mathematical Model of Electrotonic Interactions between Ventricular Myocytes and Fibroblasts. Biophys. J. 2007, 92, 4121–4132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ashihara, T.; Haraguchi, R.; Nakazawa, K.; Namba, T.; Ikeda, T.; Nakazawa, Y.; Ozawa, T.; Ito, M.; Horie, M.; Trayanova, N.A. The role of fibroblasts in complex fractionated electrograms during persistent/permanent atrial fibrillation: Implications for electrogram-based catheter ablation. Circ. Res. 2012, 110, 275–284. [Google Scholar] [CrossRef] [Green Version]
- Maleckar, M.M.; Greenstein, J.L.; Giles, W.R.; Trayanova, N.A. Electrotonic coupling between human atrial myocytes and fibroblasts alters myocyte excitability and repolarization. Biophys. J. 2009, 97, 2179–2190. [Google Scholar] [CrossRef] [Green Version]
- Chilton, L.; Ohya, S.; Freed, D.; George, E.; Drobic, V.; Shibukawa, Y.; MacCannell, K.A.; Imaizumi, Y.; Clark, R.B.; Dixon, I.M.C.; et al. K+ currents regulate the resting membrane potential, proliferation, and contractile responses in ventricular fibroblasts and myofibroblasts. Am. J. Physiol. Circ. Physiol. 2005, 288, H2931–H2939. [Google Scholar] [CrossRef] [Green Version]
- Zahid, S.; Cochet, H.; Boyle, P.M.; Schwarz, E.L.; Whyte, K.N.; Vigmond, E.J.; Dubois, R.; Hocini, M.; Haïssaguerre, M.; Jaïs, P.; et al. Patient-derived models link re-entrant driver localization in atrial fibrillation to fibrosis spatial pattern. Cardiovasc. Res. 2016, 110, 443–454. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sung, R.J.; Lauer, M.R. Fundamental Approaches to the Management of Cardiac Arrhythmias. In Fundamental Approaches to the Management of Cardiac Arrhythmias; Springer: Dordrecht, The Netherlands, 2000; p. 418. [Google Scholar]
- van der Velden, H.; Ausma, J.; Rook, M.B.; Hellemons, A.J.C.G.M.; van Veen, T.A.A.B.; Allessie, M.A.; Jongsma, H.J. Gap junctional remodeling in relation to stabilization of atrial fibrillation in the goat. Cardiovasc. Res. 2000, 46, 476–486. [Google Scholar] [CrossRef] [Green Version]
- Bucala, R.; Spiegel, L.A.; Chesney, J.; Hogan, M.; Cerami, A. Circulating fibrocytes define a new leukocyte subpopulation that mediates tissue repair. Mol. Med. 1994, 1, 71–81. [Google Scholar] [CrossRef] [Green Version]
- Tobón, C.; Ruiz-Villa, C.; Heidenreich, E.; Romero, L.; Hornero, F.; Saiz, J. A Three-Dimensional Human Atrial Model with Fiber Orientation. Electrograms and Arrhythmic Activation Patterns Relationship. PLoS ONE 2013, 8, e50883. [Google Scholar] [CrossRef]
- Ferrer, A.; Sebastián, R.; Sánchez-Quintana, D.; Rodríguez, J.F.; Godoy, E.J.; Martínez, L.; Saiz, J. Detailed Anatomical and Electrophysiological Models of Human Atria and Torso for the Simulation of Atrial Activation. PLoS ONE 2015, 10, e0141573. [Google Scholar] [CrossRef]
- Daccarett, M.; Badger, T.J.; Akoum, N.; Burgon, N.S.; Mahnkopf, C.; Vergara, G.; Kholmovski, E.; McGann, C.J.; Parker, D.; Brachmann, J.; et al. Association of left atrial fibrosis detected by delayed-enhancement magnetic resonance imaging and the risk of stroke in patients with atrial fibrillation. J. Am. Coll. Cardiol. 2011, 57, 831–838. [Google Scholar] [CrossRef] [Green Version]
- Gomez, J.F.; Cardona, K.; Martinez, L.; Saiz, J.; Trenor, B. Electrophysiological and Structural Remodeling in Heart Failure Modulate Arrhythmogenesis. 2D Simulation Study. PLoS ONE 2014, 9, e103273. [Google Scholar] [CrossRef]
- Henriquez, C.S.; Papazoglou, A.A. Using computer models to understand the roles of tissue structure and membrane dynamics in arrhythmogenesis. Proc. IEEE 1996, 84, 334–354. [Google Scholar] [CrossRef]
- Heidenreich, E.A.; Ferrero, J.M.; Doblaré, M.; Rodríguez, J.F. Adaptive macro finite elements for the numerical solution of monodomain equations in cardiac electrophysiology. Ann. Biomed. Eng. 2010, 38, 2331–2345. [Google Scholar] [CrossRef]
- Ferrero, J.M.; Ferrero, J.M.J.; Saiz, J.; Arnau, A. Bioelectrónica. In Señales Bioeléctricas, 1st ed.; Universitat Politècnica de València: Valencia, Spain, 1994; p. 620. [Google Scholar]
- Everett, T.H.; Kok, L.C.; Vaughn, R.H.; Moorman, J.R.; Haines, D.E. Frequency domain algorithm for quantifying atrial fibrillation organization to increase defibrillation efficacy. IEEE Trans. Biomed. Eng. 2001, 48, 969–978. [Google Scholar] [CrossRef]
- Lau, D.H.; Linz, D.; Sanders, P. New Findings in Atrial Fibrillation Mechanisms. Card. Electrophysiol. Clin. 2019, 11, 563–571. [Google Scholar] [CrossRef]
- Chen, T.-L.; Liao, J.-W.; Chan, W.-H.; Hsu, C.-Y.; Yang, J.-D.; Ueng, T.-H. Induction of cardiac fibrosis and transforming growth factor-β1 by motorcycle exhaust in rats. Inhal. Toxicol. 2013, 25, 525–535. [Google Scholar] [CrossRef]
- Wold, L.E.; Ying, Z.; Hutchinson, K.R.; Velten, M.; Gorr, M.W.; Velten, C.; Youtz, D.J.; Wang, A.; Lucchesi, P.A.; Sun, Q.; et al. Cardiovascular Remodeling in Response to Long-Term Exposure to Fine Particulate Matter Air Pollution. Circ. Heart Fail. 2012, 5, 452–461. [Google Scholar] [CrossRef] [Green Version]
- Sharykin, A.S.; Badtieva, V.A.; Trunina, I.I.; Osmanov, I.M. Myocardial fibrosis—A new component of heart remodeling in athletes? Cardiovasc. Ther. Prev. 2019, 18, 126–135. [Google Scholar] [CrossRef] [Green Version]
- Doñate Puertas, R.; Millat, G.; Ernens, I.; Gache, V.; Chauveau, S.; Morel, E.; Christin, E.; Couturier, N.; Devaux, Y.; Chevalier, P. Atrial Structural Remodeling Gene Variants in Patients with Atrial Fibrillation. BioMed Res. Int. 2018, 2018, 4862480. [Google Scholar] [CrossRef]
- Tian, X.-T.; Xu, Y.-J.; Yang, Y.-Q. Gender Differences in Arrhythmias: Focused on Atrial Fibrillation. J. Cardiovasc. Transl. Res. 2020, 13, 85–96. [Google Scholar] [CrossRef]
- Cochet, H.; Mouries, A.; Nivet, H.; Sacher, F.; Derval, N.; Denis, A.; Merle, M.; Relan, J.; Hocini, M.; Haïssaguerre, M.; et al. Age, Atrial Fibrillation, and Structural Heart Disease Are the Main Determinants of Left Atrial Fibrosis Detected by Delayed-Enhanced Magnetic Resonance Imaging in a General Cardiology Population. J. Cardiovasc. Electrophysiol. 2015, 26, 484–492. [Google Scholar] [CrossRef]
- Ma, J.; Chen, Q.; Ma, S. Left atrial fibrosis in atrial fibrillation: Mechanisms, clinical evaluation and management. J. Cell. Mol. Med. 2021, 25, 2764–2775. [Google Scholar] [CrossRef]
- Li, S.; Gao, Y.; Liu, Y.; Li, J.; Yang, X.; Hu, R.; Liu, J.; Zhang, Y.; Zuo, K.; Li, K.; et al. Myofibroblast-Derived Exosomes Contribute to Development of a Susceptible Substrate for Atrial Fibrillation. Cardiology 2020, 145, 324–332. [Google Scholar] [CrossRef]
- Lüscher, T.F. Challenges in atrial fibrillation: Detection, alert systems, fibrosis, and infection. Eur. Heart J. 2020, 41, 1063–1066. [Google Scholar] [CrossRef]
- Kohl, P.; Camelliti, P.; Burton, F.L.; Smith, G.L. Electrical coupling of fibroblasts and myocytes: Relevance for cardiac propagation. J. Electrocardiol. 2005, 38, 45–50. [Google Scholar] [CrossRef]
- Poulet, C.; Künzel, S.; Büttner, E.; Lindner, D.; Westermann, D.; Ravens, U. Altered physiological functions and ion currents in atrial fibroblasts from patients with chronic atrial fibrillation. Physiol. Rep. 2016, 4, e12681. [Google Scholar] [CrossRef] [Green Version]
- He, L.; Liu, R.; Yue, H.; Ren, S.; Zhu, G.; Guo, Y.; Qin, C. Actin-granule formation is an additional step in cardiac myofibroblast differentiation. Ann. Transl. Med. 2021, 9, 165. [Google Scholar] [CrossRef]
- Liu, Y.; Niu, X.; Yin, X.; Liu, Y.; Han, C.; Yang, J.; Huang, X.; Yu, X.; Gao, L.; Yang, Y.; et al. Elevated Circulating Fibrocytes Is a Marker of Left Atrial Fibrosis and Recurrence of Persistent Atrial Fibrillation. J. Am. Heart Assoc. 2018, 7, e008083. [Google Scholar] [CrossRef] [PubMed]
- Corradi, D.; Callegari, S.; Benussi, S.; Maestri, R.; Pastori, P.; Nascimbene, S.; Bosio, S.; Dorigo, E.; Grassani, C.; Rusconi, R.; et al. Myocyte changes and their left atrial distribution in patients with chronic atrial fibrillation related to mitral valve disease. Hum. Pathol. 2005, 36, 1080–1089. [Google Scholar] [CrossRef]
- Xiao, H.D.; Fuchs, S.; Campbell, D.J.; Lewis, W.; Dudley, S.C.; Kasi, V.S.; Hoit, B.D.; Keshelava, G.; Zhao, H.; Capecchi, M.R.; et al. Mice with cardiac-restricted angiotensin-converting enzyme (ACE) have atrial enlargement, cardiac arrhythmia, and sudden death. Am. J. Pathol. 2004, 165, 1019–1032. [Google Scholar] [CrossRef] [Green Version]
- Anyukhovsky, E.; Sosunov, E.A.; Plotnikov, A.; Gainullin, R.Z.; Jhang, J.S.; Marboe, C.C.; Rosen, M.R. Cellular electrophysiologic properties of old canine atria provide a substrate for arrhythmogenesis. Cardiovasc. Res. 2002, 54, 462–469. [Google Scholar] [CrossRef]
- Frustaci, A.; Chimenti, C.; Bellocci, F.; Morgante, E.; Russo, M.A.; Maseri, A. Histological substrate of atrial biopsies in patients with lone atrial fibrillation. Circulation 1997, 96, 1180–1184. [Google Scholar] [CrossRef]
- Boldt, A.; Wetzel, U.; Lauschke, J.; Weigl, J.; Gummert, J.; Hindricks, G.; Kottkamp, H.; Dhein, S. Fibrosis in left atrial tissue of patients with atrial fibrillation with and without underlying mitral valve disease. Heart 2004, 90, 400–405. [Google Scholar] [CrossRef] [Green Version]
- Mora, M.T.; Ferrero, J.M.; Gomez, J.F.; Sobie, E.A.; Trenor, B. Ca2+ Cycling Impairment in Heart Failure Is Exacerbated by Fibrosis: Insights Gained From Mechanistic Simulations. Front. Physiol. 2018, 9, 1194. [Google Scholar] [CrossRef]
- Morgan, R.; Colman, M.A.; Chubb, H.; Seemann, G.; Aslanidi, O.V. Slow Conduction in the Border Zones of Patchy Fibrosis Stabilizes the Drivers for Atrial Fibrillation: Insights from Multi-Scale Human Atrial Modeling. Front. Physiol. 2016, 7, 474. [Google Scholar] [CrossRef]
- de Bakker, J.M.T.; van Rijen, H.M.V. Continuous and Discontinuous Propagation in Heart Muscle. J. Cardiovasc. Electrophysiol. 2006, 17, 567–573. [Google Scholar] [CrossRef]
- Jacquemet, V.; Henriquez, C.S. Genesis of complex fractionated atrial electrograms in zones of slow conduction: A computer model of microfibrosis. Hear. Rhythm 2009, 6, 803–810. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zhan, H.; Xia, L.; Shou, G.; Zang, Y.; Liu, F.; Crozier, S. Fibroblast proliferation alters cardiac excitation conduction and contraction: A computational study. J. Zhejiang Univ. Sci. B 2014, 15, 225–242. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Gokhale, T.A.; Asfour, H.; Verma, S.; Bursac, N.; Henriquez, C.S. Microheterogeneity-induced conduction slowing and wavefront collisions govern macroscopic conduction behavior: A computational and experimental study. PLoS Comput. Biol. 2018, 14, e1006276. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jousset, F.; Maguy, A.; Rohr, S.; Kucera, J.P. Myofibroblasts electrotonically coupled to cardiomyocytes alter conduction: Insights at the cellular level from a detailed in silico tissue structure model. Front. Physiol. 2016, 7, 496. [Google Scholar] [CrossRef] [Green Version]
- Zlochiver, S.; Muñ, V.; Vikstrom, K.L.; Taffet, S.M.; Berenfeld, O.; Jalife, J. Electrotonic Myofibroblast-to-Myocyte Coupling Increases Propensity to Reentrant Arrhythmias in Two-Dimensional Cardiac Monolayers. Biophys. J. 2008, 95, 4469–4480. [Google Scholar] [CrossRef] [Green Version]
- Tanaka, K.; Zlochiver, S.; Vikstrom, K.L.; Yamazaki, M.; Moreno, J.; Klos, M.; Zaitsev, A.V.; Vaidyanathan, R.; Auerbach, D.S.; Landas, S.; et al. Spatial Distribution of Fibrosis Governs Fibrillation Wave Dynamics in the Posterior Left Atrium During Heart Failure. Circ. Res. 2007, 101, 839–847. [Google Scholar] [CrossRef] [Green Version]
- King, J.; Huang, C.; Frase, J. Determinants of myocardial conduction velocity: Implications for arrhythmogenesis. Front. Physiol. 2013, 4, 331–344. [Google Scholar] [CrossRef] [Green Version]
- McDowell, K.S.; Zahid, S.; Vadakkumpadan, F.; Blauer, J.; MacLeod, R.S.; Trayanova, N.A. Virtual electrophysiological study of atrial fibrillation in fibrotic remodeling. PLoS ONE 2015, 10, e0117110. [Google Scholar] [CrossRef]
- Comtois, P.; Nattel, S. Interactions between cardiac fibrosis spatial pattern and ionic remodeling on electrical wave propagation. In Proceedings of the 2011 Annual International Conference of the IEEE Engineering in Medicine and Biology Society, Boston, MA, USA, 30 August–3 September 2011; pp. 4669–4672. [Google Scholar]
- Luetkens, J.A.; Wolpers, A.C.; Beiert, T.; Kuetting, D.; Dabir, D.; Homsi, R.; Meendermann, H.; Dayé, N.A.; Knappe, V.; Karsdal, M.; et al. Cardiac magnetic resonance using late gadolinium enhancement and atrial T1 mapping predicts poor outcome in patients with atrial fibrillation after catheter ablation therapy. Sci. Rep. 2018, 8, 13618. [Google Scholar] [CrossRef] [Green Version]
- Kheirkhahan, M.; Baher, A.; Goldooz, M.; Kholmovski, E.G.; Morris, A.K.; Csecs, I.; Chelu, M.G.; Wilson, B.D.; Marrouche, N.F. Left atrial fibrosis progression detected by LGE-MRI after ablation of atrial fibrillation. Pacing Clin. Electrophysiol. 2020, 43, 402–411. [Google Scholar] [CrossRef]
- Mansour, M.; Mandapati, R.; Berenfeld, O.; Chen, J.; Samie, F.H.; Jalife, J. Left-to-right gradient of atrial frequencies during acute atrial fibrillation in the isolated sheep heart. Circulation 2001, 103, 2631–2636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Filgueiras-Rama, D.; Price, N.F.; Martins, R.P.; Yamazaki, M.; Avula, U.M.R.; Kaur, K.; Kalifa, J.; Ennis, S.; Hwang, E.; Devabhaktuni, V.; et al. Long-Term Frequency Gradients During Persistent Atrial Fibrillation in Sheep Are Associated With Stable Sources in the Left Atrium. Circ. Arrhythm. Electrophysiol. 2012, 5, 1160–1167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Traykov, V.B.; Pap, R.; Saghy, L. Frequency domain mapping of atrial fibrillation-methodology, experimental data and clinical implications. Curr. Cardiol. Rev. 2012, 8, 231–238. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Berenfeld, O. Ionic and substrate mechanism of atrial fibrillation: Rotors and the exitación frequency approach. Arch. Cardiol. Mex. 2010, 80, 301–314. [Google Scholar]
- Wilhelms, M.; Hettmann, H.; Maleckar, M.M.; Koivumäki, J.T.; Dössel, O.; Seemann, G. Benchmarking electrophysiological models of human atrial myocytes. Front. Physiol. 2012, 3, 487. [Google Scholar] [CrossRef] [Green Version]
Cell | Capacitance | Conductivity | References |
---|---|---|---|
Cardiomyocyte | 100 pF | 0.26 S/cm | [38,51] |
Fibroblast | 6.3 pF | 0.078 S/cm | [45,46,47,49] |
Myofibroblast | 50.4 pF | 0.078 S/cm | [46,49] |
Fibrocyte | 6.3 pF | 0.024 S/cm | [36,46,47,50,52] |

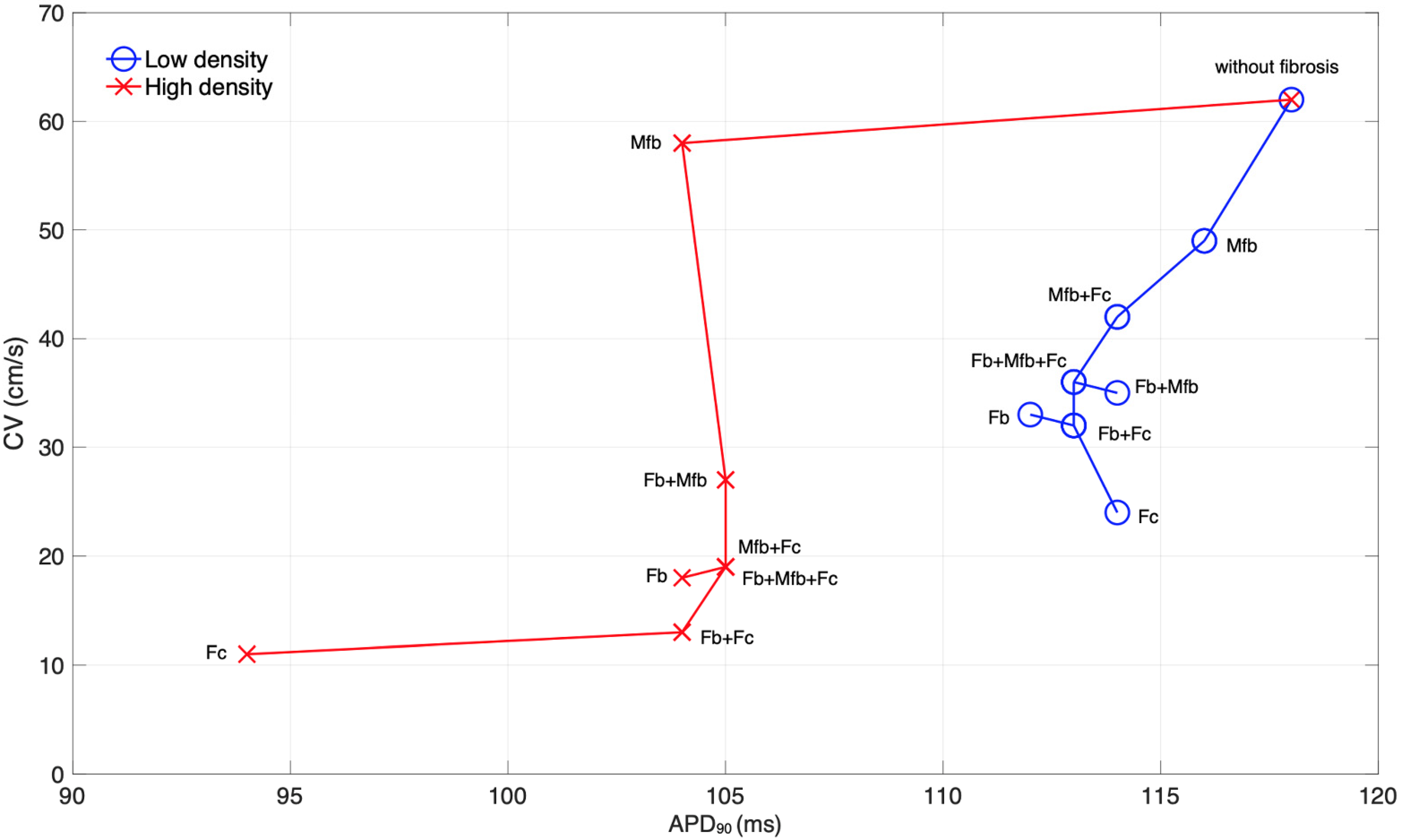

Fibrosis Configuration | APD90 (ms) | APD90 Reduction | CV (cm/s) | CV Reduction | ||||
---|---|---|---|---|---|---|---|---|
Low Density | High Density | Low Density | High Density | Low Density | High Density | Low Density | High Density | |
Without fibrosis | 118 | - | 62 | - | ||||
Fibroblasts | 112 | 104 | 5% | 12% | 33 | 18 | 47% | 71% |
Myofibroblasts | 116 | 104 | 2% | 12% | 49 | 58 | 21% | 6% |
Fibrocytes | 114 | 94 | 3% | 20% | 24 | 11 | 61% | 82% |
Fibroblasts + myofibroblasts | 114 | 105 | 3% | 11% | 35 | 27 | 44% | 56% |
Fibroblasts + fibrocytes | 113 | 104 | 4% | 12% | 32 | 13 | 49% | 79% |
Myofibroblasts + fibrocytes | 114 | 105 | 3% | 11% | 42 | 19 | 32% | 70% |
Fibroblasts + myofibroblasts + fibrocytes | 113 | 105 | 4% | 11% | 36 | 19 | 42% | 70% |
Fibrosis Configuration | Fibrosis Density | LA mDF (Hz) | RA mDF (Hz) | Right-to-Left DF Gradient (Hz) |
---|---|---|---|---|
Without fibrosis | - | 9.2 | 9.2 | 0.0 |
Fibroblasts | Low | 8.8 | 9.2 | 0.4 |
High | 6.7 | 9.3 | 2.6 | |
Myofibroblasts | Low | 8.9 | 9.3 | 0.4 |
High | 8.3 | 9.3 | 1.0 | |
Fibrocytes | Low | 8.3 | 9.3 | 1.0 |
High | 4.8 | 9.3 | 4.5 | |
Fibroblasts + myofibroblasts | Low | 9.1 | 9.3 | 0.2 |
High | 7.5 | 9.3 | 1.8 | |
Fibrocytes + fibroblasts | Low | 8.7 | 9.2 | 0.5 |
High | 5.5 | 9.2 | 3.7 | |
Fibrocytes + myofibroblasts | Low | 8.4 | 9.3 | 0.9 |
High | 7.0 | 9.3 | 2.3 | |
Fibrocytes + myofibroblasts + fibrocytes | Low | 8.7 | 9.3 | 0.6 |
High | 6.8 | 9.3 | 2.5 |
