Application of Sawdust-Derived Activated Carbon as a Bio-Based Filler in Vulcanized Rubber Bushings

by
Enasty Pratiwi Wulandari
1,
Popy Marlina
2,
Nasruddin
3,*,
Lanjar
3,
Heryoki Yohanes
3,
Wahju Eko Widodo
3,
S. Joni Munarso
3,
Astuti
3,
Eko Bhakti Susetyo
3,
Yenni Bakhtiar
3,
Haixin Guo
4 and
Wahyu Bahari Setianto
3
1
Mechanical Engineering Department, Tamansiswa University, Palembang 30126, Indonesia
2
The Palembang Center for Standardization and Industrial Services (BSPJI), Palembang 30128, Indonesia
3
National Research and Innovation Agency (BRIN), KST B.J. Habibie, South Tangerang 15314, Indonesia
4
Agro-Environmental Protection Institute, Ministry of Agriculture and Rural Affairs, Tianjin 300191, China
*
Author to whom correspondence should be addressed.
Polymers 2025, 17(22), 2996; https://doi.org/10.3390/polym17222996
Submission received: 26 August 2025 / Revised: 1 October 2025 / Accepted: 2 October 2025 / Published: 11 November 2025
(This article belongs to the Special Issue Exploration and Innovation in Sustainable Rubber Performance)
Browse Figures
Review Reports Versions Notes

Abstract

This study investigated sawdust-derived activated carbon (SAC) as a sustainable reinforcing filler for vulcanized rubber bushings (VRBs). Two types SAC200 (75 µm, carbonized at 200 °C) and SAC400 (38 µm, carbonized at 400 °C) were chemically activated and incorporated into natural rubber (NR) at 25–55 phr loadings, while SAC free VRBs served as controls. Fourier transform infrared (FTIR) analysis revealed that SAC400 exhibited stronger hydroxyl and carbonyl functional groups, indicating higher surface reactivity compared with SAC200. The incorporation of SAC increased cross-linking density, thereby enhancing both curing behavior and mechanical performance. VRBs reinforced with SAC400 demonstrated higher maximum torque (up to 38.07 kg·cm), shorter scorch time (5 min 58 s), and reduced cure time (11 min 05 s) relative to SAC200 and the control. Mechanical properties improved markedly, with hardness and tensile strength rising from 45 Shore A and 5.52 MPa in the control to 70 Shore A and 13.40 MPa in SAC400. Although elongation at break decreased slightly, it remained within the acceptable range for dynamic applications. Swelling resistance also increased, reaching 101.76% at 25 °C and 106.61% at 100 °C. Overall, SAC400 consistently outperformed SAC200 and the control, highlighting its potential as a renewable, biomass-derived filler for high-performance rubber bushings and promising a sustainable alternative to conventional fillers in industrial applications.

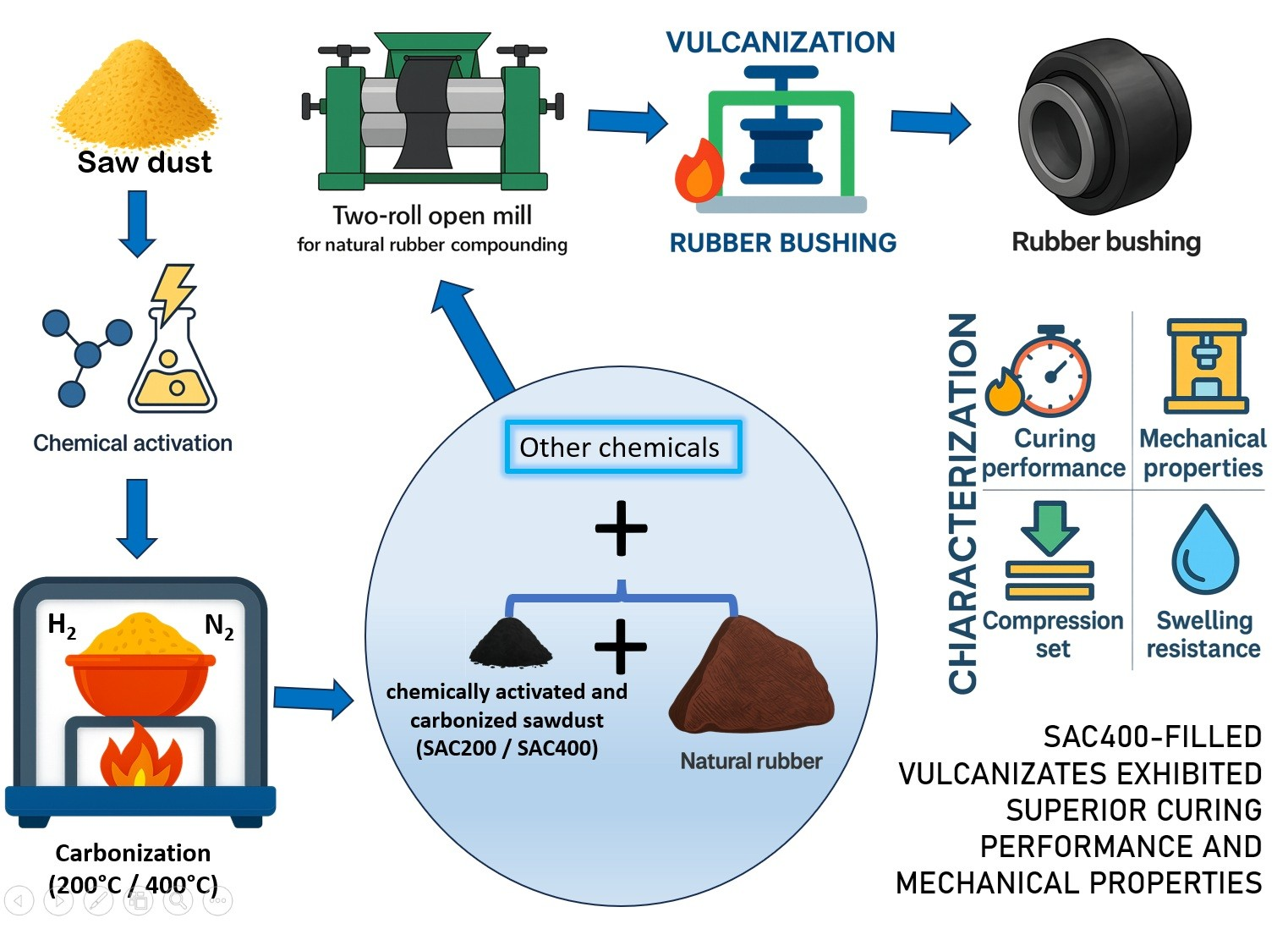

Graphical Abstract

1. Introduction

Natural rubber (NR) is an elastomeric biopolymer composed of cis-1,4-polyisoprene [1,2]. It is one of the most widely used elastomers, with global production reaching 13.77 million tons in 2021 [3]. NR is extensively applied across diverse sectors, including automotive components, medical devices, petrochemicals, mining, and other industrial applications [4]. The growing diversity of NR-based applications has stimulated the development of advanced compounding systems, which incorporate various additives such as accelerators, activators, plasticizers [5], antioxidants [6], vulcanizing agents, and reinforcing fillers. Among these, reinforcing fillers play a pivotal role in enhancing the mechanical and dynamic performance of vulcanizates, including tensile strength, modulus, elongation at break, abrasion resistance, compression set, swelling resistance, and dimensional stability [7,8,9]. Nearly all commercial rubber vulcanizates utilize reinforcing fillers derived from petroleum-based carbon black (CB) [10,11]. Petroleum-derived CB is produced via incomplete combustion of hydrocarbons, where approximately two metric tons of petroleum feedstock are required to produce one metric ton of CB [12]. However, this reliance on petroleum-based CB imposes significant environmental burdens.
Among these, reinforcing fillers play a pivotal role in enhancing the mechanical and dynamic performance of vulcanizates, including tensile strength, modulus, elongation at break, abrasion resistance, compression set, swelling resistance, and dimensional stability [12,13,14,15]. In automotive applications, rubber bushings are essential for vibration isolation, enabling controlled movement between components while reducing noise and improving both comfort and safety [13,14,15]. To optimize these properties, conventional fillers such as CB are widely employed. Nevertheless, concerns regarding environmental impact and the depletion of fossil resources have driven interest in sustainable biomass-derived alternatives [16,17]. Bio-based fillers (bio-fillers) offer several advantages, including biodegradability, a lower environmental footprint, reduced density, and cost-effectiveness [18]. Their compatibility with rubber matrices further strengthens their potential for developing green composites [16].
The mechanical behavior of rubber bushings is strongly influenced by polymer type, filler loading, and compounding formulation [19]. Hence, the integration of bio-fillers into NR not only aligns with sustainable materials engineering but also provides promising mechanical reinforcement. Several bio-derived fillers have been investigated in NR systems. Cifriadi et al. [12] reported the utilization of cassava starch and tamarind wood, while Haslilywaty et al. [20] employed rice husk ash and tacca starch. Joshi et al. [21] demonstrated the reinforcing effects of banana fibers. These bio-fillers improved mechanical performance while also offering biodegradability [22]. Thomas et al. [23] highlighted the advantageous properties of cellulose-, chitin-, and starch-based fillers, which are cost-effective and environmentally friendly. Furthermore, Sowińska et al. and Suhu [24] reported improved thermal oxidation resistance and reinforcement using walnut shell powder and corn starch, respectively.
Activated carbon derived from lignocellulosic biomass, particularly sawdust, has recently emerged as a promising bio-filler due to its high surface area, porous structure, and abundant surface functionalities [25,26]. According to Negara et al., [27] sawdust-derived activated carbon exhibits mesoporous structures with an average pore diameter of 2.43 nm, a pore volume of 0.369 cm3 g−1, and a specific surface area 409.7 m2 g−1, enabling broad applicability. These properties facilitate both mechanical interlocking and physicochemical interactions with rubber matrices. Although its reinforcing potential is recognized, systematic studies remain limited on how processing parameters, particularly carbonization temperature and particle size affect its performance.
Rubber bushings operating under dynamic and cyclic loading conditions require high compressive strength, elasticity, and fatigue resistance [28]. While conventional fillers such as CB and silica provide excellent reinforcement [29,30], they often increase stiffness at the expense of elasticity. Consequently, bio-based fillers are sought as alternative reinforcements that can maintain mechanical performance while offering environmental benefits. Activated carbon from renewable precursors is an inexpensive and abundant alternative with the potential to generate added value [31].
Sawdust-derived activated carbon (SAC) typically exhibits high surface area, porosity, and functional group density, which promote strong interactions with polymer matrices. For example, SAC has been reported to possess a hierarchical porous structure with micropores (0.55 nm) and mesopores (2.58 nm), resulting in a specific surface area of 621 m2 g−1 and a pore volume of 0.35 cm3 g−1 [32]. With such characteristics, SAC enhances interfacial interactions within rubber matrices. Previous studies synthesized SAC via chemical activation followed by carbonization 43. Chemically activated SAC exhibited favorable properties, including a BET surface area of ~1250 m2 g−1, a pore volume of 0.78 cm3 g−1, carbon content of ~93%, low ash content (7.36%), and an iodine number of 1161.3 mg g−1 [33]. Incorporation of SAC into rubber compounds at loadings up to 100 phr improved torque response and hardness.
Despite these advantages, most prior studies employed only a single SAC variant, limiting insights into how carbonization temperature and particle size govern reinforcement efficiency. Understanding these parameters is critical for tailoring filler morphology and functionality toward optimal performance in NR vulcanizates, particularly for high-demand automotive components such as bushings. This study aims to investigate the influence of carbonization temperature (200 °C and 400 °C) and particle size (75 µm and 38 µm) of SAC on the curing characteristics and mechanical properties of NR composites for automotive bushing applications. SAC200 and SAC400 were incorporated at various loadings and compared with an unfilled control. Fourier transform infrared spectroscopy (FTIR) was employed to explore surface chemistry variations, while vulcanization behavior (maximum torque, scorch time, and optimum cure time) and mechanical properties (tensile strength, elongation at break, hardness, and compression set) were systematically evaluated.
This work contributes to the development of environmentally friendly, high-performance rubber composites while supporting biomass waste valorization in advanced materials engineering. The incorporation of SAC into NR-based bushing compounds enhances interfacial polar interactions absent in conventional CB, resulting in superior reinforcement efficiency. Moreover, the findings emphasize that SAC surface chemistry plays a decisive role in determining the mechanical properties of rubber bushings.
Unlike previous studies, this study uses a single variant of activated carbon derived from sawdust. This study systematically explores the combined effects of carbonization temperature and particle size on the performance of reinforcing fillers in rubber vulcanizates. The novelty of this study lies in demonstrating how these processing parameters govern the drying behavior and mechanical response of rubber bushings under dynamic conditions. The results provide new insights into the tailoring of biomass-derived fillers for high-performance elastomer applications, while also promoting sustainable materials engineering through the utilization of sawdust waste.

2. Methods

2.1. Instrumentation

The preparation of the rubber compounds and vulcanized samples was conducted using the equipment listed in Table 1. Key instruments included a muffle furnace (Nabertherm GmbH) for sawdust carboniation, an XK-160 open two-roll mill for mastication and compounding, and a hydraulic hot press for vulcanization. Additional equipment included a digital balance for accurate weighing of materials and a Monsanto Moving Die Rheometer (MDR 2000, Alpha Technologies, Bellingham, WA, USA) for measuring vulcanization characteristics.

2.2. Materials and Specifications

The materials utilized in this experiment are listed in Table 2.

2.3. Experimental Design

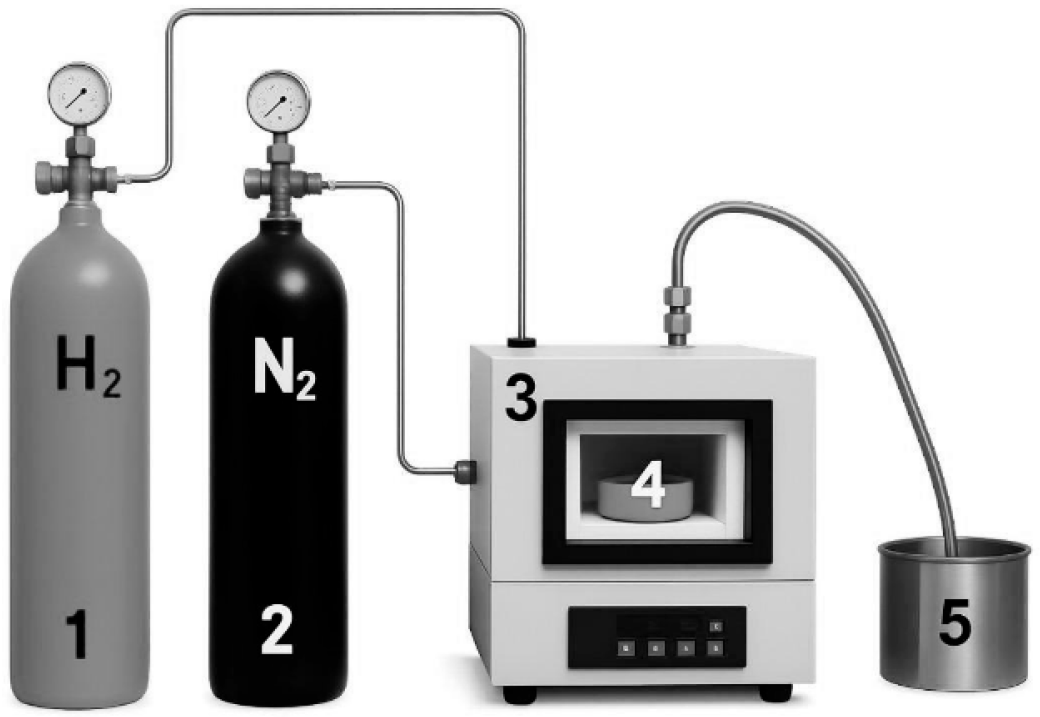

2.3.1. Preparation of Activated Charcoal

Sawdust was first washed with distilled water and oven-dried at 110 °C for 24 h. The carbonization process was conducted in a muffle furnace at 900 °C for 30 min to obtain raw charcoal, which was then ground and sieved to 200 mesh (75 µm) and 400 mesh (38 µm). The chemical activation process was initiated by soaking 5000 g of sieved charcoal in a 10% phosphoric acid (H3PO4) solution for 24 h at ambient temperature. Following impregnation, the samples were thoroughly rinsed with distilled water to remove residual acid. Subsequent carbonization was performed in a muffle furnace equipped with a gas circulation system utilizing hydrogen (H2) and nitrogen (N2), along with a hydrogen combustion safety unit. Two types of sawdust-derived activated charcoal were produced: SAC200—particle size of 75 µm, carbonized at 200 °C for 120 min; SAC400—particle size of 38 µm, carbonized at 400 °C for 120 min.
Post-carbonization, the activated charcoal was allowed to cool within the furnace for 24 h to prevent oxidation and then stored in airtight containers to maintain its integrity. The equipment utilized in this process is shown in Figure 1.
The quality parameters of the resulting activated charcoal were evaluated in accordance with SNI 06-3730-1995 standards (refer to Table 3) [34].

2.3.2. Rubber Compounding Procedure

Rubber compounding was conducted based on the formulation presented in Table 4 using a two-roll open mill. Natural rubber was first masticated for approximately 8 min until a plasticized state was achieved. The activator (ZnO) and co-activator (stearic acid) were then added and mixed for 3 min to ensure uniform dispersion. SAC was gradually incorporated and milled for 4 min until evenly distributed within the rubber matrix. Subsequently, the plasticizer, antioxidant, accelerator, scorch retarder, and coupling agent were sequentially introduced and mixed for 5 min to achieve a fully homogeneous compound. Finally, the vulcanizing agent (sulfur) was added and mixed for an additional 5 min until the compound reached complete uniformity.

2.3.3. Vulcanization

The rubber compounds were molded and vulcanized using a hydraulic hot press at 150 °C for 10 min under a pressure of 170 kgf/cm2 to produce vulcanized rubber bushing (VRB) specimens.

2.4. Test Method

2.4.1. FTIR Spectroscopy

Fourier transform infrared (FTIR) spectroscopy was performed in this study using a Shimadzu IRTracer-100 spectrometer equipped with an Attenuated Total Reflectance (ATR) accessory to identify the surface functional groups present on the sawdust-derived activated carbon (SAC). Special attention was given to the detection of hydroxyl (–OH) and carbonyl (C=O) groups, which are known to promote interfacial interactions with elastomeric matrices and enhance filler–rubber compatibility. The presence of these oxygen-containing groups plays a crucial role in improving filler dispersion, interfacial adhesion, and overall reinforcement efficiency in rubber composites [35].

2.4.2. Curing Characteristics

Curing behavior was evaluated using a Moving Die Rheometer (MDR 2000) at 150 °C, following ISO 3417:2008 [36]. The parameters measured included minimum torque (Smin), maximum torque (Smax), scorch time (ts2), and optimum cure time (t90) [37,38]. The cure rate index (CRI) [39] was calculated using the following equation:
C R I =   100 t c 90   −   t 2     ×   100 %

2.4.3. Mechanical Testing Procedures

Mechanical properties were evaluated through standard test methods. Hardness was measured using a durometer in accordance with ASTM D2240-15 [40]. Tensile strength according to ASTM D395-18 (22 h at 100 °C) [40]. Swelling resistance was assessed following ASTM D471 [41] by immersing samples in engine oil at 100 °C for 72 h. The percentage swelling [42] was calculated using the following equation:
%   S w e l l i n g =   W 2 −   W 1 W 1   ×   100 %
where W1 is the mass of the specimen prior to immersion, and W2 is the mass following immersion.
All mechanical tests were conducted in triplicate, and the results are presented as the mean ± standard deviation.

3. Results and Discussion

3.1. FTIR Analysis of Sawdust-Based Activated Carbon

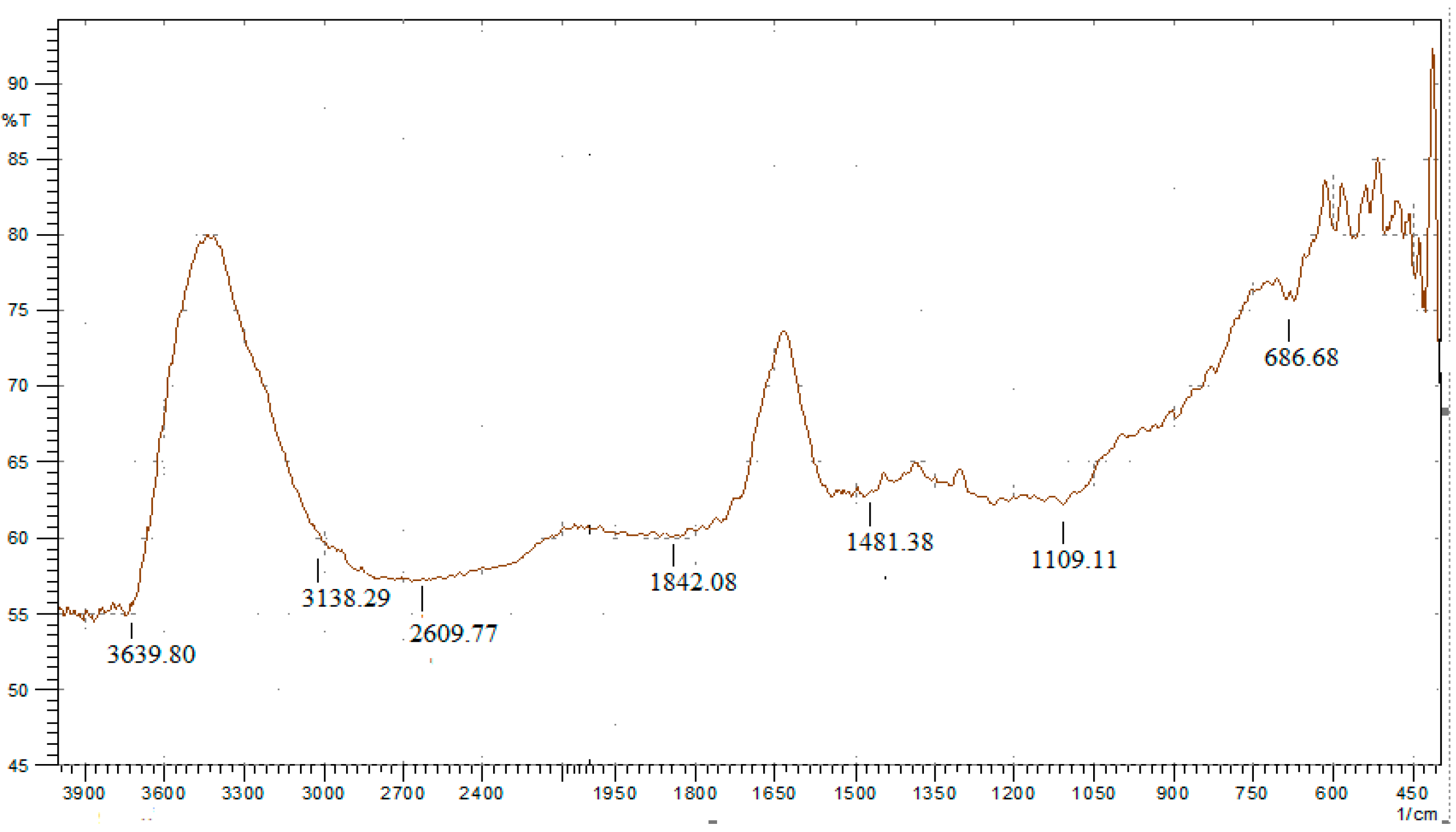

The FTIR spectrum of sawdust-derived activated carbon (SAC) (Figure 2) revealed the presence of characteristic functional groups that contribute to the reinforcing capability of SAC in the natural rubber matrix. A broad absorption band centered at 3639–3138 cm−1 corresponds to O–H stretching vibrations from hydroxyl groups in phenolic, alcoholic, or adsorbed moisture species.
These polar functionalities increase surface polarity, enabling hydrogen bonding and improved filler–rubber interactions. The bands observed at 2609.77 cm−1 and 1720–1842 cm−1 are assigned to C=O stretching vibrations, suggesting the presence of carbonyl groups from carboxylic acids, aldehydes, or ketones generated during oxidative activation. Such oxygenated groups are known to enhance interfacial reactivity and promote higher crosslinking density during vulcanization [36]. In addition, weak peaks near 2920 cm−1 (C–H stretching of –CH2/–CH3), 1481.38 cm−1 (C–H bending), and 1109.11 cm−1 (C–O stretching of secondary alcohols or ethers) further confirm the partial retention of lignocellulosic structures and the introduction of oxygen-based moieties. The fingerprint region (500–1100 cm−1) also exhibits bands characteristic of alcohols, ethers, and esters, while the peak at 686.68 cm−1 corresponds to aromatic C=C stretching, indicating the presence of condensed aromatic structures derived from lignin carbonization [43]. While FTIR provides direct evidence of surface functional groups, the confirmation of elemental composition and chemical states requires complementary analysis. X-ray Photoelectron Spectroscopy (XPS) has been widely recommended in recent studies to quantify oxygen-containing groups (C–O, C=O, O–C=O) and to verify their chemical environment. For instance, XPS deconvolution of the C 1s region typically reveals sp2-hybridized carbon (C=C), sp3-hybridized carbon (C–C), and oxygenated species (C–O, C=O), in agreement with the oxygen functionalities detected by FTIR. The O 1s spectrum further distinguishes between hydroxyl, carbonyl, and carboxyl contributions. Therefore, the combination of FTIR and XPS provides a robust verification: FTIR identifies vibrational modes of functional groups, while XPS quantifies the atomic-level chemical states and confirms the abundance of oxygen functionalities that facilitate strong interfacial adhesion in SAC-filled rubber composites. The FTIR–XPS results in this study are in line with the report from Rosan et al. [44], Yang et al. [45], Marija Ilić et al. [46], where FTIR detects the characteristic vibrations of oxygenated groups (C–O, C=O), while XPS quantifies the contribution of oxygen species through the deconvolution of C1s and O1s peaks. This consistency strengthens the evidence that the presence of oxygen groups plays an important role in enhancing interfacial interactions in activated carbon-based materials.
This dual characterization not only validates the surface chemistry of SAC but also underpins its reinforcing role in natural rubber compounds formulated in Table 4. The simultaneous presence of hydroxyl, carbonyl, ether, and aromatic structures contributes to improved filler dispersion, increased cross-link density during vulcanization, and enhanced mechanical performance of vulcanized rubber bushings compared to conventional carbon black. Such complementary evidence highlights SAC as a sustainable and multifunctional bio-based filler with clear advantages in polymer reinforcement applications [47,48].

3.2. Curing Characteristics of Natural Rubber Compounds

The curing characteristics of natural rubber (NR) compounds filled with SAC200 and SAC400 at various loadings (0–55 phr) were evaluated using rheometric parameters, including maximum torque (Smax), minimum torque (Smin), torque difference (ΔS = Smax − Smin), scorch time (ts2), optimum cure time (t90), and cure rate index (CRI) [49]. The results, summarized in Table 5, reveal significant variations in vulcanization behavior across formulations. The chemical functionality of SAC, particularly the presence of oxygen-containing groups like hydroxyl and carbonyl, which improve interactions with curing agents and the rubber matrix, is primarily responsible for these variations [50]. FTIR test results indicate the presence of dominant hydroxyl and carbonyl groups in SAC400. The presence of these groups affects the hardening characteristics of the rubber compound. With the presence of this group, the maximum torque (Smax) of SAC400 vulcanizate increased significantly from 3.451 N·m to 3.733 N·m when compared with SAC200 and the control.
The difference in filler loading has a significant effect on cross-link formation. At a filler loading of 30 phr, the cross-link density increases and the torque delta (ΔS) changes. This implies that the network structure and stiffness of the rubber have improved [51]. However, at filler loadings above 30 phr, ΔS decreases and the ts2 and t90 values increase. This phenomenon implies that excessive amounts of filler can cause the rubber chain to become unstable and the resulting cross-link system to become less uniform.
Among the measured parameters, maximum torque (Smax) rose significantly with increasing SAC content, particularly for SAC400. A Smax of 38.07 kg·cm was recorded by SAC400 at 55 phr, indicating increased stiffness and cross-link density. This was ascribed to enhanced filler–matrix adhesion, which was facilitated by the polar surface and numerous active sites of SAC400 [52,53,54,55]. Conversely, minimum torque (Smin), which reflects compound viscosity before curing, showed only minor variation with SAC loading. Yet, SAC400 showed a marked increase in ΔS at higher loadings, peaking at 29.31 kg·cm at 45 phr, likely due to its finer particle size (38 µm), which enhances surface area and dispersion efficiency [56]. SAC400, with a surface area of 38 µm, has a higher density of polar functional groups (–OH, –COOH, –C=O). These groups act as catalytic sites that can interact with sulfur during vulcanization. These groups accelerate the cross-linking reaction. Furthermore, vulcanizates loaded with SAC400 exhibited a faster ts2 time than SAC200, resulting in a faster cross-linking reaction.
Similar trends have been reported in previous studies, where activated carbon with abundant surface functionalities accelerated the drying kinetics and enhanced the rubber–filler interactions. Li et al. [57] showed that activated carbon with very high surface area had abundant oxygen functionalities, while Ma et al. [58] reported that Sakura-derived activated carbon exhibited significant –OH, –C=O, and –COOH groups. The results indicate that the bio-based activated carbon filler accelerated the drying time and improved the mechanical performance of natural rubber composites, consistent with the faster ts2 observed in the SAC400-filled vulcanizate.
The SAC material used in this study possessed high porosity and carbon content (72.32%), contributing to better surface reactivity and adsorption capacity [59]. These properties enabled more efficient heat transfer and molecular mobility during vulcanization, leading to denser crosslinking and improved mechanical response. Consequently, both scorch time (ts2) and optimum cure time (t90) decreased with SAC400 loading, reaching their lowest values at 5 min 58 sec and 11 min 05 sec, respectively. Acceleration of the curing process, in line with previous findings that finer particles increase thermal conductivity and internal friction, thereby shortening the overall curing time [60]. A shorter t90 increases energy efficiency in processing [61,62], while a lower ts2 improves the processability of the compound.
The cure rate index (CRI), representing vulcanization kinetics, was highest for SAC400 at 55 phr, confirming its superior curing performance [63]. SAC400’s enhanced surface properties high surface area, porosity, and polarity are key contributors to this outcome, promoting faster heat distribution and chain mobility. As observed in Table 5, the trend of increasing Smax with SAC loading suggests a corresponding increase in cross-link density, likely driven by interactions between SAC hydroxyl groups and the NR matrix [64]. Meanwhile, Smin values fluctuated moderately, likely influenced by the balance between filler dispersion and matrix viscosity.
At equivalent loadings, SAC400 consistently outperformed SAC200 in terms of ts2, t90, and CRI, confirming its superior curing efficiency. Variations in cross-link density and internal heat generation largely governed the differences in curing behavior from filler–rubber friction [65]. Overall, NR compounds filled with 45–55 phr SAC400 exhibited the most favorable curing characteristics, high Smax, low ts2, t90, and elevated CRI values. These findings position SAC400 not only as a reinforcing filler but also as an active contributor to vulcanization kinetics. Its dual role underscores its potential as an efficient, bio-based alternative to conventional fillers, particularly for demanding applications such as automotive rubber bushings [66].

3.3. Mechanical Properties and Performance Analysis

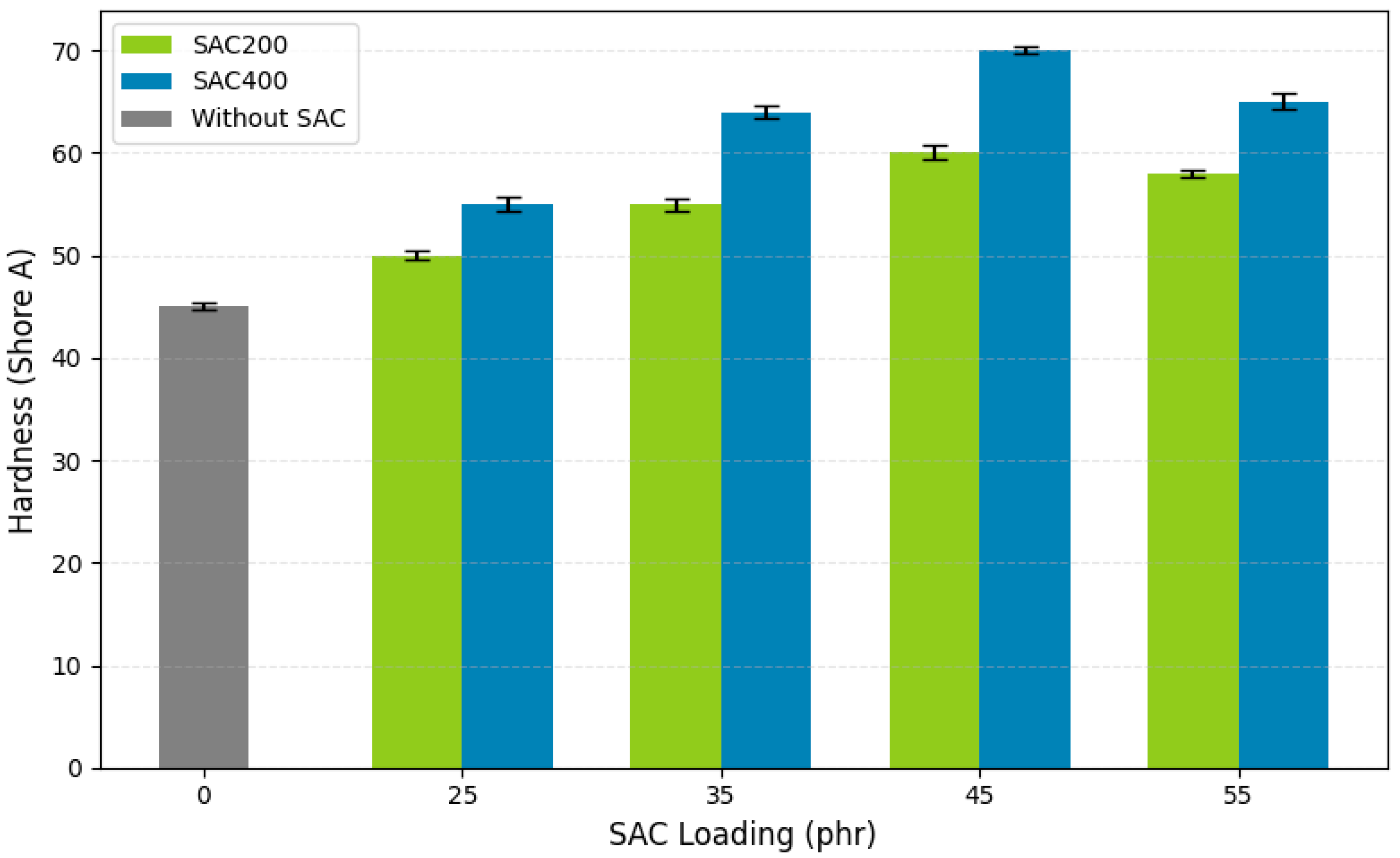

3.3.1. Hardness

Hardness is a key mechanical parameter reflecting the resistance of a vulcanizate to surface deformation and is directly related to cross-linking density and filler–matrix interactions. In automotive rubber bushings (VRBs), which must maintain dimensional stability under repeated mechanical stress, hardness serves as a crucial performance metric. As shown in Figure 3 and Table 4, the addition of SAC to natural rubber compounds can significantly increase hardness.
The unfilled control sample exhibited a baseline hardness of 45 Shore A. With increasing SAC loading, a progressive rise in hardness was observed. SAC400, carbonized at 400 °C and possessing a finer particle size (38 µm), consistently yielded higher hardness values than SAC200 (75 µm, 200 °C). At 55 phr, SAC400 reached 70 Shore A, fulfilling the industrial standard for VRB (70 ± 5 Shore A). Because SAC200 could only support 60 Shore A at the same loading, the reinforcement was less effective. Activated carbon with smaller particle size and richer surface functionality provides better reinforcement in the rubber matrix, resulting in higher hardness values compared to larger particle fillers.
The superior performance of SAC400 is attributed to its higher surface area and carbon purity, which promote effective filler dispersion and interfacial bonding. FTIR analysis (Figure 2) confirmed the presence of functional groups such as C=C and C=O, along with reduced –OH intensity in SAC400, indicating greater graphitization and hydrophobicity. The detection of sulfur-containing bonds (C–S, S–S) further indicates that SAC400 can participate in the vulcanization reaction, contribute to the formation of three-dimensional networks, and influence the VRB hardness value. The enhancement in hardness is closely related to increased crosslink density. The observed increase in hardness is primarily due to the presence of functional groups in SAC, as identified through FTIR analysis. These functional groups enhance interfacial interactions with the rubber matrix. Furthermore, cross-linking formed by sulfur, accelerated by accelerators and activators, increases the overall cross-linking density. This contributes to the increase in VRB hardness. These findings are consistent with previous findings on bio-based fillers [67]. The use of the ZnO stearic acid system, in combination with CBS and TMTD accelerators, supported efficient vulcanization and uniform crosslink distribution. However, hardness plateaued at loadings above 45 phr, likely due to filler agglomeration, which may hinder matrix uniformity and restrict further reinforcement.
The presence of coupling agents during mixing reduces interfacial tension and improves filler–rubber adhesion [68]. In modified natural rubber (MNR), polar functional groups can interact favorably with SAC, while non-polar domains align with the rubber matrix. Larger SAC particles may limit chain mobility during deformation, resulting in greater localized indentation and decreased hardness [69]. Overall, SAC400-filled NR compounds at 45 and 55 phr met commercial hardness requirements, demonstrating the material’s capability for application in high-performance automotive bushings (VRB). The combination of optimized morphology and surface chemistry supports SAC400 as a viable bio-derived alternative to conventional fillers in elastomeric systems.

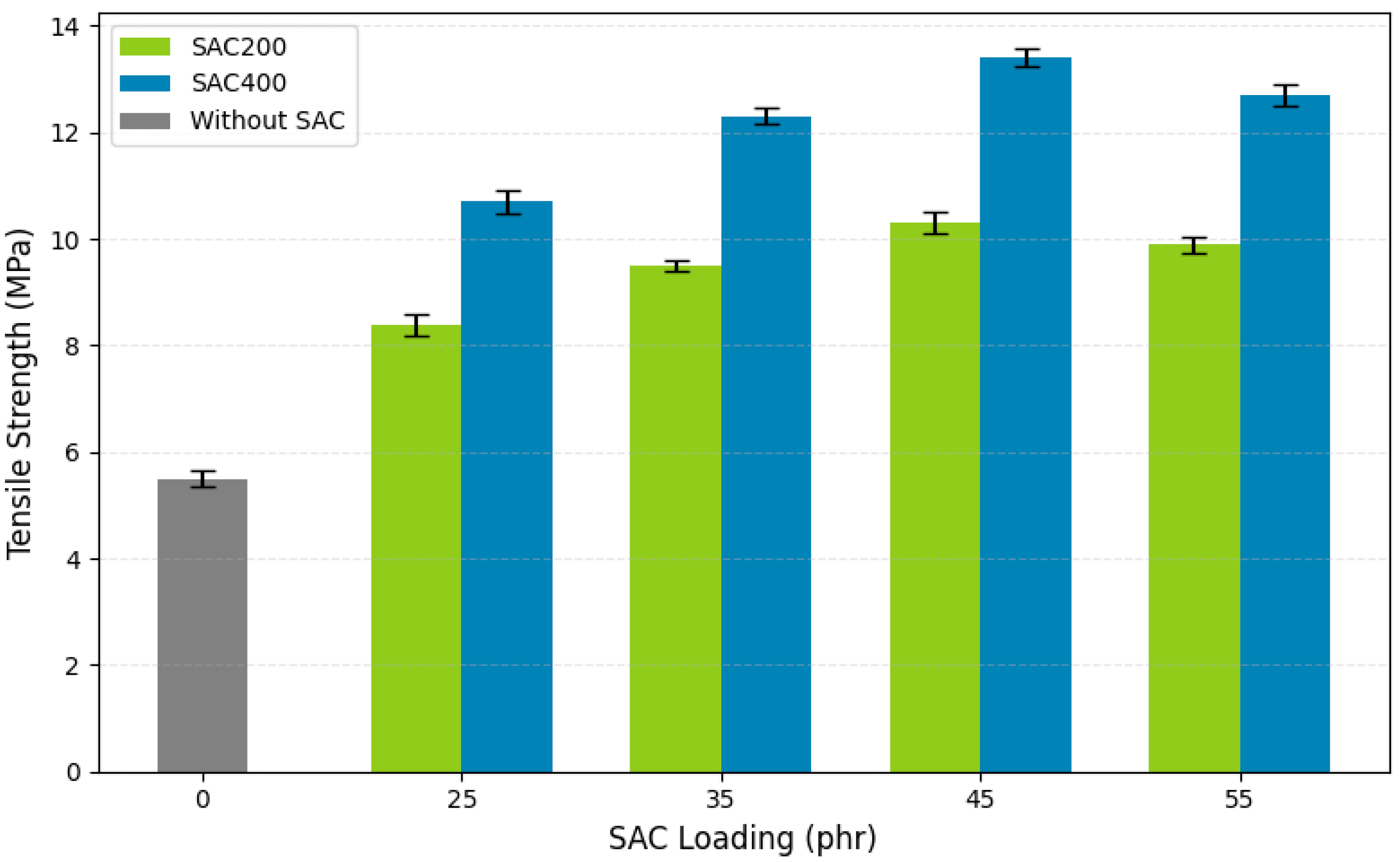

3.3.2. Tensile Strength

Tensile strength is a fundamental parameter for assessing the mechanical performance of vulcanized rubber (VRB), especially in reinforced systems. It represents the material’s ability to withstand stress under tensile loading before failure. Figure 4 presents the tensile strength of VRB filled with SAC200 and SAC400 across various loadings.
The unfilled compound exhibited a tensile strength of 5.52 MPa, establishing the baseline for comparison. As SAC content increased, tensile strength improved progressively, confirming SAC’s reinforcing capability. The increased tensile strength is due to improved filler–matrix adhesion, interfacial stress transfer, and physical interlock, all of which are facilitated by SAC’s porous structure and large surface area. These results are consistent with earlier studies on the enhancement of elastomeric properties by carbon fillers derived from biomass [70]. The existence of polar functional groups on the filler surface explains the higher tensile strength of VRB, particularly those reinforced with SAC400.
The polar groups actively encourage greater interfacial adhesion by forming hydrogen bonds and dipole–dipole interactions with the non-polar polyisoprene chains. Interfacial adhesion improves stress transfer effectiveness in the composite. Furthermore, the polar surface properties of SAC400 promote better dispersion into the NR matrix. The resulting interfacial adhesion interacts with ZnO, stearic acid, sulfur, and other additives to form tighter cross-links. This results in a significant increase in tensile strength.
Across all loadings, SAC400 outperformed SAC200. At 45 phr, SAC400 reached a peak tensile strength of 13.4 MPa, significantly higher than SAC200’s 9.56 MPa at the same loading, an increase of approximately 40%. This value exceeds the tensile strength range typically reported for carbon black-filled NR (11–13 MPa at 30 phr) [71,72], highlighting SAC400’s competitive performance. The superior performance of SAC400 is attributed to its finer particle size (38 µm), higher carbonization temperature (400 °C), and higher surface area, which collectively enhance dispersion and interfacial bonding. At 55 phr, SAC400 maintained a high tensile strength of 12.51 MPa, surpassing the minimum industry requirement of 11 MPa for automotive VRB. In contrast, SAC200 exhibited a marked reduction at this loading, likely due to agglomeration and poor dispersion, common challenges in particulate-filled elastomer systems.
The reinforcing mechanism involves both physical and chemical interactions. Physically, SAC particles interact with rubber chains via van der Waals forces. Chemically, functional groups on the SAC surface (–OH, C=O) form bonds with the rubber matrix during vulcanization [72]. The presence of maleated natural rubber (MNR) as a coupling agent further enhances compatibility and stress distribution. SAC400’s optimized morphology also contributes to a more uniform crosslink network, resulting in higher tensile strength [73]. These results support earlier findings on the importance of filler particle size, surface area, and dispersion in achieving mechanical reinforcement [74]. Overall, SAC400 demonstrated superior performance compared to SAC200, positioning it as a highly effective, sustainable filler for high-performance vulcanized rubber bushings.

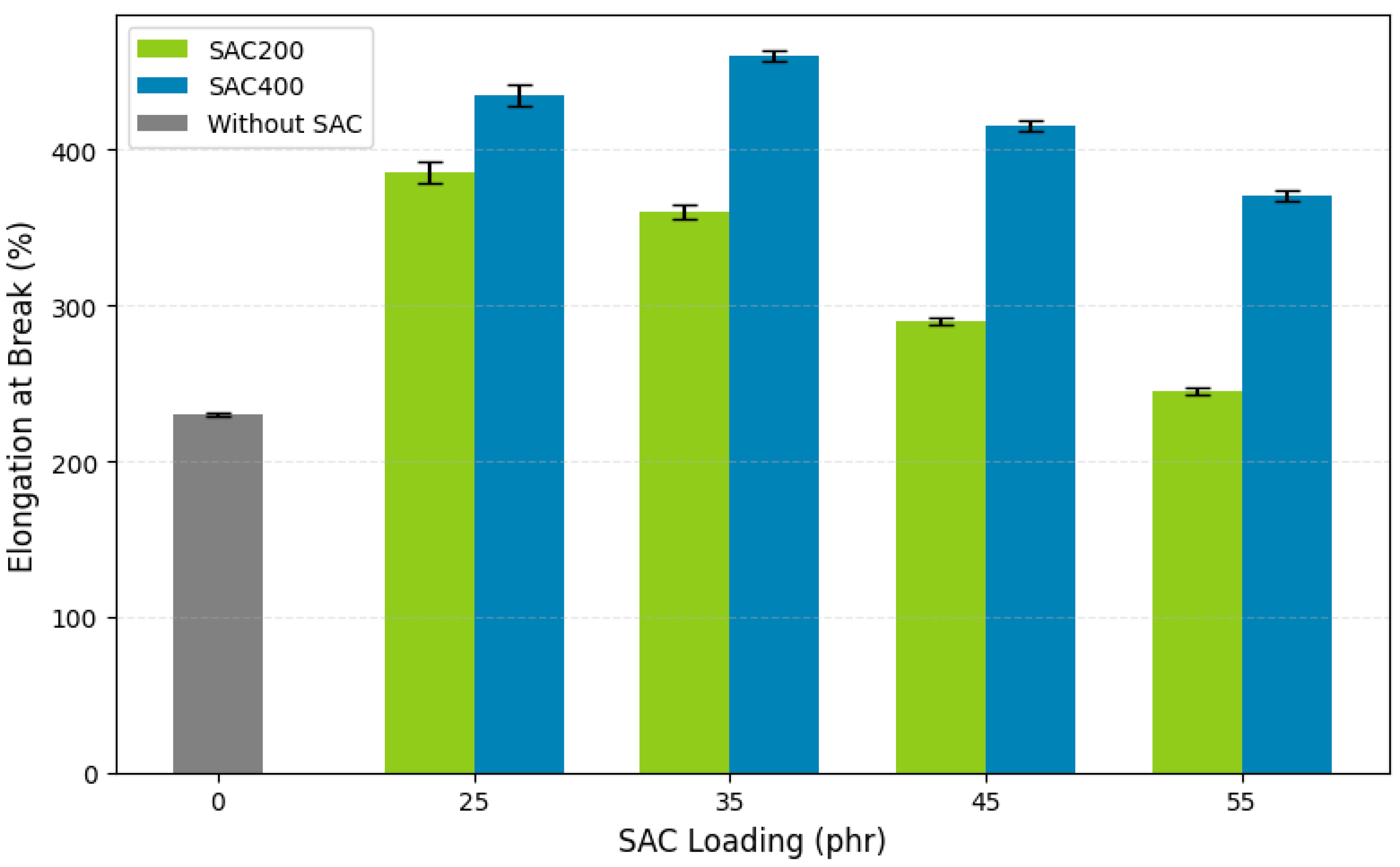

3.3.3. Elongation at Break

Elongation at break is an important parameter that reflects the flexibility and toughness of VRB under tensile stress. This parameter indicates the extent to which a material can stretch before breaking. As shown in Figure 5, the unfilled control sample (0 phr SAC) exhibited an elongation at break of 530%, demonstrating unrestricted chain mobility in the absence of fillers. The SAC200 and SAC400 loadings on each VRB significantly affected these properties. The loading of SAC200 and SAC400 on each VRB significantly affected these properties, consistent with previous findings that the addition of bio- or carbon-based fillers limits chain mobility and reduces elongation at break due to stronger filler–rubber interactions. According to Azura et al. [71], elongation at break is influenced by filler load, where increasing filler load will reduce elongation at break.
The gradual addition of SAC fillers reduced elongation due to restricted polymer chain mobility, as the rigid particles acted as physical crosslinking points. In SAC200-filled compounds, elongation values declined notably, especially at 35–55 phr, where values fell below the minimum industrial standard of 400%. This was attributed to poor dispersion, weak filler–rubber interfacial bonding, and filler agglomeration, which disrupted matrix homogeneity and increased stiffness.
At higher SAC content, the reduction in free volume further hindered chain flexibility. Excess filler led to saturation, preventing complete interaction between the SAC and the VRB. This condition compromises elasticity and promotes premature failure under tensile loading. In contrast, SAC400 demonstrated superior elongation-at-break performance. At 25 phr and 35 phr, elongation at break reached 435% and 460%, respectively, within the optimal range (400–500%) for VRB applications. However, further increasing the loading to 45 phr and 55 phr reduced elongation to 415% and 370%, respectively. This reduction was due to filler aggregation, which restricted chain extension and introduced stress concentration points.
The improved performance of SAC400 is largely due to its smaller particle size (38 µm) and higher carbonization temperature (400 °C), which results in greater surface area and porosity. These characteristics enhance stress distribution across the VRB, interfacial adhesion, and filler dispersion. SAC400’s higher porosity resulting from thermal activation also allowed for tighter rubber filler contact and better stress transfer, as shown in similar studies using biomass-based carbon [54]. By comparison, SAC200 with a larger particle size (75 µm) led to uneven stress distribution, localized microvoids, and poor elongation results at higher loadings. These phenomena underline the importance of filler structure and dispersion quality in mechanical reinforcement [75].
The 35 phr SAC400 formulation represented the optimal filler level, where elongation at break peaked at 460%. Above this threshold, the performance declined below the 400% standard, reflecting the onset of filler overloading. Similar behavior was observed in carbon-filled composites post-thermal treatment, as reported [76]. Notably, SAC-filled VRB outperformed conventional carbon black systems, which typically exhibit maximum elongation between 350% and 400% at 20–30 phr [77]. In comparison, SAC400 reached 460% at 35 phr, demonstrating its superior reinforcement efficiency. This also highlights SAC400’s viability as a sustainable alternative to petroleum-based fillers, combining mechanical reliability with environmental advantages, wide availability, and renewability. When considered together, the data confirm that SAC400 enhances both elasticity and toughness of VRB more effectively than SAC200, particularly at optimal loading. Its favorable elongation performance, alongside its bio-based origin, supports its use in the development of environmentally sustainable, high-performance rubber composites.

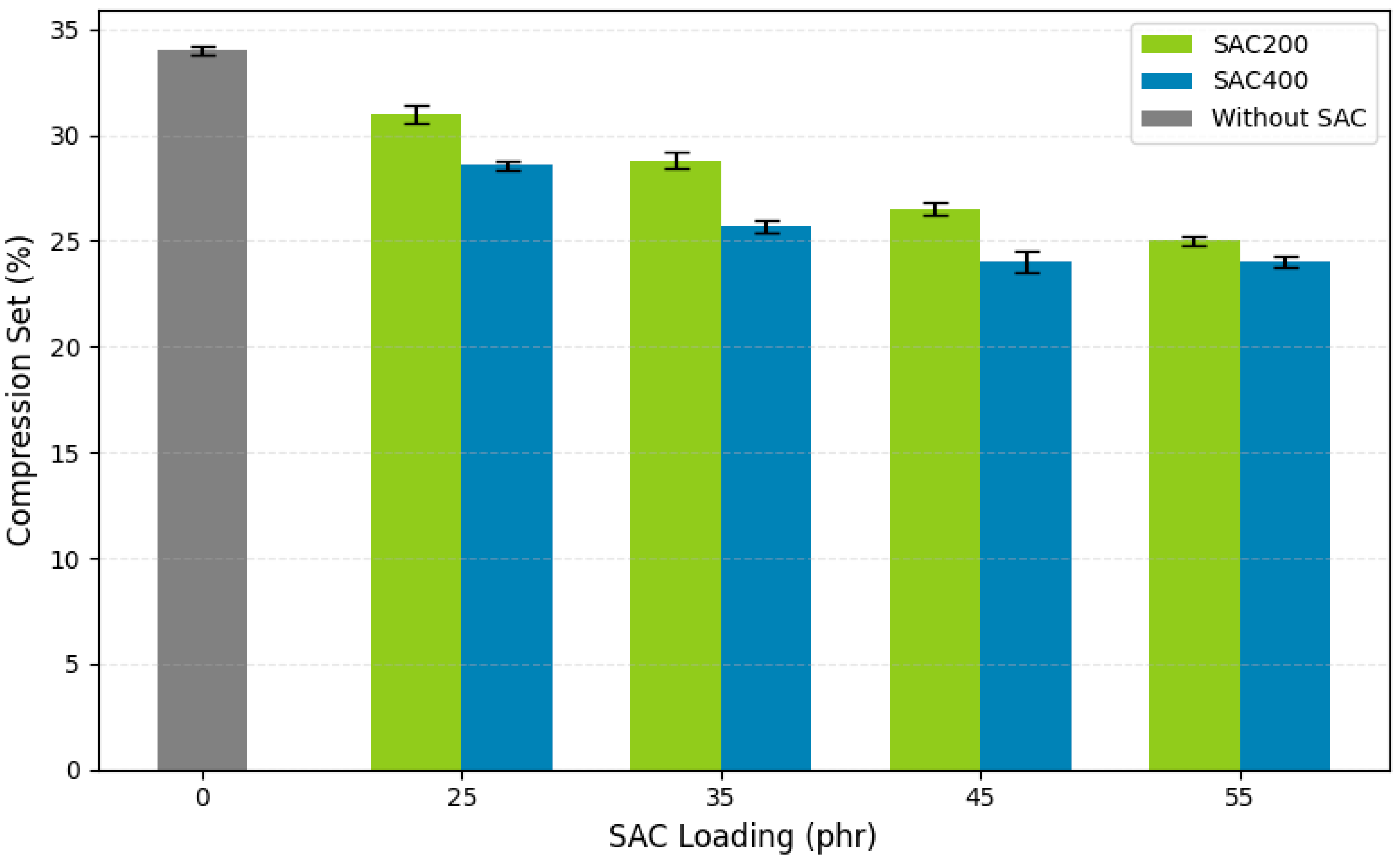

3.3.4. Compression Set

Compression set is an important parameter for evaluating the long-term dimensional stability and elastic recovery of rubber materials, especially in VRB applications. Compression set measures the ability of a rubber vulcanizate to return to its original shape after prolonged compression at elevated temperatures [78]. Lower VRB compression set values indicate superior elasticity, structural resistance, and the material’s capacity to maintain mechanical integrity under thermal and compression loads [79]. Figure 6 presents the compression set values of VRB reinforced with various loadings of SAC200 and SAC400. All samples were aged at 100 °C for 72 h to simulate thermal degradation conditions. The control (unfilled) sample exhibited a compression set of 29.5%, typical of non-reinforced vulcanizates. In contrast, the addition of SAC fillers significantly reduced compression set values across all formulations, suggesting enhanced elastic recovery due to increased crosslink density and stronger filler–matrix interactions. Figure 6 presents the improved VRB compression set values with various SAC200 and SAC400 loadings.
For samples loaded with SAC200, the VRB compression set decreased from 24.2% at 10 phr to 20.3% at 30 phr, indicating improved dimensional stability. SAC400 consistently outperformed SAC200 at equivalent loads. At 30 phr, SAC400 achieved the lowest compression set value of 18.7%, representing a 36.6% reduction compared to the control. At 45 phr, SAC400 maintained a value around 24%, still lower than the SAC200 counterpart.
These improvements are attributed to SAC400’s smaller particle size (38 µm), higher surface area, and more porous structure—resulting from carbonization at 400 °C, which facilitated better dispersion and stronger interfacial bonding with the rubber matrix [66,71]. The superior performance of SAC400 is further supported by its higher surface polarity and structural stability, which helped distribute applied pressure more evenly and restricted polymer chain relaxation [80]. This led to reduced permanent deformation and improved dimensional resilience. The enhanced filler–rubber bonding in SAC400 composites is due to greater contact area and a more favorable distribution of functional groups, consequences of its higher carbonization temperature and optimized microstructure.
A sharp decline in compression set was observed when filler loading exceeded 25 phr, suggesting the formation of a percolation network. This interconnected filler structure enhanced matrix reinforcement and minimized voids through increased physical contact and interfacial bonding [81]. Similar trends have been reported in elastomers filled with high-surface-area carbon materials, where enhanced stress transfer and limited chain mobility reduced permanent deformation [29]. These observations align with the study by Yan et al. [55], which demonstrated that finer carbon fillers significantly improve stress distribution and limit molecular relaxation. The 25 phr threshold appeared critical, beyond which compression set performance improved markedly [82]. Notably, SAC400-filled VRB in the 35–55 phr range showed compression set values between 24% and 30%, meeting the industrial requirement (≤30%) for automotive and general-purpose bushing applications.
The excellent compression set resistance of SAC400 is also linked to its high porosity and functional surface chemistry, which promote physical entrapment of polymer chains and the formation of van der Waals and hydrogen bonds [83]. These interactions increase network compactness, reduce voids, and enhance the rubber’s ability to recover from compressive strain. The synergy between small particle size, high carbonization temperature, and broad surface functionality highlights the potential of SAC400 as a sustainable active filler alternative derived from biomass.

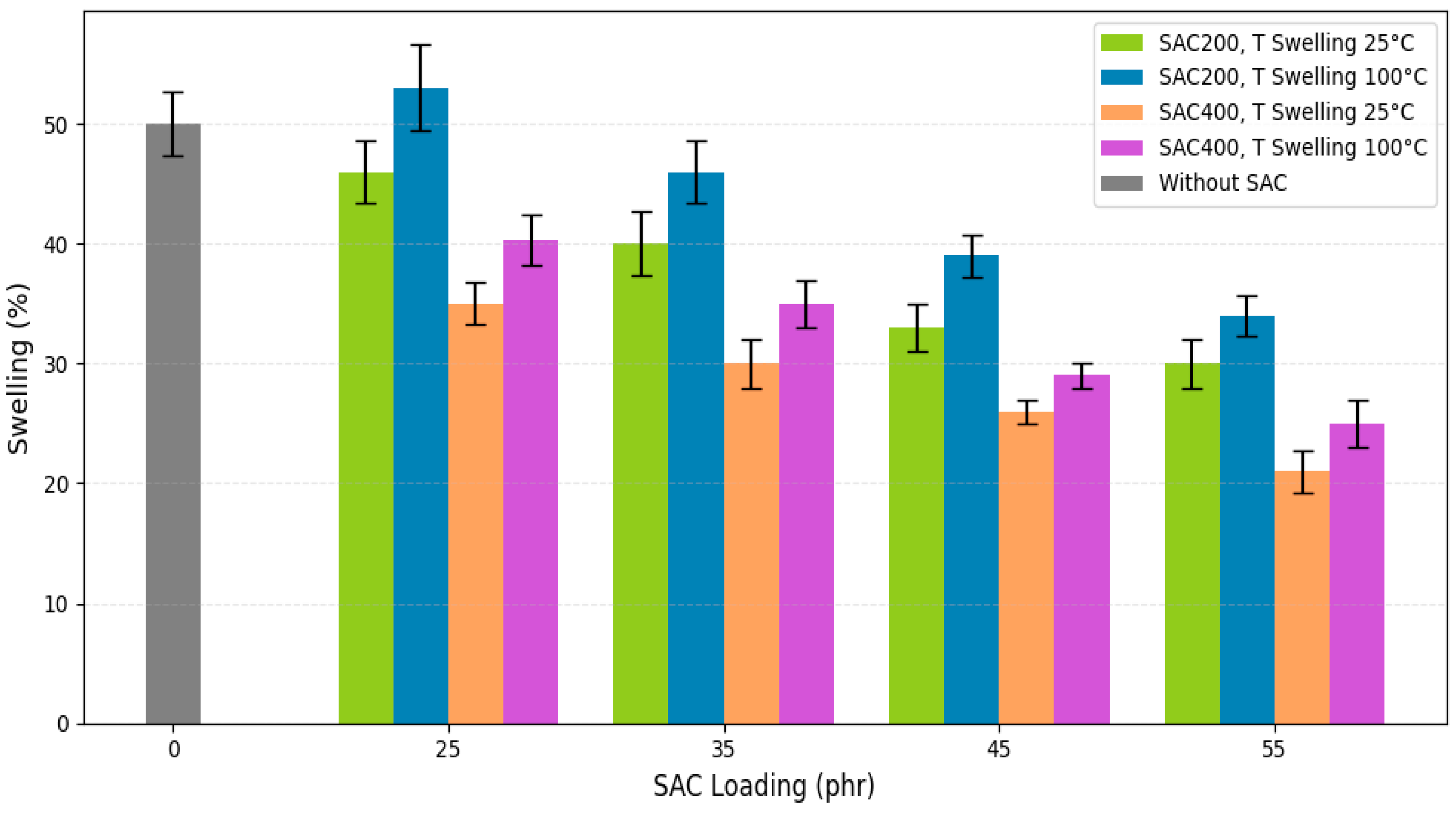

3.3.5. Swelling Behavior

Swelling behavior in VRB is primarily governed by free volume, crosslink density, and interfacial interactions between the rubber matrix and the swelling medium. The swelling rate, defined as the percentage of absorbed oil, reflects the extent of solvent diffusion within the polymer network [42]. In this study, swelling tests were conducted on VRB using oil immersion at two temperatures (25 °C and 100 °C), as shown in Figure 7.
The formulations are detailed in Table 4. At 25 phr filler loading, SAC200 and SAC400 exhibited the highest swelling ratios, indicating lower crosslink densities. SAC200 swelled up to 50% at 25 °C, while the unfilled compound showed ~55% swelling at 100 °C. This high swelling [84], is associated with insufficient crosslink formation, which permits solvent penetration and polymer chain expansion. Additionally, polar groups result in less swelling in non-polar solvents, which suggests improved network integrity and solvent resistance.
When the filler content increased to 55 phr, the swelling percentage of VRB decreased significantly. This phenomenon indicates increased cross-linking and improved compatibility of the filler with the rubber matrix due to the addition of SAC. VRB filled with SAC400 consistently showed lower swelling compared to SAC200. Furthermore, the denser three-dimensional network formed during vulcanization reduces solvent uptake by physically restricting chain mobility and void space. This effect is supported by FTIR results and aligns with previous findings that higher cross-linking density reduces matrix permeability and swelling [62]. Furthermore, the results of FTIR analysis showed that the presence of polar groups increased tissue integrity and solvent resistance by reducing the amount of swelling in non-polar solvents.
Swelling resistance was consistently lower at higher SAC loadings, particularly in the range of 35–55 phr for SAC400. These results emphasize the role of filler morphology and surface chemistry in limiting chain relaxation and solvent transport. This behavior is more pronounced at high temperatures (100 °C), where solvent diffusion is accelerated and mechanical integrity is reduced. Nevertheless, SAC-filled samples maintained better swelling resistance compared to unfilled VRB. Furthermore, strong interfacial bonding through hydrogen bonding, van der Waals forces, and chemical linkages contributed to improved matrix cohesion and solvent exclusion, This was especially evident in SAC400 systems, which offered superior dimensional and chemical stability under thermal and chemical stress. In summary, VRB filled with SAC400 exhibited superior swelling resistance compared to SAC200. This was attributed to the finer structure of SAC400, higher surface reactivity, and better integration into the rubber matrix. These findings support the use of SAC400 as a reinforcing filler to enhance cross-linking and reduce solvent-induced degradation of VRB in vulcanized rubber systems.

4. Conclusions

(1)
Sawdust-derived activated carbon (SAC) successfully incorporates oxygenated and aromatic functional groups, as confirmed by FTIR and XPS.
(2)
The addition of SAC improves the hardening properties, tensile strength, modulus, hardness, and tear resistance of NR vulcanizates.
(3)
SAC200 retains more oxygenated groups, enhancing interfacial interactions, while SAC400 increases stiffness due to the increase in aromatic domains.
(4)
Compared with conventional carbon black and other biomass-derived fillers, SAC exhibits superior sustainability and reinforcement potential.

Author Contributions

E.P.W.: Conceptualization, Data curation, Methodology, Writing—original draft, Writing—review & editing. P.M.: Conceptualization, Funding acquisition, Project administration, Writing—original draft. N.: Conceptualization, Funding acquisition, Methodology, Writing—original draft, Writing—review & editing. L.: Resources, Writing—review & editing. H.Y.: Data curation, Validation, Writing—review & editing. W.E.W.: Formal analysis, Investigation, Visualization. S.J.M.: Formal analysis, Investigation, Supervision. A.: Data curation, Project administration, Validation. E.B.S.: Data curation, Formal analysis, Resources, Investigation. Y.B.: Formal analysis, Investigation, Visualization. H.G.: Formal analysis, Investigation, Writing—review & editing. W.B.S.: Conceptualization, Supervision, Writing—original draft, Writing—review & editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received funding and research facilitation from the Palembang Industrial Research and Standardization Center, Industrial Research and Development Agency, Ministry of Industry of the Republic of Indonesia.

Institutional Review Board Statement

This research does not involve humans and animals as research objects.

Data Availability Statement

The original contributions presented in this study are included in the article material. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors are deeply grateful to the Research Organization for Agriculture and Food, a part of the National Research and Innovation Agency of the Republic of Indonesia, for the invaluable support for this work. They also express sincere appreciation for the funding and facilitation of this research by the Palembang Center for Standardization and Industrial Services (BSPJI). Furthermore, the authors would like to acknowledge the technical assistance provided by the technicians at the Rubber Laboratory of the Palembang Industrial Research and Standardization Center.

Conflicts of Interest

The authors declare that they have no known competing financial 566 interests or personal relationships that could have appeared to influence the work re- 567 ported in this paper.

Abbreviations

The following abbreviations are used in this manuscript:
NRNatural rubber
SACSawdust-derived activated carbon
VRBvulcanized rubber bushings
SAC200Activated carbon derived from sawdust with a particle size of 75 µm, carbonized at a temperature of 200 °C
SAC400Activated carbon derived from sawdust with a particle size of 38 µm, carbonized at a temperature of 400 °C
ZnOZinc Oxide
CBSN-Cyclohexyl2-benzothiazole sulfenamide
TMTDTetramethyl thiuram disulfide
MNRMaleated natural rubber
SIR-20Standar Indonesia Rubber
TMQPolymerized 2,2,4-trimethyl-1,2-dihydroquinoline
6PPDN-(1,3-dimethylbutyl)-N′-phenyl-p-phenylenediamine
PVIPre-Vulcanization Inhibitor
H3PO4Phosphoric Acid
CBCarbon black
H2Hydrogen
N2Nitrogen
FTIRFourier transform infrared
ATRAttenuated Total Reflectance
MDRMoving Die Rheometer
CRICure rate index
ASTMAmerican Society for Testing and Material
WWeight
MpaMegapascal
°CDegrees Celsius
%Percent
Mikrometerµm
kgfKilogram-force
cmCentimeters
µmmicrometer
phrparts per hundred of rubber
ts2Scorch time
t90Cure time
SmaxMaximum torque
SminMinimum torque
ΔSTorque difference

References

  1. Andler, R. Bacterial and enzymatic degradation of poly(cis-1,4-isoprene) rubber: Novel biotechnological applications. Biotechnol. Adv. 2020, 44, 107606. [Google Scholar] [CrossRef]
  2. Whba, R.; Su’ait, M.S.; Whba, F.; Sahinbay, S.; Altin, S.; Ahmad, A. Intrinsic challenges and strategic approaches for enhancing the potential of natural rubber and its derivatives: A review. Int. J. Biol. Macromol. 2024, 276, 133796. [Google Scholar] [CrossRef]
  3. Marrero Nunes, F.; Emmel Silva, A.L.; May, J.; da Silva Szarblewski, M.; Flemming, L.; Assmann, E.E.; Ribas Moraes, J.A.; Machado, Ê.L. Environmental impacts associated with the life cycle of natural rubbers: A review and scientometric analysis. Ind. Crops Prod. 2025, 224, 120350. [Google Scholar] [CrossRef]
  4. Dunuwila, P.; Rodrigo, V.H.L.; Goto, N. Sustainability of natural rubber processing can be improved: A case study with crepe rubber manufacturing in Sri Lanka. Resour. Conserv. Recycl. 2018, 133, 417–427. [Google Scholar] [CrossRef]
  5. Rahman, M.M.; Oßwald, K.; Reincke, K.; Langer, B. Influence of bio-based plasticizers on the properties of NBR materials. Materials 2020, 13, 2095. [Google Scholar] [CrossRef]
  6. Zhao, W.; He, J.; Yu, P.; Jiang, X.; Zhang, L. Recent progress in the rubber antioxidants: A review. Polym. Degrad. Stab. 2023, 207, 110223. [Google Scholar] [CrossRef]
  7. Yang, J.; Wang, F.; Liang, C.; Zhou, S.; Huang, J.; Zhao, G.; Liu, Y. Trans-1,4-poly(isoprene-co-butadiene) rubber enhances abrasion resistance in natural rubber and polybutadiene composites. Polymer 2025, 316, 127855. [Google Scholar] [CrossRef]
  8. Sethulekshmi, A.S.; Saritha, A.; Joseph, K. A comprehensive review on the recent advancements in natural rubber nanocomposites. Int. J. Biol. Macromol. 2022, 194, 819–842. [Google Scholar] [CrossRef]
  9. Lee, S.H.; Park, G.W.; Kim, H.J.; Chung, K.; Jang, K.S. Effects of Filler Functionalization on Filler-Embedded Natural Rubber/Ethylene-Propylene-Diene Monomer Composites. Polymers 2022, 14, 3502. [Google Scholar] [CrossRef]
  10. Farida, E.; Bukit, N.; Ginting, E.M.; Bukit, B.F. The effect of carbon black composition in natural rubber compound. Case Stud. Therm. Eng. 2019, 16, 100566. [Google Scholar] [CrossRef]
  11. Mekbuntoon, P.; Kongpet, S.; Kaeochana, W.; Luechar, P.; Thongbai, P.; Chingsungnoen, A.; Chinnarat, K.; Kaewnisai, S.; Harnchana, V. The Modification of Activated Carbon for the Performance Enhancement of a Natural-Rubber-Based Triboelectric Nanogenerator. Polymers 2023, 15, 4562. [Google Scholar] [CrossRef]
  12. Cifriadi, A.; Sugita, P.; Wismogroho, A.S.; Kemala, T.; Nikmatin, S.; Widayatno, W.B.; Amal, M.I.; Jayadi; Firdharini, C.; Kinasih, N.A. Development and Characterization of Biomass-Based Biocarbon Fillers for Natural Rubber Composites. Int. J. Technol. 2025, 16, 982–992. [Google Scholar] [CrossRef]
  13. Adduci, R.; Vermaut, M.; Perrelli, M.; Cosco, F.; Vanpaemel, S.; Naets, F.; Mundo, D. A review of bushing modelling approaches for MultiBody simulations. Mech. Mach. Theory 2024, 191, 105496. [Google Scholar] [CrossRef]
  14. Guo, P.; Li, J.; Lin, Z.; Lin, J. Analysis and Optimization of Driveline Bushing for Lateral Ride Vibration under Shock Excitation. Appl. Sci. 2021, 11, 2647. [Google Scholar] [CrossRef]
  15. Ambarev, K.; Taneva, S. A Comparative Study of Vibrations in Front Suspension Components Using Bushings Made from Different Materials. Eng. Proc. 2025, 100, 42. [Google Scholar] [CrossRef]
  16. Dadkhah, M.; Messori, M. A comprehensive overview of conventional and bio-based fillers for rubber formulations sustainability. Mater. Today Sustain. 2024, 27, 100886. [Google Scholar] [CrossRef]
  17. Mokhothu, T.H.; John, M.J. Bio-based fillers for environmentally friendly composites. Handb. Compos. Renew. Mater. 2017, 1–8, 243–270. [Google Scholar] [CrossRef]
  18. Wang, L.; Li, Q.; Jin, H.; Wang, J.; Wang, N.; Zhou, X. Research progress of bio-filler and its application in asphalt materials: Review and discussion. Clean Technol. Environ. Policy 2025. [Google Scholar] [CrossRef]
  19. Kiran, M.D.; Govindaraju, H.K.; Jayaraju, T.; Kumar, N. Review-Effect of Fillers on Mechanical Properties of Polymer Matrix Composites. Mater. Today Proc. 2018, 5, 22421–22424. [Google Scholar] [CrossRef]
  20. Haslilywaty, G.; Siti Fatma, A.K.; Roslim, R.; Mohibbah, M.; Jefri, J. Effect of bio fillers on mechanical properties of natural rubber latex films. Key Eng. Mater. 2019, 797, 249–254. [Google Scholar] [CrossRef]
  21. Joshi, M.; Dwivedi, C.; Manjare, S. A renewable cellulose-rich biofiller material extracted from waste banana stem fibers for reinforcing natural rubber composites. J. Mater. Sci. 2024, 59, 519–534. [Google Scholar] [CrossRef]
  22. Tong, H.S.; Kabeb, S.M.; Abd Hamid, H.; Zulkifli, F.H. A review of biodegradability of natural rubber products: Physicochemical, thermal and mechanical properties. Int. J. Biol. Macromol. 2025, 318, 144973. [Google Scholar] [CrossRef] [PubMed]
  23. Thomas, S.K.; Parameswaranpillai, J.; Krishnasamy, S.; Begum, P.M.S.; Nandi, D.; Siengchin, S.; George, J.J.; Hameed, N.; Salim, N.V.; Sienkiewicz, N. A comprehensive review on cellulose, chitin, and starch as fillers in natural rubber biocomposites. Carbohydr. Polym. Technol. Appl. 2021, 2, 100095. [Google Scholar] [CrossRef]
  24. Sahu, N. Walnut Shells ’ Potential Use as Biofillers in Natural Rubber Composites. Int. J. Polym. Sci. Eng. 2024, 10, 1–5. [Google Scholar]
  25. Kumar Mishra, R.; Singh, B.; Acharya, B. A comprehensive review on activated carbon from pyrolysis of lignocellulosic biomass: An application for energy and the environment. Carbon Resour. Convers. 2024, 7, 100228. [Google Scholar] [CrossRef]
  26. Eguare, K.O.; Ekabafe, L.O.; Ayo, M.D. Comparative Study of Acetylated Sawdust Powder as Filler in Natural Rubber Compounding. NIPES—J. Sci. Technol. Res. 2020, 2, 78–84. [Google Scholar]
  27. Negara, D.N.K.P.; Nindhia, T.G.T.; Kencanawati, C.I.P.K.; Suriadi, I.G.A.K.; Widiyarta, I.M.; Lokantara, I.P.; Budiarsa, I.N. The Effect of Carbonisation Heating Rates on the Properties of N-Doped Teak Sawdust Waste Activated Carbon. J. Phys. Sci. 2023, 34, 1–20. [Google Scholar] [CrossRef]
  28. Wang, A.; Wang, H.; Ling, C.; Wang, T.; Li, F.; Yang, S.; Zhao, M. Fatigue life prediction of rubber suspension bushings based on virtual road load spectrum pulses. Results Eng. 2024, 23, 102693. [Google Scholar] [CrossRef]
  29. Fan, Y.; Fowler, G.D.; Zhao, M. The past, present and future of carbon black as a rubber reinforcing filler—A review. J. Clean. Prod. 2020, 247, 119115. [Google Scholar] [CrossRef]
  30. Calaf-Chica, J.; Cea-González, V.; García-Tárrago, M.J.; Gómez-Gil, F.J. Fractional viscoelastic models for the estimation of the frequency response of rubber bushings based on relaxation tests. Results Eng. 2023, 20, 101465. [Google Scholar] [CrossRef]
  31. Ying, D.; Addimulam, S. Innovative Additives for Rubber: Improving Performance and Reducing Carbon Footprint. Asia Pac. J. Energy Environ. 2022, 9, 81–88. [Google Scholar] [CrossRef]
  32. Mohamad Aini, N.A.; Othman, N.; Hussin, M.H.; Sahakaro, K.; Hayeemasae, N. Lignin as Alternative Reinforcing Filler in the Rubber Industry: A Review. Front. Mater. 2020, 6, 329. [Google Scholar] [CrossRef]
  33. Oladimeji, T.E.; Odunoye, B.O.; Elehinafe, F.B.; Obanla, O.R.; Odunlami, O.A. Production of activated carbon from sawdust and its efficiency in the treatment of sewage water. Heliyon 2021, 7, e05960. [Google Scholar] [CrossRef]
  34. Gong, Y.; Chen, X.; Wu, W. Application of fourier transform infrared (FTIR) spectroscopy in sample preparation: Material characterization and mechanism investigation. Adv. Sample Prep. 2024, 11, 100122. [Google Scholar] [CrossRef]
  35. Nguyen, V.H.; Nguyen, D.T.; Nguyen, T.T.; Nguyen, H.P.T.; Khuat, H.B.; Nguyen, T.H.; Tran, V.K.; Woong Chang, S.; Nguyen-Tri, P.; Nguyen, D.D.; et al. Activated carbon with ultrahigh surface area derived from sawdust biowaste for the removal of rhodamine B in water. Environ. Technol. Innov. 2021, 24, 101811. [Google Scholar] [CrossRef]
  36. Candau, N.; Fernández Navarrete, A.; Lara Casanova, G.; Utrera-Barrios, S.; Hernandez Santana, M.; Stoclet, G.; Maspoch, M.L. Control by the curing time of the strain induced crystallization and elastocaloric properties in natural rubber and natural/waste rubber blends. Polymers 2024, 312, 127628. [Google Scholar] [CrossRef]
  37. Poyraz, B. Poly(ethylene-co-(acrylic acid)) and maleic anhydride effect on micro crystalline cellulose and lignin-filled EPDM automotive sealing profiles. Int. J. Biol. Macromol. 2025, 297, 139602. [Google Scholar] [CrossRef]
  38. Liu, X.; Qi, R.; Liao, W.; Dai, B.; Liu, D.; Wang, Q. Shear-sensing characteristics and theoretical model analysis of multiwalled carbon nanotube/natural rubber composite. Compos. Commun. 2025, 53, 102215. [Google Scholar] [CrossRef]
  39. Methods, S.T. D395-14: Standard Test Methods for Rubber Property—Compression Set 1. Current 2003, 9, 1–6. [Google Scholar] [CrossRef]
  40. ASTM D471-16a; Standard Test Method for Rubber Property—Effect of Liquids. ASTM—Amereican Society for Testing and Materials: West Conshohocken, PA, USA, 2021; pp. 1–16.
  41. Darko, C. The link between swelling ratios and physical properties of EPDM rubber compound having different oil amounts. J. Polym. Res. 2022, 29, 325. [Google Scholar] [CrossRef]
  42. Joselin, J.; Benila, B.S.; Brintha, T.S.S.; Jeeva, S. Phytochemical profiling, FT-IR spectroscopy, and antioxidant evaluation of select Lamiaceae species. Intell. Pharm. 2025, 3, 111–117. [Google Scholar] [CrossRef]
  43. Rosson, E.; Sgarbossa, P.; Mozzon, M.; Venturino, F.; Bogialli, S.; Glisenti, A.; Talon, A.; Moretti, E.; Carturan, S.M.; Tamburini, S.; et al. Novel correlations between spectroscopic and morphological properties of activated carbons from waste coffee grounds. Processes 2021, 9, 1637. [Google Scholar] [CrossRef]
  44. Yang, S.Y.; Bai, B.C.; Kim, Y.R. Effective Surface Structure Changes and Characteristics of Activated Carbon with the Simple Introduction of Oxygen Functional Groups by Using Radiation Energy. Surfaces 2024, 7, 12–25. [Google Scholar] [CrossRef]
  45. Ilić, M.; Haegel, F.H.; Lolić, A.; Nedić, Z.; Tosti, T.; Ignjatović, I.S.; Linden, A.; Jablonowski, N.D.; Hartmann, H. Surface Functional Groups and Degree of Carbonization of Selected Chars from Different Processes and Feedstock. PLoS ONE 2022, 17, e0277365. [Google Scholar] [CrossRef] [PubMed]
  46. Nakamura, S.; Tsuji, Y.; Yoshizawa, K. Role of Hydrogen-Bonding and OH-πInteractions in the Adhesion of Epoxy Resin on Hydrophilic Surfaces. ACS Omega 2020, 5, 26211–26219. [Google Scholar] [CrossRef] [PubMed]
  47. Saito, K.; Xu, T.; Ishikita, H. Correlation between C•O Stretching Vibrational Frequency and p KaShift of Carboxylic Acids. J. Phys. Chem. B 2022, 126, 4999–5006. [Google Scholar] [CrossRef]
  48. Kingkohyao, N.; Boonsiri, T.; Johns, J.; Nip, R.L.; Nakaramontri, Y. Synergistic effect of zinc ions from tire waste and modified zinc oxide on mechanical, thermo-mechanical and antibacterial properties in epoxidized natural rubber composites. Ind. Crops Prod. 2025, 225, 120577. [Google Scholar] [CrossRef]
  49. Qiu, C.; Jiang, L.; Gao, Y.; Sheng, L. Effects of oxygen-containing functional groups on carbon materials in supercapacitors: A review. Mater. Des. 2023, 230, 111952. [Google Scholar] [CrossRef]
  50. Hiranobe, C.T.; Ribeiro, G.D.; Torres, G.B.; Dos Reis, E.A.P.; Cabrera, F.C.; Job, A.E.; Paim, L.L.; Dos Santos, R.J. Cross-linked density determination of natural rubber compounds by different analytical techniques. Mater. Res. 2021, 24 (Suppl. S1), e20210041. [Google Scholar] [CrossRef]
  51. Wang, Y.; Su, S.; Liu, H.; Wang, R.; Liao, L.; Peng, Z.; Li, J.; Wu, H.; He, D. Effect of Proteins on the Vulcanized Natural Rubber Crosslinking Network Structure and Mechanical Properties. Polymer 2024, 16, 2957. [Google Scholar] [CrossRef]
  52. Yan, Z.; Zaoui, A.; Zaïri, F. Physical and mechanical properties of vulcanized and filled rubber at high strain rate. Chin. J. Phys. 2023, 86, 12–23. [Google Scholar] [CrossRef]
  53. Naik, P.; Pradhan, S.; Sahoo, P.; Acharya, S.K. Effect of filler loading on mechanical properties of natural carbon black reinforced polymer composites. Mater. Today Proc. 2019, 26, 1892–1896. [Google Scholar] [CrossRef]
  54. Aboughaly, M.; Babaei-Ghazvini, A.; Dhar, P.; Patel, R.; Acharya, B. Enhancing the Potential of Polymer Composites Using Biochar as a Filler: A Review. Polymer 2023, 15, 3981. [Google Scholar] [CrossRef] [PubMed]
  55. Sivaselvi, K.; Varma, V.S.; Harikumar, A.; Jayaprakash, A.; Sankar, S.; Krishna, C.Y.; Gopal, K. Improving the mechanical properties of natural rubber composite with carbon black (N220) as filler. Mater. Today Proc. 2020, 42, 921–925. [Google Scholar] [CrossRef]
  56. Li, G.; Iakunkov, A.; Boulanger, N.; Lazar, O.A.; Enachescu, M.; Grimm, A.; Talyzin, A.V. Activated carbons with extremely high surface area produced from cones, bark and wood using the same procedure. RSC Adv. 2023, 13, 14543–14553. [Google Scholar] [CrossRef]
  57. Ma, F.; Ding, S.; Ren, H.; Liu, Y. Sakura-based activated carbon preparation and its performance in supercapacitor applications. RSC Adv. 2019, 9, 2474–2483. [Google Scholar] [CrossRef]
  58. Alfatah, T.; Mistar, E.M.; Supardan, M.D. Porous structure and adsorptive properties of activated carbon derived from Bambusa vulgaris striata by two-stage KOH/NaOH mixture activation for Hg2+ removal. J. Water Process Eng. 2021, 43, 102294. [Google Scholar] [CrossRef]
  59. Mumtaz, N.; Li, Y.; Artiaga, R.; Farooq, Z.; Mumtaz, A.; Guo, Q.; Nisa, F.U. Fillers and methods to improve the effective (out-plane) thermal conductivity of polymeric thermal interface materials—A review. Heliyon 2024, 10, e25381. [Google Scholar] [CrossRef]
  60. Ren, X.; Barrera, C.S.; Tardiff, J.L.; Gil, A.; Cornish, K. Liquid guayule natural rubber, a renewable and crosslinkable processing aid in natural and synthetic rubber compounds. J. Clean. Prod. 2020, 276, 122933. [Google Scholar] [CrossRef]
  61. Gobetti, A.; Cornacchia, G.; La Monica, M.; Zacco, A.; Depero, L.E.; Ramorino, G. Assessment of the influence of electric arc furnace slag as a non-conventional filler for Nitrile Butadiene Rubber. Results Eng. 2023, 17, 100987. [Google Scholar] [CrossRef]
  62. Hu, Y.; Cai, Y.; Wei, J.; Yin, Z.; Fan, H. Design and preparation of novel silicon rubber with homogeneous crosslinking network and its application in high-performance SR/EPDM blend. Eur. Polym. J. 2023, 198, 112381. [Google Scholar] [CrossRef]
  63. Kratina, O.; Pöschl, M.; Stoček, R. The effect of apparent density of sulfidic crosslink and their chemical nature on self-heat build-up in carbon black filled Natural Rubber under cyclic mechanical loading. Polym. Degrad. Stab. 2024, 227, 110871. [Google Scholar] [CrossRef]
  64. Wu, J.; Chen, L.; Su, B.L.; Wang, Y.S. Evolution of Payne effect of silica-filled natural rubber in curing process. J. Rubber Res. 2019, 22, 127–132. [Google Scholar] [CrossRef]
  65. Lubura, J.; Kočková, O.; Strachota, B.; Bera, O.; Pavlova, E.; Pavličević, J.; Ikonić, B.; Kojić, P.; Strachota, A. Natural Rubber Composites Using Hydrothermally Carbonized Hardwood Waste Biomass as a Partial Reinforcing Filler—Part II: Mechanical, Thermal and Ageing (Chemical) Properties. Polymer 2023, 15, 2397. [Google Scholar] [CrossRef]
  66. Ajay, C.; Das Gupta, S.; Mukhopadhyay, R.; Chattopadhyay, D.; Das, M. Exploring crosslink density in rubber vulcanisates—A comprehensive analysis using a dynamic mechanical analyser and an insight into mechanical properties. J. Rubber Res. 2025, 28, 305–323. [Google Scholar] [CrossRef]
  67. Wang, W.; Yu, X.; Lai, C.; Li, G.; Zhu, P.; Sun, R. Systematic study of the effect of silane coupling agent on the hydrothermal aging resistance of the underfill epoxy resin and silica interface via molecular dynamics simulation. Appl. Surf. Sci. 2025, 688, 162313. [Google Scholar] [CrossRef]
  68. Wei, Y.; Jia, X.; Chen, Y.; Ji, J. Single step carbonating and activating fir sawdust to activated carbon by recyclable molten carbonates and steam. Sci. Total Environ. 2022, 818, 151778. [Google Scholar] [CrossRef]
  69. Xiao, J.; Zhang, Z.; Luan, Y.; Wu, S.; Wu, Y. Influence of carbon black surface characteristics on CB-NR interfacial interaction: Molecular simulation and experimental study. Compos. Part A Appl. Sci. Manuf. 2024, 182, 108198. [Google Scholar] [CrossRef]
  70. Azura, A.R.; Leow, S.L. Effect of carbon black loading on mechanical, conductivity and ageing properties of Natural Rubber composites. Mater. Today Proc. 2019, 17, 1056–1063. [Google Scholar] [CrossRef]
  71. Głowacka, K.; Klemenc, J.; Nagode, M.; Łagoda, T. Fatigue lifetime of rubber composites—State-of-the-art. Polym. Test. 2025, 143, 108713. [Google Scholar] [CrossRef]
  72. Sultana, S.; Munna, N.; Sakib, T.U.; Ahmed, N.; Akanda, M.R.; Saha, M.S.; Zaman, M.N. High performance activated carbon derived from sawdust: Preparation, characterizations, methyl orange removal and kinetics investigation. Biomass Convers. Biorefinery 2025, 15, 17295–17307. [Google Scholar] [CrossRef]
  73. Samal, S. Effect of shape and size of filler particle on the aggregation and sedimentation behavior of the polymer composite. Powder Technol. 2020, 366, 43–51. [Google Scholar] [CrossRef]
  74. Sittitanadol, I.O.; Srakeaw, N.L.O.; Somdee, P.; Chumsamrong, P.; Noyming, S.; Singsang, W.; Prasoetsopha, N. Utilizing Coconut Biochar as a Bio-reinforcing Agent in Natural Rubber Composites. Starch/Staerke 2024, 77, 2400168. [Google Scholar] [CrossRef]
  75. Chen, Q.; Yang, K.; Feng, Y.; Liang, L.; Chi, M.; Zhang, Z.; Chen, X. Recent advances in thermal-conductive insulating polymer composites with various fillers. Compos. Part A Appl. Sci. Manuf. 2024, 178, 107998. [Google Scholar] [CrossRef]
  76. Kartal, İ.; Karagöz, İ. Enhancing natural rubber properties: A comprehensive study on the synergistic effects of wood sawdust and carbon black as fillers in rubber composites. Polym. Bull. 2025, 82, 2091–2109. [Google Scholar] [CrossRef]
  77. Amoke, A.; Tenebe, O.G.; Ayo, M.D. Comparison of Mechanical Properties of Natural Rubber Vulcanizates Filled with Hybrid Fillers (Carbon Black/Palm Kernel Shell and Palm Kernel Shell/Sandbox Seed Shell). Int. J. Res. Innov. Appl. Sci. 2021, 6, 2454–6194. [Google Scholar]
  78. He, S.; Zhang, F.; Liu, S.; Cui, H.; Chen, S.; Peng, W.; Chen, G.; Liao, X.; Liao, L. Influence of sizes of rubber particles in latex on mechanical properties of natural rubber filled with carbon black. Polymer 2022, 261, 125393. [Google Scholar] [CrossRef]
  79. Li, X.; Ding, Y.; Zhang, H.; He, T.; Hao, J.; Wu, J.; Wu, Y.; Bai, H. Pine sawdust derived ultra-high specific surface area activated carbon: Towards high-performance hydrogen storage and supercapacitors. Int. J. Hydrogen Energy 2024, 84, 623–633. [Google Scholar] [CrossRef]
  80. Bernal-Ortega, P.; Bernal, M.M.; González-Jiménez, A.; Posadas, P.; Navarro, R.; Valentín, J.L. New insight into structure-property relationships of natural rubber and styrene-butadiene rubber nanocomposites filled with MWCNT. Polymer 2020, 201, 122604. [Google Scholar] [CrossRef]
  81. Wang, Z.; Wang, S.; Yu, X.; Zhang, H.; Yan, S. Study on the Use of CTAB-Treated Illite as an Alternative Filler for Natural Rubber. ACS Omega 2021, 6, 19017–19025. [Google Scholar] [CrossRef]
  82. Buaksuntear, K.; Panmanee, K.; Wongphul, K.; Lim-arun, P.; Jansinak, S.; Shah, D.U.; Smitthipong, W. Enhancing mechanical properties and stabilising the structure of epoxide natural rubber using non-covalent interactions: Metal–ligand coordination and hydrogen bonding. Polymer 2024, 291, 126626. [Google Scholar] [CrossRef]
  83. Mensah, B.; Onwona-Agyeman, B.; Nsaful, F.; Aboagye, I.A.; Sowah, N.L.; Angnunavuri, P.N.; Apalangya, V.A. Vulcanization kinetics and reinforcement behaviour of natural rubber-carbon black composites: Addition of Shea-butter versus aromatic oil as plasticizers. Heliyon 2024, 10, e25592. [Google Scholar] [CrossRef]
  84. Zedler, L.; Colom, X.; Cañavate, J.; Saeb, M.R.; Haponiuk, J.T.; Formela, K. Investigating the impact of curing system on structure-property relationship of natural rubber modified with brewery by-product and ground tire rubber. Polymer 2020, 12, 545. [Google Scholar] [CrossRef]
Polymers 17 02996 g001
Figure 1. Schematic diagram of the carbonization equipment setup: (1) hydrogen gas cylinder, (2) nitrogen gas cylinder, (3) furnace, (4) carbonization reactor, and (5) nitrogen gas trap.
Figure 1. Schematic diagram of the carbonization equipment setup: (1) hydrogen gas cylinder, (2) nitrogen gas cylinder, (3) furnace, (4) carbonization reactor, and (5) nitrogen gas trap.
Polymers 17 02996 g001
Polymers 17 02996 g002
Figure 2. The FTIR spectrum of carbon black derived from sawdust indicates the presence of major functional groups.
Figure 2. The FTIR spectrum of carbon black derived from sawdust indicates the presence of major functional groups.
Polymers 17 02996 g002
Polymers 17 02996 g003
Figure 3. The effect of SAC type and loading on the Shore A hardness of vulcanized natural rubber bushings.
Figure 3. The effect of SAC type and loading on the Shore A hardness of vulcanized natural rubber bushings.
Polymers 17 02996 g003
Polymers 17 02996 g004
Figure 4. The effect of SAC type and loading on the tensile strength of vulcanized rubber bushings.
Figure 4. The effect of SAC type and loading on the tensile strength of vulcanized rubber bushings.
Polymers 17 02996 g004
Polymers 17 02996 g005
Figure 5. The effect of SAC type and loading on the elongation at break of vulcanized rubber bushings.
Figure 5. The effect of SAC type and loading on the elongation at break of vulcanized rubber bushings.
Polymers 17 02996 g005
Polymers 17 02996 g006
Figure 6. The effect of SAC type and loading on the compression set values of vulcanized rubber bushings.
Figure 6. The effect of SAC type and loading on the compression set values of vulcanized rubber bushings.
Polymers 17 02996 g006
Polymers 17 02996 g007
Figure 7. The effect of SAC type and loading on the oil swelling behavior of vulcanized rubber bushings.
Figure 7. The effect of SAC type and loading on the oil swelling behavior of vulcanized rubber bushings.
Polymers 17 02996 g007
Table 1. Equipment specifications for the preparation of rubber compounds.
Table 1. Equipment specifications for the preparation of rubber compounds.
NoEquipmentSpecifications
1Muffle Furnace (Nabertherm GmbH, Lilienthal, Germany)Max Temp: 1700 °C; Volume: 0.15 ft3; Heating Elements: MoSi2; Controller: Shimaden FP93
2XK-160 Open Mill (Qingdao Ouli Machine Co., Ltd., Qingdao, China)Roll Ø: 160 mm; Working length: 320 mm; Motor: 7.5 kW
3Hydraulic Press (HTM10042T, Toyo Seiki Seisaku-sho, Ltd., Tokyo, Japan)Pressure: 100 Ton; Platens: 2 levels; Temp: up to 300 °C
4Digital Scale (Ohaus Corporation, Parsippany, NJ, USA)Capacity: 5 kg; Resolution: 0.1 g; LCD display
Table 2. Materials used in the formulation of rubber composites.
Table 2. Materials used in the formulation of rubber composites.
NoChemical NameSource and Specifications
1Natural Rubber (SIR-20)PT. Prasidha Aneka Niaga Tbk, Indonesia; Compliant with SNI 1903:2017 (Ash: 0.25%, Dirt: 0.042%, Nitrogen: 0.24%, Volatile matter: 0.2%, PRI: 65%, Mooney viscosity: 70)
2SAC200 (75 µm), SAC400 (38 µm)Local supplier, Palembang, Indonesia
3Zinc oxide (ZnO)Shanghai, China; CAS No.: 1314-13-2; Purity: 99.7%
4Stearic acidGuangdong, China; CAS No.: 57-11-4; Purity: 99%
5TMTDJiangsu, China; CAS No.: 137-26-8; Purity: 98%
6CBSFujian, China; CAS No.: 95-33-2; Purity: 96%
7TMQHunan, China; CAS No.: 793-47-8; Purity: 99.9%
8Paraffin oil (PO-60)PT. Pertamina, Indonesia
96PPDChina; CAS No.: 793-24-8; Purity: 96%
10PVIHenan, China; CAS No.: 17796-82-6; Purity: 99%
11Maleated Natural Rubber (MNR)Local supplier
12Phosphoric Acid (H3PO4)Zhejiang, China; Purity: 85%
13SulfurTamil Nadu, India; CAS No.: 7704-34-9; Purity: 99.5%
14Engine Oil 10W/40 4TLocal supplier, Indonesia
Note: All materials were procured from local Indonesian vendors.
Table 3. Physicochemical characteristics of sawdust-based activated charcoal.
Table 3. Physicochemical characteristics of sawdust-based activated charcoal.
ParameterContent
Water content6.24%
Ash content7.36%
Volatile matter11.34%
Carbon87.85%
Absorption of iodine1161.34 mg/g
Table 4. Formulations of natural rubber compounds with varying SAC particle sizes and loadings (phr).
Table 4. Formulations of natural rubber compounds with varying SAC particle sizes and loadings (phr).
MaterialFormula (Per Hundred Rubber, phr)
123456789
SIR 20100100100100100100100100100
ZnO555555555
Stearic acid111111111
6PPD222222222
TMQ111111111
SAC200-25354555----
SAC400-----25354555
Minarex oil111111111
CBS333333333
TMTD222222222
MNR111111111
Sulfur222222222
PVI0.50.50.50.50.50.50.50.50.5
Table 5. Curing characteristics of natural rubber composites filled with SAC200 and SAC400.
Table 5. Curing characteristics of natural rubber composites filled with SAC200 and SAC400.
SampleLoading (phr)Curing Characteristic
Smax (N·m)Smin (N·m)Smax − Smin (N·m)Opt Cure Time (tc90) (min; s)Scorch Time (ts2) (min; s)CRI
(s−1)
NR/CB Without filler03.6830.8742.81012:356:790.316
Without filler03.4510.7962.65515:598:450.230
SAC200 (75 µm)253.0370.6102.42715:298:020.223
353.0650.5842.48014:457:560.244
453.1430.5122.63113:577:250.255
553.2470.7082.53913:077:100.273
Without filler03.4510.7962.65515:598:450.230
SAC400 (38 µm)253.2410.7752.46614:577:470.233
353.5260.8342.69313:157:000.267
453.7220.8472.87412:286:460.292
553.7330.8842.85011:055:580.326
Note: Torque values originally expressed in kg·cm were converted to N·m using the conversion factor 1 kg·cm = 0.0980665 N·m. NR: natural rubber; phr: per hundred rubber; CB: carbon black; SAC: sawdust-activated carbon.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wulandari, E.P.; Marlina, P.; Nasruddin; Lanjar; Yohanes, H.; Widodo, W.E.; Munarso, S.J.; Astuti; Susetyo, E.B.; Bakhtiar, Y.; et al. Application of Sawdust-Derived Activated Carbon as a Bio-Based Filler in Vulcanized Rubber Bushings. Polymers 2025, 17, 2996. https://doi.org/10.3390/polym17222996

AMA Style

Wulandari EP, Marlina P, Nasruddin, Lanjar, Yohanes H, Widodo WE, Munarso SJ, Astuti, Susetyo EB, Bakhtiar Y, et al. Application of Sawdust-Derived Activated Carbon as a Bio-Based Filler in Vulcanized Rubber Bushings. Polymers. 2025; 17(22):2996. https://doi.org/10.3390/polym17222996

Chicago/Turabian Style

Wulandari, Enasty Pratiwi, Popy Marlina, Nasruddin, Lanjar, Heryoki Yohanes, Wahju Eko Widodo, S. Joni Munarso, Astuti, Eko Bhakti Susetyo, Yenni Bakhtiar, and et al. 2025. "Application of Sawdust-Derived Activated Carbon as a Bio-Based Filler in Vulcanized Rubber Bushings" Polymers 17, no. 22: 2996. https://doi.org/10.3390/polym17222996

APA Style

Wulandari, E. P., Marlina, P., Nasruddin, Lanjar, Yohanes, H., Widodo, W. E., Munarso, S. J., Astuti, Susetyo, E. B., Bakhtiar, Y., Guo, H., & Setianto, W. B. (2025). Application of Sawdust-Derived Activated Carbon as a Bio-Based Filler in Vulcanized Rubber Bushings. Polymers, 17(22), 2996. https://doi.org/10.3390/polym17222996

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
