Article

An Environmentally Stable Organic–Inorganic Hybrid Perovskite Containing Py Cation with Low Trap-State Density

Department of Materials Science and Engineering, McMaster University, 1280 Main Street West, Hamilton, ON L8S 4L8, Canada
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(4), 272; https://doi.org/10.3390/cryst10040272
Received: 4 March 2020 / Revised: 23 March 2020 / Accepted: 1 April 2020 / Published: 2 April 2020
(This article belongs to the Special Issue Organic Inorganic Hybrid Perovskite Solar Cells)

Abstract

:
The commonly-employed methylammonium-based perovskites are environmentally unstable, which limits their commercialization. To resolve this problem, a stable hybrid perovskite, pyrrolidinium lead iodide (PyPbI3), was synthesized successfully via a simple drop casting method. The formed PyPbI3 exhibited a hexagonal structure. It presented not only excellent phase stability, but also low trap-state density, as confirmed via the X-ray diffraction and space-charge-limited currents measurements. This novel perovskite may be applicable to perovskite photovoltaics to improve their environmental stability.

1. Introduction

With the growing demands for renewable energy, photovoltaics (PV) becomes a popular research area [1,2]. Among all PV materials, organic–inorganic hybrid perovskite (OIHP) has attracted much interest in recent years. In general, OIHP has a formula of ABX3, where A represents monovalent cations, B for metals (e.g., Pb) and X for halides. Methylammonium lead iodide, with a chemical formula of MAPbI3, has been considered one of the most important OIHP materials [3]. It has been studied and reported that MAPbI3 has many superior properties including long diffusion length [4,5], tunable bandgap [6,7] and high defect tolerance [8], which results in the rapid development of its power conversion efficiency (PCE) from 3.8% to 25.2% [9] within only ten years, making OIHP one of the most promising PV materials.
Despite their excellent performance in terms of energy efficiency, the lifetime of the fabricated perovskite solar cell (PSC) is far from ideal [10]. For example, an unencapsulated PSC device would lose 10%−30% of its initial PCE within only several days in ambient conditions [11]. Comparing that with other already commercialized PV materials such as silicon, which has a lifetime of more than 25 years [12], the much shorter lifetime of PSCs confines them as a lab-scale product.
In order to fight against the MAPbI3 instability problems, numerous methods have been attempted. Although strategies such as interface engineering [13,14,15] and doping [7,16,17] were shown to improve the environmental stability of MAPbI3 effectively, they did not enhance the lifetime to any appreciable level, as MAPbI3 is intrinsically unstable [10,18].
In this regard, replacing the unstable MA cations seems inevitable. In 2014, formamidinium lead iodide (FAPbI3) [19] was introduced to improve the stability of PSC, but despite the enhanced thermal stability, they suffered severe moisture and phase instability issues [20]. Incorporating small inorganic cations such as cesium (Cs) to form the perovskite structure was also reported in 2015 [21], and the formed CsPbI3 exhibited improved moisture and thermal stabilities, yet its phase was not stable at room temperature [22]. Most recently, ring-based molecules with a strong hydrophobic nature were considered as an alternative in replacing the conventional unstable MA molecule. In 2017 [23], a four-membered ring-based azetidine (Az) molecule was introduced into the perovskite crystal structure to form AzPbI3. According to the results, the AzPbI3 exhibited excellent moisture stability. However, the structure of AzPbI3 was highly distorted, and its bandgap was not ideal (~2.15 eV). Chao et al. (2018) [24] simulated a three-membered ring-based perovskite, namely aziridinium lead iodide (AzPbI3). Their results indicated that such perovskite exhibited a low bandgap of 1.49 eV, as well as enhanced structural stability compared with MAPbI3 and FAPbI3 in terms of the formation enthalpy. A major issue for AzrPbI3 was that the aziridine molecule was highly toxic, which made it not practical for application. We thus reported in our previous work [25] a five-membered ring-based pyrrolidine (Py) molecule could be used to form a new perovskite pyrrolidinium lead iodide (PyPbI3). The PyPbI3 not only exhibited a lower bandgap (~1.80 eV) than AzPbI3, but also showed good water- and high-temperature-resistance [9], providing a possible answer to the long-term PSC instability problem. However, the phase stability of PyPbI3, equally important to the moisture and thermal stability, remains unknown. Moreover, other properties such as defect states, which affect the perovskite PV performance significantly, also need further investigation.
It is, therefore, the purpose of the current report to investigate the phase stability of PyPbI3. The results of our stability measurements showed that PyPbI3 exhibited only one phase in an ambient environment, indicating its excellent phase stability. The optical properties and morphology of the PyPbI3 film were also evaluated. By conducting the space-charge-limited currents (SCLC) measurement in a capacitor-like device, we revealed that PyPbI3 demonstrated a low trap-state density of ~2.3 × 1016 cm−3, which is comparable to that of MAPbI3. Our results indicated that PyPbI3 is an environmentally stable OIHP material with great potential to be employed in perovskite PV applications.

2. Materials and Methods

2.1. Materials

N,N-Dimethylformamide (DMF, 99.99%) and PbI2 (99.999%) were purchased from Sigma-Aldrich. Pyrrolidine hydroiodide (PyI, 98%) was purchased from TCI America.

2.2. Film Formation and Device Fabrication

The film was fabricated via a simple drop casting method. First, the ITO substrate was sequentially washed with distilled water and ethanol, two times with each. After 20 min of UV–O3 treatments, 80 μL of PyI (80 mg) and PbI2 (60 mg) in a DMF solution were drop cast on the substrate. The fabricated films were next annealed on a hot plate at 120 °C for 30 min in air. In the capacitor-like device, the metal electrode was further deposited by thermal evaporation of gold under a pressure of 5 × 10−5 Pa.

2.3. Characterizations

Powder XRD measurements were conducted on a Bruker D8 DISCOVER diffractometer (Bruker Corporation, Billerica, Massachusetts, USA). The steady state photoluminescence (PL) measurement was taken at room temperature with an excitation wavelength of 514.5 nm. The film morphology image was taken by a FEI Magellan 400 XHRSEM scanning electron microscope (SEM) (FEI Company Magellan™ XHR, Midland, ON, Canada). The current density–voltage characteristics of the devices were obtained using a Keithley 2400 source-measure unit. The light intensity was calibrated using a KG-5 Si diode.

3. Results

3.1. Fabrication and Characterizations of the Perovskite Film

The PyPbI3 film was fabricated by employing a simple drop casting method as illustrated in Figure 1 (Details shown in experimental section), following the methods reported in our previous work [9]. The thickness of the formed film was measured as 1500 nm by a profilometer. To investigate the crystal structure of the film, we conducted powder XRD measurements. The results are shown in Figure 2, and suggest the formation of PyPbI3 in the film [9]. The relatively low intensity of the first peak could be attributed to the texture in the powder film.
The optical property of the PyPbI3 film was evaluated via steady state photoluminescence (PL) measurement. The excitation wavelength adopted in this study was 514.5 nm. The PL result is shown in Figure 3, which shows a peak at around 600 nm, exhibiting a blue shift compared to our previous results [25]. This could be attributed to the different thickness of the perovskite film (in this work 1500 nm), leading to a change of its absorption property, as reported in the literature [26,27,28]. The relatively broad emission characteristic of the peak further indicates that the structure type of PyPbI3 belongs to 1D perovskite [29]. In addition, the PL luminescence of PyPbI3 remained the same after one hour in ambient conditions, which indicated its good moisture stability.
The morphology of the film was studied via field emission scanning electron microscope (SEM). As shown in Figure 4, the film consisted of many grains of micrometer sizes and had low grain boundary coverage area, which is comparable with that of MAPbI3 [30].

3.2. Trap-State Density of the PyPbI3 Film

To investigate the defect states in PyPbI3 film, SCLC measurements were taken. We fabricated capacitor-like devices following steps shown in the experimental section. The structure of the device is illustrated in Figure 5, and was composed of ITO/PyPbI3/Au. From the current density–voltage (CV) curve shown in Figure 6, it can be observed that the CV response is ohmic at low voltage. Upon reaching the intermediate voltage, the defect states are filled by the injected charge carriers (refers to TFL), resulting in a linear relationship between the voltage (VTFL) and the density of defect states (NDEF). Following the methods mentioned in previous reports (NDEF = 2 εε0VTFL/eL2) [11], ε0 is the vacuum permittivity, ε (~4.90, determined by RUFUTO 871) is the dielectric constant of PyPbI3, L (~1500 nm) is the thickness of the perovskite film, and e is the elementary charge. The defect density was estimated to be 2.3 × 1016 cm−3, which is comparable to that of MAPbI3 (~1016 cm−3), indicating a low trap-state density in the polycrystalline film of PyPbI3. The origin of the trap-states in PyPbI3 was assumed to be located at the grain boundaries, as suggested in the literature [31].

3.3. Stability Measurements of the PyPbI3 Film

To investigate the phase stability of PyPbI3, a set of stability measurements was conducted. According to previous reports on MAPbI3 and CsPbI3, the perovskite phase transition was triggered by either raising humidity [18,32] or temperature [22]. We therefore conducted the phase stability measurements in two different environments. First, we evaluated the phase stability of PyPbI3 in moisture with a relative humidity (RH) of ~50%. The formed film was kept in a desiccator for one week. The results are illustrated in Figure 7. As can be observed, after one week in an ambient environment, the XRD patterns of PyPbI3 remained unchanged, indicating the moisture and phase stabilities of PyPbI3.
Next, we raised the temperature of the environment. The fabricated film was placed on a hot plate at a temperature of 85 °C for 6 h. From the XRD results (Figure 8), a tiny peak appeared at around 14.78°, correspond to the PbI2 peak. The PbI2 peak was assumed to be originated from the surface of the PyPbI3 film, as suggested in literature [33]. Apart from that, we did not observe any other unknow diffraction peak. In addition, previous TGA measurements [9] further indicated the thermal stability of PyPbI3, which is consistent with our XRD results.

4. Discussion

The above stability measurement results indicate that PyPbI3 is highly phase-stable. Combining it with previous results, we can therefore conclude that PyPbI3 exhibits excellent environmental stability compared to MAPbI3. The results are further summarized in Table 1. We also explored the reasons for the enhanced environmental stabilities found in PyPbI3. The excellent moisture resistance of the perovskite can be attributed to the strong hydrophobic nature of its pyrrolidine rings [9], which can repel the invasion of water molecules, as schemed in Figure 8. The high thermal stability can be related to the greater molecular weight of the Py molecules (71 g/mol) compared to the MA molecules (31 g/mol), as the former molecule is less volatile [11].

5. Conclusions

In conclusion, a five-membered ring-based perovskite PyPbI3 was synthesized and its properties were characterized. The trap-state density of the polycrystalline PyPbI3 film was calculated to be 2.3 × 1016 cm−3. The stability measurements reveal that PyPbI3 is an environmentally stable perovskite, which shows great potential for employment in PSCs to resolve their long-term instability problems. In the future, it will be of great significance to fabricate and investigate the PyPbI3-only solar cell device.

Author Contributions

Conceptualization, methodology, investigation, writing—original draft preparation, A.F.X.; writing—review and editing, R.T.W. & L.W.Y. & E.E.L.; supervision, project administration, G.X.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science and Engineering Research Council of Canada, grant number 105-46964.

Acknowledgments

The authors would like to acknowledge the experimental supports from the MAX Diffraction Facility from Department of Chemistry, Department of Engineering Physics of McMaster University; Beijing University of Technology; Experimental Centre of Advanced Materials (ECAM) and School of Materials Science and Engineering of Beijing Institute of Technology; Canadian Center for Electron Microscopy (CCEM).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rong, Y.; Hu, Y.; Mei, A.; Tan, H.; Saidaminov, M.I.; Seok, S.I.; McGehee, M.D.; Sargent, E.H.; Han, H. Challenges for commercializing perovskite solar cells. Science 2018, 361, eaat8235. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Li, Z.; Zhao, Y.; Wang, X.; Sun, Y.; Zhao, Z.; Li, Y.; Zhou, H.; Chen, Q. Cost Analysis of Perovskite Tandem Photovoltaics. Joule 2018, 2, 1559–1572. [Google Scholar] [CrossRef][Green Version]
  3. Yin, W.J.; Shi, T.; Yan, Y. Unique properties of halide perovskites as possible origins of the superior solar cell performance. Adv. Mater. 2014, 26, 4653–4658. [Google Scholar] [CrossRef] [PubMed]
  4. Xing, G.; Mathews, N.; Sun, S.; Lim, S.S.; Lam, Y.M.; Grätzel, M.; Mhaisalkar, S.; Sum, T.C. Long-range balanced electron-and hole-transport lengths in organic-inorganic CH3NH3PbI3. Science 2013, 342, 344–347. [Google Scholar] [CrossRef]
  5. Dong, Q.; Fang, Y.; Shao, Y.; Mulligan, P.; Qiu, J.; Cao, L.; Huang, J. Electron-hole diffusion lengths > 175 μm in solution-grown CH3NH3PbI3 single crystals. Science 2015, 347, 967–970. [Google Scholar] [CrossRef][Green Version]
  6. Wang, R.T.; Xu, A.F.; Yang, W.; Chen, J.Y.; Kitai, A.; Xu, G. Magnetic-field-induced energy bandgap reduction of a perovskite by spin-orbit coupling via a low strength magnet. J. Mater. Chem. C 2020, 8, 4164–4168. [Google Scholar] [CrossRef]
  7. Jeon, N.J.; Noh, J.H.; Yang, W.S.; Kim, Y.C.; Ryu, S.; Seo, J.; Seok, S.I. Compositional engineering of perovskite materials for high-performance solar cells. Nature 2015, 517, 476–480. [Google Scholar] [CrossRef]
  8. Huang, Y.; Sun, Q.D.; Xu, W.; He, Y.; Yin, W.J. Halide perovskite materials for solar cells: A theoretical review. Wuli Huaxue Xuebao/Acta Phys.Chim. Sin. 2017, 33, 1730–1751. [Google Scholar]
  9. Xu, A.F.; Wang, R.T.; Yang, L.W.; Liu, N.; Chen, Q.; LaPierre, R.; Isik Goktas, N.; Xu, G. Pyrrolidinium containing perovskites with thermal stability and water resistance for photovoltaics. J. Mater. Chem. C 2019, 7, 11104–11108. [Google Scholar] [CrossRef]
  10. Park, B.-W.; Seok, S.I. Intrinsic Instability of Inorganic–Organic Hybrid Halide Perovskite Materials. Adv. Mater. 2019, 31, 1805337. [Google Scholar] [CrossRef]
  11. Liu, N.; Du, Q.; Yin, G.; Liu, P.; Li, L.; Xie, H.; Zhu, C.; Li, Y.; Zhou, H.; Zhang, W.B.; et al. Extremely low trap-state energy level perovskite solar cells passivated using NH2-POSS with improved efficiency and stability. J. Mater. Chem. A 2018, 6, 6806–6814. [Google Scholar] [CrossRef]
  12. Liu, Z.; Sofia, S.E.; Laine, H.S.; Woodhouse, M.; Wieghold, S.; Peters, I.M.; Buonassisi, T. Revisiting thin silicon for photovoltaics: A technoeconomic perspective. Energy Environ. Sci. 2020, 13, 12–23. [Google Scholar] [CrossRef][Green Version]
  13. Tai, E.G.; Wang, R.T.; Chen, J.Y.; Xu, G. A water-stable organic-inorganic hybrid perovskite for solar cells by inorganic passivation. Crystals 2019, 9, 83. [Google Scholar] [CrossRef][Green Version]
  14. Zhou, H.; Chen, Q.; Li, G.; Luo, S.; Song, T.B.; Duan, H.S.; Hong, Z.; You, J.; Liu, Y.; Yang, Y. Interface engineering of highly efficient perovskite solar cells. Science 2014, 345, 542–546. [Google Scholar] [CrossRef] [PubMed]
  15. Grancini, G.; Roldán-Carmona, C.; Zimmermann, I.; Mosconi, E.; Lee, X.; Martineau, D.; Narbey, S.; Oswald, F.; De Angelis, F.; Graetzel, M.; et al. One-Year stable perovskite solar cells by 2D/3D interface engineering. Nat. Commun. 2017, 8, 1–8. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, R.T.; Tai, E.G.; Chen, J.Y.; Xu, G.; LaPierre, R.; Goktas, N.I.; Hu, N. A KMnF3 perovskite structure with improved stability, low bandgap and high transport properties. Ceram. Int. 2019, 45, 64–68. [Google Scholar] [CrossRef]
  17. Pham, N.D.; Zhang, C.; Tiong, V.T.; Zhang, S.; Will, G.; Bou, A.; Bisquert, J.; Shaw, P.E.; Du, A.; Wilson, G.J.; et al. Tailoring Crystal Structure of FA0.83Cs0.17PbI3 Perovskite Through Guanidinium Doping for Enhanced Performance and Tunable Hysteresis of Planar Perovskite Solar Cells. Adv. Funct. Mater. 2019, 29, 1806479. [Google Scholar] [CrossRef][Green Version]
  18. Wang, R.T.; Xu, A.F.; Chen, J.Y.; Yang, L.W.; Xu, G.; Jarvis, V.; Britten, J.F. Reversing Organic-Inorganic Hybrid Perovskite Degradation in Water via pH and Hydrogen Bonds. J. Phys. Chem. Lett. 2019, 10, 7245–7250. [Google Scholar] [CrossRef]
  19. Eperon, G.E.; Stranks, S.D.; Menelaou, C.; Johnston, M.B.; Herz, L.M.; Snaith, H.J. Formamidinium lead trihalide: A broadly tunable perovskite for efficient planar heterojunction solar cells. Energy Environ. Sci. 2014, 7, 982–988. [Google Scholar] [CrossRef]
  20. Chen, T.; Foley, B.J.; Park, C.; Brown, C.M.; Harriger, L.W.; Lee, J.; Ruff, J.; Yoon, M.; Choi, J.J.; Lee, S.H. Entropy-driven structural transition and kinetic trapping in formamidinium lead iodide perovskite. Sci. Adv. 2016, 2, e1601650. [Google Scholar] [CrossRef][Green Version]
  21. Eperon, G.E.; Paternò, G.M.; Sutton, R.J.; Zampetti, A.; Haghighirad, A.A.; Cacialli, F.; Snaith, H.J. Inorganic caesium lead iodide perovskite solar cells. J. Mater. Chem. A 2015, 3, 19688–19695. [Google Scholar] [CrossRef]
  22. Steele, J.A.; Jin, H.; Dovgaliuk, I.; Berger, R.F.; Braeckevelt, T.; Yuan, H.; Martin, C.; Solano, E.; Lejaeghere, K.; Rogge, S.M.J.; et al. Thermal unequilibrium of strained black CsPbI3 thin films. Science 2019, 365, 679–684. [Google Scholar] [CrossRef] [PubMed]
  23. Pering, S.R.; Deng, W.; Troughton, J.R.; Kubiak, P.S.; Ghosh, D.; Niemann, R.G.; Brivio, F.; Jeffrey, F.E.; Walker, A.B.; Islam, M.S.; et al. Azetidinium lead iodide for perovskite solar cells. J. Mater. Chem. A 2017, 5, 20658–20665. [Google Scholar] [CrossRef][Green Version]
  24. Zheng, C.; Rubel, O. Aziridinium Lead Iodide: A Stable, Low-Band-Gap Hybrid Halide Perovskite for Photovoltaics. J. Phys. Chem. Lett. 2018, 9, 874–880. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Xu, A.F.; Wang, R.T.; Yang, L.W.; Jarvis, V.; Britten, J.F.; Xu, G. Pyrrolidinium lead iodide from crystallography: A new perovskite with low bandgap and good water resistance. Chem. Commun. 2019, 55, 3251–3253. [Google Scholar] [CrossRef]
  26. Liu, D.; Gangishetty, M.K.; Kelly, T.L. Effect of CH3NH3PbI3 thickness on device efficiency in planar heterojunction perovskite solar cells. J. Mater. Chem. A 2014, 2, 19873–19881. [Google Scholar] [CrossRef][Green Version]
  27. Levchuk, I.; Herre, P.; Brandl, M.; Osvet, A.; Hock, R.; Peukert, W.; Schweizer, P.; Spiecker, E.; Batentschuk, M.; Brabec, C.J. Ligand-assisted thickness tailoring of highly luminescent colloidal CH3NH3PbX3 (X = Br and I) perovskite nanoplatelets. Chem. Commun. 2017, 53, 244–247. [Google Scholar] [CrossRef]
  28. Hintermayr, V.A.; Richter, A.F.; Ehrat, F.; Döblinger, M.; Vanderlinden, W.; Sichert, J.A.; Tong, Y.; Polavarapu, L.; Feldmann, J.; Urban, A.S. Tuning the Optical Properties of Perovskite Nanoplatelets through Composition and Thickness by Ligand-Assisted Exfoliation. Adv. Mater. 2016, 28, 9478–9485. [Google Scholar] [CrossRef]
  29. Yuan, Z.; Zhou, C.; Tian, Y.; Shu, Y.; Messier, J.; Wang, J.C.; Van De Burgt, L.J.; Kountouriotis, K.; Xin, Y.; Holt, E.; et al. One-dimensional organic lead halide perovskites with efficient bluish white-light emission. Nat. Commun. 2017, 8, 1–7. [Google Scholar] [CrossRef]
  30. Yang, M.; Zhang, T.; Schulz, P.; Li, Z.; Li, G.; Kim, D.H.; Guo, N.; Berry, J.J.; Zhu, K.; Zhao, Y. Facile fabrication of large-grain CH3NH3PbI3−x Brx films for high-efficiency solar cells via CH3NH3 Br-selective Ostwald ripening. Nat. Commun. 2016, 7, 12305. [Google Scholar] [CrossRef]
  31. Yun, J.S.; Kim, J.; Young, T.; Patterson, R.J.; Kim, D.; Seidel, J.; Lim, S.; Green, M.A.; Huang, S.; Ho-Baillie, A. Humidity-Induced Degradation via Grain Boundaries of HC(NH2)2PbI3 Planar Perovskite Solar Cells. Adv. Funct. Mater. 2018, 28, 1705363. [Google Scholar] [CrossRef]
  32. Yang, J.; Siempelkamp, B.D.; Liu, D.; Kelly, T.L. Investigation of CH3NH3 PbI3degradation rates and mechanisms in controlled humidity environments using in situ techniques. ACS Nano 2015, 9, 1955–1963. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, Q.; Zhou, H.; Song, T.B.; Luo, S.; Hong, Z.; Duan, H.S.; Dou, L.; Liu, Y.; Yang, Y. Controllable self-induced passivation of hybrid lead iodide perovskites toward high performance solar cells. Nano Lett. 2014, 14, 4158–4163. [Google Scholar] [CrossRef] [PubMed]
  34. Conings, B.; Drijkoningen, J.; Gauquelin, N.; Babayigit, A.; D’Haen, J.; D’Olieslaeger, L.; Ethirajan, A.; Verbeeck, J.; Manca, J.; Mosconi, E.; et al. Intrinsic Thermal Instability of Methylammonium Lead Trihalide Perovskite. Adv. Energy Mater. 2015, 5, 1500477. [Google Scholar] [CrossRef]
  35. Wu, Z.; Liu, Z.; Hu, Z.; Hawash, Z.; Qiu, L.; Jiang, Y.; Ono, L.K.; Qi, Y. Highly Efficient and Stable Perovskite Solar Cells via Modification of Energy Levels at the Perovskite/Carbon Electrode Interface. Adv. Mater. 2019, 31, 1804284. [Google Scholar] [CrossRef]

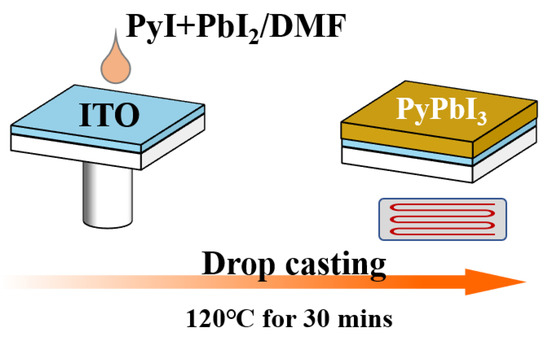

Figure 1. The schematic illustration of the PyPbI3 film fabrication process.
Figure 1. The schematic illustration of the PyPbI3 film fabrication process.
Crystals 10 00272 g001

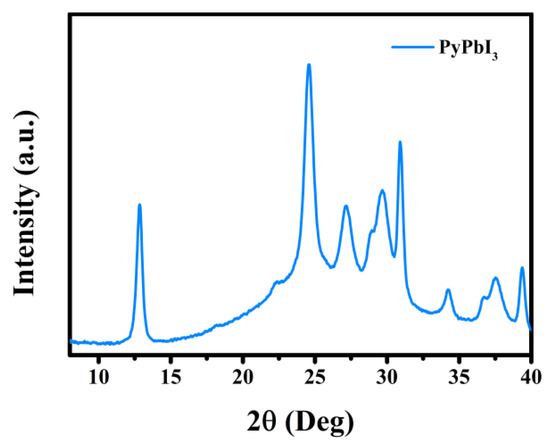

Figure 2. XRD results of the fabricated PyPbI3 film.
Figure 2. XRD results of the fabricated PyPbI3 film.
Crystals 10 00272 g002

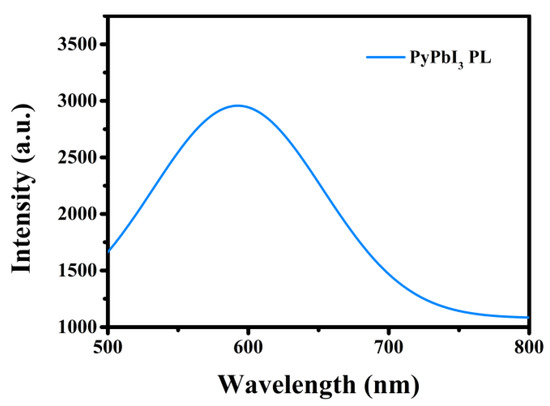

Figure 3. Steady state PL curve of PyPbI3.
Figure 3. Steady state PL curve of PyPbI3.
Crystals 10 00272 g003

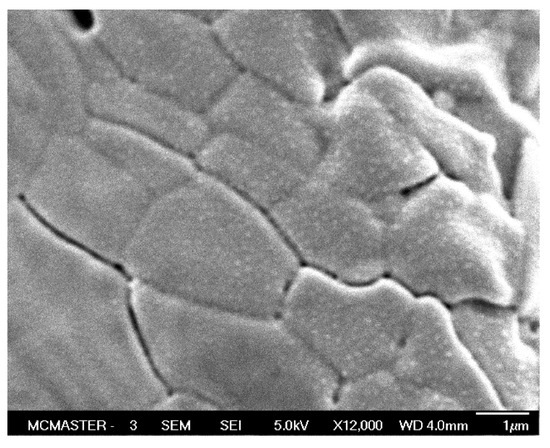

Figure 4. Planar SEM image of PyPbI3.
Figure 4. Planar SEM image of PyPbI3.
Crystals 10 00272 g004

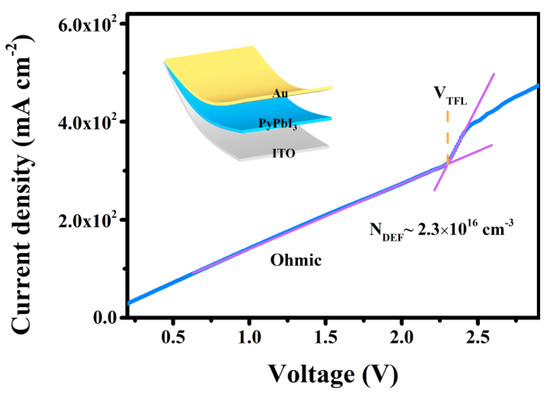

Figure 5. Current–voltage curves of the devices adopting the as-illustrated configuration. Inset: Device scheme of ITO/perovskite/Au.
Figure 5. Current–voltage curves of the devices adopting the as-illustrated configuration. Inset: Device scheme of ITO/perovskite/Au.
Crystals 10 00272 g005

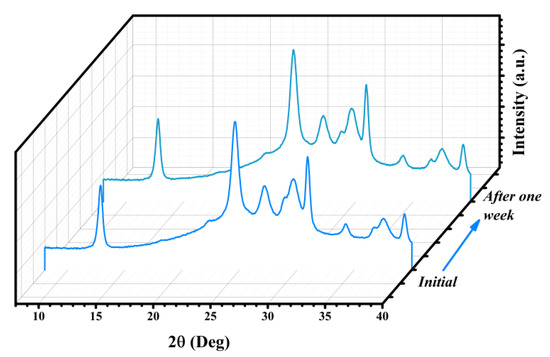

Figure 6. Initial XRD results of PyPbI3, and results after one week in ambient conditions with a RH of 50%.
Figure 6. Initial XRD results of PyPbI3, and results after one week in ambient conditions with a RH of 50%.
Crystals 10 00272 g006

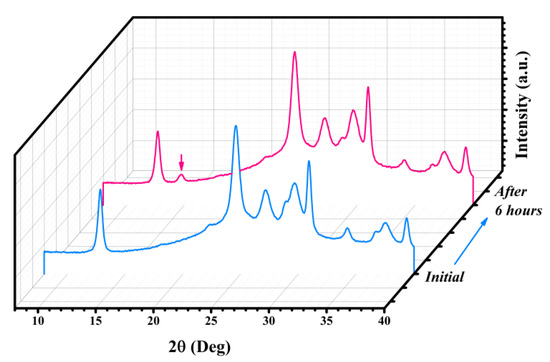

Figure 7. XRD results of PyPbI3 initial and after 6 h with T = 85 °C.
Figure 7. XRD results of PyPbI3 initial and after 6 h with T = 85 °C.
Crystals 10 00272 g007

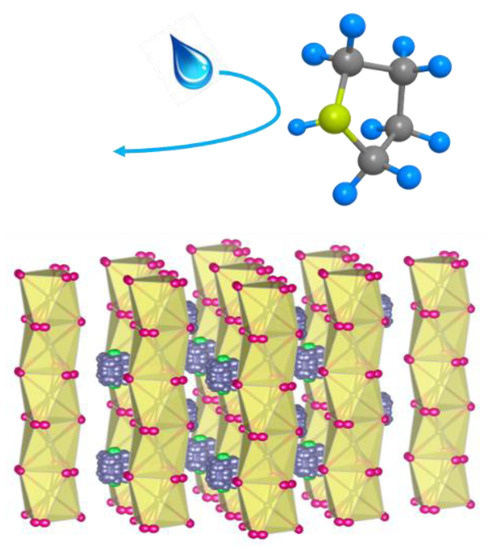

Figure 8. Schematic illustration of water-repelling mechanism in PyPbI3. The top five-membered ring stands for the Py molecule, and structure beneath represents PyPbI3 perovskite.
Figure 8. Schematic illustration of water-repelling mechanism in PyPbI3. The top five-membered ring stands for the Py molecule, and structure beneath represents PyPbI3 perovskite.
Crystals 10 00272 g008
Table 1. Comparison of five OIHPs comparing moisture, thermal and phase stabilities.
Table 1. Comparison of five OIHPs comparing moisture, thermal and phase stabilities.
FormulaMAPbI3FAPbI3CsPbI3AzPbI3PyPbI3
Moisture stabilityBad [18]Bad [31]Regular [21]Good [23]Good [25]
Thermal stabilityBad [34]Regular [19]Regular [35]N/AGood [9]
