Calcium Oxide Nanoparticles as Green Nanocatalysts in Multicomponent Heterocyclic Synthesis: Mechanisms, Metrics, and Future Directions

Abstract

The growing demand for sustainable and efficient synthetic methodologies has brought nanocatalysis to the forefront of modern organic chemistry, particularly in the construction of heterocyclic compounds through multicomponent reactions (MCRs). Among various nanocatalysts, calcium oxide nanoparticles (CaO NPs) have gained significant attention because of their strong basicity, thermal stability, low toxicity, and cost-effectiveness. This review provides a comprehensive account of the recent strategies using CaO NPs as heterogeneous catalysts for the green synthesis of nitrogen- and oxygen-containing heterocycles through MCRs. Key reactions such as Biginelli, Hantzsch, and pyran annulations are discussed in detail, with emphasis on atom economy, reaction conditions, product yields, and catalyst reusability. In many instances, CaO NPs have enabled solvent-free or aqueous protocols with high efficiency and reduced reaction times, often under mild conditions. Mechanistic aspects are analyzed to highlight the catalytic role of surface basic sites in facilitating condensation and cyclization steps. The performance of CaO NPs is also compared with other oxide nanocatalysts, showcasing their benefits from green metrics evaluation like E-factor and turnover frequency. Despite significant progress, challenges remain in areas such as asymmetric catalysis, industrial scalability, and catalytic stability under continuous use. To address these gaps, future directions involving doped CaO nanomaterials, hybrid composites, and mechanochemical approaches are proposed. This review aims to provide a focused and critical perspective on CaO NP-catalyzed MCRs, offering insights that may guide further innovations in sustainable heterocyclic synthesis.

1. Introduction

Heterocyclic compounds, characterized by ring systems containing at least one heteroatom (typically nitrogen, oxygen, or sulfur), form the structural core of a vast range of biologically active molecules and industrial materials [1]. It is estimated that nearly 85% of all pharmacologically relevant compounds, including approved drugs, agrochemicals, dyes, and advanced functional materials, contain at least one heterocyclic moiety [2]. These structures are fundamental components of natural products such as nucleobases, amino acids, and vitamins, and they continue to serve as essential frameworks in medicinal chemistry and drug development [3]. From a synthetic standpoint, heterocycles are highly valued not only for their diverse biological activities but also for their influence on key physicochemical properties such as solubility, polarity, and metabolic stability—traits that are crucial in optimizing pharmacokinetics and pharmacodynamics [4,5]. However, conventional methods for their synthesis often involve several reaction steps, the use of harsh reagents, and substantial solvent consumption, raising concerns over environmental impact and overall efficiency. These limitations have spurred interest in greener and more atom-economical synthetic strategies in recent years [6,7].

Multicomponent reactions (MCRs) have emerged as a powerful synthetic approach to construct complex heterocyclic frameworks in a single operational step. By combining three or more starting materials in one pot, MCRs significantly improve atom economy, reduce purification steps, and minimize chemical waste [8,9,10]. These reactions typically proceed under mild conditions and are known for their operational simplicity—features that are highly advantageous in both research and industrial settings [11,12,13]. Classical MCRs, including the Biginelli, Ugi, and Hantzsch reactions, are particularly effective for generating structurally diverse, bioactive heterocycles. The adaptability of MCRs to green solvents like water and ethanol, and their compatibility with solvent-free protocols and alternative energy sources such as microwave or ultrasound irradiation, further reinforces their significance in sustainable chemistry [14]. Nevertheless, many MCRs depend on catalysts to achieve high selectivity and yield, especially when managing competing side reactions or achieving stereocontrol [15,16].

Catalysis plays a pivotal role in facilitating MCRs, and nanomaterials have emerged as transformative tools in this domain. Nanocatalysts offer unique advantages because of their high surface-area-to-volume ratios, tunable surface chemistry, and the potential to tailor their size, shape, and porosity for specific reactivity profiles [17,18,19]. These characteristics translate into enhanced catalytic efficiency, improved selectivity, and often allow reactions to proceed under environmentally benign conditions [20,21]. Various nanocatalysts—including metal oxides such as ZnO, TiO₂, and Fe₃O₄, as well as supported hybrids—have been effectively applied in MCRs [22]. These systems commonly enable reactions to occur in aqueous or solvent-free environments under ambient or mild heating, and they are generally recoverable and reusable with minimal performance loss. Among these, calcium oxide nanoparticles (CaO NPs) are notable for their strong basicity, low toxicity, abundance, and cost-effectiveness [23,24,25]. They are typically synthesized from natural precursors like limestone, eggshells, or seashells via eco-friendly calcination methods, consistent with the principles of green chemistry [26,27,28].

In the context of MCRs, CaO NPs have demonstrated remarkable efficiency in catalyzing condensation and cyclization steps, often delivering high product yields under mild and green conditions. Their bifunctional catalytic nature—arising from the coexistence of Lewis acidic Ca²⁺ centers and basic O²⁻ sites—facilitates key transformations in complex synthetic pathways [29,30,31,32,33]. Additionally, the ease of catalyst recovery and recyclability make CaO NPs attractive for practical applications [34]. Despite these benefits, the potential of CaO NPs remains relatively underutilized compared to other nanocatalysts. This may be attributed to limited mechanistic insight into their catalytic behavior, challenges in fine-tuning their surface characteristics during synthesis, and the absence of comprehensive studies benchmarking their performance against other metal oxide systems. Furthermore, their application in asymmetric catalysis and continuous-flow processes remains largely unexplored [35,36,37]. To address these gaps, the present review provides a focused and critical overview of CaO NP-mediated multicomponent reactions for the construction of heterocycles. It highlights their catalytic efficiency, reaction scope, mechanistic roles, and green metrics, while also outlining future directions for expanding their use in sustainable organic synthesis [38,39,40].

2. Properties and Characteristics of CaO Nanoparticles (CaO NPs)

Calcium oxide (CaO) is a widely used basic oxide known for its high thermal stability, low toxicity, and environmental compatibility. When engineered at the nanoscale, CaO exhibits significantly enhanced physicochemical properties, including increased surface area, stronger basicity, and improved dispersion. These characteristics make CaO nanoparticles (CaO NPs) particularly attractive for catalysis under green conditions, especially in multicomponent heterocyclic synthesis [41,42].

2.1. Structural and Morphological Features

The morphology and structure of CaO NPs vary according to the synthesis method, typically resulting in cubic, spherical, or irregular particles. Transmission electron microscopy (TEM) and scanning electron microscopy (SEM) studies report particle sizes ranging between 10 and 80 nm, often exhibiting high crystallinity and rough surfaces that promote efficient substrate interaction X-ray diffraction (XRD) patterns generally indicating the presence of a face-centered cubic (fcc) structure, with diffraction peaks corresponding to (111), (200), and (220) planes [43,44]. CaO NPs prepared via various methods display a wide range of BET surface areas, sometimes reaching up to 100 m²/g—far higher than bulk CaO. This increase in surface area, along with greater porosity and reduced grain size, enhances the density of exposed active sites, improving catalytic activity, particularly in base-mediated reactions such as the Biginelli and Knoevenagel condensations [45,46].

The impact of different synthesis protocols on particle size, surface area, and basic site density is summarized in

Table 1. Physicochemical characteristics of CaO nanoparticles synthesized via various methods.

Synthesis Method	Avg. Particle Size (nm)	BET Surface Area (mÂ2/g)	Basic Site Density (mmol/g)	Ref.
Sol–gel	30	95	1.2	[35]
Co-precipitation	45	80	1	[37]
Bio-waste (eggshell)	25	100	1.4	[39]
Hydrothermal	40	85	1.1	[40]
Combustion	35	90	1.3	[42]

, which compares CaO NPs synthesized through sol–gel, co-precipitation, bio-waste, hydrothermal, and combustion methods. These values illustrate the structural advantages conferred by green routes, especially those utilizing bio-waste materials [47,48,49,50].

These structural attributes also influence surface reactivity, which is strongly dependent on the synthetic pathway and calcination conditions. The following section examines how synthesis routes affect the surface basicity and overall catalytic behavior of CaO NPs [51,52]. A unified, cross-family mechanistic map is compiled in

Table 2. Unified mechanistic map for CaO dual-site catalysis across representative multicomponent reactions. Columns align substrate activation → key bond-forming step → role of O²⁻/Ca²⁺ → typical conditions/limitations.

Reaction Family (3-Component MCR)	Substrate Activation	Key Bond-Forming Step	Role of O2−/Ca2+	Typical Conditions (Solvent/Energy/Load/Time)	Common Limitations/Notes	Ref.
Knoevenagel condensation (Aldehyde + active methylene)	O2− deprotonates CH-acid; Ca2+ activates aldehyde carbonyl	C–C via nucleophilic addition to Ca2+-polarized carbonyl; dehydration	O2− = base; Ca2+ = Lewis acid/TS organizer	EtOH or solvent-free; rt–80 °C, MW/US; 5–10 mol% CaO; 10–60 min	Acid-sensitive substrates; CaO carbonation; steric hindrance slows	[53]
Biginelli (Aldehyde + β-ketoester + urea/thiourea)	Ca2+ activates aldehyde; O2− enolizes β-ketoester and urea	Knoevenagel adduct + nucleophilic addition → cyclization	Dual activation: Ca2+ = carbonyl template; O2− = enolate/enamine	EtOH, EtOH/H2O or solvent-free; 80–120 °C or MW; 5–15 mol% CaO; 20–90 min	Electron-poor aldehydes slower; thiourea needs dry medium	[54]
Hantzsch (Aldehyde + β-ketoester + NH3/amine) → 1,4-DHP	O2− promotes enamine formation; Ca2+ activates aldehyde	Knoevenagel + Michael/aldol → cyclization → tautomerization	O2− = enolization; Ca2+ = carbonyl activation	EtOH or AcOEt; 60–100 °C or MW; 5–10 mol% CaO; 30–120 min	Primary amines may over-react; chelators can poison Ca2+	[55]
2-Amino-4H-chromene (Aldehyde + malononitrile + phenol/dimedone)	O2− forms malononitrile carbanion/enolate; Ca2+ activates aldehyde	Knoevenagel → Michael by enolate/phenoxide → O-cyclization	O2− = nucleophile generation; Ca2+ = electrophile alignment	EtOH/H2O or solvent-free; rt–90 °C or MW; 5–12 mol% CaO; 10–90 min	Phenols with EWGs sluggish; over-basic media can polymerize	[56]
Imidazo [1,2-a]pyridines (Aldehyde + 2-aminopyridine + CH-acid donor)	Ca2+ coordinates aldehyde/imine; O2− deprotonates CH-acid	C–C to imine intermediate → N-cyclization → aromatization	Dual site activation; balanced basicity for imine/ring closure	EtOH, MeCN, or neat; 70–110 °C or MW; 5–15 mol% CaO; 30–120 min	Moisture suppresses imine; strong N-donors may poison Ca2+	[57]
Pyranopyran/annulated O-heterocycles (Knoevenagel → Michael → cyclization)	O2− promotes enolate/carbanion; Ca2+ activates carbonyls	Conjugate addition → hemiacetalization → cyclization	O2− = base steps; Ca2+ = Lewis-acid steps	EtOH/H2O or neat; 60–100 °C or MW/US; 5–12 mol% CaO; 20–120 min	Hindered enones slow; carbonate formation lowers activity	[58]

Note: Entries summarize consensus roles for CaO’s bifunctional sites across common MCRs; tune loads/solvents to specific substrate sets. MW = microwave; US = ultrasound.

, aligning substrate activation, key bond-forming steps, the complementary roles of O²⁻/Ca²⁺, and typical conditions/limitations across the MCRs surveyed.

2.2. Synthetic Methods and Surface Basicity

Several methods have been developed for synthesizing CaO NPs, including sol–gel, hydrothermal, precipitation, combustion, and bio-assisted techniques [59,60]. Among these, green synthesis approaches utilizing bio-waste materials—such as eggshells, clam shells, and mollusk shells—have gained significant interest due to their sustainability and cost-effectiveness. In most cases, calcium carbonate precursors are calcined at temperatures ranging from 750 °C to 900 °C to yield phase-pure CaO NPs. The calcination temperature plays a crucial role in determining particle size, crystallinity, and surface area [61,62]. The surface basicity of CaO NPs primarily originates from exposed O²⁻ ions, which can abstract protons or activate electrophilic substrates. Characterization techniques such as CO₂ temperature-programmed desorption (CO₂-TPD) and Hammett indicators confirm the presence of both weak and strong basic sites. These active centers are vital for promoting C–C and C–heteroatom bond formations in multicomponent reactions [63,64]. Notably, the catalytic performance of CaO NPs is influenced not only by their synthetic route but also by their surface morphology and the distribution of active sites. These properties make CaO NPs highly effective under green conditions [65,66]. A graphical representation of the nanoparticle surface is provided in Figure 1, which illustrates the dual functionality of O²⁻ basic sites and Ca²⁺ Lewis acidic centers. A concise schematic of the principal CaO-NP synthesis routes and their influence on surface basicity is presented in Figure 2. These active sites facilitate both proton abstraction and electrophilic activation of substrates, which are essential mechanistic steps in multicomponent bond-forming reactions such as the Biginelli and Knoevenagel condensations (Figure 1) [67,68].

2.3. Catalytic and Environmental Advantages

One of the key strengths of CaO NPs is their ability to function as heterogeneous base catalysts under environmentally benign conditions. Unlike soluble bases such as NaOH or K₂CO₃, CaO NPs can be easily recovered and reused without contaminating the product. Their compatibility with solvent-free systems or aqueous media makes them ideal for green transformations, including well-known multicomponent reactions like the Knoevenagel condensation, Hantzsch synthesis, and Biginelli reaction [69,70,71].

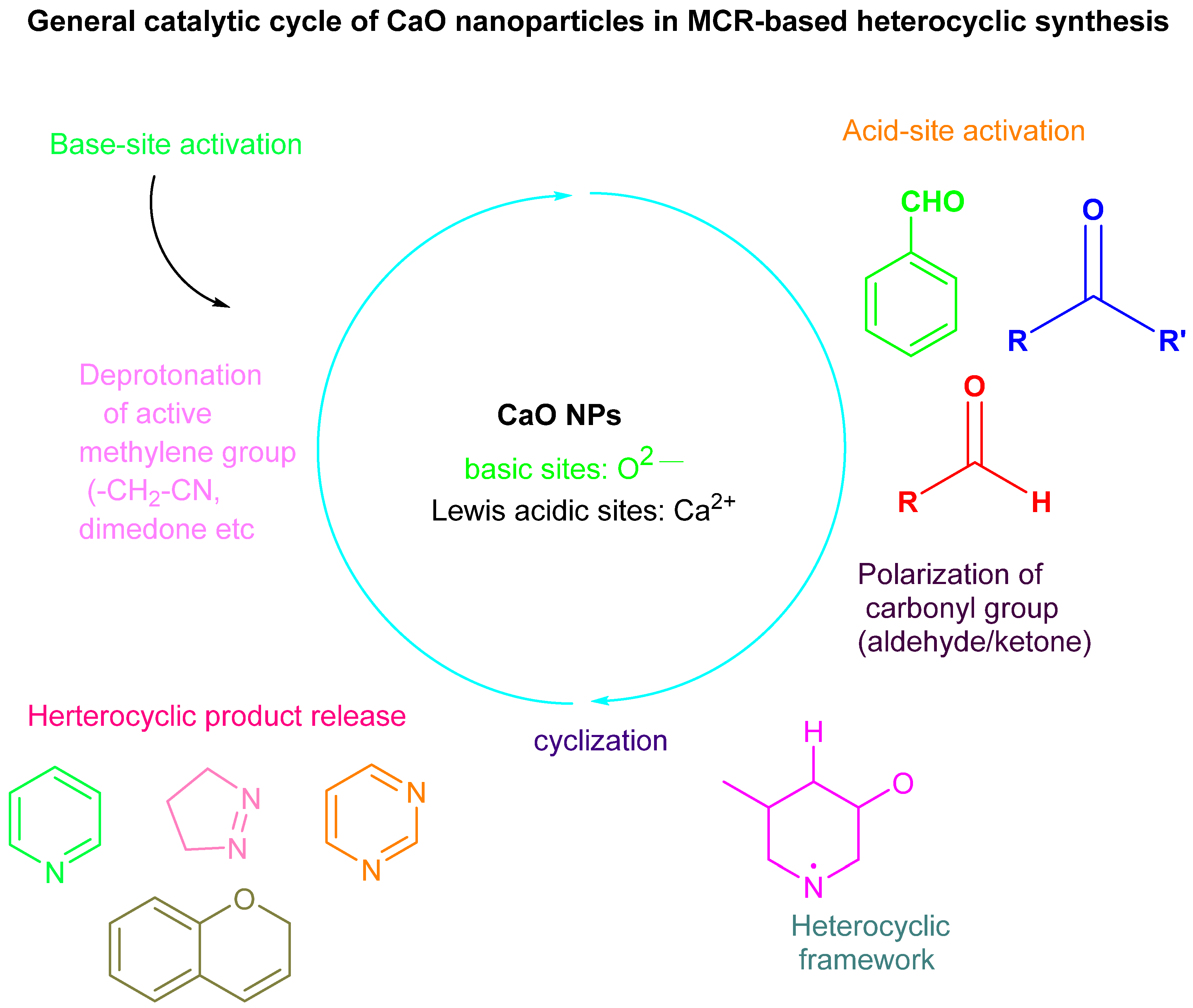

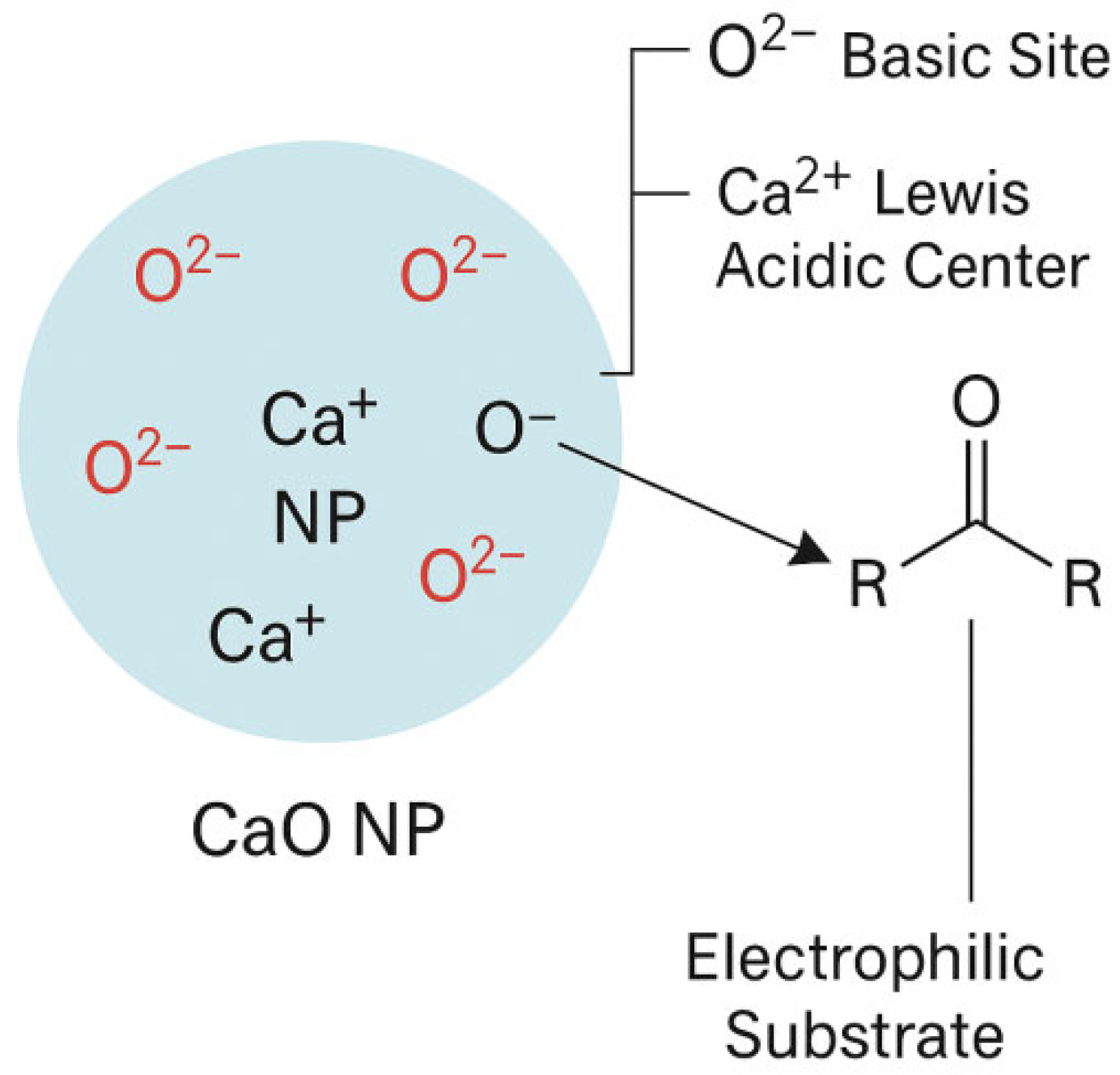

In addition to their strong basic character, CaO surfaces also possess Lewis acidic Ca²⁺ sites, which can coordinate with carbonyl oxygen or nitrogen atoms. This dual functionality allows simultaneous activation of multiple substrates, thereby enhancing selectivity and accelerating reaction rates [72,73,74]. Many such transformations are reported to complete within 30–60 min at relatively low temperatures (60–80 °C), making CaO NPs efficient and energy-saving catalysts. The catalytic efficiency of CaO NPs is further supported by their reusability, which is discussed below [75,76].

2.4. Reusability and Catalyst Stability

Although the reusability of CaO nanoparticles has been widely explored in biodiesel production and transesterification reactions—where they often retain catalytic activity over 4–5 cycles with simple regeneration via mild heating—their recyclability in multicomponent heterocyclic synthesis remains underexplored [77,78]. Nonetheless, given their heterogeneous nature, ease of separation, and robust surface properties, CaO NPs hold strong potential for recovery and reuse under green synthesis conditions. Future studies should focus on systematically evaluating their performance in repeated MCR cycles, establishing stability under different substrates and solvent systems [79]. The long-term stability and reusability of CaO nanoparticles (NPs) are essential for their practical use in the sustainable, multicomponent synthesis of heterocyclic compounds; while CaO NPs offer desirable high basicity and dual acid–base behavior, their ability to maintain catalytic performance over multiple cycles is a critical factor determining their industrial viability and adherence to green chemistry principles.

Similarly to other heterogeneous base catalysts, CaO NPs are prone to gradual deactivation upon repeated use. The main deactivation pathways include leaching of active basic sites (O²⁻) into the reaction medium, leading to a decrease in surface alkalinity; surface carbonation caused by exposure to atmospheric CO₂, which converts active CaO into less active CaCO₃ hydration during storage or work-up, forming Ca(OH)₂, which has significantly lower catalytic activity; and fouling by strongly adsorbed organic intermediates or products, which physically block the active sites. These processes collectively result in a progressive decline in both activity and selectivity, particularly evident in multicomponent heterocyclic transformations conducted under mild conditions.

To counteract these effects, the established regeneration protocols have been effectively applied. Typically, the spent catalyst is thoroughly washed with polar solvents such as ethanol to remove surface-bound organic impurities. This is followed by thermal regeneration, wherein the washed catalyst is calcined at temperatures ranging from 500 to 600 °C. During this step, inactive Ca(OH)₂ and CaCO₃ phases are decomposed back into catalytically active CaO, thereby restoring the original surface basicity. Such regeneration cycles have been widely adopted in biodiesel production systems [80,81], and their successful adaptation to heterocyclic MCRs has also been demonstrated [82]

Overall, these regeneration strategies ensure the sustained catalytic performance of CaO NPs across multiple reaction cycles, enhancing their environmental and economic attractiveness for heterocyclic synthesis.

2.5. Comparative Evaluation with Other Oxide Nanocatalysts

In the domain of heterogeneous base catalysis, a range of metal oxide nanoparticles—including ZnO, TiO₂, and MgO—have been employed with notable success in multicomponent reactions (MCRs). These nanocatalysts offer diverse properties tailored to specific catalytic roles; for instance, ZnO and TiO₂ are widely used for their photochemical, solar-to-hydrogen conversion [83], and acid-catalyzed transformation capabilities. In contrast, CaO nanoparticles distinguish themselves through their intrinsic basicity, environmental friendliness, and abundance, making them attractive candidates for base-promoted heterocyclic synthesis [84]. CaO NPs exhibit strong surface basicity due to the presence of exposed O²⁻ ions, enabling efficient activation of acidic hydrogen atoms and electrophilic centers. Compared to ZnO, TiO₂, and MgO, CaO offers greater basic site density, which is critical for facilitating key bond-forming steps in reactions such as the Biginelli, Knoevenagel, and Hantzsch condensations [85]. Furthermore, CaO can be derived from natural or waste sources (e.g., eggshells or limestone), supporting low-cost and sustainable catalyst production [86,87]. From a performance perspective, CaO NPs often achieve comparable or superior product yields, and reactions catalyzed by CaO tend to proceed under milder conditions and with shorter reaction times than those catalyzed by other oxides. Although reusability data in MCRs is currently limited, CaO’s demonstrated stability in other catalytic systems suggests promising potential [88,89,90,91].

Table 3. Comparison of catalytic activity, green metrics (E-factor), and recyclability of heterogeneous oxide nanocatalysts used in sustainable multicomponent reactions.

Catalyst	Avg. Yield (%)	E-Factor	Recyclability (No. of Cycles) *	Reaction Time (min)	Reference
CaO NPs	92	3.1	5	45	[52]
ZnO NPs	85	4.5	3	60	[92]
TiO2 NPs	78	5.2	2	75	[93]
MgO NPs	88	3.8	4	55	[94]

* Reusability values reflect related catalytic systems (e.g., transesterification or condensation reactions), not necessarily multicomponent heterocyclic synthesis. These comparisons highlight that CaO NPs offer a balanced combination of catalytic strength, environmental compatibility, and sustainability, positioning them as promising candidates for further development in MCR-based heterocyclic synthesis. However, more detailed investigations into standardized reuse protocols, surface deactivation mechanisms, and lifecycle assessments are necessary to fully benchmark their industrial applicability against conventional nanocatalysts [95,96,97].

presents a comparative summary of catalytic efficiency, environmental metrics (e.g., E-factor), and reusability performance of selected oxide nanocatalysts based on available reports in related reactions.

With their unique combination of basicity, catalytic reusability, and structural tunability, CaO nanoparticles have emerged as promising candidates for facilitating various green multicomponent reactions [98]. Their proven effectiveness in promoting carbon–carbon and carbon–heteroatom bond formations under mild and eco-friendly conditions has led to their increasing application in synthesizing diverse heterocyclic frameworks. The next section highlights these catalytic applications with mechanistic and structural insights into their role in forming complex bioactive heterocycles [99,100,101,102,103].

3. Applications of CaO Nanoparticles in Multicomponent Synthesis of Heterocycles

The catalytic versatility of CaO NPs, driven by their high surface basicity and dual acid–base behavior, has rendered them highly effective in facilitating multicomponent reactions (MCRs) for heterocyclic synthesis [104,105,106,107,108,109]. These reactions are highly valued in modern synthetic chemistry due to their atom economy, operational simplicity, and environmental compatibility. CaO NPs serve not only as efficient catalysts but also as environmentally benign alternatives to traditional base catalysts, thus aligning with the principles of green chemistry [110,111].

Several classes of heterocyclic compounds—including pyrimidinones, dihydropyridines, chromenes, and benzopyrans—have been synthesized using CaO NPs as catalysts in one-pot MCRs under mild and sustainable conditions. This section highlights selected representative examples where CaO NPs significantly enhance the efficiency, selectivity, and eco-friendliness of heterocyclic frameworks constructed via MCR strategies [112,113,114].

3.1. Synthesis of Five-Membered Heterocycles: Pyrazoles, Thiazoles, and Pyrazolines

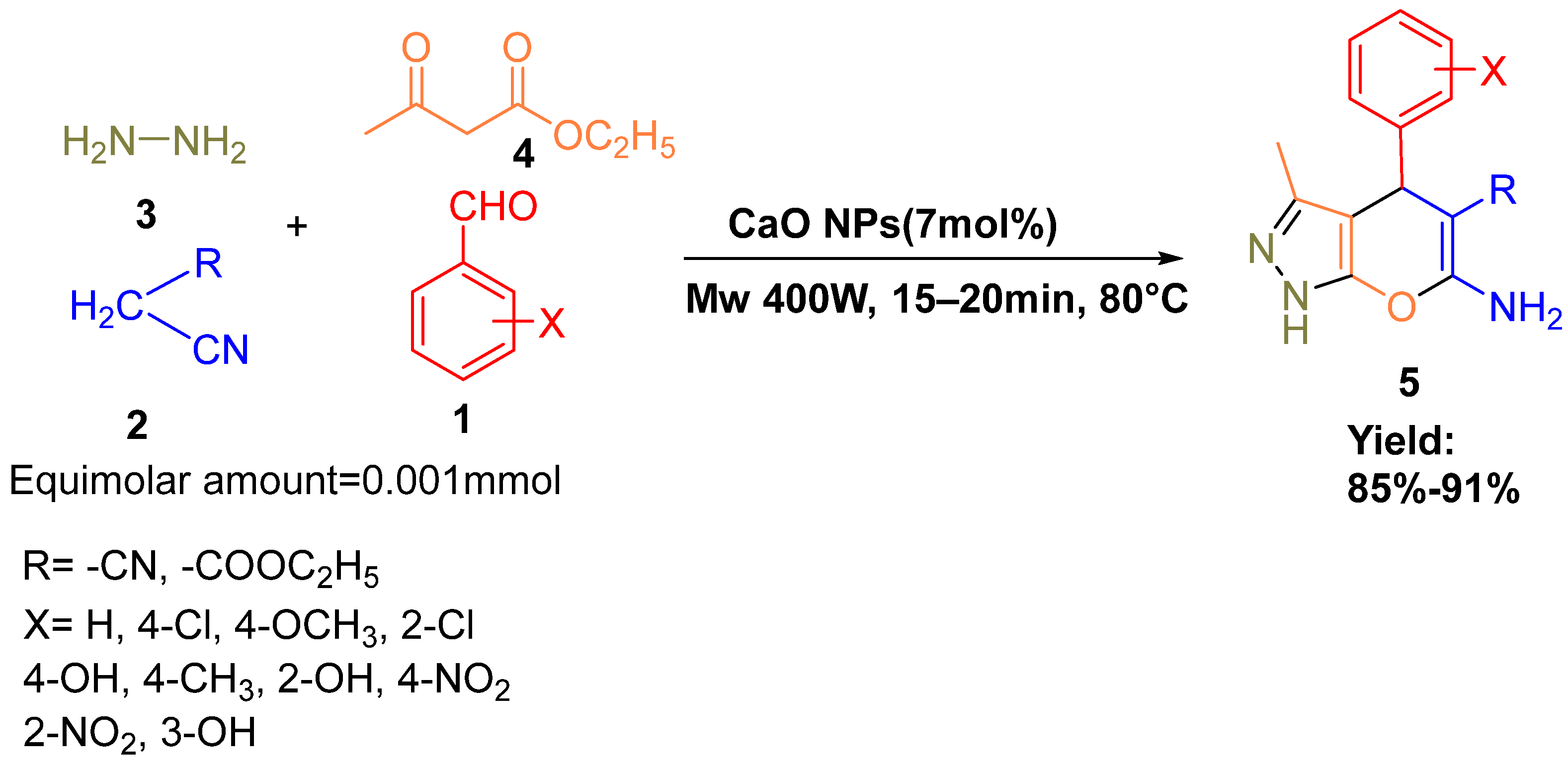

CaO NPs have shown remarkable efficiency in constructing five-membered heterocycles via MCRs. Sangeeta et al. (2022) developed an environmentally benign, one-pot multicomponent strategy for the preparation of pyrano [2,3-c]pyrazole derivatives via biogenic CaO nanoparticles derived from Carica papaya leaf extract as an efficient catalyst (Figure 3) [115]. The reaction comprises the condensation of an aromatic aldehyde 1, malononitrile 2, ethyl acetoacetate 4, and hydrazine hydrate 3 in equimolar ratios (0.001 mmol each) under microwave-assisted heating (400 W, 80 °C) in aqueous ethanol, with just 7 mol% of CaO NPs. The proposed mechanism proceeds via a Knoevenagel condensation between the aldehyde and malononitrile, followed by Michael addition of ethyl acetoacetate, and subsequent cyclo-condensation with hydrazine to afford the fused pyranopyrazole scaffold 5. The method offered excellent yields (85–91%) within a short reaction time of 15–20 min, highlighting both the Catalytic efficiency and green credentials of CaO NPs. Notably, the high reusability of the CaO nanoparticles is a crucial advantage. They can be easily recovered from the reaction mixture using simple solvent extraction. These nanocatalysts maintained their maximum efficiency for up to three consecutive cycles, although a noticeable decrease in product yield was observed afterward. The synthesized pyrano [2,3-c] pyrazoles hold pharmacological relevance because of their reported insecticidal and molluscicidal activities, making this protocol valuable for both synthetic and medicinal chemistry applications.

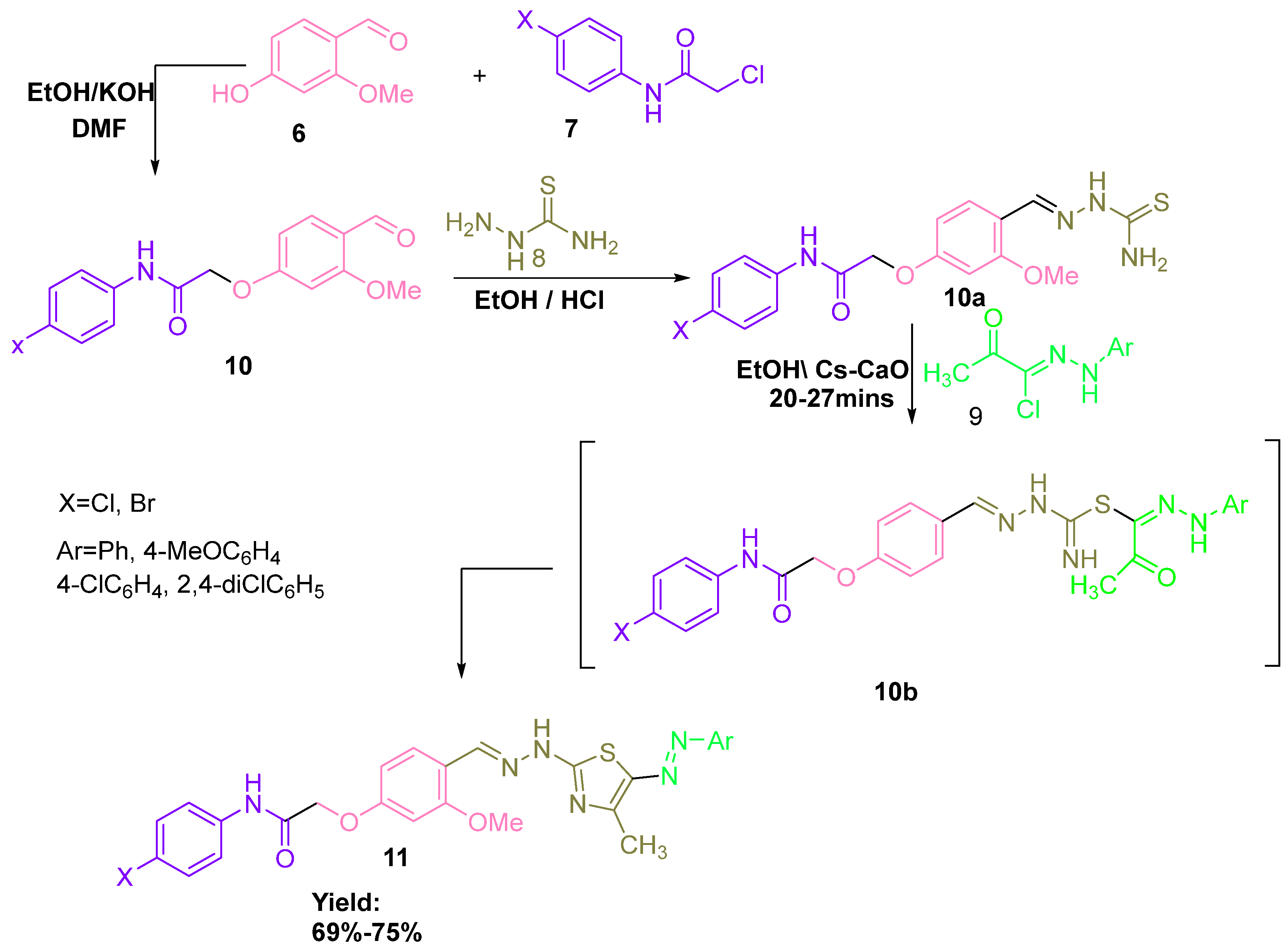

Khalil et al. reported a highly effective, green synthetic route for the construction of arylazothiazole derivatives through multicomponent reaction catalyzed by a chitosan-supported calcium oxide (CS-CaO) nanocomposite (Figure 4) [116]. The approach commenced with the preparation of thiosemicarbazone intermediates 10a through the condensation reaction involving 2-(4-formyl-3-methoxyphenoxy)-N-phenylacetamide (10 mmol) 10, and thiosemicarbazide (10 mmol) 8, in ethanol (30 mL) under acidic conditions. Ultrasonic irradiation at 50 °C for 20 min facilitated the reaction, resulting in high-purity precipitates. The crude material was filtered, ethanol-washed, and subsequently recrystallized using acetic acid to obtain analytically pure thiosemicarbazones. The synthesized products were confirmed via IR,¹H, ¹³C NMR, and mass spectroscopy. Subsequently, the thiosemicarbazone 10a was carried out with 2-oxo-N-arylpropanehydrazonoyl chloride 9, using either chitosan (CS) or CS-CaO as the catalytic base under mild ethanol reflux conditions. This led to the formation of arylazothiazole derivatives 11 in good to high yields, ranging from 69% to 75% depending on the substituents. The CS-CaO nanocomposite catalyst demonstrated good recyclability as a basic catalyst, maintaining its catalytic performance over three consecutive cycles. After each use, the catalyst was rinsed with distilled water and dried at 60 °C for 30 min before reuse, showing no significant drop in activity under the tested conditions. The catalytic efficiency of CS-CaO was notably higher than CS alone, likely due to the enhanced basicity and surface activity imparted by the CaO nanophase. Structural and compositional validation of the CS-CaO nanocatalyst was conducted using FT-IR, XRD, FESEM, and EDS analyses, confirming its nanoscale morphology and chemical integrity.

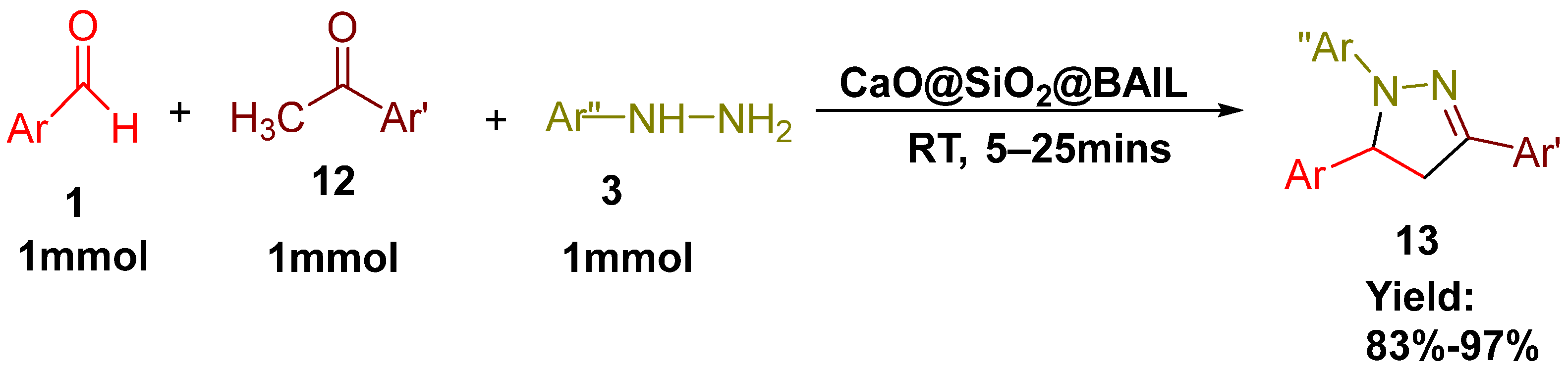

Fatemeh Sameri et al. (2021) reported an efficient solvent-free synthesis of 1,3,5-triaryl-2-pyrazolines using a bifunctional nanocatalyst composed of calcium oxide immobilized on silica and coated with a basic ionic liquid CaO@SiO₂@BAIL (20 mg) (Figure 5) [117]. The single-pot, three-component reaction consisted of equimolar amounts (1 mmol each reactant) of aryl aldehyde (1 mmol) 1, aryl ketone (1 mmol) 12, and arylhydrazine (1 mmol) 3, catalyzed by (20 mg) of CaO@SiO₂@BAIL at ambient temperature. The reaction proceeded smoothly within 5–25 min and afforded the desired pyrazoline derivative 13 in excellent yields ranging from 83% to 97%. After completion, as monitored by TLC. The crude mixture was treated with hot ethanol to dissolve the product. The catalyst was recovered via centrifugation, washed thoroughly with ethanol, and reused, while the product was isolated by cooling and recrystallization with ethanol. The protocol demonstrated broad substrate tolerance, as a variety of electron-donating and electron-withdrawing groups on the aldehyde, ketone, and hydrazine components were well accommodated. After that, the CaO@SiO₂@BAIL catalyst recovery and reusability were examined using a model reaction. After the reaction, the catalyst was easily recovered by centrifugation, washed with hot ethanol (5 mL), and dried under a vacuum for subsequent reuse. The nanocatalyst showed excellent stability, successfully retaining its high activity for at least six consecutive cycles. To further confirm its robustness, FT-IR and EDX analyses of the recycled catalyst revealed spectra nearly identical to the fresh catalyst, confirming that no noticeable structural changes occurred during the recycling process. The mild conditions, high efficiency, and recyclable nature of the nanocatalyst underline its potential in sustainable pyrazoline synthesis.

3.2. Synthesis of Six-Membered Heterocycles: Pyridines and Pyrimidines

Following the successful application of CaO-based nanocatalysts for the preparation of five-membered heterocycle frameworks, including pyrazolines and thiazoles, attention has also turned toward the development of six-membered nitrogen-based ring systems, particularly pyridines, which are recognized as core scaffolds in medicinal chemistry. These heterocycles are found in numerous therapeutic agents due to their ability to interact with a diverse range of biological targets.

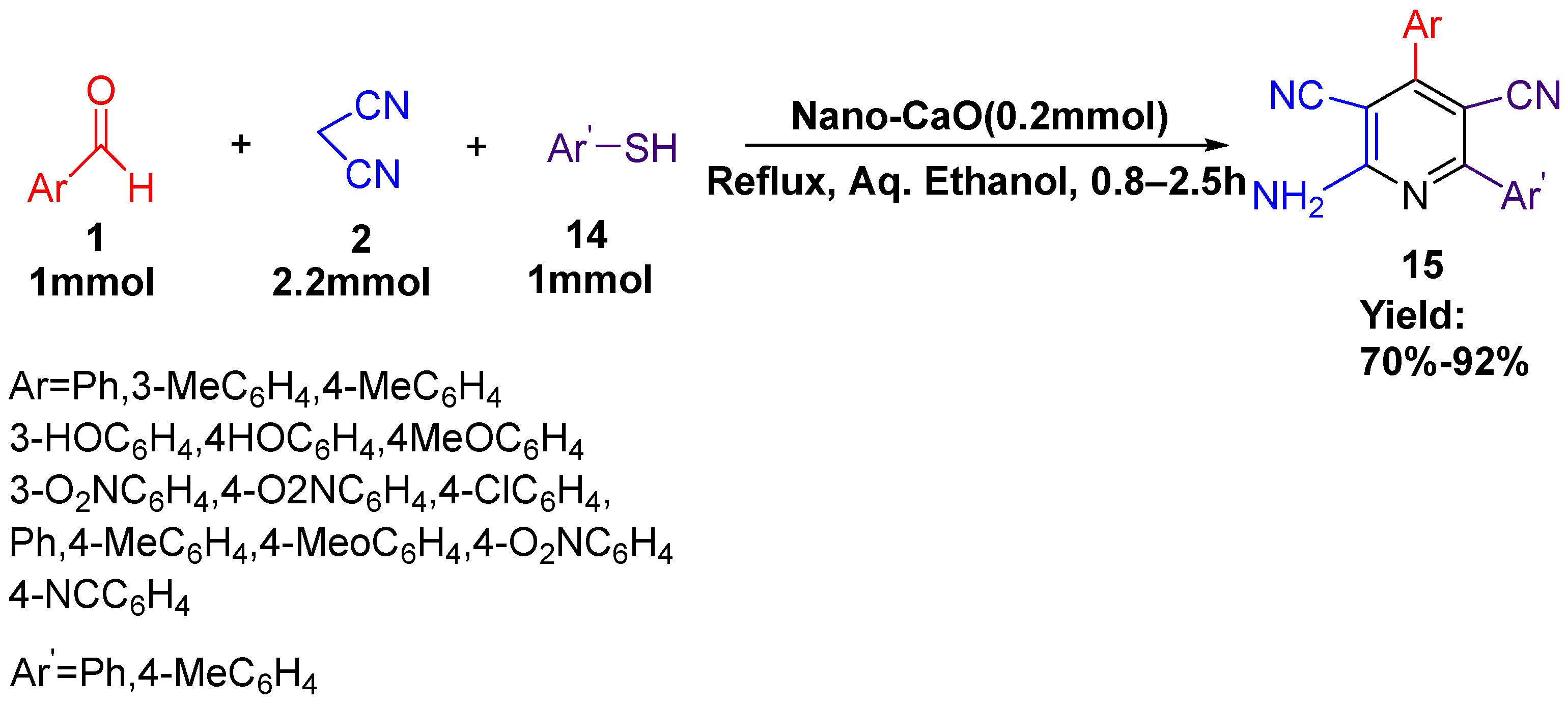

In this context, Safaei-Ghomi et al. (2012) developed a highly efficient multicomponent strategy for synthesizing 2-amino-3,5-dicyano-6-sulfanylpyridine derivatives catalyzed by calcium oxide nanoparticles (Figure 6) [118]. The reaction employed a single-pot, three-component synthetic approach comprising aromatic aldehyde 1 (1 mmol), malononitrile 2 (2.2 mmol), and thiol-containing compound 14 (1 mmol) in an aqueous ethanol system (1:1). Utilizing 0.2 mmol of nano-CaO under reflux conditions, the transformation proceeded sequentially through Knoevenagel condensation, Michael addition, and intramolecular cyclization steps, leading to the formation of polyfunctional pyridine scaffolds 15. The reaction was complete within 0.8 to 2.5 h and afforded excellent product yields ranging from 70% to 92%. After cooling and separation of the catalyst via centrifugation, after removal of the solvent, the crude solid was purified via recrystallization. The solvent was removed under a vacuum, and the crude solid was recrystallized from ethanol to yield pure pyridine 15 derivatives. Characterization of the nano-CaO possessing spherical geometry showed an average particle size of 30–40 nm, as determined by SEM, while EDX evaluation confirmed its elemental composition and purity. Significantly, the catalyst maintained its catalytic performance over successive cycles, highlighting its reusability and potential for sustainable applications in heterocyclic synthesis.

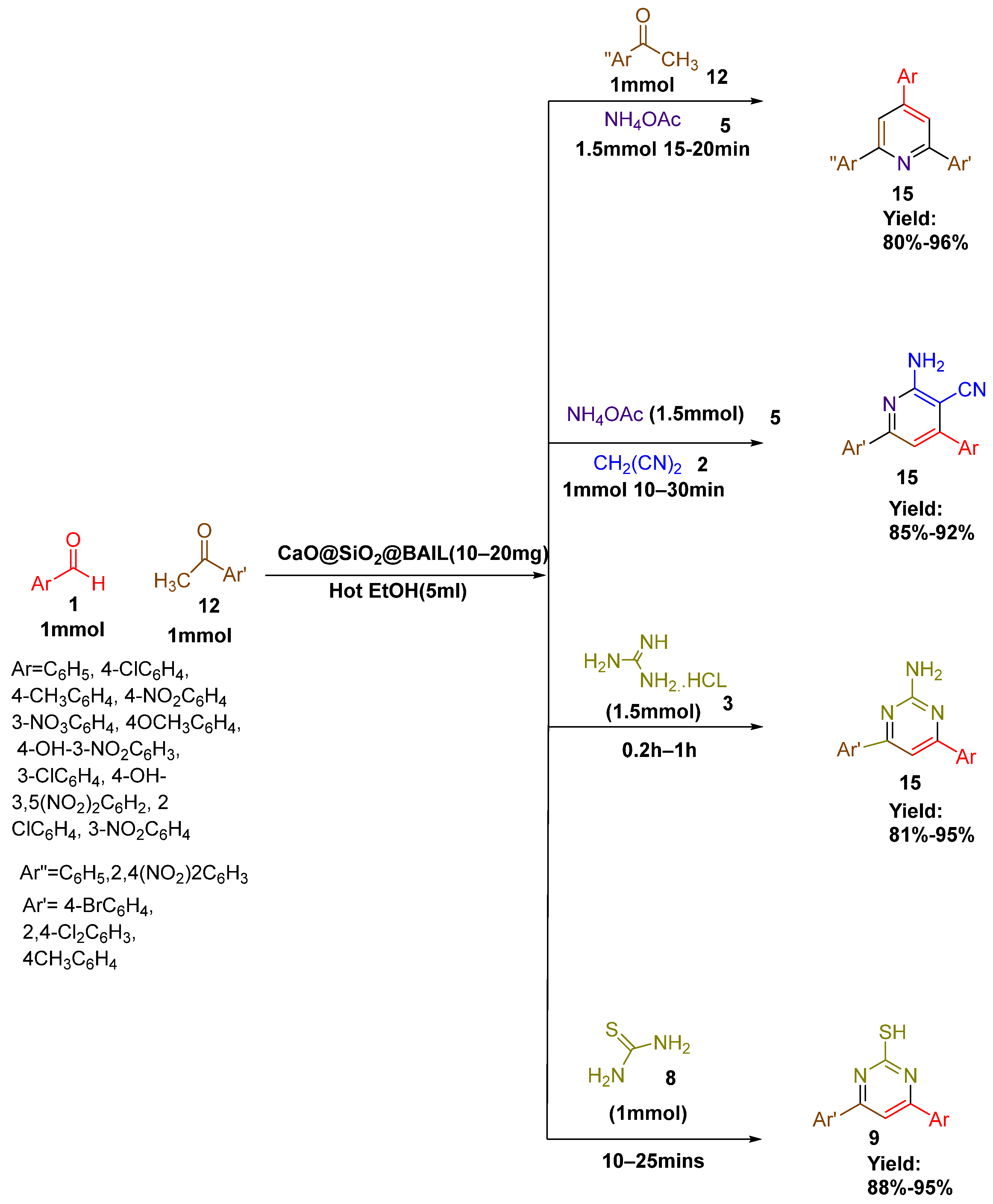

Building on the utility of CaO-based catalysts for constructing polyfunctional pyridines, Fatemeh Sameri et al. further explored the catalytic potential of CaO@SiO₂@BAIL nanocomposites in synthesizing a broader range of nitrogen-containing heterocycles through multicomponent transformations (Figure 7) [117]. In this approach, various triaryl-substituted pyridine and pyrimidine derivatives were prepared using a one-pot, three-component reaction, including aryl aldehydes 1 (1 mmol), aryl ketones 12 (1 mmol), and diverse nitrogen sources such as ammonium acetate 5, malononitrile 2, guanidine hydrochloride (1.5 mmol) 3, or thiourea (1 mmol) 8. Under optimized conditions, 10–20 mg of CaO@SiO₂@BAIL catalyzed the reaction carried out in ethanol within a mild temperature range (25–80 °C), affording the targeted products in remarkable yields (80–96%) within 10 to 60 min. The reaction mechanism typically begins leading to the formation of a reactive imine precursor and arylidene adduct, succeeded by tautomerization, cyclization, and oxidation steps facilitated by the bifunctional basic and ionic liquid-modified catalyst surface. Notably, 2-amino-4,6-diarylpyridine-3-carbonitriles 15 were obtained via reacting aryl aldehydes, acetophenone, ammonium acetate, and malononitrile under heated conditions, while room-temperature reactions involving guanidine hydrochloride or thiourea led to 4,6-diarylpyrimidin-2-amines 15 and pyrimidine-2-thiols 9, respectively. Reaction monitoring was followed using TLC. Upon completion, the desired product was isolated using hot ethanol. The recovery and reusability of CaO@SiO₂@BAIL were examined using a model reaction. Upon completion of the reaction, the catalyst was separated by centrifugation, washed with hot ethanol (5 mL), dried under a vacuum, and subsequently reused in the next cycle. The nanocatalyst retained its activity for at least six consecutive runs without any significant loss of performance. Furthermore, the FT-IR spectrum and EDX analysis of the recovered catalyst after six cycles closely resembled those of the fresh material, confirming its structural stability during recycling. The wide substrate scope and compatibility with various functional groups (including nitro, methoxy, chloro, and hydroxyl substituents) underscore the versatility of CaO@SiO₂@BAIL for eco-friendly and scalable heterocyclic synthesis.

In continuation of exploring alkaline earth-based nanocatalysts in heterocyclic construction, Heidarzadeh et al. (2021) proposed a green methodology for the construction of 3-substituted indole derivatives using a bimetallic ZnO–CaO nanoparticle system (Figure 8) [119]. Unlike earlier monometallic CaO-based systems, this protocol leveraged the synergistic catalytic behavior of Zn²⁺ and Ca²⁺ ions to enhance reaction performance in a three-component reaction involving formaldehyde 1 (1.5 mmol), primary amine 3 (1 mmol), and indole 16 (1 mmol). The ZnO–CaO nanocatalyst was synthesized via a green route utilizing zinc acetate and waste eggshell-derived calcium carbonate under solvent-free thermal decomposition. The nanoparticles were thoroughly analyzed via the FT-IR, XRD, TEM, SEM, and EDS methods. The FT-IR spectrum showed distinct absorption bands between 400 and 560 cm⁻¹, associated with Zn–O and Ca–O bonds. XRD confirmed a crystalline phase exhibiting an average particle size of about ~47 nm, while the SEM and TEM analyses revealed spherical morphologies with diameters in the 20–60 nm range. The EDS elemental mapping confirmed the homogeneous distribution of Zn, Ca, and O, along with trace amounts of biological impurities from eggshell precursors. The reaction took place under reflux in ethanol with 5 mol% of ZnO–CaO NPs, which was found to be the optimum loading. Lower catalyst concentrations led to reduced conversion, while higher amounts showed no significant benefit. The mechanism involves nanoparticle-assisted activation of the aldehyde, thereafter resulting in imine formation via the amine and subsequent electrophilic substitution occurring at the nucleophilic C3-position of indole, yielding 3-substituted indole derivative 17 in yields ranging from 33% to 88%. Importantly, the catalyst was conveniently separated by centrifugation, and then washed with ethanol and dried at 70 °C for 2 h. The recovered catalyst was reused in a fresh reaction under the same conditions and maintained its activity for up to four consecutive cycles. This work highlights the catalytic efficiency of ZnO-CaO nanoparticles while also promoting sustainability through the use of waste-derived calcium sources and recyclable nanocatalysts.

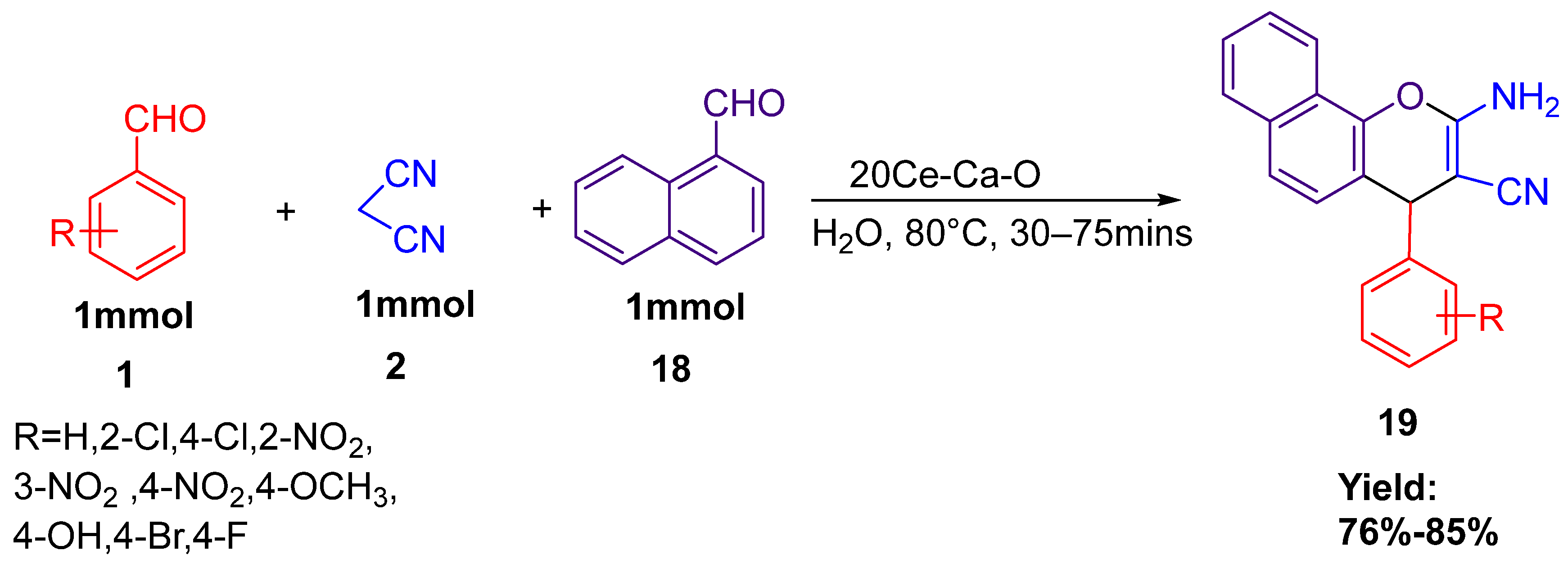

In 2012, Satish et al. investigated the catalytic activity of xCe-Ca-O nanocomposite oxide catalysts for the production of 2-amino-2-chromenes 19 via one-pot multicomponent condensation of aryl aldehydes, malononitrile, and a-naphthol in aqueous media (Figure 9) [120]. The multicomponent condensation reaction begins without the Ce-Ca-O catalyst under heating at 80 °C for 12 h under water-mediated conditions. Knoevenagel products are formed through the condensation process involving aryl aldehyde 1 and malononitrile 2 in the reaction medium. Without the catalyst, the method does not afford 2-amino-2-chromene 19. Ce-Ca-O catalysts with different compositions were analyzed for their efficiency in producing 2-amino-2-chromene at 80 °C for 1 h. The study examined the physicochemical behavior and catalytic efficiency of various xCe-Ca-O catalysts in the condensation of benzaldehyde, malononitrile, and a-naphthol. It was observed that ceria loading of up to 20 mol% enhanced the reaction rate, with the 20Ce-Ca-O catalyst showing the highest catalytic activity. Research suggests that adding Ce⁴⁺ to the CaO lattice enhances its iconicity. This may improve charge separation and promote the basic strength of O^2- ions within the composite oxide. The composite oxide is more active than pure CaO due to changes in physicochemical properties caused by cerium ion replacement. XRD, UV-VISIBLE, and TEM studies reveal that Ce⁴⁺ ions change particle dimension and phase composition, leading to an evenly distributed oxide mixture incorporated into the CaO matrix. Particles in the CaO matrix grain boundaries between the two phases may create novel basic sites responsible for enhanced catalytic activity. On the basis of catalytic analysis, the 20Ce-Ca-O catalyst was selected for further investigation studies for the synthesis of 2-amino-2-chromenes. Optimization of the reaction conditions was achieved via modifying both the catalyst concentration and the stoichiometric ratios of the reactants by variation in the catalyst amount and stoichiometry. It was observed that 25 mg of catalyst per 1 mmol of reactants, benzaldehyde, malononitrile, and a-naphthol, afforded optimal results, yielding 78% of the product. Adding more catalyst did not increase the yield. The reaction was most efficient at 80 °C, which produced significantly higher yields than temperatures ranging from 60 °C to 100 °C. The optimal reactant ratio was 1:1:1. These refined conditions were then applied to the diverse variety of substituted aromatic aldehydes involved in the reactions. The 20Ce-Ca-O catalyst was effective for a diverse set of aryl aldehydes, functionalized with electron-withdrawing and electron-donating substituents, producing consistently high yields and product purity. The catalyst showed good recyclability, maintaining consistent performance over three cycles, with yields of 78%, 74%, and 72% being achieved in succession. Overall, this study describes a novel and reusable catalytic method for producing several 2-amino-2-chromenes in water.

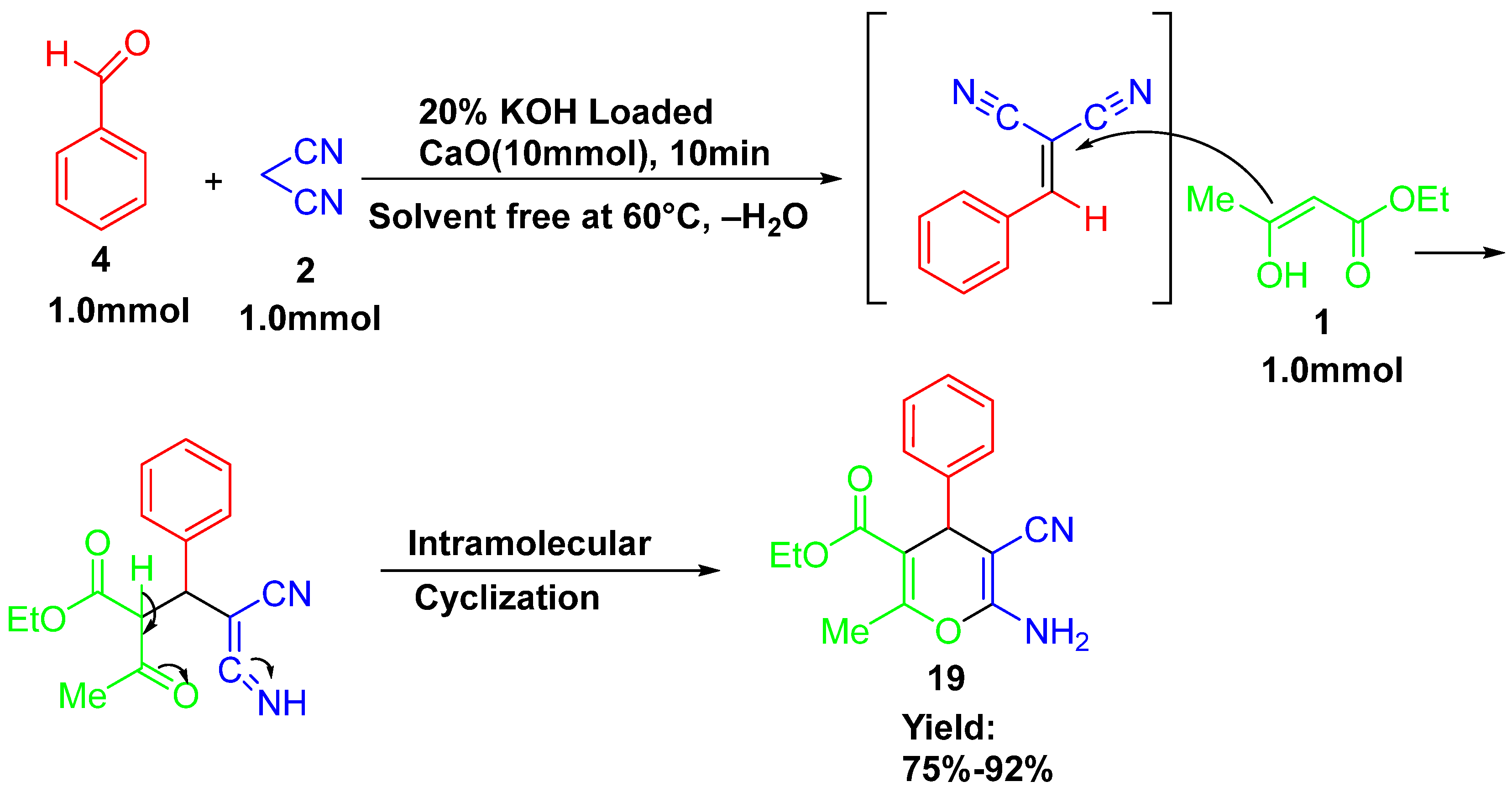

In 2018, Archana Dhakar et al synthesized a KOH-loaded nanoparticle catalyst using the grinding method as a systematic catalyst for the synthesis of 4H-pyran derivatives, an impactful class in the area of medicinal chemistry, pharmacology, and biological activities (Figure 10) [121]. They show promise as anti-influenza virus agents. A single-pot, solvent-free methodology, Knoevenagel condensation of ethyl acetate (1 mmol) 4, malononitrile (1 mmol) 2, and benzaldehyde (1 mmol) 1, yielded 4H-pyran 19 derivatives catalyzed by Al₂O₃ at 60 °C for three hours. The reaction yielded 50%. Based on spectrum analysis and analytical data, the synthesized compound was identified to be 2-amino-3cyano-5-ethoxycarbonyl-4-phenyl-6methyl-4H-pyran. The reaction time and yield varied significantly according to the catalyst used. When Fe₂O₃ was utilized as a catalyst, it led to a 45% yield after 3 h of the reaction. With KOH as a catalyst, the reaction duration was minimized to one hour, providing a 50% yield. The most effective catalyst, however, was 20% KOH-loaded CaO, which completed the reaction in just 10 min and yielded an excellent 92%. Numerous catalysts have been studied for product yield and reaction duration at 60 °C in the absence of solvent. The most efficient catalyst was determined to be CaO loaded with 20% KOH. The grinding method was used to create the catalyst. After five consecutive cycles, the catalytic agent’s effectiveness did not change significantly. The synthesized 2-amino 4H-pyran derivative was obtained in 92% yield. Overall product yields were obtained in the range of 75% to 92% by modifying aromatic aldehyde; the process was expanded for producing other 2-amino 4H-pyran derivatives, obtaining a very high yield of the targeted compounds. It appears that employing a variety of aromatic aldehydes possessing either electron-donating or electron-withdrawing functionalities had no effect on product yield. Structural elucidation of the obtained compound was confirmed through ¹H and ¹³C NMR spectroscopy. Compound molecular masses were verified using liquid chromatography mass spectrometry (LC-MS). Infrared spectroscopy confirmed the presence of functional groups in the compounds. Furthermore, when stirred with aromatic aldehydes and malononitrile under equivalent reaction conditions, methyl acetoacetate produced nearly identical results when a catalytic quantity of KOH-loaded CaO (10 mmol) was available. Reaction parameters, including temperature, solvent, as well as catalyst type, and catalyst concentration, were all optimized. This final protocol was found to be appropriate for use with a wide range of aromatic aldehydes. One significant advantage of this method is that the products can be easily separated and purified using recrystallization from heated ethanol, eliminating the need for chromatography.

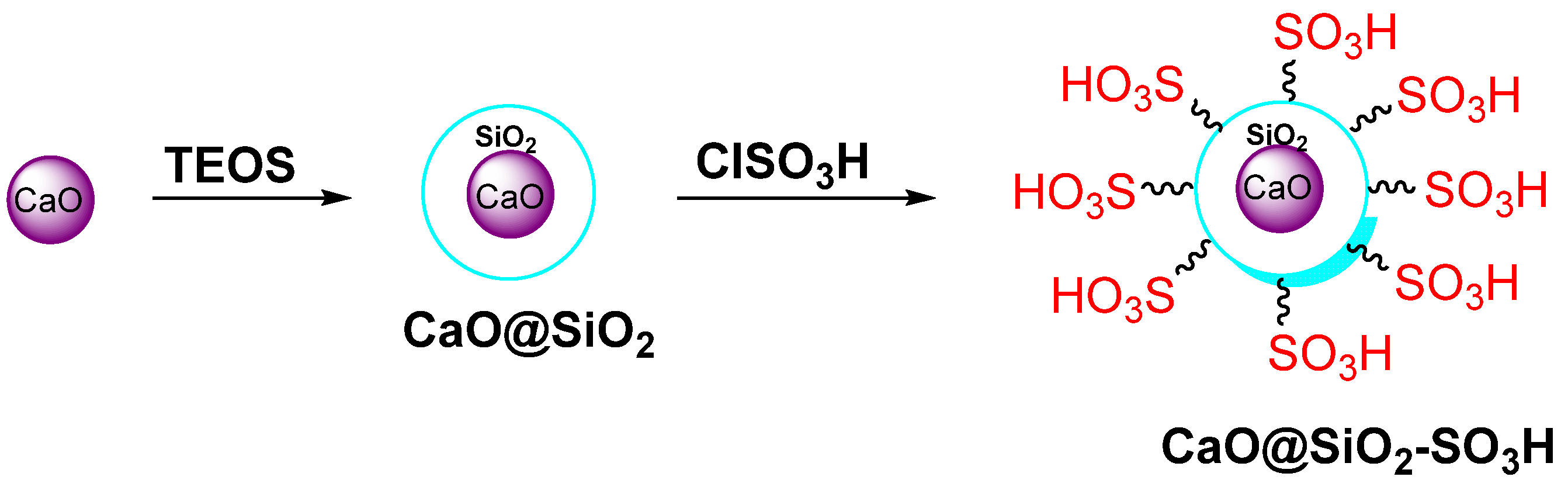

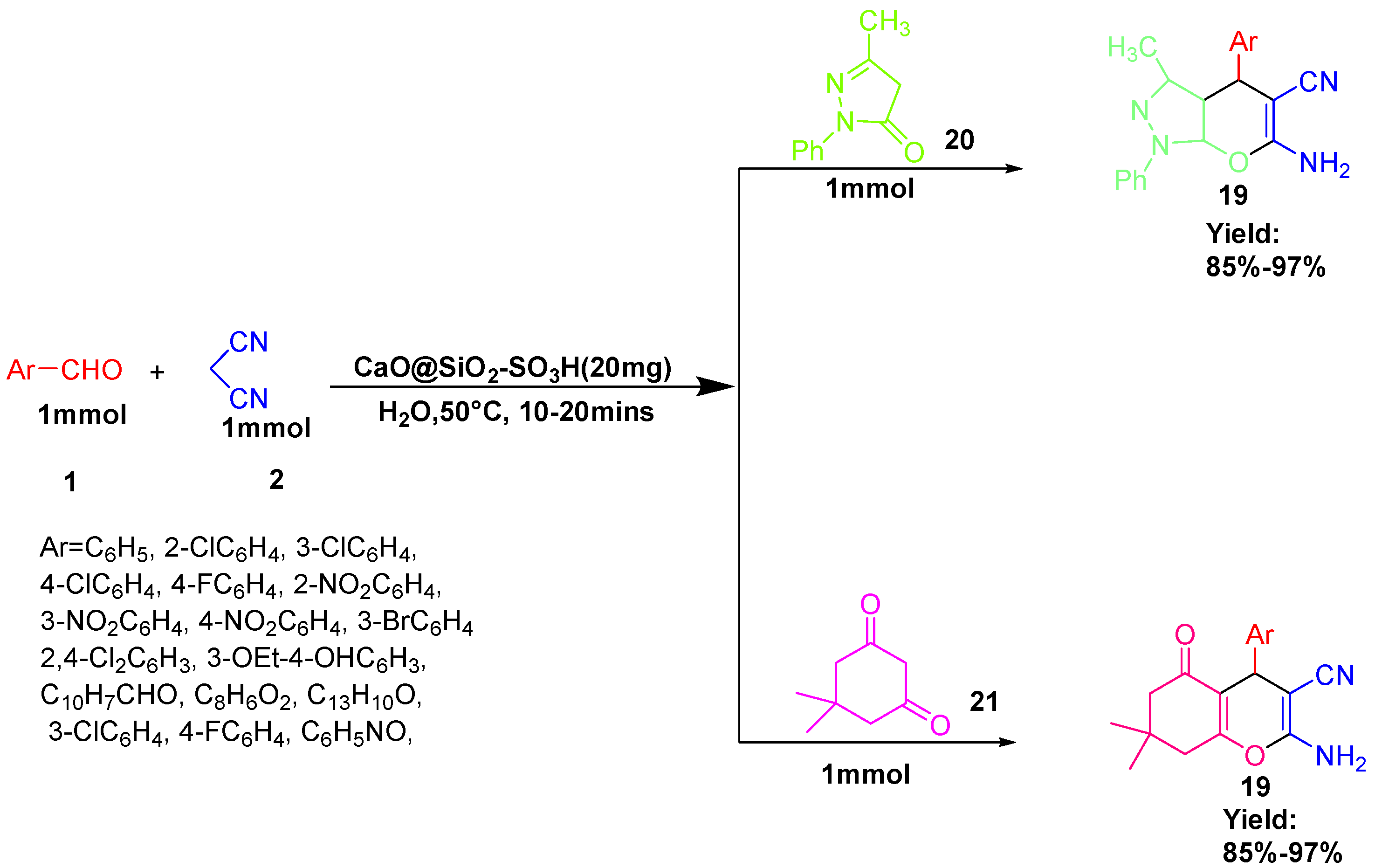

In 2021, Fatemeh Sameri et al. created a new core/shell CaO@SiO₂-SO₃H nanoparticle from ball-milled waste and analyzed it through a range of techniques, including FT-IR, XRD, EDX, FE-SEM, TGA, and SEM. XRD revealed that the crystallite size was around 20 nm, and FE-SEM confirmed a uniform particle size of about 24 nm. The combination of the FT-IR, EDX, TGA, and SEM analyses revealed key details on the material structure, composition, and thermal properties. The acidic nanocatalyst showed excellent activity in the one-pot, three-component reaction carried out in water at 50 °C using environmentally friendly conditions. It was used to produce dihydropyrano [3,2-c] pyrazole 19 and tetrahydrobenzo[b]pyran 19 derivatives from aldehydes 1 (1 mmol) malononitrile 2 (1 mmol), and either 3-methyl-1-phenyl-2-pyrazolin-5-one (1 mmol) 20 or 5,5-dimethyl-cyclohexan-1,3-dione (1 mmol) 21. (Figure 11) [122]. The progress of the reaction was monitored using TLC until the reaction was complete. After confirmation, the crude reaction mixture was dissolved in hot ethanol, and the catalyst was separated from the soluble product via centrifugation. The solution was cooled to room temperature, and the isolated product was collected by filtration. Recrystallization of ethanol was used to purify it. All product identities and purities had been confirmed by comparing the melting point with previously reported compounds. The desired product was isolated in excellent yield by performing the reaction using 20 mg nanocatalyst in water at 50 °C. The nanocatalyst was easily separated from the reaction mixture by centrifugation, followed by washing with ethanol and drying under a vacuum, enabling its effective reuse in further reactions. FT-IR spectroscopy analysis demonstrated the catalyst stability, as no notable structural alterations were observed in the CaO@SiO₂-SO₃H catalyst after six consecutive cycles (Figure 12).

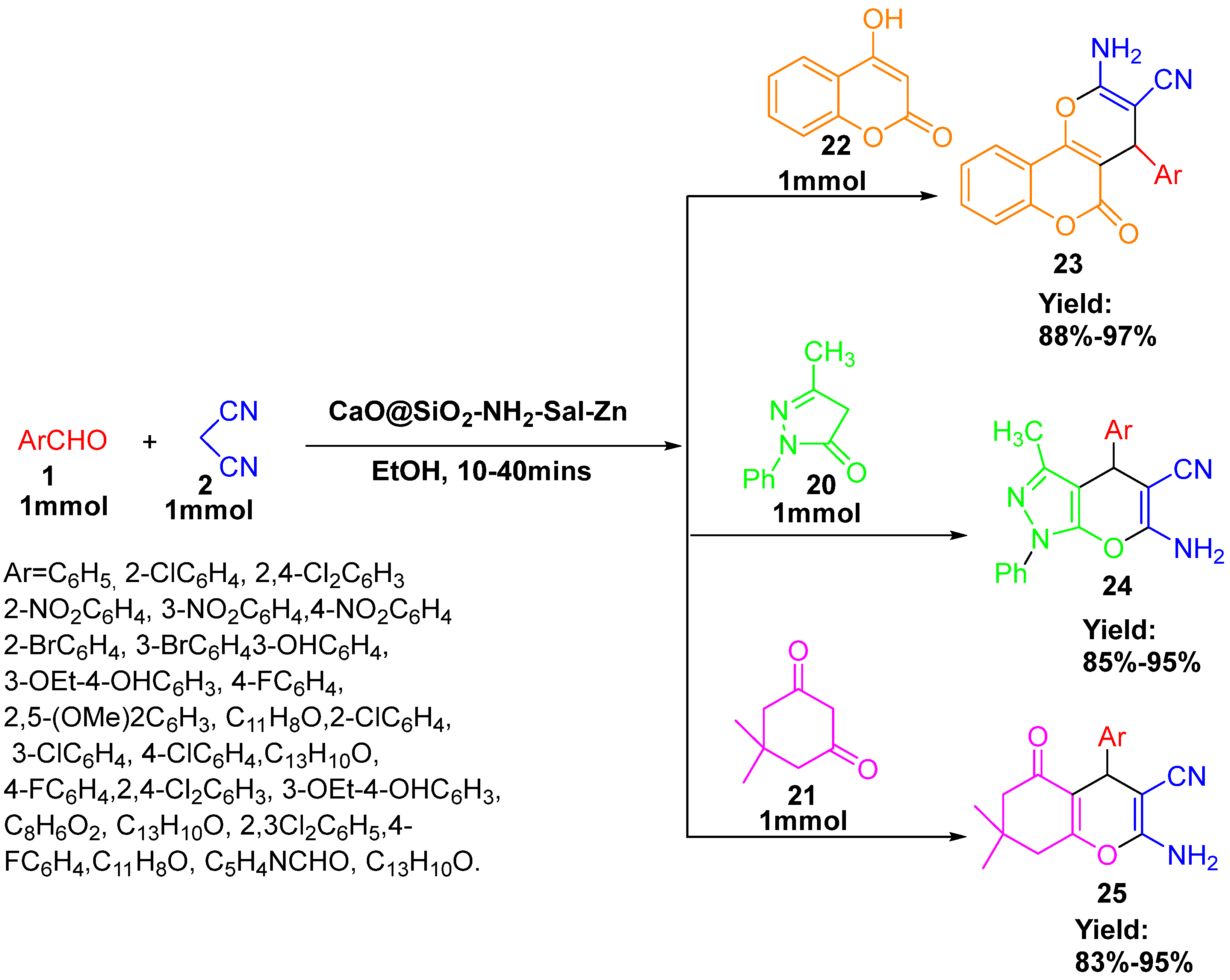

In 2021, researchers, including Fatemeh Sameri et al., created a new catalyst by covalently stabilizing a zinc (II) Schiff base on CaO@SiO₂ nanoparticles. The one-pot, three-component condensation reaction for the formation of 4H-pyran 23 was effectively catalyzed via hybrid nanomaterials (CaO@SiO₂-NH₂-Sal-Zn). The resulting derivatives could be used to treat inflammation, bacteria, cancer, and spasms. The catalyst structure and composition were confirmed using a variety of techniques such as FT-IR, FE-SEM, XRD, EDS, TEM, TGA, and ICP-MS. A mixture of malononitrile 2 (1 mmol), 4-hydroxycoumarin 22 (1 mmol), 3-methyl-1-phenyl-2-pyrazolin-5-one 20 (1 mmol) or 5,5-dimethylcyclohexane-1,3-dione (1 mmol) 21, an aromatic aldehyde 1 (1 mmol), and CaO@SiO₂-NH₂-Sal-Zn (0.01 g) was placed in a round-bottom flask and mechanically agitated at room temperature for the appropriate duration (Figure 13) [123]. Upon completion of the reaction, as confirmed via thin-layer chromatography, 10 mL of hot ethanol was poured into the reaction mixture and stirred for another 10 min at ambient temperature. The hybrid catalyst (10 mg) was utilized to effectively develop dihydropyrano[c]chromene 25 derivatives using the Knoevenagel condensation reaction between malononitrile with catalyst-activated aldehydes, yielding intermediate I (arylidene malononitrile). The subsequent Michael addition of 4-hydroxycoumarin to give intermediate II, which then underwent intramolecular cyclization to generate intermediate III is shown in Figure 14. Final tautomerization produced the target compound. A similar protocol was used in the preparation of dihydropyrano [3,2-c]pyrazoles 24 and tetrahydrobenzo[b]pyrans 23, catalyzed via CaO@SiO₂-NH₂-Sal-Zn. The isolated yields ranged between 83% and 97%. Significantly, the recovered catalyst retained its activity and was reused for six consecutive cycles without a notable decrease in performance.

In 2020, Fatemeh Sameri et al. developed and characterized a hybrid nanocatalyst (CaO@SiO₂). They used several techniques, including FT-IR, XRD, SEM, EDS, WDS map scan, and thermogravimetric analysis. Their analysis confirmed that the nanoparticles were uniformly dispersed, nearly spherical, and had an average size of approximately 8 nm. XRD patterns confirmed this size. According to Scherrer’s equation, the nanocatalyst’s crystalline size was 8 nm. These new nanoparticles (0.01 g) were then used as a catalyst in the three-component reaction at 80 °C, and 1 mmol of an alkyl or arylamine 3 ethyl cyanoacetate 2 and either 2-hydroxybenzaldehyde 21 or 2-hydroxy-1-naphthaldehyde 18 were stirred together without solvent. The CaO@SiO₂@AIL catalyst was highly effective in producing 2-imino-2H-chromenes (Figure 15) [124] under mild, green conditions. This approach was carried out using a wide variety of amines, comprising those with both electron-withdrawing and electron-donating substituents. The reaction begins through a nucleophilic substitution reaction between an amine and ethyl cyanoacetate, yielding N-alkyl-2-cyanoacetamide. This step involves a Knoevenagel condensation of the anion with 2-hydroxybenzaldehyde-yielded intermediate A. The final product is then formed through a cyclization reaction in which the OH groups of intermediate A attack the nitrile group nucleophilically. The study investigated the best conditions for synthesizing dihydropyrano[c]chromenes through a representative reaction of malononitrile, 4-chlorobenzaldehyde, and 4-hydroxycoumarin with CaO@SiO₂AIL catalyst. Water (H₂O) was found to be the best solvent at room temperature after H₂O was determined to be an appropriate solvent for this reaction at ambient temperature after analyzing a variety of solvents, including H₂O, EtOH, CHCl₃, THF, DMF, EtOAc, and CH₃CN. Using 0.01 g of catalyst produced optimal conditions, leading to high yields and with minimal reaction time. To determine the approach’s general applicability, the desired product with diverse electron-donating and electron-withdrawing groups was reacted under optimal conditions to produce the target compound. The reaction involves three steps. Initially, the CaO@SiO₂AIL catalyst facilitates the Knoevenagel condensation of an aldehyde and malononitrile, resulting in arylidenemalononitrile (A’); this intermediate then undergoes a Michael addition, in which the 4-hydroxycoumarin anion attacks the catalyst to cyclize and yield intermediate B. Finally, catalyst-assisted hydrogen abstraction is followed by tautomerization, yielding the desired product. Product yields were obtained in the range of 75% to 96%. Separation and reusability of catalysts are crucial aspects of green chemistry. Resuability test confirmed that the catalyst maintained stability and catalytic performance over six consecutive uses. The recovered catalyst was regenerated by hot ethanol washing and then oven drying (Figure 16).

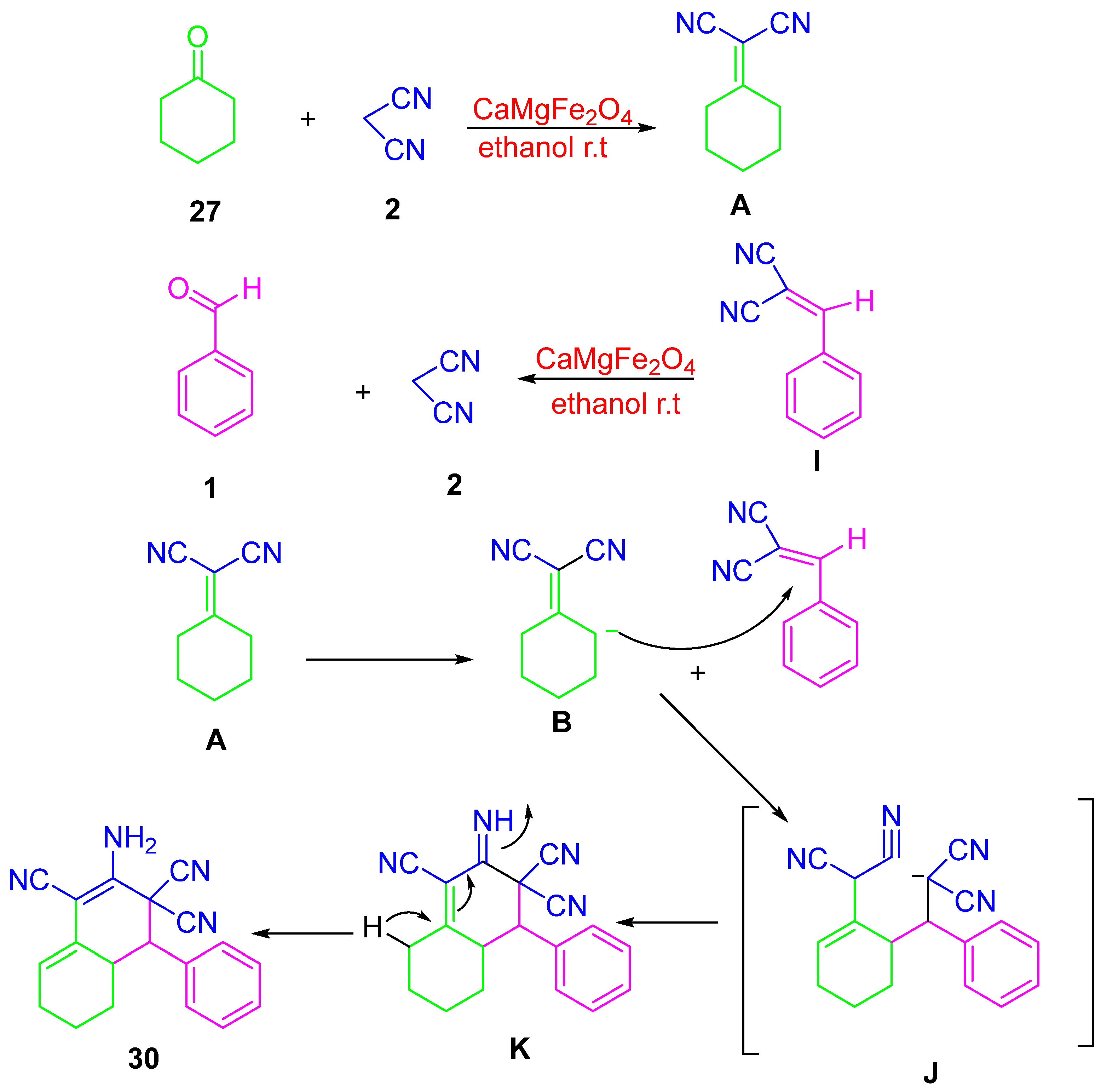

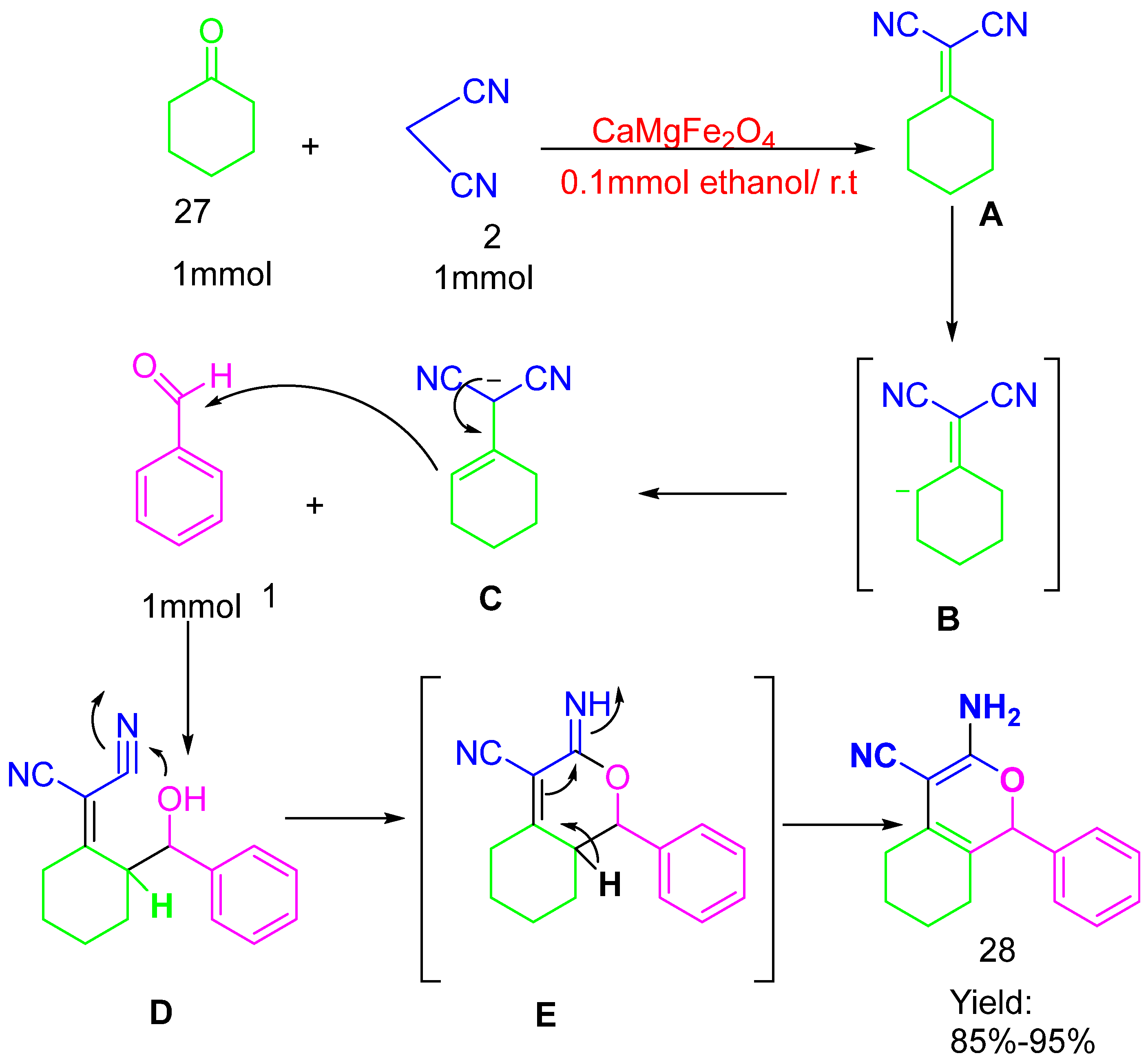

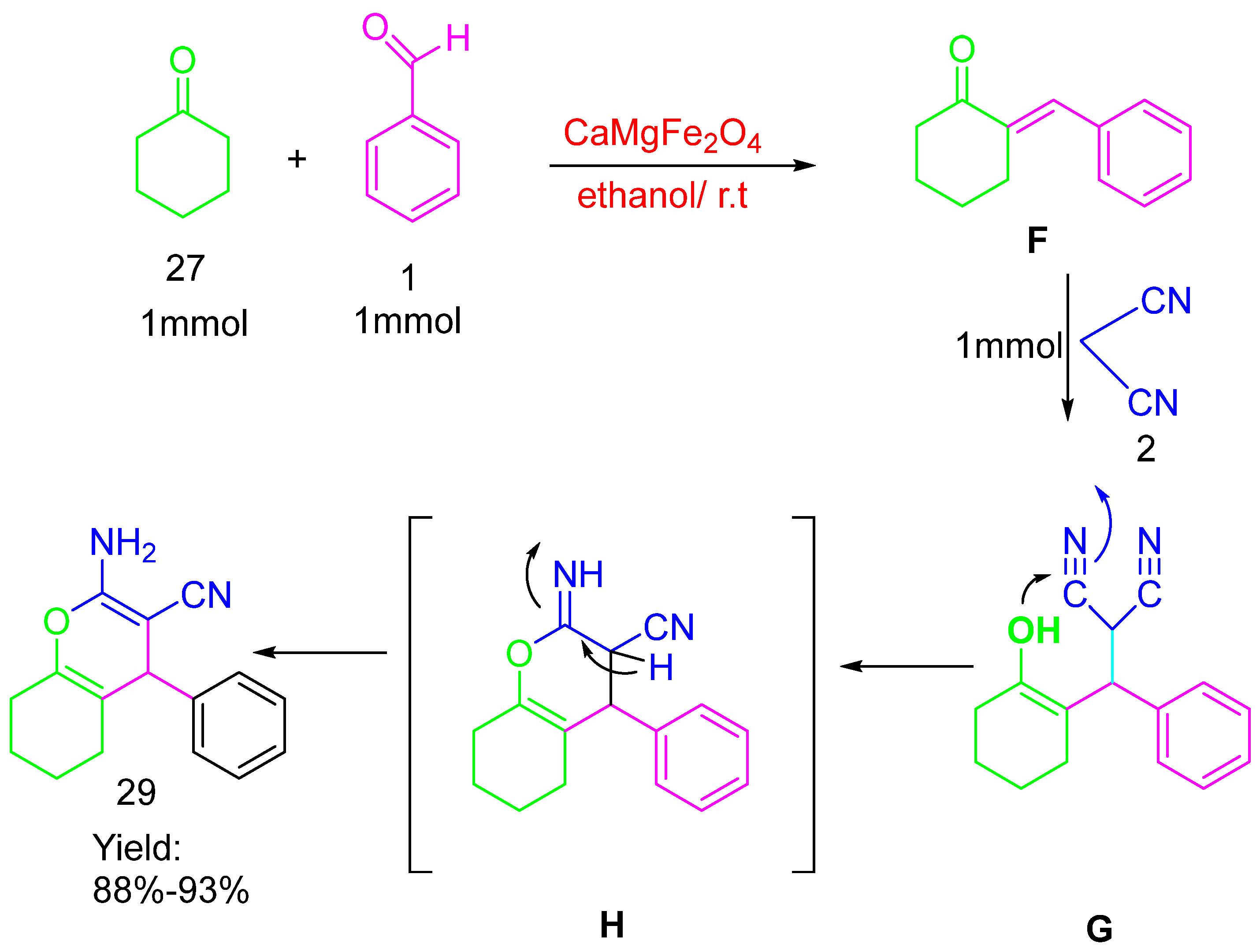

In 2020, Hossein Naeimi et al. prepared and characterized a three-metal nanocatalyst, CaMgFe₂O₄, using the sol–gel method. The catalyst was synthesized in a one-step reaction and analyzed using XRD, VSM, SEM, XPS, and EDX. The sample’s crystalline structure was identified via XRD analysis. The SEM representation of CaMgFe₂O₄ confirms that the nanocatalyst formed as homogeneous nanometer-sized particles around 45 nm. EDS analysis reveals the presence of magnesium, calcium, iron, and oxygen throughout the matrix. This nanocatalyst has been used to generate 1H-isochromene, 4H-Chromenes, and orthoaminocarbonitrile tetrahydronaphthalenes via multicomponent processes (Figure 17, Figure 18 and Figure 19) [125]. The product was constructed in a one-pot method using the three-component methodology composed of cyclohexanone (1 mmol) 27, benzaldehyde (1 mmol) 1, and malononitrile (1 mmol) 2 with CaMgFe₂O₄ nanocatalyst for generation of 1H-chromene. The synthesis of 1H-isochromene starts with a reaction between cyclohexanone 27 and malononitrile 2 in an ethanol solvent, catalyzed by a CaMgFe₂O₄ base catalyst. This first step creates the intermediate vinylmalononitriles via a vinylogous Michael addition. In the second step, benzaldehyde 1 is added to the reaction mixture. This initiates a series of cyclization events, resulting in the generation of both C-C bonds and C-O bonds. The process ends when the base catalyst removes a hydrogen atom, resulting in the final 1H-isochromene product 28. The product yield ranged between 85% and 95%. Similarly, the synthesis of 4H-chromene was completed in two steps. Initially, cyclohexanone and benzaldehyde were reacted in ethanol with a CaMgFe₂O₄ heterogeneous base catalyst to produce the intermediate chalcone F through a condensation reaction. Then, malononitrile was added, resulting in a Michael addition and the creation of intermediate G. The process then proceeded via the C-O bond formation and a subsequent double bond rearrangement, producing the desired 4H-chromene product 29. The resulting product yields varied, falling between 88% and 93%. The preparation of ortho-aminocarbonitrile tetrahydronaphthalene 30 uses a series of Michael additions and cyclization reactions. The process starts with cyclohexanone and malononitrile reacting to form intermediate A. Concurrently, a second equivalent of malononitrile reacts with benzaldehyde, affording intermediate I. The highly efficient nano-based catalyst then promotes the formation of the intermediate. In this critical step, the anion from intermediate B attacks intermediate I, resulting in a cyclization reaction that creates two new C-C bonds. The reaction ends with the base catalyst abstracting a hydrogen atom, followed by a molecular rearrangement that produces the final ortho-aminocarbonitrile tetrahydronaphthalene product. Product yields between 91% and 96% were achieved. The catalyst demonstrated excellent reusability, catalyzing the reaction for six consecutive cycles without losing activity.

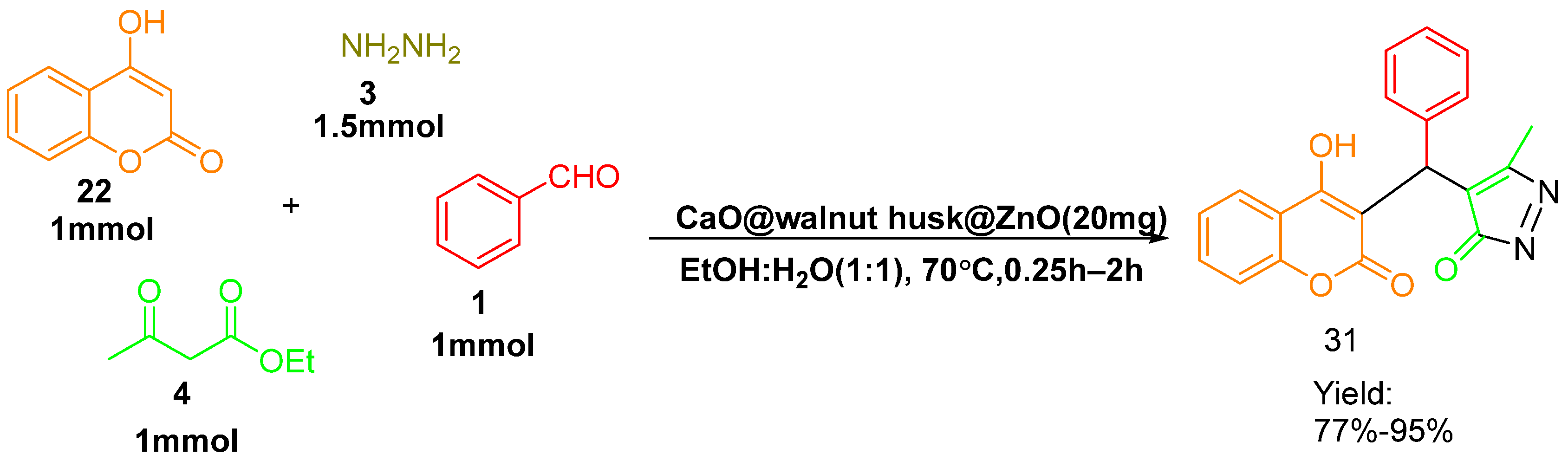

In 2022, Maryam Hamzehyniya et al. synthesized a new CaO@walnut husk@ZnO nanoparticle by immobilizing Zn (II) ions on calcium oxide (CaO) nanoparticles that had been coated using walnut husk extract. Its structural and physicochemical properties were investigated using FT-IR, FE-SEM, EDS, XRD, and TGA. This new catalyst proved to be very efficient in producing benzylpyrazolyl coumarin derivatives in significant amounts via a multicomponent reaction (Figure 20) [126]. The preparation was refluxed in a round-bottom flask through refluxing a combination of aldehyde (1 mmol) 1, ethyl acetoacetate (1 mmol) 4, hydrazine hydrate 3, or phenylhydrazine (1.5 mmol), 4-hydroxycoumarin 22 (1 mmol), and 0.02 g CaO@walnut husk@ZnO catalyst in an ethanol–water solution (1:1) at 70 °C. This process resulted in the production of 4-(4-hydroxy 2-oxo-2H-chromen-3-yl)(phenyl)methyl)-5-methyl-2,4-dihydro-3H-pyrazol-3-one. Investigation of the reaction was performed using a variety of parameters, including varying temperatures, solvents, and catalyst amounts. The model reaction yielded the targeted product in good to excellent yield when 20 mg of nanocatalyst was used at 70 °C using a mixture of EtOH: H₂O (1:1) as the solvent. A range of aromatic aldehydes, either electron-withdrawing or electron-donating, was employed to synthesize the target compounds. The reaction starts using a Zn complex on CaO NPs, exhibiting a Lewis acid site. The carbonyl groups of both aldehyde and ethyl acetoacetate are activated by the catalyst. The activated aldehyde carbonyl undergoes nucleophilic addition of 4-hydroxycoumarin to the activated aldehyde carbonyl, which undergoes dehydration, affording intermediate I. Hydrazine interacts with the ethyl acetoacetate at the activated carbonyl to generate pyrazolone intermediate II. The Michael addition of intermediates I and II leads to intermediate III, which then undergoes catalyst-assisted oxidation to afford the final product. The isolated yields varied from 77% to 95%. Separation of the catalyst was achieved through filtration, washing with ethanol, and vacuum drying at 60 °C. Reusability indicated that the catalyst exhibited consistent activity through five consecutive cycles under identical reaction conditions, with no significant loss in performance.

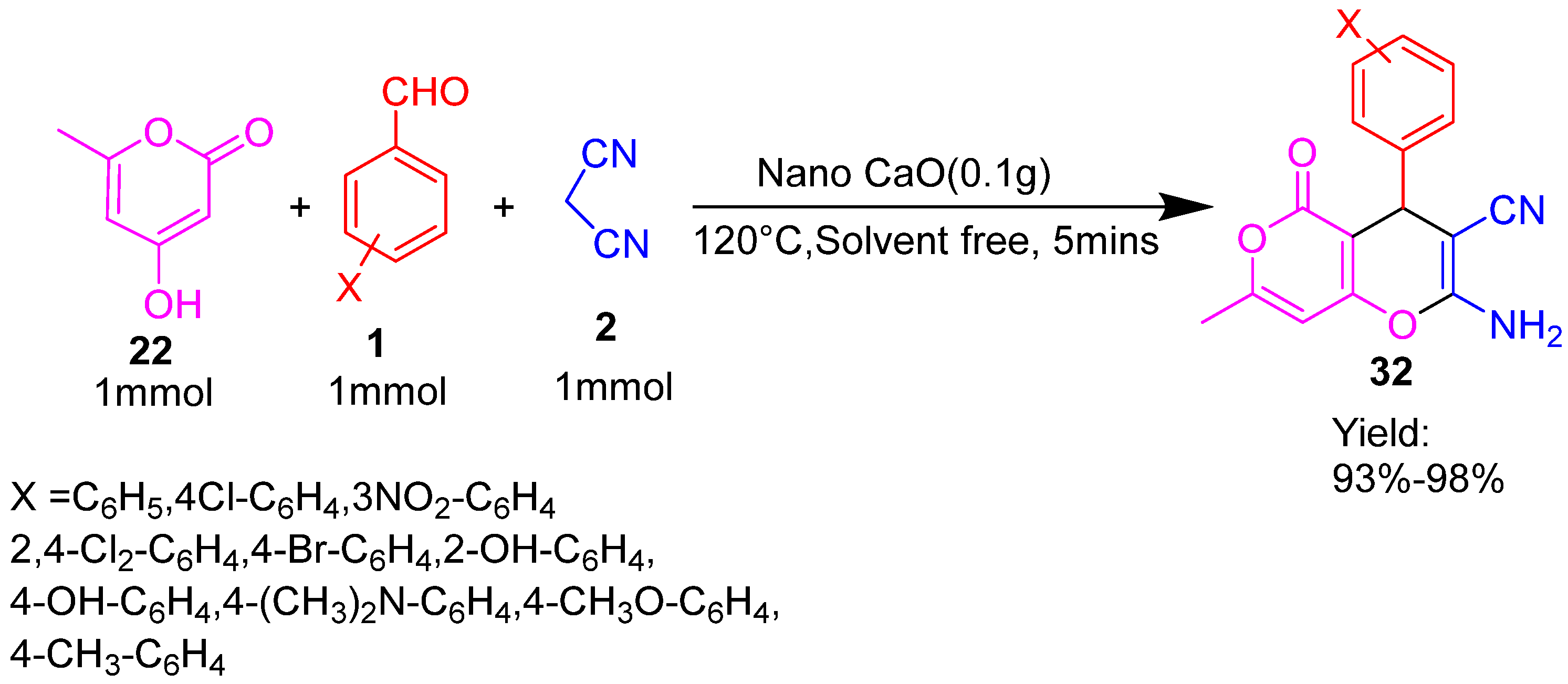

In 2014, Elaheh Mosaddegh et al. created a nano-CaO catalyst by calcining ball-milled chicken eggshell waste. This catalyst was used to create pyrano [4,3-b] pyrans, a class of compounds noted for their diverse biological and pharmacological activities, including antibacterial, antiviral, and anticancer properties. A mixture of 4-chlorobenzaldehyde 1 (1 mmol), malononitrile 2 (1 mmol), and 4-hydroxy-6-methylpyrrolidone (1 mmol) 22 was refluxed at 120 °C in the absence of solvents. The addition of 0.1 g of the nano-CaO catalyst resulted in the production of 4-hydroxy-6-methyl-2H-pyran-2-one 32 in high yield (Figure 18) [127]. Completion of the reaction was verified via TLC. Hot ethanol was added to the mixture and stirred for 5 min. The soluble products were eliminated by filtration, and the isolated solid catalyst was thoroughly washed with hot ethanol. prano [4,3-b] pyrans were isolated in excellent yields and product purity without any further purification. The reaction mechanism proceeds through the generation of benzylidene malononitrile to an aromatic aldehyde, which subsequently undergoes dehydration. This is followed by a Michael addition in which 4-hydroxy-6-methyl-2H-pyran-2-one (Figure 21) [114] attacks the benzylidene malononitrile intermediate. A final cyclization step produced the target compound in 93–98% yields. The structure of the obtained compound was confirmed through IR and NMR spectroscopy. The significant attribute of this protocol was a thermal solvent-free condition utilizing an inexpensive and eco-friendly catalyst. The catalyst demonstrated excellent recyclability and maintained its activity across multiple runs.

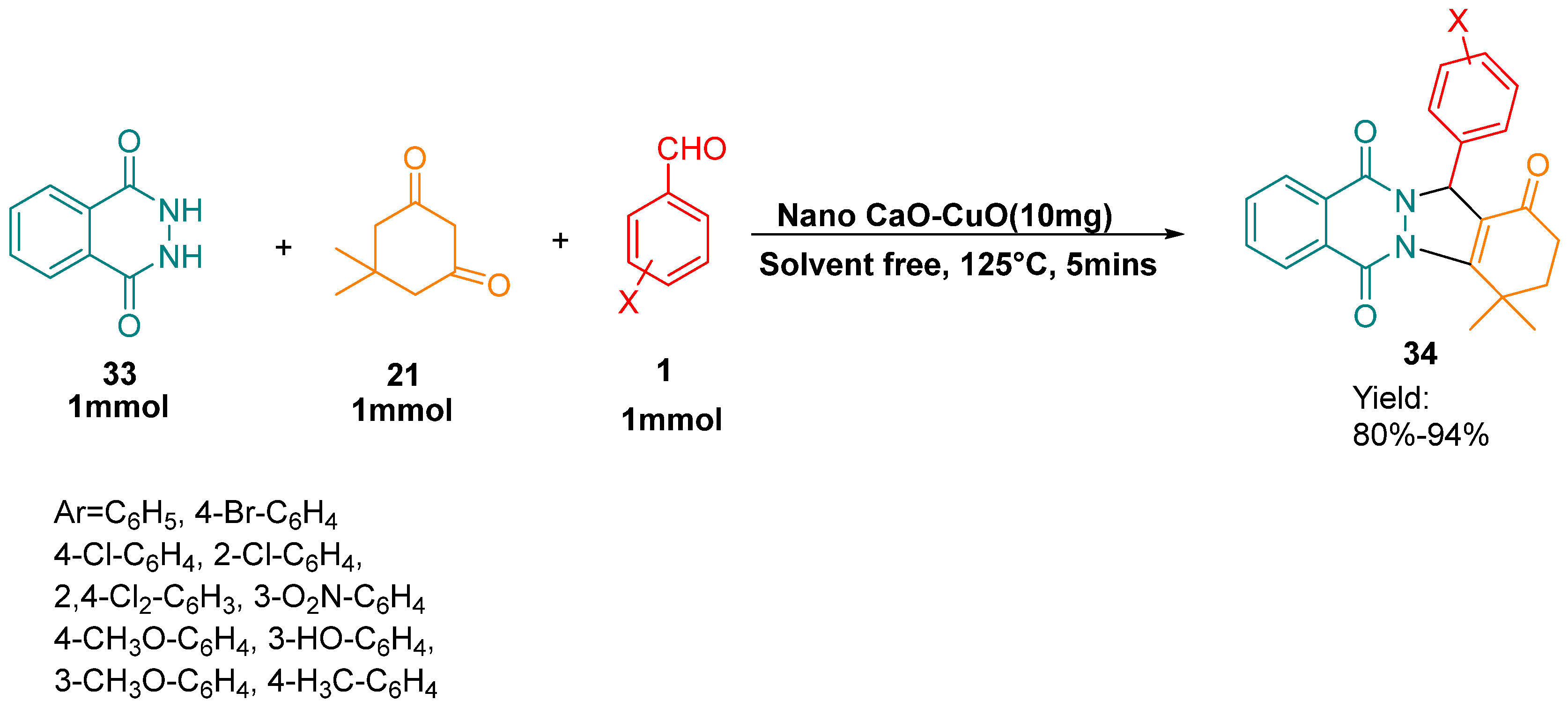

In 2015, Elaheh Mosaddegh et al. introduced the construction of an innovative heterogeneous catalyst, Ca₂CuO₃/CaCu₂O₃/CaO nanocomposite. The catalyst was obtained via co-precipitation followed by thermal decomposition, using cost-effective precursors CuSO₄ and waste eggshells. The catalytic performance of the resulting mesoporous mixed metal oxide was examined in the preparation of 2H-indazolo [2,1-b] phthalazine-triones 34 (Figure 22) [128]. XRD analysis confirmed the material’s orthorhombic structure, with the CaO phase possessing an average crystallite size of 42.5 nm. TEM and FE-SEM analyses revealed that particles possessed an average particle size of 16 nm and provided insights into surface morphology. The nanocomposite thermal stability was determined through thermogravimetric analysis (TGA). The nanocomposite catalytic performance was examined through a one-pot, three-component condensation reaction comprising aromatic aldehyde 1, dimedone 21, and phthalhydrazide 33. This reaction, which yielded 2H-indazolo [2,1-b] phthalazine-triones, was conducted at 125 °C without any solvent, and monitored by TLC, with completion typically taking just short reaction times of 5–20 min. Upon completion of the reaction, the reaction mixture was subjected to stirring for another five minutes before hot ethanol was introduced. Cooling induced crystallization, resulting in it being easier to isolate the product. The obtained solid was dried at 80 °C for one hour. The isolated yields were high, ranging between 80% and 94%. The identity of the product was achieved through comparison of its physical properties to reference compounds. The optimal amount of catalyst was found to be between 0.02 and 0.2 g. The highest yield was achieved with 0.1 g of nanocomposite catalyst. To determine the range of substrates, a wide range of aldehydes carrying electron-donating (EDG) or electron-withdrawing (EWG) groups was utilized under optimized conditions, providing good to excellent yields (80–94%) within a short reaction time of 5–20 min. Notably, the catalyst demonstrated consistent efficiency and catalytic activity after five reuse cycles.

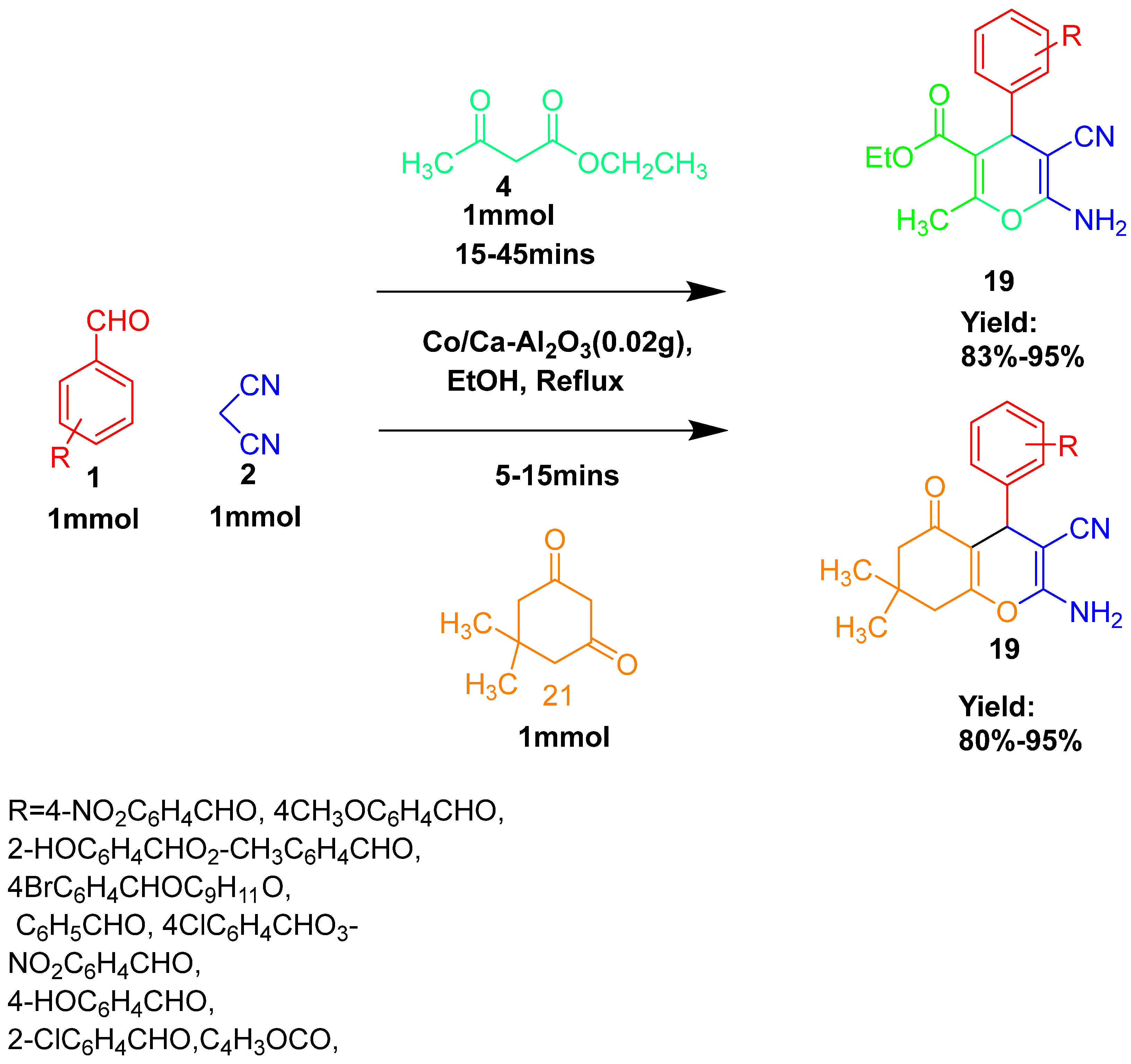

In 2020, Sakineh Khaledi et al. developed and synthesized a Co/Ca-Al₂O₃ composite heterogeneous catalyst using co-precipitation. Its catalytic activity was examined before the production of 4H-pyran derivatives. The material’s surface area was determined through XRD, SEM, EDS, TEM, and BET. SEM images revealed a rod-shaped nanostructure, and EDX characterization confirmed the presence of cobalt, calcium, aluminum, and oxygen, indicating that the mixed metal oxide was highly pure. Quantitative EDX measurement revealed a surface composition of approximately 14.38 wt% Co, 7.45 wt% Ca, 44.17 wt% Al, and 33.99 wt% O. Elemental mapping revealed a consistent distribution of these elements, while TEM revealed that cobalt and calcium oxide nanoparticles, each less than 100 nm in size, were evenly dispersed on the Al₂O₃ support. A model reaction involving 4-nitrobenzaldehyde (1 mmol) 1, malononitrile (1 mmol) 2, and ethyl acetoacetate (1 mmol) 4 was employed to optimize the reaction parameters, focusing on the effects of solvent, temperature, and catalyst amount on both reaction efficiency and reaction yield. Optimization studies revealed that 0.02 g of Co/Ca-Al₂O₃ provided the most efficient catalytic activity, giving the highest yield. To evaluate the catalytic scope of the Co/Ca-Al₂O₃ catalyst, a series of 6-amino-5-cyano-4H-pyran-3-carboxylate 19 derivatives were synthesized (Figure 23) [129]. A one-pot reaction involving malononitrile, various aldehydes, and ethyl acetoacetate yielded the desired products. This method was successfully applied to diverse aryl aldehydes, whether they contained electron-donating or electron-withdrawing groups, and produced products ranging from 83% to 95%. The reaction involves a nucleophilic addition of malononitrile, which undergoes a dehydration step. This is followed via Michael addition, in which 4-hydroxy-6-methyl-2H-pyran-2-one attacks the benzylidene malononitrile intermediate and finally a cyclization step is taken to produce product after successfully synthesizing 6-amino-5-cyano-4-phenyl-2-methyl-4H-pyran-3-carboxylic acid ethyl esters, and the Co/Ca-Al₂O₃ catalyst is further applied for the construction of tetrahydrobenzo[b]pyrans 19. Optimization of the reaction was carried out via a model reaction comprising 4-nitrobenzaldehyde, malononitrile, and dimedone 21, and ethyl acetoacetate was substituted. Optimal conditions of 0.02 g of catalyst in ethanol under reflux provided yields of 80% to 95%. High reusability was observed, retaining efficiency over five successive cycles without loss of activity.

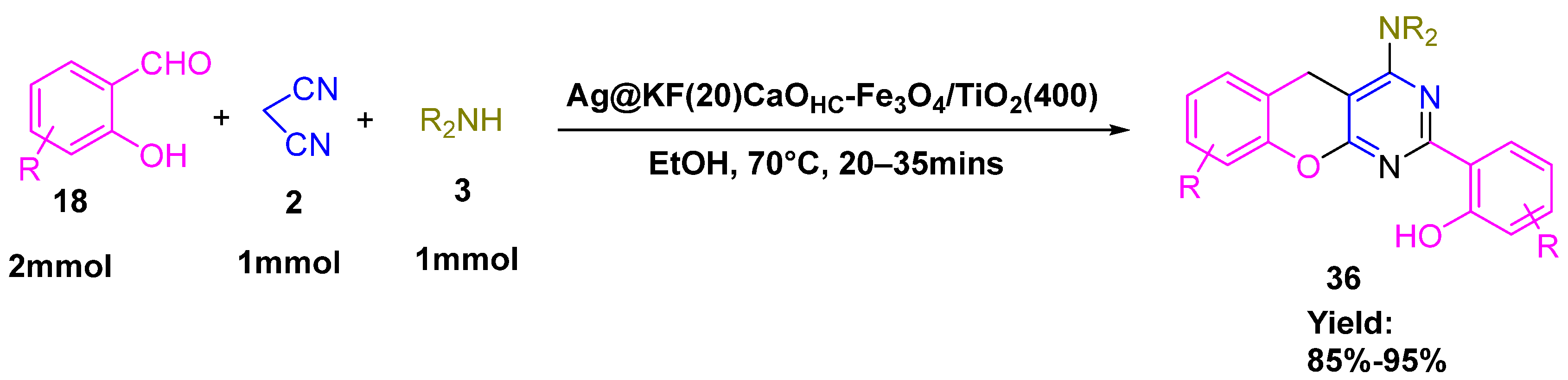

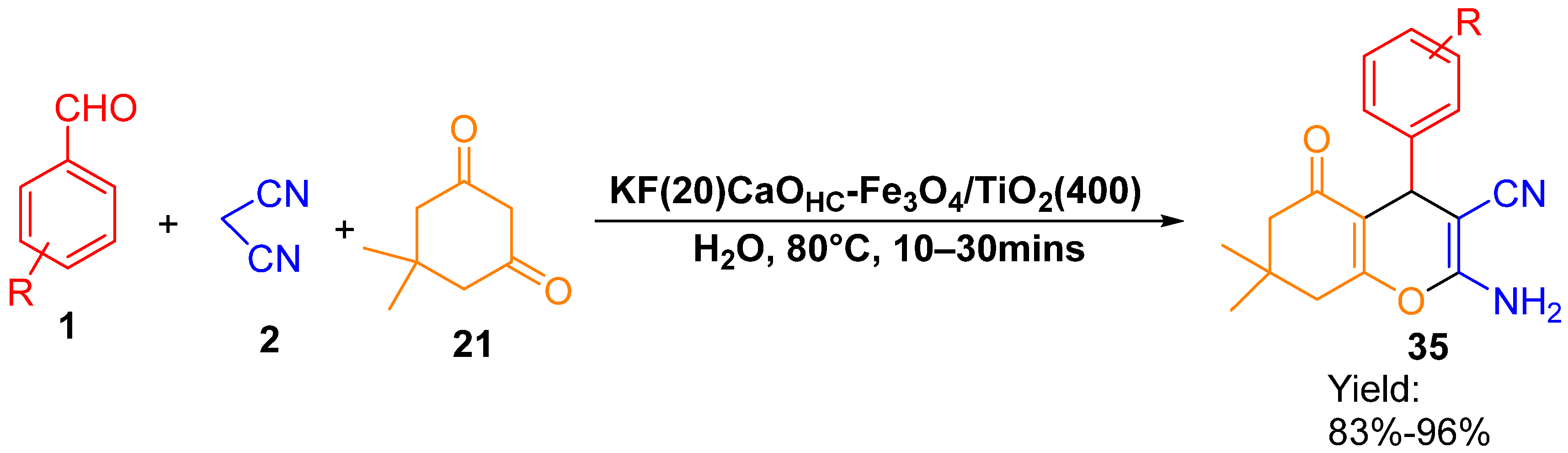

In 2023, Shally Sharma et al. developed catalysts KF(20)CaOHC-Fe₃O₄/TiO₂(400) and Ag@KF(20)CaOHC-Fe₂O₄/TiO₂(400), which were prepared utilizing a green, sustainable calcium source derived from waste chicken eggshells. The active form of CaO, essential for the catalytic activity, was obtained using a simple calcination–hydration–dehydration method. The catalytic efficiency of KF(20)CaOHC-Fe₃O₄/TiO₂(400) was assessed in the one-pot synthesis of tetrahydro-4H-chromenes 35, while Ag@KF(20)CaOHC-Fe₃O₄/TiO₂(400) catalyst displayed remarkable efficiency in the preparation synthesis of benzopyranopyrimidines 36 (Figure 24, Figure 25, Figure 26, Figure 27 and Figure 28) [130]. The reaction conditions were optimized using a model one-pot condensation of benzaldehyde 1, malononitrile 2, and dimedone 21 for the formation of tetrahydro-4H-chromenes. Even after a prolonged reaction, the model reaction without a catalyst produced a low product yield. Using CaOHC and CaOHC-Fe₃O₄/TiO₂(400) as catalysts did not significantly improve yields. KF modification significantly increased product yield, as seen with KF(10)CaOHC-FeO₄/TiO₂(400), KF(15)CaOHC-FeO₄/TiO₂(400), and KF(20)CaOHC-FeO₄/TiO₂(400); KF(20)CaOHC-FeO₄/TiO₂(400) had the highest yield and selectivity, possibly because of the increased number of surface basic sites present arising from higher KF concentrations, leading to improved reaction rate. The results were similar when the model reaction proceeded using Ag@KF(20)CaOHC-FeO₄/TiO₂(400) to improve the protocol’s sustainability for single-pot preparation of chromene derivatives. Optimizing the catalyst amount using KF(20)CaOHC-Fe₃O₄/TiO₂(400) (50 mg, 100 mg, 150 mg, and 200 mg) revealed that 0.1 g was optimal, as lower amounts reduced yield (85%) and higher amounts provided no additional benefit. We then looked into the role of the solvent and discovered that solvent-free conditions were poor. After screening various solvents (H₂O, EtOH, CH₃CN, and PhCH₃), water was found to be the most effective and sustainable option, with the best results at 80 °C. The reaction was optimized using 0.1 g KF(20)CaOHC-Fe₃O₄/TiO₂(400) catalyst for a three-component reaction at 80 °C. The refined catalytic system was then used to generate tetrahydro-4H-chromene from a variety of substituted aromatic aldehydes, demonstrating excellent tolerance covering electron-donating and electron-withdrawing heterocyclic groups. The pure yield was isolated with an 83–96% yield. A similar one-pot multicomponent reaction occurs between O-hydroxybenzaldehydes (2 mmol), malononitrile (1 mmol), and secondary amine (1 mmol) with nanocatalyst Ag@KF(20)CaOHC-Fe₂O₄/TiO₂(400) 2.31 mol% in EtOH at 80 °C toward the formation of benzopyranopyrimidines. These heterogeneous catalysts are biologically relevant and demonstrate pharmacological potential, and investigation using KF(20)CaOHC-Fe₃O₄/TiO₂(400) in the role of a heterogeneous solid base catalyst facilitates the one-pot preparation of benzopyranopyrimidines from salicyladehyde 18, malononitrile 2, and piperidine 3, given the known pharmacological importance of heterocycles. The first attempt yielded low yields and incomplete conversions. Silver nanoparticles were immobilized to enhance catalytic activity, resulting in Ag@KF(20)CaOHC-Fe₃O₄/TiO₂(400). This modified catalyst completed conversions over a shorter period and with significantly excellent yield, demonstrating the critical catalytic role of silver nanoparticles in benzopyranopyrimidine synthesis. Many solvents (EtOH, CH₃CN, and PhCH₃) under catalytic conditions were tested in this protocol, but the maximum efficiency of the product was obtained in ethanol. The optimum reaction exhibited maximum efficiency at 70 °C. The reaction afforded the target compound with a yield in the range of 85–95%. The catalyst revealed excellent reusability, retaining catalytic activity without significant loss over five consecutive catalytic runs. This nanocatalyst was analyzed by a variety of techniques, including FT-IR, TGA, FEG-SEM, EDS mapping, EDX, XRD, and VSM.

Collectively, these studies affirm the critical role of CaO and its hybrid composites in enabling diverse MCR strategies under sustainable conditions. Whether employed alone or in conjunction with modifiers such as ionic liquids, transition metal ions, or magnetic supports, CaO-based nanocatalysts consistently demonstrate high catalytic efficiency, broad substrate compatibility, and operational recyclability. Their utility in synthesizing a wide spectrum of bioactive heterocycles ranging from pyrazolines and chromenes to indazolo and pyrimidinone derivatives underscores their value in green synthetic chemistry. This evolving landscape positions CaO nanocatalysts as a vital platform for the future of eco-friendly and scalable heterocyclic synthesis.

4. Challenges and Opportunities

This section highlights what is needed to move CaO nanoparticle (CaO NPs) catalysis in multicomponent reactions (MCRs) from the lab to production. We focus on four levels: (i) scale-up and continuous flow, (ii) lifecycle and green metrics (E-factor/PMI), (iii) computational modeling of basic sites, and (iv) stability under flow.

4.1. Scale-Up and Continuous-Flow Precedents for CaO NPs

Fixed-bed (pelleted or wash-coated), monolithic, and slurry-loop formats are all compatible with CaO as a heterogeneous base. Before operation, pre-drying (120–150 °C, inert sweep) removes adsorbed H₂O/CO₂ that mute basicity; in flows that generate water or CO₂, include periodic purge or a mild temperature ramp to sustain active O₂⁻ sites [131,132]. Wash-coating (e.g., CaO on Al₂O₃ or honeycomb/foam) and pelletization minimize fines and pressure-drop swings while maintaining dual-site cooperation (O²⁻ for deprotonation; Ca²⁺ for carbonyl polarization) [133,134].

Report on space–time yield (STY) (mass of product per reactor volume per hour) and productivity (mass of product per mass of catalyst), so results are comparable across setups. These metrics are standard in flow chemistry and correlate directly with scalability [135,136].

4.2. Lifecycle and Green Metrics (E-Factor/PMI) Across Substrate Classes

Quantify E-factor (kg waste per kg product) and process mass intensity (PMI) (total mass in per mass of product) for each reaction family. Include solvent and work-up auxiliaries, not just reagents. Because solvent typically dominates, prioritize EtOH or EtOH/H₂O and design closed-loop solvent recovery; also report energy intensity (kWh per mol product) when calcination or microwave input is used [137,138].

At the catalyst level, weigh the embodied energy of CaO preparation (calcination 500–900 °C) against service life. Express outcomes as kg product per kg CaO before regeneration, and compare the E-factor with vs. without solvent recycle. For cascades that release water, consider in-line removal (e.g., pervaporation/azeotrope) to reduce solvent volume and improve PMI [139].

4.3. Computational Modeling to Rationalize Basic-Site Distributions

Periodic DFT slab models of CaO low-index and defect-rich surfaces help quantify site basicity (charges), adsorption energies (e.g., for acetaldehyde, malononitrile, or urea/dimedone), and barriers for elementary steps via NEB. These data link directly to which step limits a given MCR and where temperature/load windows should sit [140].

Include solvent effects (EtOH/H₂O) explicitly or implicitly, and calibrate theory with CO₂-TPD/NH₃-TPD and in situ DRIFTS. Doped or supported CaO (e.g., K/Sr-modified CaO or CaO on Al₂O₃/SiO₂) can tune the O²⁻–Ca²⁺ balance; modeling plus experiment accelerate that optimization [141].

4.4. Stability and Operando Performance Under Flow

Likely failure modes include carbonate/hydroxide formation, organic fouling, sintering, attrition, and Ca²⁺ leaching. Track stability by (i) activity retention over 20–100 h at fixed STY, (ii) pressure-drop trends, (iii) ICP-OES of effluent, and (iv) **BET/XRD/CO₂-TPD** before/after. Use **hot-filtration** and **leaching controls** (with the recovered solid vs. filtrate) to prove true heterogeneity—recognizing that hot filtration alone can be inconclusive unless paired with metal-analysis/poisoning tests.

Regeneration typically involves rinsing (EtOH), drying (120–150 °C), and calcining at 500–600 °C under N₂/air to remove organics/carbonates; avoid over-sintering. Steam-assisted hydration can reactivate sorbent-like CaO systems; in catalytic contexts, brief hydration/calcination cycles also restore basicity when carbonation is severe []. Pelletization, binders, and wash-coating improve attrition resistance and enable long runs [142].

4.5. Outlook

Pair techno-economic and LCA analyses with standardized reporting (STY, PMI/E-factor, energy intensity, and 50–100 h stability) so CaO-enabled MCRs can be compared to incumbent bases. In parallel, computationally guided materials (facet-biased, defect-engineered, or supported/doped CaO) should be matched to reaction-family needs to reduce barrier steps while preserving green metrics [143].

5. Conclusions

This review explores how calcium oxide (CaO) nanoparticles have been employed as a versatile catalyst for multicomponent organic synthesis. The research shows that using these nanoparticles significantly improves the process by increasing product yield, reducing reaction time, and allowing for catalyst reuse. Calcium oxide nanoparticles (CaO NPs) are transforming heterocyclic chemistry by providing a greener, more efficient, and cost-effective approach for multicomponent reactions (MCRs). Their distinct basicity, large surface area, and environmentally friendly nature make them ideal for catalyzing complex transformations in mild conditions. CaO NPs simplify synthesis by reducing steps and waste while allowing for rapid assembly of bioactive heterocycles for pharmaceutical and agrochemical applications. Their versatility and recyclability are critical for sustainable chemistry. Further research into CaO-based nanocatalysis, particularly bioactive screening and SAR studies, is expected to yield novel compounds with improved therapeutic potential, thereby increasing nanotechnology’s impact on modern synthetic organic chemistry. This review offers a concise overview of how calcium oxide (CaO) nanoparticles serve as effective heterogeneous catalysts in multicomponent reactions (MCRs). It aims to encourage researchers to adopt this method for synthesis, as it provides a cleaner alternative to traditional multi-step processes that typically use toxic metal catalysts, which can harm the environment.
