Alkene Epoxidations Mediated by Mn-Salen Macrocyclic Catalysts

Abstract

Three new chiral Mn macrocycle catalysts containing 20 or 40 atoms in the macrocycle were synthetized and tested in the enantioselective epoxidation of cis-β-ethyl-styrene and 1,2-dihydronathalene. The effect of the presence of a binaphtol (BINOL) compound in the catalyst backbone has been evaluated, including by Density Functional Theory (DFT) calculations.

1. Introduction

Asymmetric epoxidation of unfunctionalized prochiral olefins catalyzed by chiral (salen)Mn(III) complexes has proven to be one of the most useful reactions in organic synthesis since it generates chiral epoxides containing two new stereocenters, which can be easily transformed into a large variety of compounds useful in industrial, biological, pharmaceutical and agricultural fields [1]. The origins of high enantioselectivity in this reaction have been extensively studied [2] but, until now, not fully elucidated. A possible electronic effect of the 5,5′-substituents in the salen ligand is invoked [3,4], but the most common explanation is attributed to the directions of approach of the alkene to the manganese active site (manganese-oxo) [5]. The side-on approach where the double bond of the alkene is parallel to the salen ligand is generally accepted, but four main directions to the Mn-oxo [6,7] moiety have been proposed in the literature (Figure 1).

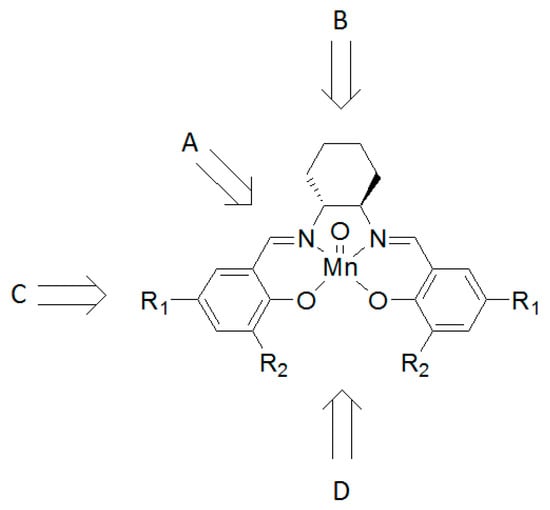

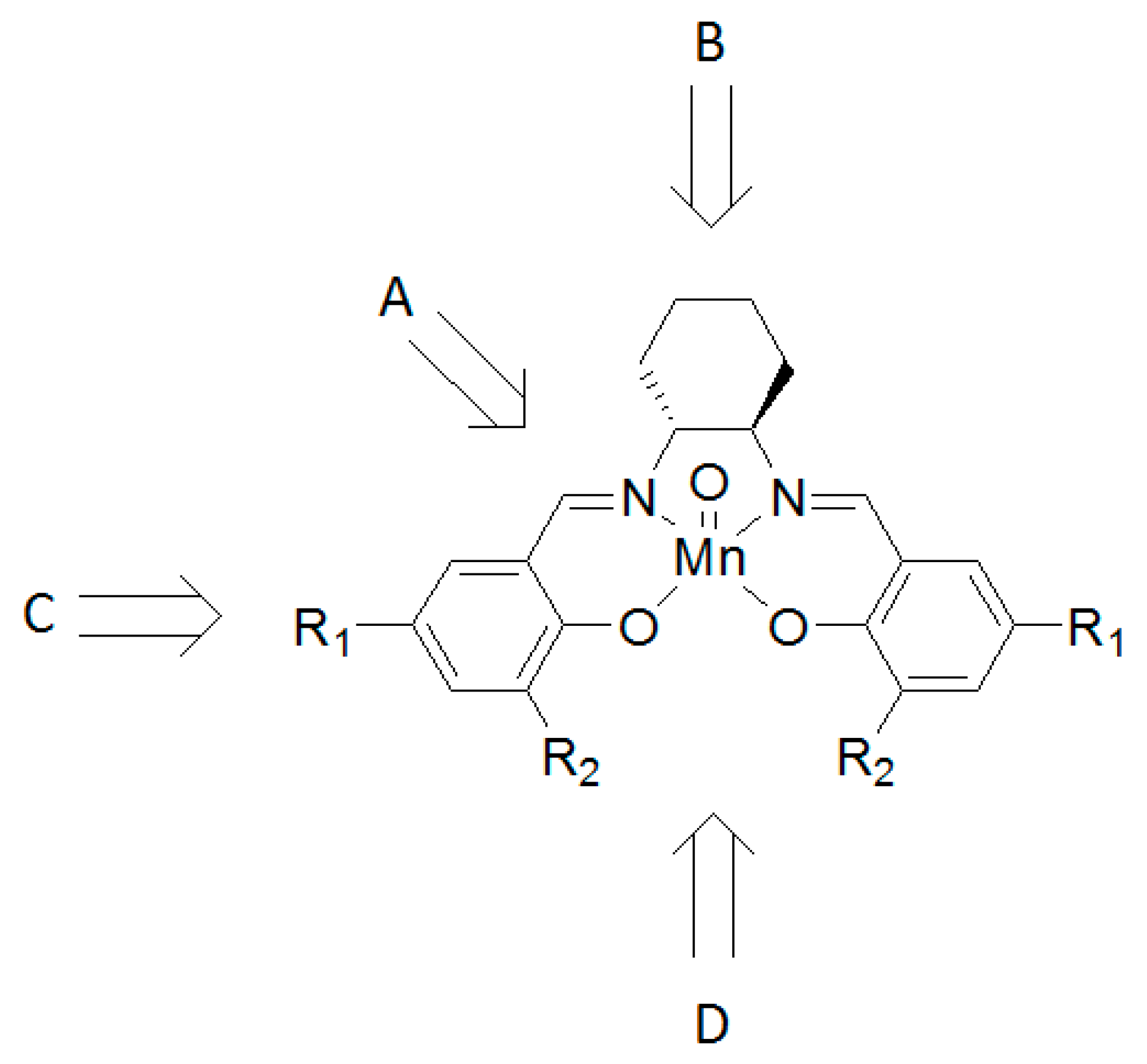

Katsuki et al. hypothesized that the substrate approaches the catalyst along the Mn–N bond (Figure 1, path A) [8,9,10]. In addition, Jacobsen assumed that (salen)Mn=O has a planar conformation and steric bulk at the 3,3′- and 5,5′-positions, thus forcing the substrate to approach over the ethylenediamine backbone (Figure 1, path B) [11,12,13,14,15]. Furthermore, Katsuki also proposed an approach direction by pathway C, along the 5,5′-position [16,17]. It is generally accepted that the increase of steric bulkiness in the 3,3′-positions of the salen ligand enhances enantioselectivity, suggesting that the alkene does not approach from this direction to the metal center (Figure 1, path D) [18,19,20,21,22,23,24,25,26].

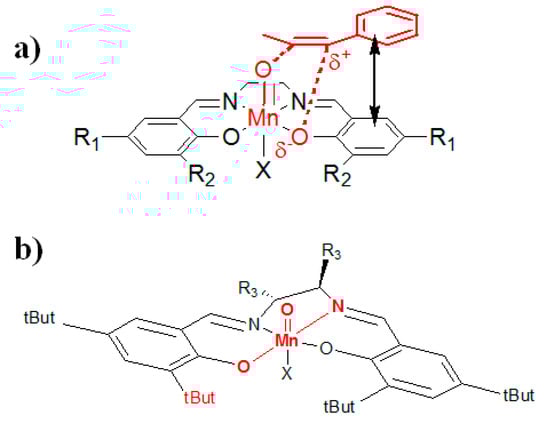

More recently, a new justification about the origin of enantioselectivity was proposed by Corey et al. [14,15]. They asserted that none of these explanations seem to be plausible when the mechanism is represented in three dimensions. They proposed that the pre-transition state geometry could be stabilized by electrostatic interaction between a partial positive charge localized in the benzylic carbon atom of alkene and the partial negative charge of phenoxy oxygen of the catalyst (Figure 2a). In this hypothesis, the transition state assembly is slightly similar to a [3 + 2] cycloaddition.

A geometric consequence of the canted arrangement of the salen rings due to the configuration of the chiral diimine bridge is that the neighboring t-butyl groups in the ortho position to the coordinated phenolic oxygens occupy spaces on opposite faces of the N–Mn–O plane (Figure 2b). Considering Corey’s hypothesis, the orientation of substrates, in particular of aromatic conjugate alkenes, in the (salen)Mn-oxo complex avoids unfavorable steric repulsion with the t-butyl groups, taking advantage of stabilizing π-stacking of the aromatic ring of the alkene and the aryloxy group of the catalyst (Figure 2a).

2. Results and Discussion

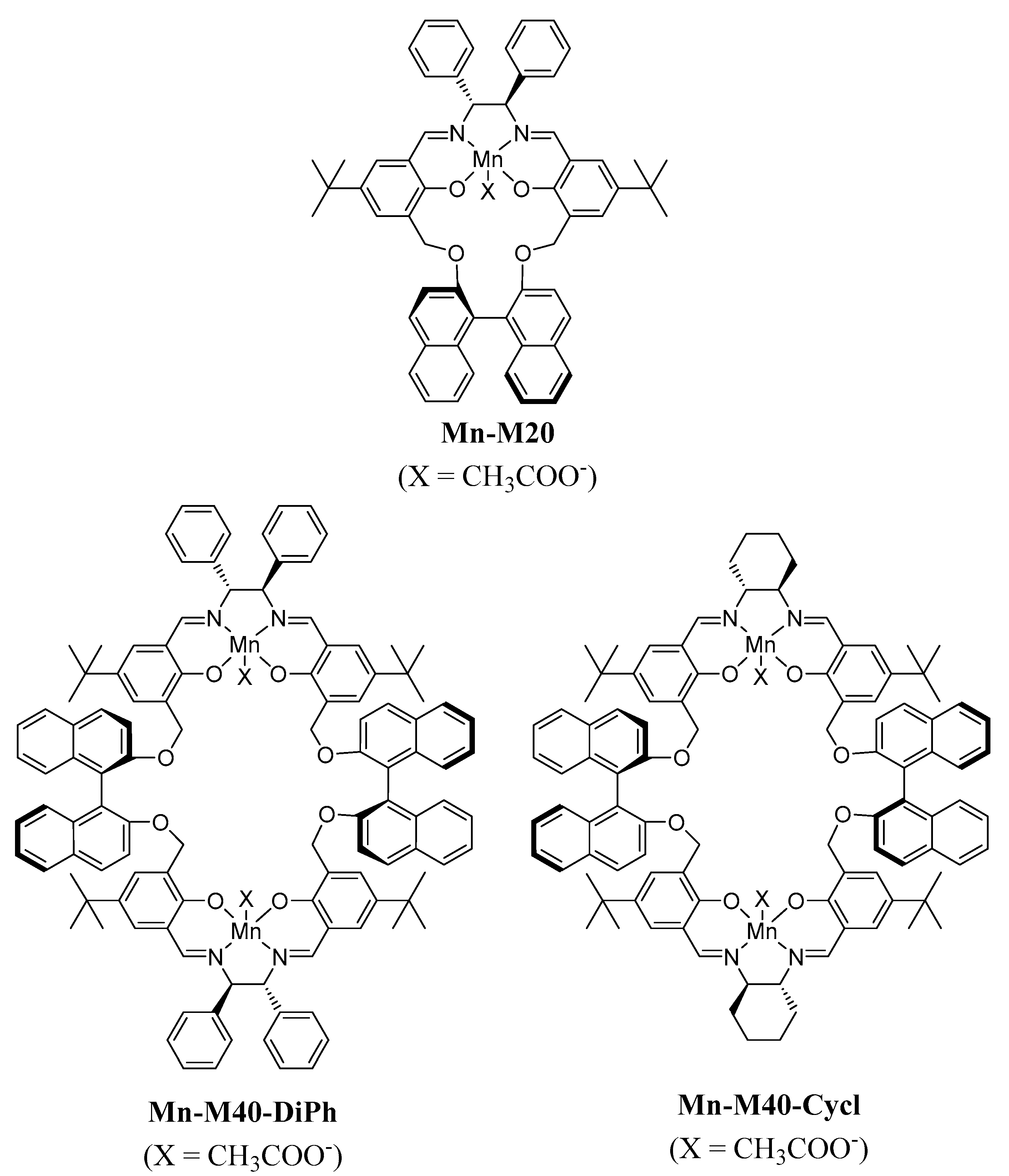

To better understand the importance of the approach direction as well as the importance of bulkiness in the 3,3′-positions, we report here three new chiral Mn macrocycle catalysts based on the classic Jacobsen’s salen catalyst bearing an (R)-(+)-BINOL unit in the 3,3′-position of the salen backbone (see Chart 1). These catalysts differ in the size of the macrocycle, having 20 members (in the case of Mn-M20) or 40 members (in the case of Mn-M40-DiPh and Mn-M40-Cycl) in the macrocycle. In addition, their activity towards epoxidation by using two alkene models (cis-β-methyl-styrene and 1,2-dihydronaphtalene) was evaluated.

Mn catalysts reported in Chart 1 were obtained starting from the corresponding macrocycle ligands (M20 and M40) [16,17] by complexation with manganese(III) acetate in ethanol [18]. Compounds were collected by filtration and characterized by ESI–MS (Electrospry Ionization-Mass Spectrometry) measurements. The chiral diimine bridge of Mn-M20 and Mn-M40-DiPh is (1R,2R)-diphenyl-ethyl group, while Mn-M40-Cycl leads a (1R-trans)-cyclohexyl group.

Table 1. Enantioselective epoxidation of alkenes with NaClO catalyzed by Mn macrocycle catalysts ^a.

Alkene	Entry	Catalyst	Time (min)	Conv. b (%)	Yield b (%)	EE b (%)
cis-β-methyl-styrene	1 c	Mn-M20	300	80	88	16
	2	Mn-M20	240	90	88	27
	3 c	Mn-M40-DiPh	420	78	84	17
	4	Mn-M40-DiPh	300	87	82	31
	5 c	Mn-M40-Cycl	420	77	85	12
	6	Mn-M40-Cycl	300	89	84	30
1,2-dihydro-naphthalene	7 c	Mn-M20	60	92	93	23
	8	Mn-M20	30	95	94	38
	9 c	Mn-M40-DiPh	90	90	91	25
	10	Mn-M40-DiPh	30	88	89	35
	11 c	Mn-M40-Cycl	90	80	93	29
	12	Mn-M40-Cycl	30	90	99	36

^a In all the experiments, alkene = 0.14 M, catalyst = 0.007 M, coligand = 4-PPNO = 0.07 M, NaClO = 0.14 M, Na₂HPO₄ = 0.05 M, buffered at pH = 11.2. In all the cases, configuration of epoxides is determined by measuring the optical rotation. ^b Determined by GC on chiral columns. ^c No coligand added.

shows epoxidation results in terms of conversions, epoxide yields and enantiomeric excess (EE). The results clearly show a different epoxidation rate based on the nature of the alkene: reactions with 1,2-dihydronathalene (Table 1, entries 7–12) are faster than reactions with cis-β-methyl-styrene (Table 1, entries 1–6) [19,20,21]. Moreover, the presence of PPNO (4-phenyl-pyridine N-oxide) as a coligand increases reaction rates, conversions and enantiomeric excesses, suggesting a favorable electronic effect to the manganese metal center [22].

Although these macrocycle catalysts possess different chiral diimine bridges (diphenyl or cyclohexyl) and, consequently, different steric hindrances to the Mn-oxo group along approach directions A and B (reported in Figure 1), the enantiomeric excess values were similar. These data suggest that steric restrictions closer to the active catalyst site do not play a primary role in the determination of the enantioselectivity values. Furthermore, the different size of the macrocycles and the different steric hindrance along pathway D represented in Figure 1 did not lead to different EE values. The lower EE values obtained with these macrocycles with respect to other Mn-salen catalysts should have been due to the presence of the chiral (R)-(+)-BINOL compound that can reduce the efficiency of the enantioselective oxygen transfer.

Theoretical Calculations

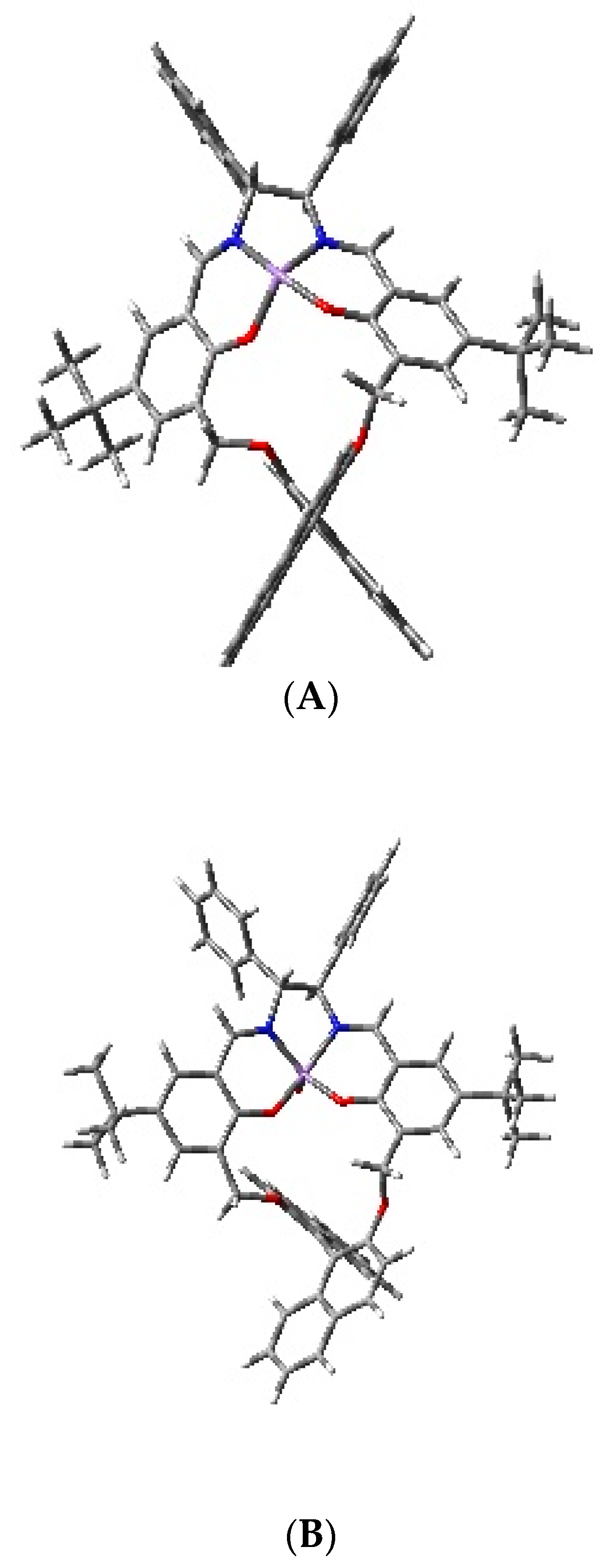

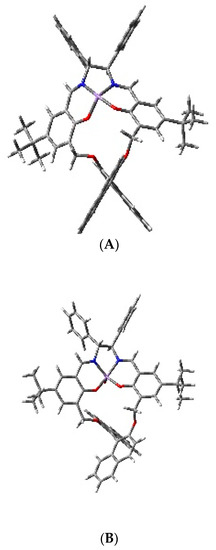

In order to rationalize the enantiomeric excess results, DFT studies were performed on the simplest catalyst. First, our attention was focused on Mn-M20 that was optimized and the obtained 3D plots together with the corresponding activated forms containing the Mn=O species formed in the presence of NaClO are reported in Figure 3.

The catalyst and its activated form showed overlapping structures characterized by the steric hindrances of BINOL groups.

In order to rationalize the enantioselectivity of the reaction, the two transition states leading to the two possible enantiomeric epoxides were located by using DFT calculations [23,24,25,26]. The computational study was carried out on the epoxidation reaction involving Mn-M20 in its activated form as a catalyst and cis-β-methyl-styrene, which seems to be a good compromise between the size of the system and the accuracy of the calculation.

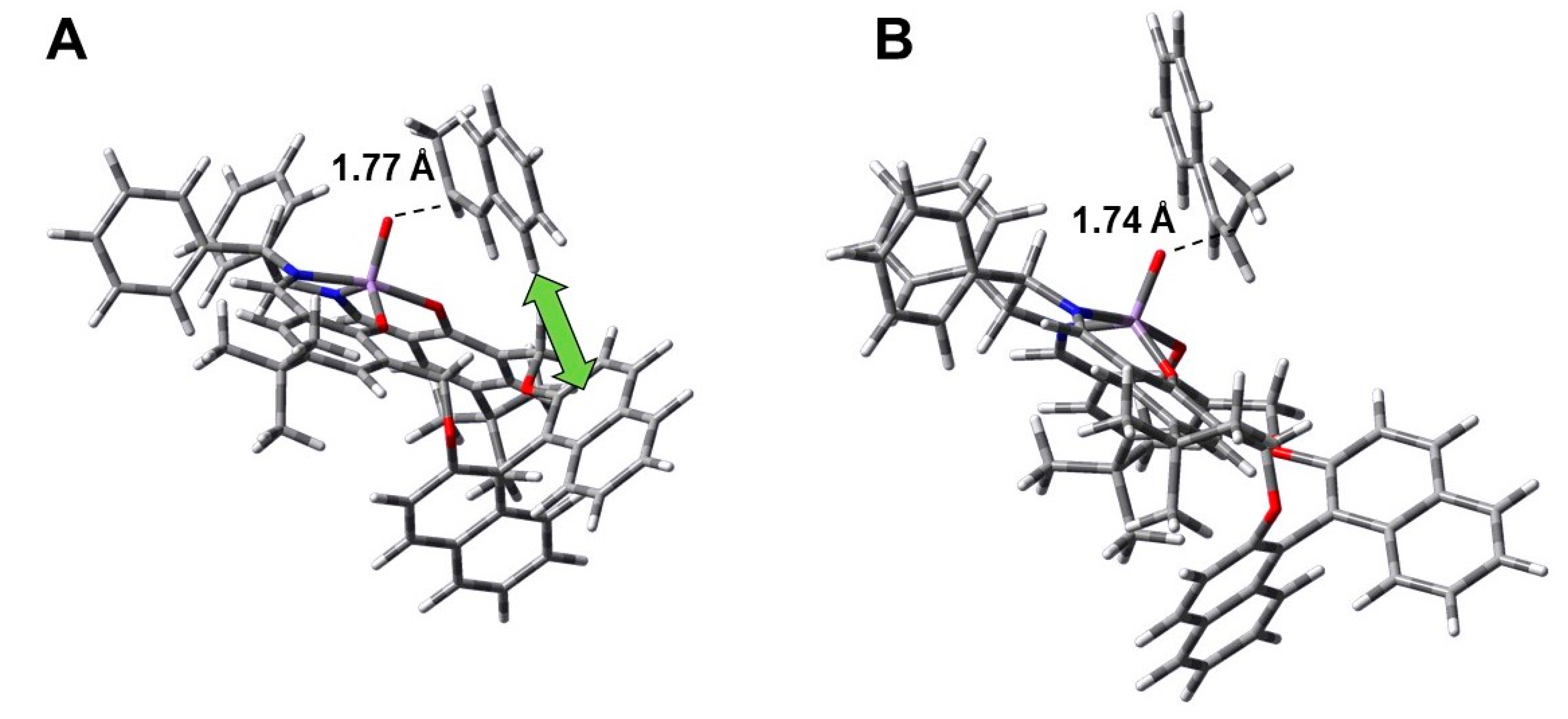

The located transition state (TS) present the expected imaginary frequencies on the O transfer (see Supporting Information). In Figure 4, the formation bond distances are shown. The favored (2S,3R)-TS (Figure 4A) had the bond less formed (1.77 Å) than the (2R,3S)-TS (Figure 4B) (1.74 Å).

Calculations supported the enantiomeric excess experimental results. The calculated activation energies were comparable in the two cases with values of about 7 and 8 kcal/mol in vacuo for the transition states leading to the (2S,3R) epoxide and the (2R,3S) epoxide, respectively (Figure 4). Considering the free energy values, the reaction was slower due to energy barriers of about 21 and 22 kcal/mol for the transition states leading to the (2S,3R) epoxide and the (2R,3S) epoxide, respectively. Thus, the transition state related to the (2S,3R) epoxide was favored (1.18 kcal/mol), probably due to the π–π stacking interactions between the aromatic ring of the alkene and the salicylaldehyde ring of the catalyst, as well as the CH–π interaction with the BINOL compound (showed by green arrows in Figure 4A). If the alkene attacks the Mn=O with the opposite face (Figure 4B) leading to the (2R,3S) epoxide, these interactions cannot be found.

The ratio between the two enantiomers on the basis of the transition state energies was 78:22 with a theoretical enantiomeric excess of 56% in vacuo. Considering methanol as a solvent, the energy barriers resulted in 10.62 and 11.02 kcal/mol for the transition states related to the (2S,3R) and (2R,3S) epoxides, respectively, with a ratio between the two enantiomers of 66:34 and a theoretical EE value of 32%, which was in line with the experimental one (Table 1, entry 2).

Taking into account these results and considerations, substituents in the 3,3′-positions play a crucial role in the determination of the enantioselectivity values. Their fundamental importance is probably ascribed to the stabilizing/destabilizing effect of the transition state, as showed in Figure 2a and Figure 4A.

3. Materials and Methods

GC analyses of the epoxidation reaction were performed with a GC-FID (Flame Ionization Detector) instrument. The EE values were estimated and calculated by using a proper chiral column DMePeBETACDX (25 m × 0.25 mm ID × 0.25 μm film) for 1,2-dihydronaphthalene (isotherm 150 °C) and DMeTButiSililBETA (25 m × 0.25 mm ID × 0.25 μm film) for cis-β-methyl-styrene (column conditions: 50 °C (0 min) to 120 °C (1 min) at 2 °C/min). The injector and detector temperatures were maintained at 250 °C for both columns. As an internal standard, n-decane was used throughout. ESI mass spectra were obtained by employing an ES–MS equipped with an ion trap analyzer. The absolute configurations of (1R,2S)-1,2-epoxy-1,2,3,4-tetrahydronaphthalene and of (1R,2S)-1,2-epoxy-1-phenylpropane were determined by measuring the optical rotations with a polarimeter. Commercial reagents were used as received without further purification. All the calculations were performed using the Gaussian 16 program package [27]. Optimizations were done in the gas phase at the b3lyp/6-31g(d) level [28,29] for all atoms, while the b3lyp/def2svp was used for Mn to correctly describe the electronic properties of the systems. The solvent effects (CH₃OH) were considered by single-point calculations at the same level as above using the self-consistent reaction field (SCRF) method based on the polarizable continuum solvent model (PCM) [30,31,32]. Vibrational frequencies were computed at the same level of theory to verify that the optimized structures were minimal. Thermodynamics at 298.15 K allowed the Gibbs free energies to be calculated.

3.1. Synthesis of Mn Macrocycle Catalysts

The absolute ethanol solution of the given macrocycle salen-ligand was stirred overnight at room temperature with 1.5 equivalents of manganese(III) acetate in the case of M20 or with three equivalents of manganese(III) acetate in the case of M40. When the starting ligand was completely converted (checked by thin layer chromatography TLC analysis), the solvent was removed under reduced pressure. Then, 5 mL CH₂Cl₂ was added to the remaining crude solid to dissolve the Mn complex. The residual precipitate (not reacted manganese (III) acetate) was removed and the CH₂Cl₂ solution was concentrated in vacuo thus giving the corresponding catalyst with nearly quantitative yield.

Mn-M20: ESI-MS: detected m/z, 895 [M]⁺ (expected, 895.3); analytically calculated values for C₅₈H₅₂MnN₂O₄: C, 77.75; H, 5.85; Mn, 6.13; N, 3.13; O, 7.14; values as measured: C, 77.71; Mn, 6.09; N, 3.10; O, 7.11.

Mn-M40-DiPh: ESI-MS: detected m/z, 895 [M]²⁺ (expected, 895.8); analytically calculated values for C₁₁₆H₁₀₄Mn₂N₄O₈: C, 77.75; H, 5.85; Mn, 6.13; N, 3.13; O, 7.14; values as measured: C, 77.68; Mn, 6.07; N, 3.12; O, 7.10.

Mn-M40-Cycl: ESI-MS: detected m/z, 797 [M]²⁺ (expected, 797.8); analytically calculated values for C₁₀₀H₁₀₀Mn₂N₄O₈: C, 75.27; H, 6.32; Mn, 6.89; N, 3.51; O, 8.02; values as measured: C, 75.17; Mn, 6.82; N, 3.48; O, 7.98.

3.2. General Procedure for Epoxidation Reactions

A dichloromethane solution of the substrate (0.35 mmol), chiral macrocycle catalyst (5%) and 4-phenylpyridine N-oxide (4-PPNO, 50%), buffered at pH 11.2 with a phosphate buffer, was stirred at 25 °C with bleach. The reaction was monitored using GC analysis by using n-decane as an internal quantitative standard. When the starting material was consumed, the organic phase was removed, dried with Na₂SO₄ and purified by preparative layer chromatograpy (PLC) (SiO₂, cyclohexane/EtOAc (15:1, v/v). Absolute configurations were compared with literature data [33,34].

3.3. Computational Methods

Optimizations were done in the gas phase at the b3lyp/6-31g(d) level [28,29] for all atoms, while the b3lyp/def2svp was used for Mn to correctly describe the electronic properties of the systems. The solvent effects (CH₃OH) were considered by single-point calculations at the same level as above using the self-consistent reaction field (SCRF) method based on the polarizable continuum solvent model (PCM) [30,31,32]. Vibrational frequencies were computed at the same level of theory to verify that the optimized structures were minimal. Thermodynamics at 298.15 K allowed the Gibbs free energies to be calculated. The ΔE values and the percentages of the TS were calculated applying the Boltzmann equation. Using the obtained percentages, the EE values were calculated using the following equation: EE% = [% major compound − % minor compound] / [% major compound + % minor compound] × 100.

4. Conclusions

Three new chiral Mn macrocycle catalysts containing 20 or 40 atoms in the macrocycle were synthetized and tested in the enantioselective epoxidation of cis-β-ethyl-styrene and 1,2-dihydronathalene. Reaction rates depend on the nature of the alkene and the presence of a coligand (PPNO) increases reaction rates, conversions and enantiomeric excesses. Despite the presence of a BINOL compound in the 3,3′ position of the catalyst scaffolds, the enantioselectivities observed were, in general, low, probably due to the distance of these substituent with respect to the metal center. DFT calculations support this hypothesis. In particular, the calculated activation energies of the transition states related to the formation of the enantiomeric epoxides confirm the enantiomeric excesses obtained by experimental measurements.
