Open AccessArticle

Process Control in Jet Electrochemical Machining of Stainless Steel through Inline Metrology of Current Density

1
Professorship Micromanufacturing Technology, Faculty of Mechanical Engineering, Chemnitz University of Technology, 09107 Chemnitz, Germany
2
Fraunhofer Institute for Machine Tools and Forming Technology, 09126 Chemnitz, Germany
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(4), 261; https://doi.org/10.3390/mi10040261
Received: 28 February 2019 / Revised: 8 April 2019 / Accepted: 15 April 2019 / Published: 18 April 2019
(This article belongs to the Special Issue Product/Process Fingerprint in Micro Manufacturing)
  |
PDF [3931 KB, uploaded 18 April 2019]
  |

Abstract

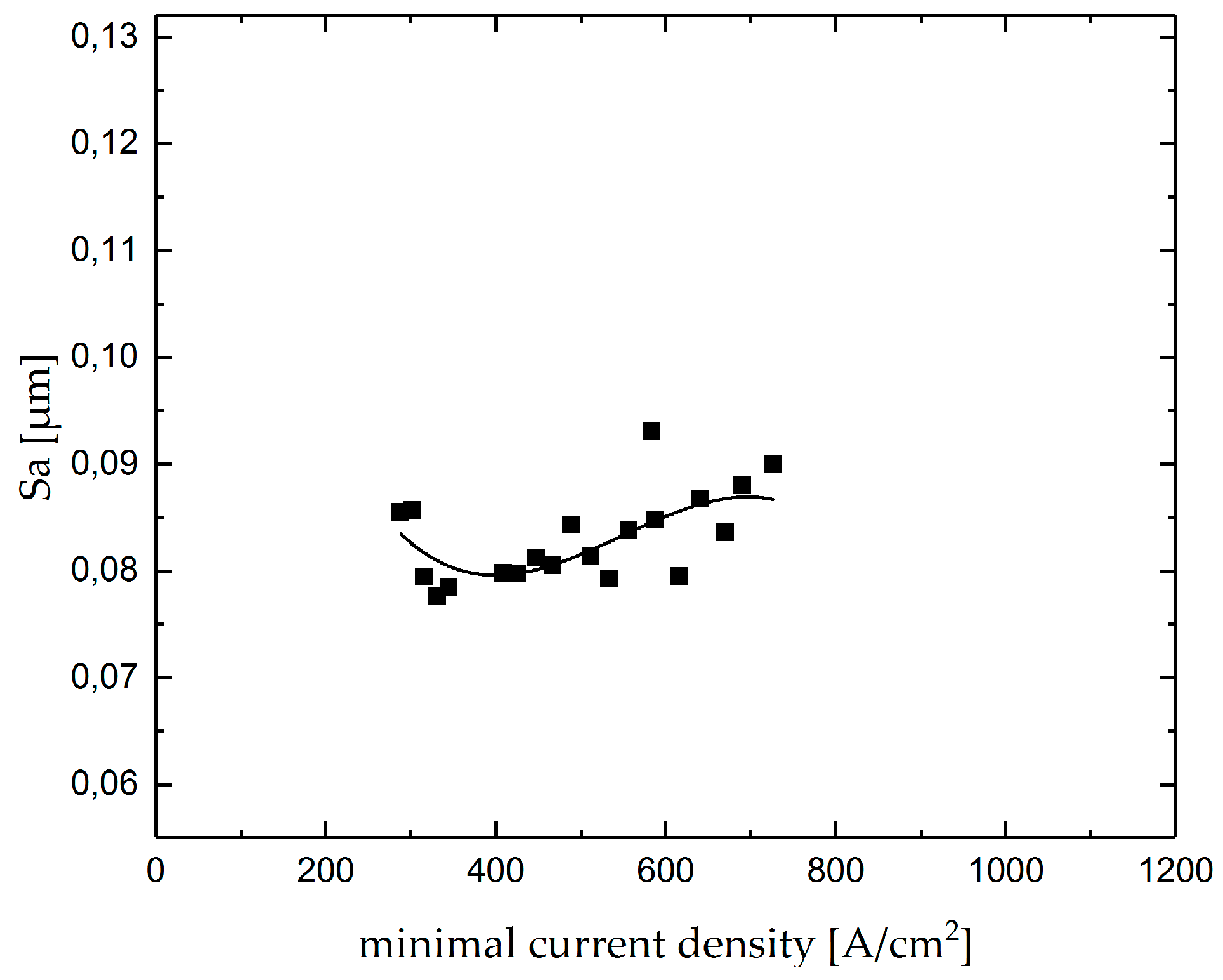

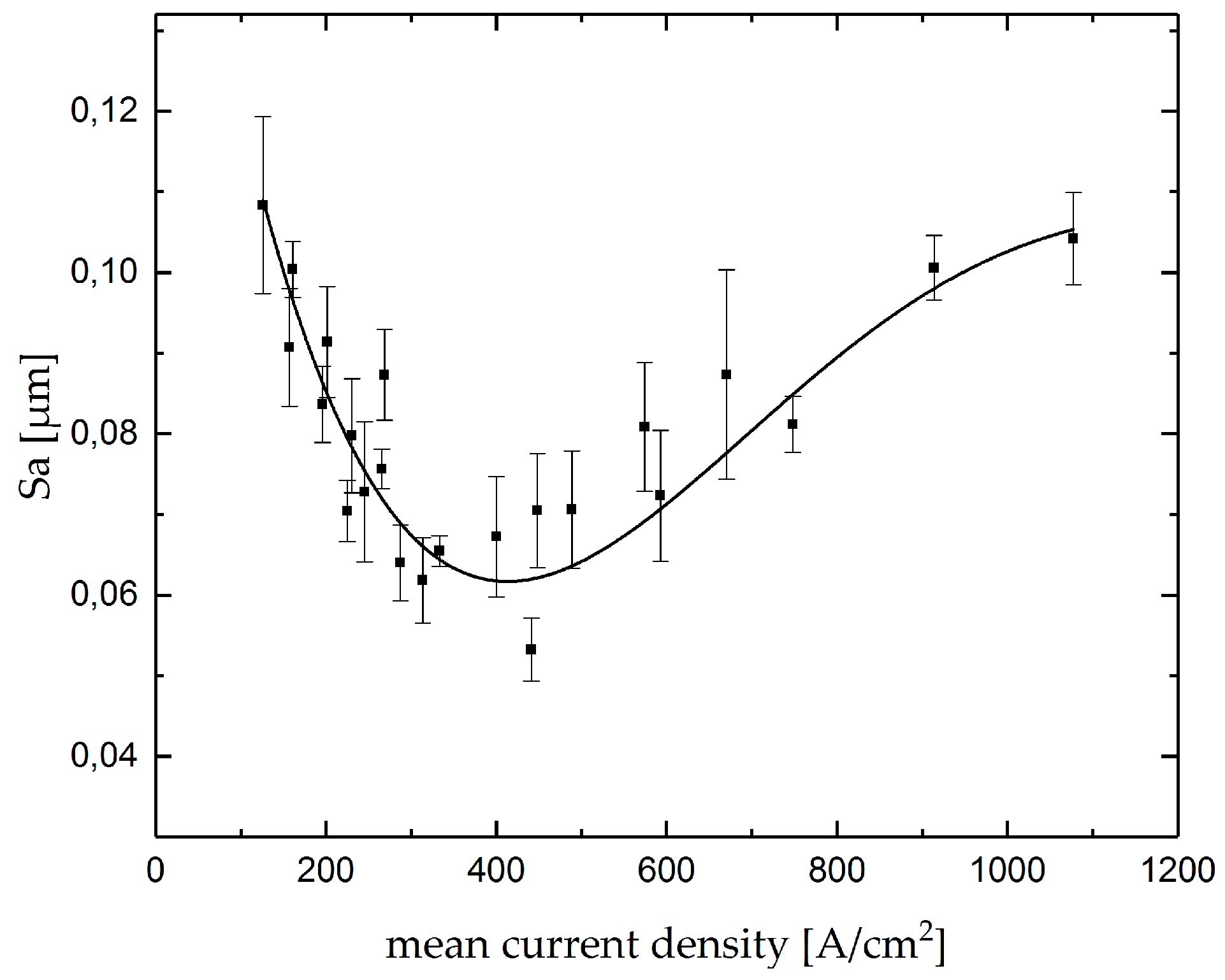

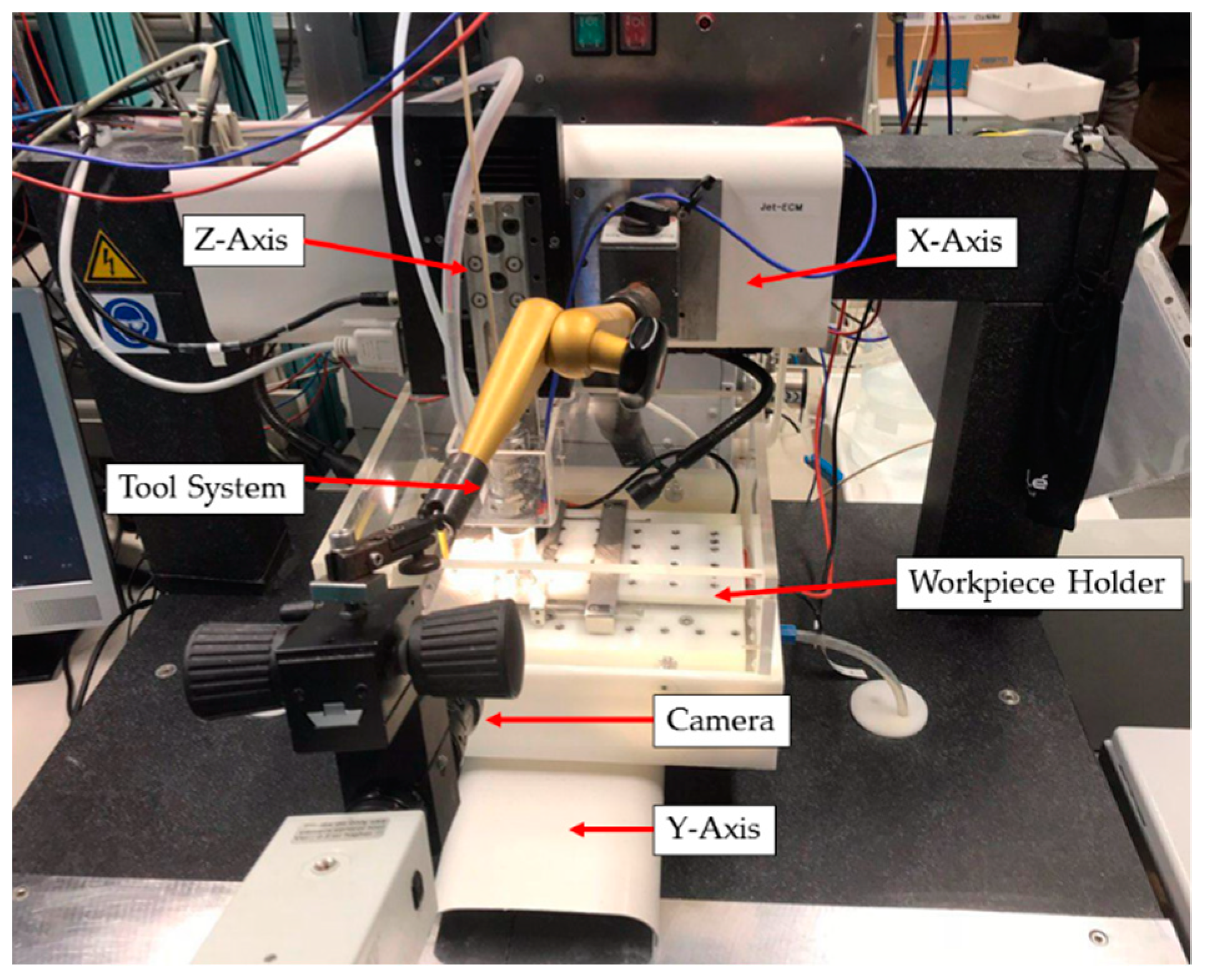

Jet electrochemical machining (Jet-ECM) is a flexible method for machining complex microstructures in high-strength and hard-to-machine materials. Contrary to mechanical machining, in Jet-ECM there is no mechanical contact between tool and workpiece. This enables Jet-ECM, like other electrochemical machining processes, to realize surface layers free of mechanical residual stresses, cracks, and thermal distortions. Besides, it causes no burrs and offers long tool life. This paper presents selected features of Jet-ECM, with special focus on the analysis of the current density during the machining of single grooves in stainless steel EN 1.4301. Especially, the development of the current density resulting from machining grooves intersecting previous machining steps was monitored in order to derive systematic influences. The resulting removal geometry is analyzed by measuring the depth and the roughness of the machined grooves. The correlation between the measured product features and the monitored current density is investigated. This correlation shows that grooves with the desired depth and surface roughness can be machined by controlling current density through the adjustment of process parameters. On the other hand, current density is sensitive to the changes of working gap. As a consequence of the changes of workpiece form and size for the grooves intersecting premachined grooves as well as the grooves with a lateral gap, working gap, and current density change. By analyzing monitoring data and removal geometry results, the suitability of current density inline monitoring to enable process control is shown, especially with regards to manufacture products that should comply with tight predefined specifications. View Full-Text
Keywords: electrochemical machining (ECM); process control; current monitoring; current density; surface roughness; inline metrology electrochemical machining (ECM); process control; current monitoring; current density; surface roughness; inline metrology

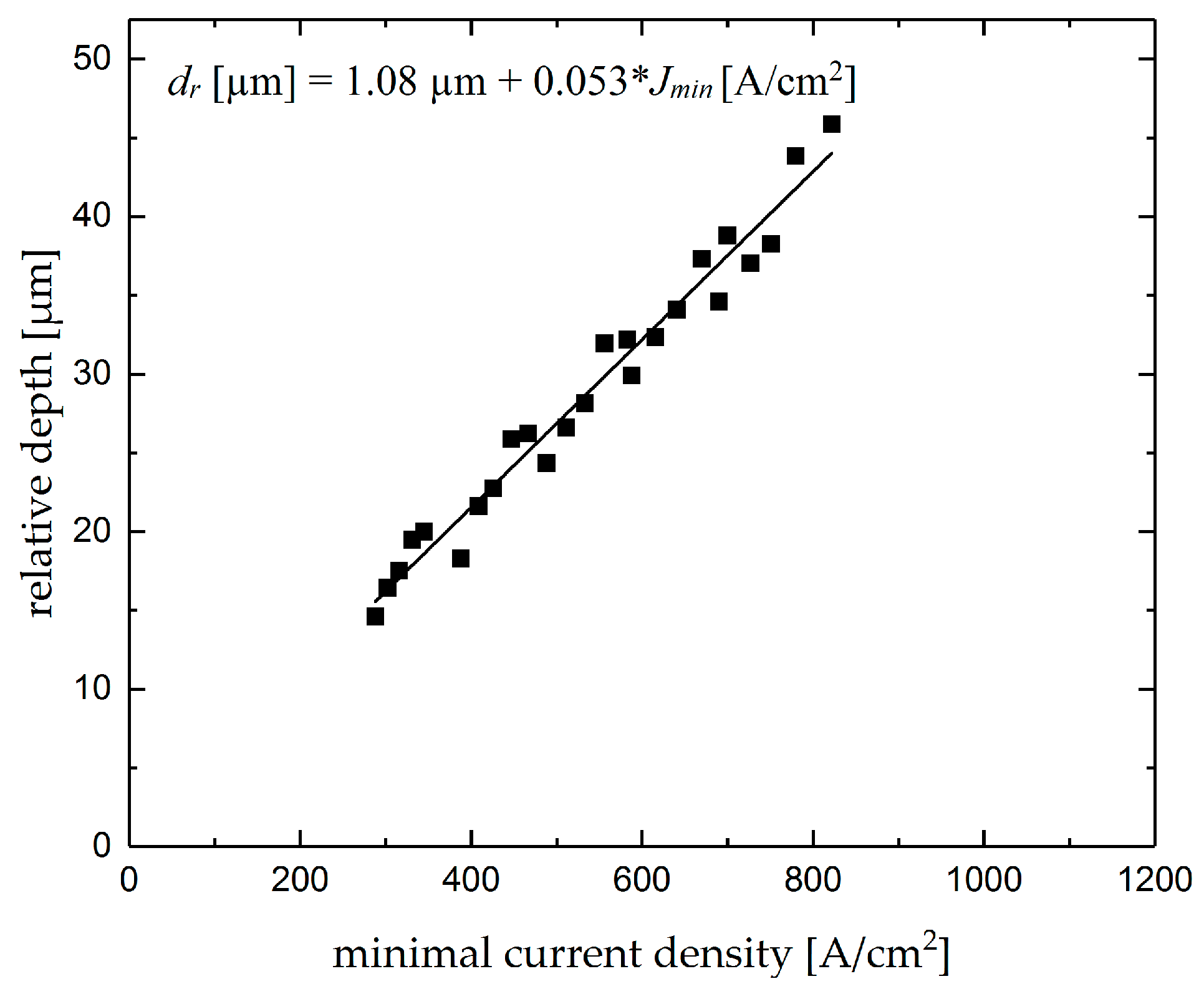

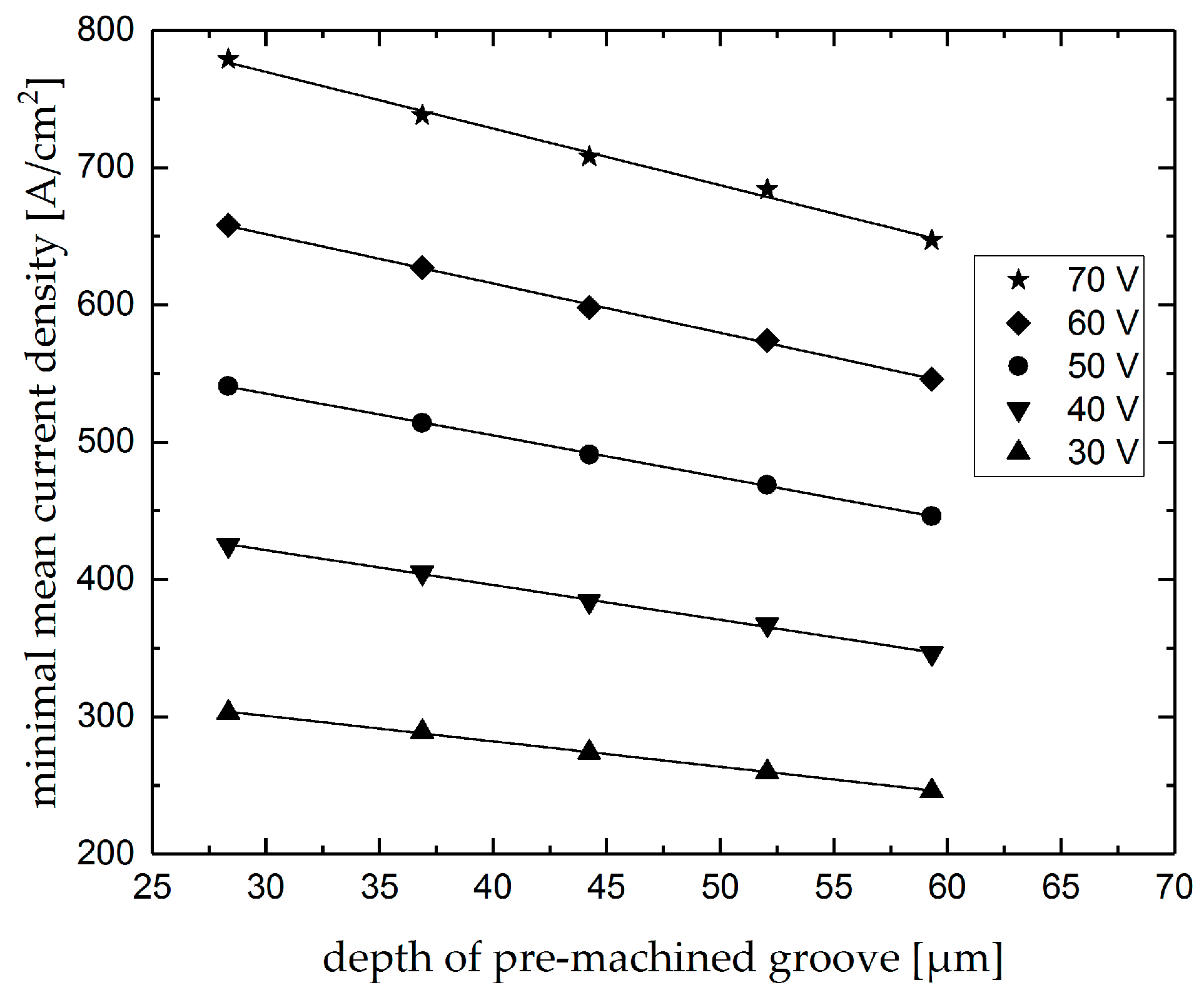

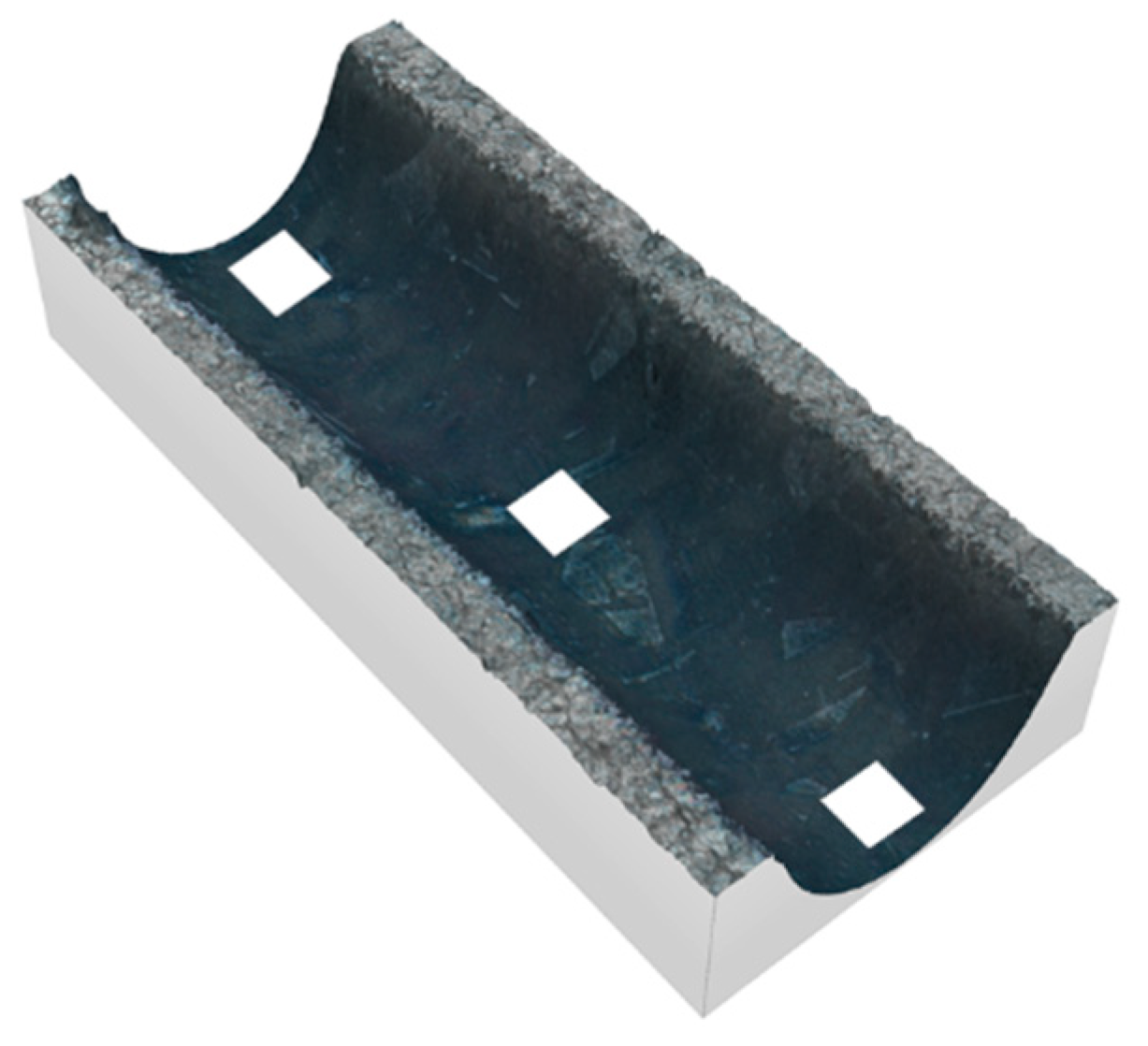

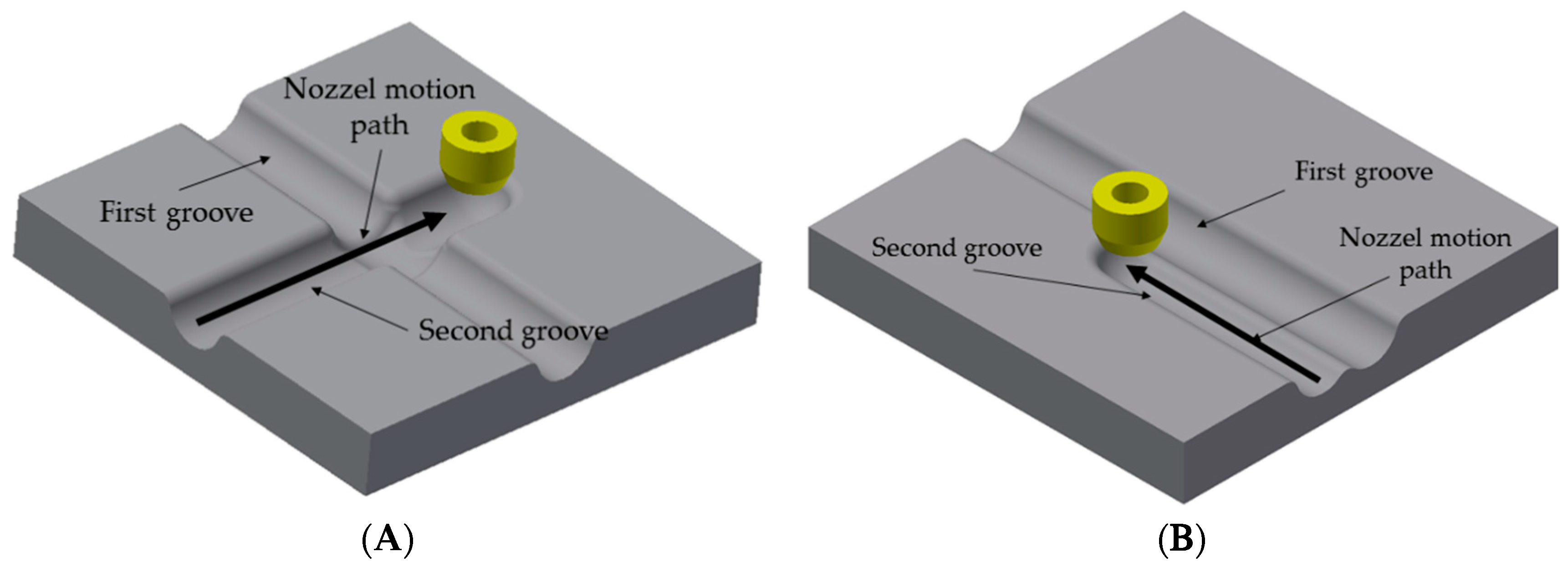

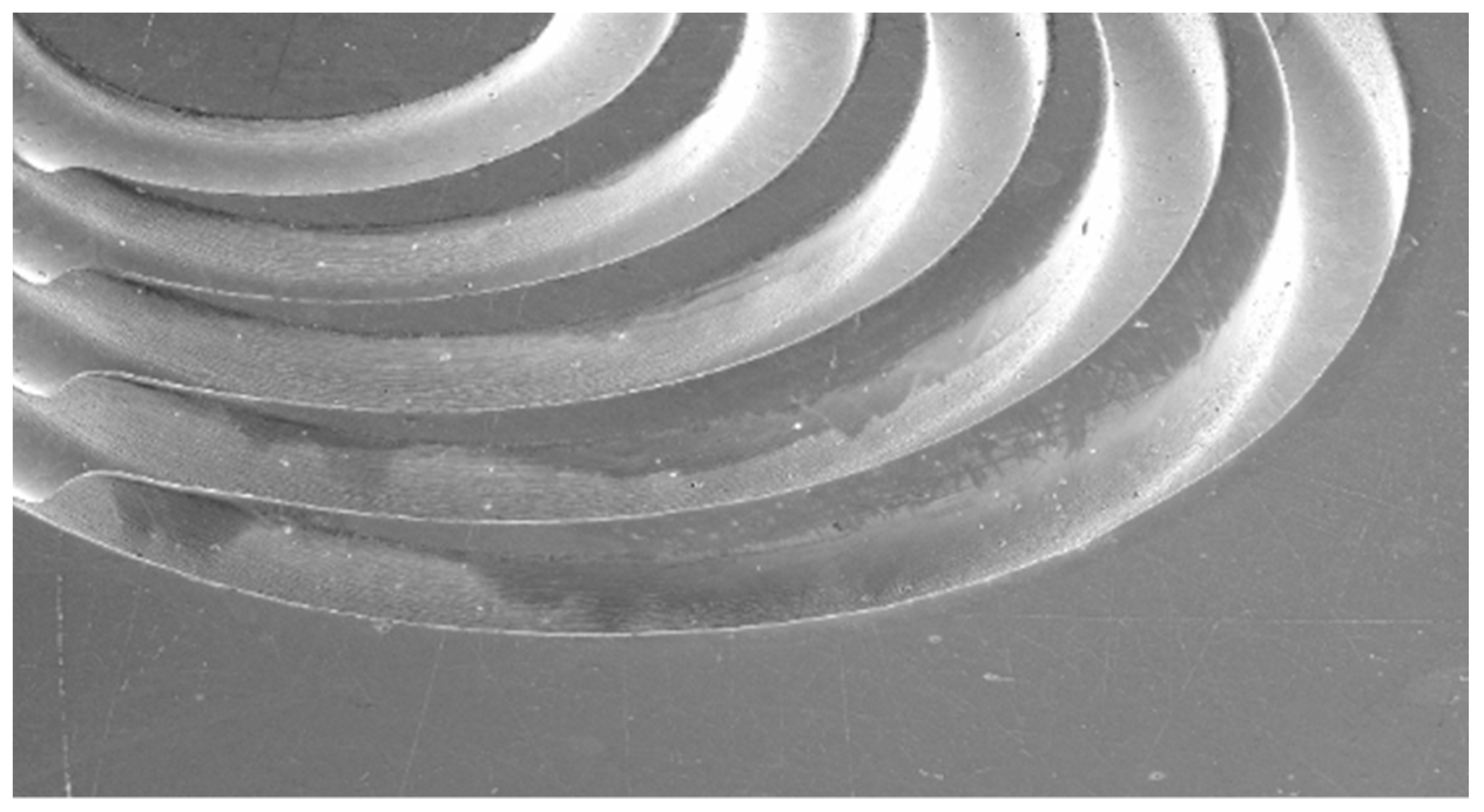

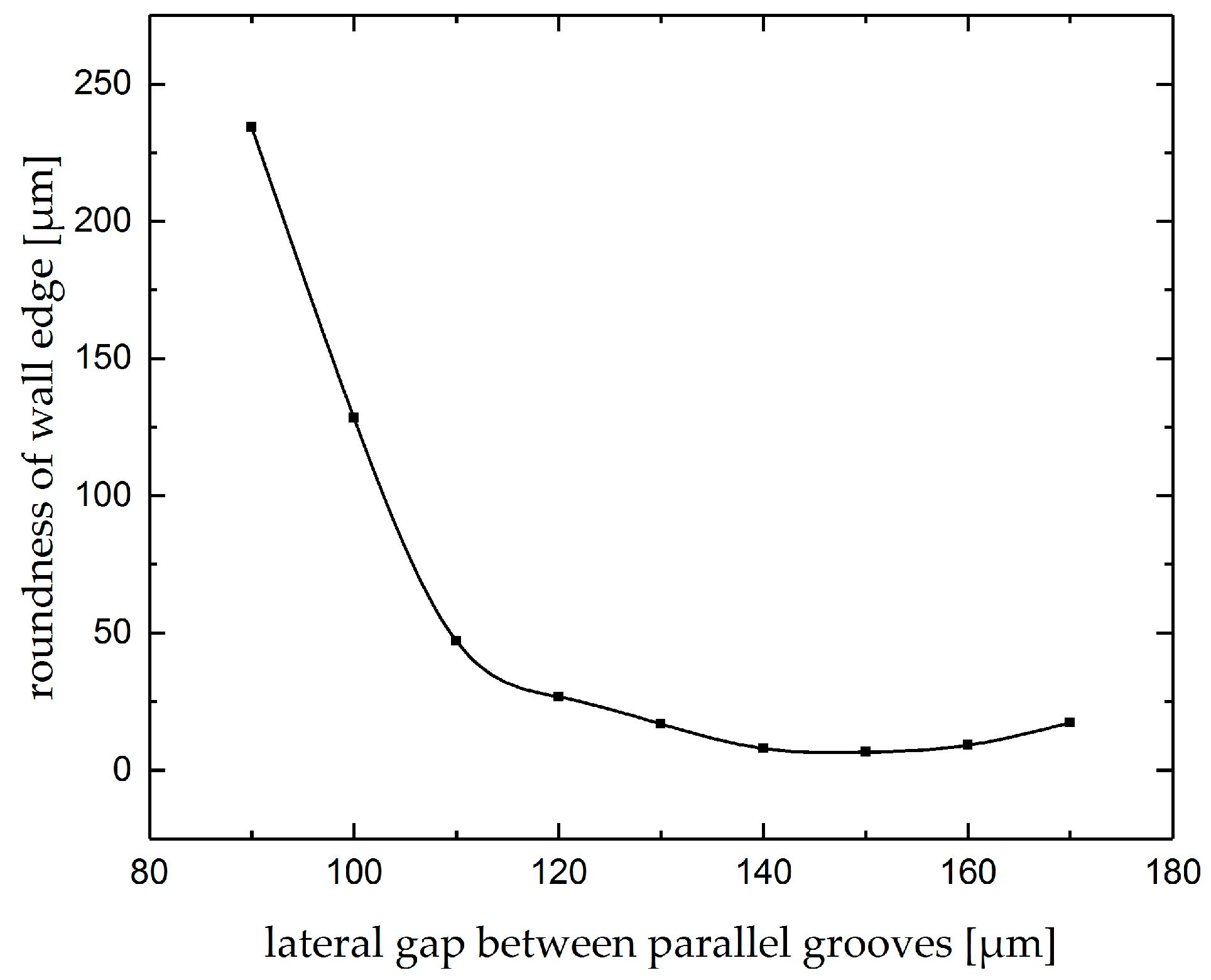

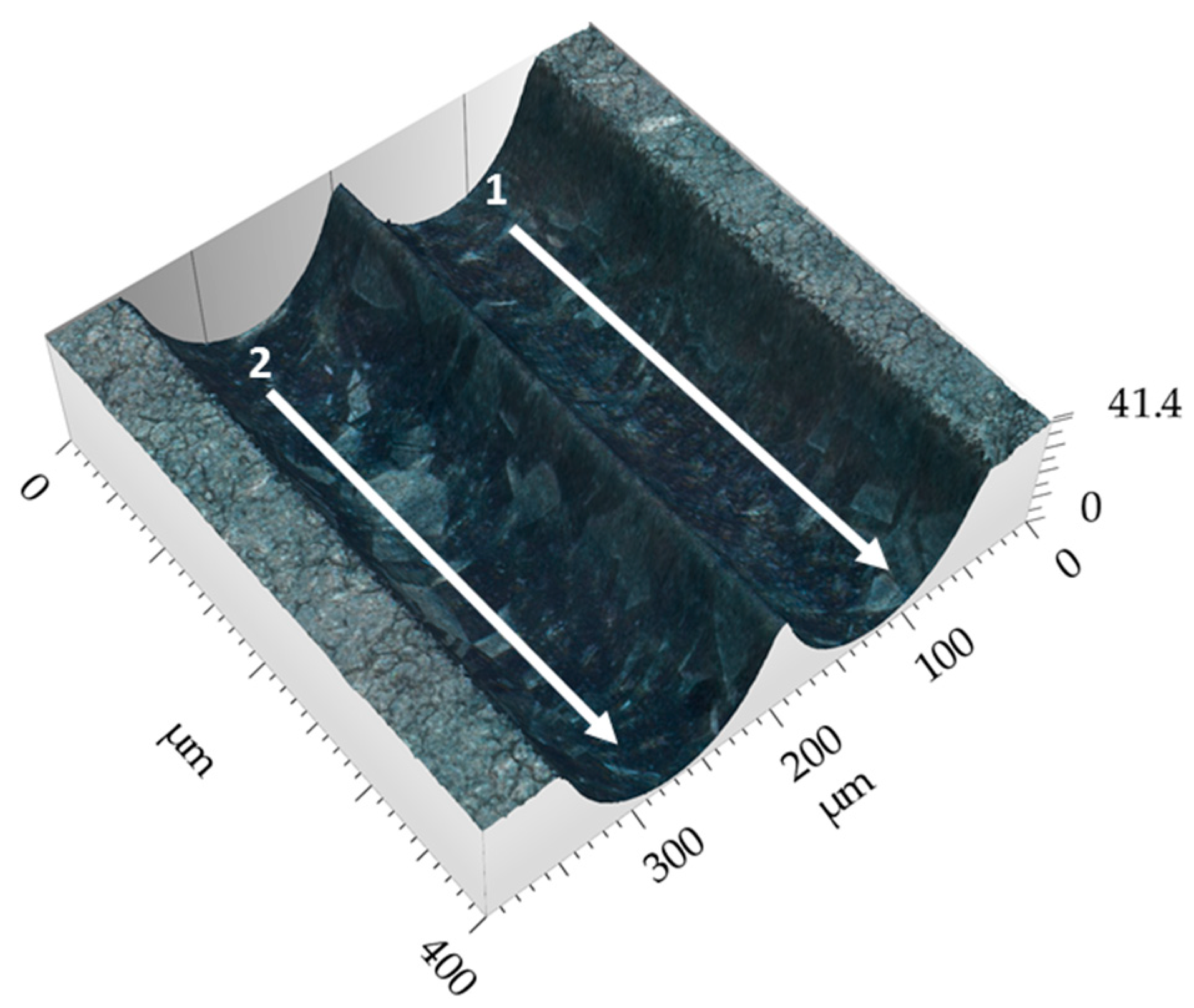

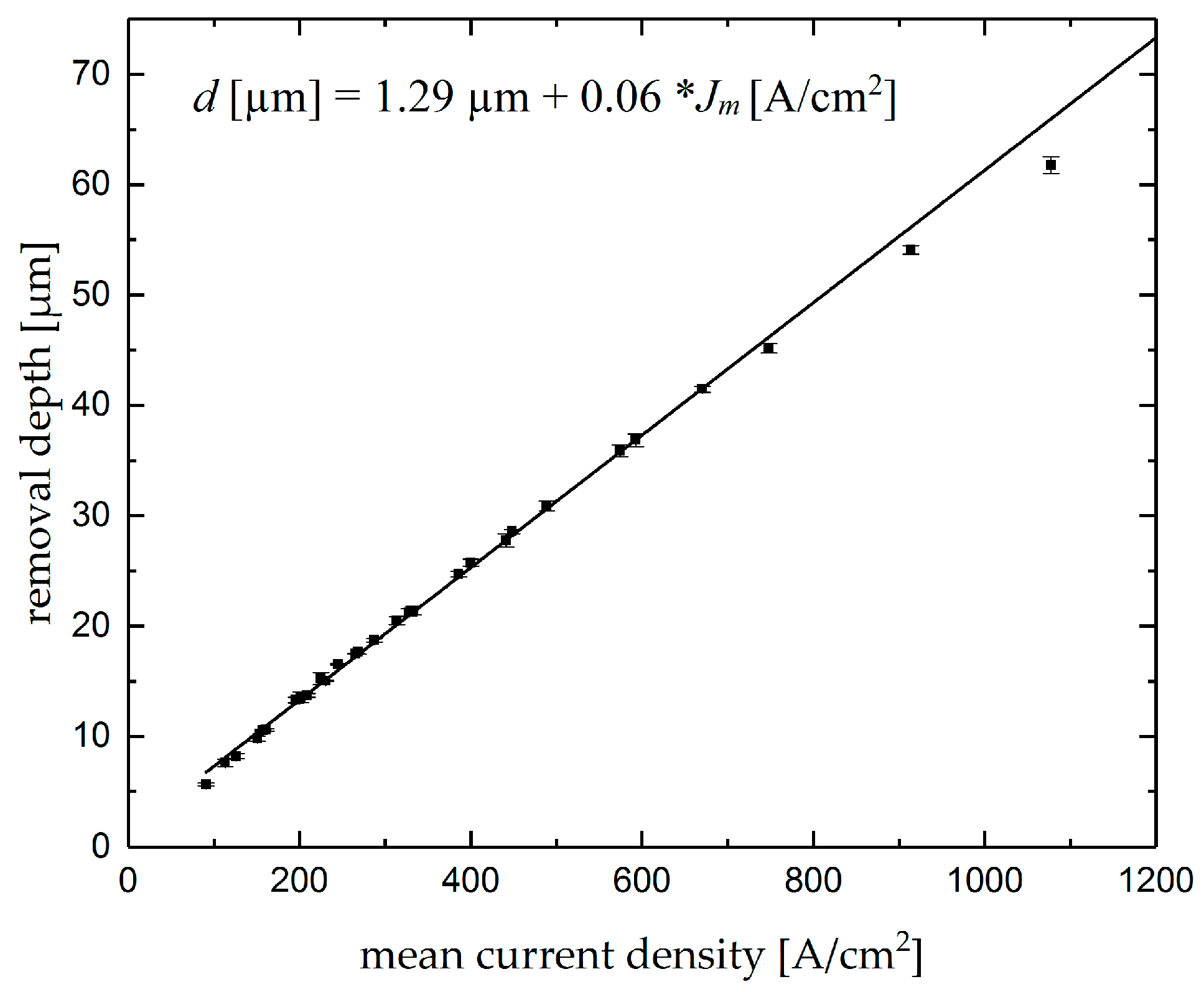

Figures

Figure 1
