3-D Design and Simulation of a Piezoelectric Micropump

MEMS Modelling and Design Group, Department of Civil and Environmental Engineering, Politecnico di Milano, 20133 Milan, Italy
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(4), 259; https://doi.org/10.3390/mi10040259
Received: 14 February 2019 / Revised: 5 April 2019 / Accepted: 11 April 2019 / Published: 18 April 2019
(This article belongs to the Special Issue Piezoelectric Transducers: Materials, Devices and Applications)

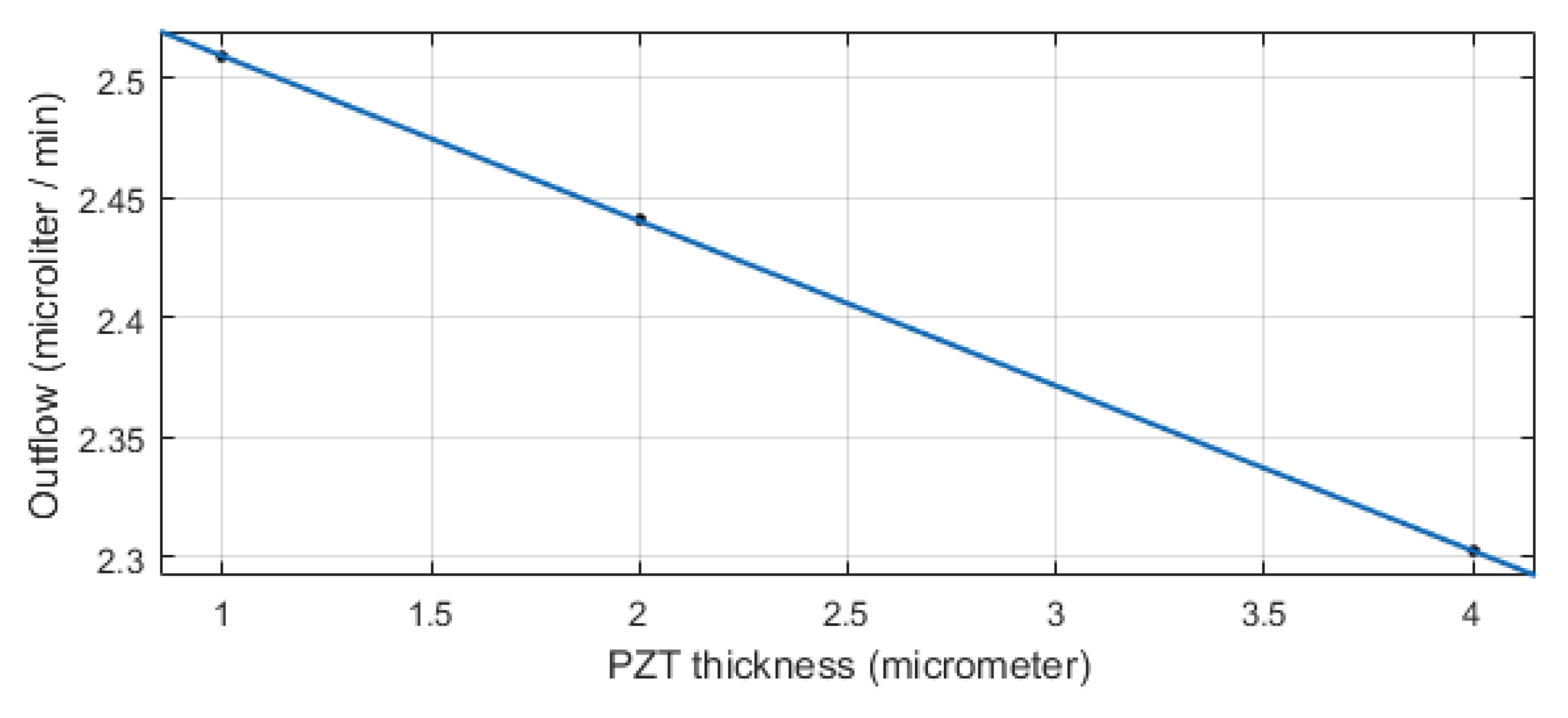

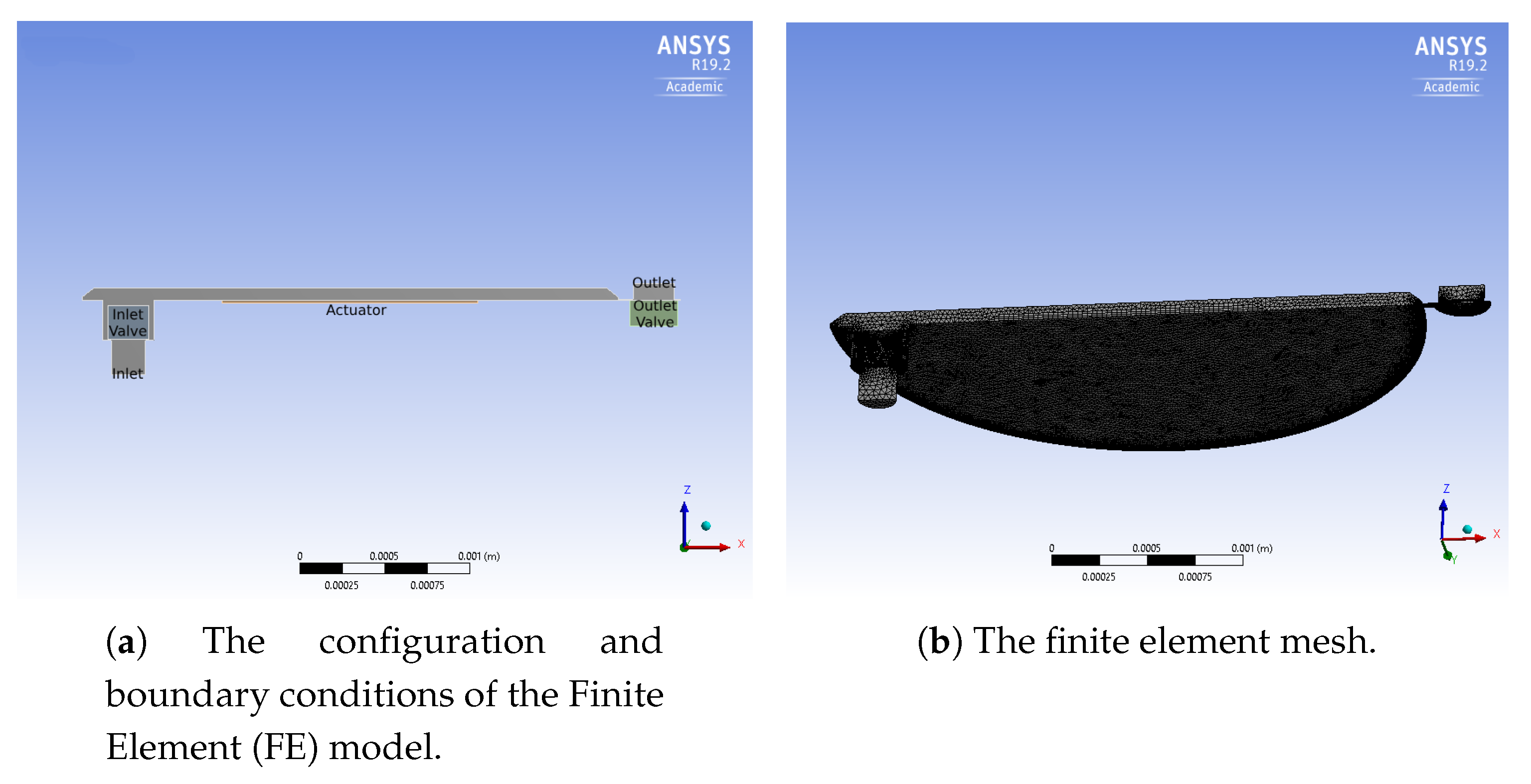

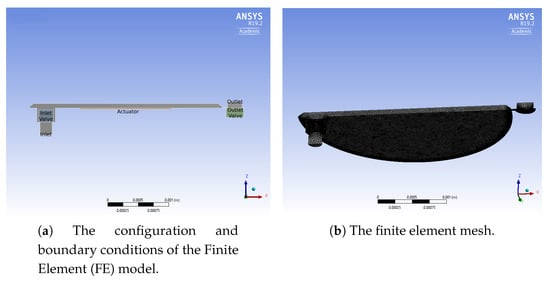

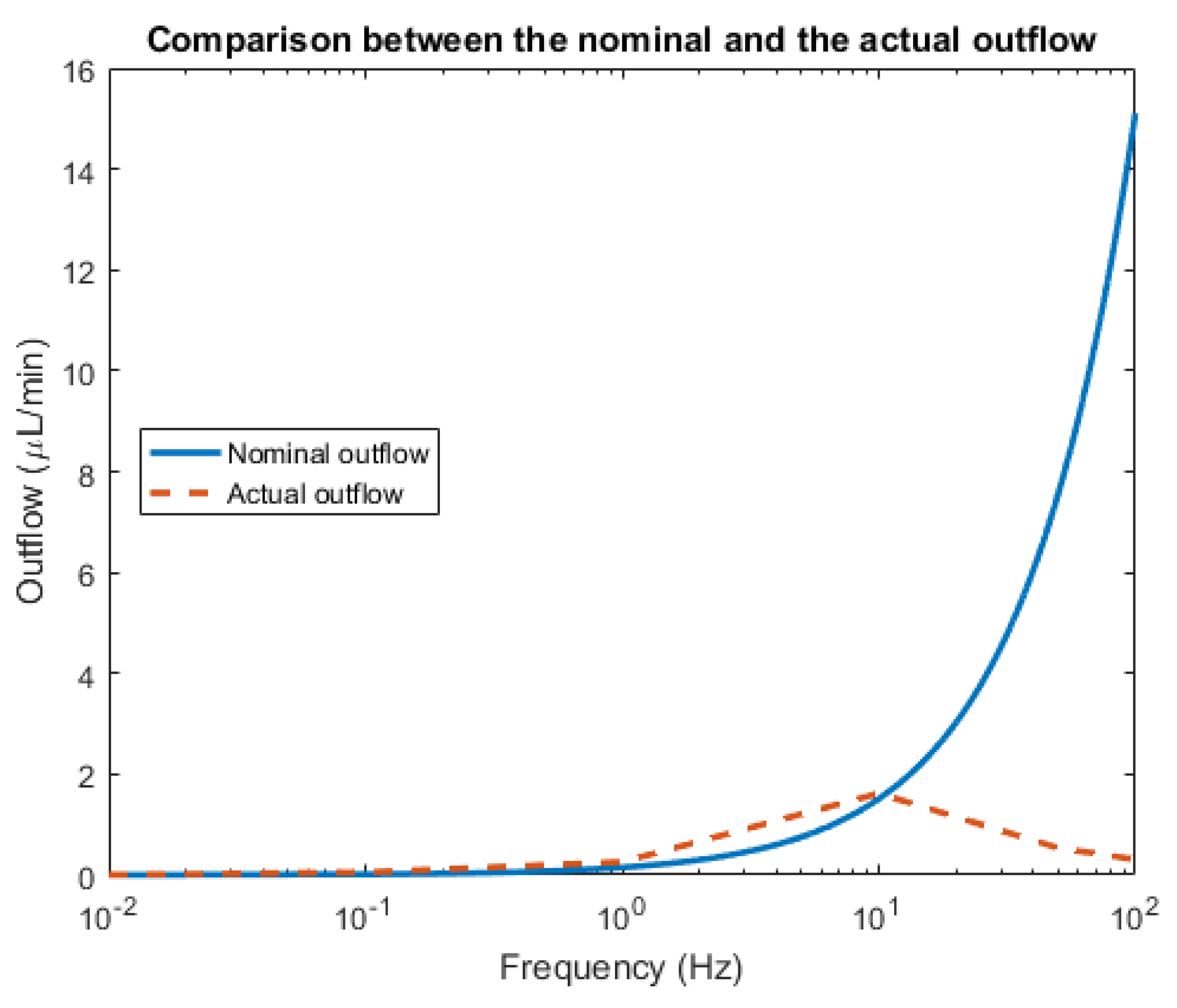

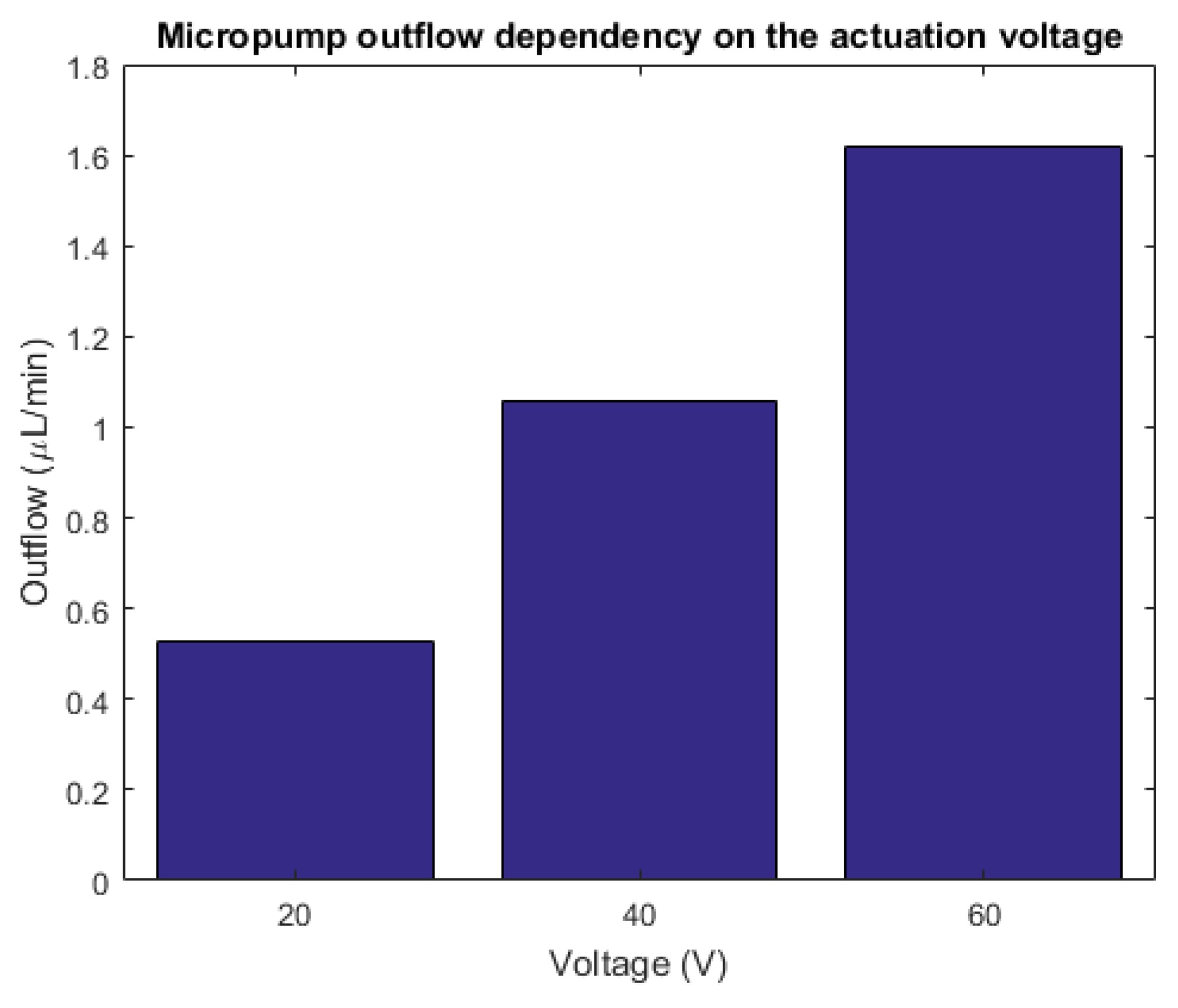

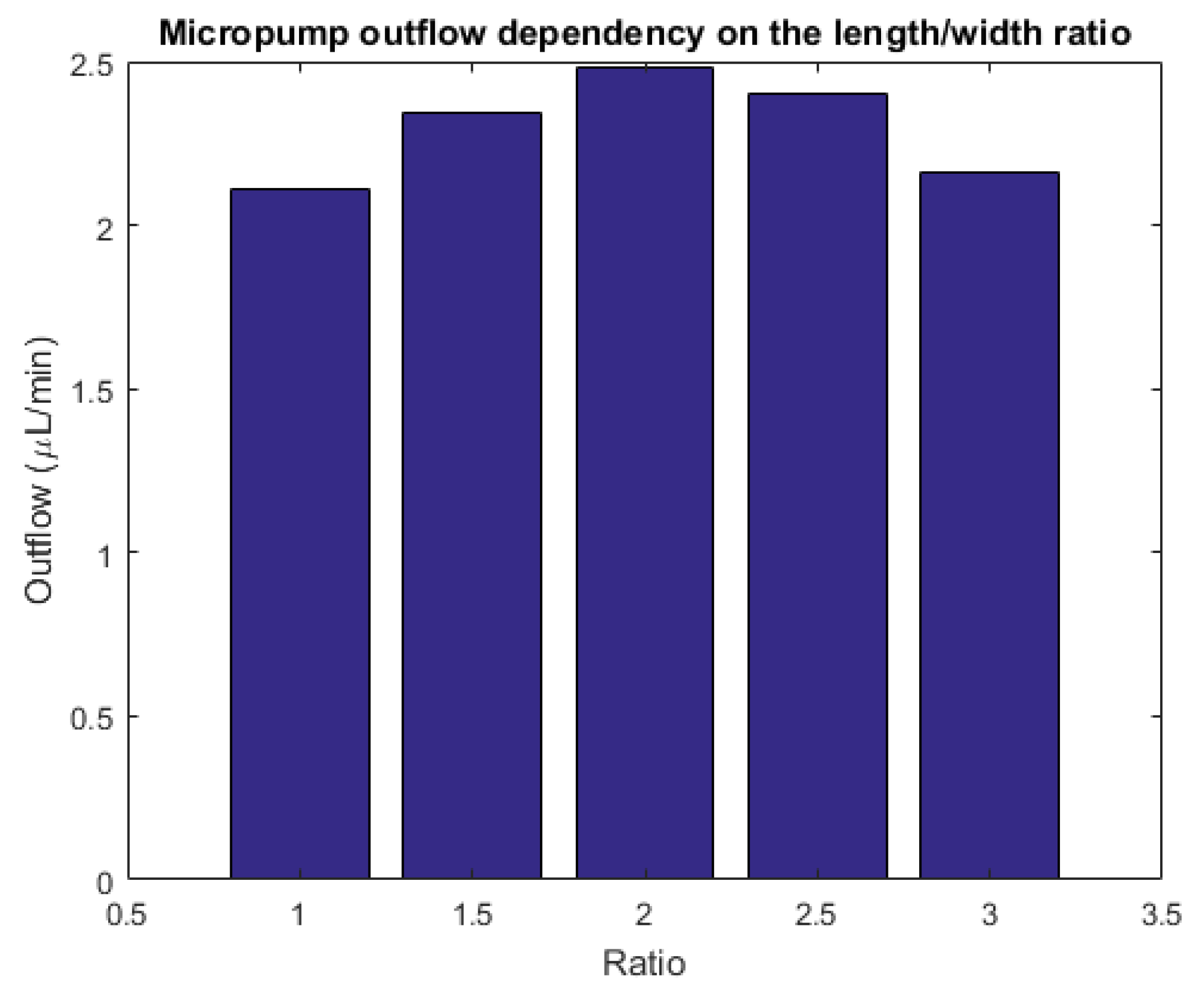

The objective of this paper is to carefully study the performances of a new piezoelectric micropump that could be used, e.g., for drug delivery or micro-cooling systems. The proposed micropump is characterized by silicon diaphragms, with a piezoelectric actuation at a 60 V input voltage, and by two passive valves for flow input and output. By means of a 3-D Finite Element (FE) model, the fluid dynamic response during different stages of the working cycle is investigated, together with the fluid–structure interaction. The maximum predicted outflow is 1.62 μL min 1 , obtained at 10 Hz working frequency. The computational model enables the optimization of geometrical features, with the goal to improve the pumping efficiency: The outflow is increased until 2.5 μL min 1 . View Full-Text
Keywords: piezoelectric material; multiphysics simulation; finite element method (FEM); fluid–structure interaction (FSI); micro electromechanical systems (MEMS) piezoelectric material; multiphysics simulation; finite element method (FEM); fluid–structure interaction (FSI); micro electromechanical systems (MEMS)
Show Figures

Figure 1

MDPI and ACS Style

Farshchi Yazdi, S.A.F.; Corigliano, A.; Ardito, R. 3-D Design and Simulation of a Piezoelectric Micropump. Micromachines 2019, 10, 259.
