Controlled Focused Ion Beam Milling of Composite Solid State Nanopore Arrays for Molecule Sensing
Microsystems Lab, Inst. of Technical Physics and Materials Science, Centre for Energy Research, Budapest H-1121, Hungary
Received: 5 October 2019 / Accepted: 11 November 2019 / Published: 13 November 2019

Abstract

:
Various nanoscale fabrication techniques are elaborated to form artificial nanoporous/nanochannel membranes to be applied for biosensing: one of the most prevalent is the micro-electromechanical systems (MEMS) compatible focused ion beam (FIB) milling. This technique can be easily adopted in micro- and nanomachining process sequences to develop composite multi-pore structures, although its precision and reproducibility are key points in the case of these thick multi-layered membranes. This work is to demonstrate a comprehensive characterisation of FIB milling to improve the reliability of the fabrication of solid state nanopore arrays with precisely predetermined pore geometries for a targeted molecule type to be recognised. The statistical geometric features of the fabricated nanopores were recorded as the function of the process parameters, and the resulting geometries were analysed in detail by high resolution scanning electron microscope (SEM), transmission electron microscope (TEM) and ion scanning microscopy. Continuous function of the pore diameter evolution rate was derived from the experimental results in the case of different material structures, and compared to former dissentient estimations. The additional metal layer was deposited onto the backside of the membrane and grounded during the ion milling to prevent the electrical charging of dielectric layers. The study proved that the conformity of the pore geometry and the reliability of their fabrication could be improved significantly. The applicability of the developed nanopore arrays for molecule detection was also considered by characterising the pore diameter dependent sensitivity of the membrane impedance modulation based measurement method.
Keywords:
nanofluidics; nanofabrication; focused ion beam milling; composite/multi-layer solid state nanopore array; molecule detection

1. Introduction

Compared to the macroscopic case, self-confined nanoscale structures exhibit significantly different chemical and transport behaviours. The understanding of the involved chemical and physical phenomena opens the way to explore the “world of nanofluidics” [1], and to develop brand new sensing principles on the molecular or sub-molecular level.

1.1. Transport in Nanoscale

Regarding biosensor development, the application of microfluidic systems for liquid sample management, including particle separation, reagent mixing, transport, etc., is essential [2]. By decreasing the characteristic dimensions of the fluidic transport systems, significantly different governing physical phenomena can be experienced, which become dominant in the nanofluidic systems by stepping over the critical size of <100 nm. Approaching the characteristic lengths of electrostatic, intermolecular or hydrodynamic interactions, interfacial phenomena increasingly dominate the physical behaviour of the system [3].
The special effects revealed in the nanoconfinements are [1]:
  • Permselectivity induces asymmetric pressure or electric field driven molecule transport through the nanochannels or nanopores.
  • Size dependent transpore permeation of molecules is caused by the “Born repulsion” evolved due to the electrical interaction between the overlapping electron clouds of translocating molecules and atoms of the pore surface.
  • Reconfiguration of macromolecules can also be experienced (in the case of deoxyribonucleic acid (DNA) chains) due to the entropic barrier conditions.
Considering dimension-dependent transport in the nanochannels, the pressure driven flow rates scale inversely to the channel cross section, contrary to the electroosmotic and electrophoretic flows.

1.2. Applications of Nanofluidic Systems

The most relevant envisioned applications of nanofluidic systems range from molecule separation (both concentration and accumulation), molecule detection, to drug release and delivery, but 3rd generation DNA sequencing may also be one of the important fields utilising these structures. Concerning the widespread applications of nanofluidic structures, there are also several challenges to master. The main obstacles are [1,4]:
  • Development of robust and engineered fabrication techniques for reproducible nanostructure formation.
  • Clarification the comprehensive theory and construction predictive modelling of nanoscale transport phenomena.
  • Precise control and in-situ monitoring of physical or chemical parameters (e.g., transport properties or local surface modification) inside the nanopores.
On the other hand, focusing on molecule recognition or concentration detection, the following strengths of nanofluidic structures should be underlined: the possibility of label-free, specific molecule (or single molecule) detection with extreme sensitivity and the transport modulation-based built-in amplification by nanoconfinement in nanopores, as discussed by Gyurcsányi [4].
Two main molecule sensing principles based on the ionic current modulation are visualized in Figure 1: the translocation or the capturing of molecules in nanochannels or nanopores [5]. The stochastic sensing by a single channel (Figure 1a) makes use of the monitoring of the ionic current through the nanopore or nanochannel. The current spikes are recorded and counted as single molecule translocation events. This principle regarding biomolecule recognition [6] was studied by Bayley and Cremer [7] and is applied in the devices of the Oxford Nanopore Technologies [8,9]. The applicability of the method was also demonstrated for counting and sizing viruses by monitoring the translocation effect in glass nanopipets [10]. The other approach is the analysis of the impedance of a membrane (Figure 1b) containing a nanopore array (multiple nanopores), which is mostly applied in the case of functionalised nanoconfinements systems, like the ones examined in the present paper, In these structures, Electrochemical impedance spectroscopy (EIS) is performed during the translocation and binding events [11,12,13]. The reliable biofunctionalisation of the specific areas of these nanostructures is quite challenging, therefore, the optimal material selection and structure are in the focus of the development of molecule sensing devices [14].

1.3. Nanopore Structures and Their Fabrication Techniques

Extremely sensitive label free detection method can be achieved by monitoring pore-through transport modulated by translocation or binding of the target molecules in nanopores. The sensitivity of these mainly electrochemical (bio)sensors are determined not only by the biofuncionalisation but affected by the pore geometry also: it must be aligned to the size and conformation of the target molecule. Moreover, the comparability and repeatability of the measurements assumes similar pore parameters in case of different devices. Accordingly, the practical applicability and potential commercialisation of these nanopore membrane based devices depend on the successful elaboration of controllable and reproducible pore fabrication techniques. Generally, three typical nanopore membrane structures can be defined regarding their membrane materials and nanopore formation methods [15,16,17]:
  • Biological nanoporous layers are mainly based on pore-forming transmembrane proteins embedded in lipid bilayer membranes.
  • Hybrid type nanopore membranes consist of similar biological pore-forming molecules integrated in synthetic layers.
  • Artificial nanopore structures are fabricated by dedicated nanoprocessing methods in synthetic materials, polymer, glass, quartz or dielectric layers compatible with silicon technology (silicon-nitride, silicon-oxide, silicon-carbide, possibly Atomic Layer Deposited metal-oxides), or 2D materials (graphene, molybdenum-oxide, etc.).
The applicability of the biological nanopores or nanochannels for transport modulation based molecule recognition and counting was demonstrated extensively. Their main advantages are the self-controlled size and shape, and the favorable costs. It can be noticed that the limited geometrical and material variability, the uncertain integrability and the moderate resistivity of the biological structures against pH, ion concentration, temperature, mechanical stress, etc. however, restrict their reliable applicability in diagnostic systems [17]. A well-published sample for the biological and hybrid structures is the embedded alpha-haemolysin, which was demonstrated in different applications for molecule detection [18,19] or ultrafast DNA sequencing [15,16,20,21,22]. MspA (Mycobacterium smegmatis porin A) and phi29 connector proteins were also demonstrated in DNA sequencing [23]. Solid-state nanopores and their nanofabrication techniques in dielectric layers were demonstrated and assigned as the novel generation of artificial nanopore membranes by Golovchenko, Dekker and Edel’s group [17,24,25]. The flexible variability in shape, size and surface properties, and the robustness and integrability were emphasized as the main advantages of the solid state nanostructures [26,27,28,29]. The exploitation of these artificial nanopores for molecule sensing and DNA analysis was demonstrated in diverse biomedical applications [30,31,32,33].
Several high-tech solutions were described for more or less precise nanopore fabrication in the range from 2 nm to several tens of nanometres utilizing the capabilities of nanofabrication equipment as summarized in Table 1 [34,35]. The frequently applied membrane materials are silicon-nitride, silicon-oxide, silicon-carbide or atomic layer deposited (ALD) aluminium-oxide, titanium-oxide, hafnium-oxide, i.e., mainly MEMS compatible dielectrics, or 2D materials, as graphene and molybdenum-oxide [15,16,36]. Accordingly, the solid state structures provide the significant advantage of controllable shape and size, the excellent mechanical, thermal and chemical stability and integrability in microfluidic systems [17]. Note, however, that the fabrication can be costly and time-consuming in the case of chip-scale processing. The most extensively applied techniques are:
  • etching after e-beam lithography based patterning [17,34,35,37],
  • ion sculpturing or Focused Ion Beam (Ga+, Ar+, He2+, Xe+, etc.) milling [17,24,25,31,34,35,36],
  • high intensity electron beam drilling or ablation in TEM [25,34,35,36],
  • Nanoimprint Lithography (NIL) [34],
  • micromachining (MEMS based) techniques as nanochannel formation and subsequent sealing by bonding [34].
Attaining nanometer scale pore sizes is doubtless challenging, and to shrink the previously formed pores additional deposition techniques are required, like electrochemical or chemical vapour and atomic layer deposition [38,39] or local Ion and Electron Beam Assisted Deposition (EBAD or IBAD) [40,41]. The final pore size and geometry can also be modified by a high intensity wide-field electron illumination reflowing and reshaping the pore forming dielectric material due to the surface tension [17]. Controlled dielectric breakdown of the membrane material was also reported to form single nanopores of extremely small diameter. [42,43] Single and multiple nanopores were formed in precisely controlled positions by initiation the dielectric breakdown locally using a conductive AFM (Atomic Force Microscopy) tip as electrode. [44] To fabricate multiple nanopores with larger diameter the controlled breakdown was combined by local optical heating of the dielectric membrane by visible laser light. [45,46] Focused laser beam induced optical etching was also applied to fabricate nanopores in SiNx membrane. [47] The evolving 10-20nm pore size is comparable to the achievable parameters of FIB milling.
The key to the commercialization of nanopore based biosensors or Lab-on-a-Chip devices is the development of adequate nanoprocessing techniques ensuring fast, high-throughput, controllable and reproducible formation of the application specific nanopore geometries in differently structured solid state membranes [31]. Adequate material composition of the membrane can moderate the residual mechanical stress of the suspended structures [48]. Moreover, to fulfil the crucial requirement of easy and area or material selective biofunctionalisation of the inner pore surfaces, the application and planned shaping of multi-layered (composite) membranes have elevated importance [35]. These multi-layered solid state nanopore arrays integrable electrically and fluidically could be core elements of extremely sensitive label-free, multi-parametric molecule recognition.
The direct milling of complex composite membrane structures by focused electron or ion beams could be an obvious solution to fabricate nanopore arrays with the proposed geometries. Note, that in the case of thicker or composite membranes the precise fine-tuning of the pore size can be a critical point of the reliable and reproducible fabrication due to the beam-shape (defocusing), redeposition and charging of the dielectric membranes [49]. Accordingly, the comprehensive study of the pore formation process is crucial to achieve adequate precision and reproducibility in the case of these complex layer structures.

2. Materials and Methods

2.1. Fabrication of Nanopore Arrays by Focused Ion Beam (FIB)

Solid state nanopores were prepared by computer controlled Focused Ion Beam (FIB) milling using accelerated Ga+ ions with different milling currents and doses, in order to achieve various pore geometries in multi-layered membranes made of different dielectrics. The adopted structural and material combination has to be compatible to the proposed biofunctionalisation strategies (see Table 2).
The structures were fabricated by the combination of micro- and nanomachining technologies. The dielectric membrane was a 300 nm thick non-stoichiometric silicon-nitride film prepared by Low Pressure Chemical Vapour Deposition (Tempress LPCVD, Tempress, Vaassen, The Netherlands) using ammonia (NH3)/dichlorosilane (H2Cl2Si) mixture (with 1:8 flow rate ratio) at 180 mTorr backpressure and temperature of 830 °C. Non-stoichiometric silicon-nitride films have moderate mechanical stress ensuring a adequate mechanical stability of the suspended membrane. The covering gold layer (150 nm) was deposited in the same cycle by vacuum evaporation atop of 5 nm of titanium adhesion layer in an AJA Orion high vacuum system. The dielectric membrane was released by wet alkaline (KOH at 72 °C) or Deep Reactive Ion Etching (DRIE) etching using the „Bosch-process” (Oxford Plasmalab 100, Oxford Instruments Plasma Technology, Bristol, UK) from the backside, and then the nanopores were drilled by employing a program controlled Ga+ FIB drilling using the feature milling option of the Zeiss LEO 1540XB (Carl Zeiss Microscopy GmbH, Jena, Germany) nanofabrication system. The schematic representation of the pore fabrication process and the sample placement in cross-beam position under the FIB/SEM guns is shown in Figure 2. The ion beam was aligned, focused and set in cross-beam position outside of the membrane, close to the frame, to prevent its perforation. The milling current and time were varied to achieve the proposed pore geometry with 30 keV Ga+ ion energy.

2.2. Characterisation of Nanopore Geometries

The pore geometries were characterised by SEM, TEM and ion scanning microscopy after cross sectioning by FIB (Figure 3). The nanopores were filled with Platinum applying local Electron Beam Assisted Deposition (EBAD) to achieve the sufficient mechanical stability of the membrane during preparation of the TEM lamella and during TEM examination. Trimethyl(methylcyclopentadienyl)platinum(IV) (C5H4CH3Pt(CH3)3) was injected as precursor from the Gas Injection System (GIS). Resulting pore diameters and the development of the pore shape during ion milling (aspect ratio, wall angles) had to be deduced.
The obtained main structural parameters of the nanopores (e.g., pore diameter, wall angle) were recorded and analysed as a function of different manufacturing conditions (e.g., Ga+ ion current, milling time or ion dose). The pore diameters were in-situ analysed using scanning ion- and electron microscopy as the Ga+ ions and electrons passing through the pores precisely map the fabricated pores, as plotted in Figure 4. The translocation of the ions or electrons were determined by the detection of secondary electrons generated in an Al-foil placed at the backside of the nanopore membranes (see the schematic milling geometry in Figure 2). This way the smaller outlet diameter of the “conically” narrowing nanopores, which is the crucial parameter in the applications, could be assessed.

3. Results and Discussion—Study and Improvement of FIB Process

3.1. Analysis and Control of Pore Diameter Evolution

The evolution of the pore diameter depends on the material composition and thickness of the dielectric membrane, as well as on the applied milling time, as plotted in Figure 5 [49]. As expected, the pore diameter evolution is faster in the thinner bare silicon-nitride membrane than in the gold covered membrane structures. In the case of shorter milling times, the zero pore diameters indicate the dose limit under which the membranes are not perforated. This beam perforation time increases with the layer thickness and decreases with the ion current.
The time or dose dependent pore diameter (dp) evolution can be described by power-laws with the distinction of two time or dose regimes. The equation was originated in the frequently applied logarithmic relationship defined between the pore diameter and the ion dose (D) in [50,51]: log ( d p ) = a + log ( D )
d p [ 0                     0 < t < t p t γ ( t )                     t p < t ]
where tp was defined as perforation time indicating the transfixion event during the ion milling (when the ion beam is punching through the membrane). Parameter γ determines the pore evolution rate, which was found to change during the process. These parameters (tp and γ) are complexly influenced by the ion beam properties (ion energy, ion mass, ion current) and the properties of the layer structure (sputtering rate and thickness of the different materials).
Considering the inhomogeneous cross-sectional ion intensity of the beam, Hall and Sawafta described two clearly separated regimes during He2+ ion beam sculpturing of silicon-nitride membranes in [31,51]. In the beginning (lower time regime), the high ion intensity in the beam centre induces an accelerated evolution of the pore diameter. Later, in the higher time regimes, the beam periphery performs the milling process with a decreased sputtering rate. For the detailed comprehension of the pore evolution rate, the defined γ parameter was calculated as the logarithm of the time dependent pore diameter functions of Figure 5:
γ ( t ) l o g t d p
As shown in Figure 6, in case of my assumption the γ parameter continuously decreases with milling time, contrary to Hall’s and Sawafta’s assumption. The material composition and thickness of the membrane influence the experimental γ parameter: in the case of the thinner silicon-nitride membrane the initial value is higher.
Therefore, a continuously decreasing pore diameter evolution rate is suggested, as the function of the milling time (or incident ion dose), instead of stationary rate regimes. The obtained function in Figure 6 can be explained by the Gaussian lateral ion intensity profile of the Ga+ ion beam. This assumption can account for the “saturation of the pore diameter” after a certain milling time. The final pore diameter can be defined by the geometry (diameter and convergence) and focal plane setup of the focused ion beam.
The evolution of the pore shape during the milling process is demonstrated by the cross-sectional SEM views of the nanopores fabricated by different incident ion doses in Figure 7. During ion sputtering, the pore walls were approaching the surface normal, while increasing the outlet aperture of the pore. The increasing (measured) pore diameter is visualised in Figure 5 and Figure 8.
The milling current also has a significant effect on the evolving pore geometry due to the ion dose dependency of the sputtering process. This is plotted in Figure 8 for pores milled in an Au/SiNx membrane from the direction of the dielectric layer. As pore diameter, the diameter of the hole obtained on the rare side of the membrane is defined. The evolution rate of the pore diameter is almost doubled comparing the cases of application 5 pA and 10 pA milling currents with the same Ga+ ion energy (30 keV).
For a realistic comparison of the pore-shape development in the cases of drilling membranes of different thickness with changing milling conditions, a reference time has to be defined. This is the time span required to perforate the membrane (when dout > 0), i.e., the extrapolated intersection of the pore diameter vs. milling time curve with the x-axis (tp) in Figure 8. After aligning the curves characterising different milling currents to their respective values (i.e., by shifting them parallel to the x-axis to tp = 0), the resulting pore diameter ratios were calculated as the function of milling time elapsed after the membrane perforated and illustrated in Figure 9 in the case of various layer structures. The pore diameter ratio converges to 2 (according to the theoretical beam diameters) and the spread reduces with the milling time. Differences in the sputter-rate of the different layers (SiNx and Au) will cause an additional spread in the results, certainly. The variation is larger in the case of thicker membranes in accordance with the time dependent pore diameter functions in Figure 5. Higher ratios could be experienced in the case of short drilling times due to the higher relative variation of the initial diameters of the newly perforated pores just after the beam transfixion.
Based upon this analysis of the pore formation process, the adequate ion current and milling time for the proposed pore diameter and membrane material combination can be defined. Pore diameter variation can be reduced by avoiding to set the time/current parameters close to the membrane perforation point (see Figure 8).

3.2. FIB Process Development

The statistical pore diameter distributions were defined by the practically applied process parameters and membrane structures (gold covered silicon-nitride) to improve the reproducibility of the nanopore formation process. Gold layers are adequate for the further thiol chemistry based biofunctionalisation, so hereinafter this layer structure will be discussed. The variance of the pore diameter distribution in Figure 10 is fairly large (in the range of 10 nm) for both 5 pA and 10 pA milling current, and for the lower ion current, even incomplete pore formation has to be considered [49]. The uncertainty of the milling process can be caused by charging effects on the dielectric membranes. It has to be taken into account that during Ga+ ion milling this electrostatic interaction causes ion beam instability by defocusing.
From the point of view of reproducibility, achieving a highly conformal pore size distribution with given milling conditions is a real challenge. The formed pore geometry can be significantly distorted due to the charging of the dielectric membranes and the defocusing of the incident milling Ga+ ion beam according to Figure 11a. An additional front size metallisation and the electrical grounding of the metallised surface improved the pore size conformity significantly (Figure 11b).
According to the analysis of more than 100 nanopores, discharging of the membrane layer during milling significantly reduced the spread in the pore geometry, as reflected by the narrow statistical pore size distributions in Figure 12. By this advanced technique, the pore diameter variation could be reduced to ~5 nm (5–8%). Note that the centre of the pore diameter distributions shifted to lower values as the membrane thickness increased by the additionally deposited metal layer.

3.3. Pore size Dependent Sensitivity of Molecule Detection

To underline the cardinal importance of the precise nanoengineering, the pore size dependent sensitivity of the impedance based molecule sensing was studied [52,53]. Gold covered silicon-nitride membranes with an array of 64 nanopores were used for monitoring avidin-biotin binding in the nanopores. The free gold surfaces were biofunctionalised by an adequate biotinylation reagent: NHS-SS-Biotin (biotin disulfide N-hydroxysuccinimide ester) utilising single step thiol chemistry [54,55]. For electrochemical analysis, 0.01 M Phosphate Buffer Saline (PBS - 0.01 M phosphate buffer, 0.0027 M potassium chloride and 0.137 M sodium chloride, pH 7.4, at 25 °C, ρ 64.8 Ω·cm) was applied as electrolyte, and PBS spiked by avidin as test sample. The avidin concentration was set to 0.1 mM to ensure the high surface coverage inside the pores. The platinum reference and working electrodes were installed on the opposite side of the nanoporous membrane. The impedance was recorded in the frequency domain of 1 Hz to 1 MHz with−0.3–0.3 V peak-to-peak potential using Gamry Reference 600 [56] electrochemical impedance spectroscope. The actual resistances of the nanopore arrays (Rpa) were calculated from the results of Electrochemical Impedance Spectroscopy (EIS) using the built-in impedance models of the applied EIS300 software (Verson 6.33, Gamry Instruments, Warminster, PA, USA) (see the inset in Figure 13). Membrane resistances were measured before (Rpa0) and 10, 20 and 30 min after (Rpa) the sample injection and the relative change (Rpa/Rpa0) was calculated. The relative impedance variation values were averaged and plotted vs. nanopore diameter in Figure 13 [53].
The experimental pore array resistances were compared to the theoretical ones estimated as [11,57]:
R pa = 4 L n · σ s · π · d in · d out
where n is the number, L is the length and din and dout are the characteristic inlet and outlet diameters of pores, respectively. σs represents the specific conductivity of the electrolyte that fills the nanochannel. This theoretical consideration can estimate adequately the pore resistance as demonstrated in a preliminary work in case multi-layered nanoporous membranes, as demonstrated in [49]. To calculate the theoretical impedance variation (Rpa/Rpa0) of the nanopore array, homogeneous monomolecular coverage of the gold surfaces was considered in the tapering (outlet) region of the pores, thus only the outlet diameter of the pore was decreased by the molecule size. The applied physical parameters for this estimation are summarised in Table 3. [58,59,60,61]
To estimate the theoretical relative impedance change, the gold coated silicon-nitride membrane was modelled as two serially connected nanopore arrays. Contrary to the non-coated silicon-nitride layer, the pores formed in the gold layer can be easily functionalized. The resulting resistance variation is caused by the molecules having bonded in the golden pores, since the silicon-nitride layer exhibits a constant resistance (see the inset in Figure 13). As Figure 13 demonstrates, the relative pore array resistance change is significantly affected by the pore diameter in the case of a certain target molecule size. Considering the theoretical predictions, it can be assumed that the sensor signal (the relative change of membrane impedance) and thus the sensitivity of impedance based molecule sensing significantly increases as the pore diameter approaches the target molecule size.
The experimental results in Figure 13 also demonstrate a similar tendency in the case of 35 nm/49 nm/54 nm/56 nm pore diameters, however, compared to the theoretical results, higher sensor responses were detected. The theoretical calculations only considered the steric repulsion of the bound target molecule layer, although further electrochemical effects—such as electrostatic repulsion—can also appear. In case of the theoretical calculation, a monomolecular coverage was assumed, however, the formation of a self-assembled monolayer (SAM) was not proven. Note that the incomplete electrolyte filling of the nanopores or specific local ion conductivity can also significantly affect the measured resistance values. Therefore, an adequate wetting protocol is needed to make the method reliable and reproducible. [49,62]
The size dependent performance of nanopore based sensors were demonstrated and discussed in various case of applications regarding DNA detection [63], ion selectivity [64] or amino acid identification [65]. Since the resistance change is caused by pore blocking effects and so the sensitivity of the transducer is significantly influenced by the precise setting of the pore diameter to the expected size of the target molecule.

4. Conclusions

Considering nanopore based biosensing principles, the precise tailoring of pore geometries and adjusting to target molecule conformation and size unambiguously improves the signal-to-noise level and sensitivity of the identification method—in our case electrochemical impedance spectroscopy (EIS). Accordingly, the comprehensive pore geometry engineering is essential for the reliable and reproducible manufacturing of integrable solid state nanopore arrays for molecule diagnostic devices. Respecting the need of mechanically robust structure and area selective functionalisation of the pore surfaces, a complex material structure and a precise pore fabrication technology has to be elaborated.
In this work, the FIB milling process was considered as a flexibly applicable MEMS compatible nanostructuring method for shaping composite nanopore arrays. The evolving pore diameter depends on the material composition, and the thickness of the membrane, as well as on the applied milling time, ion dose, current and energy. The continuous evolution of pore geometries was characterized in order to define the appropriate process parameters for the reliable and reproducible manufacturing of nanopore arrays in multi-layered membranes. The resulting time (and dose) dependent pore diameter functions were determined for differently structured silicon-nitride/gold multi-layers. As a novel approach time dependent pore diameter evolution rate parameter (γ) was defined, its continuous regression during the milling process verified and interpreted by the Gaussian profile of the spatial ion intensity distribution of the ion beam. The dependency of the pore formation on the ion current was also evaluated and a linear relationship was found between the pore diameter evolution rates, excluding the vicinity of the membrane perforation occurrence. The cross-sectional nanopore geometries were also analysed by high resolution SEM, TEM and ion scanning imaging. High throughput pore diameter detection method was elaborated by detection of secondary electrons generated by translocated scanning Ga+ ions. Based on the comprehensive characterization adequate milling parameters (current, time) could be defined to achieve a precise and predictable pore evolution in various membrane structure. The pore diameter variation can be reduced by avoiding to choose the time/current parameters close to the membrane perforation point.
The statistical geometric parameters of a large number of nanopores were recorded and analysed. The reproducibility of the FIB nanoprocessing was improved by neutralization (electrostatic grounding) of the sample surface applying an additional conducting layer. Preventing the electrical charging of the dielectric layers can significantly decrease the resulting deterioration of the ion beam shape. By this technique the distortion of the pore diameter could be reduced significantly, and the pore size variations kept reproducibly below 5 nm.
The performance of membrane impedance analysis based molecule detection was studied by avidin-biotin binding in the nanopore array. The application of uniform pores is of pivotal importance according to theory and experiment as well, since the sensor response depends both on the concentration of the target molecule and the pore size. The development of precise nanoprocessing techniques of predictable yield is therefore an elementary requirement for molecule sensing. By this work, adequate process parameters and techniques were defined for computer-controlled FIB milling [supplementary video] of composite membranes consisting multiple nanopores with conform size. The chip level and wafer level reproducibility of nanopore formation can be an initial step towards the high throughput fabrication of solid-state nanopore based biosensor systems.

Supplementary Materials

The following video is available online at https://www.mdpi.com/2072-666X/10/11/774/s1, Computer controlled nanopore drilling by Focused Ion Beam (Ga+) milling in silicon-nitride membrane.

Author Contributions

Conceptualization, methodology, investigation, writing—preparation, editing, P.F.

Funding

This work was partially supported by the grants of the Hungarian National Research, Development and Innovation Fund VKSZ_14-1-2015-0004 and the ENIAC JU CAJAL4EU (KMR-12-1-2012-0107) projects.

Acknowledgments

The technical support of the experts Magda Erős, Attila L. Tóth, Levente Illés and Máté Varga in micro-, nanofabrication and electrochemical measurements is highly appreciated. The author gratefully acknowledges the cooperation of Róbert E. Gyurcsányi and his group at the Budapest University of Technology and Economics in biochemistry and the development of nanopore based biosensors.

Conflicts of Interest

The author declare no conflict of interest.

References

  1. Napoli, M.; Eijkel, J.C.T.; Pennathur, S. Nanofluidic technology for biomolecule applications: A critical review. Lab Chip 2010, 20, 957–985. [Google Scholar] [CrossRef]
  2. Sackmann, E.K.; Fulton, A.L.; Beebe, D.J. The present and future role of microfluidics in biomedical research. Nature 2014, 507, 181–189. [Google Scholar] [CrossRef]
  3. Tagliazucchi, M.; Szleifer, I. Transport mechanisms in nanopores and nanochannels: Can we mimic nature? Mater. Today 2015, 18, 131–142. [Google Scholar] [CrossRef]
  4. Gyurcsányi, R.E. Chemically-modified nanopores for sensing. Trends Anal. Chem. 2008, 27, 627–639. [Google Scholar] [CrossRef]
  5. Jiang, Y.; Guo, W. Nanopore-based sensing and analysis: Beyond the resistive-pulse method. Sci. Bull. 2015, 60, 491–502. [Google Scholar] [CrossRef]
  6. Lin, Y.; Ying, Y.L.; Long, Y.T. Nanopore confinement for electrochemical sensing at the single-molecule level. Curr. Opin. Electrochem. 2018, 7, 172–178. [Google Scholar] [CrossRef]
  7. Bayley, H.; Cremer, P.S. Stochastic sensors inspired by biology. Nature 2001, 413, 226–230. [Google Scholar] [CrossRef] [PubMed]
  8. Oxford Nanopore Technologies. Available online: https://www.nanoporetech.com/ (accessed on 30 September 2019).
  9. Schaffer, A. 10 Breakthrough Technologies–Nanopore Sequencing. MIT Technology Review. 2012. Available online: http://www2.technologyreview.com/news/427677/nanopore-sequencing/ (accessed on 30 September 2019).
  10. Terejánszky, P.; Makra, I.; Fürjes, P.; Gyurcsányi, R.E. Calibration-Less Sizing and Quantitation of Polymeric Nanoparticles and Viruses with Quartz Nanopipets. Anal. Chem. 2014, 86, 4688–4697. [Google Scholar] [CrossRef]
  11. Makra, I.; Gyurcsányi, R.E. Electrochemical sensing with nanopores: A mini review. Electrochem. Commun. 2014, 43, 55–59. [Google Scholar] [CrossRef]
  12. Makra, I.; Brajnovits, A.; Jágerszki, G.; Fürjes, P.; Gyurcsanyi, R.E. Potentiometric sensing of nucleic acids using chemically modified nanopores. Nanoscale 2017, 9, 739–747. [Google Scholar] [CrossRef]
  13. Lautner, G.; Plesz, M.; Jágerszki, G.; Fürjes, P.; Gyurcsányi, R.E. Nanoparticle displacement assay with electrochemical nanopore-based sensors. Electrochem. Commun. 2016, 71, 13–17. [Google Scholar] [CrossRef]
  14. Lepoitevin, M.; Ma, T.; Bechelany, M.; Janot, J.-M.; Balme, S. Balme, Functionalization of single solid state nanopores to mimic biological ion channels: A review. Adv. Colloid Interface Sci. 2017, 250, 195–213. [Google Scholar] [CrossRef]
  15. Haque, F.; Li, J.; Wu, H.-C.; Liang, X.-J.; Guo, P. Solid-state and biological nanopore for real-time sensing of single chemical and sequencing of DNA. Nano Today 2013, 8, 56–74. [Google Scholar] [CrossRef] [PubMed]
  16. Feng, Y.; Zhang, Y.; Ying, C.; Wang, D.; Du, C. Nanopore-based Fourth-generation DNA Sequencing Technology. Genom. Proteom. Bioinform. 2015, 13, 4–16. [Google Scholar] [CrossRef] [PubMed]
  17. Dekker, C. Solid State Nanopores. Nat. Nanotechnol. 2007, 2, 209–215. [Google Scholar] [CrossRef]
  18. Wu, D.; Bi, S.; Zhang, L.; Yang, J. Single-Molecule Study of Proteins by Biological Nanopore Sensors. Sensors 2014, 14, 18211–18222. [Google Scholar] [CrossRef]
  19. Zhao, Q.; Wang, D.; Jayawardhana, A.; Guan, X. Stochastic sensing of biomolecules in a nanopore sensor array. Nanotechnology 2008, 19, 505504. [Google Scholar] [CrossRef]
  20. Wang, Y.; Zheng, D.; Tan, Q.; Wang, M.X.; Gu, L.-Q. Nanopore-based detection of circulating microRNAs in lung cancer patients. Nat. Nanotechnol. 2011, 6, 668–674. [Google Scholar] [CrossRef]
  21. Wanunu, M. Nanopores: A journey towards DNA sequencing. Phys. Life Rev. 2012, 9, 125–158. [Google Scholar] [CrossRef]
  22. Bayley, H. Nanopore Sequencing: From Imagination to Reality. Clin. Chem. 2015, 61, 25–31. [Google Scholar] [CrossRef]
  23. Manrao, E.A.; Derrington, I.M.; Laszlo, A.H.; Langford, K.W.; Hopper, M.K.; Gillgren, N.; Pavlenok, M.; Niederweis, M.; Gundlach, J.H. Reading DNA at single-nucleotide resolution with a mutant MspA nanopore and phi29 DNA polymerase. Nat. Biotechnol. 2012, 30, 349–353. [Google Scholar] [CrossRef] [PubMed]
  24. Li, J.; Stein, D.; McMullan, C.; Branton, S.; Aziz, M.J.; Golovchenko, J.A. Ion-beam sculpting at nanometer length scales. Nature 2001, 412, 166–169. [Google Scholar] [CrossRef] [PubMed]
  25. Miles, B.N.; Ivanov, A.P.; Wilson, K.A.; Dogan, F.; Japrung, D.; Edel, J.B. Single molecule sensing with solid-state nanopores: Novel materials, methods, and applications. Chem. Soc. Rev. 2013, 42, 15–28. [Google Scholar] [CrossRef] [PubMed]
  26. Venkatesan, B.M.; Bashir, R. Nanopore sensors for nucleic acid analysis. Nat. Nanotechnol. 2011, 6, 615–624. [Google Scholar] [CrossRef]
  27. Li, J.; Yu, D.; Zhao, Q. Solid-state nanopore-based DNA single molecule detection and sequencing. Microchim. Acta 2016, 183, 941–953. [Google Scholar] [CrossRef]
  28. Wei, R.; Gatterdam, V.; Wieneke, R.; Tampe, R.; Rant, U. Stochastic sensing of proteins with receptor-modified solid-state nanopores. Nat. Nanotechnol. 2012, 7, 257–263. [Google Scholar] [CrossRef]
  29. Albrecht, T. Progress in single-biomolecule analysis with solid-state nanopores. Curr. Opin. Electrochem. 2017, 4, 159–165. [Google Scholar] [CrossRef]
  30. Tsutsui, M.; Hongo, S.; He, Y.; Taniguchi, M.; Gemma, N.; Kawai, T. Single-Nanoparticle Detection Using a Low-Aspect-Ratio Pore. ACS Nano 2012, 6, 3499–3505. [Google Scholar] [CrossRef]
  31. Yang, J.; Ferranti, D.C.; A Stern, L.; A Sanford, C.; Huang, J.; Ren, Z.; Qin, L.-C.; Hall, A.R. Rapid and precise scanning helium ion microscope milling of solid-state nanopores for biomolecule detection. Nanotechnology 2011, 22, 285310. [Google Scholar] [CrossRef]
  32. Yamazaki, H.; Mizuguchi, T.; Esashika, K.; Saiki, T. Electro-osmotic trapping and compression of single DNA molecules while passing through a nanopore. Analyst 2019, 144, 5381–5388. [Google Scholar] [CrossRef]
  33. Coglitore, D.; Merenda, A.; Giamblanco, N.; Dumée, L.F.; Janot, J.-M.; Balme, S. Metal alloy solid-state nanopores for single nanoparticle detection. Phys. Chem. Chem. Phys. 2018, 20, 12799–12807. [Google Scholar] [CrossRef] [PubMed]
  34. Duan, C.; Wang, W.; Xie, Q. Review article: Fabrication of nanofluidic devices. Biomicrofluidics 2013, 7, 26501. [Google Scholar] [CrossRef] [PubMed]
  35. Deng, T.; Li, M.; Wang, Y.; Liu, Z. Development of solid-state nanopore fabrication technologies. Sci. Bull. 2015, 60, 304–319. [Google Scholar] [CrossRef]
  36. Stoloff, D.H.; Wanunu, M. Recent trends in nanopores for biotechnology. Curr. Opin. Biotechnol. 2013, 14, 699–704. [Google Scholar] [CrossRef]
  37. Wei, R.; Pedone, D.; Zürner, A.; Döblinger, M.; Rant, U. Fabrication of Metallized Nanopores in Silicon Nitride Membranes for Single-Molecule Sensing. Small 2010, 13, 1406–1414. [Google Scholar] [CrossRef]
  38. Xue, T.; Xu, Q.; Li, Y.-X.; Qi, H.-Y.; Wang, Z.-B.; Yang, Y.; Ren, T.-L. A method of controlling the hole size of nanopores array on anodic aluminum oxide. Mater. Lett. 2018, 215, 183–186. [Google Scholar] [CrossRef]
  39. Venkatesan, B.M.; Shah, A.B.; Zuo, J.M.; Bashir, R. DNA Sensing Using Nanocrystalline Surface-Enhanced Al2O3 Nanopore Sensors. Adv. Funct. Mater. 2010, 20, 1266–1275. [Google Scholar] [CrossRef]
  40. Nilsson, J.; Lee, J.R.I.; Ratto, T.V.; Létant, S.E. Localized Functionalization of Single Nanopores. Adv. Mater. 2006, 18, 427–431. [Google Scholar] [CrossRef]
  41. Danelon, C.; Santschi, C.; Brugger, J.; Vogel, H. Fabrication and Functionalization of Nanochannels by Electron-Beam-Induced Silicon Oxide Deposition. Langmuir 2006, 22, 10711–10715. [Google Scholar] [CrossRef]
  42. Kwok, H.; Briggs, K.; Tabard-Cossa, V. Nanopore Fabrication by Controlled Dielectric Breakdown. PLoS ONE 2014, 9, e92880. [Google Scholar] [CrossRef]
  43. Yanagi, I.; Akahori, R.; Hatano, T.; Takeda, K.-I. Fabricating nanopores with diameters of sub-1 nm to 3 nm using multilevel pulse-voltage injection. Sci. Rep. 2014, 4, 5000. [Google Scholar] [CrossRef]
  44. Zhang, Y.; Miyahara, Y.; Derriche, N.; Yang, W.; Yazda, K.; Capaldi, X.; Liu, Z.; Grutter, P.; Reisner, W. Nanopore Formation via Tip-Controlled Local Breakdown Using an Atomic Force Microscope. Small Methods 2019, 3, 1900147. [Google Scholar] [CrossRef]
  45. Ying, C.; Houghtaling, J.; Eggenberger, O.M.; Guha, A.; Nirmalraj, P.; Awasthi, S.; Tian, J.; Mayer, M. Formation of Single Nanopores with Diameters of 20-50 Nanometers in Silicon Nitride Membranes Using Laser-Assisted Controlled Breakdown. ACS Nano 2018, 12, 11458–11470. [Google Scholar] [CrossRef]
  46. Yamazaki, H.; Hu, R.; Zhao, Q.; Wanunu, M. Photothermally Assisted Thinning of Silicon Nitride, Membranes for Ultrathin Asymmetric Nanopores. ACS Nano 2018, 12, 12472–12481. [Google Scholar] [CrossRef]
  47. Gilboa, T.; Zrehen, A.; Girsault, A.; Meller, A. Optically-Monitored Nanopore Fabrication Using a Focused Laser Beam. Sci. Rep. 2018, 8, 9765. [Google Scholar] [CrossRef]
  48. Venkatesan, B.M.; Dorvel, B.; Yemenicioglu, S.; Watkins, N.; Petrov, I.; Bashir, R. Highly Sensitive, Mechanically Stable Nanopore Sensors for DNA Analysis. Adv. Materials 2009, 21, 2771–2776. [Google Scholar] [CrossRef]
  49. Fürjes, P. Precisely tailored solid state nanopores for molecule recognition. In Proceedings of the Design, Test, Integration and Packaging of MEMS/MOEMS–DTIP 2016 Conference, Budapest, Hungary, 30 May–2 June 2016. IEEE XPlore. [Google Scholar] [CrossRef]
  50. Tseng, A.A. Recent Developments in Nanofabrication Using Focused Ion Beams. Small 2005, 1, 924–939. [Google Scholar] [CrossRef]
  51. Sawafta, F.; Carlsen, A.T.; Hall, A.R. Membrane Thickness Dependence of Nanopore Formation with a Focused Helium Ion Beam. Sensors 2014, 14, 8150–8161. [Google Scholar] [CrossRef]
  52. Liu, S.; Yuzvinsky, T.D.; Schmidt, H. Effect of Fabrication-Dependent Shape and Composition of Solid-State Nanopores on Single Nanoparticle Detection. ACS Nano 2013, 7, 5621–5627. [Google Scholar] [CrossRef]
  53. Varga, M.; Berczes, Z.; Illés, L.; Safrany, G.; Barsony, I.; Fürjes, P.; Gyurcsányi, R.E.; Jágerszki, G. Fluidically and electrically integrated solid state nanopore arrays for biochemical sensing. In Proceedings of the IEEE SENSORS, Valencia, Spain, 2–5 November 2014; pp. 870–872. [Google Scholar]
  54. NHS-SS-Biotin. Available online: http://www.apexbt.com/nhs-ss-biotin.html (accessed on 30 September 2019).
  55. Gyurcsányi, R.E.; Vigassy, T.; Pretsch, E. Biorecognition-modulated ion fluxes through functionalized gold nanotubules as a novel label-free biosensing approach. Chem. Commun. 2003, 20, 2560–2561. [Google Scholar] [CrossRef]
  56. Gamry Instruments. Available online: https://www.gamry.com/ (accessed on 30 September 2019).
  57. Vitarelli, M.J., Jr.; Prakash, S.; David, S. Talaga, determining Nanocapillary Geometry from Electrochemical Impedance Spectroscopy Using a Variable Topology Network Circuit Model. Anal. Chem. 2011, 83, 533–541. [Google Scholar] [CrossRef]
  58. Rollings, R.; Graef, E.; Walsh, N.; Nandivada, S.; Benamara, M.; Li, J. The effects of geometry and stability of solid-state nanopores on detecting single DNA molecules. Nanotechnology 2015, 26, 044001. [Google Scholar] [CrossRef]
  59. Anzai, J.; Hoshi, T.; Osa, T. Avidin—Biotin Mediated Biosensors. In Biosensors and Their Applications; Yang, V.C., Ngo, T.T., Eds.; Springer: Berlin/Heidelberg, Germany, 2000; ISBN 978-1-4613-6875-5. [Google Scholar] [CrossRef]
  60. Johannssen, W.; Attwood, P.V.; Wallace, J.C.; Keech, D.B. Localisation of the Active Site of Pyruvate Carboxylase by Electron Microscopic Examination of Avidin-Enzyme Complexes. Eur. J. Biochem. 1983, 133, 201–206. [Google Scholar] [CrossRef] [PubMed]
  61. Pugliese, L.; Coda, A.; Malcovati, M.; Bolognesi, M. Three-dimensional Structure of the Tetragonal Crystal Form of Egg-white Avidin in its functional Complex with Biotin at 2·7 Å Resolution. J. Mol. Biol. 1993, 231, 698–710. [Google Scholar] [CrossRef] [PubMed]
  62. Rauscher, M.; Dietrich, S. Wetting Phenomena in Nanofluidics. Annu. Rev. Mater. Res. 2008, 38, 143–172. [Google Scholar] [CrossRef]
  63. Zhang, Y.; Liu, L.; Sha, J.; Ni, Z.; Yi, H.; Chen, Y. Nanopore detection of DNA molecules in magnesium chloride solutions. Nanoscale Res. Lett. 2013, 8, 245. [Google Scholar] [CrossRef]
  64. Acar, E.T.; Buchsbaum, S.F.; Combs, C.; Fornasiero, F.; Siwy, Z.S. Biomimetic potassium-selective nanopores. Sci. Adv. 2019, 5, eaav2568. [Google Scholar] [CrossRef]
  65. Farimani, A.B.; Heiranian, M.; Aluru, N.R. Identification of amino acids with sensitive nanoporous MoS2: Towards machine learning-based prediction. npj 2D Mater. Appl. 2018, 2, 2–14. [Google Scholar] [CrossRef]
Figure 1. Schematic representation of the principle of stochastic molecule detection and counting (a) and the membrane impedance analysis approach (b).
Figure 1. Schematic representation of the principle of stochastic molecule detection and counting (a) and the membrane impedance analysis approach (b).
Micromachines 10 00774 g001

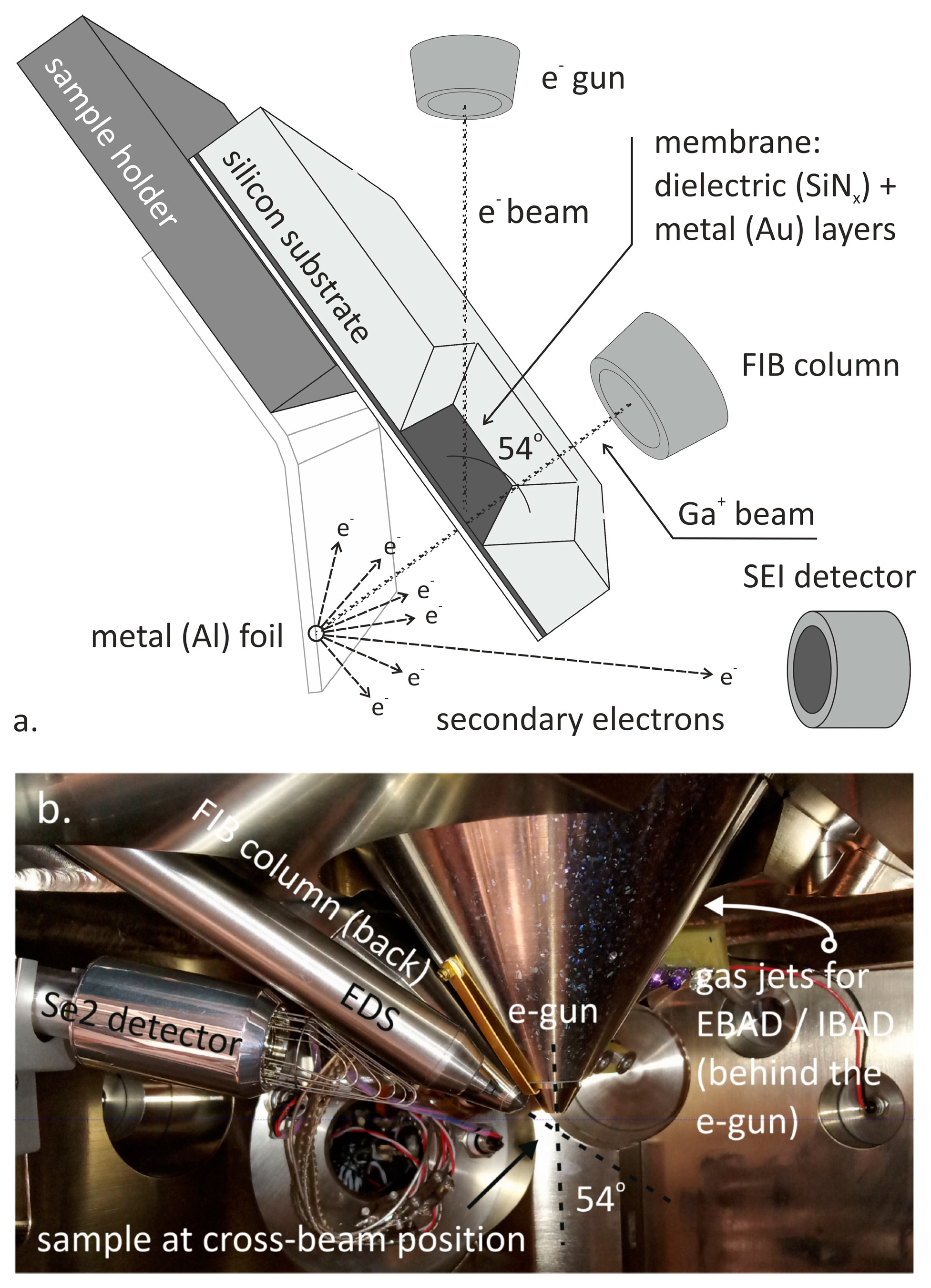

Figure 2. Schematic representation of the sample geometry for nanopore fabrication and analysis (a) and the real cross-beam setup in Zeiss LEO 1540 XB FESEM/FIB nanoprocessing system adjusted for FIB milling (b).
Figure 2. Schematic representation of the sample geometry for nanopore fabrication and analysis (a) and the real cross-beam setup in Zeiss LEO 1540 XB FESEM/FIB nanoprocessing system adjusted for FIB milling (b).
Micromachines 10 00774 g002

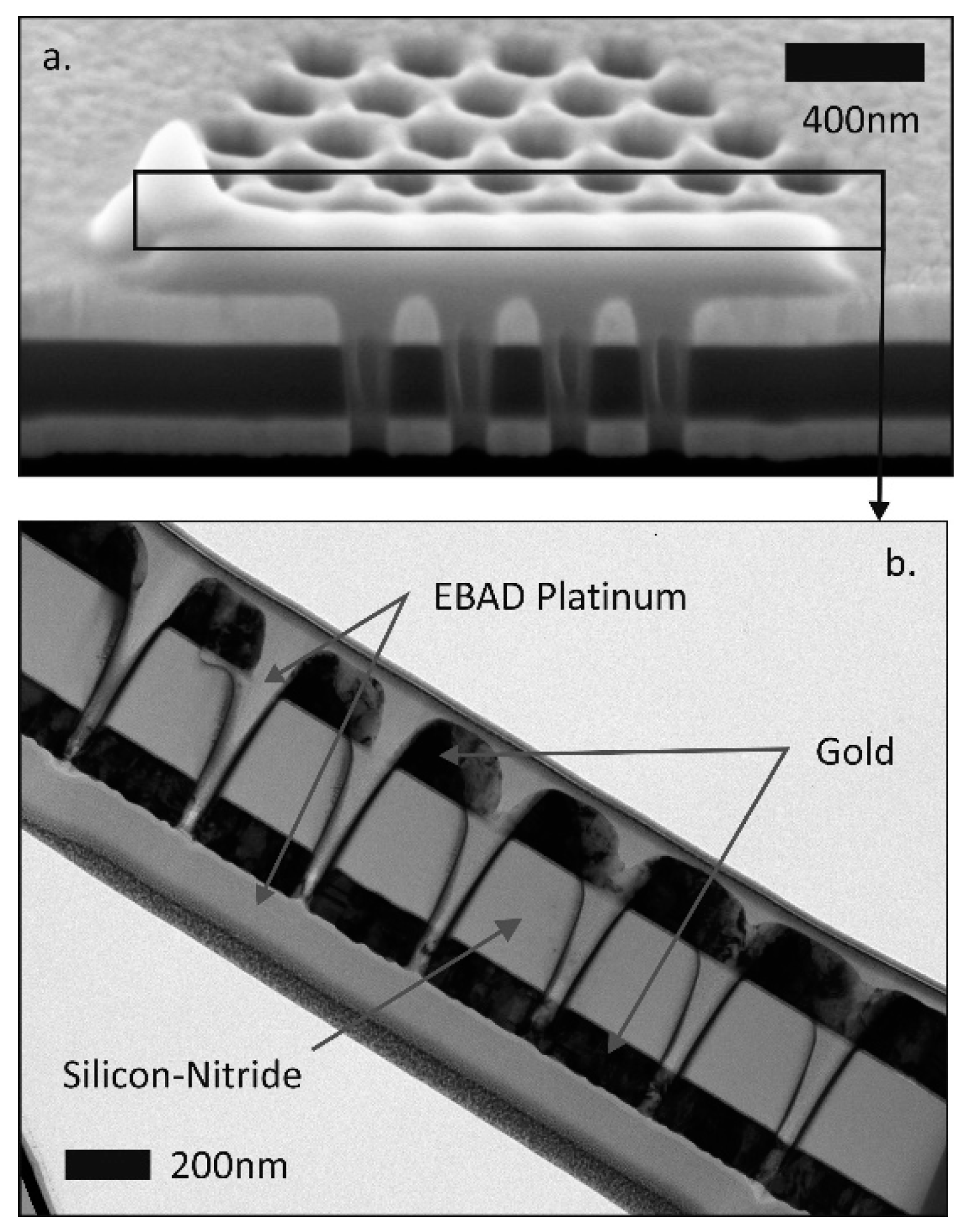

Figure 3. Cross-sectional scanning electron microscope (SEM) (a) and transmission electron microscope (TEM) (b) view of the nanopore array revealed by FIB milling of an Au/SiNx/Au membrane.
Figure 3. Cross-sectional scanning electron microscope (SEM) (a) and transmission electron microscope (TEM) (b) view of the nanopore array revealed by FIB milling of an Au/SiNx/Au membrane.
Micromachines 10 00774 g003

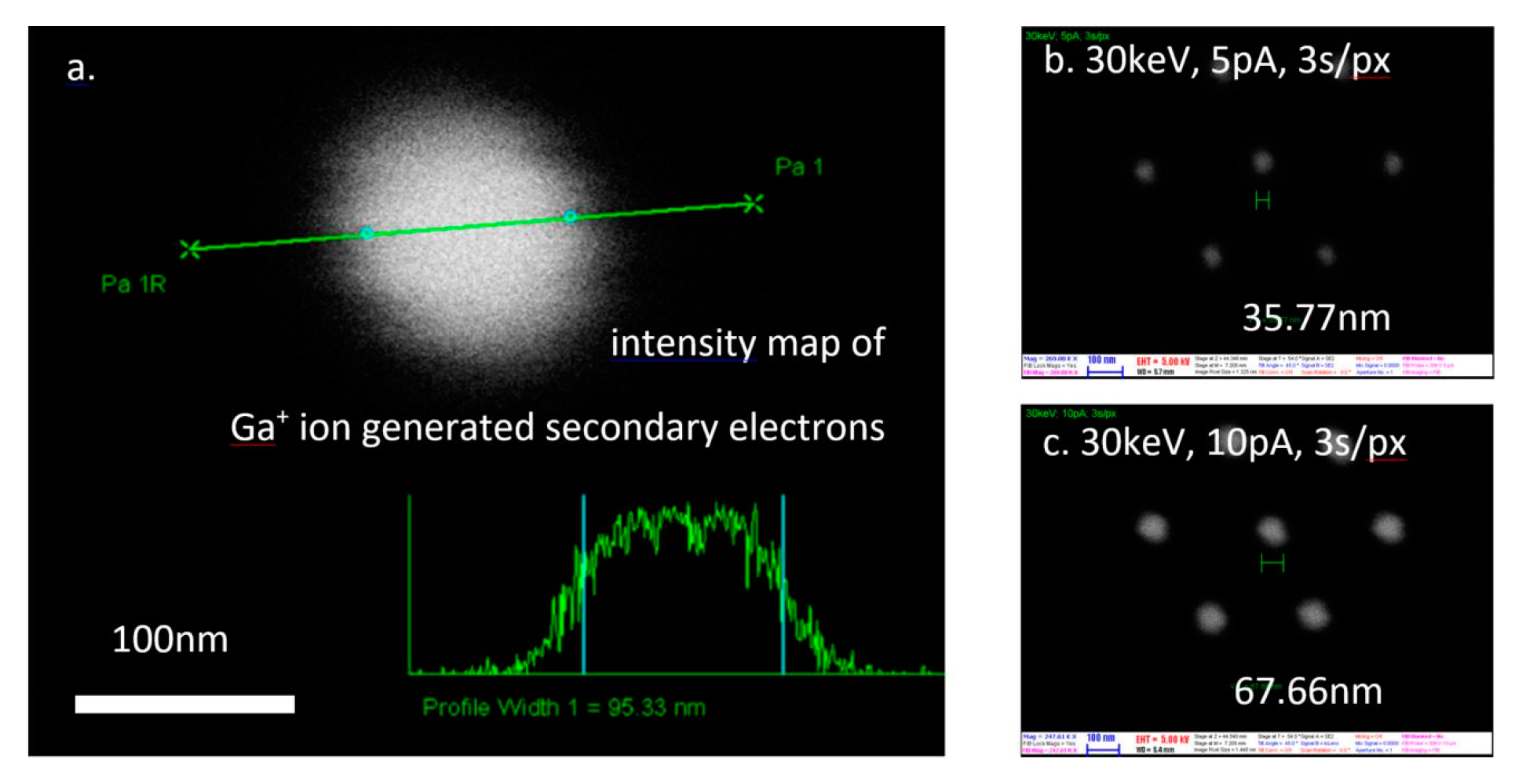

Figure 4. Pore diameter analysis by scanning ion microscopy (a) based on the detection secondary electrons generated by the ions translocated through the nanopore (see schematic in Figure 2). High number of fabricated nanopore were characterized for statistical results (b,c).
Figure 4. Pore diameter analysis by scanning ion microscopy (a) based on the detection secondary electrons generated by the ions translocated through the nanopore (see schematic in Figure 2). High number of fabricated nanopore were characterized for statistical results (b,c).
Micromachines 10 00774 g004

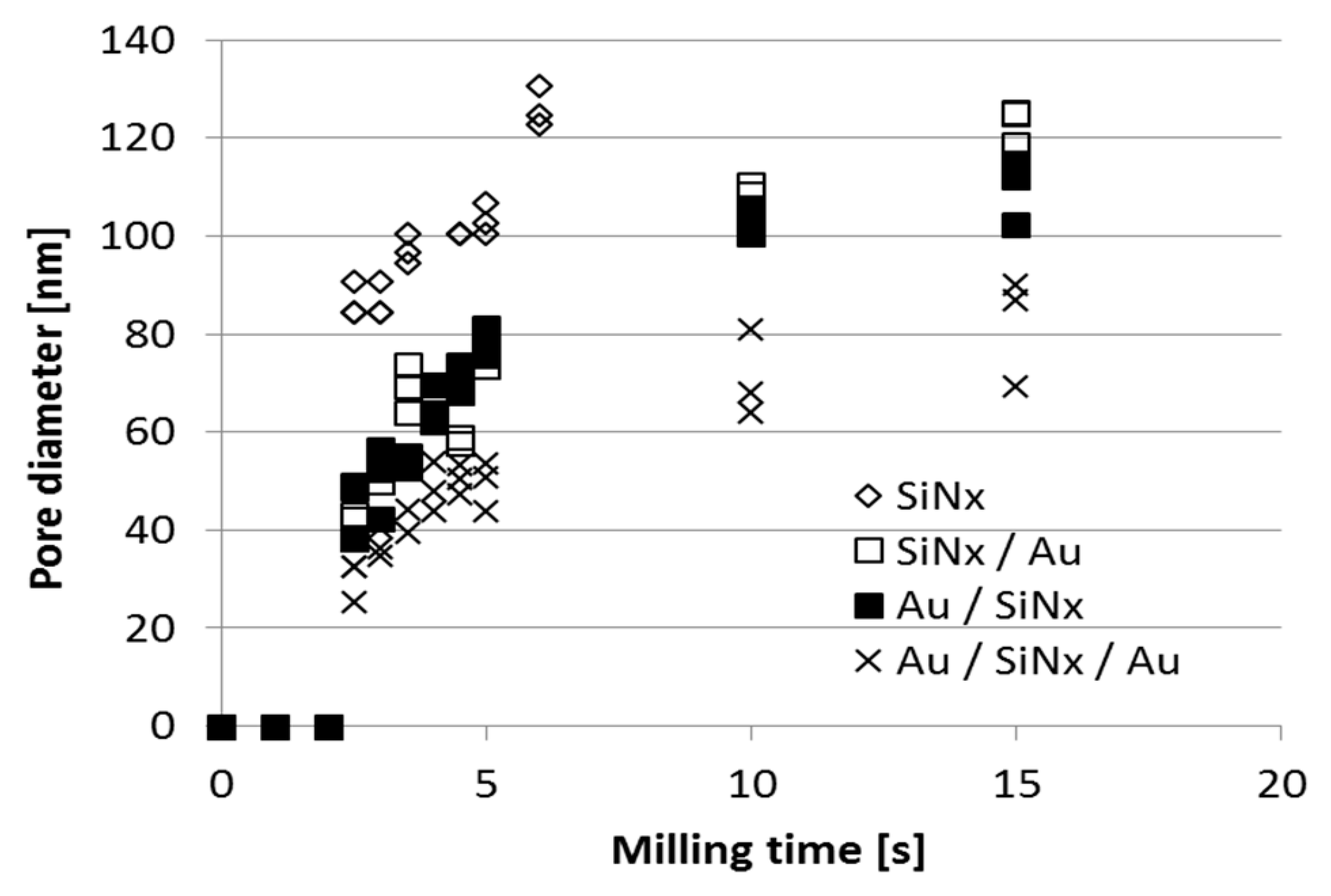

Figure 5. Pore diameters of different layer structures as a function of milling time by ion milling with 10pA ion current at 30keV ion energy.
Figure 5. Pore diameters of different layer structures as a function of milling time by ion milling with 10pA ion current at 30keV ion energy.
Micromachines 10 00774 g005

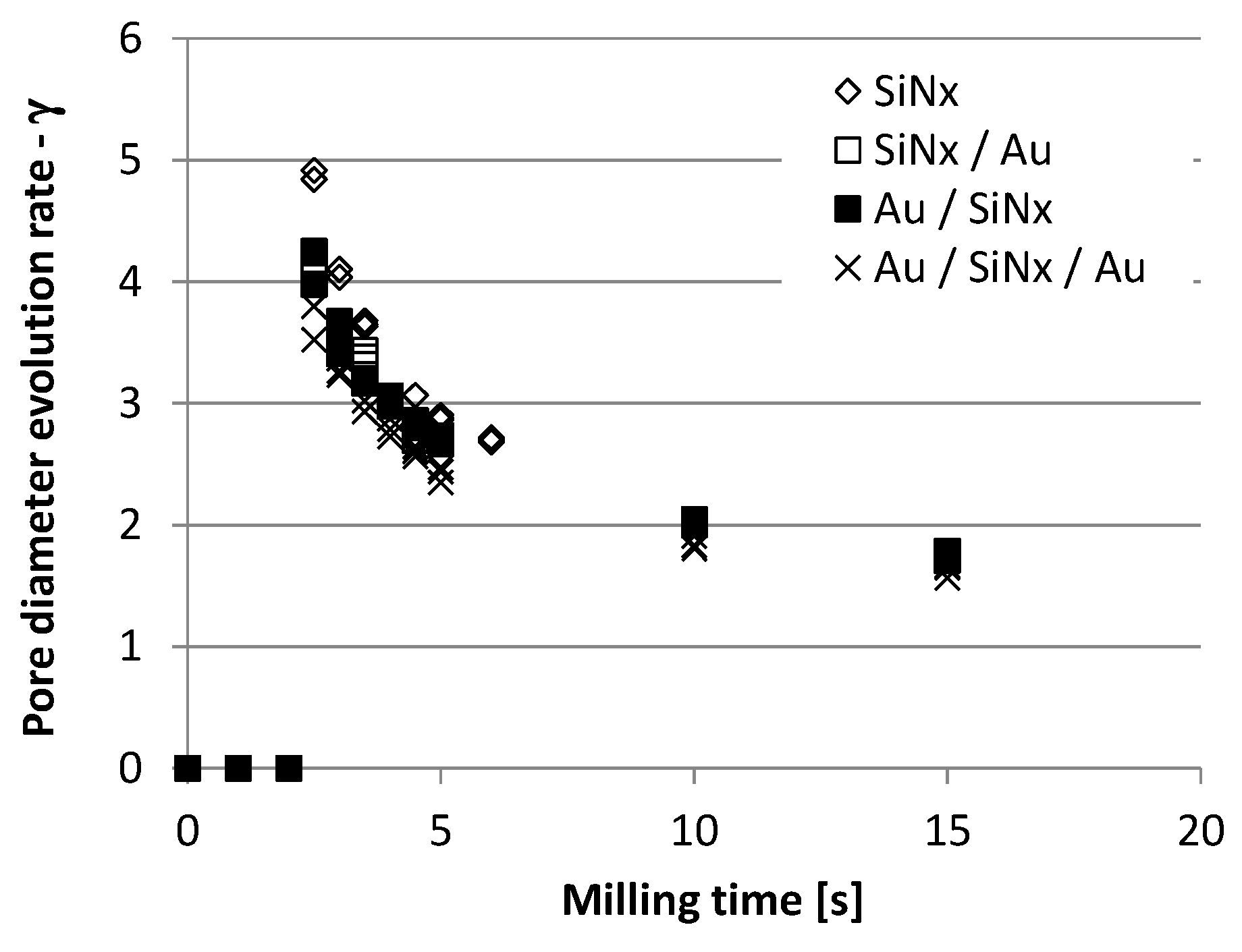

Figure 6. Pore diameter evolution rate parameter (γ) as a function of the milling time applying 10 pA ion current and 30 keV ion energy in the case of different layer structures. Values derived from the results of Figure 5.
Figure 6. Pore diameter evolution rate parameter (γ) as a function of the milling time applying 10 pA ion current and 30 keV ion energy in the case of different layer structures. Values derived from the results of Figure 5.
Micromachines 10 00774 g006

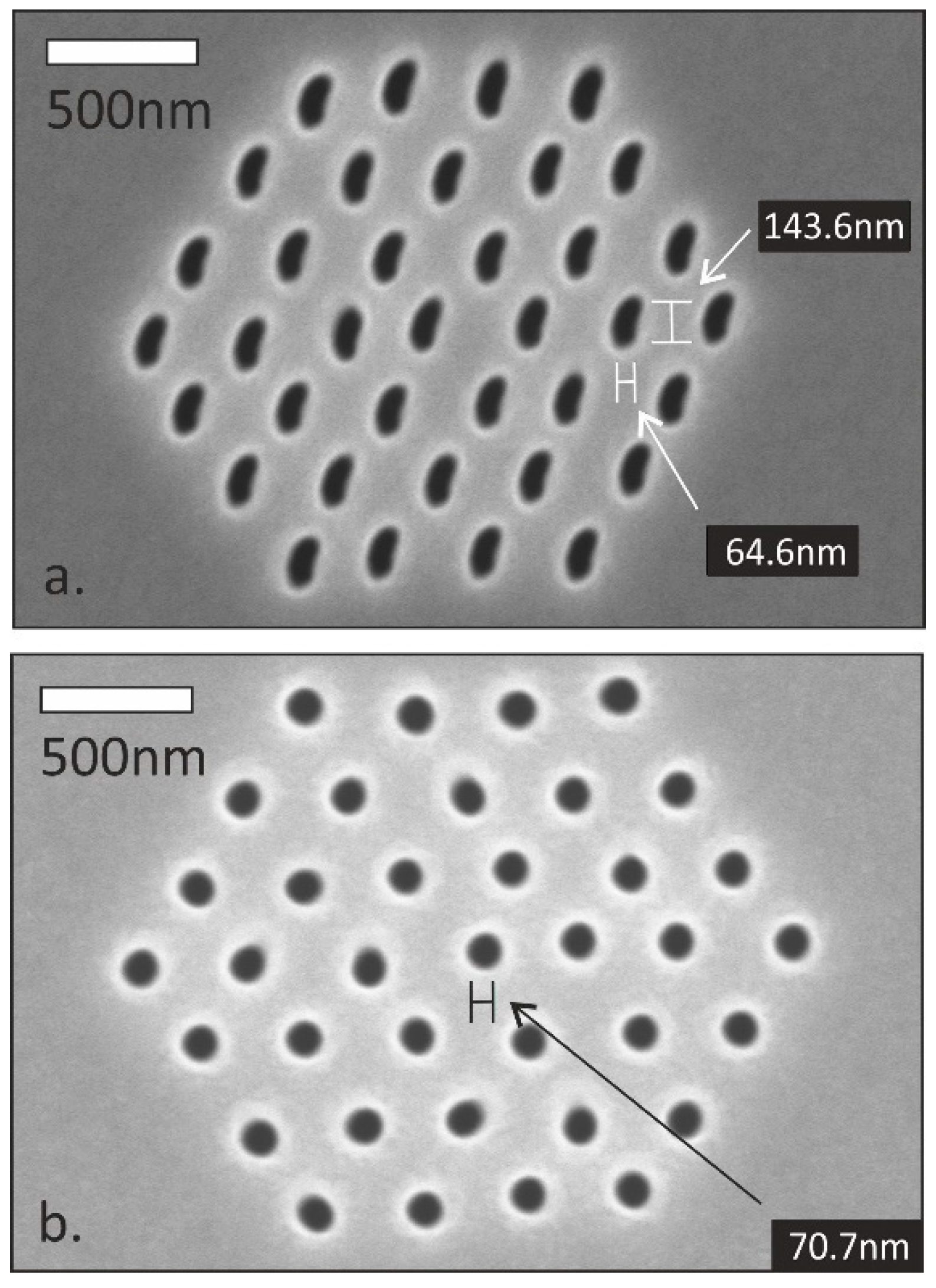

Figure 7. Pore geometries shaped by 5 s (a) and 6 s (b) ion milling of Au/SiNx/Au layer stacks when applying 5 pA Ga+ ion current (cross-sectional SEM view).
Figure 7. Pore geometries shaped by 5 s (a) and 6 s (b) ion milling of Au/SiNx/Au layer stacks when applying 5 pA Ga+ ion current (cross-sectional SEM view).
Micromachines 10 00774 g007

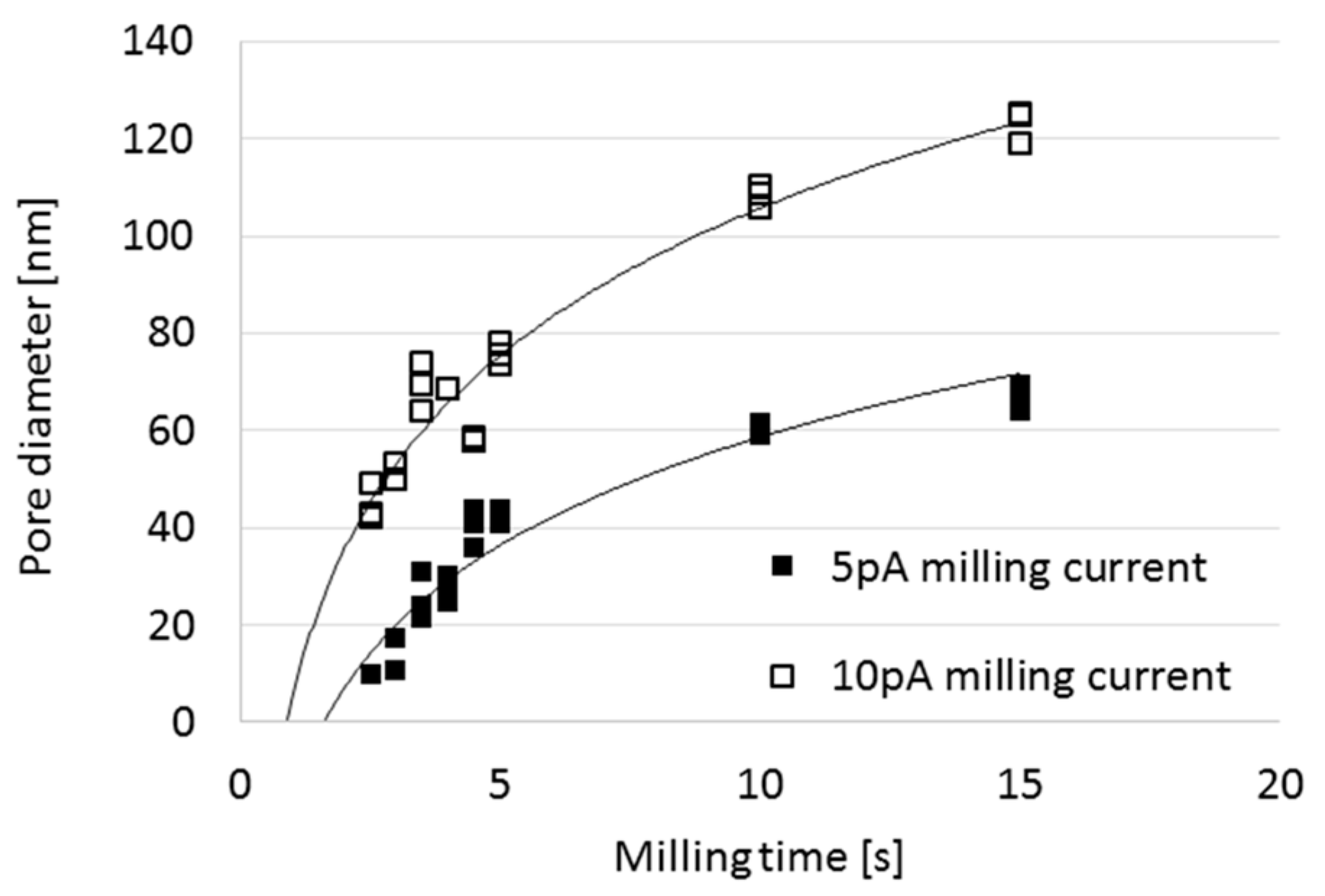

Figure 8. Pore diameters versus milling time in the case of Au/SiNx layer structure with different ion currents (5 pA and 10 pA) at 30 keV ion energy. Note the time needed for the perforation the membrane (tp) in both cases.
Figure 8. Pore diameters versus milling time in the case of Au/SiNx layer structure with different ion currents (5 pA and 10 pA) at 30 keV ion energy. Note the time needed for the perforation the membrane (tp) in both cases.
Micromachines 10 00774 g008

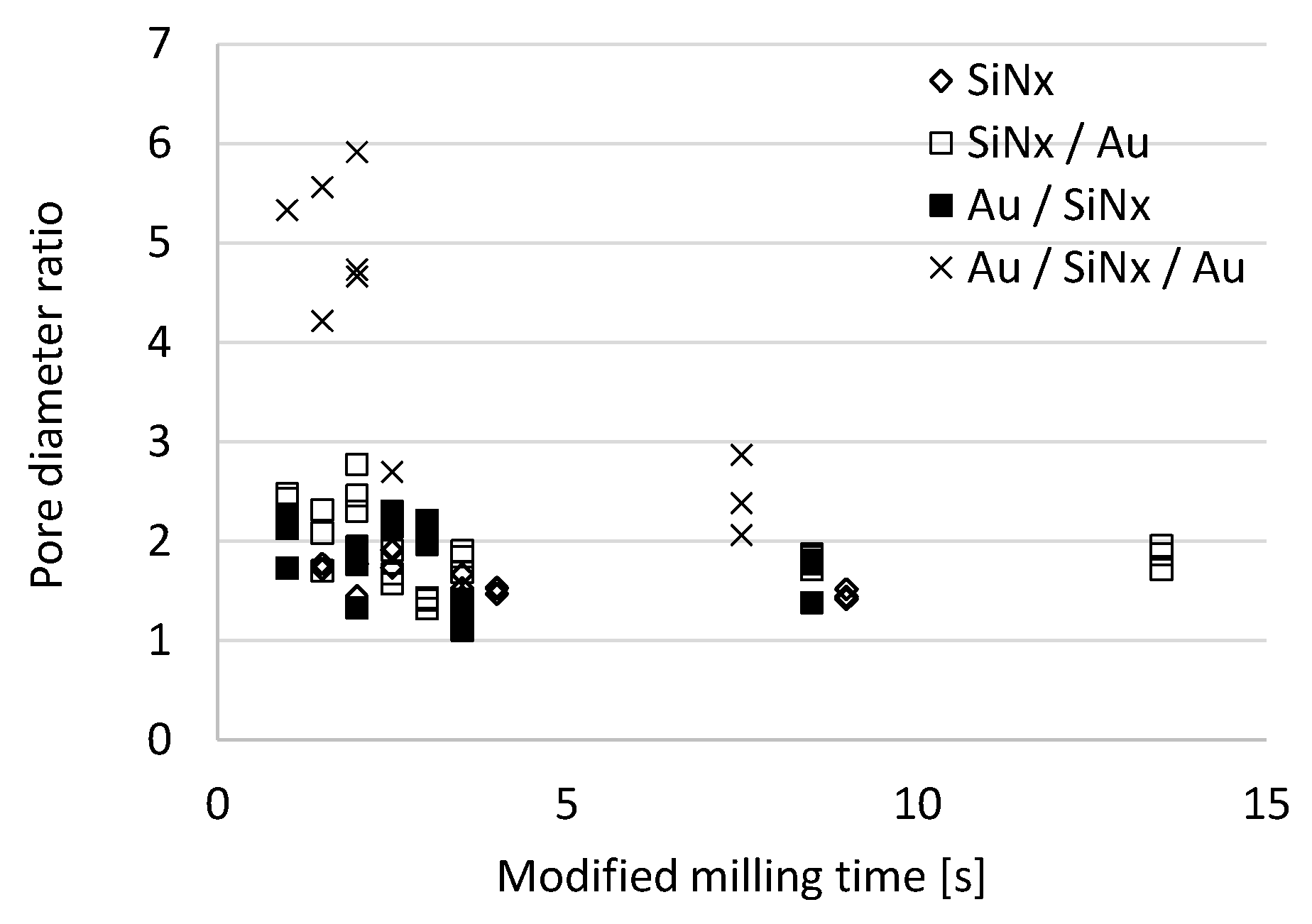

Figure 9. Pore diameter ratios (d10pA/d5pA) versus milling time for different layer structures and ion currents (5 pA and 10 pA, respectively). The energy of the Ga+ ions was 30 keV.
Figure 9. Pore diameter ratios (d10pA/d5pA) versus milling time for different layer structures and ion currents (5 pA and 10 pA, respectively). The energy of the Ga+ ions was 30 keV.
Micromachines 10 00774 g009

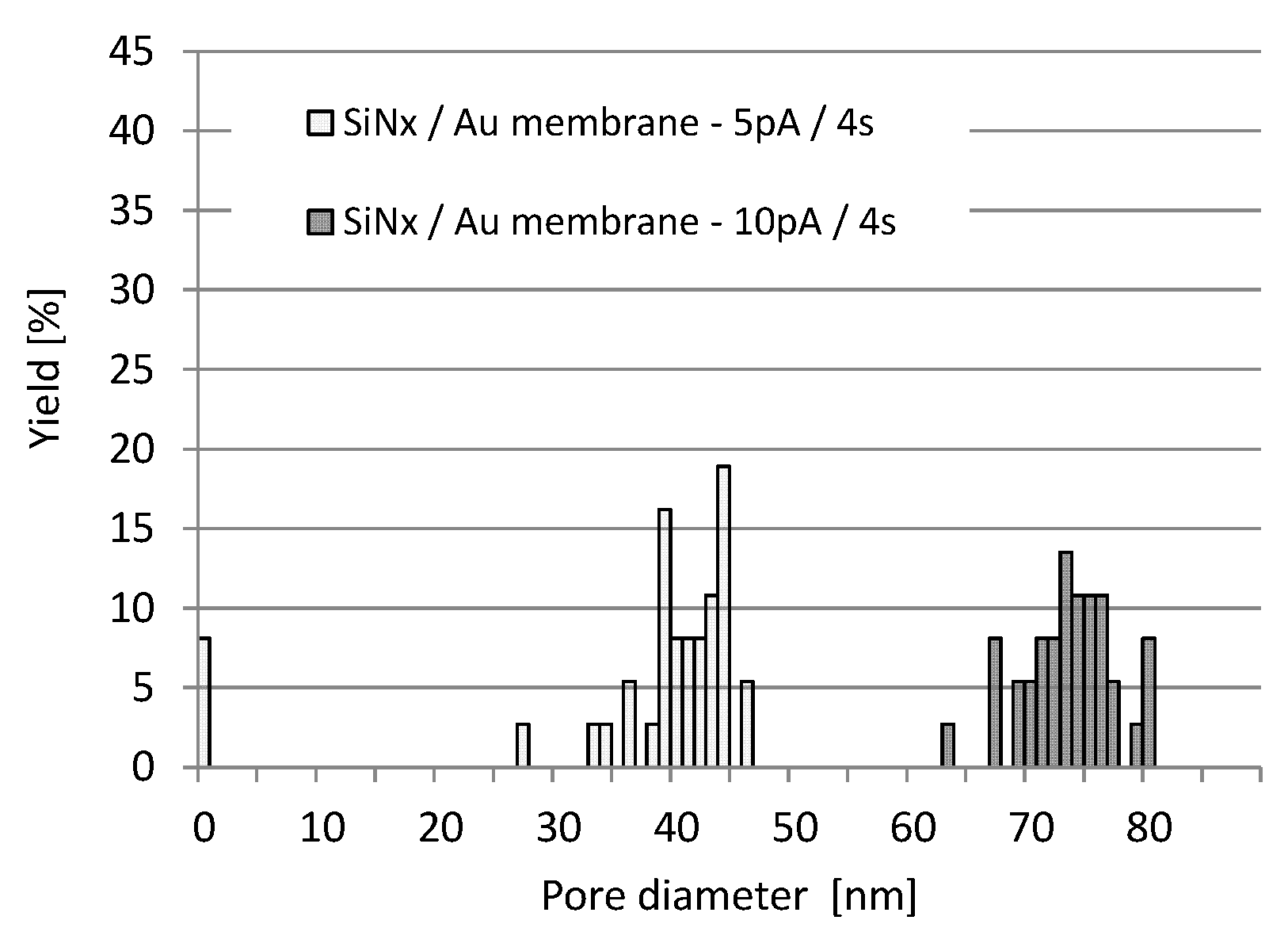

Figure 10. Pore diameters distribution obtained by ion milling of gold covered silicon-nitride layer structures (from the silicon-nitride side) in the case of different milling currents (5 pA and 10 pA) at 30 keV ion energy.
Figure 10. Pore diameters distribution obtained by ion milling of gold covered silicon-nitride layer structures (from the silicon-nitride side) in the case of different milling currents (5 pA and 10 pA) at 30 keV ion energy.
Micromachines 10 00774 g010
Figure 11. Nanopore arrays fabricated by Ga+ ion milling in bare (a) and metallised (b) silicon-nitride membranes. The distorted pore geometries are result of the beam defocusing effect of electrically charged dielectric membrane.
Figure 11. Nanopore arrays fabricated by Ga+ ion milling in bare (a) and metallised (b) silicon-nitride membranes. The distorted pore geometries are result of the beam defocusing effect of electrically charged dielectric membrane.
Micromachines 10 00774 g011

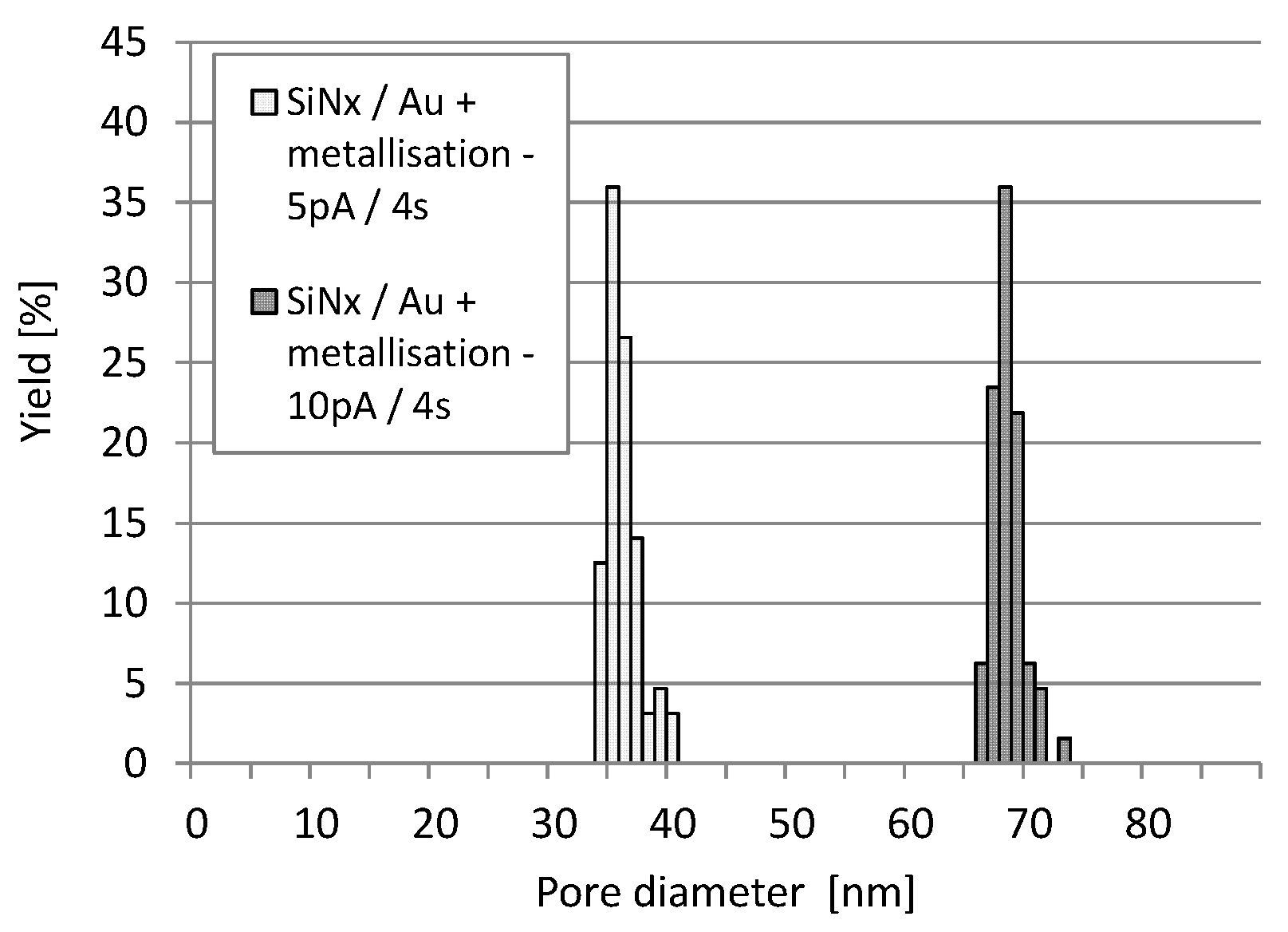

Figure 12. Statistical pore diameter distribution in the gold coated silicon-nitride membrane was significantly improved by grounding the additional front side metallisation (FIB parameters: 5 pA and 10 pA milling current at 30 keV for 4 s).
Figure 12. Statistical pore diameter distribution in the gold coated silicon-nitride membrane was significantly improved by grounding the additional front side metallisation (FIB parameters: 5 pA and 10 pA milling current at 30 keV for 4 s).
Micromachines 10 00774 g012

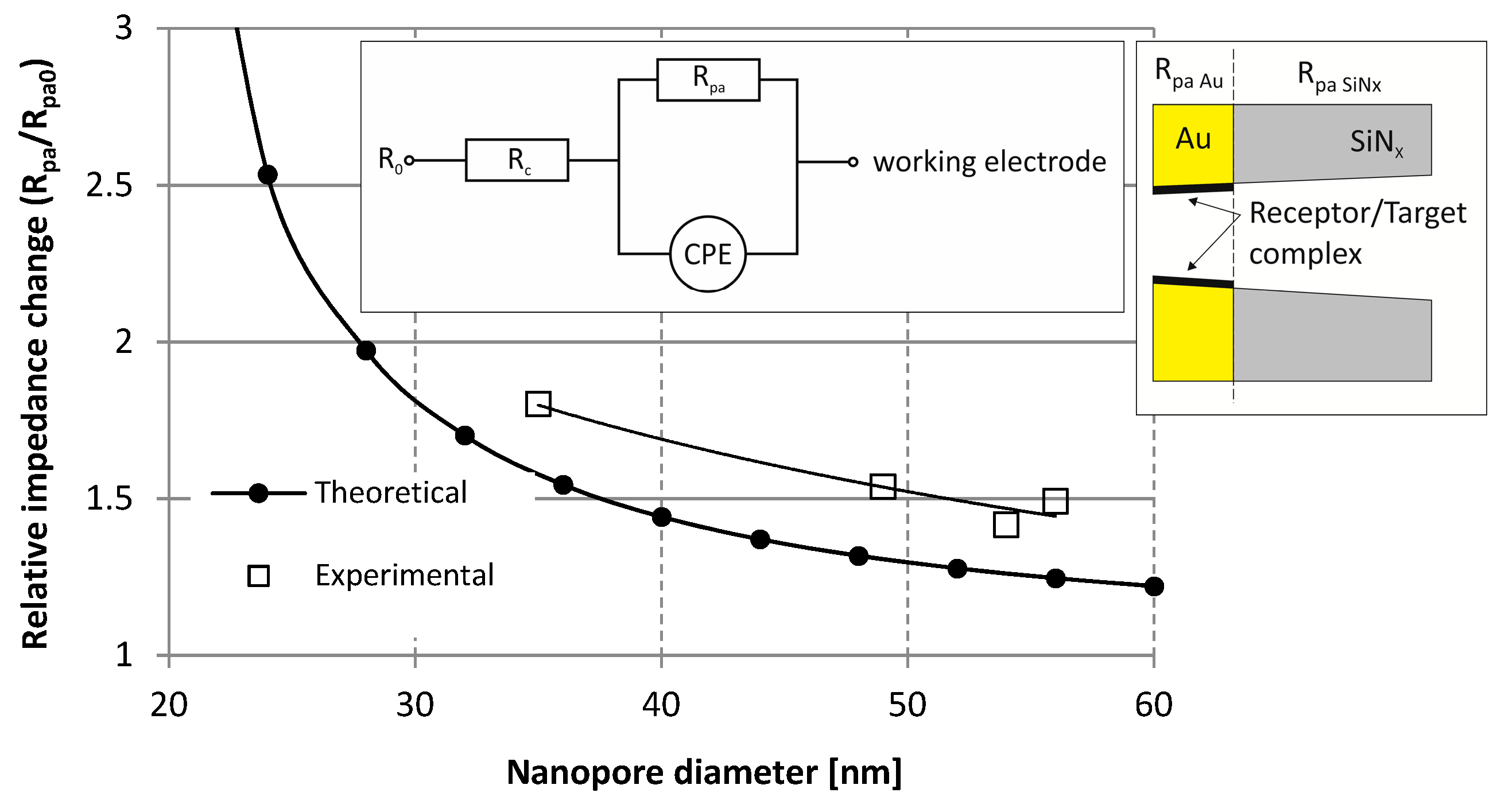

Figure 13. Theoretical and measured relative impedance variation of the solid-state nanopore array as a function of the nanopore-diameter after avidin binding. In the inset Rc is the resistance of the electrochemical cell, Rpa is the resistance of the nanopore array and CPE is the constant phase element (capacity of the membrane). Rpa/Rpa0 denotes the relative resistance change of the nanopore arrays, where Rpa0 and Rpa are the impedance values before and after target molecule injection, respectively.
Figure 13. Theoretical and measured relative impedance variation of the solid-state nanopore array as a function of the nanopore-diameter after avidin binding. In the inset Rc is the resistance of the electrochemical cell, Rpa is the resistance of the nanopore array and CPE is the constant phase element (capacity of the membrane). Rpa/Rpa0 denotes the relative resistance change of the nanopore arrays, where Rpa0 and Rpa are the impedance values before and after target molecule injection, respectively.
Micromachines 10 00774 g013
Table 1. Typical techniques of fabrication solid state nanopore/nanochannel arrays (representative parameters, materials, instrumentation and process compatibility) [17,24,25,31,34,35,36,37].
Table 1. Typical techniques of fabrication solid state nanopore/nanochannel arrays (representative parameters, materials, instrumentation and process compatibility) [17,24,25,31,34,35,36,37].
Fabrication Techniquee-BEAM
[17,34,35,37]
FIB or TEM
[17,24,25,31,34,35,36]
NIL
[34]
MEMS Based: Sacrificial Layer or Channel Sealing by Bonding [34]
GeometryFeature sizesub 10nm>10nm or sub 10nm>20nm>5nm
Reproducibilityexcellentexcellentexcellentgood
Shapechannel arraypore/channel arraypore/channel arraylateral/buried channels
Materialsilicon or compatible
ManufacturingEquipment/InfrastructureE-BEAM system + MEMS (RIE/DRIE *)FIB/SEM or TEM system + MEMS (RIE/DRIE *)NIL system + MEMS (RIE/DRIE *)MEMS
CostHighHighHigh/MediumMedium
ProcessWafer scaleChip/wafer scaleWafer scaleWafer scale
Process compatibilityMEMS
Main advantagesAdvanced production rate, reproducibilityGeometrical and material flexibilityAdvanced production rateAdvancedproduction rate
Main drawbacksHigh infrastructural demand
Complex pre- and post-processingModerate production rate and reproducibilityComplex pre- and post-processingModerate reproducibility
* RIE/DRIE: Reactive Ion Etching/Deep Reactive Iona Etching.
Table 2. Structural materials required for different biofunctionalisation strategies.
Table 2. Structural materials required for different biofunctionalisation strategies.
Proposed Surface FunctionalisationStructural Materials
thiol chemistryAu/SiNx/Au
SiNx/Au
Au/SiNx
silane chemistrybare SiNx
PFA/SiNx/PFA *
* perfluoroalkyl passivation.
Table 3. Pore and molecular parameters applied for theoretical impedance estimation [58,59,60,61].
Table 3. Pore and molecular parameters applied for theoretical impedance estimation [58,59,60,61].
Pore outlet diameters20–60 nm
Pore length450 nm (300 nm in SiNx and 150 nm in Au)
Pore wall angle (see Figure 7)
Pore inlet diameters (estimated)68–108 nm
Number of nanopores/array64
Target molecule/estimated sizeAvidin/5.7 nm × 4.4 nm × 4.4 nm
Receptor molecule/estimated lengthBiotin/2.43 nm
Electrolyte conductivity
(0.01 M PBS)
150–200 S/m
(15–20 mS/cm, 15–20 mho/cm)
Back to TopTop
