Black Marble Nighttime Light Data for Disaster Damage Assessment

Abstract

This research explores the utilization of the Black Marble nighttime light (NTL) product to detect and assess damage caused by hurricanes, tornadoes, and earthquakes. The study first examines average regional NTL trends before and after each disaster, demonstrating that NTL patterns for hurricanes closely align with the features of a resilience curve, unlike those for earthquakes and tornadoes. The relative NTL change ratio is computed using monthly and daily NTL data, effectively reducing variance due to daily fluctuations. Results indicate the robustness of the NTL change ratio in detecting hurricane damage, whereas its performance in earthquake and tornado assessment was inconsistent and inadequate. Furthermore, NTL demonstrates a high performance in identifying hurricane damage in well-lit areas and the potential to detect damage along tornado paths. However, a low correlation between the NTL change ratio and the degree of damage highlights the method’s limitation in quantifying damage. Overall, the study offers a promising, prompt approach for detecting damaged/undamaged areas, with specific relevance to hurricane reconnaissance, and points to avenues for further refinement and investigation.

1. Introduction

Real-time damage assessment in the aftermath of a natural disaster is critical for effective disaster reconnaissance. However, current damage assessment methods rely heavily on field surveys, which can be time-consuming and difficult for first responders to conduct in disaster-affected areas [1]. Remote sensing data can provide a solution to this challenge, as it can be accessed quickly and covers large areas of interest. Optical remote sensing data, which offer daytime information about the Earth, are typically used in structural damage assessment [2]. Nighttime light (NTL) remote sensing data can also offer a unique perspective of Earth. NTL is a composite of illumination from multiple sources, including moonlight, direct light emissions, and ground reflections [3]. Because of the destruction of infrastructure and electric systems, and the reduction in human activity following a disaster, NTL is often reduced, and has, therefore, been widely utilized in disaster reconnaissance [4]. NTL data are typically classified into three types based on the time stamp: yearly, monthly, and daily. Yearly and monthly NTL data are often used to monitor the economic changes resulting from disasters and the disaster recovery process [5,6,7,8]. On the other hand, daily NTL data can provide more detailed temporal information, such as detecting damage and power outages in a neighborhood [4,9,10,11].

NTL data can be significantly impacted by cloud cover, which may affect its performance in damage and recovery detection [4,12]. Skoufias et al. (2021) reported that after analyzing five cases of earthquakes, floods, and typhoons in Southeast Asian countries, they did not find a causal relationship between monthly nightlight values and natural hazard events because NTL data are contaminated by noise from cloud cover, seasonality, and volatility [12]. Zhao et al. (2018) conducted case studies of earthquakes, hurricanes, and floods to evaluate the application of daily NTL data in natural disaster assessment. They suggested that daily NTL data is useful in detecting the damage and power outages caused by earthquakes, hurricanes, and floods; however, the NTL data is still limited by cloud coverage [4].

In 2018, NASA released the Black Marble product, which offers cloud-free NTL data [13]. This has enabled researchers to evaluate the impact of various disaster events using NTL data more accurately [14,15,16]. By studying Hurricane Sandy and Hurricane Maria, Wang et al. (2018) indicated that the Black Marble NTL product can be used to monitor power outages and recovery status at a community level and can be a good source to locate the areas that need disaster relief [14]. Roman et al. (2019) studied Hurricane Maria and showed the potential to use NTL-based estimates to improve real-time disaster impact monitoring [15]. Xu et al. (2021) elucidated that the Black Marble product can be a low-cost instrument to collect near-real-time, large-scale, and high-resolution disaster data [17].

The effectiveness of Black Marble nighttime light (NTL) data in detecting the extent and degree of damage resulting from various disasters has received limited attention in the literature. This study aims to fill this gap by examining the utility of Black Marble NTL data for identifying damaged and undamaged areas caused by hurricanes, earthquakes, and tornados. Moreover, this research explores the potential of Black Marble NTL data in determining the degree of damage in the identified affected areas.

This research builds upon the work of Zhao et al. (2018) [4], which analyzed the usefulness and limitations of daily NTL data from the Visible Infrared Imaging Radiometer Suite (VIIRS) Day-Night Band (DNB) aboard the Suomi National Polar-orbiting Partnership (S-NPP) satellite for disaster reconnaissance of earthquakes, floods, and storms. While Zhao et al. (2018) highlighted cloud cover as a significant challenge in using daily NTL data for damage detection, the Black Marble NTL daily data offer a cloud-free, atmospheric-, terrain-, vegetation-, snow-, lunar-, and stray-light-corrected VIIRS DNB radiance [13], potentially offering a solution for disaster reconnaissance studies. This research extends the work of Zhao et al. (2018) by exploring the ability of Black Marble NTL data to detect damage caused by five hurricanes, two tornados, and four earthquakes. Additionally, this research examines the capacity of NTL data to determine the degree of damage, providing deeper insights and a more consolidated conclusion.

2. Materials

2.1. Black Marble NTL Data

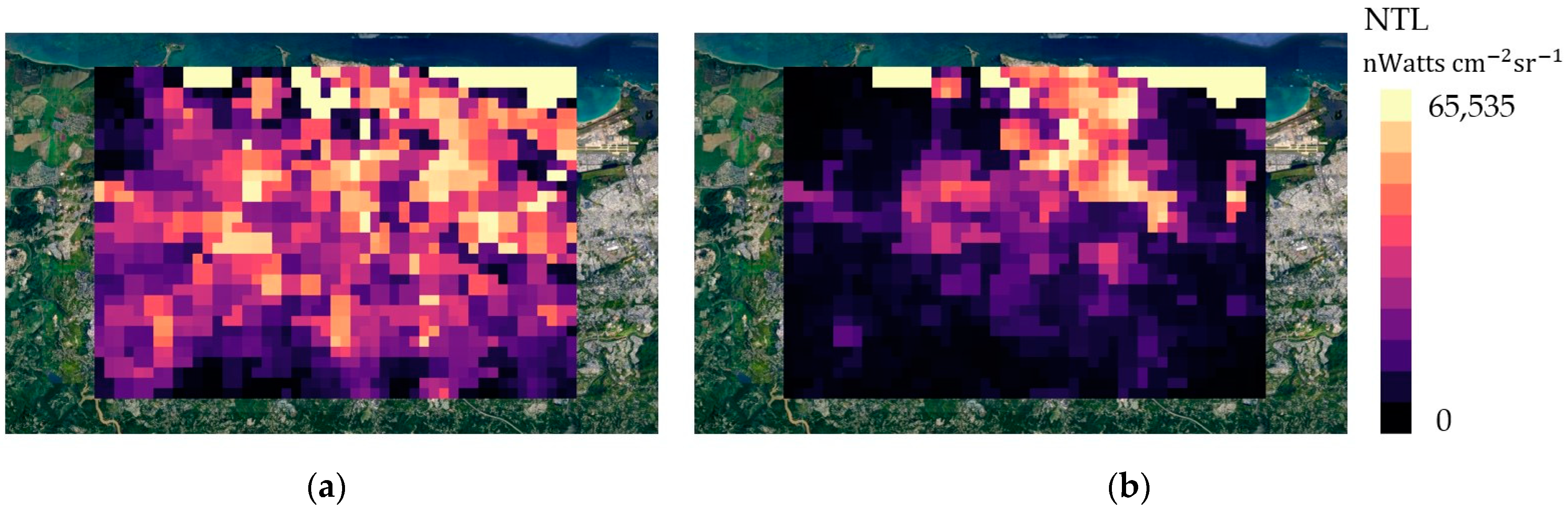

This study leverages the VNP46A2 and VNP46A3 data from the DNB sensor of the S-NPP VIIRS to evaluate the pre- and post-disaster NTL change ratio. The current state of the art in NTL applications is NASA’s Black Marble product suite (VNP46), which is based on the advanced VIIRS DNB time series record [13]. VNP46A2 provides daily DNB NTL radiances at 500m resolution that are cloud-free, atmospheric-, seasonal-, and moonlight bidirectional reflectance distribution function (BRDF)-corrected [13]. VNP46A3, generated based on VNP46A2, provides monthly NTL composites [16]. VNP46A2 has seven layers: DNB BRDF-corrected NTL, gap-filled BRDF-corrected NTL, lunar irradiance, mandatory quality flag, latest high-quality retrieval (number of days), snow flag, and cloud mask flag. Specifically, the gap-filled BRDF-corrected NTL layer fills the area masked out by the cloud based on the latest high-quality observations in previous days. The mandatory quality flag layer shows the retrieval performance of the pixel-based estimates of NTL, whereas the latest high-quality retrieval layer shows the number of days between the latest high-quality retrieval and the current date of interest. With these layers, users can decide if the gap-filled NTL value depends on the current date of interest or not. In this work, it is critical that the post-disaster NTL has high quality and can accurately represent the current date of interest. This data should not be generated through gap-filling procedures. As such, when determining the area of interest for each disaster, the quality flag was factored into the decision-making process. The VNP46A2 and VNP46A3 data are applied in the following section as daily and monthly NTL data, respectively, and are available through the LAADS DAAS on EARTHDATA webpage [18]. Figure 1 illustrates the changes in the nighttime light (NTL) from the VNP46A2 dataset before and after Hurricane Maria. It is clear that the area becomes dimmer following the disaster.

2.2. Damage Proxy Maps (DPM) Data

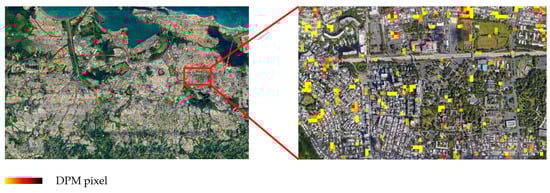

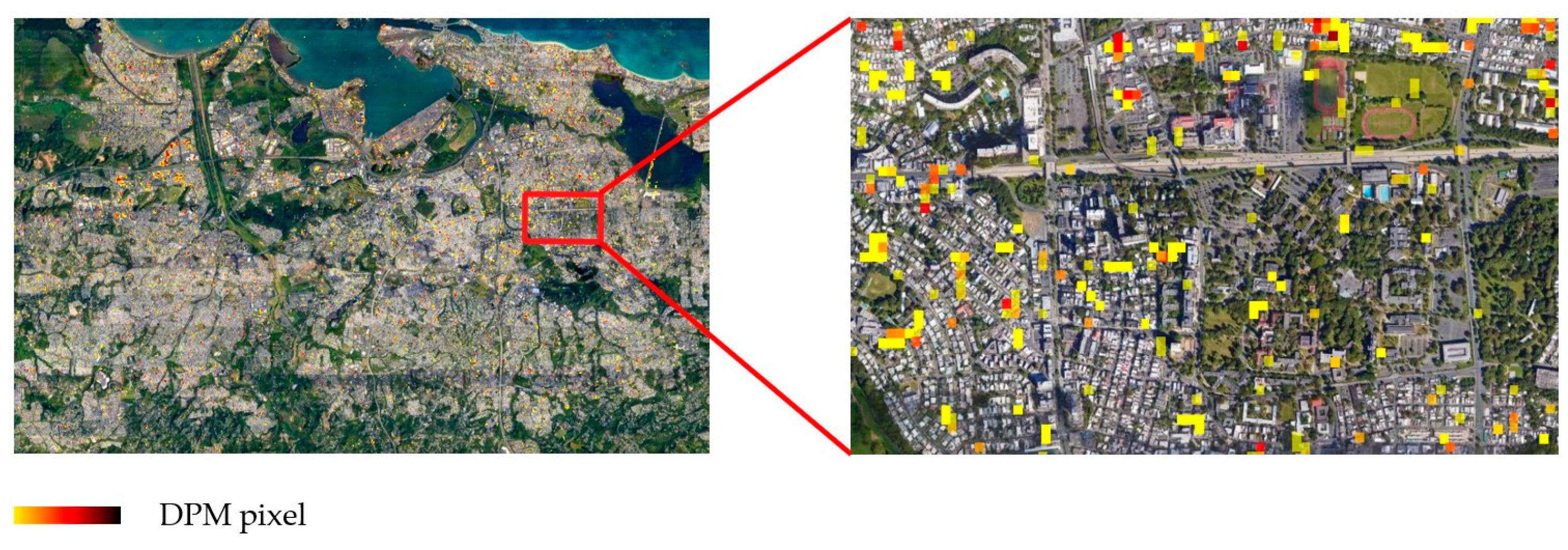

The color-coded DPM data from NASA Advanced Rapid Imaging and Analysis (ARIA) were used as the ground truth damage degree for the affected area detected by nighttime light (NTL). The DPMs were generated using pre- and post-disaster interferometric synthetic aperture radar (InSAR) data, which depict alterations in the land surface. Notably, these changes in surface provide a quantifiable measure of the damage degree [17]. A DPM provides detailed visualization of a specific geographic area, pinpointing the location and severity of the damage with a 30m resolution. The vegetated area increases the false positive points for DPM [17]. Therefore, this study focused on evaluating urban areas. The DPMs are available on ARIA Share on the Jet Propulsion Laboratory (JPL) webpage [19]. Figure 2 shows the DPM of Hurricane Maria within San Juan.

2.3. Disaster Information

This study delves into three categories of natural disasters: hurricanes, tornadoes, and earthquakes. Comprehensive details of these disasters can be found in

Table 1. Disaster information.

Event Type	Event Name and Location	Study Area	Event Degree	Date
Hurricane	Hurricane Maria	San Juan	Category 5	09/2017
	Hurricane Maria	Ponce	Category 5	09/2017
	Hurricane Michael	Panama City	Category 5	10/2018
	Hurricane Florence	Jacksonville	Category 1	09/2018
	Hurricane Iota	Providencia	Category 4	11/2020
	Hurricane Dorian	West Grand Bahama	Category 5	08/2019
Tornado	Kentucky Tornado	Bowling Green	EF4	12/2021
	Nashville Tornado	Nashville	EF3	03/2020
Earthquake	Nepal Earthquake	Kathmandu	7.8 Mw	05/2015
	Mexico Earthquake	Texcoco	7.1 Mw	09/2017
	Puerto Rico Earthquake	San Juan	6.4 Mw	01/2020
	Puerto Rico Earthquake	Ponce	6.4 Mw	01/2020
	Salt Lake City Earthquake	Salt Lake City	5.7 Mw	03/2020

.

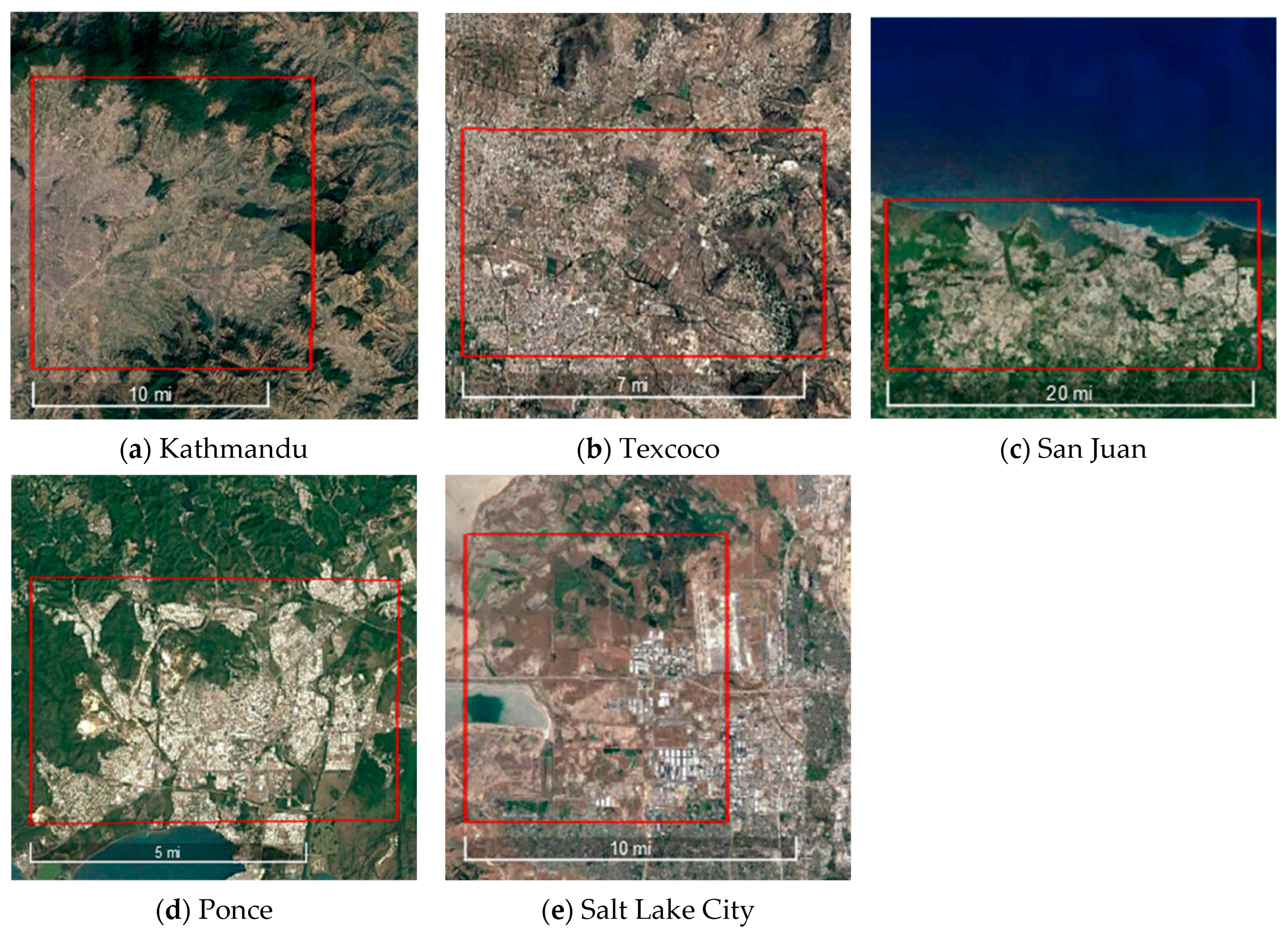

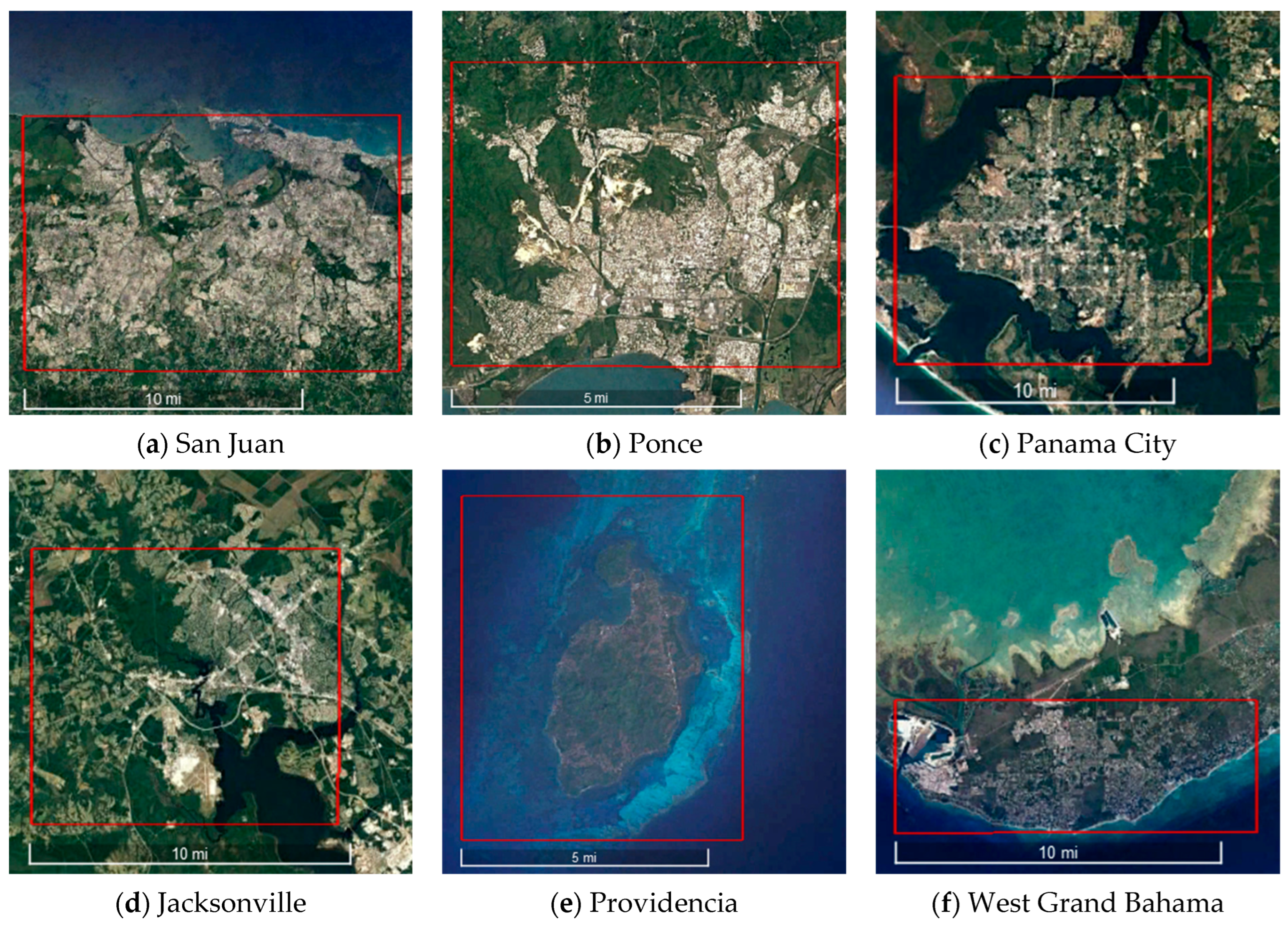

Table 2. Information on study area and pre-disaster satellite images from Google Earth View [20]. The “Top Right” and “Bottom Left” columns specify the coordinates of the respective corners for the study area in each image.

Event Type	Event Name	Study Area	Top Right	Bottom Left	Satellite Image Time Stamp	Julian Date (Pre-Disaster, Post-Disaster)
Hurricane	Hurricane Maria	San Juan	18°27′60″N, 66°0′45″W	18°19′60″N, 66°13′0″W	12/2016	(255, 270)
	Hurricane Maria	Ponce	17°58′45″N, 66°40′45″W	18°3′15″N, 66°34′45″W	12/2016	(255, 270)
	Hurricane Michael	Panama City	30°15′59.76″N, 85°33′15″W	30° 6′60″N, 85°44′30″W	12/2017	(270, 285)
	Hurricane Florence	Jacksonville	34°48′30″N, 77°21′30″W	34°41′30″N, 77°31′60″W	12/2017	(248, 263)
	Hurricane Iota	Providencia	13°24′30″N, 81°20′15″W	13°18′30″N, 81°25′15″W	12/2019	(310, 325)
	Hurricane Dorian	West Grand Bahama	37° 2′45″N, 86°18′15″W	36°54′60″N, 86°34′30″W	12/2018	(229, 244)
Tornado	Kentucky Tornado	Bowling Green	37° 2′45″N, 86°18′15″W	36°54′60″N, 86°34′30″W	03/2021	(331, 346)
	Nashville Tornado	Nashville	36°13′30″N, 86°39′15″W	36°6′30″N, 86°55′45″W	12/2019	(051, 066)
Earthquake	Nepal Earthquake	Kathmandu	27°47′45″N, 85°30′0″E	27°37′0″N, 85°18′15″E	12/2014	(101, 116)
	Mexico Earthquake	Texcoco	19°33′45″N, 98°47′45″W	19°30′15″N, 98°54′30″W	12/2016	(247, 262)
	Puerto Rico Earthquake	San Juan	18°28′30″N, 65°57′0″W	18°20′30″N, 66°15′30″W	12/2019	(358(2019), 008(2020))
	Puerto Rico Earthquake	Ponce	18° 2′45″N, 66°34′30″W	17°59′0″N, 66°40′30″W	12/2019	(357(2019), 007(2020))
	Salt Lake City Earthquake	Salt Lake City	40°50′0″N, 111°58′60″W	40°42′30″N, 112° 8′0″W	12/2019	(063, 078)

lists the specifics of the study area, and the time stamps for the satellite images are shown in Figure 3, Figure 4 and Figure 5. Figure 3, Figure 4 and Figure 5 illustrate the study area, with pre-disaster satellite images for each disaster. These pre-disaster satellite imageries were collected from Google Earth View [20].

In September 2017, Hurricane Maria struck Puerto Rico as one of the strongest storms on record. It was a Category 5 hurricane with maximum sustained winds of 280 km/h. It resulted in 29,875 deaths [21] and caused at least USD 90 billion in damage [22]. Maria also caused a large-scale power outage across the island, with the entire area losing power on 21 September 2017 [23].

Hurricane Michael made landfall as an unprecedented Category 5 hurricane in Florida, with sustained wind speeds of 224 km/h in October 2018. The storm caused damage from wind in Central America, with an estimated USD 25.1 billion and at least 74 deaths [24]. Power outages affected approximately 1.7 million customers across Florida, Georgia, South Carolina, and other affected areas [25].

Hurricane Florence made landfall near Wrightsville Beach, North Carolina. Its intensity dwindled as it migrated inland, being classified as a Category 1 hurricane by the time it struck Jacksonville. The storm caused USD 24.23 billion in damage and 54 deaths in total [26]. More than 65,000 outages were reported in Jacksonville on 15 September 2018 [27].

Hurricane Dorian was a Category 5 hurricane that struck the Bahamas with maximum sustained winds of 295 km/h in September 2019. Heavy rainfall, high winds, and storm surge caused at least 70,000 people to become homeless and 77 direct deaths [28]. The estimated cost of Dorian is USD 3.4 billion [29].

Hurricane Iota was a devastating Category 4 hurricane that caused severe damage to Central America. The maximum sustained wind speed was 250 km/h. At least 67 people were killed, and 41 people were reported missing [30]. The storm generated an estimated USD 1.4 billion in damages [31].

The Nashville Tornado, a violent EF3 tornado with a maximum wind speed of 266 km/h, struck west of Cookeville on 3 March 2020. The tornado killed 25 in total, with an additional 309 injured. Total damage reached USD 1.607 billion, and was the 6th costliest tornado in the US [32]. More than 15,000 outages were reported across Nashville [33].

The Kentucky Tornado was a violent EF4 tornado that moved across western Kentucky with wind speeds up to 310 km/h in December 2021. This long-tracked tornado moved across Mayfield, Princeton, Dawson Spring, and Bremen. At least 74 deaths and 515 injuries were reported in this disaster [34]. Over 23,600 outages were reported during the tornado [35].

The Nepal Earthquake occurred on 25 April 2015, with a magnitude of Mw 7.1. It is the worst natural disaster that has struck Nepal since 1934. This earthquake triggered an avalanche on Mount Everest, resulting in the deaths of 22 people [36]. The damage inflicted on the country cost Nepal an estimated USD 10 billion, with large-scale power outages and the destruction of 446 public health facilities being reported [37].

The Mexico Earthquake struck on 19 September 2017, with an estimated magnitude of Mw 7.1. The earthquake caused buildings to collapse and killed more than 370 people. The total damage cost USD 8 billion [38].

Puerto Rico was struck by a Mw 6.4 earthquake on 7 January 2020. This disaster cost USD 3.1 billion. Approximately two-thirds of Puerto Rico was out of power following the earthquake [39].

A Mw 5.7 earthquake hit Salt Lake City on 18 March 2020, causing damage estimated to be at least USD 629 million [40]. More than 50,000 power outages were reported in northern Utah after the earthquake [41].

3. Methods

3.1. Resilience Curve

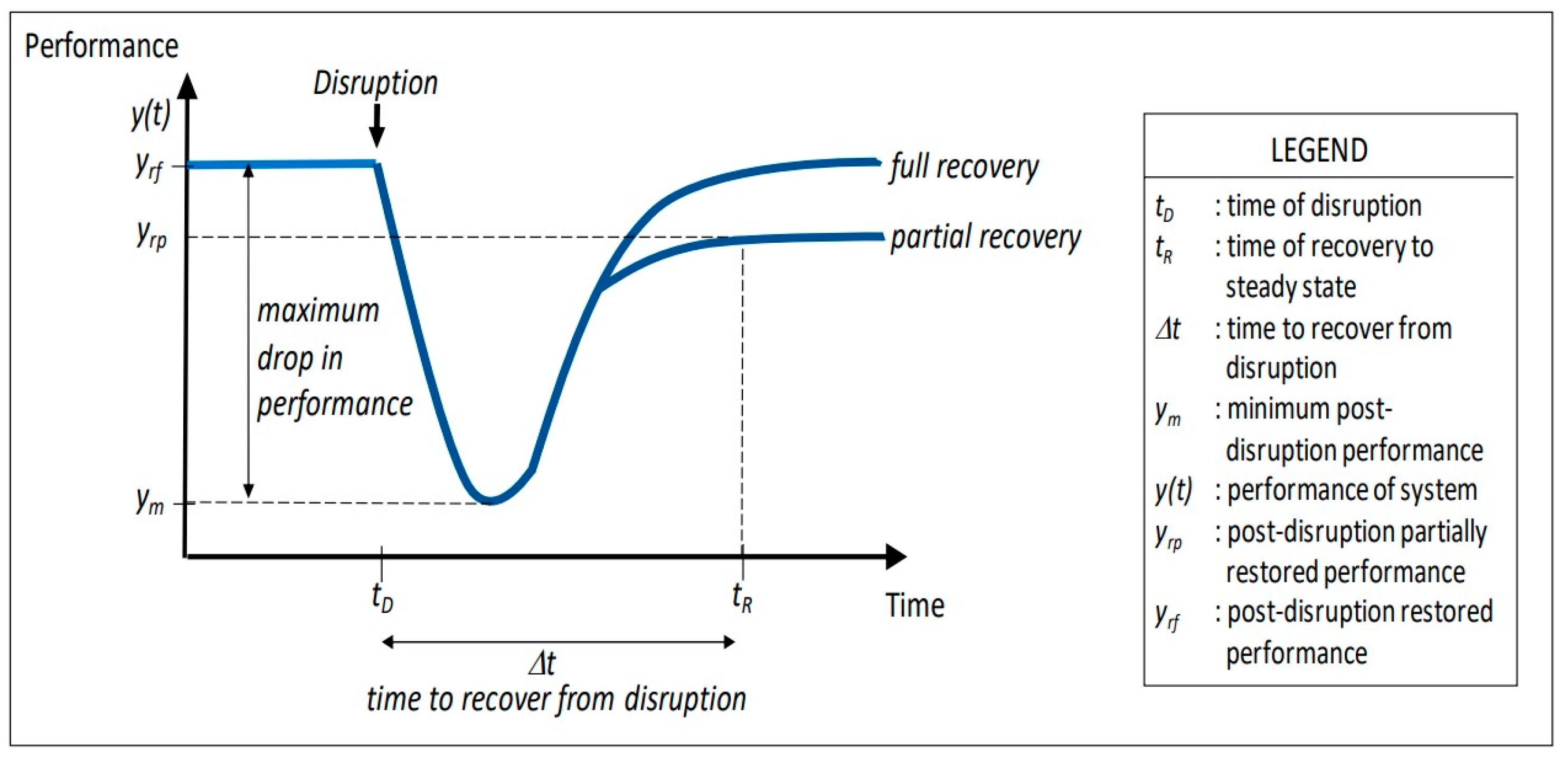

Before, during, and after a disaster occurs, the performance of a system is represented by the resilience curve, as depicted in Figure 6 [42]. At the time of disruption, the system’s performance experiences a sudden drop. As time progresses, the performance gradually increases, leading to either partial or full recovery, depending on the recovery efforts made. NTL can serve as one of the indicators of a system’s performance. If NTL is capable of illustrating damage, the NTL versus time curve before and after a disaster should align with the resilience curve to a certain extent.

To generate the resilience curve from the perspective of NTL, the average regional NTL value is calculated using Equation (1), representing the brightness of the area of interest:

$$Average region NTL = \frac{Sum of NTL value within the area of interest }{\# of pixels within the area of interest}$$

(1)

To create the average regional NTL versus day graph, daily NTL data is utilized. Twenty pre-disaster dates are selected, ranging from the 15th to the 34th day before the post-disaster date. The post-disaster date is identified as the first day after the event when the area of interest is primarily flagged as high quality in the quality flag layer. The post-disaster dates in this study included the first post-disaster date up to five days thereafter.

3.2. Pre-Disaster Daily NTL Fluctuations

NTL values can vary among days even in the absence of a disaster. To correctly depict the damage detected by NTL change, one must control for or eliminate the influence from pre-disaster daily NTL fluctuations.

For each disaster event, the pre-disaster daily NTL fluctuations were calculated based on average regional NTL (AR NTL) using Equation (2).

$$Predisaster daily NTL fluctuation = \frac{\sum _{i=34,\dots ,16}\frac{{|AR NTL}_i-{AR NTL}_{i-1}|}{{AR NTL}_i} }{20}$$

(2)

3.3. Relative NTL Change Ratio

This study uses a relative NTL change ratio layer to compare the pre- and post-disaster NTL values, which is calculated by Equation (3):

$$relative NTL change ratio = \frac{\left(Ra{d}_{pre}-Ra{d}_{post}\right)}{Ra{d}_{pre}}$$

(3)

where Rad_pre is the pre-disaster NTL radiance and Rad_post is the post-disaster NTL radiance. The study explores and compares two ways for generating the relative NTL change ratio:

• Using monthly NTL as Rad_pre: in this method, Rad_post is collected from the VNP46A2 data of the first post-disaster date. Rad_pre utilizes the VNP46A3 monthly data from the month before the disaster.
• Using daily NTL as Rad_pre: this method also uses VNP46A2 data for Rad_post but takes the VNP46A2 data 15 days prior to the first post-disaster date for Rad_pre. It is important to note that the 15th day before the post-disaster date is assuredly within the pre-disaster period in this work.

In both approaches, only two files need to be downloaded to obtain the NTL radiance: one for pre-disaster and the other for post-disaster. This contrasts with previous work, which required downloading multiple files and calculating the mean value to acquire pre- and post-disaster NTL radiance [4]. Both methods streamline the disaster reconnaissance process and enhance efficiency.

After a disaster, the affected area experiences changes in brightness, which can be quantified by the relative NTL change ratio. A negative relative change ratio indicates an increase in brightness, whereas a zero ratio suggests no change. Conversely, a positive ratio indicates a decrease in brightness, thereby indicating a disaster-affected area [4]. The degree of effect caused by the disaster is proportional to the size of the change ratio. In this study, the scenarios where recovery work may involve deploying temporary lights, which could yield increased brightness in the post-disaster date, are not considered. Pre-disaster daily NTL fluctuation needs to be considered and controlled to make sure the NTL change is mostly caused by the disaster.

The determination of the area of interest in this study relied on both the DPM and the quality flag layer. It should be noted that the DPM is less reliable in vegetated areas [43], and NTL change is commonly used to evaluate the impact of disasters on cities with electricity systems [11]. As such, this study primarily focuses on analyzing the nightlight change within the city limits. In certain cases, it may be challenging to identify a post-disaster date with uniformly high-quality NTL coverage for the entire city area. Therefore, only the area with a high-quality flag layer is considered for analysis.

The DPM is applied as the ground truth map for the damage degree. The DPM is first up-sampled to match the 500m resolution of the NTL change ratio layer. Within each NTL change ratio pixel, the ground truth damage degree is represented by the pixel with the highest damage degree from the DPM. In cases where no DPM pixel is included within the NTL pixel, the NTL pixel is marked as having no damage. The term DD will be used to refer to the ground truth damage degree from the DPM in the latter part of this study.

3.4. Confusion Matrix and F1 Score

A confusion matrix and F1 score are used to evaluate if the disaster-affected area detected by the NTL change ratio layer matches with the DD. Confusion matrices with true positive (TP), false positive (FP), false negative (FN), and true negative (TN) values are used to present the consistency, where TP refers to the number of pixels that are detected as damage from NTL change ratio and includes at least one damage degree point from the ground truth map (damaged); FP refers to the number of pixels that are detected as damage from the NTL change ratio but with no damage degree point from the ground truth map (undamaged); FN represents the number of pixels that are detected as undamaged from the NTL change ratio and includes at least one damage degree point from the ground truth map (damaged); TN represents the number of pixels that are detected as undamaged from the NTL change ratio and with no damage degree point from the ground truth map (undamaged). Given the imbalanced distribution between damaged and undamaged pixels, both accuracy and F1 score are used to analyze the result. The F1 score is the harmonic mean of precision and recall, wherein precision is the proportion of positive predictions that were actually correct, and recall is the proportion of actual positive classes that were identified. The F1 score can be calculated by Equation (4):

$$F1=\frac{TP}{TP+\frac{1}{2}(FP+FN)}$$

(4)

3.5. Pearson Correlation Coefficient (PCC)

PCC is used to assess whether the NTL change ratio can reflect the damage degree in affected areas. Specifically, the PCC aims to determine whether there exists a linear relationship between the NTL change ratio and the DD. PCC is calculated by Equation (5):

$$PCC=\frac{cov(NTL,DD)}{\begin{array}{c}{\sigma }_{NTL}{\sigma }_{DD}\end{array}}$$

(5)

where $cov$ is the covariance, ${\sigma }_{NTL}$ is the standard deviation of the NTL change ratio, and ${\sigma }_{DD}$ is the standard deviation of the DD. The PCC has the range of −1 to 1. If there is a linear relationship between the NTL change ratio and DD, the absolute value of the PCC will be close to 1. In cases where no such relationship exists, the PCC will be close to 0. Ideally, an increase in the degree of damage should correspond to a larger relative change in NTL.

Given that ARIA [19] only permits the retrieval of color-coded Damage Proxy Maps (DPMs), it is crucial to digitize the DPM to discern color alterations indicative of DD variations more effectively. The color-coded DPM employs a progression from yellow to dark red as a visual indication of escalating damage across the map, with the representation of DD achieved through four color bands: Red (R), Green (G), Blue (B), and transparency. For detailed analysis, it becomes necessary to isolate the shift from yellow to red using a single band rather than multiple. With this in mind, the RGB channels are transformed into the Hue, Saturation, Value (HSV) channel, as the hue component can effectively capture color proportions. Consequently, the value derived from the hue channel is employed to interpret the DD value. The spectrum of DD values ranges from 0 to 0.167, mirroring the values of the hue channel spanning from dark red to yellow. Therefore, a smaller DD value indicates higher damage. The range of the NTL change ratio is from 0.1 to 1.

The analysis is carried out on pixels that exhibit a positive NTL change ratio and contain at least one damage degree point from the DPM.

4. Results

4.1. NTL Resilience

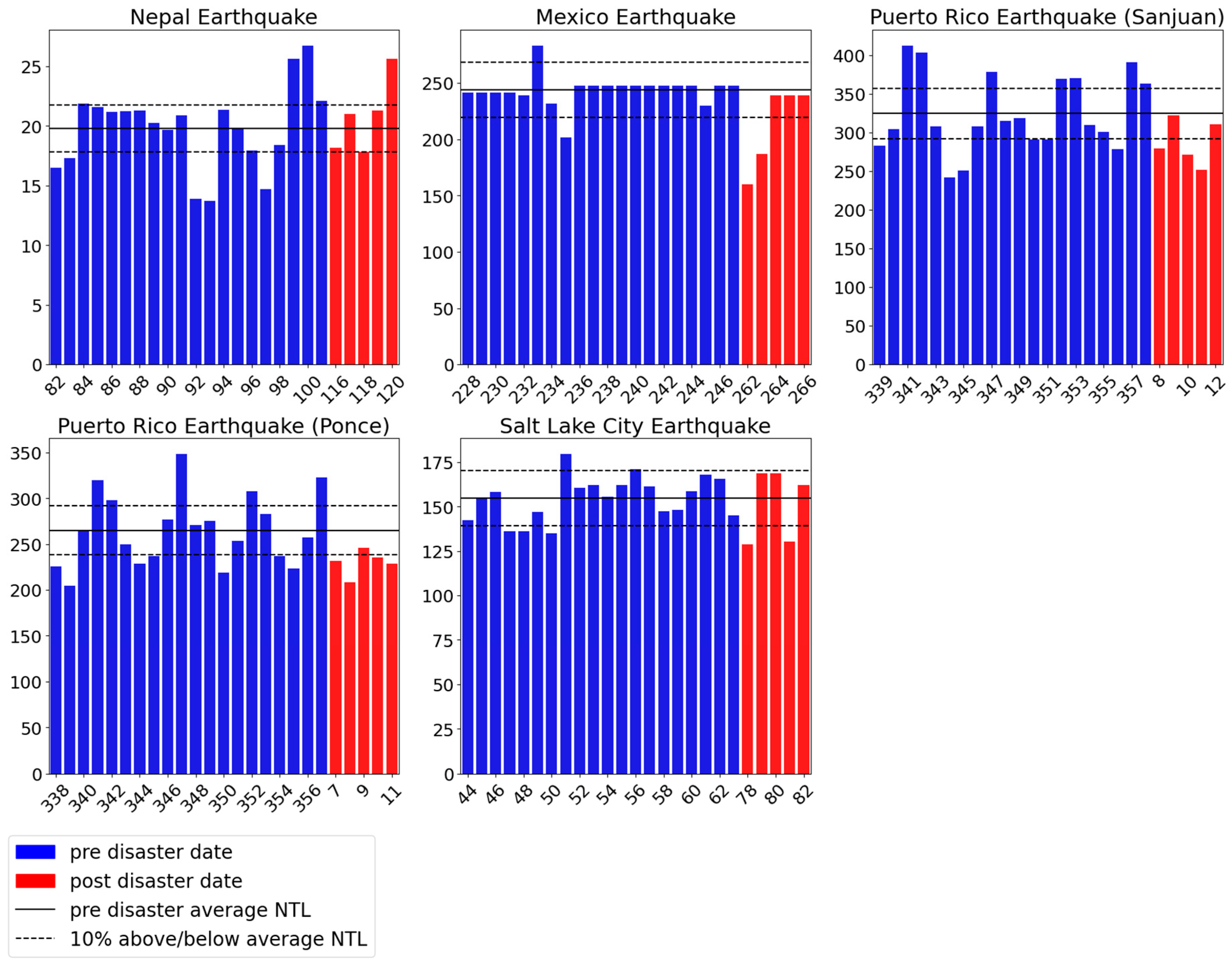

Figure 7, Figure 8 and Figure 9 depict the NTL resilience trend for hurricanes, tornadoes, and earthquakes, respectively. In each subplot, the x-axis represents the Julian day, while the y-axis displays the NTL radiance ($nWatts {\mathrm{c}\mathrm{m}}^{-2}{\mathrm{s}\mathrm{r}}^{-1}$).

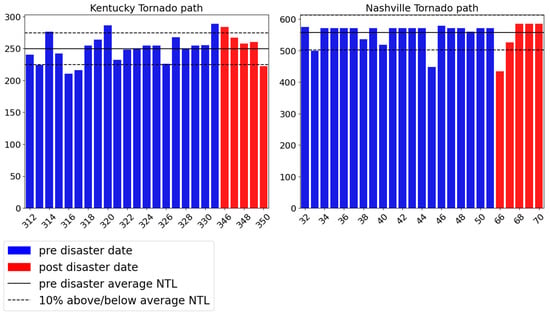

• The blue bars represent the AR NTL values for the pre-disaster days.
• The red bars illustrate the AR NTL values for the post-disaster days.
• The solid black line indicates the average NTL value for the pre-disaster days for each specific event.
• The black dashed lines signify NTL values that are 10% above or below the average, serving as a reference point to gauge fluctuations.

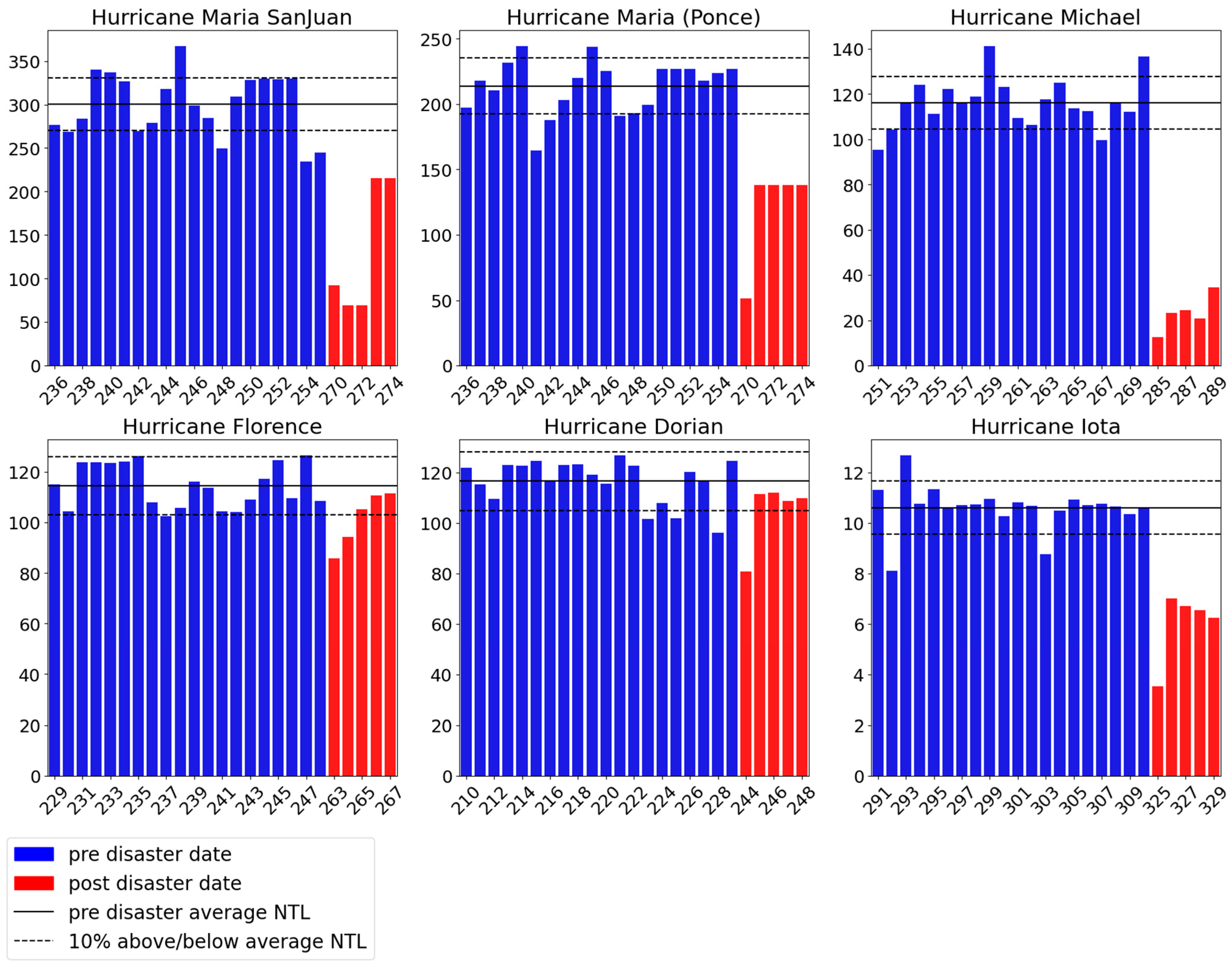

For hurricane events, as shown in Figure 7, a clear drop of NTL can be observed in the first post-disaster date, and the recovery trend can be observed as well, which fits the resilience curve in Figure 6. A partial recovery can be observed for Hurricane Maria, Hurricane Michael, and Hurricane Iota. For Hurricane Florence and Hurricane Dorian, an almost full recovery from the perspective of NTL can be observed. These trends confirm that NTL can be a good indicator of the damage caused by hurricanes.

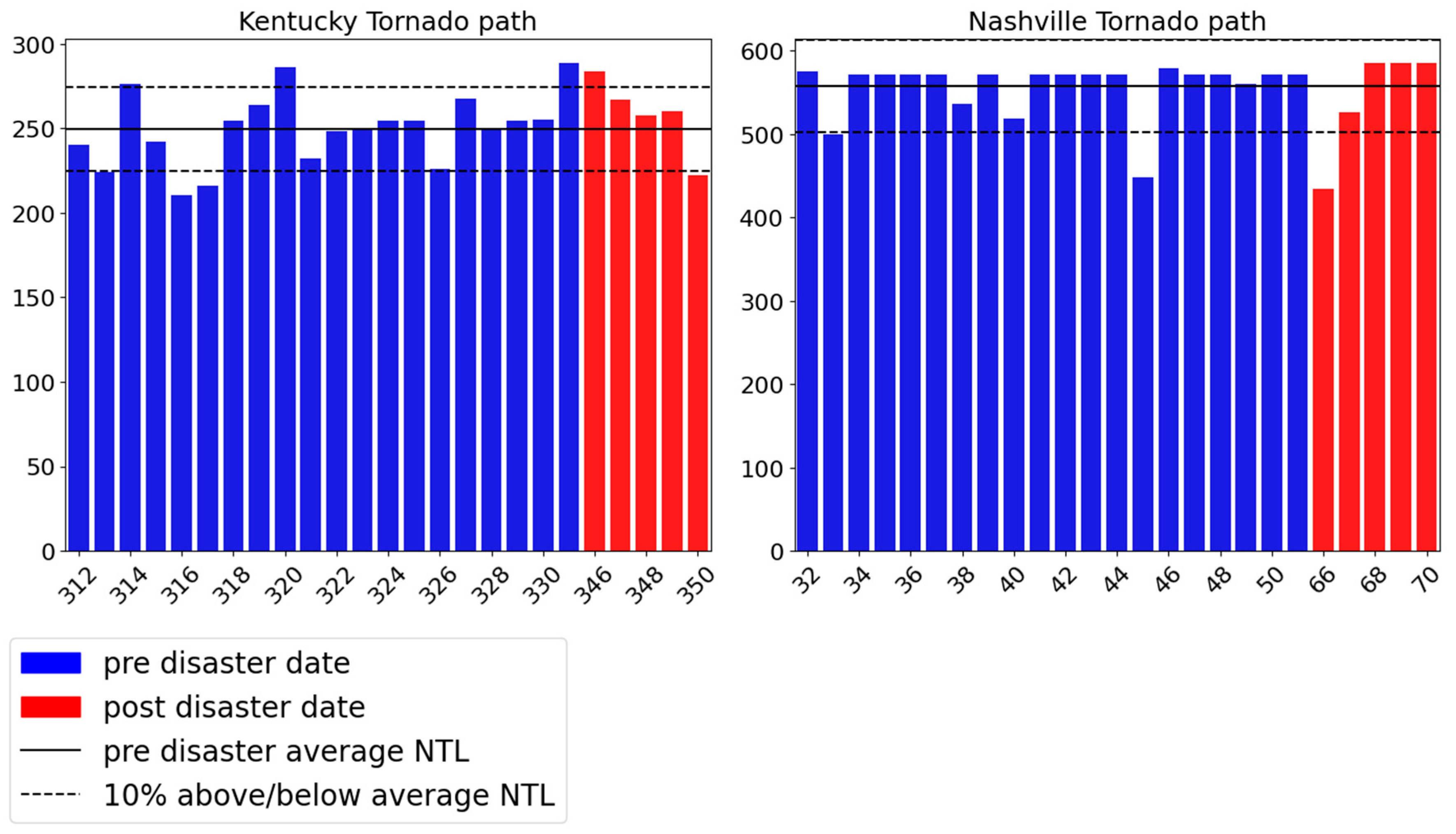

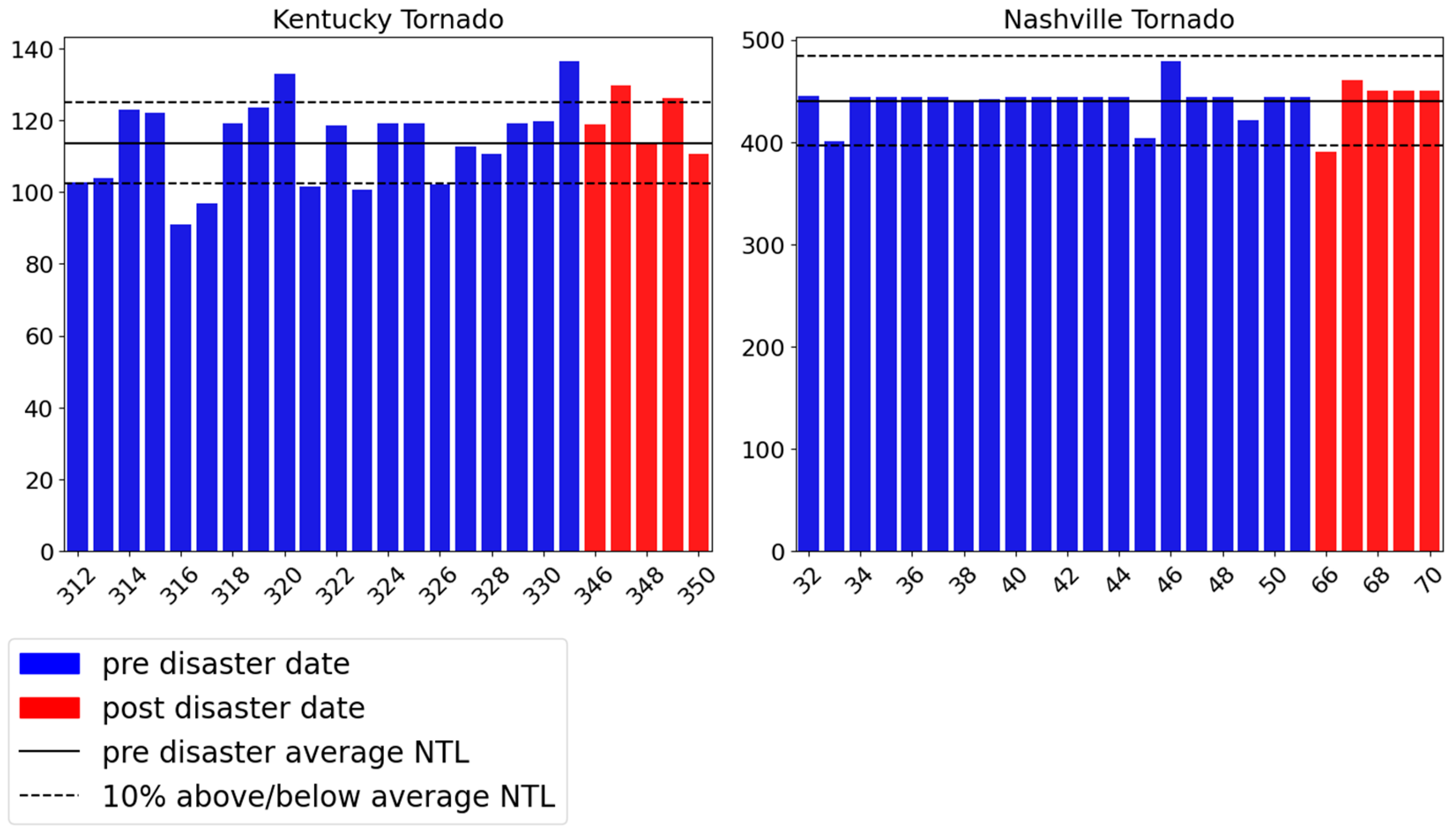

The resilience trend in tornado events (Figure 8) is less pronounced than in hurricane events. For example, in the case of the Kentucky Tornado, there is no noticeable drop in NTL following the disaster. As for the Nashville Tornado, an initial drop in NTL is observed on the first chosen day after the disaster. However, the NTL returns to above-average levels on the second post-disaster day, indicating that there was no discernible recovery process. This contrasts with the typical resilience curve (Figure 6), which could indicate that NTL is a less robust factor when representing the damage caused by tornados.

In the resilience curve presented in Figure 6, certain features, such as the initial drop in system performance when a disaster occurs, followed by a gradual recovery process, are typically observed. However, these features are not evident in the earthquake events, with the exception of the Mexico Earthquake (Figure 9). This inconsistency between the observed NTL resilience trend and the resilience curve in Figure 6 may suggest that NTL is not a reliable factor for depicting the damage caused by earthquakes.

4.2. Pre-Disaster NTL Daily Fluctuations

Pre-disaster daily fluctuations in NTL values can be observed in Figure 7, Figure 8 and Figure 9. These fluctuations before the disaster suggest that factors other than disasters themselves can contribute to changes in NTL values.

Table 3. Pre-disaster daily NTL fluctuations.

Event Type	Event Name	Study Area	Daily NTL Fluctuations (Pre-Disaster)
Hurricane	Hurricane Maria	San Juan	9.59%
	Hurricane Maria	Ponce	8.02%
	Hurricane Michael	Panama City	9.54%
	Hurricane Florence	Jacksonville	7.04%
	Hurricane Iota	Providencia	9.39%
	Hurricane Dorian	West Grand Bahama	8.11%
Tornado	Kentucky Tornado	Bowling Green	10.97%
	Nashville Tornado	Nashville	3.64%
Earthquake	Nepal Earthquake	Kathmandu	13.72%
	Mexico Earthquake	Texcoco	4.95%
	Puerto Rico Earthquake	San Juan	14.09%
	Puerto Rico Earthquake	Ponce	15.21%
	Salt Lake City Earthquake	Salt Lake City	7.41%

details the pre-disaster daily NTL fluctuations for each disaster event, calculated using Equation 2, with variations ranging from 3.64% to 15.21%. The average daily NTL fluctuation across all disasters is 9.36%.

When examining the black dashed line in Figure 7, Figure 8 and Figure 9, which represents a level 10% below the average for each disaster event, it is found that most of the NTL values for the first post-disaster date fall below this line. Consequently, in this study, pixels showing a relative change ratio lower than 10% are classified as non-disaster-affected areas. This threshold helps to differentiate between regular fluctuations and those specifically caused by disasters, providing more accurate insights into the areas genuinely affected.

4.3. Damaged/Undamaged Area Detection from NTL Change Ratio

The relative NTL change ratio is calculated to detect the damaged area after disasters. F1 and accuracy are used to evaluate the consistency between DD and NTL-detected damage. The study compares two distinct methods for calculating the NTL change ratio. The first approach uses daily NTL data as Rad_pre, whereas the second leverages monthly NTL data. This comparison aims to analyze the nuances of both methods and their effectiveness in providing accurate insights into disaster-affected areas.

4.3.1. Damaged/Undamaged Area Detection from NTL Change Ratio Using Daily NTL Data as Rad_pre

Table 4. The confusion matrices, accuracy, and F1 scores of different disasters in damaged/undamaged detection using daily NTL data as Rad_pre.

Event Type	Event Name and Location	DD	NTL Detected		Accuracy	F1
			Damaged	Undamaged
Hurricane	Hurricane Maria (San Juan)	Damaged	1193	161	0.839	0.904
		Undamaged	91	123
	Hurricane Maria (Ponce)	Damaged	291	107	0.685	0.811
		Undamaged	29	5
	Hurricane Michael (Panama City)	Damaged	1196	20	0.756	0.859
		Undamaged	374	30
	Hurricane Florence (Jacksonville)	Damaged	441	225	0.551	0.609
		Undamaged	303	237
	Hurricane Iota	Damaged	61	57	0.700	0.459
		Undamaged	87	275
	Hurricane Dorian	Damaged	353	8	0.641	0.768
		Undamaged	208	33
Tornado	Kentucky Tornado (Bowling Green)	Damaged	640	502	0.494	0.557
		Undamaged	518	355
	Nashville Tornado	Damaged	634	229	0.464	0.561
		Undamaged	761	224
Earthquake	Nepal Earthquake	Damaged	956	74	0.510	0.659
		Undamaged	916	75
	Mexico Earthquake (2017, Texcoco)	Damaged	259	71	0.704	0.863
		Undamaged	41	7
	Puerto Rico Earthquake (San Juan)	Damaged	756	619	0.563	0.593
		Undamaged	417	576
	Puerto Rico Earthquake (Ponce)	Damaged	154	83	0.558	0.660
		Undamaged	76	47
	Salt Lake City Earthquake	Damaged	309	248	0.560	0.565
		Undamaged	227	296

shows the confusion matrices, accuracy, and F1 scores calculated from the DD and NTL maps of different disasters. The analysis utilizes daily NTL data as Rad_pre, specifically selecting the data from the 15th day before the post-disaster date.

The performance across different disaster event types exhibits variations. Hurricane events show the highest F1 score, followed by earthquake and tornado events. Specifically, the average F1 scores for hurricanes, earthquakes, and tornadoes are 0.735, 0.668, and 0.558, respectively. Among hurricanes, Hurricane Maria (San Juan and Ponce), Hurricane Michael, and Hurricane Dorian achieve F1 scores over 75%, whereas Hurricane Iota and Hurricane Florence demonstrate relatively weaker performances, with F1 scores of 0.459 and 0.609, respectively. Regarding earthquakes, most cases attain F1 scores around 60%, except for the Mexico Earthquake, which shows superior performance with an F1 score of 84.2%. Nevertheless, the accuracy of most earthquake cases is only around 55%, indicating that the NTL layer only slightly outperforms a random guess. The performance of tornado events is worse than that of earthquakes, exhibiting an average F1 score of 56% and an average accuracy of 48%.

However, it is worth considering that daily fluctuations among pre-disaster days may introduce variability. Consequently, selecting daily NTL from different pre-disaster dates to calculate the relative NTL change ratio could lead to disparate results and conclusions. To investigate this further, two additional experiments were conducted using the 16th and 18th days before the post-disaster date as Rad_pre, respectively. Figure 10, Figure 11 and Figure 12 display the comparison of the F1 score when using the 15th, 16th, and 18th day before the post-disaster date as Rad_pre for hurricane, tornado, and earthquake events. This comparative analysis aims to shed light on the influence of these pre-disaster time frames on the consistency of NTL damage detection.

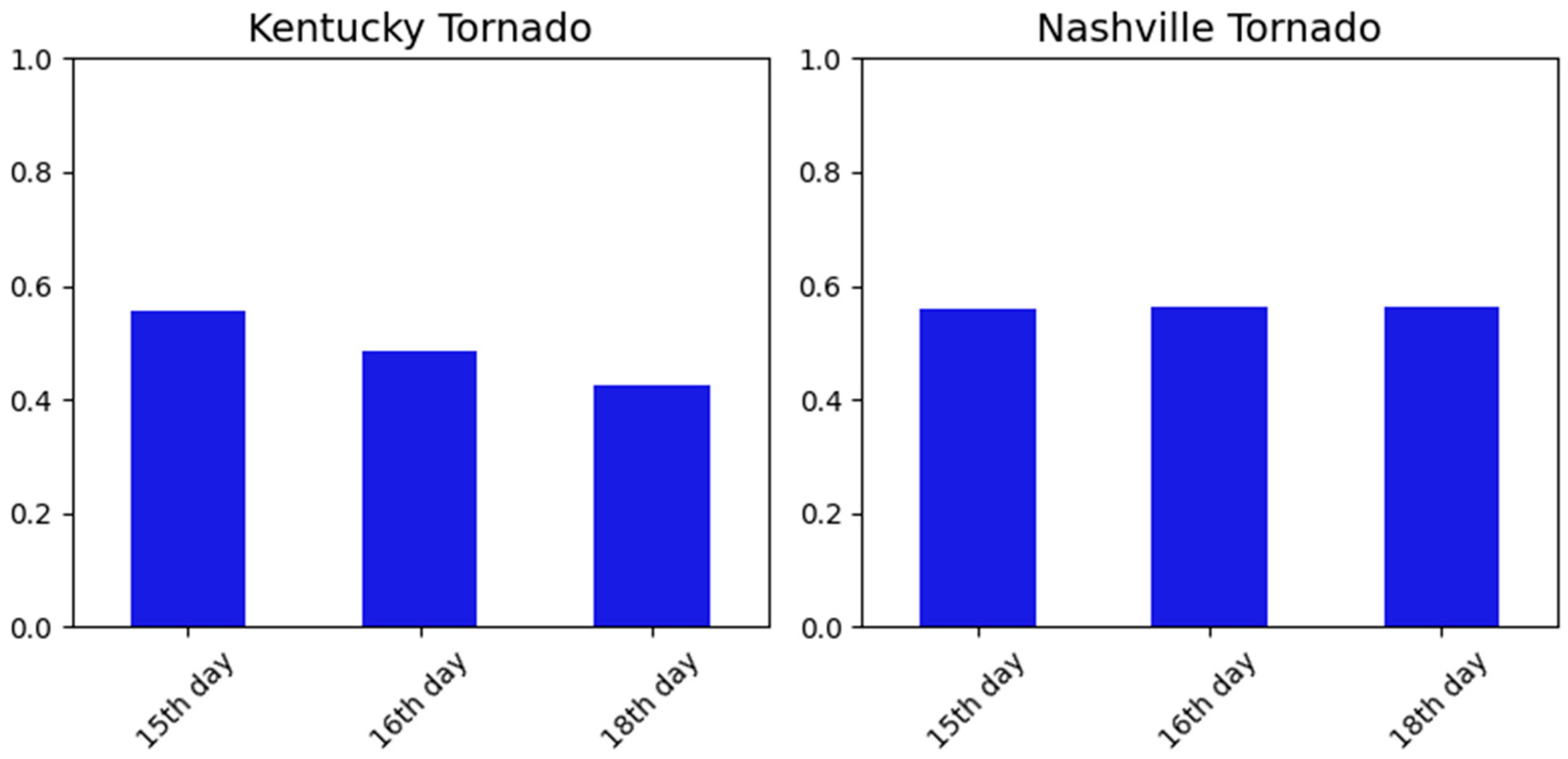

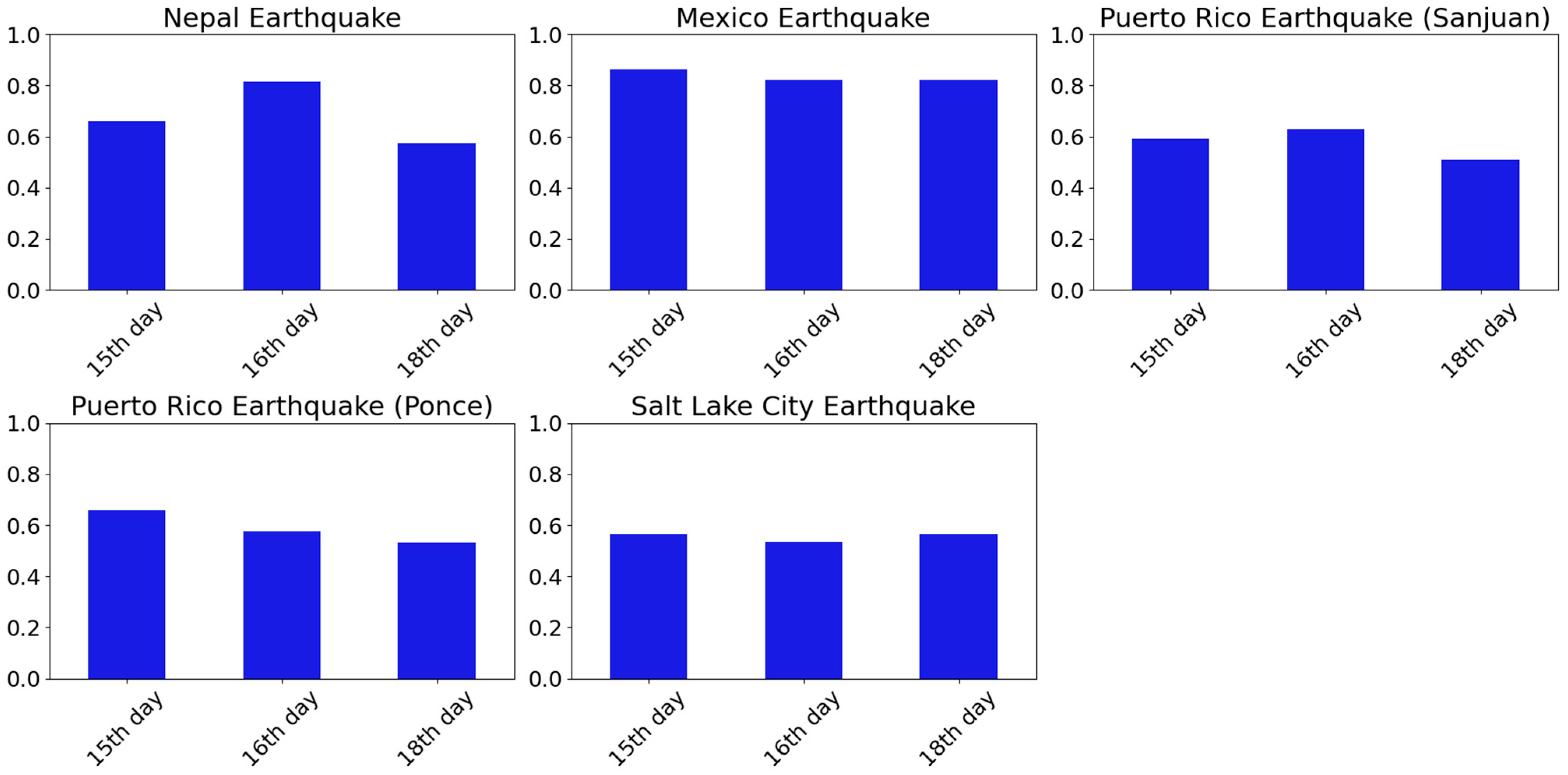

For the majority of disaster events, the F1 score remains consistent regardless of the pre-disaster date selected. However, a few outliers show variability in the F1 score, including Hurricane Dorian, the Kentucky Tornado, and the Nepal Earthquake. In the case of Hurricane Dorian, the F1 score can decrease from 0.768 to 0.466 when choosing a different pre-disaster date, leading to a significantly different conclusion in detecting the damaged area. This indicated that while using daily data can yield stable results to a certain extent, future events may still demonstrate variations depending on the specific daily pre-disaster NTL data chosen. Therefore, it underscores the importance of seeking a more stable representation of Rad_pre, to ensure that the detection method remains reliable across different disasters.

4.3.2. Damaged/Undamaged Area Detection from NTL Change Ratio Using Monthly NTL Data as Rad_pre

Monthly NTL data provide an effective pre-disaster measurement, as the daily fluctuations are smoothed out. This aggregation over a longer time frame provides a more stable and consistent representation, reducing the risk of variability from daily changes.

Table 5. The confusion matrices, accuracy, and F1 scores of different disasters in damaged/undamaged detection using monthly NTL data as Rad_pre.

Event Type	Event Name and Location	DD	NTL Detected		Accuracy	F1
			Damaged	Undamaged
Hurricane	Hurricane Maria (San Juan)	Damaged	1201	165	0.842	0.906
		Undamaged	83	119
	Hurricane Maria (Ponce)	Damaged	296	107	0.697	0.819
		Undamaged	24	5
	Hurricane Michael (Panama City)	Damaged	1280	25	0.806	0.890
		Undamaged	290	25
	Hurricane Florence (Jacksonville)	Damaged	478	299	0.545	0.641
		Undamaged	236	163
	Hurricane Iota	Damaged	59	40	0.732	0.477
		Undamaged	89	292
	Hurricane Dorian	Damaged	302	8	0.556	0.693
		Undamaged	259	33
Tornado	Kentucky Tornado (Bowling Green)	Damaged	374	227	0.498	0.425
		Undamaged	784	630
	Nashville Tornado	Damaged	727	239	0.509	0.616
		Undamaged	668	214
Earthquake	Nepal Earthquake	Damaged	910	25	0.511	0.648
		Undamaged	962	124
	Mexico Earthquake (2017, Texcoco)	Damaged	223	64	0.627	0.760
		Undamaged	77	14
	Puerto Rico Earthquake (San Juan)	Damaged	297	240	0.529	0.347
		Undamaged	876	955
	Puerto Rico Earthquake (Ponce)	Damaged	48	43	0.375	0.299
		Undamaged	182	87
	Salt Lake City Earthquake	Damaged	207	144	0.562	0.467
		Undamaged	329	400

shows the confusion matrices, accuracy, and F1 scores calculated from the DD and NTL maps of different disasters, which utilize monthly NTL data as Rad_pre, specifically selecting the data from the one month prior to the post-disaster date.

It is evident that NTL-detected damage aligns most consistently with the DD in hurricane events, yielding an average F1 score of 0.738. This is followed by tornados, with an average F1 score of 0.521, and earthquakes, with an average F1 score of 0.504. Within hurricane events, the performance is not uniform. Hurricane Michael and both instances of Hurricane Maria achieve an F1 score above 0.8. In contrast, Hurricane Florence and Hurricane Dorian only achieve an F1 score above 0.6, and the F1 score for Hurricane Iota is just 0.477.

For tornadoes and earthquakes, the results suggest that the damage detected by the NTL change ratio is roughly equivalent to, or even worse than, a random guess. The Mexico Earthquake is the only exception, with an F1 score of 0.76.

This variation in NTL performance when detecting damage across different disaster types aligns with the NTL resilience trends depicted in Figure 7, Figure 8 and Figure 9. The NTL resilience trend for hurricane events conforms to the features of a resilience curve (Figure 6): a sharp decline when the disaster occurs, followed by a slow recovery process, which explains the higher F1 scores achieved when using NTL to detect damage caused by hurricanes. Conversely, the NTL resilience trends for tornadoes and earthquakes do not exhibit the characteristics of a resilience curve (Figure 6), which lead to a lower F1 score. The NTL resilience trend for the Mexico Earthquake aptly captures the characteristic features of a resilience curve compared with other earthquake events. This distinctive pattern may explain the high F1 score for the Mexico Earthquake case, as the NTL data effectively captures the disaster resilience features specific to this event. Overall, the lack of alignment contributes to the lower average F1 scores. Therefore, the effectiveness of NTL in detecting disaster-related damage appears to be closely related to the underlying resilience trends specific to different disasters.

4.4. Damage Degree Detection from NTL Change Ratio Layer

Section 4.3 elucidates the performance of the NTL change ratio in detecting damaged and undamaged areas. Building on that analysis, this section explores whether the NTL change ratio can further illustrate the degree of damage, employing the method described in Section 3.5. Specifically, the PCC is calculated to characterize the linear relationship between the DD and the NTL change ratio.

Table 6. The PCC of different disasters.

Event Type	Event Name and Location	PCC
Hurricane	Hurricane Maria (San Juan)	−0.068
	Hurricane Maria (Ponce)	−0.152
	Hurricane Michael (Panama City)	−0.269
	Hurricane Florence (Jacksonville)	0.049
	Hurricane Iota	−0.081
	Hurricane Dorian	0.146
Tornado	Kentucky Tornado (Bowling Green)	−0.121
	Nashville Tornado	−0.041
Earthquake	Nepal Earthquake	−0.193
	Mexico Earthquake (2017, Texcoco)	0.064
	Puerto Rico Earthquake (San Juan)	−0.001
	Puerto Rico Earthquake (Ponce)	0.061
	Salt Lake City Earthquake	−0.077

presents the PCC values for the disaster events.

In every case, the absolute value of the PCC is close to zero, indicating that there is no discernible linear relationship between the NTL change ratio and DD. Specifically, the NTL relative change ratio does not increase as the severity of damage goes up. This finding suggests that the NTL change ratio is unable to effectively capture or represent the varying degrees of damage.

5. Discussion

5.1. Variation in NTL Damage Detection Performance among Different Types of Disasters

The results shown in Section 4.3 indicate the variation in NTL damage detection performance among hurricanes, tornados, and earthquakes. The variations are attributed to the impact of disasters on the electric system, which may be more vulnerable to hurricanes and tornados than to earthquakes [44].

Hurricanes have the potential to inflict widespread damage on a given area, including substantial harm to the power system. Figure 13 shows the damage detected by the NTL change ratio and the corresponding DPM of Hurricane Maria. The coherence between the large-scale damage and widespread power outage leads to a high performance in detecting damage using the NTL relative change ratio.

Despite also involving intense winds, tornadoes tend to affect areas directly along their paths, rather than causing widespread, evenly distributed damage. Consequently, the performance of the NTL change ratio model in detecting regional damage does not match the effectiveness observed for hurricane events. This will be further discussed in Section 5.3.

While earthquakes can damage distribution systems and transmission towers in areas with unstable soil, the major cause of power outages is abnormally high wind, which is more prevalent in hurricane and tornado events [44]. Additionally, the damage wrought by earthquakes is often influenced by local site effects, making it more variable [45]. As a result, the effectiveness of using the NTL change ratio to detect damage caused by earthquakes tends to be both poor and inconsistent. This highlights the importance of understanding the specific nature and impact patterns of each disaster type when utilizing NTL data for damage assessment.

5.2. The Influence Factors of Damaged/Undamaged Area Detection Using NTL Change Ratio in Hurricanes

Based on the experiments in Section 4.3, the nighttime change ratio layer has been shown to be effective in detecting damaged/undamaged areas resulting from hurricane events. However, a performance difference still exists among the different cases. Specifically, in both cases, Hurricane Maria and Hurricane Michael have F1 scores of over 0.8, whereas the F1 scores for Hurricane Iota, Hurricane Florence, and Hurricane Dorian are relatively low. The performance of the nighttime change ratio layer in detecting damage caused by hurricanes may be influenced by other factors, which are discussed in this study from two perspectives: hurricane category and the average NTL value on the pre-disaster day.

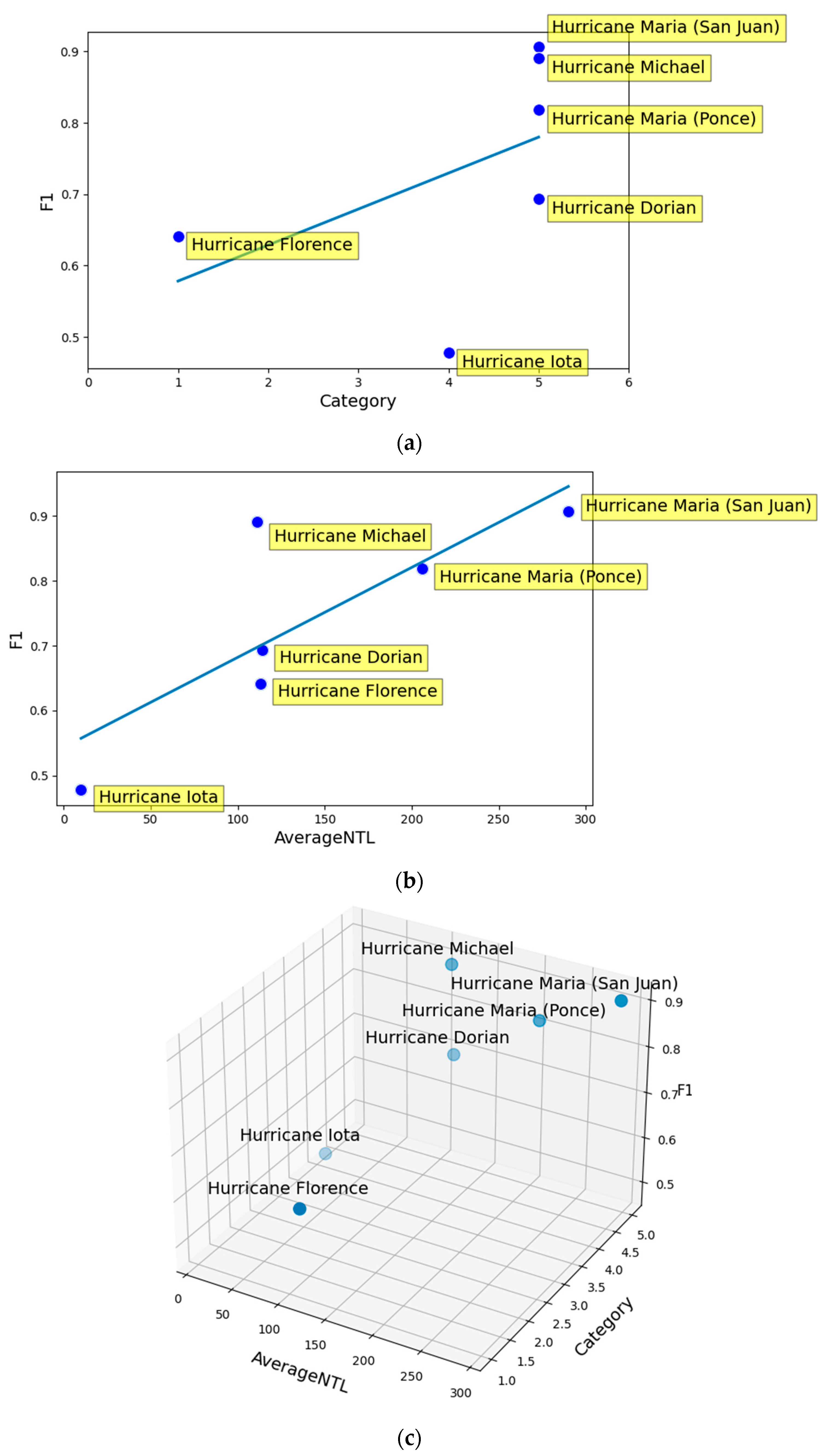

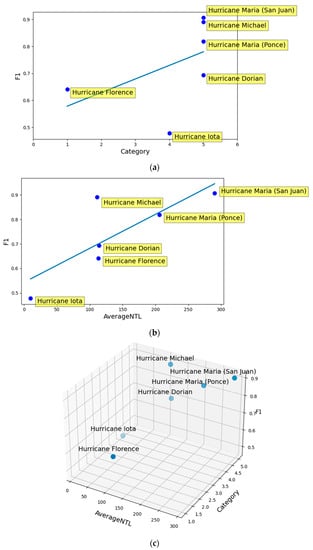

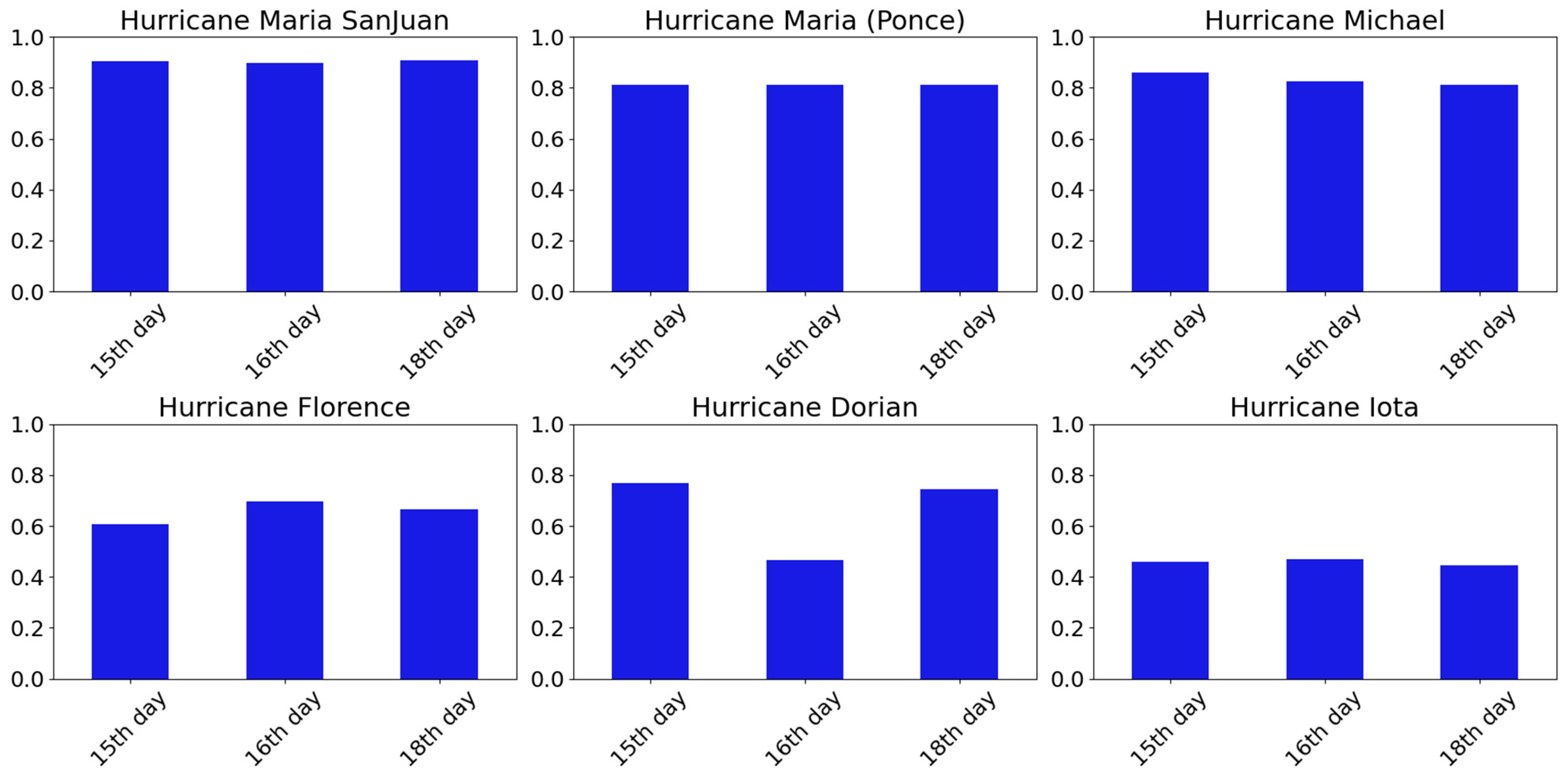

Figure 14a reveals a general pattern wherein the F1 score increases as the average NTL value in the pre-disaster day increases. This phenomenon can be explained by the fact that when the average NTL on the pre-disaster day is low (indicating an area that is generally dimly lit at night), it becomes challenging to accurately discern relative NTL changes. This difficulty contrasts with areas with higher NTL values, where changes are more readily observable.

Figure 14b points to the absence of a linear relationship between the hurricane category and the F1 score. This means that the efficiency of NTL damage detection does not necessarily improve with an increase in the hurricane category, even when more damage is caused. However, this conclusion might be influenced by the imbalanced distribution of hurricane categories in this study. Investigating a broader range of hurricanes could potentially alter this finding.

Figure 14c illustrates the relationship between the F1 score, average NTL, and hurricane category. A notable gap can be observed between Hurricane Florence and Hurricane Dorian. By examining more hurricanes, there may be an opportunity to create a predictive surface to determine the optimal conditions for utilizing the NTL relative change ratio to detect damage caused by hurricanes, which could be done in future work.

5.3. Damaged/Undamaged Area Detection Using NTL Change Ratio along Tornado Path

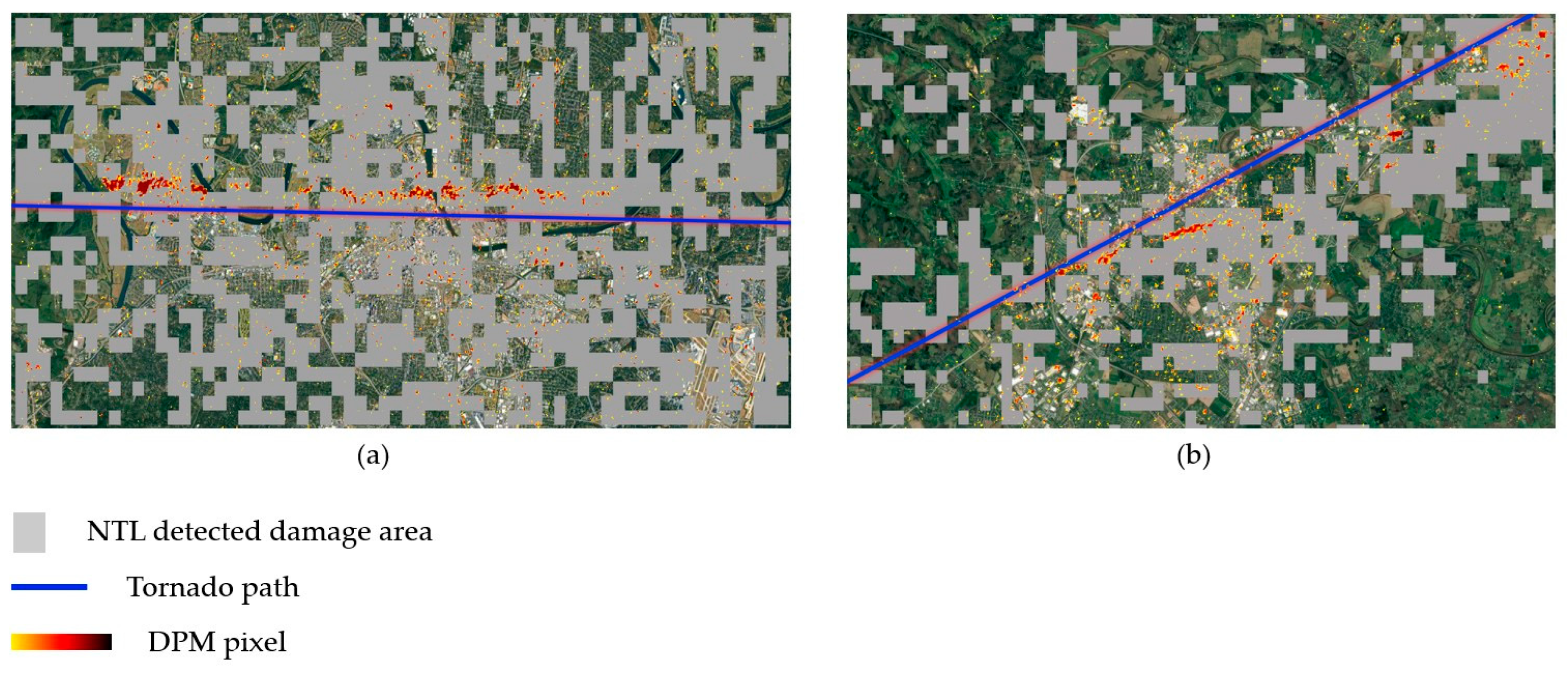

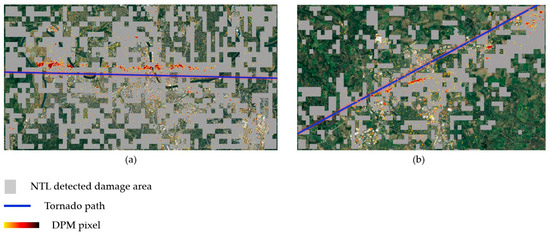

As discussed in Section 5.1, the damage caused by tornados can be concentrated along the tornado path; therefore, the performance using NTL to detect regional damage in both tornado cases is not ideal. It is worth investigating if the performance will increase if the study area is limited to the tornado path, instead of focusing on the whole region. Figure 15 shows the study areas, DPMs, tornado paths, and NTL-detected damaged areas of the Nashville Tornado and Kentucky Tornado. The new study area along the tornado path was created by generating a buffer zone along the path with a distance the same as the tornado width. Note that the information about the tornado width and tornado path was gathered from the NOAA storm prediction center [46].

The NTL trends before and after the disaster were generated, as shown in Figure 16. For the Kentucky Tornado, the NTL trend fails to show the features of the resilience curve. However, for the Nashville Tornado, a clear drop in NTL after the disaster followed by a gradual recovery can be observed.

The NTL damage detection results for both tornadoes using the new study area are shown in

Table 7. The confusion matrices, accuracy, and F1 scores of tornados in damaged/undamaged detection along the tornado path.

Event Type	Event Name and Location	DD	NTL Detected		Accuracy	F1
			Damaged	Undamaged
Tornado	Kentucky Tornado (Bowling Green)	Damaged	27	47	0.367	0.466
		Undamaged	15	9
	Nashville Tornado	Damaged	439	85	0.706	0.819
		Undamaged	109	27

. Monthly data are used as Rad_pre.

The Nashville and Kentucky tornado cases present contrasting results with the utilization of the NTL relative change ratio for damage detection, which is consistent with the corresponding NTL trend. In the Nashville Tornado, a commendable F1 score of 0.819 illustrates a marked improvement in the accuracy of damage detection compared to the wider region’s score of 0.616. However, the performance in the Kentucky Tornado case is still poor, which may be attributed to the specific construction of the study area. Given the tornado width of 402 m in Kentucky [46], the corresponding buffer zone’s width of 804 m, coupled with the 500m resolution of NTL data, results in a study area covering only a sparse number of NTL pixels. This limited coverage can lead to less-reliable results. On the other hand, the greater width of the Nashville Tornado, 1463 m, ensures adequate NTL pixel coverage, enabling a more robust and credible conclusion [46].

While promising in some instances, the application of the NTL relative change ratio to detect damage along a tornado’s path still requires careful consideration. Future research and experiments could provide further insight for more consistent outcomes across different tornado events.

6. Conclusions

This study explored the potential of the Black Marble NTL product in identifying damaged and undamaged areas, as well as assessing the degree of damage inflicted by hurricanes, tornadoes, and earthquakes. Initially, the research established average regional NTL trends before and after each disaster, assessing whether NTL serves as a viable indicator for damage across different disaster types. The results showed that the NTL trend for hurricanes more closely mirrors the characteristics of a resilience curve, in contrast to earthquakes and tornadoes. The study further examined pre-disaster NTL daily fluctuations to ensure that future experiments focus solely on NTL changes instigated by the disaster. This led to the calculation of the relative NTL change ratio using pre- and post-disaster NTL data, with the employment of VNP46A3 monthly NTL data effectively mitigating the variance introduced by daily fluctuations.

Key findings of the study include the relative strength of the NTL change ratio in detecting damage caused by hurricanes, with its performance in assessing earthquake and tornado damage being inconsistent or even below random guessing levels. The alignment of NTL change ratio performance with the NTL resilience trend adds credibility to the method. Furthermore, NTL proved particularly adept at identifying hurricane damage in well-lit areas and showed potential in delineating damage along tornado paths.

However, the low PCC value between the NTL change ratio and DD indicated that the current approach is insufficient to quantify the degree of damage in hurricane, earthquake, and tornado events.

Overall, this study advances a timely and streamlined approach for detecting damaged and undamaged areas, particularly valuable for hurricane reconnaissance. It also illuminates areas for further refinement and potential expansion, underscoring the importance of continued exploration and methodological refinement in leveraging NTL data for disaster assessment and response. This study has some limitations that should be acknowledged. Firstly, the DPM provided by NASA was used as the ground truth damage degree map in this work, but it was generated by InSAR, which primarily reflects changes in landforms rather than the electricity system. This may lead to errors in generating the confusion matrices when compared to NTL data, which captures more changes in the electricity system. Additionally, the resolution of the damage detected by NTL is relatively coarse at 500m, which is lower than the 30m resolution provided by the DPM. Although NASA currently offers the Black Marble HD product, which provides daily NTL data with 30m resolution, this product is currently limited to collaborators on funded projects. However, the tools to produce the HD products will be available through Google Earth Engine in the future [47], enabling researchers to generate higher-resolution damage degree maps using NTL with the Black Marble HD product.
