# Combining InSAR and GNSS to Track Magma Transport at Basaltic Volcanoes

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The 26 May 2016 Eruption of Piton De La Fournaise Volcano

## 3. Geodetic Measurement Description

#### 3.1. InSAR Data

#### 3.2. GNSS Data

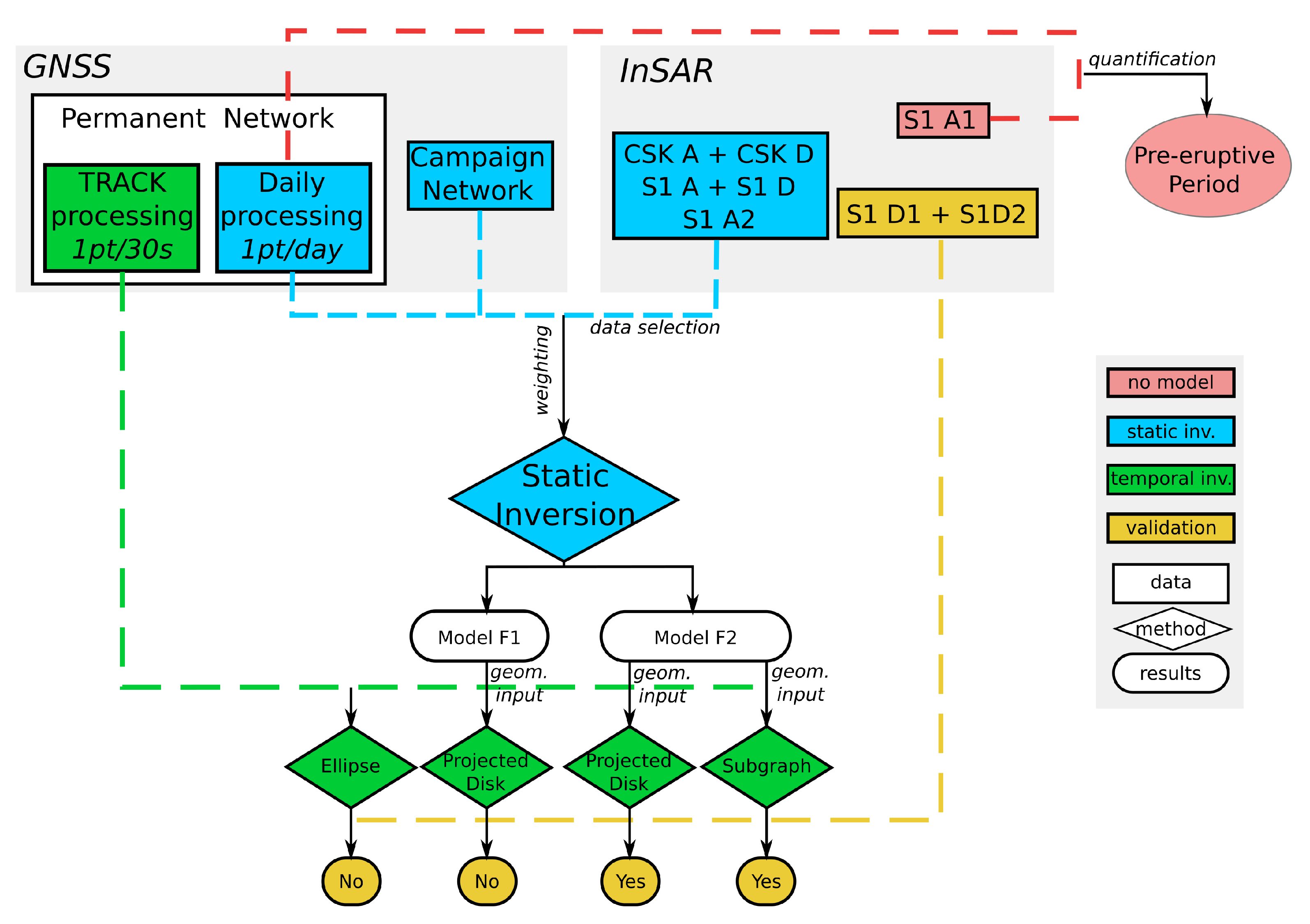

## 4. Inverse Models

#### 4.1. Inversion and Data Weighting Through the Covariance Matrix

^{th}interferogram and N is the total number of interferograms. This scaling is equivalent to applying different scaling factors of ${{\chi}^{2}}_{ref}^{i}/{\chi}_{ref}^{2}$ with $i=1,..,N$ and ${{\chi}^{2}}_{ref}^{GNSS}/{\chi}_{ref}^{2}$ to the covariance matrices of the InSAR and the GNSS data, respectively. In terms of Bayesian inference, this scaling gives the same likelihood to each of the InSAR and GNSS datasets and each of these datasets has the same contribution to the posterior probability density distribution.

#### 4.2. Static Inversion

#### 4.3. Temporal Inversion

#### 4.3.1. A Method without Any Geometric a Priori from the Static Inversion: The Ellipse Method

#### 4.3.2. A First Method with a Geometric a Priori: The Projected Disk Method

#### 4.3.3. A Second Method with a Geometric a Priori: The Subgraph Method

## 5. Results

#### 5.1. Static Inversion

#### 5.1.1. Two Model Families Which Explain the Data Equally Well

#### 5.1.2. Importance of Consistency between Time Periods Covered

#### 5.1.3. Relative Weights of Ascending Versus Descending Interferograms

#### 5.1.4. Relative Weights of InSAR Versus GNSS Data

#### 5.2. Temporal Inversion

#### 5.2.1. A Need for Geometrical a Priori to Invert for the GNSS Time Series

#### 5.2.2. Inversion of GNSS Time Series to Improve Discrimination between Families of Intrusion Geometry

## 6. Discussion

#### 6.1. Discrepancies between Independent Datasets Reveal Hidden Processes

#### 6.1.1. Discrepancies in the Covered Time Periods Reveal Pre-Eruptive Displacement

#### 6.1.2. Discrepancies in Amplitude Along the Different Los Reveal Flank Displacement

#### 6.2. Combining InSAR and GNSS for Complementary Spatial and Temporal Information

#### 6.2.1. InSAR Static Inversion Constrains the Temporal Inversion

#### 6.2.2. Advantages of the Subgraph Method for Temporal Inversions

#### 6.2.3. GNSS Temporal Inversion Solves the Conundrum of Non Unique Static Inversion

## 7. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

ANR | Agence Nationale de la Recherche |

GNSS | Global Navigation Satellite System |

InSAR | Interferometric Synthetic Aperture Radar |

LOS | Line of Sight |

OVPF | Observatoire volcanologique du Piton de la Fournaise (Piton de la Fournaise Volcanological Observatory) |

Piton de la Fournaise | |

PCA | Principal Component Analysis |

SAR | Synthetic Aperture Radar |

## References

- Lu, Z.; Dzurisin, D. InSAR imaging of Aleutian volcanoes. In InSAR Imaging of Aleutian Volcanoes; Springer: Berlin/Heidelberg, Germany, 2014; pp. 87–345. [Google Scholar]
- Pinel, V.; Poland, M.P.; Hooper, A. Volcanology: Lessons learned from synthetic aperture radar imagery. J. Volcanol. Geotherm. Res.
**2014**, 289, 81–113. [Google Scholar] [CrossRef] - Biggs, J.; Pritchard, M.E. Global volcano monitoring: What does it mean when volcanoes deform? Elements
**2017**, 13, 17–22. [Google Scholar] [CrossRef] - Fialko, Y.; Simons, M. Evidence for on-going inflation of the Socorro magma body, New Mexico, from interferometric synthetic aperture radar imaging. Geophys. Res. Lett.
**2001**, 28, 3549–3552. [Google Scholar] [CrossRef] - Baker, S.; Amelung, F. Top-down inflation and deflation at the summit of Kīlauea Volcano, Hawai ‘i observed with InSAR. J. Geophys. Res. Solid Earth
**2012**, 117. [Google Scholar] [CrossRef] - Ebmeier, S.K.; ANdrews, B.J.; Araya, M.C.; Arnold, D.W.D.; Biggs, J.; Cooper, C.; Cottrell, E.; Furtney, M.; Hickey, J.; Jay, J.; et al. Synthesis of global satellite observations of magmatic and volcanic deformation: Implications for volcano monitoring and the lateral extent of magmatic domains. J. Appl. Volcanol.
**2018**. [Google Scholar] [CrossRef] - Pritchard, M.; Simons, M. An InSAR-based survey of volcanic deformation in the central Andes. Geochem. Geophys. Geosyst.
**2004**, 5. [Google Scholar] [CrossRef][Green Version] - Roult, G.; Peltier, A.; Taisne, B.; Staudacher, T.; Ferrazzini, V.; Di Muro, A.; The OVPF Team. A new comprehensive classification of the Piton de la Fournaise activity spanning the 1985–2010 period. Search and analysis of short-term precursors from a broad-band seismological station. J. Volcanol. Geotherm. Res.
**2012**, 241, 78–104. [Google Scholar] [CrossRef] - Sigmundsson, F.; Hooper, A.; Hreinsdóttir, S.; Vogfjörd, K.S.; Ófeigsson, B.G.; Heimisson, E.R.; Dumont, S.; Parks, M.; Spaans, K.; Gudmundsson, G.B.; et al. Segmented lateral dyke growth in a rifting event at Bárðarbunga volcanic system, Iceland. Nature
**2015**, 517, 191. [Google Scholar] [CrossRef] [PubMed] - Pedersen, R.; Sigmundsson, F. Temporal development of the 1999 intrusive episode in the Eyjafjallajökull volcano, Iceland, derived from InSAR images. Bull. Volcanol.
**2006**, 68, 377–393. [Google Scholar] [CrossRef] - Jónsson, S.; Zebker, H.; Cervelli, P.; Segall, P.; Garbeil, H.; Mouginis-Mark, P.; Rowland, S. A shallow-dipping dike fed the 1995 flank eruption at Fernandina Volcano, Galápagos, observed by satellite radar interferometry. Geophys. Res. Lett.
**1999**, 26, 1077–1080. [Google Scholar] [CrossRef] - Bagnardi, M.; Amelung, F. Space-geodetic evidence for multiple magma reservoirs and subvolcanic lateral intrusions at Fernandina Volcano, Galápagos Islands. J. Geophys. Res. Solid Earth
**2012**, 117. [Google Scholar] [CrossRef] - Aoki, Y.; Segall, P.; Kato, T.; Cervelli, P.; Shimada, S. Imaging magma transport during the 1997 seismic swarm off the Izu Peninsula, Japan. Science
**1999**, 286, 927–930. [Google Scholar] [CrossRef] [PubMed] - Montgomery-Brown, E.K.; Sinnett, D.; Poland, M.; Segall, P.; Orr, T.; Zebker, H.; Miklius, A. Geodetic evidence for en echelon dike emplacement and concurrent slow slip during the June 2007 intrusion and eruption at Kīlauea volcano, Hawaii. J. Geophys. Res. Solid Earth
**2010**, 115. [Google Scholar] [CrossRef] - Grandin, R.; Jacques, E.; Nercessian, A.; Ayele, A.; Doubre, C.; Socquet, A.; Keir, D.; Kassim, M.; Lemarchand, A.; King, G. Seismicity during lateral dike propagation: Insights from new data in the recent Manda Hararo–Dabbahu rifting episode (Afar, Ethiopia). Geochem. Geophys. Geosyst.
**2011**, 12. [Google Scholar] [CrossRef] - Smittarello, D.; Cayol, V.; Pinel, V.; Peltier, A.; Froger, J.L.; Ferrazzini, V. Magma Propagation at Piton de la Fournaise From Joint Inversion of InSAR and GNSS. J. Geophys. Res. Solid Earth
**2019**, 124, 1361–1387. [Google Scholar] [CrossRef] - Duputel, Z.; Lengliné, O.; Ferrazzini, V. Constraining Spatiotemporal Characteristics of Magma Migration at Piton De La Fournaise Volcano From Pre-eruptive Seismicity. Geophys. Res. Lett.
**2019**, 46, 119–127. [Google Scholar] [CrossRef] - Bagnardi, M.; Amelung, F.; Poland, M.P. A new model for the growth of basaltic shields based on deformation of Fernandina volcano, Galápagos Islands. Earth Planet. Sci. Lett.
**2013**, 377, 358–366. [Google Scholar] [CrossRef] - Massonnet, D.; Feigl, K.L. Radar interferometry and its application to changes in the Earth’s surface. Rev. Geophys.
**1998**, 36, 441–500. [Google Scholar] [CrossRef] - Masterlark, T.; Lu, Z. Transient volcano deformation sources imaged with interferometric synthetic aperture radar: Application to Seguam Island, Alaska. J. Geophys. Res. Solid Earth
**2004**, 109. [Google Scholar] [CrossRef][Green Version] - Parks, M.M.; Moore, J.D.; Papanikolaou, X.; Biggs, J.; Mather, T.A.; Pyle, D.M.; Raptakis, C.; Paradissis, D.; Hooper, A.; Parsons, B.; et al. From quiescence to unrest: 20 years of satellite geodetic measurements at Santorini volcano, Greece. J. Geophys. Res. Solid Earth
**2015**, 120, 1309–1328. [Google Scholar] [CrossRef] - Biggs, J.; Amelung, F.; Gourmelen, N.; Dixon, T.H.; Kim, S.W. InSAR observations of 2007 Tanzania rifting episode reveal mixed fault and dyke extension in an immature continental rift. Geophys. J. Int.
**2009**, 179, 549–558. [Google Scholar] [CrossRef][Green Version] - Dieterich, J.H.; Decker, R.W. Finite element modeling of surface deformation associated with volcanism. J. Geophys. Res.
**1975**, 80, 4094–4102. [Google Scholar] [CrossRef] - Montgomery-Brown, E.K.; Segall, P.; Miklius, A. Kilauea slow slip events: Identification, source inversions, and relation to seismicity. J. Geophys. Res. Solid Earth
**2009**, 114. [Google Scholar] [CrossRef][Green Version] - Got, J.L.; Peltier, A.; Staudacher, T.; Kowalski, P.; Boissier, P. Edifice strength and magma transfer modulation at Piton de la Fournaise volcano. J. Geophys. Res. Solid Earth
**2013**, 118, 5040–5057. [Google Scholar] [CrossRef] - Biggs, J.; Lu, Z.; Fournier, T.; Freymueller, J.T. Magma flux at Okmok Volcano, Alaska, from a joint inversion of continuous GPS, campaign GPS, and interferometric synthetic aperture radar. J. Geophys. Res. Solid Earth
**2010**, 115. [Google Scholar] [CrossRef][Green Version] - Montgomery-Brown, E.K.; Sinnett, D.; Larson, K.; Poland, M.P.; Segall, P.; Miklius, A. Spatiotemporal evolution of dike opening and décollement slip at Kīlauea Volcano, Hawai’i. J. Geophys. Res. Solid Earth
**2011**, 116. [Google Scholar] [CrossRef] - Grandin, R.; Socquet, A.; Binet, R.; Klinger, Y.; Jacques, E.; de Chabalier, J.B.; King, G.; Lasserre, C.; Tait, S.; Tapponnier, P.; et al. September 2005 Manda Hararo-Dabbahu rifting event, Afar (Ethiopia): constraints provided by geodetic data. J. Geophys. Res. Solid Earth
**2009**, 114. [Google Scholar] [CrossRef] - Okada, Y. Surface deformation due to shear and tensile faults in a half-space. Bull. Seismol. Soc. Am.
**1985**, 75, 1135–1154. [Google Scholar] - Tridon, M.; Cayol, V.; Froger, J.L.; Augier, A.; Bachèlery, P. Inversion of coeval shear and normal stress of Piton de la Fournaise flank displacement. J. Geophys. Res. Solid Earth
**2016**, 121, 7846–7866. [Google Scholar] [CrossRef][Green Version] - Zeller, S.S.; Pollard, D.D. Boundary conditions for rock fracture analysis using the boundary element method. J. Geophys. Res. Solid Earth
**1992**, 97, 1991–1997. [Google Scholar] [CrossRef] - Froger, J.L.; Famin, V.; Cayol, V.; Augier, A.; Michon, L.; Lénat, J.F. Time-dependent displacements during and after the April 2007 eruption of Piton de la Fournaise, revealed by interferometric data. J. Volcanol. Geotherm. Res.
**2015**, 296, 55–68. [Google Scholar] [CrossRef][Green Version] - Michon, L.; Staudacher, T.; Ferrazzini, V.; Bachèlery, P.; Marti, J. April 2007 collapse of Piton de la Fournaise: A new example of caldera formation. Geophys. Res. Lett.
**2007**, 34. [Google Scholar] [CrossRef][Green Version] - Peltier, A.; Staudacher, T.; Bachèlery, P.; Cayol, V. Formation of the April 2007 caldera collapse at Piton de La Fournaise volcano: Insights from GPS data. J. Volcanol. Geotherm. Res.
**2009**, 184, 152–163. [Google Scholar] [CrossRef] - Chen, Y.; Remy, D.; Froger, J.L.; Peltier, A.; Villeneuve, N.; Darrozes, J.; Perfettini, H.; Bonvalot, S. Long-term ground displacement observations using InSAR and GNSS at Piton de la Fournaise volcano between 2009 and 2014. Remote Sens. Environ.
**2017**, 194, 230–247. [Google Scholar] [CrossRef] - Lengliné, O.; Duputel, Z.; Ferrazzini, V. Uncovering the hidden signature of a magmatic recharge at Piton de la Fournaise volcano using small earthquakes. Geophys. Res. Lett.
**2016**, 43, 4255–4262. [Google Scholar] [CrossRef][Green Version] - Vlastélic, I.; Di Muro, A.; Bachèlery, P.; Gurioli, L.; Auclair, D.; Gannoun, A. Control of source fertility on the eruptive activity of Piton de la Fournaise volcano, La Réunion. Sci. Rep.
**2018**, 8, 14478. [Google Scholar] [CrossRef] [PubMed] - Peltier, A.; Froger, J.L.; Villeneuve, N.; Catry, T. Assessing the reliability and consistency of InSAR and GNSS data for retrieving 3D-displacement rapid changes, the example of the 2015 Piton de la Fournaise eruptions. J. Volcanol. Geotherm. Res.
**2017**, 344, 106–120. [Google Scholar] [CrossRef] - CNES. Philosophy and Instructions for the Use of the DIAPASON Interferometry Software System Developed at CNES; CNES: Paris, France, 1996. [Google Scholar]
- Chen, C.W.; Zebker, H.A. Phase unwrapping for large SAR interferograms: Statistical segmentation and generalized network models. IEEE Trans. Geosci. Remote Sens.
**2002**, 40, 1709–1719. [Google Scholar] [CrossRef] - Welstead, S.T. Fractal and Wavelet Image Compression Techniques; SPIE Optical Engineering Press Bellingham: Washington, DC, USA, 1999. [Google Scholar]
- Jónsson, S.; Zebker, H.; Segall, P.; Amelung, F. Fault slip distribution of the 1999 Mw 7.1 Hector Mine, California, earthquake, estimated from satellite radar and GPS measurements. Bull. Seismol. Soc. Am.
**2002**, 92, 1377–1389. [Google Scholar] [CrossRef] - Herring, T.; King, R.; McClusky, S. Introduction to Gamit/Globk; Massachusetts Institute of Technology: Cambridge, MA, USA, 2010. [Google Scholar]
- Wright, T.J.; Parsons, B.E.; Lu, Z. Toward mapping surface deformation in three dimensions using InSAR. Geophys. Res. Lett.
**2004**, 31. [Google Scholar] [CrossRef][Green Version] - Cayol, V.; Cornet, F. 3D mixed boundary elements for elastostatic deformation field analysis. Int. J. Rock Mech. Min. Sci.
**1997**, 34, 275–287. [Google Scholar] [CrossRef] - Cayol, V.; Cornet, F.H. Three-dimensional modeling of the 1983–1984 eruption at Piton de la Fournaise Volcano, Réunion Island. J. Geophys. Res. Solid Earth
**1998**, 103, 18025–18037. [Google Scholar] [CrossRef] - Cayol, V.; Cornet, F.H. Effects of topography on the interpretation of the deformation field of prominent volcanoes–Application to Etna. Geophys. Res. Lett.
**1998**, 25, 1979–1982. [Google Scholar] [CrossRef] - Fukushima, Y.; Cayol, V.; Durand, P. Finding realistic dike models from interferometric synthetic aperture radar data: The February 2000 eruption at Piton de la Fournaise. J. Geophys. Res. Solid Earth
**2005**, 110. [Google Scholar] [CrossRef][Green Version] - Masterlark, T. Magma intrusion and deformation predictions: Sensitivities to the Mogi assumptions. J. Geophys. Res. Solid Earth
**2007**, 112. [Google Scholar] [CrossRef][Green Version] - Tarantola, A. Inverse Problem Theory: Method for Data Fitting and Model Parameter Estimation; Elsevier: Amsterdam, The Netherlands, 1987; Volume 613. [Google Scholar]
- Fukushima, Y.; Cayol, V.; Durand, P.; Massonnet, D. Evolution of magma conduits during the 1998–2000 eruptions of Piton de la Fournaise volcano, Réunion Island. J. Geophys. Res. Solid Earth
**2010**, 115. [Google Scholar] [CrossRef] - Sambridge, M. Geophysical inversion with a neighbourhood algorithm -I. Searching a parameter space. Geophys. J. Int.
**1999**, 138, 479–494. [Google Scholar] [CrossRef] - Sambridge, M. Geophysical inversion with a neighbourhood algorithm -II. Appraising the ensemble. Geophys. J. Int.
**1999**, 138, 727–746. [Google Scholar] [CrossRef] - Fournier, T.; Freymueller, J.; Cervelli, P. Tracking magma volume recovery at Okmok volcano using GPS and an unscented Kalman filter. J. Geophys. Res. Solid Earth
**2009**, 114. [Google Scholar] [CrossRef] - Cannavò, F.; Camacho, A.G.; González, P.J.; Mattia, M.; Puglisi, G.; Fernández, J. Real time tracking of magmatic intrusions by means of ground deformation modeling during volcanic crises. Sci. Rep.
**2015**, 5, 10970. [Google Scholar] [CrossRef] - Taisne, B.; Jaupart, C. Dike propagation through layered rocks. J. Geophys. Res. Solid Earth
**2009**, 114. [Google Scholar] [CrossRef][Green Version] - Tarantola, A. Inverse Problem Theory and Methods for Model Parameter Estimation; SIAM: Philadelphia, PA, USA, 2005; Volume 89. [Google Scholar]
- Peltier, A.; Ferrazzini, V.; Staudacher, T.; Bachèlery, P. Imaging the dynamics of dyke propagation prior to the 2000–2003 flank eruptions at Piton de La Fournaise, Reunion Island. Geophys. Res. Lett.
**2005**, 32. [Google Scholar] [CrossRef]

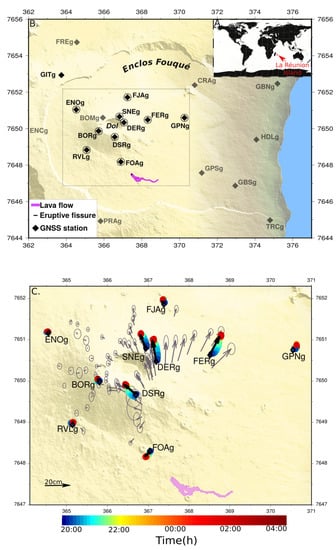

**Figure 1.**Piton de la Fournaise (PdF) setting. (

**A**) Location of Reunion Island; (

**B**) Shaded topography of PdF volcano and location of the GNSS monitoring network. Black and grey diamonds represent the locations of the permanent GNSS stations. The black circled diamonds refer to the 10 GNSS stations used in this study. The GITg station (black diamond to the northwest) is the reference used here for the GNSS campaign and for the epoch-by-epoch processing. The May 2016 lava flow is shown in purple. ’Dol’ marks the Dolomieu crater; (

**C**) Zoom corresponding to the area indicated by a black box in B. Black arrows represent the cumulated horizontal displacement of the 10 GNSS stations between 25 May at 17:00 and 26 May at 04:05. Standard deviations for horizontal and vertical components are 1–2 cm and 3-4 cm, respectively. Associated colored circles represent the temporal evolution of the horizontal displacement for the GNSS stations. Grey arrows represent displacements from the GNSS campaign network between 31 August 2015 and 27 May 2016, with ellipses for the 95% confidence intervals. Coordinates are in kilometers (WGS84, UTM 40S). Modified after Reference Smittarello et al. [16]

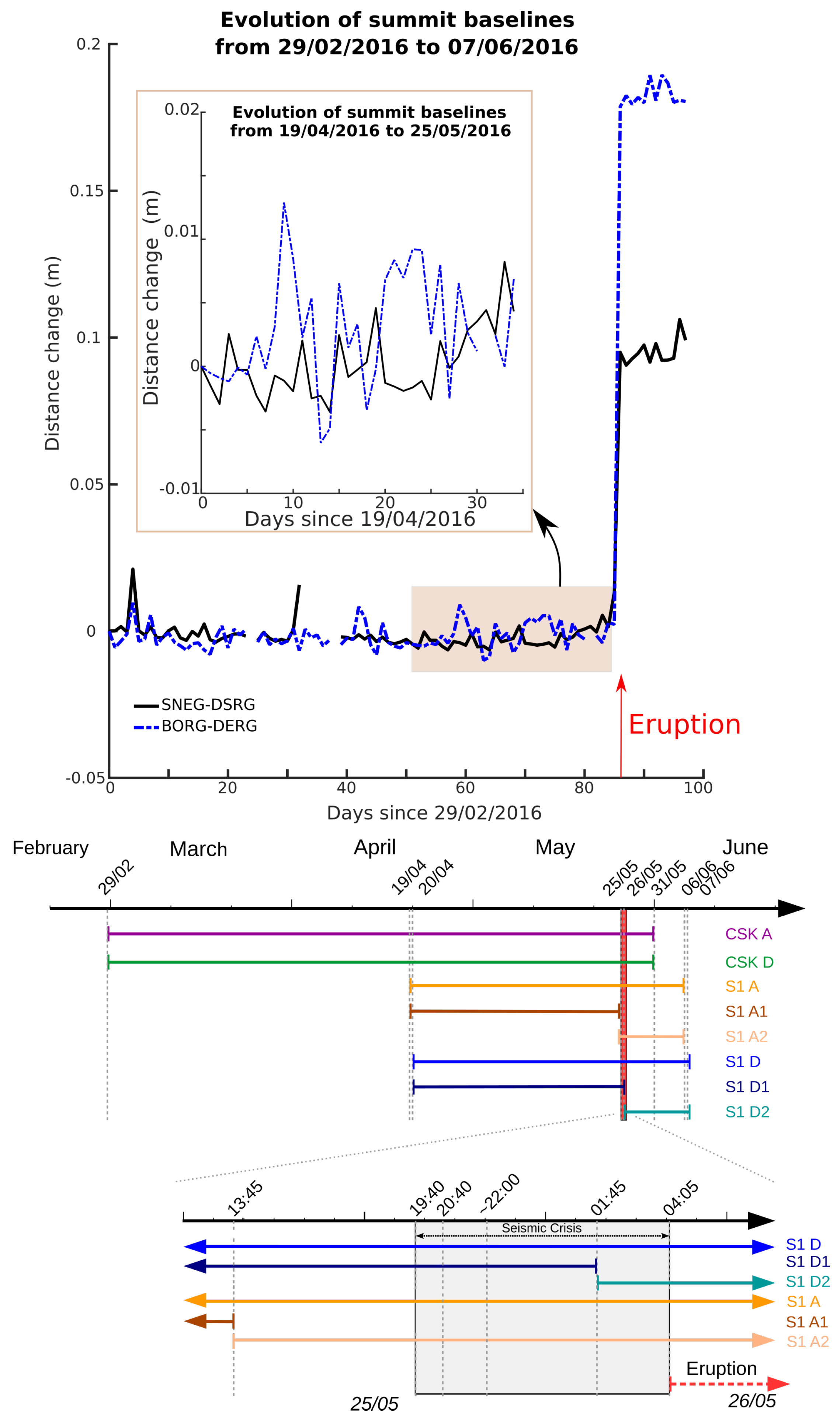

**Figure 2.**(

**Top**) Temporal evolution of baseline changes recorded between two pairs of permanent GNSS stations (SNEG and DSRG and BORG and DERG; see Figure 1 for station locations) between 29 February 2016 (date of the first SAR acquisition used in this study) and 07/06/2016 (date of the last SAR acquisition used in this study). Distance samples are daily averages. Inset corresponds to a zoom on the pre-eruptive baseline changes spanned by Sentinel–1 data. The eruption onset is shown by a red arrow; (

**Middle**) Coloured bars represent the time spanned by each of the 8 interferograms used in this study. Modified after Smittarello et al. [16]. The vertical red area represents the eruptive crisis; (

**Bottom**) Zoom. The vertical dashed line at 01:45 marks the time of the intermediate SAR acquisition by Sentinel–1. CSK = Cosmo-Skymed; S1 D1 = Sentinel–1 descending InSAR data spanning the beginining of the eruptive crisis; S1 D2 = Sentinel–1 descending InSAR data spanning the end part of the eruptive crisis; S1 A1 = Sentinel–1 ascending InSAR data spanning the pre-eruptive period; S1 A2 = Sentinel–1 ascending InSAR data spanning only the eruption.

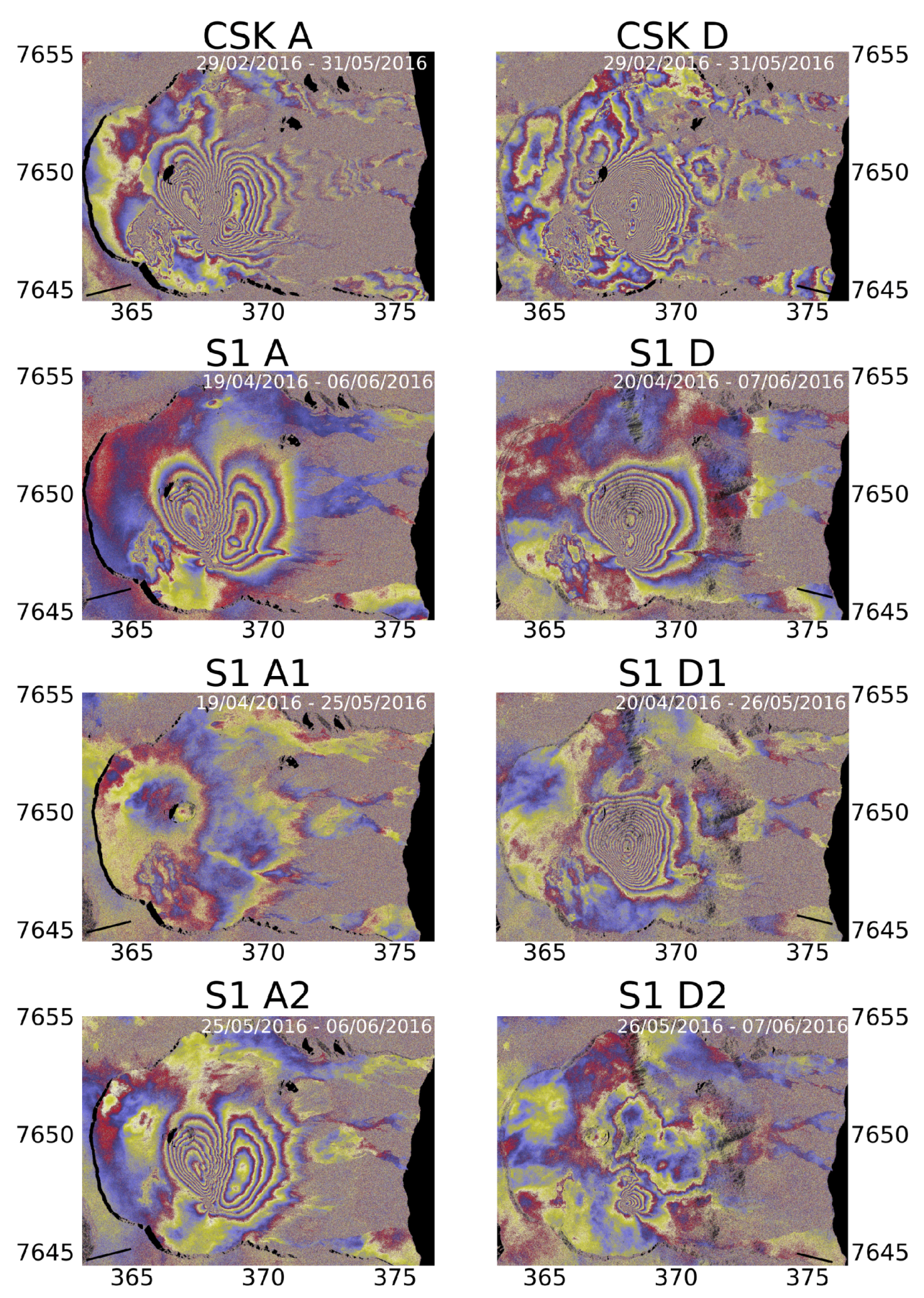

**Figure 3.**Wrapped interferograms used in this study. (

**Left column**) Data acquired on ascending orbits; (

**Right column**) Data acquired on descending orbits; (

**First row**) Cosmo-Skymed data (X-band) spanning the whole eruptive period; (

**Second to Fourth rows**) Sentinel-1 InSAR ascending and descending data (C-band); (

**Second row**) Sentinel-1 data spanning the whole eruptive period; (

**Third row**) Sentinel-1 data spanning the first time period; (

**Fourth row**) Sentinel-1 data spanning the second time period; For Cosmo-Skymed data, fringes represent 1.5 cm LOS displacement, while for Sentinel-1 data, fringes represent 2.8 cm LOS displacement. S1 D1 = Sentinel-1 descending InSAR data spanning the beginining of the eruptive crisis; S1 D2 = Sentinel-1 descending InSAR data spanning the end part of the eruptive crisis; S1 A1 = Sentinel-1 ascending InSAR data spanning the pre-eruptive period; S1 A2 = Sentinel-1 ascending InSAR data spanning only the eruption.

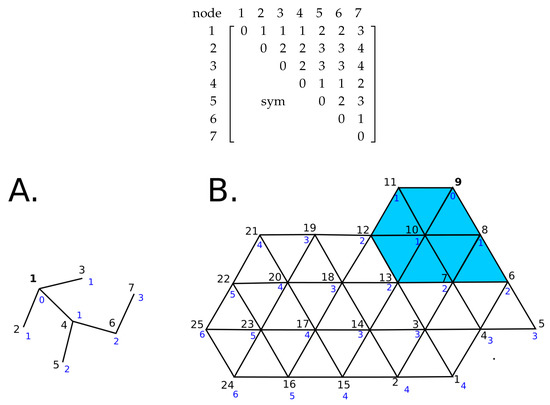

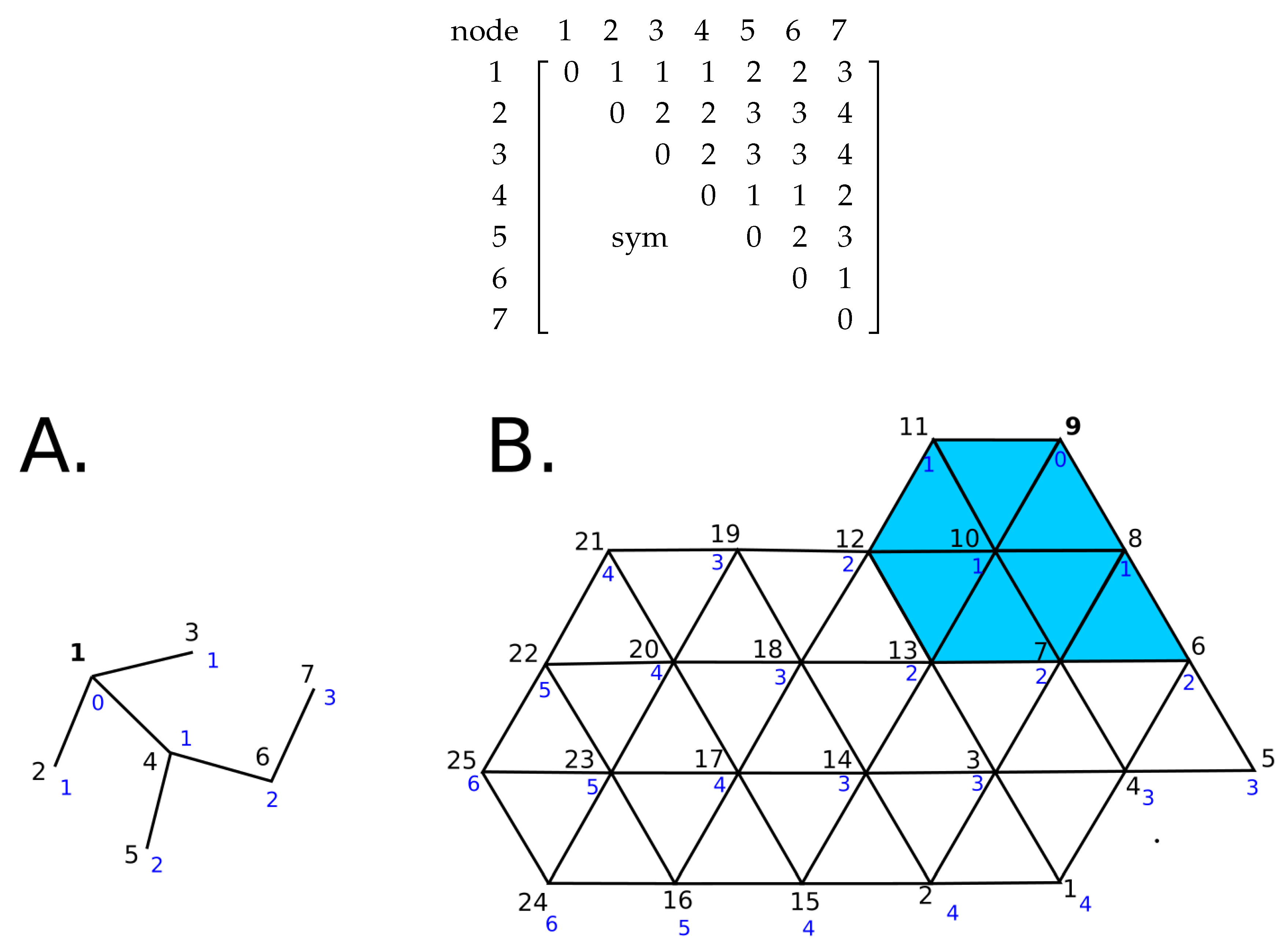

**Figure 5.**Distances between connected nodes in the graph-method. Node numbers are represented in black. (

**A**) Distances from node 1 are shown in blue; (

**B**) Distance from node 9 are shown in blue and triangles with nodes at a distance of less than two edges from node 9 are colored in cyan.

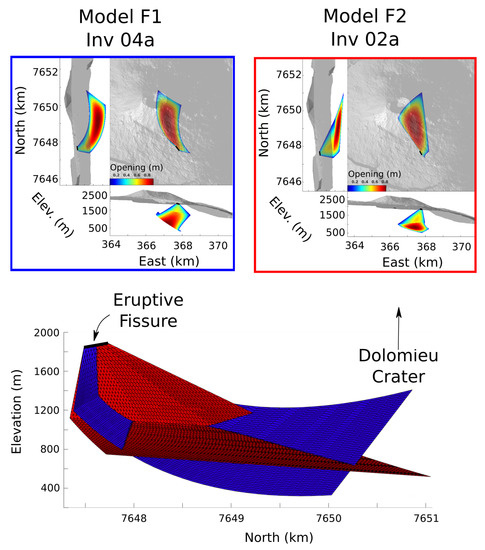

**Figure 6.**Comparison between geometries of typical intrusions of family F1 (Inv04a in blue) and family F2 (Inv02a in red). The upper plots compare the geometry and fracture opening of intrusions of family F1 (

**left**) and family F2 (

**right**). Three views are shown for each subfigure, one from the east along the northern direction on the left-hand side, a map view on the right-hand side and a view from the south along the eastern direction at the bottom. The lower plot compares the eruptive fracture meshes for the two families, as seen from the east.

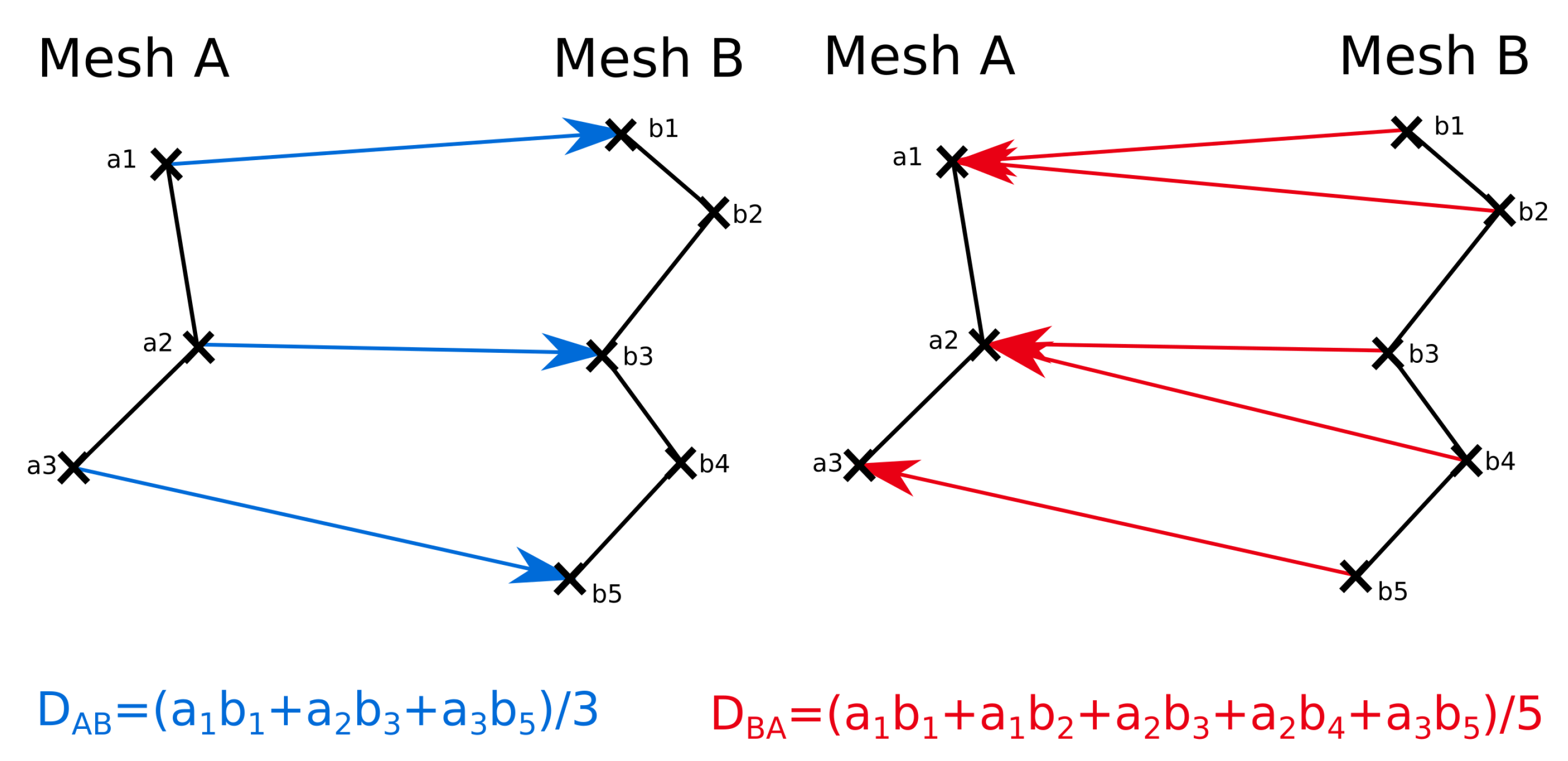

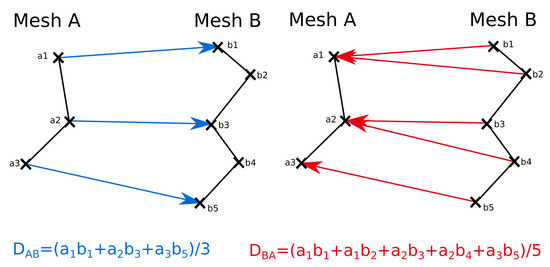

**Figure 7.**Methods for computing the average distance between two meshes, illustrating why ${D}_{AB}$ is slightly different from ${D}_{BA}$.

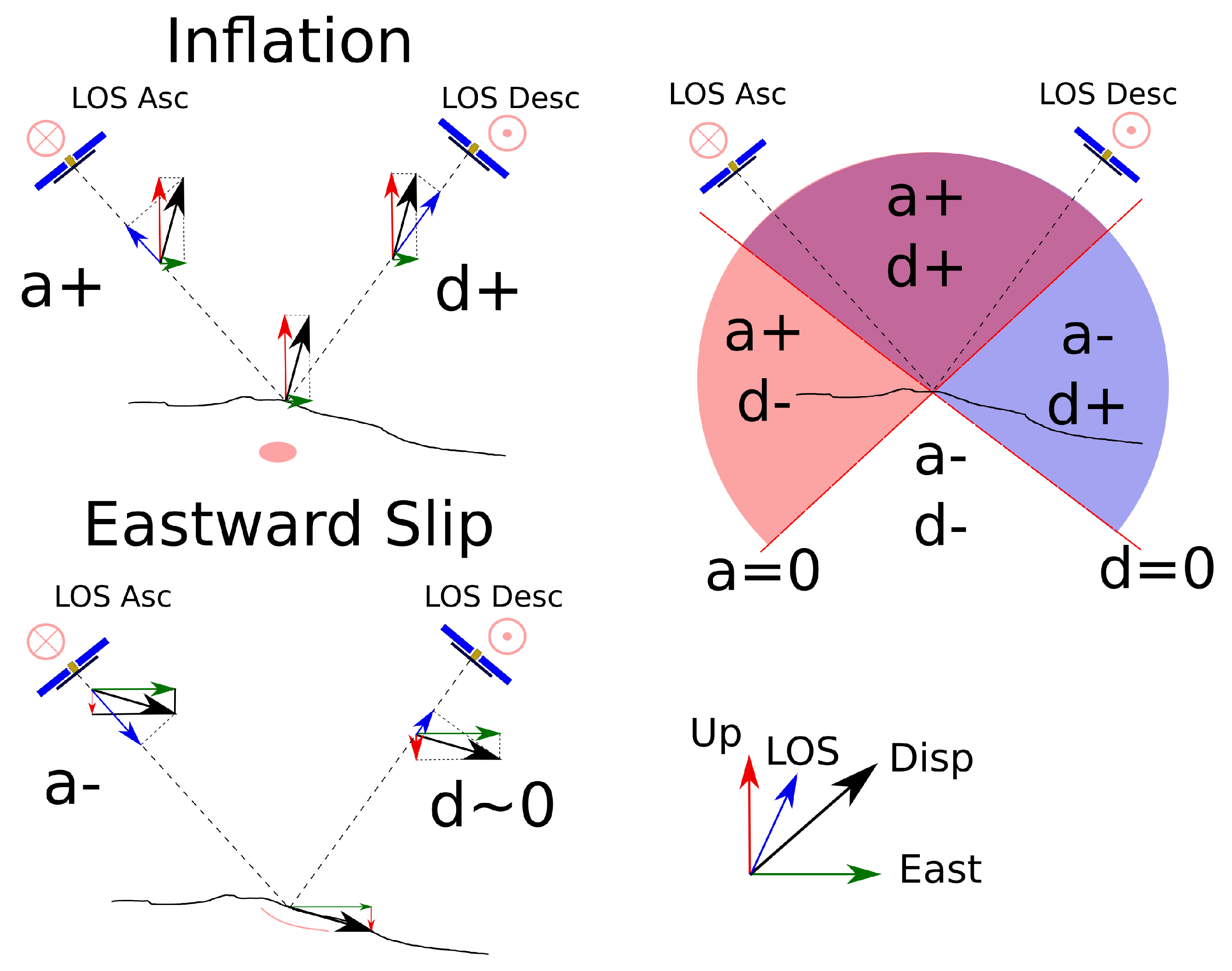

**Figure 8.**Projection of surface displacement along the LOS for satellite radar acquisition for ascending and descending orbits. The left-hand plots indicate expected displacements in the ascending and descending LOS for an inflation and an eastward flank slip. The right-hand plot shows the expected sign of the LOS projection (considered as positive when directed toward the satellite ) in the ascending and descending orbits for vectors joining a ground point to the circle.

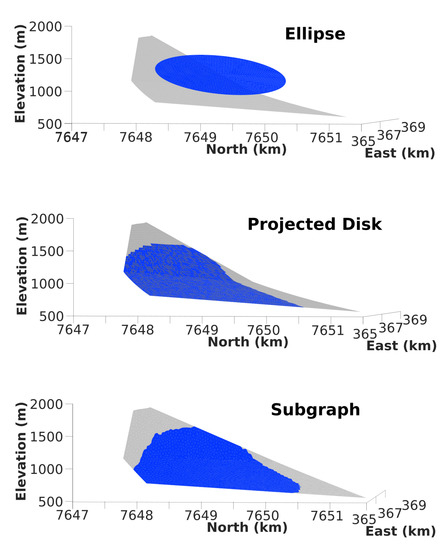

**Figure 9.**Comparison between the intrusion determined from InSAR data covering the whole eruption (grey) and the best model intrusion geometry (blue) resulting from the temporal inversion of GNSS data at 01:45. Results for the three different methods for inverting the pressure source are shown. (

**Top**) Ellipse; (

**Middle**) Projected Disk and (

**bottom**) Subgraph methods.

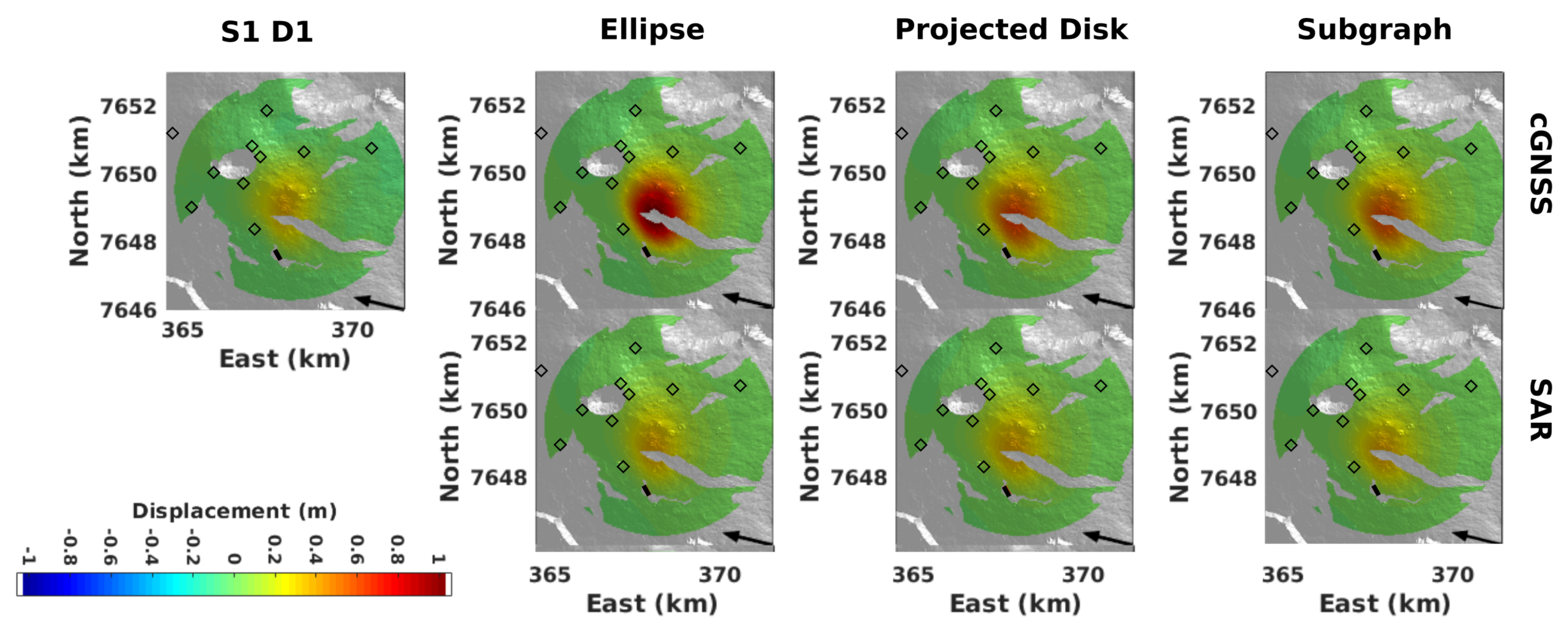

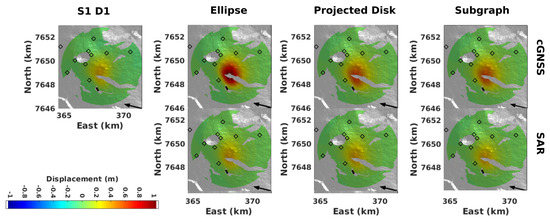

**Figure 10.**Comparison of inversion results for validation test using interferogram S1 D1. Wrapped interferogram S1 D1 (

**first column**) and modeled interferograms computed with the best models determined with the Ellipse method (

**2nd column**), Projected Disk method (

**3rd column**) and Subgraph method (

**4th column**). Inversion is done with continuous GNSS data alone (

**top**) or with SAR S1 D1 data alone (

**bottom**). Black segment markss the location of the eruptive fissure. Diamonds represent the location of permanent GNSS stations.

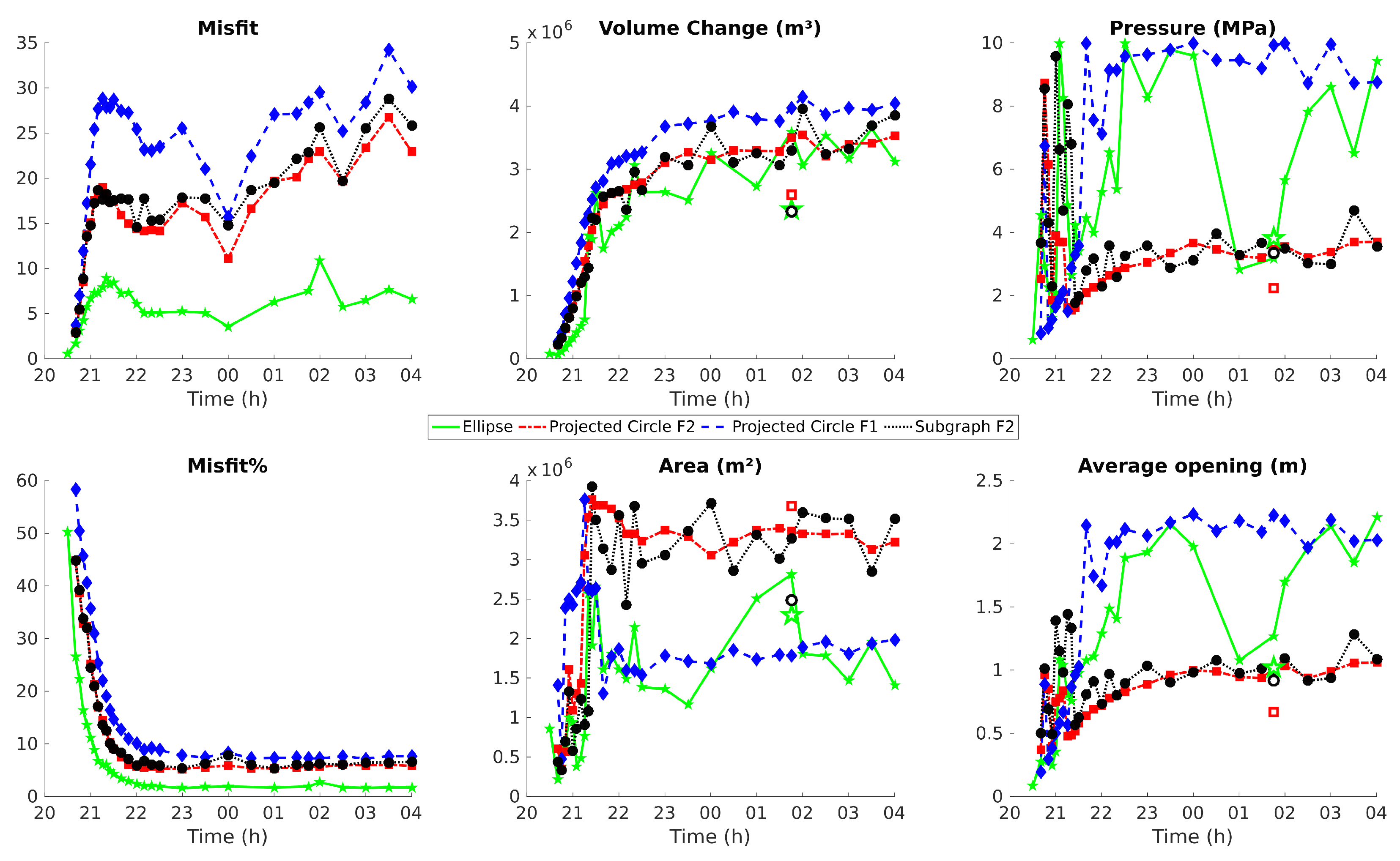

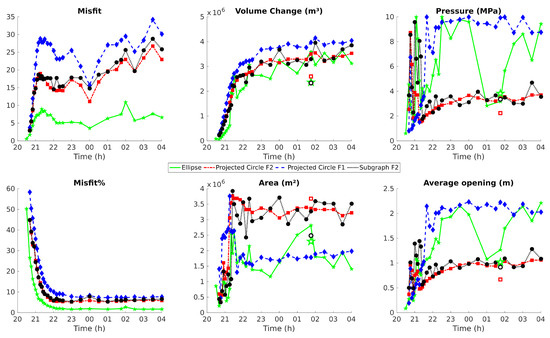

**Figure 11.**Results of inversions of the GNSS time series for 29 time steps between 20:40 and 4:00 a.m. Green line is the Ellipse method. Blue and red dashed lines are the Projected Disk method on a priori meshes for families F1 and F2, respectively. Solid black circles are the Subgraph method for family F2. Open symbols are for inversions from the intermediate Sentinel-1 interferogram S1 D1, green star corresponds to the Ellipse method, red square to the Projected Disk on family F2 and black circle to the Subgraph method on family F2. Note that for all methods, increase in the misfit between 20:40 and 21:30 is due to the increase in the amplitude of measured displacements as shown by the sharp decrease of the relative misfit in percent Equation (1).

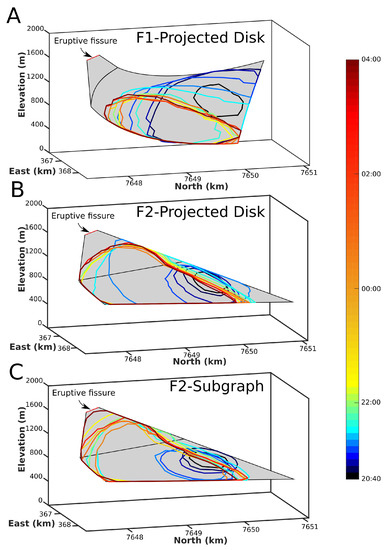

**Figure 12.**Location of the overpressure source determined from the temporal inversion (colors) for 14 time steps out of the 29 time steps inverted between 20:40 on 25 May and 04:00 the next day. The pressurized area is assumed to be a circular disk projected on the a priori mesh (in gray) of family F1 (

**A**) and family F2; (

**B**) or a subgraph of the a priori mesh of family F2; (

**C**). Source geometries for F1 and F2 are non unique solutions determined from the inversion of the four sets of InSAR data that cover the whole eruption.

**Table 1.**Covariance weigthing ($Cd$ is defined based on Equations (4) and (5), ’No’ means that no specific additional weighting is applied whereas ${\chi}_{ref}^{2}$ means that the misfit is scaled by the misfit of the null model), geometry of the best model (for families definition see Section 5.1.1) and % of Explained data (see Equation (9)) computed for each interferogram spanning the eruption. Numbers in bold are for data used in the inversion, values in small italics are computed a posteriori for data not used in the inversion. Inv01 was computed with InSAR data S1 A2, which does not cover the pre-eruptive period. Inv. 01 to 03 were computed without including the GNSS data. Inv02a* is the preferred model presented in Smittarello et al. [16].

Model | Covariance Weighting | Family | GNSS | InSAR | |||||
---|---|---|---|---|---|---|---|---|---|

S1D | S1 A | S1 A2 | CSKD | CSKA | Total | ||||

Inv01 | No | F1 | 78 | 97 | 81 | 75 | 97 | 83 | 93.5 |

Inv02a* | No | F2 | 73 | 95 | 82 | 72 | 95 | 82 | 92.5 |

Inv02b | No | F2 | 75 | 96 | 83 | 76 | 95 | 83 | 93.0 |

Inv03 | ${\chi}_{ref}^{2}$ | F2 | 73 | 96 | 86 | 77 | 96 | 87 | 94.1 |

Inv04a | ${\chi}_{ref}^{2}$ | F1 | 77 | 95 | 82 | 74 | 95 | 87 | 93.5 |

Inv04b | ${\chi}_{ref}^{2}$ | F2 | 71 | 96 | 83 | 72 | 96 | 85 | 93.5 |

Inv05 | No | F1 | 83 | 94 | 67 | 57 | 95 | 75 | 90.3 |

**Table 2.**Average distances (in meters) between pairs of meshes. * is the preferred model presented in Smittarello et al. [16]. Distances in bold are for models belonging to the same family.

Inversion | Inv01 | Inv02a | Inv02b | Inv03 | Inv04a | Inv04b | Inv05 | |
---|---|---|---|---|---|---|---|---|

Family | F1 | F2 | F2 | F2 | F1 | F2 | F1 | |

Inv01 | F1 | X | 129 | 124 | 109 | 90 | 139 | 132 |

Inv02a * | F2 | 121 | X | 107 | 167 | 150 | 169 | 177 |

Inv2b | F2 | 105 | 110 | X | 80 | 153 | 78 | 194 |

Inv03 | F2 | 104 | 153 | 72 | X | 157 | 51 | 202 |

Inv04a | F1 | 85 | 141 | 168 | 167 | X | 185 | 63 |

Inv04b | F2 | 116 | 144 | 61 | 46 | 164 | X | 209 |

Inv05 | F1 | 132 | 168 | 216 | 209 | 62 | 214 | X |

**Table 3.**Values of ${\chi}_{ref}^{2}$ Equation (6) and weight of each dataset in the computation of the misfit. The top three lines correspond to inversions conducted without the campaign and continous GNSS data, while the bottom three lines include the GNSS data.

GNSS | S1 D | S1 A | CSKD | CSKA | Total | |
---|---|---|---|---|---|---|

${\chi}^{2}{i}_{ref}$ | X | 1100 | 500 | 1000 | 470 | 3070 |

${\chi}^{2}{i}_{ref}/{\chi}_{ref}^{2}$ % | X | 36% | 16% | 33% | 15% | 100% |

after weighting | X | 25% | 25% | 25% | 25% | 100% |

${\chi}^{2}{i}_{ref}$ | 4800 | 1100 | 500 | 1000 | 470 | 7870 |

${\chi}^{2}{i}_{ref}/{\chi}_{ref}^{2}$ % | 61% | 14% | 6% | 13% | 6% | 100% |

after weighting | 20% | 20% | 20% | 20% | 20% | 100% |

**Table 4.**Comparison of the inverted source characteristics for different methods for tracking magma propagation and different data: continuous GNSS data from the permanent network and an intermediate Sentinel-1 interferogram S1 D1 covering the first part of the eruption (before 01:45). % explained data ($\%Ed$, see Equation (9)) computed with data used in the inversions are in bold, while those computed a posteriori using data omitted in the inversion are in small italics.

Method Data | Ellipse | Projected Disk | Subgraph | ||||
---|---|---|---|---|---|---|---|

GNSS | InSAR | GNSS | InSAR | GNSS | InSAR | ||

Overpressure (MPa) | 3.2 | 7.0 | 3.5 | 1.9 | 3.4 | 2.5 | |

Average opening (m) | 1.3 | 1.3 | 1.0 | 0.6 | 1.0 | 0.7 | |

Area (10${}^{6}$ m${}^{2}$) | 2.8 | 1.6 | 3.4 | 3.9 | 3.3 | 3.1 | |

Volume (10${}^{6}$ m${}^{3}$) | 3.6 | 2.1 | 3.5 | 2.4 | 3.3 | 2.2 | |

$\%\mathbf{Ed}$ | GNSS | 96 | 85 | 84 | 83 | 83 | 84 |

InSAR S1 D1 | 22 | 95 | 77 | 96 | 83 | 94 |
