Reduction in Insect Attachment Caused by Different Nanomaterials Used as Particle Films (Kaolin, Zeolite, Calcium Carbonate)

Abstract

In the present investigation, we compared the reduction in attachment ability of the southern green stinkbug Nezara viridula (Hemiptera: Pentatomidae) to glass induced by three different nanoparticle (kaolin, zeolite, and calcium carbonate) films. Using traction force experiments, behavioral experiments, and scanning electron microscopy observations, we analyzed the insect attachment ability and linear speed on untreated and treated glass with the three particle films. The three nanomaterials strongly reduced insect attachment ability mainly owing to contamination of attachment pads. The ability to reduce insect attachment was different for the three tested particle films: kaolin and zeolite induced a significantly higher reduction in N. viridula safety factor than calcium carbonate. The coating of the surface was more uniform and compact in kaolin and zeolite compared to calcium carbonate particle film. Moreover, kaolin and zeolite particles can more readily adhere to N. viridula attachment devices, whereas calcium carbonate particles appeared less adherent to the cuticular surface compared to the two aluminosilicate (kaolin and zeolite) particles. Only the application of kaolin reduced insect linear speed during locomotion. Nanoparticle films have a great potential to reduce insect attachment ability and represent a good alternative to the use of insecticides for the control of pentatomid bugs and other pest insects.

1. Introduction

In order to reduce most of the negative effects that occur with the application of chemistry-based plant protection products, such as damage to human and animal health, bioaccumulation, insecticide resistance, environmental pollution, etc., insecticides based on nanotechnologies (nanoparticles) and inert materials have been introduced to be used in low-impact agriculture. Nanotechnology, with the development of tools for nanopesticide risk assessment [1], can provide a great opportunity to achieve a more rational use of pesticides. Nanomaterials can be employed as carriers of active ingredients, including insecticides and pheromones, or as insecticides alone (reviews in [2,3]). The mechanisms of action of the various nanoparticles against insects are different (review in [4]). Silica nanoparticles typically bind to the insect cuticle, causing the death of insects by dehydration [5,6].

Except for use as carriers for pesticides or as desiccating insecticides, silica nanoparticles in agriculture received much attention in the last two decades owing to the introduction of the particle film technology [7]. The particle film technology is based on the use of aluminosilicates particles (kaolin and zeolites) in aqueous formulations for application to crop plants (see reviews in [2,7,8,9]). Aluminosilicates are very common minerals present in sedimentary rocks that have a lower environmental impact than chemical insecticides because of their inert nature. Kaolin is a white, non-swelling, non-abrasive, fine-grained, nanoplate-like aluminosilicate mineral, mainly consisting of kaolinite that easily disperses in water and that is chemically inert over a wide pH range. Zeolites are a broad range of microporous, crystalline aluminosilicates. They are among the most common minerals present in sedimentary rocks: the most well-known ones are clinoptilolite, erionite, chabazite, heulandite, mordenite, stilbite, and phillipsite [10]. The application of particle films on plants differently affects photosynthesis, stomatal conductance, transpiration, and water use by plants (e.g., in olive trees these parameters were lowered by kaolin treatment but not by zeolite treatment [11]). Kaolin and zeolite powder, suspended in water and applied on fruits and leaves, creates a more or less continuous white coating, once the water evaporates. This technology is beneficial for plants for different reasons: it protects plants from negatively impacting environmental conditions, like heat stress and sunburn [12,13,14,15,16] and insect pests [7,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]. The protection against insect pests by particle films is due to their interference during the host plant location and the acceptance process by the insect. Plants covered with white particle films change their visual and tactile features, and their taste and smell can change inducing repellence [7]. Moreover, a reduction in the insect ability to hold to the plant has been highlighted in Cacopsylla pyri (L.) (Hemiptera: Psyllidae) [32].

Recent traction force experiments [33] with two economically important polyphagous insect pests, belonging to two different orders and characterized by different attachment devices, such as the southern green stink bug Nezara viridula L. (Heteroptera: Pentatomidae) and the Mediterranean fruit fly Ceratitis capitata Wiedemann (Diptera: Tephritidae), demonstrated that insect attachment ability is heavily affected by kaolin particle film. Moreover, the degree of reduction in insect adhesion to the treated substrates (glass and plant leaves), compared with the untreated ones, differed according to the kind of treated substrate, depending on its initial wettability and morphology (e.g., trichome coverage) [33].

In the present investigation, using traction force experiments and behavioral tests, we compared the effects of different nanopowder-based materials, such as kaolin and zeolite, in reducing insect attachment and in affecting the walking behavior of N. viridula. We used this species as the model insect because this is one of the most relevant pentatomid insect pest in the world [34]. Moreover we previously performed numerous investigations on its attachment devices and attachment ability [33,35,36,37,38,39]. In addition to the two aluminosilicate nanomaterials, we also tested calcium carbonate (slaked lime dissolved in water and dried in air conditions), one of the first minerals used in “ancient particle film technology” and representing, alone or in mixtures, the predominant insecticidal material used in agriculture in the early 1900s [7]. Calcium carbonate is still used at present against insect pest and plant pathogens. Lime-stone-based products are reported as oviposition deterrent for Rhagoletis indifferens Curran (Diptera: Tephritidae) [40]; slaked lime treatments may reduce or repel insects [41,42,43].

2. Materials and Methods

2.1. Insects

Individuals of N. viridula were collected in the field close to Bastia Umbra (Perugia, Umbria region, Italy) in June 2019 and reared in a controlled climate chamber (14:10 light-dark rhythm, temperature 25 ± 1 °C, relative humidity 70 ± 10%) inside transparent plastic food containers (300 mm × 195 mm × 125 mm) with mesh-covered holes (diameter: 5 cm). Sunflower seeds (Helianthus annus L.) and French beans (Phaseolus vulgaris L.) were used to feed the insects.

Since no sexual dimorphism was previously observed in the attachment ability of males and females of N. viridula [35,37], we used only one sex (males) for the experiments. As variations in attachment ability have been detected in N. viridula adults according to the insect age [36], only males about ten days old were tested.

2.2. Cryo Scanning Electron Microscopy (cryo-SEM)

The shock-frozen samples of treated (with kaolin, zeolite, or calcium carbonate particle films) hydrophilic glass and of the insect tarsi (after walking on treated glass) were studied in a scanning electron microscope (SEM) Hitachi S-4800 (Hitachi High-Technologies Corp, Tokyo, Japan) equipped with a Gatan ALTO 2500 cryo preparation system (Gatan Inc., Abingdon, UK). For details of sample preparation and mounting for cryo-SEM, see [44]. Specimens were sputter-coated in frozen conditions with gold-palladium (thickness: 10 nm) and examined at 3 kV acceleration voltage and a temperature of −120 °C at the cryo-stage within the microscope.

2.3. Force Measurements

The experiments were performed using a traction force experimental set-up. Prior to the force measurements, adults of N. viridula were weighed on a micro-balance (Mettler Toledo AG 204 Delta Range, Greifensee, Switzerland). Experimental insects were anaesthetized with carbon dioxide for 60 s and made incapable of flying by carefully gluing their forewings together using a small droplet of melted wax. One end of about 15-cm-long human hair was fixed on the insect thorax with a droplet of melted wax. Before starting the experiments, insects were left to recover for 30 min. All the experiments were performed during the daytime at 25 ± 1 °C temperature and 60 ± 10% relative humidity.

The traction force experiment set-up consisted of a force sensor FORT-10 (10 g capacity; World Precision Instruments Inc., Sarasota, FL, USA) connected to a data acquisition unit MP 100 (Biopac Systems Ltd., Goleta, CA, USA) [45]. Data were recorded using AcqKnowledge 3.7.0 software (Biopac Systems Ltd., Goleta, CA, USA). The insect attached to the force sensor by means of the hair glued to its thorax was allowed to move on the test substrate in a direction perpendicular to the force sensor (and parallel to the substrate). The force generated by the insect walking horizontally on the test substrates was measured. Force–time curves were used to evaluate the maximal pulling (traction) force produced by walking insects.

N. viridula adult males were tested on different surfaces, according to the following sequence: untreated glass (glass before), treated glass (with kaolin, zeolite, or calcium carbonate films), untreated glass (glass after 0 h), untreated glass after 1 h (glass after 1 h), and untreated glass after 24 h (glass after 24 h). Thirteen adult males of N. viridula were tested for each particle film. Force–time curves were used to evaluate the maximal friction force produced by pulling insects on the different test surfaces for each individual run.

2.4. Walking Behavior

Linear speed: insects were allowed to walk on horizontal and vertical untreated glass (and just after on glass treated with kaolin, zeolite, calcium carbonate). Their walking behavior was recorded using a monochrome CCD video camera (Sony SSC M370 CE, Sony Professional Solutions Europe, Weybridge, UK) fitted with a 12.5–75 mm/F 1.8 zoom lens. Analog video signals from the camera were digitized by a video frame grabber (Canopus ADVC 110, Grass Valley, CA, USA). Digitized data were processed by XBug, a video tracking and motion analysis software [46]. The insect linear speed during the entire bioassay was calculated.

Attachment in free-walking insects: each insect was placed on a horizontal treated glass plate, and the plate was gently inverted (180°). Only insects that remained attached were used in further experiments. This allowed us to select undamaged bugs.

Each undamaged insect was placed on a horizontal treated glass (with kaolin, zeolite, or calcium hydroxide), and the glass was gently rotated at 90° and then at 180°. Just after, all the insects were tested on untreated glass using the same procedure. The number of insects able to remain attached to each surface was recorded.

2.5. Substrate Preparation and Characterization

The hydrophilic glass (water contact angle: 47.06 ± 3.37° (mean ± SD)) bearing different particle films (kaolin, zeolite, and calcium carbonate) was prepared as follows:

-

By spraying the glass surface with a water suspension of kaolin powder commonly available in Italy (“I consigli dell’esperto”, Civitavecchia, Italy) at the rate of 4% (w/v). The suspension was applied on horizontal surfaces with a hand-sprayer until runoff.

-

By spraying the glass surface with a water suspension of zeolite powder commonly available in Italy (Bioagrotech, Repubblica di San Marino, Italy—clinoptilolite-heulandite 67.5% and mordenite 32.5%,) at the rate of 0.4% (w/v). The suspension was applied on horizontal surfaces with a hand-sprayer until runoff.

-

By painting the glass surface with a water suspension of calcium hydroxide powder (or hydrated lime [Ca(OH)₂]) (Sigma Aldrich, St Louis, MI, USA) at the rate of 1:1 using a brush.

After spraying or painting, the surfaces were left to dry at a room temperature. The wettability of untreated glass and treated glass surfaces was characterized by measuring the contact angles of water (aqua millipore, droplet size = 1 µL, sessile drop method) using a high-speed optical contact angle measuring instrument OCAH 200 (Dataphysics Instruments GmbH, Filderstadt, Germany). Ten measurements (n = 10) were performed for each substrate.

The roughness of treated and untreated substrates was characterized using the white light interferometer NewView 6000 (Zygo, Middlefield, CT, USA) with the objectives ×5 and ×50 (window size 1400·µm × 1050·µm and 140·µm × 105·µm, respectively). Five individual measurements (n = 5) at different sites were performed for each substrate.

2.6. Statistical Analysis

In the traction force experiments, the difference of safety factors (friction force divided by the insect weight) on treated and untreated glass was analyzed with the Wilcoxon matched pairs test. The percentage of reduction in the safety factor of N. viridula on glass covered by the different particle films (kaolin, zeolite, and calcium carbonate) in relation to the untreated glass was analyzed using the Kruskall–Wallis ANOVA followed by multiple comparisons. The difference in linear speed of N. viridula walking on untreated glass and treated (with kaolin, zeolite, or calcium carbonate) glass was evaluated by Student’s t-tests for dependent samples. The comparisons of safety factor of N. viridula on untreated glass before and after walking on treated surfaces (kaolin, zeolite, and calcium carbonate) at different time intervals (after 0 h, 1 h, and 24 h) were done using a repeated measure ANOVA followed by the Dunnett test [47]. Before parametric analysis, the data were subjected to Box–Cox transformations, in order to reduce data heteroscedasticity [48].

3. Results

3.1. Characterization of Tested Surfaces

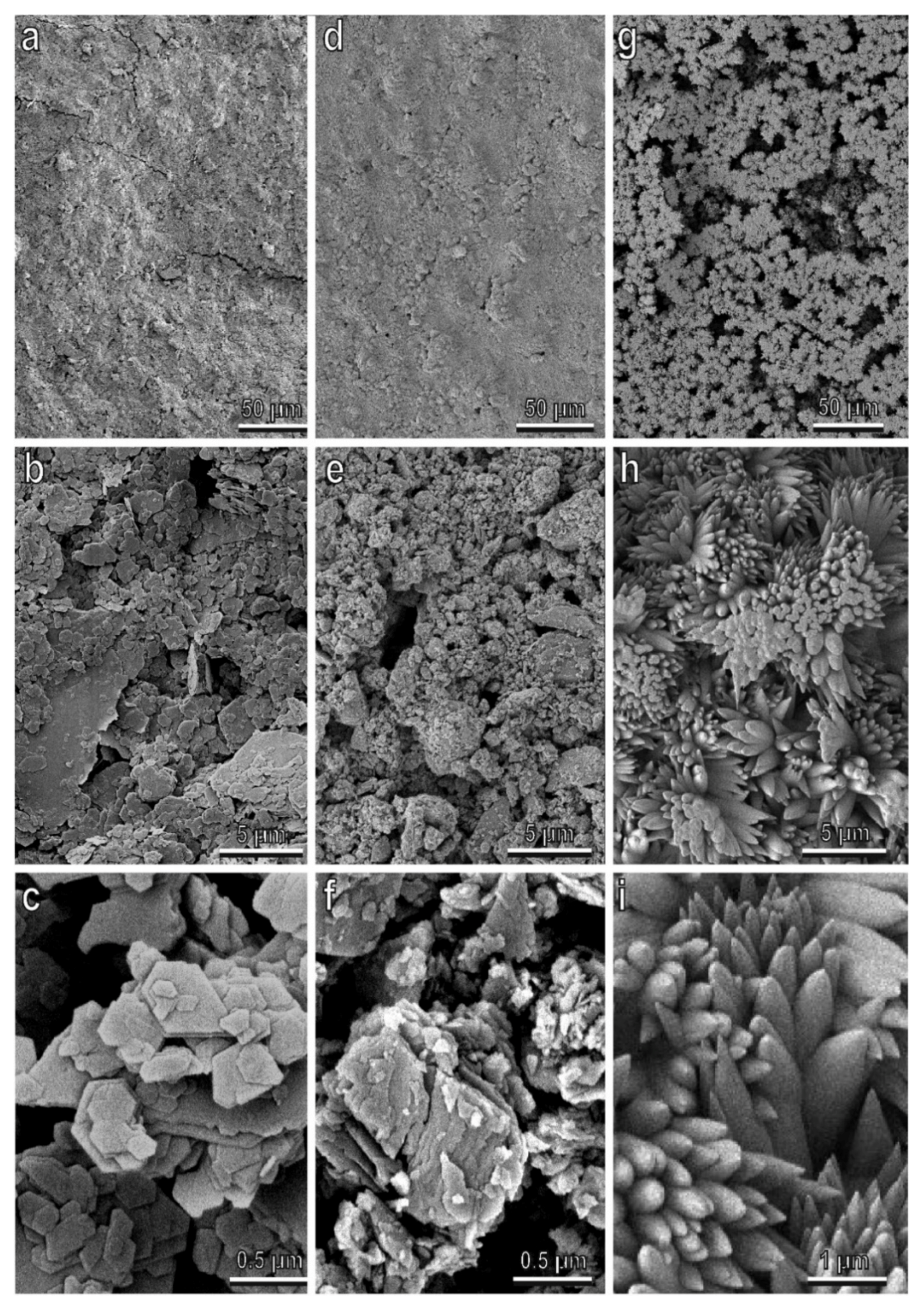

The kaolin particle film on glass, visualized with cryo-SEM (Figure 1a–c), at low magnification appears as a uniform coverage encrusting the surface (Figure 1a). At higher magnification, the film appears to be constituted of many layers of polygonal-shaped, horizontally placed plates (Figure 1b,c). The kaolin particle film has a water contact angle of about 14° (for just released water drop), with water drops spreading very quickly over the surface and completely absorbed in a short (about 4.5 s) time. Roughness Ra is 2.00 ± 0.08 µm at 5× and 1.54 ± 0.09 µm at higher (50×) magnification (Figure 2c,d,

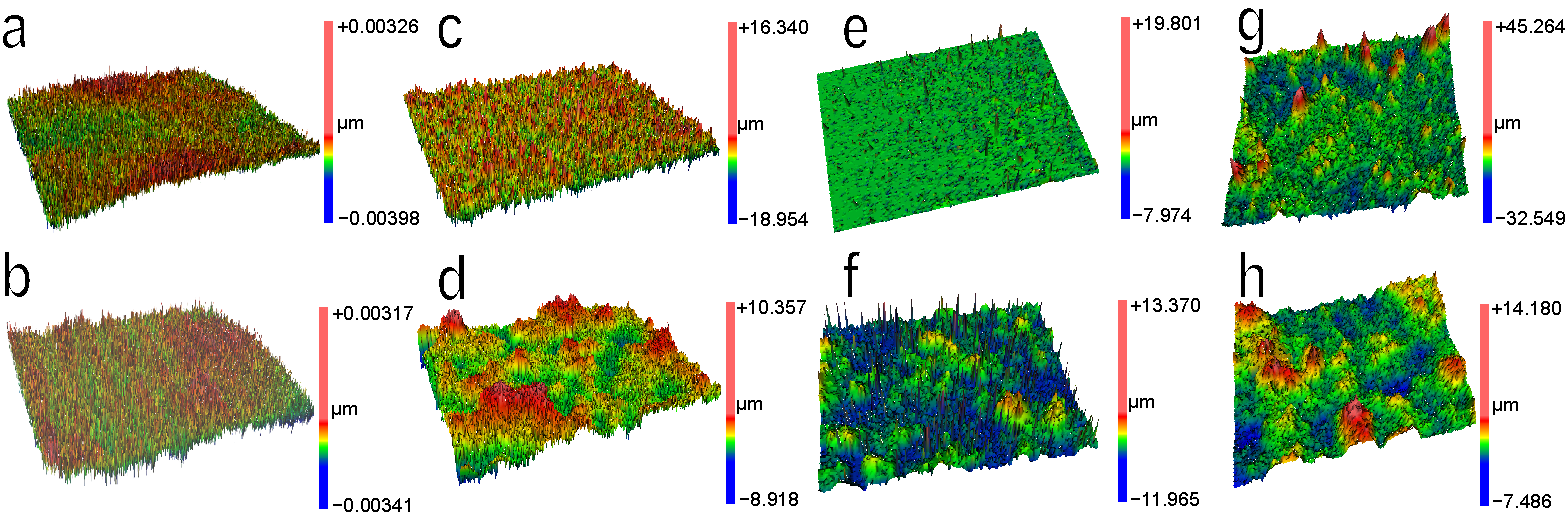

Table 1. Roughness characteristics of test substrates (see Figure 2).

Surfaces	Ra (5×)	Ra (50×)	rms (5×)	rms (50×)
Untreated glass	0.55 ± 0.03 nm	0.52 ± 0.01 nm	0.70 ± 0.04 nm	0.65 ± 0.01 nm
Treated glass (with kaolin particle film)	2.00 ± 0.08 µm	1.54 ± 0.09 µm	2.58 ± 0.10 µm	1.93 ± 0.11 µm
Treated glass (with zeolite particle film)	1.66 ± 0.30 µm	2.22 ± 0.30 µm	2.13 ± 0.33 µm	2.81 ± 0.20 µm
Treated glass (with calcium carbonate particle film)	4.5 ± 0.40 µm	2.16 ± 0.44 µm	6.25 ± 0.61 µm	2.77 ± 0.61 µm

Ra, roughness average (absolute value of the surface height averaged over the surface); rms, root mean square or quadratic mean (a statistical measure of the magnitude of a varying quantity). Data are presented as mean ± s.e.m.

).

The zeolite particle film on glass, visualized with cryo-SEM (Figure 1d–f), at low magnification looks similar to the kaolin particle film but with a reduced roughness compared to kaolin (Figure 1d). At higher magnification, the film appears to be constituted of many plates with variable shapes and dimensions forming groups oriented at different angles to the surface (Figure 1e,f). The zeolite particle film is characterized by a water contact angle of about 40° (for just-released water drops), where water drops spread very quickly over the surface and are completely absorbed in a very short (about 2 s) time. The roughness (Ra) was 66 ± 0.30 µm at 5× and 2.22 ± 0.30 µm at 50× (Figure 2e,f, Table 1).

The calcium carbonate particle film on glass, visualized with cryo-SEM (Figure 1g–i), at low magnification appeared as a non-uniform layer composed of flower-shaped crystals forming groups separated from each other (Figure 1g). These crystals at higher magnifications consist of numerous pointed digitations (Figure 1h,i). The calcium hydroxide particle film was characterized by a water contact angle of about 8° (for just-released water drops); water drops spread very quickly over the surface and were completely absorbed in an extremely short (less than 0.5 s) time. The roughness (Ra) was 4.5 ± 0.40 µm at 5× magnification and 2.16 ± 0.44 µm at 50× magnification (Figure 2g,h, Table 1).

3.2. Attachment Ability of Nezara viridula Adults to Untreated and Treated Glass

In the traction force experiments, the safety factors (traction force divided by the insect weight) were significantly decreased on all the treated surfaces bearing different particle films compared to untreated glass (Figure 3) (Wilcoxon matched pairs test; kaolin: Z = 3.06, n = 12, p = 0.002; zeolite: Z = 3.30, n = 14, p = 0.001; calcium carbonate: Z = 3.18, n = 13, p = 0.002). The percentage of reduction in the safety factor obtained on surfaces treated with kaolin, in relation to the untreated glass, was not significantly different from that on surfaces treated with zeolite. Both particle films (kaolin and zeolite) induced a percentage of reduction in the safety factor significantly higher than calcium carbonate particle film (Kruskall–Wallis ANOVA: H_2,39 = 20.89, p < 0.0001) (Figure 4).

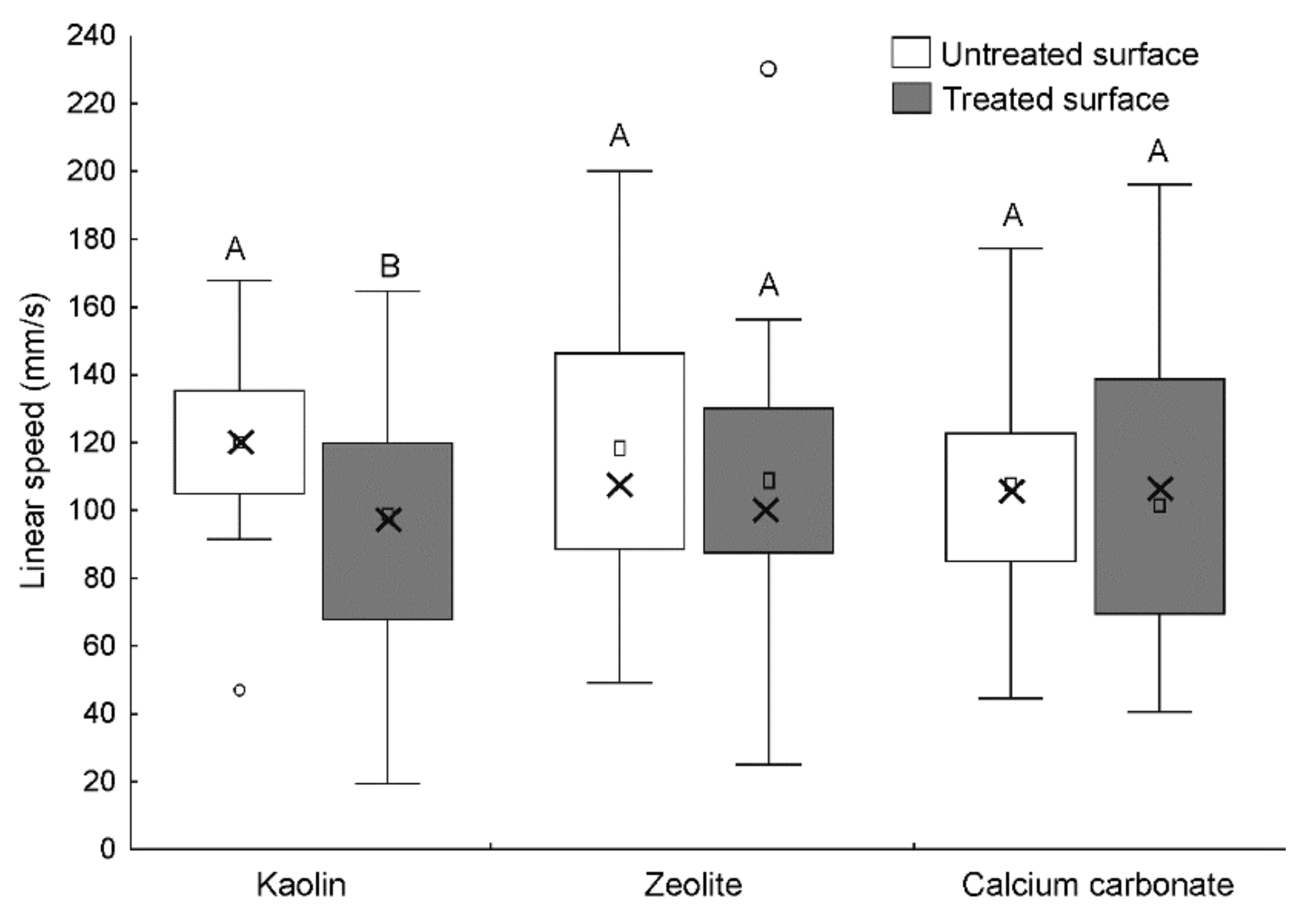

As for the linear speed of walking N. viridula insects on horizontal glass, there was a significant reduction on glass treated with kaolin compared to untreated glass (t = 2.31, d.f. = 18, p = 0.0330), whereas both glass treated with zeolite (t = 0.86, d.f. = 19, p = 0.401) and calcium hydroxide (t = 0.13, d.f. = 18, p = 0.895) did not differ compared with untreated glass (Figure 5). It was not possible to record the linear speed on vertical glass because, as demonstrated below, the insects were not able to walk on vertical, treated surfaces.

In the experiments with rotated and inverted substrates, the percentage of insects able to remain attached to the surface rotated at 90° was not statistically different among the three particle films (Fisher’s exact test: p = 0.31): it was 0% for both kaolin and zeolite and 20% for calcium carbonate. When the treated glass was inverted (at 180°), the percentage of insects able to remain attached to the surface was 0% for all three treated substrates. When these insects, after walking on a treated substrate, were allowed to walk on untreated glass, all of them remained attached to the surface when it was rotated at both 90° and at 180°.

3.3. Evaluation of the Contaminating Effect of Different Nanoparticle Films

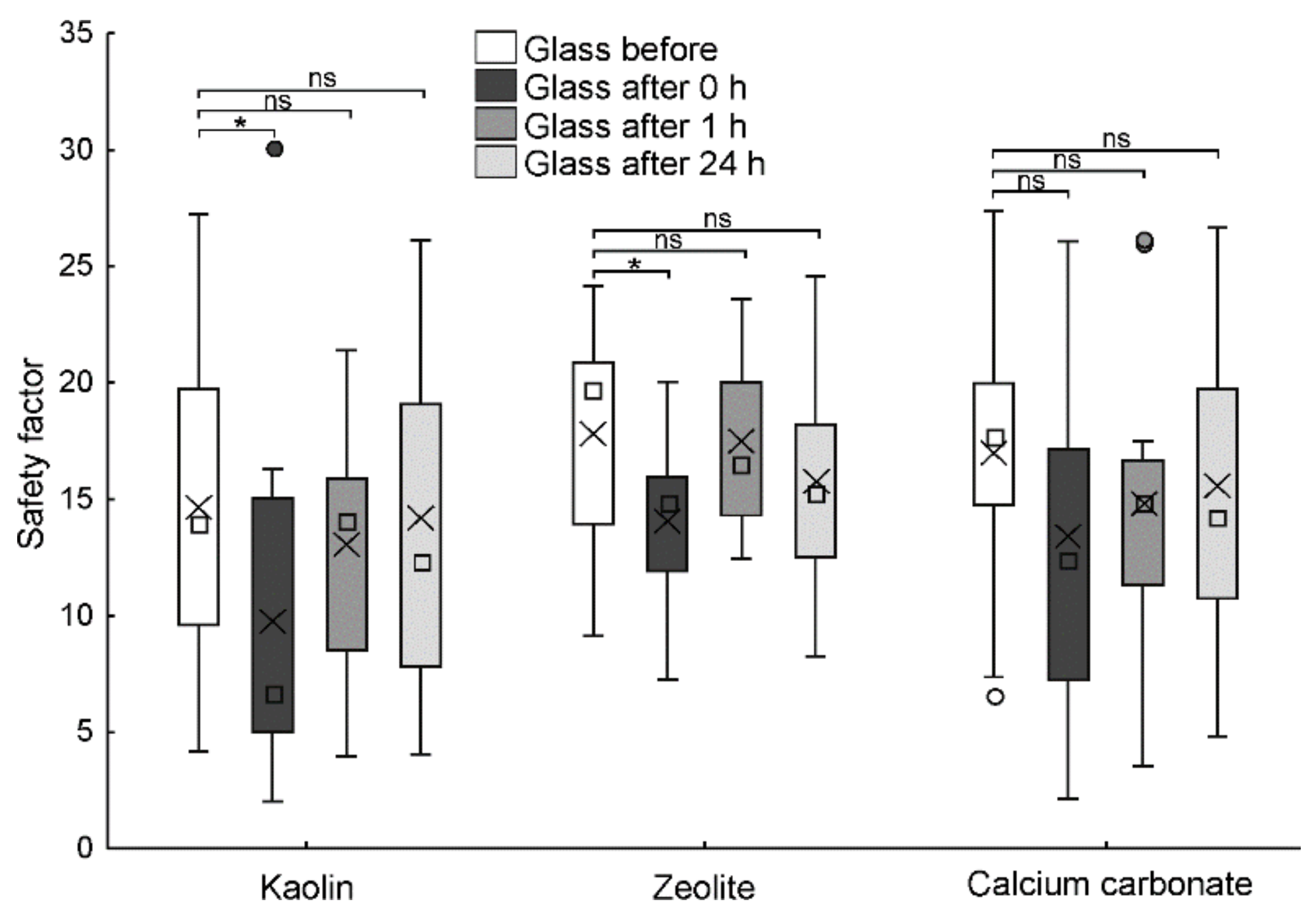

For traction force experiments performed on glass before and after walking on treated surfaces (kaolin, zeolite, and calcium carbonate) at different time intervals, i.e., after 0 h, after 1 h, and after 24 h, the insect safety factor on untreated glass just after walking on treated surfaces was significantly different for kaolin (repeated measure ANOVA: F_3,36 = 3.03, p = 0.0418) and zeolite (repeated measure ANOVA: F_3,36 = 4.17, p = 0.0123) only if tests were compared after 0 h, but not after 1 or 24 h. For calcium carbonate, no significant difference was found (repeated measure ANOVA: F_3,36 = 2.64, p = 0.0640) (Figure 6).

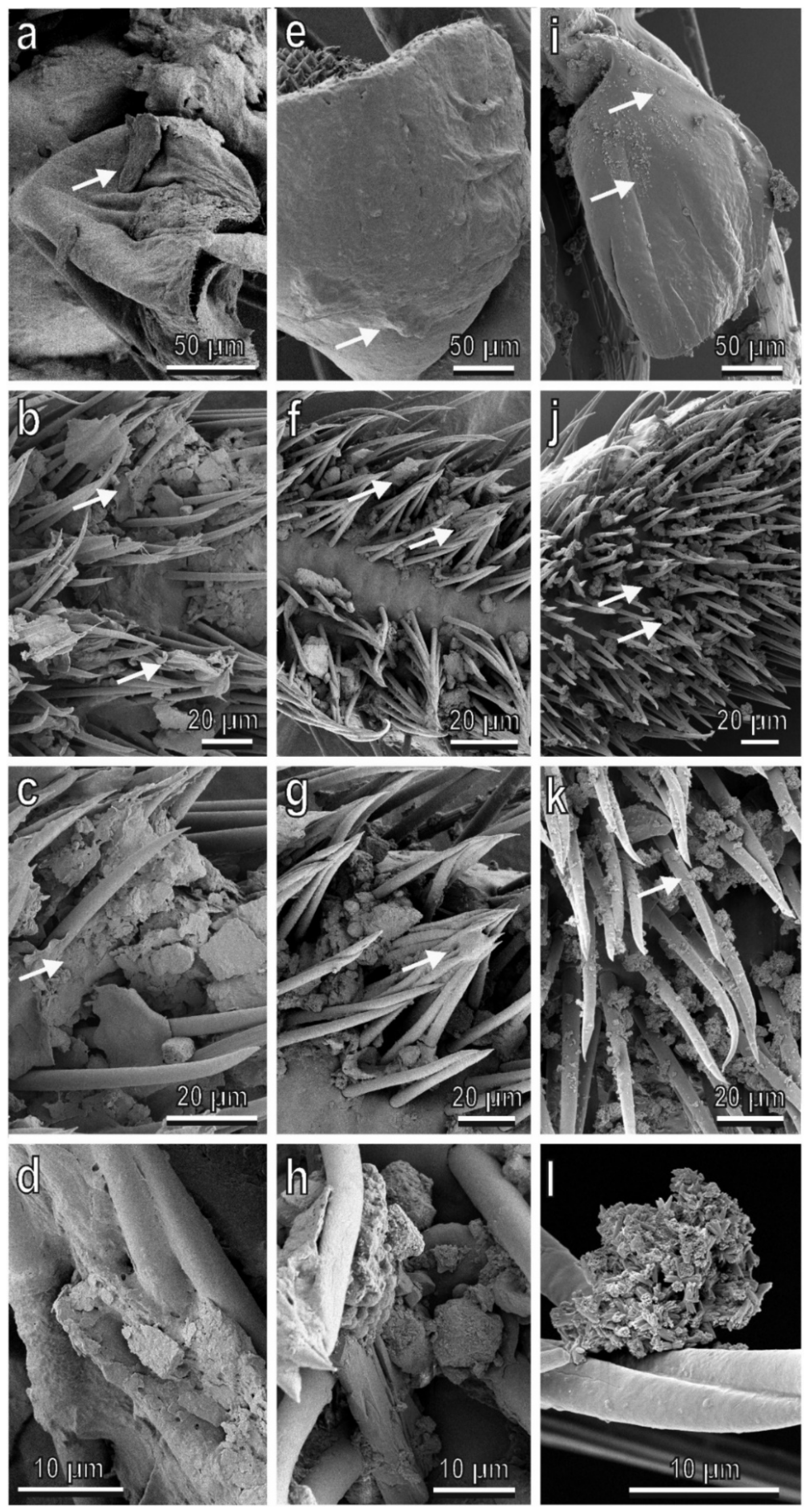

Cryo-SEM investigations of the tarsal attachment devices of N. viridula males just after they walked on treated substrates (kaolin, zeolite, and calcium carbonate) (Figure 7) revealed that both the smooth pads (pulvilli) and the basitarsal hairy pad of the bugs were contaminated by the particles. In particular, the smooth pulvilli appear covered by crusts formed by kaolin (Figure 7a) or zeolite (Figure 7e) particles glued together. Moreover, kaolin (Figure 7b–d) or zeolite (Figure 7f–h) particles accumulated among the adhesive setae of the hairy pad. Calcium carbonate particles were visible on the ventral side of pulvilli (Figure 7i) and among the basitarsal adhesive setae (Figure 7j–l), but they appeared less adherent to the cuticular surface compared to the two aluminosilicate particles.

4. Discussion

The present investigation focusing on the effect by different nanomaterials used as particle films, such as kaolin, zeolite, and calcium carbonate, on attachment ability of N. viridula reveals that the three nanomaterials can reduce insect attachment. This is clearly demonstrated by the traction force experiments as well as by tests with free-walking insects. Such results corroborate the role of particle films in pest management to alter the behavior of pest insects not only before but also after their contact with the plant [32]. Particle films covering leaves with a white coating, not only can prevent insects from recognizing the leaf surface [49] but can also heavily affect their holding to plant surfaces, as recently demonstrated in N. viridula [33].

The strong reduction in attachment of N. viridula insects to the substrate due to the different particle films observed in the present investigations may help to explain the results of field experiments performed on an invasive pentatomid bugs, such as the brown marmorated stink bugs Halyomorpha halys (Stål) (Hemiptera: Pentatomidae), where kaolin applications to peppers resulted in significantly less stink-bug-injured fruits compared to the untreated control in all harvests [50]. Further field investigations are necessary to evaluate the potential role of particle films in reducing the impact of these pest species on agriculture. Previous laboratory experiments demonstrated that the degree of reduction in insect adhesion to the substrates treated with kaolin (glass and plant leaves) differed according to the kind of treated substrate, depending on its initial wettability and morphology (e.g., trichome coverage) of plant leaves [33]. Indeed a reduced percentage of covered area of kaolin occurs on treated hydrophobic plant leaves such as the adaxial leaf side of Prunus laurocerasus showing 2D epicuticular wax film/layer, where kaolin film forms round-shaped dry droplets. In the case of Helianthus annuus, the dense pubescence of the adaxial leaf side composed by three types of trichomes causes no significant reduction in the N. viridula friction force on the treated leaf of this plant. In this regard, it would be interesting to compare the role of particle films in reducing pest impact on different crops.

We believe that the main mechanism of action of all these particle film in reducing insect adhesion is due to contamination of insect attachment organs, as it has already been shown for kaolin particle film [33] and is clearly visible also for zeolite and calcium hydroxide in our SEM observations. Indeed, both the pulvilli and the basitarsal hairy pad of N. viridula males just after they walked on glass covered with kaolin, zeolite, or calcium hydroxide were heavily contaminated by the particles. We also cannot exclude a role of tarsal fluid absorption, since aluminosilicates represent a potential adsorbent due to their microporous structures capable of adsorbing molecules at relatively low pressure [51]. The three particle films studied here have a high absorption ability, as shown in our water contact angle measurement experiments. As insect adhesion is also mediated by fluid, absorption of the secretion fluid from insect adhesive pads by porous media reduces insect adhesion [45,52].

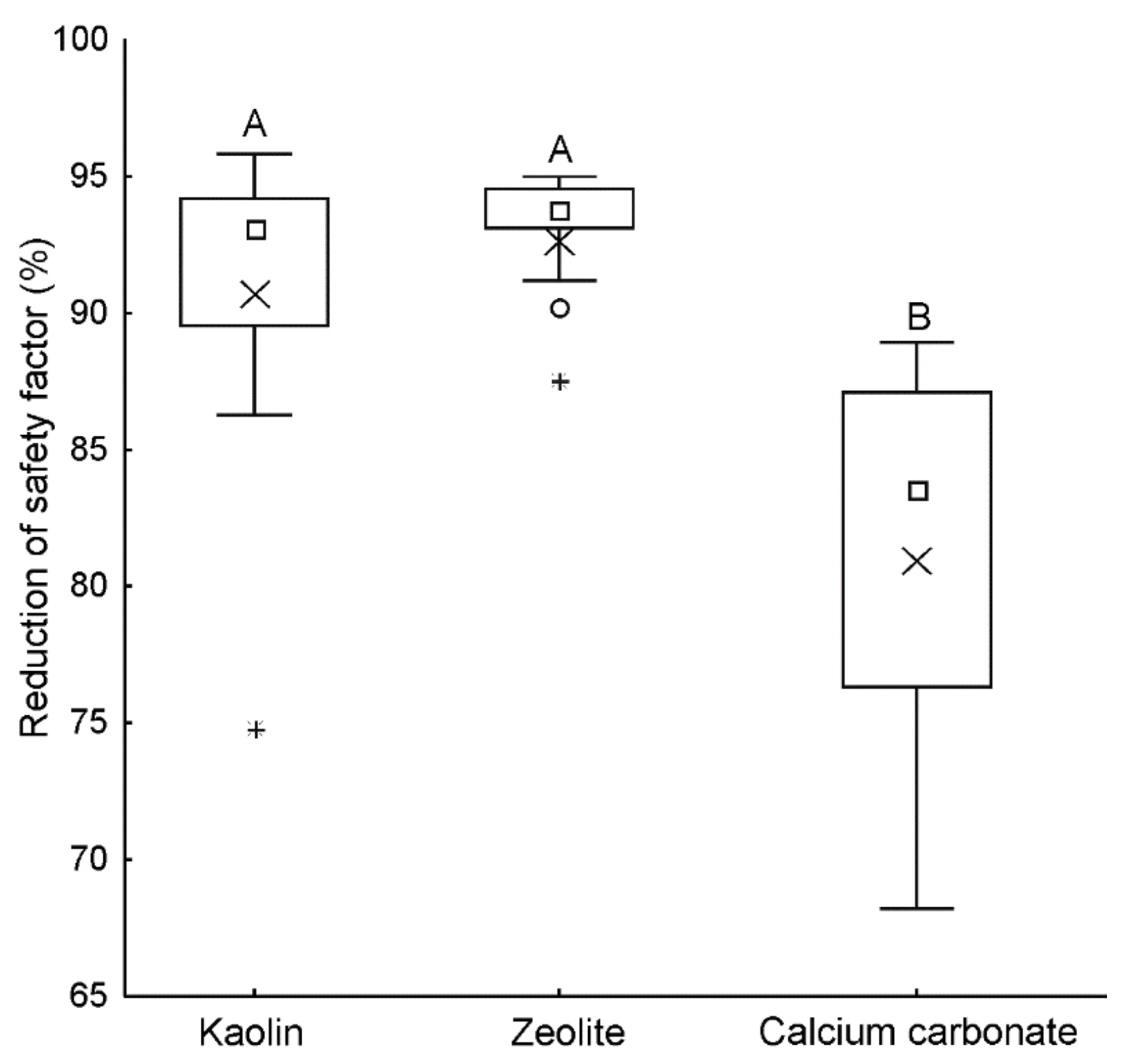

The ability to reduce insect attachment is different for the three tested particle films. Kaolin and zeolite induced a significantly higher percentage of reduction in N. viridula safety factor than the calcium carbonate particle film did. Such an ability of the two aluminosilicates compared to calcium hydroxide can be due to different reasons. Indeed, our SEM observations showed that the coating of the surface is more uniform and compact in kaolin and zeolite compared to the calcium hydroxide particle film. Moreover, kaolin and zeolite particles glued together and formed crusts on the ventral surface of N. viridula pulvilli and can strictly adhere to the adhesive setae of the hairy pads, whereas calcium carbonate particles appeared less adherent to the insect cuticular surface. The higher and more persistent contamination and, consequently, the reduction in insect attachment on kaolin and zeolite films compared with calcium hydroxide film was confirmed also in the experiments with N. viridula walking on glass at different time intervals after walking on treated surfaces. Here, we observed a reduction in insect attachment on glass after walking on kaolin and zeolite, whereas no significant difference has been detected for calcium hydroxide. In any case, the reduction in the attachment ability of N. viridula recovers in a short time (after 1 h, the attachment ability on glass was completely gained) for all the particle films and this is due to the self-cleaning ability of fluid-based smooth and hairy adhesive systems of insects [53,54].

In consideration that a reduction in the walking speed in the larvae of Cydia pomonella (L.) (Lepidoptera: Tortricidae) on plants covered by kaolin film has been reported [18], we compared the linear speed on glass treated with the three particle films. In these experiments on vertical glass, the insects were not able to attach at all, demonstrating that the used coatings effectively prevent insect crawling on vertical surfaces such as plant stems. In the experiments on horizontal glass, we could observe that only kaolin reduced the insect linear speed. It remains unclear why such a reduction is caused only by kaolin and not by zeolite, although the surface roughness is similar in both kaolin and zeolite, and the particles seem to contaminate the insect attachment devices in the same way. Further investigations are necessary to clarify this point.

In conclusion, interest in natural and artificial coatings preventing insect adhesion is high (see review in [55]), and the present study deepens the knowledge of the interaction of nanoscale particle films and insects, which can contribute to the promotion of nanoparticles to become important components of an integrated pest-management-based strategy.
