Initial Processes of Atomic Layer Deposition of Al₂O₃ on InGaAs: Interface Formation Mechanisms and Impact on Metal-Insulator-Semiconductor Device Performance

Abstract

Interface-formation processes in atomic layer deposition (ALD) of Al₂O₃ on InGaAs surfaces were investigated using on-line Auger electron spectroscopy. Al₂O₃ ALD was carried out by repeating a cycle of Al(CH₃)₃ (trimethylaluminum, TMA) adsorption and oxidation by H₂O. The first two ALD cycles increased the Al KLL signal, whereas they did not increase the O KLL signal. Al₂O₃ bulk-film growth started from the third cycle. These observations indicated that the Al₂O₃/InGaAs interface was formed by reduction of the surface oxides with TMA. In order to investigate the effect of surface-oxide reduction on metal-insulator-semiconductor (MIS) properties, capacitors and field-effect transistors (FETs) were fabricated by changing the TMA dosage during the interface formation stage. The frequency dispersion of the capacitance-voltage characteristics was reduced by employing a high TMA dosage. The high TMA dosage, however, induced fixed negative charges at the MIS interface and degraded channel mobility.

1. Introduction

Si complementary metal-oxide-semiconductor (CMOS) circuits are approaching the physical limit of scaling, and booster technologies for equivalent scaling have been seriously explored. III-V compound semiconductors have considerable potential as a channel material for high performance n-channel metal-insulator-semiconductor field-effect transistors (MISFETs) due to their high electron mobility. Improvement of the MIS interface is a central issue in order for III-V channels to be successfully implemented in future CMOS circuits. It is widely recognized that native oxides on III-V surfaces deteriorate the MIS interface properties [1,2], and many interface control methods have been proposed to remove or modify these oxides, such as surface passivation by wet oxide etching [3,4], sulfur passivation [5,6], plasma cleaning [7,8], nitridation [9,10], Si deposition [11,12], and atomic layer deposition (ALD) using reducing reactants [13,14]. Among these studies, the effects of Al₂O₃ ALD on III-V surfaces have been investigated extensively [15,16]. Al₂O₃ ALD using Al(CH₃)₃ (trimethylaluminum, TMA) as the precursor has the so-called self-cleaning effect that reduces Ga and As oxides on GaAs, InAs, and InGaAs surfaces. In situ monochromatic x-ray photoelectron spectroscopy (XPS) measurements after every ALD half cycle have revealed the surface reactions of Al₂O₃ growth on GaAs and InGaAs surfaces [15,16]. The first TMA exposure dramatically reduces the Ga³⁺ and As³⁺ oxidation states below the level of XPS detection, and after ALD of an 8-nm-thick Al₂O₃ layer, the As⁵⁺ oxidation state was detected on the top of the grown Al₂O₃ as opposed to the As³⁺ state. This As⁵⁺ state disappeared after heating at 280 °C due to evaporation of AsO_x. The capacitance-voltage (C-V) curves of Al₂O₃/InGaAs capacitors showed improved interface quality because of this self-cleaning process [15]. Although these studies investigated the bonding states of the surface oxides in detail, there are only a few studies on interface control by varying the ALD conditions [17,18]. In situ scanning tunneling microscopy (STM) and scanning tunneling spectroscopy (STS) disclosed the reaction of TMA on the group III rich (4 × 2) reconstruction of the InGaAs surface, and a more ordered reconstruction occurred when the InGaAs surface was dosed to a saturation level with TMA and subsequently annealed at 200 °C. The shift of the Fermi level after the addition of 1 monolayer of TMA for both the n-type and p-type InGaAs surfaces indicated unpinned interface formation.

In this paper, we first report results for the on-line Auger electron spectroscopy (AES) analysis of the initial growth processes of Al₂O₃ ALD on InGaAs. The results show clearly that the initial growth consists of an interface-formation stage and a bulk-growth stage. The former is characterized by no oxygen uptake from the vapor phase during the ALD cycles. This result prompted us to change the ALD conditions of the interface-formation stage independently from those of the bulk-growth stage. In particular, we focused on the effects of a high TMA dosage at the interface-formation stage, because the TMA dosage is thought to affect the extent of the surface-oxide reduction and to thereby change the MIS properties. The second half of this paper reports the electrical properties of MIS capacitors and MISFETs prepared by changing the TMA dosage in the first few cycles of Al₂O₃ ALD.

2. Experimental Section

The experiments were carried out using an ALD system that is high-vacuum compatible and equipped with an analysis chamber for AES [19]. The In_0.53Ga_0.47As epitaxial wafers were prepared by metal-organic chemical vapor deposition (MOCVD) on InP wafers. MIS capacitors and MISFETs were fabricated on n-type Si-doped and p-type Zn-doped InGaAs epitaxial layers, respectively. The use of n-InGaAs for the capacitors allows us to probe the interface properties in the upper half of the bandgap. n-InGaAs wafers were also used for the AES experiments. The thickness and doping concentration of the epitaxial layer were 0.5 µm and ~3 × 10¹⁶ cm⁻³, respectively, for both the p- and n-type InGaAs. Prior to ALD, the InGaAs surfaces were treated in an NH₄OH solution and rinsed in deionized H₂O for 1 min. The Al₂O₃ films were then deposited using TMA and H₂O as precursors at 250 °C. The TMA dosage for our standard ALD conditions was ~0.005 Pa·s.

The amount of aluminum and oxygen on the InGaAs surface was monitored by on-line AES. The AES measurements were carried out after each of the following process steps: NH₄OH etching, heating to 250 °C, and 1, 2, 3, 5, and 10 ALD cycles. For each measurement, the sample was transferred from the ALD chamber directly to the AES chamber. The electron beam energy was 5 keV. To supplement the AES results, the samples after ALD were also analyzed by ex situ XPS using an Al Kα x-ray source (1,486.7 eV).

In order to study the effects of a high TMA dosage on the MIS interface properties, the initial ALD cycles were carried out at a TMA dosage of ~0.5 Pa·s. The samples were prepared with this high TMA dosage for the initial cycles and with the standard dosage for the following cycles, keeping the total number of cycles at 60. The number of ALD cycles with a high TMA dosage was varied from zero to five. The growth rate of Al₂O₃ was 0.10 nm/cycle regardless of the TMA dosage. After completing ALD, post deposition annealing (PDA) was carried out at 400 °C for 2 min in vacuum. Evaporated Au was used as the front electrode in the capacitors.

MISFETs were fabricated on p-InGaAs using the gate-last process [5,6]. The wafer surface was first deposited with a 6-nm-thick Al₂O₃ protection layer. Si implantation at the source and drain regions was carried out at an acceleration energy of 30 keV and a dose of 2 × 10¹⁴ cm⁻² using a photoresist mask. The dopant was activated by rapid thermal annealing in an N₂ flow at 600 °C for 10 s. After removing the protection layer by buffered hydrofluoric (BHF) etching, the channel surface preparation and the ALD and PDA processes were carried out under the same conditions as MIS capacitor fabrication. A 30-nm-thick TaN_x gate electrode was then deposited on the Al₂O₃film by ion-beam sputtering. After opening the source and drain contact holes by selectively etching TaN_x and Al₂O₃, the Ti-Au stacks for the source, drain, and gate contacts were formed by electron beam evaporation and a lift-off process. The fabrication process was completed by post metallization annealing in an N₂ flow at 350 °C for 90 s.

3. Results and Discussion

3.1. AES and XPS Analyses of InGaAs Surfaces

Figures 1 (a–g) show a series of Auger spectra taken during the course of NH₄OH treatment, 250 °C heating, and Al₂O₃ ALD with the standard TMA dosage for the first ten cycles on InGaAs(100). The spectra were normalized with respect to the In MNN intensity. NH₄OH-treated InGaAs surfaces had a surface oxide as shown by the O KLL signal in spectrum (a). Spectrum (b), obtained after heating at 250 °C, shows that the O KLL intensity decreased slightly due to evaporation of the adsorbed H₂O from the InGaAs surface. An increase of the O KLL intensity during Al₂O₃ ALD is seen clearly after the second ALD cycle, whereas the Al LMM signal was observed from the first ALD cycle as shown in spectra (c)–(g).

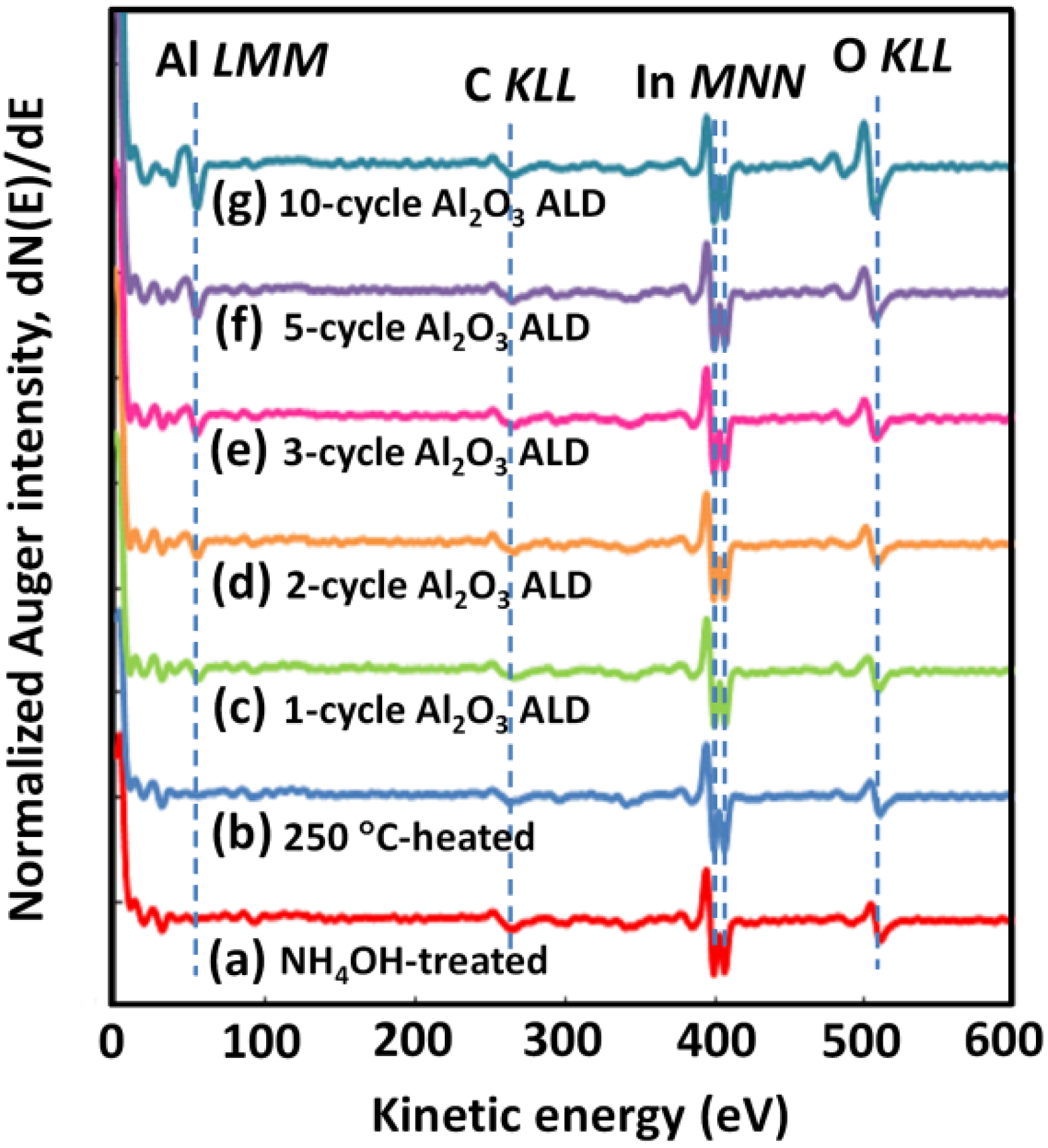

Figure 1. AES spectra of (a) NH₄OH-treated InGaAs(100), (b) after heating, (c) 1-, (d) 2-, (e) 3-, (f) 5-, and (g) 10-cycle Al₂O₃ ALD at 250 °C.

Figure 1. AES spectra of (a) NH₄OH-treated InGaAs(100), (b) after heating, (c) 1-, (d) 2-, (e) 3-, (f) 5-, and (g) 10-cycle Al₂O₃ ALD at 250 °C.

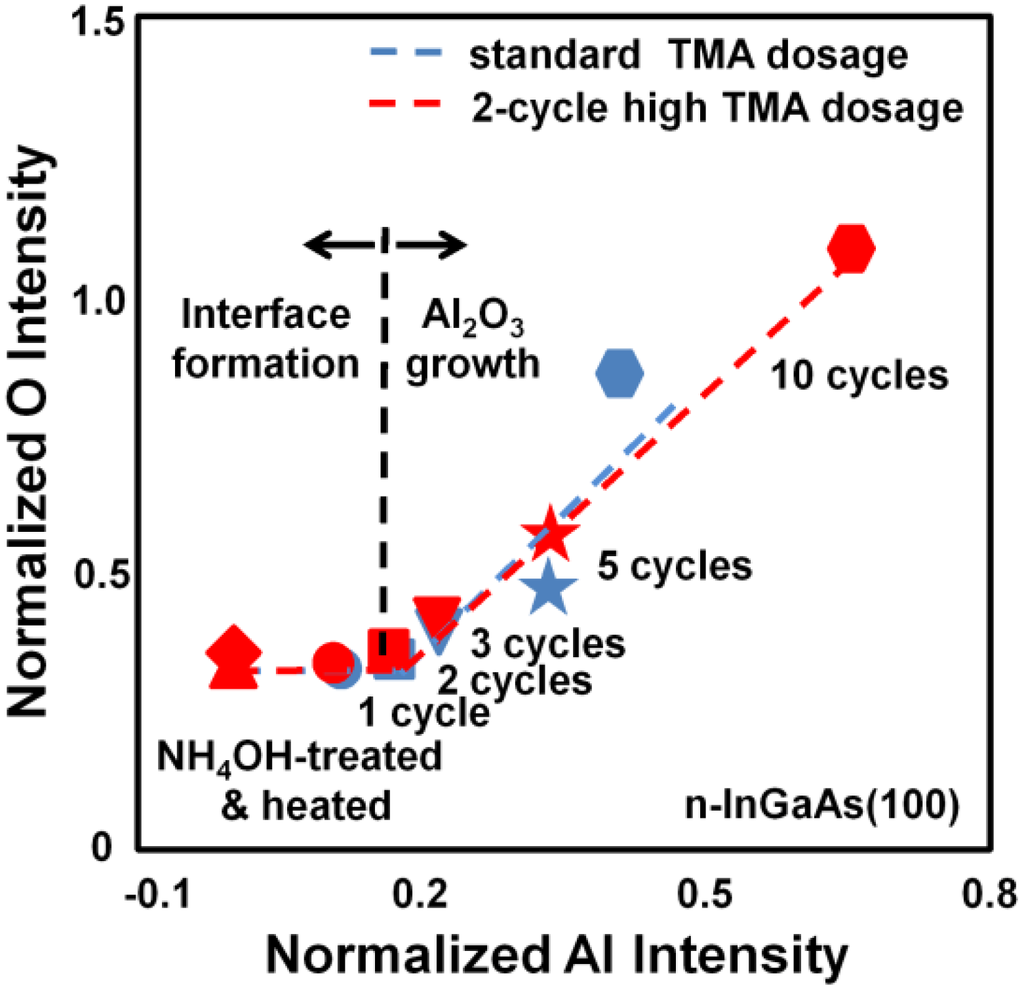

Figure 2. In situ AES analysis of the InGaAs(100) surface at energies between the Al LMM and O KLL intensities, normalized to the In MNN intensity, after NH₄OH treatment, heating at 250 °C, and integrated ALD cycles of 1, 2, 3, 5, and 10.

Figure 2. In situ AES analysis of the InGaAs(100) surface at energies between the Al LMM and O KLL intensities, normalized to the In MNN intensity, after NH₄OH treatment, heating at 250 °C, and integrated ALD cycles of 1, 2, 3, 5, and 10.

Figure 2 shows the relationship between the normalized Al LMM and O KLL Auger intensities for a standard TMA dosage and the 2-cycle high TMA dosage conditions. The Auger intensities were quantified by the peak-to-peak intensities of the normalized Al LMM and O KLL signals. The Al signal increased in proportion to the cycle number, whereas the O signal was unchanged in the first and second cycles of both the standard TMA dosage and 2-cycle high TMA dosage conditions. These correlations indicate that Al₂O₃ ALD on InGaAs consists of two stages: (1) interface formation (1 to 2 cycles), where the TMA reacts with the InGaAs surface oxide to form the interface and oxygen uptake from the H₂O vapor does not take place, and (2) bulk growth, in which both the Al and O amounts increase in proportion to the ALD cycle number. These results also show that the Al LMM and O KLL intensities of the 2-cycle high TMA dosage condition are higher than that of the standard dosage conditions after the interface-formation stage as indicated by higher growth rate of Al₂O₃ at the beginning of bulk growth. It should be noted that the higher growth rate by high TMA dosage was observed only at the beginning of bulk growth. The growth rate of thick films (~10 nm) was 0.10 nm/cycle, regardless of the TMA dosage.

In order to characterize the interfaces formed by the standard TMA dosage and 2-cycle high TMA dosage conditions, InGaAs surfaces with an Al₂O₃ cap layer grown by 10-cycle ALD (approximately 1 nm) were analyzed by XPS. Figure 3 shows the data of the As 2p_3/2, Ga 2p_3/2, In 3d_5/2, and Al 2p signals. Spectra (i) and (ii) in each plot label the signal for the standard TMA and 2-cycle high TMA dosages, respectively. The amount of AsO_x and GaO_x were smaller for the high TMA dosage than the standard dosage. Additionally, the InO_x component was too small for us to examine the dosage effects. These XPS results indicate that surface oxide reduction can be promoted by a high TMA dosage during the interface-formation stage. The AlO_x intensity of the 2-cycle high TMA dosage conditions is higher than that of the standard dosage and indicated a thicker Al₂O₃ film, which corresponds to the higher growth rate as observed in Figure 2. The peak at ~442 eV in the In 3d XPS spectra was reproducibly observed in our XPS measurements of the InGaAs samples. Although this component with a lower binding energy would imply presence of metallic In such as In droplet or surface-segregated In, characterization by AFM and TEM did not show any evidence of such In structures.

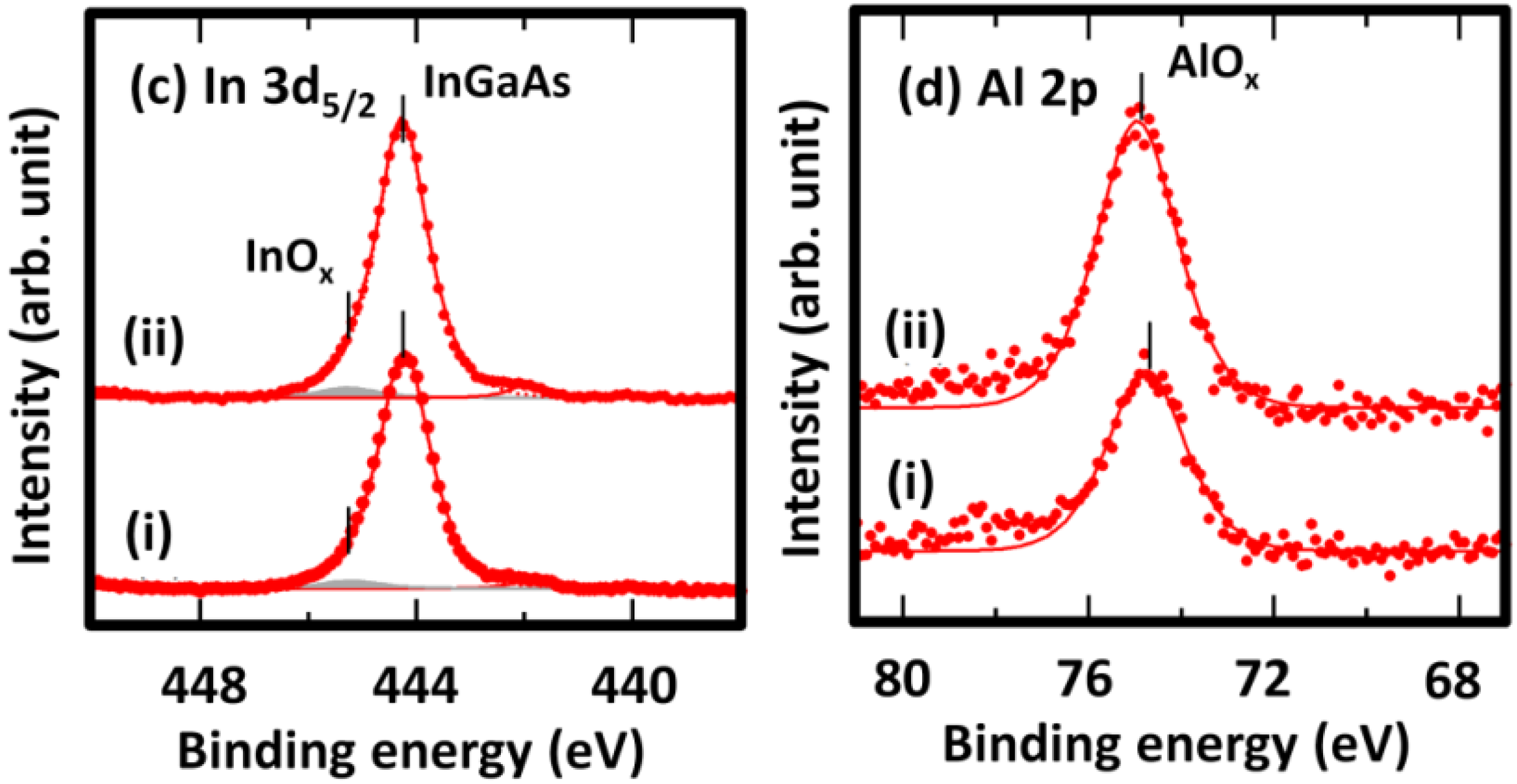

Figure 3. (a) As 2p, (b) Ga 2p, (c) In 3d, and (d) Al 2p XPS spectra of Al₂O₃ (~1 nm)/InGaAs after ALD with (i) a constant TMA dosage and (ii) a 2-cycle high TMA dosage.

Figure 3. (a) As 2p, (b) Ga 2p, (c) In 3d, and (d) Al 2p XPS spectra of Al₂O₃ (~1 nm)/InGaAs after ALD with (i) a constant TMA dosage and (ii) a 2-cycle high TMA dosage.

In Figure 3, Ga/As intensity ratios for (i) and (ii) were 0.89 and 1.14, respectively. The In/Ga ratios were 0.84 and 1.35 for (i) and (ii), respectively. These data indicate that the high-dosage ALD lead to less As atoms at the MIS interface. As mentioned in introduction, it was reported that the As⁵⁺ oxidation state was detected on the top surface of the Al₂O₃ layer. We speculate that such segregation of As oxide to the ALD growth surface was enhanced by the high dosage of TMA.

3.2. MIS Properties

Figure 4 compares the C-V characteristics of the Al₂O₃/InGaAs interfaces prepared with (a) the standard TMA dosage for all 60 cycles, and (b) the high dosage for the first two cycles and the standard dosage for the remainder. The C-V curves show that the high TMA dosage caused a positive flatband voltage V_fb shift and a reduction of the frequency dispersion around V_fb.

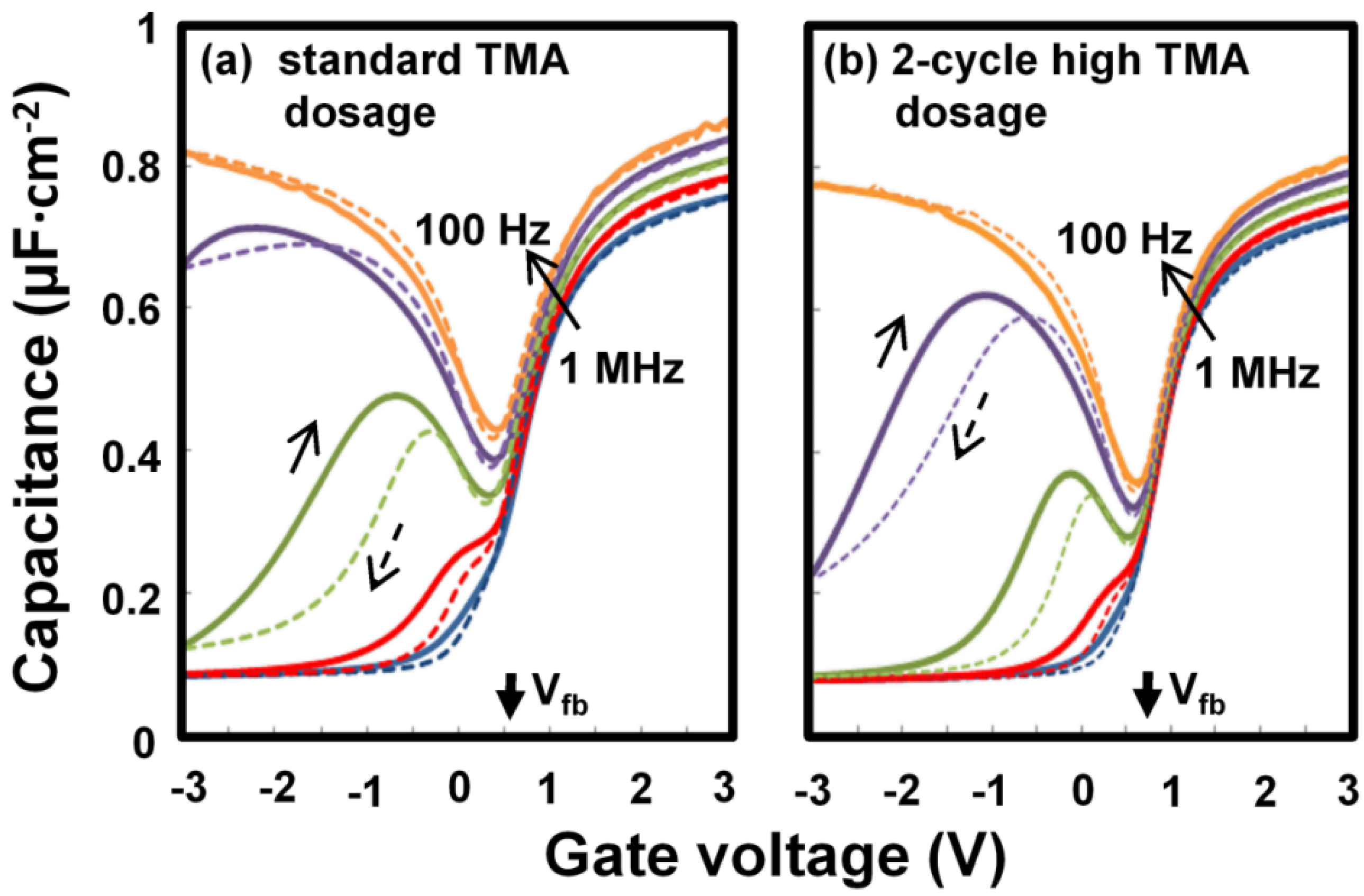

Figure 4. C-V characteristics of Au/Al₂O₃ (6 nm)/n-InGaAs(100) capacitors with (a) a constant TMA dosage for all 60 cycles, and (b) a high TMA dosage for the first 2 cycles and the standard dosage for the remainder. The frequencies were 1 MHz, 100 kHz, 10 kHz, 1 kHz, and 100 Hz as indicated in the figure.

Figure 4. C-V characteristics of Au/Al₂O₃ (6 nm)/n-InGaAs(100) capacitors with (a) a constant TMA dosage for all 60 cycles, and (b) a high TMA dosage for the first 2 cycles and the standard dosage for the remainder. The frequencies were 1 MHz, 100 kHz, 10 kHz, 1 kHz, and 100 Hz as indicated in the figure.

Figure 5 shows frequency dispersion and V_fb as a function of the number of high-dosage cycles. The frequency dispersion was quantified by measuring the voltage shift at half the maximum capacitance as the frequency was changed from 1 MHz to 100 Hz. Reduction of the frequency dispersion was most remarkable when the high TMA dosage was employed in the first and second cycles, i.e., the interface-formation stage. The minimum frequency dispersion was ~70 mV for a high TMA dosage for the first two cycles, whereas it was as large as 225 mV when the standard dosage was used for all cycles. This smaller frequency dispersion indicates a smaller trap density D_it. The high-low frequency capacitance method was employed to estimate the D_it profile; the minimum D_it was 3.1 × 10¹² cm⁻²eV⁻¹ for the standard dosage, and this was reduced to 1.2 × 10¹² cm⁻²eV⁻¹ by using a high TMA dosage for the first two cycles.

Figure 5. The flatband voltage V_fb and frequency dispersion as a function of the number of high-dosage cycles.

Figure 5. The flatband voltage V_fb and frequency dispersion as a function of the number of high-dosage cycles.

Although the frequency dispersion improved by using the high TMA dosage, the V_fb shifted in the positive direction by ~0.2 V. The cause for this shift was examined by measuring the MIS capacitor structures with various Al₂O₃ thicknesses. Figure 6 shows the dependence of V_fb on the Al₂O₃ thickness for both the standard and high TMA dosage conditions. The V_fb of the high TMA dosage conditions increased proportionally with the Al₂O₃ thickness; however, the dependence was much weaker for the standard dosage. These results indicate that the number of fixed negative charges at the Al₂O₃/InGaAs interface is increased by the high TMA dosage during the initial growth. From the gradient of the regression lines, the effective density of the fixed negative charges is estimated to be approximately 3.9 × 10¹¹ and 7.5 × 10¹¹ cm⁻² for the standard and high TMA dosage conditions, respectively.

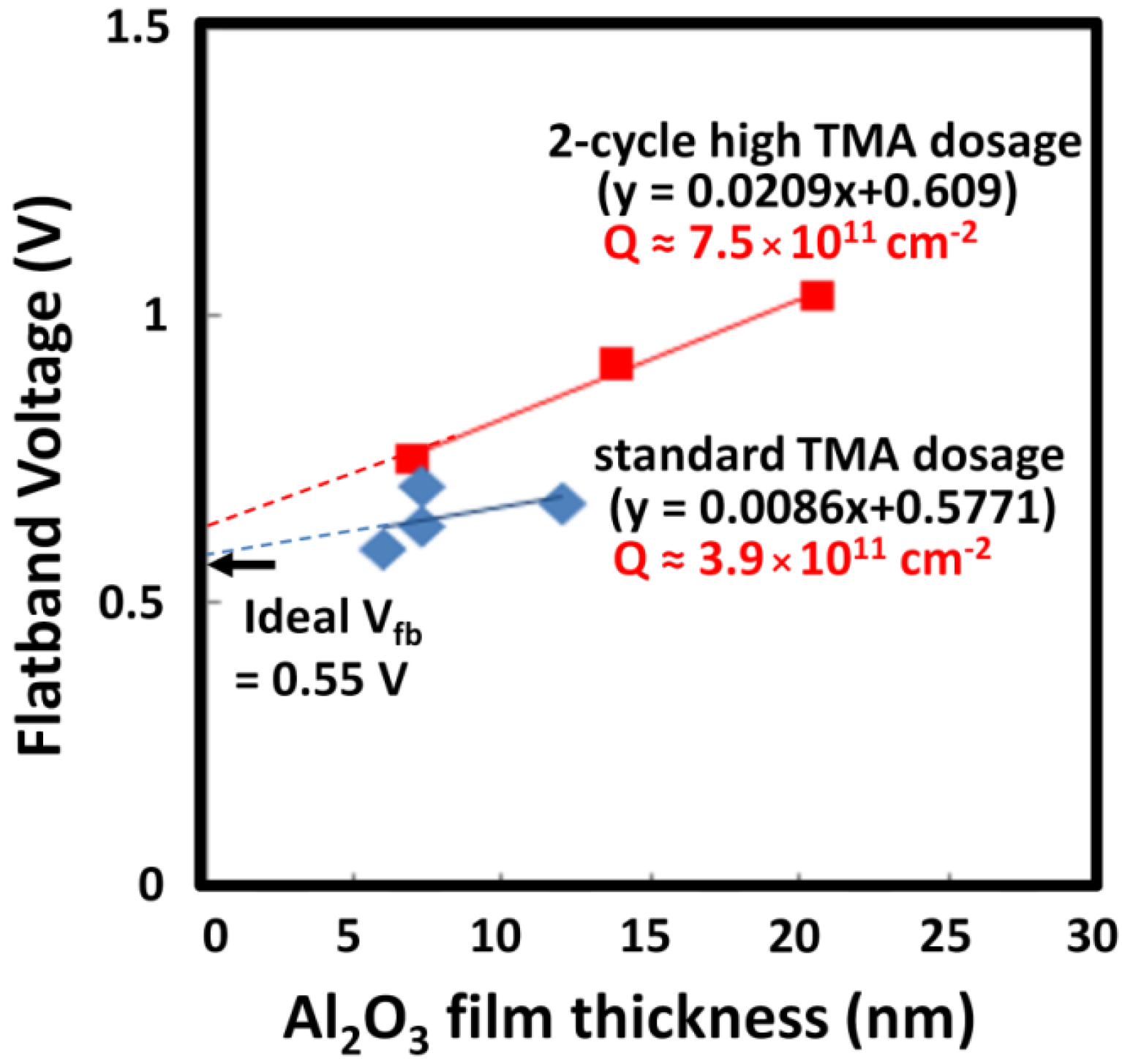

Figure 6. Dependence of the flatband voltage V_fb on Al₂O₃ thickness. V_fb was estimated from the 1 MHz C-V curves of the Au/Al₂O₃/n-InGaAs(100) capacitors. The gradient indicates the fixed charge density.

Figure 6. Dependence of the flatband voltage V_fb on Al₂O₃ thickness. V_fb was estimated from the 1 MHz C-V curves of the Au/Al₂O₃/n-InGaAs(100) capacitors. The gradient indicates the fixed charge density.

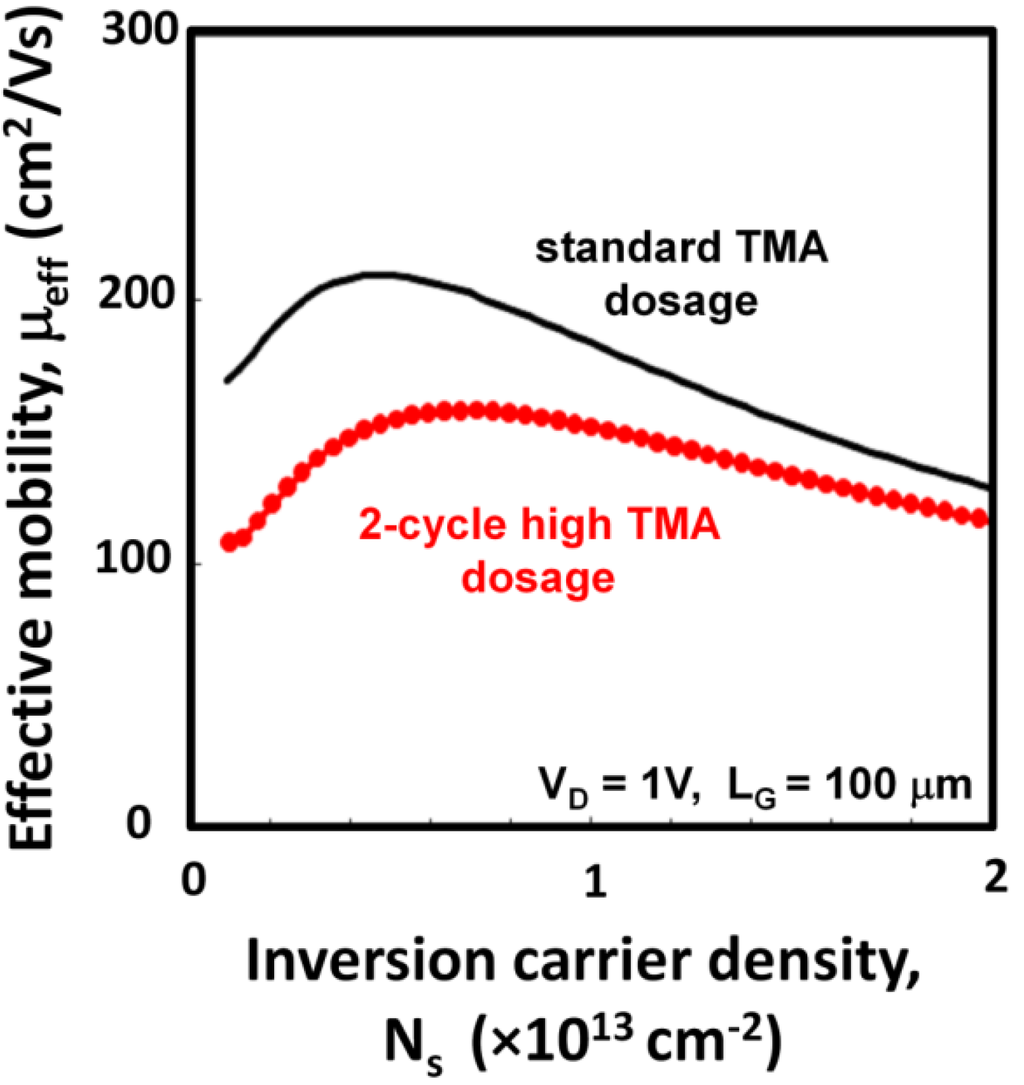

Figure 7. Effective mobilities µ_eff of the constant TMA dosage and the 2-cycle high TMA dosage devices. Split C-V data at 1 kHz of the long-channel devices (L_g/W_g = 100/100 µm) were used to estimate the inversion carrier density N_s.

Figure 7. Effective mobilities µ_eff of the constant TMA dosage and the 2-cycle high TMA dosage devices. Split C-V data at 1 kHz of the long-channel devices (L_g/W_g = 100/100 µm) were used to estimate the inversion carrier density N_s.

Figure 7 shows the effective mobility µ_eff as a function of the inversion carrier density N_s. Here, µ_eff is defined by the following equation.

µ_eff = I_d × L_g/(V_d × W_g × q × N_s)

(1)

where I_d is drain current, L_g is channel length, V_d is drain voltage, W_g is channel width, q is elementary charge and N_s was estimated by the split C-V method at 1 kHz from channel dimensions of L_g/W_g = 100/100 µm. While this is a common procedure to evaluate µ_eff of MISFETs, estimation of N_s may include some error due to the contribution of the trapping states to the C-V measurements. In particular, we recently reported for the InGaAs MISFETs that the trapping states inside the conduction band of InGaAs indeed contribute to the capacitance response, causing an overestimation of N_s [20]. Because of this situation, µ_eff reported in this paper are indeed effective or apparent values. In Figure 7, the high TMA dosage device has lower µ_eff than that of the standard dosage device. The µ_eff at N_s = 5 × 10¹² cm⁻² was 155 cm²/Vs, which is about 26% lower than that of the standard TMA device. There are two possible causes for the lower µ_eff by the high TMA dosage. First, the high TMA dosage generated a higher density of the fixed negative charges, as was shown in Figure 6. This would cause stronger carrier scattering via the Coulomb interaction. Second, the MIS interface formed by high TMA dosage could have more trapping states in the bandgap and/or inside the conduction band, and the actual carrier density that contributed to I_d was reduced.

4. Conclusions

Combining all of the results described above, it can be concluded that the TMA dosage in the interface-formation process is the key to adjusting the ALD-Al₂O₃/InGaAs MIS interface properties. The AES results revealed that the initial growth of Al₂O₃ consists of two stages: interface formation and bulk growth. This initial 2-cycle Al₂O₃ ALD takes place by the reaction between TMA and the InGaAs surface oxides rather than the normal ALD reaction between TMA and H₂O. XPS results showed that surface oxide reduction can be promoted by a high TMA dosage during the interface-formation stage, and the C-V characteristics indicated that the high TMA dosage is effective in improving the frequency dispersion as it causes a positive shift in V_fb. Reduction of the frequency dispersion was most remarkable when the high TMA dosage was employed during the first and second cycles. The positive shift of V_fb originates from the fixed negative charges at the Al₂O₃/InGaAs interface. The device prepared with the high TMA dosage showed a degraded effective carrier mobility as compared with the standard TMA dosage device, and this lower MISFET performance originated from the strong carrier scattering, due to the fixed negative charges at the Al₂O₃/InGaAs interface.
