# Thermal Conductivity and Microstructure of Novel Flaxseed-Gum-Filled Epoxy Resin Biocomposite: Analytical Models and X-ray Computed Tomography

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Description of Materials

^{2}sandpaper to obtain parallel surfaces and a height of 20 ± 0.5 mm. For this, the volume of the samples was measured with calipers (4 samples per test) and weighed to an accuracy of 0.01 g.

#### 2.2. Microstructural Characterization of Samples

^{3}. For each sample, a total of four REVs scans were randomly performed, with 8 µm in voxel size. It is important to note that during the image analysis, pores, and flax fibers in contact with the edges of the REV were excluded from the calculation.

#### 2.3. Analytical Approach for Estimating Thermal Conductivity

_{FG}

_{(s)}, with a given FG100/epoxy volume fraction ratio.

#### 2.3.1. Thermal Conductivity of the Fibrous Media

- with ${1-\mathsf{\nu}}_{Fb}=\mathsf{\phi}+{\mathsf{\nu}}_{FG\left(s\right)}$,
- where,
- λ
_{eff}: is the effective thermal conductivity of the fibrous composite. - λ
_{FG}: is the effective thermal conductivity of the porous flaxseed gum (FG) matrix. - λ
_{Fb}_{(s)}: is the local thermal conductivity of the flax fibers (s = solid). - ν
_{Fb}: is the volume fraction of the flax fibers. - φ: is the porosity.
- f
_{s}: is a morphological parameter (fs = 1 for fibers).

_{g}:

- with ${1-\mathsf{\nu}}_{Fb}=\mathsf{\phi}$.
- where,
- λ
_{g}: is the thermal conductivity of the air.

#### 2.3.2. Thermal Conductivity of the Porous Flaxseed Gum Matrix

_{FG}

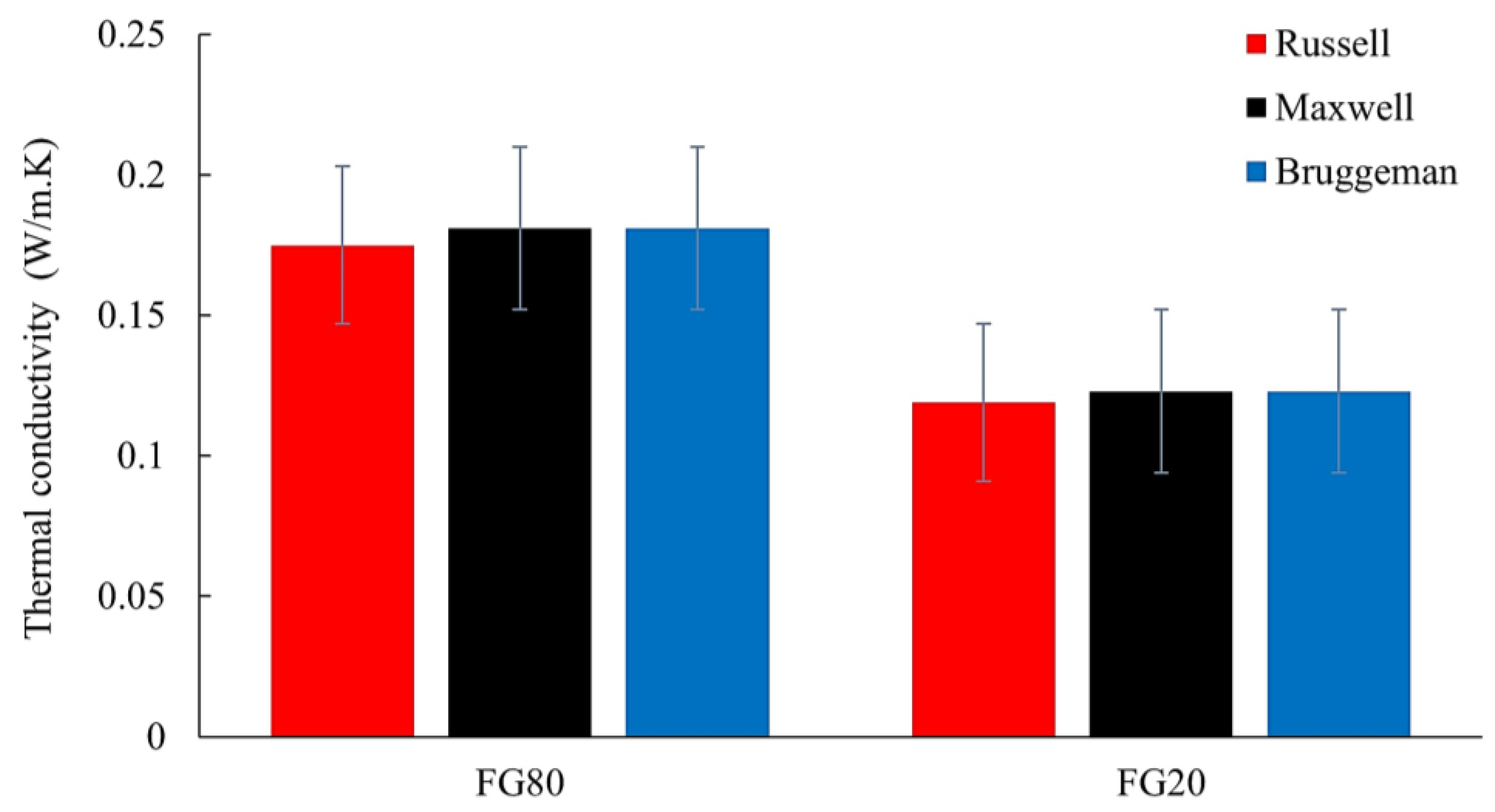

_{(s)}, three analytical models were selected: Russell, Maxwell, and Bruggeman [33,34]. These models were chosen based on their capability for estimating thermal conductivity for different shapes of pores within the composite material.

- λ
_{FG}: is the effective thermal conductivity of the porous flaxseed gum matrix. - λ
_{FG}_{(s)}: is the local thermal conductivity of the non-porous flaxseed gum matrix. - φ: is the porosity of the flaxseed gum matrix.

#### 2.3.3. Local Thermal Conductivity of the Flaxseed Gum Matrix

_{FG}

_{(s)}, with a given volume fraction ratio of FG and epoxy resin, the analytical models require determination of the intrinsic thermal conductivity of FG and epoxy resin in the matrix. The thermal conductivity of the solid phase can be calculated using the mixing law of series (7) or parallel (8) mixing laws:

- X: is the volume fraction of the pure flaxseed gum (FG100) in the solid matrix.
- λ
_{FG}_{100(s)}: is the intrinsic thermal conductivity of the non-porous FG100. - λ
_{Epoxy}_{(s)}: is the intrinsic thermal conductivity of the non-porous epoxy resin.

## 3. Results and Discussion

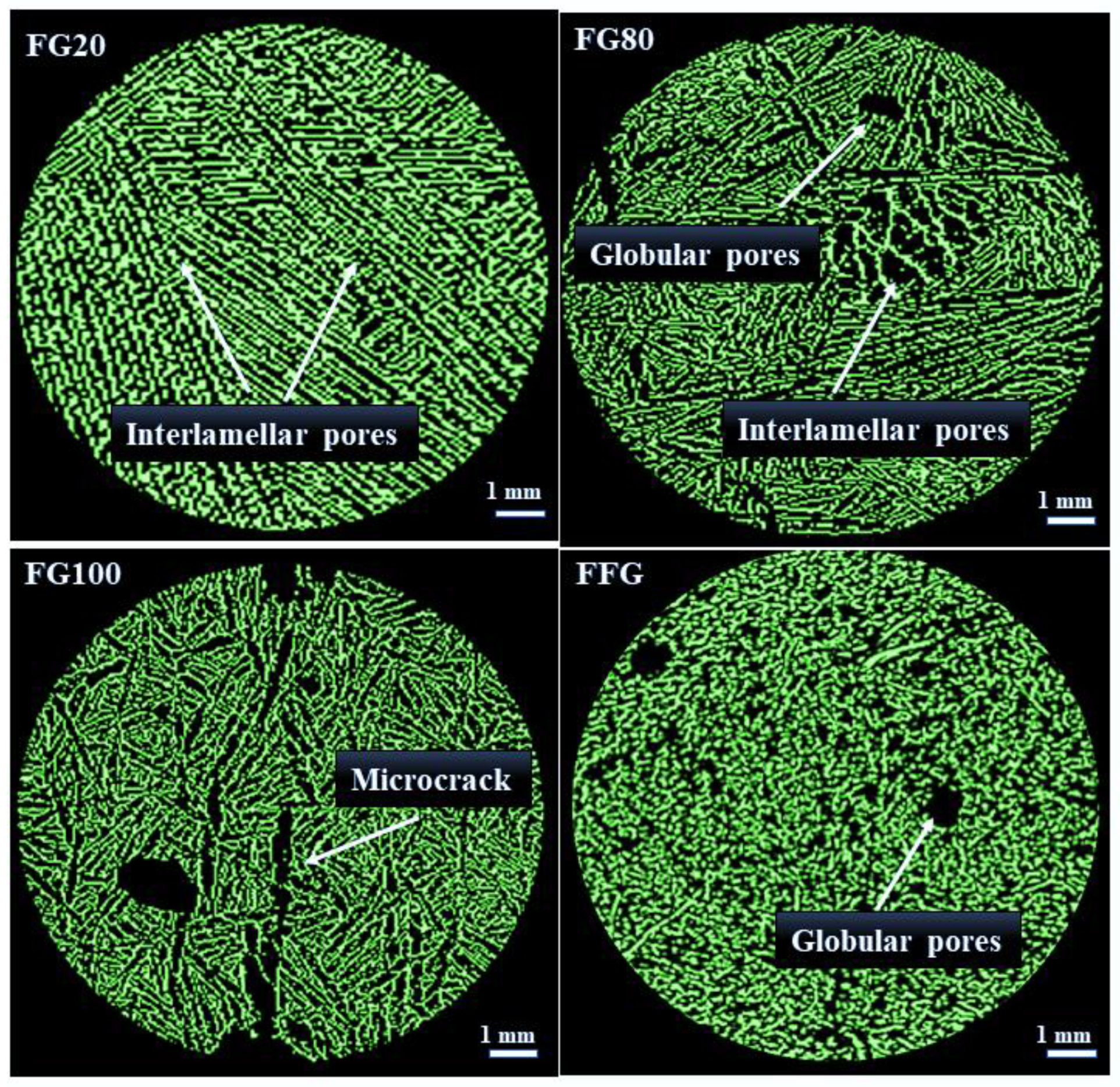

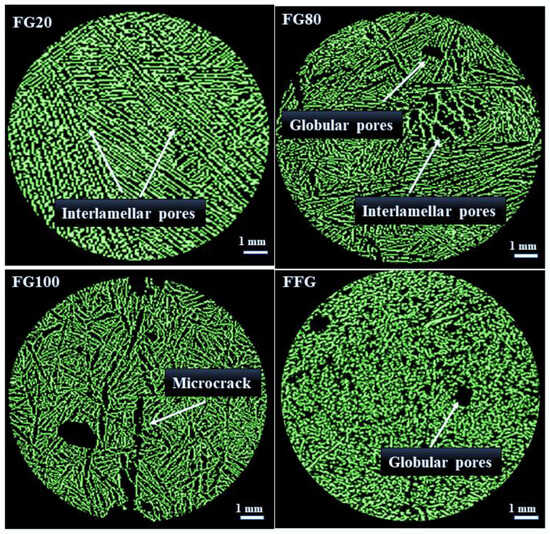

#### 3.1. Microstructure Analysis

#### 3.2. Thermal Conductivity Estimation

#### 3.2.1. Thermal Conductivity of the Non-Porous Flaxseed-Gum-Filled Epoxy Matrix

^{−1}·K

^{−1}, respectively.

#### 3.2.2. Local Thermal Conductivity of Chopped Flax Fibers

_{Fb}

_{(s)}, the porosity, and the morphological parameter fs of the solid phase. Considering the experimental thermal conductivity (0.048 W·m

^{−1}·K

^{−1}) and the porosity (76% ± 1.0) obtained from X-ray CT images, the local thermal conductivity of the fibers, λ

_{Fb}

_{(s),}was determined using the following expression:

- λ
_{Fb}: is the effective thermal conductivity of the flax fibers (in air). - λ
_{g}: is the thermal conductivity of the air (λ_{g}= 0.026 W·m^{−1}·K^{−1}).

^{−1}·K

^{−1}), while in the transverse direction, it was 0.17 (W·m

^{−1}·K

^{−1}). These measurements diverge from our results because we used shorter and randomly oriented fibers, compared to their well-oriented fibers.

#### 3.2.3. Intrinsic Thermal Conductivity of the Pure Flaxseed Gum (FG100) and Epoxy Resin

_{Epoxy}

_{(s)}in each sample was determined using Equation (10) [32], where m

_{Epoxy}

_{(s)}represents the mass fraction of the epoxy and ρ

_{matrix}

_{(s)}/ρ

_{Epoxy}

_{(s)}is the ratio of the density of the matrix to that of the epoxy (Table 1).

_{FG(s)}= 1 − ν

_{Epoxy(s)}

_{FG100}and λ

_{Epoxy}(Figure 6).

_{FG100}) were around 0.056 and 0.057 (W·m

^{−1}·K

^{−1}) for both parallel and series models, respectively. Thus, an average value of 0.0565 W·m

^{−1}·K

^{−1}can be considered for FG100. The thermal conductivity of epoxy resin is around 0.28 and 0.288 (W·m

^{−1}·K

^{−1}) for parallel and series models, respectively. Thus, a mean value of 0.284 W·m

^{−1}·K

^{−1}can be considered for epoxy. It can be noted that in the literature, the thermal conductivity of epoxy varies between 0.18 and 0.26 (W·m

^{−1}·K

^{−1}) [39,40]. These values are of the same order of magnitude as that obtained and tend to show the validity of the approach.

#### 3.2.4. Local Thermal Conductivity of Flax Fibers Based on the Effective Conductivity of the Fibrous Composite

_{FG}

_{(s)}was around 0.180 W·m

^{−1}·K

^{−1}. Considering that the porosity of FFG is 65% (Table 2) and by applying Maxwell’s model, the estimated thermal conductivity of the porous matrix, λ

_{FG}, was 0.069 W·m

^{−1}·K

^{−1}.

^{−1}·K

^{−1}) and the experimental effective conductivity of the FFG (λ

_{eff}), the local conductivity of the fibers, λ

_{Fb}

_{(s)}, was deduced from Equation (13). The obtained value was approximately 0.123 (W·m

^{−1}·K

^{−1}).

_{Fb}

_{(s)}= 0.35 (W·m

^{−1}·K

^{−1}) obtained in Section 3.2.2. In [32,41], this overestimation of the thermal conductivity of fibers in air was explained by the potential contribution of radiation inside highly porous Juncus maritimus fibers. Accordingly, the obtained value (0.123 W·m

^{−1}·K

^{−1}) is close to the average thermal conductivity of treated flax fibers 0.1187 (W·m

^{−1}·K

^{−1}), obtained by [19].

#### 3.2.5. Estimating the Thermal Conductivity of the Porous Matrix for Different Volume Fractions of Flaxseed Gum

## 4. Conclusions

^{−1}·K

^{−1}) and pure epoxy resin (0.284 W·m

^{−1}·K

^{−1}) was estimated using both parallel and series mixing laws.

^{−1}·K

^{−1}. However, this value may be overestimated due to the radiation contribution. An alternative estimation was therefore proposed, based on the fibrous composite (FFG). As expected, the fiber’s thermal conductivity obtained was around 0.123 W·m

^{−1}·K

^{−1}. This value is close to the average thermal conductivity of the pure flaxseed gum, FG100 (0.145 W·m

^{−1}·K

^{−1}).

## Author Contributions

## Funding

## Institutional Review Board Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Philp, J.C.; Bartsev, A.; Ritchie, R.J.; Baucher, M.-A.; Guy, K. Bioplastics science from a policy vantage point. New Biotechnol.
**2013**, 30, 635–646. [Google Scholar] [CrossRef] - Phiri, R.; Mavinkere Rangappa, S.; Siengchin, S.; Oladijo, O.P.; Dhakal, H.N. Development of sustainable biopolymer-based composites for lightweight applications from agricultural waste biomass: A review. Adv. Ind. Eng. Polym. Res.
**2023**, in press. [Google Scholar] [CrossRef] - Akter, M.; Uddin, M.H.; Tania, I.S. Biocomposites based on natural fibers and polymers: A review on properties and potential applications. J. Reinf. Plast. Compos.
**2022**, 41, 705–742. [Google Scholar] [CrossRef] - Andrew, J.J.; Dhakal, H.N. Sustainable biobased composites for advanced applications: Recent trends and future opportunities—A critical review. Compos. Part C Open Access
**2022**, 7, 100220. [Google Scholar] [CrossRef] - Yan, L.; Chouw, N.; Jayaraman, K. Flax fibre and its composites—A review. Compos. Part B Eng.
**2014**, 56, 296–317. [Google Scholar] [CrossRef] - Raja, R.A.A.; Sunil, J. Estimation of Thermal Conductivity of Nanofluids Using Theoretical Correlations. Int. J. Appl. Eng. Res.
**2018**, 13, 7932–7936. [Google Scholar] - Audenaert, A.; De Cleyn, S.H.; Buyle, M. LCA of low-energy flats using the Eco-indicator 99 method: Impact of insulation materials. Energy Build.
**2012**, 47, 68–73. [Google Scholar] [CrossRef] - Braulio-Gonzalo, M.; Bovea, M.D. Environmental and cost performance of building’s envelope insulation materials to reduce energy demand: Thickness optimisation. Energy Build.
**2017**, 150, 527–545. [Google Scholar] [CrossRef] - Moudood, A.; Rahman, A.; Öchsner, A.; Islam, M.; Francucci, G. Flax fiber and its composites: An overview of water and moisture absorption impact on their performance. J. Reinf. Plast. Compos.
**2019**, 38, 323–339. [Google Scholar] [CrossRef] - Baley, C.; Bourmaud, A.; Davies, P. Eighty years of composites reinforced by flax fibres: A historical review. Compos. Part A Appl. Sci. Manuf.
**2021**, 144, 106333. [Google Scholar] [CrossRef] - Baley, C.; Gomina, M.; Breard, J.; Bourmaud, A.; Drapier, S.; Ferreira, M.; Le Duigou, A.; Liotier, P.J.; Ouagne, P.; Soulat, D.; et al. Specific features of flax fibres used to manufacture composite materials. Int. J. Mater. Form.
**2019**, 12, 1023–1052. [Google Scholar] [CrossRef] - Melenka, G.W.; Bruni-Bossio, B.M.; Ayranci, C.; Carey, J.P. Examination of voids and geometry of bio-based braided composite structures. IOP Conf. Ser. Mater. Sci. Eng.
**2018**, 406, 012012. [Google Scholar] [CrossRef] - Wang, Y.; Chang, H.-I.; Wertheim, D.F.; Jones, A.S.; Jackson, C.; Coombes, A.G.A. Characterisation of the macroporosity of polycaprolactone-based biocomposites and release kinetics for drug delivery. Biomaterials
**2007**, 28, 4619–4627. [Google Scholar] [CrossRef] - Alix, S.; Marais, S.; Morvan, C.; Lebrun, L. Biocomposite materials from flax plants: Preparation and properties. Compos. Part A Appl. Sci. Manuf.
**2008**, 39, 1793–1801. [Google Scholar] [CrossRef] - Verstraete, S.; Buffel, B.; Madhav, D.; Debruyne, S.; Desplentere, F. Short Flax Fibres and Shives as Reinforcements in Bio Composites: A Numerical and Experimental Study on the Mechanical Properties. Polymers
**2023**, 15, 2239. [Google Scholar] [CrossRef] [PubMed] - Zhu, J.; Zhu, H.; Njuguna, J.; Abhyankar, H. Recent development of flax fibres and their reinforced composites based on different polymeric matrices. Materials
**2013**, 6, 5171. [Google Scholar] [CrossRef] - Musa, C. Élaboration et Caractérisation de Matériaux Composites Biosourcés à Base de Mucilage et de Fibres de lin. Ph.D. Thesis, Université du Littoral Côte d’Opale, Côte d’Opale, France, 2019. [Google Scholar]
- Musa, C.; Kervoëlen, A.; Danjou, P.-E.; Bourmaud, A.; Delattre, F. Bio-based unidirectional composite made of flax fibre and isosorbide-based epoxy resin. Mater. Lett.
**2020**, 258, 126818. [Google Scholar] [CrossRef] - Li, X.; Tabil, L.G.; Oguocha, I.N.; Panigrahi, S. Thermal diffusivity, thermal conductivity, and specific heat of flax fiber–HDPE biocomposites at processing temperatures. Compos. Sci. Technol.
**2008**, 68, 1753–1758. [Google Scholar] [CrossRef] - Nait-Ali, B.; Haberko, K.; Vesteghem, H.; Absi, J.; Smith, D.S. Thermal conductivity of highly porous zirconia. J. Eur. Ceram. Soc.
**2006**, 26, 3567–3574. [Google Scholar] [CrossRef] - Hanhan, I.; Agyei, R.; Xiao, X.; Sangid, M.D. Comparing non-destructive 3D X-ray computed tomography with destructive optical microscopy for microstructural characterization of fiber reinforced composites. Compos. Sci. Technol.
**2019**, 184, 107843. [Google Scholar] [CrossRef] - Panerai, F.; Ferguson, J.C.; Lachaud, J.; Martin, A.; Gasch, M.J.; Mansour, N.N. Micro-tomography based analysis of thermal conductivity, diffusivity and oxidation behavior of rigid and flexible fibrous insulators. Int. J. Heat Mass Transf.
**2017**, 108, 801–811. [Google Scholar] [CrossRef] - Jiang, N.; Li, Y.; Li, D.; Yu, T.; Li, Y.; Xu, J.; Li, N.; Marrow, T.J. 3D finite element modeling of water diffusion behavior of jute/PLA composite based on X-ray computed tomography. Compos. Sci. Technol.
**2020**, 199, 108313. [Google Scholar] [CrossRef] - Emerson, M.J.; Jespersen, K.M.; Dahl, A.B.; Conradsen, K.; Mikkelsen, L.P. Individual fibre segmentation from 3D X-ray computed tomography for characterising the fibre orientation in unidirectional composite materials. Compos. Part A Appl. Sci. Manuf.
**2017**, 97, 83–92. [Google Scholar] [CrossRef] - Yang, P.; Elhajjar, R. Porosity Content Evaluation in Carbon-Fiber/Epoxy Composites Using X-ray Computed Tomography. Available online: https://www.ingentaconnect.com/content/tandf/lpte/2014/00000053/00000003/art00001 (accessed on 15 July 2023).
- Tran, L.Q.N.; Minh, T.N.; Fuentes, C.A.; Chi, T.T.; Van Vuure, A.W.; Verpoest, I. Investigation of microstructure and tensile properties of porous natural coir fibre for use in composite materials. Ind. Crops Prod.
**2015**, 65, 437–445. [Google Scholar] [CrossRef] - Dubois, F.; Musa, C.; Duponchel, B.; Tidahy, L.; Sécordel, X.; Mallard, I.; Delattre, F. Nuclear Magnetic Resonance and Calorimetric Investigations of Extraction Mode on Flaxseed Gum Composition. Polymers
**2020**, 12, 2654. [Google Scholar] [CrossRef] [PubMed] - D7984 Standard Test Method for Measurement of Thermal Effusivity of Fabrics Using a Modified Transient Plane Source (MTPS) Instrument. Available online: https://www.astm.org/d7984-21.html (accessed on 15 July 2023).
- Arzt, M.; Deschamps, J.; Schmied, C.; Pietzsch, T.; Schmidt, D.; Tomancak, P.; Haase, R.; Jug, F. LABKIT: Labeling and Segmentation Toolkit for Big Image Data. Front. Comput. Sci.
**2022**, 4, 10. [Google Scholar] [CrossRef] - Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods
**2012**, 9, 671–675. [Google Scholar] [CrossRef] - Glicksman, L.R.; Torpey, M.; Marge, A. Means to Improve the Thermal Conductivity of Foam Insulation. J. Cell. Plast.
**1992**, 28, 571–583. [Google Scholar] [CrossRef] - Saghrouni, Z.; Baillis, D.; Naouar, N.; Blal, N.; Jemni, A. Thermal Properties of New Insulating Juncus Maritimus Fibrous Mortar Composites/Experimental Results and Analytical Laws. Appl. Sci.
**2019**, 9, 981. [Google Scholar] [CrossRef] - Maxwell, J.C. A Treatise on Electricity and Magnetism; Clarendon Press: Oxford, UK, 1873. [Google Scholar]
- Pietrak, K.; Wiśniewski, T. A review of models for effective thermal conductivity of composite materials. J. Power Technol.
**2015**, 95, 14–24. [Google Scholar] - Lakhtakia, A.; Michel, B.; Weiglhofer, W.S. Bruggeman formalism for two models of uniaxial composite media: Dielectric properties. Compos. Sci. Technol.
**1997**, 57, 185–196. [Google Scholar] [CrossRef] - Liu, P.; Li, X.; Min, P.; Chang, X.; Shu, C.; Ding, Y.; Yu, Z.-Z. 3D Lamellar-Structured Graphene Aerogels for Thermal Interface Composites with High through-Plane Thermal Conductivity and Fracture Toughness. Nano-Micro Lett.
**2020**, 13, 22. [Google Scholar] [CrossRef] [PubMed] - Zhang, G.; Chen, H.; Yang, S.; Guo, Y.; Li, N.; Zhou, H.; Cao, Y. Frozen slurry-based laminated object manufacturing to fabricate porous ceramic with oriented lamellar structure. J. Eur. Ceram. Soc.
**2018**, 38, 4014–4019. [Google Scholar] [CrossRef] - Bodaghi, M.; Delfrari, D.; Lucas, M.; Senoussaoui, N.-L.; Koutsawa, Y.; Uğural, B.K.; Perrin, H. On the relationship of morphology evolution and thermal conductivity of flax reinforced polypropylene laminates. Front. Mater.
**2023**, 10, 1150180. [Google Scholar] [CrossRef] - Xu, S.; Liu, H.; Li, Q.; Mu, Q.; Wen, H. Influence of magnetic alignment and layered structure of BN&Fe/EP on thermal conducting performance. J. Mater. Chem. C
**2016**, 4, 872–878. [Google Scholar] [CrossRef] - Wan, X.; Demir, B.; An, M.; Walsh, T.R.; Yang, N. Thermal conductivities and mechanical properties of epoxy resin as a function of the degree of cross-linking. Int. J. Heat Mass Transf.
**2021**, 180, 121821. [Google Scholar] [CrossRef] - Borges dos Santos, M.; Moura, L.M.; Baillis, D. Identification of the Radiative Parameters-Albedo and Optical Thickness—Of the Juncus maritimus Fiber. Materials
**2023**, 16, 1891. [Google Scholar] [CrossRef]

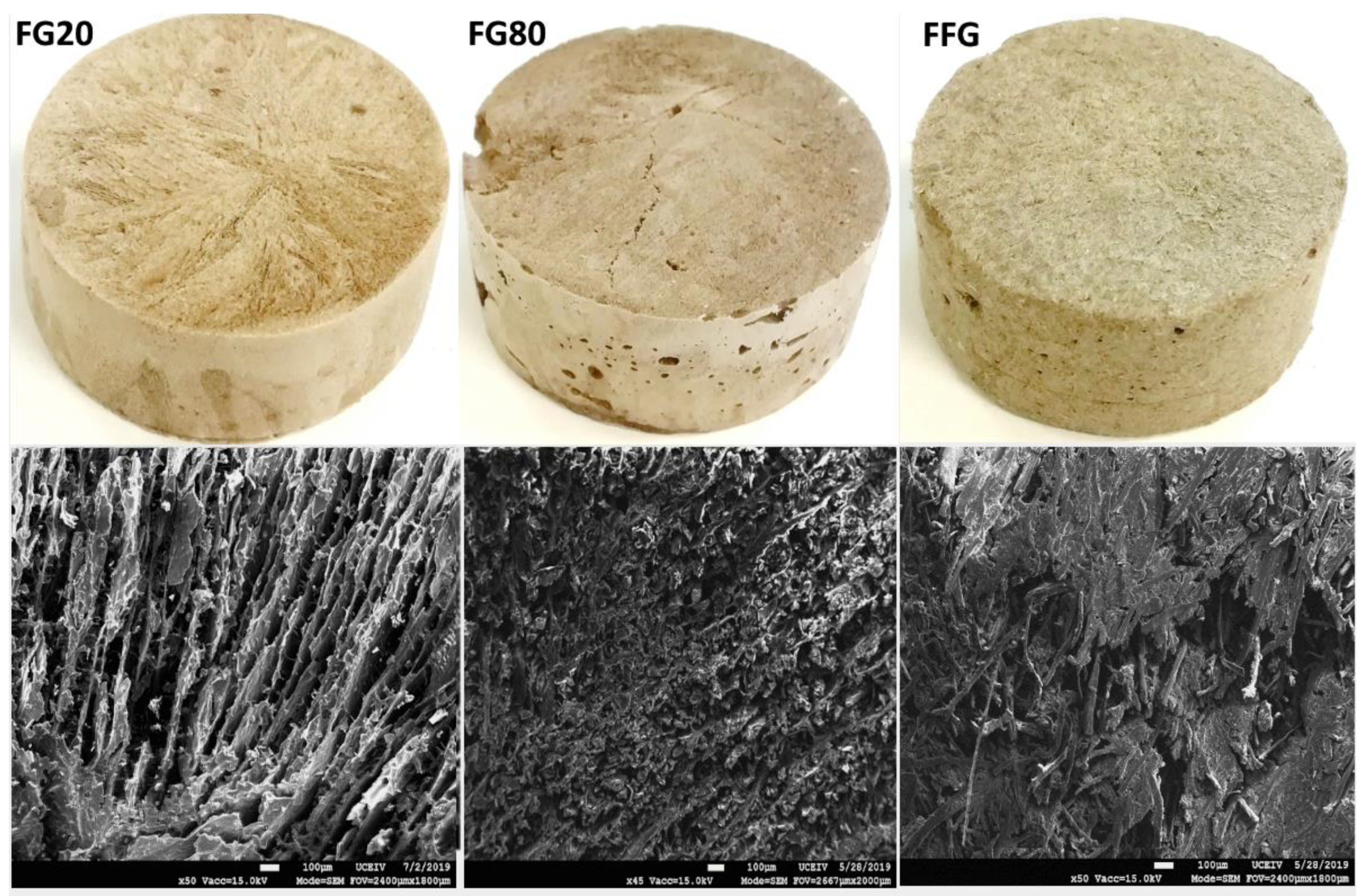

**Figure 1.**Pictures and SEM images of the cross-section morphology of the three composites: FG20, FG80, and FFG.

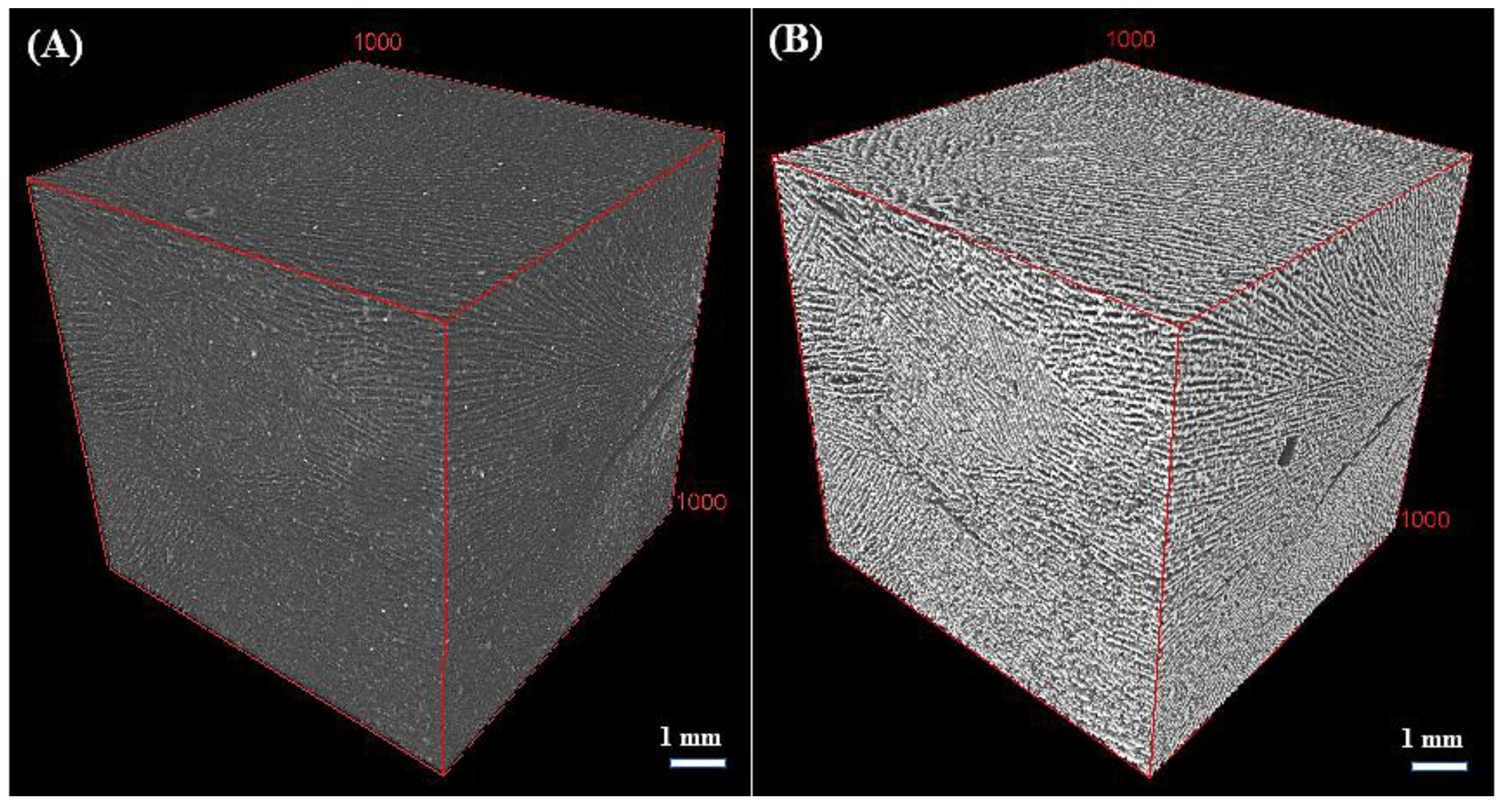

**Figure 2.**Example of FG20 sample segmentation using LABKIT plug-in. (

**A**) Original X-ray CT image, and (

**B**) binary image.

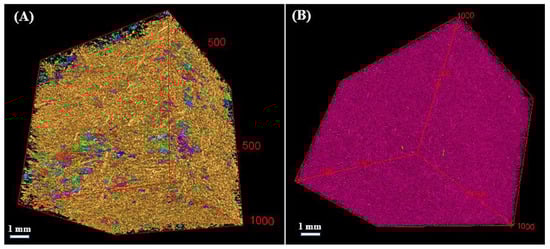

**Figure 5.**X-ray CT images of the segmented flax fibers from (

**A**) the fibrous composite (FFG) and (

**B**) the panel’s fibers (in air).

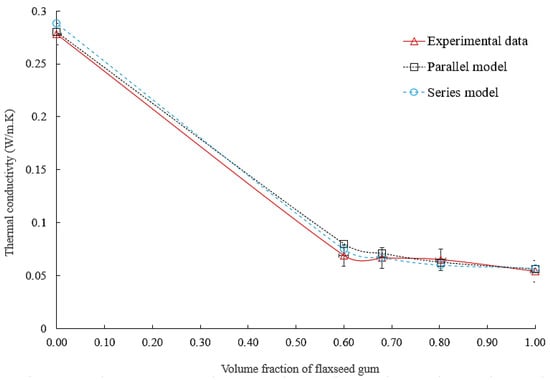

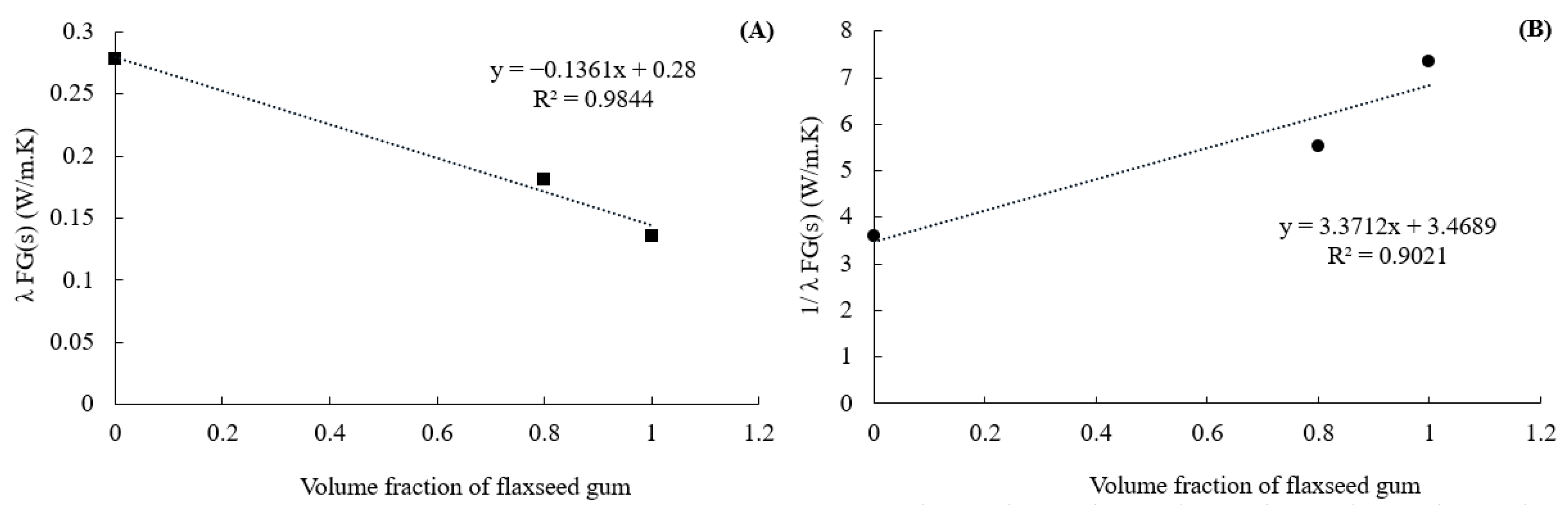

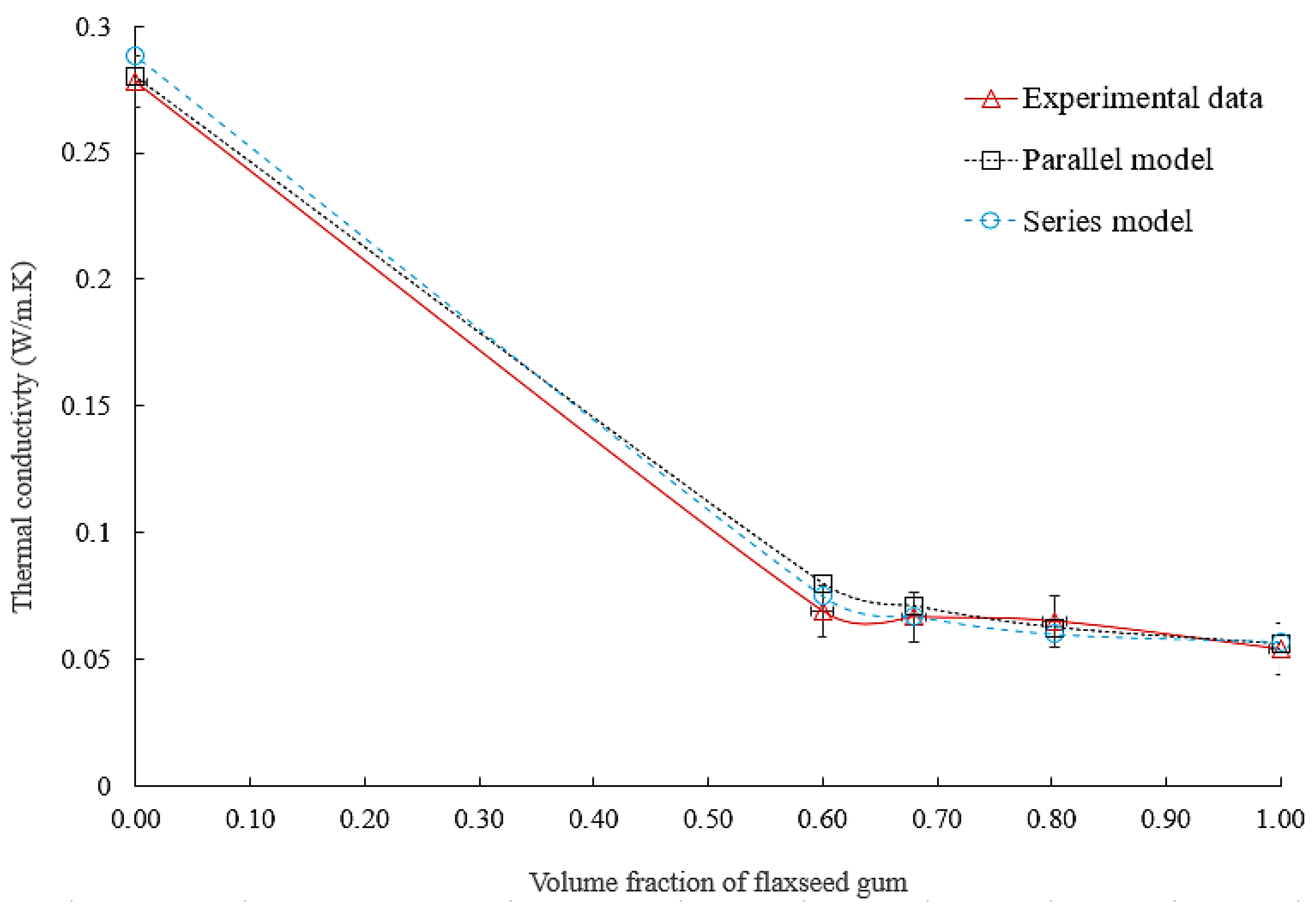

**Figure 6.**The linear trend curves obtained from (

**A**) parallel (Equation (11)) and (

**B**) series mixing laws (Equation (12)).

Sample | m_{FG}(%) | m_{Fibers}(%) | m_{Epoxy}(%) | Bulk Density (g/cm ^{3}) | Thermal Conductivity (W·m ^{−1}·K^{−1}) |
---|---|---|---|---|---|

FG100 | 100.0 | 0.0 | 0.0 | 228.9 ± 9.3 | 0.054 ± 0.001 |

FG80 | 80.0 | 0.0 | 20.0 | 0.231 ± 8.2 | 0.065 ± 0.001 |

FG20 | 20.0 | 0.0 | 80.0 | 0.219 ± 3.0 | 0.057 ± 0.001 |

FFG | 12.0 | 48.0 | 40.0 | 0.194 ± 5.3 | 0.064 ± 0.001 |

Epoxy resin (dense) | 0.0 | 0.0 | 100 | 1.1 | 0.782 ± 0.001 |

Chopped fibers (1 mm in length) | - | 100.00 | - | 0.108 | 0.048 ± 0.001 |

Sample | ν_{FG} (%) | ν_{fibers} (%) | Porosity (%) |
---|---|---|---|

FG100 | 32.0 | - | 68.0 ± 2.4 |

FG80 | 32.0 | - | 68.0 ± 2.5 |

FG20 | 39.0 | - | 61.0 ± 3.0 |

FFG | 19.0 | 16.0 | 65.0 ± 1.1 |

Chopped fibers (1 mm) | - | 24.0 | 76.0 ± 1.0 |

Sample | ν_{FG100} (%) | ν_{Epoxy} (%) |
---|---|---|

FG100 | 100.00 | 0.00 |

FG80 | 80.30 | 19.70 |

FG20 | 59.20 | 40.80 |

FFG | 35.00 | 65.00 |

Epoxy resin | 0.00 | 100.00 |

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zaidi, M.; Baillis, D.; Naouar, N.; Depriester, M.; Delattre, F.
Thermal Conductivity and Microstructure of Novel Flaxseed-Gum-Filled Epoxy Resin Biocomposite: Analytical Models and X-ray Computed Tomography. *Materials* **2023**, *16*, 6318.
https://doi.org/10.3390/ma16186318

**AMA Style**

Zaidi M, Baillis D, Naouar N, Depriester M, Delattre F.
Thermal Conductivity and Microstructure of Novel Flaxseed-Gum-Filled Epoxy Resin Biocomposite: Analytical Models and X-ray Computed Tomography. *Materials*. 2023; 16(18):6318.
https://doi.org/10.3390/ma16186318

**Chicago/Turabian Style**

Zaidi, Mohammed, Dominique Baillis, Naim Naouar, Michael Depriester, and François Delattre.
2023. "Thermal Conductivity and Microstructure of Novel Flaxseed-Gum-Filled Epoxy Resin Biocomposite: Analytical Models and X-ray Computed Tomography" *Materials* 16, no. 18: 6318.
https://doi.org/10.3390/ma16186318
