Next Article in Journal
Facile Control of the Porous Structure of Larch-Derived Mesoporous Carbons via Self-Assembly for Supercapacitors
Next Article in Special Issue
Bipolar Switching Properties of Neodymium Oxide RRAM Devices Using by a Low Temperature Improvement Method
Previous Article in Journal
Morphology and Mechanical Properties of Polyimide Films: The Effects of UV Irradiation on Microscale Surface
Previous Article in Special Issue
Eco-Friendly and Biodegradable Biopolymer Chitosan/Y2O3 Composite Materials in Flexible Organic Thin-Film Transistors
Open AccessArticle

Structural, Electrical, Magnetic and Resistive Switching Properties of the Multiferroic/Ferroelectric Bilayer Thin Films

Department of Electronic Engineering, Hsiuping University of Science and Technology, Taichung 41280, Taiwan
Department of Electrical Engineering and Computer Science, Tung Fang Design Institute, Kaohsiung 82941, Taiwan
Department of Mobile Technology, Toko University, Chiayi 61363, Taiwan
Department of Electronic Engineering, Feng Chia University, Taichung 40724, Taiwan
Authors to whom correspondence should be addressed.
Materials 2017, 10(11), 1327;
Received: 5 October 2017 / Revised: 3 November 2017 / Accepted: 15 November 2017 / Published: 20 November 2017
(This article belongs to the Special Issue Stretchable and Flexible Electronic Materials & Devices)

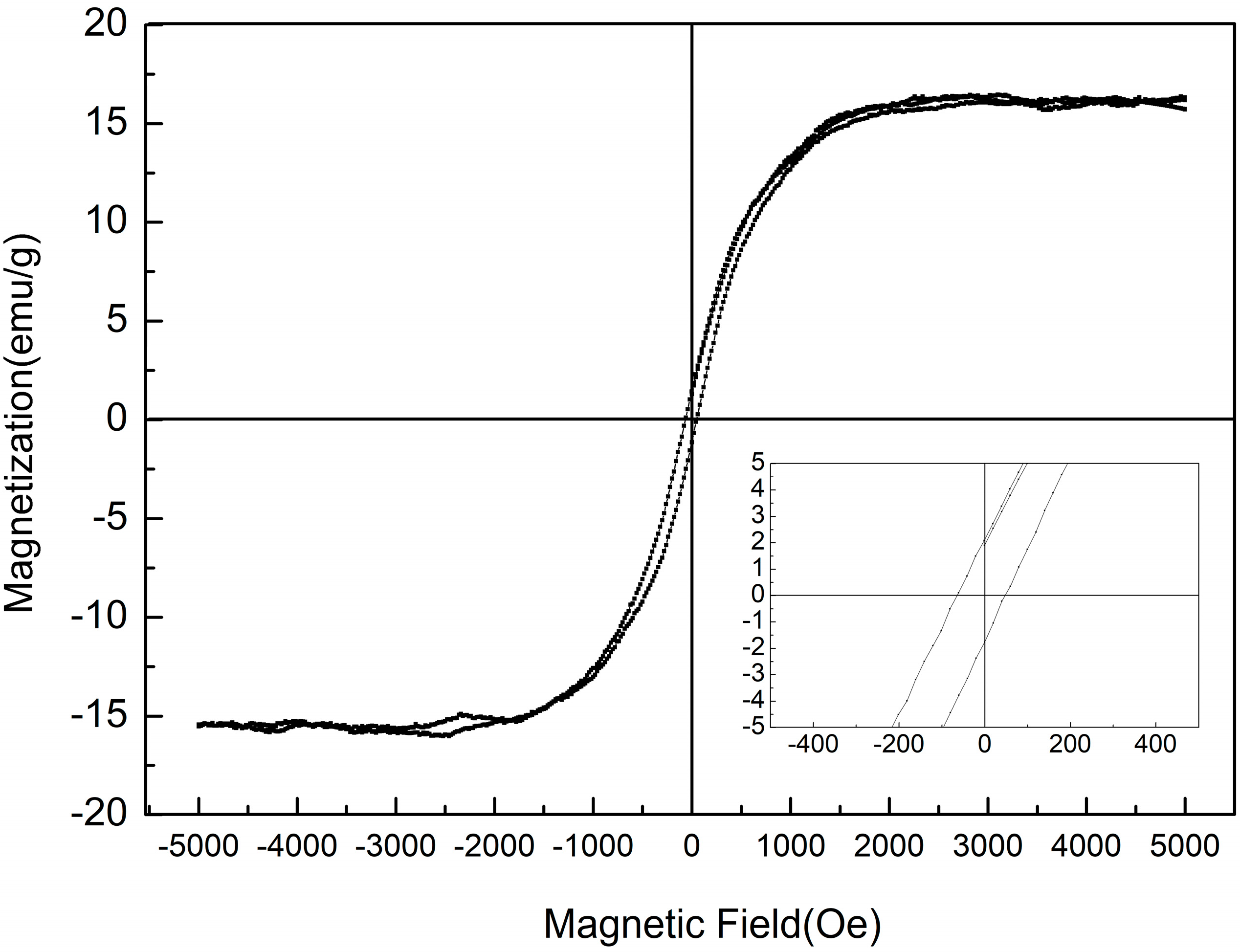

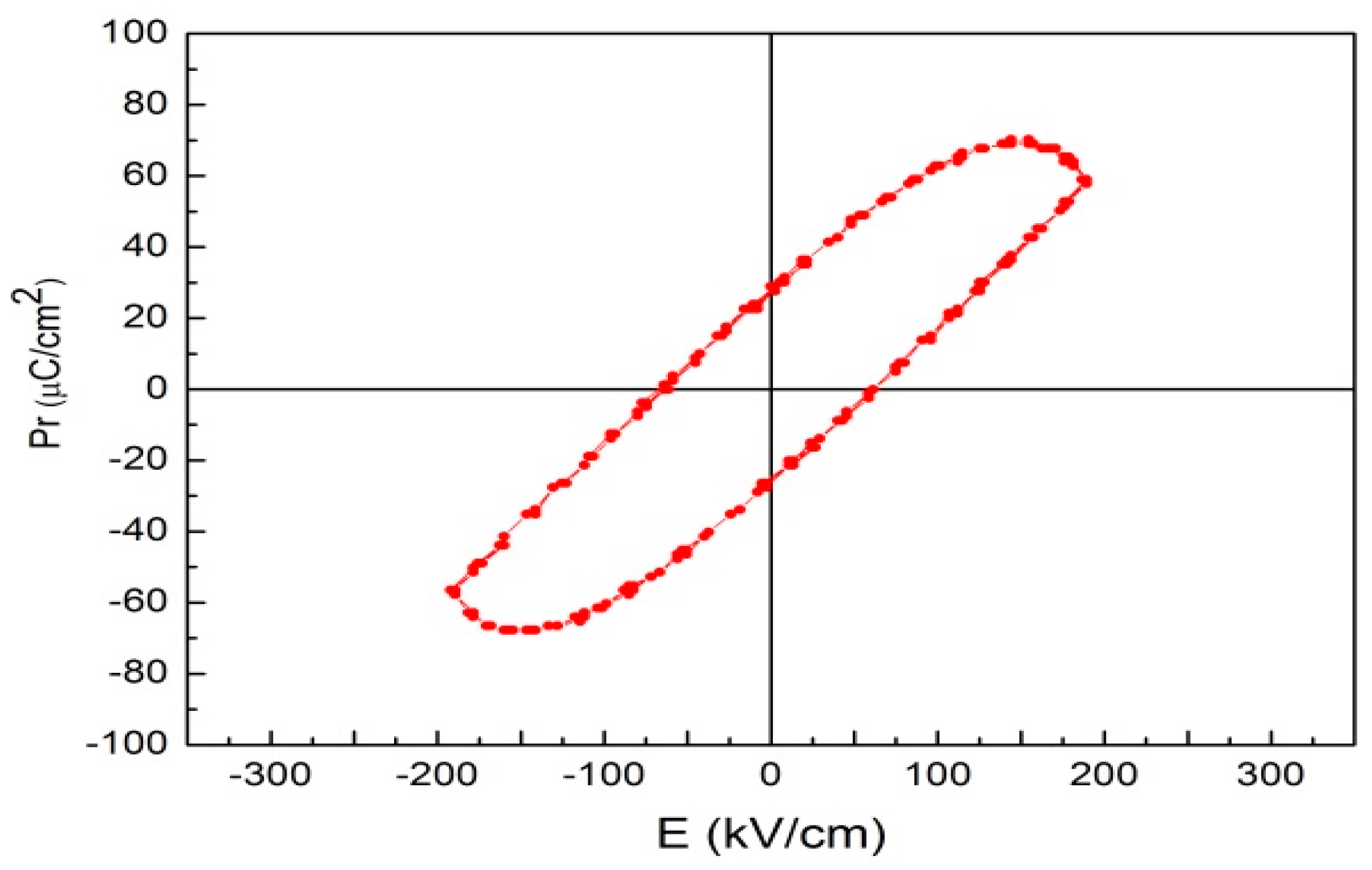

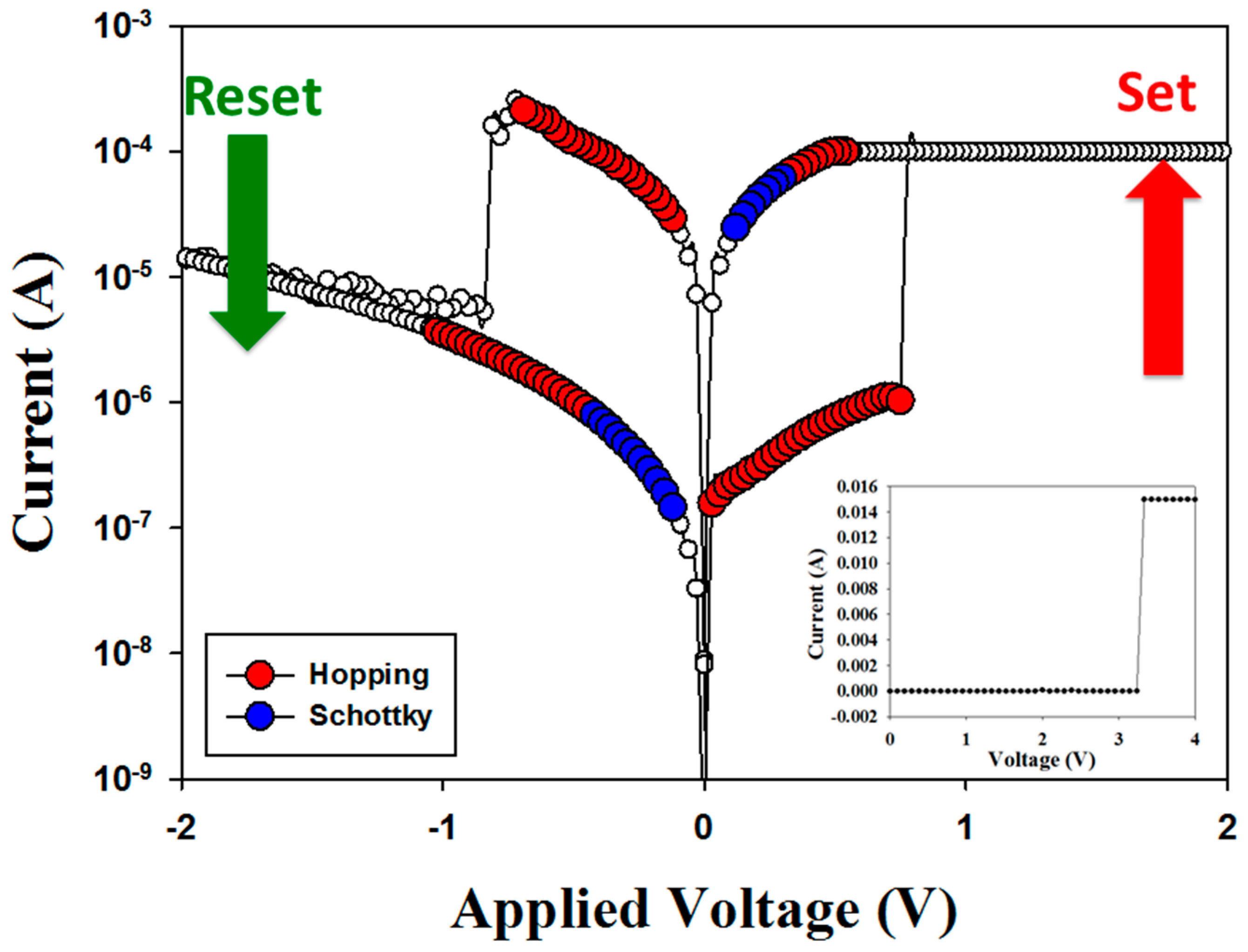

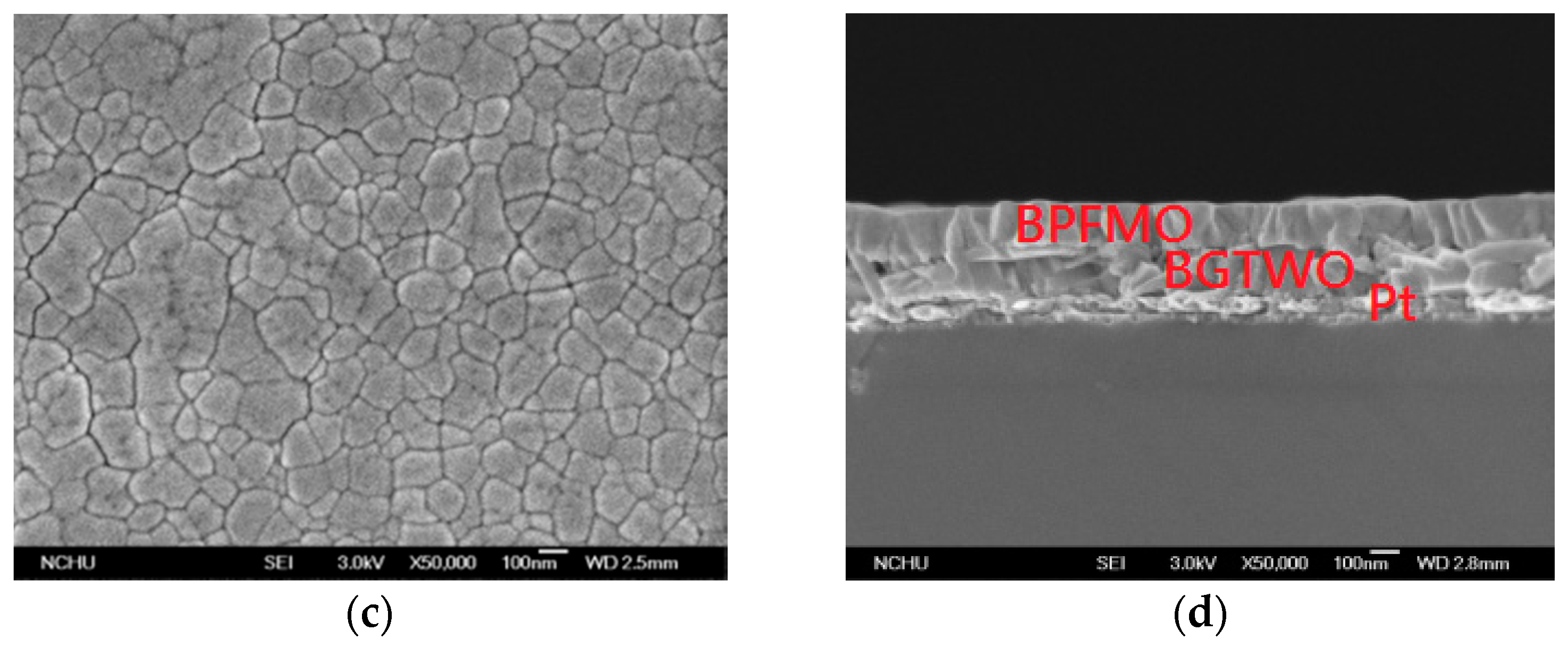

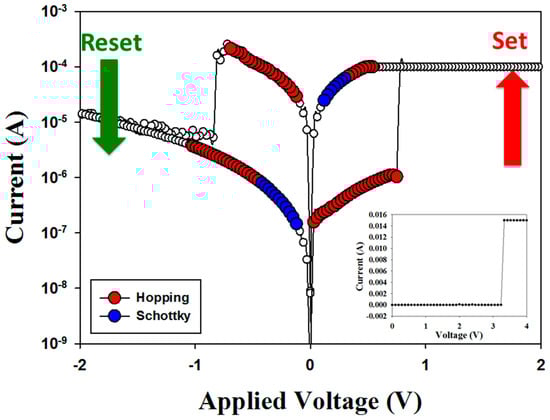

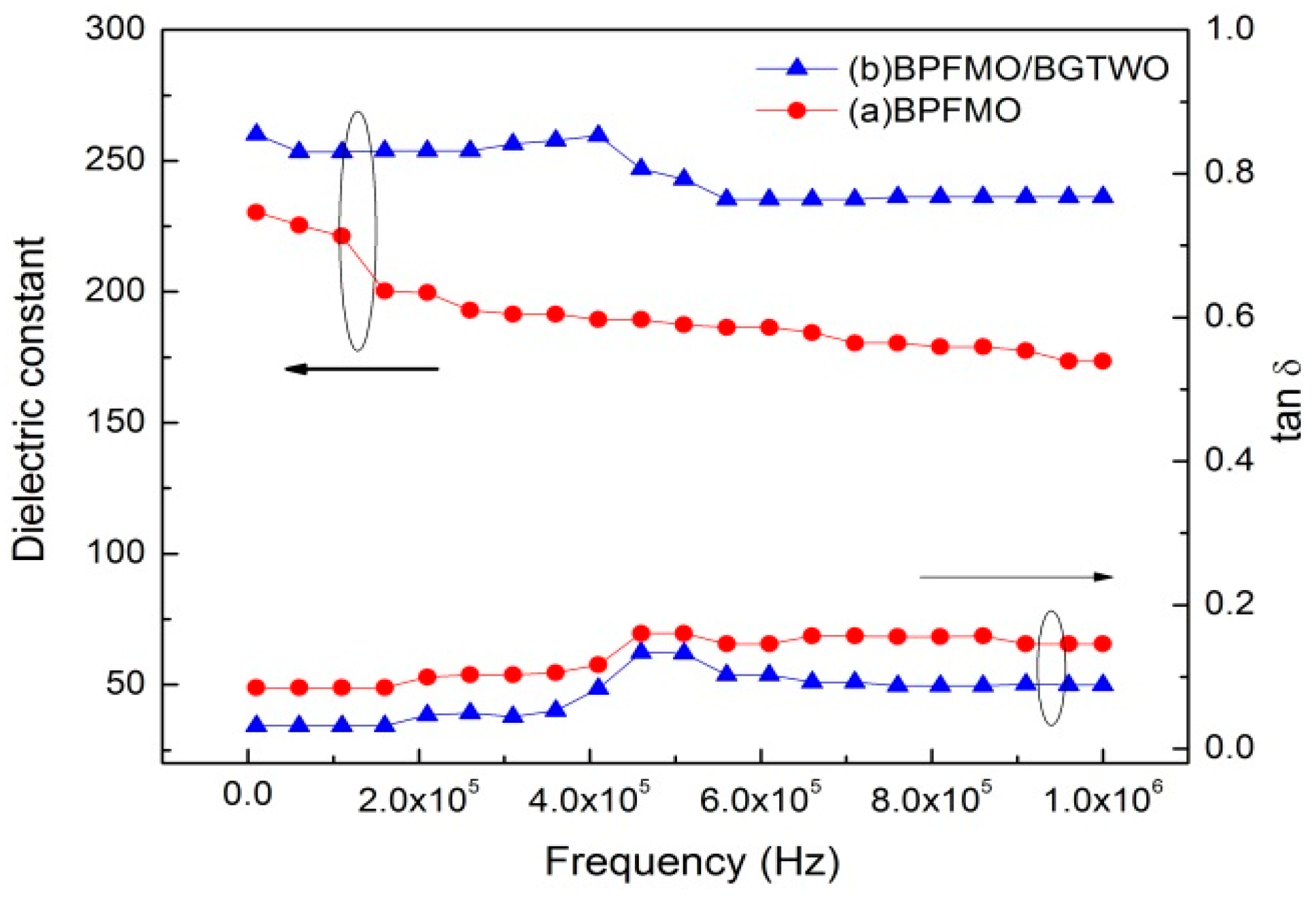

Bi0.8Pr0.2Fe0.95Mn0.05O3/Bi3.96Gd0.04Ti2.95W0.05O12 (BPFMO/BGTWO) bilayer thin films with Multiferroic/Ferroelectric (MF/FE) structures were deposited onto Pt(111)/Ti/SiO2/Si(100) substrates by using the sol-gel method with rapid thermal annealing. The BPFMO/BGTWO thin films exhibited well-saturated ferromagnetic and ferroelectric hysteresis loops because of the electro-magnetic coupling induced by the MF/FE structure. The remnant magnetization (2Mr) and remnant polarization (2Pr) were 4.6 emu/cm3 and 62 μC/cm2, respectively. Moreover, the bipolar I-V switching curves of BPFMO/BGTWO bilayer thin films resistive random access memory (RRAM) devices were discussed, and investigated for LRS/HRS. View Full-Text
Keywords: ferroelectric properties; multiferroic; magnetic properties; RRAM ferroelectric properties; multiferroic; magnetic properties; RRAM
Show Figures

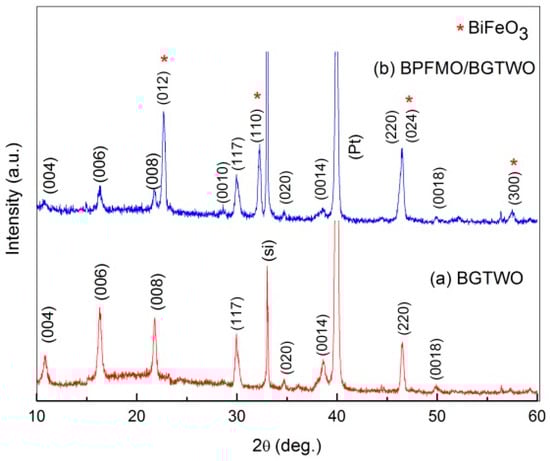

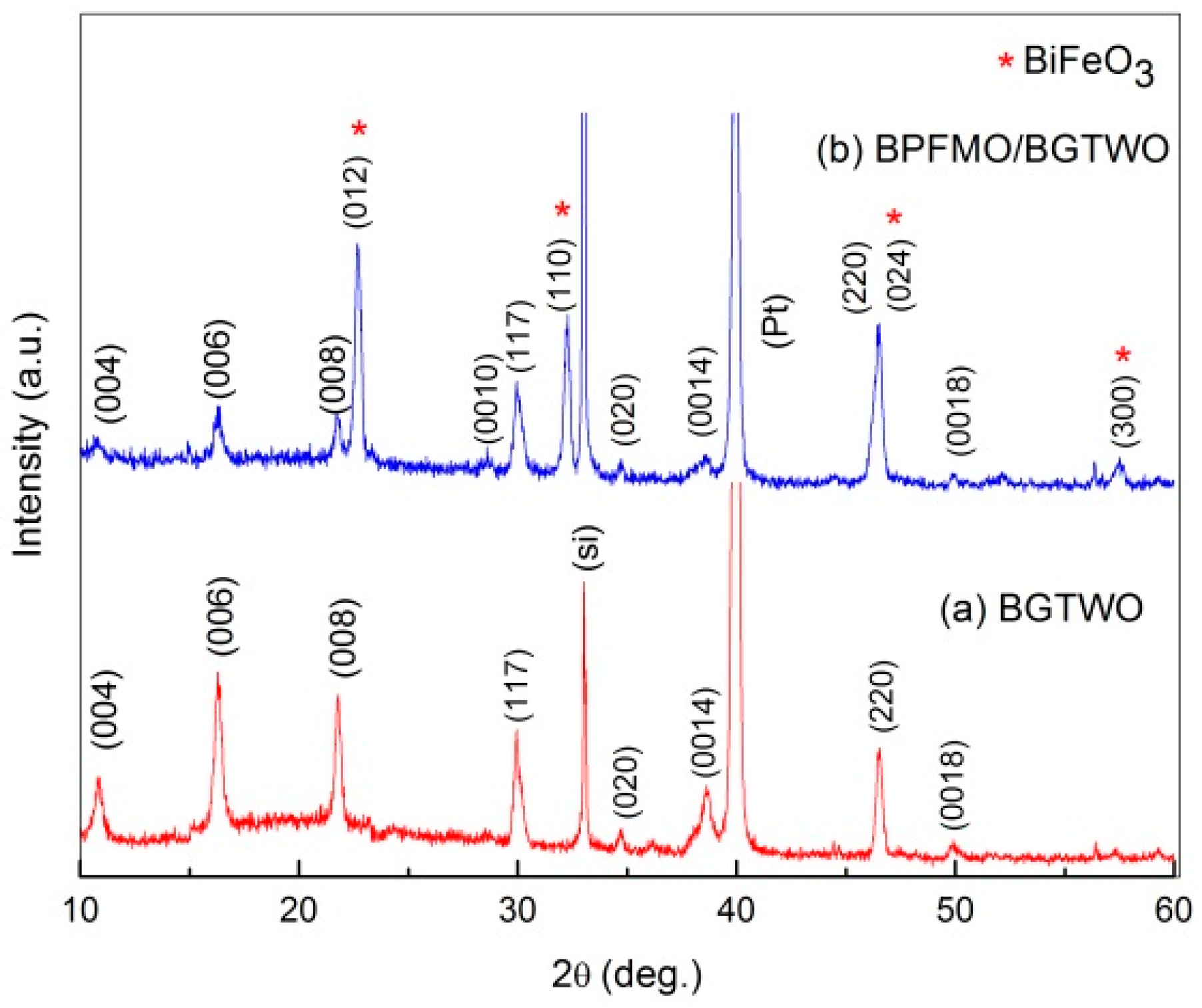

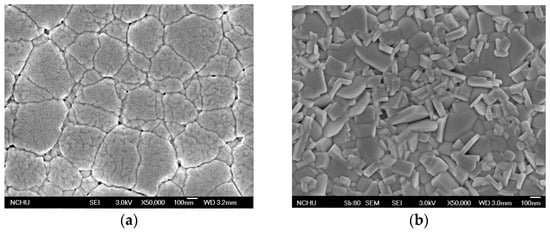

Figure 1

MDPI and ACS Style

Kao, M.-C.; Chen, H.-Z.; Young, S.-L.; Chen, K.-H.; Chiang, J.-L.; Shi, J.-B. Structural, Electrical, Magnetic and Resistive Switching Properties of the Multiferroic/Ferroelectric Bilayer Thin Films. Materials 2017, 10, 1327.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
