Multi-Objective Optimization of Offshore Wind Farm Configuration for Energy Storage Based on NSGA-II

Abstract

The configuration of energy storage systems in offshore wind farms can effectively suppress fluctuations in wind power and enhance the stability of the power grid. However, the economic balance between the cost of energy storage systems and the fluctuations in wind power remains an urgent challenge to be addressed, especially against the backdrop of widespread spot trading in the electricity market. How to achieve effective wind power stabilization at the lowest cost has become a key issue. This paper proposes three different energy storage configuration strategies and adopts the non-dominated sorting genetic algorithm (NSGA-II) to conduct multi-objective optimization of the system. NSGA-II performed stably in dual-objective scenarios and effectively balanced the relationship between the investment cost of the energy storage system and power fluctuations through the explicit elite strategy. Furthermore, this study analyzed the correlation between the rated power and rated capacity of the energy storage system and the battery life, and corrected the battery life of the Pareto frontier solution obtained by NSGA-II. The research results show that when only considering the investment cost of the energy storage, the optimal configuration was a rated power of 4 MW and a rated capacity of 28 MWh, which could better balance the investment economy and power fluctuation. When further considering the participation of energy storage systems in the electricity spot market, the economic efficiency of the energy storage systems could be significantly improved through the fixed-period electricity price arbitrage method. At this point, the optimal configuration was a rated power of 8 MW and a rated capacity of 37 MWh. The corresponding project investment cost was CNY 242.77 million, and the annual fluctuation rate of the wind power output decreased to 17.84%.

1. Introduction

With the active promotion of the offshore wind power industry in China, by 2023, China had secured the leading position in the global offshore wind power market. Nevertheless, the output characteristics of offshore wind power generation show significant volatility, which undoubtedly increases the risk of instability in its grid-connected operation [1,2]. In view of this, the National Development and Reform Commission (NDRC) issued the “Guiding Opinions on Encouraging renewable energy power generation Enterprises to Build or Purchase peak load Capacity to expand the scale of grid-connected operations” [3]. This policy aims to ensure that new energy power companies have a sufficient proportion of energy storage systems to cope with unstable output situations [4]. Electrochemical energy storage technology has become the preferred solution for the vast majority of offshore wind power enterprises due to its cost effectiveness, rapid deployment advantages [5], and relatively unrestricted geographical conditions [6,7,8,9].

Domestic and foreign scholars have carried out in-depth research on the configuration of electrochemical energy storage in offshore wind farms. Paul et al. [10] proposed a novel multi-objective optimization framework to determine the optimal capacity of battery energy storage systems (BESSs) in the collaborative operation of large offshore wind farms (OWFs) and BESSs, taking into account the battery cost and life, as well as the availability of wind turbines. Tian et al. [11] used a hybrid hydrogen energy storage system to smooth the output volatility of offshore wind power and discussed the relationship between the abandoned air volume, volatility, and economy. The results show that the addition of hydrogen energy storage system will greatly reduce the economy of energy storage systems. Wu et al. [12] proposed a voltage control method based on the reactive power coordination and electrochemical energy storage of wind farms, which can well improve the stability of the grid-connected voltage of offshore wind farms. Mokhtare et al. [13] considered the rated capacity and rated power configuration of an optimal battery energy storage system that gives priority to meeting the grid-connected requirements of offshore wind farms in order to achieve the highest economy. Li et al. [14] integrated a large-scale offshore wind power system, coupled thermal power station, electrochemical energy storage system, and floating photovoltaic system to improve the overall economy and system performance. Based on the configuration of battery energy storage in offshore wind power, supercapacitor energy storage was added to prevent the over-charge and over-discharge of the battery so as to improve the service life of the battery [15]. Studies on the deployment of electrochemical energy storage in offshore wind farms have well revealed the help of electrochemical energy storage for the grid connection of offshore wind farms, but there are few studies on the relationship between the output power volatility and investment cost of offshore wind farms.

Most studies addressing both the volatility and investment cost in offshore wind power systems have investigated hybrid energy storage solutions. For example, Lu et al. [16] combined lithium-ion batteries with supercapacitors and applied wavelet decomposition to allocate high-frequency fluctuations to supercapacitors and low-frequency variations to batteries. This hybrid configuration reduced the daily energy storage input costs by 2.79% and 3.84%, respectively, compared with standalone battery or supercapacitor schemes, while meeting volatility requirements. In another study, Lu et al. [17] evaluated a 2 MW wind farm equipped with a hybrid storage system that comprised electrolytic cells, fuel cells, and supercapacitors; the optimization of this configuration achieved a 41.1% reduction in the annualized cost. Li et al. [18] proposed an electric–hydrogen hybrid storage system controlled via deep reinforcement learning to coordinate the battery and hydrogen production unit operation. Their method reduced the average daily wind power fluctuation range from 20.11 MW to 5.74 MW—a 71.5% decrease—while enhancing the storage utilization efficiency. Chen et al. [19] combined lithium-ion battery storage with expanded transmission capacity to improve the wind power utilization and lower the overall investment; they demonstrated that compared with merely upgrading the transmission infrastructure, adding appropriately sized storage could achieve equivalent consumption levels at a reduced cost. Most of these studies focused on the parameter changes of wind farms themselves, without considering the impact of energy storage on the policy changes of the electricity market and participation in real-time electricity trading.

This study combined the latest policies of China’s electricity market, introduced the spot trading model, proposed and compared three different schemes considering the investment cost and output power volatility of energy storage, considered them from the grid side and the power generation side, and used the change in SOC after configuring energy storage to evaluate the actual lifespan of the energy storage battery in this project. In order to improve the reliability of the calculation examples, this study conducted a comparative analysis using NSGA-II and the MOPSO algorithm, selected the better solutions of the two, and presented the optimal configuration with both the investment cost and power volatility under different circumstances.

2. Offshore Wind Farm Equipped with Energy Storage Model Construction and Constraints

2.1. Offshore Wind Farm Equipped with Energy Storage Model Construction

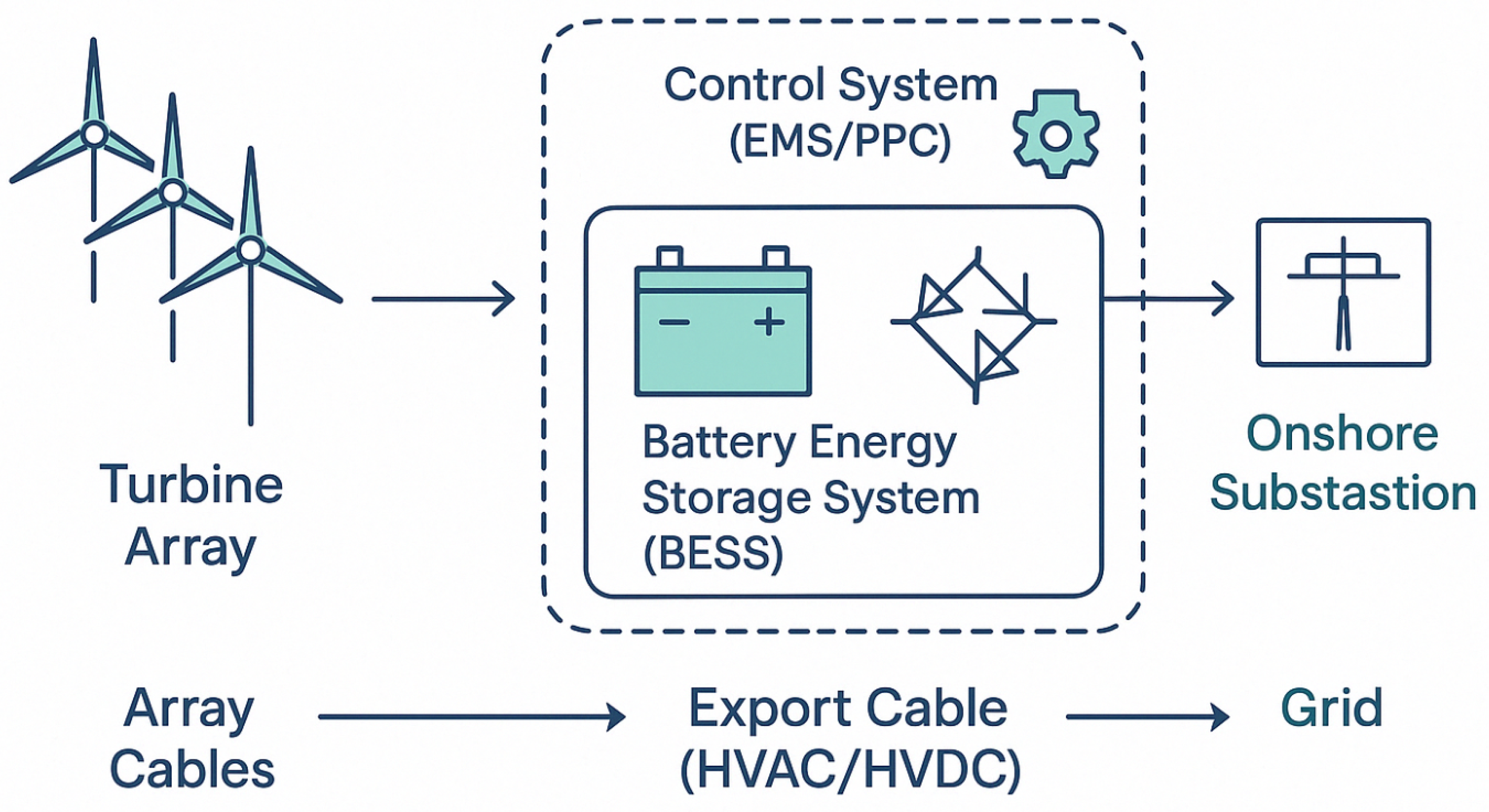

Due to the intermittent and unpredictable characteristics of offshore wind farms, energy storage systems can be configured to smooth the power fluctuations of wind power generation and improve its grid-connected stability and reliability [20,21,22]. Figure 1 shows the simplified structure diagram of energy storage systems configured for general offshore wind farms. Through the application of energy storage systems, wind power output fluctuations can be significantly buffered, thereby improving the overall power quality. The charge and discharge processes of the energy storage system are mainly realized through electrochemical reactions, and its working state can be characterized by the change in the state of charge (SOC) [23]. The SOC is an important parameter to measure the current energy level of the energy storage system, and it is crucial to maintain the stable operation of the power grid. Assuming no performance degradation of the energy storage battery throughout its lifecycle, the charge and discharge behavior of the energy storage system can be simplified by expressing it in terms of the variation in the state of charge (SOC).

The SOC real-time status during battery charge:

$$SOC\left(t\right)=SOC(t-1)+{\displaystyle \frac{{\eta }_c{P}_c\Delta t}{E}}$$

(1)

The SOC real-time status during battery discharge:

$$SOC\left(t\right)=SOC(t-1)-{\displaystyle \frac{P_d\Delta t}{{\eta }_{d}E}}$$

(2)

Let $\mathrm{SOC}\left(t\right)$ be the state of charge at time t; ${\eta }_c$ and ${\eta }_d$ represent the charging efficiency and discharge efficiency, respectively; $P_c$ and $P_d$ be the charging power and discharge power; t be the time step; and E be the battery capacity. The energy storage system charges when the output power of offshore wind power is significantly higher than the daily average, and discharges when the output power of the wind power is low in order to smooth out the overall volatility of the wind power.

2.2. Objective Functions and Constraints

This study aimed to balance the investment cost of an energy storage configuration and the volatility of the output power of wind farms to pursue the smoothest wind power output curve under the lowest investment cost.

2.2.1. Objective Function

Considering the two goals of minimizing the cost of the energy storage configuration and smoothest wind power output, the investment cost of the energy storage configuration is $C_a$:

$$C_{\mathrm{a}}=C_1+C_2+C_3+C_4$$

(3)

where $C_1$ represents the initial investment cost of the electrochemical energy storage, $C_2$ represents the operation and maintenance cost of the energy storage system, $C_3$ represents the replacement cost of the energy storage system, and $C_4$ represents the waste disposal cost of the energy storage system. The initial investment cost of the energy storage system consists of the energy conversion cost and the energy storage system cost, which is estimated as follow according to the rated power and rated capacity of the energy storage [24]:

$$C_1=k_p{P}_{es}+k_q{S}_{es}$$

(4)

where $k_p$ is the cost factor related to the energy storage power, $k_q$ is the cost factor related to energy storage capacity, $P_{es}$ is the rated power of energy storage, and $S_{es}$ indicates the rated capacity of energy storage. The annual operation and maintenance cost of the energy storage system is composed of the operation cost and maintenance cost, in which the operation cost is determined by the electricity released by the energy storage system every year, and the maintenance cost is generated by regular manual maintenance and manual inspection. The cost is calculated as follows [24]:

$$C_2=k_F{P}_{es}+k_V{Q}_{ann}^{+}$$

(5)

where $k_F$ represents the unit price of the energy storage system operation and maintenance, $k_V$ is the discharge price of the energy storage system, and $Q_{ann}^{+}$ indicates the annual cumulative discharge of the energy storage system. The replacement cost refers to the sum of the costs generated by each replacement of energy storage when the energy storage life cycle is less than the operation cycle of the entire project, as shown below [24]:

$$C_3=k_q{S}_{es}\sum _{\beta =1}^{\tau }{\displaystyle \frac{{\left(1-\alpha \right)}^{\beta \alpha }}{{\left(1+i\right)}^{\beta \alpha }}}$$

(6)

where $\alpha$ is the annual decline rate of the energy storage installation costs; $\tau$ indicates the total number of energy storage replacements, $\tau$ = n/a− 1 and a stands for the storage life, where if n/a− 1 is not an integer, $\tau$ is entered as an integer; and $\beta$ is the order of the battery body replacement times. The waste disposal cost refers to the cost to be paid for the treatment of the energy storage equipment after the end of its life, including the residual value of the equipment and environmental protection costs. The cost can be calculated as follows [24]:

$$C_4=C_{en}\sum _{\beta =1}^{\tau }{\displaystyle \frac{1}{{\left(1+i\right)}^{\beta \alpha }}}$$

(7)

where $C_{en}$ stands for the environmentally sound disposal cost. The smoothness of the wind power output can be measured by the relative standard deviation as follows:

$$\sigma ={\displaystyle \frac{1}{P_N}}\sqrt{{\displaystyle \frac{1}{N}}\sum _{t=1}^N{\left(P_t-\overline{P}\right)}^2}$$

(8)

where N indicates the number of sampling points, and $P_t$ represents the sampled value at time t, which corresponds to the wind power at time t. P represents the mean of the sample points and $P_N$ indicates the rated power of wind power. A smaller $\sigma$ indicates a smoother wind power output.

2.2.2. Condition of Constraint

In electrochemical energy storage systems, specific constraints must be followed to ensure safety and efficiency, which are mainly divided into two aspects: SOC (state of charge) constraints and power constraints. The SOC constraint equation ensures that the battery operates at a safe level of charge and discharge to avoid damage to the battery caused by excessive charge and discharge. The SOC limits need to meet the following conditions:

$$SO{C}_{min}\le SOC\left(t\right)\le SO{C}_{max}$$

(9)

where $SO{C}_{min}$ and $SO{C}_{max}$ represent the minimum and maximum allowable values of the battery SOC, respectively. The power constraint equations define the maximum charge and discharge power allowed by the battery system at a specific time to avoid overheating of the system and potential damage, and the constraint equations are as follows:

$$0\le P_{c\left(t\right)}\le P_{c,max}$$

(10)

$$0\le P_{dc\left(t\right)}\le P_{dc,max}$$

(11)

where $P_{c,max}$ and $P_{dc,max}$ are the maximum allowable charging power and maximum discharging power, respectively. The active power change of the wind farm includes the active power change over 1 min and the active power change over 10 min. In order to meet the requirements of the safe and stable operation of the power system when the wind power is connected to the grid, the power change of the wind farm should meet the requirements of

Table 1. Wind farm power change constraints.

Installed Capacity of Wind Farms PN/MW	Maximum Change Limit of Active Power in 10 min/MW	Maximum Change Limit of Active Power in 1 min/MW
PN < 30	10	3
30 ≤ PN ≤ 150	PN/3	PN/10
PN > 150	50	15

.

2.3. Configuration Schemes

In order to comply with the reform policies of China’s electricity market, various regions have actively promoted spot trading in the electricity market in recent years. Based on the spot trading prices in Guangdong Province in 2024, this paper proposes an optimization plan for the configuration of energy storage batteries in combination with the spot market and presents the following three specific schemes from the perspectives of the power grid side and the power generation side.

Scheme 1: Only the relationship between the investment cost and the volatility of energy storage batteries was considered. The investment cost took into account the initial investment, battery replacement cost, and annual maintenance cost.

Scheme 2: While considering the investment cost of the energy storage batteries, we took into account the annual electricity sales revenue of the batteries and wind power based on real-time spot prices. We subtracted the revenue from the investment cost as the cost. If the cost was negative, it indicated that the annual electricity sales revenue of the wind farm plus batteries could cover the investment cost of the energy storage batteries.

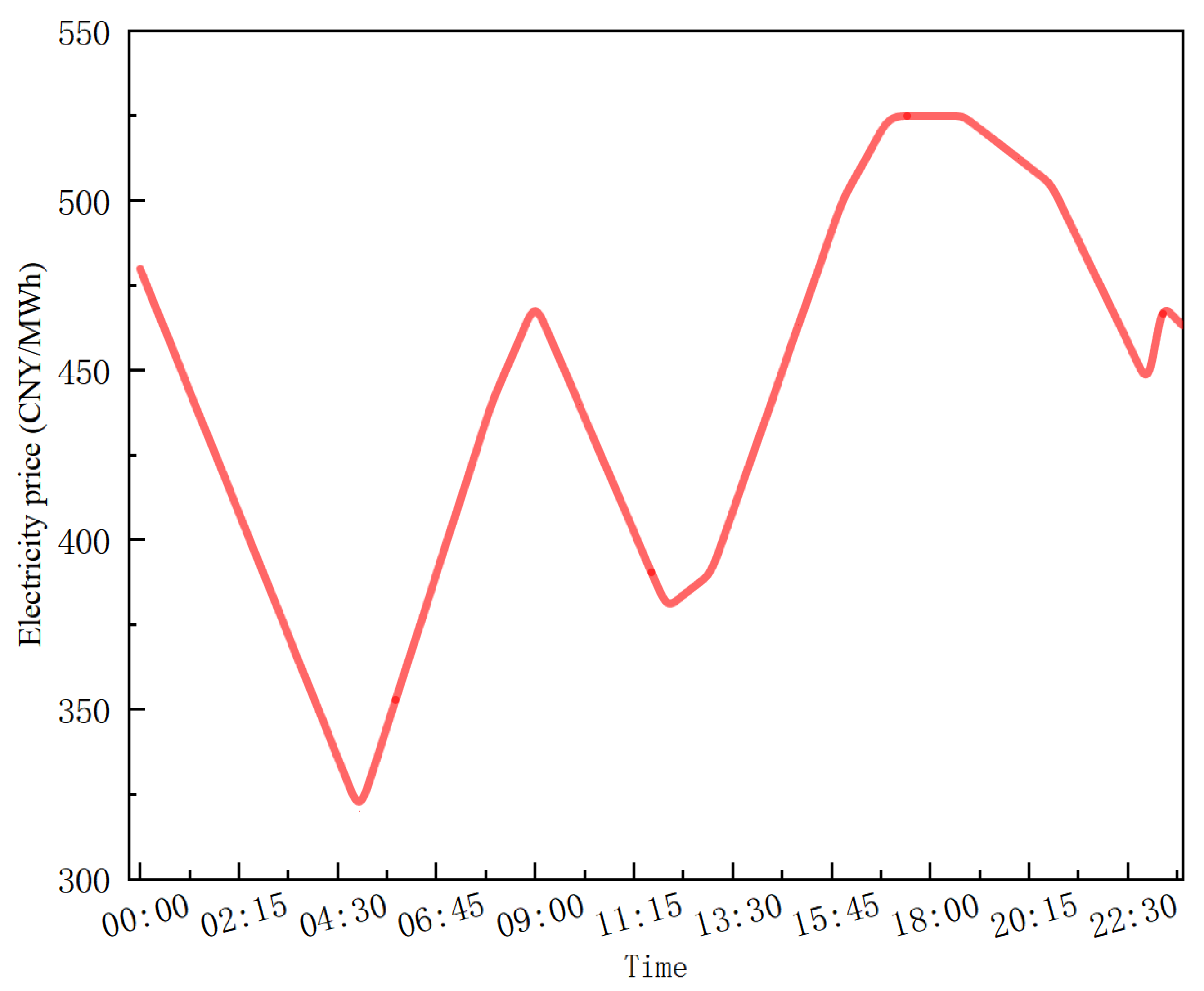

Scheme 3: Considering the peak–valley difference arbitrage ability of energy storage batteries, and in combination with the trend of spot electricity prices, energy storage batteries were only charged and not discharged during the low-electricity-price period, and only discharged and not charged during the high-electricity-price period. This maximized the peak–valley difference arbitrage ability of energy storage batteries and strived for the maximum electricity sales revenue for power plants.

3. Methods

In this study, Python 3.8 was adopted, and the capacity optimization of offshore wind power equipped with electrochemical energy storage was carried out by using NSGA-II through the imported SYS module. In this study, NSGA-II was used to optimize the capacity of offshore wind power equipped with electrochemical energy storage. Based on genetic algorithms, the algorithm significantly reduced the computational complexity and maintained population diversity through a fast non-dominated sorting process, density estimation (using crowding distances), and an explicit selection mechanism [25]. In NSGA-II, the crowding distance was used to measure the distribution density of individuals in the objective space [26]. For the middle individual, the crowding distance is the sum of the differences between the individual and the neighboring individuals in all objective functions. Specifically, for the $i_{th}$ individual, the crowding distance is calculated as follows [27]:

$$d_i=\sum _{m=1}^M{\displaystyle \frac{f_m(i+1)-f_m(i-1)}{f_m^{max}-f_m^{min}}}$$

(12)

where M is the number of objective functions; $f_m\left(i\right)$ is the value of individual i on the $M_{th}$ objective function; and $f_m^{max}$ and $f_m^{min}$ are the maximum and minimum values of this objective function in the population, respectively. The introduction of the crowding distance takes into account the distribution of individuals and avoids the selection of individuals too concentrated in some areas so as to maintain the diversity of the population and improve the search ability and convergence of the algorithm. Sun et al. enhanced NSGA-II to optimize the multi-objective configuration of wind and hydrogen systems, demonstrating that the total system cost was reduced by CNY 18 million through the introduction of an elite strategy [28]. This study utilized NSGA-II to optimize the capacity of offshore wind power integrated with electrochemical energy storage. It thoroughly analyzed the performance data of offshore wind farms and preliminarily established a potential range for energy storage capacity, and thus, reduced the computational effort required in subsequent optimization steps. In this study, the energy storage power was randomly initialized within the range of 0 to 12 MW, and the rated capacity was randomly initialized within the range of 0 to 48 MWh. An initial population of 20 individuals was generated, with each individual representing a potential energy storage configuration. In each generation, 60 offspring were produced through genetic operations, and 20 individuals were selected to form the next generation to maintain a constant population size. The crossover and mutation probabilities were both set to 0.5, and the algorithm iterated for 300 generations. The simplified procedural steps are illustrated in Figure 2 and described as follows:

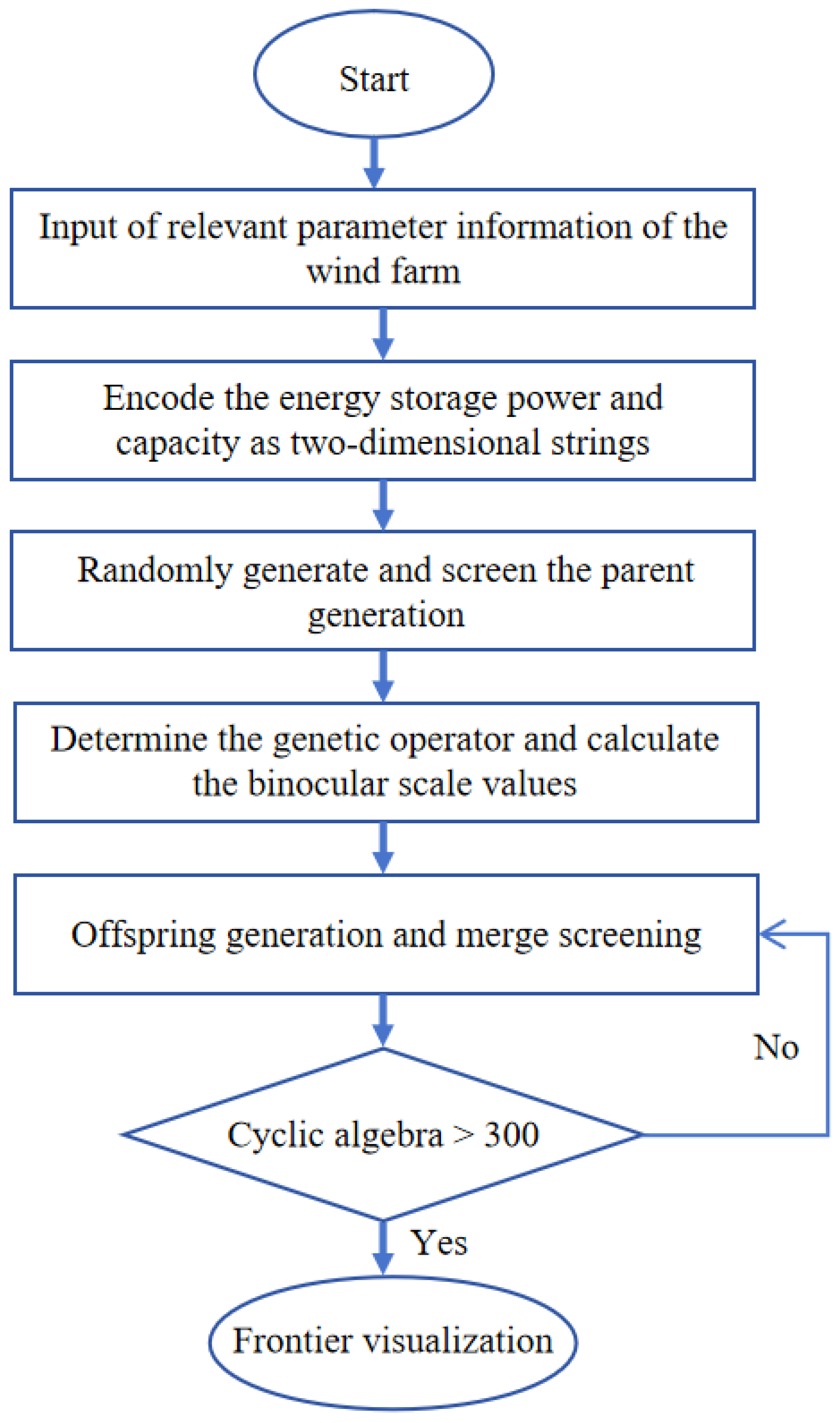

Step 1: The relevant parameters of the offshore wind power plant were input, the feasible ranges for rated power and capacity of the energy storage system were defined, and these variables were encoded into two-dimensional individuals to form the initial population. Each individual was evaluated using the objective function and constraints to ensure compliance with initial conditions.

Step 2: Genetic operators were defined with crossover and mutation probabilities set at 0.5. Twenty energy storage configurations were randomly generated and their performances and feasibilities were evaluated.

Step 3: Evolutionary operations, including reproduction, evaluation, parent–offspring merging, and selection, were conducted over 300 generations to derive a convergent and diverse Pareto front.

Step 4: The optimal solutions were extracted by analyzing the 20 sets of rated power and capacity data, along with their corresponding objective values. Configurations that met the desired criteria were identified based on the relationship between the rated power and capacity, and the results were visualized.

4. Results

This study selected a 40 MW wind farm in Wan’an County composed of 16 wind turbines with a single-unit power of 2.5 MW as the research object. The output power data of the wind turbines of this wind farm throughout 2023 was selected as the reference for the energy storage configuration. In order to explore the relationship between the rated power and rated capacity of the energy storage configuration and the life of energy storage batteries, first, we selected the typical weeks when the proportion of wind power output time exceeds 80% for research according to Scheme 1 (the period from 9 to 15 December was selected for this study). The cost parameters utilized in this analysis are detailed in

Table 2. Wind farm power change constraints [24].

Parameter	Value	Unit
Cost factor related to energy storage power ($k_p$)	5,000,000	CNY/MW
Cost factor related to storage capacity ($k_q$)	6,000,000	CNY/MW
Unit price of energy storage system operation and maintenance ($k_F$)	500	CNY/MW
The discharge price of energy storage system ($k_V$)	300	CNY/MW
Annual decline rate of energy storage installation costs ($\alpha$)	5	%
Total number of energy storage replacements ($\tau$)	2	times
Energy storage life (a)	10	years
Battery cycle life (N)	8000	times

. Given the significant regional variations in the electrochemical ESS disposal costs, this factor was excluded from the current calculation, which potentially led to a conservative estimate of the investment costs. The operational lifespan of the ESS was set at 25 years. Considering that the typical cycle life of electrochemical storage equipment was approximately 8000 cycles with a service life of around 10 years, it was anticipated that the battery system will require two replacements over the entire operational period. In this study, the volatility of the wind power output was analyzed by configuring an energy storage system (ESS) to align the instantaneous wind power output with the daily average power. The daily average power was calculated as the mean of 144 ten-minute interval power recordings per day. For the period from 9 to 15 December, the output power smoothness index ${\sigma }_0$ of the wind farm without the ESS configuration was calculated to be 27.23%. The reduction rate in the output power volatility $\lambda$ achieved through the ESS configuration was calculated as follows:

$$\lambda ={\displaystyle \frac{{\sigma }_0-\sigma }{\sigma }}$$

(13)

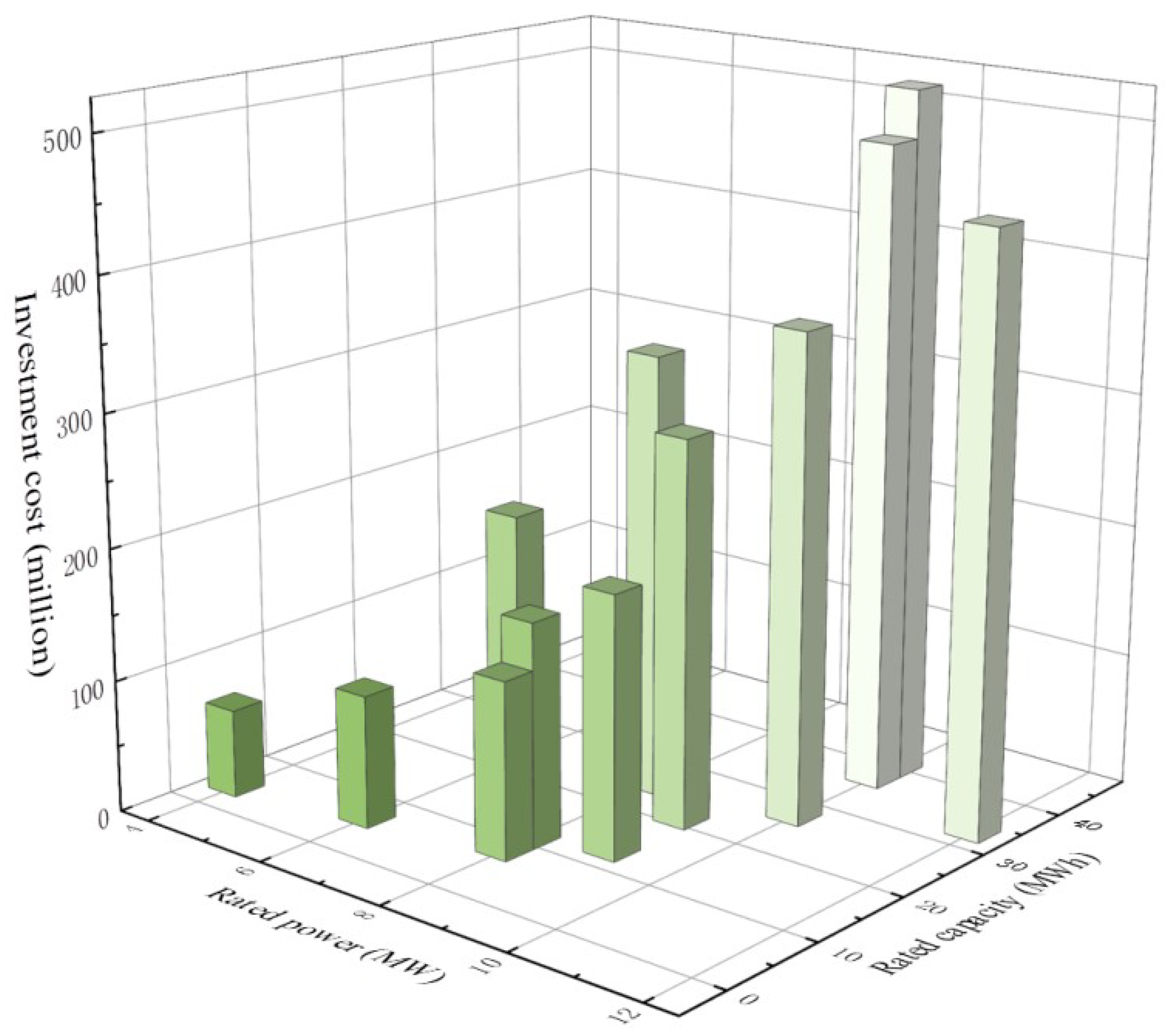

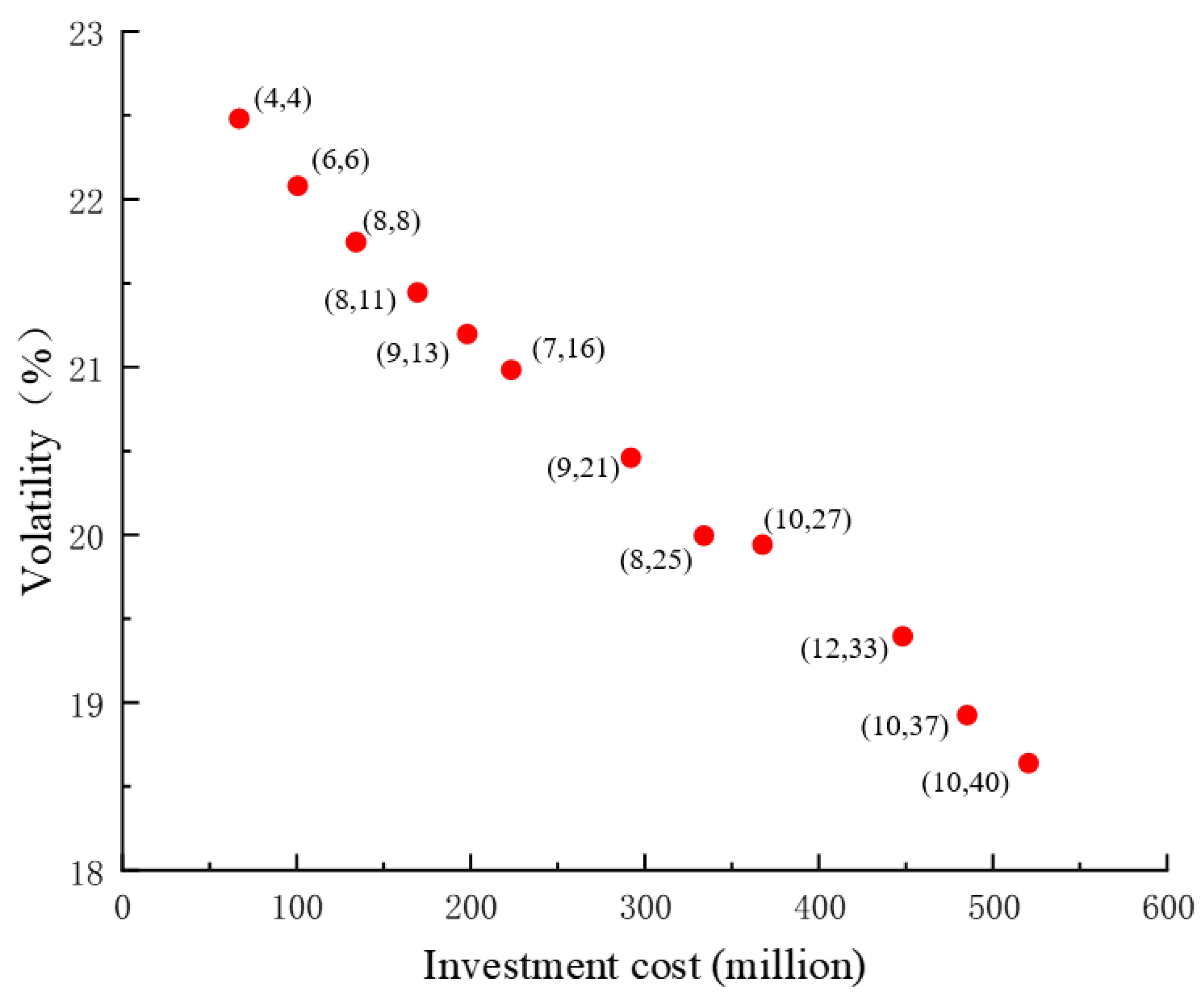

Figure 3 shows the Pareto frontier obtained by NSGA-II, which reflected the optimal allocation of the energy storage capacity and power under different cost constraints. Figure 4 and Figure 5 respectively show the impacts of changes in the rated power and rated capacity of energy storage system on the overall investment cost of the energy storage system and the output power fluctuation of offshore wind power after storage. In this study, the rated power variation range of the energy storage system was set at 10–30% of the rated power of wind farm. At the same time, the continuous working time of the energy storage was changed from 1 h to 4 h. Through the analysis, it is found that with the increase in the power and capacity of the energy storage system, the output power volatility of the wind farm after the configuration of the energy storage decreased from 22.48% to 18.63%, the volatility reduction rate increased from 5.29% to 21.18%, and the investment cost of the energy storage system increased from CNY 67.04 million to CNY 520.45 million. This trend suggests that in order to achieve better smoothing, more energy storage systems are needed to smooth out the wind power output fluctuations and reduce its instability. In addition, with the increase in cost, we observed that the overall smoothness of the output power curve after the allocation of wind power storage was significantly improved.

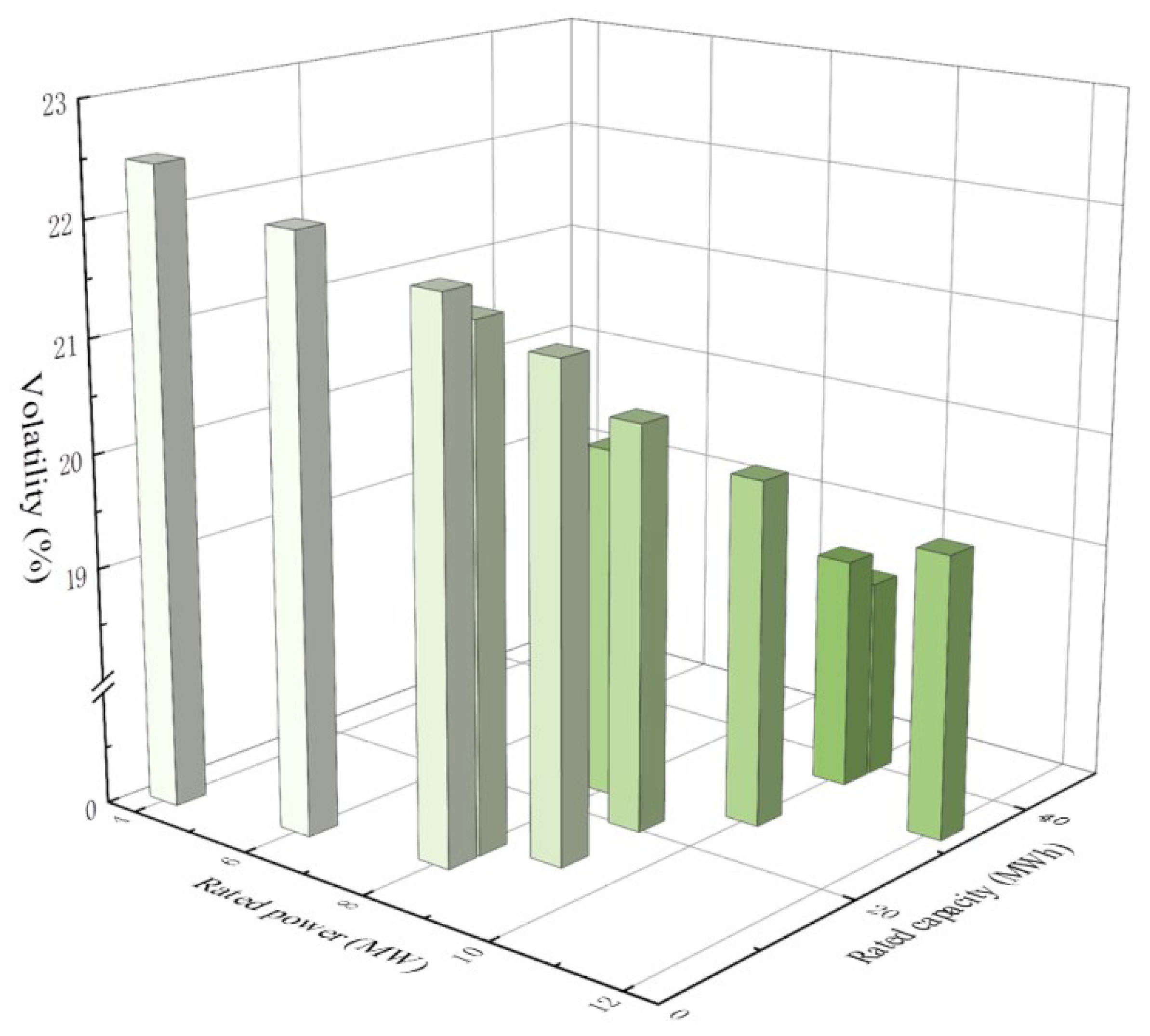

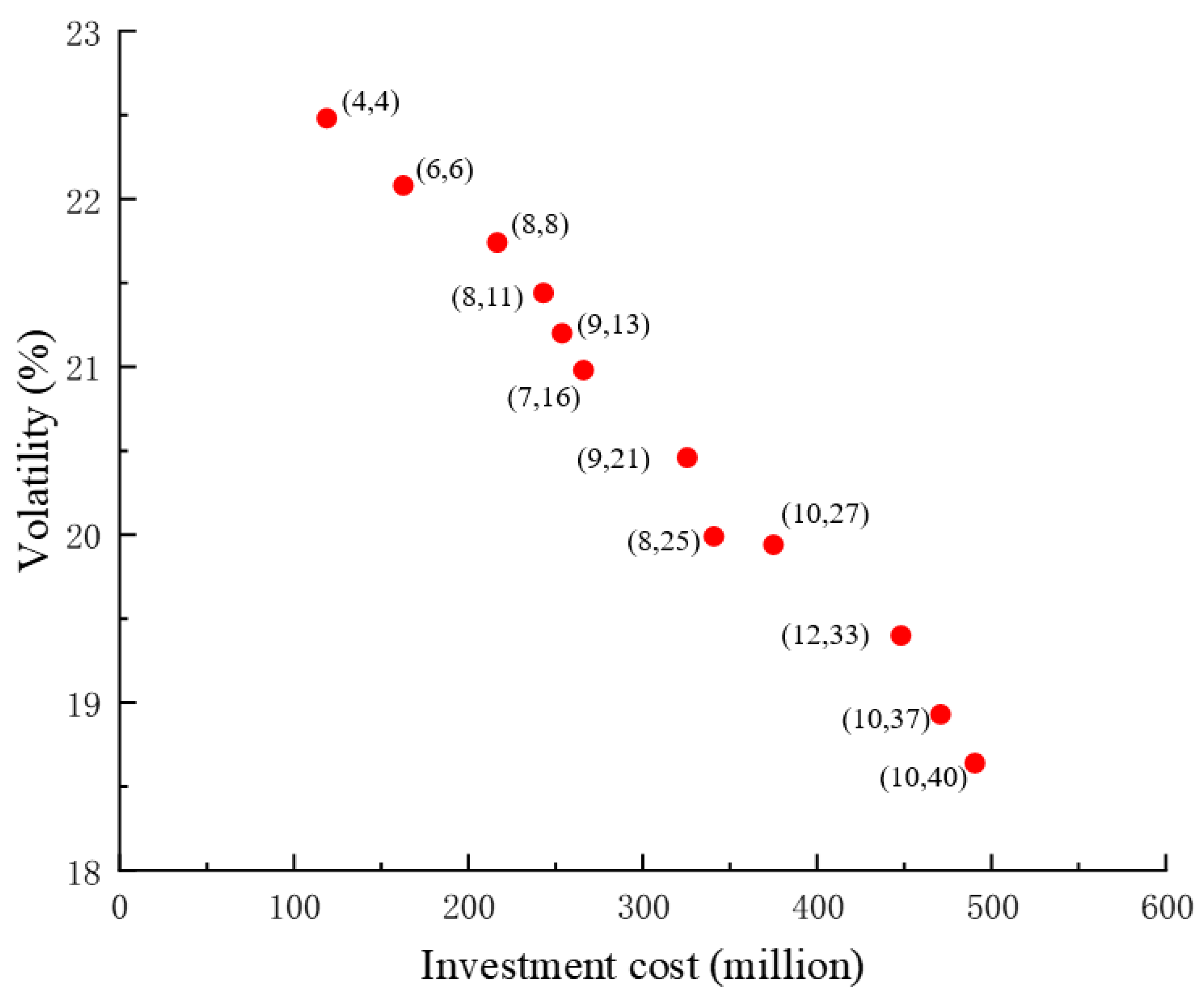

However, in the process of optimizing the configuration of the energy storage system by NSGA-II, the potential impacts of the rated power and rated capacity on the life of the energy storage battery must be carefully considered. Changes in these parameters will directly affect the SOC state of the battery at various points in time, thus having a decisive impact on its service life.

Table 3. Comparison of cycle times and expected service life of energy storage batteries with different solutions on Pareto front.

Leading Edge Point	Cycle Number	Expected Service Life/Year
(4, 4)	35	4.1
(6, 6)	33	4.4
(8, 8)	30	4.8
(8, 11)	25	5.8
(9, 13)	23	6.3
(7, 16)	19	7.7
(9, 21)	17	8.6
(8, 25)	15	9.7
(10, 27)	15	9.7
(12, 33)	14	10.4
(10, 37)	13	11.2
(10, 40)	12	12

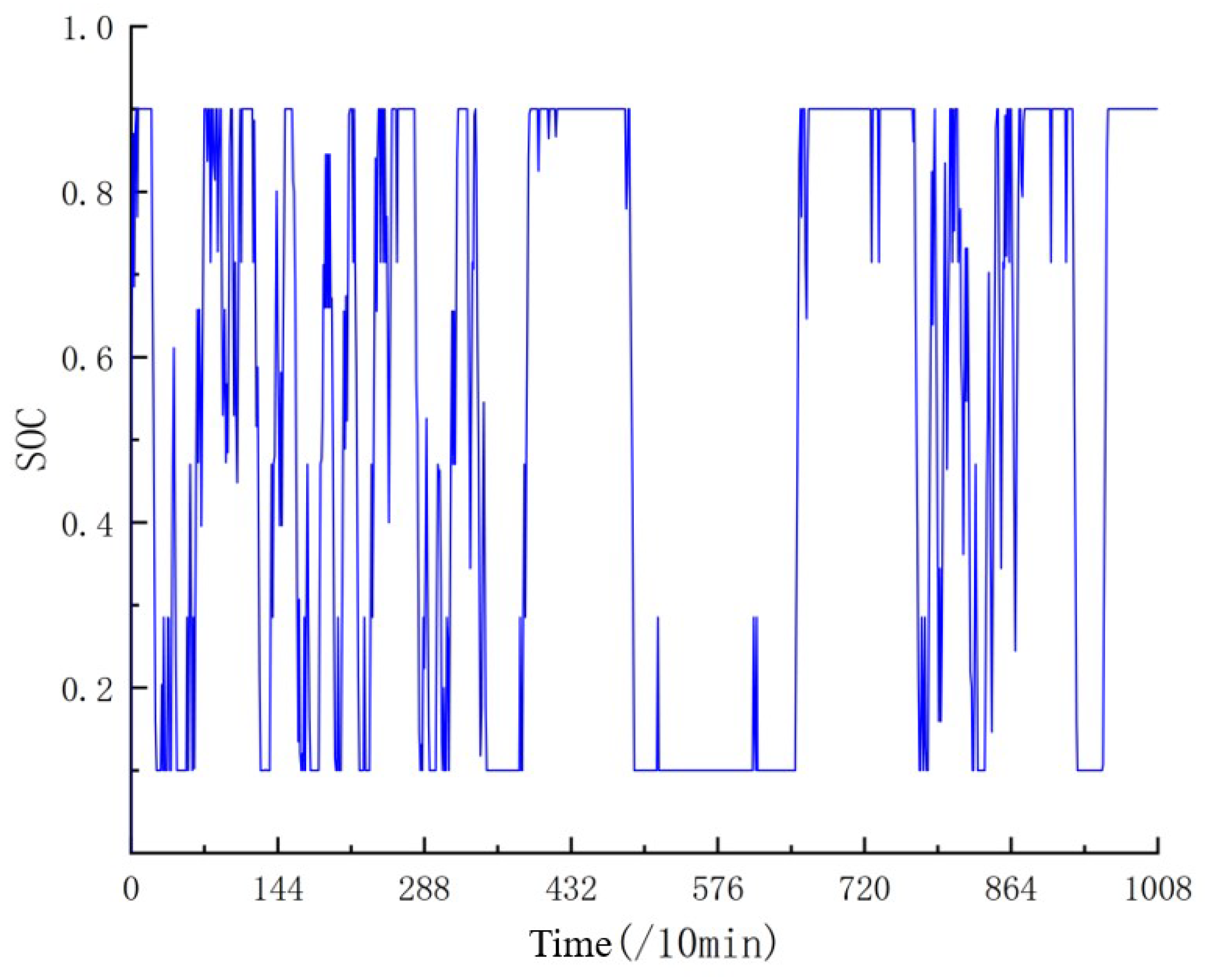

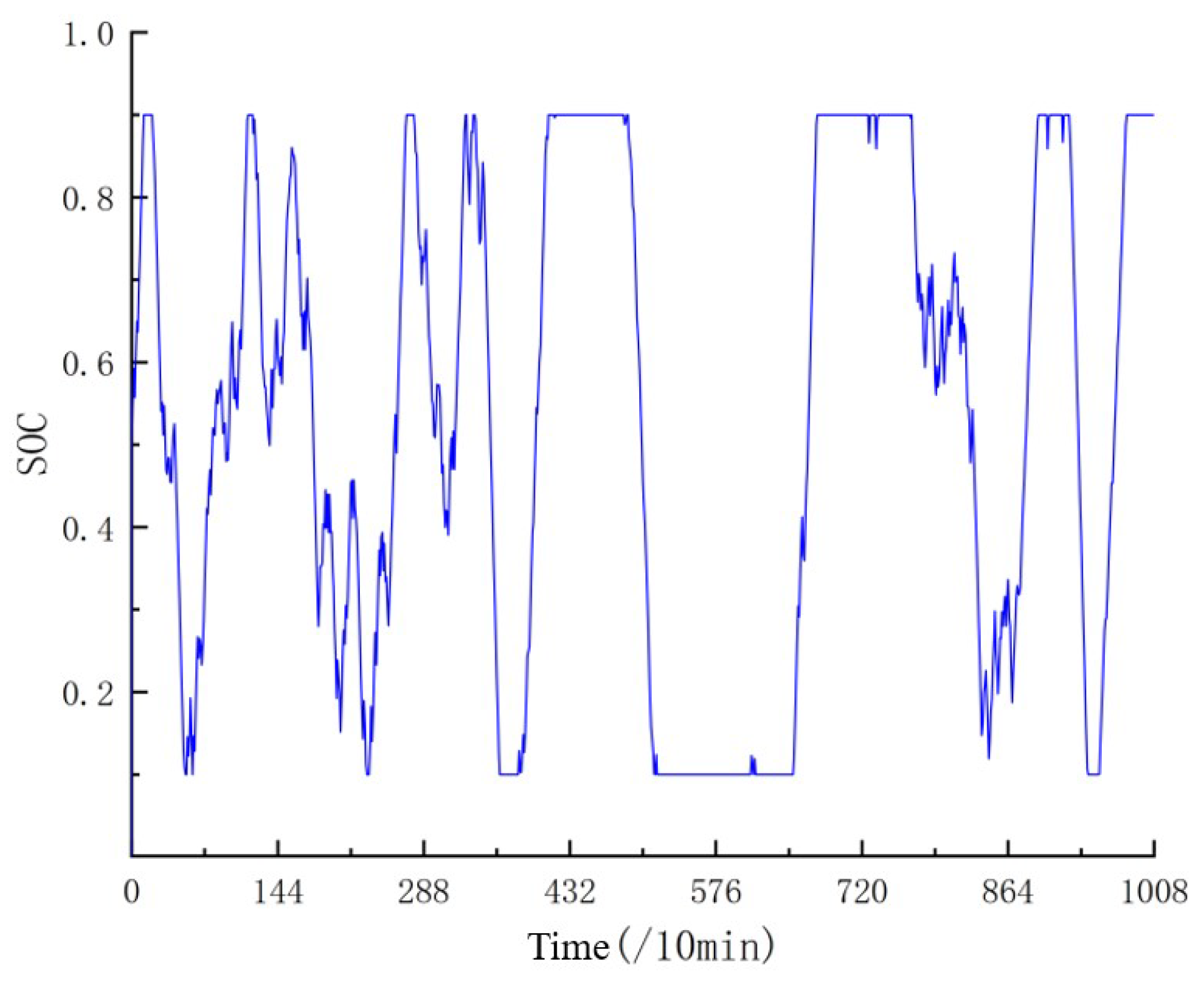

shows the cycle times of the energy storage battery corresponding to each optimization solution on the Pareto front and its estimated life period, while Figure 6 reflects the distribution of the Pareto front after the life correction. The analysis shows that in the case of a low-rated-power and low-rated-capacity configuration of the energy storage system, the charge and discharge frequency of the battery per unit time will increase and the depth of charge and discharge will be intensified, which will undoubtedly accelerate the aging process of the battery and greatly reduce its service life. As a result, the frequency of battery replacement will increase throughout the life cycle of the energy storage system, which will negatively affect the overall economic operating efficiency of the system. In order to quantify the specific effects of the rated power and rated capacity on the life of energy storage batteries, a multiple linear regression model was used for the fitting analysis. The model was able to establish the statistical correlation between the storage battery life Y and its rated power $P_{es}$ and rated capacity $S_{es}$:

$$Y=3.73292-0.05076P_{\mathrm{es}}+0.22835S_{\mathrm{es}}$$

(14)

When predicting the service life of the energy storage battery, the fitting degree $R^2$ = 0.96965 shown by the multiple linear regression model indicates that the model had a high degree of agreement with the actual data, which provides strong confidence for our prediction. Through this model, we found that the service life of the energy storage battery was mainly affected by the rated capacity, and this impact showed a positive correlation. Specifically, when the rated capacity of the energy storage system was small, the actual cost was often higher than the expected cost simulated by NSGA-II. When the rated capacity was large, the actual cost could be lower than the cost of the algorithm simulation. This finding reveals that in the process of optimal allocation, relying only on the Pareto frontier obtained by NSGA-II may lead to a biased estimation of the economy. Therefore, in order to ensure an economic evaluation closer to the real situation, the Pareto frontier generated by NSGA-II must be modified based on the energy storage battery life. The Pareto frontier after the life correction is shown in Figure 6, which provides us with a more accurate and practical decision basis. Through in-depth analysis and correction of the energy storage battery life, the impact of the rated capacity on the cost of the energy storage system could be more comprehensively understood.

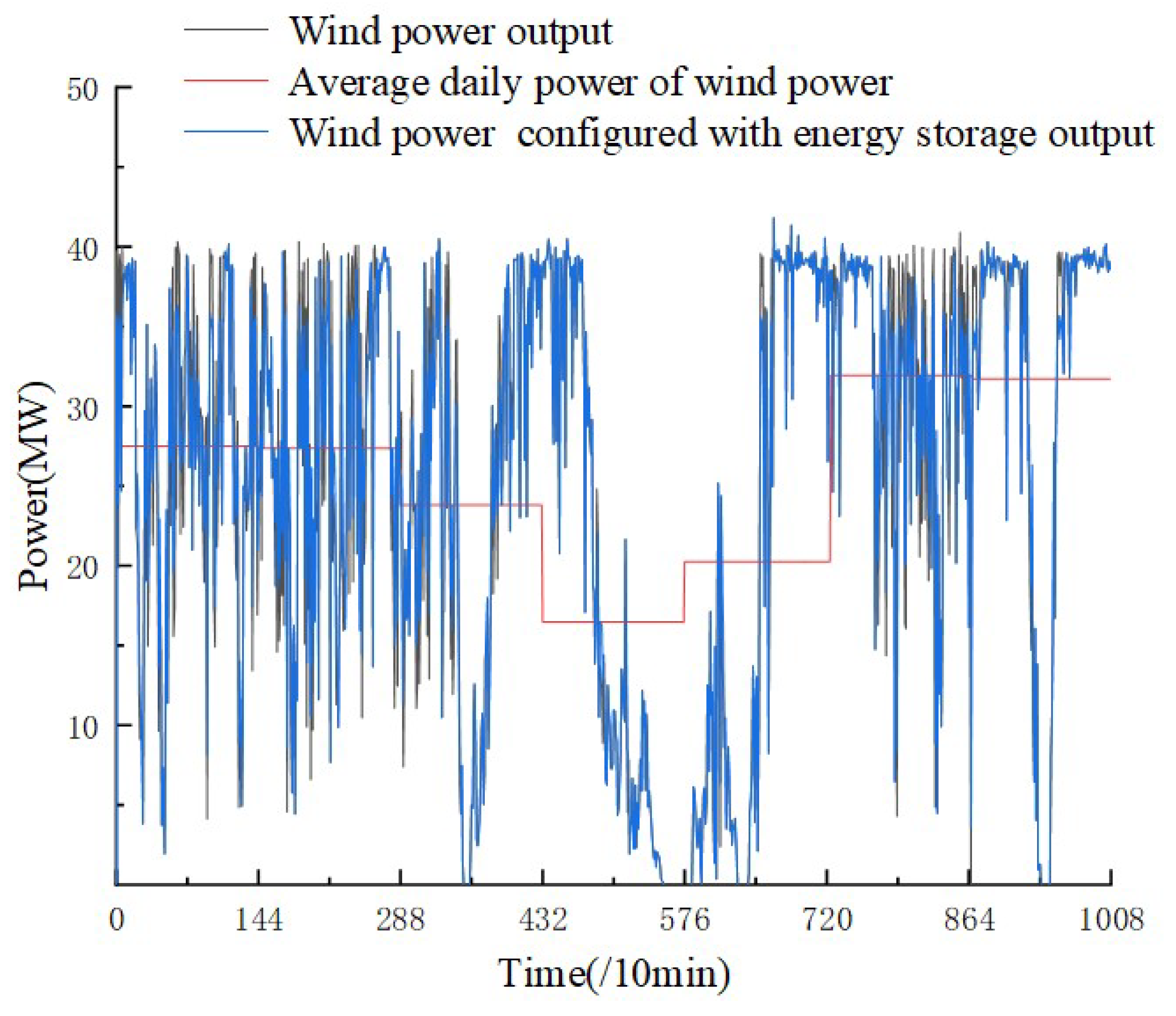

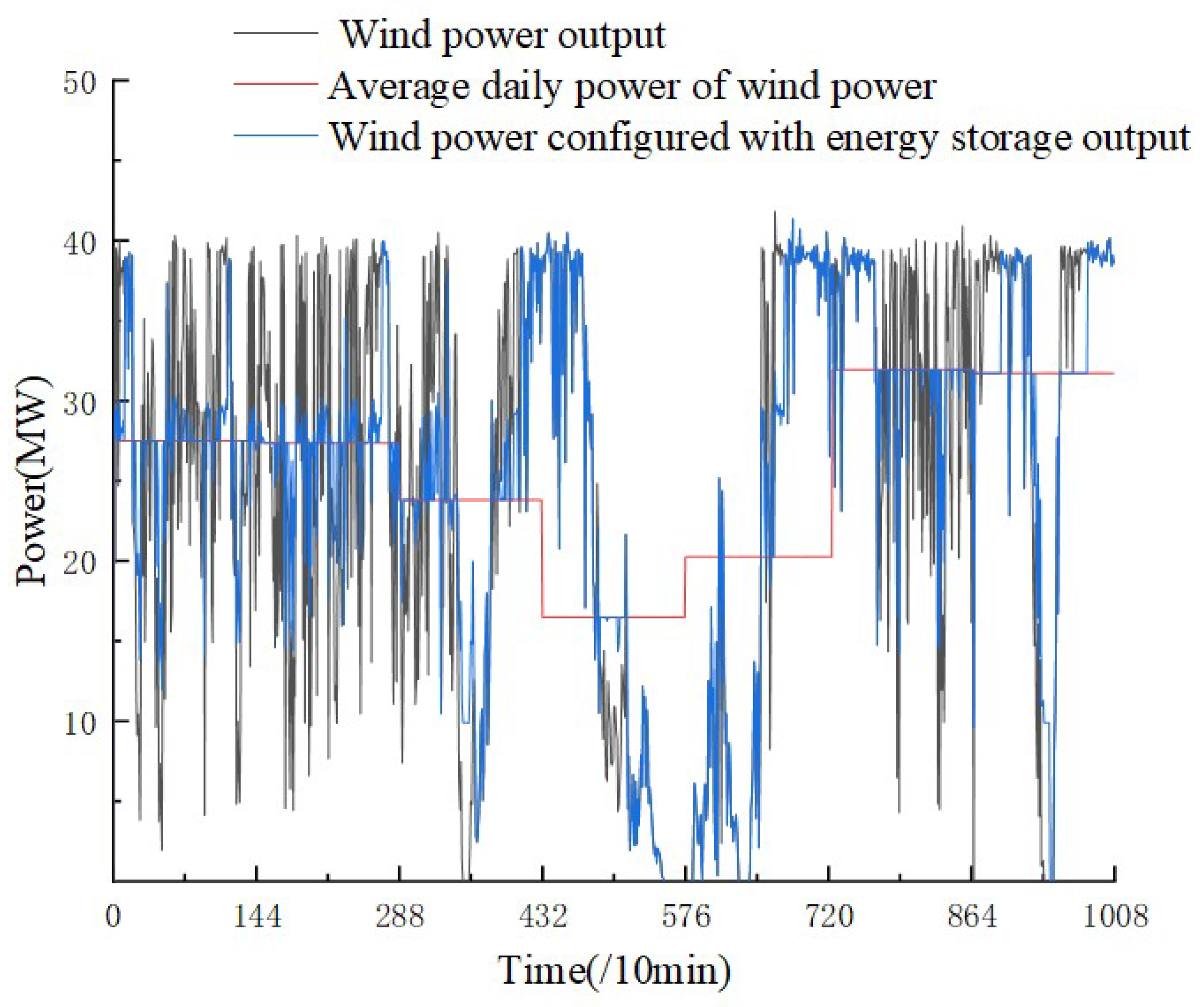

Figure 7 and Figure 8 respectively show the comparison of the output power before and after the wind farm was configured with 10% energy storage and 25% energy storage. It can be clearly seen that the overall output curve was smoother when the wind farm was configured with a high proportion of energy storage. Figure 9 and Figure 10 show the state charge (SOC) change curve of the energy storage system batteries with different proportions of energy storage, indicating that the SOC of the batteries was kept within a reasonable range during the entire operation cycle, thus ensuring the stable operation and efficient management of the energy storage system.

Due to significant seasonal variations in the wind speed, the power outputs of the wind turbines varied considerably throughout the year. As a result, an energy storage configuration based on a single week of data could not accurately represent the actual long-term demand of the wind farm. To address this limitation, the life correction method introduced in the previous section was applied to the full-year dataset, which enabled a comprehensive assessment of the annual energy storage configuration. The modified Pareto front obtained through this process is illustrated in Figure 11. To evaluate and identify the optimal energy storage configuration, this study employed the multi-objective particle swarm optimization (MOPSO) algorithm as a benchmark against NSGA-II. The MOPSO parameter settings are listed in

Table 4. MOPSO parameter table.

Parameters	Value
POP SIZE	50
ARCHIVE SIZE	100
NGEN	300
W	0.4
C1	1.5
C2	1.5

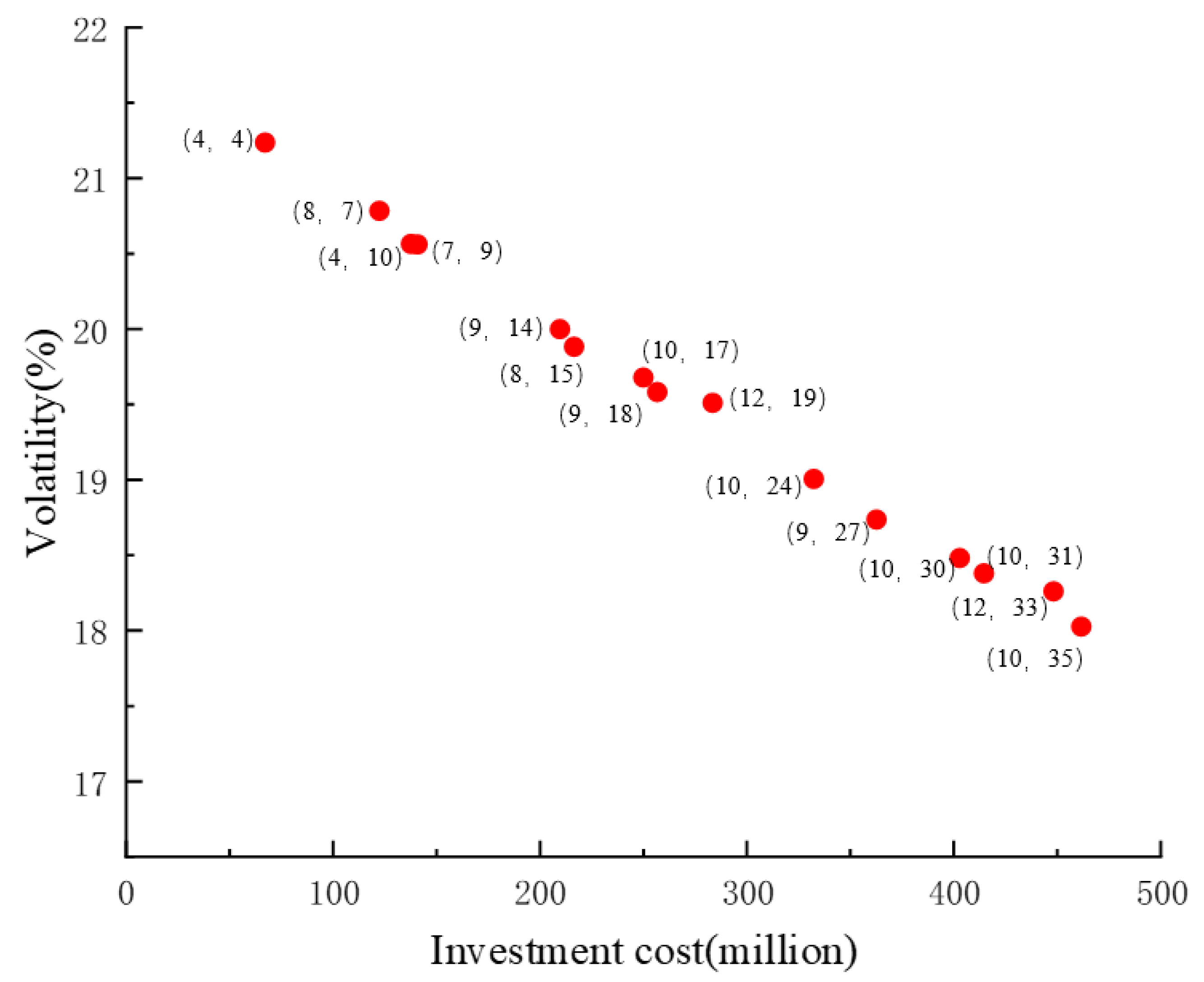

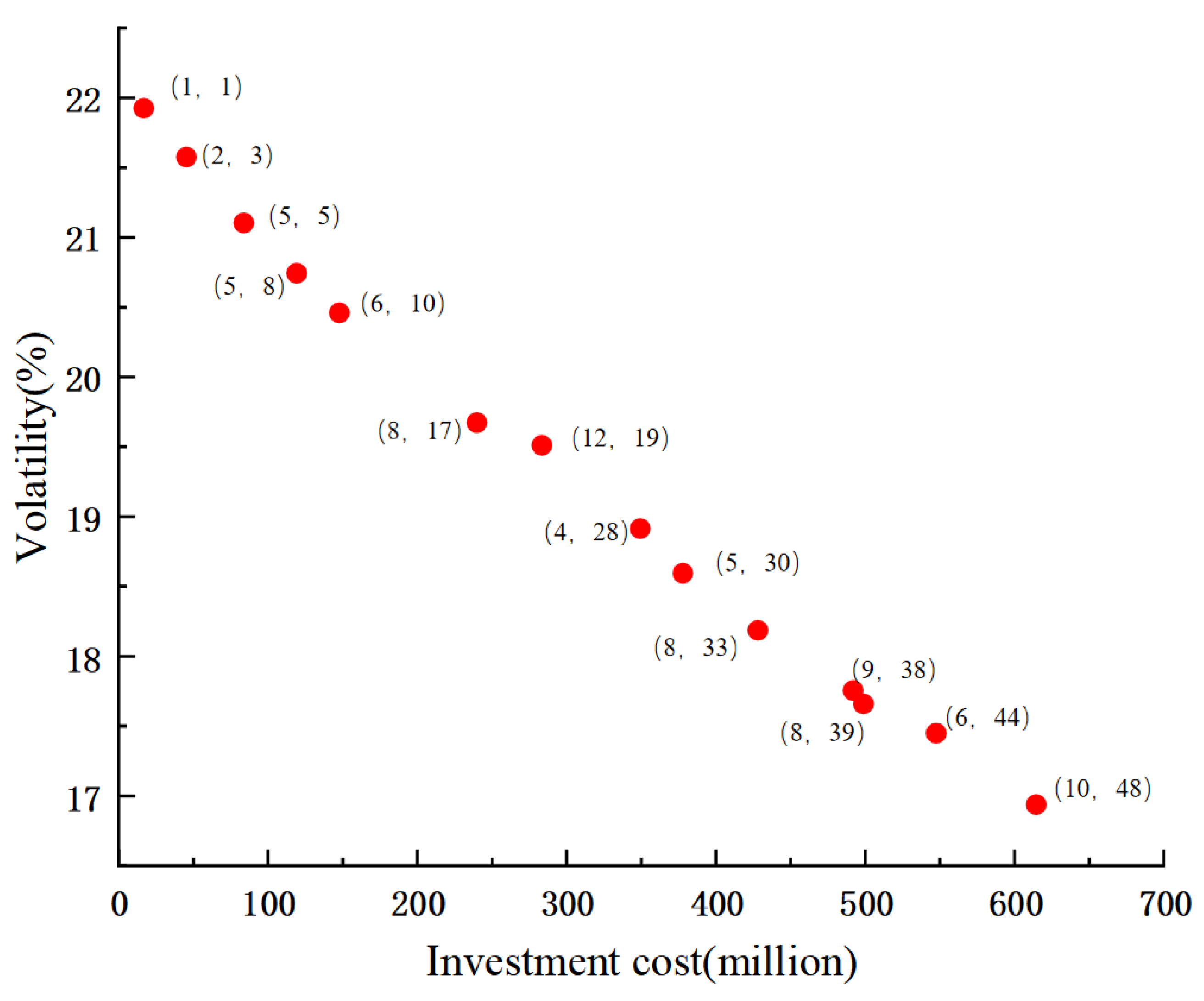

, and the resulting Pareto front is depicted in Figure 12. For a quantitative comparison of each algorithm’s trade-off performance, we introduce the metric $\xi$, which is defined as the incremental energy storage investment cost required to achieve a 1% reduction in the output volatility:

$$\xi ={\displaystyle \frac{C_a}{\lambda }}$$

(15)

Table 5. The values of $\xi$ at different points on the frontier of NSGA-II.

Investment Cost (Million CNY)	Volatility (%)	$\mathit{\xi }$
16.76	21.93	117,688
45.28	21.58	150,916
83.80	21.11	163,748
119.09	20.74	176,729
147.61	20.46	184,150
239.94	19.67	207,778
283.46	19.51	230,783
349.31	18.92	233,480
377.83	18.60	230,389
428.12	18.19	234,731
491.93	17.76	243,814
498.69	17.66	241,985
547.50	17.45	254,070
614.54	16.94	257,672

reports the $\xi$ values on the Pareto front produced by NSGA-II, while

Table 6. The values of $\xi$ at different points on the frontier of the MOPSO.

Investment Cost (Million CNY)	Volatility (%)	$\mathit{\xi }$
67.04	21.24	148,247
122.33	20.78	186,487
137.61	20.56	182,394
140.85	20.56	186,348
209.66	20.00	207,851
216.42	19.88	203,912
249.94	19.68	216,798
256.70	19.58	214,582
283.46	19.51	230,783
332.27	19.01	228,336
362.55	18.74	230,045
402.84	18.48	238,180
414.60	18.38	238,785
448.12	18.26	250,326
461.64	18.03	243,583

presents the corresponding $\xi$ values obtained by MOPSO. The introduction of energy storage markedly reduced the wind farm output fluctuations; however, further investments yielded progressively smaller improvements. As the investment cost increased, $\xi$ also rose, indicating that the marginal cost required to reduce the output volatility by 1% became larger. Within the same cost range, MOPSO yielded higher $\xi$ values than NSGA-II, suggesting a less favorable trade-off between the investment cost and output volatility.

To effectively balance the volatility of the offshore wind power output with the economic feasibility of energy storage investment, it is essential to identify an optimal configuration during the project selection process. This study employed the ideal point method and the inflection point method to analyze the Pareto frontier and determine the most suitable energy storage configuration. The ideal point method, which is grounded in the Technique for Order Preference by Similarity to Ideal Solution (TOPSIS) framework, focuses on establishing an ideal point—representing the optimal values across all objectives—and subsequently assesses the proximity of each alternative solution to this ideal point. The solution that exhibits the minimum distance to the ideal point is selected as the optimal configuration. Initially, all target values are normalized according to Equation (16), after which the distances from each alternative solution to the ideal point are computed using Equation (17) [29]:

$$f_i^{\prime }={\displaystyle \frac{f_i-f_{i_{min}}}{f_{i_{max}}-f_{i_{min}}}}$$

(16)

$$D^{+}=\sqrt{\sum _{i=1}^m{\left(f_{ij}^{\prime }\right)}^2}$$

(17)

Let $f_i$ denote the value of the $i_{th}$ target, where $f_{i_{min}}$ and $f_{i_{max}}$ represent the minimum and maximum values of the target, respectively. The metric $D^{+}$ quantifies the distance from the ideal point. The ideal point method allows for flexible weight assignment across different targets. Particularly effective in low-dimensional target spaces, this method can identify values that are close to the ideal solution when the number of targets is small. The inflection point method is a selection technique based on changes in curvature. It identifies the point of maximum curvature change within the target space by sorting the solution set. This method locates the point with the most significant curvature change by calculating the gradient and curvature between adjacent points, which is referred to as the inflection point. Beyond this point, further improvements are marginal. The inflection point method utilizes Equation (18) to compute the gradient and Equation (19) to calculate the curvature [30]:

$$\nabla f={\displaystyle \frac{\Delta y}{\Delta x}}$$

(18)

$$\kappa =\left|{\displaystyle \frac{d^{2}y}{d{x}^2}}\right|$$

(19)

where $\Delta x$ and $\Delta y$ represent the increments in the target values, and $\kappa$ denotes the curvature, which reflects the rate of change in the target values. The inflection point method is applicable to large-scale multi-objective optimization and can avoid the waste of resources. When there is no obvious weight relationship in a multi-objective problem, the inflection point method is more suitable for the ideal solution method. If the objective has no obvious inflection point or there is an obvious weight relationship between multiple objectives, the ideal solution method can be used to assign weights to different objectives and then calculate. Using the inflection point method to identify the optimal configuration on each front (

Table 7. Comparison of optimal configurations in different situations.

Situation	Rated Power (MW)	Rated Capacity (MWh)	Investment Cost (Million CNY)	Volatility (%)	Volatility Decline Rate $\mathit{\lambda }$ (%)
None	0	0	0	22.2431	0
NSGA-II	4	28	349.31	18.9153	14.84
MOPSO	4	10	137.61	20.5649	7.48

), we found that MOPSO achieved a lower investment cost at its selected point, whereas NSGA-II more effectively suppressed the volatility. Consequently, NSGA-II outperformed MOPSO in the multi-objective optimization. Under equal weighting of the cost and volatility, the optimal energy storage configuration was a rated power of 4 MW with a rated capacity of 28 MWh.

By comparison, it was found that NSGA-II had more advantages in this case. Therefore, both Schemes 2 and 3 adopted NSGA-II for calculation. The spot electricity price data adopted in the research case was derived from the 2024 data released by the Energy Bureau of Guangdong Province. Taking the spot electricity price on 29 January as an example for analysis, as shown in Figure 13. The analysis results show that the period from 3:00 a.m. to 5:00 a.m. was the low-electricity-price stage, and the period from 6:00 p.m. to 8:00 p.m. was the high-electricity-price stage. Therefore, Scheme 3 implemented the strategy of charging the energy storage battery only from 3:00 a.m. to 5:00 a.m. and discharging the energy storage battery only from 6:00 p.m. to 8:00 p.m. The Pareto frontiers of Scheme 2 and Scheme 3 calculated based on the above strategy are shown in Figure 14, and the specific data are presented in

Table 8. Frontier comparison between Scheme 2 and Scheme 3.

	Scheme 2			Scheme 3
Configuration	Investment Cost	Volatility	Configuration	Investment Cost	Volatility
(5, 9)	−10,260	0.2062	(8, 10)	−7677	0.2059
(8, 11)	−6350	0.2032	(4, 15)	−3858	0.2025
(8, 14)	−2815	0.1999	(9, 17)	1023	0.1992
(4, 23)	5725	0.1930	(4, 20)	2019	0.1982
(10, 26)	12,339	0.1881	(4, 24)	6698	0.1954
(12, 29)	16,889	0.1860	(9, 24)	9223	0.1933
(5, 34)	19,174	0.1829	(10, 26)	12,066	0.1916
(8, 37)	24,277	0.1783	(9, 31)	17,430	0.1878
(6, 43)	30,281	0.1751	(9, 34)	20,950	0.1854
(6, 48)	36,158	0.1720	(7, 39)	25,802	0.1820
(10, 48)	38,242	0.1693	(10, 48)	37,869	0.1752

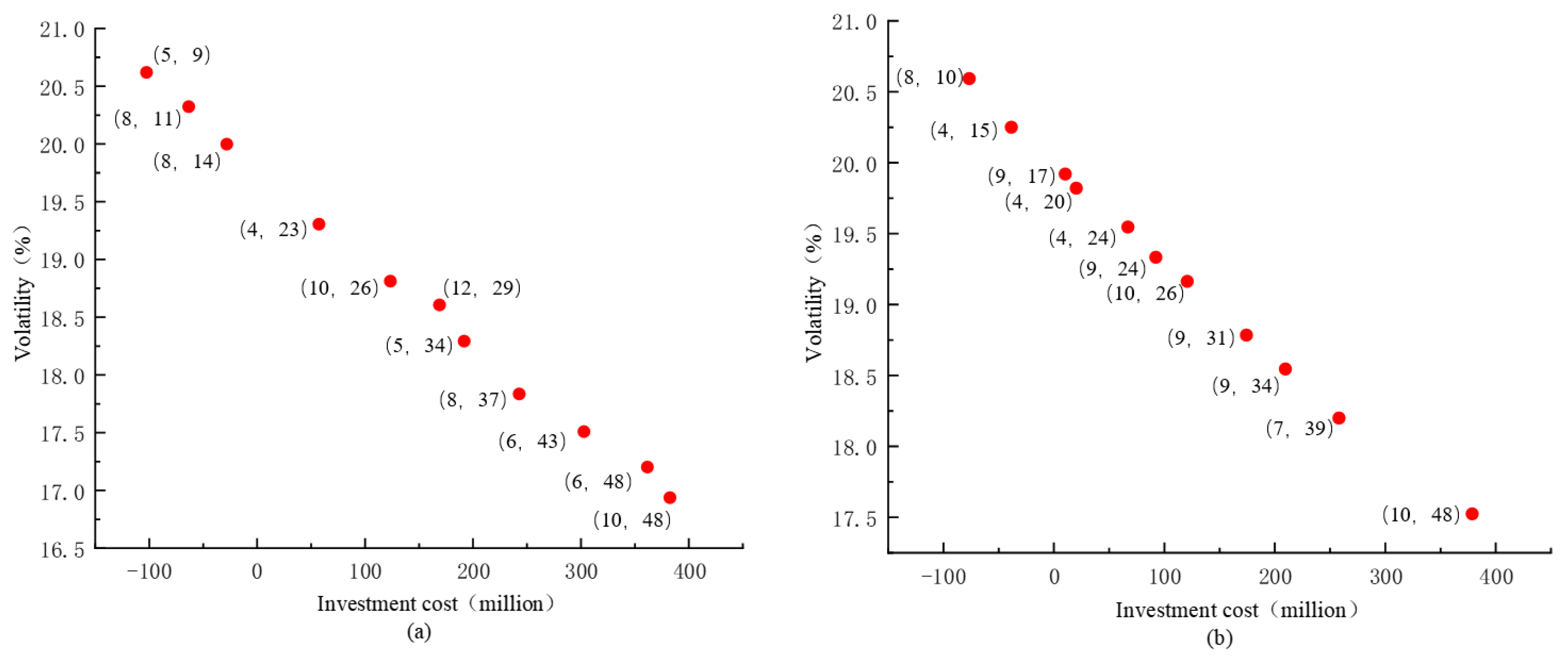

. The results show that when the wind power was leveled through energy storage and participated in the spot electricity market transactions, the overall input cost of the energy storage system could be effectively reduced. When the energy storage configuration was lower than the rated power of 8 MW and the rated capacity of 14 MWh, the annual electricity sales revenue could cover the full cycle investment cost of the energy storage system. By joining the electricity spot market, the wind farms could flexibly adjust their energy storage strategies according to the market demand. Scheme 3 adopted the peak–valley difference arbitrage strategy to increase the profitability while meeting the demand of the electricity spot market.

By comparing the frontier curves of Schemes 2 and 3, it was found that the two schemes had the same configuration points. When the rated power was 10 MW and the rated capacity was 26 MWh, the investment cost of Scheme 3 was CNY 2.73 million lower than that of Scheme 2. That is, Scheme 3 could gain an additional CNY 2.73 million in a year through the peak–valley difference arbitrage strategy. Although the arbitrage behavior of Scheme 3 could increase the annual output power volatility, it could be adjusted through flexible switching between the two schemes in actual operation. When the power grid required a stable output, Scheme 2 was adopted for power fluctuation regulation. When participating in the spot market, Scheme 3 was used to balance the market demand and economic benefits. The inflection point method and the ideal point method were further adopted to conduct the selection and analysis of the optimal configuration point for Scheme 2. The optimal configuration obtained by the inflection point method was a rated power of 10 MW and a rated capacity of 48 MWh. However, this point was the extreme value point of the Pareto front, and an obvious inflection point could not be clearly determined. Therefore, it was more appropriate to adopt the ideal point method in this case. The optimal configuration determined by the ideal point method was a rated power of 8 MW and a rated capacity of 37 MWh. In the spot market environment, this configuration could best balance the volatility of the wind power output and investment cost.

5. Conclusions

In this study, NSGA-II, a multi-objective optimization algorithm, was adopted to conduct a systematic analysis of the capacity optimization scheme for configuring electrochemical energy storage systems on offshore wind farms. Through a one-week energy storage allocation study from 9 to 15 December 2024, the relationship between the rated power and rated capacity of the energy storage system and the service life of the energy storage battery was deeply explored, and the battery life of the obtained Pareto frontier solution was corrected. The research results show that in the weekly energy storage distribution scenario, as the investment cost increased from CNY 118.81 million to CNY 490.52 million, the output power fluctuation of the wind farm significantly decreased. The minimum fluctuation rate could be reduced to 18.63%, and the maximum fluctuation rate reduction range reached 21.48%. Meanwhile, in this study, the MOPSO algorithm was also used to verify the optimization results of NSGA-II. The results show that NSGA-II had obvious advantages in solving multi-objective problems. Further analysis was conducted for different configuration schemes. When only the initial investment cost and power volatility were considered, the optimal configuration was a rated power of 4 MW and a rated capacity of 28 MWh. At this time, the project investment cost was CNY 349.31 million, and the annual fluctuation rate of the output power was 18.92%, which could well balance the economy and power stability. When considering the spot market transactions of electricity, adopting the strategy of charging energy storage batteries only during off-peak hours and discharging only during peak hours could enhance the overall economic benefits of the energy storage system and flexibly meet the demands of power fluctuations or economic returns through strategy adjustments. The optimal configuration in the spot market scenario was a rated power of 8 MW and a rated capacity of 37 MWh. The corresponding project investment cost was CNY 242.77 million, and the annual fluctuation rate of the output power was further reduced to 17.84%. As the proportion of renewable energy in China’s power system increases, the peak–valley difference in power demand will continue to expand. Utilizing energy storage systems to participate in the spot market for peak–valley difference arbitrage will bring greater economic benefits. More sophisticated arbitrage strategies are expected to further enhance the economic efficiency of the energy storage configuration.
