Review

GHG Emissions by (Petro)Chemical Processes and Decarbonization Priorities—A Review

by
Andrea Isella
and
Davide Manca
*
PSE-Lab, Process Systems Engineering Laboratory, Dipartimento di Chimica, Materiali e Ingegneria Chimica “Giulio Natta”, Politecnico di Milano—Piazza Leonardo da Vinci 32, 20133 Milano, Italy
*
Author to whom correspondence should be addressed.
Energies 2022, 15(20), 7560; https://doi.org/10.3390/en15207560
Submission received: 28 July 2022 / Revised: 26 September 2022 / Accepted: 10 October 2022 / Published: 13 October 2022
(This article belongs to the Section B: Energy and Environment)
Browse Figures
Versions Notes

Abstract

Global warming is becoming an increasing issue, and greenhouse gas (GHG) emissions represent the engine of such a phenomenon. This review aims to identify the origin of GHG emissions and focus in detail on the ones related to (petro) chemical industries. The industrial sector is the primary GHG emitter among all the other anthropogenic sources. The chemical industry is the first in charge of that (having accounted for about 6.5% of the global GHG emissions in 2018). Thought-provoking data such as yearly productivities and emission factors related to the predominant chemicals prompt the reader to acquire a sense of the critical activities responsible for carbon-intensive emissions, which should be the first to be decarbonized. Specifically, ammonia synthesis and steam cracking resulted in the most polluting processes of the chemical industry, being responsible for the release of about 440 and 228 Mt-CO2,eq/y, respectively, in 2020. The same approach also applies to oil refining. Due to the massive amounts of oil barrels produced daily, oil refining is a key player in industrial GHG emissions (about 3% of the global emissions in 2018). Indeed, in 2020, refineries emitted nearly 1313 Mt-CO2,eq/y.

1. Introduction

The awareness of the effects of greenhouse gas (GHG) emissions on climate change and the effort to reduce them from every human activity are increasing daily. In particular, the Paris agreement (2016), aiming to limit global warming to a maximum of 2 °C (preferably 1.5 °C) compared to pre-industrial levels, represents a true milestone on this path, being the first-ever universal and legally binding international treaty on climate change [1,2]. Nonetheless, GHG emissions still reach very alarming levels. Current estimations agree on global values having risen from 45 to 50 Gt-CO2,eq/y in the last ten years [3,4] with a monotonically increasing trend (except for 2020, when a considerable decline occurred due to the SARS-CoV-2 pandemic [5]) due to the unrelenting demographic growth. According to the United Nations, the world population will reach 8 billion by the end of 2022 [6]. Such a tendency will inevitably lead to increased energy consumption and anthropogenic emissions.
Therefore, a proper long-term low GHG emissions development strategy is recommended, and, in this respect, it is crucial to assess how these emissions distribute in each different human activity. The paper quantifies the most responsible emitting sources and shows how to prioritize the decarbonizing policies. Indeed, efforts to reduce GHG emissions by focusing on relatively low polluting human activities would result in negligible benefits, even if very radical. Conversely, even mild environmental mitigation policies targeting remarkably polluting activities would significantly improve the global scale.
For clarity, it is essential to elucidate what “human activity” means. GHG emissions can be traced back to either the “sector” that produces them or the “end-user” they are made for. This review accounts for both categories by exploiting the data published by Climate Watch [3] and World Resources Institute (WRI) [7]. It is worth mentioning that most of the reviewed data refer to 2018, which is neither too distant (somewhat well representative of the current situation) nor too close (2018 did not suffer the impact of the economic shutdown originated by the SARS-CoV-2 pandemic). Table 1 lists the results of the analysis by sectors, with the most impactful one being Electricity and Heat, as it accounts for almost a third of the total. Transportation; Manufacturing and Construction; Agriculture; Industrial Processes; Fugitive Emissions; Buildings; Waste; Other Fuel Combustion; and Land-Use Change and Forestry follow in descending order (see also Table 1 for further details).
Electricity and Heat is at the top position as global electricity consumption, which recently topped 23 PWh (2019) [9], and most of its production bases on very carbon-intensive processes. A recent article quantified an average emission factor for electrical energy (which depends on the adopted fuel mix) of about 123 kg-CO2/GJ [10]. Such an emission factor is way higher than the ones classically estimated for natural gas, oil, and coal (56, 73, and 95 kg-CO2/GJ, respectively) [11]. That is because pretty low-efficiency processes mainly produce electricity (consider that the energy ratio of electricity output to fuel input typically ranges from 40 to 50%).
However, Table 1 still provides an incomplete picture of those activities responsible for such emissions. Instead of considering “upstream” sectors such as Electricity and Heat as distinct categories, it is particularly relevant to analyze how their emissions distribute among “downstream” activities or, in other terms, which is truly responsible for them. For the sake of detail, let us consider that the main requests for Electricity and Heat come from Industry and Buildings, each representing about 40% of the total demand. Regarding Manufacturing and Construction, the leading consumer is Industry again, accounting for almost 98% of the whole sector [7]. As a result, Industry stands as the top emitter among the considered end-users, as reported in Table 2.
A comparison between Table 1 and Table 2 reveals the remarkable influence of “upstream” activities on “downstream” ones. It is evident how considering emissions associated with productive processes only, makes Industry a relatively minor emitter (6% of the total GHG emissions). Conversely, considering the indirect emissions (such as those related to electricity and fuel consumption) makes Industry the major emitter (almost 31%).

2. Industry

As aforementioned, Industry is the primary source of GHG emissions, accounting for almost a third of the total value worldwide. Therefore, it is relatively straightforward that any effective decarbonization strategy should primarily point at this sector.
Table 1 provides valuable information regarding both environmental and economic data. Worldwide, lawmakers have used these data to enact suitable “carbon taxes”, which charge GHG emissions and/or fuels that release them [12]. Carbon taxes promote two synergistic consequences: (i) increase public revenues and (ii) encourage CO2 reduction. The cost escalation induced by carbon taxes incentivizes companies to manufacture their products in ways that would result in fewer emissions. Ultimately, higher production costs lead to higher end-prices of carbon-intensive goods and services, which eventually induce households to sober use.
The assessment of the carbon intensity of each industrial sub-sector has to account for both the direct process emissions (e.g., the COx and NOx from the synthesis routes) and the indirect ones (e.g., from utilities such as electricity, fuel gas, fuel oil, etc.).
An accurate analysis of the diverse industrial sub-sectors is recommended to help address environmental mitigation policies where they are needed the most. Such an approach may prove helpful in identifying the real “players” among the industrial activities in terms of anthropogenic emissions (see Figure 1).
Figure 1 highlights the sub-sectors of Industry. As can be seen, some of them are much more polluting than others. They mainly are Chemical and petrochemical; Iron and steel; Cement; Non-metallic minerals; Oil refining; Non-ferrous metals; Machinery; Food and tobacco; Paper, pulp, and printing; Mining and quarrying; Textile and leather; Transport equipment; Wood industry and products; Electronics, here listed in descending order of GHG emissions. It is worth noting that the first five sub-sectors alone amount to about 70% of the total Industry emissions. Finally, it is worth noting that all these five sub-sectors fall under the expertise of chemical engineers.

3. Chemicals and Petrochemicals (Plus Oil Refining)

The Chemical and petrochemical industry is the top emitter (21%) among all the industrial sub-sectors. This sub-sector includes the production of fertilizers, pesticides, pharmaceuticals, plastics, resins, refrigerants, paints, solvents, soaps, perfumes, and synthetic fibers, as well as chemicals derived from oil refining: ethylene above all, and the so-called petrochemicals, such as polyethylene, polystyrene, and polyvinyl chloride. If one adds the emissions due to Oil refining (which, after all, is the precursor of almost every petrochemical process), the whole category accounts for about 30% of the Industry emissions. In other words, the emissions related to the sum of oil refining and chemical plants represent more than 9% (30% of the 31%) of the global GHG emissions.
Similar to Industry, it is rather interesting to investigate the most impacting products that make Chemical and petrochemical industry so polluting. In this respect, two parameters are crucial to identifying these “dirty” products: their annual production volumes and the corresponding gate-to-gate GHG emission factors.
Chemical products may be divided into two main groups by production volumes: commodity and fine chemicals. Commodity chemicals are compounds produced on a vast scale (mostly in dedicated continuous plants) and sold at relatively low prices. Fine chemicals are synthesized in limited volumes (usually in multipurpose batch plants) and sold at higher prices. In our investigation, the compounds of interest are commodity chemicals. This category is associated with significantly high production volumes and is responsible for direct and indirect GHG emissions. In addition, it is involved in several downstream processes (e.g., the ones needed to synthesize the majority of fine chemicals). In this respect, Figure 2 lists the analyzed commodity chemicals and reports their production volumes in 2020.
The second fundamental indicator to be evaluated is the gate-to-gate GHG emission factor. This parameter (borrowed from the Life Cycle Assessment (LCA) jargon [46,47] and typically expressed in mass of carbon dioxide equivalent per a specific “functional unit”) quantifies the carbon footprint associated with a production plant (from the entrance “gate” to the exit “gate”). Similar indicators are the cradle-to-gate and cradle-to-grave GHG emission factors, wherein “cradle” accounts for the extraction of raw materials. At the same time, “grave” considers the waste disposal of the products. However, since this manuscript focuses on the Industry sector, the cradle-to-grave approach, besides being more complicated, may prove improperly loose. Since we are interested in chemical process emissions, only gate-to-gate information counts. As far as calculations are concerned, the broader scope of cradle-to-grave might lead to subtle errors, especially related to double counting. In fact, since many chemicals, once synthesized, become the reagents for further downstream processes and products, it is advisable to analyze every single production step individually. For instance, when computing the amount of GHG emissions related to ethylene and polyethylene syntheses, it is better not to use “cradle-to-” data as by doing so, one would compute twice the emissions from the ethylene process, as ethylene is also the cradle of polyethylene. Conversely, if one considers the emissions of the sole production steps for each species (i.e., “gate-to-gate”), there are no risks of either over- or under-estimation errors since each compound is handled as an isolated compartment. Accordingly, Figure 3 lists the gate-to-gate GHG emission factors of the leading commodity processes (alongside the main processes typically performed in oil refineries).
Concerning Figure 3, firstly, the emission factors cover very different ranges, where the lower is the better, as they quantify the carbon intensity of the process. Secondly, the emission factors were selected from several sources, with a few of them as old as 15 years. Nevertheless, such values should not be considered outdated as they result from material and energy balances, which are universally valid. Deviations may arise concerning time-dependent variables such as (i) the change in the fuel mix of electricity generation or (ii) remarkable modifications in the design of the process units involved. These would lead to updated material and energy balances (e.g., new arrangements of the CO2 streams within the battery limits of the production plant).
Energies 15 07560 g003aEnergies 15 07560 g003b

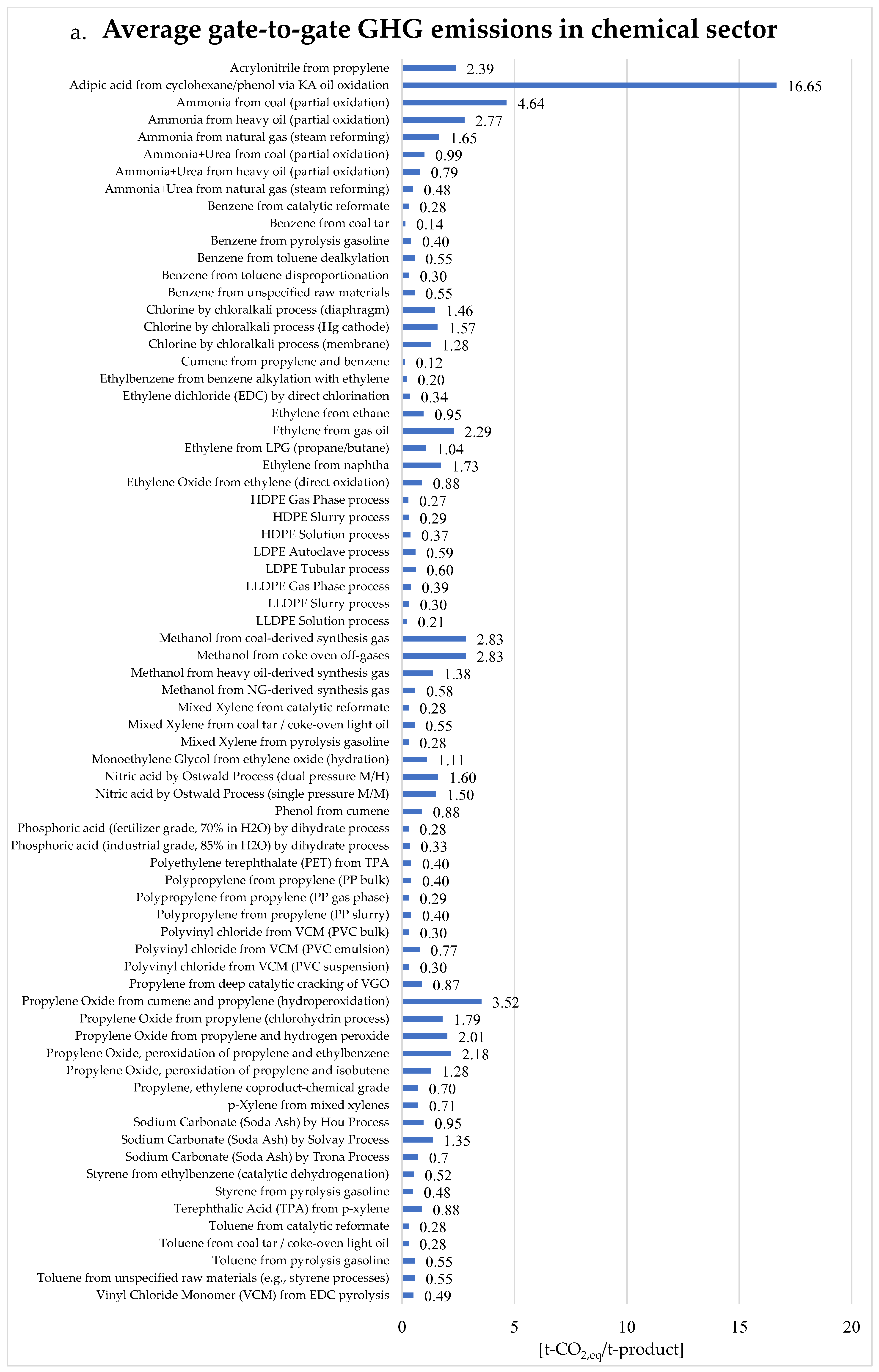

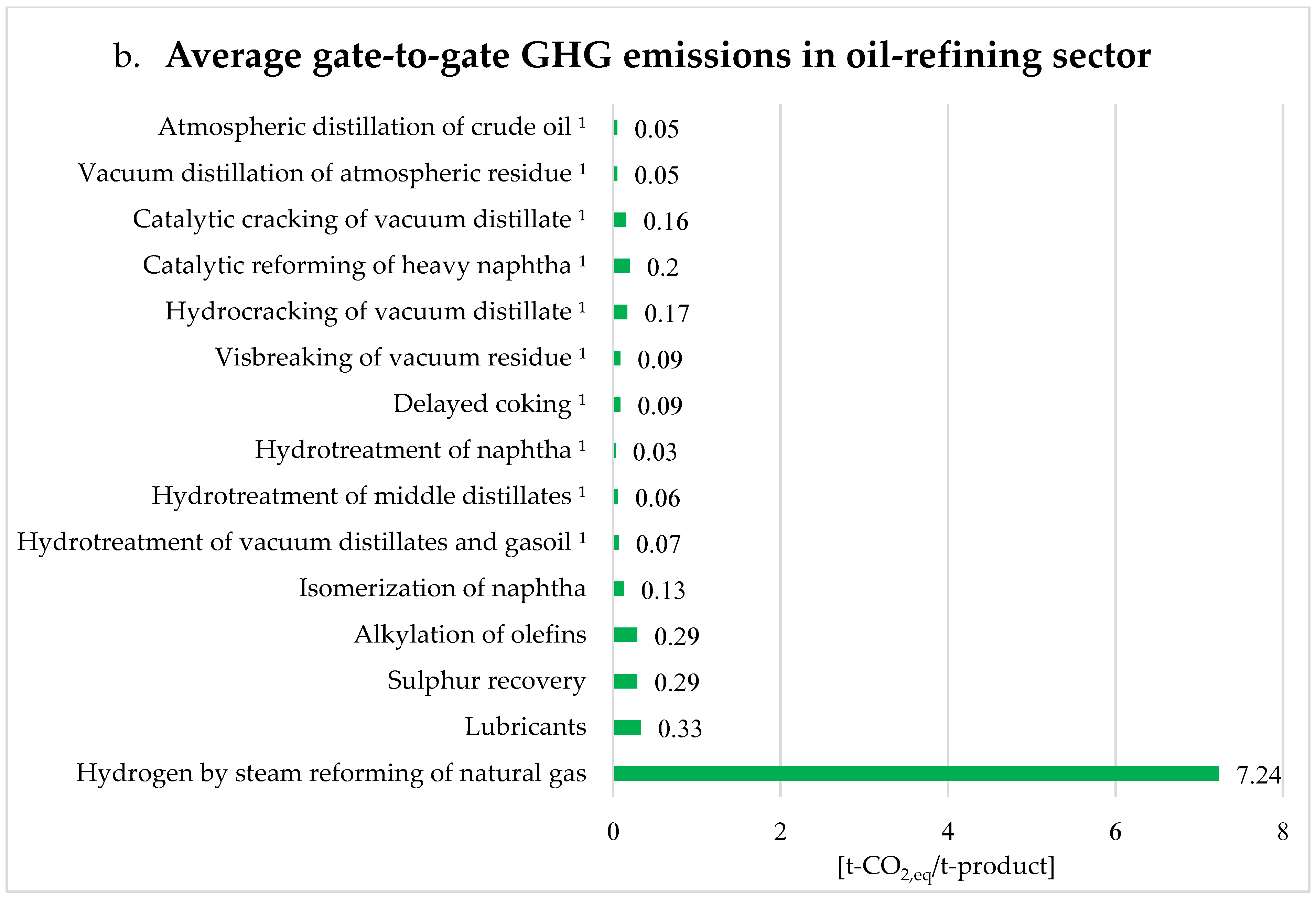

Figure 3. Average gate-to-gate greenhouse gas emission factors related to the main processes and products of the (petro)chemical (Panel (a), in blue) and oil refining (Panel (b), in green) industries. 1 Expressed per metric ton of feedstock (instead of per metric ton of product). Data from [48,49,50,51,52,53,54].
Figure 3. Average gate-to-gate greenhouse gas emission factors related to the main processes and products of the (petro)chemical (Panel (a), in blue) and oil refining (Panel (b), in green) industries. 1 Expressed per metric ton of feedstock (instead of per metric ton of product). Data from [48,49,50,51,52,53,54].
Energies 15 07560 g003aEnergies 15 07560 g003b
Regarding this last point, it is also worth mentioning that the aforementioned 15-year span still falls within the average life of existing chemical plants, whose commissioning and main technological assets date back to those years. Thirdly, the reported values also account for the contribution of indirect emissions (e.g., the ones due to power and fuel consumption). For instance, chlorine production is carried out by a chemically carbon-free reaction with sodium chloride and water as reactants. Therefore, no emissions are expected if limited to its synthesis. However, chlorine production may produce GHG emissions due to the electricity consumed by the electrolyzer. Indeed, the current fuel mix of electricity generation is very carbon-intensive, and the overall emission factor is significant. Moreover, it is worth considering that these emission factors are expressed per metric ton of product. This means that the lighter the product, the higher the emission factor. For instance, if one considers two compounds produced in the same reaction with the same stoichiometric coefficients, more feedstock is required to collect a metric ton of the lightest one. This explains why the same process (e.g., steam reforming of natural gas) exhibits different emission factors for the products being considered. When referred to the production of 1 kg of hydrogen, the emission factor is 7.24 kg-CO2,eq/kg-H2 (see Figure 3). Conversely, when referred to the production of 1 kg of ammonia, the emission factor is 1.65 kg-CO2,eq/kg-NH3 (as 1 kg of ammonia contains 0.18 kg of hydrogen that is produced in the steam reformer and contributes to CO2 emissions, whilst the remaining 0.72 kg is nitrogen and has nothing to do with the carbon intensity of the reaction).
After having collected the two main parameters of interest (i.e., yearly productivity of the main chemicals and their emission factors) for all the examined chemicals, the carbon footprint of each compound can be evaluated by multiplying its annual production(s) by the emission factor(s) of its process route(s). For instance, in the case of ammonia, Figure 3 lists three main production routes for its synthesis (i) partial oxidation of coal, (ii) partial oxidation of oil, and (iii) steam reforming of natural gas. Each of these processes features an emission factor weighing 22%, 6%, and 72% of the global ammonia production, respectively [10,55]. This approach to quantifying GHG emissions is simplified as its grounds on average emission factors to account for whole classes of production plants. However, production plants, although based on the same process, may differ in terms of direct and indirect emissions. For instance, deviations may occur due to the operation of the plant, its size, age, location, and underlying technology. Moreover, the present analysis discarded minor synthesis routes due to their negligible contribution to the global scale (e.g., ammonia from water electrolysis). However, we deem that the assessment procedure proposed in this paper, although based on some approximations, is relatively reliable in quantifying the GHG emissions of the (petro)chemical industries.
Figure 4 shows that oil refining is the greatest emitter among the chemical processes; Indeed, oil refining accounts for about 3% of the annual global anthropogenic GHG emissions. This is not due to the relatively high carbon intensity of refinery processes (which present quite low emission factors, as reported in Figure 3) but to the massive quantities that undergo such treatments. In fact, according to BP, more than 88 million bbl/d of crude oil were extracted and refined in 2020 (in 2019, just before the COVID-19 pandemic, that value was almost 95 million bbl/d) [13].
On the other hand, ammonia is the most pollutant chemical as it reaches a total amount of GHG emissions, almost a third of the oil refining ones. In this case, the significant production volumes of ammonia (over 185 Mt/y in 2020, as of Figure 2) contribute to such an outcome. At the same time, there is also a significant problem in terms of carbon intensity for its synthesis. As easily understandable from Figure 3, the gate-to-gate GHG emission factors of ammonia strongly depend on the fossil feedstock provided to the reactors: the richer in carbon the fossil fuel, the dirtier the whole process. Specifically, let us consider the most critical player, China, and another notable one, India. They produce ammonia mainly through coal- and oil-based processes [55,68]. Such evidence makes ammonia stand as the leading chemical in this ranking.
Next, on the third step of the podium, we have steam cracking which is the primary process to produce ethylene and propylene. These olefins are the precursors of many chemicals, primarily the ones related to the plastics sector.
Among all the other compounds, it is worth mentioning the very tail end of the ranking in Figure 4, urea, which presents a beneficial effect (i.e., negative contribution) as CO2 is consumed for its synthesis. Indeed, one mole of urea is made by combining two moles of ammonia and one mole of carbon dioxide (with the release of one mole of water): this explains why such a chemical presents a negative balance. However, each urea molecule guarantees a “temporary storage” of CO2. Mainly utilized as a nitrogen-release fertilizer, when applied to soil, urea hydrolyzes in the presence of the urease enzyme to ammonia and carbon dioxide [69]. Afterward, ammonia is bacteriologically converted to nitrate (and, as such, absorbed by crops), and carbon dioxide is reemitted in the atmosphere.
Finally, the lack of other notable commodity chemicals in this investigation can be explained as they present minor values of at least one of the two analyzed parameters (i.e., annual productivity and the emission factor(s)). For instance, the absence of sulfuric acid in Figure 4 can be explained by its relatively clean synthesis, having gate-to-gate GHG emission factors below 10−2 t-CO2,eq/t-H2SO4 [48]. Consequently, despite 256 Mt/y of sulfuric acid production in 2020 [70], its carbon intensity is negligible compared to other less widespread processes.
It is worth mentioning that the ranking shown in Figure 4 is consistent with data published in 2010 [53], which are still the most recent ones [70]. This accordance mainly relies on the qualitative trend of the annual productions ranking, which has been the same for years. Reasonably, the examined top processes (i.e., oil, ammonia, olefins, methanol, etc.) are expected to retain their position in the near future, as it happened in the last decades. It is worth noting that the present days coincide with the so-called energy transition age (the Paris Agreement dates back to 2016). As far as forthcoming works/reports on GHG emissions are concerned, this article may represent a pre- early-transition benchmark assessment for discussing and implementing future trends and policies.

4. Conclusions

This review focused on anthropogenic greenhouse gas emissions by adopting a general global approach. By considering the so-called indirect emissions (i.e., the ones generated from electricity and fuel consumption), Industry is the first GHG emitter (totaling 31% of GHG global emissions). Industry and Buildings are the primary users of both heat and electric power. Within Industry, chemical industries and oil refining are the main CO2 emitters with 9.5% of GHG worldwide emissions.
Moreover, the paper reports a list of the most carbon-intensive syntheses with details on the main chemicals and processes. The productivities of such chemicals and the gate-to-gate emission factors of the processes were analyzed, compared, and discussed. Oil refining, ammonia synthesis, and hydrocarbon steam cracking are the most polluting processes responsible for releasing 1313, 440, and 228 Mt-CO2,eq/y, respectively, in 2020. The primary rationale behind this work was to provide a reference list and suggest a methodology that can be updated periodically. Such a methodology may be referred to when having to deal with decarbonization policies in the chemical industry. Notably, ranking chemicals by order of GHG emissions allows the stakeholders to adopt environmental mitigation policies through suitable priorities.

Author Contributions

Conceptualization, A.I. and D.M.; data curation, A.I.; writing—original draft preparation, A.I. and D.M.; writing—review and editing, A.I. and D.M.; supervision, D.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Publicly available datasets were analyzed in this study. This data can be found here: https://www.climatewatchdata.org/ghg-emissions (WRI’s Climate Watch platform).

Acknowledgments

A.I. acknowledges the contribution of the Italian Ministry of Education, University and Research (MIUR) under the PON Green Research Program.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

BTEX benzene, toluene, ethylbenzene, and xylenes
CHPcombined heat and power
CO2,eqcarbon dioxide equivalent
EDCethylene dichloride
GHGgreenhouse gas (es)
HDPEhigh-density polyethylene
KAketone-alcohol
LCAlife cycle assessment
LDPElow-density polyethylene
LLDPElinear low-density polyethylene
LPGliquefied petroleum gas
M/Hdual pressure plant, at medium and high pressures
M/Msingle pressure plant, at medium pressure
PEpolyethylene
PETpolyethylene terephthalate
PPpolypropylene
PVCpolyvinyl chloride
TPAterephthalic acid
VCMvinyl chloride monomer
VGOvacuum gas oil
WRIWorld Resources Institute

References

  1. European Commission. Paris Agreement. Available online: https://ec.europa.eu/clima/eu-action/international-action-climate-change/climate-negotiations/paris-agreement_en (accessed on 8 June 2022).
  2. UNFCCC. The Paris Agreement. Available online: https://unfccc.int/process-and-meetings/the-paris-agreement/the-paris-agreement (accessed on 8 June 2022).
  3. Climate Watch. Historical GHG Emissions. Available online: https://www.climatewatchdata.org/ghg-emissions?breakBy=sector&chartType=area&end_year=2019&sectors=total-including-lucf&start_year=1990 (accessed on 8 June 2022).
  4. Our World in Data. Total Greenhouse Gas Emissions. Available online: https://ourworldindata.org/explorers/co2?facet=none&country=~OWID_WRL&Gas=All+GHGs+%28CO%E2%82%82eq%29&Accounting=Production-based&Fuel=Total&Count=Per+country&Relative+to+world+total=false (accessed on 8 June 2022).
  5. Rivera, A.; Movalia, S.; Pitt, H.; Larsen, K. Preliminary 2020 Global Greenhouse Gas Emissions Estimates. Available online: https://rhg.com/research/preliminary-2020-global-greenhouse-gas-emissions-estimates/ (accessed on 8 June 2022).
  6. United Nations. World Population Prospects 2019. Available online: https://population.un.org/wpp/ (accessed on 8 June 2022).
  7. World Resources Institute (WRI). World Greenhouse Gas Emissions: 2018. Available online: https://www.wri.org/data/world-greenhouse-gas-emissions-2018 (accessed on 9 June 2022).
  8. Herzog, T.; Pershing, J.; Baumert, K.A. Navigating the Numbers: Greenhouse Gas Data and International Climate Policy; World Resources Institute (WRI): Washington, DC, USA, 2005. [Google Scholar]
  9. IEA. Electricity Information: Overview. Available online: https://www.iea.org/reports/electricity-information-overview (accessed on 22 June 2022).
  10. Kern, C.; Jess, A. Reducing Global Greenhouse Gas Emissions to Meet Climate Targets—A Comprehensive Quantification and Reasonable Options. Energies 2021, 14, 5260. [Google Scholar] [CrossRef]
  11. IPCC. 2006 IPCC Guidelines for National Greenhouse Gas Inventories; IPCC: Geneva, Switzerland, 2006. [Google Scholar]
  12. Congressional Budget Office. Effects of a Carbon Tax on the Economy and the Environment; Congressional Budget Office: Washington, DC, USA, 2013. [Google Scholar]
  13. BP. Statistical Review of World Energy; BP: London, UK, 2021. [Google Scholar]
  14. Jing, L.; El-Houjeiri, H.M.; Monfort, J.-C.; Brandt, A.R.; Masnadi, M.S.; Gordon, D.; Bergerson, J.A. Carbon intensity of global crude oil refining and mitigation potential. Nat. Clim. Chang. 2020, 10, 526–532. [Google Scholar] [CrossRef]
  15. Beroe. LDPE (Low Density Polyethylene) Market Intelligence. Available online: https://www.beroeinc.com/category-intelligence/ldpe-market/ (accessed on 11 May 2022).
  16. Beroe. LLDPE (Linear low-density polyethylene) Market Intelligence. Available online: https://www.beroeinc.com/category-intelligence/lldpe-market/ (accessed on 11 May 2022).
  17. Beroe. Phenol Market Intelligence. Available online: https://www.beroeinc.com/category-intelligence/phenol-market/ (accessed on 11 May 2022).
  18. BlueWeave Consulting. Global High-Density Polyethylene (HDPE) Market to Boost in Coming Years—Projected to Reach 78.0 Million Tons by 2028 | BlueWeave Consulting. Available online: https://www.globenewswire.com/en/news-release/2022/03/24/2409624/0/en/Global-High-Density-Polyethylene-HDPE-Market-to-Boost-in-Coming-Years-Projected-to-Reach-78-0-Million-Tons-by-2028-BlueWeave-Consulting.html (accessed on 11 May 2022).
  19. BlueWeave Consulting. Global Polyethylene Terephthalate (PET) Resin Market to Boost in Coming Years—Projected to Reach Worth 114.7 Million Tons in 2028 | BlueWeave Consulting. Available online: https://www.globenewswire.com/en/news-release/2022/04/04/2415938/0/en/Global-Polyethylene-Terephthalate-PET-Resin-Market-to-Boost-in-Coming-Years-Projected-to-Reach-Worth-114-7-Million-Tons-in-2028-BlueWeave-Consulting.html (accessed on 11 May 2022).
  20. ChemAnalyst. Mono Ethylene Glycol (MEG) Market Analysis: Plant Capacity, Production, Operating Efficiency, Technology, Demand & Supply, Application, Distribution Channel, Regional Demand, 2015–2030. Available online: https://www.chemanalyst.com/industry-report/mono-ethylene-glycol-meg-market-646 (accessed on 24 June 2022).
  21. ECHEMI. Propylene Oxide: From a Gap of 467,000 Tons to Self-Sufficiency Is Just around the Corner. Available online: https://www.echemi.com/cms/257860.html (accessed on 24 June 2022).
  22. IFA. Nitrogen Products: Ammonia. Available online: https://www.ifastat.org/supply/Nitrogen%20Products/Ammonia (accessed on 23 June 2022).
  23. IFA. Nitrogen Products: Urea. Available online: https://www.ifastat.org/supply/Nitrogen%20Products/Urea (accessed on 23 June 2022).
  24. IFA. Processed Phosphates. Available online: https://www.ifastat.org/supply/Phosphate%20Products/Processed%20Phosphates (accessed on 23 June 2022).
  25. IHS Markit. Ethylene Market Outlook Considering the Impact of COVID-19. Available online: https://ihsmarkit.com/research-analysis/ethylene-market-outlook-considering-the-impact-of-covid19.html (accessed on 4 May 2022).
  26. IHS Markit. Chemical Economics Handbook: Ethylbenzene. Available online: https://ihsmarkit.com/products/ethylbenzene-chemical-economics-handbook.html (accessed on 4 May 2022).
  27. IHS Markit. Chemical Economics Handbook: Vinyl Chloride Monomer (VCM). Available online: https://ihsmarkit.com/products/vinyl-chloride-monomer-chemical-economics-handbook.html (accessed on 4 May 2022).
  28. IHS Markit. Chemical Economics Handbook: Para-Xylene. Available online: https://ihsmarkit.com/products/paraxylene-chemical-economics-handbook.html (accessed on 4 May 2022).
  29. Invest Saudi. Nitric Acid (HNO3): Investment Opportunity Scorecard. Available online: https://investsaudi.sa/medias/Nitric-Acid-HNO3-.pdf?context=bWFzdGVyfHBvcnRhbC1tZWRpYXw1MDczNDV8YXBwbGljYXRpb24vcGRmfHBvcnRhbC1tZWRpYS9oMDgvaDllLzg5MDk1OTM5MzU5MDIucGRmfDkxZTlkYmUyYzU1ODMwMjU3NWNkMWY1ZjdhM2I5NDdkNTk1NjE2YTRkYzRmNTkzYjE0NDQxN2IwOWFmNTIzOTI (accessed on 27 May 2022).
  30. Invest Saudi. Adipic Acid: Investment Opportunity Scorecard. Available online: https://investsaudi.sa/medias/Adipic-Acid.pdf?context=bWFzdGVyfHBvcnRhbC1tZWRpYXwzNjY3MjN8YXBwbGljYXRpb24vcGRmfHBvcnRhbC1tZWRpYS9oNDgvaGZmLzg5MDk1OTI5NTI4NjIucGRmfGMzMjkxMTk1MTNhYzZhNTllZGFmNjA4OWE2OWQyNzczNzkwZjdjYWUyNTI5OWFlZDg4ODEwN2I1ODg3N2Q2YTU (accessed on 27 May 2022).
  31. Krungsri Research. Petrochemical Industry. Available online: https://www.krungsri.com/bank/getmedia/ab0bcb7e-f3ba-42f5-929f-47ce1ce12bb4/IO_Petrochemicals_190626_EN_EX.aspx (accessed on 24 June 2022).
  32. Merchant Research and Consulting Ltd. Ethylene Dichloride (EDC): 2022 World Market Outlook and Forecast up to 2031. Available online: https://mcgroup.co.uk/researches/ethylene-dichloride-edc (accessed on 24 June 2022).
  33. MMSA. MMSA Global Methanol Supply and Demand Balance. Available online: https://www.methanol.org/methanol-price-supply-demand/ (accessed on 24 June 2022).
  34. Mordor Intelligence. Chlorine Market—Growth, Trends, COVID-19 Impact, And Forecasts (2022–2027). Available online: https://www.mordorintelligence.com/industry-reports/chlorine-market (accessed on 27 May 2022).
  35. Mordor Intelligence. Cumene Market—Growth, Trends, COVID-19 Impact, And Forecasts (2022–2027). Available online: https://www.mordorintelligence.com/industry-reports/cumene-market (accessed on 27 May 2022).
  36. NexantECA. Global Styrene Market Snapshot. Available online: https://www.nexanteca.com/blog/202009/global-styrene-market-snapshot (accessed on 24 June 2022).
  37. ReportLinker. Global Acrylonitrile Industry. Available online: https://www.reportlinker.com/p05817756/Global-Acrylonitrile-Industry.html?utm_source=GNW (accessed on 24 June 2022).
  38. Statista. Xylene Demand and Production Capacity Worldwide from 2015 to 2022. Available online: https://www.statista.com/statistics/1246700/xylene-demand-capacity-forecast-worldwide/ (accessed on 23 June 2022).
  39. Statista. Market Volume of Toluene Worldwide from 2015 to 2021, with a Forecast for 2022 to 2029. Available online: https://www.statista.com/statistics/1245224/toluene-market-volume-worldwide (accessed on 23 June 2022).
  40. Statista. Market Volume of Ethylene Oxide Worldwide from 2015 to 2021, with a Forecast for 2022 to 2029. Available online: https://www.statista.com/statistics/1245260/ethylene-oxide-market-volume-worldwide/ (accessed on 23 June 2022).
  41. Statista. Propylene Demand and Capacity Worldwide from 2015 to 2022. Available online: https://www.statista.com/statistics/1246689/propylene-demand-capacity-forecast-worldwide/ (accessed on 23 June 2022).
  42. Statista. Market Volume of Purified Terephthalic Acid Worldwide from 2015 to 2021, with a Forecast for 2022 to 2029. Available online: https://www.statista.com/statistics/1245249/purified-terephthalic-acid-market-volume-worldwide/ (accessed on 23 June 2022).
  43. Statista. Market Volume of Polypropylene Worldwide from 2015 to 2021, with a Forecast for 2022 to 2029. Available online: https://www.statista.com/statistics/1245169/polypropylene-market-volume-worldwide/ (accessed on 23 June 2022).
  44. Statista. Market Volume of Soda Ash Worldwide from 2015 to 2021, with a Forecast for 2022 to 2029. Available online: https://www.statista.com/statistics/1245254/soda-ash-market-volume-worldwide/ (accessed on 23 June 2022).
  45. Statista. Market Volume of Benzene Worldwide from 2015 to 2021, with a Forecast for 2022 to 2029. Available online: https://www.statista.com/statistics/1245172/benzene-market-volume-worldwide/ (accessed on 23 June 2022).
  46. Klöpffer, W. Life Cycle Assessment in the Mirror of Int J LCA: Past, Present, Future. Int. J. Life Cycle Assess. 2005, 10, 379–380. [Google Scholar] [CrossRef]
  47. Klöpffer, W.; Grahl, B. Life Cycle Impact Assessment. Life Cycle Assess. (LCA) 2014, 21, 181–328. [Google Scholar] [CrossRef]
  48. Althaus, H.-J.; Chudacoff, M.; Hischier, R.; Jungbluth, N.; Osses, M.; Primas, A. Life Cycle Inventories of Chemicals. Final Report Ecoinvent Data V2.0 No. 8; Swiss Centre for Life Cycle Inventories: Duebendorf, Switzerland, 2007. [Google Scholar]
  49. Bach, P.W.; Haije, W.G.; Neelis, M.L.; Patel, M.K. Analysis of Energy Use and Carbon Losses in the Chemical and Refinery Industries; ECN: Petten, The Netherlands, 2005. [Google Scholar]
  50. Corona, A.; Biddy, M.J.; Vardon, D.R.; Birkved, M.; Hauschild, M.Z.; Beckham, G.T. Life cycle assessment of adipic acid production from lignin. Green Chem. 2018, 20, 3857–3866. [Google Scholar] [CrossRef]
  51. Euro Chlor. The European Chlor-Alkali Industry: An Electricity Intensive Sector Exposed to Carbon Leakage; Euro Chlor: Brussels, Belgium, 2010. [Google Scholar]
  52. European Commission; Joint Research Centre; Boulamanti, A.; Moya, J. Energy Efficiency and GHG Emissions: Prospective Scenarios for the Chemical and Petrochemical Industry; Publications Office: Luxembourg, 2017. [Google Scholar] [CrossRef]
  53. IEA; ICCA; DECHEMA. Technology Roadmap—Energy and GHG Reductions in the Chemical Industry via Catalytic Processes; IEA: Paris, France, 2013. [Google Scholar]
  54. United States Senate: Committee on Finance. Statement of ANSAC on the U.S.–China Trade Relationship: Finding a New Path Forward; United States Senate Committee on Finance: Washington, DC, USA, 2010. [Google Scholar]
  55. Bicer, Y.; Dincer, I.; Zamfirescu, C.; Vezina, G.; Raso, F. Comparative life cycle assessment of various ammonia production methods. J. Clean. Prod. 2016, 135, 1379–1395. [Google Scholar] [CrossRef]
  56. Akah, A.; Al-Ghrami, M. Maximizing propylene production via FCC technology. Appl. Petrochem. Res. 2015, 5, 377–392. [Google Scholar] [CrossRef]
  57. Allied Market Research. Toluene Market. Available online: https://www.alliedmarketresearch.com/toluene-market (accessed on 29 June 2022).
  58. Azmi, A.; Aziz, N. Comparison Study of Model Based Industrial Low-Density Polyethylene Production in Tubular Reactor. Chem. Eng. Trans. 2017, 56, 751–756. [Google Scholar] [CrossRef]
  59. Belis, D.; Marcu, A.; Stoefs, W.; Tuokko, K. Sectoral Case Study—Soda Ash: Climate for Sustainable Growth; CEPS Centre for European Policy Studies: Brussels, Belgium, 2015. [Google Scholar]
  60. ChemIntel360. Global Benzene Market—Trends, COVID-19 Impact and Growth Forecasts to 2026. Available online: https://www.chemintel360.com/reportdetails/Global-Benzene-Market/24 (accessed on 29 June 2022).
  61. Fischer, I.; Schmitt, W.F.; Porth, H.-C.; Allsopp, M.W.; Vianello, G. Poly(Vinyl Chloride). In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley: Hoboken, NJ, USA, 2014; pp. 1–30. [Google Scholar] [CrossRef]
  62. IHS Markit. Ethylene—Global. Available online: https://cdn.ihs.com/www/pdf/Steve-Lewandowski-Big-Changes-Ahead-for-Ethylene-Implications-for-Asia.pdf (accessed on 29 June 2022).
  63. IRENA; Methanol Institute. Innovation Outlook: Renewable Methanol; IRENA: Abu Dhabi, United Arab Emirates, 2021. [Google Scholar]
  64. LyondellBasell. Optimized Ziegler-Natta Catalysts for Gas Phase PP Processes; LyondellBasell: Rotterdam, The Netherlands, 2015. [Google Scholar]
  65. Methanol Institute. Methanol as a Vessel Fuel & Energy Carrier. Available online: https://www.methanol.org/wp-content/uploads/2019/09/Methanol-as-a-vessel-fuel-and-energy-carrier.pdf (accessed on 29 June 2022).
  66. Nexant. Propylene Oxide; Nexant: San Francisco, CA, USA, 2009. [Google Scholar]
  67. Syed, F.H.; Vernon, W.D. Status of Low Pressure PE Process Licensing; Chemical Market Resources, Inc.: Katy, TX, USA, 2002; Volume 7, pp. 18–27. [Google Scholar]
  68. IEA. Tracking Industrial Energy Efficiency and CO2 Emissions; IEA: Paris, France, 2007. [Google Scholar]
  69. Meessen, J.H. Urea. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley: Hoboken, NJ, USA, 2010. [Google Scholar] [CrossRef]
  70. The Royal Society. Ammonia: Zero-Carbon Fertiliser, Fuel and Energy Store; The Royal Society: London, UK, 2020. [Google Scholar]
Energies 15 07560 g001
Figure 1. Focus on the share of global GHG emissions of the industry sector (2018). 1 E.g., lime, glass, and ceramics. 2 E.g., aluminum and magnesium. 3 Includes Transport equipment, Wood industry and products, Electronics. Data from [3,7,8,13,14].
Figure 1. Focus on the share of global GHG emissions of the industry sector (2018). 1 E.g., lime, glass, and ceramics. 2 E.g., aluminum and magnesium. 3 Includes Transport equipment, Wood industry and products, Electronics. Data from [3,7,8,13,14].
Energies 15 07560 g001
Energies 15 07560 g002

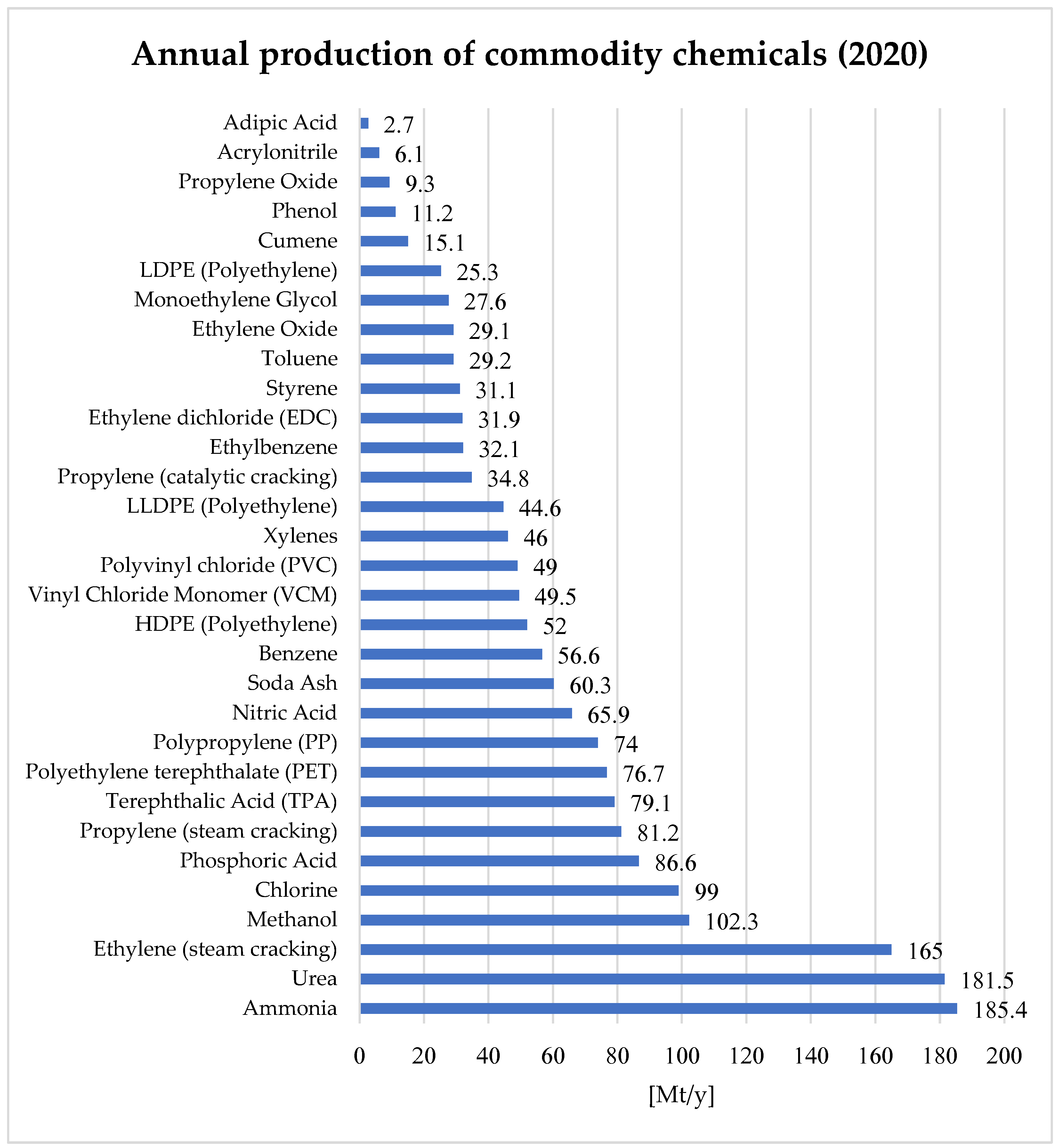

Figure 2. Annual production of commodity chemicals (2020). Note that 4165.1 Mt/y of oil (including crude oil, shale oil, oil sands, condensates, and natural gas liquids) were processed in the same year [13]. Data from [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45].
Figure 2. Annual production of commodity chemicals (2020). Note that 4165.1 Mt/y of oil (including crude oil, shale oil, oil sands, condensates, and natural gas liquids) were processed in the same year [13]. Data from [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45].
Energies 15 07560 g002
Energies 15 07560 g004

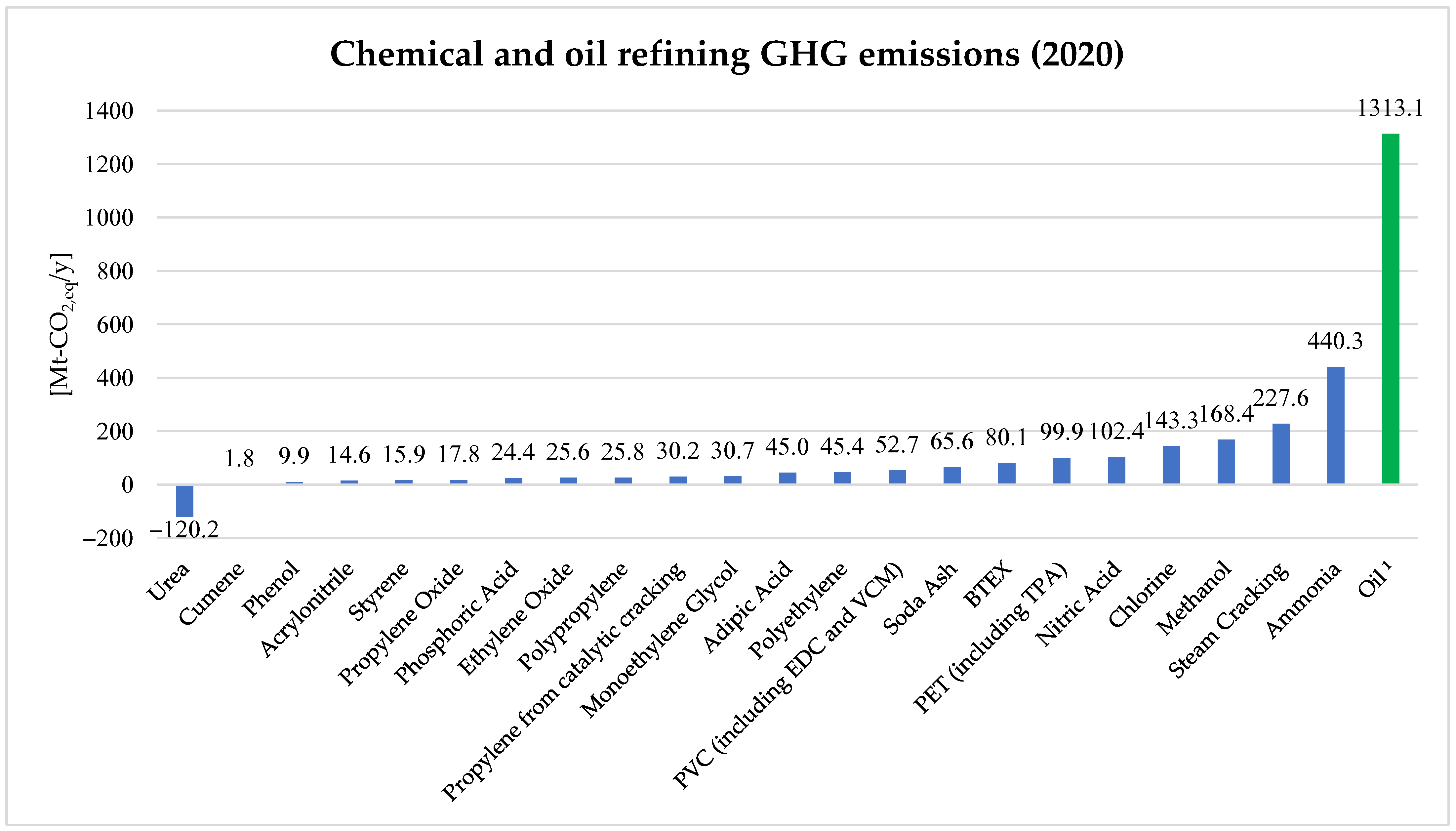

Figure 4. Annual global greenhouse gas emissions related to the main products of the chemical (in blue) and oil refining (in green) industry (2020). 1 “Oil” includes crude oil, shale oil, oil sands, condensates, and natural gas liquids. Based on the same references of Figure 2 and Figure 3 with the addition of [10,28,48,49,52,53,55,56,57,58,59,60,61,62,63,64,65,66,67].
Figure 4. Annual global greenhouse gas emissions related to the main products of the chemical (in blue) and oil refining (in green) industry (2020). 1 “Oil” includes crude oil, shale oil, oil sands, condensates, and natural gas liquids. Based on the same references of Figure 2 and Figure 3 with the addition of [10,28,48,49,52,53,55,56,57,58,59,60,61,62,63,64,65,66,67].
Energies 15 07560 g004
Table 1. World GHG emissions (2018) shared among production sectors (data from [3,7,8]).
Table 1. World GHG emissions (2018) shared among production sectors (data from [3,7,8]).
SectorGHG Emissions [Mt-CO2,eq/y]Mass Share [-]
Electricity and Heat 115,87532.2%
Transportation841817.1%
Manufacturing and Construction 2622312.6%
Agriculture 3580311.8%
Fugitive Emissions 433546.8%
Buildings 531066.3%
Industrial Processes29676.0%
Waste 616073.3%
Land-Use Change and Forestry13882.8%
Other Fuel Combustion 76271.3%
Total49,368100%
1 Electricity and heat plants, other Energy Industries. 2 Emissions due to direct fuel combustion in manufacturing and construction sites. 3 Including livestock and manure. 4 Intentional or unintentional releases of gases from human activities (mainly due to fossil fuels extraction, processing, and transmission). 5 Both residential and commercial. 6 Waste management activities (e.g., landfills and wastewater). 7 Emissions related to other unstated sectors, from stationary and mobile sources.
Table 2. World GHG emissions (2018) shared among end-users (data from [3,7]).
Table 2. World GHG emissions (2018) shared among end-users (data from [3,7]).
End-UserGHG Emissions [Mt-CO2,eq/y]Mass Share [-]
Industry15,16330.7%
Buildings932518.9%
Transportation861717.5%
Agriculture648913.1%
Unallocated Fuel Combustion 134256.9%
Fugitive Emissions33546.8%
Waste16073.3%
Land-Use Change and Forestry13882.8%
Total49,368100%
1 Includes Own use in electricity, CHP, and heat plants; Nuclear Industry; Biomass combustion; Pumped Storage; Other.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Isella, A.; Manca, D. GHG Emissions by (Petro)Chemical Processes and Decarbonization Priorities—A Review. Energies 2022, 15, 7560. https://doi.org/10.3390/en15207560

AMA Style

Isella A, Manca D. GHG Emissions by (Petro)Chemical Processes and Decarbonization Priorities—A Review. Energies. 2022; 15(20):7560. https://doi.org/10.3390/en15207560

Chicago/Turabian Style

Isella, Andrea, and Davide Manca. 2022. "GHG Emissions by (Petro)Chemical Processes and Decarbonization Priorities—A Review" Energies 15, no. 20: 7560. https://doi.org/10.3390/en15207560

APA Style

Isella, A., & Manca, D. (2022). GHG Emissions by (Petro)Chemical Processes and Decarbonization Priorities—A Review. Energies, 15(20), 7560. https://doi.org/10.3390/en15207560

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
