Study of a Low-Power-Consumption Piezoelectric Energy Harvesting Circuit Based on Synchronized Switching Technology

by
Jianfeng Hong
1,2,
Fu Chen
1,
Ming He
1,
Sheng Wang
1,
Wenxiang Chen
1 and
Mingjie Guan
1,*
1
Department of Instrumental and Electrical Engineering, Xiamen University, Xiamen 361005, China
2
Fujian Collaborative Innovation Center for R&D of Coach and Special Vehicle, Xiamen 361024, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(16), 3166; https://doi.org/10.3390/en12163166
Submission received: 20 June 2019 / Revised: 2 August 2019 / Accepted: 15 August 2019 / Published: 17 August 2019
(This article belongs to the Section L: Energy Sources)
Browse Figures
Versions Notes

Abstract

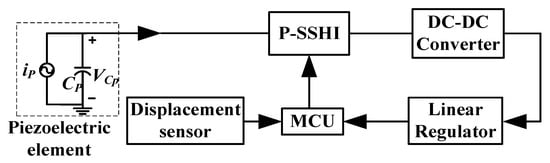

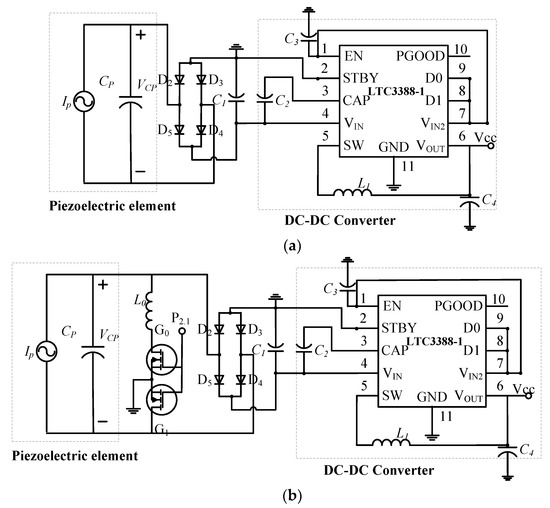

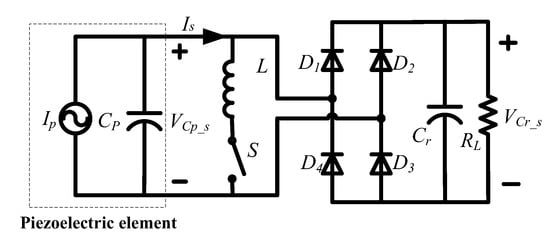

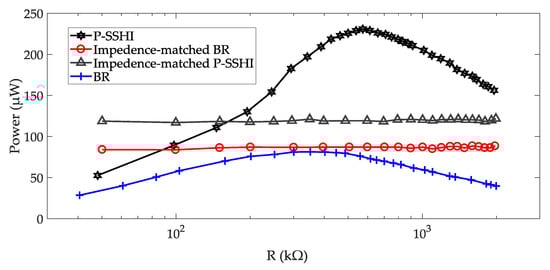

This paper presents a study of a piezoelectric energy harvesting circuit based on low-power-consumption synchronized switch technology. The proposed circuit includes a parallel synchronized switch harvesting on inductor interface circuit (P-SSHI) and a step-down DC-DC converter. The synchronized switch technology is applied to increase the conversion efficiency of the circuit. The DC-DC converter is used to accomplish the impedance matching for different loads. A low-power-consumption microcontroller and discrete components are used to build the P-SSHI interface circuit. The study starts with theoretical analysis and simulations of the P-SSHI interface circuit. Simulations and experiments were conducted to validate the theoretical analysis. The experimental results show that the maximum energy harvested by the system with a P-SSHI interface circuit is 231 μW, which is 2.89 times that of a system without the P-SSHI scheme. The power consumption of the P-SSHI interface circuit can be as low as 10.6 μW.
Keywords: piezoelectric; energy harvesting; interface circuit; power consumption; synchronized switching piezoelectric; energy harvesting; interface circuit; power consumption; synchronized switching
