Assessment of Efficiency and Reliability of Wide Band-Gap Based H8 Inverter in Electric Vehicle Applications

by Luca Concari 1,‡, Davide Barater 2,‡, Andrea Toscani 3,‡, Carlo Concari 3,‡, Giovanni Franceschini 2,‡, Giampaolo Buticchi 4,*,†,‡, Marco Liserre 5,‡ and He Zhang 4,‡
1
Zapi S.p.A., I-42028 Poviglio (RE), Italy
2
Department of Engineering Enzo Ferrari, University of Modena and Reggio Emilia, I-41125 Modena, Italy
3
Department of Engineering and Architecture, University of Parma, I-43124 Parma, Italy
4
Key Laboratory of More Electric Aircraft Technology of Zhejiang Province, The University of Nottingham Ningbo China, Ningbo 315100, China
5
Chair of Power Electronics, Christian-Albrechts University, Kiel, D-24143 Kiel, Germany
*
Author to whom correspondence should be addressed.
Current address: 199 Taikang East Road, Ningbo 315100, China.
These authors contributed equally to this work.
Energies 2019, 12(10), 1922; https://doi.org/10.3390/en12101922
Received: 2 May 2019 / Revised: 14 May 2019 / Accepted: 15 May 2019 / Published: 20 May 2019
(This article belongs to the Section Electric Vehicles)

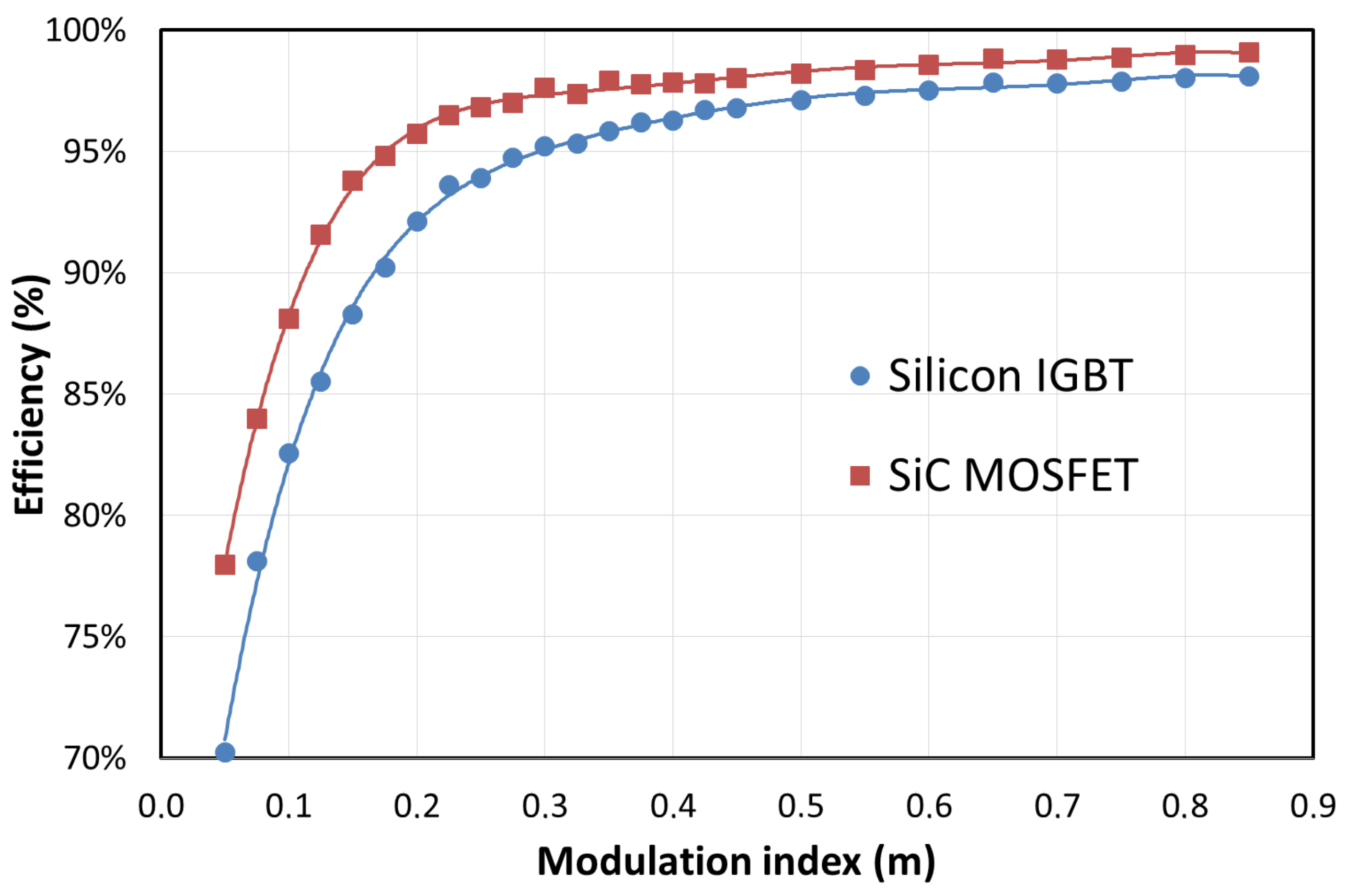

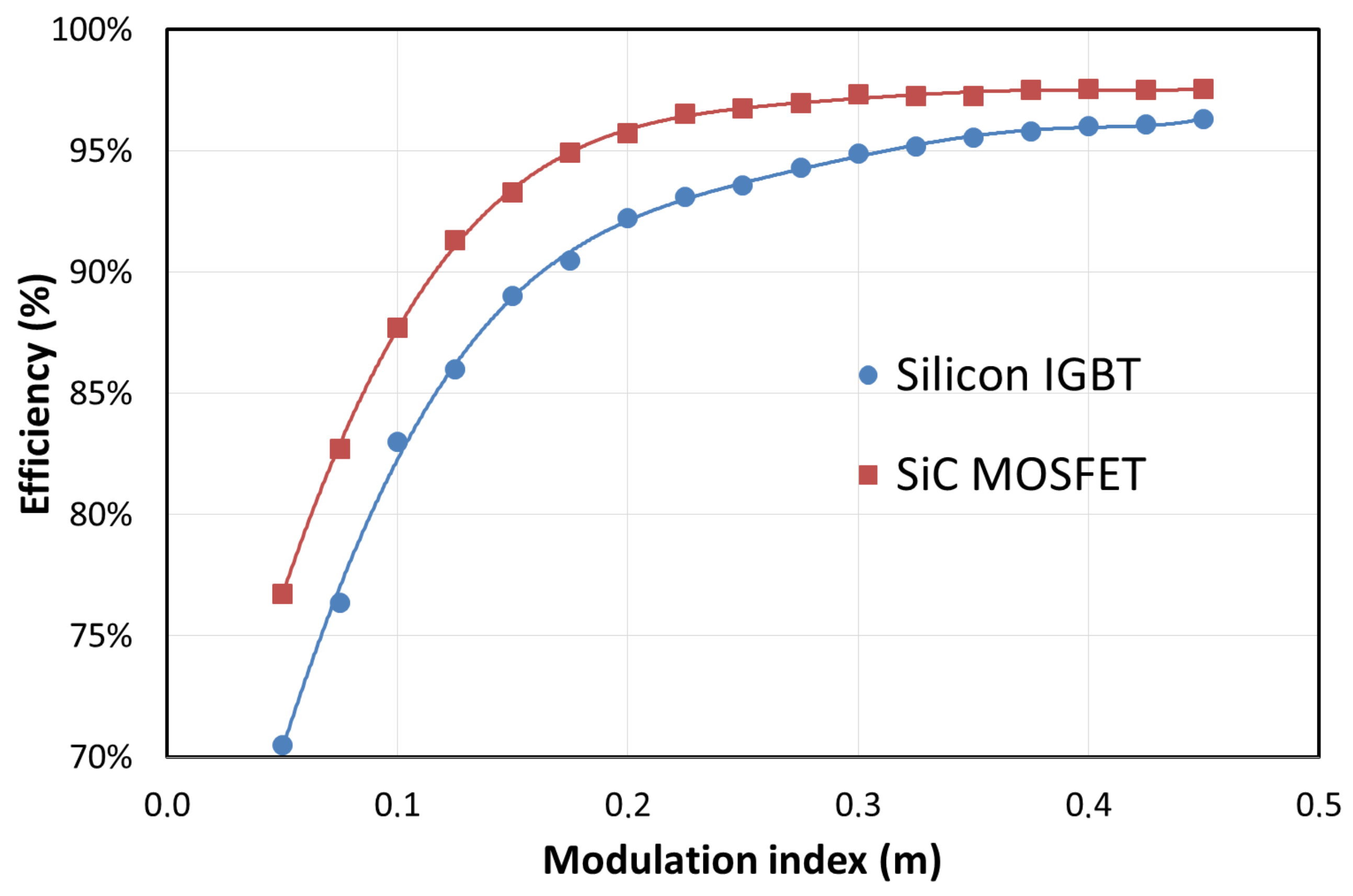

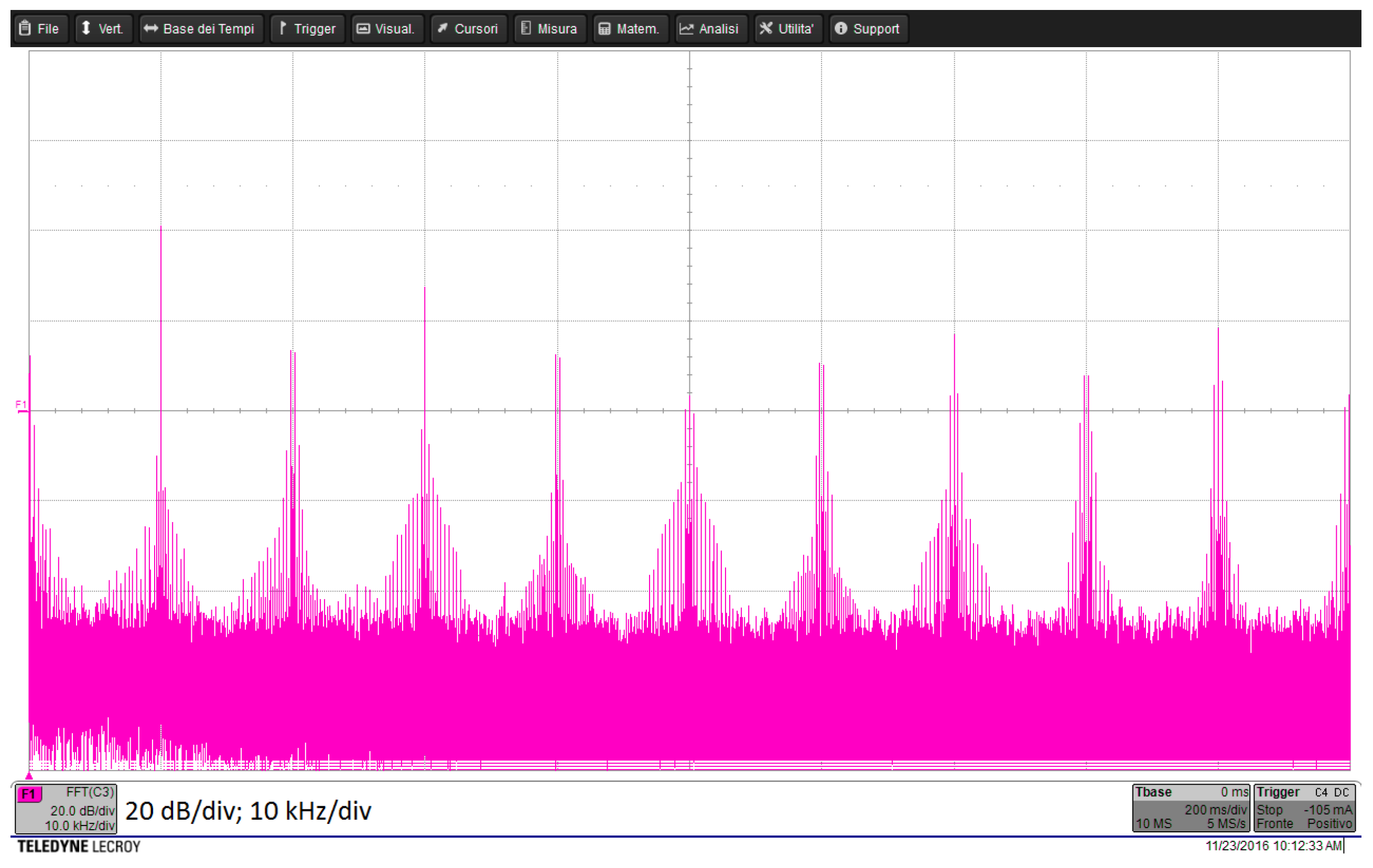

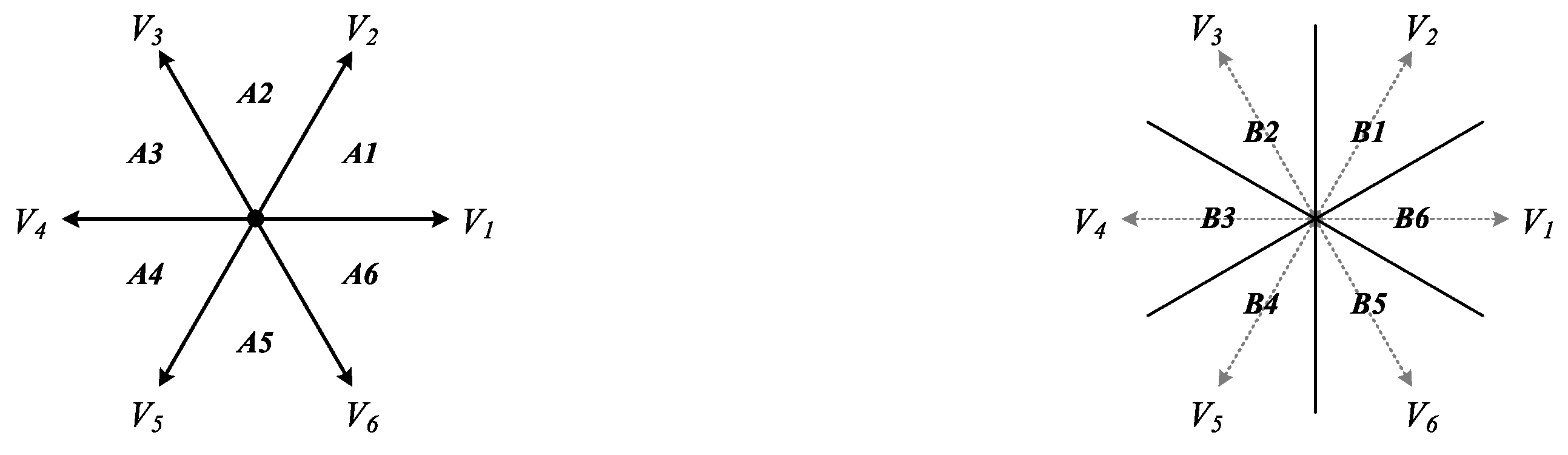

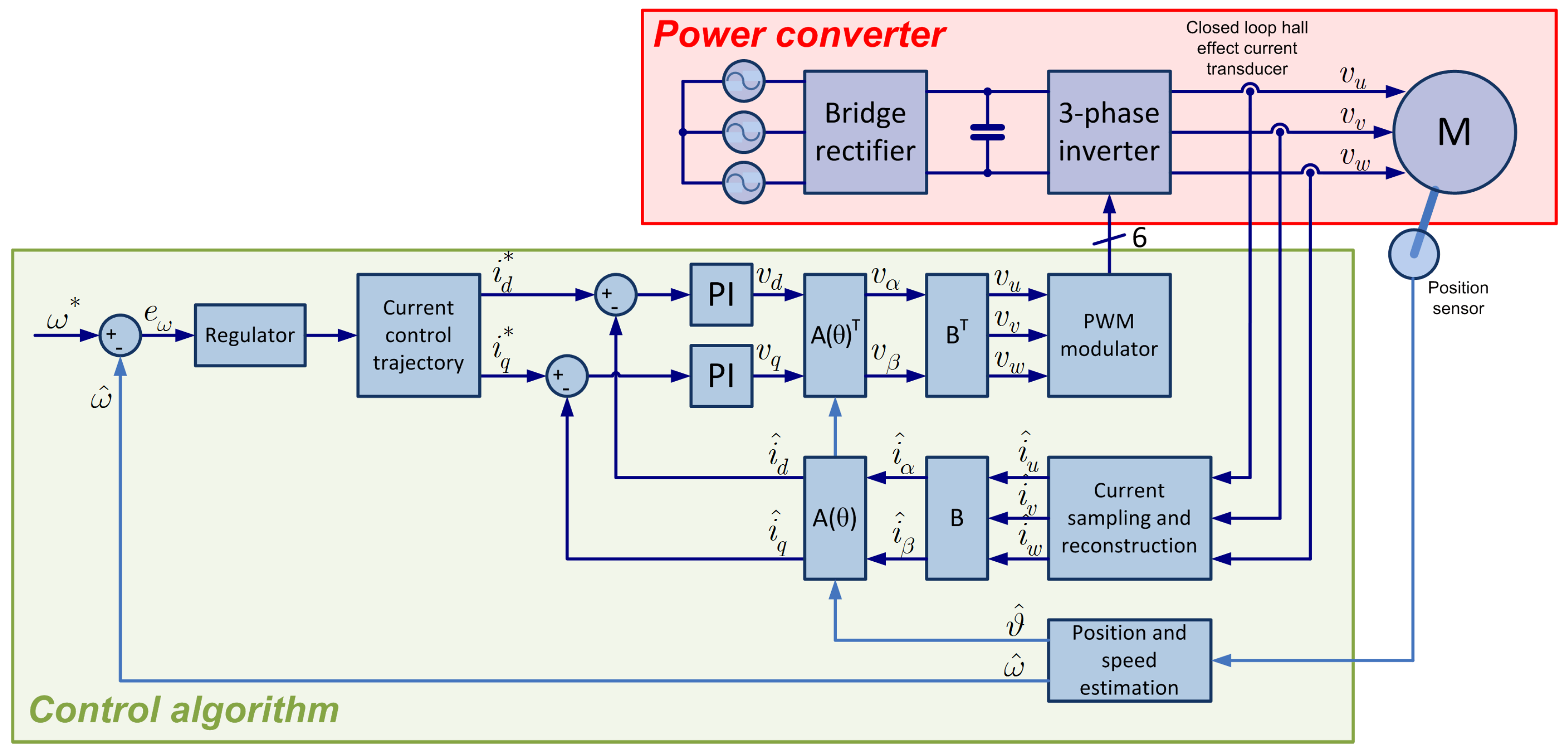

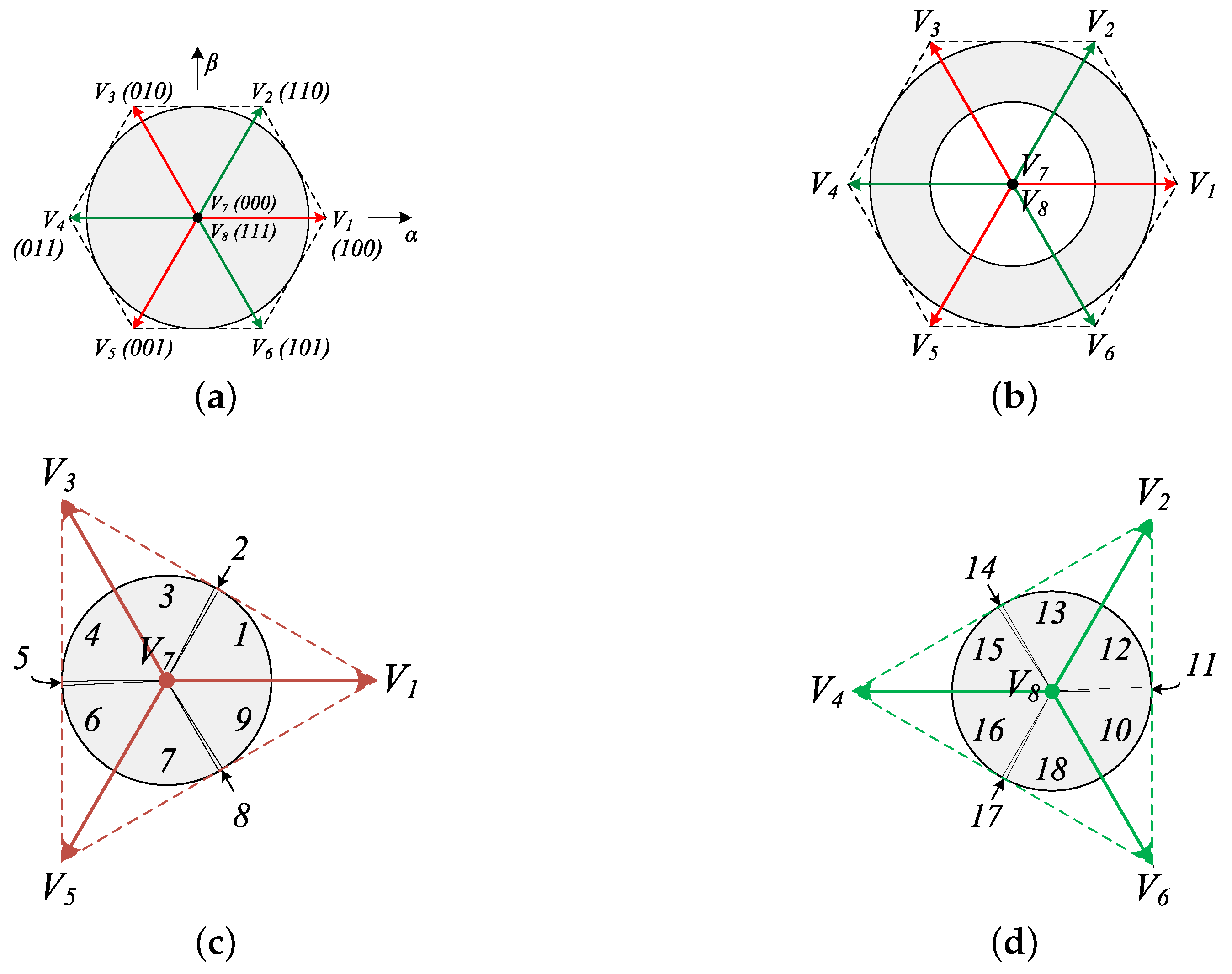

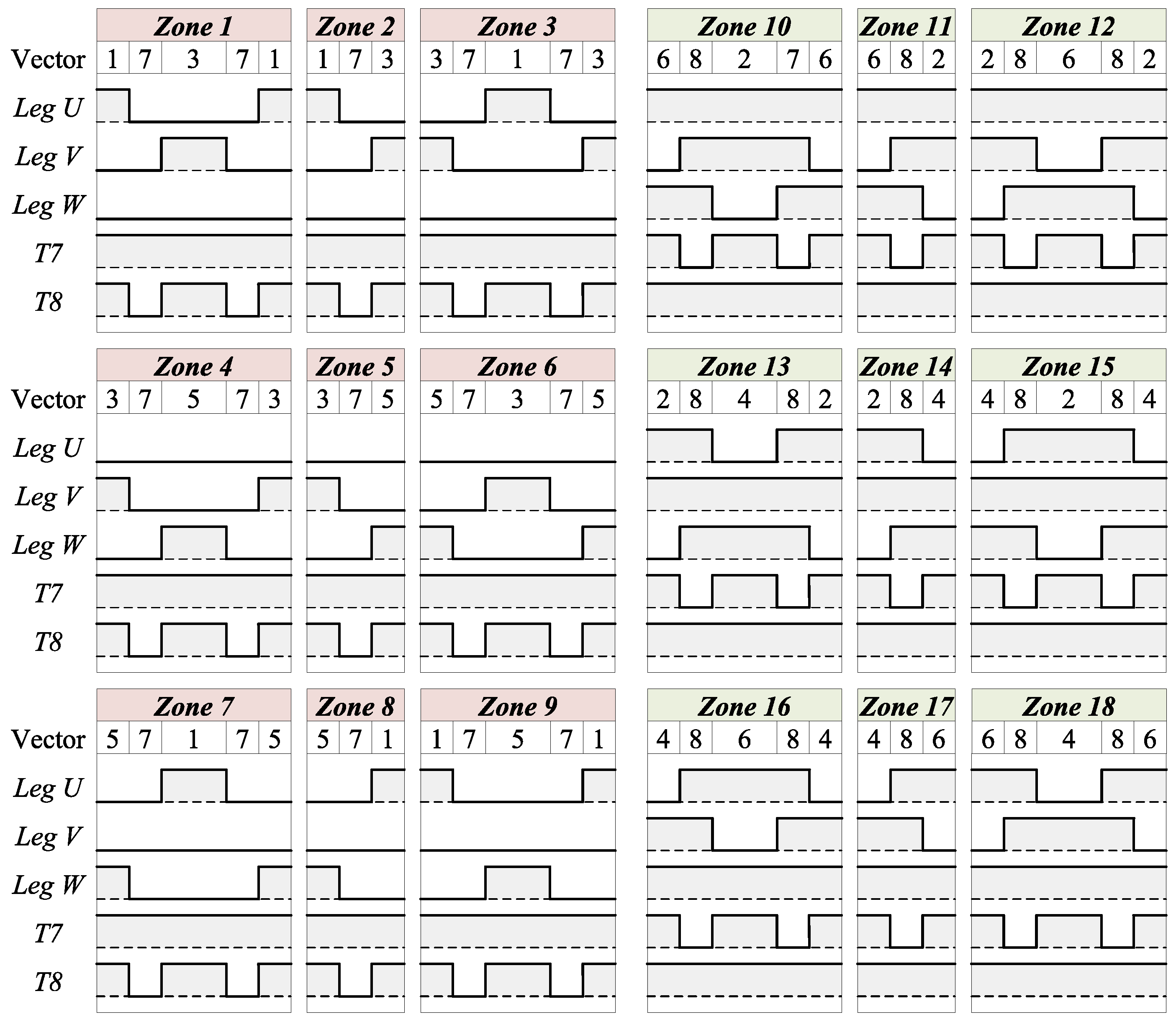

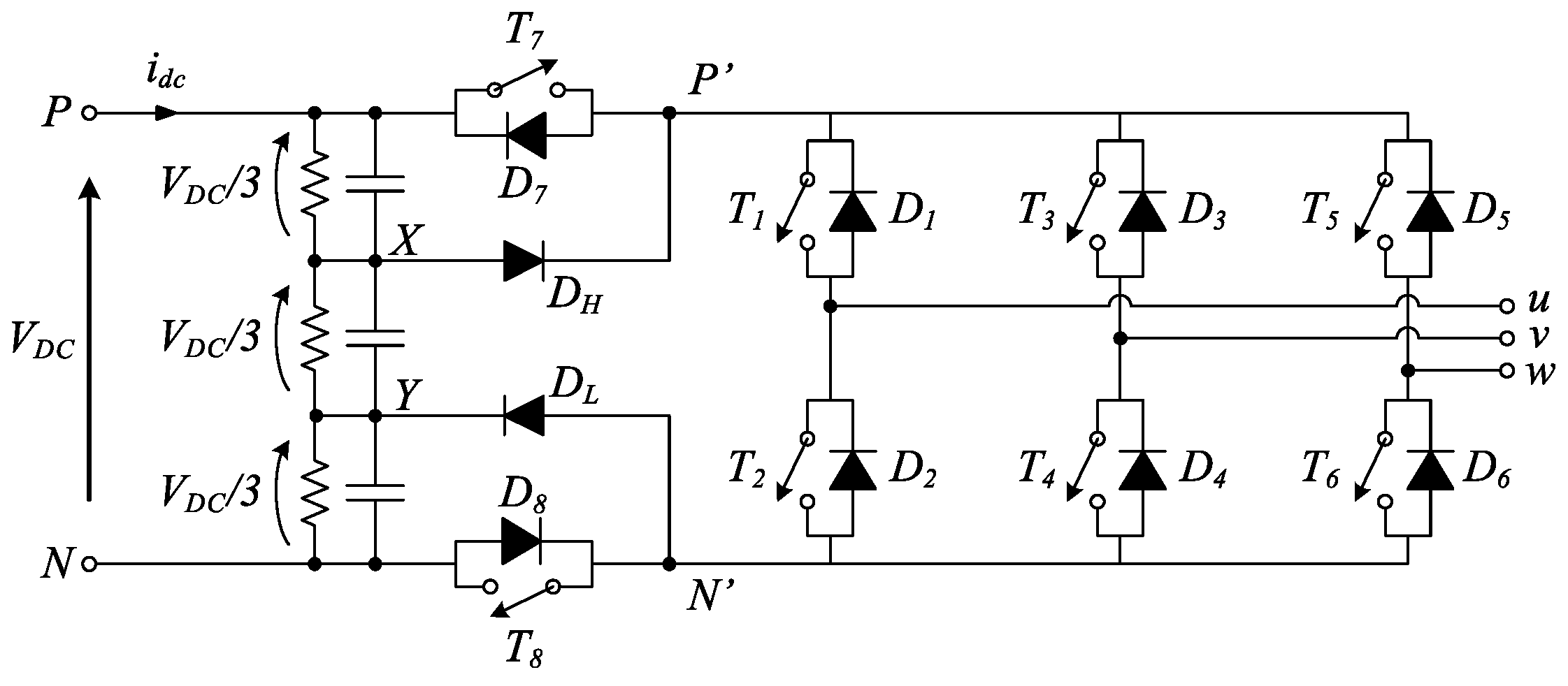

This paper analyzes the performance of a three-phase converter architecture with a reduced common mode voltage to be used in electric motor drives. Starting from the classical three-phase bridge architecture, two additional switches are inserted in the DC link, in order to decouple the source from the load during the freewheeling intervals. Ad-hoc modulation strategies are introduced and evaluated against the classical three-phase space vector modulation. Three main parameters are analyzed: common mode voltage, efficiency and reliability. Experimental measurements on a converter prototype are used to evaluate the common mode performance. The efficiency in the case of Si-IGBT and SiC-MOSFETs is experimentally evaluated. Reliability analysis performed with a Coffin-Mason model showed that the higher efficiency offered by the SiC devices allows for a marked extension of the lifetime. View Full-Text
Keywords: pulse width modulated inverter; motor drive; electric vehicle; pulse-width modulation; space vector; common-mode voltage; leakage current pulse width modulated inverter; motor drive; electric vehicle; pulse-width modulation; space vector; common-mode voltage; leakage current
Show Figures

Figure 1
