Introduction
A moving visual stimulus creates both retinal position and velocity errors, often resulting in a combination of saccadic and pursuit eye movements (Dodge, 1903). Early studies designed to characterize these eye movements identified position error as the fundamental stimulus for saccades and velocity error as the fundamental stimulus for pursuit (e.g.
Rashbass, 1961,
Lisberger, et al., 1987). However, more recent evidence indicates that retinal position and velocity errors both contribute to each type of eye movement (for reviews, see
Krauzlis, 2005;
de Xivry, & Lefévre, 2007).
Specifically, several investigations showed that both position and velocity information affect the dynamics of a saccade to a moving stimulus (
Gellman and Carl, 1991; Guan, et al, 2005;
Keller and Johnsen, 1990;
Newsome, et al, 1985). Analysis of saccades initiated by targets moving in simple ramp motion showed that saccades with longer latencies are more accurate than saccades with shorter latencies, suggesting that additional time for target motion processing refines the saccadic error signal (
Gellman and Carl, 1991). By analyzing saccades to targets in ramp or double-ramp motion,
Etchells et al. (
2010) determined that the saccadic amplitude is influenced by velocity changes that occur up to 100 before saccadic onset. For targets that step in one direction and then undergo ramp motion in the opposite direction, both the direction and latency of the saccade are determined by the time the target crosses the fixation location, which must be calculated using both the target’s velocity and position (
Gellman and Carl, 1991). More recently, Guan et al (2005) found that the saccades made by monkeys to targets moving away from the fovea differ in peak velocity and duration from saccades of similar amplitude to targets moving towards the fovea. These results indicate that both retinal position error and target motion contribute to the saccade dynamics. Further, position and velocity information influence saccadic programming at different times. Using a 2D double ‘step-ramp’ paradigm to present sudden target position and velocity changes, Schreiber et al. (2006) showed that the curved trajectory of the resulting saccades could be explained by the saccadic system’s initial utilization of a position error, followed by the later incorporation of information conveyed by the velocity of the target’s image.
Similarly, both position and velocity errors must be considered together to explain the
amplitude of the saccades made by monkeys and cats during smooth pursuit (
Keller and Johnsen, 1990; de Brouwer et al., 2001). When
Keller and Johnson (
1990) analyzed the saccades made by individual monkeys, they found a proportional increase in saccadic amplitude as both the target speed and its initial position error increased. Similar results were obtained by de Brouwer et al. (2002) during tracking of ‘ramp-step-ramp’ motion by human observers, for targets moving up to 15 deg/s. These data contrast with those of an earlier study by
Heywood and Churcher (
1981), who reported that their human subjects added a small constant correction to the saccades made to moving targets without regard to the velocity of the target’s motion.
Although smooth pursuit classically has been described as an oculomotor response to stimulus velocity (e.g.
Rashbass, 1961,
Lisberger, et al, 1987), an influence of position error also is evident. However, retinal position errors affect smooth pursuit velocity primarily when the pursuit system is already active and typically generate little or no pursuit if the eyes are directed toward a stationary target (
Carl and Gellman, 1987;
Morris and Lisberger, 1987). Blohm, Missal, and Lefevre (2005) used a 2-dimensional stimulus presentation paradigm to introduce a position error with zero retinal image velocity orthogonal to the direction of ongoing pursuit. When a target was presented briefly to one side of the pursuit trajectory, smooth eye velocity in the direction of the transient target presentation was proportional to the size of the position error and independent of the characteristics of the ongoing pursuit. In addition to these behavioral studies, cells with parafoveal receptive fields in the nucleus of the optic tract (NOT) are modulated during smooth pursuit based on of the target’s retinal position error, as well as its velocity, and acceleration (
Das, et al, 2001).
During the latency period between the onset of target motion and the initiation of eye movement, the sensory information related to the position and velocity of a moving visual target is assimilated and transformed into the motor commands for saccadic and pursuit tracking. A disruption of sensory input during the latency period would be expected to influence the characteristics of the subsequent tracking movements. The principal goal of this study was to evaluate how the elimination of position and velocity information before the onset of tracking affects the timing and accuracy of saccadic and pursuit eye movements. In particular, by comparing the characteristics of saccades and pursuit to targets that disappeared briefly at various times before the start of tracking, we intended to elucidate how the pre-oculomotor neural mechanisms for saccadic and pursuit eye movements interact.
Well known is that the latencies for both saccades (
Saslow, 1967; Fisher, & Boch, 1983;
Gezeck, & Timmer, 1998) and pursuit (
Krauzlis, & Miles,
1996a,
1996b;
Knox, 1996) are reduced if a temporal gap occurs between the offset of the fixation spot and a target’s appearance, i.e. the “gap effect.” These results suggest that a portion of the latency periods measured for saccades and pursuit with no temporal gap incorporates the time required to disengage fixation before an eye movement can take place. Although the position of a peripheral target can influence the amplitude of a subsequent saccade up to
80 ms prior to the saccadic onset (
Becker and Jurgens, 1979), to compensate accurately for a change in a target’s position, the change must occur at least 140 ms before the onset of the saccade (
Gellman and Carl, 1991). Churchland, et al. (2003) examined the effect of target disappearance on the
initiation of smooth pursuit. Introduction of a 200-ms gap in target visibility just after the accelerating target reached full speed (i.e., between 100 and 150 ms after motion onset) caused a cessation of eye acceleration that began approximately 60 ms after the target disappeared, compared to the condition in which the moving target remained visible throughout the trial. Approximately 130 ms after the target disappeared, the velocity of pursuit began to fall. Eye acceleration decreased similarly when the target disappeared behind a visible occluder, but in this condition the later reduction of eye velocity was much less. Although these results show that a 200-ms gap in target visibility is sufficient to eliminate the drive signal for pursuit, still unknown is how the timing of a
brief temporal gap in the visibility of target motion influences the latency and metrical properties of pursuit and saccades. In this study, we measured eye movements in response to the ‘step-ramp’ motion of a target that was extinguished for 50 ms at varying times shortly after the onset of its motion trajectory. We asked if this temporary loss of retinal velocity and position information prior to the initiation of tracking produces comparable perturbations in the timing and metrics of smooth pursuit and saccades.
Methods
Subjects
Six human subjects voluntarily participated in this experiment. All subjects had best-corrected visual acuity of 20/20 in each eye, no strabismus, and no known ocular or systemic pathology that could affect eye movements. The University of Houston Committee for the Protection of Human Subjects approved the procedures, and the subjects gave informed consent before participating in the study.
Apparatus
Eye movements (horizontal and vertical positions of each eye over time) were recorded at 120 Hz using a binocular dual-Purkinje image eye tracker and a Pentiumbased computer with 12-bit A-D converter. Prior to data collection, the target focus was adjusted to each subject’s far point of accommodation, and target vergence was adjusted to the subject’s far phoria position until no lateral or vertical movement was evident when the eyes were alternately covered. The data from the left eye were analyzed for 5 of the 6 subjects; the data from the right eye were analyzed for the remaining subject because the eye tracking was more reliable for that eye.
Stimuli
The stimulus was a red laser spot presented at the center of a dim, homogenous white background. The laser beam was reflected from a mirror mounted on a galvanometer. A small deflection of the beam caused occlusion of the spot by a card interposed between the mirror and the screen. Otherwise, the laser spot was stationary on the projection screen. Movement of mirrors in the stimulator portion of the SRI dual-Purkinje eye tracker system produced the step / ramp motion trajectories.
Procedure
Before each trial, the subject fixated on the stationary stimulus located in the center of the visual field. On trial initiation, which was controlled by the subject, the fixation stimulus moved with one of nine motion patterns (see below) for 1000 ms. Subsequently, the program extinguished the stimulus and then redisplayed the stimulus at the center of the field of view in preparation for the next trial. No temporal gap in stimulus visibility was presented between fixation offset and the onset of target motion.
The combination of each of the three horizontal target steps (-2, 0, or +2 deg) with each of the three horizontal ramp motions (-8, 0, or +8 deg/s) produced the nine distinct motion patterns that were displayed. Specifically, each trial presented the stimulus with one of the following motion patterns: no motion (step = 0; ramp = 0); ‘ramp-only’ (step = 0; ramp = +/-8 deg/s); ‘step-only’ (step = +/-2 deg; ramp = 0); ‘step-ramp-toward’ the initial fixation position (step = +2 deg; ramp = -8 deg/s; step = -2 deg; ramp = +8 deg/s); or ‘step-ramp-away’ from the initial fixation position (step = +2 deg; ramp = +8 deg/s; step = -2 deg; ramp = -8 deg/s). To compare the eye movements made to a continuously visible target to those made when the visibility of the target was briefly obscured, additional trials were generated in which a 50 ms gap in target visibility was inserted, beginning 25, 50, 75, or 100 ms after the initiation of the target’s motion. Thus, each block consisted of 45 trials (9 motion trajectories combined with 5 gap conditions), presented in a shuffled order, and each subject completed 25 blocks of trials.
The horizontal positions of the eyes in response to the displacement and motion of the laser spot were recorded for 1000 ms using a dual-Purkinje eye tracker (Crane, & Steele, Applied Optics, 1985) and stored to a computer at a sampling rate of 120 Hz. Trials were automatically rejected by the computer program if a blink occurred or if eye tracking was lost, and the trial condition subsequently was repeated. Differentiation of the raw data comprising the eye movement trace for each trial produced the eye velocity trace for that trial. Analysis of the eye position and velocity traces established the saccade latency, pursuit latency, initial pursuit velocity, and post-saccadic position error for each trial. The saccade latency was defined as the length of time between the onset of the trial and the time when the eye velocity equaled or exceeded 20 deg/s (

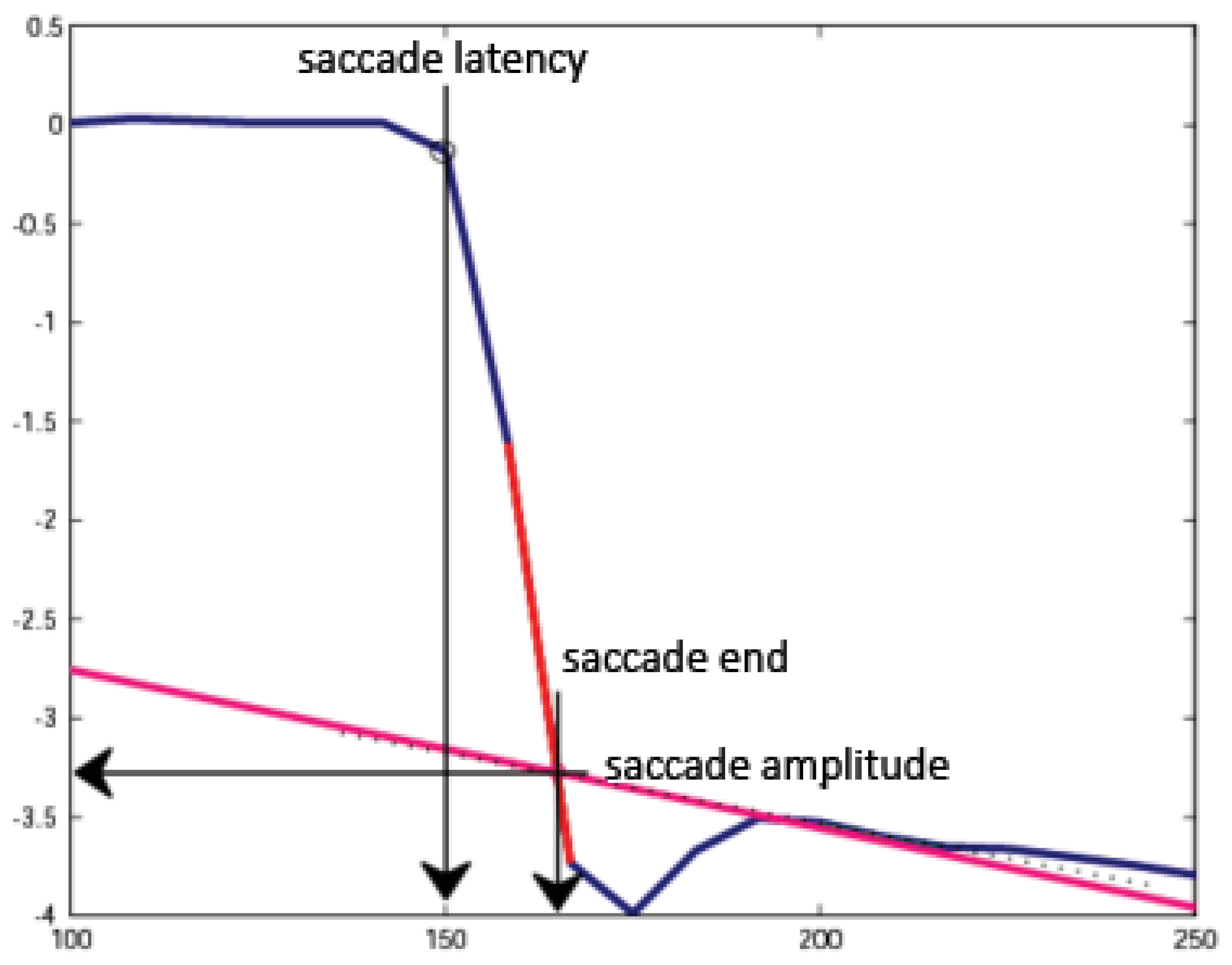

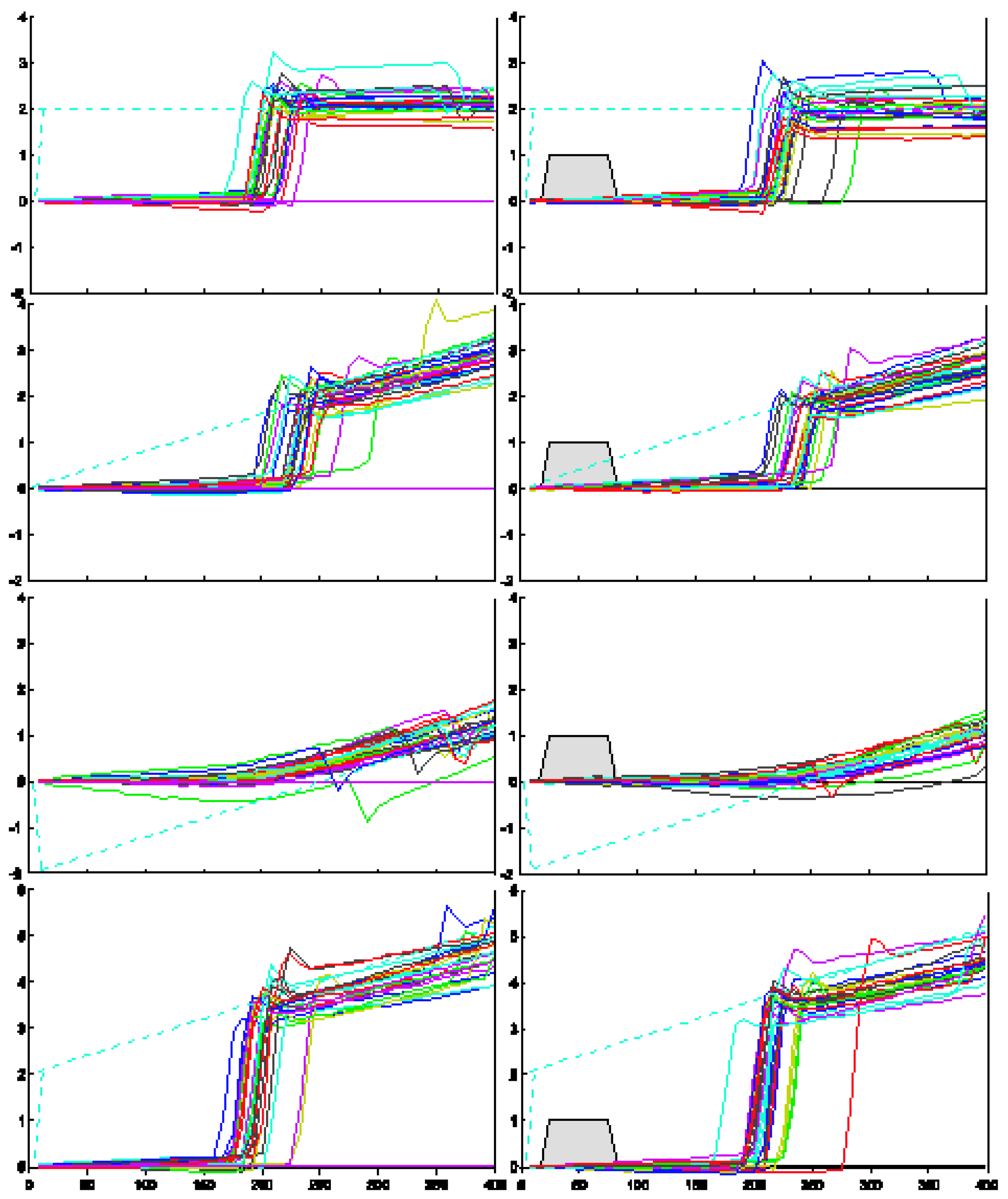

Figure 1). Pursuit latency was defined as the length of time between the onset of the trial and the achievement of an absolute eye velocity for three consecutive samples that was greater than or equal to three standard deviations of the smoothed eye velocity during trials with no ramp and no step. The initial pursuit velocity was defined as the average velocity of the de-saccaded eye position trace on ramp and step-ramp trials for the initial 50-ms interval after the onset of pursuit. The postsaccadic error was defined as the difference between the eye and target position traces at the end of the saccade. A comparison of these components across trials that varied in the temporal location of the gap was performed to evaluate the effect of a brief absence of velocity information on saccadic and pursuit programming.
Discussion
The main contribution of this study relates to how a brief interruption of target visibility after the onset of target motion, but prior to the onset of eye movement, can influence subsequently executed saccades and pursuit. Because a component of velocity calculation is time, and because target velocity is reported to influence both pursuit and saccades (
Etchells et al., 2010;
Gellman and Carl, 1991;
Keller and Johnsen, 1990;
Morris and Lisberger, 1987), the goal of this study was to determine when during the
initial, premotor assessment of visual target motion the absence of velocity information would be most disruptive. An interruption of target visibility 25-50 ms after the onset of target motion generally had the largest effect on the latency and accuracy of the ensuing saccade. In the ramp-only condition, an interruption of target visibility 25 ms after the onset of target motion had the greatest effect on pursuit latency and a lesser effect on initial pursuit velocity.
Influence of target-velocity information on saccadic amplitude and latency
Saccadic latency was relatively unaffected when target visibility remained uninterrupted for the first 75 ms of the trajectory for the ‘step-only’, ‘step-ramp-away’, and ‘step-ramp-towards’ conditions. In the ‘ramp-only’ condition, 100 ms of uninterrupted target visibility was required to produce saccadic latencies similar to those in the no-gap condition (

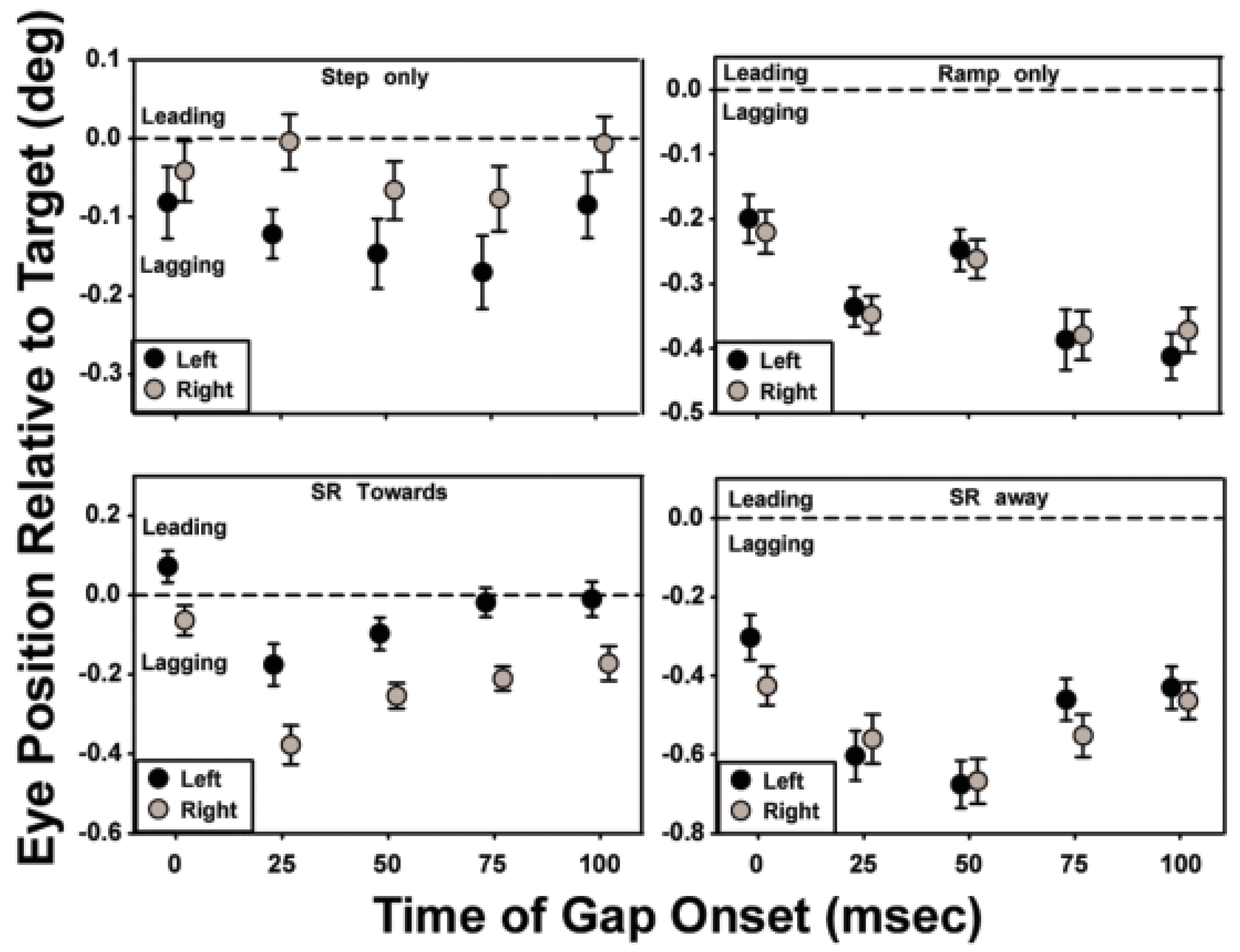

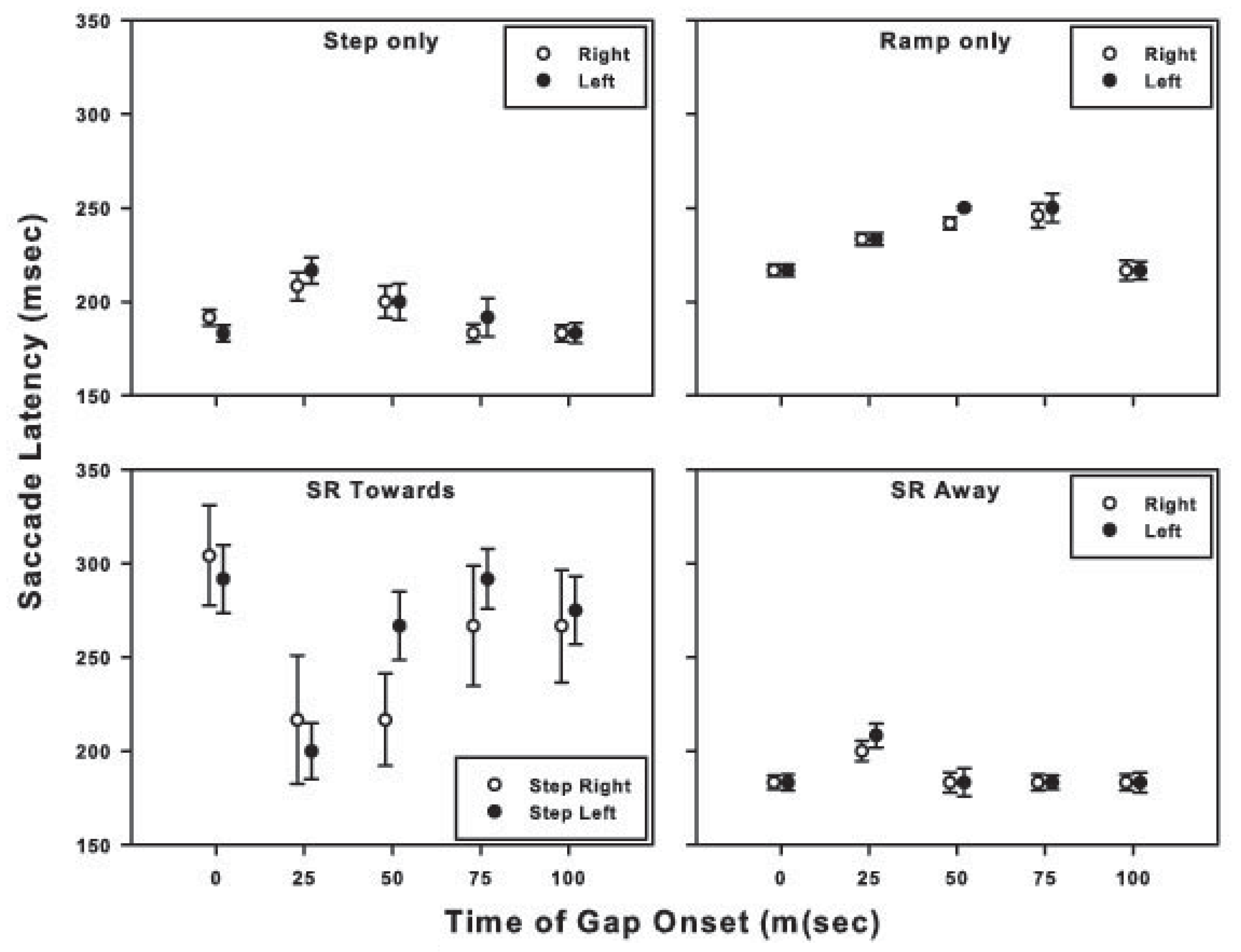

Figure 3). With the exception of the ‘ramp-only’ condition, saccadic accuracy was relatively unaffected when target visibility remained uninterrupted for the first 100 ms of the trajectory (

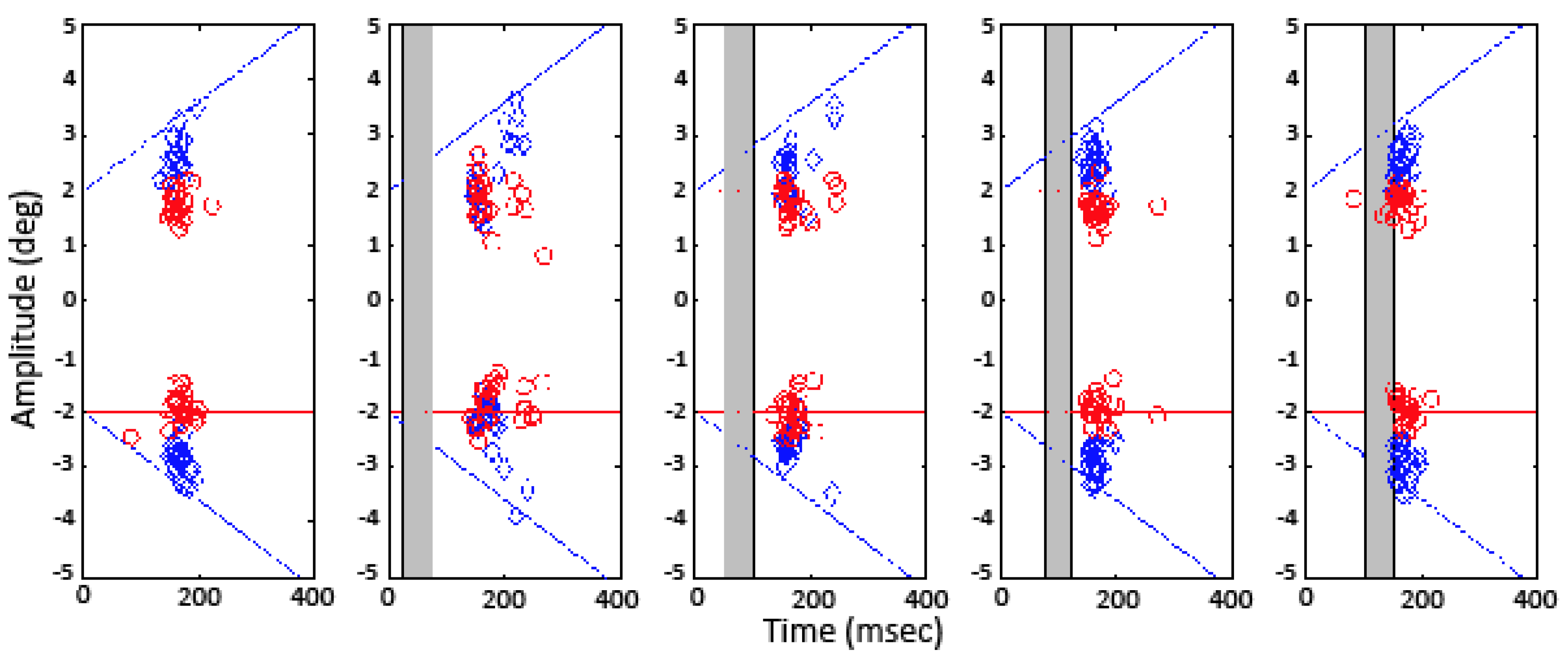

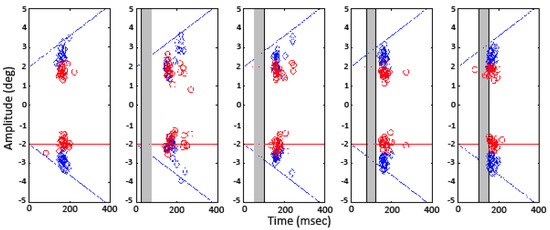

Figure 5). Using a double-step paradigm, researchers have shown that a change in target position prior to eye movements must occur within the first 80 -100 ms of the target’s trajectory if the saccade is to be accurate (
Becker and Jurgens, 1979;
Gellman and Carl, 1991). For a typical saccadic latency of 200 ms, therefore, the target position that is sampled in the first 100 ms after the onset of target motion would provide less accurate information on trials with a temporal gap at 25 or 50 ms compared to no-gap trials, given the assumption that the saccadic system continues to sample the last seen location of the target throughout the temporal gap. Specifically, the saccadic lag would be expected to be greater than in the no-gap condition if the eye movement were made in response to the average target
position during the first 100 ms after initiation of target motion. As indicated in the following analyses, the data from this study are not in accordance with this expectation.
The ‘step-ramp-towards’ condition with no temporal gap in target visibility elicited fewer saccades than did the other target-motion conditions, and the saccades that did occur had an average latency of approximately 300 ms (
Figure 3, bottom left). With a ramp velocity of 8 deg/s, the stimuli in these trials passed through the initial fixation position 250 ms after target motion onset, or about 50 ms before the onset of the saccade. The long latencies of the saccades under this condition are consistent with the results of
Rashbass (
1961) and
Gellman and Carl (
1991), who showed that when the step was in the opposite direction of the ramp and of such magnitude that the target would cross its starting position approximately 200 ms after the ramp onset, saccades were typically either significantly delayed or cancelled. For this motion condition, the brief absence of target velocity information
reduced saccadic latencies compared to the no-gap condition. Specifically, the introduction of a 50 ms gap in target visibility resulted in a reduction of the mean saccadic latency by approximately 90 ms when the gap started at 25 ms and by approximately 60 ms when the gap started at 50 ms.
Because the ramp and step were in opposite directions in the ‘step-ramp-towards’ condition, short-latency saccades in the direction of the step lagged behind the moving target. Even so, the average saccadic lags in the 25- and 50-ms gap conditions were only 0.2 and 0.3 deg, respectively. If the amplitude of these saccades had depended only on the target’s retinal position error, then to produce the small lags observed in the 25- and 50-ms gap conditions, the position error of the target moving at 8 deg/s would need to have been sampled approximately 38 and 25 ms, respectively, prior to the
end of the saccadic eye movement. These values are much later than the estimates made previously for the end of the temporal sampling window for saccades, i.e. 80-100 ms before the
start of a saccade (
Becker and Jurgens, 1979;
Gellman and Carl, 1991;
Heywood and Churcher, 1981; Ron, et al, 1989;
Findlay and Harris, 1993;
Delinte et al, 2002). These data, therefore, are consistent with the conclusion reached by previous authors that the amplitude of the short-latency saccades in the ‘step-ramp-towards’ condition is computed using information about the target’s velocity as well as its position (de Brouwer et al., 2002). However, although information about target velocity clearly contributes to the calculation of saccadic amplitude when a temporal gap occurs during the first 25 - 100 ms of the motion trajectory, this information apparently is not sufficient to cue the visual system that a saccade in the direction of the step is unnecessary. In contrast, the saccades in the ‘step-ramp-towards’ condition with no temporal gap generally occur after the ramp crosses the location of the target during fixation and, therefore, are in the direction of the ramp. On average, these saccades are accurate, which also is consistent with a contribution of velocity as well as position information to the calculation of saccadic amplitude.
The data from the ‘ramp-only’ and ‘step-ramp-away’ conditions also support the use of target-velocity information to improve the accuracy of saccadic programming. For example, in ‘ramp-only’ trials without a temporal gap, the eye position after the initial saccade lagged the target position, on average, by 0.2 deg (
Figure 5, top right panel). If the visual system used only the target’s
position to program the amplitude of saccades, then sampling would need to have occurred 25 ms before the end of the saccade, which is approximately 5 ms
after saccade onset. Recently,
Etchells et al. (
2010) reported a similar result. The largest mean saccadic lag that we observed in all of the stimulus conditions is approximately 0.7 deg (‘step-ramp-away’ condition with a 50 ms gap,
Figure 5). Neglecting the 0.1 deg saccadic lag that we observed in the comparable ‘step-only’ condition, sampling would need to occur 85 ms before the end of the saccade (approximately 55 ms before the start of the saccade) if the amplitude of the saccade were based only on target position information. This worst-case estimate is still substantially smaller than the previous estimate of 80 – 100 ms before the saccade for the end of position sampling by the saccadic system.
In the ‘step-ramp-away’ trials, the mean saccadic lag in the no-gap condition is larger than in the ‘ramp-only’ no-gap condition by 0.1 - 0.2 deg, which can be explained by the larger initial saccade required to reach the target (2 deg step + 1.48 deg traveled during the 185 ms average latency period). Larger saccades take longer to complete, and saccadic programming may not account for the additional target distance traveled during this extra time. Additionally, larger saccades usually have larger undershoots, even in response to ‘step-only’ target motion. An analysis similar to that for the ‘ramp-only’ trials indicates that the visual system must use target velocity information to predict the target's future position and generate saccades with the observed degree of accuracy. For ‘step-ramp-away’ trials, only a gap that began 25 ms after the onset of target motion resulted in a prolonged saccadic latency, adding 20 - 25 ms compared to the nogap condition. The increase in the average lag at the end of the saccade in this condition is comparable to the distance that the target travels in 25 - 30 ms. When the onset of the temporal gap is 50 ms or later, the average saccadic latency is the same as in the no-gap condition, but saccadic amplitude remains reduced by 0.1 - 0.3 deg compared to the no-gap condition. The larger saccadic lag compared to the no-gap condition suggests that the absence of target-motion information starting 50 -100 ms after the target's onset impairs the visual system's ability to accurately predict the future location of the saccadic target, even though sufficient information is available to generate a saccade with a normal latency.
Comparison with earlier results of experiments using temporal gaps
Some previous work investigated the effects of a temporal gap in target visibility on saccades and pursuit when the gap was introduced between the disappearance of the fixation target and the appearance of the saccadic or pursuit target, i.e., before any target-related visual information is available (
Saslow, 1967;
Fischer, & Boch, 1983;
Kingstone, & Klein, 1993;
Gezeck, & Timmer, 1998;
Kimmig, et al, 2002). Saccades and pursuit typically have shorter reaction times on trials with a temporal gap between fixation offset and target onset than on trials with no temporal gap (
Saslow, 1967; Dorris, Pare and Munoz, 1997;
Hunt, et al, 2004;
Merrison and Carpenter, 1995;
Knox, 1996;
Krauzlis and Miles, 1996a,
1996b;
Kimmig et al, 2002). This ‘gap effect’ remains evident, although reduced, when the ‘warning effect’ of fixation offset is controlled by presenting an auditory signal just before each trial (Reuter-Lorenz, Oonk, Barnes and Hughes, 1995). A temporal gap between fixation and target motion onset could facilitate the onset of saccades and pursuit via a ‘release’ of fixation, brought about by a decrease in activity in the rostral superior colliculus (
Dorris and Munoz, 1995;
Munoz and Wurtz, 1993a,
1993b). Indeed,
Krauzlis (
2003) showed that shorter eye movement latencies in the gap conditions were associated with increased tonic and phasic firing rates of buildup neurons in the rostral superior colliculus when compared to the firing rates measured during trials with no temporal gap between fixation and target onset.
The “gap effect” must be considered as a possible explanation for the results of our study. Specifically, the subjects may have ignored the target motion before the temporal gap and perceived the absence of target visibility during the early part of the motion trajectory (i.e., starting at 25 or 50 ms) simply as a temporal gap between the offset of fixation and the onset of target motion. If so, then a 50 ms gap in target visibility that begins 25 ms after the onset of target motion onset would be akin to a 75 ms gap between fixation offset and the start of target motion. Had this misperception occurred, then pursuit latencies for targets with gaps presented early in their trajectory should have had shorter latencies then their nogap counterparts.

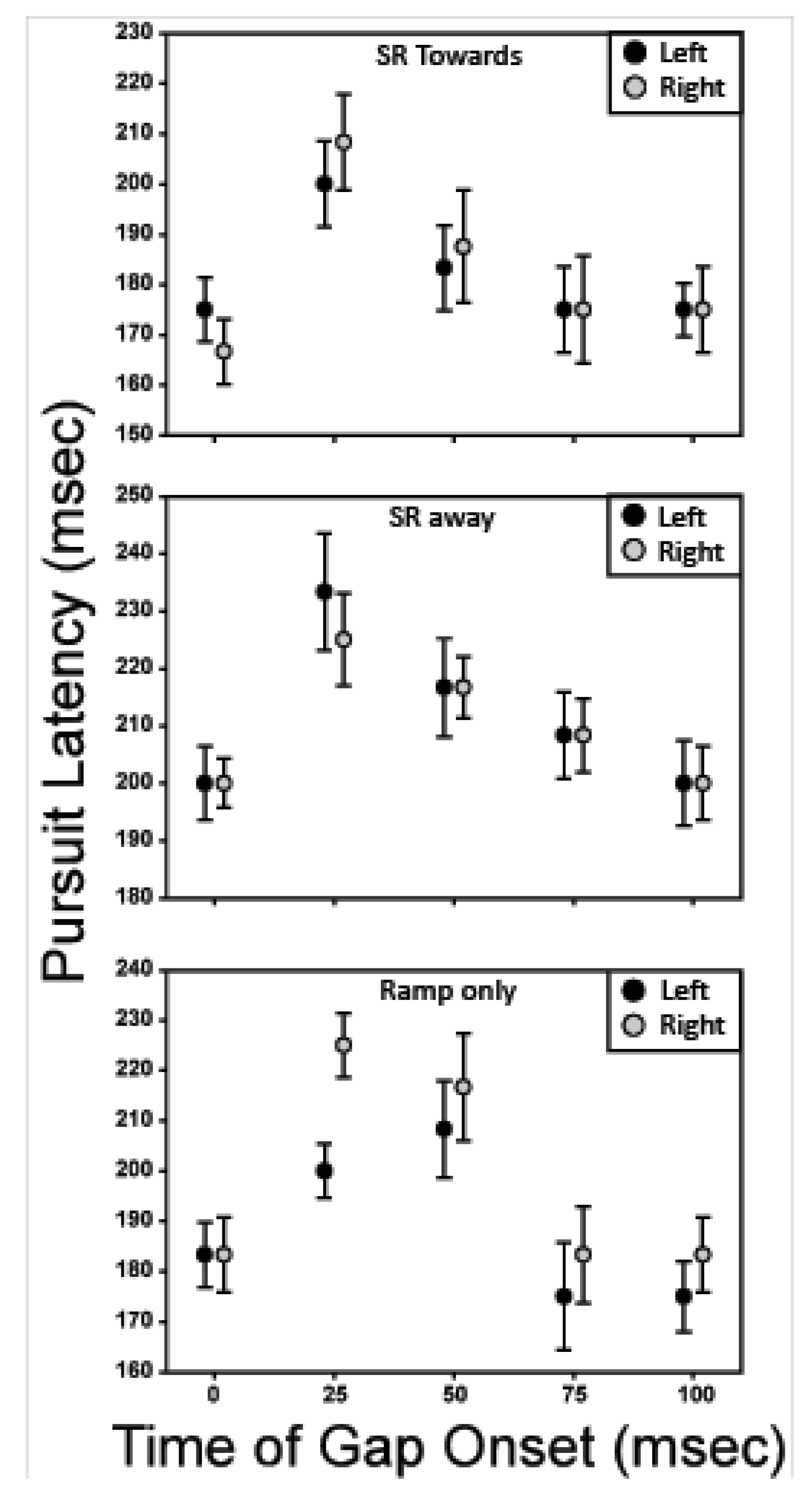

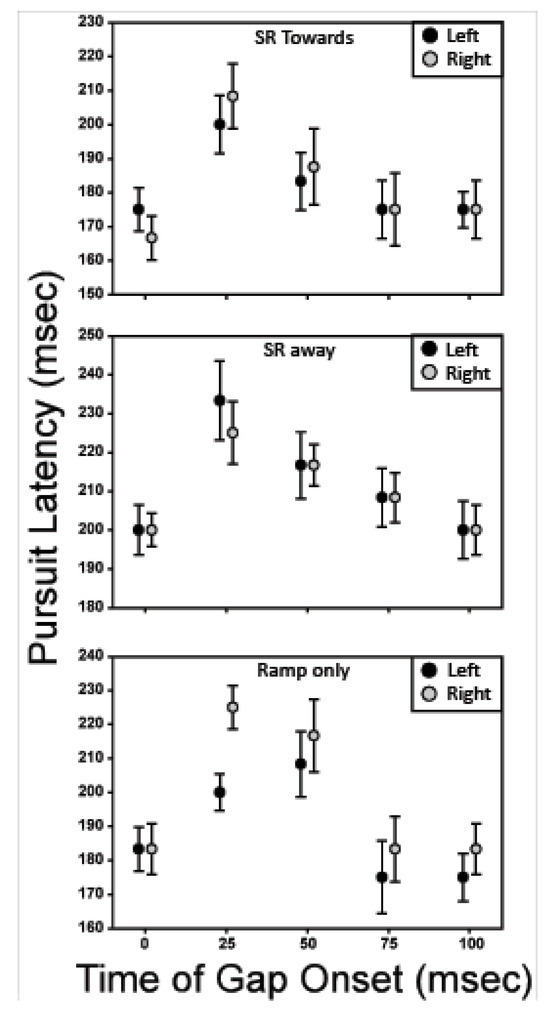

Figure 7, however, shows that the pursuit latencies for the 25 and 50 ms gap conditions were longer than those in the no-gap condition. Similarly, in the ‘step-only’, ‘ramp-only’, and ‘step-ramp-away’ conditions, a gap in target visibility between 25-75 ms also resulted in longer saccadic latencies relative to the no-gap condition (
Figure 3).

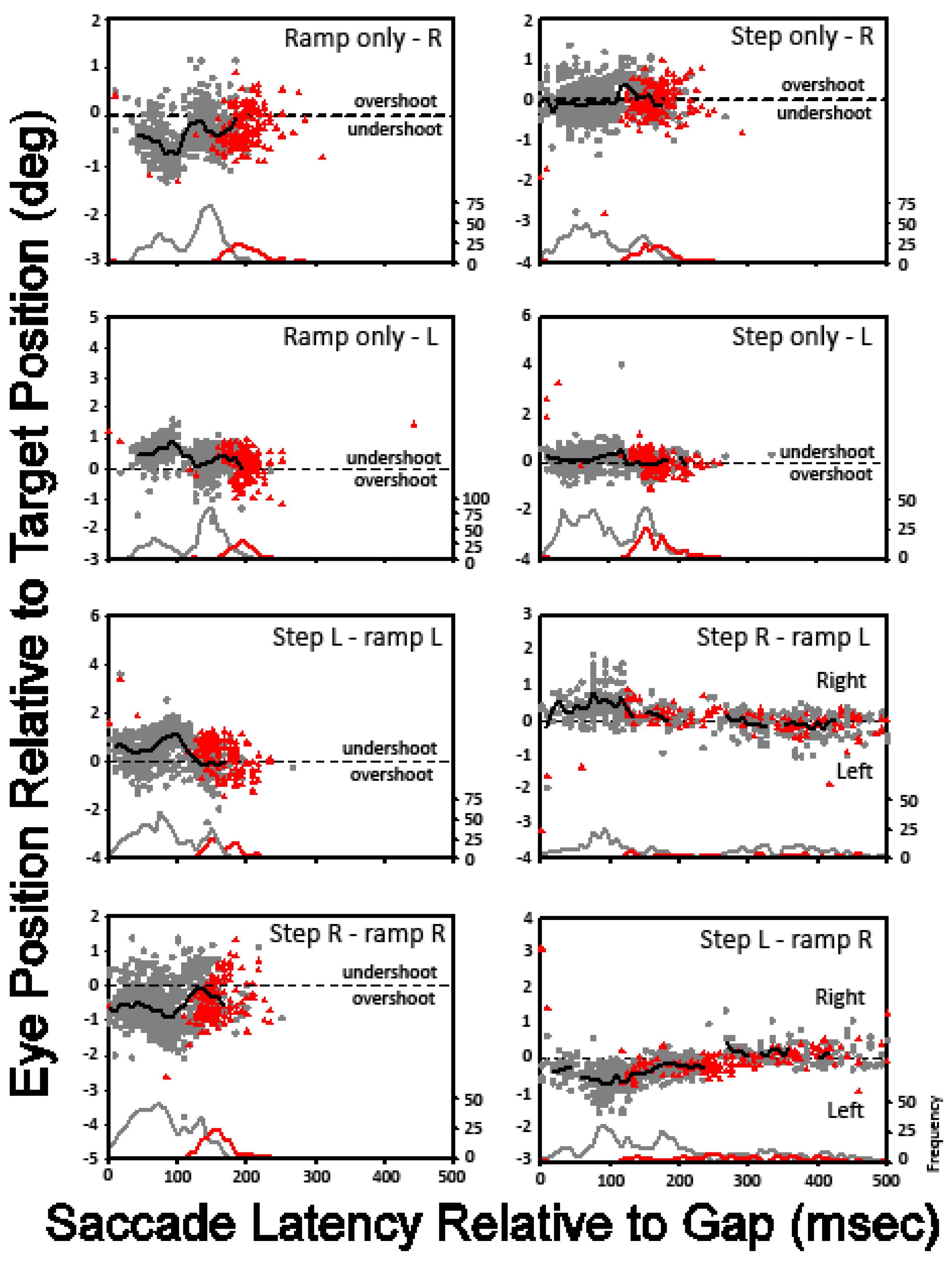

If we assume that the visual system regards the first 75-100 ms of these conditions as a gap in target visibility that facilitates a ‘release of fixation’, then saccadic latencies should be measured from the
end of the temporal gap rather than from the end of the fixation interval. Thus, to determine whether a “gap effect” occurs, a reduction of all of the latencies in the gap conditions in
Figure 3 and
Figure 7 by 75-100 ms (the duration of the initial target motion plus the temporal gap) is necessary. The resulting adjusted latencies are 50-70 ms shorter than those in the nogap condition. This range of latency values is substantially longer than the 20 - 30 ms reduction found in the traditional “gap effect” paradigm (
Saslow, 1967;
Reulen, 1984a, b).
We might also consider that the oculomotor system responded to the stimulus that was visible before the temporal gap as if responding to a stimulus of very short duration. In a study to examine the effect of target duration on saccadic latency,
van Loon and Adam (
2006) found that saccadic latency decreased as target duration increased, from more than 260 ms for a target of 50 ms duration to approximately 200 ms for targets of longer duration.
Erlandson and Fleming (
1974) also found longer latencies for saccades made to targets of shorter duration. If the visual system responded to our gap trials as to saccadic stimuli of short duration, then a gap in target visibility that starts at 25 or 50 ms after target onset should produce longer latencies relative to the no-gap condition. Although our data did show an increase in saccadic latencies for the 25- and 50-ms gap conditions (
Figure 3), the increases are much less than reported by van Loon and Adam for similar target durations. We presume that the information about target position and velocity that was obtained both before and after the target disappeared contributed to the shorter saccadic latencies in the present study, compared to those found by van Loon and Adam.
In 2008, Barnes and Collins showed that a long temporal gap (400 or 600 ms) in target visibility has a more adverse effect on pursuit performance when introduced 50 ms after the initiation of target motion, compared to introduction later in the target’s trajectory. They found that the eye velocity at the end of the extinction period more closely matched that of the reappearing target if the initial target exposure was for 100 ms compared to 50 ms, but this difference between eye and target velocity did not decrease further for even longer exposure durations before the target disappeared. Barnes and Collins suggested these results indicate that an extraretinal (or internal drive) signal for pursuit evolves from sampling target velocity during approximately the first 150 ms of target motion. The results of the present study suggest that even a 50 ms interruption in target visibility during the first 100 ms of target motion delays the onset and perturbs the accuracy of the ensuing saccadic and pursuit eye movements if this interruption occurs early in the trajectory, i.e., 25 - 50 ms after the initiation of target motion. Introduction of a temporal gap reduces information about target velocity and position during the openloop period of visual processing. Without a commensurate increase in latency, which occurs for neither pursuit nor saccades with the 50 ms duration of extinction in our study, the ensuing eye movements must be initiated based on less information than when the target remains continuously visible.
A temporal gap between the offset of fixation and the subsequent onset of target motion has been shown to enhance the initial pursuit velocity in humans (
Boman, & Hotson, 1988) and in monkeys (
Badler, & Heinen, 2006). Our data show a
reduction in pursuit velocity for the 25- and 50-ms gap conditions compared to the no-gap condition when the target trajectory included a step (
Figure 8). On the other hand, in the ‘ramp-only’ conditions, the earliest gap slightly enhanced the velocity of pursuit (by less than 0.5 deg/s), which is consistent with the results of Badler, & Heinen. The dissimilar effect of the ‘stepramp’ and the ‘ramp-only’ conditions on pursuit velocity may be attributable to a difference in the target’s retinal location (central versus 2 deg peripheral) at the start of ramp motion. Alternatively, the process of de-saccading the eye movement traces in the ‘step-ramp’ trials may have artificially resulted in lower pursuit velocities in the ‘step-ramp’ conditions.
