Article

Genetic Analysis and Fingerprint Construction for Isatis indigotica Fort. Using SSR Markers

by
Xiangyu Xing
1,
Haijun Xu
2,
Yan Dong
2,
Hanwen Cui
1,
Mingrui Sun
1,
Hong Wang
3,
Yang Liu
1,
Li Meng
1,* and
Chunying Zheng
1,*
1
Engineering Research Center of Agricultural Microbiology Technology, Ministry of Education & Heilongjiang Provincial Key Laboratory of Plant Genetic Engineering and Biological Fermentation Engineering for Cold Region & Key Laboratory of Molecular Biology, Heilongjiang University, Harbin 150080, China
2
Daqing Branch of Heilongjiang Academy of Sciences, Daqing 163319, China
3
Key Laboratory of Functional Inorganic Material Chemistry (Heilongjiang University), Ministry of Education, Harbin 150080, China
*
Authors to whom correspondence should be addressed.
Curr. Issues Mol. Biol. 2025, 47(3), 146; https://doi.org/10.3390/cimb47030146
Submission received: 13 January 2025 / Revised: 14 February 2025 / Accepted: 20 February 2025 / Published: 24 February 2025
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

Isatis indigotica Fort. is a traditional medicinal plant, which has anti-inflammatory, antioxidant, and antiviral properties. Despite the development and licensing of several cultivars in recent years, morphological similarity among cultivars complicates their identification. The genetic diversity within I. indigotica significantly impacts the biosynthesis of bioactive substances. To elucidate genetic relationships and evaluate bioactive compounds, I. indigotica cultivars were analyzed using SSR markers. A total of 109 alleles were identified across 29 cultivars at 20 SSR loci, exhibiting a genetic diversity with an average polymorphic information content (PIC) of 0.46. Phylogenetic, principal coordinate analysis (PCoA), and Bayesian clustering revealed that genetic relationships were largely independent of geographic origin, potentially due to regional transplantations. Notably, some cultivars with distinct leaf sizes showed clear genetic differentiation, highlighting their potential as candidates for quality evaluation. A fingerprint was successfully constructed using five SSR markers. These findings provide technical support for cultivar identification, quality evaluation, and intellectual property protection of I. indigotica cultivars.

1. Introduction

Isatis indigotica Fort. is a traditional Chinese medicine, which has antiviral, anti-inflammatory, immunomodulatory, and hypersensitivity-reducing properties [1,2,3,4]. The current research focuses are on the biological activity and bioactive components of I. indigotica [5,6,7]. However, studies on its genetic diversity and molecular markers remain limited, particularly using Simple Sequence Repeat (SSR) marker methods.
High-performance liquid chromatography (HPLC) has been widely applied to analyze bioactive components, such as indigotin, indirubin, uridine, progoitrin, epiprogoitrin, and gluconapin. It is valuable to establish relationships of bioactive compounds and diverse origins [8,9]. However, components analysis is not enough for classifying I. indigotica because of the influence of environmental factors or field management practices [10].
SSR markers are invaluable in genetic diversity studies, genome mapping, species identification, and population genetics for their abundance in genomes, codominant inheritance, and high polymorphism [11,12,13,14]. For I. indigotica, a germplasm resource system was important for standard planting aiming to obtain a steady yield and medicinal value. The development and application of SSR markers could clear up genetic background, and provide molecular methods for screening germplasm resources with target bioactive compounds or other valuable characteristics of I. indigotica cultivars [15,16].
With the advent of high-throughput sequencing technologies, genome-based SSR marker development has become feasible [17,18,19,20]. However, systematic research on SSR methods to classify I. indigotica is still lacking. This study aims to screen, validate SSR markers according to the I. indigotica genome, and analyze genetic diversity to establish a classification system using selected markers. These findings will serve as tools for germplasm screening and functional genomics research in I. indigotica.

2. Materials and Methods

2.1. Plant Materials

A total of 29 seeds were used for SSR analysis. A total of 27 I. indigotica Fort. seeds were collected from major cultivation regions across China (Figure 1). In addition, standard seeds were obtained from National Institutes for Food and Drug Control. Baphicacanthus cusia (Nees) Brem seeds were obtained from National Institutes for Food and Drug Control, which are easily confused with I. indigotica and named BNIFDC.
Detailed origins information of 27 accessions are provided in Table 1. The morphology of 23 I. indigotica plants are shown in Figure 2. The plant samples were kept in the Medicinal and Edible Homologous Plant Seed Laboratory. All 29 accessions were stored at −80 °C until DNA extraction.

2.2. DNA Extraction

Genomic DNA was extracted using a Rapid plant genomic DNA isolation kit (Sangon Biotech, Shanghai, China). DNA quality was measured with a NanoDrop-1000 spectrophotometer (NanoDrop Technologies, Wilmington, DE, USA), ensuring an OD260/OD280 ratio between 1.7 and 2.0. DNA samples were diluted to 20 ng/μL and stored at 4 °C for subsequent use. The Cetyl Trimethyl Ammonium Bromide (CTAB) method was also employed for DNA extraction [21,22]. A total of 100 mg of seeds was ground to a fine powder in liquid nitrogen, followed by incubation in prewarmed CTAB extraction buffer at 65 °C for 30 min. DNA was precipitated with cold isopropanol, washed with 70% ethanol, air-dried, and suspended in TE buffer. DNA concentration and quality were evaluated by a NanoDrop spectrophotometer. DNA was stored at −20 °C [23].

2.3. Genotyping with SSR Markers

Twenty SSR markers were selected based on the results of high-throughput sequencing. Briefly, the selected SSR markers were prioritized based on their high polymorphism levels (PIC values up to 0.84) and repeat length (>10 bp), ensuring reliable resolution in capillary electrophoresis. These markers were experimentally validated through preliminary screening to confirm amplification consistency and polymorphism using samples from HLJDXALSa, JSSQS, and YNHHSa. The selected SSR markers could differentiate all 29 accessions and construct the DNA fingerprinting system.
Polymorphic primers were obtained (Figure 3). These polymorphic primers were selected for use in population diversity detection [24]. These markers produced clear and polymorphic bands. Fluorescently labeled primers with FAM, HEX, ROX, and NED were used for genotyping (Table 2). PCR reactions were carried out in a T100 thermal cycler (Bio-Rad Laboratories, Hercules, CA, USA) [25,26,27].
The 25 μL reaction mixture included 20 ng of DNA, 0.5 μL of 5 μM dNTP mix, 0.5 μL of 10 μM forward and reverse primers, 2.5 μL of buffer with MgCl2, and 1 U of Taq DNA polymerase. The PCR program consisted of denaturation at 95 °C for 5 min, followed by 10 cycles at 94 °C for 30 s, 60 °C for 30 s, and 72 °C for 30 s, followed by 30 cycles at 94 °C for 30 s, 55 °C for 30 s, and 72 °C for 30 s. The final extension was at 72 °C for 10 min. PCR products were analyzed by capillary electrophoresis using an ABI 3730xl sequencer (Thermo Fisher Scientific, Waltham, MA, USA). Genotypes were identified using a Bioelectrophoresis image analysis system (FR-980A, Furikeji, Shanghai, China). The base sizes of the bands were calculated with standard markers. The bands with the same base sizes were the same alleles in each pair of SSR markers [28,29].

2.4. Data Analysis

Genetic diversity parameters, including the number of alleles (Na), effective number of alleles (Ne), observed heterozygosity (Ho), expected heterozygosity (He), Shannon’s diversity index (I), and polymorphic information content (PIC), were calculated using software PopGen version 1.32 (North Carolina State University, Raleigh, NC, USA) [30]. Principal coordinate analysis (PCoA) was performed using GenAlEx version 6, and Bayesian clustering analysis was conducted with STRUCTURE version 5.3.1 to assess population structure (Stanford University, San Francisco, CA, USA) [31].

3. Results

3.1. Genetic Diversity

A total of 109 alleles (Na) were identified across 20 SSR loci among the 29 accessions, with the number of alleles ranging from 2 to 11. The amplified fragments varied from 105 bp for BLG-P1 to 315 bp for BLG-P19. The locus BLG-P13 exhibited the highest number of alleles (11), while BLG-P14, BLG-P6, and BLG-P9 had the lowest (2–3). The average effective number of alleles (Ne) was 2.33 (Table 3).
A high proportion of homozygotes (Ho > 0.5) was observed at 12 SSR loci, with BLG-P1 and BLG-P16 exhibiting the highest values. The polymorphism information content (PIC) ranged from 0.16 to 0.84, with an average of 0.47. BLG-P13 had the highest PIC value, indicating greater genetic variation, whereas BLG-P1 had the lowest. Shannon’s diversity index (I) ranged from 0.42 to 2.11, with an average of 0.98, reflecting considerable genetic diversity among the cultivars.

3.2. Genetic Differentiation

Principal coordinate analysis (Figure 4A) revealed that the genetic relationships among I. indigotica cultivars were independent of leaf morphology (Figure 4A). Distinct genetic differences were observed among cultivars with small and large leaves. Interestingly, Baphicacanthus cusia (Nees) Brem showed significant divergence from I. indigotica, which is usually confused with I. indigotica. GSDXLa was the most genetically distinct cultivar. Principal coordinate analysis (Figure 4B) revealed that the phylogenetic relationships among different cultivars exhibit no significant correlation with the geographical origins of the sampled specimens (Figure 4B). Clustering analysis using the neighbor-joining method confirmed these findings and revealed six genetic subclasses (Figure 5B).
The genetic distance ranged from 0.039 to 0.927, with an average of 0.545 among the 29 accessions. GSDXLa and GDXNL have the closest genetic distance (0.039), followed by GSDXLa and HNXYL (0.040). In contrast, GSZYSBL and HBHSL have the farthest genetic distance (0.93), followed by GSZYSBL and GDXNL (0.91). Standard materials INIFDCS and GSDXLa are the closest (0.18) (Figure 5A).
A dendrogram was created by an unweighted pair-group method with the arithmetic mean (UPGMA) method. From the dendrogram, GSDXLa of the 29 I. indigotica was independent from other materials, and the other materials could be roughly divided into six subpopulations (Figure 5B).
From the genetic distance, GSDXLa of the 29 accessions was independent from other materials, and the other materials could be roughly divided into six subclasses.
The K value was important for clarifying the genetic value among samples to help identify genetic stratification within the population and showing which individuals belong to similar genetic backgrounds [32]. The K value change is shown in Figure 5C; delta K was the largest when K was two. All 29 accessions tested can be divided into four subpopulations based on K = 2 (Figure 5C). Subpopulations I, with the same pure red color, were composed of 16 accessions, which were JSSQS, SDWFS, JSHAS, GSLZS, AHBZS, YNHHSb, HLJDBS, SXYCS, SXLLS, HLJDXALSb, HBBDS, HLJDQS, SXXZS, GSDXLa, GSZYYLS3, and BNIFDC. Subpopulations II, with the same pure green color, had six accessions, which were NXYL, HBHSL, GSZYSBL, HLJDQL, GDXNL, and GSDXLb. The individuals in subpopulations I and II had a pure lineage. Subpopulations III, with a mixed color closer to subpopulations I, were composed of six accessions, which were HLJDXALSa, NHHSa, GSZYYLS, GSZYSBS, GSZYYLS2, and INIFDCS. Subpopulations IV were closer to subpopulations II and only had SXXZL.

3.3. Unique Alleles

A total of 29 unique alleles were obtained in the 20 SSR loci, which means that the alleles can be used as characters of one cultivar (Table 4). The primers, such as BLG-P9, BLG-P11, BLG-P14, BLG-P15, BLG-P17, and BLG-P18, had no unique alleles (Table 2). The remaining 14 SSR primers had one or two unique alleles. SDWFS, GSZYYLS, AHBZS, SXLLS, HLJDXALSb, HBHSL, GSZYSBL, HLJDQL, GDXNL, and GSDXLb had no unique alleles. BNIFDC, which is distinct from I. indigotica, had five unique alleles aligning with its distinct genetic characteristics.

3.4. Fingerprinting of Cultivars

To distinguish and identify I. indigotica cultivars, a DNA fingerprint was constructed using five SSR markers: BLG-P13, BLG-P12, BLG-P5, BLG-P20, and BLG-P7 (Figure 6). The combined use of these markers successfully differentiated all 29 cultivars. BLG-P12 and BLG-P13 exhibited the highest PIC values (0.79 and 0.84, respectively), underscoring their utility in genetic identification. BLG-P13, BLG-P12, BLG-P5, BLG-P20, and BLG-P7 can be used as SSR markers for differentiating I. indigotica. The PCR products were analyzed by capillary electrophoresis. The accessions had the same bands, which means the same original of the cultivars (Figure 6). It was meaningful for seed traceability and breeding.

4. Discussion

Genetic diversity plays an important role in a species’ morphological characteristics and biological activities, and is essential for its evolution [33]. In plant breeding, genetic diversity is a valuable resource for developing new cultivars [34,35]. Previous research on the genetic diversity of I. indigotica mainly focused on the use of ISSR (Inter-Simple Sequence Repeat) markers [36]. Compared with an ISSR, an SSR sequence has more polymorphism and can distinguish heterozygotes and homozygotes.
In this study, the 29 accessions displayed high genetic diversity, with Shannon’s diversity index (I = 0.98) and polymorphic information content (PIC = 0.465), comparable to those reported for jute (Corchorus spp.), grass pea (Lathyrus sativus L.), and chrysanthemum germplasm using SSR markers [37,38,39]. The results of principal coordinate analysis (PCoA) using SSR markers divided I. indigotica cultivars into two phenotypic groups based on leaf size: large-leaf and small-leaf cultivars. Generally, cultivars with large leaves typically have more lateral roots, whereas cultivars with small leaves have fewer lateral roots. Long and straight roots are good for processing into decoction pieces, meaning that small-leaf cultivars were more popular. This differentiation suggests that the SSR marker system developed in this study has potential value for seed selection and seed quality control for the I. indigotica industry.
Hybridization, whether natural or artificial, is a vital strategy in generating new plant cultivars [40,41]. The establishment of homozygous genotypes is a prerequisite for stable inheritance in crossbreeding programs [42,43]. Among the 29 accessions analyzed, 22 showed homozygous genotypes, which are valuable resources for crossbreeding to get desirable traits.
Geographic distance and selection pressures often influence genetic differentiation among populations [44]. However, the 29 accessions analyzed in this study, originating from 10 provinces in China, did not exhibit clear geographic clustering. This result may stem from extensive transplantations, which have diluted regional genetic distinctions.
Morphological traits alone are often insufficient to differentiate I. indigotica cultivars due to their phenotypic plasticity, which is influenced by both genetic and environmental factors [45]. On the one hand, the main difference among I. indigotica cultivars is functional composition content, which is difficult to ascertain because the active ingredients need to be determined was in the root [46]. On the other hand, the phenotype of plants is controlled by both genetic and environmental factors. Cultivars planted in different environments may have different morphological traits, which may result in misidentification and confusion [47]. Molecular fingerprinting using SSR markers can avoid these limitations, enabling accurate identification [48]. In this study, there were 109 alleles identified at 20 SSR loci, which suggests genetics different markedly among the cultivars. An SSR marker system was not reported in previous studies for I. indigotica. In this study, 29 unique alleles were identified and constructed a DNA fingerprint using five SSR markers (BLG-P13, BLG-P12, BLG-P5, BLG-P20, and BLG-P7). It is meaningful for quality control, intellectual property protection, and authenticity verification.

5. Conclusions

This study constructed an SSR method system for assessing the genetic diversity and population structure of I. indigotica. The results demonstrated high genetic diversity (Shannon’s diversity index, I = 0.98; polymorphic information content, PIC = 0.465) and revealed significant genetic differentiation among cultivars. Phylogenetic and PCoA analyses indicated that genetic relationships were independent of geographic origin, which may be due to extensive regional transplantations.
The developed SSR marker-based fingerprinting system successfully distinguished all 29 cultivars, providing a reliable tool for genetic identification, quality evaluation, and intellectual property protection. Five highly informative SSR markers (BLG-P13, BLG-P12, BLG-P5, BLG-P20, and BLG-P7) were identified as the core loci for cultivar differentiation. These findings not only enhance our understanding of I. indigotica’s genetic diversity but also offer practical applications for seed selection and breeding programs.
In conclusion, this study constructed an SSR marker-based fingerprinting system for I. indigotica, which was meaningful for authenticating, molecular breeding, quality control, and conservation, which will prompt I. indigotica industry development and utilization.

Author Contributions

Conceptualization and methodology, C.Z.; formal analysis, X.X.; resources, H.X. and Y.D.; data curation, H.C.; writing—original draft preparation, L.M. and M.S.; writing—reviewing and editing, H.W. and Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Heilongjiang Province Seed Industry Innovation and Development Funding Program “DNA fingerprinting library and metabolite library of seeds and seedlings of key Chinese herbal medicines from cold-land dragon medicines, R&D and promotion of characterization profiles and quality control system” (No. 20230202), National Key Research and Development Project (2021YFD1600903), and Heilongjiang Provincial Finance Funds (CZKYF2022-1- B025).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, C.; Fan, N.; Xu, C.; Shao, S.; Shi, G.; Zhou, Y.; Wei, Y.; Wu, L.; Wang, B.; Shi, J.; et al. A synthetic derivative of bioactive constituents from Isatis indigotica ameliorates hypersensitivity and arthritis by inhibiting JAK2-STAT3 pathway in mice. Int. Immunopharmacol. 2023, 124, 110884. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, L.; Lin, T.; Zhang, H.; Su, Y. Immune responses to foot-and-mouth disease DNA vaccines can be enhanced by coinjection with the Isatis indigotica extract. Intervirology 2005, 48, 207–212. [Google Scholar] [CrossRef] [PubMed]
  3. Deng, J.; Ma, Y.; He, Y.; Yang, H.; Chen, Y.; Wang, L.; Huang, D.; Qiu, S.; Tao, X.; Chen, W. A Network Pharmacology- Based Investigation to the Pharmacodynamic Material Basis and Mechanisms of the Anti-Inflammatory and Anti-Viral Effect of Isatis indigotica. Drug Des. Dev. Ther. 2021, 15, 3193–3206. [Google Scholar] [CrossRef] [PubMed]
  4. Kim, J.H.; Gao, D.; Jeong, W.S.; Kim, C.T.; Cho, C.W.; Kim, H.M.; Kang, J.S. Anti-Wrinkle Effect of Isatis indigotica Leaf Extract: Evaluation of Antioxidant, Anti-Inflammation, and Clinical Activity. Antioxidants 2021, 10, 1339. [Google Scholar] [CrossRef]
  5. Shi, X.; Geng, J.; Feng, J.; Yang, Y.; Ma, X.; Chen, W.; Xiao, Y. Identification and investigation of a novel NADP+-dependent secoisolariciresinol dehydrogenase from Isatis indigotica. Front. Plant Sci. 2022, 13, 1035121. [Google Scholar] [CrossRef]
  6. Yang, S.; Wang, Z. The complete chloroplast genome sequence of the medicinal and economic plant woad Isatis indigotica (Brassicaceae). Mitochondrial DNA Part B Resour. 2017, 2, 514–515. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, K.-K.; Tan, Y.-P.; Xu, H.-H.; Sun, S.-F.; Xiao, J.-C.; Xu, Z.-Y.; Wang, C.-C.; Zhu, H.-X.; Yang, J.; Li, D.-Y.; et al. Identification and expression analysis of whole gene family of Isatis indigotica 4-coumarate: CoA ligase. Zhongguo Zhong Yao Za Zhi Zhongguo Zhongyao Zazhi China J. Chin. Mater. Med. 2024, 49, 361–369. [Google Scholar]
  8. Shi, Y.-H.; Xie, Z.-Y.; Wang, R.; Huang, S.-J.; Li, Y.-M.; Wang, Z.-T. Quantitative and Chemical Fingerprint Analysis for the Quality Evaluation of Isatis indigotica based on Ultra-Performance Liquid Chromatography with Photodiode Array Detector Combined with Chemometric Methods. Int. J. Mol. Sci. 2012, 13, 9035–9050. [Google Scholar] [CrossRef] [PubMed]
  9. Zou, P.; Hong, Y.; Koh, H.L. Chemical fingerprinting of Isatis indigotica root by RP-HPLC and hierarchical clustering analysis. J. Pharm. Biomed. Anal. 2005, 38, 514–520. [Google Scholar] [CrossRef]
  10. Cho, J.; Sa, K.J.; Park, H.; Heo, T.H.; Lee, S.; Lee, J.K. Association analysis of leaf aromatic substances in cultivated and weedy types of Perilla crop using SSR markers. Heliyon 2024, 10, e34995. [Google Scholar] [CrossRef] [PubMed]
  11. Li, X.; Li, P.; Tang, W.; Zheng, J.; Fan, F.; Jiang, X.; Li, Z.; Fang, Y. Simultaneous determination of subspecies and geographic origins of 110 rice cultivars by microsatellite markers. Food Chem. 2024, 445, 138657. [Google Scholar] [CrossRef] [PubMed]
  12. Pandey, S.; Bhargava, A. In-silico identification of simple sequence repeat (SSR) markers and phylogenetic analysis from chloroplast genomes of the genus Bambusa. Gene Rep. 2024, 37, 102048. [Google Scholar] [CrossRef]
  13. Saxena, P.; Malik, L.; Pattanaik, S.; Gudipalli, P. Genetic diversity analysis of a germplasm collection of red sanders (Pterocarpus santalinus L.f.) using cross-species SSR, ISSR and RAPD markers. S. Afr. J. Bot. 2024, 174, 856–869. [Google Scholar] [CrossRef]
  14. Wu, F.; Cai, G.; Xi, P.; Guo, Y.; Xu, M.; Li, A. Genetic Diversity Analysis and Fingerprint Construction for 87 Passionfruit (Passiflora spp.) Germplasm Accessions on the Basis of SSR Fluorescence Markers. Int. J. Mol. Sci. 2024, 25, 10815. [Google Scholar] [CrossRef]
  15. Laosatit, K.; Amkul, K.; Chankaew, S.; Somta, P. Molecular genetic diversity of winged bean gene pool in Thailand assessed by SSR markers. Hortic. Plant J. 2022, 8, 81–88. [Google Scholar] [CrossRef]
  16. Riangwong, K.; Wanchana, S.; Aesomnuk, W.; Saensuk, C.; Nubankoh, P.; Ruanjaichon, V.; Kraithong, T.; Toojinda, T.; Vanavichit, A.; Arikit, S. Mining and validation of novel genotyping-by-sequencing (GBS)-based simple sequence repeats (SSRs) and their application for the estimation of the genetic diversity and population structure of coconuts (Cocos nucifera L.) Thailand. Hortic. Res. 2020, 7, 156. [Google Scholar] [CrossRef]
  17. Xue, Y.; Liu, R.; Xue, J.; Wang, S.; Zhang, X. Genetic diversity and relatedness analysis of nine wild species of tree peony based on simple sequence repeats markers. Hortic. Plant J. 2021, 7, 579–588. [Google Scholar] [CrossRef]
  18. Lai, R.; Xia, Y.; Li, R.; Yuan, Q.; Zhao, W.; Siddique, K.H.M.; Guo, P. Identifying SSR/InDel loci related to tobacco bacterial wilt resistance using association mapping. Heliyon 2024, 10, e38939. [Google Scholar] [CrossRef] [PubMed]
  19. Mukta, S.; Bappy, M.N.I.; Bhuiyan, J.; Zohora, F.T.; Afrin, D. Assessment of genetic diversity in Bangladeshi rice (Oryza sativa L.) varieties utilizing SSR markers. Gene Rep. 2024, 37, 102051. [Google Scholar]
  20. Tiruneh, A.A.; Geletu, K.T.; Yao, N.K.; Weldegiorgis, K.D. The genetic diversity and population structure of wild and cultivated Avena species in Ethiopia using a SSR markers. Heliyon 2024, 10, e38942. [Google Scholar] [CrossRef]
  21. Lawson, M.J.; Zhang, L. Distinct patterns of SSR distribution in the Arabidopsis thaliana and rice genomes. Genome Biol. 2006, 7, R14. [Google Scholar] [CrossRef] [PubMed]
  22. Varshney, R.K.; Marcel, T.C.; Ramsay, L.; Russell, J.; Roeder, M.S.; Stein, N.; Waugh, R.; Langridge, P.; Niks, R.E.; Graner, A. A high density barley microsatellite consensus map with 775 SSR loci. Theor. Appl. Genet. 2007, 114, 1091–1103. [Google Scholar] [CrossRef]
  23. Luo, C.; Chen, D.; Cheng, X.; Liu, H.; Li, Y.; Huang, C. SSR Analysis of Genetic Relationship and Classification in Chrysanthemum Germplasm Collection. Hortic. Plant J. 2018, 4, 73–82. [Google Scholar] [CrossRef]
  24. Arlotta, C.; Toscano, V.; Genovese, C.; Calderaro, P.; Puglia, G.D.; Raccuia, S.A. Nutraceutical Content and Genetic Diversity Share a Common Pattern in New Pomegranate Genotypes. Molecules 2022, 27, 389. [Google Scholar] [CrossRef]
  25. Ouni, R.; Zborowska, A.; Sehic, J.; Choulak, S.; Hormaza, J.I.; Garkava-Gustavsson, L.; Mars, M. Genetic Diversity and Structure of Tunisian Local Pear Germplasm as Revealed by SSR Markers. Hortic. Plant J. 2020, 6, 61–70. [Google Scholar] [CrossRef]
  26. Karkhaneh, A.; Salari, H.; Cheghamirza, K.; Zarei, L. Agronomic and Molecular Identification of Drought-Tolerant Bread Wheat Varieties in Iran. J. Plant Growth Regul. 2025, 1–12. [Google Scholar] [CrossRef]
  27. Romano, A.; Masi, P.; Aversano, R.; Carucci, F.; Palomba, S.; Carputo, D. Microstructure and tuber properties of potato varieties with different genetic profiles. Food Chem. 2018, 239, 789–796. [Google Scholar] [CrossRef]
  28. Patel, R.; Memon, J.; Kumar, S.; Patel, D.A.; Sakure, A.A.; Patel, M.B.; Das, A.; Karjagi, C.G.; Patel, S.; Patel, U.; et al. Genetic Diversity and Population Structure of Maize (Zea mays L.) Inbred Lines in Association with Phenotypic and Grain Qualitative Traits Using SSR Genotyping. Plants 2024, 13, 823. [Google Scholar]
  29. Rezk, A.A.; Mohamed, H.I.; El-Beltagi, H.S. Genetic variability and diversity analysis in Oryza sativa L. genotypes using quantitative traits and SSR markers. Saudi J. Biol. Sci. 2024, 31, 103944. [Google Scholar] [CrossRef]
  30. Jang, S.J.; Sa, K.J.; Fu, Z.Y.; Lee, J.K. Association mapping analysis for cultivated and weedy types of Perilla crop collected from South Korea using morphological characteristics and SSR markers. Heliyon 2024, 10, e26720. [Google Scholar] [CrossRef] [PubMed]
  31. Sharma, L.; Kumar, R.; Tare, K.; Lamichaney, S. Assessment of genetic diversity and population structure analysis in Himalayan garlic genotypes from Sikkim using SSR markers. Mol. Biol. Rep. 2025, 52, 17. [Google Scholar] [CrossRef] [PubMed]
  32. Tian, F.; Tian, Y.; Yu, F.; Qian, J.S.; Wang, F.J.; Li, X.; Li, T.Y.; Zhang, X.F.; Huang, D.Z.; Zhao, X.J. Association analysis of the molecular characteristics and floral traits of Iris x germanica. Czech J. Genet. Plant Breed. 2025, 1–12. [Google Scholar] [CrossRef]
  33. Ye, Y.; Tan, J.; Lin, J.; Zhang, Y.; Zhu, G.; Nie, C.; Huang, L.; Zhou, Y.; Xu, Y. Genome-wide identification of SSR markers for Curcuma alismatifolia Gagnep., and their potential for wider application in this genus. J. Appl. Res. Med. Aromat. Plants 2024, 42, 100572. [Google Scholar] [CrossRef]
  34. Gao, C.; Chen, C.; Liu, N.; Liu, F.; Su, X.; Liu, C.; Huang, Q. Genetic Diversity and Association Analysis of Traits Related to Water-Use Efficiency and Nitrogen-Use Efficiency of Populus deltoides Based on SSR Markers. Int. J. Mol. Sci. 2024, 25, 11515. [Google Scholar] [CrossRef] [PubMed]
  35. Lai, H.; Li, Y.; Deng, F.; Yang, H.; Li, J.; Chen, J.; Sun, J.; Li, G.; Fernando, W.G.D.; Gao, H. Molecular Insights into the Reproductive Patterns and Genetic Structure of Wheat Stripe Rust in Ili, Xinjiang. Int. J. Mol. Sci. 2024, 25, 12357. [Google Scholar] [CrossRef] [PubMed]
  36. Xu, R.; Wang, H.X.; Yang, F.Q.; Xi, J.F.; Zou, Z.W.; Xia, B. Genetic diversity of Isatis indigotica germplasm resources based on ISSR-PCR technique. J. Nanchang Univ. (Nat. Sci.) 2019, 43, 577–582. [Google Scholar]
  37. Luo, B.; Jiang, J.X.; Liu, C.X.; Wei, J.; Wang, X.; Cao, Z.F.; Zhang, C.J.; Liu, N.A.; Lv, Y.Y.; Wei, Z.W.; et al. Characterization of the KNOX Gene Family in Regulating Alfalfa Compound Leaf Development. J. Plant Growth Regul. 2025, 1–16. [Google Scholar] [CrossRef]
  38. Gupta, P.; Udupa, S.M.; Gupta, D.S.; Kumar, J.; Kumar, S. Population structure analysis and determination of neurotoxin content in a set of grass pea (Lathyrus sativus L.) accessions of Bangladesh origin. Crop J. 2018, 6, 435–442. [Google Scholar]
  39. Zhang, L.; Cai, R.; Yuan, M.; Tao, A.; Xu, J.; Lin, L.; Fang, P.; Qi, J. Genetic diversity and DNA fingerprinting in jute (Corchorus spp.) based on SSR Markers. Crop J. 2015, 3, 416–422. [Google Scholar] [CrossRef]
  40. Zhao, J.J.; Sun, L.L.; Pi, Z.; Li, S.N.; Wu, Z.D. Genetic Diversity Analysis of 89 Monogerm Maintainer Lines of Sugar Beet. Sugar Tech. 2025, 1–15. [Google Scholar] [CrossRef]
  41. Vieira, M.L.C.; Santini, L.; Diniz, A.L.; Munhoz, C.D. Microsatellite markers: What they mean and why they are so useful. Genet. Mol. Biol. 2016, 39, 312–328. [Google Scholar] [CrossRef] [PubMed]
  42. Devi, A.; Kumari, N.; Masand, M.; Sharma, B.; Majeed, A.; Rahim, M.S.; Singh, S.; Mohapatra, K.P.; Sharma, R.K. Microsatellite marker resource creation, genetic diversity assessment and core prediction in Valeriana jatamansi Jones. J. Appl. Res. Med. Aromat. Plants 2025, 45, 100616. [Google Scholar] [CrossRef]
  43. Su, Y.; Fu, J.; Xie, H.; Huang, Z.; Li, Y.; Luo, Y.; Zhou, X.; Li, Y.; Li, J.; Sun, Y.; et al. SSR markers development and their application in genetic diversity of burdock (Arctium lappa L.) germplasm. BMC Plant Biol. 2025, 25, 196. [Google Scholar] [CrossRef] [PubMed]
  44. Baite, M.S.; Biswal, S.; Pandit, E.; Pradhan, S.K.; Barik, S.R. Molecular screening of germplasm lines for false smut resistance in rice. Physiol. Mol. Plant Pathol. 2025, 136, 102571. [Google Scholar] [CrossRef]
  45. Feng, J.; Huang, D.; Yang, Y.; Chen, J.; Qiu, S.; Lv, Z.; Ma, X.; Li, Y.; Li, R.; Xiao, Y.; et al. Isatis indigotica: From (ethno) botany, biochemistry to synthetic biology. Mol. Hortic. 2021, 1, 17. [Google Scholar] [CrossRef]
  46. Chen, Q.; Lan, H.-Y.; Peng, W.; Rahman, K.; Liu, Q.-C.; Luan, X.; Zhang, H. Isatis indigotica: A review of phytochemistry, pharmacological activities and clinical applications. J. Pharm. Pharmacol. 2021, 73, 1137–1150. [Google Scholar] [CrossRef] [PubMed]
  47. Sai Timmarao, K.; Ponnam, N.; Lakshmanareddy, D.C.; Krishna Reddy, M.; Venkataravanappa, V.; Roshini, P.; Shaik, M.; Manoj, B.P.; Madhavi Reddy, K. Molecular mapping and development of SSR markers associated with Chilli leaf curl virus resistance in chilli (Capsicum annuum L.). Genomics 2025, 117, 111015. [Google Scholar] [CrossRef] [PubMed]
  48. Morlova, E.D.; Mladin, D. Evaluation of the unavailability of the primary circuit of Triga SSR reactor, importance factors and risk criteria for its components. Kerntechnik 2024, 89, 632–643. [Google Scholar] [CrossRef]
Cimb 47 00146 g001
Figure 1. The origins distribution of 27 I. indigotica accessions.
Figure 1. The origins distribution of 27 I. indigotica accessions.
Cimb 47 00146 g001
Cimb 47 00146 g002
Figure 2. The leaf morphology of I. indigotica plants.
Figure 2. The leaf morphology of I. indigotica plants.
Cimb 47 00146 g002
Cimb 47 00146 g003
Figure 3. The capillary gel electrophoresis results of the amplification products of the BLG-P20 primer in the HLJDXALSa (A), JSSQS (B), and YNHHSa (C) samples.
Figure 3. The capillary gel electrophoresis results of the amplification products of the BLG-P20 primer in the HLJDXALSa (A), JSSQS (B), and YNHHSa (C) samples.
Cimb 47 00146 g003
Cimb 47 00146 g004aCimb 47 00146 g004b

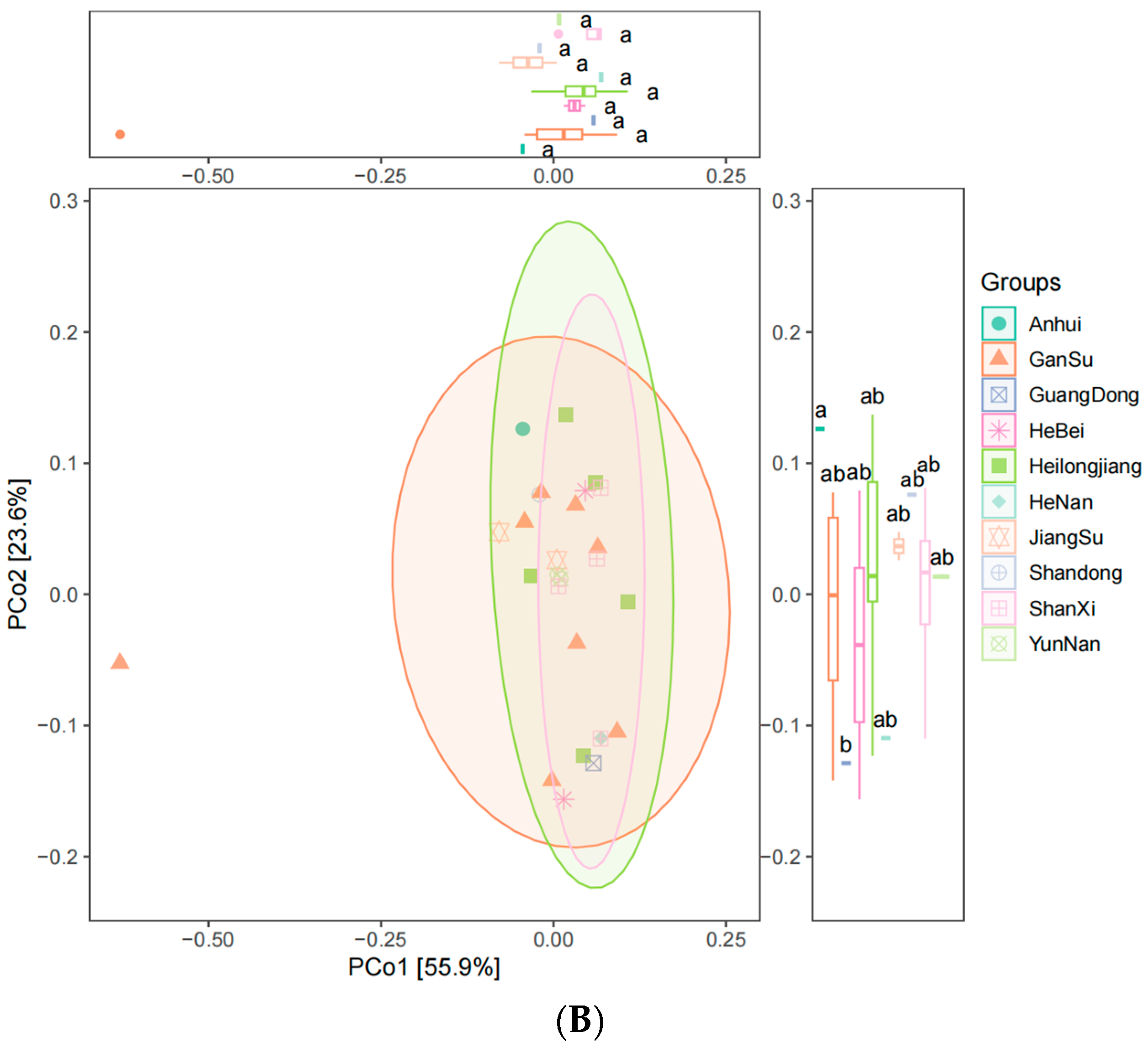

Figure 4. The principal component analysis (PCA) score plot depicting the distribution of 29 Isatis indigotica Fort cultivars for the first two principal component (PCo1 and PCo2). Individuals are color-coded with large leaves or small leaves (A) and geographical origin (B). Significant differences (p ≤ 0.05) are indicate by different letter.
Figure 4. The principal component analysis (PCA) score plot depicting the distribution of 29 Isatis indigotica Fort cultivars for the first two principal component (PCo1 and PCo2). Individuals are color-coded with large leaves or small leaves (A) and geographical origin (B). Significant differences (p ≤ 0.05) are indicate by different letter.
Cimb 47 00146 g004aCimb 47 00146 g004b
Cimb 47 00146 g005aCimb 47 00146 g005b

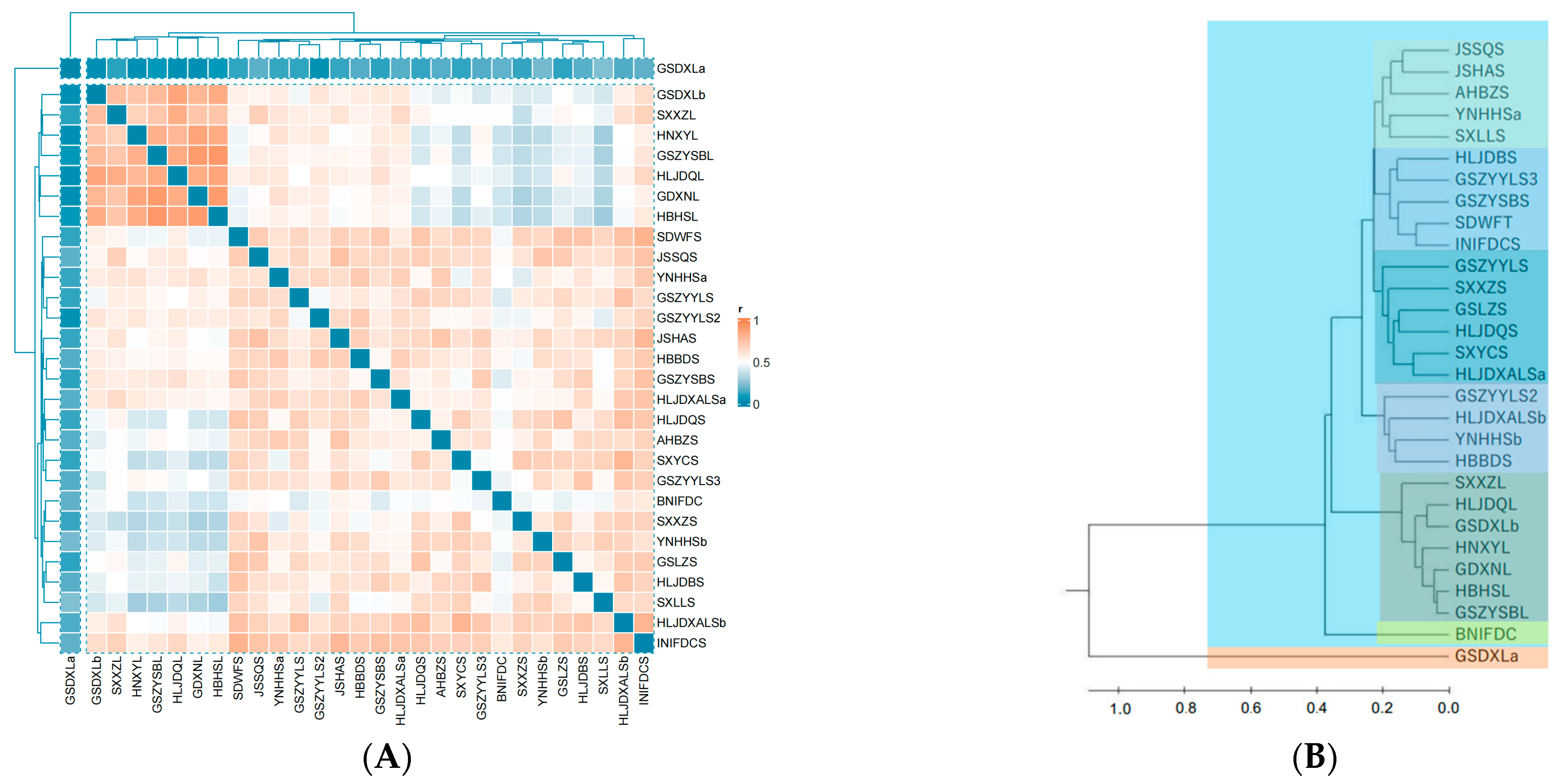

Figure 5. (A) A heat map of genetic distance calculated by popgene32 UPGMA; (B) a clustering tree constructed by genetic distance, each color represent one clusters; (C) a graphical depiction of the relationship between K and ∆k; (D) Bayesian clustering at K = 2, each color represents one group.
Figure 5. (A) A heat map of genetic distance calculated by popgene32 UPGMA; (B) a clustering tree constructed by genetic distance, each color represent one clusters; (C) a graphical depiction of the relationship between K and ∆k; (D) Bayesian clustering at K = 2, each color represents one group.
Cimb 47 00146 g005aCimb 47 00146 g005b
Cimb 47 00146 g006
Figure 6. Fingerprints of the 29 cultivars based on five SSR loci.
Figure 6. Fingerprints of the 29 cultivars based on five SSR loci.
Cimb 47 00146 g006
Table 1. The origins details of the 27 analyzed I. indigotica accessions.
Table 1. The origins details of the 27 analyzed I. indigotica accessions.
NumberCultivarOriginLeave ShapeNumberCultivarOriginLeave Shape
1HLJDXALSaHeilongjiang, DaxinganlingSmall15HBHSLHeBei, HengShuiLarge
2JSSQSJiangSu, SuQianSmall16HBBDSHeBei, BaoDingSmall
3YNHHSaYunNan, HongHeSmall17GSZYSBLGanSu, ZhangYeLarge
4SDWFSShandong, WeifangSmall18GSZYSBSGanSu, ZhangYeSmall
5HNXYLHeNan, XinYangLarge19HLJDQLHeiLongJiang, DaQingLarge
6JSHASJiangsu, HuaianSmall20HLJDQSHeiLongJiang, DaQingSmall
7GSZYYLSGansu, MinleSmall21SXXZLShanXi, XinZhouLarge
8GSLZSGansu, LanzhouSmall22SXXZSShanXi, XinZhouSmall
9AHBZSAnhui, BozhouSmall23GDXNLGuangDong, XingNingLarge
10YNHHSbYunNan, HongHeSmall24GSDXLaGanSu, DingXiLarge
11HLJDBSHeilongjiang, DuerboteSmall25GSDXLbGanSu, DingXiLarge
12SXYCSShanXi, YunChengSmall26GSZYYLS2Gansu, MinleSmall
13SXLLSShanXi, LvLiangSmall27GSZYYLS3Gansu, MinleSmall
14HLJDXALSbHeilongjiang, DaxinganlingSmall
Table 2. Information on the 20 polymorphic SSR markers.
Table 2. Information on the 20 polymorphic SSR markers.
LocusRepeat MotifForward Primer
(5′~3′)		Reverse Primer
(5′~3′)		SizeTmFluorescent
Labeling
BLG-P1(GA)10TCTCTTGATTCTTTTTGACGGATCGTTTCCTGTTCCCTTTTG10951FAM
BLG-P2(TC)10GTGTTTGTGTTTCCCCCATCGAAAAACGGTGCCACAATCT12153FAM
BLG-P3(GA)12CGAATTTACCACGAACCGATGAAAACGGTGGCATGTCTCT13653FAM
BLG-P4(TC)10CAAGCACAAGTGGTCCAAAAGCTTGGTTTTCAACATGAGG15152FAM
BLG-P5(TG)12AGAAGGCTGCACCAAGTGTTGAGGAAGGATCCAAATGCAA15754FAM
BLG-P6(GA)11CTTCCCATTTAGCGAACCAACTTCCGGTTCGATTTTTCAA16551HEX
BLG-P7(GTT)9TCGTTCGGTTATGACGGCTCTTCGTAAGGTCCAATGGCGAATAT17655HEX
BLG-P8(ACCAAT)7CTCCAAGACCATCTTCCCAATGGGAAAAAGACAGGCAATC18053HEX
BLG-P9(AG)11ACTCTCAGGGCAGCGACAGAAATCTCCCACCACCACCACAAATA19258HEX
BLG-P10(TC)13TTCGATTATTGGGCGAAGTTTAGCCACACCGAGATCAAGA19353HEX
BLG-P11(TC)10TAAACCGTCGCAACAGAGACACCTGCCATTGCCTAACAAG20155ROX
BLG-P12(TC)15ATTTCGGTGCATTGCTTTCTTAACTTCTTCGGTCTTGCCG20452ROX
BLG-P13(AT)16CACCATTAATAGGAATGTGGCATTTAATGCATGGTTGGCATC21051ROX
BLG-P14(TG)12TGGAGCAAGAAGAGAGGTTAGGTTTGAAGCTCTGCAGGGAAAGT21255ROX
BLG-P15(AG)15TGAGCATGCGAATCAAACTCCGAATTGGGGAGATATTGGA23552ROX
BLG-P16(AG)11GACATTTCCACCAGCAAGGTAAGTGCTAGTTGGAAGCCGA24855NED
BLG-P17(AG)12CAAACCACCACCGGACCACTATGCCTCTCCATCCTCGTCGTATT25358NED
BLG-P18(CA)15TCCCCTTCTTTCTTCTATTGCTCTCCGCCATAGATTTCTGC25753NED
BLG-P19(GA)13TATGTAGCCATCCCTGCCTCATGGCGTCAATGACATACCA27453NED
BLG-P20(TC)11TGGGAAGGAAGAAGAAGCAATGACGACAACGACTTCAACA27952NED
Table 3. Results of the genetic analysis of the 20 SSR loci.
Table 3. Results of the genetic analysis of the 20 SSR loci.
LocusSample SizeNaNeHoHeI PIC
BLG-P1(GA)1051.200.860.140.420.16
BLG-P2(TC)1041.520.660.340.630.30
BLG-P3(GA)1272.530.340.661.210.55
BLG-P4(TC)1062.600.380.621.170.55
BLG-P5(TG)1273.730.1430.861.500.69
BLG-P6(GA)1132.060.360.640.770.40
BLG-P7(GTT)952.850.570.431.230.59
BLG-P8(ACCAAT)752.650.520.481.130.56
BLG-P9(AG)1131.820.680.320.760.39
BLG-P10(TC)1351.400.710.290.640.27
BLG-P11(TC)1042.130.640.360.990.48
BLG-P12(TC)15105.390.290.711.870.79
BLG-P13(AT)161170.250.752.110.84
BLG-P14(TG)1221.670.740.260.590.32
BLG-P15(AG)1553.970.260.741.470.71
BLG-P16(AG)1151.250.860.140.480.19
BLG-P17(AG)1241.690.500.500.790.37
BLG-P18(CA)1542.550.520.481.100.55
BLG-P19(GA)1373.530.690.311.550.69
BLG-P20(TC)1173.580.380.621.470.68
Mean 52.330.520.480.980.465
Note: Na = Observed number of alleles; Ne = Effective number of alleles; Ho = Observed heterozygosity; He = Expected heterozygosity; I = Shannon’s Information index; PIC = polymorphic information content.
Table 4. Genetic analysis of the 29 SSR unique alleles of I. indigotica.
Table 4. Genetic analysis of the 29 SSR unique alleles of I. indigotica.
LocusUnique Allele Lengths in bp (Locus)Number of Unique Alleles
HLJDXALSa202 (BLGP12); 288 (BLGP16)2
JSSQS165 (BLGP6)1
YNHHSa212 (BLGP12)1
HNXYL179 (BLGP4)1
JSHAS248 (BLGP13); 121 (BLGP2)2
GSLZS316 (BLGP19)1
YNHHSb119 (BLGP1)1
HLJDBS298 (BLGP16)1
SXYCS260 (BLGP20)1
HBBDS210 (BLGP12); 234 (BLGP13); 296 (BLGP19)3
GSZYSBS117,124 (BLGP1)1
HLJDQS128 (BLGP3)1
SXXZL196 (BLGP12); 252 (BLGP13)2
SXXZS284 (BLGP19)1
GSDXLa113 (BLGP2); 153 (BLGP4); 179 (BLGP8); 240 (BLGP20)4
GSZYYLS2161 (BLGP5)1
GSZYYLS3140 (BLGP3)1
BNIFDC177 (BLGP5); 191 (BLGP7); 201 (BLGP10); 209 (BLGP10); 294 (BLGP16)5
Total 29
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xing, X.; Xu, H.; Dong, Y.; Cui, H.; Sun, M.; Wang, H.; Liu, Y.; Meng, L.; Zheng, C. Genetic Analysis and Fingerprint Construction for Isatis indigotica Fort. Using SSR Markers. Curr. Issues Mol. Biol. 2025, 47, 146. https://doi.org/10.3390/cimb47030146

AMA Style

Xing X, Xu H, Dong Y, Cui H, Sun M, Wang H, Liu Y, Meng L, Zheng C. Genetic Analysis and Fingerprint Construction for Isatis indigotica Fort. Using SSR Markers. Current Issues in Molecular Biology. 2025; 47(3):146. https://doi.org/10.3390/cimb47030146

Chicago/Turabian Style

Xing, Xiangyu, Haijun Xu, Yan Dong, Hanwen Cui, Mingrui Sun, Hong Wang, Yang Liu, Li Meng, and Chunying Zheng. 2025. "Genetic Analysis and Fingerprint Construction for Isatis indigotica Fort. Using SSR Markers" Current Issues in Molecular Biology 47, no. 3: 146. https://doi.org/10.3390/cimb47030146

APA Style

Xing, X., Xu, H., Dong, Y., Cui, H., Sun, M., Wang, H., Liu, Y., Meng, L., & Zheng, C. (2025). Genetic Analysis and Fingerprint Construction for Isatis indigotica Fort. Using SSR Markers. Current Issues in Molecular Biology, 47(3), 146. https://doi.org/10.3390/cimb47030146

Article Metrics

Back to TopTop
