Combined Effect of Ultrasound and Low-Heat Treatments on E. coli in Liquid Egg Products and Analysis of the Inducted Structural Alterations by NIR Spectroscopy
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Ultrasonic Treatment
2.3. Preparation of Inoculation
2.4. Near-Infrared Measurements
2.5. Data Analysis
3. Results
3.1. Microbiological Measurements
3.2. NIR Measurements
4. Discussion
4.1. Microbiological Measurements
4.2. NIR Measurements
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Bhargava, N.; Mor, R.S.; Kumar, K.; Sharanagat, V.S. Advances in application of ultrasound in food processing: A review. Ultrason. Sonochem. 2021, 70, 105293. [Google Scholar] [CrossRef] [PubMed]
- Veeraapandian, S.; Sawant, S.N.; Doble, M. Antibacterial and antioxidant activity of protein capped silver and gold nanoparticles synthesized with Escherichia coli. J. Biomed. Nanotechnol. 2012, 8, 140–148. [Google Scholar] [CrossRef] [PubMed]
- Lee, H.; Zhou, B.; Liang, W.; Feng, H.; Martin, S.E. Inactivation of Escherichia coli cells with sonication, manosonication, thermosonication, and manothermosonication: Microbial responses and kinetics modeling. J. Food Eng. 2009, 93, 354–364. [Google Scholar] [CrossRef]
- Kang, D.; Jiang, Y.; Xing, L.; Zhou, G.; Zhang, W. Inactivation of Escherichia coli O157:H7 and Bacillus cereus by power ultrasound during the curing processing in brining liquid and beef. Food Res. Int. 2017, 102, 717–727. [Google Scholar] [CrossRef]
- Görgüç, A.; Gençdağ, E.; Okuroğlu, F.; Yılmaz, F.M.; Bıyık, H.H.; Öztürk Köse, S.; Ersus, S. Single and combined decontamination effects of power-ultrasound, peroxyacetic acid and sodium chloride sanitizing treatments on Escherichia coli, Bacillus cereus and Penicillium expansum inoculated dried figs. LWT 2021, 140, 110844. [Google Scholar] [CrossRef]
- D’AMICO, D.J.; SILK, T.M.; WU, J.; GUO, M. Inactivation of Microorganisms in Milk and Apple Cider Treated with Ultrasound. J. Food Prot. 2006, 69, 556–563. [Google Scholar] [CrossRef]
- Lee, H.; Kim, H.; Cadwallader, K.R.; Feng, H.; Martin, S.E. Sonication in combination with heat and low pressure as an alternative pasteurization treatment—Effect on Escherichia coli K12 inactivation and quality of apple cider. Ultrason. Sonochem. 2013, 20, 1131–1138. [Google Scholar] [CrossRef]
- Wu, X.; Narsimhan, G. Synergistic effect of low power ultrasonication on antimicrobial activity of melittin against Listeria monocytogenes. LWT 2017, 75, 578–581. [Google Scholar] [CrossRef]
- Nguyen Huu, C.; Rai, R.; Yang, X.; Tikekar, R.V.; Nitin, N. Synergistic inactivation of bacteria based on a combination of low frequency, low-intensity ultrasound and a food grade antioxidant. Ultrason. Sonochem. 2021, 74, 105567. [Google Scholar] [CrossRef]
- Bi, X.; Wang, X.; Chen, Y.; Chen, L.; Xing, Y.; Che, Z. Effects of combination treatments of lysozyme and high power ultrasound on the Salmonella typhimurium inactivation and quality of liquid whole egg. Ultrason. Sonochem. 2020, 60, 104763. [Google Scholar] [CrossRef]
- Lee, D.-U. Effects of Combination Treatments of Nisin and High-intensity Ultrasound with High Pressure on the Functional Properties of Liquid Whole Egg. Food Sci. Biotechnol. 2009, 18, 1511–1514. [Google Scholar]
- Huang, E.; Mittal, G.S.; Griffiths, M.W. Inactivation of Salmonella enteritidis in liquid whole egg using combination treatments of pulsed electric field, high pressure and ultrasound. Biosyst. Eng. 2006, 94, 403–413. [Google Scholar] [CrossRef]
- Nagy, D.; Felfoldi, J.; Taczmanne Bruckner, A.; Mohacsi-Farkas, C.; Bodor, Z.; Kertesz, I.; Nemeth, C.; Zsom-Muha, V. Determining Sonication Effect on E. coli in Liquid Egg, Egg Yolk and Albumen and Inspecting Structural Property Changes by Near-Infrared Spectra. Sensors 2021, 21, 398. [Google Scholar] [CrossRef] [PubMed]
- Csurka, T.; Szücs, F.; Csehi, B.; Friedrich, L.F.; Pásztor-Huszár, K. Analysis of several techno-functional and sensory attributes upon egg allergen ingredient substitution by blood plasma powder in sponge cake. Prog. Agric. Eng. Sci. 2021, 17, 87–98. [Google Scholar] [CrossRef]
- Németh, C. Low Temperature Heat Treatment of Liquid Eggs; Corvinus University of Budapest: Budapest, Hungary, 2012. [Google Scholar]
- Fotadar, U.; Zaveloff, P.; Terracio, L. Growth of Escherichia coli at elevated temperatures. J. Basic Microbiol. 2005, 45, 403–404. [Google Scholar] [CrossRef]
- Peng, S.; Hummerjohann, J.; Stephan, R.; Hammer, P. Short communication: Heat resistance of Escherichia coli strains in raw milk at different subpasteurization conditions. J. Dairy Sci. 2013, 96, 3543–3546. [Google Scholar] [CrossRef] [Green Version]
- Itelima, J.U.; Agina, S.E. Effect of heat treatment on the survival of Escherichia Coli O157: H7 in raw milk. Glob. J. Pure Appl. Sci. 2011, 17, 355–461. [Google Scholar]
- Sörqvist, S. Heat Resistance in Liquids of Enterococcus spp., Listeria spp., Escherichia coli, Yersinia enterocolitica, Salmonella spp. and Campylobacter spp. Acta Vet. Scand. 2003, 44, 1. [Google Scholar] [CrossRef]
- Vollmer, A.C.; Kwakye, S.; Halpern, M.; Everbach, E.C. Bacterial Stress Responses to 1-Megahertz Pulsed Ultrasound in the Presence of Microbubbles. Appl. Environ. Microbiol. 1998, 64, 3927–3931. [Google Scholar] [CrossRef] [Green Version]
- Butz, P.; Tauscher, B. Emerging technologies: Chemical aspects. Food Res. Int. 2002, 35, 279–284. [Google Scholar] [CrossRef]
- Piyasena, P.; Mohareb, E.; McKellar, R.C. Inactivation of microbes using ultrasound: A review. Int. J. Food Microbiol. 2003, 87, 207–216. [Google Scholar] [CrossRef] [PubMed]
- Ordoñez, J.A.; Sanz, B.; Hernandez, P.E.; Lopez-Lorenzo, P. A note on the effect of combined ultrasonic and heat treatments on the survival of thermoduric streptococci. J. Appl. Bacteriol. 1984, 56, 175–177. [Google Scholar] [CrossRef] [PubMed]
- Earnshaw, R.G.; Appleyard, J.; Hurst, R.M. Understanding physical inactivation processes: Combined preservation opportunities using heat, ultrasound and pressure. Int. J. Food Microbiol. 1995, 28, 197–219. [Google Scholar] [CrossRef] [PubMed]
- Gao, S.; Lewis, G.; Hemar, Y. Ultrasonic Inactivation of Microorganisms. In Handbook of Ultrasonics and Sonochemistry; Springer: Singapore, 2016; pp. 1355–1381. ISBN 978-981-287-278-4. [Google Scholar]
- Bazar, G.; Kovacs, Z.; Tanaka, M.; Furukawa, A.; Nagai, A.; Osawa, M.; Itakura, Y.; Sugiyama, H.; Tsenkova, R. Water revealed as molecular mirror when measuring low concentrations of sugar with near infrared light. Anal. Chim. Acta 2015, 896, 52–62. [Google Scholar] [CrossRef] [PubMed]
- Kovacs, Z.; Pollner, B.; Bazar, G.; Muncan, J.; Tsenkova, R. A Novel Tool for Visualization of Water Molecular Structure and Its Changes, Expressed on the Scale of Temperature Influence. Molecules 2020, 25, 2234. [Google Scholar] [CrossRef]
- Kovacs, Z.; Pollner, B. Aquaphotomics-Software R-Package “aquap2”. In Proceedings of the Understanding Water in Biology 2nd International Symposium, Kobe, Japan, 26–28 November 2016; pp. 26–29. [Google Scholar]
- Ugarte-Romero, E.; Feng, H.; Martin, S.E.; Cadwallader, K.R.; Robinson, S.J. Inactivation of Escherichia coli with Power Ultrasound in Apple Cider. J. Food Sci. 2006, 71, E102–E108. [Google Scholar] [CrossRef]
- Tsenkova, R. Introduction Aquaphotomics: Dynamic spectroscopy of aqueous and biological systems describes peculiarities of water. J. Near Infrared Spectrosc. 2009, 17, 303–313. [Google Scholar] [CrossRef]
- Segtnan, V.H.; Šašić, Š.; Isaksson, T.; Ozaki, Y. Studies on the Structure of Water Using Two-Dimensional Near-Infrared Correlation Spectroscopy and Principal Component Analysis. Anal. Chem. 2001, 73, 3153–3161. [Google Scholar] [CrossRef]
- Nagy, D.; Zsom-Muha, V.; Németh, C.; Felföldi, J. Sonication effect on foam properties of egg white. Prog. Agric. Eng. Sci. 2021, 17, 1–8. [Google Scholar] [CrossRef]
- Jovanovic, J.R.; Stefanovic, A.B.; Sekuljica, N.Z.; Jakovetic Tanaskovic, S.M.; Dojcinovic, M.B.; Bugarski, B.M.; Knezevic-Jugovic, Z.D. Ultrasound Pretreatment as an Useful Tool to Enhance Egg White Protein Hydrolysis: Kinetics, Reaction Model, and Thermodinamics. J. Food Sci. 2016, 81, C2664–C2675. [Google Scholar] [CrossRef]
- Stefanovic, A.B.; Jovanovic, J.R.; Dojcinovic, M.B.; Levic, S.M.; Nedovic, V.A.; Bugarski, B.M.; Knezevic-Jugovic, Z.D. Effect of the Controlled High-Intensity Ultrasound on Improving Functionality and Structural Changes of Egg White Proteins. Food Bioprocess Technol. 2017, 10, 1224–1239. [Google Scholar] [CrossRef]
Frequency (kHz) | Equipment Power (W) | Duration (min) | Temperature (°C) | |
---|---|---|---|---|
I | 20 | 180 | 30 | 55 |
J | 40 | 180 | 30 | 55 |
K | 20 | 300 | 30 | 55 |
L | 40 | 300 | 30 | 55 |
M | 20 | 180 | 60 | 55 |
N | 40 | 180 | 60 | 55 |
O | 20 | 300 | 60 | 55 |
P | 40 | 300 | 60 | 55 |
K2 | 0 | 0 | 60 | 55 |
K1 | 0 | 0 | 0 | 0 |

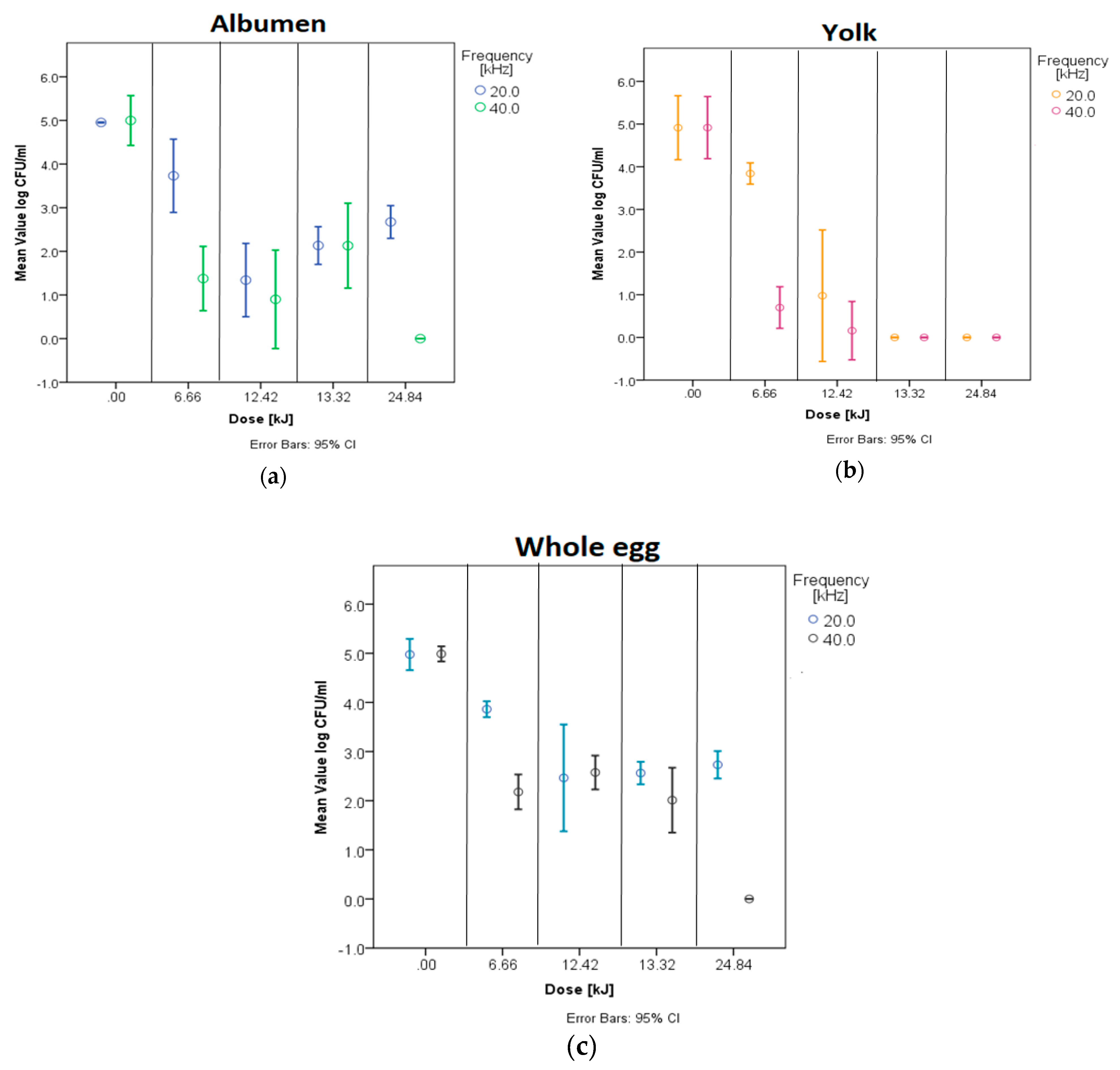

Tests of Between-Subjects Effects a | |||||
---|---|---|---|---|---|
Dependent Variable: Value log CFU/mL | |||||
Source | Type III Sum of Squares | df | Mean Square | F | Sig. |
Corrected Model | 84.484 b | 5 | 16.897 | 27.048 | 0.000 |
Intercept | 96.291 | 1 | 96.291 | 154.141 | 0.000 |
Time | 72.719 | 2 | 36.359 | 58.203 | 0.000 |
Frequency | 2.082 | 1 | 2.082 | 3.333 | 0.082 |
Time × Frequency | 6.925 | 2 | 3.462 | 5.542 | 0.011 |
Error | 13.743 | 22 | 0.625 | ||
Total | 146.305 | 28 | |||
Corrected Total | 98.228 | 27 |

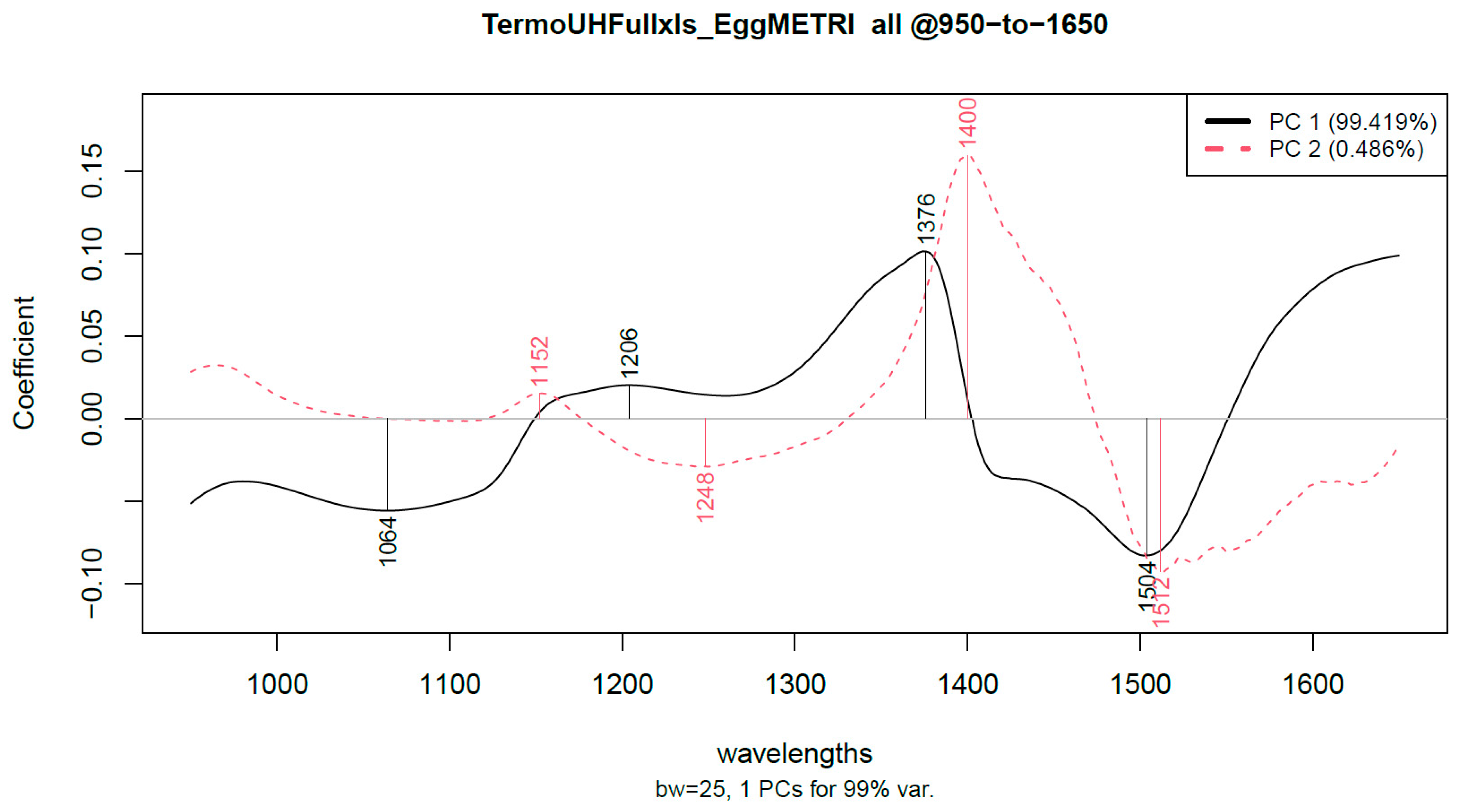

Egg Product | Treatment Setup | Wavelengths | |||
---|---|---|---|---|---|
C-N | C-C | -OH | N-H | ||
Albumen | 55 °C only | 1068 | 1152, 1248 | 1386, 1460 | - |
20 kHz, 3.7 W | 1068, 1086 | 1156, 1266 | 1366, 1466, 1530 | - | |
20 kHz, 6.9 W | 1038 | 1146, 1288 | 1324, 1370, 1434, 1550 | - | |
40 kHz, 3.7 W | 1082 | 1148, 1166, 1266 | 1344, 1388, 1462, 1550 | - | |
40 kHz, 6.9 W | 1052 | 1158 | 1338, 1454 | 1562 | |
Yolk | 55 °C only | 1066 | 1206 | 1368, 1412, 1512 | - |
20 kHz, 3.7 W | 1064 | 1152, 1206, 1248 | 1376, 1400, 1504, 1512 | - | |
20 kHz, 6.9 W | 1046, 1068 | 1156, 1206 | 1372, 1384, 1410, 1514 | - | |
40 kHz, 3.7 W | 1066 | 1154, 1206, 1224 | 1370, 1396, 1416, 1510 | - | |
40 kHz, 6.9 W | 1064 | 1206 | 1374, 1398, 1416, 1506 | 1624 | |
Whole egg | 55 °C only | 1060 | 1196 | 1380, 1484 | - |
20 kHz, 3.7 W | 1062 | 1188, 1206 | 1308, 1380, 1494, 1556 | - | |
20 kHz, 6.9 W | 976, 1060 | 1112, 1190, 1210 | 1382, 1496 | - | |
40 kHz, 3.7 W | 1060 | 1154, 1188 | 1382, 1498, 1544 | 1626 | |
40 kHz, 6.9 W | 1056, 1060 | 1192 | 1376, 1398, 1494 | 1554, 1608, 1624 |

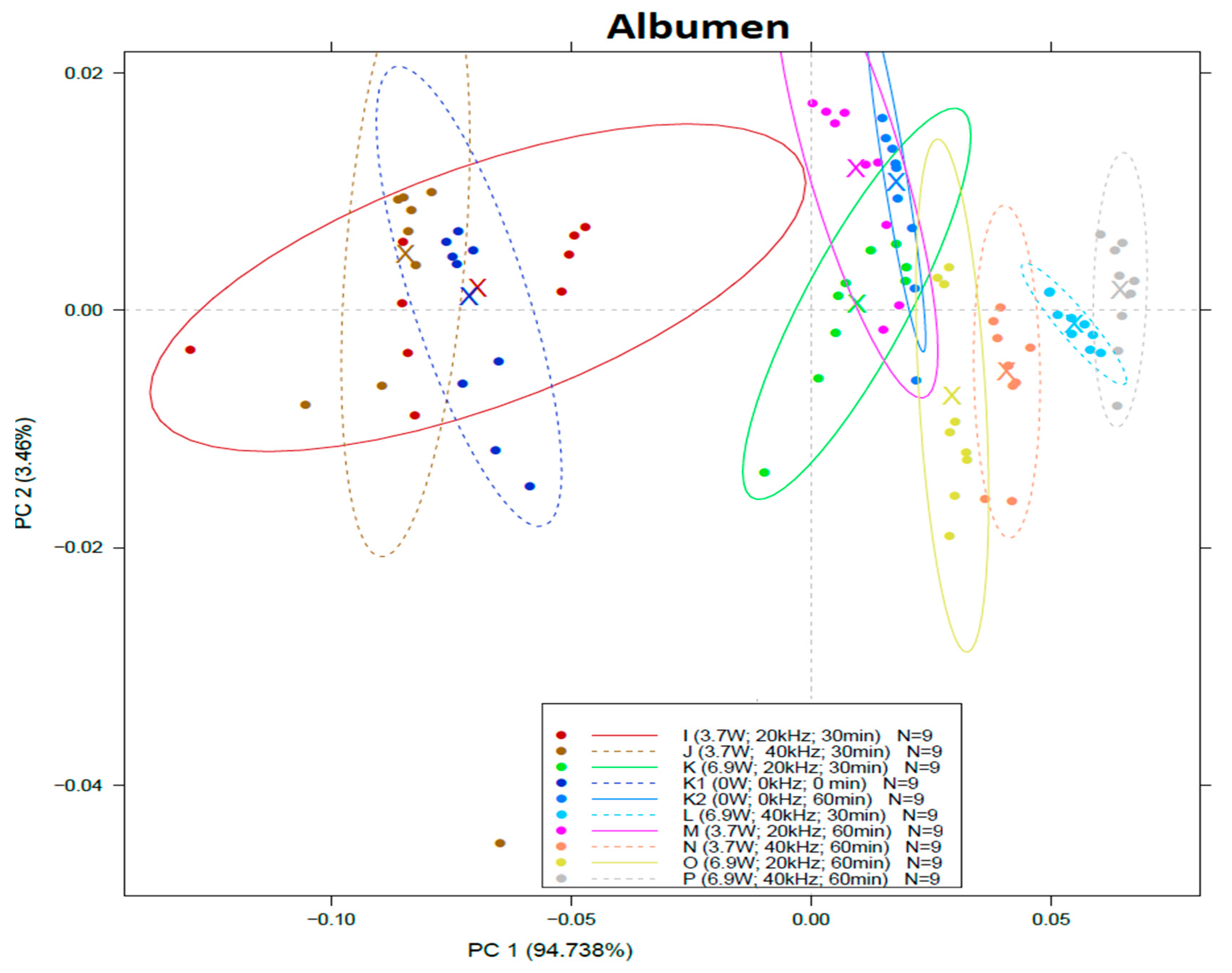

Albumen | K1 Control | K2 (0 W; 0 kHz; 60 min) | I (3.7 W; 20 kHz; 30 min) | J (3.7 W; 40 kHz; 30 min) | K (6.9 W; 20 kHz; 30 min) | L (6.9 W; 40 kHz; 30 min) | M (3.7 W; 20 kHz; 60 min) | N (3.7 W; 40 kHz; 60 min) | O (6.9 W; 20 kHz; 60 min) | P (6.9 W; 40 kHz; 60 min) |
---|---|---|---|---|---|---|---|---|---|---|
K1 | 49.44 | 2.31 | 3.01 | 2.75 | 0 | 0 | 0 | 0 | 0 | 0 |
K2 | 2.42 | 50 | 5.58 | 16.67 | 0 | 0 | 0 | 0 | 0 | 0 |
I | 44.62 | 42.07 | 50 | 11.08 | 0 | 0 | 0 | 0 | 0 | 0 |
J | 3.52 | 5.62 | 41.41 | 63.92 | 0 | 0 | 0 | 0 | 0 | 0 |
K | 0 | 0 | 0 | 0 | 88.92 | 45.26 | 2.75 | 0 | 0 | 8.33 |
L | 0 | 0 | 0 | 0 | 0 | 50 | 0 | 38.92 | 0 | 0 |
M | 0 | 0 | 0 | 0 | 0 | 4.74 | 97.25 | 0 | 0 | 0 |
N | 0 | 0 | 0 | 0 | 8.33 | 0 | 0 | 50 | 0 | 0 |
O | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 100 | 41.67 |
P | 0 | 0 | 0 | 5.58 | 2.75 | 0 | 0 | 11.08 | 0 | 50 |

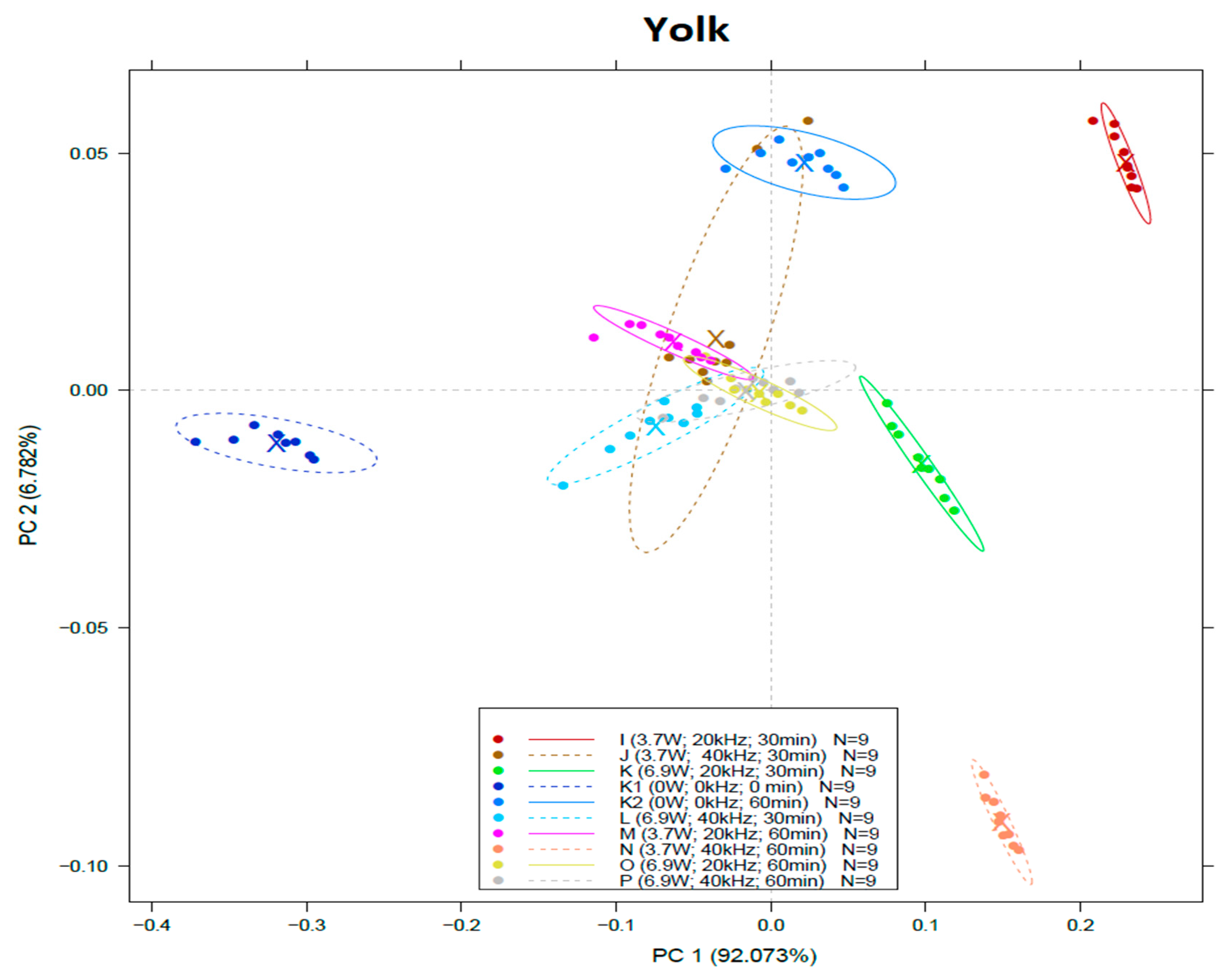

Yolk | K1 Control | K2 (0 W; 0 kHz; 60 min) | I (3.7 W; 20 kHz; 30 min) | J (3.7 W; 40 kHz; 30 min) | K (6.9 W; 20 kHz; 30 min) | L (6.9 W; 40 kHz; 30 min) | M (3.7 W; 20 kHz; 60 min) | N (3.7 W; 40 kHz; 60 min) | O (6.9 W; 20 kHz; 60 min) | P (6.9 W; 40 kHz; 60 min) |
---|---|---|---|---|---|---|---|---|---|---|
K1 | 100 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
K2 | 0 | 72.25 | 33.33 | 44.46 | 0 | 38.92 | 0 | 0 | 0 | 5.58 |
I | 0 | 27.75 | 50 | 0 | 16.67 | 0 | 0 | 0 | 0 | 0 |
J | 0 | 0 | 0 | 52.79 | 0 | 11.08 | 0 | 0 | 0 | 5.58 |
K | 0 | 0 | 16.67 | 0 | 50 | 0 | 0 | 0 | 0 | 0 |
L | 0 | 0 | 0 | 0 | 33.33 | 50 | 0 | 0 | 0 | 0 |
M | 0 | 0 | 0 | 2.75 | 0 | 0 | 100 | 50 | 0 | 0 |
N | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 50 | 0 | 0 |
O | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 100 | 0 |
P | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 88.84 |

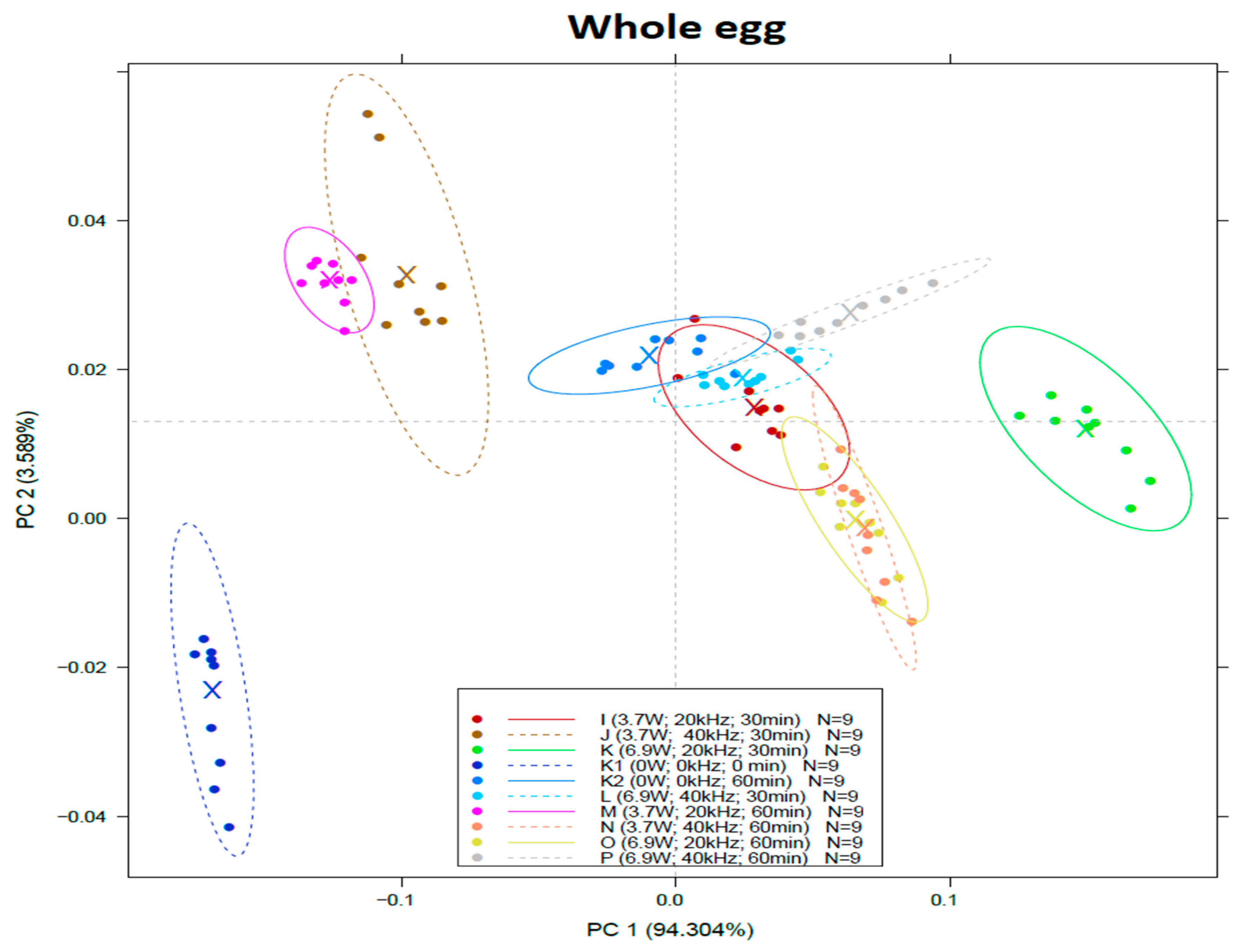

Whole Egg | K1 Control | K2 (0 W; 0 kHz; 60 min) | I (3.7 W; 20 kHz; 30 min) | J (3.7 W; 40 kHz; 30 min) | K (6.9 W; 20 kHz; 30 min) | L (6.9 W; 40 kHz; 30 min) | M (3.7 W; 20 kHz; 60 min) | N (3.7 W; 40 kHz; 60 min) | O (6.9 W; 20 kHz; 60 min) | P (6.9 W; 40 kHz; 60 min) |
---|---|---|---|---|---|---|---|---|---|---|
K1 | 91.67 | 0 | 27.75 | 44.42 | 0 | 0 | 0 | 0 | 0 | 0 |
K2 | 0 | 38.92 | 0 | 0 | 8.33 | 22.25 | 0 | 0 | 0 | 0 |
I | 2.75 | 0 | 47.25 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
J | 5.58 | 47.25 | 0 | 55.58 | 0 | 0 | 0 | 0 | 0 | 0 |
K | 0 | 11.08 | 0 | 0 | 61.08 | 0 | 0 | 0 | 0 | 0 |
L | 0 | 2.75 | 19.42 | 0 | 13.92 | 77.75 | 0 | 0 | 0 | 0 |
M | 0 | 0 | 0 | 0 | 0 | 0 | 100 | 0 | 0 | 0 |
N | 0 | 0 | 5.58 | 0 | 0 | 0 | 0 | 100 | 0 | 0 |
O | 0 | 0 | 0 | 0 | 16.67 | 0 | 0 | 0 | 100 | 0 |
P | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 100 |
