Open AccessArticle
Sensors 2018, 18(7), 2263; https://doi.org/10.3390/s18072263

Design of Security Paper with Selective Frequency Reflection Characteristics

1
Department of Information and Communication Engineering, Kongju National University, Gongju 31080, Korea
2
National Security Research Institute, Daejeon 34188, Korea
*
Author to whom correspondence should be addressed.
Received: 31 May 2018 / Revised: 8 July 2018 / Accepted: 11 July 2018 / Published: 13 July 2018
(This article belongs to the Special Issue Paper-Based Sensors)
Full-Text   |   PDF [5789 KB, uploaded 13 July 2018]   |

Abstract

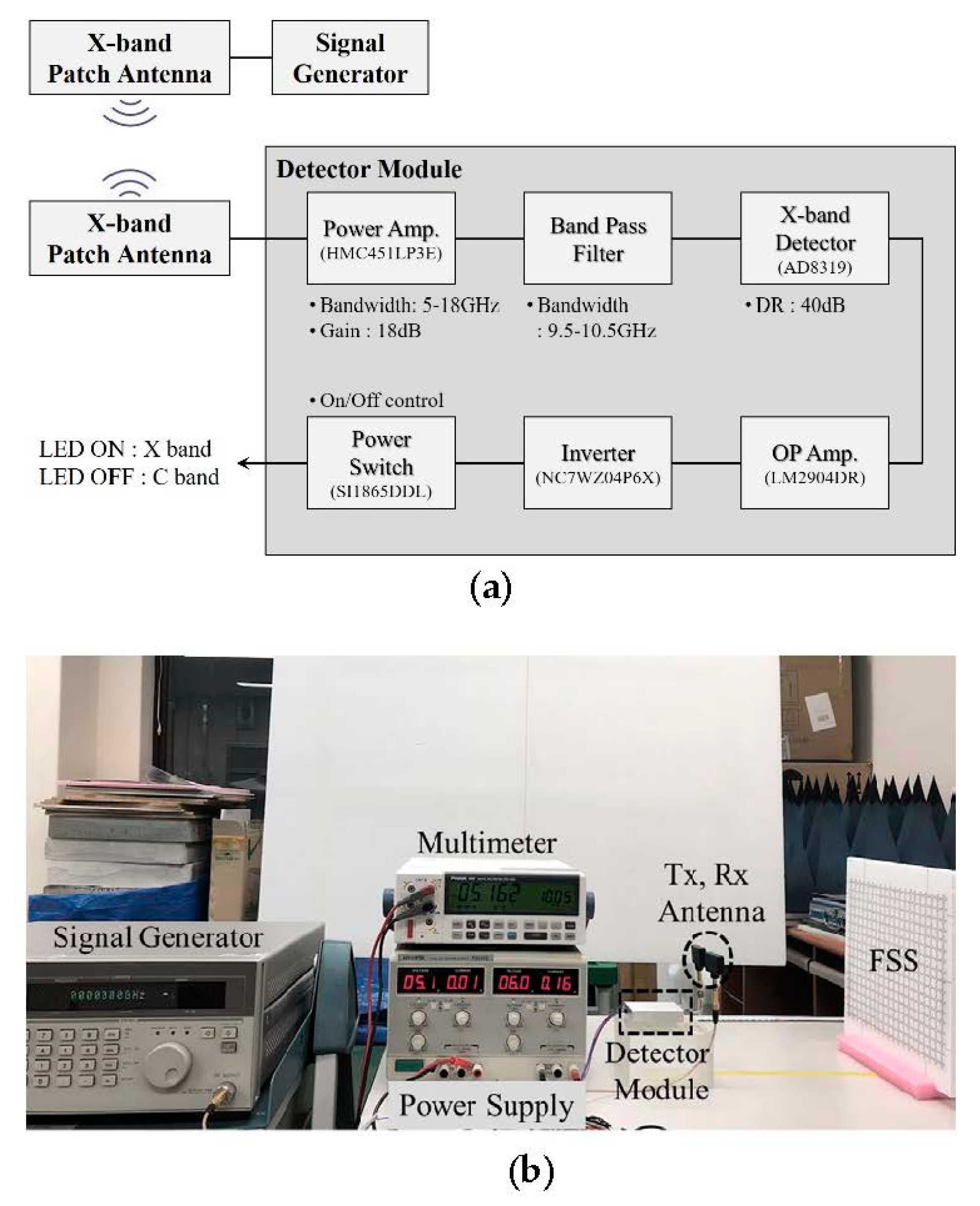

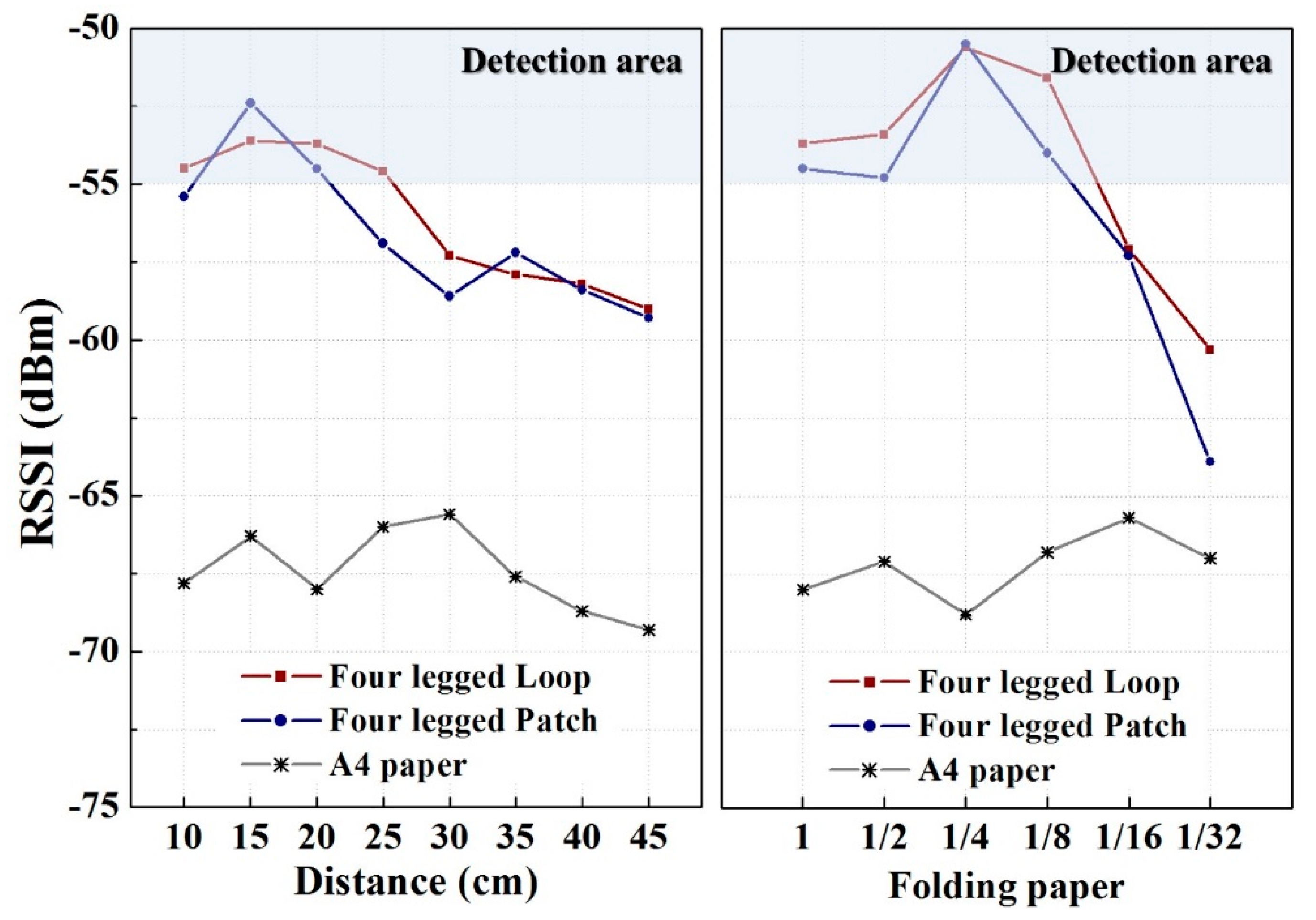

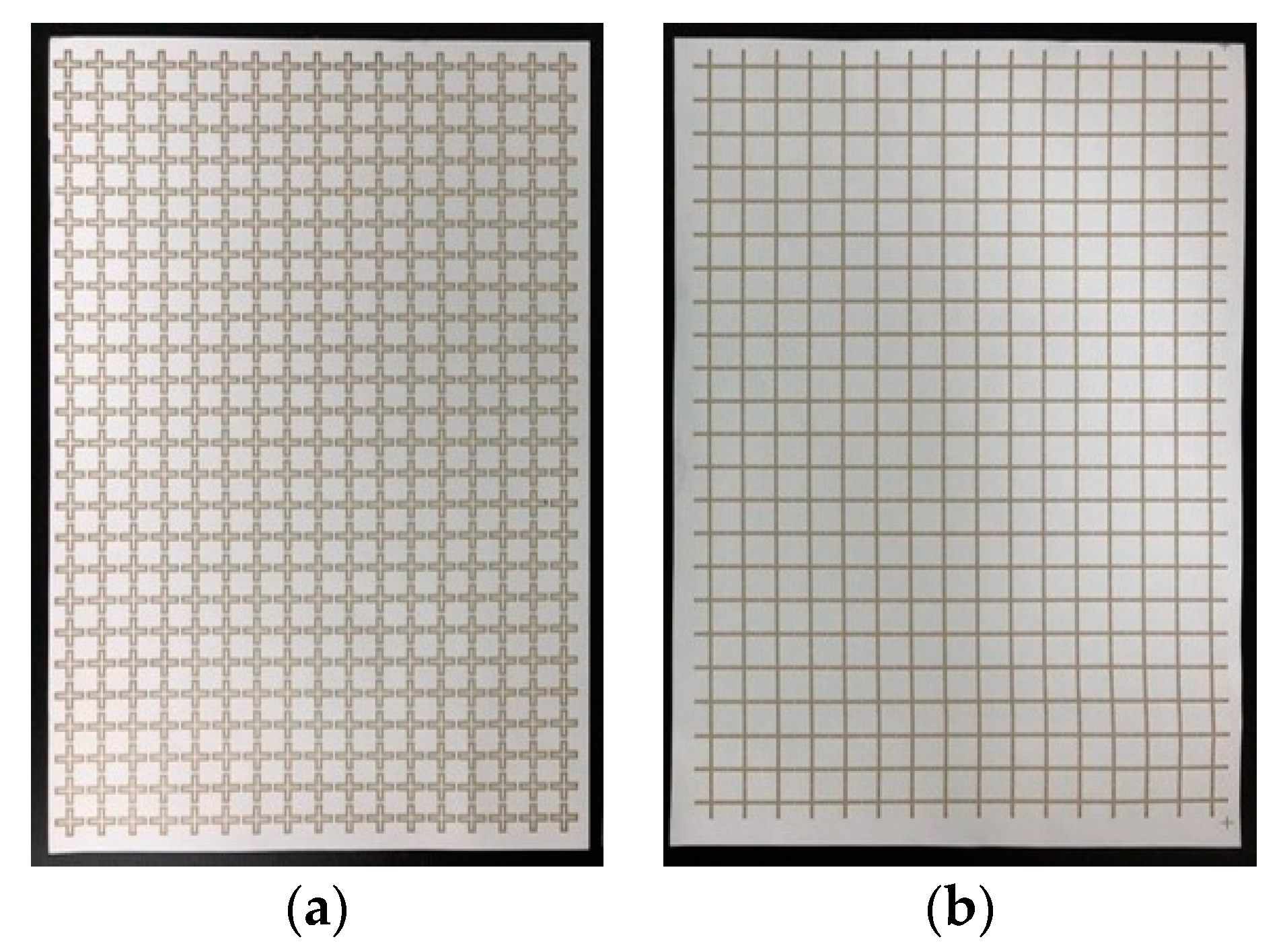

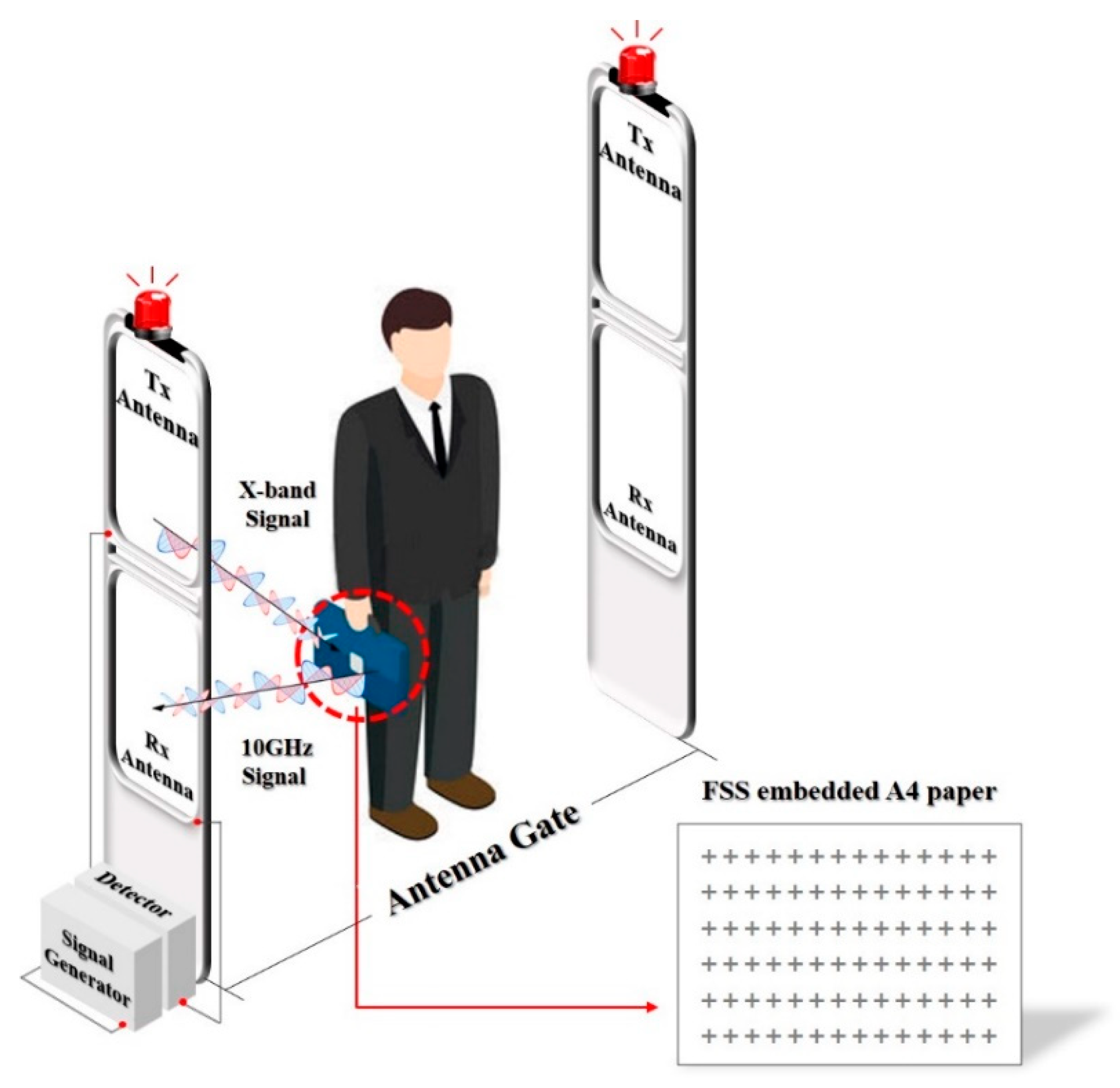

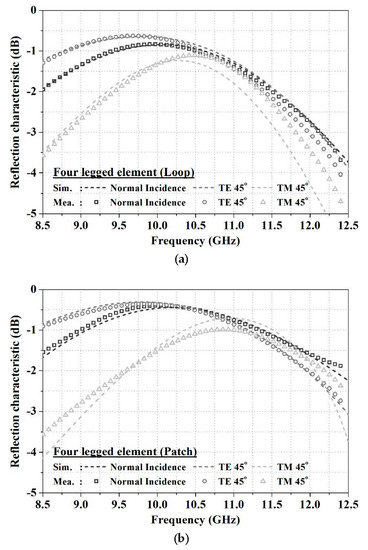

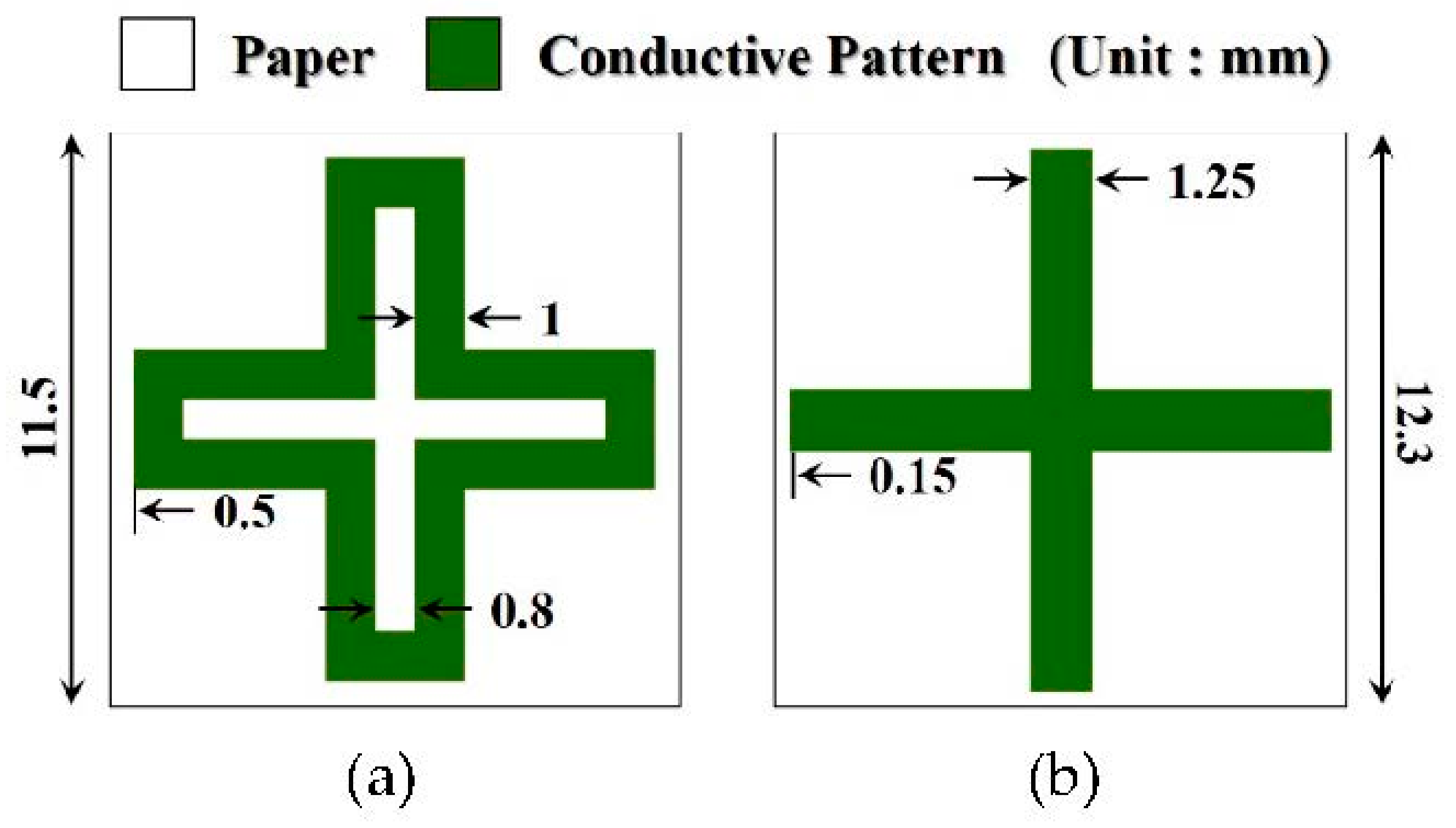

In this research, a security paper based on frequency selective structure technologies was designed and fabricated using selective wave reflection characteristics to prevent the offline leakage of confidential documents. Document leakage detection systems using security papers detect security papers using transceiving antenna gates. For the application of such systems, the structure must be designed with excellent reflection performance and stability at the angle of incidence. For this purpose, a loop and patch-type frequency selective structure based on a four-legged element structure was designed to have X-band frequency reflection characteristics. This design was based on optimized variables and was realized through the screen printing method using silver ink on A4 paper. It was verified that both the design and simulation results matched well. To verify its actual applicability, a detector module operable at 10 GHz was manufactured to observe both the security paper detection range in relation to distance with a signal strength of −10 dBm and the detection area in relation to the number of times that the security paper had been folded. View Full-Text
Keywords: security paper; frequency selective structure; document leakage detection; angle of incidence; four-legged element; screen printing method security paper; frequency selective structure; document leakage detection; angle of incidence; four-legged element; screen printing method
Figures

Figure 1
