High-Resolution Seismocardiogram Acquisition and Analysis System

Center of Micro Electro Mechanical Systems, University of Minho, 4800-058 Guimarães, Portugal
International Iberian Nanotechnology Laboratory, 4800-058 Braga, Portugal
Cardiology Department, Hospital Senhora da Oliveira, 4835-044 Guimarães, Portugal
Life and Health Sciences Research Institute (ICVS), School of Medicine, University of Minho, 4710-057 Braga, Portugal
3ICVS/3Bs PT Government Associate Laboratory, 4710-057 Braga, Portugal
Author to whom correspondence should be addressed.
Received: 7 September 2018 / Revised: 27 September 2018 / Accepted: 10 October 2018 / Published: 13 October 2018
(This article belongs to the Section Biosensors)
Full-Text   |   PDF [5126 KB, uploaded 13 October 2018]   |

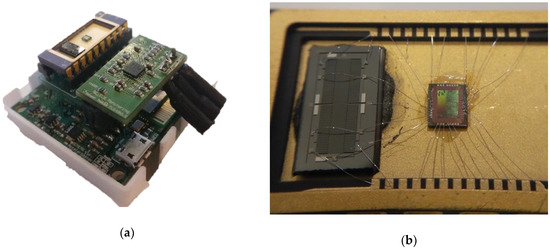

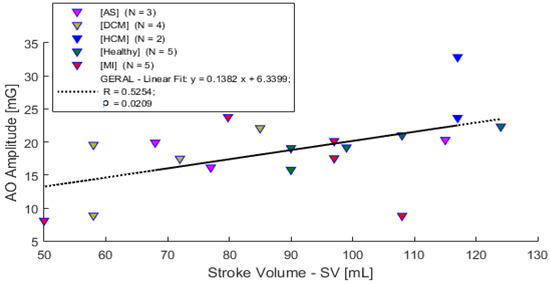

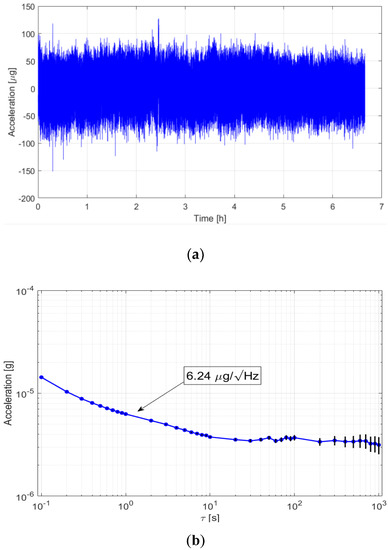

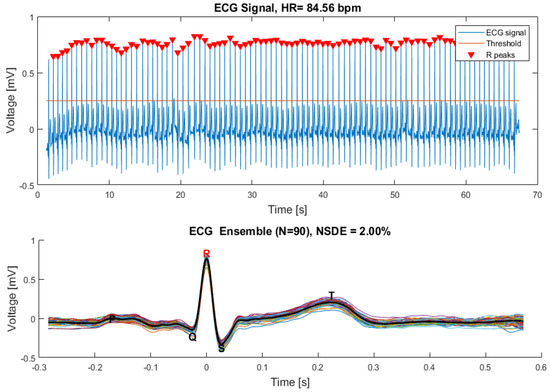

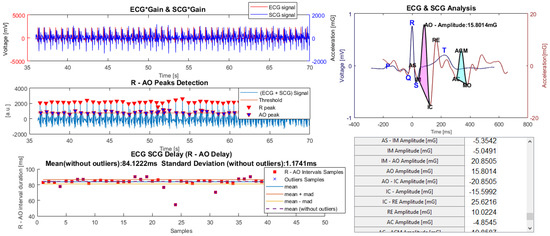

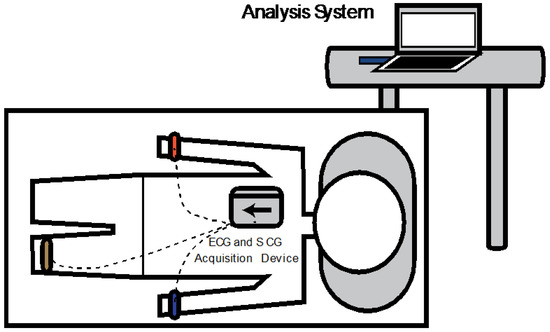

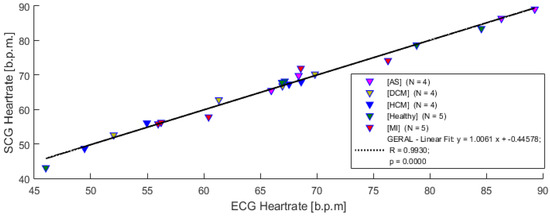

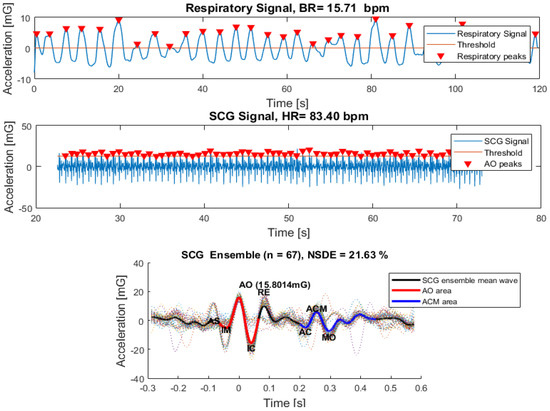

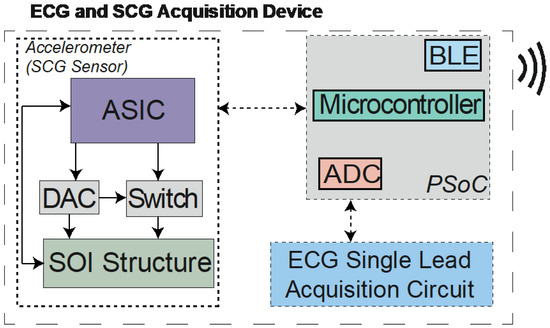

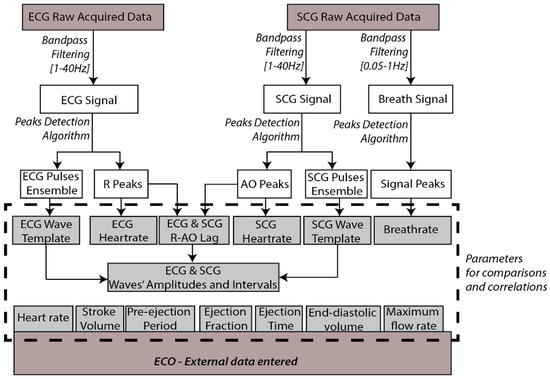

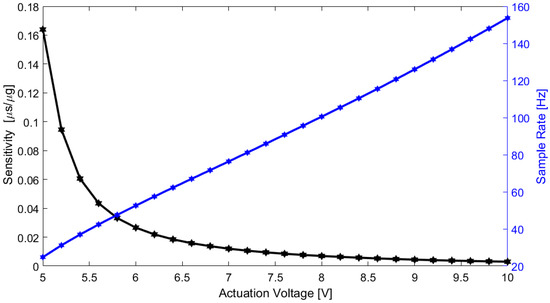

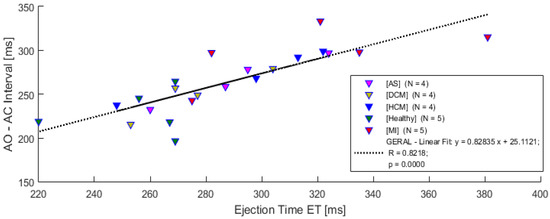

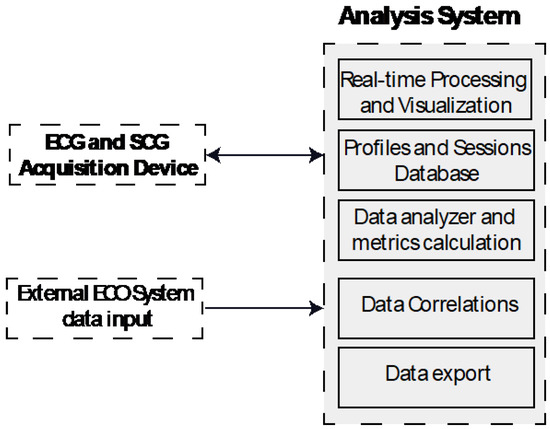

Several devices and measurement approaches have recently been developed to perform ballistocardiogram (BCG) and seismocardiogram (SCG) measurements. The development of a wireless acquisition system (hardware and software), incorporating a novel high-resolution micro-electro-mechanical system (MEMS) accelerometer for SCG and BCG signals acquisition and data treatment is presented in this paper. A small accelerometer, with a sensitivity of up to 0.164 µs/µg and a noise density below 6.5 µg/ Hz is presented and used in a wireless acquisition system for BCG and SCG measurement applications. The wireless acquisition system also incorporates electrocardiogram (ECG) signals acquisition, and the developed software enables the real-time acquisition and visualization of SCG and ECG signals (sensor positioned on chest). It then calculates metrics related to cardiac performance as well as the correlation of data from previously performed sessions with echocardiogram (ECHO) parameters. A preliminarily clinical study of over 22 subjects (including healthy subjects and cardiovascular patients) was performed to test the capability of the developed system. Data correlation between this measurement system and echocardiogram exams is also performed. The high resolution of the MEMS accelerometer used provides a better signal for SCG wave recognition, enabling a more consistent study of the diagnostic capability of this technique in clinical analysis. View Full-Text
Keywords: accelerometer; ballistocardiogram; MEMS; pull-in time; seismocardiogram accelerometer; ballistocardiogram; MEMS; pull-in time; seismocardiogram
