Chitosan/Pomegranate Seed Oil Emulgel Composition as a New Strategy for Dermal Delivery of Hydrocortisone
Abstract
:1. Introduction
2. Results and Discussion
2.1. Emulgels Characteristics
2.2. Textural Behavior
2.3. In Vitro Dissolution Profile

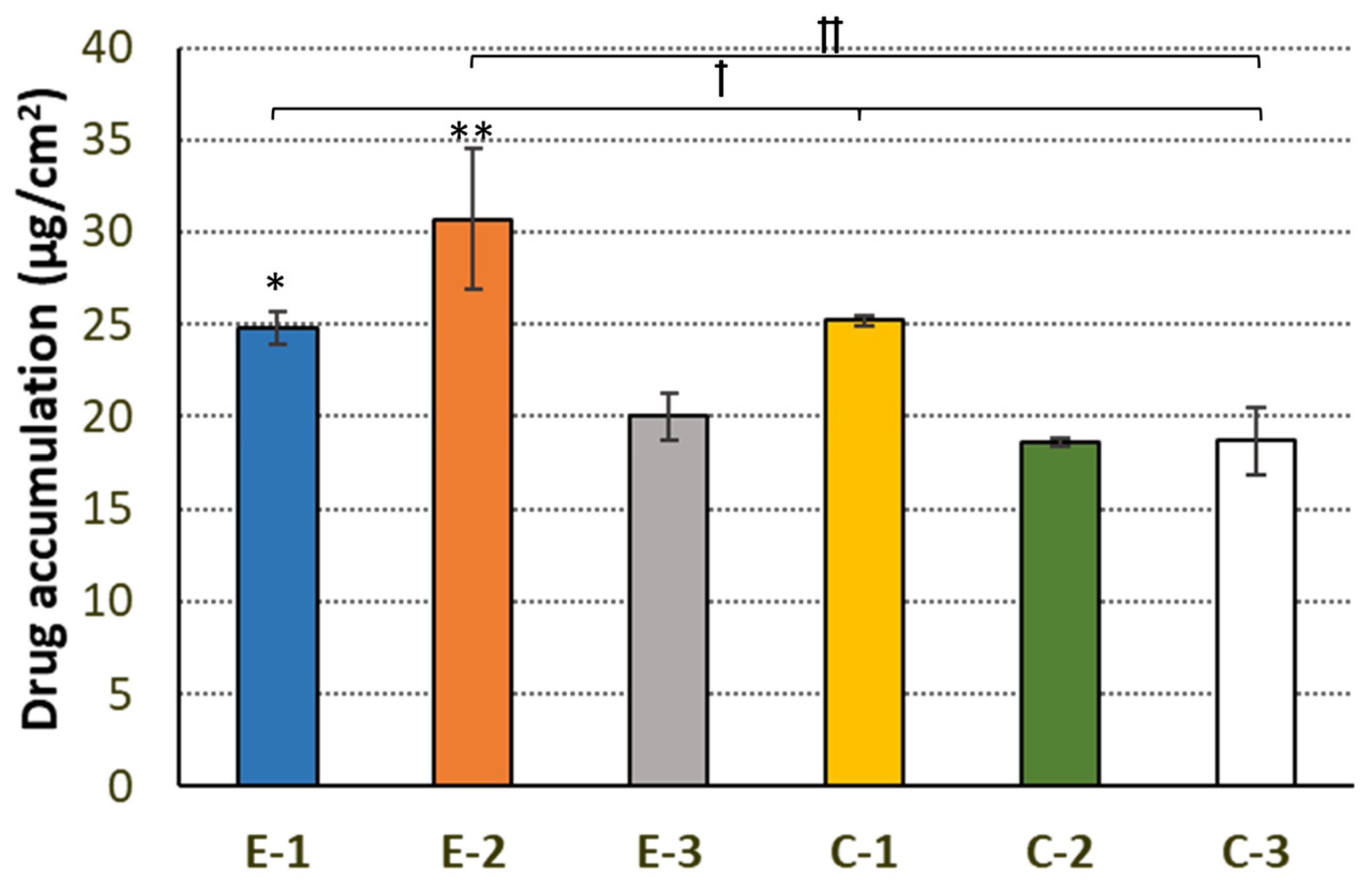

2.4. Penetration and Retention Studies
2.5. Anti-Inflammatory Activity
2.6. Agarose Overlay Assay
3. Materials and Methods
3.1. Materials
3.2. Preparation of Emulgels
3.3. HTZ Content
3.4. TEM Analysis
3.5. Textural Properties
3.6. Dissolution Studies
3.7. Permeability Studies with Skin PAMPA Assay
3.8. Retention Studies
3.9. Anti-Hyaluronidase Activity
- (a)
- Control 1 (B1): enzymes and hyaluronic acid were replaced with an acetate buffer (25.0 μL), and the extract was replaced with the extraction mixture (10.0 μL);
- (b)
- Control 2 (B2): the enzyme solution was exchanged with an acetate buffer (25.0 μL), and the extract was replaced with the extraction mixture (10.0 μL);
- (c)
- Control 3 (B3): the extract was replaced with the extraction mixture (10.0 μL);
- (d)
- Control 4 (B4): the hyaluronic acid solution was replaced with an acetate buffer (25.0 μL); and
- (e)
- Control 5 (B5): the enzyme solution was replaced with an acetate buffer (25.0 μL).
3.10. Agarose Overlay Assay
3.11. Statistical Analysis
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Barnes, P.J. Glucocorticosteroids. In Pharmacology and Therapeutics of Asthma and COPD; Handbook of Experimental Pharmacology; Springer: Cham, Switzerland, 2017; Volume 237, pp. 93–115. [Google Scholar] [CrossRef]
- Ference, J.D.; Last, A.R. Choosing Topical Corticosteroids. Am. Fam. Physician 2009, 79, 135–140. [Google Scholar] [PubMed]
- Tadicherla, S.; Ross, K.; Shenefelt, P.D.; Fenske, N.A. Topical Corticosteroids in Dermatology. J. Drugs Dermatol. 2009, 8, 1093–1105. [Google Scholar] [PubMed]
- Stacey, S.K.; McEleney, M. Topical Corticosteroids: Choice and Application. Am. Fam. Physician 2021, 103, 337–343. [Google Scholar] [PubMed]
- Hydrocortisone from: Drugs.com—Prescription Drug Information. Drugs.com. Available online: https://www.drugs.com/ (accessed on 29 January 2024).
- Gabros, S.; Nessel, T.A.; Zito, P.M. Topical Corticosteroids. In StatPearls; StatPearls Publishing: Treasure Island, FL, USA, 2023. [Google Scholar]
- Kouassi, M.-C.; Grisel, M.; Gore, E. Multifunctional Active Ingredient-Based Delivery Systems for Skincare Formulations: A Review. Colloids Surf. B Biointerfaces 2022, 217, 112676. [Google Scholar] [CrossRef] [PubMed]
- Eid, A.M.; Hawash, M.; Abualhasan, M.; Naser, S.; Dwaikat, M.; Mansour, M. Exploring the Potent Anticancer, Antimicrobial, and Anti-Inflammatory Effects of Capparis Spinosa Oil Nanoemulgel. Coatings 2023, 13, 1441. [Google Scholar] [CrossRef]
- Ezike, T.C.; Okpala, U.S.; Onoja, U.L.; Nwike, C.P.; Ezeako, E.C.; Okpara, O.J.; Okoroafor, C.C.; Eze, S.C.; Kalu, O.L.; Odoh, E.C.; et al. Advances in Drug Delivery Systems, Challenges and Future Directions. Heliyon 2023, 9, e17488. [Google Scholar] [CrossRef] [PubMed]
- Hawash, M.; Jaradat, N.; Eid, A.M.; Abubaker, A.; Mufleh, O.; Al-Hroub, Q.; Sobuh, S. Synthesis of Novel Isoxazole–Carboxamide Derivatives as Promising Agents for Melanoma and Targeted Nano-Emulgel Conjugate for Improved Cellular Permeability. BMC Chem. 2022, 16, 47. [Google Scholar] [CrossRef]
- Szymańska, E.; Wojasiński, M.; Czarnomysy, R.; Dębowska, R.; Łopianiak, I.; Adasiewicz, K.; Ciach, T.; Winnicka, K. Chitosan-Enriched Solution Blow Spun Poly(Ethylene Oxide) Nanofibers with Poly(Dimethylsiloxane) Hydrophobic Outer Layer for Skin Healing and Regeneration. Int. J. Mol. Sci. 2022, 23, 5135. [Google Scholar] [CrossRef] [PubMed]
- Singpanna, K.; Pornpitchanarong, C.; Patrojanasophon, P.; Rojanarata, T.; Ngawhirunpat, T.; Li, S.K.; Opanasopit, P. Chitosan Capped-Gold Nanoparticles as Skin Penetration Enhancer for Small Molecules: A Study in Porcine Skin. Int. J. Pharm. 2023, 640, 123034. [Google Scholar] [CrossRef] [PubMed]
- Caramella, C.; Ferrari, F.; Bonferoni, M.C.; Rossi, S.; Sandri, G. Chitosan and Its Derivatives as Drug Penetration Enhancers. J. Drug Deliv. Sci. Technol. 2010, 20, 5–13. [Google Scholar] [CrossRef]
- Lansky, E.P.; Newman, R.A. Punica Granatum (Pomegranate) and Its Potential for Prevention and Treatment of Inflammation and Cancer. J. Ethnopharmacol. 2007, 109, 177–206. [Google Scholar] [CrossRef] [PubMed]
- Pantiora, P.D.; Balaouras, A.I.; Mina, I.K.; Freris, C.I.; Pappas, A.C.; Danezis, G.P.; Zoidis, E.; Georgiou, C.A. The Therapeutic Alliance between Pomegranate and Health Emphasizing on Anticancer Properties. Antioxidants 2023, 12, 187. [Google Scholar] [CrossRef] [PubMed]
- Sharma, P.; McClees, S.F.; Afaq, F. Pomegranate for Prevention and Treatment of Cancer: An Update. Molecules 2017, 22, 177. [Google Scholar] [CrossRef] [PubMed]
- Sabalingam, S.; Siriwardhene, M.A. A Review on Emerging Applications of Emulgel as Topical Drug Delivery System. World J. Adv. Res. Rev. 2022, 13, 452–463. [Google Scholar] [CrossRef]
- Milutinov, J.; Krstonošić, V.; Ćirin, D.; Pavlović, N. Emulgels: Promising Carrier Systems for Food Ingredients and Drugs. Polymers 2023, 15, 2302. [Google Scholar] [CrossRef] [PubMed]
- Naga Sravan Kumar Varma, V.; Maheshwari, P.V.; Navya, M.; Reddy, S.C.; Shivakumar, H.G.; Gowda, D.V. Calcipotriol Delivery into the Skin as Emulgel for Effective Permeation. Saudi Pharm. J. 2014, 22, 591–599. [Google Scholar] [CrossRef] [PubMed]
- Pachauri, A.; Chitme, H.; Visht, S.; Chidrawar, V.; Mohammed, N.; Abdel-Wahab, B.A.; Khateeb, M.M.; Habeeb, M.S.; Orabi, M.A.A.; Bakir, M.B. Permeability-Enhanced Liposomal Emulgel Formulation of 5-Fluorouracil for the Treatment of Skin Cancer. Gels 2023, 9, 209. [Google Scholar] [CrossRef]
- Jagdale, S.; Pawar, S. Gellified Emulsion of Ofloxacin for Transdermal Drug Delivery System. Adv. Pharm. Bull. 2017, 7, 229–239. [Google Scholar] [CrossRef] [PubMed]
- Nikumbh, K.V.; Sevankar, S.G.; Patil, M.P. Formulation Development, in vitro and in vivo Evaluation of Microemulsion-Based Gel Loaded with Ketoprofen. Drug Deliv. 2015, 22, 509–515. [Google Scholar] [CrossRef] [PubMed]
- Sabu, K.R.; Basarkar, G.D. Formulation, Development and In-Vitro Evaluation of Terbinafine Hydrochloride Emulgel for Topical Fungal Infection. Int. J. Pharm. Sci. Rev. Res. 2013, 21, 168–174. [Google Scholar]
- Karami, F.; Torabiardekani, N.; Moradi, M.; Zare, A.; Mojahedtaghi, M.; Khorram, M.; Jafari, M.; Jabrodini, A.; Kamkar, M.; Zomorodian, K.; et al. Chitosan-Based Emulgel and Xerogel Film Containing Thymus Pubescens Essential Oil as a Potential Wound Dressing. Carbohydr. Polym. 2023, 318, 121156. [Google Scholar] [CrossRef]
- Tebcharani, L.; Wanzke, C.; Lutz, T.M.; Rodon-Fores, J.; Lieleg, O.; Boekhoven, J. Emulsions of Hydrolyzable Oils for the Zero-Order Release of Hydrophobic Drugs. J. Control. Release 2021, 339, 498–505. [Google Scholar] [CrossRef] [PubMed]
- Salih, Z.T.; Gawhari, F.A.; Rajab, N.A. Preparation, Release, Rheology and Stability of Piroxicam Emulgel. Int. J. Appl. Pharm. 2018, 10, 26–29. [Google Scholar] [CrossRef]
- Cai, M.; Zhang, G.; Li, C.; Chen, X.; Cui, H.; Lin, L. Pleurotus Eryngii Polysaccharide Nanofiber Containing Pomegranate Peel Polyphenol/Chitosan Nanoparticles for Control of E. coli O157:H7. Int. J. Biol. Macromol. 2021, 192, 939–949. [Google Scholar] [CrossRef] [PubMed]
- Kumar, N.; Pratibha; Trajkovska Petkoska, A.; Khojah, E.; Sami, R.; Al-Mushhin, A.A.M. Chitosan Edible Films Enhanced with Pomegranate Peel Extract: Study on Physical, Biological, Thermal, and Barrier Properties. Materials 2021, 14, 3305. [Google Scholar] [CrossRef] [PubMed]
- Chattopadhyay, D.P.; Inamdar, M.S. Aqueous Behaviour of Chitosan. Int. J. Polym. Sci. 2011, 2010, e939536. [Google Scholar] [CrossRef]
- Sari, R.; Sugiarto, M.L.L.; Amirah, W.; Yusuf, H. The Effect of Chitosan Type and Concentration on Physical Characteristics and Drug Release Behavior of Andrographolide-Chitosan Microparticles Prepared by Ionic Gelation—Freeze Drying. In Proceedings of the International Conference on Applied Pharmaceutical Sciences (ICoAPS) 2018, Rochester, NY, USA, 30 September 2019. [Google Scholar] [CrossRef]
- Bonferoni, M.C.; Sandri, G.; Dellera, E.; Rossi, S.; Ferrari, F.; Mori, M.; Caramella, C. Ionic Polymeric Micelles Based on Chitosan and Fatty Acids and Intended for Wound Healing. Comparison of Linoleic and Oleic Acid. Eur. J. Pharm. Biopharm. 2014, 87, 101–106. [Google Scholar] [CrossRef] [PubMed]
- The European Pharmacopoeia 10.0; Council of Europe: Strasbourg, France, 2020; Volume 1.
- Yee, S. In Vitro Permeability across Caco-2 Cells (Colonic) Can Predict in vivo (Small Intestinal) Absorption in Man–Fact or Myth. Pharm. Res. 1997, 14, 763–766. [Google Scholar] [CrossRef]
- Christensen, J.M.; Chuong, M.C.; Le, H.; Pham, L.; Bendas, E. Hydrocortisone Diffusion through Synthetic Membrane, Mouse Skin, and EpidermTM Cultured Skin. Arch. Drug Inf. 2011, 4, 10–21. [Google Scholar] [CrossRef]
- Godin, B.; Touitou, E. Transdermal Skin Delivery: Predictions for Humans from In Vivo, Ex Vivo and Animal Models. Adv. Drug Deliv. Rev. 2007, 59, 1152–1161. [Google Scholar] [CrossRef] [PubMed]
- Liu, W.; Zhao, Q.; Lv, L.; Yan, S.; Song, Q.; Chen, T.; Yao, Q. Pomegranate Seed Oil Enhances the Percutaneous Absorption of Trans-Resveratrol. J. Oleo Sci. 2018, 67, 479–487. [Google Scholar] [CrossRef]
- Szymańska, E.; Krzyżowska, M.; Cal, K.; Mikolaszek, B.; Tomaszewski, J.; Wołczyński, S.; Winnicka, K. Potential of Mucoadhesive Chitosan Glutamate Microparticles as Microbicide Carriers—Antiherpes Activity and Penetration Behavior across the Human Vaginal Epithelium. Drug Deliv. 2021, 28, 2278–2288. [Google Scholar] [CrossRef] [PubMed]
- Dovedytis, M.; Liu, Z.J.; Bartlett, S. Hyaluronic Acid and Its Biomedical Applications: A Review. Eng. Regen. 2020, 1, 102–113. [Google Scholar] [CrossRef]
- Hamouda, A.F.; Felemban, S. Biochemical Pilot Study on Effects of Pomegranate Seed Oil Extract and Cosmetic Cream on Neurologically Mediated Skin Inflammation in Animals and Humans: A Comparative Observational Study. Molecules 2023, 28, 903. [Google Scholar] [CrossRef] [PubMed]
- Paczkowska-Walendowska, M.; Cielecka-Piontek, J. Chitosan as a Functional Carrier for the Local Delivery Anti-Inflammatory Systems Containing Scutellariae Baicalensis Radix Extract. Pharmaceutics 2022, 14, 2148. [Google Scholar] [CrossRef] [PubMed]
- Czechowska-Biskup, R.; Rosiak, J. Determination of Degree of Deacetylation of Chitosan—Comparison of Methods. Prog. Chem. Appl. Chitin Its Deriv. 2012, 17, 5–20. [Google Scholar]
- European Directorate for the Quality of Medicines. European Pharmacopeia, 10th ed.; European Directorate for the Quality of Medicines: Strasburg, France, 2019. [Google Scholar]
- Haq, A.; Goodyear, B.; Ameen, D.; Joshi, V.; Michniak-Kohn, B. Strat-M® Synthetic Membrane: Permeability Comparison to Human Cadaver Skin. Int. J. Pharm. 2018, 547, 432–437. [Google Scholar] [CrossRef] [PubMed]
- Paczkowska-Walendowska, M.; Gościniak, A.; Szymanowska, D.; Szwajgier, D.; Baranowska-Wójcik, E.; Szulc, P.; Dreczka, D.; Simon, M.; Cielecka-Piontek, J. Blackberry Leaves as New Functional Food? Screening Antioxidant, Anti-Inflammatory and Microbiological Activities in Correlation with Phytochemical Analysis. Antioxidants 2021, 10, 1945. [Google Scholar] [CrossRef] [PubMed]
- EN ISO 10993-5:2009; Biological Evaluation of Medical Devices. Part 5: Tests for In Vitro Cytotoxicity. International Organization for Standardization: Geneva, Switzerland, 2009.
Component (%) | Formulation | |||
---|---|---|---|---|
Emulgel o/w | Emulgel w/o | |||
E-1 | E-2 | E-3 | E-4 | |
HTZ | 1.0 | 1.0 | 1.0 | 1.0 |
Glycerolum | 1.0 | 1.0 | 1.0 | 1.0 |
Lecithin | 5.0 | 5.0 | 5.0 | 5.0 |
Cetostearic acid | - | 2.0 | 2.0 | 2.0 |
Pomegranate oil | 20.0 | 40.0 | 80.0 | 60.0 |
CS 3% (w/w) in 1% lactic acid | 80.0 | 60.0 | 20.0 | 40.0 |
Parameter | Formulation | |||
---|---|---|---|---|
Emulgel o/w | Emulgel w/o | |||
E-1 CS/PO 8:2 | E-2 CS/PO 6:4 | E-3 CS/PO 2:8 | E-4 CS/PO 4:6 | |
pH * | 5.7 ± 0.1 | 5.7 ± 0.1 | 5.9 ± 0.1 | 5.8 ± 0.1 |
Drug content uniformity (%) * | 105.6 ± 4.2 | 98.6 ± 1.8 | 93.1 ± 2.9 | 92.7 ± 7.1 |
Soluble fraction of HTZ (%) * | 25.1 ± 0.2 | 25.7 ± 0.1 | 27.2 ± 0.3 | 26.6 ± 0.2 |
Physical stability upon centrifugation | uniform | uniform | phase separation | phase separation |
Time | E-1 | E-2 | E-3 | Control 1 | Control 2 | Control 3 |
---|---|---|---|---|---|---|
Papp × 10−6 cm/s | ||||||
4 h | 0.30 ± 0.01 b | 0.30 ± 0.02 b | 0.59 ± 0.15 a | 0.10 ± 0.03 b | 0.72 ± 0.22 a | 0.23 ± 0.16 b |
24 h | 3.04 ± 0.85 a | 2.22 ± 0.84 a | 1.86 ± 0.62 a | 0.67 ± 0.39 b | 0.83 ± 0.08 b | 0.35 ± 0.24 b |
E-1 | E-2 | E-3 | Control 1 | Control 2 | Control 3 |
---|---|---|---|---|---|
IC50 [mg emulgel/mL] | IC50 [mg/mL] | ||||
76.03 ± 2.47 c | 19.46 ± 1.41 a | 18.69 ± 0.15 a | 16.91 ± 2.19 a | 63.47 ± 1.56 b | >1 |
Sample | Diameter of Lysis Area | Area of Lysis Zone | Morphological Assessment | Grade |
---|---|---|---|---|
PC | 21.34 mm | 3.87 cm2 | All cells were lysed within the area | 4 |
NC | None | None | Cells without any morphological changes | 0 |
E-1 | None | None | Cells under the filter disc with a sign of slight degeneration | 1 |
E-2 | None | None | Cells without any morphological changes | 0 |
E-3 | None | None | Cells without any morphological changes | 0 |
P-1 | None | None | Cells without any morphological changes | 0 |
P-2 | None | None | Cells without any morphological changes | 0 |
P-3 | None | None | Cells without any morphological changes | 0 |
Grade | Reactivity | Condition of a Culture and Lysis Zone |
---|---|---|
0 | None | No cell lysis zone |
1 | Slight | Slight growth inhibition, cells partially degenerated under the filter disc |
2 | Mild | Higher growth inhibition, no more than 50%, lysis zone restricted to the place under the filter disc |
3 | Moderate | More than 50% of growth inhibition, radius of lysis zone <1 cm around the filter disc |
4 | Severe | Nearly complete or complete destruction of cells, radius of lysis zone >1 cm around the filter disc |
