Review

Molecular Regulation of Nitrate Responses in Plants

by
Lufei Zhao
1,2,†,
Fei Liu
1,†,
Nigel M. Crawford
3 and
Yong Wang
1,*
1
State Key Laboratory of Crop Biology, College of Life Sciences, Shandong Agricultural University, Tai’an 271018, China
2
College of Agronomy, Liaocheng University, Liaocheng 252059, China
3
Section of Cell and Developmental Biology, Division of Biological Sciences, University of California at San Diego, La Jolla, CA 92093-0116, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2018, 19(7), 2039; https://doi.org/10.3390/ijms19072039
Submission received: 9 June 2018 / Revised: 9 July 2018 / Accepted: 10 July 2018 / Published: 13 July 2018
(This article belongs to the Special Issue Regulation of Mineral Nutrients Homeostasis and Their Crosstalk in Plants)
Browse Figures
Versions Notes

Abstract

:
Nitrogen is an essential macronutrient that affects plant growth and development. Improving the nitrogen use efficiency of crops is of great importance for the economic and environmental sustainability of agriculture. Nitrate (NO3−) is a major form of nitrogen absorbed by most crops and also serves as a vital signaling molecule. Research has identified key molecular components in nitrate signaling mainly by employing forward and reverse genetics as well as systems biology. In this review, we focus on advances in the characterization of genes involved in primary nitrate responses as well as the long-term effects of nitrate, especially in terms of how nitrate regulates root development.

Graphical Abstract

1. Introduction

Nitrogen is an essential macronutrient for plant growth and development and most terrestrial plants absorb nitrate as their main nitrogen source. In agricultural systems, nitrate supply directly affects plant growth and crop productivity [1,2]. In many developed and developing countries, excessive nitrogen fertilizer is applied in agriculture, while the nitrogen use efficiency (NUE) of crops is low. Therefore, a large fraction of the applied nitrogen cannot be taken up by plants and is lost into the environment, resulting in serious problems such as eutrophication and nitrate pollution of underground water. These problems must be addressed. One approach is to improve the NUE of crops, which could reduce the load of nitrogen fertilizers on farm land and natural ecosystems. Elucidating the mechanisms and the underlying network of nitrate regulation would provide a theoretical basis and guiding framework for improving NUE.
Nitrate is absorbed from the external environment into the roots by nitrate transporters (NRT1s and NRT2s). A part of the nitrate imported into cells is reduced and assimilated into amino acid through a series of enzymes including nitrate reductase (NR), nitrite reductase (NiR), glutamine synthase (GS), and glutamate synthase (GOGAT). Nitrate acts as a nutrient and as an important signal to regulate gene expression, plant growth, and development [3]. Nitrate signaling can be divided into short-term and long-term effects. The short-term effect is referred to as the primary nitrate response, in view of the fact that many genes can be regulated after a short period of exposure to nitrate inputs. Indeed, some genes involved in nitrate transport (NRTs) and reduction (NIAs and NiR) are induced in a matter of minutes [4,5,6,7,8]. The long-term effects include the impact of nitrate on plant growth and development after a longer period of time, including effects on the morphogenesis of roots, plant flowering, seed dormancy, stomatal closure independent of abscisic acid, the circadian rhythm, and the transport of auxin [9,10,11,12,13,14]. Among these aspects, the effects of nitrate on root development are well studied and several essential genes involved in this process have been identified. Here we review the genes involved in the primary nitrate response and describe their functions in nitrate signaling (Table 1). Then we summarize the relationship between nitrate availability and root system architecture and the roles of the characterized genes that control root growth and development in response to local and systemic nitrate signals (Table 1).

2. Short-Term Nitrate Signaling: The Primary Nitrate Response

In the late 1990s, molecular components involved in nitrate signaling were identified in bacteria and fungi [15]. In Escherichia coli, both NARX and NARQ containing a P-box domain were found to be responsible for nitrate binding and could activate the nitrate-regulating proteins NarL and NarP, which are essential for nitrate sensing. Therefore, these two genes are nitrate regulators in E. coli [15,16,17]. In fungi, two transcription factors NirA and Nit4 have been identified as important nitrate regulators. NirA is needed for the expression of nitrate reductase and Nit4 may interact with nitrate reductase directly. Both proteins were demonstrated to activate their target genes that can respond to nitrate [15,18,19,20].
In plants, some genes encoding proteins required for nitrate assimilation, transport, and energy and carbon metabolism are rapidly induced after nitrate treatment [6,8,10]. These are regarded as primary nitrate-responsive genes. Scientists have characterized a few of the regulators playing important roles in primary nitrate responses, mainly by employing methodologies in forward and reverse genetics as well as systems biology.

2.1. Nitrate Sensor

NRT1.1, also called CHL1 and NPF6.3, belongs to the NRT1/PTR family (NPF) [15,21]. Previously, NRT1.1 was identified as a dual-affinity nitrate transporter working in both low and high nitrate concentrations [22,23,24,25]. Subsequently, it was shown that NRT1.1 controlled root architecture by acting as a potential nitrate sensor [26,27]. Then in 2009 it was found that NRT1.1 is involved in the primary nitrate response [28,29]. Using a forward genetic screen, the Crawford lab identified a mutant with a defective response to nitrate, and the mutation was localized to NRT1.1 [29]. Characterization of the mutant revealed that expression of the primary nitrate-responsive genes NIA1, NiR, and NRT2.1 was significantly inhibited when plants were grown in the presence of ammonium. Interestingly, the regulatory role of NRT1.1 was lost when ammonium was absent because the expression of these nitrate-responsive genes was restored in the mutant without ammonium [29], indicating that other nitrate sensor(s) were present and dominated in the absence of ammonium. The Tsay lab also showed that a null mutant of NRT1.1, chl1-5, lost both nitrate uptake and primary nitrate response functions [28]. They then described an allele of NRT1.1 (chl1-9) that was defective in nitrate uptake but not nitrate regulation. These results indicate that the primary nitrate response was defective in the mutant chl1-5 but not in chl1-9, and the function of NRT1.1 in nitrate signaling is independent of its uptake activity, thereby identifying NRT1.1 as a nitrate sensor [28]. This research also found that when NRT1.1 was phosphorylated at a low nitrate concentration, it was involved in maintaining the low-level primary response; when it was dephosphorylated under a high nitrate concentration, it led to a high-level primary response [28].
More recent work has shown that NRT1.1-mediated regulation is quite complex in that it activates distinct signaling mechanisms (see below for more details) [30]. Furthermore, a rice homolog of AtNRT1.1 (OsNRT1.1B) has been identified, and variations in this gene in the rice (Oryza sativa) sub-species indica have been identified as boosting the absorption of nitrate and the transport of nitrate from roots to shoots, and potentially enhance NUE in rice [31].

2.2. Transcription Factors

Another important nitrate regulator is the transcription factor NLP7, which belongs to the NIN (nodule inception protein)-like protein family in Arabidopsis. The NIN protein family was originally found to function in the initiation of nodule development in legume species and these family members are conserved in higher plants and algae [32,33,34,35]. The NIT2 protein is a homologue of the NIN family in Chlamydomonas and can bind to the promoter of the nitrate reductase gene [35,36]. In Arabidopsis, NLP7 has been demonstrated to be an important positive regulator of primary nitrate response as the induction of the nitrate-responsive genes NIA1, NIA2, NRT2.1, and NRT2.2 is inhibited and nitrate assimilation is also impaired in nlp7 mutants [35,37].
The function of NLP7 in nitrate signaling was further confirmed by the identification of the nlp7 mutant in an effort to explore novel nitrate regulators by using a forward genetics approach [29]. ChIP-chip analysis revealed that NLP7 could bind 851 genes including genes involved in N metabolism and nitrate signaling, such as NRT1.1, CIPK8, LBD37/38, and NRT2.1 [38]. A recent study found that NLP7 could regulate the expression of NRT1.1 in the presence of ammonium and bind directly to the promoter of NRT1.1. These findings illustrate that NLP7 works upstream of NRT1.1 directly when ammonium is present [39]. NLP7 can also activate or repress nitrate-responsive genes [38,40].
The Arabidopsis thaliana genome encodes nine NLPs, all of which contain the conserved RWP-RK domain and the PB1 domain. Members of this family can be divided into four subgroups: NLP1 and 2, NLP4 and 5, NLP6 and 7, and NLP8 and 9 [34,35]. Yeast one-hybrid (Y1H) screening using four copies of the nitrate response cis-element (NRE) illustrated that all NLPs could bind to the NRE element [41]. In response to nitrate, the transcript levels of NLP genes are not regulated, but examination of an NLP7-green fluorescent protein (GFP) fusion revealed that localization of NLP7 was modulated by nitrate via a nuclear retention mechanism [38,41]. Recently, this localization of NLP7 was identified to occur when Ser205 in NLP7 was phosphorylated in vivo in the presence of nitrate [42].
Suppression of the NLP6 function resulted in the downregulation of nitrate-responsive genes, indicating that NLP6 is also a master nitrate regulatory gene involved in primary response [41]. Further characterization has shown that the N-terminal region of NLP6 is necessary for its activation in response to nitrate signaling [41]. Furthermore, using overexpression lines, NLP7 was revealed to significantly improve plant growth under nitrogen-poor and -rich conditions [37]. Moreover, ZmNLP4 and ZmNLP8, maize homologs of AtNLP7, play essential roles in nitrate signaling and assimilation and promote plant growth and yield under low nitrate conditions, implying that they may be potential candidates for improving the NUE of maize (Zea mays) [43].
In addition to NLPs, reverse genetics has identified LBD37/38/39 to be important nitrate regulators [44,45]. LBD37/38/39 belong to a gene family encoding zinc-finger DNA binding transcription factors and are strongly induced by nitrate. Further characterization revealed that overexpression of LBD37/38/39 can repress the expression of nitrate-responsive genes including NRT2.1, NRT2.2, NIA1, and NIA2, indicating that the three LBD members function as negative regulators in nitrate signaling [44].
Recently, following advances in bioinformatics and global sequencing analysis, systems biology approaches have been developed and successfully applied to plant nitrogen research. The transcription factors SPL9, TGA1, and TGA4 have been sequentially identified by systems approaches. SPL9 was predicted to be a potential regulatory hub and may target sentinel primary nitrate-responsive genes [46]. Research has demonstrated that miR156 can target SPL9 and a mutation in the miR156 caused overexpression of SPL9 [47]. Accordingly, miR156-resistant SPL9 transgenic plants (the rSPL9 mRNA resulting from the modified gene is resistant to degradation by miR156) were investigated and it was revealed that the transcript levels of NRT1.1, NIA2, and NIR significantly increased in response to nitrate, demonstrating that SPL9 plays a negative role in the primary nitrate response [46].
TGA1 and TGA4 belong to the bZIP transcription factor family and are induced by nitrate in roots [48]. Interestingly, induction of TGA1 and TGA4 is inhibited in chl1-5 and chl1-9 mutants after nitrate treatment, implying that the regulation of TGA1 and TGA4 by nitrate is affected by nitrate transport, but not the signaling function of NRT1.1 [48]. Transcriptome analysis of the roots of tga1 tga4 double mutant plants revealed that most of the genes differentially expressed in the double mutant were regulated by nitrate. Among these target genes of TGA1 and TGA4, induction of NRT2.1 and NRT2.2 was substantially reduced in the double mutants. Further analysis demonstrated that TGA1 could bind to NRT2.1 and NRT2.2 promoters to positively regulate their expression [48]. These results all serve to suggest that TGA1 and TGA4 play important roles in the primary nitrate response.
Recently, Shuichi’s lab found that nitrate-inducible GARP-type transcriptional repressor1 proteins (NIGT1s) act as central regulators in nitrate signaling [49]. Co-transfection assays revealed that NIGT1-clade genes including NIGT1.1/HHO3, NIGT1.2/HHO2, NIGT1.3/HHO1, and NIGT1.4/HRS1 were all induced by nitrate and were redundant in repressing the nitrate-dependent activation of NRT2.1. EMSA and chromatin immunoprecipitation–quantitative PCR (ChIP-qPCR) analysis further showed that NIGT1.1 could directly bind to the promoter of NRT2.1 [49]. Transcriptome and co-transfection analysis also illustrated that the expression of NIGT1s was autoregulated and controlled by NLPs. In addition, NIGT1.1 can suppress the activation of NRT2.1 by NLP7 [49]. Further investigation suggested that the regulation of NRT2.1 by NIGT1.1 and NLP7 is independent due to their distinct binding sites. A genome-wide survey discovered the potential target genes that might be regulated by both NLP-mediated activation and NLP-NIGT1 transcriptional cascade-mediated repression or the NLP-NIGT1 cascade alone [49]. Furthermore, phosphate starvation response 1 (PHR1), the master regulator of P-starvation response, also directly enhanced the expression of NIGT1-clade genes, serving to reduce nitrate uptake [49,50].

2.3. Protein Kinases

CIPK8 and CIPK23 are calcineurin B-like (CBL)-interacting protein kinases. CIPK8 is induced rapidly by nitrate and downregulated in the chl1-5 mutant. Analysis of two independent T-DNA insertion lines (cipk8-1 and cipk8-2) showed that induction of NRT1.1, NRT2.1, NIA1, NIA2, and NiR by nitrate was reduced in cipk8 mutants indicating that CIPK8 works as a positive regulator in the primary nitrate response [51]. Further investigation revealed that CIPK8 regulated the nitrate-induced expression of NRT1.1 and NRT2.1 under higher (25 mM) but not lower nitrate conditions (250 µM), suggesting that CIPK8 functions as a positive regulator when nitrate is replete [3,51]. CIPK23 can be induced by nitrate and downregulated in the chl1-5 mutant like CIPK8 [28]. Expression of the nitrate responsive gene NRT2.1 was upregulated in the cipk23 mutants after nitrate treatment, indicating that CIPK23 plays a negative role in primary nitrate response [28]. This gene is essential for the affinity switch of NRT1.1: it interacts with NRT1.1 and phosphorylates NRT1.1 at T101 under low nitrate concentrations to enable NRT1.1 to operate as a high affinity nitrate transporter, while it dephosphorylates NRT1.1 when nitrate is replete so that NRT1.1 functions as a low-affinity nitrate transporter [28].
CPK10, CPK30, and CPK32 are subgroup III Ca2+-sensor protein kinases (CPKs). The activity of CPKs can be enhanced in response to nitrate within 10 min. They have all been identified as master regulators that orchestrate primary nitrate responses [42]. Analysis of the single cpk10, cpk30, and cpk32 mutants has shown that they only trivially affect nitrate-responsive genes. However, in the double mutants cpk10 cpk30, cpk30 cpk32, and cpk10 cpk32 and the triple mutant cpk10 cpk30 cpk32, nitrate-responsive marker genes were reduced. Transcriptomic analysis showed that CPK10, CPK30, and CPK32 modulated various key cellular and metabolic functions immediately activated by nitrate. Furthermore, CPK10, CPK30, and CPK32 can phosphorylate NLP7 at Ser205 in vivo in the presence of nitrate, and trigger the nitrate-CPK-NLP signaling network [42].

2.4. Other Factors, Including NRG2, CPSF30, and FIP1

Recently, three other nitrate regulatory genes NRG2, CPSF30-L, and FIP1 were identified using a forward genetics method [52,53,54]. Two independent NRG2 T-DNA insertion lines (nrg2-1 and nrg2-2) showed reduced induction for nitrate-responsive sentinel genes (NIA1, NIR, NRT2.1), indicating that NRG2 plays an essential role in nitrate signaling. At the physiological level, NRG2 affects accumulation of nitrate in plants. Further investigation revealed that it regulates nitrate uptake by roots and the translocation of nitrate within plants. These effects might be achieved through modulating NRT1.1 and NRT1.8 as the expression of both genes was altered in the mutants [52]. Genetic and molecular data suggest that NRG2 can regulate the expression and work upstream of NRT1.1, but function independently, with NLP7 in regulating nitrate signaling. In addition, transcriptomic analysis showed that four clusters in the differentially expressed genes in nrg2 mutant were involved in the regulation of nitrate transport and response, confirming that NRG2 plays essential roles in nitrate regulation. Interestingly, NRG2 can directly interact with NLP7 in vitro and in vivo, as revealed by yeast two hybrid and BiFC experiments [52]. All these results demonstrate that NRG2 is an important nitrate regulator.
In addition, the Arabidopsis genome harbors 15 members that are homologous with the NRG2 protein. All members of the NRG2 family contain two unknown conserved domains: DUF630 and DUF632. Whether and which other members of the NRG2 family are involved in nitrate signaling and what functions the two domains play are interesting and pertinent directions for future research.
The CPSF30 gene encodes 28-kD and 65-kD proteins. The 28-kD protein (CPSF30-S) was identified as a cleavage and polyadenylation specificity factor [53,55,56,57]; the protein contains three characteristic CCCH zinc finger motifs and functions as both an endonuclease and an RNA-binding protein [56,58]. An additional YTH domain, along with the three zinc finger motifs, are contained in the 65-kD protein (CPSF30-L) [53]. A mutant allele of CPSF30, cpsf30-2 with a G-to-A mutation in the first exon of gene CPSF30, was identified by genetic screening and used to explore the functions of CPSF30 [53]. The expression of nitrate-responsive genes (NIA1, NiR, NRT2.1) can be downregulated in response to nitrate in cpsf30-2 compared to wild-type and restored to wild-type levels in a complemented CPSF30-L/cpsf30-2 line, indicating that CPSF30-L is involved in nitrate signaling. CPSF30-L can regulate nitrate accumulation and assimilation at the physiological level [53]. Transcriptomic analysis showed that genes involved in six nitrogen-related clusters, including nitrate transport and assimilation, were differentially expressed in the cpsf30-2 mutant. Further study revealed that CPSF30 could work upstream of NRT1.1 and independently of NLP7. CPSF30 can also affect NRT1.1 mRNA 3′UTR alternative polyadenylation [53]. All these results demonstrate that CPSF30 plays an important role in the primary nitrate response.
FIP1, a factor interacting with poly(A) polymerase 1, was identified as a positive nitrate regulatory gene using the fip1 mutant and a FIP1/fip1 line [54]. Nitrate-induced expression of NIA1, NiR, and NRT2.1 is repressed in the fip1 mutant and can be restored to the wild type in the FIP1/fip1 line [54]. Furthermore, FIP1 can affect nitrate accumulation through regulating the expression of NRT1.8 and nitrate assimilation genes [54]. Further research found that FIP1 could interact with CPSF30 and both genes can regulate the expression of CIPK8 and CIPK23 [54]. In addition, FIP1 can affect the 3′UTR polyadenylation of NRT1.1, a similar function to CPSF30 [54]. CPSF30, FIP1, and some other components such as CPSF100 can form a complex involved in poly (A) processing [59]. Together, these findings suggest that the complex composed by CPSF30 and FIP1 may play important roles in nitrate signaling.
In the extant literature, key molecular components involved in primary nitrate responses, covering nitrate sensors, transcription factors, protein kinases, and polyadenylation specificity factors, have been identified. Methodologically, this has been achieved by using forward and reverse genetics as well as systems biology approaches (Table 1). In summary, in the presence of both ammonium and nitrate (Figure 1A), NRT1.1 functions as a sensor. NLP7, NRG2, and CPSF30 have been revealed to work upstream of NRT1.1 [39,52,53]. NRG2 can interact with NLP7 [52] whilst NLP7 can interact with, and be phosphorylated by, CPK10 [42]. In addition, NLP7 binds to the promoter of NRT1.1 as revealed by ChIP and EMSA assays [39]. NRT1.1 works upstream of, and regulates, TGA1/TGA4 [60]. Furthermore, CIPK23 interacts with and phosphorylates NRT1.1 [28]. CPSF30 can interact with FIP1 and regulate the expression of both CIPK8 and CIPK23 [54]. NIGT1.1 can suppress NLP7-activated NRT2.1 [49]. In the presence of nitrate but absence of ammonium (Figure 1B), NRT1.1 works only as a nitrate transporter, but not as a nitrate regulator. The other nitrate regulatory genes, including NRG2, NLP7, CPSF30, FIP1, LBD37/38/39, SPL9, NIGT1s, CIPK8, and CIPK23, still play an important role in the nitrate signaling.

3. Long-Term Nitrate Signaling

Serving as an important molecular signal, nitrate also regulates plant growth and development and has been particularly well studied in the context of root system architecture. Root system architecture controls the absorption and utilization of nutrients and affects the growth and biomass of plants. Lateral root growth is dually regulated by nitrate availability, including local induction by NO3− and systemic repression by high NO3− [61,62,63]. Several key genes and miRNAs functioning in nitrate-regulated root architecture have been characterized.
The ANR1 gene, encoding a member of the MADS-box family of transcription factors, was the first gene to be identified as an essential component in nitrate-regulated root growth [51]. Nitrate can inhibit the growth of lateral roots when seedlings are grown on media with higher nitrate concentrations compared to lower nitrate concentrations (≤1 mM). However, ANR1 downregulated lines obtained by antisense or co-suppression exhibited reduced lateral root length when grown on media with various nitrate concentrations, indicating the enhanced sensitivity of lateral root growth to nitrate inhibition in those lines [61]. Overexpression of ANR1 in roots resulted in increased lateral root growth and this phenotype was strongly dependent on the presence of nitrate, suggesting posttranslational control of ANR1 activity by nitrate [45,64]. Interestingly, the expression of ANR1 in nrt1.1 mutants was dramatically diminished and these mutants exhibited reduced root elongation in nitrate-rich patches, similar to what was observed with the ANR1-repressed lines [26,61]. This suggests that NRT1.1 works upstream of ANR1 in terms of local nitrate-induced lateral root growth. Recently, the auxin transport role of NRT1.1 was characterized in lateral root primordia (LRPs) when seedlings were grown on media without nitrate or with low nitrate concentrations; under these conditions, NRT1.1 represses the growth of pre-emerged LR primordia and young LRs by inhibiting the accumulation of auxin [14]. Subsequently, Gojon’s lab revealed that the NRT1.1-mediated regulation of LR growth was dependent on the phosphorylation of NRT1.1 and the non-phosphorylated form of NRT1.1 could transport auxin in the absence of nitrate or in low nitrate concentrations [30]. Further investigation indicated that in the presence of nitrate, the promoter activity of NRT1.1 was stimulated and mRNA stability was increased, while protein accumulation and auxin transport activity were repressed in LRPs, resulting in accelerated lateral root growth [65]. Altogether, NRT1.1 offers a link between nitrate and auxin signaling during lateral root development. However, the mechanisms by which nitrate induces the expression of NRT1.1 while repressing NRT1.1 protein accumulation and auxin transport activity in LRPs remain unclear. Previous reports have also documented that several genes involved in hormone biosynthesis or response regulate the root system architecture response to changes in nitrate availability [66,67].
NRT2.1, a high-affinity nitrate transport gene, is induced by nitrate and sugar [68,69,70,71]. Wild-type seedlings grown on media with high carbon/nitrogen (C/N) ratios exhibited significantly repressed lateral root initiation compared to a standard growth medium [72]. However, the repression of lateral root initiation was diminished in nrt2.1 mutants under high C/N ratios where this phenotype was not dependent on nitrate uptake [63,73]. These results demonstrate that NRT2.1 plays an important role in lateral root initiation under high C/N ratios. In addition, nrt2.1 mutants exhibited significantly reduced shoot-to-root ratios compared to wild-type and nrt2.2 mutant seedlings when grown in common hydroponic conditions (grown on 1 mM NH4NO3 for four weeks followed by one-week nitrogen starvation). The reductions in shoot-to-root ratios were even greater for nrt2.1 nrt2.2, suggesting that both genes are involved in regulating plant growth with NRT2.1 playing a more important role [74]. Moreover, nrt2.1 mutants exhibit reduced LR growth on media with limited nitrogen [63,74] and this reduction was more severe in nrt2.1 nrt2.2 double mutant plants, indicating that both genes are important regulators involved in lateral root growth [74]. Recently, Gutierrez’s lab determined that induction of NRT2.1 and NRT2.2 was directly regulated by TGA1/TGA4 in response to nitrate treatment. Further investigation showed that tga1 tga4 plants and nrt2.1 nrt2.2 plants exhibited similarly decreased LR initiation compared with wild-type plants, indicating that NRT2.1 and NRT2.2 work downstream of TGA1/TGA4 to modulate LR initiation in response to nitrate. Lateral root emergence was also affected in tga1 tga4 and nrt2.1 nrt2.2 mutants, and tga1 tga4 mutants displayed larger reductions in LR emergence than nrt2.1 nrt2.2 mutants, revealing that additional pathways are required for LR emergence controlled by TGA1/TGA4 besides NRT2.1 and NRT2.2. Moreover, primary roots in tga1 tga4 mutants were shorter than in wild-type and nrt2.1 nrt2.2 plants, suggesting that the modulation of primary root growth by TGA1/TGA4 is independent of NRT2.1 and NRT2.2 [48].
The protein kinase CIPK8 is not only involved in primary nitrate response, but also in long-term nitrate regulation on root growth. In the presence of nitrate, cipk8 mutants exhibited longer primary root length compared to the wild type, indicating that CIPK8 modulates primary root growth in a nitrate-dependent pathway [51]. Furthermore, the key nitrate regulator NLP7 has also been found to control root growth under both N-limited and N-rich conditions besides its essential roles in the primary nitrate response [35,37]. nlp7 mutants developed longer primary roots and higher LR density on N-rich media [35]. Interestingly, transgenic lines with overexpression of NLP7 also exhibited increased primary root length and lateral root density under 1, 3, and 10 mM nitrate conditions [37]. The underlying inter-phenotype mechanisms regulating root growth in the mutant and overexpression lines are still unknown. These findings indicate that NLP7 plays an important role in nitrate-regulated root development. Recently, it has been shown that the Ca2+-sensor protein kinases CPK10, CPK30, and CPK32 are also involved in nitrate-specific control of root development. In response to nitrate, icpk mutants had reduced lateral root primordia density and reduced lateral root elongation compared to the wild type [42].
In the last few years, microRNAs (miRNAs) have emerged as important regulators involved in nitrate-regulated root growth. It has been reported that miR167 targets and controls expression of the auxin response factor ARF8, and both miR167 and ARF8 are expressed in the pericycle and lateral root cap [75,76]. Levels of miR167 were repressed under nitrogen treatment, leading to accumulation of ARF8 in the pericycle. In contrast to wild-type plants, which displayed increased ratios of initiating vs. emerging lateral roots in response to nitrogen treatment, the miR167a overexpression lines and arf8 mutants were insensitive to nitrogen in terms of lateral root emergence. These results indicate that the auxin response factor-miRNA regulatory module miR167/ARF8 plays an important role in controlling lateral root growth in response to nitrogen [75]. In addition, miR393 was induced by nitrate treatment, specifically cleaved the auxin receptor AFB3 transcript, and modulated the accumulation of AFB3 mRNA in roots under nitrate treatment [77]. The primary root of the wild type was shorter when treated with KNO3 compared to KCL, however the primary root of the miR393-overexpression line and afb3 mutant were insensitive to nitrate treatments. miR393/AFB3 also controlled lateral root growth as well as primary root growth. The miR393 overexpression line and afb3 mutant showed diminished densities of initiating and emerging lateral roots compared to the wild type, which exhibited increased growth of lateral roots in response to nitrate treatments. Further investigation found that transcription factor NAC4 acted downstream of AFB3 to regulate lateral root growth in response to nitrate, but did not affect primary root growth, indicating that AFB3 is likely to be involved in two dependent pathways to modulate root system architecture. Furthermore, AFB3 and NAC4 gene expression in response to nitrate treatment depends on the nitrate transport function of NRT1.1 [78,79]. Moreover, peptide-mediated signaling has been found in N control of root growth. The Arabidopsis CLE gene was found to be induced by N-deficiency, and overexpression of CLE inhibits lateral root elongation but not initiation [80]. The peptide sequence of CLE is homologous to CLV3, which binds to CLV1 and the clv1 mutant showed increased lateral root length under low N conditions. The transcript levels of CLE were increased in the clv1 mutant, suggesting a feedback regulation of CLE by CLV1. Transgenic lines with increased CLE levels in clv1 did not inhibit lateral root growth, indicating that the inhibition of CLE3 on lateral root development requires CLV1. Altogether, the N-responsive CLE-CLV1 peptide-receptor signaling module restricts expansion of the lateral root system in N-deficient environments [80].
Although nitrate is a crucial nutrient and signaling molecule, its distribution in soils is heterogeneous. To adapt the prevailing nitrate conditions, plants have evolved a systemic response mechanism. NRT2.1 was the first molecular target identified in long-distance signaling reflecting root responses to environmental nitrate conditions [81]. Plants were grown using a 1 mM NO3− solution, then the root was split into two parts, one subjected to N-free treatment and the other one treated with 1 mM NO3−. Both 15NO3− influx and the transcript level of NRT2.1 were increased in the NO3−-fed root.
Recent findings revealed that the C-terminally encoded peptide (CEP) originated from N-starved roots; located in xylem vessels, it sends root-derived ascending signals to the shoot before being recognized by a leucine-rich repeat receptor kinase, CEPReceptor 1 (CEPR1), and then inducing the expression of CEPD polypeptides. CEPD sent long-distance mobile signals translocated to each root and upregulated the expression of NRT2.1 [81,82,83].
The activity and expression of NRT2.1 in plants were inhibited when supplied with high N. Lepetit’s lab configured a forward genetic approach using a transgenic line expressing the pNRT2.1::LUC construct as a reporter gene [84]. The mutant hni9, showing increased expression of NRT2.1 under high N supply, was isolated and the mutation was found in IWS1, a component of the RNAPII complexes. Further investigation revealed that the levels of the H3K27me3 on NRT2.1 chromatin decreased, resulting in the upregulated expression of NRT2.1 in response to high N supply in the iws1 mutants. Thus IWS1 is likely to be involved in the transduction of N systemic signals through controlling the expression of NRT2.1 in plants [71,84].
Another important player participating in root foraging, TCP20, was identified by Crawford’s lab using the yeast one-hybrid system to screen the transcription factors that can bind to the fragment of nitrate enhance DNA [85]. TCP20 was found to be able to bind to the promoters of NIA1, NRT1.1, and NRT2.1. The tcp20 mutants exhibited deficiencies in preferential lateral root growth on heterogeneous media in split-root experiments, indicating that TCP20 can regulate the preferential growth of lateral roots in high nitrate zones, thus playing an important role in the systemic signaling pathway [85]. Recently, using an electrophoretic mobility shift assay (EMSA), the DNA-binding sites of TCP20 in a 109 bp NIA1 enhancer fragment were found to be in close proximity to NLP7 and NLP6 binding sites [58]. Yeast two-hybrid and bimolecular fluorescence complementation (BiFC) assays showed that NLP7 and NLP6 can interact with TCP20 and both the PB1 domains of NLP6&7 and the glutamine-rich domain of TCP20 are necessary for protein–protein interaction [58]. Further work will be needed to elucidate the underlying molecular mechanism explaining the involvement of TCP20 in systemic signaling.
We proposed a model according to the functions of the genes discussed herein and their relationship in regulating the growth of roots (Figure 2). NRT1.1 works upstream of ANR1 and both promote the development of LR [26,61]. Under N limited conditions, NRT1.1 also transports the auxin in LRPs and inhibits the growth of LRs [14,30] (Figure 2). NRT1.1 works upstream and affects the nitrate induction of TGA1/4, but whether NRT1.1 modulates TGA1/4-mediated LR is still unknown. TGA1/4 modulates the development of PR and LR, either independent from or dependent on NRT2.1 and NRT2.2 [48,63,74]. CIPK8 modulates primary root growth in the nitrate-dependent pathway. NLP7 and CPKs also dictate the growth plasticity of roots [35,37,42] (Figure 2). Nitrogen represses miR167 and induces miR393, and both miRNAs regulate the expression of their corresponding target genes and change the architecture of roots in response to nitrogen treatment [75,77] (Figure 2). Moreover, the CLE-CLV1 peptide-receptor signaling module restricts expansion of the lateral root system in N-deficient environments [80] (Figure 2). Although a few genes that function in root growth have been characterized, our understanding of the root system architecture regulation network remains incomplete. Identification of more root system architecture-related genes and deciphering their relationships is still needed to provide the theoretical basis for improving NUE and breeding new crop varieties with high yield.
Nitrate also acts as a systemic signal to regulate root growth. The distribution of nitrate in soils is often uneven, so plants have evolved complex systemic long-distance signaling mechanisms. Roots in N-starved environments secrete the root-to-shoot mobile peptide hormone CEP, which is perceived by CEPR in shoots. This perception induces CEPD to act as a shoot-to-root secondary signal followed by the increased expression of NRT2.1 and the growth of LR in nitrate-rich patches [81,82,83]. IWS1 can repress the expression of NRT2.1 under high nitrate conditions [71,84]. TCP20 can modulate the preferential growth of LR in high nitrate zones [85] (Figure 3).

4. Conclusions

In the last decade, a number of important genes involved in nitrate signaling have been characterized. In Table 1, we summarize these genes in terms of gene family, target genes, gene functions, and the method of gene discovery. Some of these genes are involved in short-term nitrate signaling, referred to as the primary nitrate response, including NRT1.1, NLP7, NLP6, LBD37/38/39, SPL9, TGA1/4, NIGT1s, CIPK8/23, CPK10, NRG2, CPSF30, and FIP1. Other genes participate in long-term nitrate signaling that affects plant growth and development over a longer time horizon; this is exemplified herein in terms of root architecture, i.e., ANR1, NRT1.1, NRT2.1/2.2, TGA1/4, CIPK8, NLP7, CPK10, miR167/ARF8, miR393/AFB3, NAC4, CLE-CLV1, CEP, HIN9/IWS1, and TCP20 (Table 1). Some genes have been identified as being involved in both short-term and long-term nitrate signaling, including NRT1.1, TGA1/4, CIPK8, NLP7, and CPK10 (Table 1). Whether and which other genes are also involved in the short and long term remains unknown. These genes were identified using different approaches, such as forward and reverse genetics, systems biology, and genome-wide analyses. These genes function as sensors, transcription factors, protein kinases, and polyadenylation specificity factors; they affect the primary nitrate response and growth and development of plants both directly and indirectly (Table 1).
Despite the characterization of the above genes involved in nitrate signaling, we are still far from completely understanding the molecular regulation of nitrate signaling in plants. New genes performing essential roles in short-/long-term nitrate effects remain to be identified, which will help us to decipher the regulatory mechanisms of the absorption and utilization of nitrate by plants. With the rapid development of science and technology, some innovated methods used for discovering new nitrate-related genes have been emerged, for example, non-coding RNA analysis, proteomics, and metabolomics. The application of these new technologies will further promote the advancement of nitrate research field. Although relationships among some nitrate regulatory genes have been uncovered, gene networks in plants are still poorly understood and so this is fruitful territory for further research. Recently, the interaction between nitrate and hormonal signaling on controlling the development and stress response of plants has been gradually unraveled. However, the potential crosstalk of nitrate and hormonal signaling is unclear and needed more conscious efforts in the near future. Addressing the pollution problems associated with anthropogenic nitrogen fertilization is also critically important, and thus the NUE of crops must be improved. The research results based on Arabidopsis may provide important directions and methodologies for strengthening the NUE study in crops. In the last few years, some homologous genes of Arabidopsis have been identified as essential nitrate regulatory genes in crops, such as ZmNLP4 and ZmNLP8 in maize and OsNRT1.1B in rice. More such genes and their function mechanisms need to be identified to sustain high crop yields and solve the environmental problems.

Author Contributions

Manuscript preparation, L.Z. and F.L.; Manuscript review and editing, Y.W. and N.M.C.

Funding

This research was funded by the National Natural Science Foundation of China (Grant 31670247), the Taishan Scholar Foundation, and the Funds of Shandong “Double Tops” Program, (Grant SYL2017YSTD01).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Crawford, N.M.; Glass, A.D. Molecular and physiological aspects of nitrate uptake in plants. Trends Plant Sci. 1998, 3, 389–395. [Google Scholar] [CrossRef]
  2. Broadley, M.; Brown, P.; Buerkert, A.; Cakmak, I.; Cooper, J.; Eichert, T.; Engels, C.; Fernández, V.; Kirkby, E.; George, E. Marschner’s Mineral Nutrition of Higher Plants, 3rd ed.; Academic Press: Cambridge, MA, USA, 2012; Volume 68. [Google Scholar]
  3. Krouk, G.; Crawford, N.M.; Coruzzi, G.M.; Tsay, Y.-F. Nitrate signaling: Adaptation to fluctuating environments. Curr. Opin. Plant Biol. 2010, 13, 265–272. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, R.; Guegler, K.; LaBrie, S.T.; Crawford, N.M. Genomic analysis of a nutrient response in Arabidopsis reveals diverse expression patterns and novel metabolic and potential regulatory genes induced by nitrate. Plant Cell 2000, 12, 1491–1509. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, R.; Okamoto, M.; Xing, X.; Crawford, N.M. Microarray analysis of the nitrate response in Arabidopsis roots and shoots reveals over 1000 rapidly responding genes and new linkages to glucose, trehalose-6-phosphate, iron, and sulfate metabolism. Plant Physiol. 2003, 132, 556–567. [Google Scholar] [CrossRef] [PubMed]
  6. Scheible, W.-R.; Morcuende, R.; Czechowski, T.; Fritz, C.; Osuna, D.; Palacios-Rojas, N.; Schindelasch, D.; Thimm, O.; Udvardi, M.K.; Stitt, M. Genome-wide reprogramming of primary and secondary metabolism, protein synthesis, cellular growth processes, and the regulatory infrastructure of Arabidopsis in response to nitrogen. Plant Physiol. 2004, 136, 2483–2499. [Google Scholar] [CrossRef] [PubMed]
  7. Gutiérrez, R.A.; Lejay, L.V.; Dean, A.; Chiaromonte, F.; Shasha, D.E.; Coruzzi, G.M. Qualitative network models and genome-wide expression data define carbon/nitrogen-responsive molecular machines in Arabidopsis. Genome Biol. 2007, 8, R7. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, R.; Xing, X.; Crawford, N. Nitrite acts as a transcriptome signal at micromolar concentrations in Arabidopsis roots. Plant Physiol. 2007, 145, 1735–1745. [Google Scholar] [CrossRef] [PubMed]
  9. Roenneberg, T.; Rehman, J. Nitrate, a nonphotic signal for the 3circadian system. FASEB J. 1996, 10, 1443–1447. [Google Scholar] [CrossRef] [PubMed]
  10. Stitt, M. Nitrate regulation of metabolism and growth. Curr. Opin. Plant Biol. 1999, 2, 178–186. [Google Scholar] [CrossRef]
  11. Alboresi, A.; Gestin, C.; Leydecker, M.T.; Bedu, M.; Meyer, C.; Truong, H.N. Nitrate, a signal relieving seed dormancy in Arabidopsis. Plant Cell Environ. 2005, 28, 500–512. [Google Scholar] [CrossRef] [PubMed]
  12. Walch-Liu, P.; Ivanov, I.I.; Filleur, S.; Gan, Y.; Remans, T.; Forde, B.G. Nitrogen regulation of root branching. Ann. Bot. 2006, 97, 875–881. [Google Scholar] [CrossRef] [PubMed]
  13. Wilkinson, S.; Bacon, M.A.; Davies, W.J. Nitrate signalling to stomata and growing leaves: Interactions with soil drying, ABA, and xylem sap pH in maize. J. Exp. Bot. 2007, 58, 1705–1716. [Google Scholar] [CrossRef] [PubMed]
  14. Krouk, G.; Lacombe, B.; Bielach, A.; Perrine-Walker, F.; Malinska, K.; Mounier, E.; Hoyerova, K.; Tillard, P.; Leon, S.; Ljung, K. Nitrate-regulated auxin transport by NRT1. 1 defines a mechanism for nutrient sensing in plants. Dev. Cell 2010, 18, 927–937. [Google Scholar] [CrossRef] [PubMed]
  15. Medici, A.; Krouk, G. The primary nitrate response: A multifaceted signalling pathway. J. Exp. Bot. 2014, 65, 5567–5576. [Google Scholar] [CrossRef] [PubMed]
  16. Cavicchioli, R.; Chiang, R.C.; Kalman, L.V.; Gunsalus, R.P. Role of the periplasmic domain of the Escherichia coli NARX sensor-transmitter protein in nitrate-dependent signal transduction and gene regulation. Mol. Microbiol. 1996, 21, 901–911. [Google Scholar] [CrossRef] [PubMed]
  17. Chiang, R.C.; Cavicchioli, R.; Gunsalus, R.P. ‘Locked-on’ and ‘locked-off’ signal transduction mutations in the periplasmic domain of the Escherichia coli NARQ and NARX sensors affect nitrate-and nitrite-dependent regulation by narl and narp. Mol. Microbiol. 1997, 24, 1049–1060. [Google Scholar] [CrossRef] [PubMed]
  18. Fu, Y.; Kneesi, J.Y.; Marzluf, G.A. Isolation of Nit-4, the minor nitrogen regulatory gene which mediates nitrate induction in Neurospora crassa. J. Bacteriol. 1989, 171, 4067–4070. [Google Scholar] [CrossRef] [PubMed]
  19. Burger, G.; Tilburn, J.; Scazzocchio, C. Molecular cloning and functional characterization of the pathway-specific regulatory gene NirA, which controls nitrate assimilation in Aspergillus nidulans. Mol. Cell. Biol. 1991, 11, 795–802. [Google Scholar] [CrossRef] [PubMed]
  20. And, N.M.; Arst, H.N., Jr. The molecular genetics of nitrate assimilation in fungi and plants. Ann. Rev. Genet. 1993, 27, 115–146. [Google Scholar]
  21. Léran, S.; Varala, K.; Boyer, J.-C.; Chiurazzi, M.; Crawford, N.; Daniel-Vedele, F.; David, L.; Dickstein, R.; Fernandez, E.; Forde, B. A unified nomenclature of nitrate transporter 1/peptide transporter family members in plants. Trends Plant Sci. 2014, 19, 5–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Wang, R.; Liu, D.; Crawford, N.M. The Arabidopsis CHL1 protein plays a major role in high-affinity nitrate uptake. Proc. Natl. Acad. Sci. USA 1998, 95, 15134–15139. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, K.-H.; Huang, C.-Y.; Tsay, Y.-F. CHL1 is a dual-affinity nitrate transporter of Arabidopsis involved in multiple phases of nitrate uptake. Plant Cell 1999, 11, 865–874. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, K.H.; Tsay, Y.F. Switching between the two action modes of the dual-affinity nitrate transporter CHL1 by phosphorylation. EMBO J. 2003, 22, 1005–1013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Tsay, Y.F.; Schroeder, J.I.; Feldmann, K.A.; Crawford, N.M. The herbicide sensitivity gene CHL1 of Arabidopsis encodes a nitrate-inducible nitrate transporter. Cell 1993, 72, 705–713. [Google Scholar] [CrossRef]
  26. Remans, T.; Nacry, P.; Pervent, M.; Filleur, S.; Diatloff, E.; Mounier, E.; Tillard, P.; Forde, B.G.; Gojon, A. The Arabidopsis NRT1.1 transporter participates in the signaling pathway triggering root colonization of nitrate-rich patches. Proc. Natl. Acad. Sci. USA 2006, 103, 19206–19211. [Google Scholar] [CrossRef] [PubMed]
  27. Walch-Liu, P.; Forde, B. Nitrate signalling mediated by the NRT1.1 nitrate transporter antagonises l-glutamate-induced changes in root architecture. Plant J. 2010, 54, 820–828. [Google Scholar] [CrossRef] [PubMed]
  28. Ho, C.-H.; Lin, S.-H.; Hu, H.-C.; Tsay, Y.-F. CHL1 functions as a nitrate sensor in plants. Cell 2009, 138, 1184–1194. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, R.; Xing, X.; Wang, Y.; Tran, A.; Crawford, N.M. A genetic screen for nitrate regulatory mutants captures the nitrate transporter gene NRT1.1. Plant Physiol. 2009, 151, 472. [Google Scholar] [CrossRef] [PubMed]
  30. Bouguyon, E.; Brun, F.; Meynard, D.; Kubeš, M.; Pervent, M.; Leran, S.; Lacombe, B.; Krouk, G.; Guiderdoni, E.; Zažímalová, E. Multiple mechanisms of nitrate sensing by Arabidopsis nitrate transceptor NRT1.1. Nat. Plants 2015, 1, 15015. [Google Scholar] [CrossRef] [PubMed]
  31. Hu, B.; Wang, W.; Ou, S.; Tang, J.; Li, H.; Che, R.; Zhang, Z.; Chai, X.; Wang, H.; Wang, Y.; et al. Variation in NRT1.1b contributes to nitrate-use divergence between rice subspecies. Nat. Genet. 2015, 47, 834. [Google Scholar] [CrossRef] [PubMed]
  32. Schauser, L.; Roussis, A.; Stiller, J.; Stougaard, J. A plant regulator controlling development of symbiotic root nodules. Nature 1999, 402, 191–195. [Google Scholar] [CrossRef] [PubMed]
  33. Borisov, A.Y.; Madsen, L.H.; Tsyganov, V.E.; Umehara, Y.; Voroshilova, V.A.; Batagov, A.O.; Sandal, N.; Mortensen, A.; Schauser, L.; Ellis, N. The SYM35 gene required for root nodule development in pea is an ortholog of NIN from Lotus japonicus. Plant Physiol. 2003, 131, 1009–1017. [Google Scholar] [CrossRef] [PubMed]
  34. Schauser, L.; Wieloch, W.; Stougaard, J. Evolution of NIN-like proteins in Arabidopsis, rice, and Lotus japonicus. J. Mol. Evol. 2005, 60, 229–237. [Google Scholar] [CrossRef] [PubMed]
  35. Castaings, L.; Camargo, A.; Pocholle, D.; Gaudon, V.; Texier, Y.; Boutet-Mercey, S.; Taconnat, L.; Renou, J.P.; Daniel-Vedele, F.; Fernandez, E. The nodule inception-like protein 7 modulates nitrate sensing and metabolism in Arabidopsis. Plant J. 2009, 57, 426–435. [Google Scholar] [CrossRef] [PubMed]
  36. Camargo, A.; Llamas, Á.; Schnell, R.A.; Higuera, J.J.; González-Ballester, D.; Lefebvre, P.A.; Fernández, E.; Galván, A. Nitrate signaling by the regulatory gene NIT2 in CHLamydomonas. Plant Cell 2007, 19, 3491–3503. [Google Scholar] [CrossRef] [PubMed]
  37. Yu, L.-H.; Wu, J.; Tang, H.; Yuan, Y.; Wang, S.-M.; Wang, Y.-P.; Zhu, Q.-S.; Li, S.-G.; Xiang, C.-B. Overexpression of Arabidopsis NLP7 improves plant growth under both nitrogen-limiting and-sufficient conditions by enhancing nitrogen and carbon assimilation. Sci. Rep. 2016, 6, 27795. [Google Scholar] [CrossRef] [PubMed]
  38. Marchive, C.; Roudier, F.; Castaings, L.; Brehaut, V.; Blondet, E.; Colot, V.; Meyer, C.; Krapp, A. Nuclear retention of the transcription factor NLP7 orchestrates the early response to nitrate in plants. Nat. Commun. 2013, 4, 1713. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Zhao, L.; Zhang, W.; Yang, Y.; Li, Z.; Li, N.; Qi, S.; Crawford, N.M.; Wang, Y. The Arabidopsis NLP7 gene regulates nitrate signaling via NRT1.1–dependent pathway in the presence of ammonium. Sci. Rep. 2018, 8, 1487. [Google Scholar] [CrossRef] [PubMed]
  40. O’Brien, J.A.; Vega, A.; Bouguyon, E.; Krouk, G.; Gojon, A.; Coruzzi, G.; Gutiérrez, R.A. Nitrate transport, sensing, and responses in plants. Mol. Plant 2016, 9, 837–856. [Google Scholar] [CrossRef] [PubMed]
  41. Konishi, M.; Yanagisawa, S. Arabidopsis NIN-like transcription factors have a central role in nitrate signalling. Nat. Commun. 2013, 4, 1617. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, K.-H.; Niu, Y.; Konishi, M.; Wu, Y.; Du, H.; Sun Chung, H.; Li, L.; Boudsocq, M.; McCormack, M.; Maekawa, S.; et al. Discovery of nitrate–CPK–NLP signalling in central nutrient–growth networks. Nature 2017, 545, 311–316. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Cao, H.; Qi, S.; Sun, M.; Li, Z.; Yang, Y.; Crawford, N.M.; Wang, Y. Overexpression of the maize ZMNLP6 and ZMNLP8 can complement the Arabidopsis nitrate regulatory mutant NLP7 by restoring nitrate signaling and assimilation. Front. Plant Sci. 2017, 8, 1703. [Google Scholar] [CrossRef] [PubMed]
  44. Rubin, G.; Tohge, T.; Matsuda, F.; Saito, K.; Scheible, W.-R. Members of the LBD family of transcription factors repress anthocyanin synthesis and affect additional nitrogen responses in Arabidopsis. Plant Cell 2009, 21, 3567–3584. [Google Scholar] [CrossRef] [PubMed]
  45. Vidal, E.A.; Álvarez, J.M.; Moyano, T.C.; Gutiérrez, R.A. Transcriptional networks in the nitrate response of Arabidopsis thaliana. Curr. Opin. Plant Biol. 2015, 27, 125–132. [Google Scholar] [CrossRef] [PubMed]
  46. Krouk, G.; Mirowski, P.; LeCun, Y.; Shasha, D.E.; Coruzzi, G.M. Predictive network modeling of the high-resolution dynamic plant transcriptome in response to nitrate. Genome Biol. 2010, 11, 1. [Google Scholar] [CrossRef] [PubMed]
  47. Wang, J.-W.; Czech, B.; Weigel, D. miR156-regulated SPL transcription factors define an endogenous flowering pathway in Arabidopsis thaliana. Cell 2009, 138, 738–749. [Google Scholar] [CrossRef] [PubMed]
  48. Alvarez, J.M.; Riveras, E.; Vidal, E.A.; Gras, D.E.; Contreras-López, O.; Tamayo, K.P.; Aceituno, F.; Gómez, I.; Ruffel, S.; Lejay, L. Systems approach identifies TGA1 and TGA4 transcription factors as important regulatory components of the nitrate response of Arabidopsis thaliana roots. Plant J. 2014, 80, 1–13. [Google Scholar] [CrossRef] [PubMed]
  49. Maeda, Y.; Konishi, M.; Kiba, T.; Sakuraba, Y.; Sawaki, N.; Kurai, T.; Ueda, Y.; Sakakibara, H.; Yanagisawa, S. A NIGT1-centred transcriptional cascade regulates nitrate signalling and incorporates phosphorus starvation signals in Arabidopsis. Nat. Commun. 2018, 9, 1376. [Google Scholar] [CrossRef] [PubMed]
  50. Medici, A.; Marshallcolon, A.; Ronzier, E.; Szponarski, W.; Wang, R.; Gojon, A.; Crawford, N.M.; Ruffel, S.; Coruzzi, G.M.; Krouk, G. ATNIGT1/HRS1 integrates nitrate and phosphate signals at the Arabidopsis root tip. Nat. Commun. 2015, 6, 6274. [Google Scholar] [CrossRef] [PubMed]
  51. Hu, H.C.; Wang, Y.Y.; Tsay, Y.F. ATCIPK8, a CBL-interacting protein kinase, regulates the low-affinity phase of the primary nitrate response. Plant J. 2009, 57, 264–278. [Google Scholar] [CrossRef] [PubMed]
  52. Xu, N.; Wang, R.; Zhao, L.; Zhang, C.; Li, Z.; Lei, Z.; Liu, F.; Guan, P.; Chu, Z.; Crawford, N.M. The Arabidopsis NRG2 protein mediates nitrate signaling and interacts with and regulates key nitrate regulators. Plant Cell 2016, 28, 485–504. [Google Scholar] [CrossRef] [PubMed]
  53. Li, Z.; Wang, R.; Gao, Y.; Wang, C.; Zhao, L.; Xu, N.; Chen, K.E.; Qi, S.; Zhang, M.; Tsay, Y.F. The Arabidopsis CPSF30-l gene plays an essential role in nitrate signaling and regulates the nitrate transceptor gene NRT1. 1. New Phytol. 2017, 216, 1205–1222. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, C.; Zhang, W.; Li, Z.; Li, Z.; Bi, Y.; Crawford, N.M.; Wang, Y. FIP1 plays an important role in nitrate signaling and regulates CIPK8 and CIPK23 expression in Arabidopsis. Front. Plant Sci. 2018, 9. [Google Scholar] [CrossRef] [PubMed]
  55. Delaney, K.J.; Xu, R.; Zhang, J.; Li, Q.Q.; Yun, K.-Y.; Falcone, D.L.; Hunt, A.G. Calmodulin interacts with and regulates the RNA-binding activity of an Arabidopsis polyadenylation factor subunit. Plant Physiol. 2006, 140, 1507–1521. [Google Scholar] [CrossRef] [PubMed]
  56. Addepalli, B.; Hunt, A.G. A novel endonuclease activity associated with the Arabidopsis ortholog of the 30-KDA subunit of cleavage and polyadenylation specificity factor. Nucleic Acids Res. 2007, 35, 4453–4463. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, J.; Addepalli, B.; Yun, K.-Y.; Hunt, A.G.; Xu, R.; Rao, S.; Li, Q.Q.; Falcone, D.L. A polyadenylation factor subunit implicated in regulating oxidative signaling in Arabidopsis thaliana. PLoS ONE 2008, 3, e2410. [Google Scholar] [CrossRef] [PubMed]
  58. Guan, P.; Ripoll, J.-J.; Wang, R.; Vuong, L.; Bailey-Steinitz, L.J.; Ye, D.; Crawford, N.M. Interacting TCP and NLP transcription factors control plant responses to nitrate availability. Proc. Natl. Acad. Sci. USA 2017, 114, 2419–2424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Hunt, A.G.; Xu, R.; Addepalli, B.; Rao, S.; Forbes, K.P.; Meeks, L.R.; Xing, D.; Mo, M.; Zhao, H.; Bandyopadhyay, A. Arabidopsis mRNA polyadenylation machinery: Comprehensive analysis of protein-protein interactions and gene expression profiling. BMC Genom. 2008, 9, 220. [Google Scholar] [CrossRef] [PubMed]
  60. Riveras, E.; Alvarez, J.M.; Vidal, E.A.; Oses, C.; Vega, A.; Gutiérrez, R.A. The calcium ion is a second messenger in the nitrate signaling pathway of Arabidopsis. Plant Physiol. 2015, 169, 1397–1404. [Google Scholar] [CrossRef] [PubMed]
  61. Zhang, H.; Forde, B.G. An Arabidopsis MADs box gene that controls nutrient-induced changes in root architecture. Science 1998, 279, 407. [Google Scholar] [CrossRef] [PubMed]
  62. Zhang, H.; Forde, B.G. Regulation of Arabidopsis root development by nitrate availability. J. Exp. Bot. 2000, 51, 51. [Google Scholar] [CrossRef] [PubMed]
  63. Remans, T.; Nacry, P.; Pervent, M.; Girin, T.; Tillard, P.; Lepetit, M.; Gojon, A. A central role for the nitrate transporter NRT2.1 in the integrated morphological and physiological responses of the root system to nitrogen limitation in Arabidopsis. Plant Physiol. 2006, 140, 909–921. [Google Scholar] [PubMed]
  64. Gan, Y.; Bernreiter, A.; Filleur, S.; Abram, B.; Forde, B.G. Overexpressing the ANR1 MADs-box gene in transgenic plants provides new insights into its role in the nitrate regulation of root development. Plant Cell Physiol. 2012, 53, 1003–1016. [Google Scholar] [CrossRef] [PubMed]
  65. Bouguyon, E.; Perrine-Walker, F.; Pervent, M.; Rochette, J.; Cuesta, C.; Benkova, E.; Martinière, A.; Bach, L.; Krouk, G.; Gojon, A.; et al. Nitrate controls root development through posttranscriptional regulation of the NRT1.1/NPF6.3 transporter/sensor. Plant Physiol. 2016, 172, 1237–1248. [Google Scholar] [PubMed]
  66. Zhang, H.; Jennings, A.; Barlow, P.W.; Forde, B.G. Dual pathways for regulation of root branching by nitrate. Proc. Natl. Acad. Sci. USA 1999, 96, 6529–6534. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Signora, L.; De Smet, I.; Foyer, C.H.; Zhang, H. ABA plays a central role in mediating the regulatory effects of nitrate on root branching in Arabidopsis. Plant J. 2001, 28, 655–662. [Google Scholar] [CrossRef] [PubMed]
  68. Cerezo, M.; Tillard, P.; Filleur, S.; Muños, S.; Daniel-Vedele, F.; Gojon, A. Major alterations of the regulation of root NO3− uptake are associated with the mutation of NRT2.1 and NRT2.2 genes in Arabidopsis. Plant Physiol. 2001, 127, 262–271. [Google Scholar] [CrossRef] [PubMed]
  69. Filleur, S.; Dorbe, M.-F.; Cerezo, M.; Orsel, M.; Granier, F.; Gojon, A.; Daniel-Vedele, F. An Arabidopsis t-DNA mutant affected in NRT2 genes is impaired in nitrate uptake. FEBS Lett. 2001, 489, 220–224. [Google Scholar] [CrossRef]
  70. Lejay, L.; Tillard, P.; Lepetit, M.; Olive, F.D.; Filleur, S.; Daniel-Vedele, F.; Gojon, A. Molecular and functional regulation of two NO3− uptake systems by N- and C-status of Arabidopsis plants. Plant J. 1999, 18, 509–519. [Google Scholar] [CrossRef] [PubMed]
  71. Girin, T.; El-Kafafi, E.-S.; Widiez, T.; Erban, A.; Hubberten, H.-M.; Kopka, J.; Hoefgen, R.; Gojon, A.; Lepetit, M. Identification of Arabidopsis mutants impaired in the systemic regulation of root nitrate uptake by the nitrogen status of the plant. Plant Physiol. 2010, 153, 1250–1260. [Google Scholar] [CrossRef] [PubMed]
  72. Malamy, J.E.; Ryan, K.S. Environmental regulation of lateral root initiation in Arabidopsis. Plant Physiol. 2001, 127, 899–909. [Google Scholar] [CrossRef] [PubMed]
  73. Little, D.Y.; Rao, H.; Oliva, S.; Daniel-Vedele, F.; Krapp, A.; Malamy, J.E. The putative high-affinity nitrate transporter NRT2.1 represses lateral root initiation in response to nutritional cues. Proc. Natl. Acad. Sci. USA 2005, 102, 13693–13698. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Li, W.; Wang, Y.; Okamoto, M.; Crawford, N.M.; Siddiqi, M.Y.; Glass, A.D.M. Dissection of the ATNRT2.1:ATNRT2.2 inducible high-affinity nitrate transporter gene cluster. Plant Physiol. 2007, 143, 425–433. [Google Scholar] [CrossRef] [PubMed]
  75. Gifford, M.L.; Dean, A.; Gutierrez, R.A.; Coruzzi, G.M.; Birnbaum, K.D. Cell-specific nitrogen responses mediate developmental plasticity. Proc. Natl. Acad. Sci. USA 2008, 105, 803–808. [Google Scholar] [CrossRef] [PubMed]
  76. Wu, M.-F.; Tian, Q.; Reed, J.W. Arabidopsis microRNA167 controls patterns of ARF6 and ARF8 expression, and regulates both female and male reproduction. Development 2006, 133, 4211–4218. [Google Scholar] [CrossRef] [PubMed]
  77. Vidal, E.A.; Araus, V.; Lu, C.; Parry, G.; Green, P.J.; Coruzzi, G.M.; Gutiérrez, R.A. Nitrate-responsive MIR393/AFB3 regulatory module controls root system architecture in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2010, 107, 4477–4482. [Google Scholar] [CrossRef] [PubMed]
  78. Vidal, E.A.; Moyano, T.C.; Riveras, E.; Contreras-López, O.; Gutiérrez, R.A. Systems approaches map regulatory networks downstream of the auxin receptor AFB3 in the nitrate response of Arabidopsis thaliana roots. Proc. Natl. Acad. Sci. USA 2013, 110, 12840–12845. [Google Scholar] [CrossRef] [PubMed]
  79. Vidal, E.A.; Álvarez, J.M.; Gutiérrez, R.A. Nitrate regulation of AFB3 and NAC4 gene expression in Arabidopsis roots depends on NRT1. 1 nitrate transport function. Plant Signal. Behav. 2014, 9, e28501. [Google Scholar] [CrossRef] [PubMed]
  80. Araya, T.; Miyamoto, M.; Wibowo, J.; Suzuki, A.; Kojima, S.; Tsuchiya, Y.N.; Sawa, S.; Fukuda, H.; von Wirén, N.; Takahashi, H. CLE-clavata1 peptide-receptor signaling module regulates the expansion of plant root systems in a nitrogen-dependent manner. Proc. Natl. Acad. Sci. USA 2014, 111, 2029–2034. [Google Scholar] [CrossRef] [PubMed]
  81. Gansel, X.; Muños, S.; Tillard, P.; Gojon, A. Differential regulation of the NO3− and NH4+ transporter genes ATNRT2.1 and ATAMT1.1 in Arabidopsis: Relation with long-distance and local controls by N status of the plant. Plant J. 2001, 26, 143–155. [Google Scholar] [CrossRef] [PubMed]
  82. Tabata, R.; Sumida, K.; Yoshii, T.; Ohyama, K.; Shinohara, H.; Matsubayashi, Y. Perception of root-derived peptides by shoot LRR-RKS mediates systemic N-demand signaling. Science 2014, 346, 343–346. [Google Scholar] [CrossRef] [PubMed]
  83. Ohkubo, Y.; Tanaka, M.; Tabata, R.; Ogawa-Ohnishi, M.; Matsubayashi, Y. Shoot-to-root mobile polypeptides involved in systemic regulation of nitrogen acquisition. Nat. Plants 2017, 3, 17029. [Google Scholar] [CrossRef] [PubMed]
  84. Widiez, T.; El Kafafi, E.S.; Girin, T.; Berr, A.; Ruffel, S.; Krouk, G.; Vayssières, A.; Shen, W.-H.; Coruzzi, G.M.; Gojon, A.; et al. High nitrogen insensitive 9 (HNI9)-mediated systemic repression of root NO3− uptake is associated with changes in histone methylation. Proc. Natl. Acad. Sci. USA 2011, 108, 13329–13334. [Google Scholar] [CrossRef] [PubMed]
  85. Guan, P.; Wang, R.; Nacry, P.; Breton, G.; Kay, S.A.; Pruneda-Paz, J.L.; Davani, A.; Crawford, N.M. Nitrate foraging by Arabidopsis roots is mediated by the transcription factor TCP20 through the systemic signaling pathway. Proc. Natl. Acad. Sci. USA 2014, 111, 15267–15272. [Google Scholar] [CrossRef] [PubMed]
Ijms 19 02039 g001 550

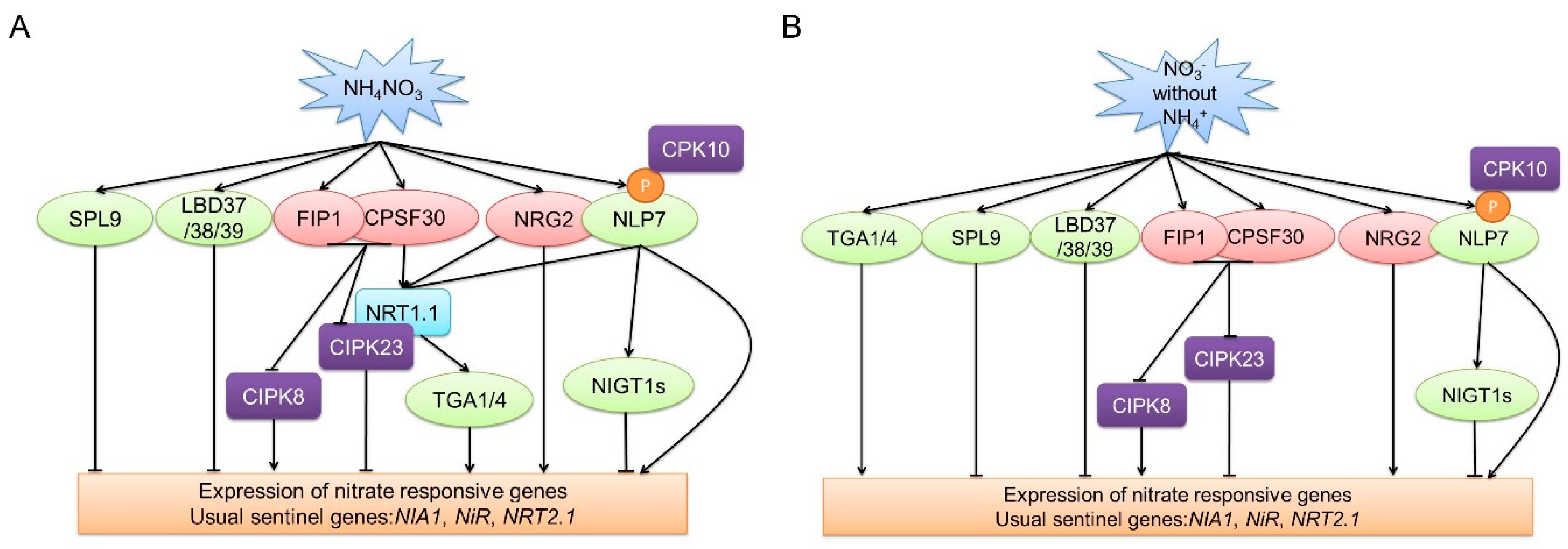

Figure 1. Schematic representation of nitrate regulatory factors affecting nitrate signaling. (A) The schematic for nitrate regulatory factors in the present of both ammonium and nitrate; (B) the schematic for nitrate regulatory factors without ammonium. The blue box indicates a nitrate sensor. Light green boxes indicate transcription factors. Purple boxes indicate protein kinases. Light red boxes indicate other nitrate signaling regulators. Arrows indicate positive regulation. Blunted lines indicate negative regulation.
Figure 1. Schematic representation of nitrate regulatory factors affecting nitrate signaling. (A) The schematic for nitrate regulatory factors in the present of both ammonium and nitrate; (B) the schematic for nitrate regulatory factors without ammonium. The blue box indicates a nitrate sensor. Light green boxes indicate transcription factors. Purple boxes indicate protein kinases. Light red boxes indicate other nitrate signaling regulators. Arrows indicate positive regulation. Blunted lines indicate negative regulation.
Ijms 19 02039 g001
Ijms 19 02039 g002 550

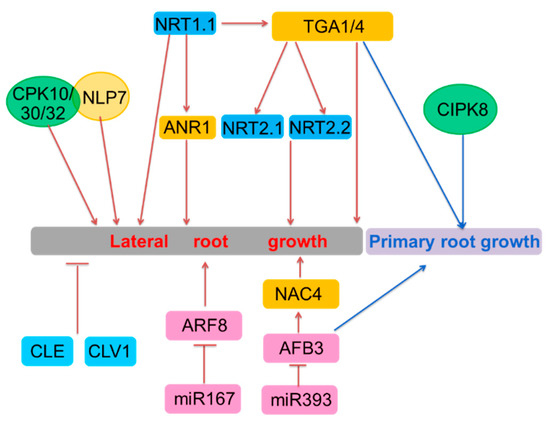

Figure 2. Schematic representation of primary and lateral root growth regulation by nitrate (local signaling). Arrows indicate positive regulation; blunted lines represent negative regulation. The dark blue boxes indicate the nitrate transporters; the yellow boxes indicate the transcription factors; the green boxes indicate the protein kinases; the light blue indicate the peptides; the pick boxes indicate the factors related to auxin.
Figure 2. Schematic representation of primary and lateral root growth regulation by nitrate (local signaling). Arrows indicate positive regulation; blunted lines represent negative regulation. The dark blue boxes indicate the nitrate transporters; the yellow boxes indicate the transcription factors; the green boxes indicate the protein kinases; the light blue indicate the peptides; the pick boxes indicate the factors related to auxin.
Ijms 19 02039 g002
Ijms 19 02039 g003 550

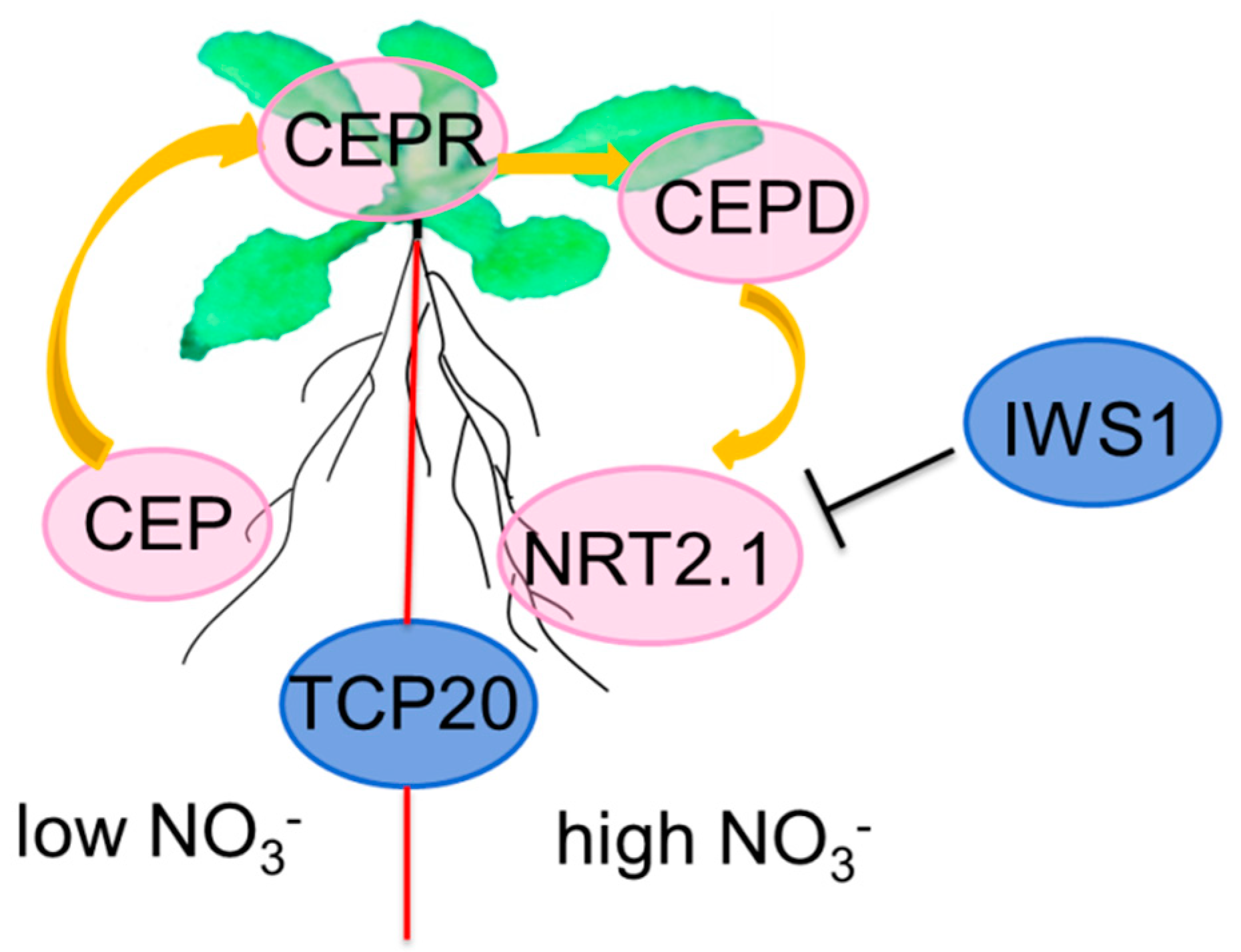

Figure 3. Key genes involved in the systemic signaling pathway that direct nitrate foraging and lateral root growth under heterogeneous conditions. Arrows indicate positive regulation. Blunted lines indicate negative regulation.
Figure 3. Key genes involved in the systemic signaling pathway that direct nitrate foraging and lateral root growth under heterogeneous conditions. Arrows indicate positive regulation. Blunted lines indicate negative regulation.
Ijms 19 02039 g003
Table
Table 1. Summary of nitrate regulatory genes in the short-term and long-term responses.
Table 1. Summary of nitrate regulatory genes in the short-term and long-term responses.
The Group of the Genes GeneGene FamilyTarget GenesRoles in Nitrate SignalingNitrate ResponsiveIdentification Methodology
Genes involved in short-term nitrate signaling/primary nitrate responseNLP6RWP-PKNRT2.1, NRT2.2, and NIAInvolved in primary nitrate response (positive)NoBinding to NRE
LBD37/38/39LBDNRT2.1, NRT2.2, NIA1, and NIA2Involved in primary nitrate response (negative)YesNitrate-responsive transcription factor
SPL9SPLNiR, NIA2, and NRT1.1 (potential)Potential regulatory hub (negative)YesIntegrated systems biology approach
NIGT1sNIGTNRT2.1Involved in primary nitrate response (negative)YesHomologues of OsNIGT1
CIPK23CBL-interacting protein kinasesPhosphorylating NRT1.1Involved in primary nitrate response (negative)YesDownregulated in chl1
NRG2Nitrate regulatory gene 2Regulating NRT1.1 and interacting with NLP7Involved in primary nitrate response (positive)NoForward genetics screening
CPSF30Polyadenylation specificity factorAffecting NRT1.1 mRNA 3’UTR alternative polyadenylationInvolved in primary nitrate response (positive)NoForward genetics screening
FIP1Factor interacting with poly(A) polymerase 1Interacting with CPSF30, regulating CIPK8 and CIPK23, and affecting 3’UTR alternative polyadenylation of NRT1.1Involved in primary nitrate response (positive)NoInteraction with CPSF30
Genes involved in both short-term and long-term nitrate signalingNRT1.1/NPF6.3NPFRegulating CIPK8, CIPK23, TGA1/4Involved in primary nitrate response (positive) and regulating lateral root growthYesForward genetics screening
TGA1/4bZIPNRT2.1 and NRT2.2Involved in primary nitrate response (positive) and regulating lateral root emergency and primary root growthYesIntegrated systems biology approach
CIPK8CBL-interacting protein kinasesUnknownInvolved in primary nitrate response (positive) and regulating primary root growthYesDownregulated in chl1-5
NLP7RWP-PKNRT2.1, NiR, NRT2.2, and NIAInvolved in primary nitrate response (positive) and regulating lateral root density and primary root growthNoHomologous to NIN protein in legumes and binding to NRE
CPK10Subgroup III Ca2+-sensor protein kinasePhosphorylating NLP7Involved in primary nitrate response (positive) and regulating lateral root primordia density and lateral root elongationYesInduced by nitrate
Genes involved in long-term nitrate signalingANR1MADS-boxRegulating NRT1.1Regulating lateral root growth under high nitrateYesIsolated in a screen for nitrate-responsive genes in roots
NRT2.1NPFUnknownRegulating lateral root initiation under the conditions of high C/N ratio and lateral root growth under limited nitrogenYesForward genetics screening
ARF8Auxin response factorsUnknownInduced in the pericycle and lateral root cap and marginally repressed in the stele in response to nitrogenYesCell-specific response to nitrogen
miR167microRNARegulating the expression of ARF8Controlling the lateral root growth in response to nitrogen with ARF8YesRegulator of ARF8
miR393microRNASpecifically cleaving AFB3miR393/AFB3 controlled the lateral root growth and primary root growthYes454 sequencing technology
AFB3Auxin receptorUnknownInduced by nitrate and involved in the regulation of nitrate in primary and lateral root growth Target of miR393
NAC4NAM/ATAF/CUCOBP4Regulating lateral roots inductionYesIntegrated systems biology approach
CLECLAVATA3/ESR-relatedCLV1Regulating lateral roots elongationInduced under N-deficiencyUpregulated by N deficiency
CLV1XI LRR-RLKsFeedback regulation of CLERegulating lateral roots emergence and lengthunknownBound by CLE
CEPCEPUnknownRoot-derived ascending signals to the shootunknownOriginating from N-starved roots
HIN9/IWS1Component of RNAPII complexesNRT2.1Involved in the transduction of N systemic signalNoForward genetics Screening
TCP20TCPNRT1.1, NIA, NRT2.1, and NiRRegulating lateral root elongation under high nitrateNoBinding to the promoter of NIA1 and NRT2.1

Share and Cite

MDPI and ACS Style

Zhao, L.; Liu, F.; Crawford, N.M.; Wang, Y. Molecular Regulation of Nitrate Responses in Plants. Int. J. Mol. Sci. 2018, 19, 2039. https://doi.org/10.3390/ijms19072039

AMA Style

Zhao L, Liu F, Crawford NM, Wang Y. Molecular Regulation of Nitrate Responses in Plants. International Journal of Molecular Sciences. 2018; 19(7):2039. https://doi.org/10.3390/ijms19072039

Chicago/Turabian Style

Zhao, Lufei, Fei Liu, Nigel M. Crawford, and Yong Wang. 2018. "Molecular Regulation of Nitrate Responses in Plants" International Journal of Molecular Sciences 19, no. 7: 2039. https://doi.org/10.3390/ijms19072039

APA Style

Zhao, L., Liu, F., Crawford, N. M., & Wang, Y. (2018). Molecular Regulation of Nitrate Responses in Plants. International Journal of Molecular Sciences, 19(7), 2039. https://doi.org/10.3390/ijms19072039

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
