[email protected]₂ Core Shell Nanorod Arrays with Tailored Structural, Electrical, and Optical Properties for Photovoltaic Application

Abstract

ZnO has prominent electron transport and optical properties, beneficial for photovoltaic application, but its surface is prone to the formation of defects. To overcome this problem, we deposited nanostructured TiO₂ thin film on ZnO nanorods to form a stable shell. ZnO nanorods synthesized by wet-chemistry are single crystals. Three different procedures for deposition of TiO₂ were applied. The influence of preparation methods and parameters on the structure, morphology, electrical and optical properties were studied. Nanostructured TiO₂ shells show different morphologies dependent on deposition methods: (1) separated nanoparticles (by pulsed laser deposition (PLD) in Ar), (2) a layer with nonhomogeneous thickness (by PLD in vacuum or DC reactive magnetron sputtering), and (3) a homogenous thin layer along the nanorods (by chemical deposition). Based on the structural study, we chose the preparation parameters to obtain an anatase structure of the TiO₂ shell. Impedance spectroscopy shows pure electron conductivity that was considerably better in all the [email protected]₂ than in bare ZnO nanorods or TiO₂ layers. The best conductivity among the studied samples and the lowest activation energy was observed for the sample with a chemically deposited TiO₂ shell. Higher transparency in the visible part of spectrum was achieved for the sample with a homogenous TiO₂ layer along the nanorods, then in the samples with a layer of varying thickness.

1. Introduction

Zinc oxide has been applied in many fields; including gas sensors, photodiodes, lithium-ion batteries and particularly solar cells. ZnO can be easily fabricated into various morphologies (e.g., nanowires, nanorods, nanotubes, nanoflowers, nanosheets) on different substrates. Therefore, ZnO in different shapes and in composites is studied for various applications. Recently, some authors combined ZnO in heterostructure with CdS [1,2] and studied its photocatalytic properties. ZnO in the form of thin film with CdS nanoparticles on the surface has been shown to be a high-performance material for photocatalytic degradation of methylene blue [1], while ZnO/CdS hierarchical composites have shown great photocatalytic H₂-production performance [2]. Wu et al. [3] prepared ZnO hollow spheres and the hedgehog-like ZnO hollow spheres and studied their use as anodes for lithium-ion batteries, having good rate capacity, cycling performance, and high initial specific capacity. ZnO nanowires have prominent electron transport properties [4], which are beneficial for solar cell application. However, ZnO is not chemically stable and is prone to dissolution. One way to avoid this fact is to coat a chemically stable shell on ZnO nanowires [5].

On the other hand, nanostructured titanium dioxide is known as a material with notable physical and chemical properties, such as high photo-activity and environmental stability, as well as low cost synthesis. TiO₂ exists in nature in three different crystalline phases: anatase, rutile, and brookite, but it was found that anatase (band gap ~3.2 eV) is more photo-active than other modifications. It is widely used for photovoltaic applications [6], primarily as an electron transport layer (ETL) in perovskite and dye sensitized solar cells, due to a suitable band gap for the acceptance of electrons from the active layer of solar cells. The studies aimed to improve the optical and transport properties of TiO₂-based electron conduction layers, which are of considerable importance for the enhancement of photovoltaic performance. By a combination of the high reactivity of TiO₂ and the large binding energy of ZnO, the process of electron transfer between the corresponding conduction and valence bands can be facilitated in the composite system [7].

In comparison to mesoporous thin films on transparent conductive oxide (TCO) operated as ETL in solar cells, 1-dimensional (1D) nanostructures on TCO substrates can provide a direct pathway for electron transport and offer open channels for filling with light absorbers and HTMs for solar cells. Moreover, oriented nanorod-like materials on TCO are known for their efficient charge separation and transport properties and are thus favorable for achieving good device performance [8,9,10]. Therefore, growth of oriented nanorods (NRs) on TCO substrates has drawn extensive research interest in solar energy utilization in the past years.

Moreover, the utilization of the single-crystalline 1D nanostructures with preferred orientation for ETL decreases the number of grain boundaries that decrease conductivity, as was observed in studies on ZnO nanostructure [11,12,13]. Thus, Wu et al. [11] investigated rapidly synthesized ZnO nanowires for photodetector application and produced nanowires which consist of nanoparticles. They concluded that these nanowires have adsorption sites on the inter-granular surface, which can lead to the increased reactivity of these surfaces and, therefore, a low conductivity. Their finding is in accordance with old paper of Oktik [12] where he stated that a large density of extrinsic electron traps, present at the grain boundaries due to oxygen chemisorption, results in a barrier to charge-carrier conduction at grain boundaries. Annealing in vacuum or in reducing atmosphere desorbs the oxygen and therefore decreases the grain boundary potential barrier and increases the effective charge-carrier concentration (and therefore the conductivity). Natsume and Sakata [13] prepared ZnO films by sol–gel spin-coating and confirmed the grain boundary scattering effect due to thermionic emission.

Several groups prepared ZnO nanowires combined with other materials (polycrystalline MgO, P3HT polymer) in core–shell hetero-structures and studied their application in polymer and dye sensitized solar cells (DSSCs) [14]. These hetero-structures combine stable characteristics from the shell and fast electron transport features of the mono-crystalline nanowire core, thus increasing the efficiency of solar cells. Samad et al. [15] found that an enhancement of photocurrent density and photo conversion efficiency occurred due to the sufficient Ti content within TiO₂–ZnO nanorod films. This film traps the photo-induced electrons and minimizes the recombination of charge carriers, while the charge-separation effect at the type-II band alignment of Zn and Ti further enhances the charge carrier transport during illumination. Boroa et al. [16] reviewed different TiO₂/ZnO nanocomposites for use as a photo-anode in DSSCs. They compared typical solar cells parameters (open circuit voltage, short circuit current, fill factor and efficiency) for nanocomposites such as TiO₂ doped or decorated with different sized ZnO nanostructures and vice versa, coaxial nanotube arrays, nanodonuts, nanoflowers and 3D hierarchical hetero-structures. It is concluded that the best performance among studied nanostructures was shown in DSSCs with one-dimensional composite structures such as nanotubes, nanorods, or nanowires. Recently, Zhong et al. [17] synthesized ZnO nanorod arrays by polymer template and sol–gel methods for TiO₂ modification, starting from butyl titanate and isopropanol. They studied the use of such core–shell structures as ETL in perovskite solar cells (PSCs) and showed improved power conversion efficiency compared to pure ZnO nanorod arrays used as ETL. Enhanced stability in air was also observed. The same authors [18] also studied the influence of the ZnO–TiO₂ nanorod length, prepared by the same procedure on PSCs efficiency and stability. All the cited results for photovoltaics with ZnO–TiO₂ composites as ETL indicated that the study of the influence of the TiO₂ deposition parameters on structure, morphology, and, consequently, on optical and electrical properties are of the main importance for further development of different photovoltaic devices. Therefore, detailed study of different preparation methods and the influence of the preparation parameters of the TiO₂ shell in [email protected]₂ core–shell nanostructures would improve photovoltaic devices based on [email protected]₂ core shell nanorod arrays as ETL.

ZnO with TiO₂ at the surface of the nanostructures are also used for other applications. Hernandez et al. [19] have demonstrated that ZnO–TiO₂ materials have a superior photo-electrochemical activity, due to improved electron-hole separation and lower charge carrier recombination rates. They demonstrated a sol–gel synthesis for the deposition of a protective shell of anatase TiO₂ nanoparticles onto a vertically aligned ZnO nanowire (NW) array. It is reported that the presence of the TiO₂ shell in the core–shell nanostructure improves the charge separation efficiency, thanks to a potential barrier at the semiconductor/electrolyte interface, which limits the charge recombination. Therefore, in [email protected]₂ core–shell nanostructures, the high electron mobility is coupled with the efficient separation of charge carriers between the TiO₂ shell and the ZnO core. Further, X. Yan et al. [20] applied the heterogeneous nanostructure as an efficient way to improve light absorption and extend the carrier life time characteristics of the photocatalysts to extend the catalyst’s optical absorption range in a Zn/TiO₂ core-brush structure.

In this work, we focused on influence of the type of preparation technique and deposition parameters on the structure and morphology of [email protected]₂ core–shell hetero-structures and their correlation with optical and electrical properties. The aim was to achieve a simple and low-cost preparation process of [email protected]₂ core–shell nanostructures and to understand their electrical and optical properties intended for photovoltaic application. However, the essential goal was to preserve transparency and to obtain superior electron transport properties of the formed [email protected]₂ core–shell nanorod array layers, so different deposition techniques for preparation of theTiO₂ layers were studied. The ZnO nanorod arrays were prepared by a simple chemical method, while for TiO₂ deposition on the ZnO nanorods, three different methods were studied—pulsed laser deposition (PLD), magnetron sputtering (MS), and spin coating of a chemically prepared precursor for the TiO₂ layer, followed by annealing. The morphology and crystal structure of the deposited TiO₂ is considerably dependent on the deposition method. The preparation parameters were chosen to obtain an anatase structure of the TiO₂ shell. A significant absorption in the UV part of the spectrum was observed for all the prepared morphologies, while the absorption of visible light depends on the morphology of the TiO₂ layer. The superior electrical properties in comparison to uncovered ZnO nanorods and bare TiO₂ layers were observed in the thin layer of [email protected]₂ core–shell nanostructures. Thus, high surface conductivity for electrons as charge carriers as well as low activation energy was observed for all the core–shell nanostructures. The best electrical and optical properties among the studied samples were obtained for core–shell nanostructures where the TiO₂ layer was prepared by chemical deposition, which was explained by homogenous coverage of the ZnO nanorods as well as by the smoothness of the TiO₂ surface.

2. Results

2.1. Structural Results

2.1.1. ZnO Nanorods

ZnO nanorods (ZNRs) were prepared on an indium tin oxide (ITO) coated glass substrate to study the growth of these layers and nanorods on ITO. For the electrical measurements, the nanorods were also grown on a glass (quartz) substrate to avoid the possible influence of ITO on the ZNR electrical response.

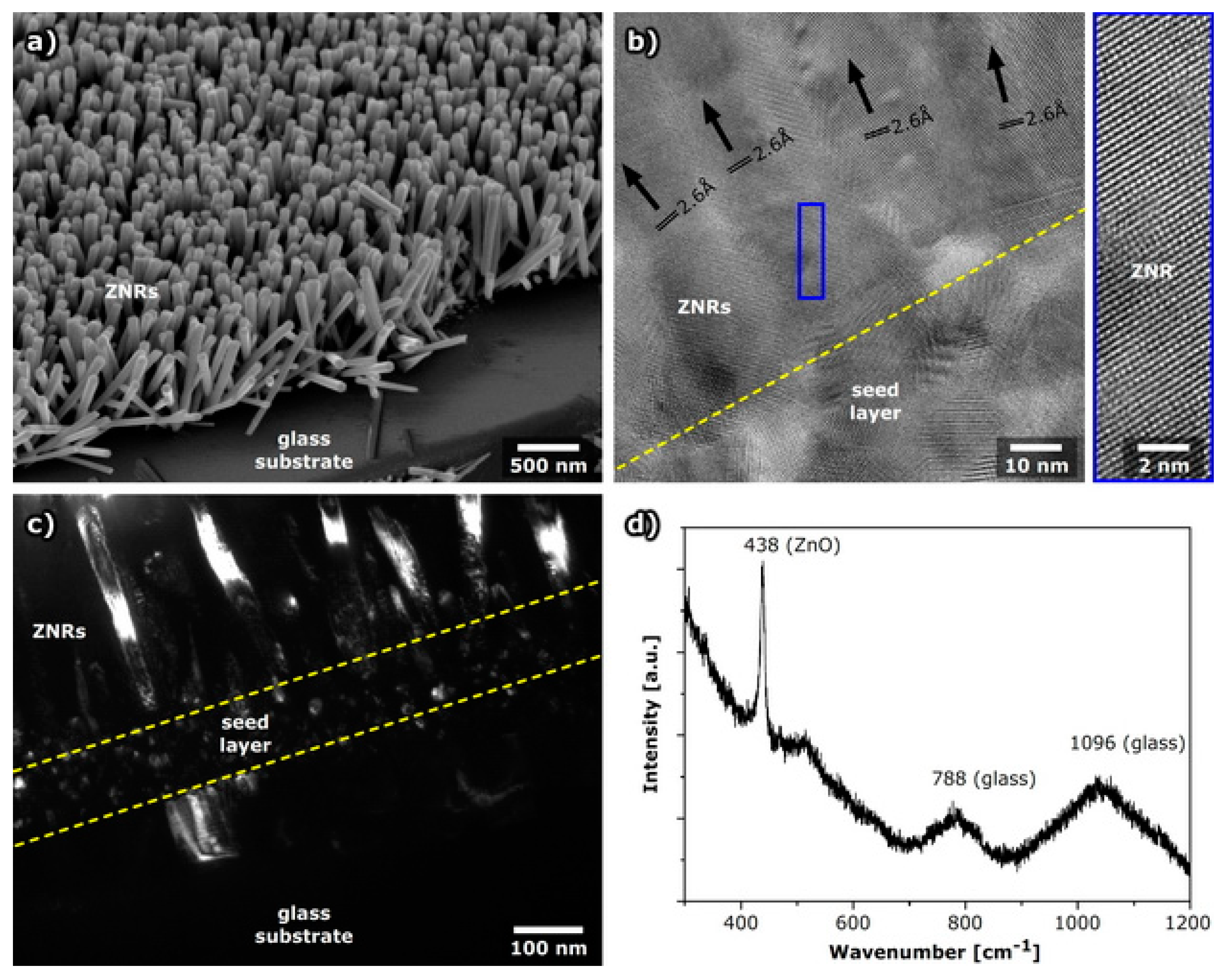

It was observed by scanning electron microscopy (SEM) that nanorods grow homogenously and their length varies 10% to 20% (estimated from Figure 1), as recorded at the edge of the tilted sample. A cross section of the nanorods observed by high-resolution transmission electron microscopy (HRTEM) and dark field TEM shows the preferential growth of the nanorods that start the growth from nanoparticles in the seed layer (Figure 1b,c). The d-spacing observed in nanorods by HRTEM was around 0.260 nm which corresponds to the (002) plane of zincite, hexagonal ZnO (JCPDS PDF#36-1451). Raman spectroscopy also shows a band characteristic for hexagonal ZnO at 438 cm⁻¹ [21,22], as well as broad bands of glass substrate.

2.1.2. TiO₂ Shell Layer Prepared by Pulsed Laser Deposition (PLD)

The influence of the PLD parameters on the morphology and structure of formed TiO₂ layers was studied with the aim to achieve [email protected]₂ core–shell nanostructures transparent to visible light. The number of laser pulses as well as atmosphere (argon or vacuum) used for PLD deposition was optimized based on comprehensive study of the TiO₂ layer obtained at the surface of the ZNR using different characterization techniques. Here we show the main results for the prepared samples further studied by the optical and electrical measurements. The rest of the results obtained during parameter optimization process are shown as supplemental materials.

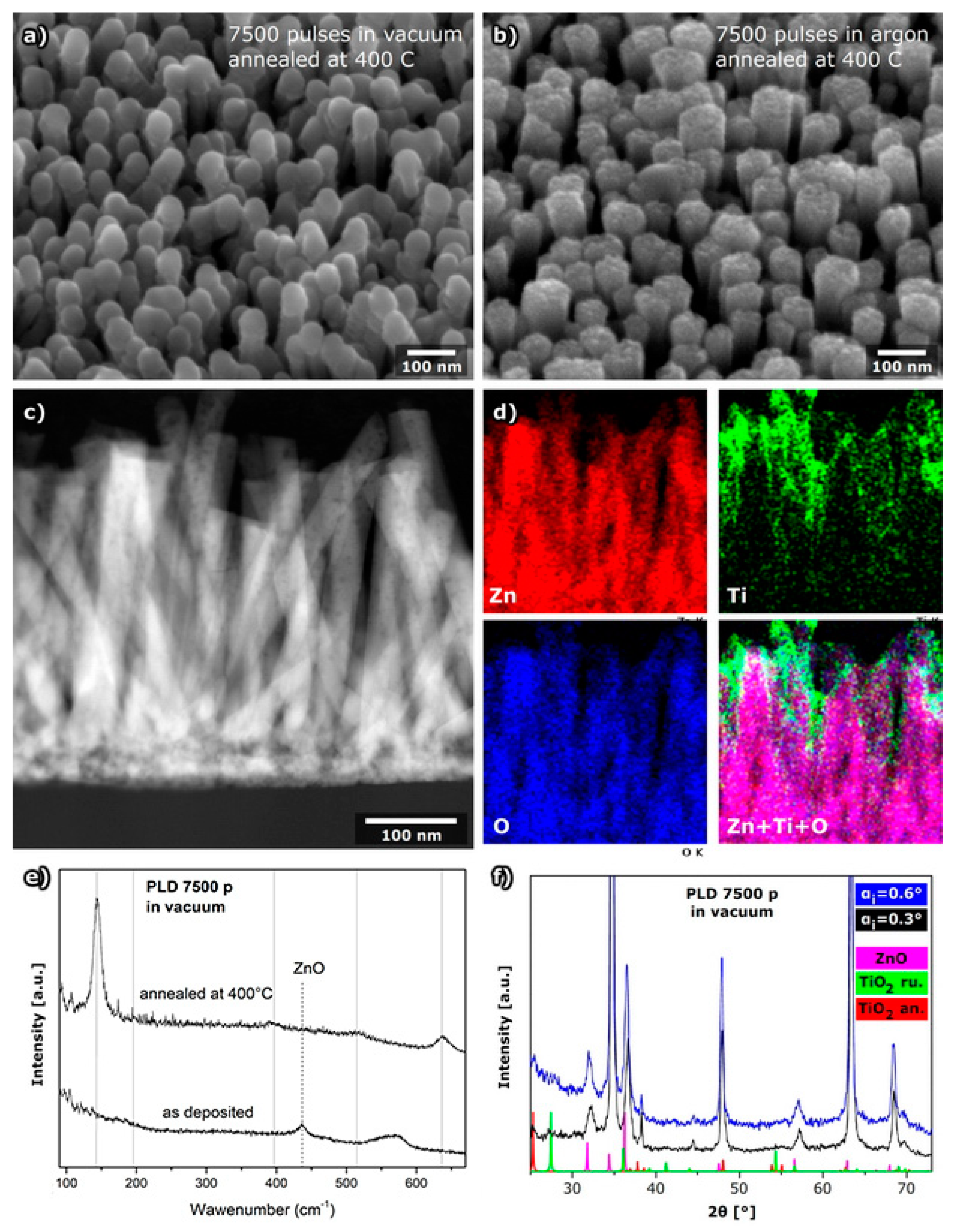

For the ZNR sample with a deposited TiO₂ layer using 7500 laser pulses (5 Hz repetition rate) in a vacuum, a smooth surface of TiO₂ at the ZNR was formed in a hemisphere-like shape on the top of the nanorods, as was presented in Figure 2a. On the other hand, TiO₂ deposited in Ar atmosphere (30 Pa) formed nanoparticles and clusters on the surface of ZNRs (Figure 2b).

It was found before for other materials that films deposited in a vacuum or at low working gas pressure are compact with a wide variation in the size of the columnar structures in the film, while those deposited at higher pressures of Ar are rather rough with more spherical particles [23]. When laser ablation is performed in a vacuum, ablated particles (plasma plume) follow free expansion. When laser ablation is performed in the background gas, plasma plume is confined (collision dominated regime) and thus decelerated [24]. In that case, velocity of ablated particles decreases with pressure [25] while particle expansion can be described either with drag-force or a shockwave model [26]. Ablated particles have also a time-of-flight character of expansion as lighter and ionized particles are faster than heavier or neutral ones [27]. However, the kinetics of ablated particles highly influence the formation processes of thin films fabricated by the PLD technique. Higher energies of ablated particles lead to longer surface diffusion lengths when they reach the substrate. It is well known that longer surface diffusion length of atoms results in smoother, more compact, and denser layers as the higher mobility of deposited atoms increases the probability of smoothing the ridges on the growing surface front [28,29]. Atoms with low surface mobility (ablated particles with low velocities) are frozen at place where they impinge the substrate and they lead to a formation of a rough layer. That is why the layer of TiO₂ deposited by PLD in Ar is rough while that formed in a vacuum is smooth.

To determine the amount of deposited TiO₂ by different deposition routes, energy dispersive X-ray spectroscopy (EDS) using SEM was performed at a larger area of the samples. It was observed that in samples prepared by PLD in a vacuum, a much higher amount of TiO₂ was deposited (

Table 1. Results of EDS measurements at samples prepared by different deposition routes.

Sample/Preparation Procedure	Zn L (at%)	Ti K (at%)	O K (at%)	Si K (at%)
[email protected]2 – PLD (Ar, 7500 p)	44.6	3.0	49.2	3.2
[email protected]2 – PLD (vacuum, 7500 p)	23.8	8.8	56.8	10.6
[email protected]2 – MS (30 min)	37.5	5.0	54.0	3.5
[email protected]2 – MS (1 h)	37.8	7.9	53.3	1.0
[email protected]2 – MS (3 h)	18.6	19.2	61.6	0.6
[email protected]2 – chem (1 layer)	40.7	1.3	51.2	6.8
[email protected]2 – chem (3 layers)	28.8	4.2	54.8	12.2

) then in the case when deposition was done in an Ar atmosphere.

To verify the distribution of TiO₂ on the surface of the nanorods, dark field STEM and EDS mapping was done using an atomic resolution transmission electron microscope (Figure 2c,d). It was observed that even if the TiO₂ layer is applied in a vacuum to form a smooth surface of TiO₂, the ZNR are not homogeneously covered by TiO₂, but the layer of the TiO₂ is thicker at the upper part of the nanorods.

With the aim to determine the crystal structure of the formed TiO₂ layer confocal micro-Raman measurements were done. It was shown that the deposited TiO₂ was amorphous regardless of deposition parameters (Figure 2e and Figure S2) since in as-deposited samples only the band characteristic of zincite was observed. Therefore, all the samples were annealed after deposition to obtain crystalline TiO₂, but the SEM images of the as-deposited samples and the annealed samples indicated that post-deposition sample heating did not influence the morphology of TiO₂ (Figure S1). Since it is known that the TiO₂ anatase phase has better optical properties than the rutile phase, the parameters of deposition and heating temperature were optimized to obtain a pure anatase nano-layer. The layers deposited in a vacuum by 7500 pulses and annealed at 400 °C clearly showed only anatase structure of TiO₂ by Raman spectroscopy and a band of ZnO of very low intensity (Figure 2e). In the sample deposited in a vacuum, even after annealing at 450 °C, the anatase structure dominated, with just one very low intensity band characteristic for the rutile phase (Figure S2a). However, the phase transition to rutile was already observed after heating at 400 °C in samples prepared by PLD in Ar (Figure S2b), although it is known that the phase transition from anatase to rutile is very slow for temperatures under 900 °C. This behavior can be explained by the formation of small nanoparticles at the sample surface (Figure S1) in the case of PLD performed in Ar. Since a smaller amount of TiO₂ was deposited in Ar (Table 1) by 5000 pulses, in this case TiO₂ was not detected by Raman spectroscopy (Figure S2b). The absence of a rutile phase in samples prepared in a vacuum can be explained by the formation of a continuous TiO₂ thin layer (Figure 2 and Figure S1) which prevents the formation of rutile.

The samples obtained by PLD using 7500 pulses in a vacuum were additionally studied by grazing incidence X-ray diffraction (GI-XRD; Figure 2f) to confirm the Raman spectroscopy results on the structural phases of TiO₂ as well as their distribution at the ZNR. Two grazing incidence angles were used. The first one, close to critical angle (α_I = 0.3), provides information about the surface while other one (α_i= 0.6), where probe beam penetrates deeper in the sample, enables analysis of the “bulk” of the sample. The peaks characteristic for hexagonal ZnO (JCPDS PDF#36-145) are dominant in diffraction patterns recorded at both angles, while the diffraction lines of the TiO₂ anatase phase were detected only at an angle of 0.3°. This result implies that the majority of TiO₂ in the [email protected]₂ core–shell nanorod arrays was deposited on the upper part of the nanorods. That result agrees with EDS mapping observations (Figure 2d).

2.1.3. TiO₂ Shell Layer Deposited by Magnetron Sputtering

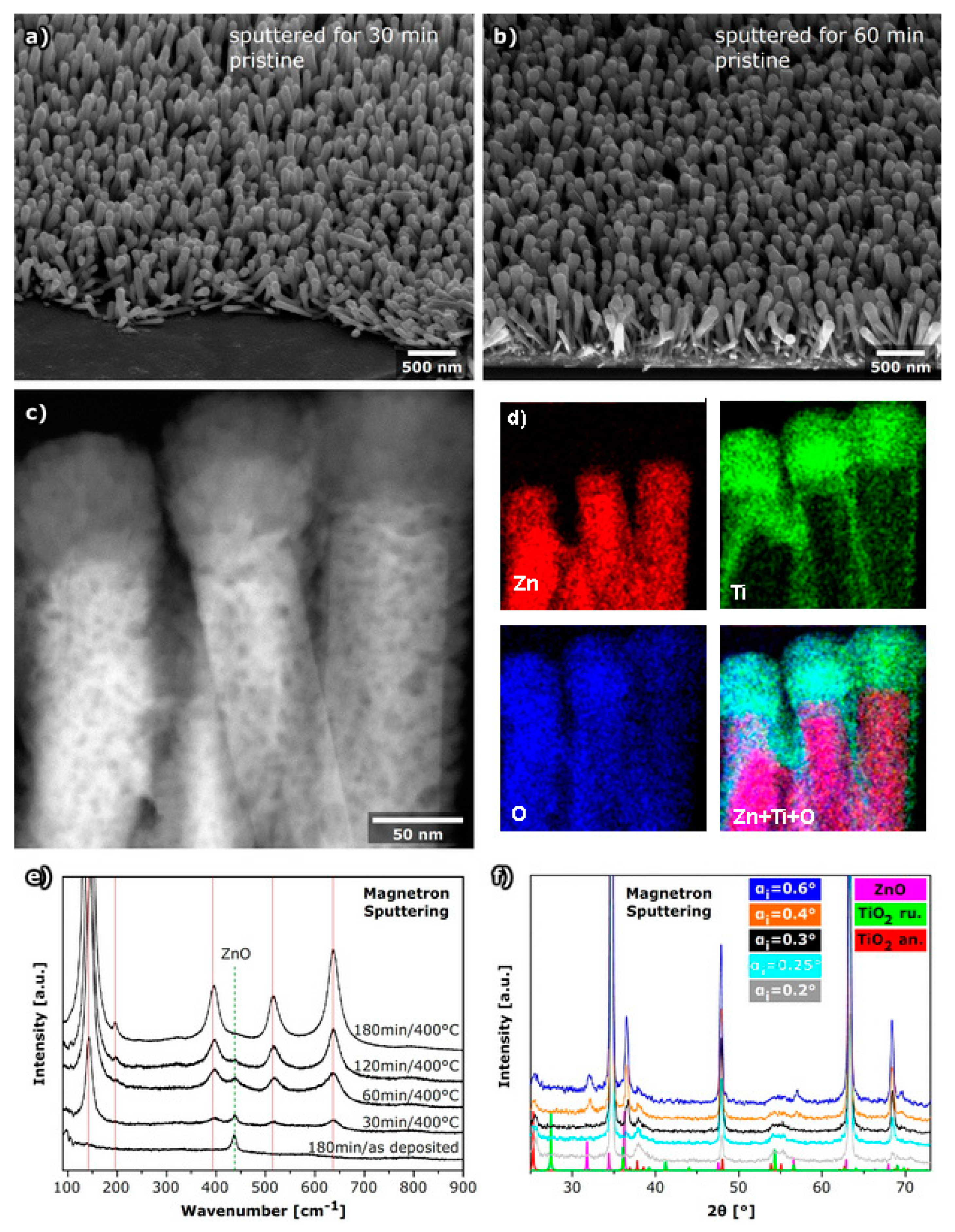

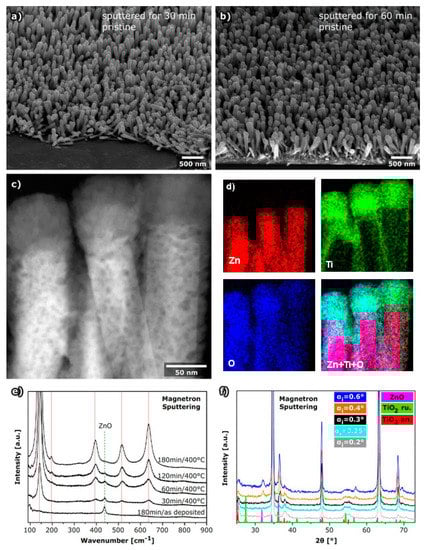

In DC reactive magnetron sputtering experiments, the deposition time was varied with the aim to find appropriate parameters to obtain a transparent [email protected]₂ core-shell nanorod array that will have good electrical properties. The SEM study indicated that after 30 min of deposition, a very thin layer of TiO₂ was deposited on the nanorods (Figure 3a), while 60 min of deposition gave a larger thickness of the shell layer. The morphology was not changed after annealing as in the case of TiO₂ deposited by PLD (Figure S3a,b). On the other hand, after 3 h MS deposition of TiO₂, the ZNRs were almost completely covered with TiO₂ (Figure S3c,d) and the transparency of the layer was not preserved. The STEM image of [email protected]₂ prepared in a deposition time of 1 h (Figure 3c) shows a layer of TiO₂ that is thicker on the upper side of the nanorods, similar to the samples prepared by PLD. EDS measurements (Table 1) indicate that 1 h of deposition gives a similar atomic percentage of TiO₂ as a deposition with PLD using 7500 pulses in a vacuum. Although SEM observations indicated a smooth TiO₂ layer surface, STEM and high angle annular dark field images (HAADF) (Figure S4) indicated that even this smooth surface has a morphology of agglomerated nanoparticles. The HAADF image (Figure S4b) additionally demonstrated that the lower parts of the nanorods, nearer the seed layer, have a much thinner layer of the TiO₂ then the upper part of the nanorods or did not even contain any TiO₂. EDS maps (Figure 3d) further confirm that the TiO₂ layer dominates at the upper part of the ZNR surface, while only a small amount, or none of, the TiO₂ was deposited between the nanorods.

To study the crystal structure of the TiO₂ thin layer deposited on ZnO nanorods by MS, Raman spectroscopy was used. Since the Raman spectrum of MS deposited TiO₂ showed only the band characteristic for ZnO even in the sample prepared by 3 h deposition, it was concluded that the deposited layer is completely amorphous (Figure 3e; spectrum “as deposited”). To obtain the anatase form, superior for further use in photovoltaics, the samples were heated at evaluated temperatures. After heating at 400 °C, even in sample prepared by only 30 min of MS deposition, the Raman bands characteristic for anatase were observed (Figure 3e; spectrum 30 min/400 °C). However, heating to the temperature of 450 °C induced the start of the phase transition to rutile, which was probably the consequence of small particles of TiO₂, as discussed before for samples prepared by PLD.

To determine the distribution of TiO₂ on the surface of the ZNRs, GI-XRD at different angles of incidence was applied (Figure 3f). The results indicated that TiO₂ is thicker at the surface of the ZNRs since the intensity of the anatase peak is larger at small incidence angles. The most intensive peak characteristic for rutile was not observed, which is in agreement with the Raman spectroscopy results.

2.1.4. TiO₂ Shell Layer Prepared by Chemical Deposition

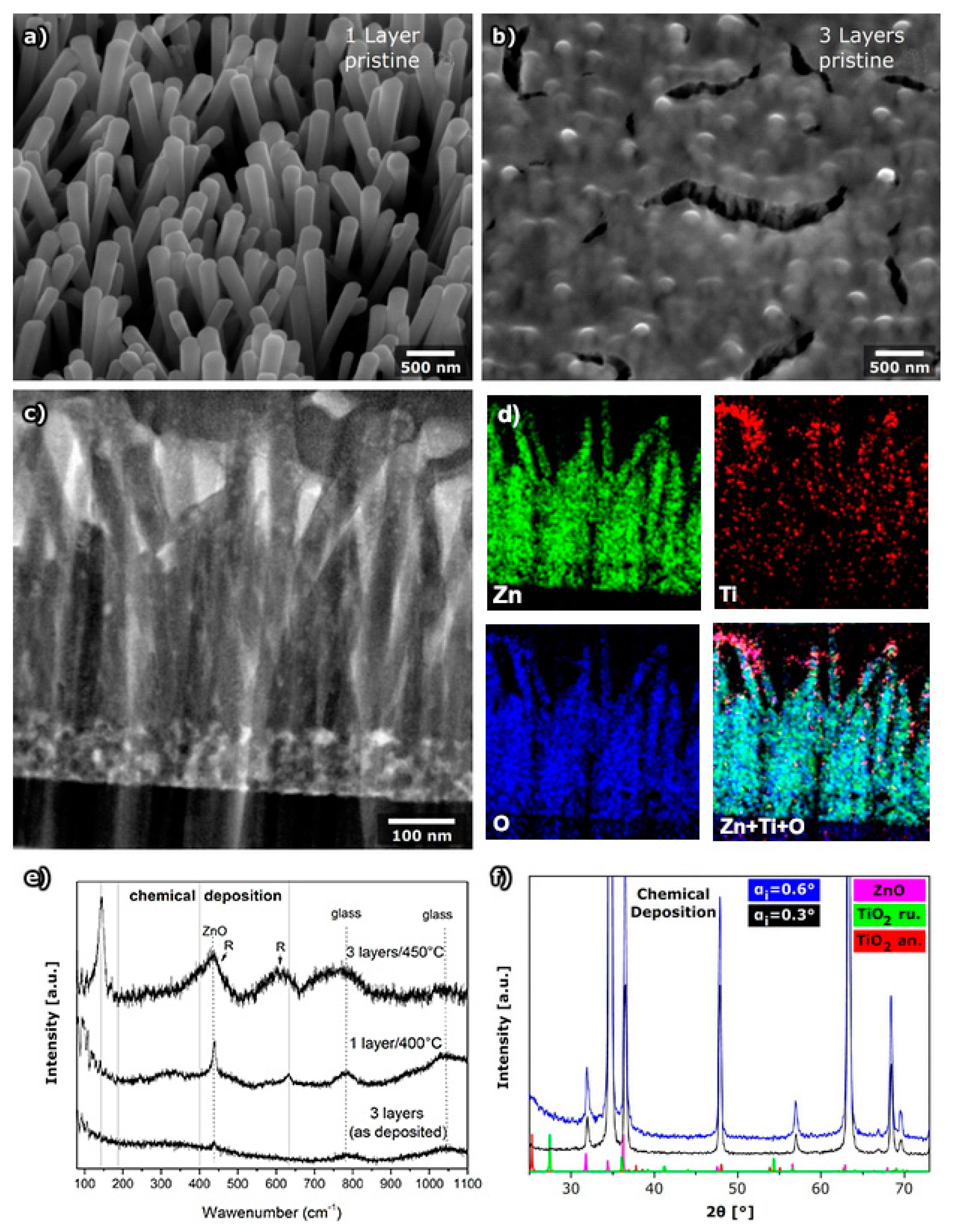

With the aim to obtain the [email protected]₂ core shell nanorod array using only chemical methods, the TiO₂ layer was prepared by spin coating of the sol–gel solution and post-deposition annealing at 450 ˚C. The deposition was repeated either one or three times with drying between depositions. The morphology of the nanorods was completely preserved after one deposited layer (Figure 4a), while SEM images of the 3 layers of TiO₂ deposited on ZNR show a completely covered array with only some cracks in a thick layer (Figure 4b). The EDS measurements indicated the successful deposition of TiO₂ even if only one layer is deposited (Table 1), but the atomic percentage of Ti was somewhat smaller than in the case of deposition by PLD and MS.

To obtain further insight into the TiO₂ layer chemically deposited on ZNRs, the cross section of [email protected]₂ core–shell nanorod array was prepared and recorded by STEM (Figure 4c). STEM images, especially dark field STEM, clearly indicated that the layer of TiO₂ formed by chemical deposition is much thinner than layers prepared by PDL or MS, but also the thickness of the layer is continuous along the nanorods. This can be explained by the nature of the preparation technique where the prepared sol–gel solution is spin coated on the surface of the ZnO nanorod array, so due to the liquid nature, the substance can be incorporated between the nanorods before crystallization.

The shape of TiO₂ on ZNR was additionally studied for samples with one deposited layer using EDS mapping measurements (Figure 4d). The measurements were done at the part of the sample shown in dark and bright field images (Figure 4c). The EDS map of Ti indicates that TiO₂ is homogenously distributed along the ZnO nanorods (Figure 4d).

Since the obtained layer of TiO₂ was very thin, the Raman spectrum of the one-layer sample (heated at 450 °C) shows bands of ZnO and glass substrate, while bands characteristic for TiO₂ anatase have very small intensity and are almost completely drowned in the background (Figure 4e). Bands characteristic for TiO₂ were only observed by Raman spectroscopy for the sample prepared by deposition of 3 layers of TiO₂, heated at 450 °C, where, beside anatase, some rutile TiO₂ was also present (Figure 4e). Due to the very thin TiO₂ layer, the GI-XRD method showed no TiO₂ peaks (Figure 4f).

2.2. Elecrical Properties

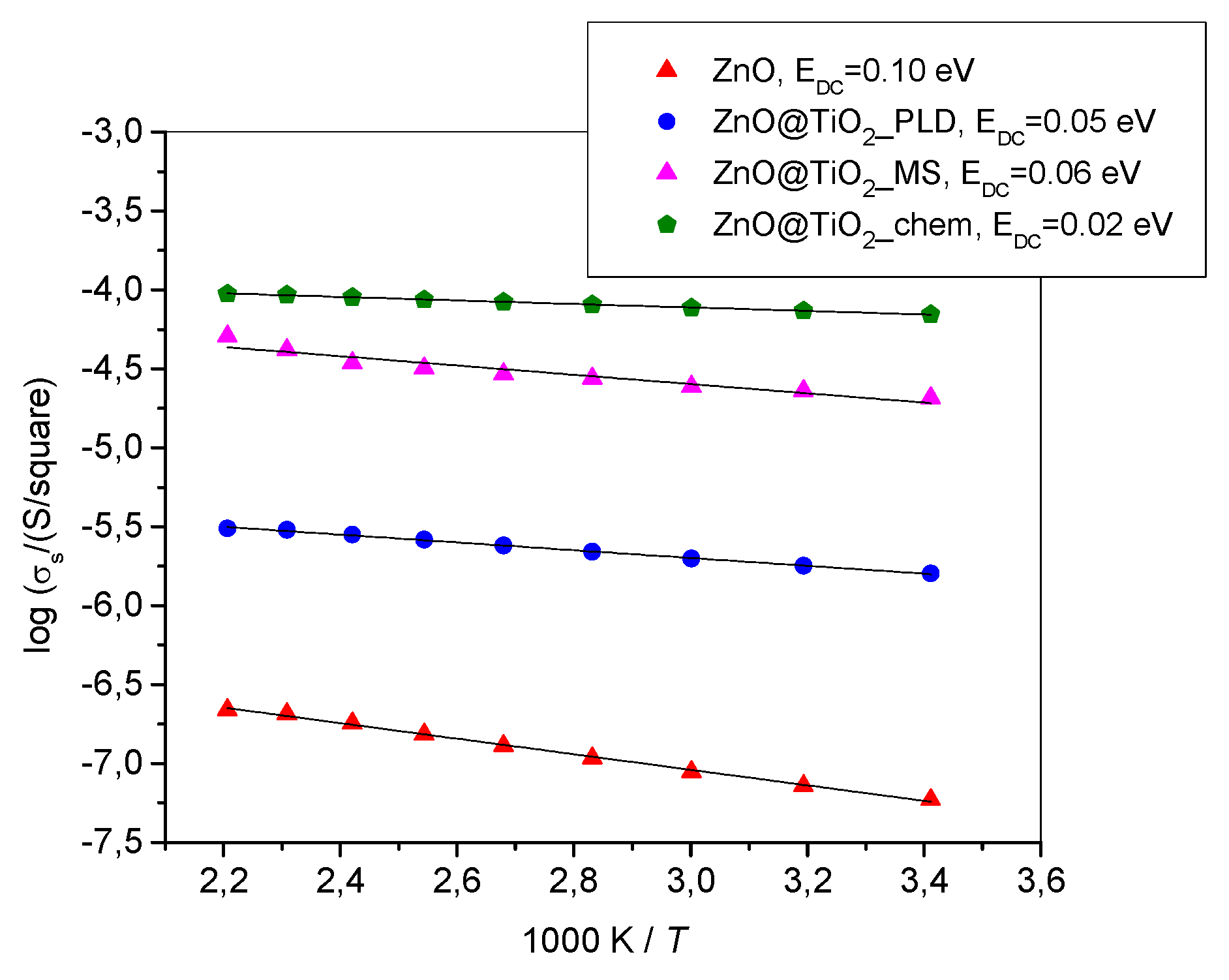

The surface conductivity of all the samples exhibits Arrhenius temperature dependence, as is shown in Figure 5. The results are shown only for the samples having highest conductivity among samples prepared by specific deposition method. Results presented in Figure 5 are for the samples prepared by PLD in a vacuum by 7500 pulses, 30 min DC reactive MS, and single-layer TiO₂ prepared by chemical deposition. All [email protected]₂ core–shell nanorod arrays prepared by different deposition procedures have significantly higher surface conductivity than pure ZnO nanorods. Also, the sample with spin-coating chemically deposited TiO₂ results in the highest surface conductivity which can be directly related to morphology, i.e. a smooth layer of TiO₂ that uniformly covers ZnO nanorods (Figure 4). Clearly, such a homogenous TiO₂ layer allows easy and undisturbed electron transport, leading to higher conductivity.

Surface conductivity spectra at different temperatures for a [email protected]₂ nanorod array prepared by spin coating one layer of chemically prepared TiO₂ (Figure S5) show that at each temperature the conductivity is frequency independent. The obtained conductivity plateaus, corresponding to DC surface conductivities, are typical for the fast electronic transport. Similar conductivity spectra were obtained for all samples in this study.

The activation energy for conductivity, E_DC, for each sample was determined from the slope of logσ_s vs. 1/T using the equation

logσ_s = σ₀exp(−E_DC/k_BT)

(1)

where σ_s is the surface conductivity, σ₀ is the pre exponent, k_B is the Boltzmann constant and T is the temperature (K). As expected, the activation energy shows the opposite trend to the changes in the surface conductivity of the samples.

2.3. Optical Properties

The transmittance of deposited thin films was measured by integration sphere to include the direct and scattered parts of transmitted light. The results for a bare ZnO nanorod array on glass substrate and those covered with TiO₂ deposited by PLD, MS, and chemical method, are plotted in Figure 6. Samples compared in Figure 6 are those having the best electrical properties among the samples prepared by a specific deposition method.

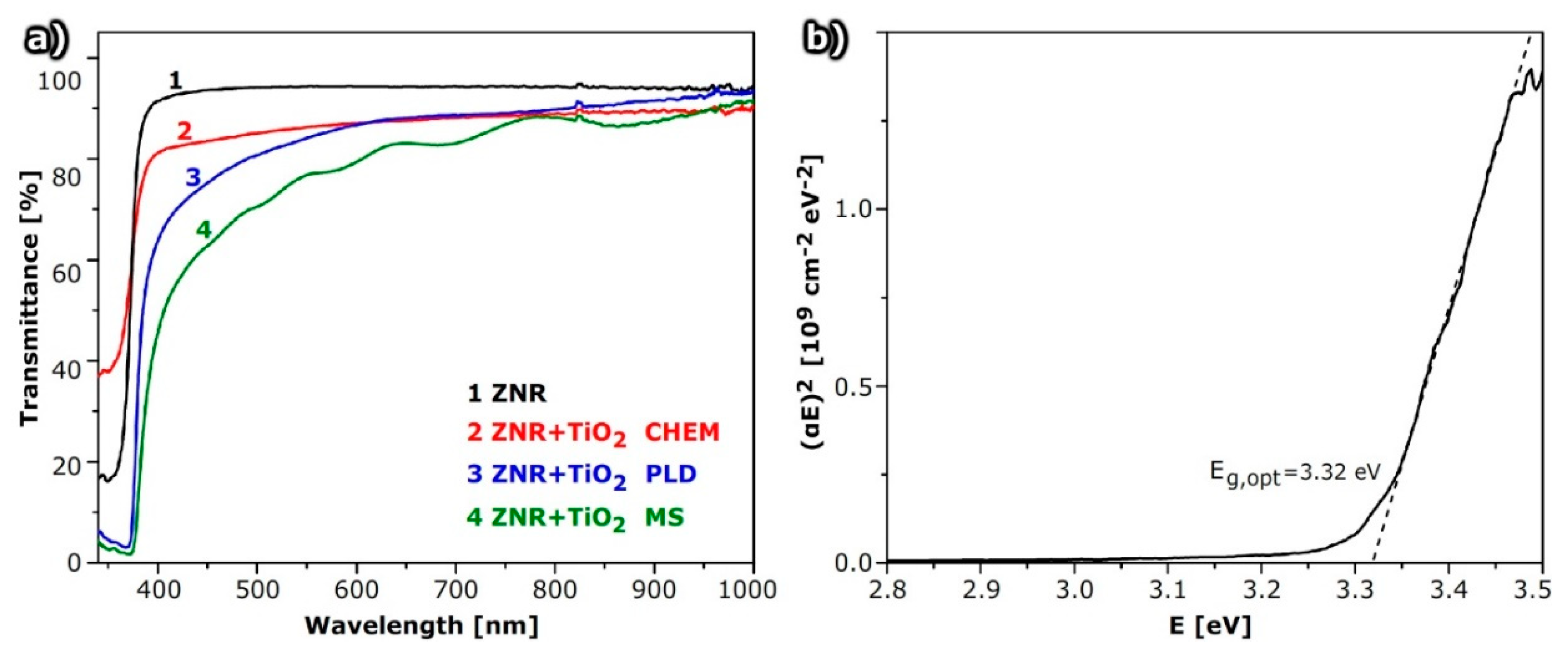

Figure 6a shows the transmittance of [email protected]₂ deposited by all three methods—PLD, MS and chemical deposition. The total amount of deposited TiO₂ is nearly the same for all used methods and the difference between them reveals the variation in structural properties and film morphology. The transmittance of [email protected]₂ NR arrays is substantially lower than of ZNR due to absorption and possibly internal light scattering in the TiO₂ layer. The effect is more pronounced for shorter wavelengths, i.e. in the UV part of the spectrum. TiO₂ deposited by chemical methods forms a continuous film and transmittance is the highest if we compare this result with the results for other deposition methods (Figure 6).

If the transmittance of a [email protected]₂ NR array for samples with TiO₂ deposited by PLD is compared, it is observed that the transmittance for a sample deposited in a vacuum is lower than that of samples deposited in an Ar atmosphere. This is due to the higher density and thickness of the TiO₂ layer, which is consistent with the results of structural measurements (Figure S6). The transmittance of a [email protected]₂ NR array prepared by MS depends on the deposition time (Figure S7).

The optical gaps, E_g,opt, of [email protected]₂ NR arrays and ZnO NR thin films were estimated from transmittance as shown in Figure 6b where an example of band gap determination is shown for the case of bare ZNRs. The results were obtained assuming similar behavior as for pure bulk materials, which can be done using the Tauc, Davis and Mott model [30,31]:

αhν = A (hν − E_g,opt)ⁿ

(2)

where A is a constant and n depends on type of optical transition; n = 1/2 for direct and 2/3 for indirect transition. For all our films, the direct transition model fits experimental data, and all composite samples have an optical gap around 3.25 eV. Therefore, the optical gap of composites was somewhat smaller than for ZNRs, which is a favorable characteristic for lowering the UV component of the spectrum.

The lower absorbance in the UV part of the spectrum could be beneficial for the application of the composites in photovoltaics since it would protect the active layer. The estimated values for E_g,opt for composite materials were slightly above values expected from literature values, assuming that the conduction band is not empty (the Burstein–Moss effect) which is consistent with electrical measurements that show relatively low activation energy.

3. Discussion

Since it is known from literature [6,7,14,15,16,17,18] that [email protected]₂ core–shell nanostructures could serve as an advantageous electron transport layer in perovskite, polymer, and dye sensitized solar cells, influence of the morphology and structure on electrical and optical properties, that are crucial for photovoltaic application, were studied. To obtain [email protected]₂ core–shell nanostructures with diverse structural properties, different deposition techniques were applied for the preparation of the shell layer, and the deposition parameters were additionally varied. In contrast to known literature where usually one chemical method was applied for the preparation of the TiO₂ shell layer on ZnO, in this study the focus was on the influence of different preparation methods (two physical and one chemical) on properties of the core–shell structure. Depending on the deposition techniques, we obtained 3 different morphologies of TiO₂ shell layers (Figure 7). As was expected, the morphology of the shell layer affected the electrical and optical properties responsible for future application in photovoltaics. The main morphologies of TiO₂ layers: (1) nanoparticles or nanoaggregates on the surface of nanorods schematically represented by Figure 7a, (2) a layer that preferably covers the upper part of nanorods, thicker at the top of nanorods, represented by Figure 7b, and (3) a layer of TiO₂ that is homogenously distributed along the whole length of nanorods, represented by Figure 7c. The first morphology was observed for [email protected]₂ core shell nanorods obtained by PLD in argon. The second morphology was characteristic for TiO₂ layers deposited by PLD in a vacuum or by magnetron sputtering, while the homogenously covered nanorods were prepared by chemical deposition.

The preparation parameters of each method influenced the thickness of the TiO₂ layer. Thicker layers were obtained by more laser pulses for PLD deposition, for longer time of MS deposition, or by more layers applied by spin coating. For the larger thickness of TiO₂ layers prepared by MS or chemical deposition, the nanorods were completely cluttered with TiO₂ (Figure S3 and Figure 4b). Since for thicker layers the optical properties are poor due to lower transparency, the optical and electrical properties were studied only for the samples with thinner TiO₂ layers.

The structural study indicated that as deposited layers were amorphous, so all the layers were additionally annealed after deposition to obtain crystallinity. Since anatase TiO₂ has better optical properties, the heating temperature was chosen to obtain a pure anatase structure of the shell layer. It was observed that a relatively low heating temperature of only 400 °C should be applied to obtain an anatase structure of the TiO₂ shell layer, since at 450 °C the partial phase transition to rutile was already observed, although the phase transition to rutile is around 1000 °C for large monocrystals of TiO₂. The low temperature of phase transition was explained by small particles/clusters or very thin layers of amorphous TiO₂ that accelerate the phase transition even at so low a temperature as 400 °C.

The impedance spectroscopy measurements show pure electron conductivity that was considerably larger in formed nanostructures than in the bare ZnO nanorod array or bare TiO₂ layer. The highest conductivity and the lowest activation energy among the studied samples were observed for the sample with a chemically deposited TiO₂ shell. This result can be explained by the homogenousTiO₂ layer at the nanorod surface. The homogeneity was achieved, as during chemical deposition the precursor in the form of solution was spin coated at the surface of ZnO NR and can penetrate between nanorods, so that after heating, the formed TiO₂ was distributed along the nanorods.

Optical measurements show the absorption in the UV part of the spectrum for all the morphologies, but the absorption in the visible part depends on the morphology of the TiO₂ layer. The highest transparency among the studied samples was achieved for samples formed by chemical deposition, which can be explained both by the thickness of the layer as well as the homogeneity.

In comparison with data obtained for similar nanostructures presented in literature [32], our samples showed higher transmission and better conductivity. Ahmadi et al. [32] prepared ZnO/TiO₂ composite core–shell nanorod arrays by sol–gel process and dip coating, and measured transmittance that was lower than 60% in the visible part of the spectrum and even lower than 40% in the spectral region under 450 nm; while in our study, we obtained more than 80% transmittance. Resistivity of our core–shell structures varied between 10⁴ and 10⁶ Ω (Figure 5). This value corresponds to the specific resistivity in the range between 1 and 10 Ωcm, which is much lower than in [32]. On the other hand, if we compare our results of optical measurements obtained for arrays of 1-dimensional [email protected]₂ core–shell nanorod arrays with results obtained from compact TiO₂/ZnO composite thin films studied by Giannakopoulou et al. [33], it can be seen that our transmittance in the visible part of the solar spectrum is comparable to or slightly lower than that obtained from compact TiO₂/ZnO thin films [33]. However, their thin films are considerably thinner (thicknesses are approximately 60–145 nm) in comparison to height of our [email protected]₂ core–shell nanorods that form arrays (>300 nm), thus indicating the much better optical properties of our core–shell nanorod arrays.

We can compare the optical properties of the obtained [email protected]₂ core–shell nanorods studied in this work with the optical properties obtained by Zou et al. [34] for ZnO/V₂O₅ composite core–shell nanorod arrays with similar morphologies as our samples. It could be seen that for their as-prepared samples, the absorption edge is shifted to a larger wavelength, even to around 500 nm, while for samples annealed at 500 °C, considerable absorption of the light was observed in the completely visible region. Therefore, they have suggested the use of these nanocomposites for photocatalytic applications with visible light or natural sunlight [34].

The prominent electron transport and optical properties of our [email protected]₂ core–shell nanorod arrays seems promising for application as an electron transport layer in perovskite and dye-sensitized solar cells. Since we have found appropriate preparation parameters of the studied deposition methods to obtain preferable electrical and optical properties for photovoltaic applications, our next step will be the assembling of photovoltaics using the studied [email protected]₂ core–shell nanorod arrays and a study of their performance in correlation with the TiO₂ shell layer preparation method types and parameters.

4. Materials and Methods

The following materials and chemicals were used: ITO glass slides (20 × 15 mm, Ossila), Ti and TiO₂ targets (for magnetron and pulsed laser depositions), deionized water (Milipore), acetone, ethanol (EtOH, aps.), zinc acetate dihydrate (ZA), zinc nitrate hexahydrate (ZN), hexamethylentetramine (HMT), titanium isopropoxide (TiPr), ethylene glycol monomethyl ether (EGME), monoethanolamine (MEA). All of the materials were analytical grade and used as received without further purification.

ZnO nanorods (ZNRs) were prepared in two steps. The first step was deposition of a ZnO seed layer by spin coating a solution of 0.25 M ZA in EtOH and MEA on previously cleaned (acetone, ethanol, and water in ultrasound for 10 min each, followed by UV ozone cleaner for 30 min) ITO substrates. After the deposition of the seed layer, the substrates were immersed in an aqueous solution of 0.125 M zinc nitrate hexahydrate and 0.125 M hexamethylenetetramine at 92 °C for 3 h. For electrical measurement, the ZnO seed layer and nanorods were grown directly on a glass (or quartz) surface to avoid artefacts in the conductivity measurement due to short circuits possibly caused by the mounting of contact electrodes.

ZNRs were further covered with TiO₂ using two different physical deposition procedures and one chemical procedure. The evaluated procedures were: pulsed laser deposition (PLD), DC reactive magnetron sputtering, and spin coating of a chemically prepared precursor followed by annealing.

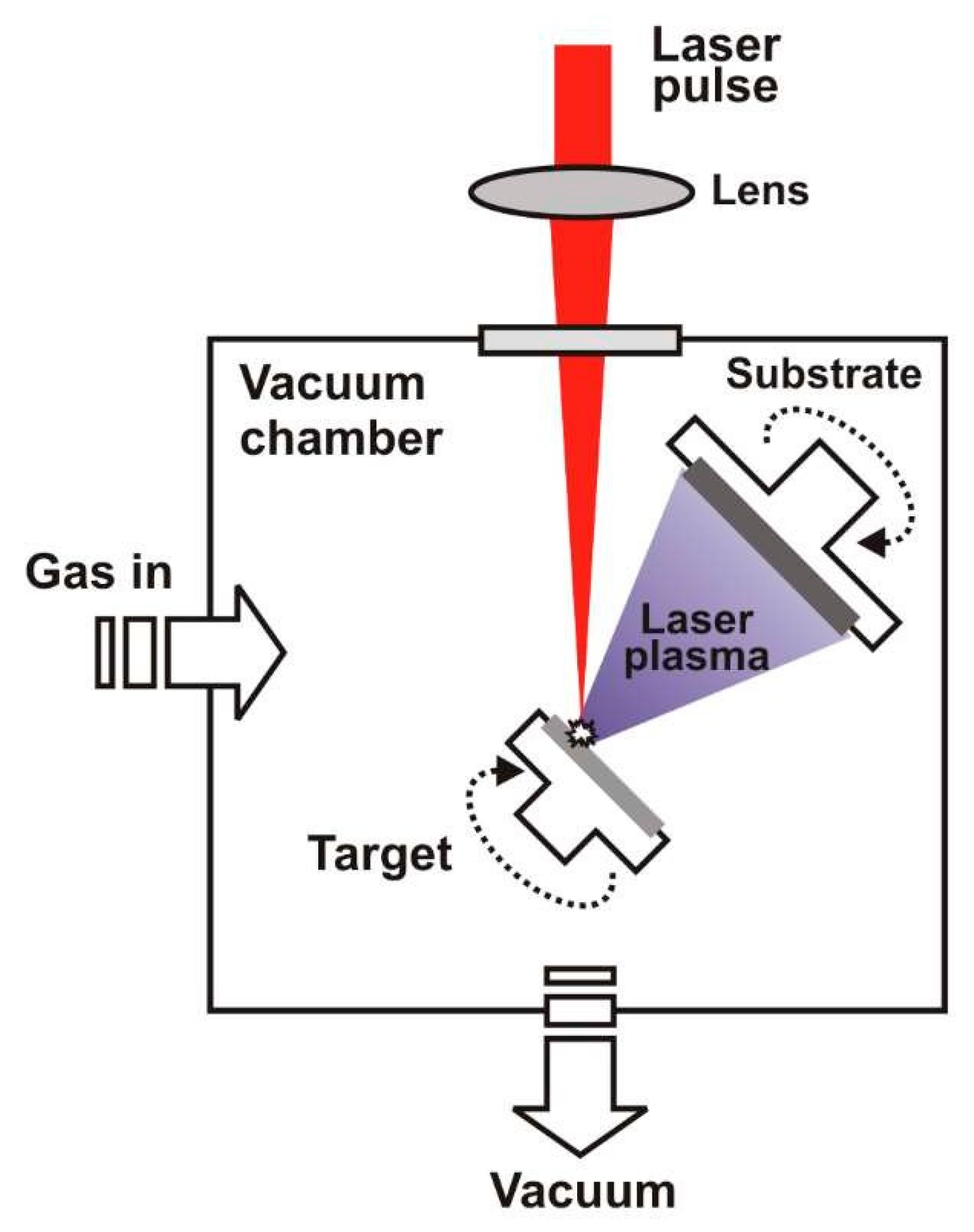

Pulsed laser deposition of TiO₂ thin films on the surface of ZNRs was done by using a Nd:YAG laser. The experimental setup is shown in Figure 8. Laser parameters were: wavelength 1064 nm, pulse duration 4 ns, repetition rate 5 Hz, and output energy 340 mJ. Laser pulse energy in front of target was 150 mJ while laser pulses were focused on the target surface which yields a fluence of 20 J/cm². The distance between the target and substrate was 4 cm. The target surface was parallel to the substrate and inclined by 45° with respect to the impinging laser pulses. Both the target holder and the substrate were kept on floating potential and at room temperature during deposition and were rotated to avoid the drilling of the target and to increase the homogeneity of the deposited films. Films were deposited using 5000 and 7500 laser pulses. Deposition was performed either in a vacuum (pressure < 10⁻³ mbar) or in 30 Pa of argon. After deposition, annealing at high temperature should be done to obtain crystallinity. The temperature of annealing was varied to obtain a pure anatase structure of TiO₂ and to avoid crystallization of the rutile TiO₂, so the temperatures of 400, 450, and 500 °C were applied.

Preparation of TiO₂ thin films on ZNRs by DC reactive magnetron sputtering was done using a 2″ Ti 99.999% target, an Ar + O₂ mixture as working gas and deposition parameters as listed in

Table 2. Magnetron sputtering deposition parameters used for the TiO₂ thin film on ZNR deposition.

Parameter	Value
Base pressure	7 × 10−7 mbar
Ar/O2 flow rate ratio	5 × 10−3 mbar
Discharge power	100 W
Discharge current	200 mA
Target to substrate distance	100 mm

. Depositions were done at room temperature. However, because of the interaction with plasma, substrate temperature was increased during the deposition to 60 °C. To obtain crystalline anatase, TiO₂ annealing was applied at temperatures between 400 and 500 °C.

The chemical deposition of TiO₂ thin films on ZnO NRs was done by spin coating (4000 rpm, 30 s) the sol–gel solution of 0.125 M TiO₂ (TiPr in EGME, MEA, and EtOH) and annealing at 400 or 450 °C after deposition.

The morphology of the samples was studied by scanning electron microscopy with a field emission gun (FEG-SEM) using JEOL JSM-700F (JEOL, Tokyo, Japan). The crystal structure on nanoscale was studied by transmission electron microscopy (TEM) using a JEOL-ARM300 microscope (JEOL, Tokyo, Japan) in TEM mode and high angle annular dark field (HAADF) mode.

The structural phase of TiO₂ thin films was studied by confocal micro-Raman spectroscopy, using a Jobin Yvon T64000 (HORIBA Jobin Yvon GmbH, Bensheim, Germany) with solid state laser operated at 532.5 nm for excitation. The objective with 50x magnification and large working distance was used. The power of the laser was 2, 7, or 20 mW, depending on the sample. It was optimized to avoid heating in the focus of the laser beam that could induce the phase transition of TiO₂.

GIXRD were obtained using synchrotron X-ray radiation at the MCX beamline at synchrotron Elettra (Trieste, Italy) in grazing incidence geometry with the wavelength of 0.155 nm (8.00 keV) [35]. The diffraction patterns were obtained at several values of the angle of incidence, slightly above the critical angle for total external reflection (α_i = 0.2°, 0.3°, 0.6°), in order to probe at different depths below the sample surface. The scattered intensity was collected in 2θ angular range 10°–75° with a 2θ step size of 0.05°.

The optical transparency was measured by UV–vis spectroscopy, using a Xe 150 W light source and an Ocean Optics HR4000 spectrometer (Ocean Optics, Largo, FL, USA) equipped with an integration sphere.

For electrical characterization, impedance spectroscopy (Novocontrol Alpha-A Dielectric Spectrometer, Novocontrol Technologies, Montabaur, Germany) was used. The complex impedance was measured in the frequency range from 0.01 to 1 MHz at a voltage of 10 mV and over a temperature range from 293 and 453 (± 0.5) K. A frequency sweep at each temperature was repeated twice. For electrical contacts, silver paint pads, 2 mm in length and separated by 2 mm, were placed on the surface of the sample.

5. Conclusions

[email protected]₂ core–shell nanorod arrays were prepared using a two-step process; ZnO nanorods as cores were prepared by a wet chemistry procedure, while TiO₂ shells were deposited by three different methods. As physical methods, pulsed laser deposition or magnetron sputtering were used; while as a chemical method, spin coating followed by heating of a chemically prepared TiO₂ precursor.

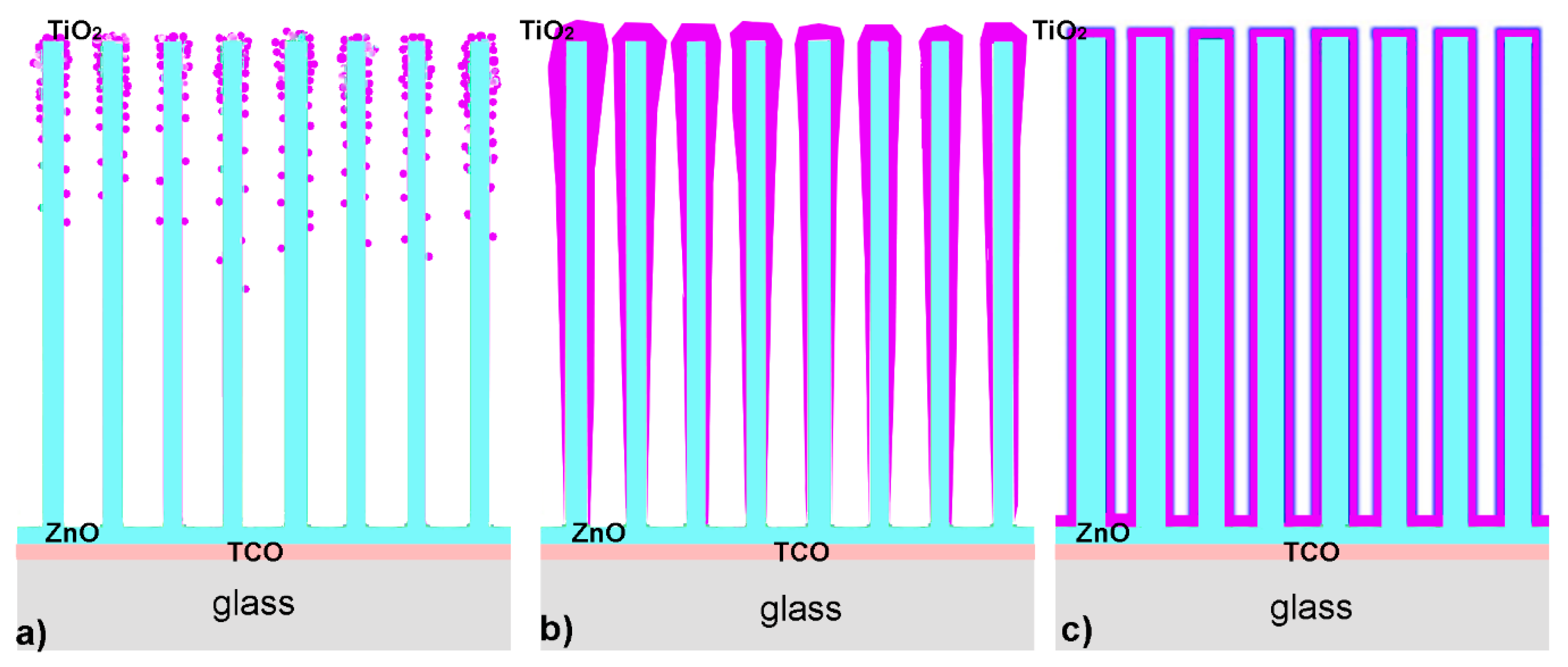

TiO₂ layer morphology depends on the used deposition method and deposition parameters. We obtained three different TiO₂ morphologies: (1) separated nanoparticles and agglomerates (prepared by PLD in Ar), (2) a layer with larger thickness at the top part of the nanorods (prepared by PLD in vacuum and MS), and (3) a homogenous thin layer along the whole length of nanorods (chemical deposition). All the layers were additionally heated after deposition to obtain crystallinity.The relatively low heating temperature of 400 °C should be applied to obtain anatase structures of the TiO₂ shells, since at 450 °C the phase transition to rutile was already observed.

The impedance spectroscopy measurements show pure electron conductivity that was considerably larger in the formed nanostructures then in a bare ZnO nanorod array or bare TiO₂ layer. The activation energies were low and depend on the structural and morphological parameters of the TiO₂ shell. The highest conductivity and the lowest activation energy among the studied samples were observed for the sample with a chemically deposited TiO₂ shell that has homogenously deposited TiO₂.

Optical measurements show a significant absorption in the UV part of the spectrum for all the morphologies, but the absorption in the visible part depends on the morphology of the TiO₂ layer. The best transparency among the studied samples is achieved for the samples formed by chemical deposition that have homogenous distribution of TiO₂ in the shell layer.

By comparing the optical and electrical properties of the structures, it can be concluded that for the use of [email protected]₂ core–shell nanorod arrays for photovoltaic applications, the method of preparation and the preparation parameters should be carefully chosen to obtain applicable optical and electrical properties.
