Search Results (12)

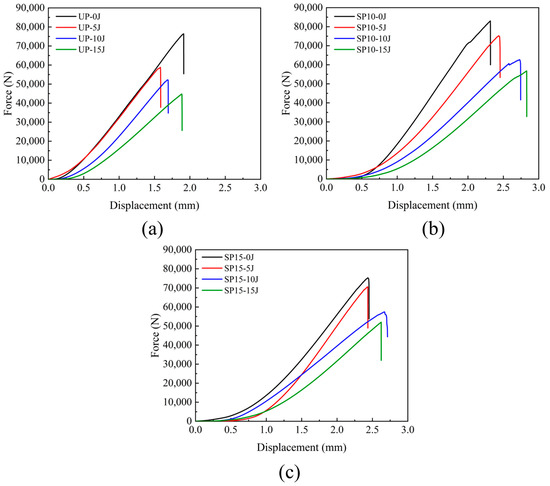

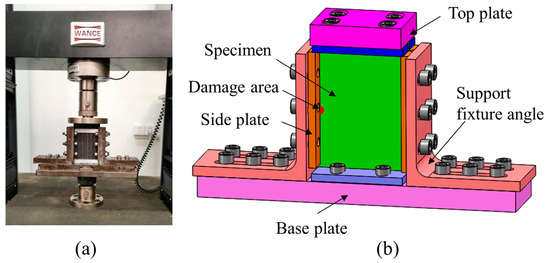

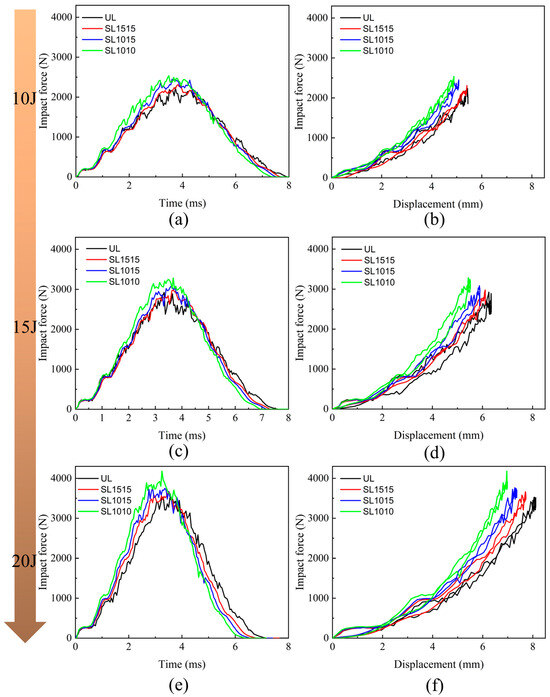

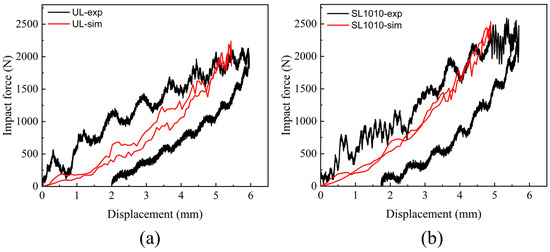

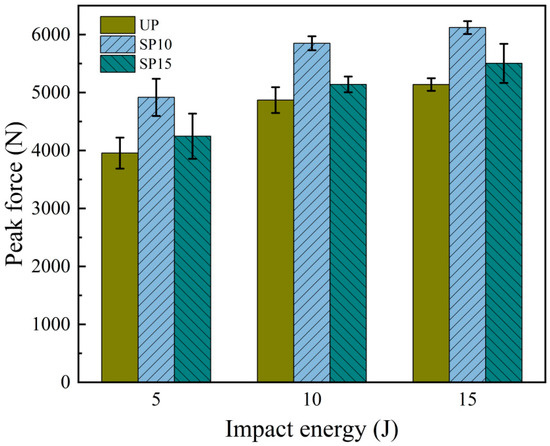

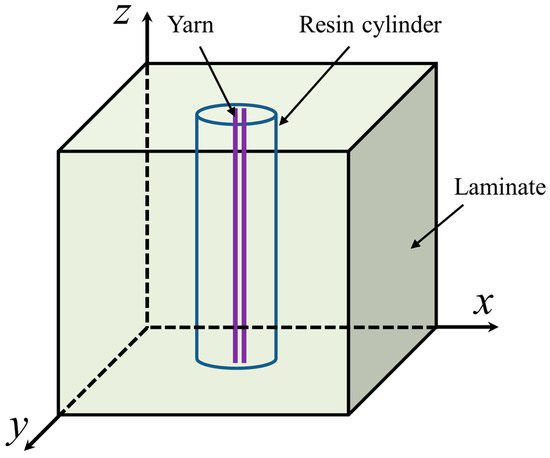

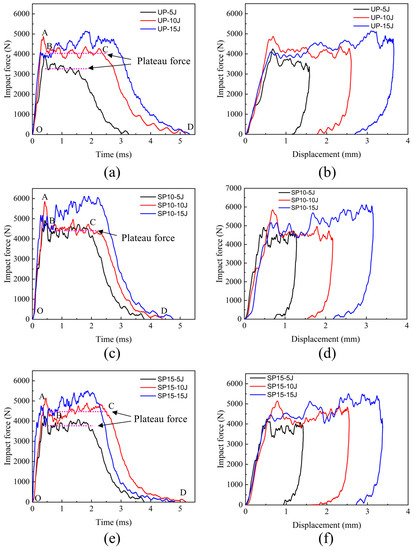

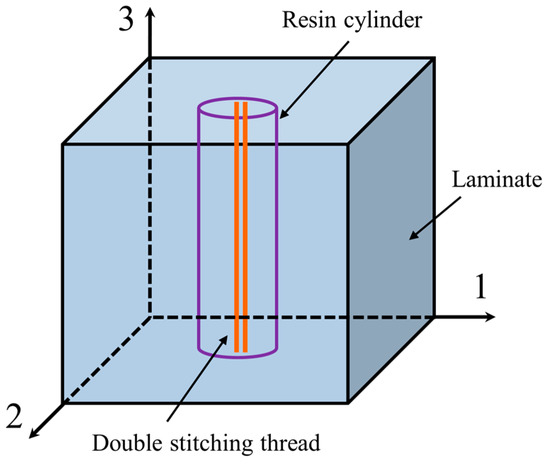

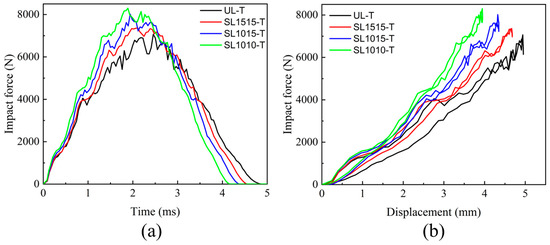

In this work, experimental studies were conducted on the damage failure of laminated composite laminates under low-velocity impact and compressive failure behavior under compression after impact. The study primarily investigated the effects of stitch density, impact energy, and laminate thickness on the damage behavior of composite laminates. The experimental results indicate that at impact energies of 10 J, 15 J, and 20 J, the stitched specimens demonstrated higher impact resistance. When the stitch density was 10 × 10 mm, the average maximum impact force of the stitched specimens increased by 13.14%, 15.83%, and 21.48%, respectively, compared to the unstitched specimens. This was mainly attributed to the resin threads formed by the stitches, which enhance the through-thickness strength of the laminate, with the strengthening effect being positively correlated with stitch density. Under 20 J, the strength of the three groups of specimens with different stitching densities increased by 9.24%, 14.58%, and 21.48%, respectively, compared to the unstitched specimens. Under lower impact energies, the bending stiffness of the laminate itself was sufficient to resist the impact force, resulting in minimal differences in residual displacement among different specimens. Furthermore, the study found that under identical impact energy, stitch thread significantly suppressed delamination damage in thin specimens, whereas its effect on thick specimens was comparatively limited. The stitching also had a positive effect on the residual compressive strength of the specimens. Under 20 J impact energy, compared to the unstitched specimens, the residual compressive strength of the three groups of stitched specimens increased by 6.52%, 17.71%, and 27.48%, respectively. The mode of compression after impact failure also differed: unstitched laminated specimens mainly exhibited delamination damage, with cracks propagating along the width direction, while stitched laminated specimens demonstrated strength failure. Under axial compression, stress was released at the stitching points, leading to small-scale cracks along the fiber direction at these locations. Overall, the stitching process effectively enhances the impact resistance of laminated boards. Higher stitching density correlates with greater compressive residual strength, with this effect being more pronounced in thin-plate specimens. Full article

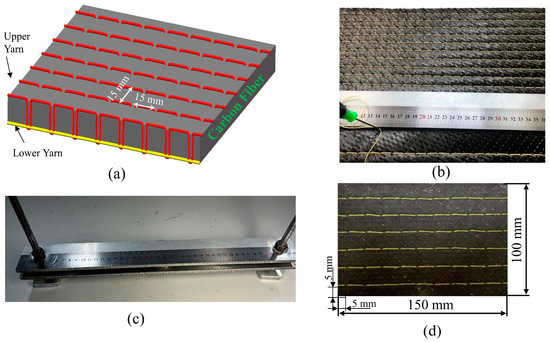

Delamination in laminated composites originates from premature matrix cracking within the interlaminar region, ultimately leading to ply separation under indirect loading. Among the techniques proposed to mitigate this failure mode, through-thickness stitching has emerged as a localized reinforcement strategy capable of enhancing interlaminar performance without modifying the in-plane laminate architecture. However, previous studies report that stitching can either improve or degrade the mechanical properties of the composite, with stitch density identified as a critical variable. This work aims to keep the tensile strength of a stitched composite at levels comparable to its unstitched counterpart. The reinforcement was applied using an eight-strand polyethylene thread (0.28 mm in diameter) embedded in a low-viscosity epoxy infusion system (MAX 1618 A/B) combined with a 90° biaxial fiberglass woven fabric. The tensile behavior of laminates was examined for three longitudinal stitching configurations consisting of 2, 3, and 5 continuous stitch lines. Results show that increasing stitch count produces a progressive reduction in tensile strength, attributed to stress concentration around stitch sites and microstructural effects such as resin-rich zones and fiber waviness. Full article

Delamination is a major failure Mode in laminated composites, typically triggered by premature interlaminar matrix cracking and leading to severe structural degradation. To address this, various through-thickness reinforcement strategies have been explored, including three-dimensional woven architecture. Although these designs significantly improve delamination resistance, their industrial adoption stays limited due to reproducibility challenges and the high cost and operational complexity of advanced manufacturing systems needed for controlled through-thickness reinforcement. This study investigates an alternative interlaminar reinforcement method, through-thickness stitching, aimed at enhancing Mode-I delamination resistance of a commercial fiberglass laminate without changing its native architecture. Composites were manufactured using a low-viscosity epoxy infusion system (MAX 1618 A/B) and a [0/90] biaxial fiberglass fabric. An eight-filament polyethylene thread (Ø = 0.12 mm) was introduced in predefined stitch architectures consisting of three longitudinal patterns having two, three, and five continuous stitch lines, referred to as AV, BV and CV samples, respectively. Results show that stitching highly increases Mode-I interlaminar fracture toughness G_IC by 0.3808, 0.4152 and 0.5192 kJ/m² for AV, BV and CV respectively, compared to 0.0265 kJ/m² for the unstitched composite O, highlighting the strong influence of stitch orientation and spacing on interlaminar performance. But scanning electron microscopy revealed added failure mechanisms in stitched specimens, including localized fiber misalignment of up to 33° and resin-rich regions approximately 0.6 mm in length, suggesting that while stitching enhances delamination resistance, it may also influence other mechanical properties. Full article

This study presents the development and mechanical characterization of a full-scale helmet manufactured from a polyester matrix composite reinforced with woven jute fabric using vacuum infusion. Laminates with two and four reinforcement layers were produced and assembled using four joining configurations: seamless, stitched, bonded, and hybrid (bonded + stitched). Tensile tests were performed according to ASTM D3039, while frontal and lateral compression tests followed ABNT NBR 7471, aiming to evaluate the influence of laminate thickness and joining strategy on mechanical performance. In tension, the seamless configuration reached maximum loads of 0.80 kN (two layers) and 1.60 kN (four layers), while the hybrid configuration achieved 0.79 kN and 1.43 kN, respectively. Stitched and bonded joints showed lower strength. Under compression, increasing the laminate thickness from two to four layers reduced frontal elongation from 15.09 mm to 9.97 mm and lateral elongation from 13.73 mm to 7.24 mm, corresponding to stiffness gains of 50.3% and 87.3%, respectively. Statistical analysis (ANOVA/Tukey, α = 0.05) confirmed significant effects of thickness and joint configuration. Although vacuum infusion is a well-established process, the novelty of this work lies in its application to a full-scale natural-fiber helmet, combined with a systematic evaluation of joining strategies and a direct correlation between standardized tensile behavior and structural compression performance. The four-layer hybrid laminate exhibited the best balance between strength, stiffness, and deformation capacity. Full article

A study combining multiscale numerical simulation and low-velocity impact (LVI) experiments was performed to explore the comprehensive effects on the impact-resistance of EMAA filaments incorporated as thermoplastic healing agents into a plain woven composite. A multiscale micro–meso–macro modeling framework was established, sequentially propagating mechanical performance parameters among micro–meso–macro models. The equivalent mechanical parameters of the carbon fiber bundles were predicted based on the microscopic model. The mesoscopic representative volume element (RVE) model was crafted by extracting the actual architecture of the monolayer EMAA filaments encompassing the plain woven composite. Subsequently, the fiber and matrix of the mesoscopic model were transformed into a monolayer-equivalent cross-panel model containing monolayers aligned at 0° and 90° by local homogenization, which was extended into a macroscopic equivalent model to study the impact-resistance behavior. The predicted force–time curves, energy–time curves, and damage profile align closely with experimental measurements, confirming the reliability of the proposed multiscale modeling approach. The multiscale analysis reveals that the EMAA stitching network can effectively improve the impact-resistance of plain woven composite laminates. Furthermore, there exist positive correlations between EMAA content and both impact-resistance and self-healing efficiency, achieving a self-healing efficiency of up to 98.28%. Full article

Composites with continuous fiber reinforcement offer excellent fatigue properties but are tedious to characterize due to anisotropy and the interplay of fatigue properties, processing conditions, and the constituents. The global fiber volume content can affect both monotonic and fatigue strength. This dependence can increase the necessary testing effort even when processing conditions and constituents remain identical. This work presents an in situ edge observation method, enabling light microscopy during loading. As a result, digital image correlation can be employed to study local strains at cracking sites on the scale of fiber bundles. The geometric influence on fatigue damage is examined in non-crimp fabrics of glass and carbon fibers. Two epoxy resins (one modified by irradiation) are investigated to verify the geometric influence under changed polymer properties. The microscopy-based image correlation revealed that damage forms at very low global strains of only 0.2–0.3% in glass fiber-reinforced epoxy laminates. For carbon fiber-reinforced epoxy, laminate cracking was found to emanate mainly from regions containing stitching fibers. Across both reinforcements, irradiation treatment led to delayed cracks, emanating from interfaces. This detailed analysis of the damage formation is used as a basis for proposed applications of the in situ strain information. Full article

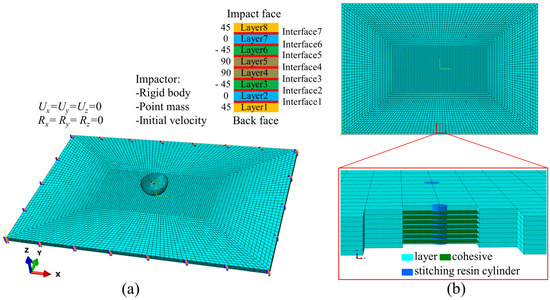

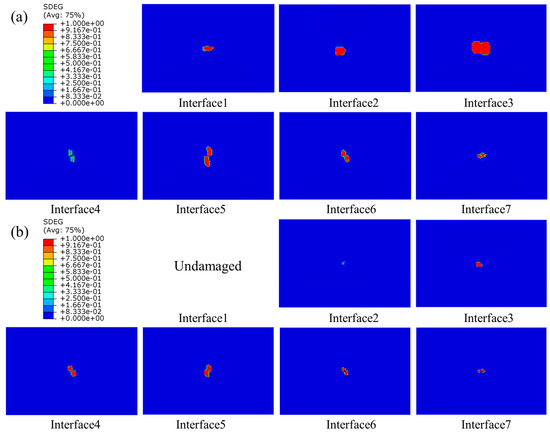

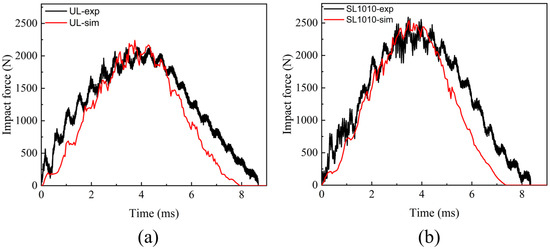

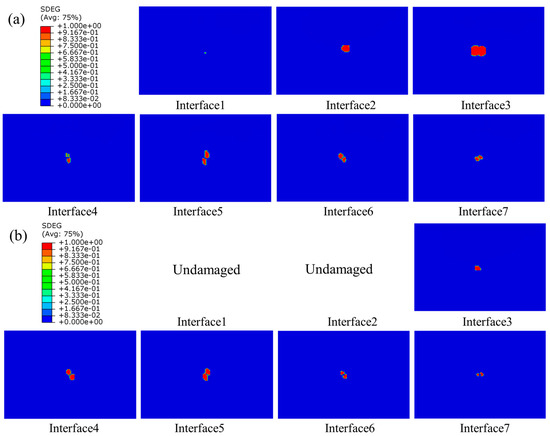

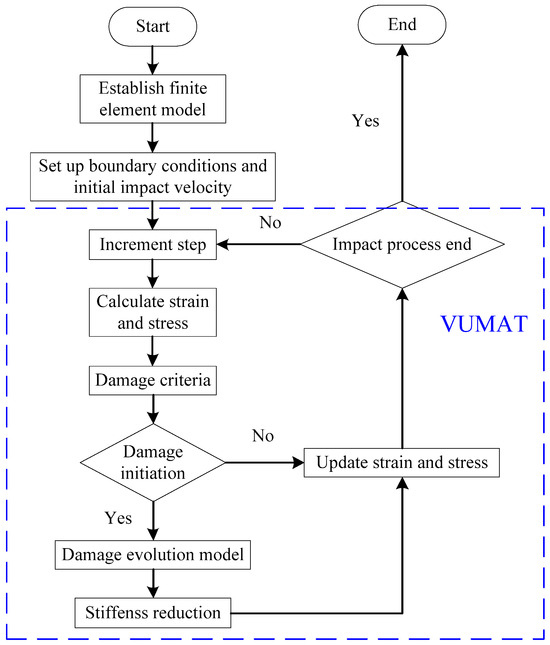

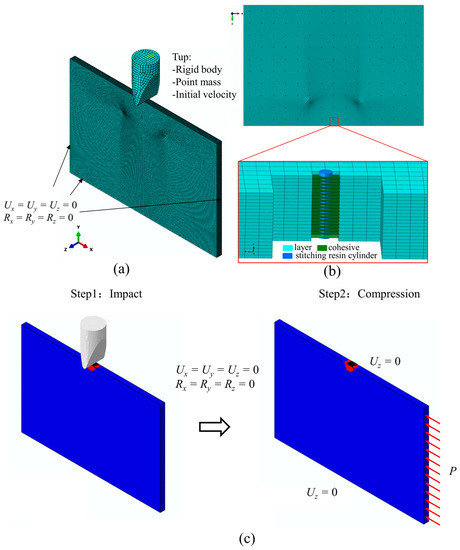

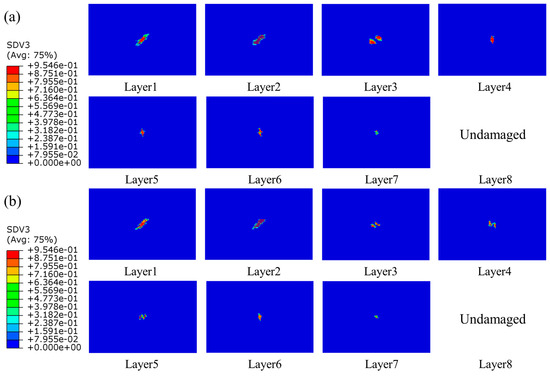

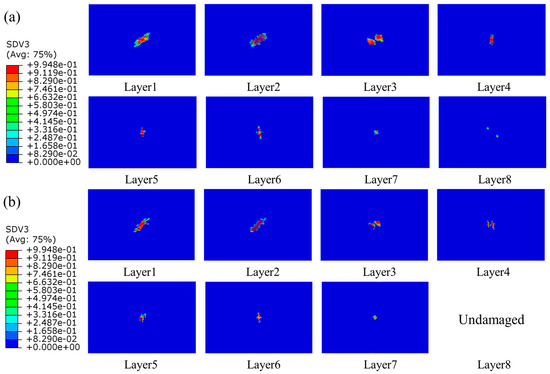

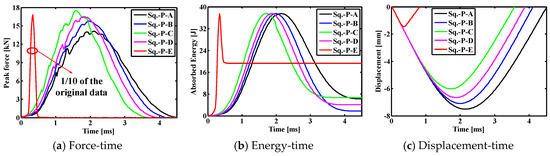

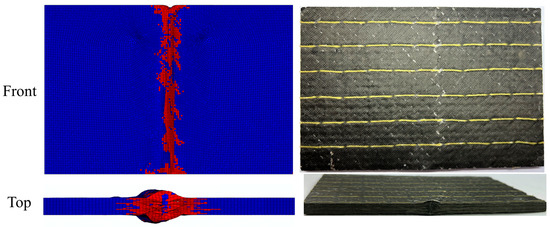

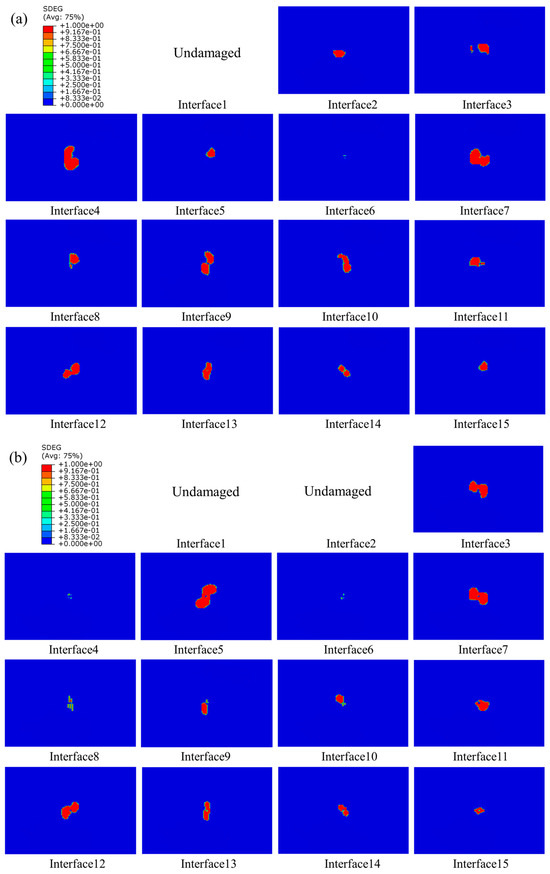

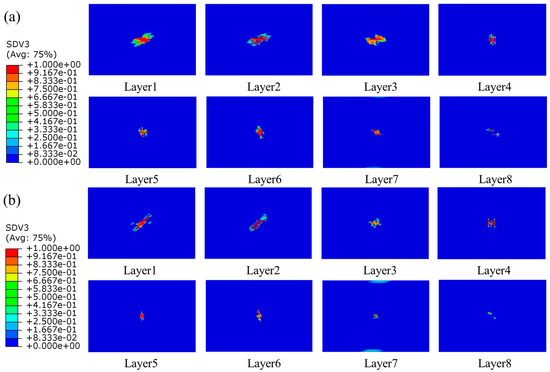

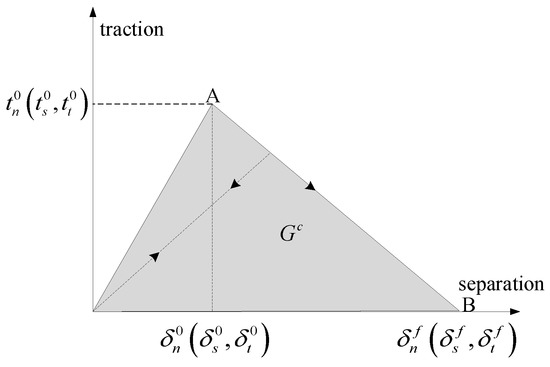

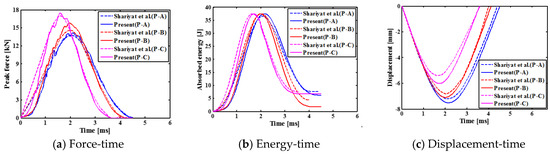

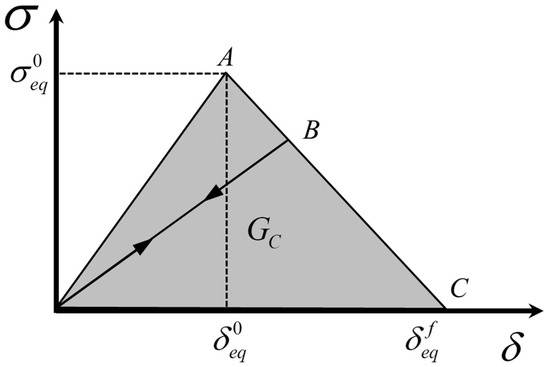

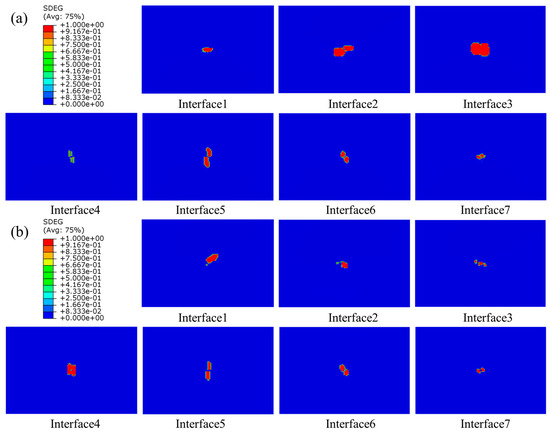

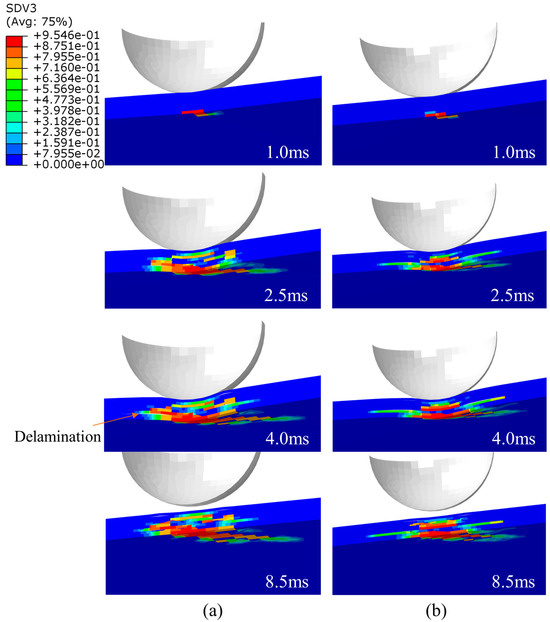

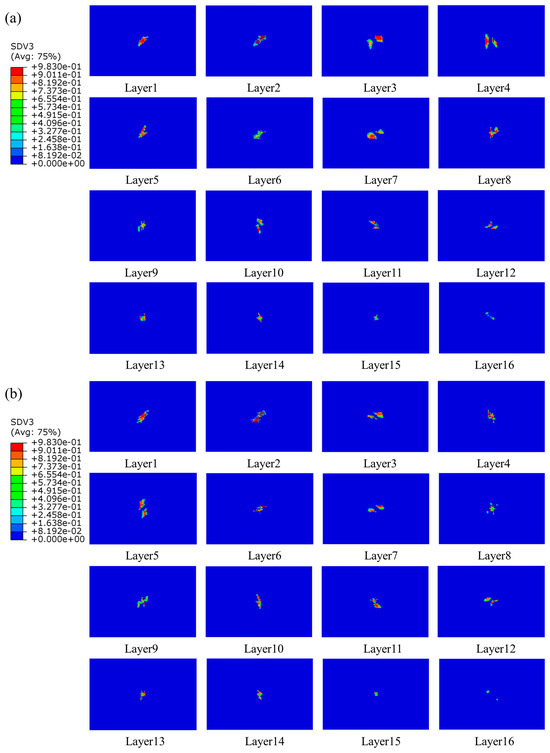

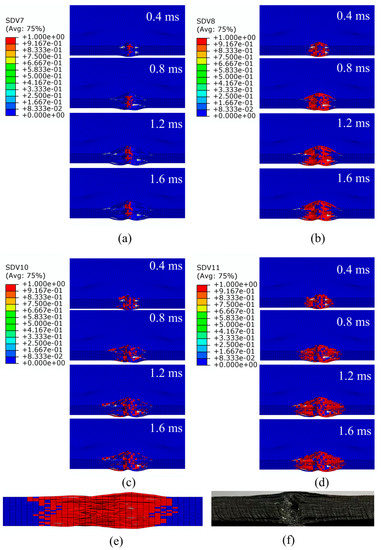

In this study, a progressive damage model was developed for the mechanical response and damage evolution of carbon fiber stitched composite laminates under low-velocity impact (LVI). The three-dimensional Hashin and Hou failure criteria were used to identify fiber and matrix damage. The cohesive zone model was adopted to simulate the delamination damage, combined with the linear degradation discounting of the equivalent displacement method to characterize the stiffness degradation of the material, and the corresponding user material subroutine VUMAT was coded. The finite element analysis of the LVI of stitched composite laminates under different energies was finished in Abaqus/Explicit. Furthermore, the simulation predictions matched well with the results of the experimental tests. Based on this, composite laminates’ mechanical response and damage forms with different thicknesses and stitch densities were analyzed. The findings show that the main damages of composite laminates were matrix tensile damage and delamination. The stitching process could improve the impact tolerance of composite laminates, inhibiting delamination and reducing the area of the delamination damage. The higher the density of the stitching, the more noticeable its inhibition would be. The thickness of the laminate also had a more significant effect on the damage to the laminate. Thin plates were more prone to matrix tensile damage due to their lower flexural rigidity, whereas thick plates were more susceptible to delamination because of their higher flexural rigidity. Full article

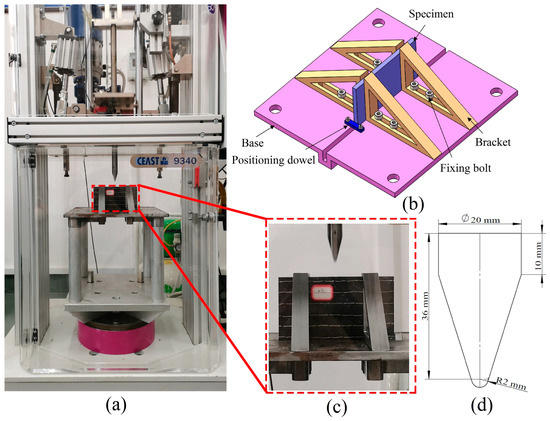

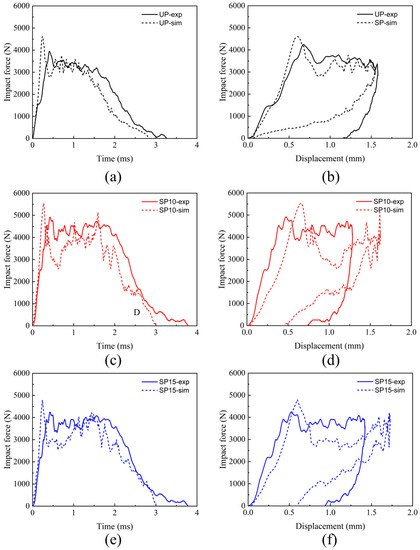

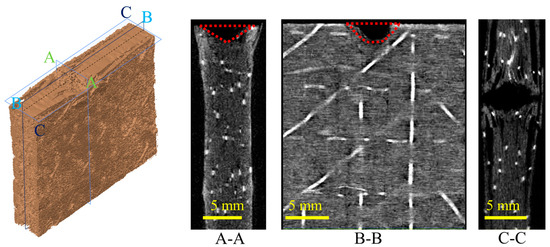

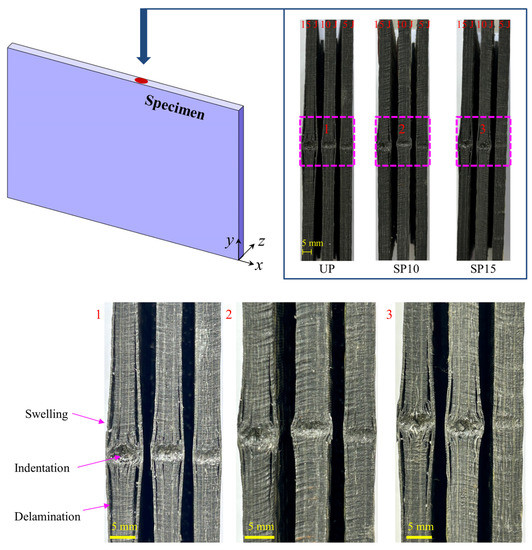

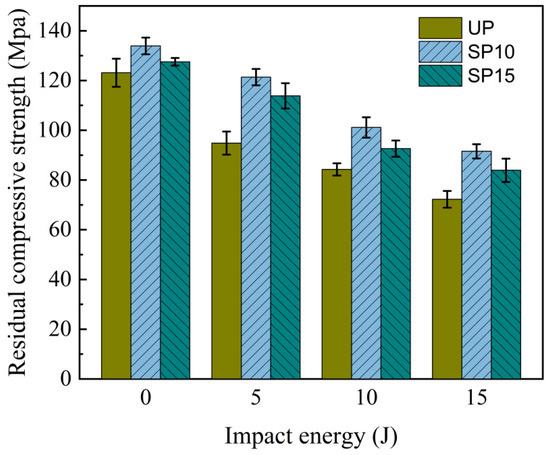

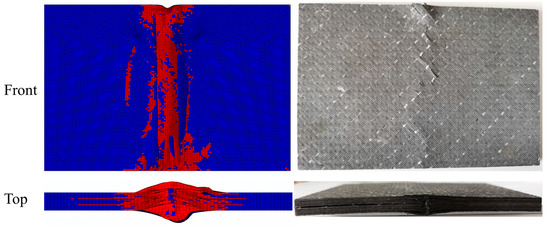

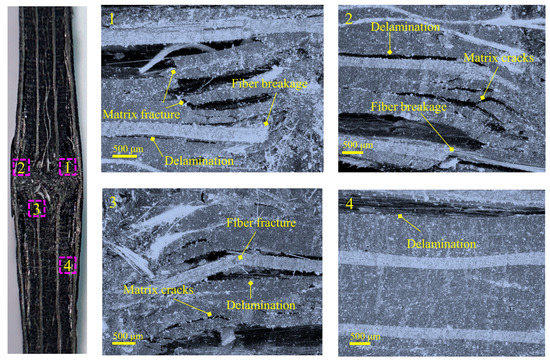

Composite laminates are susceptible to impact events during use and maintenance, affecting their safety performance. Edge-on impact is a more significant threat to laminates than central impact. In this work, the edge-on impact damage mechanism and residual strength in compression were investigated using experimental and simulation methods by considering variations in impact energy, stitching, and stitching density. The damage to the composite laminate after edge-on impact was detected in the test by visual inspection, electron microscopic observation, and X-ray computed tomography techniques. The fiber and matrix damage were determined according to the Hashin stress criterion, while the cohesive element was used to simulate the interlaminar damage. An improved Camanho nonlinear stiffness discount was proposed to describe the stiffness degradation of the material. The numerical prediction results matched well with the experimental values. The findings show that the stitching technique could improve the damage tolerance and residual strength of the laminate. It can also effectively inhibit crack expansion, and the effect increases with increasing suture density. Full article

Due to the excellent mechanical properties and heat resistance, bismaleimide matrix composite materials have been widely used in aircraft. However, they are susceptible to low-energy impacts, such as bird hits, gravel, tools falling, etc., which can easily result in delamination. The delamination can significantly reduce the compression performance of composites and become a potential hazard for aircraft in service. In this paper, a stitching method developed from the Z-pin manufacturing process was proposed to repair delaminated laminates. Firstly, the delaminated area was stitched by fiber bundles that were pre-impregnated with glue. Then, the fiber bundles threading through the laminate become the pins after the curing process, thus producing the bridging effect between delaminated layers. As a result, the in-plane compressive properties of the laminate are enhanced. The parameters, including the size, number, and position of the stitching hole, for the stitching repair were optimized, and the factors affecting the repair effect were discussed through both finite element analysis and experiments. The results showed that for a carbon fiber/bismaleimide composite plate with a circular delamination roughly 30 mm in diameter, the in-plane compressive strength can be recovered from 54.45% to 84.23% of the pristine plate, and the modulus was fully recovered. Full article

It is difficult to obtain suitable fire resistance and mechanical properties for glass-fiber-reinforced polymer (GFRP) roof material in industrial applications. Although some efforts to improve the fire resistance properties of GFRP have been carried out, in practice this sometimes degrades the mechanical properties. Therefore, the base materials, such as filler and reinforcing fiber, must be appropriately combined to simultaneously improve both fire resistance and mechanical properties. The present study examines improvements in GFRP roof material by investigating the effect of aluminium trihydrate (ATH) as a filler and the combination of a chopped strand mat (CSM) with woven roving (WR) and stitched mat (STM) fibers as the reinforcement in a composite GFRP roof structure. The roof samples were prepared following industrial machine standards using the specified materials. The mechanical properties of GFRP were evaluated using tensile, flexural and impact tests, following ASTM D638, ASTM D790 and ASTM D256 standards, respectively. The fire properties were examined through fire tests following the ASTM D635 standard. The results show that the GFRP roof composed of CSM/WR fibers had a 40% higher tensile strength (103.5 MPa) compared with the GFRP roof without CSM fibers (73.8 MPa). The flexural strength of the GFRP roof with CSM/WR fibers was also 57% higher than the roof without fibers, with a ratio of 315.61 MPa to 201 MPa. With the use of CSM/WR fibers, the fire resistance also increased by 23%, resulting in a ratio of 4.31 mm/min to 5.32 mm/min. These results demonstrate that the combination of CSM/WR fibers as a reinforcement would be an excellent option for producing an improved GFRP roof with better industrial properties, especially when producing improved GFRP roofs using a continuous lamination machine. Full article

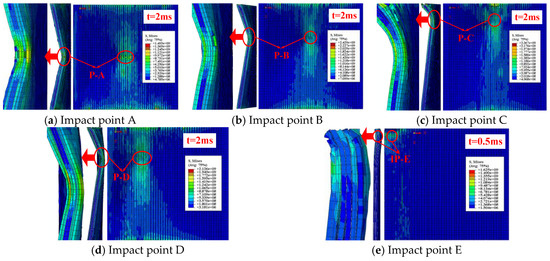

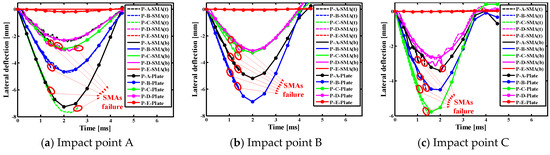

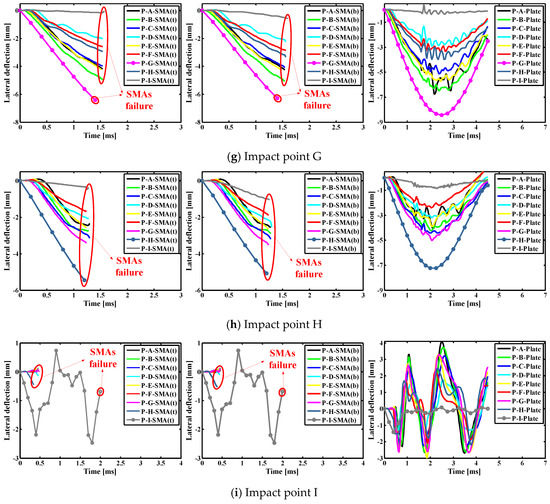

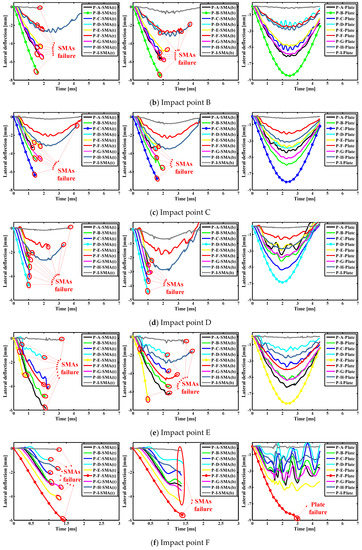

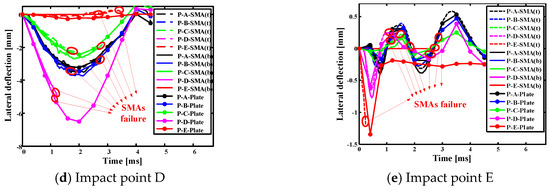

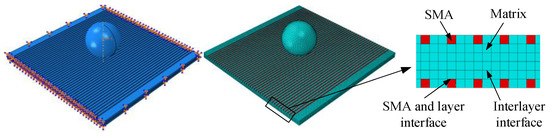

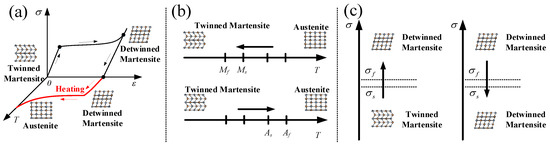

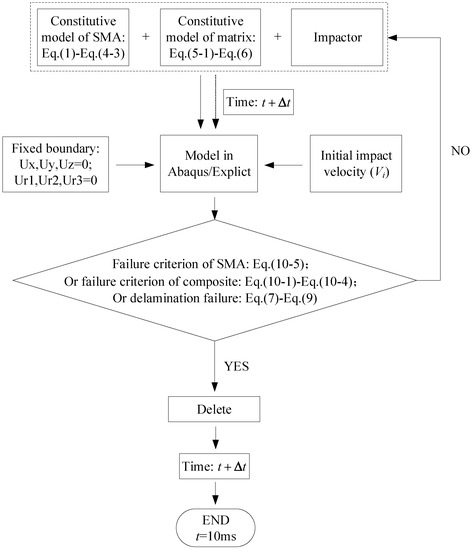

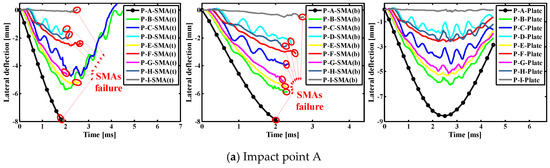

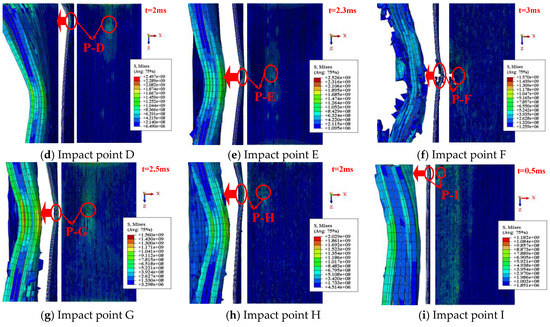

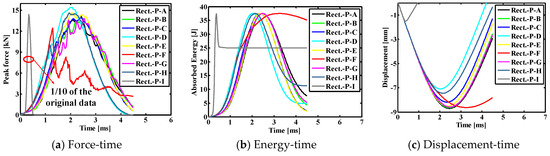

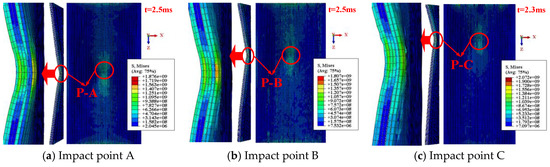

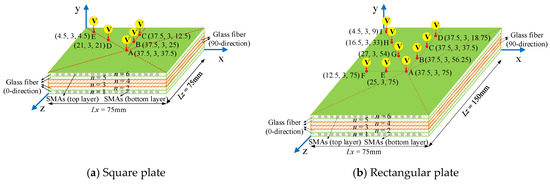

In the present work, we study the low velocity impact, both central and eccentric, on square and rectangular laminated composite plates with embedded shape memory alloy (SMA) wires, which are stitched on the top and bottom surfaces of the plate, by using the finite element method. In finite element methods (FEM) simulations, a super-elastic SMA constitutive model is implemented in Abaqus/Explict by using a user defined material subroutine to describe the behaviors of SMAs. The three-dimensional (3D) Hashin failure criterion is adopted to model the damage initiation of laminated composite plates. To model the delamination failure, a cohesive damage zone model is introduced in interface elements. A comprehensive parametric study has been carried out to analyze the effects of eccentricity for the case of square and rectangular laminated composite plates. Full article

Carbon fibre reinforced polymer composites offer significant improvement in overall material strength to weight, when compared with metals traditionally used in engineering. As a result, they are replacing metals where overall weight is a significant consideration, such as in the aerospace and automotive industries. However, due to their laminate structure, delamination is a prime concern. Through-thickness stitching has been shown to be a relatively simple method of improving resistance to delamination. In this paper, monofilament and multifilament fibres of a similar overall diameter were characterised and their properties compared for their suitability as stitching yarns. Dissimilar to other published works which rely on commercially available materials, such as polyparaphenylene terephthalamide, criteria were produced on the required properties and two potentially promising polymers were selected for extrusion. It was found that although the multifilament fibres had a greater ultimate tensile strength, they began to yield at a lower force than their monofilament equivalent. Full article
