Search Results (8)

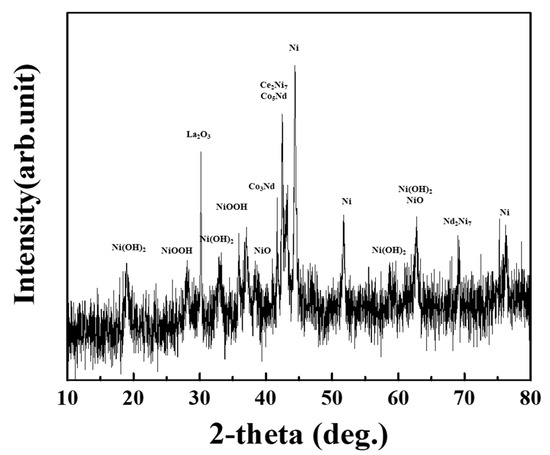

The experimental research was focused on the investigation of valuable material from spent Ni-MH type AA batteries, namely the metal grid anodes and the black mass material (anode and cathode powder). The materials of interest were analyzed by X-ray fluorescence spectroscopy (XRF), ICP-OES (inductively coupled plasma optical emission spectrometry), optical microscopy, scanning electron microscopy (SEM), energy-dispersive X-ray analysis (EDX), electron backscatter diffraction (EBSD), and X-ray diffraction (XRD). The analyzed grids have a high Fe content, but some of them correspond to the Invar alloy with approx. 40% Ni. In the black mass material, round particles and large aggregations were observed by SEM analysis, showing a high degree of degradation. The XRD analysis reveals the presence of only three compounds or phases that crystallize in the hexagonal system: La_0.52Ce_0.33Pr_0.04Nd_0.11Co_0.6Ni_4.4, Ni(OH)₂, and La₅Ni₁₉. The obtained results provide useful and interesting information that can be used for further research in the recycling and economic assessment of metals from spent Ni-MH batteries. Full article

Considering how important rare earth elements (REEs) are for many different industries, it is important to separate them from other elements. An extractant that binds to REEs inexpensively and selectively even in the presence of interfering ions can be used to develop a useful separation method. This work was designed to recover REEs from spent nickel–metal hydride batteries using ammonium sulfate. The chemical composition of the Ni–MH batteries was examined. The operating leaching conditions of REE extraction from black powder were experimentally optimized. The optimal conditions for the dissolution of approximately 99.98% of REEs and almost all zinc were attained through use of a 300 g/L (NH₄)₂SO₄ concentration after 180 min of leaching time and a 1:3 solid/liquid phase ratio at 120 °C. The kinetic data fit the chemical control model. The separation of total REEs and zinc was conducted under traditional conditions to produce both metal values in marketable forms. The work then shifted to separate cerium as an individual REE through acid baking with HCl, thus leaving pure cerium behind. Full article

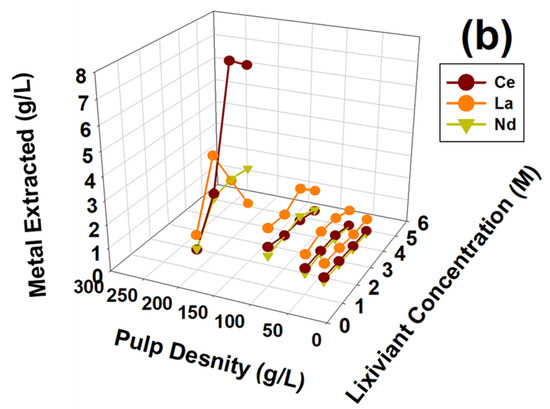

The treatment of spent nickel metal hydride batteries (NiMHs) of Lexus vehicles to recover nickel (Ni) and cobalt (Co) as well as rare earth elements (REEs) including La, Ce, Nd and Y was investigated. Co-extraction of Al, Fe, Cr and Cu has also been examined. Following batteries’ manual dismantling to remove metallic cases, outer plastics and current collectors, the remaining parts including cathodes of black coloured nickel (oxy)hydroxides, anodes consisting of a nickel-containing alloy (AB5 mischmetal type), and separators were simultaneously ground down to −5 mm using a hammer mill equipped with sieves. The fine (−1 mm) fraction of this product was further subjected to sulphuric acid leaching to recover the high-value elements contained. Acid consumption of 14 mol H₂SO₄ per kg of this fraction was found to be sufficient to decrease pH to less than 1. Leaching experiments were performed using 0.5, 1 and 2 M sulphuric acid solution at 5% pulp density and temperature 50, 75 or 95 °C. The optimum conditions for the extraction of all elements were 2M H₂SO₄ concentration and temperature of 75 °C with the exception of Ni extraction, which reached its highest value at 95 °C and 2M H₂SO₄ concentration. Extractions of 93.34% of Ni, 99.03% of Co and 100% of REEs were achieved at these conditions. Full article

Nickel metal hydride (NiMH) batteries are extensively used in the manufacturing of portable electronic devices as well as electric vehicles due to their specific properties including high energy density, precise volume, resistance to overcharge, etc. These NiMH batteries contain significant amounts of rare earth metals (REMs) along with Co and Ni which are discarded due to illegal dumping and improper recycling practices. In view of their strategic, economic, and industrial importance, and to mitigate the demand and supply gap of REMs and the limited availability of natural resources, it is necessary to explore secondary resources of REMs. Therefore, the present paper reports a feasible hydrometallurgical process flowsheet for the recovery of REMs and valuable metals from spent NiMH batteries. More than 90% dissolution of REMs (Nd, Ce and La) was achieved using 2 M H₂SO₄ at 75 °C in 60 min in the presence of 10% H₂O₂ (v/v). From the obtained leach liquor, the REMs, such as Nd and Ce, were recovered using 10% PC88A diluted in kerosene at eq. pH 1.5 and O/A ratio 1/1 in two stages of counter current extraction. La of 99% purity was selectively precipitated from the leach liquor in the pH range of 1.5 to 2.0, leaving Cu, Ni and Co in the filtrate. Further, Cu and Ni were extracted with LIX 84 at equilibrium pH 2.5 and 5, leaving Co in the raffinate. The developed process flow sheet is feasible and has potential for industrial exploitation after scale-up/pilot trails. Full article

During formation and cycling of nickel–metal hydride (NiMH cells), surface corrosion on the metal hydride particles forms a porous outer layer of needle-shaped rare-earth hydroxide crystals. Under this layer, a denser but thinner oxidized layer protects the inner metallic part of the MH electrode powder particles. Nano-sized nickel-containing clusters that are assumed to promote the charge and discharge reaction kinetics are also formed here. In this study, mechanical treatments are tested to recycle hydrogen storage alloys from spent NiMH batteries. This removes the outer corroded surface of the alloy particles, while maintaining the catalytic properties of the surface. Scanning electron microscopy images and powder X-ray diffraction measurements show that the corrosion layer can be partly removed by ball milling or sonication, combined with a simple washing procedure. The reconditioned alloy powders exhibit improved high rate properties and activate more quickly than the pristine alloy. This indicates that the protective interphase layer created on the alloy particle during their earlier cycling is rather stable. The larger active surface that is created by the mechanical impact on the surface by the treatments also improves the kinetic properties. Similarly, the mechanical strain during cycling cracks the alloy particles into finer fragments. However, some of these particles form agglomerates, reducing the accessibility for the electrolyte and rendering them inactive. The mechanical treatment also separates the agglomerates and thus further promotes reaction kinetics in the upcycled material. Altogether, this suggests that the MH electrode material can perform better in its second life in a new battery. Full article

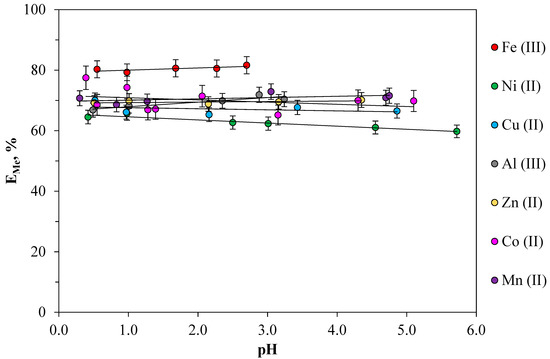

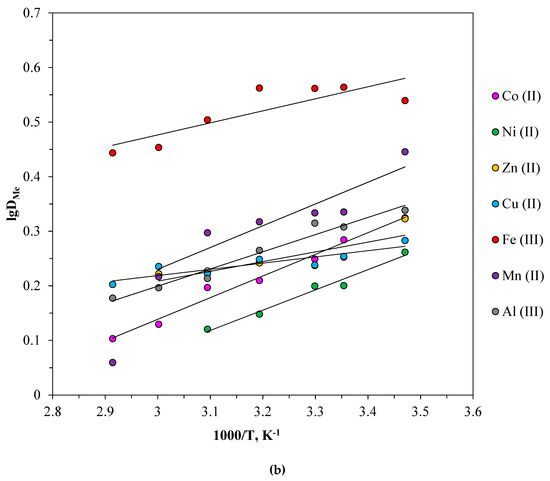

This article presents an ecologically safe aqueous two-phase system based on poly(ethylene oxide) with a molecular weight of 1500, designed for complex extraction of Ni(II), Co(II), Fe(III), Mn(II), Zn(II), Cu(II), and Al(III) from nitrate solutions. A kinetic dependence has been investigated for a distribution ratio for the metals examined. The influence of pH-values, temperature, initial metal concentration, and nitric acid content have on the extraction of a wide range of metals in the heterogeneous poly(ethylene oxide) 1500-NaNO₃-H₂O system has been discovered. As a result, the complex extraction of metals (E_Me > 60%) was achieved in one step of extraction without introducing additional chemicals into the system. Full article

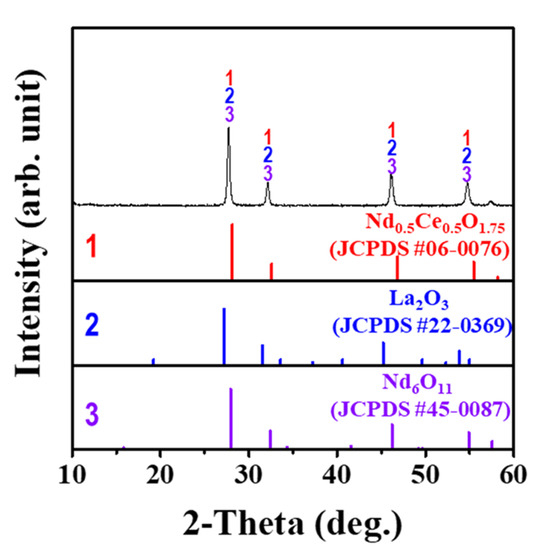

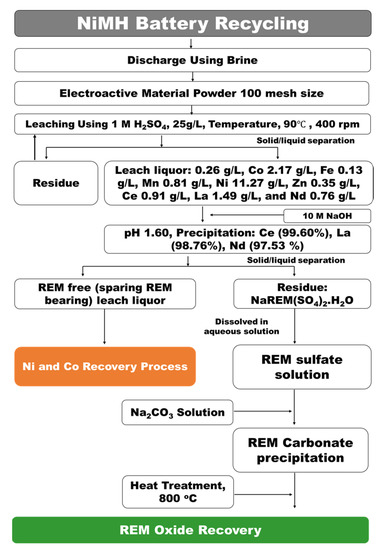

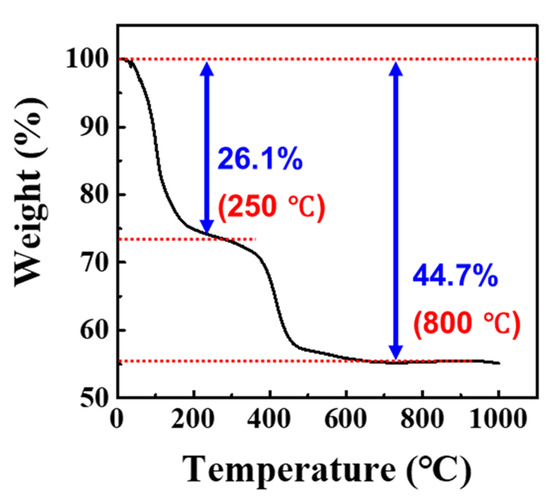

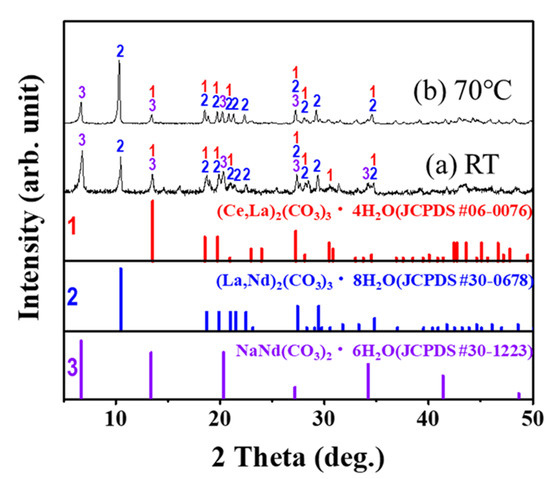

Nickel metal hydride (NiMH) batteries contain a significant amount of rare earth metals (REMs) such as Ce, La, and Nd, which are critical to the supply chain. Recovery of these metals from waste NiMH batteries can be a potential secondary resource for REMs. In our current REM recovery process, REM oxide from waste NiMH batteries was recovered by a simple wet chemical valorization process. The process followed the chemical metallurgy process to recover REM oxides and included the following stages: (1) H₂SO₄ leaching; (2) selective separation of REM as sulfate salt from Ni/Co sulfate solution; (3) metathesis purification reaction process for the conversion REM sulfate to REM carbonate; and (4) recovery of REM oxide from REM carbonate by heat treatment. Through H₂SO₄ leaching optimization, almost all the metal from the electrode active material of waste NiMH batteries was leached out. From the filtered leach liquor managing pH (at pH 1.8) with 10 M NaOH, REM was precipitated as hydrated NaREE(SO₄)₂·H₂O, which was then further valorized through the metathesis reaction process. From NaREE(SO₄)₂·H₂O through carbocation, REM was purified as hydrated (REM)₂CO₃·H₂O precipitate. From (REM)₂CO₃·H₂O through calcination at 800 °C, (REM)₂O₃ could be recovered. Full article

The consistency in capacity degradation in a multi-cell pack (>100 cells) is critical for ensuring long service life for propulsion applications. As the first step of optimizing a battery system design, academic publications regarding the capacity degradation mechanisms and possible solutions for cycled nickel/metal hydride (Ni/MH) rechargeable batteries under various usage conditions are reviewed. The commonly used analytic methods for determining the failure mode are also presented here. The most common failure mode of a Ni/MH battery is an increase in the cell impedance due to electrolyte dry-out that occurs from venting and active electrode material degradation/disintegration. This work provides a summary of effective methods to extend Ni/MH cell cycle life through negative electrode formula optimizations and binder selection, positive electrode additives and coatings, electrolyte optimization, cell design, and others. Methods of reviving and recycling used/spent batteries are also reviewed. Full article
