Search Results (14)

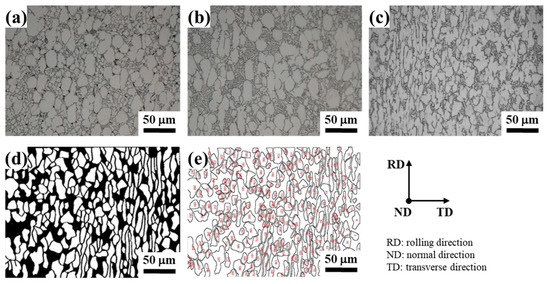

TC2 titanium alloy (Ti-4Al-1.5Mn, wt.%) is a near-α titanium alloy with promising aerospace and biomedical applications, but its limited room temperature ductility and strong texture sensitivity hinder the fabrication of high-performance sheets. In this study, the effects of hot rolling at 830 °C and 930 °C on the microstructure, macro-texture, mechanical properties, and fracture behavior of TC2 alloy were investigated. Compared with the 830 °C rolled sample, the 930 °C rolled sample exhibited finer primary α grains, a higher volume fraction of fine and dispersed secondary α_s phase, and more uniform Mn distribution, while both samples retained an α + β phase constitution. Texture and ODF (orientation distribution function) analyses revealed that increasing the rolling temperature reduced the maximum intensity of the (0001) pole figure from 6.68 to 5.23 m.r.d. (multiples of a random distribution) and increased that of the (10-10) pole figure to 9.62 m.r.d., indicating weakened basal texture, enhanced prismatic texture, and more dispersed orientation distribution. Consequently, although the tensile strength slightly decreased to approximately 730 MPa, the elongation increased from approximately 24% to 28%. The finer and denser dimples observed after 930 °C rolling further confirmed improved plastic deformation coordination. Full article

Achieving a favorable synergy of strength, ductility, and toughness is a critical challenge for expanding the engineering applications of titanium alloys. In this work, a medium-strength and high-toughness novel Ti-Al-Mo-V-Cr-Sn-Zr (named Ti62F) titanium alloy in the form of a Φ400 mm bar was adopted to systematically investigate the regulation behavior of double annealing on its microstructure and mechanical properties, and quantitative correlations between microstructural parameters and macroscopic properties were established. Increasing the cooling rate during the first annealing stage (air cooling, force air cooling and water quenching) significantly refined the secondary α (α_s) phase and reduced the volume fraction and size of the primary α (α_p) phase, leading to an increase in the ultimate tensile strength of the alloy from 1077 MPa to 1229 MPa. However, the impact-absorbed energy decreased from 51.5 J to 23.3 J. When the second annealing temperature was varied within the range of 625–675 °C, the ultimate tensile strength fluctuated slightly and the impact toughness increased moderately. Equiaxed α_p phase and relatively thick α_s can induce multiple crack deflections, prolong the crack propagation path and enhance energy absorption. Dislocations are mainly piled up at α/β phase boundaries, triggering void nucleation and growth, which dominate the ductility and toughness levels. Tensile twinning acts only as an auxiliary deformation mechanism and contributes limitedly to toughness. After heat treatment under the optimized schedule of 880 °C/2 h/AC + 650 °C/4 h/AC, the Ti62F alloy exhibits a superior strength–toughness balance compared with conventional medium-strength titanium alloys such as TA15, TC4, and TC4-DT. The findings can provide a heat treatment basis for microstructural regulation of large-size Ti62F bars and their engineering applications in aerospace structural components. Full article

The limited ductility of conventional titanium alloys significantly limits their application in critical load-bearing components. To overcome this limitation, a Ti-6Al-2Mo-2Nb-2Zr-2Sn titanium alloy (TC21) was subjected to warm rolling at 500 and 600 °C and aging treatment. Subsequently, microstructural characterization was conducted using scanning electron microscopy, electron backscatter diffraction and transmission electron microscopy, while the mechanical properties were tested by uniaxial tensile tests and nanoindentation tests. The sample warm rolled at 600 °C exhibited an optimal combination of strength and ductility, with an ultrahigh yield strength of 1138 MPa and an elongation-to-fracture of 7.3%. Aging treatment further enhanced the yield strength to 1263 MPa, while retaining a good ductility of 9.6%. The improved mechanical properties are mainly associated with the formation of nanoscale secondary α phase (α_s) lamellae caused by the aging treatment. Interface strengthening is identified as the primary strengthening mechanism. In particular, the optimal volume fraction and decreasing texture intensity of the soft phase contribute to the enhanced ductility. This work provides a method for viable thermo-mechanical processing for achieving an excellent strength–ductility combination in titanium alloys. Full article

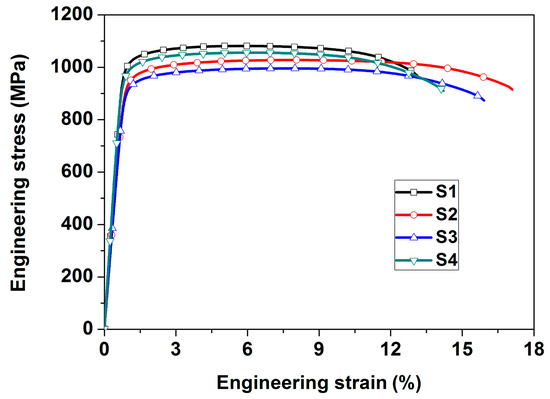

Titanium matrix composites (TMCs), characterized by low density, high strength, and excellent high-temperature mechanical properties, are becoming preferred materials for key components in aerospace engines. However, conventional casting methods for preparing TMCs often encounter issues such as composition segregation and coarse reinforcement phases, hindering their engineering application. In this study, we fabricated TiC/TC4 titanium matrix composites via hot isostatic pressing (HIP). The composites exhibited room-temperature tensile strength of 1058 ± 8 MPa, yield strength of 958 ± 12 MPa, and total elongation of 17.0 ± 0.5%. Furthermore, the TiC/TC4 composites demonstrated favorable high-temperature mechanical properties, with a tensile strength of about 500 MPa at 600 °C. Investigation into plastic deformation and fracture behavior revealed that at room temperature, tensile cracks initiated predominantly around the reinforcing TiC particles, whereas at high temperatures, cracks primarily originated within the matrix. The strengthening mechanisms of the TiC particle-reinforced TC4 composites included particle strengthening, solid solution strengthening, and load-transfer strengthening. Additionally, the precipitation of nano-acicular secondary α (αs) phases within the β phase during high-temperature tensile deformation was observed, contributing to the superior high-temperature mechanical performance of the composites. Full article

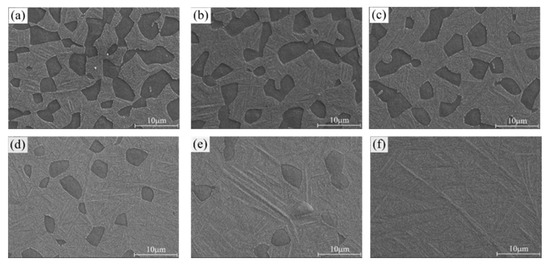

In this article, we subjected the Ti60 alloy to solid-solution treatment at 1020 °C and aging treatment at 600 °C, respectively, achieving a bimodal microstructure. The microstructures obtained after aging treatment showed no significant difference in the primary α-phase content, size, and width of the lamellar α phase. This suggests that the final microstructure morphology is primarily determined by the solid-solution temperature, with the aging process exerting less pronounced effects on microstructural alterations. Furthermore, we investigated the effect of solid-solution and aging treatment on the crystallographic orientation evolution of the secondary α phase (α_s) in the near-α titanium alloy Ti60. The α_s phase displays a random orientation in solid-solution treatment sample, while it demonstrated a preferential {0 1 −1 0} orientation after aging treatment. This interesting phenomenon is attributed to the enhanced variant selection resulting from the dissolution of variant near 60° and 90° during aging. Furthermore, the α_s with {0 1 −1 0} orientation nucleated at the grain boundary and coalesced into larger α_s lath with increasing aging time, further contributing to the α_s {0 1 −1 0} texture. Full article

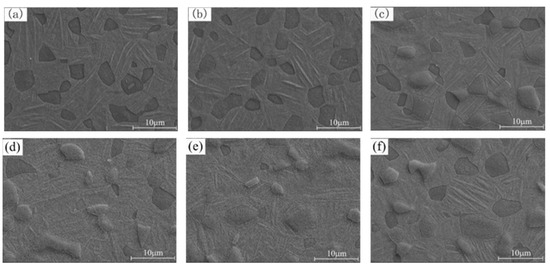

In the present work, the effects of aging treatment on the microstructures of a TC18 alloy are studied. The influence of aging treatment on the tensile properties and failure mechanisms is systematically analyzed. It is found that the size and morphology of the primary α (α_p) phases are insensitive to aging temperature and time. Furthermore, the aging temperature and time dramatically influence the precipitation of the secondary α (α_s) phases. Massive α_s phases precipitate and gradually coarsen, and finally weave together by increasing the aging temperature or extending the aging time. The variations in α_p and α_s phases induced by aging parameters also affect the mechanical properties. Both yield strength (YS) and ultimate tensile strength (UTS) first increase and then decrease by increasing the aging temperature and time, while ductility first decreases and then increases. There is an excellent balance between the strengths and ductility. When the aging temperature is changed from 450 to 550 °C, YS varies from 1238.6 to 1381.6 MPa, UTS varies from 1363.2 to 1516.8 MPa, and the moderate elongation ranges from 9.0% to 10.3%. These results reveal that the thickness of α_s phases is responsible for material strengths, while the content of α phases can enhance material ductility. The ductile characteristics of the alloy with coarser α_s phases are more obvious than those with thinner α_s phases. Therefore, the aging treatment is helpful for the precipitation and homogeneous distribution of α_s phases, which are essential for balancing the strengths and ductility of the studied Ti alloy. Full article

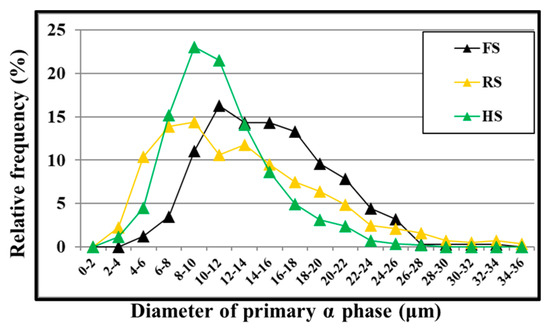

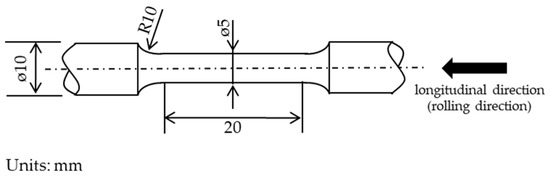

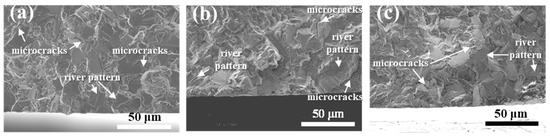

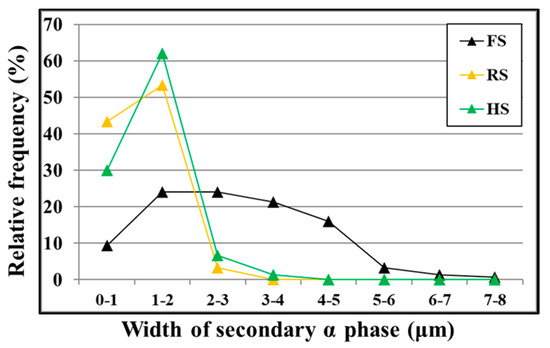

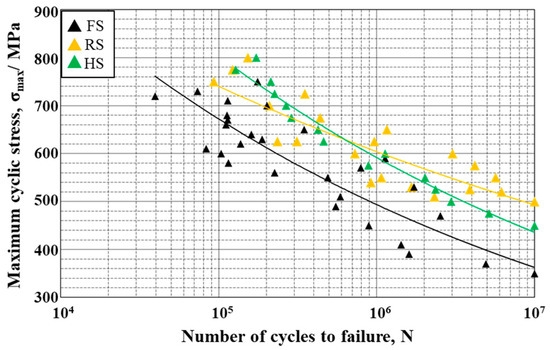

The mechanical properties of Ti-6Al-4V alloy are affected by its microstructures. However, the effects of these microstructures on the high cycle fatigue behavior of Ti-6Al-4V alloy with a mixed structure (α + β phases) remain unknown. In this study, three alloy specimens were prepared using different hot-deformation methods, and their microstructures were investigated by optical microscopy and scanning electron microscopy. Fatigue tests were then performed to determine their high cycle fatigue and fatigue crack propagation behavior. All specimens showed a bimodal structure, but the morphology of each phase (e.g., diameter, shape, and volume fraction) showed notable differences. Among the samples prepared, the forged sample (FS) showed the lowest fatigue strength in all cycles. The fatigue strength of the homogeneously rolled sample (HS) was slightly higher than that of the rolled sample (RS) below 10⁶ cycles but lower above 10⁶ cycles. Compared with those of RS and HS, the secondary α (α_s) grain width of FS was twofold larger. The interconnected primary α (α_p) phase clusters in HS appeared to promote microcrack propagation. Full article

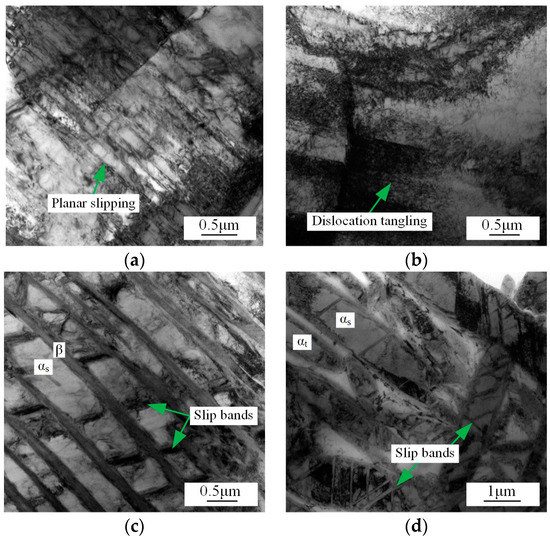

Understanding the mechanisms of deformation and fracture of metastable β titanium alloys is of great significance for improving formability and service life. By combining the in-situ tensile test, TEM characterization and EBSD analysis, the tensile deformation behavior, activation of slip systems, crack initiation, and propagation of a high strength metastable β titanium alloy (Ti-5Cr-4Al-4Zr-3Mo-2W-0.8Fe) with equiaxed microstructure are investigated. The equiaxed microstructure is composed of primary α (α_p) phase, transformed β (β_t) matrix phase, and secondary α (α_s) phase. In contrast to the hexagonal α_p grain with limited slip systems, the body-centered β_t matrix has more slip systems, however the hindering effect of α_s phases on dislocation slip leads to the different deformability of the α_p phase and β_t matrix. The equiaxed α_p grains are more prone to deformation and rotation to coordinate the overall deformation. The shear band leads to the formation of sub-grain boundary and even the fragmentation of α_p grains. As a result, the microvoids tend to nucleate at the grain boundary, phase interface, slip band, and shear band. The inhomogeneous deformation in the plastic deformation zone around the crack tip is the primary cause of damage. The crack propagation caused by microvoids coalescence advances along the grain boundaries and phase interfaces in the form of intergranular, and along the activated slip systems and shear bands in the form of transgranular. Pinpointing the situation in the equiaxed microstructure and combining that in other typical microstructures will help to summarize the universal deformation and fracture mechanisms of metastable β titanium alloy, and provide a basis for alloy design and microstructure tailoring. Full article

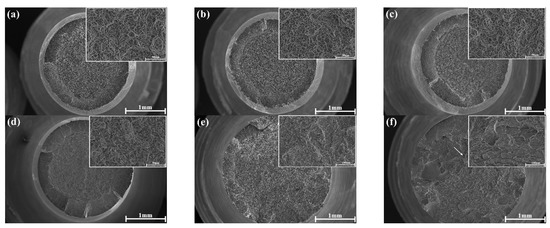

The impact toughness of a high-strength metastable β titanium alloy (Ti-5Cr-4Al-4Zr-3Mo-2W-0.8Fe) with two typical microstructures is studied by Charpy impact tests. The bimodal microstructure (BM) and the lamellar microstructure (LM) are obtained by the solution and aging treatments and the β annealing, slow cooling and aging treatments, respectively. In the impact crack initiation process, the deformation capacities of the primary α (α_p) phase, secondary α (α_s) phase and transformed β (β_t) matrix in the BM are very different, and the stress gradient at the interface of the three causes the crack initiation. The lamellar α (α_l) phase and β_t in the LM satisfy the BOR relationship, and the effective slip transfer between α and β phases slows down the crack initiation. Meanwhile, the appearance of deformation twins in the LM improves the crack initiation energy. In the crack propagation process, the lack of coordinated deformation between the α and β phases in the BM leads to rapid crack propagation. In the LM, the deformation of α_l and β_t is relatively more coordinated, so the severe plastic deformation is only concentrated near the crack and at the interface. The secondary crack initiation and the crack propagation along the twin boundary reduce the stress concentration at the crack tip. The deformation twins and zigzag propagation path can improve the crack propagation energy. To summarize, the alloy with LM exhibits better impact toughness than the alloy with BM. Full article

This study presents a strategy for the preparation of multiscale α phase by high/low-temperature two-step aging in metastable β titanium alloy, Ti-15Mo-3Al-2.7Nb-0.2Si. The purpose of high-temperature aging is to obtain a number of micro-scale secondary α phases (α_S), besides precipitation-free zones (PFZs). After that, in the second stage of low-temperature aging, the nano-scale tertiary α phase (α_T) precipitates in the PFZs. The second-step aging temperature and the time at low temperature will have an important effect on α_T. On the one hand, with the extension of aging time, the morphology of α_T changes from dot-like to needle-like. Secondly, the increase of the second-step aging temperature will promote precipitation of α_T in PFZs. The strength increases gradually with the accelerated precipitation of α_T, and good plasticity is still maintained. The effect of multiscale α on fracture behavior was investigated by in situ tensile testing. Results show that cracks form a transgranular fracture along the slip line after solution treatment. After first-step aging, the crack easily passes through α_S and forms an intergranular fracture. After second-step aging, the formation of multiscale α phase has a stronger effect in hindering the crack growth, which leads to crack propagation mainly by transgranular fracture. Overall, this study demonstrates that the alloy can be heat-treated to achieve an excellent match between strength and ductility, which is expected to meet the application requirements of structural materials of the new generation of aircraft. Full article

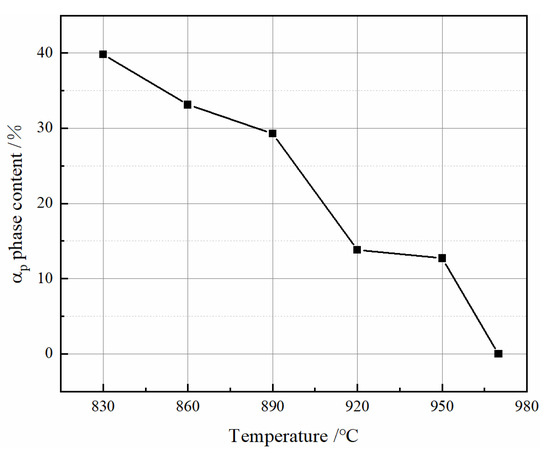

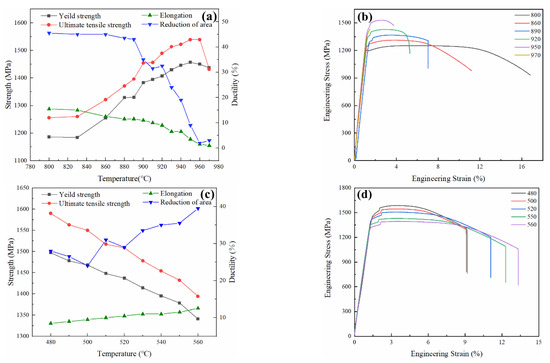

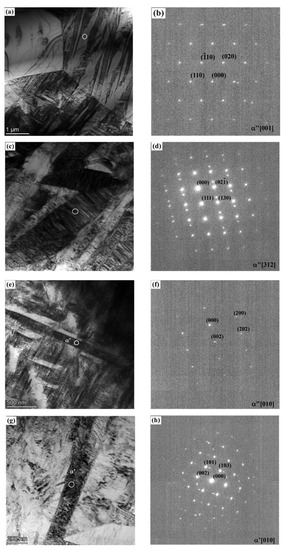

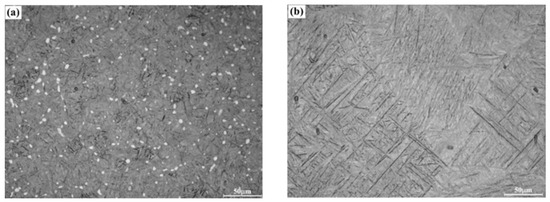

The microstructure and tensile properties of Ti-6Al-6V-2Sn alloy heat-treated at different solution and aging temperatures has been systematically investigated. Specimens were solution-treated at 970 °C (above the β transus) and 920 °C (below the β transus), respectively, followed by water quenching. When the alloy is quenched from 970 °C, α’ (hcp) and α˝ (orthorhombic) martensite phases co-exist in the microstructure. When it is quenched from 920 °C, α´ martensite phase does not form, while equiaxial primary α (α_p) phase and α˝ are found in the microstructure. The results also show that the strength of the alloy increases but the ductility deteriorates as the solution temperature becomes higher when the aging treatment is unchanged. This is because the volume fraction of equiaxial α_p phase is lower but the volume fraction of the acicular secondary α (α_s) phase is higher for higher solution temperature. When the alloy is aged at different temperatures after the solution treatment at 900 °C, the strength of the alloy decreases with the increase of aging temperature and the ductility shows the opposite trend as the size of the acicular α_s becomes longer and its volume fraction is lower at higher aging temperature. Full article

The main objective of the present study was to understand the oxygen ingress in titanium alloys at high temperatures. Investigations reveal that the oxygen diffusion layer (ODL) caused by oxygen ingress significantly affects the mechanical properties of titanium alloys. In the present study, the high-temperature oxygen ingress behavior of TC21 alloy with a lamellar microstructure was investigated. Microstructural characterizations were analyzed through optical microscopy (OM), scanning electron microscopy (SEM), electron backscatter diffraction (EBSD), and transmission electron microscopy (TEM). Obtained results demonstrate that oxygen-induced phase transformation not only enhances the precipitation of secondary α-phase (αs) and forms more primary α phase (αp), but also promotes the recrystallization of the ODL. It was found that as the temperature of oxygen uptake increases, the thickness of the ODL initially increases and then decreases. The maximum depth of the ODL was obtained for the oxygen uptake temperature of 960 °C. In addition, a gradient microstructure (αp + β + βtrans)/(αp + βtrans)/(αp + β) was observed in the experiment. Meanwhile, it was also found that the hardness and dislocation density in the ODL is higher than that that of the matrix. Full article

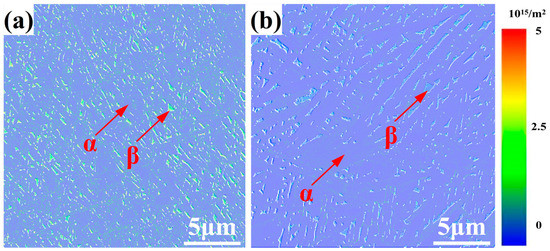

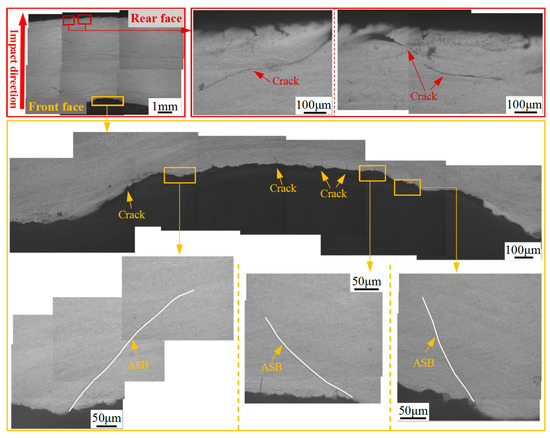

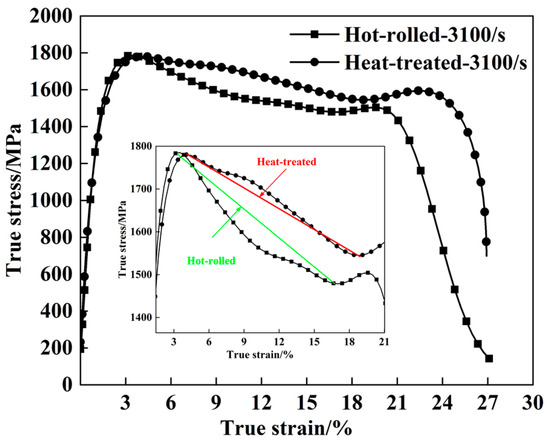

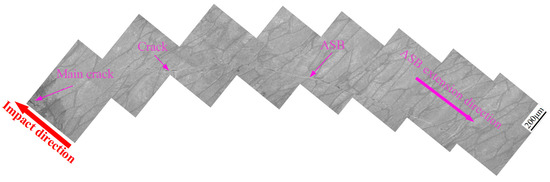

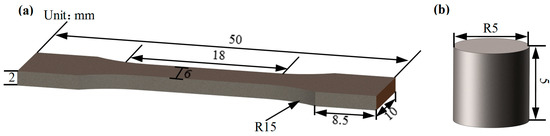

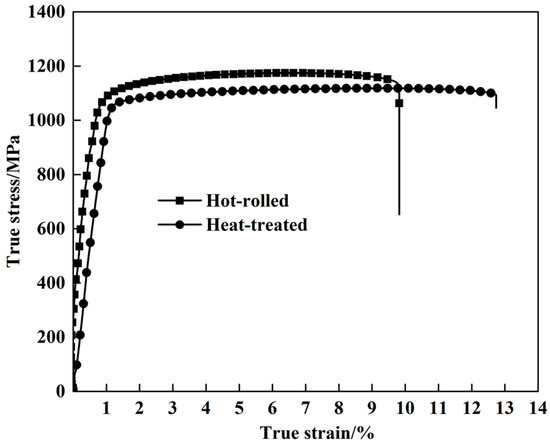

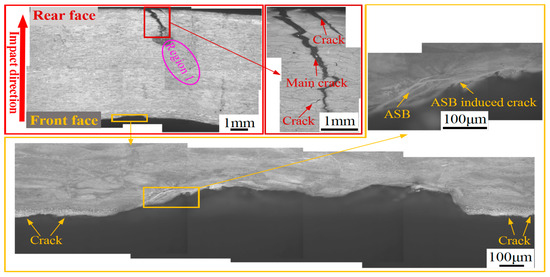

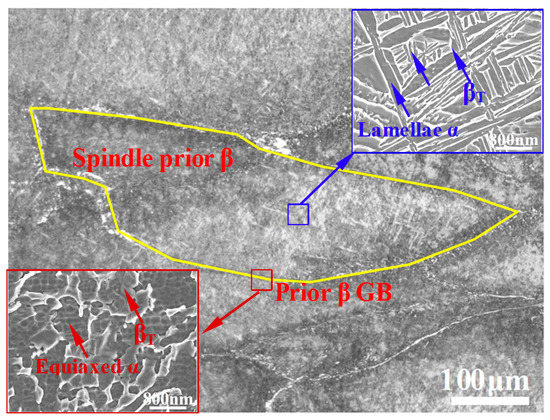

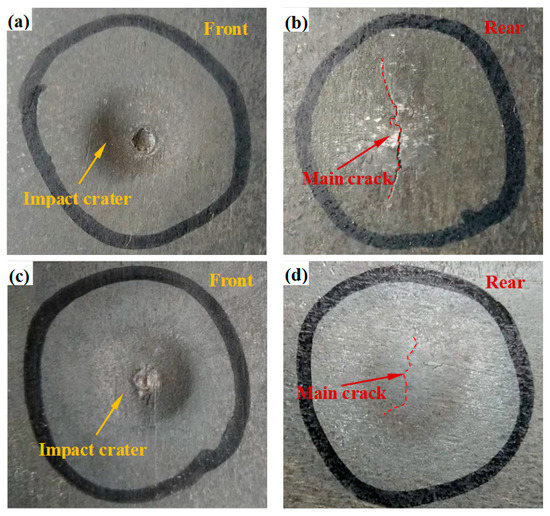

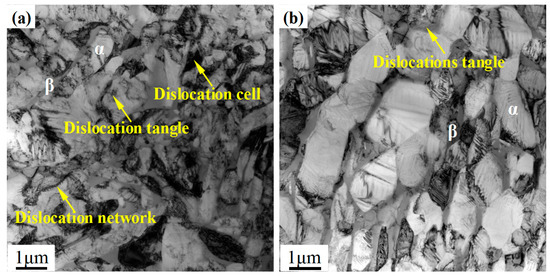

In this work, a near β-type Ti5.1Al2.5Cr0.5Fe4.5Mo1.1Sn1.8Zr2.9Zn alloy was hot-rolled at the temperature of 800–880 °C with a thickness reduction of 87.5% and then heat-treated with the strategy of 880 °C/1 h/air cooling (AC) + 650 °C/3 h/AC. The microstructure difference between the hot-rolled and heat-treated titanium alloys and its influence on the ballistic impact behavior of the hot-rolled and heat-treated titanium alloys were analyzed. The microstructural investigation revealed that the average size of the acicular secondary α phase (α_s) dropped from 75 to 42 nm, and the corresponding amount of this phase increased significantly after heat treatment. In addition, the dislocation density of the α and β phases decreased from 0.3340 × 10¹⁵/m² and 4.6746 × 10¹⁵/m² for the hot-rolled titanium alloy plate to 0.2806 × 10¹⁵/m² and 1.8050 × 10¹⁵/m² for the heat-treated one, respectively. The high strength of the heat-treated titanium alloy was maintained, owing to the positive contribution of the acicular secondary α phase. Furthermore, the critical fracture strain increased sharply from 19.9% for the hot-rolled titanium alloy plate to 23.1% for the heat-treated one, thereby overcoming (to some extent) the constraint of the strength–ductility trade-off. This is mainly attributed to the fact that the dislocation density and the difference between the dislocation densities of the α and β phases decreased substantially, and deformation localization was effectively suppressed after heat treatment. Damage to the hot-rolled and heat-treated titanium alloy plates after the penetration of a 7.62 mm ordinary steel core projectile at a distance of 100 m was assessed via industrial computer tomography and microstructure observation. The results revealed that a large crack (volume: 2.55 mm³) occurred on the rear face and propagated toward the interior of the hot-rolled titanium alloy plate. The crack tip was connected to a long adiabatic shear band with a depth of 3 mm along the thickness direction. However, good integrity of the heat-treated titanium alloy plate was maintained, owing to its excellent deformation capability. Ultimately, the failure mechanism of the hot-rolled and heat-treated titanium alloy plates was revealed by determining the crack-forming reasons in these materials. Full article

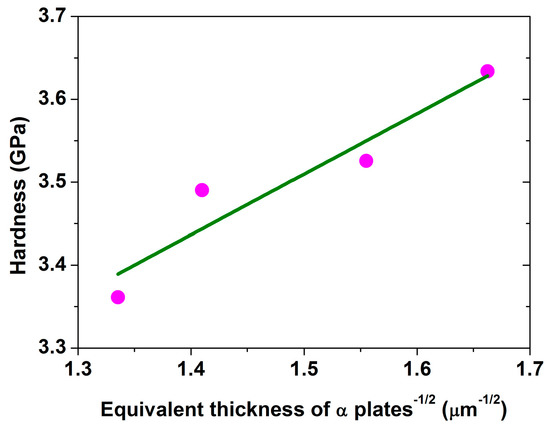

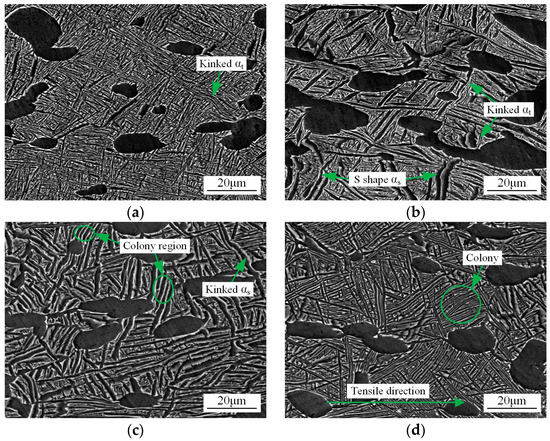

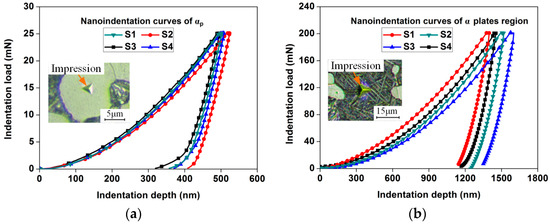

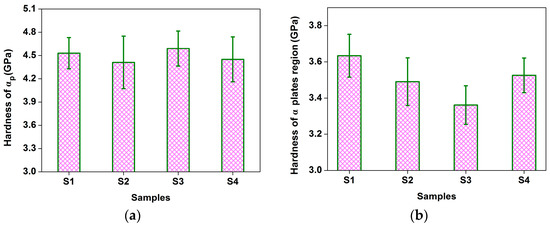

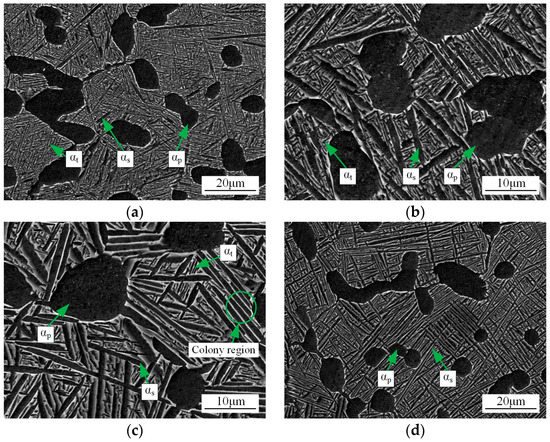

Tri-modal microstructure is often the target microstructure of titanium alloy components. In this study, the parameters, such as volume fraction, size of primary equiaxed α (α_p), secondary lamellar α (α_s) and thin α plates (α_t) in tri-modal microstructure of Ti-6Al-2Zr-1Mo-1V alloy are adjusted by double heat treatment procedures. The properties of these constituent phases and their effect on the macro-properties are then investigated. The results show that the hardness of primary α (α_p) varies slightly with heat treatment routes. The hardness of α plates region including α_s and α_t increases with increasing α_t volume fraction and not with decreasing thickness of α_s and α_t. Using volume average of the thickness of α_s and α_t as effective thickness (t_eff), the hardness of α plates region and t_eff follow the Hall-Petch relationship. Meanwhile, as α_t volume fraction increases, colony structure of α_s is gradually destroyed, which makes each α_s have large deformation degree by multiple directions slip. When volume fraction ratio of α_p, α_s and α_t is about 1:1:1, α_p and α_s can undergo relatively large deformation and α_t can contribute relatively large strength to the alloy and therefore the alloy has both good strength and ductility. Full article
