Search Results (15)

The oxides of group 14 have been widely used in numerous applications in glass, ceramics, optics, pharmaceuticals, and food industries and semiconductors, photovoltaics, thermoelectrics, sensors, and energy storage, namely, batteries. Herein, we simulate and experimentally determine by scanning kelvin probe (SKP) the work functions of three oxides, SiO₂, SiO, and SnO₂, which were found to be very similar. Electrical properties such as electronic band structure, electron localization function, and carrier mobility were also simulated for the three crystalline oxides, amorphous SiO, and surfaces. The most exciting results were obtained for SiO and seem to show Poole–Frankel emissions or trap-assisted tunneling and propagation of surface plasmon polariton (SPP) with nucleation of solitons on the surface of the Aluminum. These phenomena and proposed models may also describe other oxide-metal heterojunctions and plasmonic and metamaterials devices. The SiO₂ was demonstrated to be a stable insulator interacting less with the metals composing the cell than SnO₂ and much less than SiO, configuring a typical Cu/SiO₂/Al cell potential well. Its surface charge carrier mobility is small, as expected for an insulator. The highest charge carrier mobility at the lowest conduction band energy is the SnO₂’s and the most symmetrical the SiO’s with a similar number of electron holes at the conduction and valence bands, respectively. The SnO₂ shows it may perform as an n-type semiconductor. Full article

The atmospheric corrosion of high-strength steels can lead to hydrogen absorption directly linked to hydrogen embrittlement or delayed fracture phenomena. A scanning Kelvin probe (SKP) and electrochemical permeation technique (EPT) were applied to correlate the potential of an oxidized surface with the flux of hydrogen across a thin steel membrane. The side of the membrane opposite the corroding or electrochemically charged area was analyzed. The potential drop in the oxide was calibrated in terms of surface hydrogen activity, and SKP can be applied in situ for the mapping of hydrogen distribution in the corroding metal. A very low flux of hydrogen can be characterized and quantified by SKP, which is typically observed under atmospheric corrosion conditions. Therefore, hydrogen localization that drives steel durability under atmospheric corrosion conditions can be evaluated. Full article

The success of implant treatment is dependent on the osseointegration of the implant. The main goal of this work was to improve the biofunctionality of the Ti-13Nb-13Zr implant alloy by the production of oxide nanotubes (ONTs) layers for better anchoring in the bone and use as an intelligent carrier in drug delivery systems. Anodization of the Ti-13Nb-13Zr alloy was carried out in 0.5% HF, 1 M (NH₄)₂SO₄ + 2% NH₄F, and 1 M ethylene glycol + 4 wt.% NH₄F electrolytes. Physicochemical characteristics of ONTs were performed by high-resolution electron microscopy (HREM), X-ray photoelectron spectroscopy (XPS), and scanning Kelvin probe (SKP). Water contact angle studies were conducted using the sitting airdrop method. In vitro biological properties and release kinetics of ibuprofen were investigated. The results of TEM and XPS studies confirmed the formation of the single-walled ONTs of three generations on the bi-phase (α + β) Ti-13Nb-13Zr alloy. The ONTs were composed of oxides of the alloying elements. The proposed surface modification method ensured good hemolytic properties, no cytotoxity for L-929 mouse cells, good adhesion, increased surface wettability, and improved athrombogenic properties of the Ti-13Nb-13Zr alloy. Nanotubular surfaces allowed ibuprofen to be released from the polymer matrix according to the Gallagher–Corrigan model. Full article

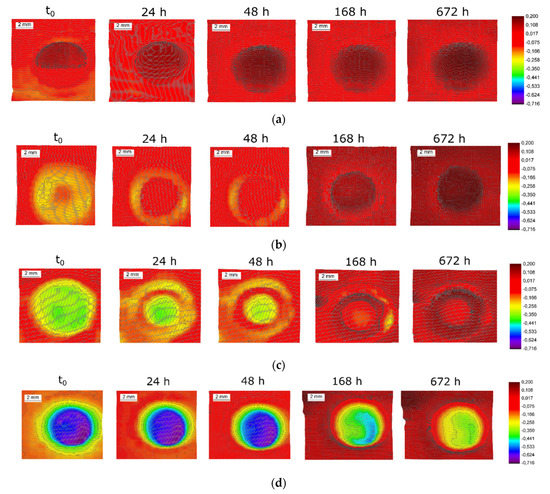

Hydrogen, due to corrosion processes, can degrade high strength steels (HSS) through embrittlement and stress corrosion cracking mechanisms. Scanning Kelvin probe (SKP) mapping of surface potential was applied, to visualize the locations with an increased subsurface concentration of hydrogen in mild steel and martensitic HSS. This work can help to determine the reasons behind hydrogen localization in a steel microstructure, leading to embrittlement and hydrogen-assisted cracking. Cathodic charging was used to insert hydrogen, which decreased the steel potential. Hydrogen effusion in air passivates steel, increasing the potential of HSS and mild steel. The passivation of steels was monitored depending on different conditions of cathodic pre-charging and the amount of absorbed hydrogen. The SKP could determine the area of diffusible hydrogen and the area of cracks. In addition, low potential locations linked to the hydrogen trapped in the deformed HSS microstructure were also determined, which delayed the steel passivation. Mild steel showed a uniform potential distribution related to interstitial hydrogen, without potential extremes attributed to locally accumulated hydrogen. Thus, SKP sensing can detect locations containing increased concentrations of hydrogen and sensitive to steel cracking. Full article

Fracture failure of super 13Cr can occur in complex and harsh environments such as high temperature, high pressure, and corrosive gas wells, which damages the economic benefit of oil and gas development and also poses a great threat to wellbore integrity. Therefore, it is urgent to study the corrosion mechanism of super 13Cr tubing in oil and gas wells, and this study performed an on-site experimental analysis on failed super 13Cr tubing, employing the microarea electrochemical scanning Kelvin probe (SKP) method to investigate the causes of corrosion of super 13Cr material. In addition, the thermodynamics of the mechanism by which pits turn into cracks was examined in light of the experimental findings on the nucleation and development of pitting corrosion. The findings reveal scale and clear pits on the surface of the failed super 13Cr tubing and that CaCO₃ as well as FeCO₃ are the scale’s primary constituents. According to the SKP scan results, the super 13Cr tubing has a risk of pitting under wells, and the galvanic cell with microcorrosion is the primary cause of pitting corrosion, which also shows that the potential difference between the anode area and the cathode area of the super 13Cr material gradually increases with the increase in immersion time. Under the autocatalytic effect of the occlusive corrosion cell and the applied load, the corrosion pits and cracks of super 13Cr tubing propagate, eventually leading to tubing breaks and failure. Full article

Dual-phase high entropy alloys have recently attracted widespread attention as advanced structural materials due to their unique microstructure, excellent mechanical properties, and corrosion resistance. However, their molten salt corrosion behavior has not been reported, which is critical in evaluating their application merit in the areas of concentrating solar power and nuclear energy. Here, the molten salt corrosion behavior of AlCoCrFeNi_2.1 eutectic high-entropy alloy (EHEA) was evaluated in molten NaCl-KCl-MgCl₂ salt at 450 °C and 650 °C in comparison to conventional duplex stainless steel 2205 (DS2205). The EHEA showed a significantly lower corrosion rate of ~1 mm/year at 450 °C compared to ~8 mm/year for DS2205. Similarly, EHEA showed a lower corrosion rate of ~9 mm/year at 650 °C compared to ~20 mm/year for DS2205. There was selective dissolution of the body-centered cubic phase in both the alloys, B2 in AlCoCrFeNi_2.1 and α-Ferrite in DS2205. This was attributed to micro-galvanic coupling between the two phases in each alloy that was measured in terms of Volta potential difference using a scanning kelvin probe. Additionally, the work function increased with increasing temperature for AlCoCrFeNi_2.1, indicating that the FCC-L1₂ phase acted as a barrier against further oxidation and protected the underlying BCC-B2 phase with enrichment of noble elements in the protective surface layer. Full article

The formation mode of isolated austenite (IA) formed during high-temperature cooling and its effect on pitting corrosion resistance of S32750 DSS were investigated. As the structure formed during the high-temperature cooling process after hot rolling in S32750 duplex stainless steel (DSS), the precipitation of isolated austenite (IA) can be considered as the combined production of temperature and cooling rates. IA generated at the ferrite (α) grain boundaries or internal α and performed the K-S crystallographic relation with the α N element enriched in IA. The redistribution of elements not only increased the concentration gradient between α/IA, but also reduced the pitting resistance equivalent number (PREN) of original austenite (γ). Scanning Kelvin probe (SKP) and Gaussian fitting proved that with prolonged corrosion time, the potential difference enlarged and local corrosion aggravated. Measured by the weight loss method, pitting resistance decreased to one-third of the solid solution state due to the existence of IA; following, the quantities, sizes, and depth of corrosion pits increased significantly. In addition to α/γ boundaries and α/α boundaries, corrosion pits preferred to initiate around IA. The IA that appeared at α grain boundaries deteriorated the pitting corrosion resistance severely. Furthermore, original austenite with decreased PREN tended to be corroded. In general, the order of pitting occurrence is displayed as follows: α-γ-IA. Full article

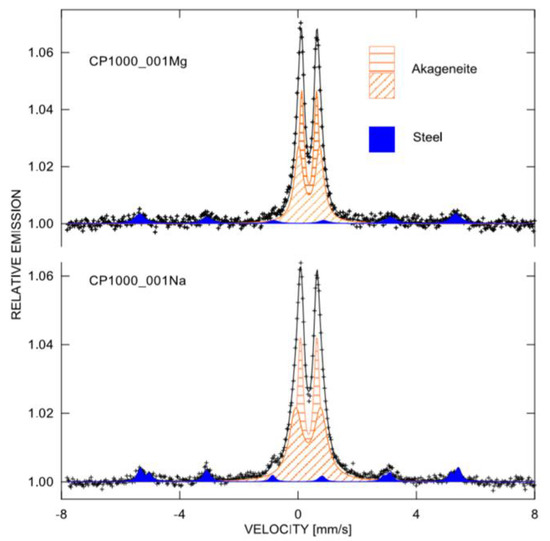

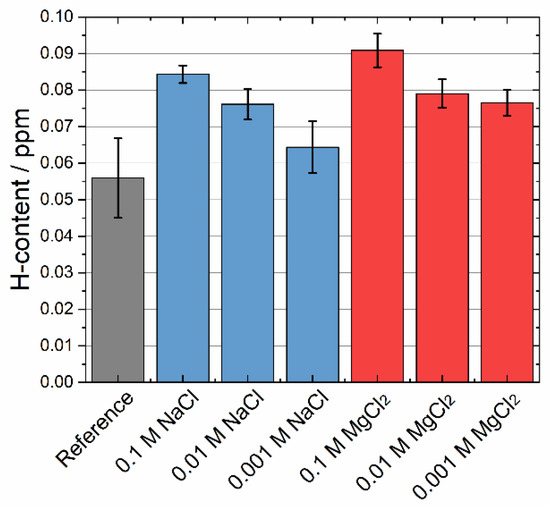

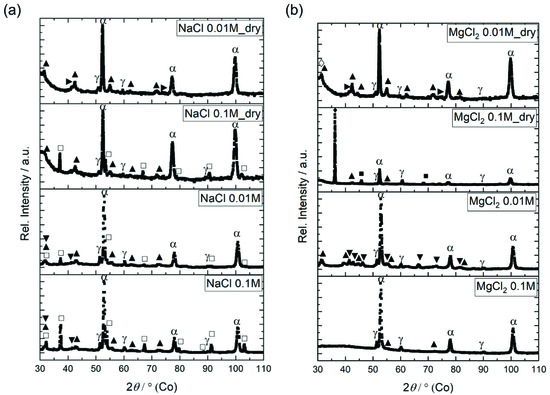

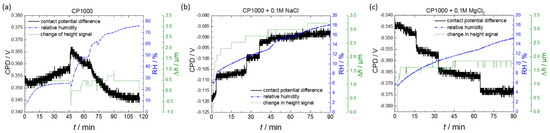

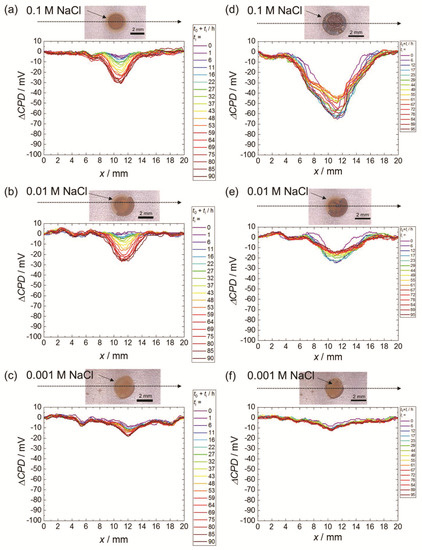

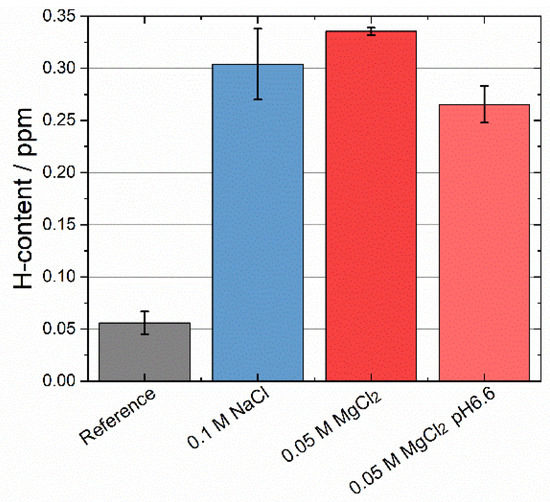

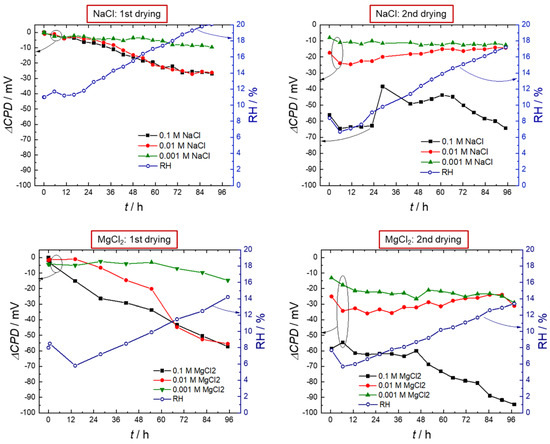

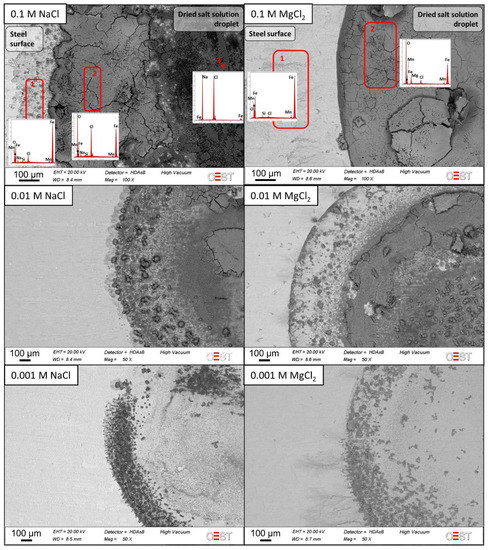

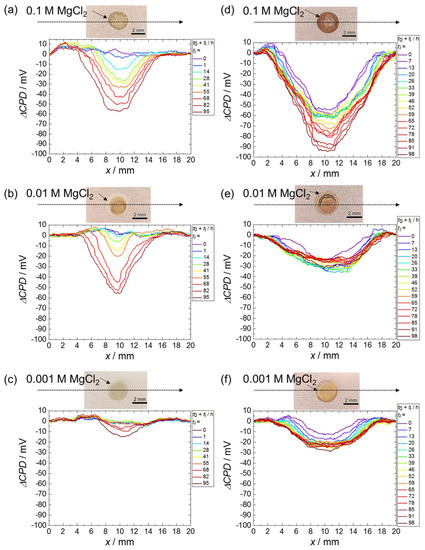

Atmospheric corrosion is one of the major sources of hydrogen in a high-strength-steel product in service. Even low concentrations of absorbed hydrogen can cause a hydrogen embrittlement-related material degradation. The extent of atmospheric corrosion and thus the related hydrogen entry is highly dependent on the environmental parameters, such as the relative humidity. The present work focused on the hydrogen entry at low relative humidity, where atmospheric corrosion rates are expected to be low. Hydrogen insertion and distribution in CP1000 steel induced by corrosion under dried and rewetted single droplets of aqueous NaCl and MgCl₂ solution were studied using the Scanning Kelvin Probe (SKP) and the resulting amounts of diffusible hydrogen were analyzed using thermal desorption mass spectrometry (TDMS). Corrosion product analyses were carried out with SEM/EDX, XRD, and Mössbauer spectroscopy. The results revealed the strong impact of salt type and concentration on the hydrogen entry into steel. The hygroscopic effect of MgCl₂ and the formed corrosion products were responsible for the prolonged insertion of hydrogen into the steel even at very low levels of relative humidity. Full article

The mechanism of iron corrosion protection by thin siloxane films was clarified. Quartz crystal microbalance technique (QCM) was applied to control the vapour phase deposition of alkoxysilanes and the formation of thin siloxane films. It was shown that the addition of water vapour increased the thickness of the grafted siloxane films. Crystal-like films spontaneously grow to 10–16 monolayers at 100% RH of Ar flow due to the catalytic effect of the surface. X-ray photoelectron (XPS) and Auger spectroscopies analysed the thin siloxane films and Scanning Kelvin Probe (SKP) showed the formation of iron-siloxane bonds passivating the iron surface. The films showed high hydrophobicity and corrosion inhibition in humid air contaminated by sulphur dioxide. Thick films were less ordered, hydrophilic and accelerated the corrosion of iron. For corrosion protection, the presence of oxygen in the atmosphere is extremely important. In a wet Ar atmosphere, contaminated by sulphur dioxide, the surfaces are not stable and quickly corroded. Oxygen adsorption stabilizes the surface oxide film that correspondingly preserves the anchoring iron-siloxane bonds and enables corrosion protection by the coating. Full article

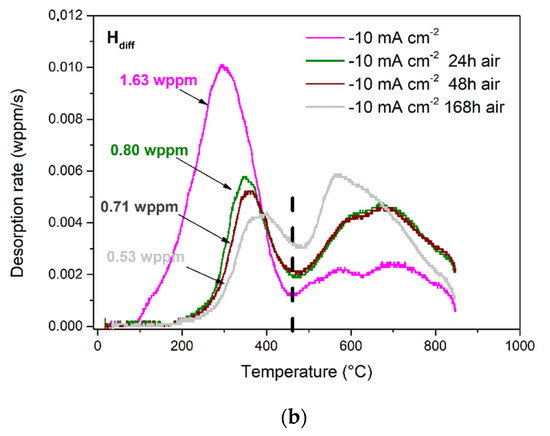

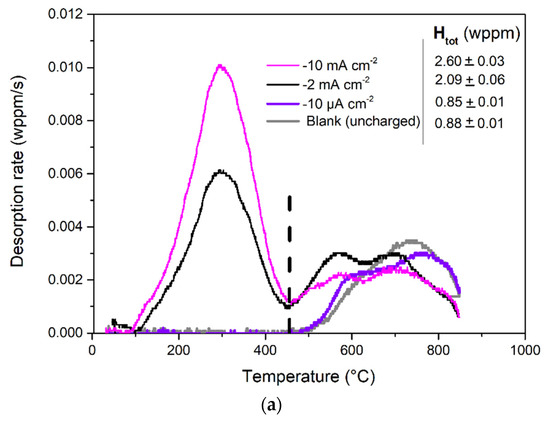

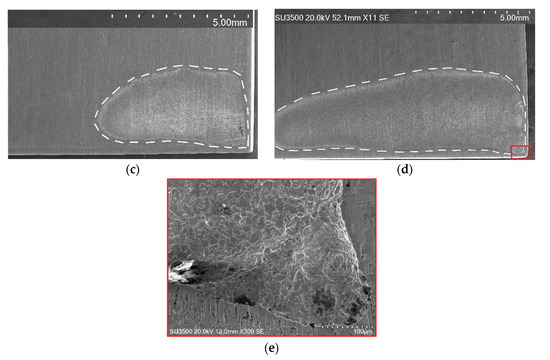

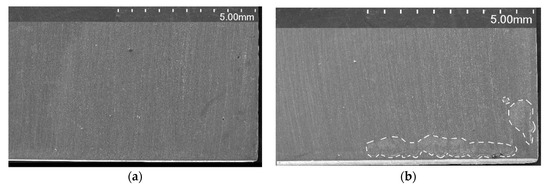

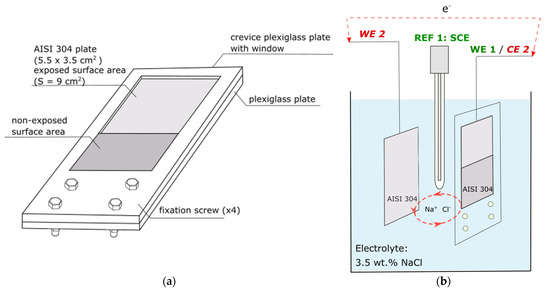

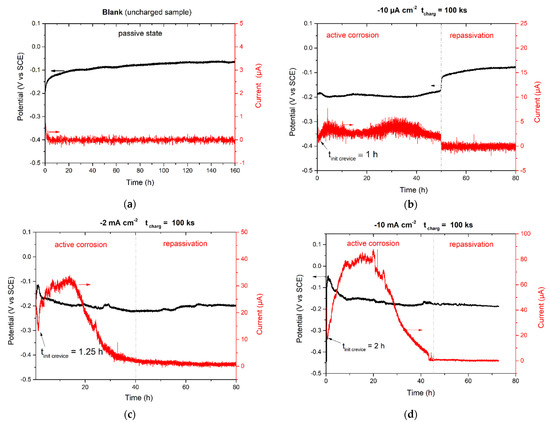

The effects of cathodic polarisation switch-off on the passivation of AISI 304L stainless steel in air and its crevice corrosion susceptibility in 3.5 wt.% NaCl aqueous electrolyte were investigated. Scanning Kelvin probe (SKP) data showed that the oxide film is significantly destabilised and the rate of steel passivation in air is slowed down. Thermal desorption analysis (TDA) highlighted that hydrogen absorption is proportional to the applied cathodic current density. A special crevice corrosion set-up was designed to realise simultaneous reproducible monitoring of potential and galvanic current to study the impact of prior cathodic polarisation on crevice corrosion onset. Full article

Titanium and its alloys are among the most promising biomaterials for medical applications. In this work, the isothermal oxidation of Ti-6Al-7Nb biomedical alloy towards improving its mechanical properties, corrosion resistance, and bioactivity has been developed. The oxide layers were formed at 600, 700, and 800 °C for 72 h. Scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS), 3D profilometry, and microindentation test, were used to characterize microstructure, surface geometrical structure, and the hardness of the diphase (α + β) Ti-6Al-7Nb alloy after oxidation, respectively. In vitro corrosion resistance tests were carried out in a saline solution at 37 °C using the open-circuit potential method and potentiodynamic measurements. Electronic properties in the air were studied using the Scanning Kelvin Probe (SKP) technique. The bioactivity test was conducted by soaking the alkali- and heat-treated samples in simulated body fluid for 7 days. The presence of apatite was confirmed using SEM/EDS and Fourier Transform Infrared Spectroscopy (FTIR) studies. The thickness of oxide layers formed increased with the temperature growth from 0.25 to 5.48 µm. It was found that with increasing isothermal oxidation temperature, the surface roughness, hardness, corrosion resistance, and contact potential difference increased. The Ti-6Al-7Nb alloy after oxidation revealed the HAp-forming ability in a biological environment. Full article

This study modified graphene oxide (GO) with hydrophilic octadecylamine (ODA) via covalent bonding to improve its dispersion in silicone-modified epoxy resin (SMER) coatings. The structural and physical properties of ODA-GO were characterized by field-emission scanning electron microscopy (FE-SEM), X-ray diffraction analysis (XRD), Fourier transform infrared spectroscopy (FT-IR), Raman spectroscopy, X-ray photoelectron spectroscopy (XPS), and contact angle tests. The ODA-GO composite materials were added to SMER coatings by physical mixing. FE-SEM, water absorption, and contact angle tests were used to evaluate the physical properties of the ODA-GO/SMER coatings, while salt spray, electrochemical impedance spectroscopy (EIS), and scanning Kelvin probe (SKP) methods were used to test the anticorrosive performance of ODA-GO/SMER composite coatings on Q235 steel substrates. It was found that ODA was successfully grafted onto the surfaces of GO. The resulting ODA-GO material exhibited good hydrophobicity and dispersion in SMER coatings. The anticorrosive properties of the ODA-GO/SMER coatings were significantly improved due to the increased interfacial adhesion between the nanosheets and SMER, lengthening of the corrosive solution diffusion path, and increased cathodic peeling resistance. The 1 wt.% ODA-GO/SMER coating provided the best corrosion resistance than SMER coatings with other amounts of ODA-GO (including no addition). After immersion in 3.5 wt.% NaCl solution for 28 days, the low-frequency end impedance value of the 1 wt.% ODA-GO/SMER coating remained high, at 6.2 × 10⁸ Ω·cm². Full article

The effect of welding speed on microstructure, mechanical properties, and corrosion properties of laser-assisted welded joints of a twinning-induced plasticity (TWIP) steel was investigated by using X-ray diffraction (XRD), scanning electron microscopy (SEM), electron backscattered diffraction (EBSD) analysis, electrochemical test, and micro-area scanning Kelvin probe test (SKP). The results reveal that the welded joints, with a fully austenitic structure, are obtained by laser welding. In addition, the preferred orientation of grains in fusion zone (FZ) increased with the increase of welding speed. Additionally, the coincidence site lattice (CSL) grain boundaries of FZ decreased with increasing welding speed. However, potentiodynamic polarization and SKP results demonstrated that the welding speed of 1.5 m/min renders superior corrosion resistance. It can also be inferred that the corrosion properties of the welded joints are related to the grain size and frequency of CSL grain boundary in FZ. Full article

Hydrogen in combination with mechanical stress can lead to rapid degradation of high-strength steels through environmentally assisted cracking mechanisms. The scanning Kelvin probe (SKP) was applied to automotive martensitic steel grade MS1500 in order to detect local reactivity of the surface after hydrogen uptake and tensile deformation. Hydrogen and stress distribution in microstructures can be characterized by SKP indirectly measuring the potential drop in the surface oxide. Thus, the links between electron work function, oxide condition, and subsurface accumulation of hydrogen and stress have to be investigated. It was shown that plastic strain can mechanically break down the oxide film creating active (low potential) locations. Hydrogen effusion from the steel bulk, after cathodic charging in aqueous electrolyte, reduced the surface oxide and also decreased potential. It was shown that surface re-oxidation was delayed as a function of the current density and duration of cathodic hydrogen pre-charging. Thus, potential evolution during exposure in air can characterize the relative amount of subsurface hydrogen. SKP mapping of martensitic microstructure with locally developed residual stress and accumulated hydrogen displayed the lowest potential. Full article

High-entropy alloys (HEAs) are single-phase systems prepared from equimolar or near-equimolar concentrations of at least five principal elements. The combination of high mixing entropy, severe lattice distortion, sluggish diffusion and cocktail effect favours the formation of simple phases—usually a bcc or fcc matrix with minor inclusions of ordered binary intermetallics. HEAs have been proposed for applications in which high temperature stability (including mechanical and chemical stability under high temperature and high mechanical impact) is required. On the other hand, the major challenge to overcome for HEAs to become commercially attractive is the achievement of lightweight alloys of extreme hardness and low brittleness. The multicomponent AlCrCuScTi alloy was prepared and characterized using powder X-ray diffraction (PXRD), scanning-electron microscope (SEM) and atomic-force microscope equipped with scanning Kelvin probe (AFM/SKP) techniques. Results show that the formation of complex multicomponent ternary intermetallic compounds upon heating plays a key role in phase evolution. The formation and degradation of W-phase, Al₂Cu₃Sc, in the AlCrCuScTi alloy plays a crucial role in its properties and stability. Analysis of as-melted and annealed alloy suggests that the W-phase is favoured kinetically, but thermodynamically unstable. The disruption of the W-phase in the alloy matrix has a positive effect on hardness (890 HV), density (4.83 g·cm⁻³) and crack propagation. The hardness/density ratio obtained for this alloy shows a record value in comparison with ordinary heavy refractory HEAs. Full article
