Search Results (17)

Elastoplastic and tribological characteristics of polystyrene are investigated as a model glassy polymer at the ultrahigh-strain rate (>10⁶ s ⁻¹) through the temperature-controlled laser-induced particle impact testing (LIPIT) technique. Polystyrene (PS) microparticles with a diameter of 44 µm are subjected to collisions on a rigid surface at speeds ranging from 200 to 600 m s⁻¹, while the temperature is systematically varied between room temperature and 140 °C. Utilizing the flight path and rebound motion measured from 45-degree angled LIPIT experiments, the coefficients of restitution and dynamic friction are quantified with vectorial analysis. The onset of inelasticity can be possible at a temperature substantially lower than T_g due to the early onset of crazing dominance. While temperature- and velocity-dependent coefficients of friction suggest that the activated surface of PS can facilitate the consolidation of PS microparticles, the enhancement effect is expected more profoundly when the temperature exceeds the glass transition temperature. The microscopic ballistic approach with controlled temperature demonstrates its capability of systematically evaluating the temperature effects on various inelastic deformation mechanisms of polymers at the ultrahigh-strain-rate regime. Full article

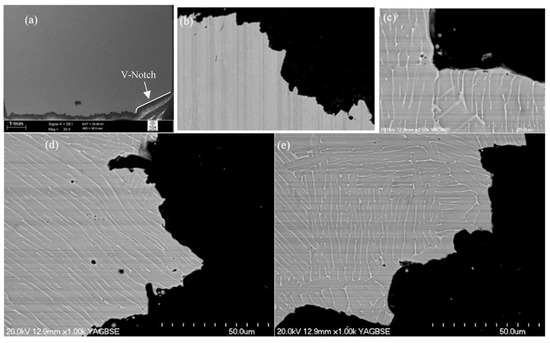

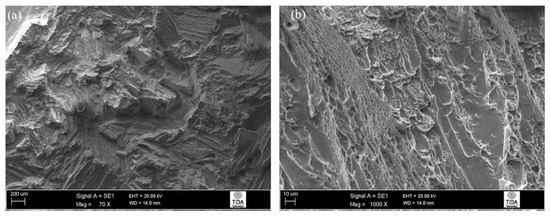

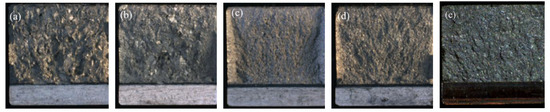

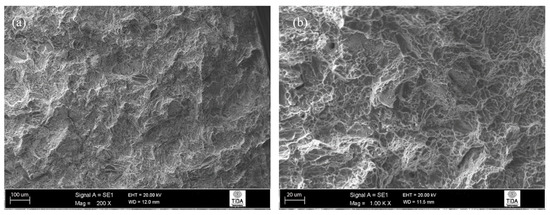

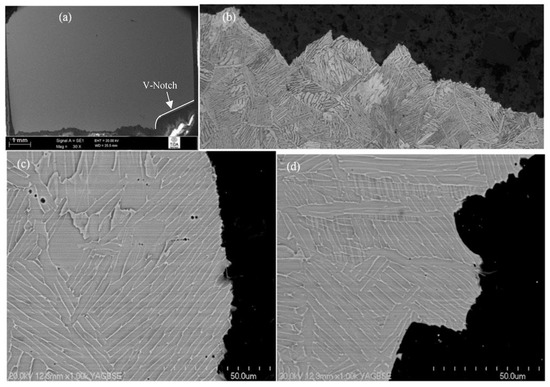

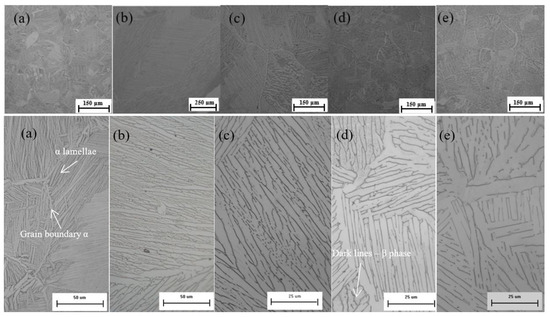

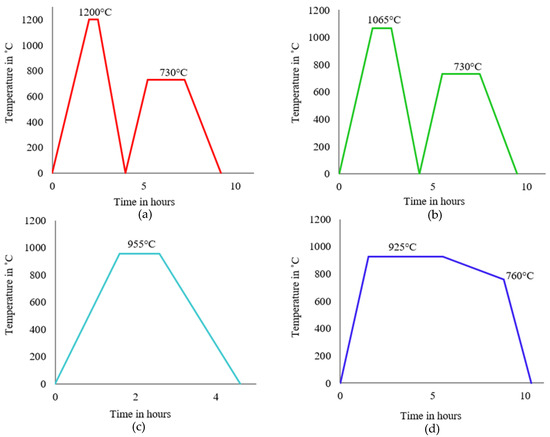

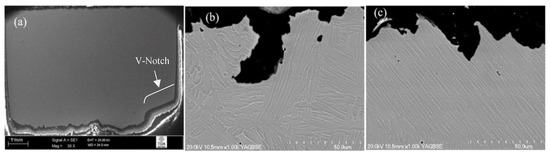

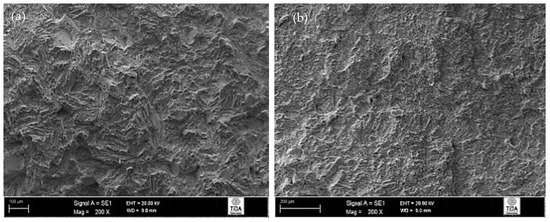

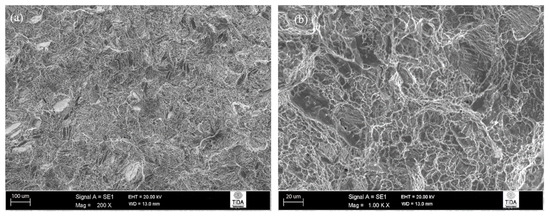

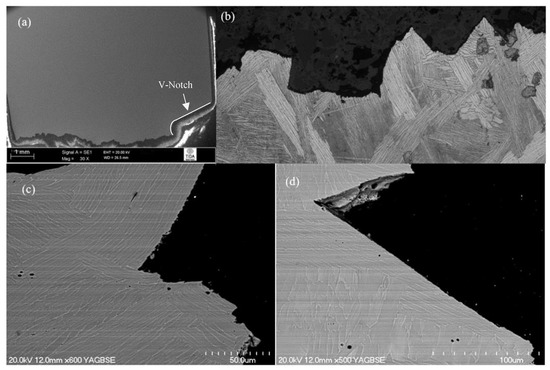

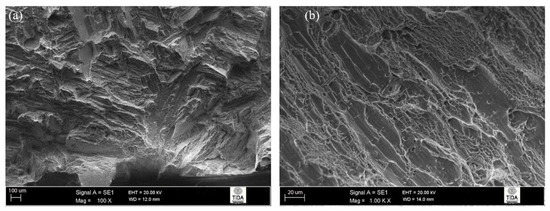

This paper investigates the level of properties enhancement achievable by heat-treating Ti-6Al-4V alloy produced from a blended powder mixture using a thermomechanical powder consolidation route involving warm uniaxial pressing and vacuum sintering followed by extrusion at super transus temperature (1150 °C). The as-extruded material with a higher oxygen content of 0.55 wt.% was subjected to two different sub-transus annealing treatments: HT-A: 955 °C/1 h-furnace cooling and HT-B: 925 °C/4 h-cooling @ 50 °C/h to 760 °C-furnace cooling. Room temperature Charpy v-notch impact toughness tests and tensile tests were performed to ascertain the effect of microstructural changes during post-extrusion annealing treatments. After impact tests, analysis of microstructures and fracture surfaces of samples was carried out using optical and scanning electron microscopy. The as-extruded material displayed mean impact toughness of 4 J along with a yield strength of 956 MPa, an ultimate tensile strength of 1150 MPa, and an elongation to fracture of 2.4%. The annealing treatments gave a noticeable enhancement in the impact toughness (average values 5–6 J obtained) while maintaining a yield strength and ultimate tensile strength level of about 992 MPa and 1164–1181 MPa, respectively. Additionally, the level of change in ductility was limited for each sub-transus annealing treatment, and HT-A has given only a 30% increase compared to as-extruded material. Full article

Aerosol deposition (AD) is a simple, dry raw-powder deposition process in which the targeted film is formed by direct bombardment of accelerated starting powder onto the substrate surface at room temperature. Despite the increased interest in AD film formation, no work has been completed to systematically investigate the formation of dense zinc oxide (ZnO) films using the AD method and their optical properties. Therefore, this study was carried out to investigate the effect of AD gas flow rate on the formation of AD films and the optical properties of aerosol-deposited ZnO films. ZnO films with nanosized (<40 nm) crystallites were successfully deposited on FTO substrates at room temperature. A dense and uniform layer of aerosol-deposited ZnO films with a roughened surface was obtained without subsequent heat treatment. With the increase in the AD gas flow rate, the crystal size and the AD film’s thickness were reduced. The Raman spectroscopy verified that the thin film was of a ZnO wurtzite structure. The room temperature photoluminescence of the ZnO thin film produced strong visible emissions. The findings of this work demonstrated that AD can be an alternative technique for the rapid deposition of dense and thick ZnO films for optoelectronic applications. Full article

The aim of this paper is to promote the use of mine clay washing residues for the preparation of alkali activated materials (AAMs). In particular, the influence of the calcination temperature of the clayey by-product on the geopolymerization process was investigated in terms of chemical stability and durability in water. The halloysitic clay, a mining by-product, has been used after calcination and mixed with an alkaline solution to form alkali activated binders. Attention was focused on the influence of the clay’s calcination treatment (450–500–600 °C) on the geopolymers’ microstructure of samples, remaining in the lower limit indicated by the literature for kaolinite or illite calcination. The mixtures of clay and alkali activators (NaOH 8M and Na-silicate) were cured at room temperature for 28 days. The influence of solid to liquid ratio in the mix formulation was also tested in terms of chemical stability measuring the pH and the ionic conductivity of the eluate after 24-h immersion time in water. The results reported values of ionic conductivity higher for samples made with untreated clay or with low temperature of calcination (≥756 mS/m) compared with values of samples made with calcined clay (292 mS/m). This result suggests that without a proper calcination of the as-received clay it was not possible to obtain 25 °C-consolidated AAMs with good chemical stability and dense microstructure. The measures of integrity test, pH, and ionic conductivity in water confirmed that the best sample is made with calcined clay at 600 °C, being similar (53% higher ionic conductivity of the eluate) or equal (integrity test and pH) to values recorded for the metakaolin-based geopolymer considered the reference material. These results were reflected in term of reticulation and morphology of samples through the analysis with scanning electron microscope (SEM) and X-ray diffraction (XRD), which show a dense and homogeneous microstructure predominantly amorphous with minor amounts of quartz, halloysite, and illite crystalline phases. Special attention was dedicated to this by-product to promote its use, given that kaolinite (and metakaolin), as primary mineral product, has a strong impact on the environment. The results obtained led us to consider this halloysite clay very interesting as an aluminosilicate precursor, and extensively deepening its properties and reactivity for the alkaline activation. In fact, the heart of this work is to study the possibility of reusing this by-product of an industrial process to obtain more sustainable high-performance binders. Full article

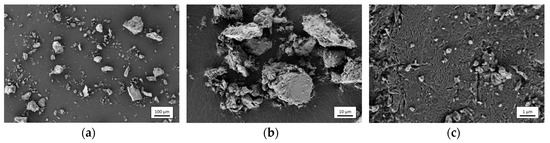

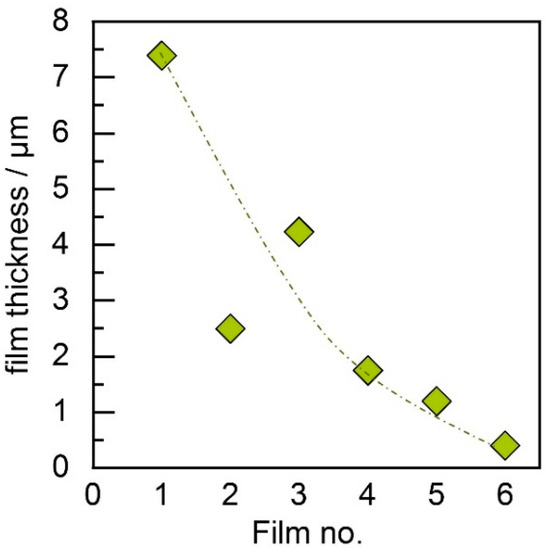

This work shows that the powder aerosol deposition (PAD) method allows the formation of films in powder quantities of less than 60 mg, rather than the large amounts that are typically required for conventional powder aerosol deposition systems. This was achieved by changing the operation mode to a discontinuous one, resulting in operation times of several seconds. Semiconducting strontium titanate ferrate SrTi_0.65Fe_0.35O_3−δ (STF35) was used as the powder to prove the equal behavior in terms of adhesion, film quality and electric conductivity compared to conventional powder-aerosol-deposited films. Full article

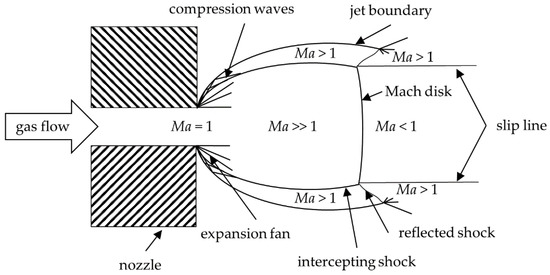

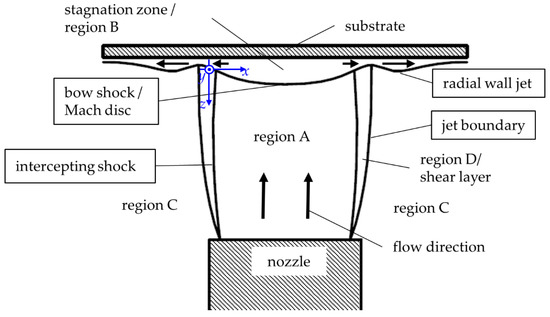

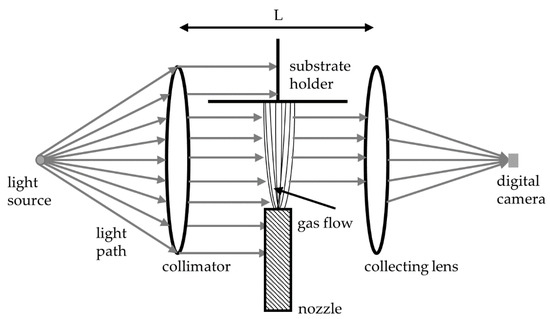

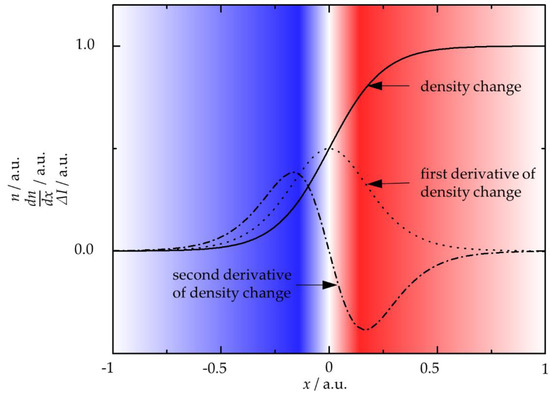

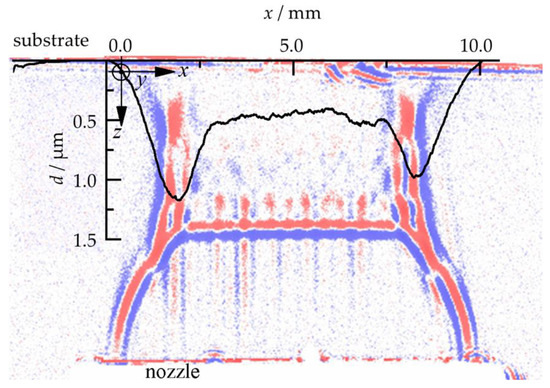

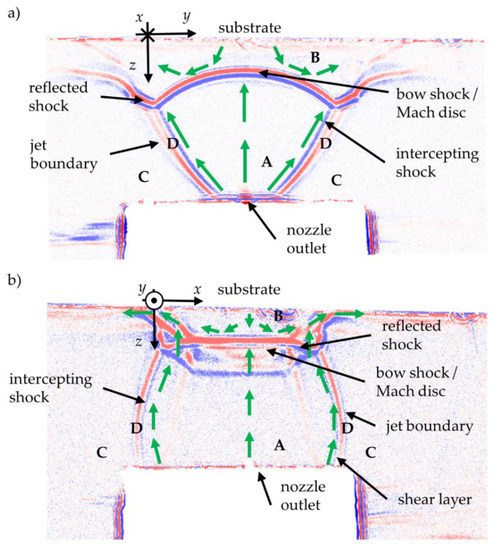

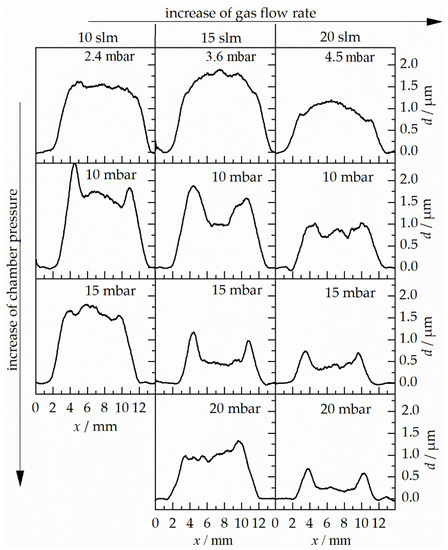

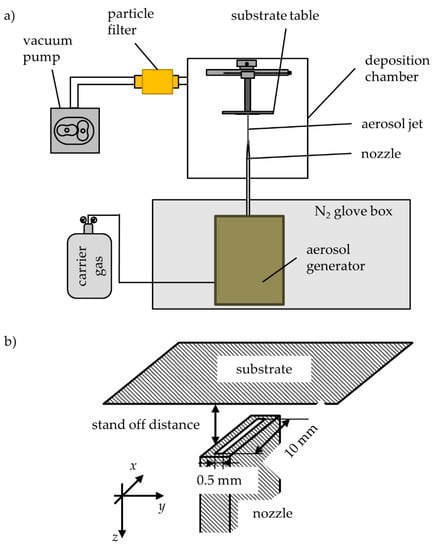

The powder aerosol deposition method (PAD) is a vacuum-based spray coating technology. It allows for production of highly dense coatings at room temperature, especially of brittle-breaking materials. This yields new options for coating substrate materials that even melt at low temperatures. The film formation mechanism is called room temperature impact consolidation (RTIC). The occurrence of this mechanism is strongly linked to the gas jet used in the process. The velocity and direction of the particles in the gas jet forming between the nozzle orifice and the substrate are the main factors influencing the quality of the coating. This dependency aimed to be elaborated with a measurement setup and coating experiments and is shown in this work. We investigated the gas jet formation using a shadow optical imaging system. Regions of different gas density are visualized by this technique. Several parameter sets, in particular gas flow rates and chamber pressures, were investigated. In addition, coatings were produced on glass substrates with the same parameters. As a coating material, the superconducting ceramic-like magnesium diboride (MgB₂) was chosen. A correlation between shadow images and thickness profiles of the coatings shows how the gas jet formation affects the uniformity of thickness. Shadow optical images provide valuable information on the flight direction of the particles and allow validation of simulation results. Full article

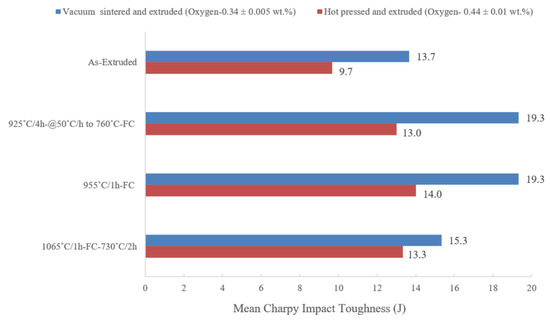

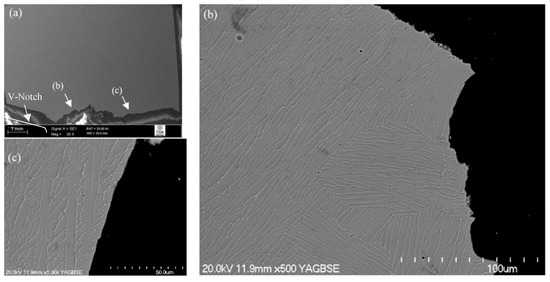

The mechanical properties of titanium and titanium alloys are very sensitive to processing, microstructure, and impurity levels. In this paper, a blended powder mixture of Ti-6Al-4V alloy was consolidated by powder compact extrusion that involved warm compaction, vacuum sintering, and hot extrusion. The as-processed material with an oxygen content of 0.34 wt.% was subjected to various annealing treatments. The impact toughness of heat-treated material was determined using Charpy V-notch impact testing at room temperature. An emphasis was placed on establishing a relationship among fracture behaviour, microstructure, and the resulting properties of tested material. From the results, it is apparent that the highest impact toughness value of 19.3 J was achieved after α/β annealing and is comparable with typical values given in the literature for wrought Ti-6Al-4V. In terms of fracture behaviour, it is quite apparent that the crack propagation behaviour of powder-produced material is rather complex compared with the limited amount of data reported for ingot counterparts. Full article

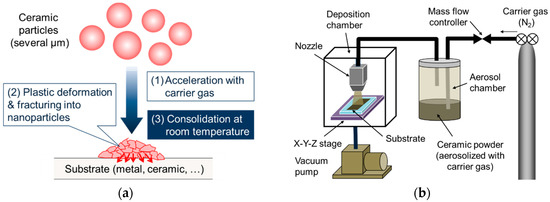

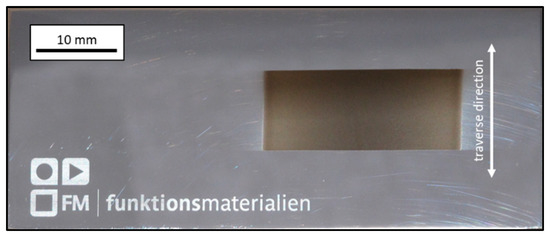

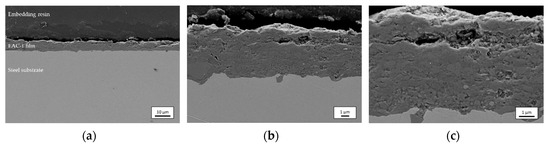

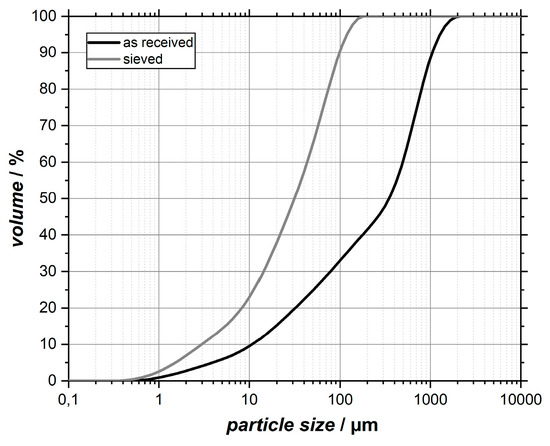

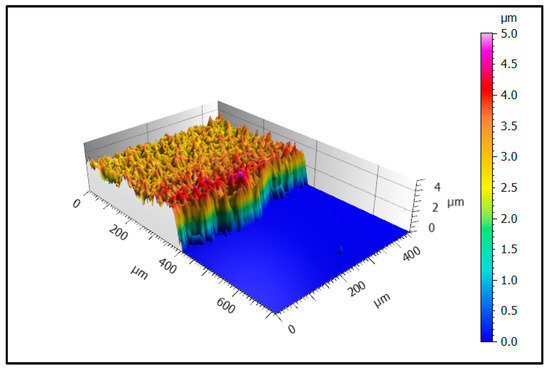

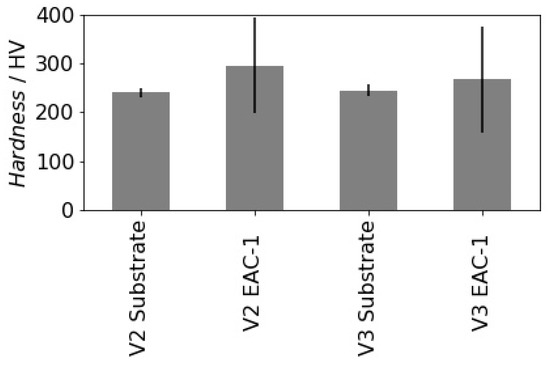

The Aerosol Deposition (AD, also known as gas kinetic spraying or vacuum deposition) method is a rather novel coating process to produce dense thick films directly from dry ceramic (or metal) powders on a variety of substrates without any heat treatment. Because of the similarity of the up to now used powders and lunar regolith, it is imaginable to use AD systems for future in situ resource utilization missions on the Moon planned by several space agencies. To test the feasibility of such an endeavor, the processability of lunar mare simulant EAC-1 by the AD method has been examined in this study. Three regolith films with an area of 25 × 10 mm², and thicknesses between 2.50 µm and 5.36 µm have been deposited on steel substrates using a standard AD setup. Deposited films have been investigated by Laser Scanning Microscopy (LSM) and Scanning Electron Microscopy (SEM). Moreover, the roughness and Vickers hardness of the deposited films and the underlying substrates have been measured. It has been shown that dense consolidated films of regolith simulant can be produced within minutes by AD. The deposited films show a higher roughness and, on average, a higher hardness than the steel substrates. Since on the Moon, naturally available regolith powders are abundant and very dry, and since the required process vacuum is available, AD appears to be a very promising method for producing dense coatings in future Moon exploration and utilization missions. Full article

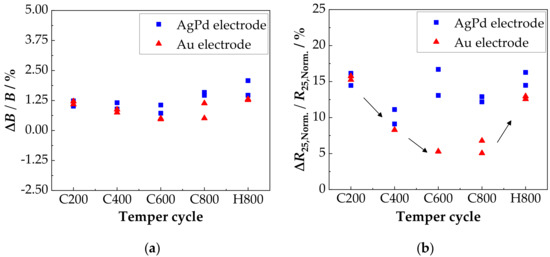

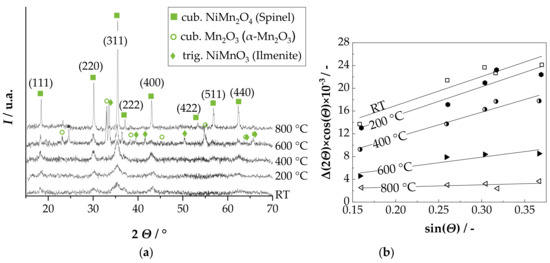

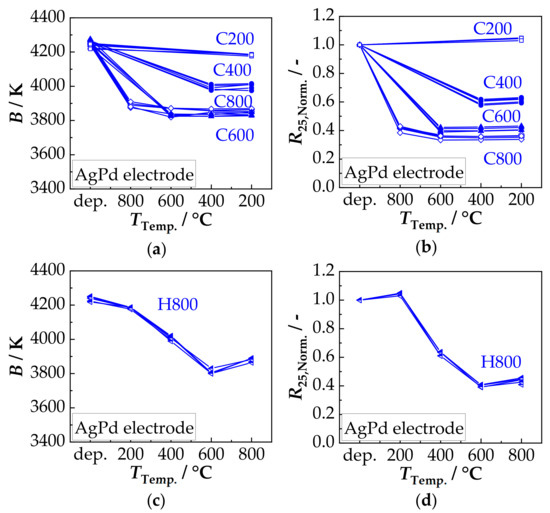

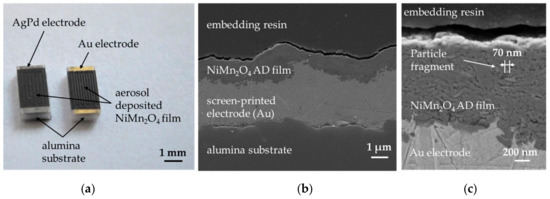

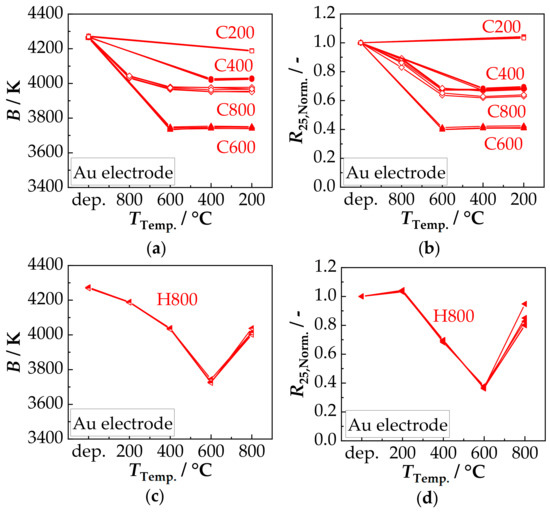

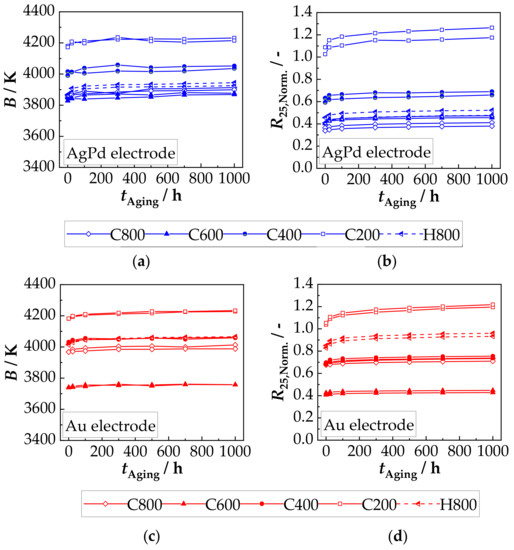

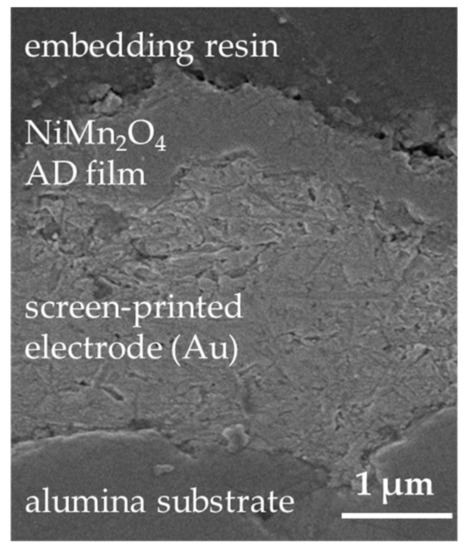

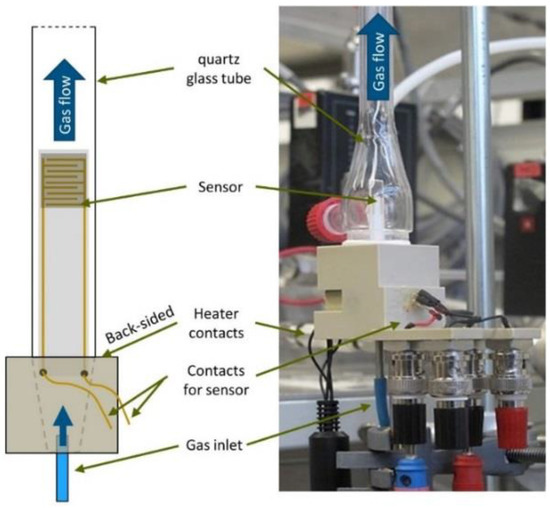

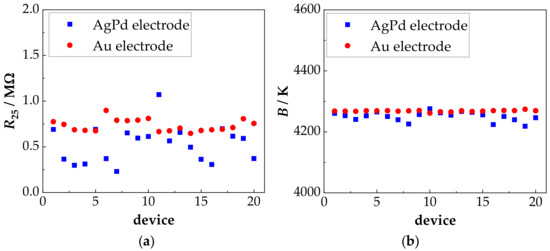

This paper examines the influence of a short-term thermal treatment of aerosol deposited negative temperature coefficient (NTC) thermistor films on the NTCR characteristics and their long-term stability with different electrode materials. An aerosol deposition of a spinel-based NiMn₂O₄ powder on alumina substrates with screen-printed AgPd and Au interdigital electrode structures was performed. The manufactured components of the typical size of 1206 were tempered in a moderate temperature range of 200 °C to 800 °C and aged for 1000 h at 125 °C in air. Based on R-T measurements in a high-precision silicone oil thermostat bath and high temperature XRD analyses, the influence of the thermal treatment was analyzed and discussed. A 60-min tempering at 400 °C proved to be optimal, as both the NTCR parameters and their ageing stability could be significantly improved. The findings are explained. Full article

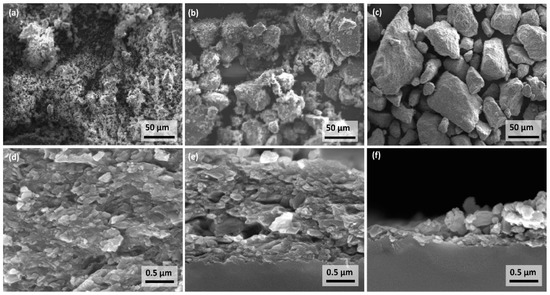

Solid oxide fuel cells need a diffusion barrier layer to protect the zirconia-based electrolyte if a cobalt-containing cathode material like lanthanum strontium cobalt ferrite (LSCF) is used. This protective layer must prevent the direct contact and interdiffusion of both components while still retaining the oxygen ion transport. Gadolinium-doped ceria (GDC) meets these requirements. However, for a favorable cell performance, oxide ion conducting films that are thin yet dense are required. Films with a thickness in the sub-micrometer to micrometer range were produced by the dry room temperature spray-coating technique, aerosol deposition. Since commercially available GDC powders are usually optimized for the sintering of screen printed films or pressed bulk samples, their particle morphology is nanocrystalline with a high surface area that is not suitable for aerosol deposition. Therefore, different thermal and mechanical powder pretreatment procedures were investigated and linked to the morphology and integrity of the sprayed films. Only if a suitable pretreatment was conducted, dense and well-adhering GDC films were deposited. Otherwise, low-strength films were formed. The ionic conductivity of the resulting dense films was characterized by impedance spectroscopy between 300 °C and 1000 °C upon heating and cooling. A mild annealing occurred up to 900 °C during first heating that slightly increased the electric conductivity of GDC films formed by aerosol deposition. Full article

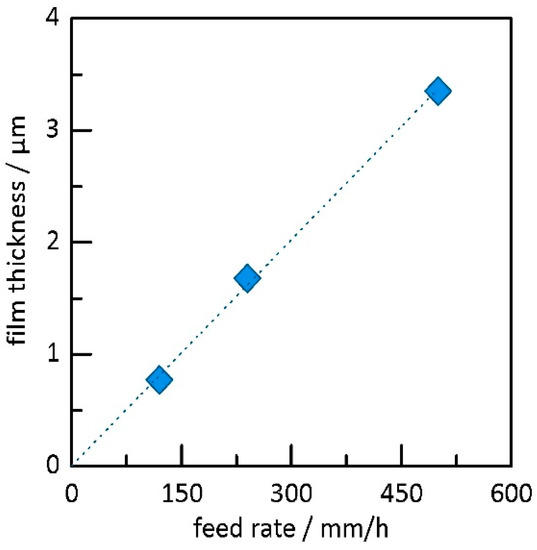

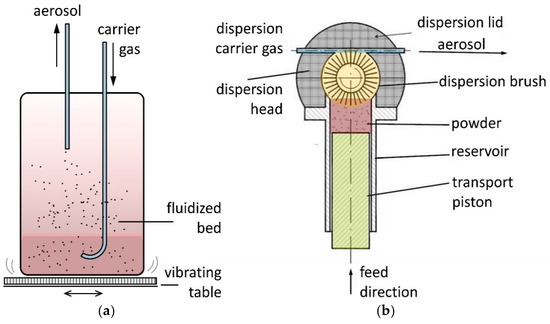

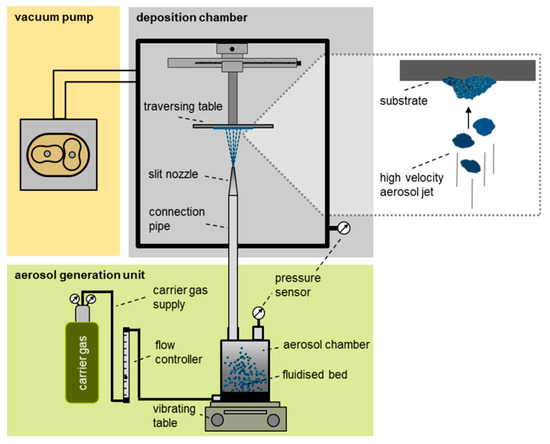

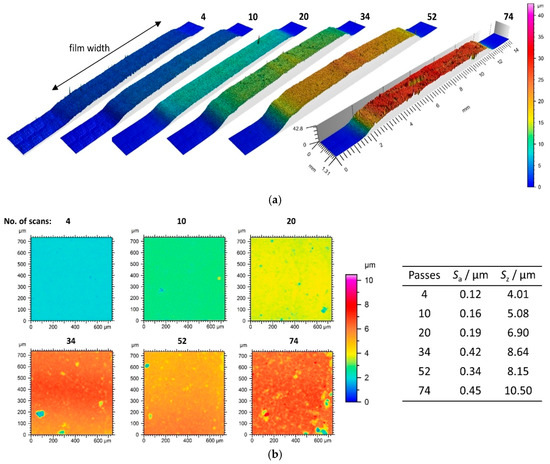

Owing to its ability to produce dense thick-films at room temperature directly from a ceramic powder, the Aerosol Deposition Method (AD) possesses a unique feature in ceramics processing. For this technology, the aerosol generation of particles is a decisive part of reliable process control. However, there has only been a small amount of work published addressing this topic. In this work, we compare the aerosolization and deposition behavior of a fluidized bed generator with an aerosol generator with the rotary brush principle. While film properties very much depend on deposition time for the fluidized bed generator, films produced with the brush generator show a constant film profile, and their film thickness correlates with the controllable aerosol concentration and the duration of deposition. This type of aerosol generation may improve the setup towards a more reliable AD process. Full article

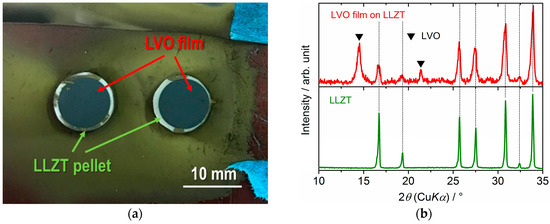

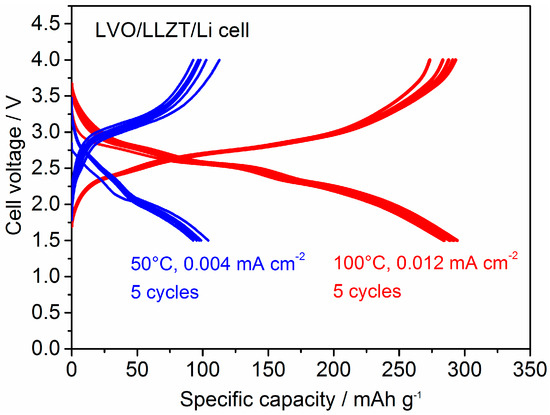

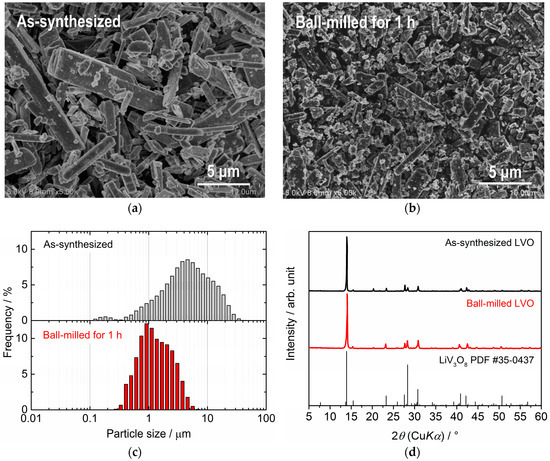

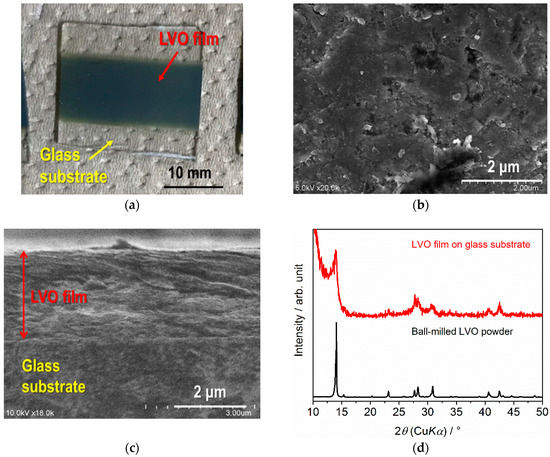

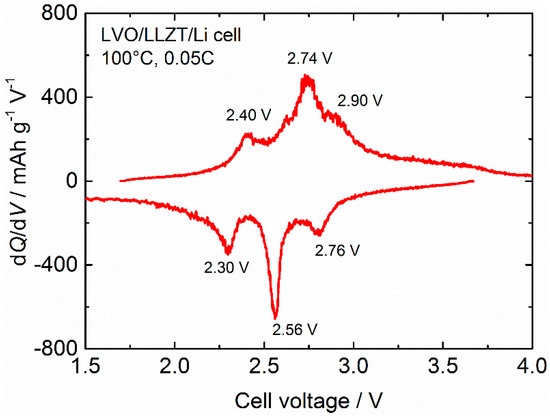

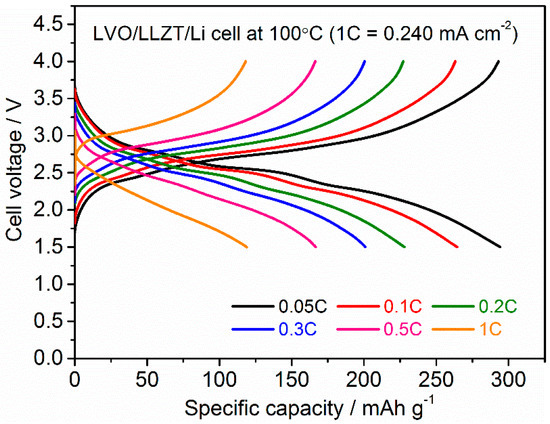

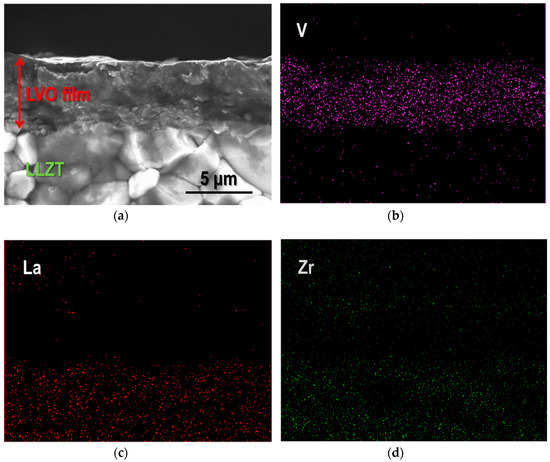

We fabricated lithium trivanadate LiV₃O₈ (LVO) film electrodes for the first time on a garnet-type Ta-doped Li₇La₃Zr₂O₁₂ (LLZT) solid electrolyte using the aerosol deposition (AD) method. Ball-milled LVO powder with sizes in the range of 0.5–2 µm was used as a raw material for LVO film fabrication via impact consolidation at room temperature. LVO film (thickness = 5 µm) formed by AD has a dense structure composed of deformed and fractured LVO particles and pores were not observed at the LVO/LLZT interface. For electrochemical characterization of LVO film electrodes, lithium (Li) metal foil was attached on the other end face of a LLZT pellet to comprise a LVO/LLZT/Li all-solid-state cell. From impedance measurements, the charge transfer resistance at the LVO/LLZT interface is estimated to be around 10³ Ω cm² at room temperature, which is much higher than at the Li/LLZT interface. Reversible charge and discharge reactions in the LVO/LLZT/Li cell were demonstrated and the specific capacities were 100 and 290 mAh g⁻¹ at 50 and 100 °C. Good cycling stability of electrode reaction indicates strong adhesion between the LVO film electrode formed via impact consolidation and LLZT. Full article

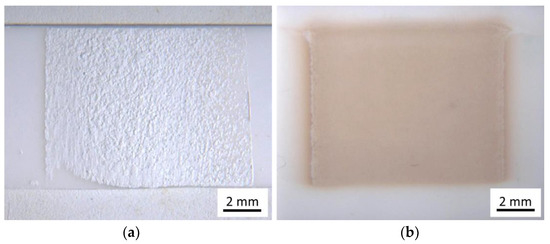

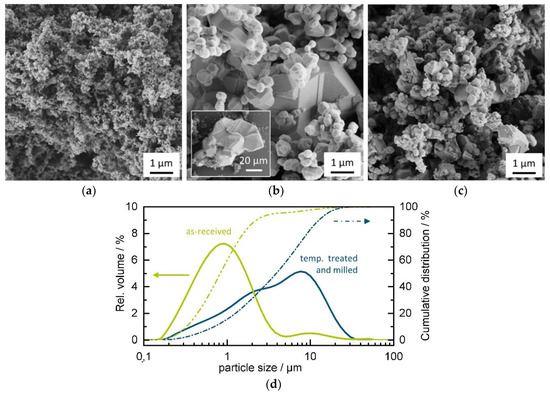

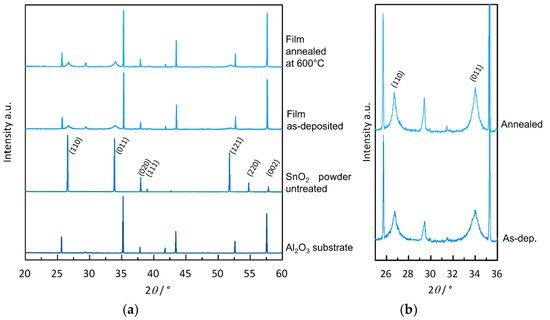

The Aerosol Deposition (AD) method has the unique property to allow for manufacturing dense ceramic films at room temperature. As found in many publications, the deposition process is very sensitive to powder properties. In particular, powders of nano-sized particles and grains, e.g., from precipitation, are usually beyond the conventional size range of AD processability, yielding chalk-like films of low mechanical stability. Thus, the conventional AD process is limited in applicability. In this study, we try to overcome this problem by adapting the standard milling treatment of powders for improved deposition by additional temperature pre-treatment. Using commercial tin dioxide and including a temperature treatment for grain growth, makes the powder accessible to deposition. In this way, we achieve optically translucent and conductive SnO₂ thick films. With the application such as a gas sensitive film as one of many possible applications for SnO₂ thick-films, the sensors show excellent response to various reducing gases. This study shows one exemplary way of extending the range of adequate powder and applications for the AD method. Full article

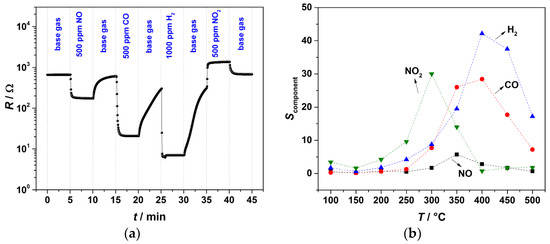

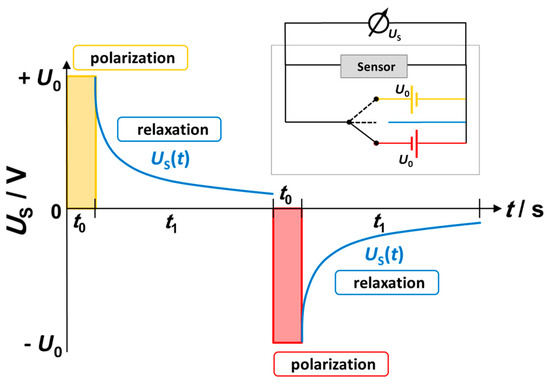

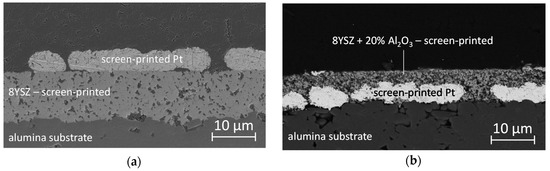

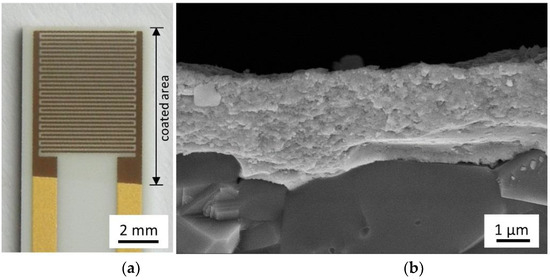

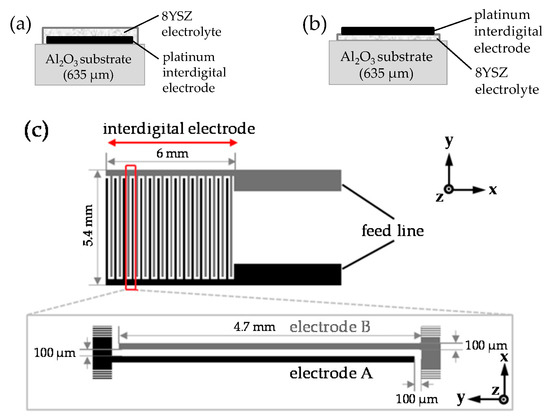

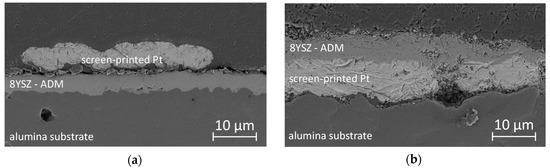

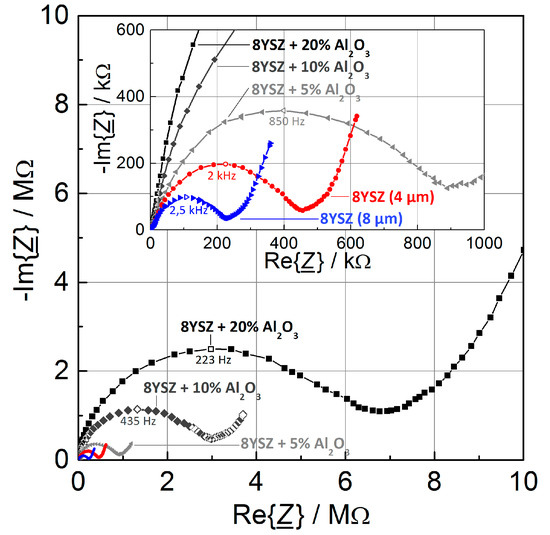

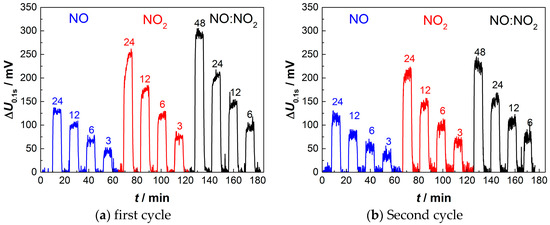

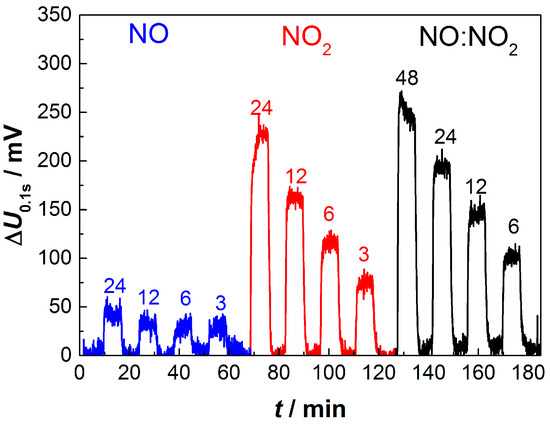

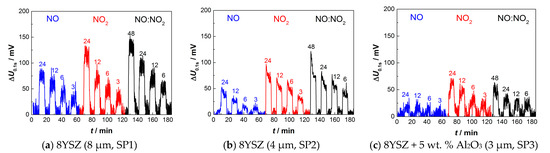

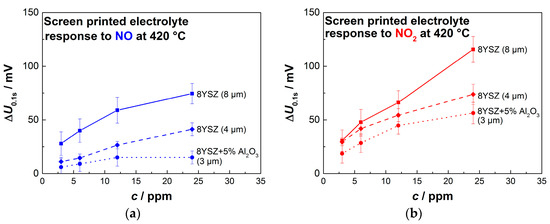

The pulsed polarization technique on solid electrolytes is based on alternating potential pulses interrupted by self-discharge pauses. Since even small concentrations of nitrogen oxides (NO_x) in the ppm range significantly change the polarization and discharge behavior, pulsed polarization sensors are well suited to measure low amounts of NO_x. In contrast to all previous investigations, planar pulsed polarization sensors were built using an electrolyte thick film and platinum interdigital electrodes on alumina substrates. Two different sensor layouts were investigated, the first with buried Pt electrodes under the electrolyte and the second one with conventional overlying Pt electrodes. Electrolyte thick films were either formed by aerosol deposition or by screen-printing, therefore exhibiting a dense or porous microstructure, respectively. For screen-printed electrolytes, the influence of the electrolyte resistance on the NO_x sensing ability was investigated as well. Sensors with buried electrodes showed little to no response even at higher NO_x concentrations, in good agreement with the intended sensor mechanism. Electrolyte films with overlying electrodes, however, allowed the quantitative detection of NO_x. In particular, aerosol deposited electrolytes exhibited high sensitivities with a sensor output signal ΔU of 50 mV and 75 mV for 3 ppm of NO and NO₂, respectively. For screen-printed electrolytes, a clear trend indicated a decrease in sensitivity with increased electrolyte resistance. Full article

We present the successful fabrication of CH₃NH₃PbI₃ perovskite layers by the aerosol deposition method (ADM). The layers show high structural purity and compactness, thus making them suitable for application in perovskite-based optoelectronic devices. By using the aerosol deposition method we are able to decouple material synthesis from layer processing. Our results therefore allow for enhanced and easy control over the fabrication of perovskite-based devices, further paving the way for their commercialization. Full article
