Search Results (6)

Wearable sweat-sensing devices hold significant potential for non-invasive, continuous health monitoring. However, challenges such as ensuring data accuracy, sensor reliability, and measurement stability persist. This study presents the development of a wearable system for the real-time monitoring of human sweat sodium levels, addressing these challenges through the integration of a novel microfluidic chip and a compact potentiostat. The microfluidic chip, fabricated using hydrophilic materials and designed with vertical channels, optimizes sweat flow, prevents backflow, and minimizes sample contamination. The developed wearable potentiostat, as a measurement device, precisely measures electrical currents across a wide dynamic range, from nanoamperes to milliamperes. Validation results demonstrated accurate sodium concentration measurements ranging from 10 mM to 200 mM, with a coefficient of variation below 4% and excellent agreement with laboratory instruments (intraclass correlation = 0.998). During physical exercise, the device measured a decrease in sweat sodium levels, from 101 mM to 67 mM over 30 min, reflecting typical physiological responses to sweating. These findings confirm the system’s reliability in providing continuous, real-time sweat sodium monitoring. This work advances wearable health-monitoring technologies and lays the groundwork for applications in fitness optimization and personalized hydration strategies. Future work will explore multi-biomarker integration and broader clinical trials to further validate the system’s potential. Full article

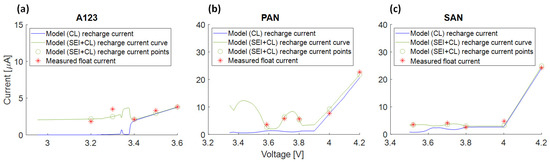

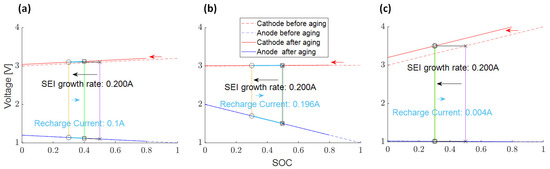

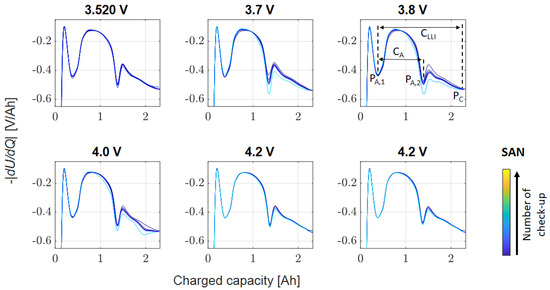

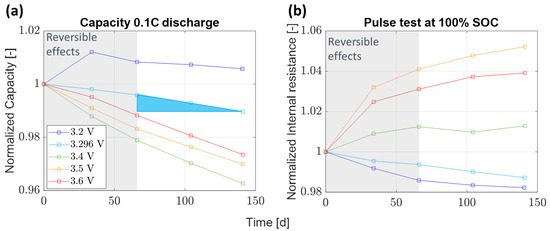

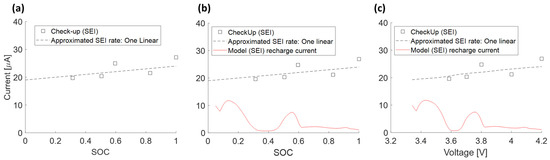

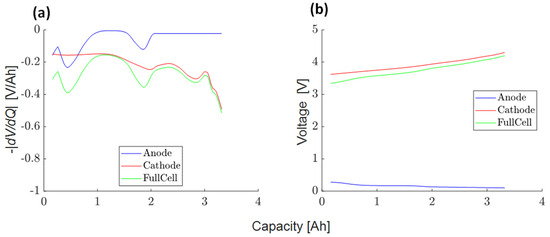

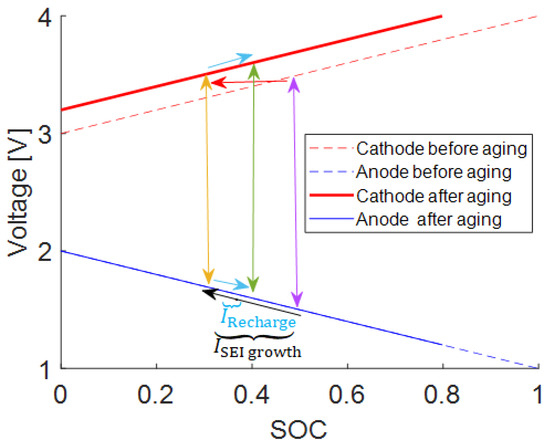

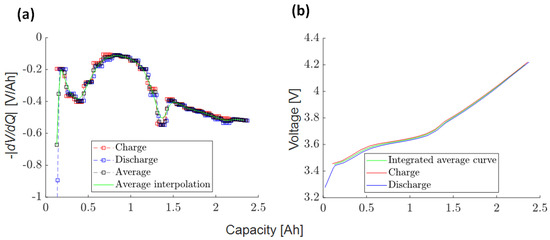

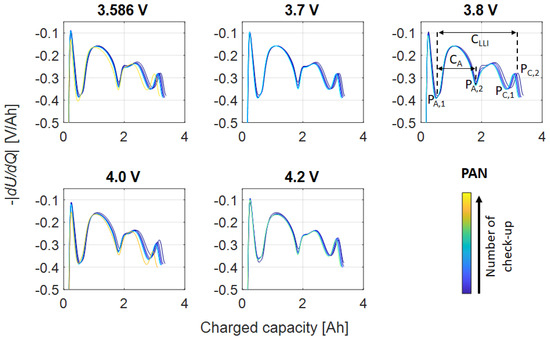

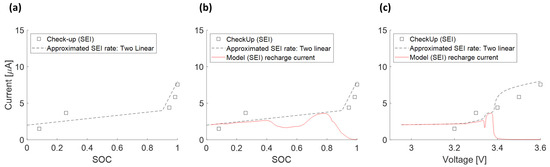

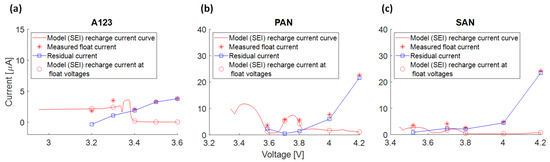

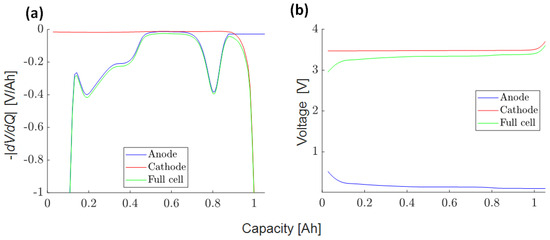

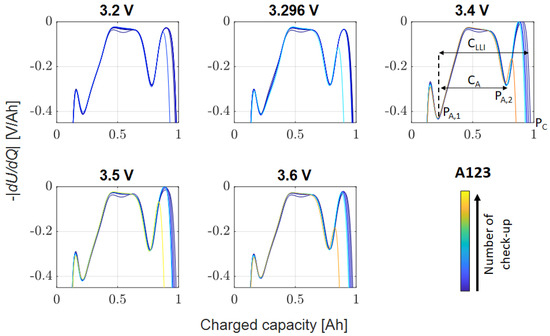

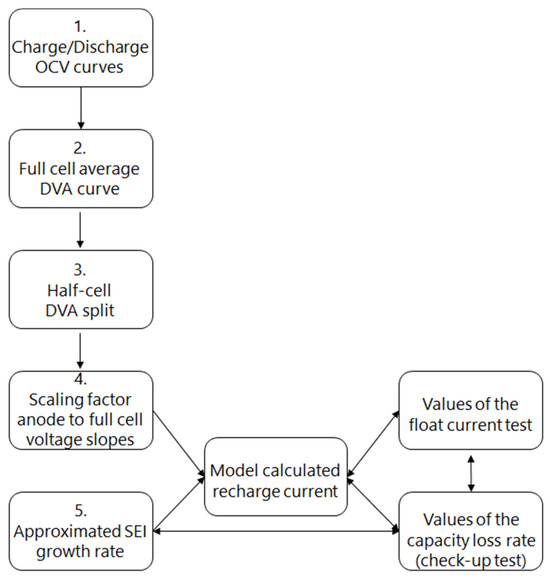

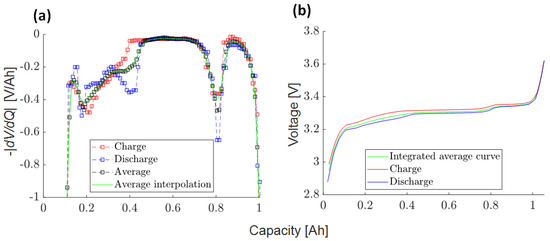

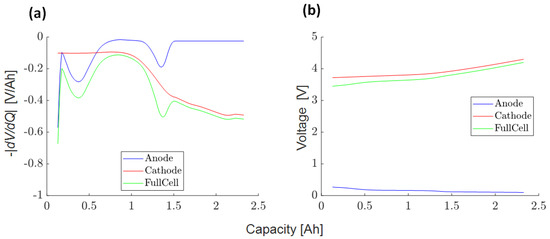

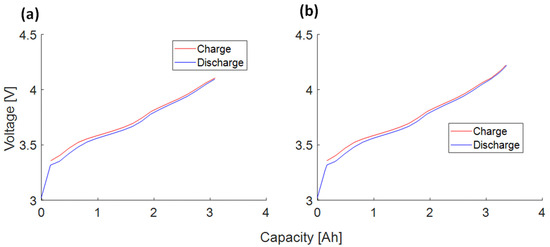

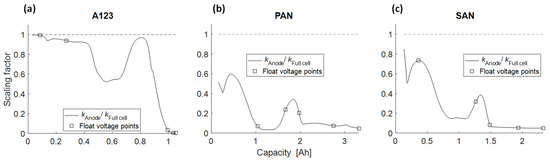

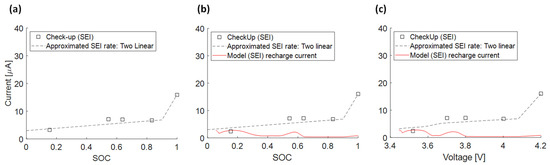

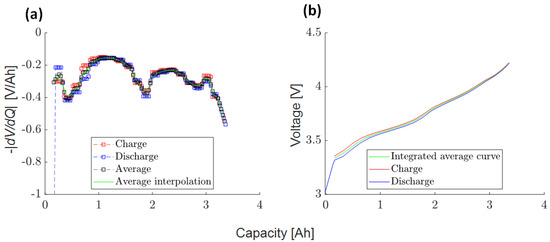

This paper provides a comprehensive exploration of float current analysis in lithium-ion batteries, a promising new testing method to assess calendar aging. Float currents are defined as the steady-state trickle charge current after a transient part. In the literature, a correlation to capacity loss was reported. Assuming the float current compensates for the voltage decay over time and is linked to calendar aging, effects from voltage slippery must be considered. The dU/dQ analysis suggests solely a loss of active lithium. Therefore, we investigate the solid electrolyte interphase (SEI) growth as the general aging mechanism to explain the origin of float currents. Our results show that the voltage slippery theory holds true within the low to middle test voltage ranges. However, the theory’s explanatory power begins to diminish at higher voltage ranges, suggesting the existence of additional, yet unidentified, factors influencing the float current. A shuttle reaction or lithiation of the cathode by electrolyte decomposition are the most promising alternative aging mechanisms at high voltages. The paper proposes a unique voltage slippery model to check for correlations between aging mechanisms, the float current test and the check-up test. For a better understanding, test strategies are proposed to verify/falsify the aging mechanisms beyond SEI. Full article

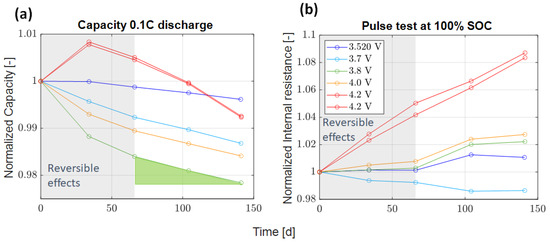

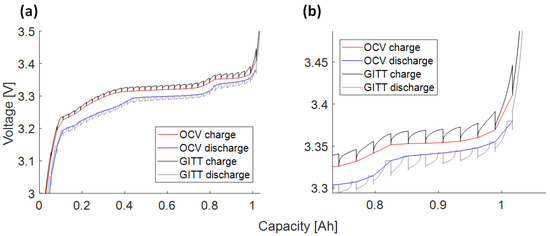

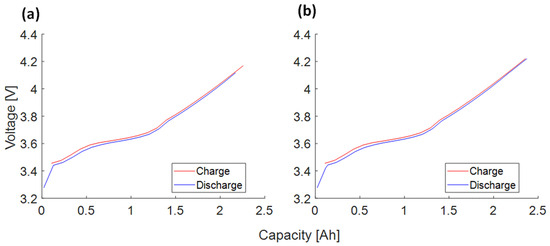

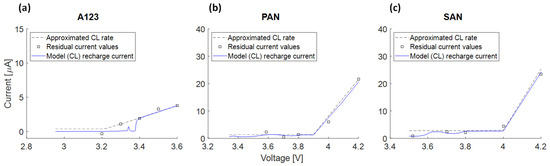

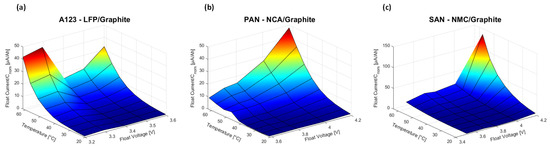

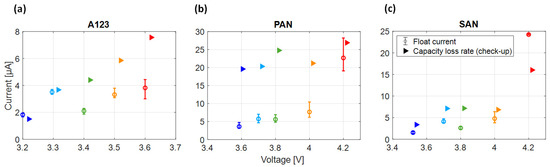

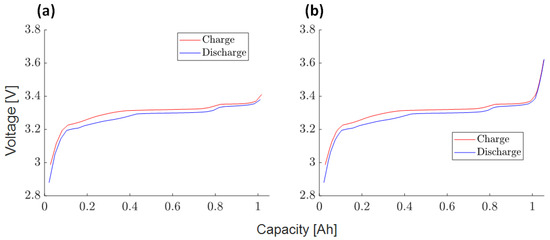

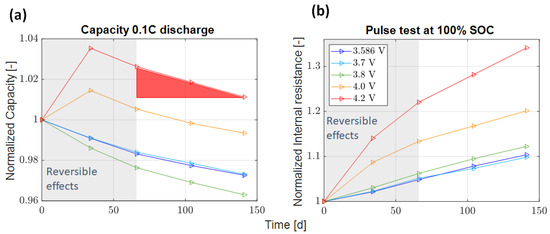

Self-discharge of lithium-ion cells leads to voltage decay over time. In this work, the self-discharge was measured at 30 ${}^{\circ }$C for three cell types at various voltage levels for about 150 days in a constant voltage mode determining the current at a high precision (float current). All cells exhibit a transient part leading to a steady-state, which is no longer influenced by reversible effects. To study the effect of the check-ups on the steady-state float current, the cells, interrupted and not interrupted by check-ups, were compared. The results indicate that both the transient processes and steady-state currents are highly reproducible. In the first period of the float current, the polarization dominates the measured current, followed by the anode overhang effect dominating the process for a period of 5–30 days. After the decline of both processes, a mostly constant steady-state in the order of $\mathsf{\mu }$A is observed. The check-up interruption generally shows no apparent effect on the reached steady-state and results only in an extended settling time. A model to simulate the transient process and steady-state of float currents was developed. The model shows a high accuracy in reproducing the results and identifying the time needed to reach the steady-state. Full article

Silicon has the potential to be a high-performance anode material, but its practical application is impeded by huge volume expansion during lithiation. Many studies have revealed that the huge volume expansion problem can be mitigated by introducing engineered voids into Si/C core–shell structures. In this study, a Si/C core/shell structure with engineered voids, termed Si@void@C, is investigated for its specific capacity and cycle stability as a function of particle size and charge/discharge protocol. The study shows that finer Si@void@C particles result in higher specific capacities, but with little impact on the cycle stability. Further, lower and upper cutoff voltages in charge/discharge have a profound impact on the specific capacity and cycle stability. Importantly, cutoff voltages in formation cycles have long-lasting effects on the cycle stability, indicating the critical role of forming a robust solid electrolyte interphase (SEI) layer during formation cycles. Using a constant current charge followed by potentiostatic hold charge can further improve the cycle stability and minimize the sharp capacity decay in the first 20–40 cycles. With proper choices of charge/discharge protocols, the specific capacities of Si@void@C anodes at the electrode level are 66.8%, 38.2% and 22.7% higher than those of graphite anodes at the 1st, 300th and 500th cycles, respectively, proving that Si@void@C has promising potential to replace graphite anodes for practical applications in the future. Full article

Nanocomposite electrodes receive much attention because of their excellent energy storage nature. Electrodes for supercapacitors have come a major source of interest. In this pursuit, the current work elucidates binder-free coral reefs resembling ZnO/CoS₂ nanoarchitectures synthesized on the surface of Ni foams employing the cost-effective hydrothermal route. The Zno/CoS₂ nanocomposite demonstrated excellent battery-type behavior, which can be employed for supercapcitor application. Various analyses were carried out in the current study, such as X-ray diffraction and high-resolution scanning electron microscopy, which allowed defining the crystalline nature and morphology of surface with ZnO/CoS₂ nanoarchitectures. Electrochemical measures such as cyclic voltammetry, galvanostatic charge discharge, and potentiostatic impedance spectroscopy confirmed the battery-type behavior of the material. The synthesized precursors of binder-free ZnO/CoS₂ nanostructures depicted an excellent specific capacity of 400.25 C·g⁻¹ at 1 A·g⁻¹, with a predominant cycling capacity of 88. 2% and retention holding of 68% at 10 A·g⁻¹ and 2 A·g⁻¹, even after 4000 cycles, representing an improvement compared to the pristine ZnO and CoS₂ electroactive materials. Therefore, the electrochemical and morphological analyses suggest the excellent behavior of the ZnO/CoS₂ nanoarchitectures, making them promising for supercapacitors. Full article

In this study, uniform and ordered nanostructured arrays of pure tin (Sn) were produced by the chemical pulse plating method in potentiostatic mode. Bottom metalized anodic aluminium oxide templates were used as the substrates for holding nanostructures during deposition. The plating bath consists of stannous sulfate (SnSO₄), sulfuric acid (H₂SO₄), polyethylene glycol (PEG), and glutaraldehyde as a surfactant. The effect of potentiostatic potential ranging from −0.5 to −3.2 V vs. Ag/AgCl electrode was studied on the growth morphology of nanostructures that were formed. The characterization studies were accomplished by X-ray diffraction (XRD), field emission electron microscopy, and energy dispersive spectroscopy. It was found that several nanostructures were of different shapes and size when the potential was varied. Nanorods were prominent at the deposition potentials of −0.5 and −1.1 V, while a combination of nanostructures (nanorods, nanoplates, and nanoparticles) was predominant at −3.2 V. XRD results show that the nanostructures that were obtained consisted of tetragonal (Sn) structure with a crystallite size of about 20 nm. This process is economically viable and it can be scaled to produce various nanostructures through a careful control of deposition parameters. Full article
