Large-span, post-tensioned (PT) beams play a crucial role in maximizing the benefits of post-tensioning techniques. Bonded and unbonded systems are prevalent, with the latter being more widespread in the United States. While bonded systems are advantageous for creating long spans when multiple tendons are grouped in ducts, limited studies in the literature exist on their demolition. With a case study, this paper addresses the unique challenge of demolishing large-span-bonded, post-tensioned beams that occurs due to a building’s functional change. Emphasizing insights for engineers, it explores the use of cutting and dismantling methods, thereby considering the presence of prestressed cables. The demolition process is distinctive due to the presence of numerous prestressed cables along the beams, necessitating a specialized and cautious cutting approach. This is accomplished through the use of a drilling technique that selectively distresses the tendons, ensuring they are not all affected simultaneously. An intriguing observation discussed in this paper pertains to the occurrence of horizontal cracks accompanied by loud sounds following the drilling process, thereby offering insights from the design perspective of PT systems. This paper details an innovative method for safely demolishing large-span, bonded PT beams using ground-penetrating radar and computer models to navigate structural complexities and ensure nearby structures’ safety. Full article

Grout voids in the tendons of a post-tensioning bridge reduce their strength. Grout voids are also severe flaws causing corrosion of the steel strands in the tendons. Detecting voids during construction and operation of the tendons is essential to prevent tendon failure, which is critical to bridge safety. This study presents a method for inspecting external tendons for voids in the grout below the protective duct pipe using terahertz electromagnetic waves. Due to low attenuation in the high-density polyethylene duct and the large reflectivity difference between the duct/grout and the duct/void interfaces, terahertz waves are suitable for detecting voids in the grout inside tendons. For this study, we developed a mobile frequency-domain terahertz A-scanner that can be used to measure terahertz A-scan data in real time. It is shown that the mobile terahertz A-scanner can be used to assess the area of the grout void in external bridge tendons. Full article

Post-tensioning structures with metallic ducts risk corrosion, rupture or collapses due to chloride ingress. The use of tight corrugated polymer ducts combined with electrically isolated anchorages (EIT) changed the situation. Laboratory and many field applications proved the tightness of the duct, showing resistance values higher or much higher than 50 kΩm, the acceptance criteria for a tight duct. The most important fact is that EIT tendons allow quality control and long-term monitoring of the duct tightness. EIT ducts (also with resistance values below the threshold criteria) can be monitored over the whole service life: only a progressive decrease of the measured resistance indicates a corrosion risk for this specific tendon. The most important structural elements can be easily monitored for the first time and damage initiation can be detected early. After a successful use in Europe EIT technology is now expanding progressively in the US. Full article

Post-tensioned (PT) construction incorporating bonded tendons with cementitious grouts has been used for highway bridges. The tendon duct and the encapsulating grout materials provide barrier corrosion protection for the embedded high-strength steel strand. Although generally used in good engineering practice, cases of PT tendon corrosion have been documented relating to inadequate detailing for joints and development of grout bleed water. Recently, in the past several years, unexpected severe localized strand corrosion has related to the segregation of thixotropic grouts. In the latter case, thixotropic grouts (that have been developed to mitigate grout bleeding) formed physical and chemical deficiencies that have been characterized to have high moisture content and elevated sulfate ion concentrations. The early presence of elevated sulfate ion concentrations in the deficient grout hinders stable steel passivation. The corrosion mechanism can be complicated due to the compounding effects of physical grout deficiency, moisture content, pore water pH, and the presence of sulfate ions. There remains interest to reliably assess corrosion of PT tendons with deficient grout. A review of electrochemical techniques and test methods used in earlier research by the authors to identify the role of sulfates on localized steel corrosion in alkaline solutions is presented. It was evident that different testing methods can reveal various aspects of the corrosion of strands in the deficient PT grout. The open-circuit potential and linear polarization method could differentiate corrosion activity between hardened and deficient grout environments but did not reveal the development of localized corrosion. Electrochemical impedance spectroscopy was useful to identify grout deficiencies by the differentiation of its bulk electrical properties. Potentiodynamic polarization and electrochemical noise technique were used to identify metastable and pitting in alkaline sulfate solutions representative of the deficient grout pore water. Full article

Post-tensioned (PT) construction incorporating bonded tendons with cementitious grouts has been used for highway bridges. The tendon duct and the encapsulating grout materials provide barrier corrosion protection for the embedded high-strength steel strand. Although generally used in good engineering practice, cases of PT tendon corrosion have been documented relating to inadequate detailing for joints, development of grout bleed water, and, more recently in the past several years, segregation of thixotropic grouts. In the latter case, cases of thixotropic grouts (which have been developed to mitigate grout bleeding), developed physically and chemically deficient grout, have been characterized to have high moisture content and elevated sulfate ion concentrations. The early presence of elevated sulfate ion concentrations in the deficient grout was attributed to hindering stable steel passivation. Case studies of PT corrosion associated with grouts with elevated sulfate concentrations are presented followed by a review of electrochemical techniques and measurements used to identify the role of sulfates in steel corrosion in alkaline solutions such as polarization techniques, electrochemical impedance spectroscopy, and electrochemical noise. Full article

The structural integrity of post-tensioning prestressed concrete structures with tendon ducts highly depends on the grouting quality in construction. This paper proposes a real-time approach to monitoring the grouting compactness in tendon ducts using the multi-sensing electro-mechanical impedance (EMI) method. When Lead Zirconate Titanate (PZT) transducers with different pre-selected dimensions are serially connected and mounted on a structure at distributed locations, each PZT provides unique resonance frequency coupled with the local structural physical property. Therefore, the impedance with multiple peaks of the serially connected multiple PZTs can be captured during a single measurement, which significantly simplifies the measurement procedure and reduces the data processing time. In addition, the wiring for the PZT sensors is also simplified. In this research, the feasibility of the proposed method was experimentally and numerically investigated to monitor the grouting compactness in a tendon duct specimen. The 3-dB mean absolute percentage deviation (MAPD) was applied to quantify the variations of the impedance signatures measured from five different grouting levels. Both experimental and numerical results verify the feasibility of using the proposed method for monitoring the grouting compactness in tendon ducts. Full article

The grouting quality of tendon ducts is very important for post-tensioning technology in order to protect the prestressing reinforcement from environmental corrosion and to make a smooth stress distribution. Unfortunately, various grouting defects occur in practice, and there is no efficient method to evaluate grouting compactness yet. In this study, a method based on wavelet packet transform (WPT) and Bayes classifier was proposed to evaluate grouting conditions using stress waves generated and received by piezoelectric transducers. Six typical grouting conditions with both partial grouting and cavity defects of different dimensions were experimentally investigated. The WPT was applied to explore the energy of received stress waves at multi-scales. After that, the Bayes classifier was employed to identify the grouting conditions, by taking the traditionally used total energy and the proposed energy vector of WPT components as input, respectively. The experimental results demonstrated that the Bayes classifier input with the energy vector could identify different grouting conditions more accurately. The proposed method has the potential to be applied at key spots of post-tensioning tendon ducts in practice. Full article

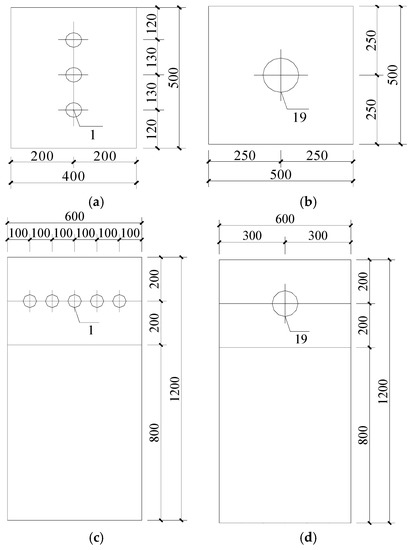

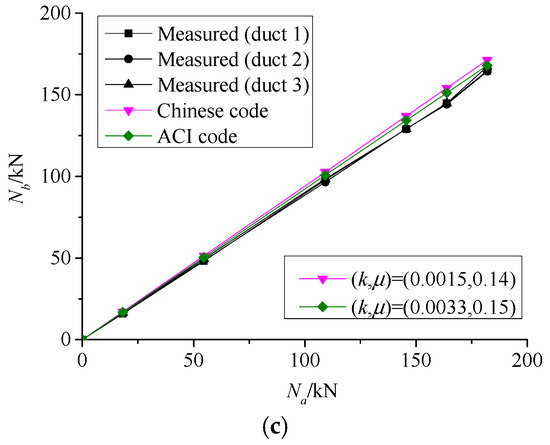

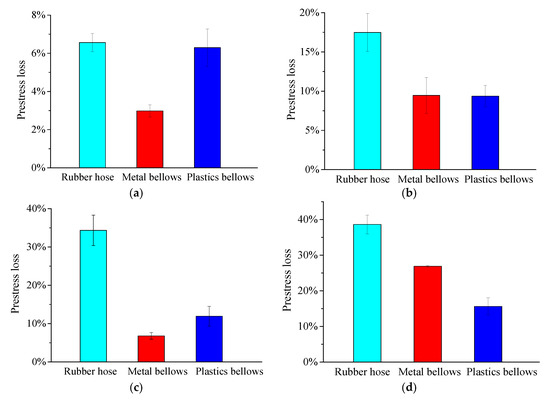

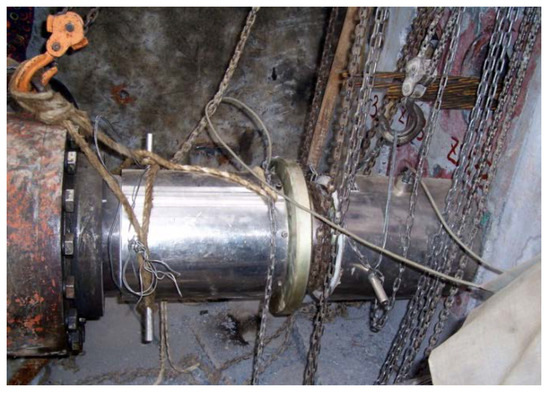

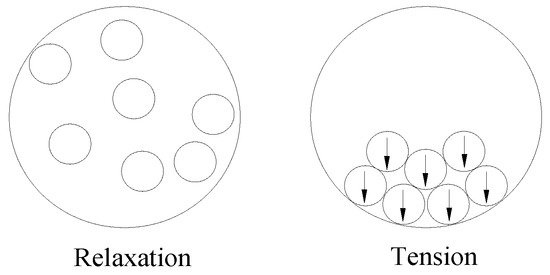

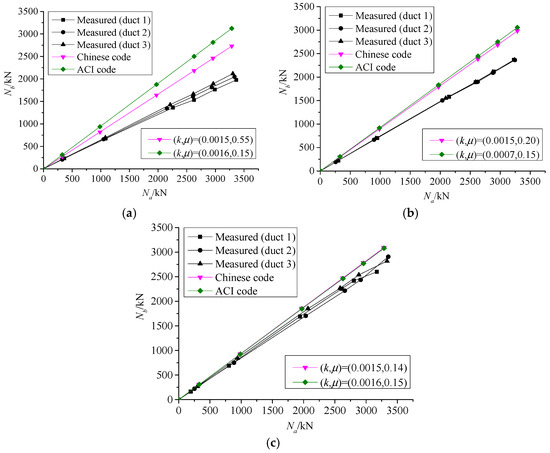

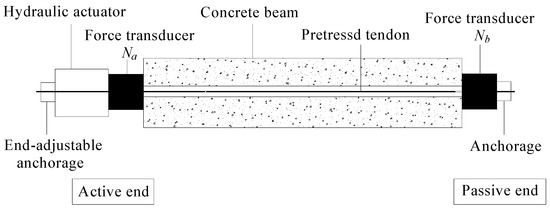

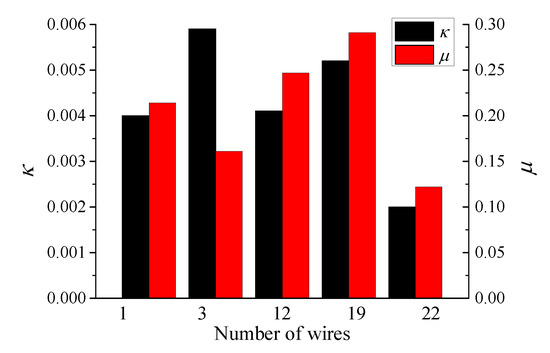

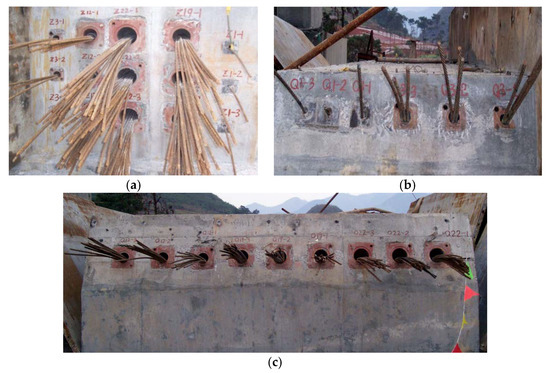

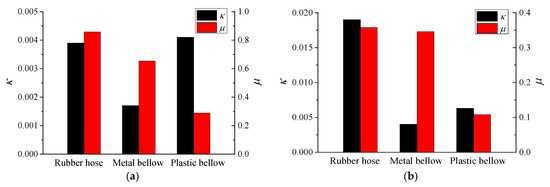

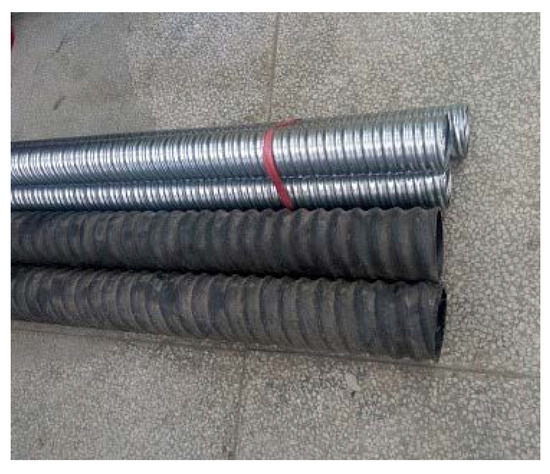

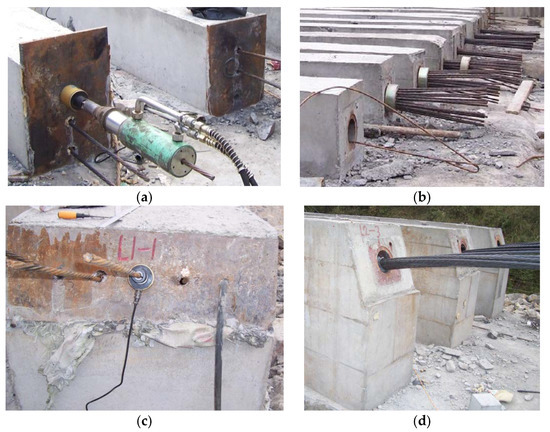

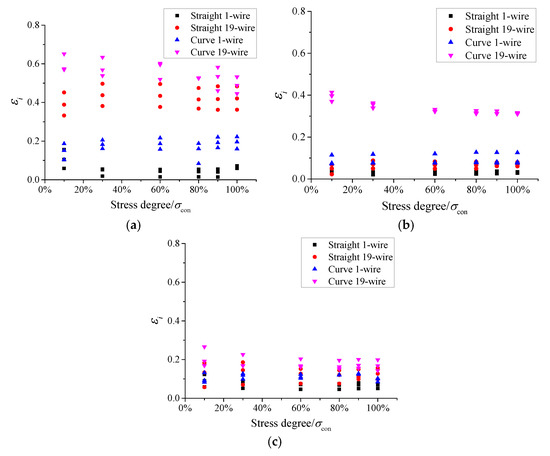

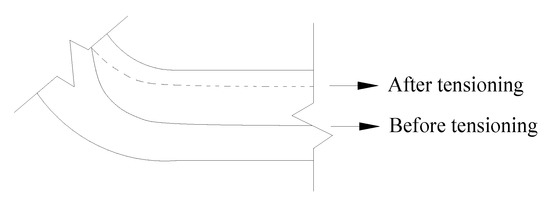

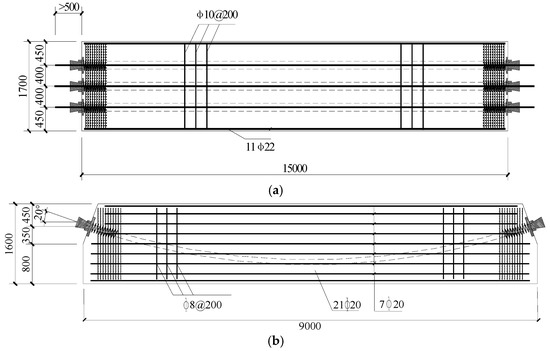

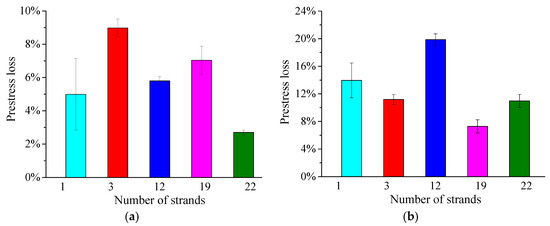

This paper presents an experimental research work that evaluates the pre-stress loss caused by friction in crushed limestone sand (CLS) concrete members with post-tensioning. A total of 26 full-scale pre-stressed concrete beams were constructed and tested for the friction loss experiment. The considered variables mainly included the duct-forming materials, wires of tendons and arrangement of ducts. The tensile forces at both active and passive ends of specimen were recorded by steps, and then the pre-stress friction loss for each case was calculated. The result shows that the proportion of pre-stress friction loss in specimen with multi-wire tendons is in the range of 10–40%, with the trend first increasing before decreasing. The pre-stress friction loss in specimen with curve duct accounts for 10–30%. The pressure on the curved part definitely increases the friction when compared with the straight duct. The pre-stress friction loss in specimen with rubber hose reaches nearly 40%, which is larger than the metal bellow and plastic bellow. The suggested values for each case are proposed for a deviation coefficient κ of 0.0017–0.007 and a friction coefficient μ of 0.108–0.858. This can provide reliable theoretical support for the design and construction. Full article

With the development of the post-tensioning technique, prestressed concrete structures have been widely used in civil engineering. To ensure the long-term effectiveness of the prestressed tendon, the grouting quality of the tendon duct is one of the important factors. However, it is still a challenge to monitor the grouting quality of post-tensioning tendon ducts, due to the invisibility of the grouting. The authors’ previous work proposed a real-time method that employed a stress wave-based active sensing approach with piezoceramic transducers to monitor the grouting compactness of a Post-Tensioning Tendon Duct (PTTD). To further understand the piezoceramic induced stress wave propagation in the PTTD with different grouting levels, this paper develops a two-dimensional finite element model for monitoring the grouting compactness of the tendon duct with a piezoceramic transducer. A smart aggregate (SA) developed to utilize one Lead Zirconate Titanate (PZT) transducer with marble protection is installed in the center location of the tendon duct as an actuator. Two PZT patches are bonded on the bottom and top surface of the tendon duct as the sensors. The analysis results show that the finite element analysis results are in good agreement with the experimental results, which demonstrates that the finite element analysis is feasible and reliable. For the top half of the specimen, not much stress wave could be detected before the full grouting level, except for negligible signals that may propagate through the walls of the tendon duct. When the tendon duct grouting is at 100%, the stress wave propagates to the top of the specimen, and the displacements are symmetric in both left-right and top-bottom directions before the stress waves reach the boundary. The proposed two-dimensional finite element model has the potential to be implemented to simulate the stress wave propagation principle for monitoring grouting compaction of the post-tensioning tendon duct. Full article

A post-tensioning tendon duct filled with grout can effectively prevent corrosion of the reinforcement, maintain bonding behavior between the reinforcement and concrete, and enhance the load bearing capacity of concrete structures. In practice, grouting of the post-tensioning tendon ducts always causes quality problems, which may reduce structural integrity and service life, and even cause accidents. However, monitoring of the grouting compactness is still a challenge due to the invisibility of the grout in the duct during the grouting process. This paper presents a stress wave-based active sensing approach using piezoceramic transducers to monitor the grouting compactness in real time. A segment of a commercial tendon duct was used as research object in this study. One lead zirconate titanate (PZT) piezoceramic transducer with marble protection, called a smart aggregate (SA), was bonded on the tendon and installed in the tendon duct. Two PZT patch sensors were mounted on the top outside surface of the duct, and one PZT patch sensor was bonded on the bottom outside surface of the tendon duct. In the active sensing approach, the SA was used as an actuator to generate a stress wave and the PZT sensors were utilized to detect the wave response. Cement or grout in the duct functions as a wave conduit, which can propagate the stress wave. If the cement or grout is not fully filled in the tendon duct, the top PZT sensors cannot receive much stress wave energy. The experimental procedures simulated four stages during the grout pouring process, which includes empty status, half grouting, 90% grouting, and full grouting of the duct. Experimental results show that the bottom PZT sensor can detect the signal when the grout level increases towards 50%, when a conduit between the SA and PZT sensor is formed. The top PZT sensors cannot receive any signal until the grout process is completely finished. The wavelet packet-based energy analysis was adopted in this research to compute the total signal energy received by PZT sensors. Experimental results show that the energy levels of the PZT sensors can reflect the degree of grouting compactness in the duct. The proposed method has the potential to be implemented to monitor the tendon duct grouting compactness of the reinforced concrete structures with post tensioning. Full article
