Search Results (13)

Functional polymers are designed to enhance the evaporative cooling capacity of sports clothing ensembles, though little is known about how they alter the material properties of commonly used fabrics. The aim of this study was to quantify the impact of a commercially available textile finish treatment (HeiQ Smart Temp ^TM) on the structural, thermal, and moisture management properties of synthetic (SYN; 100% polyester) and blended (BLEND; 47% lyocell, 46% cotton, 7% elastane) fabrics. Structural (fabric mass, thickness, bulk density, relative porosity), thermal (air permeability, water vapour permeability, water vapour resistance) and moisture management properties (wetting time, spreading speed, wetting radius, absorption, vertical wicking rate) were assessed and compared between treated and untreated samples. Significant improvements (p < 0.05) in air permeability (SYN: Δ 26.0 mm.s⁻¹; BLEND: Δ 61.6 mm·s⁻¹), wetting time (SYN: Δ 0.3 s; BLEND: Δ 0.3 s), and spreading speed (BLEND: Δ 1.1 mm·s⁻¹; SYN: no change) were recorded following treatment. Non-significant changes in water vapour permeability (SYN: Δ 0.1; BLEND: Δ 0.1), water vapour resistance (SYN: Δ 0.7 Pa·m²W⁻¹; BLEND: Δ 0.4 Pa·m²W⁻¹) and vertical wicking (BLEND: Δ 6.1 mm·s⁻¹; SYN: no change) were also observed following treatment. Though not all material properties improved, this study provides evidence that the functional polymer treatment can enhance the evaporative cooling capacity of sports clothing fabrics. Future research is needed to understand how these results translate to physiological, perceptual, and performance-based effects in wearer trials during exercise. Full article

As an alternative to cotton, viscose and lyocell fibers are suitable for the production of knitted next-to-skin underwear. Despite the advantages of a more environmentally friendly production process and valuable properties, the consumption of lyocell fibers is significantly lower compared to viscose fibers. The applicability of viscose and lyocell fibers in the production of ribbed knits for underwear is insufficiently researched, as is the influence of unconventionally spun yarns on their wearing properties. This study, therefore, investigates the possibilities of using lyocell fibers in the production of novel knitwear with improved properties compared to viscose and conventional cotton knitwear and determines their wearing quality. In this context, two sets of circular 1 × 1 rib jersey fabrics were produced from three types of differently spun viscose and lyocell yarns. The quality of the dry relaxed and wet processed knitted fabrics was evaluated by determining their structure, absorbency, air permeability, and dimensional stability, as well as their tensile, abrasion, and pilling properties, all in comparison to cotton knitted fabric produced under the same conditions. The results showed that lyocell rib knits have better structural uniformity, tensile properties, dimensional stability, air permeability, lower abrasion resistance, and comparable moisture absorbency and pilling propensity compared to viscose knits. Full article

Flammability testing of undergarments is a topic that is often overlooked and rarely on the list of textiles to be tested for fire safety. However, it is particularly important for professionals exposed to fire risk to investigate the flammability of underwear as its direct contact with the skin can be critical to the extent and degree of skin burns. This research focuses on the suitability of affordable blends of 55 wt.% modacrylic, 15 wt.% polyacrylate, and 30 wt.% lyocell fibres that have the potential to be used for flame-resistant underwear. The influence of modacrylic fibre linear density (standard and microfibres), ring spinning processes (conventional, Sirospun, and compact), and knitted structure (plain, 2:1 rib, 2:1 tuck rib, single pique, and triple tuck) on their properties required for thermal comfort in high-temperature environments was investigated. Scanning electron and optical microscopy, FT-IR spectroscopy, mechanical testing, moisture regain, water sorption, wettability, absorption, DSC, TGA, and flammability were tested to assess the desired suitability. The wetting time (5–14.6 s) and water absorption time (4.6–21.4 s) of the knitted fabrics have shown excellent ability to transport and absorb water compared to the knitted fabrics created from a conventional blend of 65% modacrylic and 35% cotton fibres. The afterflame and afterglow times of less than 2 s met the criteria for non-flammability of the knitted fabrics according to the limited flame spread test method. The results show that the investigated blends have the potential to be used for affordable flame-retardant and thermally comfortable knitted fabrics for underwear. Full article

Sunlight is essential for humans. However, sunlight can be the source of several disadvantageous effects and illnesses, e.g., skin aging, sunburn, and skin cancer. Textiles with functional protective effects can counteract these problems. In the current research, knitted fabrics were produced from Lyocell yarns spin-doped with the inorganic UV absorber titanium dioxide TiO₂. Lyocell yarns without TiO₂ were used as reference materials. The produced knitted fabrics were dyed with different dyestuffs to improve the protective properties against UV light and infrared light. The protective properties are determined by optical spectroscopy in an arrangement of diffusive transmission. With the two dyestuffs Drimaren Yellow HF-CD and Solophenyl Bordeaux 3BLE, dyes were determined which complete UV protection and additionally reduce transmission in the near-IR range (700 nm to 1000 nm). TiO₂ in the fibers enhanced this effect. In the UV range (280 nm to 400 nm), the transmission was almost zero with both dyes. Overall, the Lyocell samples containing TiO₂ exhibit less sensitivity to abrasion and a UV protective effect after washing can be still determined. The weight loss after the abrasion test for these samples is quite low with only around 8.5 wt-% (10,000 rubbing cycles in the Martindale device). It is concluded that the right choice of dye can improve the protective effect of textiles against various types of radiation. Lyocell fiber-based textiles are suitable for the production of summer clothing due to their good moisture management. Compared to other radiation protective materials based on coating application, the presented solution is advantageous, because the textile properties of the realized products are still present. For this, a direct transfer to clothing application and use in apparel is easily possible. This study can be seen as the first proof-of-concept for the future development of light-protective clothing products. Full article

This study examined the perspiration absorption and drying characteristics of eco-friendly fiber-embedded fabrics with different yarn structures. The wicking and drying rates of fifteen fabrics made from quadrilobal PET, Lyocell, and bamboo fibers were measured using two evaluation methods and compared with the pore diameter and hygroscopic characteristics of the constituent fibers in the yarns. The sheath/core yarn structure played a vital role in improving the moisture absorption and drying properties of the eco-friendly fibers embedded in high-performance fabrics, which was partly affected by the hygroscopicity and non-circular cross-section of constituent fibers in the yarns. Superior perspiration absorption and drying properties among the various eco-friendly high-performance fabrics were observed in the quadrilobal PET/Lyocell sheath/core and quadrilobal PET/bamboo spun yarn fabrics. By contrast, the PET/Lyocell Siro-fil, bamboo spun, and hi-multi PET yarn fabrics exhibited inferior moisture absorption and drying properties. In particular, the evaluated results between transverse and vertical wicking measuring methods in absorption property showed a similar trend. In contrast, the drying property measured between the drying rate (min) at a steady state and the drying rate (g) at a transient state showed a different trend. Multiple regression analysis showed that the wicking property of the eco-friendly fiber-embedded fabrics was mainly related to the pore diameter, cross-sectional shape, and absorption property of the fibers in the yarns, and it was also highly associated with the drying characteristics of the fabrics. The market application of the sheath/core yarn structure using Lyocell and bamboo fibers with quadrilobal PET is available for producing eco-friendly fabrics that can contribute to environmental improvement and wear comfort related to the moisture absorption and fast-drying properties of the woven fabrics. Full article

This article explores wood-fiber-based fabrics containing Lyocell yarn in the warp and Spinnova–Lyocell (60%/40%) yarn in the weft, which are used to form unidirectional all-cellulose composites (ACC) through partial dilution in a NaOH–urea solution. The aim is to investigate the role of the yarn orientation in composites, which was conducted by measuring the tensile properties in both the 0° and 90° directions. As a reference, thermoplastic biocomposites were prepared from the same fabrics, with biobased polypropylene (PP) as the matrix. We also compared the mechanical and thermal properties of the ACC and PP biocomposites. The following experiments were carried out: tensile test, TGA, DSC, DMA, water absorption test and SEM. The study found no significant difference in tensile strength regarding the Spinnova–Lyocell orientation between ACC and PP biocomposites, while the composite tensile strength was clearly higher in the warp (Lyocell) direction for both composite variants. Elongation at break doubled in ACC in the Lyocell direction compared with the other samples. Thermal analysis showed that mass reduction started at a lower temperature for ACC, but the thermal stability was higher compared with the PP biocomposites. Maximum thermal degradation temperature was measured as being 352 °C for ACC and 466 °C for neat PP, and the PP biocomposites had two peaks in the same temperature range (340–474 °C) as ACC and neat PP combined. ACCs absorbed 93% of their own dry weight in water in just one hour, whereas the PP biocomposites BC2 and BC4 absorbed only 10% and 6%, respectively. The study highlights the different properties of ACC and PP reference biocomposites that could lead to further development and research of commercial applications for ACC. Full article

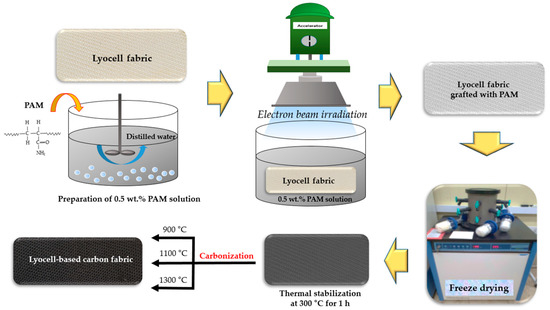

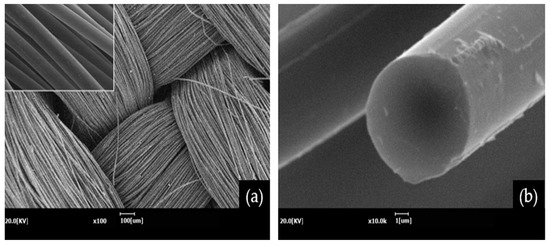

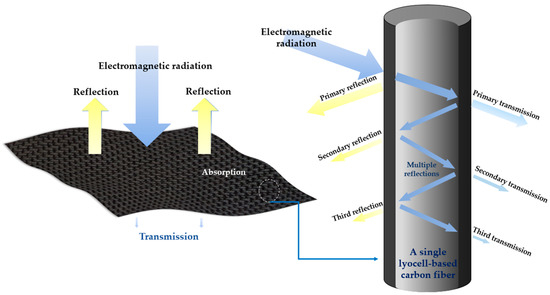

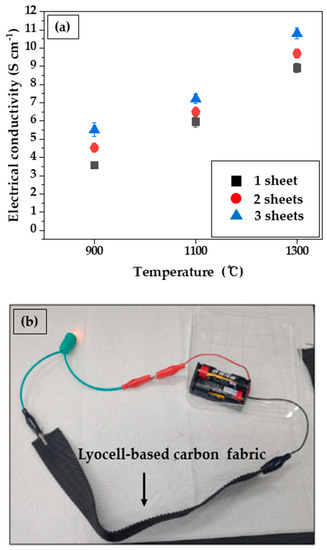

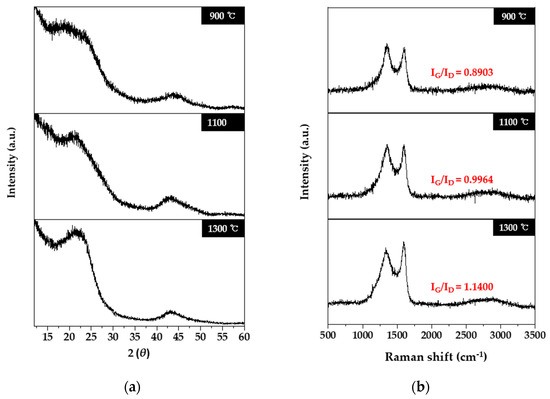

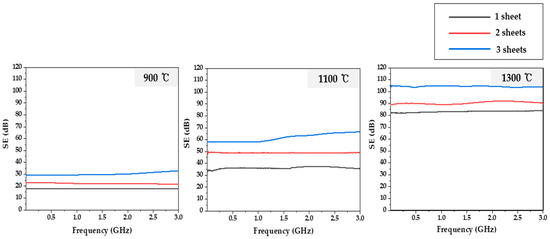

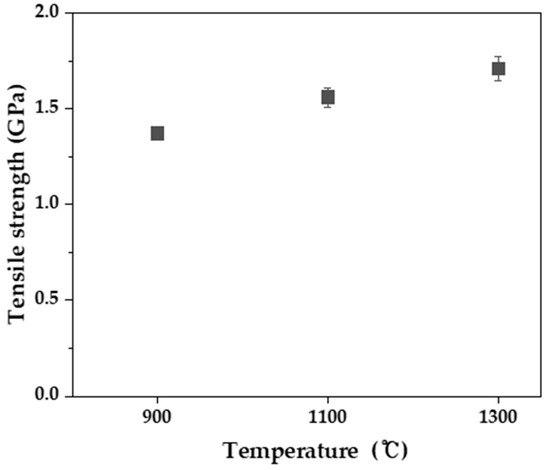

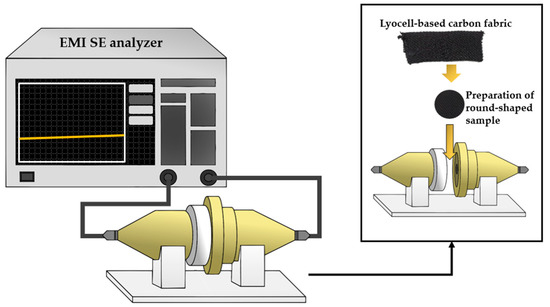

Lyocell is a biodegradable filament yarn obtained by directly dissolving cellulose in a mixture of N-methylmorpholine-N-oxide and a non-toxic solvent. Therefore, herein, lyocell fabrics were employed as eco-friendly carbon-precursor substitutes for use as electromagnetic interference (EMI) shielding materials. First, a lyocell fabric treated with polyacrylamide via electron beam irradiation reported in a previous study to increase carbon yields and tensile strengths was carbonized by heating to 900, 1100, and 1300 °C. The carbonization transformed the fabric into a graphitic crystalline structure, and its electrical conductivity and EMI shielding effectiveness (SE) were enhanced despite the absence of metals. For a single sheet, the electrical conductivities of the lyocell-based carbon fabric samples at the different carbonization temperatures were 3.57, 5.96, and 8.91 S m⁻¹, leading to an EMI SE of approximately 18, 35, and 82 dB at 1.5–3.0 GHz, respectively. For three sheets of fabric carbonized at 1300 °C, the electrical conductivity was 10.80 S m⁻¹, resulting in an excellent EMI SE of approximately 105 dB. Generally, EM radiation is reduced by 99.9999% in instances when the EMI SE was over 60 dB. The EMI SE of the three lyocell-based carbon fabric sheets obtained at 1100 °C and that of all the sheets of the sample obtained at 1300 °C exceeded approximately 60 dB. Full article

In this study, an optical thermometer based on regenerated cellulose fibers modified with YF₃: 20% Yb³⁺, 2% Er³⁺ nanoparticles was developed. The presented sensor was fabricated by introducing YF₃ nanoparticles into cellulose fibers during their formation by the so-called Lyocell process using N-methylmorpholine N-oxide as a direct solvent of cellulose. Under near-infrared excitation, the applied nanoparticles exhibited thermosensitive upconversion emission, which originated from the thermally coupled levels of Er³⁺ ions. The combination of cellulose fibers with upconversion nanoparticles resulted in a flexible thermometer that is resistant to environmental and electromagnetic interferences and allows precise and repeatable temperature measurements in the range of 298–362 K. The obtained fibers were used to produce a fabric that was successfully applied to determine human skin temperature, demonstrating its application potential in the field of wearable health monitoring devices and providing a promising alternative to thermometers based on conductive materials that are sensitive to electromagnetic fields. Full article

Lyocell fabrics are widely applied in textiles, however, its high flammability increases the risk of fire. Therefore, to resolve the issue, a novel biomass-based flame retardant with phosphorus and nitrogen elements was designed and synthesized by the reaction of arginine with phosphoric acid and urea. It was then grafted onto the lyocell fabric by a dip-dry-cure technique to prepare durable flame-retardant lyocell fabric (FR-lyocell). X-ray photoelectron spectroscopy (XPS) and Fourier-transform infrared spectroscopy (FTIR) analysis demonstrated that the flame retardant was successfully introduced into the lyocell sample. Thermogravimetric (TG) and Raman analyses confirmed that the modified lyocell fabric featured excellent thermal stability and significantly increased char residue. Vertical combustion results indicated that FR-lyocell before and after washing formed a complete and dense char layer. Thermogravimetric Fourier-transform infrared (TG-FTIR) analysis suggested that incombustible substances (such as H₂O and CO₂) were produced and played a significant fire retarding role in the gas phase. The cone calorimeter test corroborated that the peak of heat release rate (PHRR) and total heat release (THR) declined by 89.4% and 56.4%, respectively. These results indicated that the flame retardancy of the lyocell fabric was observably ameliorated. Full article

The integration of electrical functionality into flexible textile structures requires the development of new concepts for flexible conductive material. Conductive and flexible thin films can be generated on non-conductive textile materials by electroless metal deposition. By electroless copper deposition on lyocell-type cellulose fabrics, thin conductive layers with a thickness of approximately 260 nm were prepared. The total copper content of a textile fabric was analyzed to be 147 mg per g of fabric, so that the textile character of the material remains unchanged, which includes, for example, the flexibility and bendability. The flexible material could be used to manufacture a thermoelectric sensor array and generator. This approach enables the formation of a sensor textile with a large number of individual sensors and, at the same time, a reduction in the number of electrical connections, since the conductive textile serves as a common conductive line for all sensors. In combination with aluminum, thermoelectric coefficients of 3–4 µV/K were obtained, which are comparable with copper/aluminum foil and bulk material. Thermoelectric generators, consisting of six junctions using the same material combinations, led to electric output voltages of 0.4 mV for both setups at a temperature difference of 71 K. The results demonstrate the potential of electroless deposition for the production of thin-film-coated flexible textiles, and represent a key technology to achieve the direct integration of electrical sensors and conductors in non-conductive material. Full article

Carbon fibers, which act as reinforcements in many applications, are often obtained from polyacrylonitrile (PAN). However, their production is expensive and results in waste problems. Therefore, we focused on producing carbon fibers from lyocell, a cellulose-based material, and analyzed the effects of the process parameters on their mechanical properties and carbon yields. Lyocell was initially grafted with polyacrylamide (PAM) via electron-beam irradiation (EBI) and was subsequently stabilized and carbonized. Thermal analysis showed that PAM grafting increased the carbon yields to 20% at 1000 °C when compared to that of raw lyocell, which degraded completely at about 600 °C. Stabilization further increased this yield to 55%. The morphology of the produced carbon fibers was highly dependent on PAM concentration, with fibers obtained at concentrations ≤0.5 wt.% exhibiting clear, rigid, and round cross-sections with smooth surfaces, whereas fibers obtained from 2 and 4 wt.% showed peeling surfaces and attachment between individual fibers due to high viscosity of PAM. These features affected the mechanical properties of the fibers. In this study, carbon fibers of the highest tensile strength (1.39 GPa) were produced with 0.5 wt.% PAM, thereby establishing the feasibility of using EBI-induced PAM grafting on lyocell fabrics to produce high-performance carbon fibers with good yields. Full article

Integration of sensors in textile garments requires the development of flexible conductive structures. In this work, cellulose-based woven lyocell fabrics were coated with copper during an electroless step, produced at 0.0284 M copper sulfate pentahydrate, 0.079 M potassium hydrogen L-tartrate, and 0.94 M formaldehyde concentrations. High concentrations led to high homogeneous copper reaction rates and the heterogeneous copper deposition process was diffusion controlled. Thus, the rate of copper deposition did not increase on the cellulose surface. Conductivity of copper coatings was investigated by the resistance with a four probe technique during fabric deformation. In cyclic tensile tests, the resistance of coated fabric (19 × 1.5 cm²) decreased from 13.2–3.7 Ω at 2.2% elongation. In flex tests, the resistance increased from 5.2–6.6 Ω after 5000 bending cycles. After repeated wetting and drying cycles, the resistance increased by 2.6 × 10⁵. The resistance raised from 11–23 Ω/square with increasing relative humidity from 20–80%, which is likely due to hygroscopic expansion of fibers. This work improves the understanding of conductive copper coating on textiles and shows their applicability in flexible strain sensors. Full article

Reinforcement of flexible fibre reinforced plastic (FRP) composites with standard textile fibres is a potential low cost solution to less critical loading applications. The mechanical behaviour of FRPs based on mechanically bonded nonwoven preforms composed of either low or high modulus fibres in a thermoplastic polyurethane (TPU) matrix were compared following compression moulding. Nonwoven preform fibre compositions were selected from lyocell, polyethylene terephthalate (PET), polyamide (PA) as well as para-aramid fibres (polyphenylene terephthalamide; PPTA). Reinforcement with standard fibres manifold improved the tensile modulus and strength of the reinforced composites and the relationship between fibre, fabric and composite’s mechanical properties was studied. The linear density of fibres and the punch density, a key process variable used to consolidate the nonwoven preform, were varied to study the influence on resulting FRP mechanical properties. In summary, increasing the strength and degree of consolidation of nonwoven preforms did not translate to an increase in the strength of resulting fibre reinforced TPU-composites. The TPU composite strength was mainly dependent upon constituent fibre stress-strain behaviour and fibre segment orientation distribution. Full article
