Unbalanced accelerations occurring during tram travel have a significant impact on passenger comfort and safety, as well as on the rate of wear and tear on infrastructure and rolling stock. Ideally, these dynamic forces should be monitored continuously in real-time; however, traditional systems require high-precision accelerometers and proprietary software—investments often beyond the reach of municipally funded tram operators. To this end, as part of the research project “Accelerometer Measurements in Rail Passenger Transport Vehicles”, pilot measurement campaigns were conducted in Poland on tram lines in Gdańsk, Toruń, Bydgoszcz, and Olsztyn. Off-the-shelf smartphones equipped with MEMS accelerometers and GPS modules, running the Physics Toolbox Sensor Suite Pro app, were used. Although the research employs widely known methods, this paper addresses part of the gap in affordable real-time monitoring by demonstrating that, in the future, equipment equipped solely with consumer-grade MEMS accelerometers can deliver sufficiently accurate data in applications where high precision is not critical. This paper presents an analysis of a subset of results from the Gdańsk tram network. Lateral (x) and vertical (z) accelerations were recorded at three fixed points inside two tram models (Pesa 128NG Jazz Duo and Düwag N8C), while longitudinal accelerations were deliberately omitted at this stage due to their strong dependence on driver behavior. Raw data were exported as CSV files, processed and analyzed in R version 4.2.2, and then mapped spatially using ArcGIS cartograms. Vehicle speed was calculated both via the haversine formula—accounting for Earth’s curvature—and via a Cartesian approximation. Over the ~7 km route, both methods yielded virtually identical results, validating the simpler approach for short distances. Acceleration histograms approximated Gaussian distributions, with most values between 0.05 and 0.15 m/s², and extreme values approaching 1 m/s². The results demonstrate that low-cost mobile devices, after future calibration against certified accelerometers, can provide sufficiently rich data for ride-comfort assessment and show promise for cost-effective condition monitoring of both track and rolling stock. Future work will focus on optimizing the app’s data collection pipeline, refining standard-based analysis algorithms, and validating smartphone measurements against benchmark sensors. Full article

To investigate how severe wear at No. 12 turnout frogs in an urban rail transit line operating at speeds over 120 km/h on the dynamic performance of the vehicle, a vehicle–frog coupled dynamic model was established by employing the 2021 version of SIMPACK software. Profiles of No. 12 alloy steel frogs and metro wheel rims were measured to simulate wheel–rail interactions as the vehicle traverses the turnout, using both brand-new and worn frog conditions. The experimental results indicate that increased service life deepens frog wear, raises equivalent conicity, and intensifies wheel–rail forces. When a vehicle passes through the frog serviced for over 17 months at the speed of 120 km/h, the maximum derailment coefficient, lateral acceleration of the car body, and lateral and vertical wheel–rail forces increased by 0.14, 0.17 m/s², 9.52 kN, and 105.76 kN, respectively. The maximum contact patch area grew by 35.73%, while peak contact pressure rose by 236 MPa. To prevent dynamic indicators from exceeding safety thresholds and ensure train operational safety, it is recommended that the frog maintenance cycle be limited to 12 to 16 months. Full article

Heavy rolling contact fatigue (RCF) may be caused by wheel surface defects under the influence of rail corrosion, which threatens the operational safety of rail vehicles. To investigate the role of surface defects on wheel RCF damage under the influence of rail corrosion, a salt spray tester was used to corrode the rails, an impact testing machine was employed to create surface defects, and RCF tests were completed. The role of surface defects on wheel RCF damage was studied by monitoring the wheel defect surface and cross-section. The results indicate that the tendencies of the RCF crack extension of surface defects of different sizes are similar, and they all extend in a C-shape along the tangential force direction. However, the larger the defect size, the later the crack is initiated. The leading edge material is continuously squeezed into the defect by the tangential force, and a larger plastic deformation layer is formed, which causes the RCF at the leading edge to crack more severely. Meanwhile, under the effect of combined normal force and shear stress, the leading edge crack intersects with the middle edge crack, and the leading edge material is spalled off first. Wheel RCF damage and wear are aggravated by rail corrosion, the longer the corrosion time, the more serious the RCF damage and wear, and the earlier the material spalling time, the lower the fatigue life. Full article

Hollow wear on wheels is a common form of surface damage often observed in high-velocity vehicles. It is widely recognized that hollow wear of the wheel tread degrades the dynamic performance of rail vehicles, especially in the issue commonly referred to as “operational stability”, and leads to abnormal wheel–rail contact interactions. However, the evaluation criteria for vehicle stability are not uniform, which affects the assessment of wheel conditions and the timing of wheel re-profiling during maintenance. Therefore, numerical simulations were conducted by matching the measured worn wheel profiles with standard rails, and three different methods were employed to evaluate vehicle stability in this article. The numerical results revealed that the wheel equivalent conicity exhibits a nonlinear characteristic caused by hollow wear, which means that the nominal equivalent conicity is unable to accurately represent the geometric contact relationship between the wheel and rail. Under identical wheel wear conditions, a certain difference was observed in the critical speed of the vehicle determined by the velocity-reducing method and the bifurcation configuration method. Both methods were capable of reflecting the impact of wheel hollow wear on vehicle stability at the critical speed. Compared to the velocity-reducing method, the bifurcation configuration method can better reflect the transition process of a vehicle from stable running to hunting instability. Furthermore, the lateral vibration acceleration values measured above the bogie frame indicated that slight wheel wear is insensitive to increased speed. However, when the wear was severe, the lateral vibration acceleration of the bogie was found to increase sharply, exceeding the established stability criteria. This phenomenon was consistent with the safety alarms that occurred during actual vehicle operation, indicating that the vehicle had failed to meet stability requirements. Full article

The development and validation of lateral control strategies for railway running gears with independently rotating driven wheels (IRDWs) are an active research area due to their potential to enhance straight-track centering, curve steering performance, and reduce noise and wheel–rail wear. This paper focuses on the practical application of theoretical models to a 1:5 scaled test rig developed by the German Aerospace Center (DLR), addressing the challenges posed by unmodeled phenomena such as hysteresis, varying damping and parameter identification. The theoretical model from prior work is adapted based on empirical measurements from the test rig, incorporating the varying open-loop stability of the front and rear wheel carriers, hysteresis effects, and other dynamic properties typically neglected in literature. A transparent procedure for identifying dynamic parameters is developed, validated through closed- and open-loop measurements. The refined model informs the design and tuning of a cascaded PI and PD controller, enhancing system stabilization by compensating for hysteresis and damping variations. The proposed approach demonstrates improved robustness and performance in controlling the lateral displacement of IRDWs, contributing to the advancement of safety-critical railway technologies. Full article

A wheel flat is a typical wheel defect that significantly impacts the wheel–rail system, posing substantial challenges to vehicle operation safety. In the existing literature, the wheel flat plane model does not account for the contribution of the width direction to the impact response and thus cannot accurately reveal the wheel–rail contact state with a flat. This paper systematically proposes a three-dimensional analytical model that considers multiple worn stages and constructs a spatial complex surface reconstruction model for flats based on NURBS technology. A vehicle–track coupled dynamics model, considering the geometry of the flat, is established to investigate the effects of flat geometry on the wheel–rail impact response and contact relationship in detail. The results show that in the subcritical regime, the wear degree of the flat predominantly affects the impact force, while in the transcritical regime, both the wear degree and velocity together determine the magnitude of the wheel–rail impact force. As the wear degree increases, the moment of wheel lateral jump occurs earlier. The spatial modeling method for flats proposed in this paper offers a novel technical approach for accurately simulating the dynamic behavior of wheel–rail contact when a flat is present. Full article

Bogie hunting instability is one of the common faults in railway vehicles. It not only affects ride comfort but also threatens operational safety. Due to the lower operating speed of metro vehicles, their bogie hunting stability is often overlooked. However, as wheel tread wear increases, metro vehicles with high conicity wheel–rail contact can also experience bogie hunting instability. In order to enhance the operational safety of metro vehicles, this paper conducts field tests and simulation calculations to study the bogie hunting instability behavior of metro vehicles and proposes corresponding solutions from the perspective of wheel–rail contact relationships. Acceleration and displacement sensors are installed on metro vehicles to collect data, which are processed in real time in 2 s intervals. The lateral acceleration of the frame is analyzed to determine if bogie hunting instability has occurred. Based on calculated safety indicators, it is determined whether deceleration is necessary to ensure the safety of vehicle operation. For metro vehicles in the later stages of wheel wear (after 300,000 km), the stability of their bogies should be monitored in real time. To improve the stability of metro vehicle bogies while ensuring the longevity of wheelsets, metro vehicle wheel treads should be reprofiled regularly, with a recommended reprofiling interval of 350,000 km. Full article

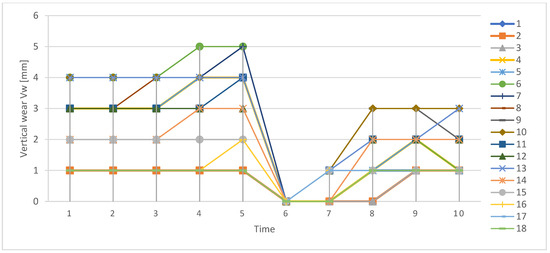

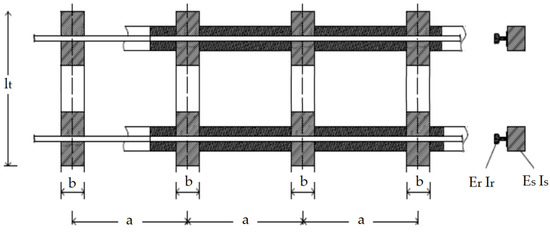

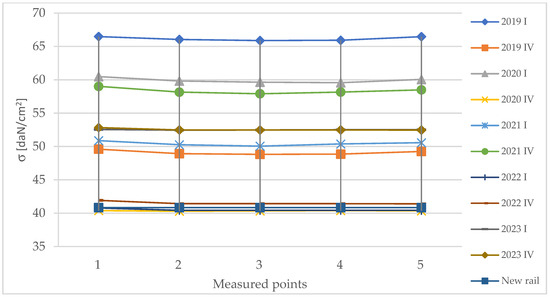

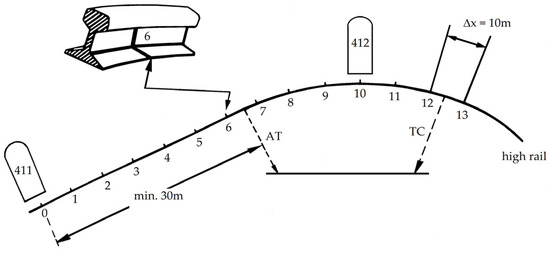

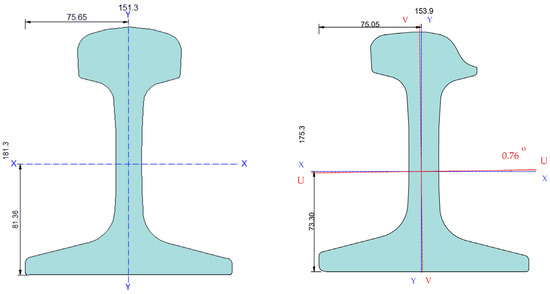

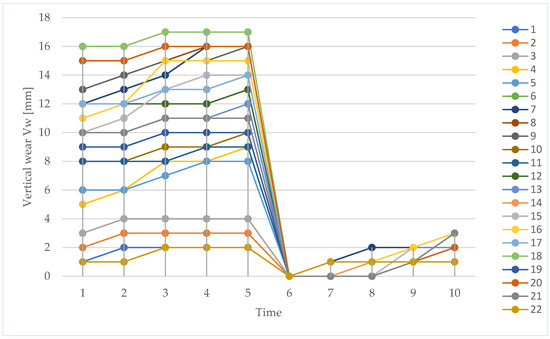

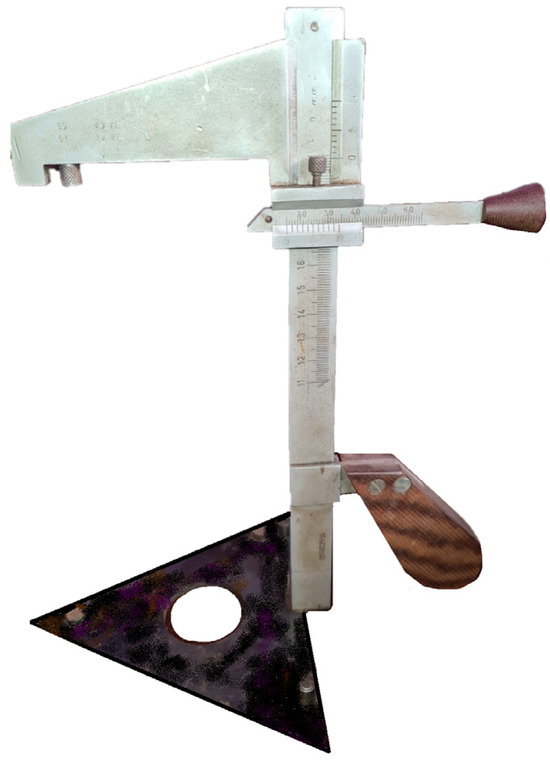

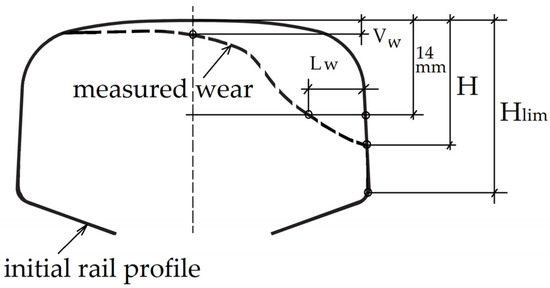

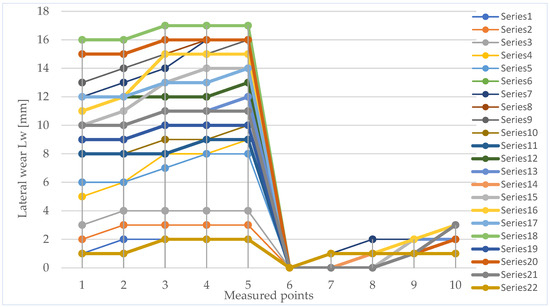

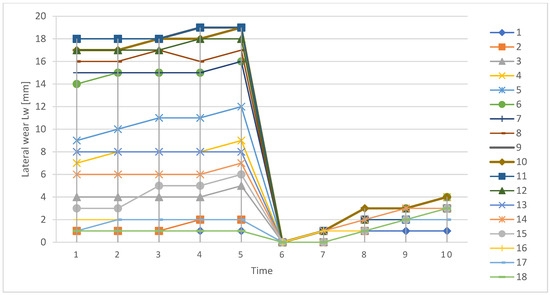

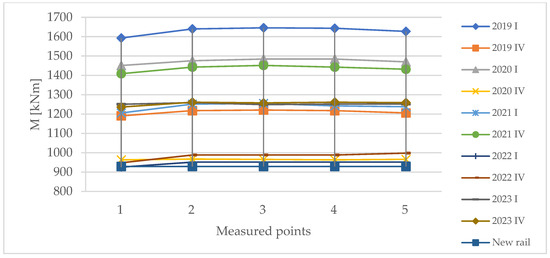

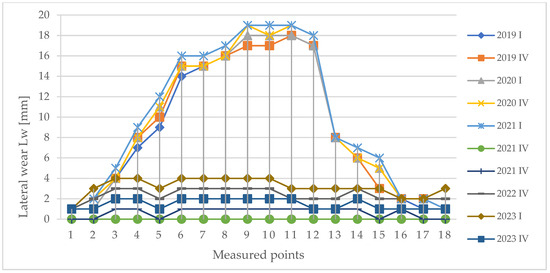

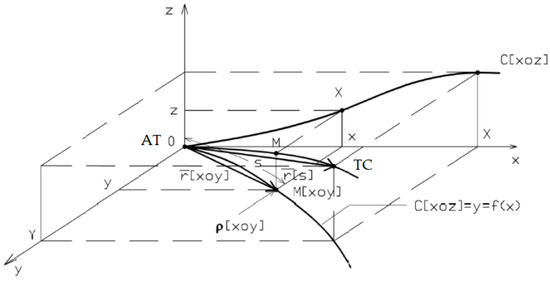

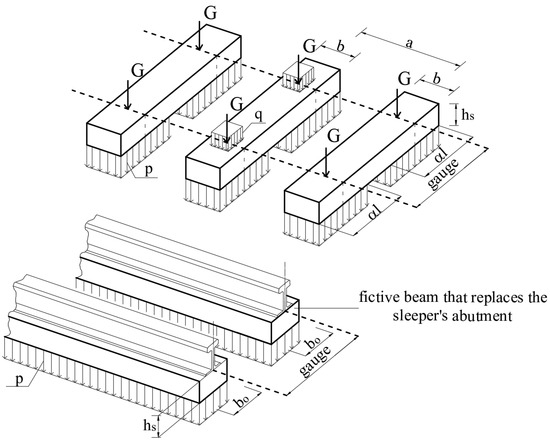

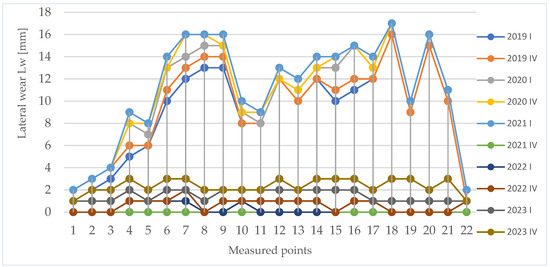

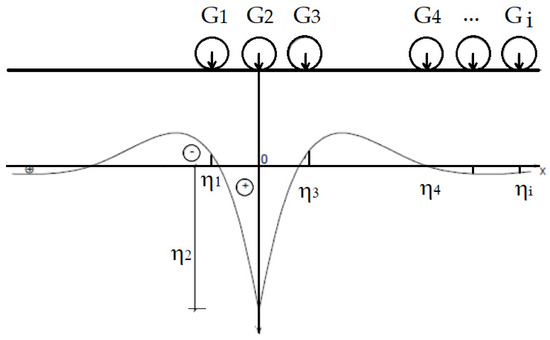

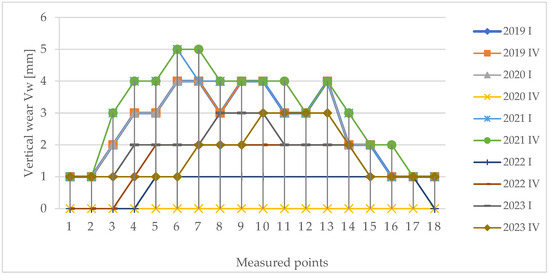

This paper’s aim is to assess the rail wear evolution of railway tracks under mixed traffic conditions for sharp curves. Field investigations were conducted over a period of five years, at 800 points on a rail track, for two curves that underwent maintenance interventions: sleeper and rail replacements during measurements. Lateral and vertical wear measurements were monitored with mechanical instruments, and Prokon and Sap simulations were performed in order to determine the bearing capacity of the rail at different stages of wear. The results obtained after five years of investigation show wear speed propagation on the outer rail of small-radius curves as well as the bending moments and admissible stress variation. At more than 18% of the studied points, lateral wear exceeded the maximum admissible limit, showing a faster propagation speed on the outer rail compared to the vertical wear rate. Full article

Scaled rolling contact fatigue tests, used to practically simulate the wear of the wheel and rail material under laboratory conditions, are typically classified into two categories. Tests in the first category use twin-disc stands, while the second group of test rigs use two discs of different diameters considering the rail disc as the larger one. The latter setup is closer to the real situation, but problems can occur with high contact pressures and tractions. The focus of this paper is on two main contributions. Firstly, a case study based on finite element analysis is presented, allowing the optimization of the specimen geometry for high contact pressures. Accumulated plastic deformation caused by cycling is responsible for abrupt lateral deformation, which requires the use of an appropriate cyclic plasticity model in the finite element analysis. In the second part of the study, two laser profilers are used to measure the dimensions of the specimen in real time during the rolling contact fatigue test. The proposed technique allows the changes in the specimen dimensions to be characterized during the test itself, and therefore does not require the test to be interrupted. By using real-time values of the specimen’s dimensional contours, it is possible to calculate an instantaneous value of the slip ratio or the contact path width. Full article

The effects of cyclic loading on the surface microstructure evolution of different contact locations in a used pearlitic rail were studied. Microstructures were analyzed using Scanning Electron Microscopy (SEM). Meanwhile, grain boundaries and crystallographic orientations were explored via Electron Backscatter Diffraction (EBSD). At last, wheel–rail contact probabilities and forces were calculated using rail profiles. The results indicate that the side wear region located in the gauge face was 71.5% in the high-angle grain boundaries (HAGBs) fraction, 0.88 in the Kernel Average Misorientation (KAM) value, 36% in the recrystallization (REX) fraction, and had a predominant orientation in grains. The rolling contact fatigue (RCF) region situated at the gauge corner was 66.3% in the HAGBs fraction, 0.92 in the KAM value, 33% in the REX fraction, and was mis-orientated in grains. The region located at the edge of the running band was 60.7% in the low-angle grain boundaries (LAGBs) fraction, 0.97 in the KAM value, 12% in the REX fraction, and was mis-orientated in grains. Continuous dynamic recrystallization (cDRX) took place in wear and RCF regions during the cyclic rolling contact loading, creating ultra-fine grains with a transformation from LAGBs to HAGBs, lower KAM values, and more REX. Grains oriented along [111] parallel to the vertical direction in the wear region were influenced by the dominant normal force, while grains in the RCF region were non-oriented, which was attributed to large lateral and vertical forces of similar magnitudes. Full article

Turnouts are the weak spot in high-speed rail systems, and it is simple for the phenomenon of the wheel–rail force and the carbody lateral acceleration over-limit to arise when the train passes through, which affects the service life of the rail and the running stability of the train. In this paper, the turnout with wheel–rail force over-limit and carbody lateral acceleration over-limit is selected for analysis, and the profiles of the wheel and rail are monitored. Then, the vehicle–turnout coupled multi-body dynamics model is simulated. Additionally, the portable vibration analyzer, the comprehensive inspection train, and the wheel–rail contact dynamic stress tester monitors the data and evaluates the impact of rail grinding on high-speed railway. The results of this study demonstrated that the turnout profiles are in good agreement with the standard wheel profiles following grinding, and the wheel–rail contact point and equivalent conicity both improved. When the train passes the ground turnout at high speed with and without the wheel polygonal wear, the wheel–rail force and the carbody acceleration were clearly improved. Using the wheel–rail contact dynamic stress tester, the comprehensive inspection train, and the portable vibration analyzer monitoring the changes in the carbody acceleration, the wheel–rail force and the carbody acceleration are definitely better after grinding. Similar to the pattern in the simulation, the train’s running steadiness increased by grinding. Full article

The wear condition of steel rails directly affects the safety of railway operations. Line-structured-light visual measurement technology is used for online measurement of rail wear due to its ability to achieve high-precision dynamic measurements. However, in dynamic measurements, the random deviation of the measurement plane caused by the vibration of the railcar results in changes in the actual measured rail profile relative to its cross-sectional profile, ultimately leading to measurement deviations. To address these issues, this paper proposes a method for three-dimensional measurement of steel rail cross-sectional profiles based on binocular line-structured light. Firstly, calibrated dual cameras are used to simultaneously capture the profiles of both sides of the steel rail in the same world coordinate system, forming the complete rail profile. Then, considering that the wear at the rail waist is zero in actual operation, the coordinate of the circle center on both sides of the rail waist are connected to form feature vectors. The measured steel rail profile is aligned with the corresponding feature vectors of the standard steel rail model to achieve initial registration; next, the rail profile that has completed the preliminary matching is accurately matched with the target model based on the iterative closest point (ICP) algorithm. Finally, by comparing the projected complete rail profile onto the rail cross-sectional plane with the standard 3D rail model, the amount of wear on the railhead can be obtained. The experimental results indicate that the proposed line-structured-light measurement method for the complete rail profile, when compared to the measurements obtained from the rail wear gauge, exhibits smaller mean absolute deviation (MAD) and root mean square error (RMSE) for both the vertical and lateral dimensions. The MAD values for the vertical and lateral measurements are 0.009 mm and 0.039 mm, respectively, while the RMSE values are 0.011 mm and 0.048 mm. The MAD and RMSE values for the vertical and lateral wear measurements are lower than those obtained using the standard two-dimensional rail profile measurement method. Furthermore, it effectively eliminates the impact of vibrations during the dynamic measurement process, showcasing its practical engineering application value. Full article

A wear prediction model is built to research the wear of the curved switch rail in a high-speed turnout. The Archard wear model is used in the wear prediction model to analyze the profile evolution law. The non-Hertzian contact Kik–Piotrowski method based on virtual penetration is used as the contact algorithm for the Archard wear model. A dynamic model of the vehicle–curved switch rail system based on the predicted profiles of the curved switch rail and the measured wheel profiles with different stages is established. The effect of the wheel and curved switch rail profiles’ wear on vehicle dynamic performance is analyzed. The results show that the wheel completely transitions from the stock rail to the curved switch rail between 35 and 50 mm head widths. As the head width of the curved switch rail increased, the position of the maximum wear depth gradually moved to the gauge shoulder. When the total passing weight of the train is 50 Mt, the 20 mm head width curved switch rail side wear reaches a maximum of 5.3 mm. The position in which the wheel transitions from the stock rail to the curved switch rail will be further away from the tip of the curved switch rail due to wheel–rail wear. Regarding the derailment coefficient, the wheel–rail vertical force and lateral force are both significantly impacted. However, they have little effect on the vertical and lateral acceleration of the vehicle. The wear of the wheels and rails has a higher impact on vehicle driving safety and a lower impact on vehicle driving stability. Full article

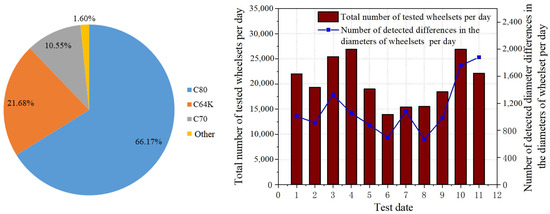

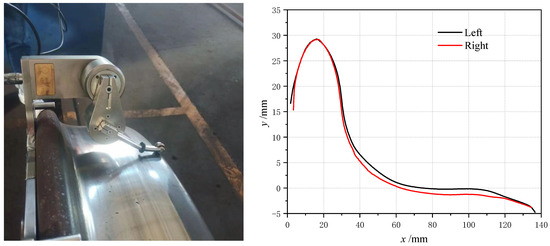

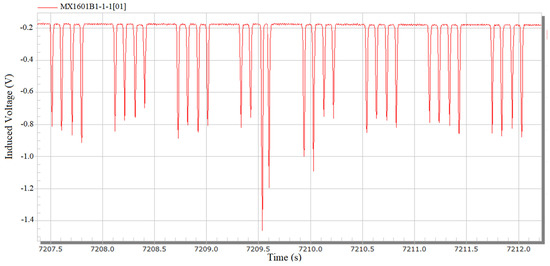

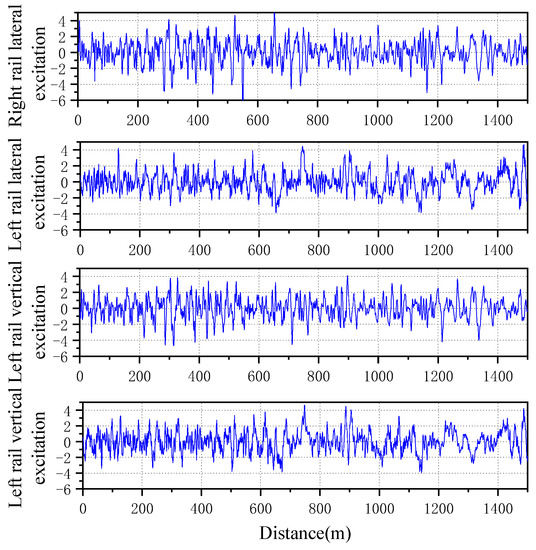

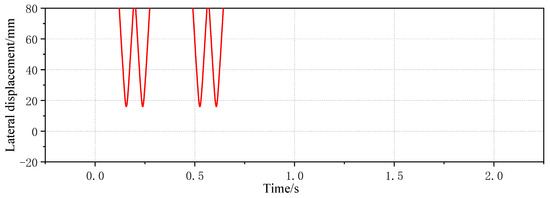

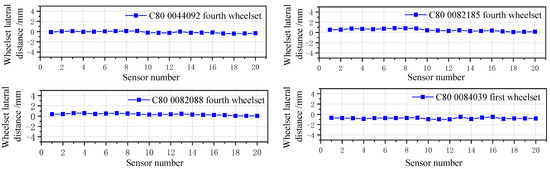

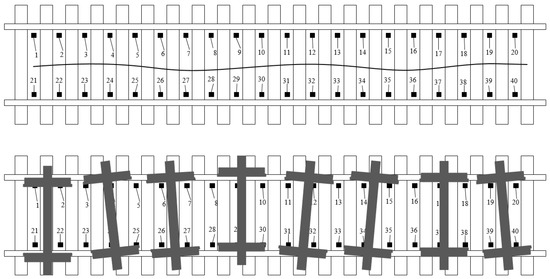

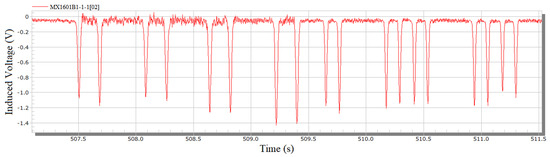

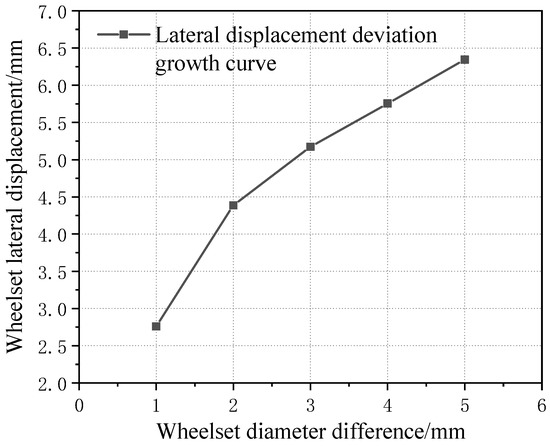

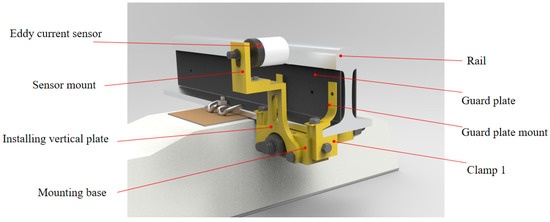

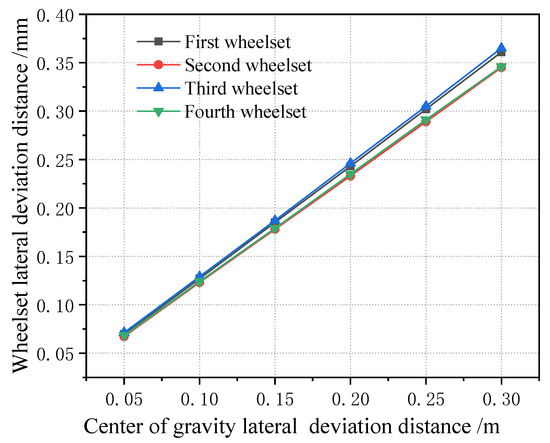

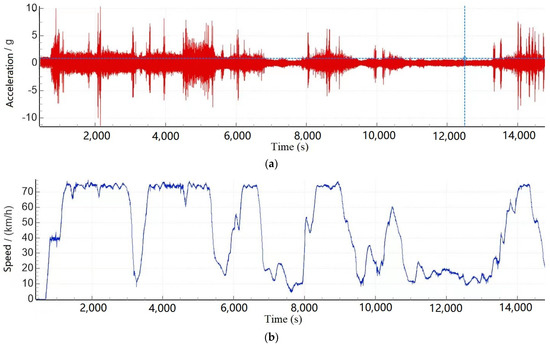

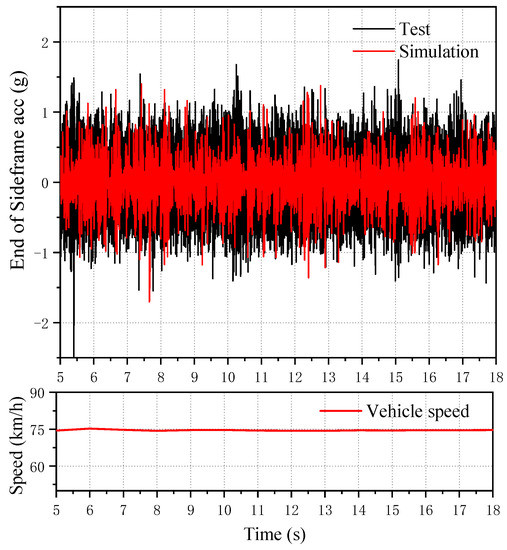

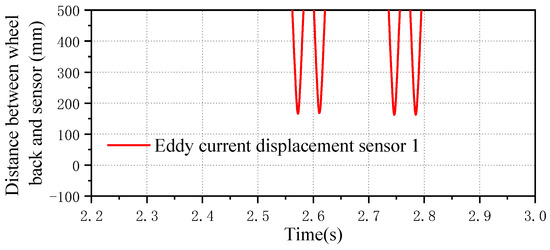

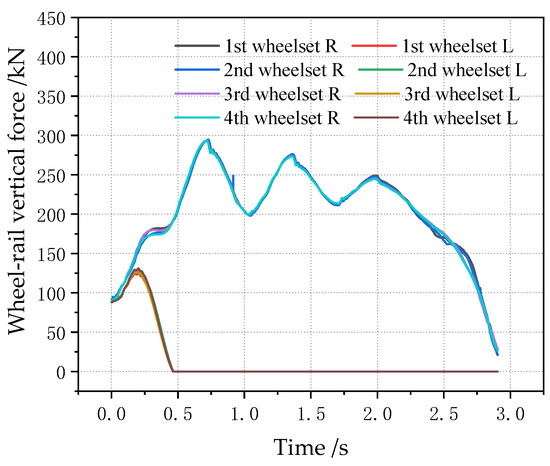

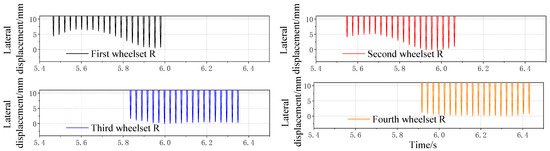

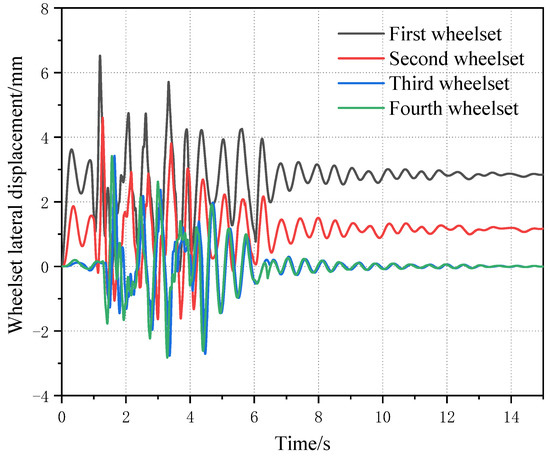

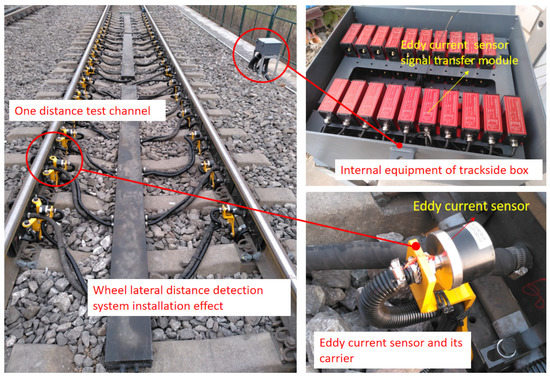

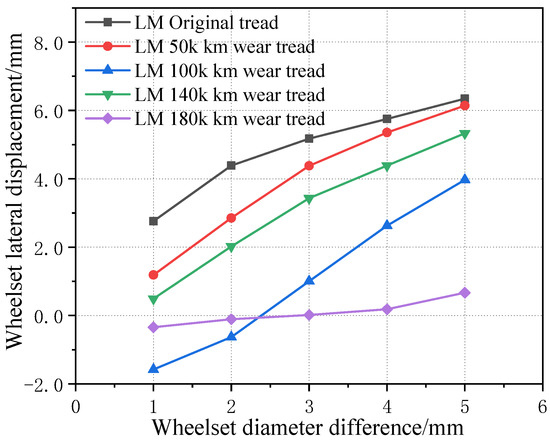

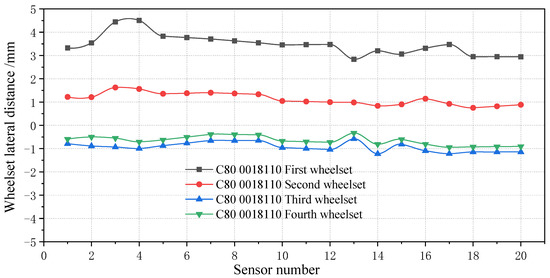

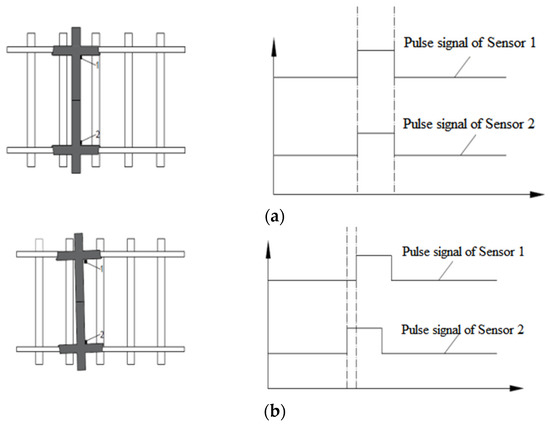

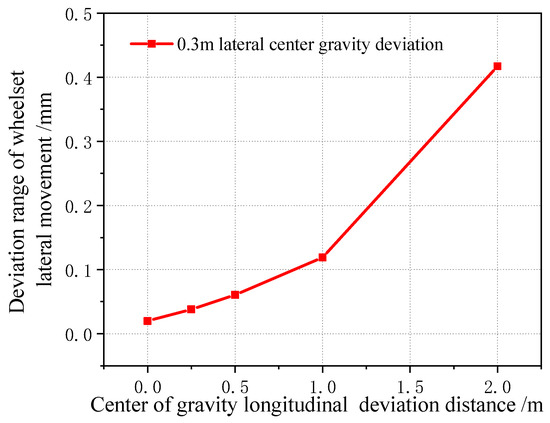

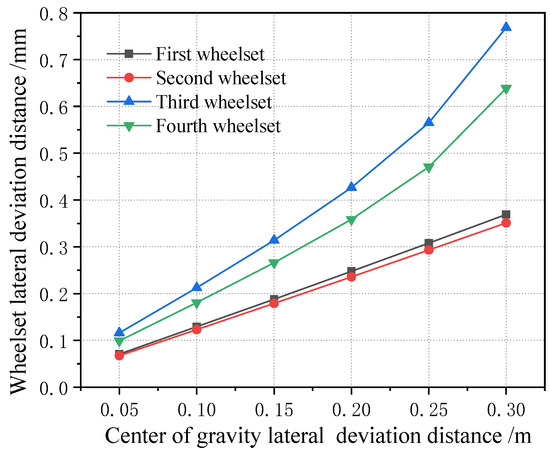

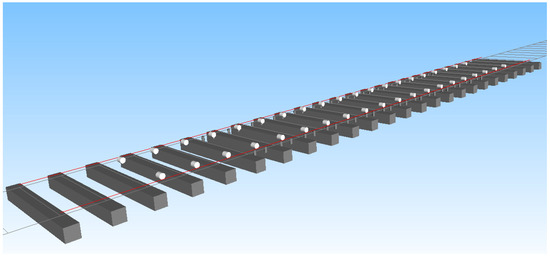

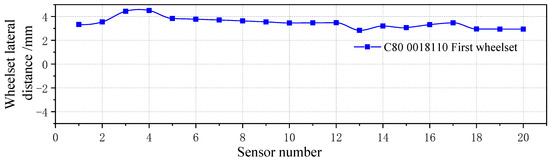

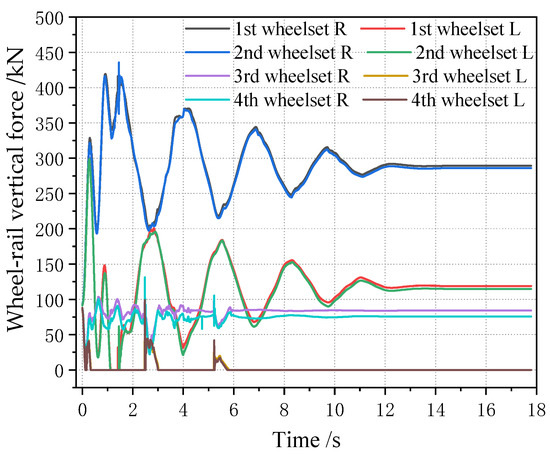

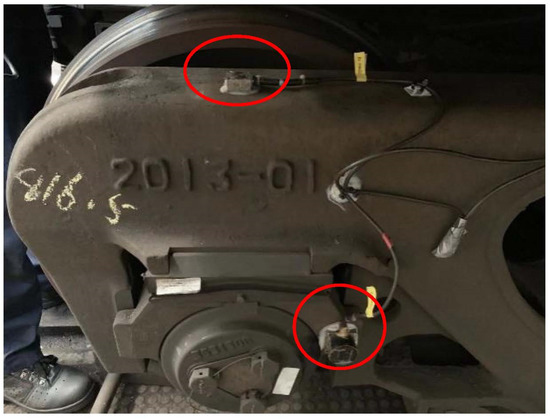

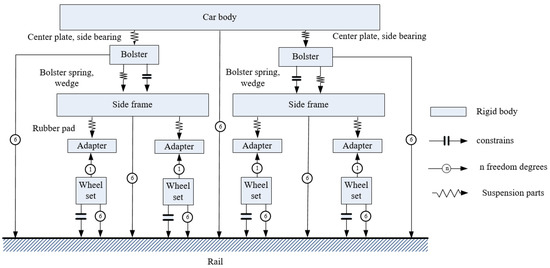

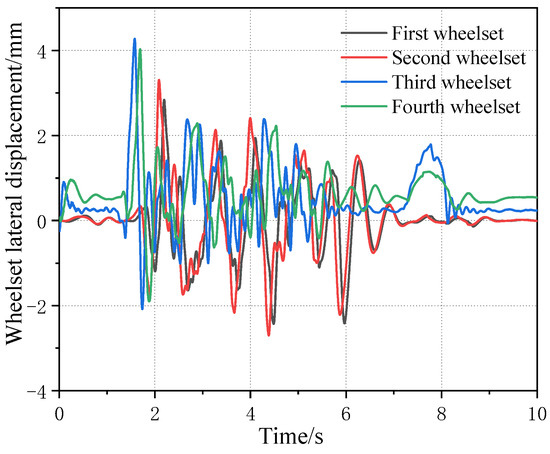

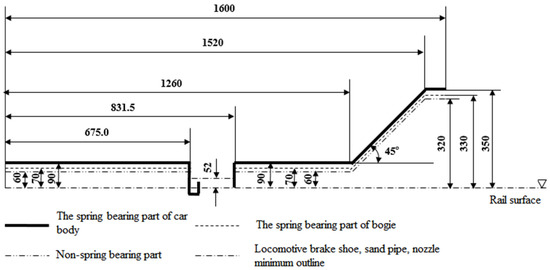

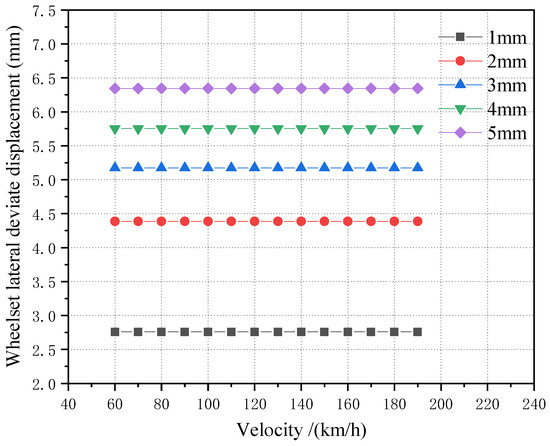

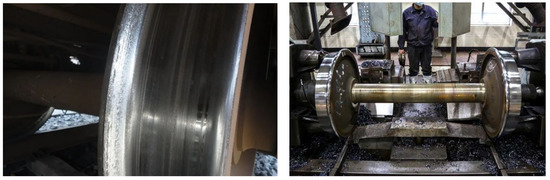

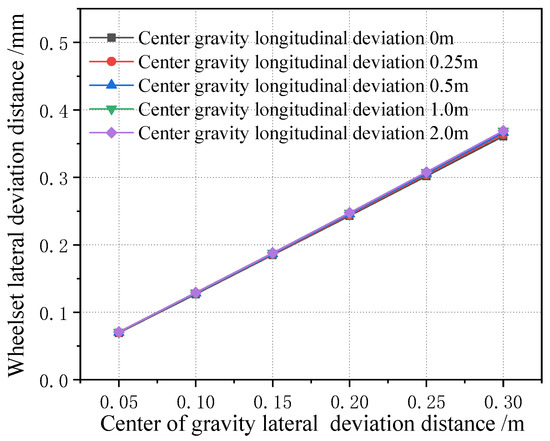

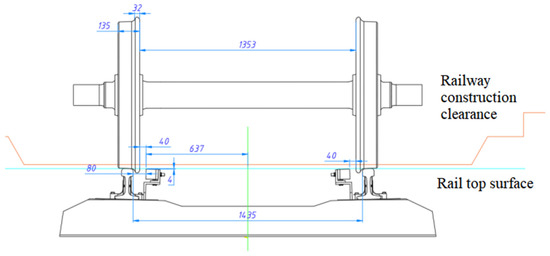

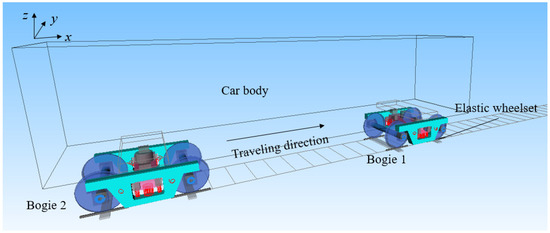

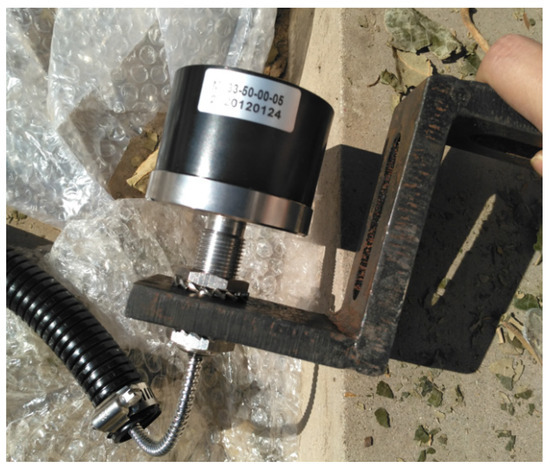

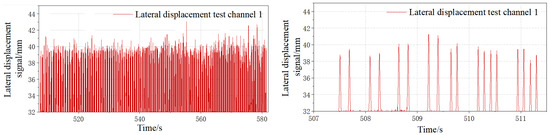

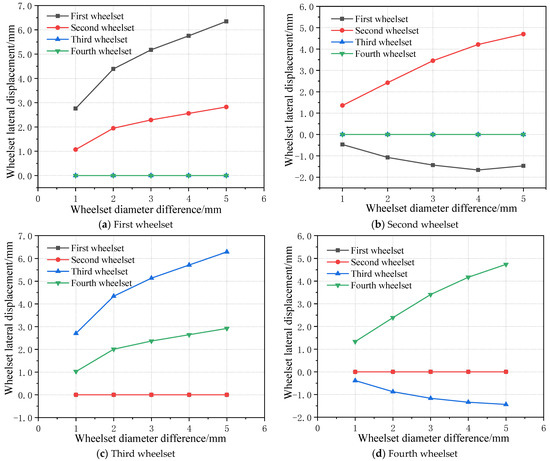

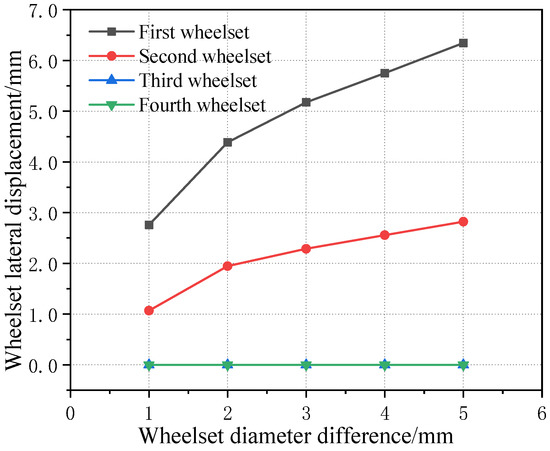

The wheelset coaxial wheel diameter difference is one of the most common wheel faults of railway vehicles. The existence of the wheelset coaxial wheel diameter difference may lead to the off-load operation of vehicles, resulting in abnormal wheel tread wear, leading to the deterioration of the wheel–rail contact relationship, resulting in the deterioration of the vehicle’s operating stability and comfort, and even leading to an increase in the derailment coefficient, affecting the running safety. In order to monitor the freight car wheelset coaxial wheel diameter difference online, a vehicle–track coupling dynamics model based on a trackside detection method was established, and the response of rail lateral displacement under the condition of the wheelset coaxial wheel diameter difference was analyzed. The results show that the existence of the wheelset coaxial wheel diameter difference can lead to a deviation in the vehicle’s run, with an increase in the wheelset coaxial wheel diameter difference and an increase in the lateral offset of wheelset increases. The impact of vehicle unbalance loading on the lateral movement of the wheelset is much smaller than that of the wheelset coaxial wheel diameter difference. The existence of the wheelset coaxial wheel diameter difference can be better reflected by detecting the wheelset’s lateral displacement. On straight line, the variation of lateral displacement has no infection of vehicle speed, but shows a quadratic growth trend with the wheelset coaxial wheel diameter difference. Based on this, the mapping relationship between the wheelset coaxial wheel diameter difference and wheelset lateral displacement can be obtained. Through a mapping relationship, the size of the wheelset coaxial wheel diameter difference can be reversed precisely through the detection of a trackside lateral movement monitoring system. The reliability of the identification method was verified with a specific test on the trackside monitoring system. Full article

To investigate the influence of the structural deformation of the wheelset and track on rail wear in the longitudinal and lateral directions, a rail wear prediction model is established that can calculate the three-dimensional distribution of rail wear. The difference between the multi-rigid-body dynamic model and the rigid-flexible coupled dynamic model, which considers the structural flexibility of the wheelset and track, is compared in terms of the three-dimensional distribution of rail wear. The results show that the three-dimensional distributions of rail wear predicted by the two models are relatively similar. There is no obvious difference in the wear band, and the rail wear in the longitudinal direction is almost identical. The cross sections of the worn rail shapes determined by the two models are essentially the same, with a maximum difference of 3.6% in the average value of the wear areas of all cross sections. The track irregularity is the main reason for the uneven distribution of rail wear in the longitudinal direction. The position where the rail wear is more pronounced hardly varies with the evolution of the rail wear. It is recommended to use a multi-rigid-body dynamic model for the prediction of rail wear, which allows both calculation accuracy and efficiency. Full article
