The Na⁺/I⁻ symporter (NIS) is the plasma membrane (PM) protein that actively mediates iodide (I⁻) transport into the thyroid gland. Pathogenic variants in the SLC5A5 gene cause iodide transport defects (ITDs). A heterozygous G288S NIS variant was identified in a Spanish family in which female carriers developed thyroid dysfunction during pregnancy. Here, we characterized the functional significance of the G288S variant and other substitutions at residue 288 of human NIS. Human NIS (hNIS) expression and maturation were analyzed by immunoblotting, its subcellular localization was analyzed by immunofluorescence and flow cytometry, and its activity was analyzed by radioiodide uptake assays. The G288S variant does not affect hNIS maturation, membrane trafficking, or I⁻ uptake capacity, but significantly reduces I⁻ affinity while preserving substantial transport activity. In contrast, substitutions introducing charged residues (arginine, aspartic acid, or glutamic acid) or proline severely disrupted NIS maturation, plasma membrane targeting, and iodide transport. Because the variant was identified in heterozygosity, we evaluated residue 288 substitutions under heterozygous-like conditions. Co-expression of the patient-derived G288S variant with WT NIS produced an intermediate apparent K_m without reducing V_max compared with WT, consistent with a modest co-expression-dependent kinetic effect rather than a strong dominant-negative mechanism. In contrast, the severely disruptive G288E substitution reduced cell-surface NIS expression under co-expression conditions, providing proof-of-principle evidence that severe alteration of residue 288 can impair NIS plasma membrane delivery. These findings highlight residue 288 as a key determinant of hNIS functionality and underscore the need to carefully evaluate heterozygous SLC5A5/NIS variants, as they may become clinically relevant under conditions of increased physiological iodine demand and contribute to partial iodide transport impairment. Full article

In this study, the task of integrating capture and conversion of CO₂ into a single material platform is realized by developing bifunctional membranes based on polymer ionic liquids (PILs). The novelty of this work lies in the fabrication and comprehensive evaluation of PIL-based membrane materials that combine catalytic activity toward CO₂ conversion with gas separation performance within one material system. In contrast to most previously reported imidazolium-based PILs, which have mainly been considered either as catalysts or as membrane materials, the present approach focuses on their dual functionality under both catalytic and gas transport conditions. A series of imidazolium-based PILs, including homopolymers and block copolymers with polystyrene, were synthesized. The materials were characterized to determine their catalytic activity during the cycloaddition of CO₂ to epichlorohydrin and to determine their gas transport properties using pure gases (N₂, O₂, CO₂) and a simulated dry flue gas mixture; membrane morphology was studied by scanning electron microscopy. Block copolymers exhibited higher catalytic conversions (up to 82.7%) than homopolymers, with selectivities above 93%. Chloride-containing block copolymers gave the best combination of CO₂ permeability (up to 7.5 Barrer) and CO₂/N₂ selectivity (18–22) under mixed-gas conditions. Iodide-containing analogs demonstrated higher selectivity (up to 30) but lower CO₂ permeability. Morphological analysis confirmed the presence of dense, defect-free structures in materials with the chloride anion, while materials with the iodide anion showed increased free volume and microheterogeneity. These results indicate that by altering the polymer and anion architecture, PIL-based membranes can effectively combine catalytic activity with selective CO₂ transport, providing a promising avenue for enhancing carbon capture and utilization processes. Full article

PbS quantum dots (QDs) synthesized with oleic acid (OA) ligands suffer from poor charge transport in solid films, necessitating ligand exchange to shorter halide ligands for optoelectronic applications. This study investigates how ligand-exchange temperature governs OA-to-iodide substitution in PbS QDs. At 40 °C, the QD surface shows maximized halide passivation (I/Pb = 0.60) and minimized oxygen-related species (O/Pb = 0.23), suggesting reduced oxygen-associated defect formation and enabling n-type band alignment and reduced trap-mediated losses. PbS QD photodetectors fabricated from the 40 °C-treated QDs have 52% external quantum efficiency (EQE) at 940 nm (vs. 39% at 25 °C), with a responsivity of 0.394 A/W and an estimated detectivity of 2.1 × 10¹³ Jones. Temperature optimization of ligand-exchange provides a straightforward lever to improve device performance and reproducibility. Full article

Perovskite solar cells (PSCs) have already been reported as a promising alternative to traditional energy sources due to their excellent power conversion efficiency, affordability, and versatility, which is particularly relevant considering the growing worldwide demand for energy and increasing scarcity of natural resources. However, operational concerns under environmental stresses hinder its economic feasibility. Through the addition of cesium (Cs), this study investigates how to optimize perovskite solar cells (PSCs) based on methylammonium lead-iodide (MAPbI₃) by creating mixed-cation compositions of MA_1−xCs_xPbI₃ (x = 0, 0.25, 0.5, 0.75, 1) for devices A to E, respectively. The impact of cesium content on the following factors, such as open-circuit voltage (V_oc), short-circuit current density (J_sc), fill factor (FF), and power conversion efficiency (PCE), was investigated using simulation software, with ITO/TiO₂/MA_1−xCs_xPbI₃/Spiro-OMeTAD/Au as a device architecture. Due to diminished defect density, the device with x = 0.5 (MA_0.5Cs_0.5PbI₃) attains a maximum power conversion efficiency of 18.53%, with a V_oc of 0.9238 V, J_sc of 24.22 mA/cm², and a fill factor of 82.81%. The optimal doping density of TiO₂ is approximately 10²⁰ cm⁻³, while the optimal thicknesses of the electron transport layer (TiO₂, 10–30 nm), the hole-transport layer (Spiro-OMeTAD, about 10–20 nm), and the perovskite absorber (750 nm) were identified to maximize efficiency. The inclusion of a small amount of Cs may improve photovoltaic responses; however, at elevated concentrations (x > 0.5), power conversion efficiency (PCE) diminished due to the presence of trap states. The results show that mixed-cation perovskite solar cells can be a great commercially viable option because they strike a good balance between efficiency and performance. Full article

Flexible perovskite solar cells (FPSCs) hold great promise for lightweight and wearable photovoltaics, but improving their efficiency and durability under mechanical stress remains a key challenge. In this work, we fabricate and characterize flexible planar FPSCs on a polyethylene terephthalate (PET). A phenethylammonium iodide (PEAI) surface passivation layer is introduced on the perovskite to form a two-dimensional capping layer, and its impact on device performance and stability is systematically studied. The champion PEAI-passivated flexible device achieves a power conversion efficiency (PCE) of ~16–17%, compared to ~14% for the control device without PEAI. The improvement is primarily due to an increased open-circuit voltage and fill factor, reflecting effective surface defect passivation and improved charge carrier dynamics. Importantly, mechanical bending tests demonstrate robust flexibility: the PEAI-passivated cells retain ~85–90% of their initial efficiency after 700 bending cycles (radius ~5 mm), significantly higher than the ~70% retention of unpassivated cells. This work showcases that integrating a PEAI surface treatment with optimized electron (SnO₂) and hole (spiro-OMeTAD) transport layers (ETL and HTL) can simultaneously enhance the efficiency and mechanical durability of FPSCs. These findings pave the way for more reliable and high-performance flexible solar cells for wearable and portable energy applications. Full article

In this study, we investigate the influence of the halogen elements bromine (Br) and chlorine (Cl) on iodine defect properties primarily in FAPbI₃ through first-principles calculations, aiming to understand the effect of high defect densities on the efficiency of organic–inorganic hybrid perovskite cells. The results indicate that Br and Cl interstitials minimally alter the overall band structure of FAPbI₃ but significantly modify the defect energy levels. Br and Cl interstitials, with defect states closer to the valence band and lower formation energies, effectively convert deep-level traps induced by iodine interstitials (I_i) into shallow-level traps. This conversion enhances carrier transport by reducing non-radiative recombination while preserving light absorption efficiency. Excess Br/Cl co-doping in FAPbI₃ synthesis thereby suppresses non-radiative recombination and mitigates the detrimental effects of iodide-related defects. Full article

In this study, a novel perovskite solar cell (PSC) architecture is presented that utilizes an HTL-free configuration with formamide tin iodide (FASnI₃) as the active layer and fullerene (C60) as the electron transport layer (ETL), which represents a pioneering approach within the field. The elimination of hole transport layers (HTLs) reduces complexity and cost in PSC heterojunction structures, resulting in a simplified and more cost-effective PSC structure. In this context, an HTL-free tin HC(NH₂)₂SnI₃-based PSC was simulated using the solar cell capacitance simulator (SCAPS) within a one-dimensional framework. Through this approach, the device performance of this novel HTL-free FASnI₃-based PSC structure was engineered and evaluated. Key performance parameters, including the open-circuit voltage (V_oc), short-circuit current density (J_sc), fill factor (FF), power conversion efficiency (PCE), I-V characteristics, and quantum efficiency (QE), were systematically assessed through the modulation of physical parameters across various layers of the device. A preliminary analysis indicated that the HTL-free configuration exhibited improved I-V characteristics, with a PCE increase of 1.93% over the HTL configuration due to improved electron and hole extraction characteristics, reduced current leakage at the back contact, and reduced trap-induced interfacial recombination. An additional boost to the device’s key performance parameters has been achieved through the further optimization of several physical parameters, such as active layer thickness, bulk and interface defects, ETL thickness, carrier concentration, and back-contact materials. For instance, increasing the thickness of the active layer PSC up to 1500 nm revealed enhanced PV performance parameters; however, further increases in thickness have resulted in performance saturation due to an increased rate of hole–electron recombination. Moreover, a comprehensive correlation study has been conducted to determine the optimum thickness and donor doping level for the C60-ETL layer in the range of 10–200 nm and 10¹²–10¹⁹ cm⁻³, respectively. Optimum device performance was observed at an ETL-C60 ultra-thin thickness of 10 nm and a carrier concentration of 10¹⁹ cm⁻³. To maintain improved PCEs, bulk and interface defects must be less than 10¹⁶ cm⁻³ and 10¹⁵ cm⁻³, respectively. Additional device performance improvement was achieved with a back-contact work function of 5 eV. The optimized HTL-free FASnI₃ structure demonstrated exceptional photovoltaic performance with a PCE of 19.63%, V_oc of 0.87 V, J_sc of 27.86 mA/cm², and FF of 81%. These findings highlight the potential for highly efficient photovoltaic (PV) technology solutions based on lead-free perovskite solar cell (PSC) structures that contribute to environmental remediation and cost-effectiveness. Full article

The recombination of charges and thermal excitation of carriers at the interface between methylammonium lead iodide perovskite (PVK) and the carbon electrode are crucial factors that affect the optoelectronic performance of carbon-based hole transport layer (HTL)-free perovskite photodetectors. In this work, a method was employed to introduce SnS quantum dots (QDs) on the back surface of perovskite, which passivated the defect states on the back surface of perovskite and addressed the energy-level mismatch issue between perovskite and carbon electrode. Performance testing of the QDs and the photodetector revealed that SnS QDs possess energy-level structures that are well matched with perovskite and have high absorption coefficients. The incorporation of these QDs into the interface layer effectively suppresses the dark current of the photodetector and greatly enhances the utilization of incident light. The experimental results demonstrate that the introduction of SnS QDs reduces the dark current by an order of magnitude compared to the pristine device at 0 V bias and increases the responsivity by 10%. The optimized photodetector exhibits a wide spectral response range (350 nm to 750 nm), high responsivity (0.32 A/W at 500 nm), and high specific detectivity (>1 × 10¹² Jones). Full article

High-quality perovskite films (PFs) are crucial for achieving high-performance perovskite solar cells (PSCs). Herein, we report a dual-modification strategy via incorporating CsPbBr₃ QDs into MAPbI₃ perovskite bulk and capping the interface of the perovskite/hole transport layer (HTL) with phenylethylamine iodide (PEAI) to improve perovskite crystallinity and interface contact properties to acquire high-quality PFs with fewer defects. CsPbBr₃ QDs promoted perovskite grain growth and reduced bulk defects, while PEAI surface modification passivated interfaces, improved hydrophobic properties, and prevented carrier recombination at the perovskite/HTL interface. Benefiting from growth control and the effective suppression of both bulk and interface carrier recombination, the resulting devices show a greatly improved photoelectric conversion efficiency (PCE) from 17.21% of the reference cells to 21.04% with a champion Voc of 1.15 V, Jsc of 23.30 mA/cm², and fill factor (FF) of 78.6%. Furthermore, the dual-modification strategy endows PFs with promoted moisture tolerance, and the nonencapsulated PSCs retain 75% of their initial efficiency after aging for 30 days at 40% relative humidity and room temperature, which is significantly higher than the 59% value of the original PSCs. Good operational stability and the maintained efficiency of the target device over time suggest the potential for future commercialization. Full article

The noteworthy stability of Dion–Jacobson (DJ) phase two-dimensional perovskites marks them as potential contenders for use in optoelectronic applications. Nonetheless, their proliferation is considerably stymied by the constrained charge transport properties inherent to them. This bottleneck is adeptly navigated by deploying 2D-DJ perovskite top layers, seamlessly integrated on 3D perovskite films. We unveil a novel organic cation salt, 4-(Aminomethyl)piperidine (4AMP), as a potent facilitator for treating perovskite photovoltaic films. By employing the annealing technique, we facilitated the in situ creation of a hybrid 2D/3D architecture. Contrasted with conventional 3D architectures, the delineated perovskite heterojunctions with a 2D/3D structure exhibit superior enhanced charge separation, and mitigate photovoltaic losses by proficiently passivating intrinsic defects. The size-graded perovskite 2D/3D structure engineered herein significantly elevates the charge transfer performance, concurrently attenuating the excess lead iodide induced by bulk defects. This precise method resulted in a significant increase in Power Conversion Efficiency, reaching 23.08%, along with an open-circuit voltage (Voc) of 1.17 V. Remarkably, the unpackaged modified device robustly retains 92% of its initial PCE post a 3000 h sojourn under ambient conditions. This discourse propounds a novel paradigm for constructing stable planar PSC 2D/3D heterojunctions, thereby enriching the blueprint for advanced perovskite-based photovoltaic systems. Full article

Organic–inorganic metal halide perovskite (OIMHP) has emerged as a promising material for solar cell application due to their outstanding optoelectronics properties. The perovskite-based solar cell (PSC) demonstrates a significant enhancement in efficiency of more than 20%, with a certified efficiency rating of 23.13%. Considering both the Shockley limit and bandgap, there exists a substantial potential for further efficiency improvement. However, stability remains a significant obstacle in the commercialization of these devices. Compared to organic carrier transport layers (CTLs), inorganic material such as ZnO, TiO₂, SnO₂, and NiO_X offer the advantage of being deposited using atomic layer deposition (ALD), which in turn improves the efficiency and stability of the device. In this study, methylammonium lead iodide (MAPbI₃)-based cells with inorganic CTL layers of SnO₂ and NiO_X are simulated using SCAPS-1D software. The cell structure configuration comprises ITO/SnO₂/CH₃NH₃PbI₃/NiO_X/Back contact where SnO₂ and NiO_X act as ETL and HTL, respectively, while ITO is a transparent front-end electrode. Detailed investigation is carried out into the influence of various factors, including MAPbI₃ layer size, the thickness of CTLs, operating temperature parasitic resistance, light intensity, bulk defects, and interfacial defects on the performance parameters. We found that the defects in layers and interface junctions greatly influence the performance parameter of the cell, which is eliminated through an ALD deposition approach. The optimum size of the MAPbI₃ layer and CTL was found to be 400 nm and 50 nm, respectively. At the optimized configuration, the PSC demonstrates an efficiency of 22.13%, short circuit current (JSC) of 20.93 mA/m², open circuit voltage (V_OC) of 1.32 V, and fill factor (FF) of 70.86%. Full article

This research aims to optimize the efficiency of the device structures by introducing the novel double perovskite absorber layer (PAL). The perovskite solar cell (PSC) has higher efficiency with both lead perovskite (PVK), i.e., methylammonium tin iodide (MASnI₃) and Caseium tin germanium iodide (CsSnGeI₃). The current simulation uses Spiro-OMeTAD as the hole transport layer (HTL) and TiO₂ as an electron transport layer (ETL) to sandwich the PVK layers of MASnI₃ and CsSnGeI₃, which have precise bandgaps of 1.3 eV and 1.5 eV. The exclusive results of the precise modeling technique for organic/inorganic PVK-based photovoltaic solar cells under the illumination of AM1.5 for distinctive device architectures are shown in the present work. Influence of defect density (DD) is also considered during simulation that revealed the best PSC parameters with J_SC of 31.41 mA/cm², V_OC of 1.215 V, FF of nearly 82.62% and the highest efficiency of 31.53% at the combined DD of 1.0 × 10¹⁴ cm⁻³. The influence of temperature on device performance, which showed a reduction in PV parameters at elevated temperature, is also evaluated. A steeper temperature gradient with an average efficiency of −0.0265%/K for the optimized PSC is observed. The novel grading technique helps in achieving efficiency of more than 31% for the optimized device. As a result of the detailed examination of the total DD and temperature dependency of the simulated device, structures are also studied simultaneously. Full article

Organometallic halide perovskite (PVK)-based solar cells (PSC) have gained significant popularity owing to their efficiency, adaptability, and versatility. However, the presence of lead in conventional PVK poses environmental risks and hinders effective commercialization. Although lead-free PVK solar cells have been developed, their conversion efficiency is limited due to intrinsic losses. To address this challenge, we present a simulation study focusing on methylammonium tin bromide (MASnBr₃) as an alternative material. In our investigation, the MASnBr₃ layers are strategically placed between a copper iodide (CuI)-based hole transporting material (HTM) and a zinc oxide (ZnO)-based electron transporting material (ETM). We optimize the active layer thickness, operating temperature, defect density analysis, and series resistances to assess device performance. Furthermore, we employ contour mapping, considering both thickness and defect density, for a detailed investigation. Our primary objective is to achieve unprecedented efficiency in lead-free MASnBr₃-based PSCs. Remarkably, our study achieves the highest J_SC (short-circuit current density) of 34.09 mA/cm², V_OC (open-circuit voltage) of 1.15 V, FF (fill factor) of 82.06%, and optimized conversion efficiency of 32.19%. These advancements in conversion efficiency pave the way for the development of lead-free PVK solar cells in the desired direction. Full article

Simplifying the design of lead-free perovskite solar cells (PSCs) has drawn a lot of interest due to their low manufacturing cost and relative non-toxic nature. Focus has been placed mostly on reducing the toxic lead element and eliminating the requirement for expensive hole transport materials (HTMs). However, in terms of power conversion efficiency (PCE), the PSCs using all charge transport materials surpass the environmentally beneficial HTM-free PSCs. The low PCEs of the lead-free HTM-free PSCs could be linked to poorer hole transport and extraction as well as lower light harvesting. In this context, a lead-free perovskite homojunction-based HTM-free PSC was investigated, and the performance was then assessed using a Solar Cell Capacitance Simulator (SCAPS). A two-step method was employed to fabricate lead-free perovskite homojunction-based HTM-free PSCs in order to validate the simulation results. The simulation results show that high hole mobility and a narrow band gap of cesium tin iodide (CsSnI₃) boosted the hole collection and absorption spectrum, respectively. Additionally, the homojunction’s built-in electric field, which was identified using SCAPS simulations, promoted the directed transport of the photo-induced charges, lowering carrier recombination losses. Homojunction-based HTM-free PSCs having a CsSnI₃ layer with a thickness of 100 nm, defect density of 10¹⁵ cm⁻³, and interface defect density of 10¹⁸ cm⁻³ were found to be capable of delivering high PCEs under a working temperature of 300 K. When compared to formamidinium tin iodide (FASnI₃)-based devices, the open-circuit voltage (V_oc), short-circuit density (J_sc), fill factor (FF), and PCE of FASnI₃/CsSnI₃ homojunction-based HTM-free PSCs were all improved from 0.66 to 0.78 V, 26.07 to 27.65 mA cm⁻², 76.37 to 79.74%, and 14.62 to 19.03%, respectively. In comparison to a FASnI₃-based device (PCE = 8.94%), an experimentally fabricated device using homojunction of FASnI₃/CsSnI₃ performs better with V_oc of 0.84 V, J_sc of 22.06 mA cm⁻², FF of 63.50%, and PCE of 11.77%. Moreover, FASnI₃/CsSnI₃-based PSC is more stable over time than its FASnI₃-based counterpart, preserving 89% of its initial PCE. These findings provide promising guidelines for developing highly efficient and environmentally friendly HTM-free PSCs based on perovskite homojunction. Full article

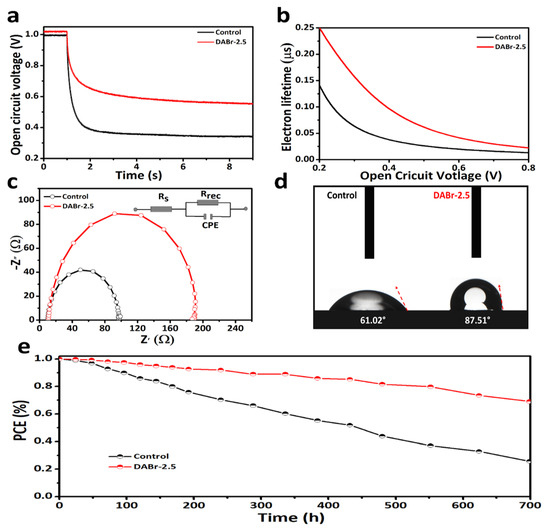

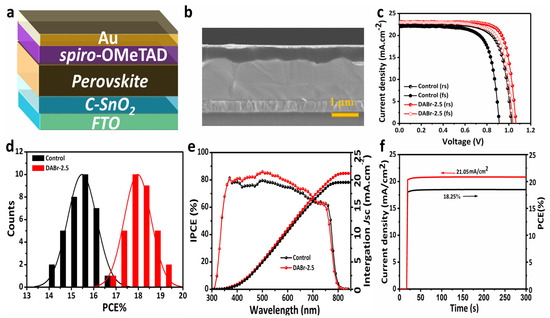

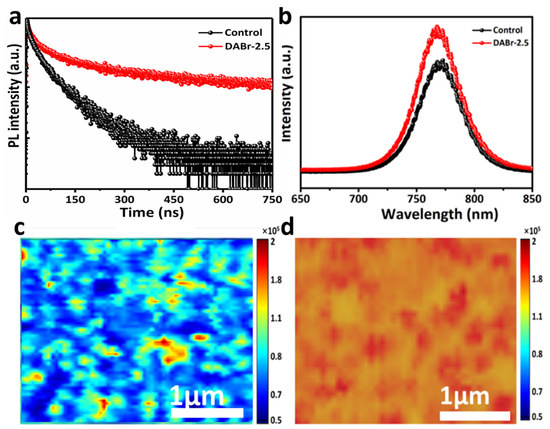

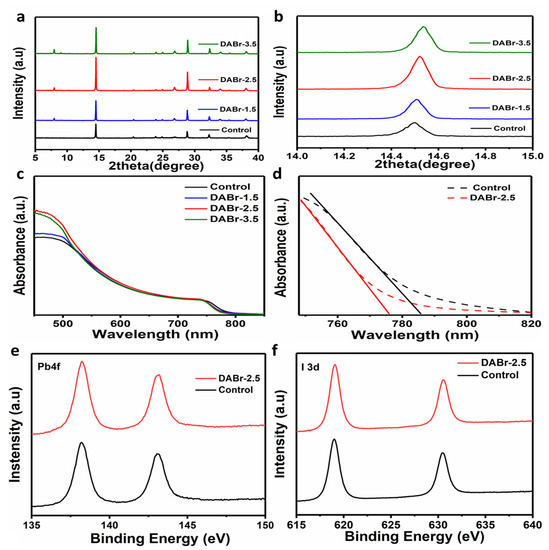

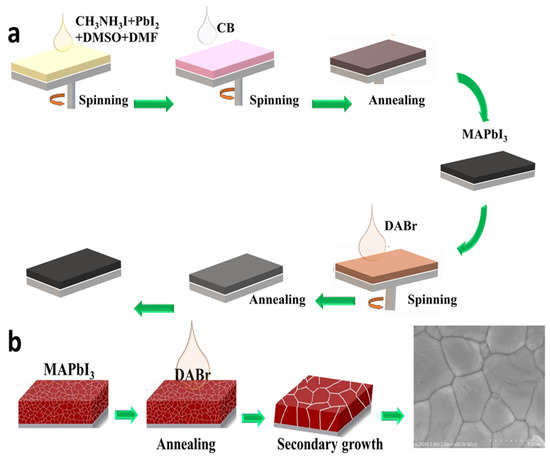

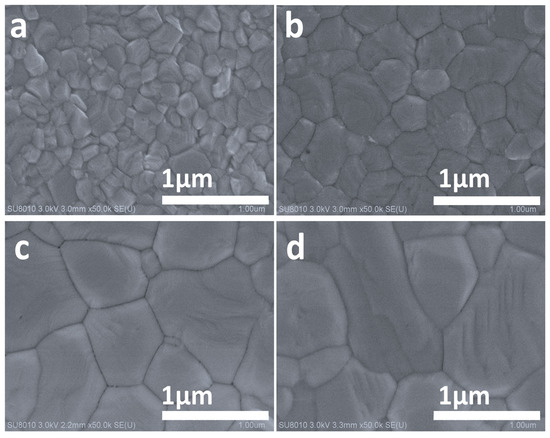

Several strategies and approaches have been reported for improving the resilience and optoelectronic properties of perovskite films. However, fabricating a desirable and stable perovskite absorber layer is still a great challenge due to the optoelectronic and fabrication limitations of the materials. Here, we introduce diethylammonium bromide (DABr) as a post-treatment material for the pre-deposited methylammonium lead iodide (MAPbI₃) film to fabricate a high-quality two-dimensional/three-dimensional (2D/3D) stacked hetero-structure perovskite film. The post-treatment method of DABr not only induces the small crystals of MAPbI₃ perovskite secondary growth into a large crystal, but also forms a 2D capping layer on the surface of the 3D MAPbI3 film. Meanwhile, the grains and crystallization of 3D film with DABr post-treatment are significantly improved, and the surface defect density is remarkably reduced, which in turn effectively suppressed the charge recombination in the interface between the perovskite layer and the charge transport layer. The perovskite solar cell based on the DABr-treatment exhibited a significantly enhanced power conversion efficiency (PCE) of 19.10% with a notable improvement in the open circuit voltage (V_OC) of 1.06 V and good stability, advocating the potential of this perovskite post-treatment approach. Full article
