Search Results (1,927)

Maintenance is crucial for the durability of the existing building stock and should be perceived as an opportunity to improve the built environment. The implementation of thermal retrofitting measures to the building’s envelope enhances global energy performance, which is economically and environmentally beneficial. Building-related energy consumption during the operation phase is key to tackling carbon neutrality and climate change. Introducing thermal retrofitting within the context of maintenance planning can be cost-optimizing, as it reveals the technical–economic synergy between building pathology and energy efficiency. Maintenance activities and energy demand throughout the building’s service life influence life-cycle costs (LCCs). Decision-making based on LCC awareness is an advantage for owners. This study discusses the impact of implementing an optimal retrofitting solution (ORS), according to different maintenance strategies, on the LCC of an existing single-family home. The ORS comprises the following measures: adding an external thermal insulation composite system (ETICS) to external walls, extruded polystyrene (XPS) panels to the roof, and replacing the existing windows with others with improved thermal performance. The three maintenance strategies involve different complexity levels, concerning the type, number and timing of activities. Moving beyond isolated assessments, this study develops an integrated framework that bridges based on two existing background methodologies, involving optimal thermal retrofitting and condition-based maintenance planning, which, combined with new research, enable the assessment of maintenance, energy and global LCC for a time horizon of 100 years. The evaluation of energy-related LCC is based on simulations. The results indicate that these costs represent the majority of the global LCC. The ORS has a considerable positive impact on energy and global LCC. Adopting a maintenance strategy characterized by fewer planned activities and an earlier schedule of replacement interventions, which determines the implementation of the retrofitting measures, is better in terms of LCC savings. Full article

To investigate the aging behavior of high-temperature-vulcanized silicone rubber (HTV-SiR) used in composite insulator sheds under coupled electrical, thermal, humidity, and mechanical stresses, accelerated aging tests were conducted to emulate the service conditions of ±800 kV ultra-high-voltage direct current (UHVDC) systems in Guangzhou, China. The physicochemical, mechanical, and electrical properties of the specimens were systematically characterized. The results show simultaneous degradation of both electrical and mechanical performance. In particular, the tensile strength exhibits a significant monotonic decrease and drops to 49.52% of its initial value under the most severe condition (0.5 kV·mm⁻¹ and 5% tensile strain) after 75 days. In contrast, the DC breakdown strength shows a non-monotonic “rise-then-fall” trend and decreases more markedly with increasing tensile strain. To address the one-shot and destructive nature of tensile testing and the associated statistical uncertainties, a lifetime prediction framework was developed by integrating a generalized Eyring acceleration relation with a stochastic degradation process. Under representative service conditions of 0.09 kV·mm⁻¹ and 0.2% tensile strain, the predicted lifetimes corresponding to failure probabilities of 10%, 75%, and 90% are 1.77, 9.08, and 17.90 years, respectively. The applicability of the model is supported by field-aged specimens. These findings provide a mechanistically grounded and reliability-oriented basis for condition assessment, lifetime-margin evaluation, material screening, and maintenance planning of UHVDC composite insulators operating in hot–humid environments. Full article

In this study, polysiloxane-containing polyimide (si-PI) composite coatings containing hexagonal boron nitride (hBN) particles of four different sizes and at different contents were prepared, and their mechanical and tribological properties were investigated. The coatings were deposited on steel substrates via dip coating and cured at 160 °C. Their tribological properties were measured using reciprocating sliding tests under unlubricated conditions against a steel ball. The composite coatings containing nano-hBN with the smallest mean primary particle size of 0.05 μm exhibited the lowest wear. Subsequently, coatings containing 1–15 wt% nano-hBN were prepared to examine the effect of filler content. The results showed that the coatings with low nano-hBN contents (1–2 wt%) had relatively high friction coefficients and significantly reduced wear on both the coating and the counterpart. Cross-sectional scanning electron microscopy (SEM) observations revealed that dispersed small hBN aggregates suppress crack propagation through dispersion strengthening. Coatings with low nano-hBN contents (1–2 wt%) also exhibited sufficient electrical insulation. However, as the hBN content increased further, hBN agglomeration was promoted, weakening the crack-propagation suppression effect and increasing wear. These findings indicate that low-content nano-hBN/si-PI composite coatings are promising electrical erosion-resistant coatings for the outer rings of the bearings used in electric vehicle motors. Full article

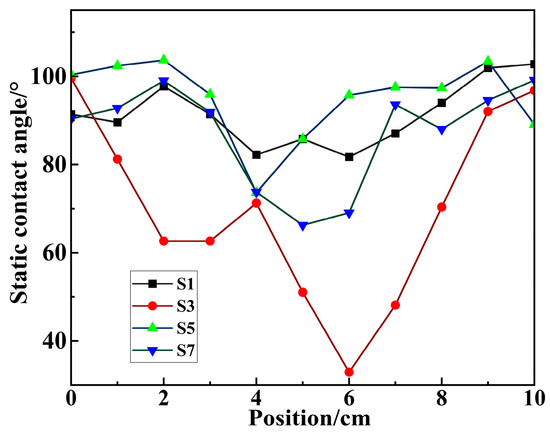

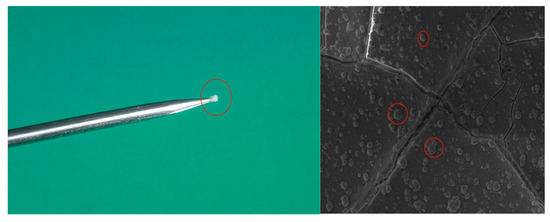

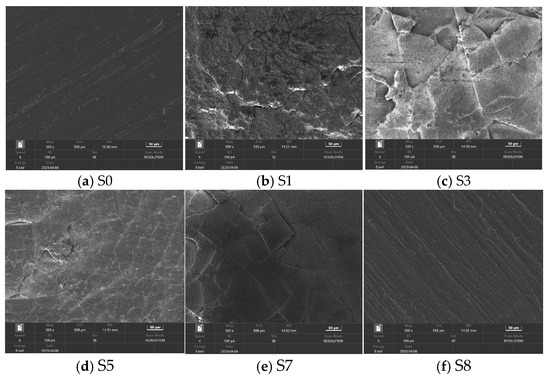

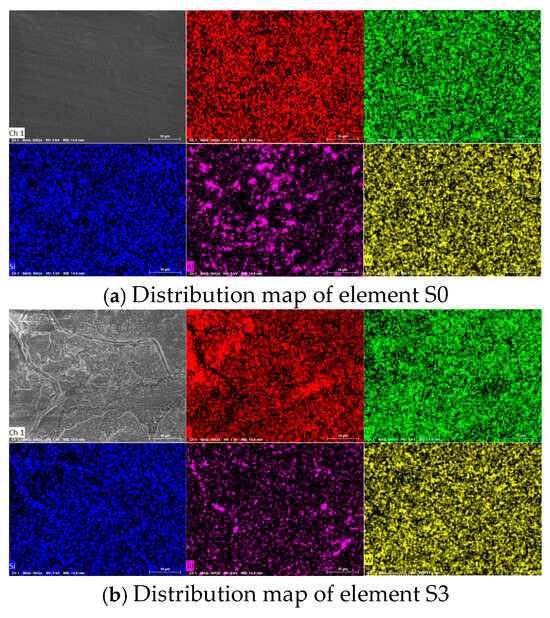

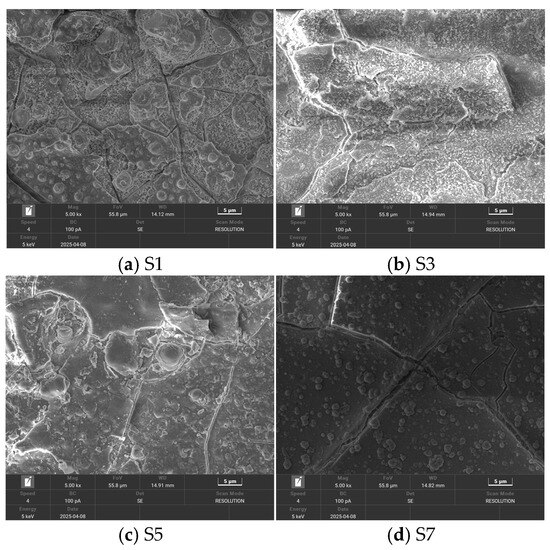

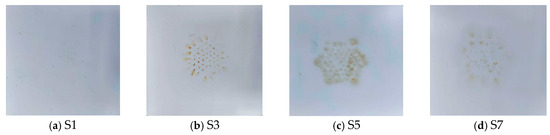

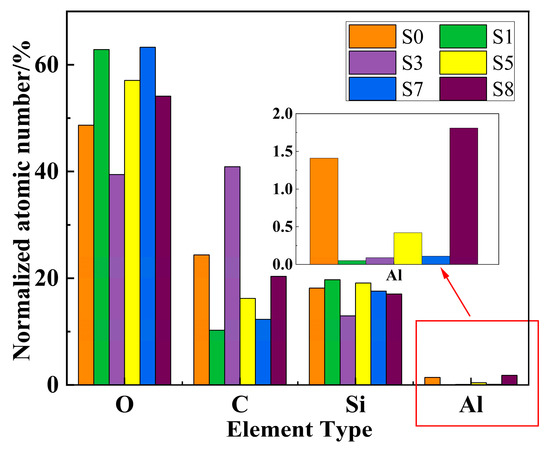

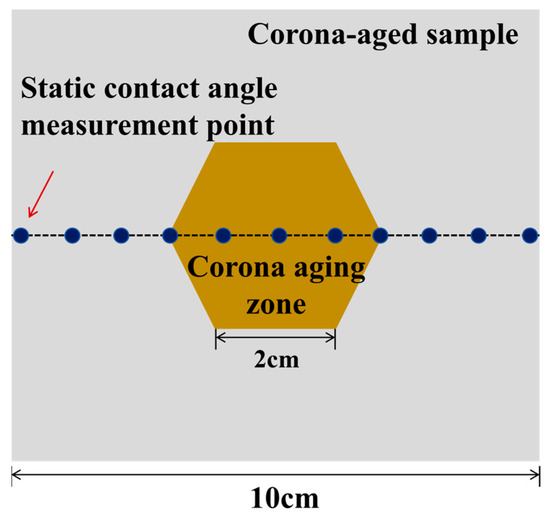

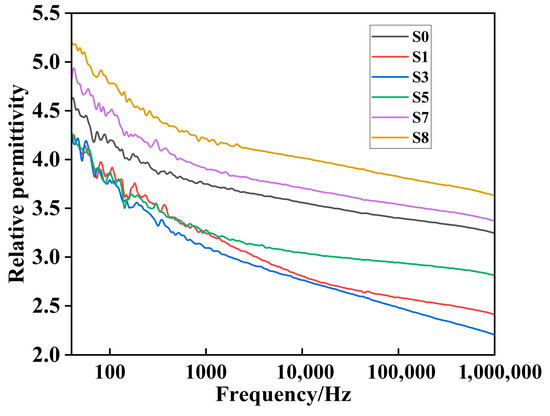

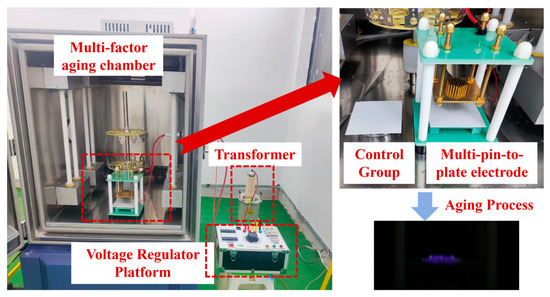

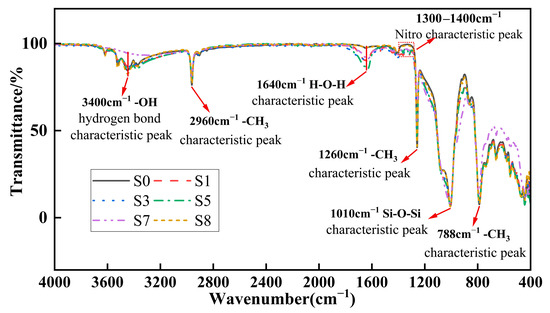

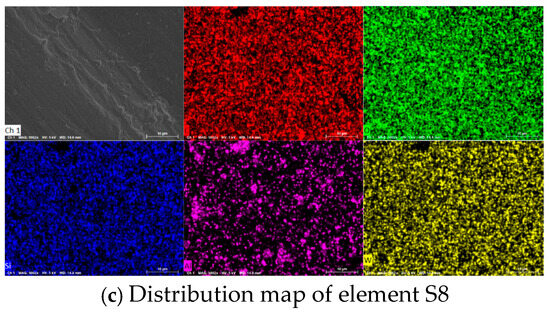

To investigate the multi-factor aging mechanisms of silicone rubber used in the outer sheath of composite bushings, this study focused on HTV silicone rubber employed in the sheath layer of 1100 kV high-voltage bushings. The samples were subjected to temperature–humidity–corona coupled aging in a multi-factor aging platform. The aged samples were characterized by scanning electron microscopy, energy-dispersive spectroscopy, Fourier-transform infrared spectroscopy, hydrophobicity measurements, hardness tests, and dielectric constant measurements. The results indicate that different aging factors affect the material differently. Corona aging primarily affects the sample surface, leading to substantial methyl group detachment, surface oxidation, and a decrease in hydrophobicity, with the local static contact angle decreasing by up to 70%. In contrast, wet heat aging affects the bulk material; under high-temperature and high-humidity conditions, the internal small-molecule chains accelerate silicon-oxide crosslinking, leading to a marked increase in hardness and a relative dielectric constant that initially decreases and then increases. Considering the complex field environment, surface performance measurements are easily influenced by external factors. Therefore, hardness and relative dielectric constant are proposed as key indicators for evaluating the aging degree of silicone rubber sheaths in service. The findings provide a valuable reference for the service-life evaluation of composite bushings. Full article

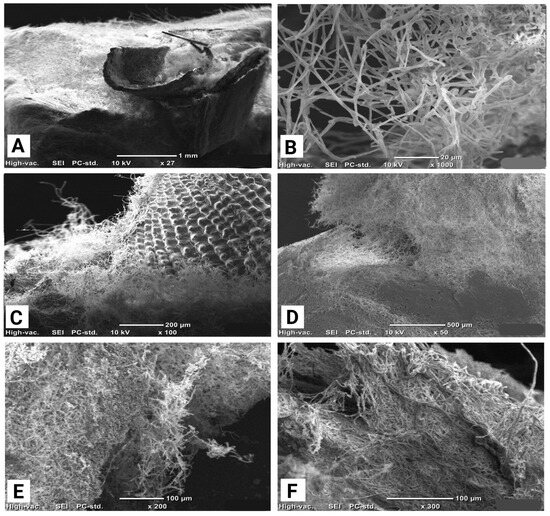

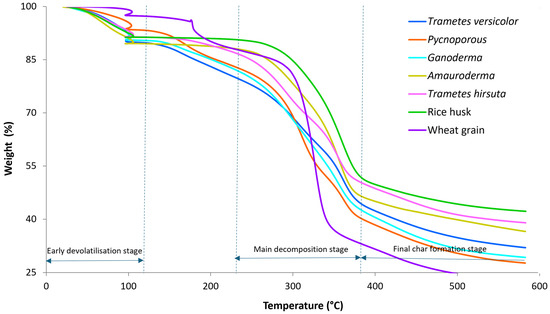

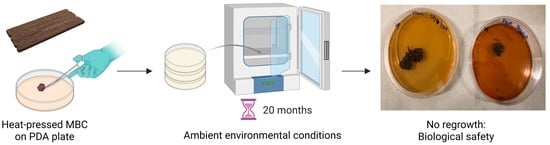

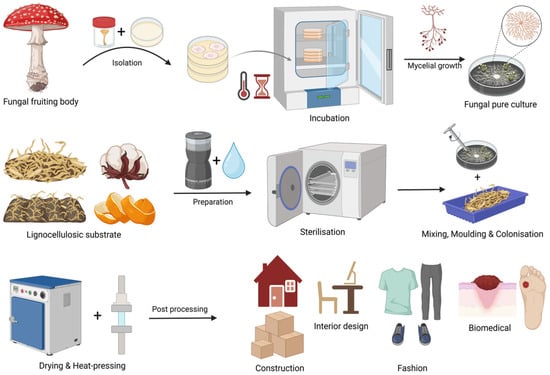

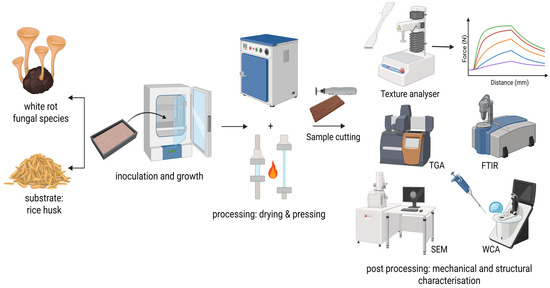

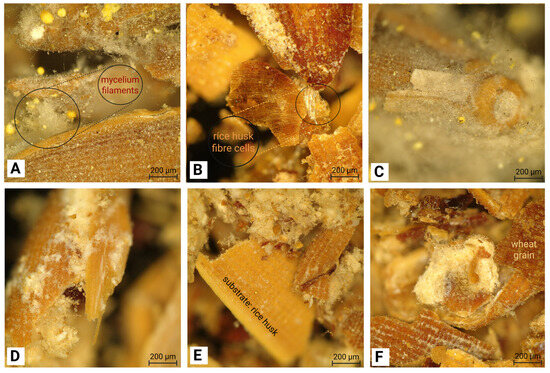

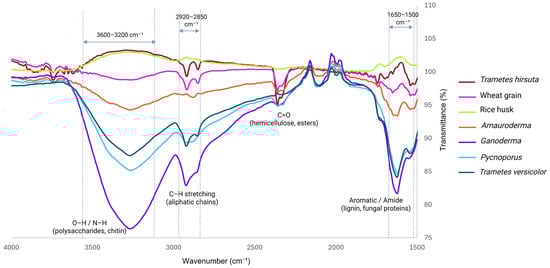

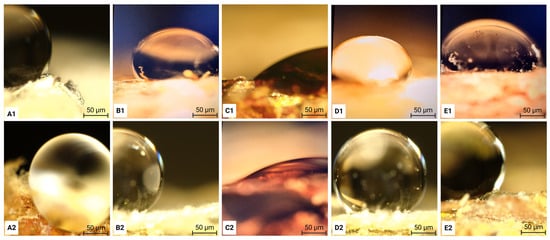

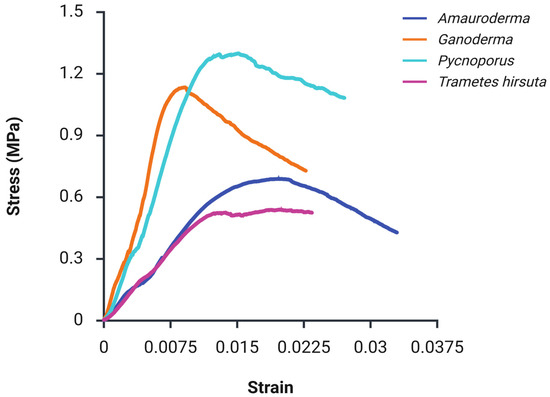

Mycelium-based composites (MBCs) are gaining attention as sustainable alternatives to conventional materials because they are grown biologically rather than produced through resource-intensive extraction and processing. This study evaluates MBCs for non-load-bearing wall panels and environmentally responsible substitutes for traditional building materials. A reproducible manufacturing process is presented, and heat-pressed panels are characterised for physical, mechanical, and chemical performance. Novelty lies in species-driven evaluation using rice-husk waste as the sole lignocellulosic substrate and a Queensland-native Amauroderma species. Five fungal species, Trametes hirsuta, Ganoderma sp., Amauroderma sp., Pycnoporus coccineus and Trametes versicolor, were cultivated on rice husks and compared under identical processing conditions. Statistical analysis showed species selection significantly influenced tensile strength, whereas flexural and compressive performance showed no significant interspecies differences. Panels achieved tensile, compressive, and flexural strengths up to approximately 0.47, 0.35, and 1.35 MPa, respectively, with Amauroderma exhibiting the highest stiffness and compressive performance. Composites from four of the five species showed low moisture sensitivity and favourable thermal behaviour relative to previously reported mycelium materials. These results demonstrate that fungal species selection is a key design lever and supports rice-husk-derived MBCs as sustainable insulation and non-load-bearing construction materials. Full article

One promising innovative joining process for non-oriented electrical sheets is based on an electro-insulating layer combined with a self-bonding varnish. The aim of this study was to investigate the adhesion of the self-bonding varnish as evaluated by a lap-shear test. During the experiments, non-oriented electrical steels with low to high silicon content were analyzed and tested. The Si content, the bond thickness, and the surface roughness Ra, as well as the selected steel production parameters—such as the radiation tube furnace temperature (RTF), the grain growth temperature (i.e., heating temperature (HF)), the peak metal temperature (PMT), and the annealing atmosphere (dry or humid, controlled by dew point)—were considered as the variables. The results showed that the lap-shear strength was independent of the surface roughness within the investigated range. In contrast, the bond thickness exhibited a weak positive effect on the lap-shear strength, while the Si content showed condition-dependent behavior. The RTF and the HF resulted in a relatively stable mechanical performance, whereas the PMT and the humid annealing atmosphere were identified as critical factors influencing adhesion. Full article

This study presents the results of research on the modification of gypsum with bio-waste to improve its thermal insulation properties and to evaluate the influence of the type and amount of the additive on the physical, mechanical, and microstructural properties of the composite. Various fractions of plant-based bio-waste were used in amounts ranging from 0.75 to 10% by weight. The thermal conductivity coefficient and thermal diffusivity were determined. Additionally, analyses of dimensional stability over time, visual appearance, and phase distribution uniformity were conducted. Mechanical tests included surface hardness measurements. In order to determine the material’s durability, water absorption and frost resistance tests were performed, and structural changes and properties after these cycles were analyzed. It was found that selecting the appropriate type and proportion of additive makes it possible to obtain composites with a favorable balance between thermal insulation, dimensional stability, and mechanical performance. The conducted research confirms the potential for effective use of bio-waste as a gypsum-modifying raw material, contributing to the development of sustainable building materials with a reduced environmental footprint and improved functional parameters. Full article

This study investigates the development of a composite material based on agricultural plant waste from Kazakhstan, utilizing a multicomponent binder incorporated with rice husk ash. The implementation of low-clinker binders enables the full utilization of ash dumps from the Kyzylorda thermal power plant (TPP) and rice husk residues from local rice-processing enterprises. Physical and chemical analysis of the ash–cement stone revealed a reduction in portlandite content compared to control samples. Phase composition analysis indicated the presence of hydroaluminate C₄AH₁₃ and a reduction in calcite, suggesting accelerated crystallization of calcium silicate hydrates. The formation of crystalline phases and intergrowth structures is assumed to contribute to the strengthening of the gel-like matrix. Experimental optimization of the ash–cement binder with rice husk ash yielded compressive strengths ranging from 3.03 to 4.10 MPa at densities of 790–900 kg/m³, depending on the type of organic filler. These results confirm the feasibility of using locally sourced agricultural waste for the production of heat-insulating and structurally stable composite materials. Full article

To develop a high-performance inorganic fireproof coating suitable for steel structures, this study utilized magnesium phosphate cement (MPC) as the matrix and introduced expanded perlite (EP) as a lightweight aggregate. The effects of EP content (40–55%) and magnesium-to-phosphorus ratio (M/P = 4:1–7:1) on the dry density, compressive strength, bond strength, and fire resistance of the coating were systematically investigated. X-ray diffraction (XRD), scanning electron microscopy (SEM), and thermogravimetric analysis (TGA) were employed to reveal the phase evolution and microstructure evolution mechanisms at high temperatures. The results indicate that increasing EP content significantly reduces the dry density and thermal conductivity of the coating, enhancing thermal insulation performance. However, excessive incorporation leads to the deterioration of mechanical properties, with an optimal EP content of 45%. The M/P ratio influences the interfacial bond strength and high-temperature structural stability by regulating the proportion of the hydration product K-struvite (KMgPO₄·6H₂O) and residual MgO. Compressive strength peaked at M/P = 6:1 (0.80 MPa), while bond strength was optimal at M/P = 5:1 (0.097 MPa), corresponding to the best fire resistance (back-side temperature of 180.4 °C). At high temperatures, K-struvite dehydrates and transforms into anhydrous KMgPO₄, which, together with residual MgO and crystallized SiO₂ from EP, forms a dense ceramic skeleton, ensuring the structural integrity of the coating. Comprehensive performance evaluation determined the optimal mix ratio as M/P = 5:1 and EP content = 45%. The coating with this ratio exhibits a dry density of approximately 560 kg/m³, a 14-day compressive strength of 0.53 MPa, a bond strength of 0.097 MPa, and a back-side temperature of 180.4 °C under flame exposure, demonstrating a favorable balance of lightweight character, mechanical integrity, and thermal insulation performance suitable for steel structure fire protection applications. Full article

Electric field distortion remains a fundamental challenge to the operational reliability of HVDC cable accessories, where localized stress intensifies space charge injection and accelerates insulation degradation. While nonlinear conductive composites incorporating functional fillers such as ZnO have shown potential for adaptive field grading, their dynamic interaction with space charge under non-uniform fields has yet to be fully resolved. This study experimentally examines the spatiotemporal evolution of space charge in double-layer dielectric structures comprising linear low-density polyethylene (LLDPE) and ZnO-based nonlinear composites, using the laser-induced pressure pulse (LIPP) technique. Localized field enhancement is introduced via metallic pin defects embedded on the cathode side. Comparative analysis reveals that composites with 40 vol% ZnO microvaristors markedly suppress charge injection compared to conventional semiconductive ethylene-vinyl acetate (EVA) layers. Specifically, interfacial charge accumulation during polarization is reduced by 71%, and residual charge density after depolarization decreases by 88%, leading to a more uniform internal field distribution. These findings provide direct experimental evidence of the field-regulating mechanism of nonlinear composites from the perspective of charge dynamics, supporting their application in intelligent HVDC insulation systems. Full article

Improving the energy efficiency of historic field stone masonry buildings often requires internal insulation, as external insulation is frequently restricted by heritage and architectural constraints. Internal insulation, however, alters the hygrothermal behavior of massive masonry walls and may increase moisture-related risks. This study assesses the hygrothermal performance of an internally insulated historic field stone masonry wall under past and projected future climatic conditions using long-term transient simulations. Coupled heat and moisture transfer simulations were performed with the DELPHIN software for an uninsulated reference wall and an internally insulated configuration. The analyses accounted for wind-driven rain, masonry heterogeneity, and variations in inner core composition. Past conditions were represented by a continuous 20-year measured climate dataset, while future conditions were evaluated using regional late-century climate projections (RCP2.6 and RCP8.5). Hygrothermal performance was evaluated based on moisture mass density, freeze–thaw exposure, and mold-relevant temperature–relative humidity conditions at predefined evaluation points within the wall. The results show that moisture accumulation develops gradually and cannot be reliably captured by short simulation periods. Internal insulation redistributes moisture-related risks within the wall rather than fundamentally altering the seasonal moisture regime. Freeze–thaw exposure occurs under all investigated climates, while mold-relevant humidity conditions persist at interior-adjacent locations. The findings demonstrate the importance of multi-year hygrothermal analyses when assessing moisture-related risks in internally insulated historic masonry walls. Full article

This study presents a comprehensive life cycle assessment (LCA) of 30 variants of pitched roofs compositions, focusing on global, regional, and local environmental indicators. The aim of this study was to quantify the environmental footprint of roof structures, comparing traditional technical solutions with modern systems using bio-based materials. The results show that the integration of solid wood elements and bio-based insulations significantly increases carbon sequestration potential, with the best identified composition showing a significantly negative GWP-total. A dynamic analysis of the optimal variant over time horizons of 50, 100 and 150 years, confirming the stability of environmental benefits in the long term, is presented. In order to achieve a global character, the best composition is modified and optimized for mild, cold and warm climate zones. The work provides important background for decarbonization of the construction sector and the design of adaptive, low-emission building envelope structures. Full article

Waste from the wind power and textile industries poses major environmental challenges. While the textile industry is a significant global contributor to waste, producing around 92 million tons of waste annually, and greenhouse gas emissions, wind power, although one of the cleanest energy sources during operation, still generates waste and associated CO₂ emissions, particularly associated with the end-of-life decommissioning of turbine blades. This waste can be reused, combined with bio-based binders, to reduce the construction sector’s long-term environmental impact. The present work identifies research trends and gaps in the use of these waste materials, either individually or combined, for the development of thermal and acoustic insulation solutions for the construction sector, by means of a combined bibliometric and content analysis of Scopus and Web of Science documents from 2014 to 2025. The study focuses on bibliometric indicators and reports on physical properties (thermal conductivity, density, mechanical strength, and acoustic performance) of the resulting composites, including those produced with bio-binders. Additionally, a qualitative review of life cycle assessment studies indicates that bio-based and waste-derived insulation materials can significantly reduce environmental impacts compared with conventional mineral or petrochemical insulators. Results reveal growing scientific interest in this subject, highlighting an annual publication growth of 5.09%. They emphasize the performance of natural textile fibers in thermal and acoustic insulation, the mechanical capacity of synthetic fibers, and the semi-structural potential of fiberglass composites. Meanwhile, bio-binders improve the upcycling of textile waste; however, they reveal a significant research gap in the integration of wind turbine blade waste into insulation composites. No indexed studies were found that simultaneously combine textile waste, blade-derived fibers, and bio-based binders in a single insulation system, despite projected cumulative blade waste of 43 million tons by 2050. These findings advocate hybrid innovations and standardized assessments to drive circular economy and low-carbon building solutions. Full article

This paper studies the sustainable integration of vernacular construction techniques and natural materials in the context of sustainable development, using Danube Delta UNESCO World Heritage site as case study. Through a comprehensive literature review, this research examines the potential of clay-based composites reinforced with plant fibres such as reed, bulrush, and hemp as environmentally responsible building materials. The methodology, based on a narrative literature review, combines bibliometric analysis with a case study approach to evaluate scientific interest in vernacular construction and to identify locally available natural resources. Results reveal increasing academic attention to sustainable vernacular architecture, highlighting clay-based composite’s favourable hygrothermal properties and the remarkable thermal insulation capabilities of vegetable fibres. The case study shows that most Danube Delta’s natural construction materials—particularly the world’s largest continuous reed vegetation—remain underutilized. The research concludes that revitalizing traditional construction methods, by integrating modern technological innovations, presents significant potential for sustainable rural development, preserving cultural heritage, enhancing regional identity, and reducing environmental impact in construction while supporting local economic growth through culturally authentic tourism. Full article

This study introduces a sustainable plasterboard reinforced with natural silkworm cocoon fibers, known for their intrinsic antimicrobial properties. The composite was evaluated for flexural strength, thermal performance, fire resistance, and biological susceptibility. While a slight decrease in flexural strength was observed, the composite exhibited enhanced fire performance, improved thermal insulation, and substantially reduced fungal growth after 30 days. These findings suggest that silk-based plasterboards may offer a viable alternative to conventional materials, thereby contributing to enhanced indoor hygiene and sustainability, particularly in healthcare environments. Full article
