Search Results (11)

This study explores a super-fast magnetic abrasive finishing (MAF) process for polishing the surface of an Inconel 625 bar workpiece for a hydrogen solenoid valve stem. The Inconel 625 bar was chosen to replace the existing STS 316 bar material, previously used for a hydrogen solenoid valve stem. The cylindrical surface of Inconel 625 bars was polished by a super-fast MAF process with high rotational speeds of 1000, 5000, 15,000, and 25,000 RPM and a super-strong magnetic field of 550 mT. The polishing characteristics of this process were evaluated according to the type of abrasives, rotational speeds of the workpiece and processing time. As a result, a super-smooth Inconel 625 bar was successfully achieved, with a surface roughness (Ra) reduced from 0.31 μm to 0.02 μm under the optimal conditions (15,000 RPM, CNT particles (0.04 μm), PCD diamond abrasive (1 μm), Fe (#200), 0.5 g of light oil, and 16 min of processing time). Also, the Ansys analysis results showed suitable strain, equivalent stress, and safety factor of the Inconel 625 bar. This confirmed that, after a super-fast MAF process, an Inconel 625 bar is feasible for application in Hydrogen (H₂) tanks instead of a conventional STS 316 bar. Full article

Due to the special manufacturing process of cobalt–chromium alloy cardiovascular stent tubes, there are serious surface defects in their inner walls, which affects the therapeutic effect after implantation. At the same time, the traditional processing technology cannot finish the inner wall of a cardiovascular stent tube. In light of the above problems, magnetic abrasive finishing (MAF) equipment for the inner wall of an ultra-fine and ultra-long cardiovascular stent tube is proposed, and MAF technology is used to improve the surface quality of its inner wall. High-performance spherical magnetic abrasive powders are used to finish the inner wall of a cobalt–chromium alloy cardiovascular stent tube with an inner diameter of 1.6 mm and an outer diameter of 1.8 mm. The effects of finishing time, tube rotational speed, feed speed of the magnetic pole, MAPs filling quantity, and MAP abrasive size on the surface roughness and material removal thickness of cobalt–chromium alloy cardiovascular stent tube are investigated. The results show that the surface roughness of the inner wall of the cobalt–chromium alloy cardiovascular stent decreases from 0.485 μm to 0.101 μm, and the material removal thickness of the defect layer is 4.3 μm. MAF technology is used to solve the problem of the poor surface quality of the inner walls of ultra-fine and ultra-long cobalt–chromium alloy cardiovascular stent tubes. Full article

High-performance iron-based Al₂O₃ magnetic abrasive powder (MAP) prepared by combining plasma molten metal powder with sprayed abrasive powder is used for magnetic abrasive finishing (MAF) of AZ31B magnesium alloy to remove surface defects such as creases, cracks, scratches, and pits generated during the manufacturing process of the workpiece, and to reduce surface roughness and improve its wear and corrosion resistance. In order to solve the problem of magnetic abrasive powder splash in the MAF process, the force analysis of the MAP in the processing area is conducted, and a composite magnetic pole processing device was designed and simulated to compare the effects of both devices on MAF, confirming the feasibility of composite magnetic pole grinding. Then, experiments have been designed using Response Surface Methodology (RSM) to investigate the effect of four factors-magnetic pole rotation speed, grinding gap, magnetic pole feed rate, magnetic abrasive filling quantity-on surface roughness and the interactions between them. The minimum surface roughness value that can be obtained is used as the index for parameter optimization, and the optimized parameters are used for experiments, and the results show that the established surface roughness model has good predictive ability. Full article

Magnetic abrasive finishing (MAF) shows a high potential for use on computerized numerical control (CNC) machine tools as a standard tool to polish workpieces directly after the milling process. This paper presents a new MAF tool with a single, large permanent magnet and a novel top cover structure for finishing the plain ferromagnetic workpieces. The top cover structure of the MAF tool, combined with an optimized working gap, ensures the effect of mechanical powder compaction, which leads to a significant increase in process capability and surface roughness reduction. The influence of the process parameters such as feed rate, equivalent cutting speed, working gap (including for three grain sizes) and the gap to the magnet was investigated. In addition, the influence of the initial surface after face milling, end milling, ball end milling and grinding on the surface quality after MAF was investigated. Furthermore, three typical surfaces after milling and MAF were analyzed. By magnetic abrasive finishing, a significant surface quality improvement of the initial milled surfaces to roughness values up to Ra = 0.02 µm and Rz = 0.12 µm in one processing step could be achieved. Full article

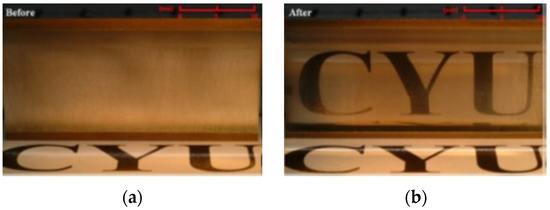

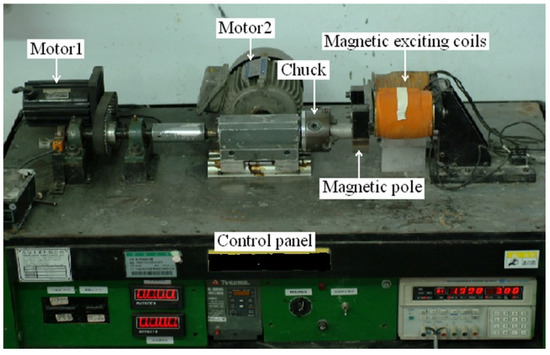

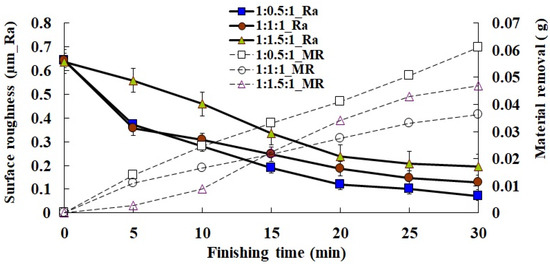

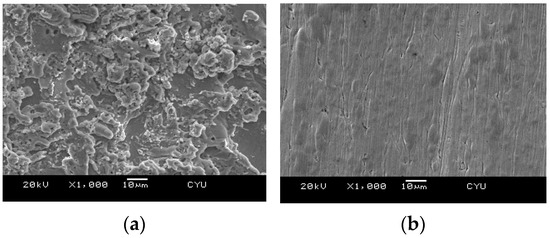

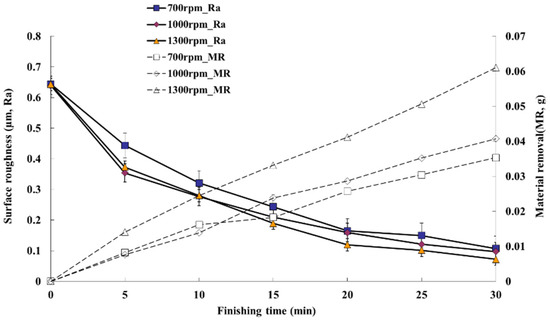

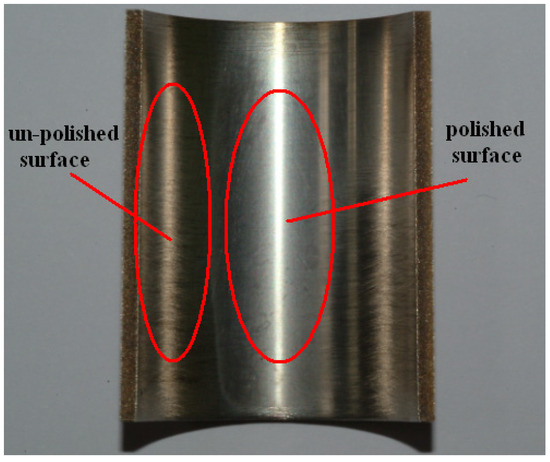

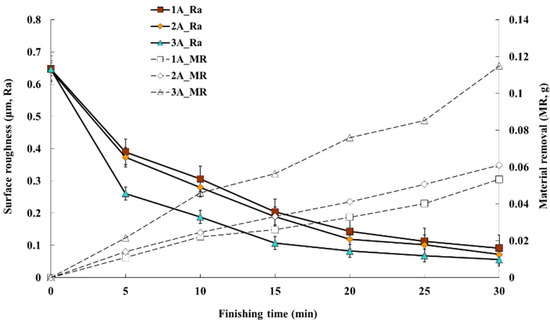

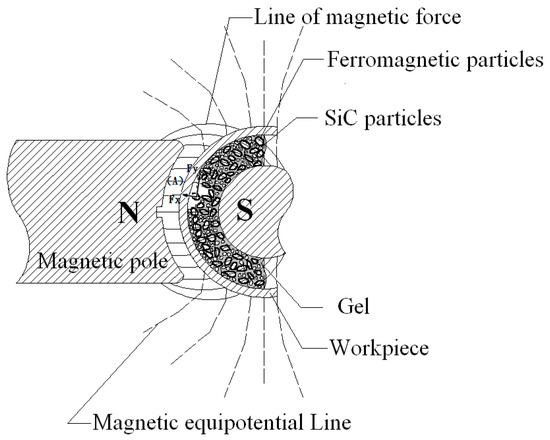

Magnetic abrasive finishing (MAF) is a fast, high efficiency and high-precision polishing method on the surface machining of the metals. Furthermore, MAF also can be utilized to polish the stainless tubes in industrial applications; however, stainless tubes are often a non-magnetic material that makes it difficult for the magnetic field line to penetrate into the stainless tubes, thus reducing the magnetic forces in the inner tubes polishing. That is why stainless tubes are not easy to finish using traditional MAF. Therefore, magnetic finishing with gel abrasive (MFGA) applies gels mixed with steel grit and abrasives that were developed to improve the polishing efficiency and surface uniformity of the steel elements. In this study, a guar gum or silicone gel mixed with steel grit and silicon carbides are used as the magnetic abrasive gel to polish the stainless inner tubes. A DC motor was used to control the rotation speed of the chuck and an AC induction motor connected with an eccentric cam to produce the reciprocating motion of the workpiece were utilized to finish the inner surface of stainless tubes in the polishing process. The parameters of abrasive concentration, abrasive particle sizes, rotation speeds of motor and electric currents were used to investigate the surface roughness and the removal of materials from the stainless tubes. The experimental results showed that since guar gum had better fluidity than the silicone gel did, guar gum created excellent polishing efficiency in MFGA. Furthermore, the surface roughness of the stainless tube decreased from 0.646 μm Ra to below 0.056 μm Ra after processing for 30 min with the parameters of current 3A, gel abrasive with guar gum, rotational speed 1300 rpm and vibration frequency 4 Hz. Full article

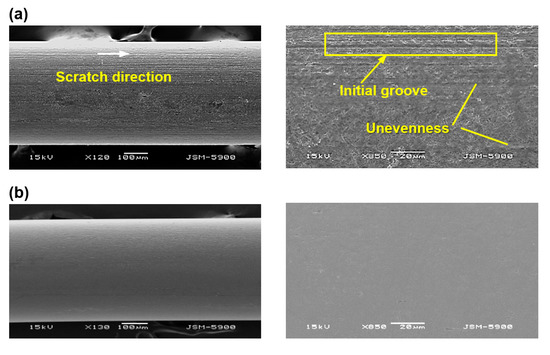

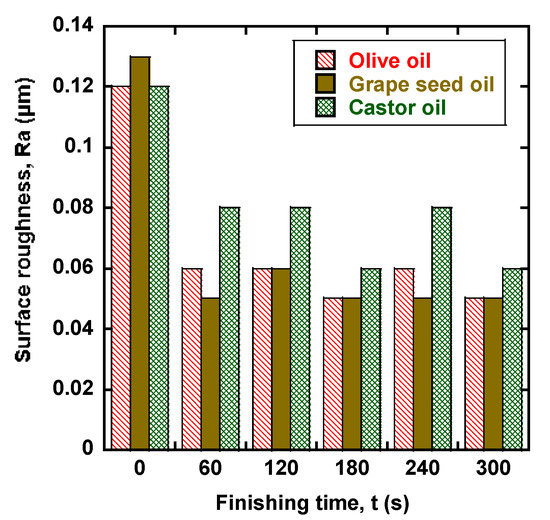

The orthopedic stent wire is one of the critical medical components, which is mainly used for the replacement of physically damaged parts in the human body. Therefore, a smooth surface and lack of toxic substances on the surface of this component are highly demanded. In this study, a magnetic abrasive finishing (MAF) process was carried out using a non-toxic abrasive compound (a mixture of iron powder, diamond particles, cold cream, and eco-friendly oils) to achieve high-quality surface finishing of orthopedic stent wire. The surface roughness (Ra) of the stent wire was investigated according to various processing parameters: different rotational speeds (500, 1000, and 2000 rpm), diamond particle sizes (1.0 µm), and three eco-friendly oils (olive oil: C₉₈H₁₈₄O₁₀; grapeseed oil: C₁₈H₃₂O₂; and castor oil: C₅₇H₁₀₄O₉) within 300 s of the finishing time. The results showed that the surface roughness of the wire was reduced to 0.04 µm with a rotation speed of 1000 rpm and a diamond particle size of 1 µm when using grapeseed oil. SEM microimages and EDS analysis showed that the MAF process using a non-toxic abrasive compound could improve the surface quality of orthopedic Ni-Ti stent wire with a lack of toxic substances on the surface finish. Full article

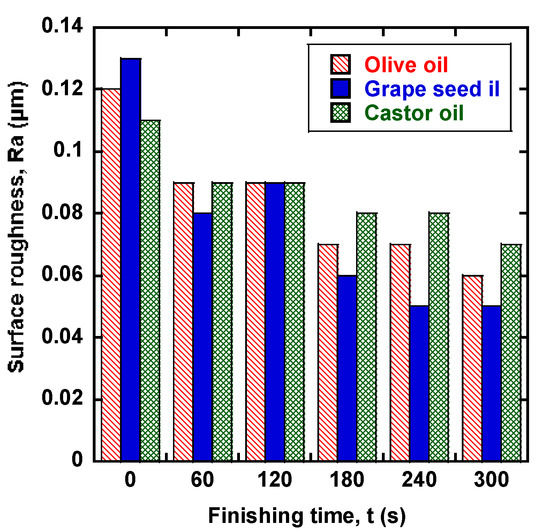

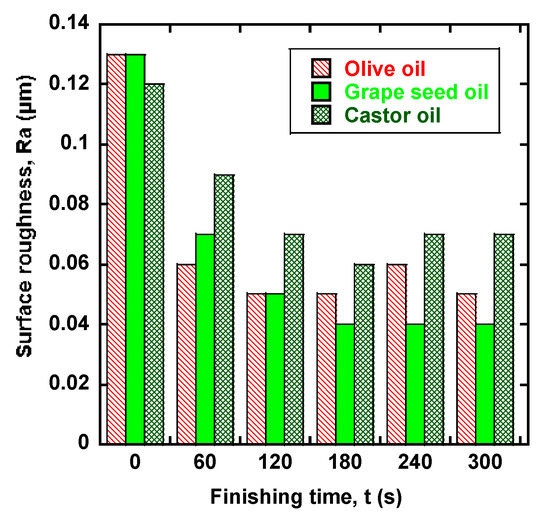

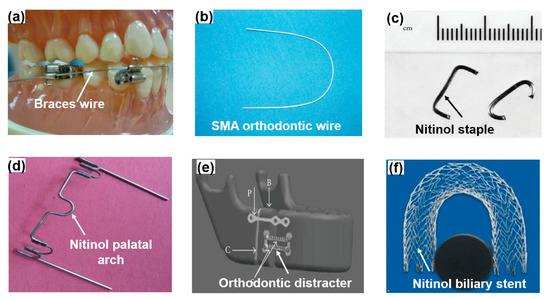

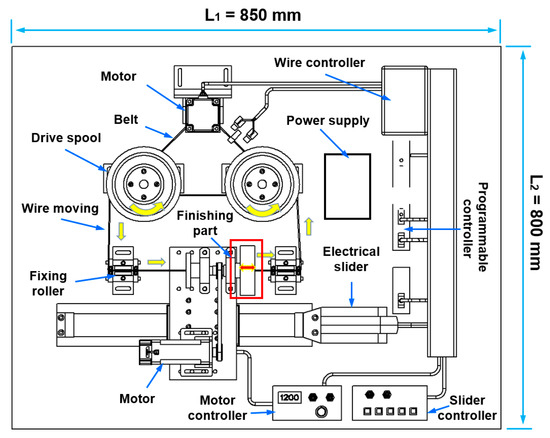

Nickel-titanium (Ni-Ti) has been widely used to make shape-memory actuator wire for numerous medical industrial applications, with the result that it frequently comes into contact with the human body. High-quality and nontoxic surfaces of this material are therefore in high demand. We used a rotating magnetic field for an ultraprecision finishing of Ni-Ti stent wire biomaterials and evaluated the finishing technique’s efficacy with different processing oils. To create nontoxic Ni-Ti stent wire, the industrial processing oils that are generally used in the surface improvement process were exchanged for oils with low environmental impacts, and processed under rotating magnetic fields at different speeds and processing times. The processing performance of the different oils was compared and verified. The results show that ultraprecision magnetic abrasive finishing that uses olive and castor oil improves surface roughness by 66.67%, and 45.83%, respectively. SEM and energy-dispersive X-ray spectroscopy (EDX) analyses of the finished components (before and after processing) showed that the material composition of the Ni-Ti stent wire was not changed. Additionally, the magnetic abrasive tool composition was not found on the surface of the finished Ni-Ti stent wire. In conclusion, the environmentally friendly oil effectively improved the diameter of the Ni-Ti stent wire, demonstrating the utility of olive and castor oil in ultraprecision finishing of Ni-Ti stent wire biomaterials. Full article

The research aims to describe the micro-machining characteristics in a high-speed magnetic abrasive finishing, which is applicable for achieving the high surface accuracy and dimensional accuracy of fine ceramic bars that are typically characterized by strong hardness and brittle susceptibility. In this paper, the high-speed magnetic abrasive finishing was applied to investigate how the finishing parameters would have effects on such output parameters as surface roughness, variation of diameters, roundness, and removed weight. The results showed that, under variants of diamond abrasives sizing between (1, 3 and 9 µm), 1 µm showed comparatively good values as for surface roughness and roundness within shortest processing time. When the optimal condition was used, the surface roughness Ra and roundness (LSC) were improved to 0.01 µm and 0.14 µm, respectively. The tendency of diameter change could be categorized into two regions—stable and unstable. The finding from the study was that the performance of ultra-precision processing linear controlling was possibly achievable for the stable region of diameter change, while linearly controlling diameters in the workpiece. Full article

In this study, a novel magnetorheological (MR) polishing device under a compound magnetic field is designed to achieve microlevel polishing of the titanium tubes. The polishing process is realized by combining the rotation motion of the tube and the reciprocating linear motion of the polishing head. Two types of excitation equipment for generating an appropriate compound magnetic field are outlined. A series of experiments are conducted to systematically investigate the effect of compound magnetic field strength, rotation speed, and type and concentration of abrasive particles on the polishing performance delivered by the designed device. The experiments were carried out through controlling variables. Before and after the experiment, the surface roughness in the polished area of the workpiece is measured, and the influence of the independent variable on the polishing effect is judged by a changing rule of surface roughness so as to obtain a better parameter about compound magnetic field strength, concentration of abrasive particles, etc. It is shown from experimental results that diamond abrasive particles are appropriate for fine finishing the internal surface of the titanium-alloy tube. It is also identified that the polishing performance is excellent at high magnetic field strength, fast rotation speed, and high abrasive-particle concentration. Full article

In this paper, we propose a new ultra-high-precision magnetic abrasive finishing method for wire material which is considered to be difficult with the existing finishing process. The processing method uses a rotating magnetic field system with unbonded magnetic abrasive type. It is believed that this process can efficiently perform the ultra-high-precision finishing for producing a smooth surface finish and removing a diameter of wire material. For such a processing improvement, the following parameters are considered; rotational speed of rotating magnetic field, vibration frequency of wire material, and unbonded magnetic abrasive grain size. In order to evaluate the performance of the new finishing process for the wire material, the American Iron and Steel Institute (AISI) 1085 steel wire was used as the wire workpiece. The experimental results showed that the original surface roughness of AISI 1085 steel wire was enhanced from 0.25 µm to 0.02 µm for 60 s at 800 rpm of rotational speed. Also, the performance of the removed diameter was excellent. As the result, a new ultra-high-precision magnetic abrasive finishing using a rotating magnetic field with unbonded magnetic abrasive type could be successfully adopted for improving the surface roughness and removing the diameter of AISI 1085 steel wire material. Full article

RSA 905, a rapidly solidified aluminum alloy, has been widely utilized in optical, automotive, and aerospace industries owing to its superior mechanical properties such as hardness and strength compared to conventional aluminum alloys. However, the surface finishing of RSA 905 to achieve submicron surface roughness is quite challenging and was rarely addressed. This paper presents an experimental and analytical study on magnetic field-assisted finishing (MFAF) of RSA 905 through a systematic investigation on surface integrity in relation to the MFAF process parameters. The effect of abrasive and polishing speed conditions on material removal and surface roughness was quantitatively investigated. The surface and subsurface quality were evaluated by optical microscope and scanning electron microscope (SEM) observations, residual stress measurement, surface microhardness and tribology test. The results show that relatively high material removal and low surface roughness were obtained under conditions using the SiC abrasive with a grit size of 12 µm at polishing speed of 400 rpm or using the Al₂O₃ abrasive with a grit size of 5 µm at polishing speed of 800 rpm. Heat melt layer caused by wire electrical discharge machining (EDM) during the sample preparation was removed by MFAF without inducing new subsurface damage. The MFAF process also helps release the surface residual stress and improve the tribological performance although the surface microhardness was slightly reduced. Full article
