Search Results (12)

Propylene production through the CO₂-assisted oxidative dehydrogenation of propane (CO₂-ODP) is an effective route able to address the ever-increasing demand for propylene and simultaneously utilize CO₂. In this study, a series of alumina-supported gallium oxide catalysts of variable Ga₂O₃ loading was synthesized, characterized, and evaluated with respect to their activity for the CO₂-ODP reaction. It was found that both the catalysts’ physicochemical characteristics and performance were strongly affected by the amount of Ga₂O₃ dispersed on Al₂O₃. Surface basicity was maximized for the sample containing 20 wt.% Ga₂O₃, whereas surface acidity was monotonically increased with increasing Ga₂O₃ loading. A volcano-type correlation was found between catalytic performance and acid/base properties, according to which propane conversion and propylene yield exhibited optimum values for intermediate surface basicity and acidity, which both correspond to the sample containing 30 wt.% Ga₂O₃. The dispersion of a suitable amount of Ga₂O₃ on the Al₂O₃ surface not only enhances the conversion of propane to propylene but also suppresses the formation of side products (C₂H₄, CH₄, and C₂H₆) at temperatures of practical interest. The 30%Ga₂O₃-Al₂O₃ catalyst exhibited very good stability at 550 °C, where byproduct formation and carbon deposition were limited. Mechanistic studies indicated that the reaction proceeds through a two-step oxidative route with the participation of CO₂ in the abstraction of H₂, originating from propane dehydrogenation, through the reverse water–gas reaction (RWGS) reaction, shifting the thermodynamic equilibrium towards propylene generation. Full article

Catalytic methane decomposition offers an attractive and sustainable pathway for producing CO_x-free hydrogen and valuable carbon nanotubes. This work investigates the innovative use of liquid metals, particularly gallium and indium, as promoters for iron catalysts based on a titanium dioxide and alumina composite to improve this process even more. In a fixed-bed reactor operating at 800 °C and atmospheric pressure, all catalyst activities for methane decomposition were thoroughly assessed while keeping the gas hourly space velocity at 6 L/g h. Surface area and porosity, H₂-temperature programmed reduction/oxidation, X-ray diffraction, Raman spectroscopy, scanning transmission electron microscopy, and thermogravimetry analysis were utilized to investigate the physicochemical properties of the catalyst. The result showed that iron supported on a titanium-alumina catalyst exhibited higher activity, stability, and reproducibility with a methane conversion of 90% and hydrogen production of 81% after three cycles, with 240 min for each cycle and stability for 480 min. In contrast, the liquid metal-promoted catalysts improved the metal-support interaction and textural properties, such as surface area, pore volume, and particle dispersion of the catalysts. Still, the catalytic efficiency significantly improved. However, the gallium-promoted catalyst displayed excellent reusability. The characterization of the spent catalyst proved that both the iron supported on a titanium-alumina and its gallium-promoted derivative produced graphitic carbon; on the contrary, the indium-promoted catalyst produced amorphous carbon. These results demonstrate how liquid metal promoters can be used to adjust the characteristics of catalysts, providing opportunities for improved reusability and regulated production of carbon byproducts during methane decomposition. Full article

Here, we report on using chemical vapor deposition to generate three kinds of gallium sulfide nanosheets, with thicknesses of approximately 10, 40, and 170 nm. Next, we performed Raman imaging analysis on these nanosheets to evaluate their properties. The 10 nm GaS nanosheets exhibited a nearly equal distribution of Raman imaging intensity, whereas the 40 and 170 nm GaS nanosheets exhibited an inclination toward the edges with higher Raman intensity. When the polarization of the laser was changed, the intensity of Raman imaging of the 10 nm thick GaS nanosheets remained consistent when illuminated with a 532 nm laser. Notably, a greater Raman intensity was discernible at the edges of the 40 and 170 nm GaS nanosheets. Three distinct GaS nanosheet devices with different film thicknesses were fabricated, and their photocurrents were recorded. The devices were exposed to light of 455 nm wavelength. The GaS nanosheet devices with film thicknesses of 40 and 170 nm exhibited a positive photoresponse even though the photocurrents were fairly low. In contrast, the GaS nanosheet device with a film thickness of 10 nm had a considerable current without light, even though it had a weak reaction to light. This study reveals the different spatial patterns of Raman imaging with GaS thickness, the wavelength of excitation light, and polarization. Remarkably, the I-V diagram revealed a higher dark-field current of 800 nA in the device with a GaS nanosheet thickness of approximately 10 nm, when using a voltage of 1.5 V and a laser of 445 nm wavelength. These findings are comparable with those theretical pretictions in the existing literature. In conclusion, the observation above could serve as a catalyst for future exploration into photocatalysis, electrochemical hydrogen production through water splitting, energy storage, nonlinear optics, gas sensing, and ultraviolet selective photodetectors of GaS nanosheet-based photodetectors. Full article

Carbon dioxide (CO₂) assisted oxidative dehydrogenation of propane over Ga-modified catalysts is highly sensitive to the identity of support, but the underlying cause of support effects has not been well established. In this article, SSZ-13, SSZ-39, ZSM-5, silica and γ-Al₂O₃ were used to load Ga species by incipient wet impregnation. The structure, textural properties, acidity of the Ga-based catalysts and the process of CO₂-assisted oxidative dehydrogenation of propane were examined by X-ray diffraction (XRD), nitrogen physisorption (N₂ physisorption), ammonia temperature-programmed desorption (NH₃-TPD), pyridine chemisorbed Fourier transform infrared spectra (Py-FTIR), OH-FTIR and in situ FTIR. Evaluation of the catalytic performance combined with detailed catalyst characterization suggests that their dehydrogenation activity is positively associated with the number of acid sites in middle strength, confirming that the Lewis acid sites generated by Ga cations are the active species in the reaction. Ga/Na-SSZ-39(9) also has feasible acidic strength and a unique channel structure, which is conducive to the dissociative adsorption of propane and desorption of olefins. The Ga/Na-SSZ-39(9) catalysts showed superior olefins selectivity and catalytic stability at 600 ℃ compared to any other catalysts. This approach to quantifying support acid strength, and channel structure and applying it as a key catalytic descriptor of support effects is a useful tool to enable the rational design of next-generation CO₂-assisted oxidative dehydrogenation catalysts. Full article

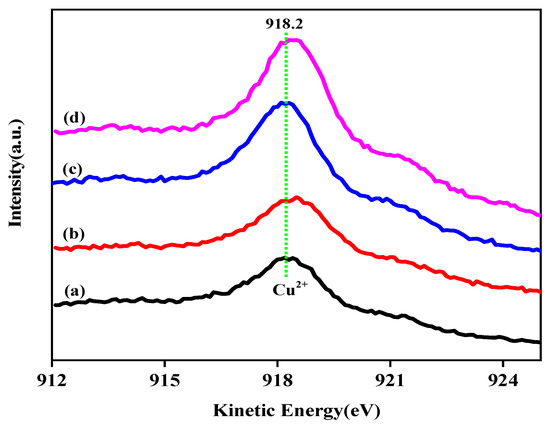

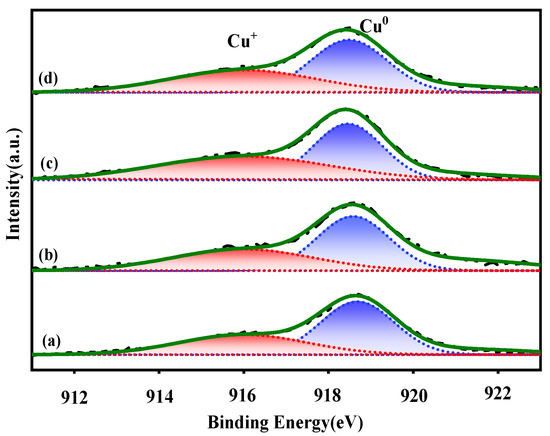

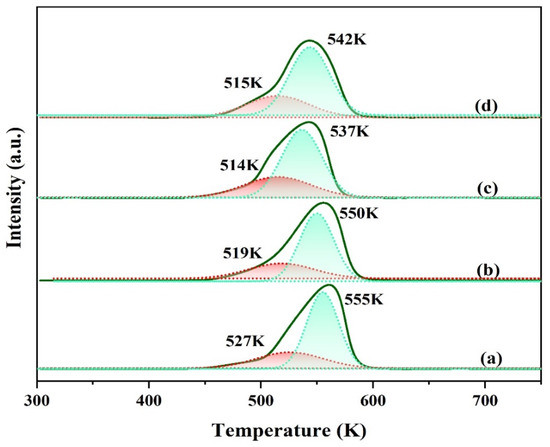

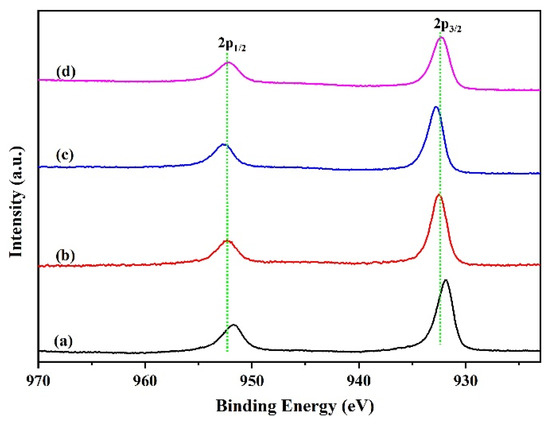

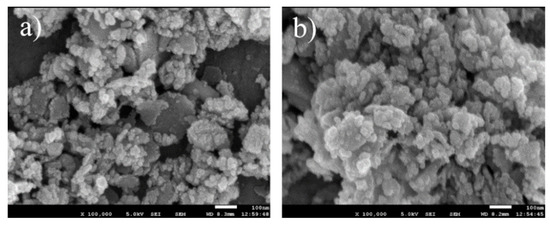

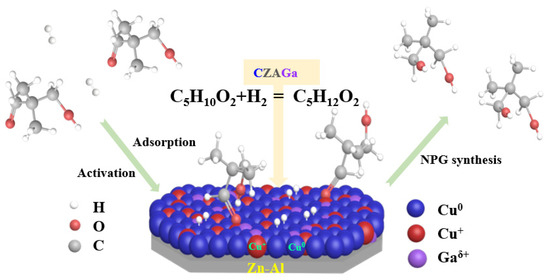

Cu-based catalysts, modified by gallium addition via the stepwise co-precipitation method, were studied for the liquid phase hydrogenation of hydroxypivalaldehyde (HPA) to neopentyl glycol (NPG). Through physico-chemical techniques, the effects of gallium introduction on the Cu trimetallic catalyst performance and the reaction mechanism of HPA hydrogenation were discussed. The characterization results showed that gallium introduction can influence the dispersion, reduction, and distribution of active Cu species, as well as their reactivity. Herein, the catalyst with 2 wt% gallium addition exhibited excellent catalytic performance with HPA conversion rate and NPG selectivity of 93.5% and 95.5%, at a reaction pressure of 3 MPa, temperature of 110 °C, hydrogen-aldehyde ratio (molar ratio) 10:1, and liquid space-time at a speed of 8.4 h⁻¹. The good performance could be attributed to gallium doping tending to dynamically tune the interaction between the components, increasing Cu dispersion and the distributions of Cu⁺ and Cu⁰ species on the catalyst surfaces. Full article

The chemical industry still requires development of environmentally friendly processes. Acid-catalysed chemical processes may cause environmental problems. Urgent need to replace conventional acids has forced the search for sustainable alternatives. Metal-containing ionic liquids have drawn considerable attention from scientists for many years. These compounds may exhibit very high Lewis acidity, which is usually dependent on the composition of the ionic liquid with the particular content of metal salt. Therefore, metal-containing ionic liquids have found a lot of applications and are successfully employed as catalysts, co-catalysts or reaction media in various fields of chemistry, especially in organic chemistry. Gallium(III)- and indium(III)-containing ionic liquids help to transfer the remarkable activity of metal salts into even more active and easier-to-handle forms of ionic liquids. This review highlights the wide range of possible applications and the high potential of metal-containing ionic liquids with special focus on Ga(III) and In(III), which may help to outline the framework for further development of the presented research topic and synthesis of new representatives of this group of compounds. Full article

The efficient and clean conversion of light alkanes is a research hotspot in the petrochemical industry, and the development of effective and eco-friendly non-noble metal-based catalysts is a key factor in this field. Among them, gallium is a metal component with good catalytic performance, which has been extensively used for light alkanes conversion. Herein, we critically summarize recent developments in the preparation of gallium-based catalysts and their applications in the catalytic conversion of light alkanes. First, we briefly describe the different routes of light alkane conversion. Following that, the remarkable preparation methods for gallium-based catalysts are discussed, with their state-of-the-art application in light alkane conversion. It should be noticed that the directional preparation of specific Ga species, strengthening metal-support interactions to anchor Ga species, and the application of new kinds of methods for Ga-based catalysts preparation are at the leading edge. Finally, the review provides some current limitations and future perspectives for the development of gallium-based catalysts. Recently, different kinds of Ga species were reported to be active in alkane conversion, and how to separate them with advanced in situ and ex situ characterizations is still a problem that needs to be solved. We believe that this review can provide base information for the preparation and application of Ga-based catalysts in the current stage. With these summarizations, this review can inspire new research directions of gallium-based catalysts in the catalysis conversion of light alkanes with ameliorated performances. Full article

Interest in the synthesis and fabrication of gallium oxide (Ga₂O₃) nanostructures as wide bandgap semiconductor-based ultraviolet (UV) photodetectors has recently increased due to their importance in cases of deep-UV photodetectors operating in high power/temperature conditions. Due to their unique properties, i.e., higher surface-to-volume ratio and quantum effects, these nanostructures can significantly enhance the sensitivity of detection. In this work, two Ga₂O₃ nanostructured films with different nanowire densities and sizes obtained by thermal oxidation of Ga on quartz, in the presence and absence of Ag catalyst, were investigated. The electrical properties influenced by the density of Ga₂O₃ nanowires (NWs) were analyzed to define the configuration of UV detection. The electrical measurements were performed on two different electric contacts and were located at distances of 1 and 3 mm. Factors affecting the detection performance of Ga₂O₃ NWs film, such as the distance between metal contacts (1 and 3 mm apart), voltages (5–20 V) and transient photocurrents were discussed in relation to the composition and nanostructure of the Ga₂O₃ NWs film. Full article

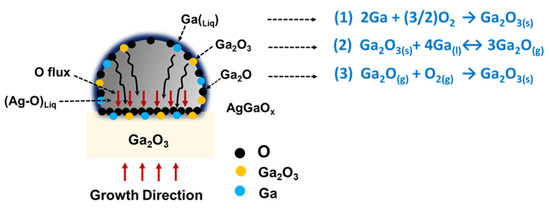

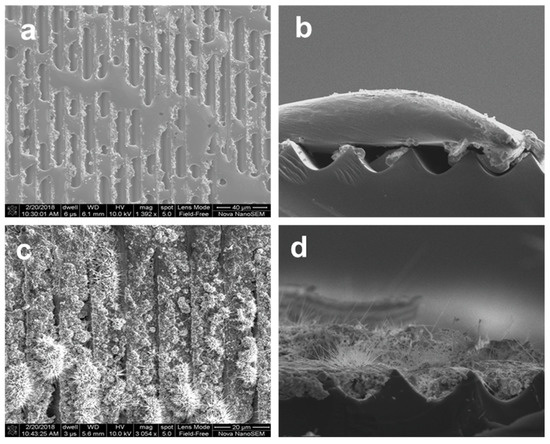

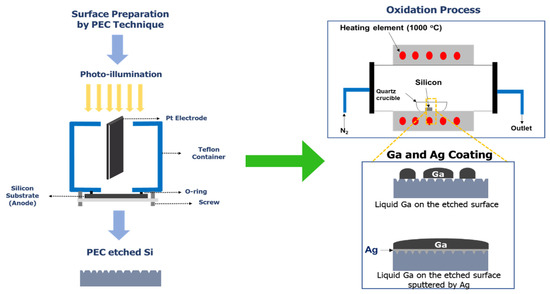

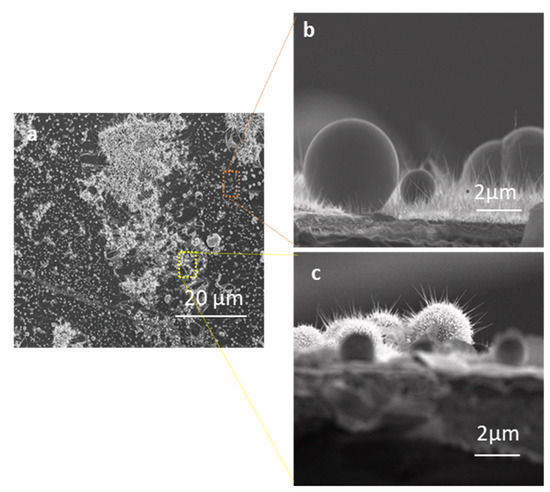

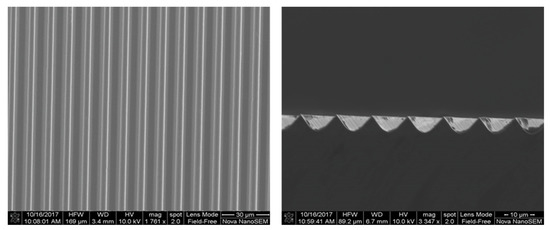

The importance of Ga₂O₃-based material for harsh environmental applications has attracted the interest of researchers in exploring various fabrication and growth techniques of Ga₂O₃-based nanomaterials using effective and low-cost processes. Herein, a demonstration to improve the wettability of liquid gallium on a rough silicon surface is presented. To control the roughness process, the silicon surface was patterned and groove-shape structures on the silicon were created using a photoelectrochemical (PEC) etching technique. Gallium oxide nanostructures were grown by thermal oxidation from liquid Ga in the presence and the absence of a silver thin film used as a catalyst. Scanning Electron Microscopy (SEM) was used to observe the morphology of the nanostructures grown on the roughed surface of the silicon substrate. The conformal deposition of Ga₂O₃ nanostructures inside the grooves of the PEC etched silicon surface was observed. The presence of Ag catalyst was found to completely change the morphology of Ga₂O₃. This method is recommended for the sustainable and low-cost synthesis of nanostructured gallium oxide for applications, including gas sensing. Full article

A simple and inexpensive thermal oxidation process was performed to synthesize gallium oxide (Ga₂O₃) nanowires using Ag thin film as a catalyst at 800 °C and 1000 °C to understand the effect of the silver catalyst on the nanowire growth. The effect of doping and orientation of the substrates on the growth of Ga₂O₃ nanowires on single-crystal gallium arsenide (GaAs) wafers in atmosphere were investigated. A comprehensive study of the oxide film and nanowire growth was performed using various characterization techniques including XRD, SEM, EDS, focused ion beam (FIB), XPS and STEM. Based on the characterization results, we believe that Ag thin film produces Ag nanoparticles at high temperatures and enhances the reaction between oxygen and gallium, contributing to denser and longer Ga₂O₃ nanowires compared to those grown without silver catalyst. This process can be optimized for large-scale production of high-quality, dense, and long nanowires. Full article

In this work, we grew transfer-free graphene-like thin films (GLTFs) directly on gallium nitride (GaN)/sapphire light-emitting diode (LED) substrates. Their electrical, optical and thermal properties were studied for transparent electrode applications. Ultrathin platinum (2 nm) was used as the catalyst in the plasma-enhanced chemical vapor deposition (PECVD). The growth parameters were adjusted such that the high temperature exposure of GaN wafers was reduced to its minimum (deposition temperature as low as 600 °C) to ensure the intactness of GaN epilayers. In a comparison study of the Pt-GLTF GaN LED devices and Pt-only LED devices, the former was found to be superior in most aspects, including surface sheet resistance, power consumption, and temperature distribution, but not in optical transmission. This confirmed that the as-developed GLTF-based transparent electrodes had good current spreading, current injection and thermal spreading functionalities. Most importantly, the technique presented herein does not involve any material transfer, rendering a scalable, controllable, reproducible and semiconductor industry-compatible solution for transparent electrodes in GaN-based optoelectronic devices. Full article

In this study, the dehydrogenation component of Ga₂O₃ was introduced into ZSM-5 nanocrystals to prepare Ga₂O₃/ZSM-5 hollow fiber-based bifunctional catalysts. The physicochemical features of as-prepared catalysts were characterized by means of XRD, BET, SEM, STEM, NH₃-TPD, etc., and their performances for the catalytic conversion of n-butane to produce light olefins and aromatics were investigated. The results indicated that a very small amount of gallium can cause a marked enhancement in the catalytic activity of ZSM-5 because of the synergistic effect of the dehydrogenation and aromatization properties of Ga₂O₃ and the cracking function of ZSM-5. Compared with Ga₂O₃/ZSM-5 nanoparticles, the unique hierarchical macro-meso-microporosity of the as-prepared hollow fibers can effectively enlarge the bifunctionality by enhancing the accessibility of active sites and the diffusion. Consequently, Ga₂O₃/ZSM-5 hollow fibers show excellent catalytic conversion of n-butane, with the highest yield of light olefins plus aromatics at 600 °C by 87.6%, which is 56.3%, 24.6%, and 13.3% higher than that of ZSM-5, ZSM-5 zeolite fibers, and Ga₂O₃/ZSM-5, respectively. Full article
