Search Results (14)

An ultra-high-strength press-hardening steel (PHS) and a high-strength dual-phase steel (DP) were butt-joined by the gas metal arc welding (GMAW) process, aiming to assess the effects of a high heat input welding process on the structure-property relationship and residual stress. The post-weld microstructure, the microhardness profile, the tensile behavior, and the experimentally obtained residual stresses (by x-ray diffraction) of the steels in dissimilar (PHS-DP) and similar (PHS-PHS, DP-DP) pair combinations have been analyzed. Results indicated that the ultimate tensile strength (UTS) of the dissimilar pair PHS-DP achieves a similar strength to the DP-DP joint, whereas the elongation was similar to that of the PHS-PHS weldment. The failure location of the tensile specimens was expected and systematically observed at the tempered and softer sub-critical heat-affected zone (SC-HAZ) in all welded conditions. Compressive residual stresses were consistently observed along the weldments in all specimens; the more accentuated negative RS were measured in the PHS joint attributed to the higher volume fraction of martensite; furthermore, the negative RS measured in the fusion zone (FZ) could be well correlated to weld restraint due to the sheet anchoring during the welding procedure, despite the presence of predominant ferrite and pearlite microstructures. Full article

Austenite formation was numerically investigated using Thermo-Calc/DICTRA in a deformed ferrite/pearlite microstructure to produce dual-phase steels. This work aims to better understand how the interface conditions (local equilibrium with negligible partitioning—LENP—or local equilibrium with partitioning—LEP) control the austenite growth kinetics during the intercritical annealing. Inspired by our experimental observations, two nucleation sites were considered. The austenite formed from pearlite islands showed a regime transition from LENP to LEP when the holding stage started. For the growth of austenite from isolated carbides, three stages were identified during the heating stage: first, slow growth under LEP; then, fast growth under LENP; and finally, after dissolution of the carbide, slow growth again. LENP and LEP interface conditions may coexist thanks to these regime transitions. In the case of competition, LEP conditions hinder austenite growth while it is promoted by LENP interface conditions. Such differences in growth kinetics explain, in part, the morphogenesis of dual-phase microstructures. Full article

Plastically deformed low-carbon steel has been analyzed by nondestructive three-dimensional orientation and strain mapping using scanning three-dimensional X-ray diffraction microscopy (S3DXRD). However, the application of S3DXRD is limited to single-phase alloys. In this study, we propose a modified S3DXRD analysis for dual-phase alloys, such as ferrite–pearlite carbon steel, which is composed of grains detectable as diffraction spots and a phase undetectable as diffraction spots. We performed validation experiments for ferrite–pearlite carbon steel with different pearlite fractions, in which the ferrite grains and the pearlite corresponded to the detectable grains and an undetectable phase, respectively. The regions of pearlite appeared more remarkably in orientation maps of the ferrite grains obtained from the carbon steel samples than that of the single-phase low-carbon steel and increased with the increase in the carbon concentration. The fractions of the detectable grains and the undetectable phase were determined with an uncertainty of 15%–20%. These results indicate that the proposed modified analysis is qualitatively valid for dual-phase alloys comprising detectable grains and an undetectable phase. Full article

Dislocation structures can be directly related to the fatigue properties of metals, such as fatigue strength, including the fatigue limit and saturation stress. We present an indirect dislocation-structure-based method to evaluate the local stresses for an in-depth analysis of sleeper screw failures, as there is little knowledge about the load and local stresses related to these failures. The sleeper screw, fastening baseplates of rails to sleepers, is a small but critical component in the railway. High loads from passing trains are transferred to the screws, leading to cyclic straining. In the present study, three stress-level tension fatigue experiments are designed in the constant stress mode at a stress ratio R = 0 and a testing frequency of 10 Hz. The microstructures in the failed specimens are characterized and compared with those close to the fracture surface of screws that failed in the field. The dislocation structure similarities and differences are analyzed, and the potential of the proposed methodology is discussed. Full article

In this paper, the effects of carbon, Si, Cr and Mn partitioning on ferrite hardening were studied in detail using a medium Si low alloy grade of 35CHGSA steel under ferrite-martensite/ferrite-pearlite dual-phase (DP) condition. The experimental results illustrated that an abnormal trend of ferrite hardening had occurred with the progress of ferrite formation. At first, the ferrite microhardness decreased with increasing volume fraction of ferrite, thereby reaching the minimum value for a moderate ferrite formation, and then it surprisingly increased with subsequent increase in ferrite volume fraction. Beside a considerable influence of martensitic phase transformation induced residual compressive stresses within ferrite, these results were further rationalized in respect of the extent of carbon, Si, Cr and Mn partitioning between ferrite and prior austenite (martensite) microphases leading to the solid solution hardening effects of these elements on ferrite. Full article

Microstructural morphology is known to have a significant impact on the mechanical properties of dual-phase steels. A fine ferrite grain size and random distribution of small second phase islands are desirable to provide superior isotropic properties compared to the banded second phase distribution that is typical for this type of steel. A rapid alloy prototyping (RAP) facility has been used to investigate three different DP 800 variants by systematically varying the compositions and/or process parameters compared to the ‘standard’ DP800 composition and processing that gives a banded microstructure. For Variant 1, the heating rate during the annealing cycle after cold rolling varied between 0.65 and 30 °C/s for the 45%, 60% and 75% cold reduction samples. It was found that a cold reduction of 75% and heating rate of 15 °C/s resulted in the microstructure that can give the best combination of strength and ductility because of the fine grain size and high martensite volume fraction. For Variant 2, the effect of changing the hot rolled (HR) microstructure (ferrite–pearlite, ferrite–bainite or martensite) on the final microstructure was investigated. Both the ferrite–50% bainite and fully martensite/bainite HR materials for all cold reductions resulted in annealed microstructures with necklace martensite morphology and finer ferrite grains compared to the ferrite–pearlite HR material, which gave a typical banded ferrite–martensite microstructure with a coarser ferrite grain size. For Variant 3, the Mn content was reduced, and increased Nb was used to achieve higher pancaking during the hot rolling stage, which refined ferrite grains in the HR condition with the same hardness. After annealing with the standard parameters only the 45% cold-reduced material produced a finer ferrite grain size than the standard material, whereas the 60% and 75% cold-reduced samples required a higher heating rate to achieve finer ferrite grain sizes due to rapid recrystallisation and growth kinetics. Full article

The automotive field is continuously researching safer, high-strength, ductile materials. Nowadays, dual-phase (DP) steels are gaining importance, since they meet all these requirements. Dual-phase steel made of ferrite and bainite is the object of a complete microstructural and mechanical characterization, which includes tensile and bending tests. This specific steel contains ferrite and bainite in equal parts; ferrite is the soft phase while bainite acts as a dispersed reinforcing system. This peculiar microstructure, together with fine dispersed carbides, an extremely low carbon content (0.09 wt%), and a minimal degree of strain hardening (less than 10%) allow this steel to compete with traditional medium-carbon single-phase steels. In this work, a full pearlitic C67 steel containing 0.67% carbon was used as a benchmark to build a comparative study between the DP and SP steels. Moreover, the Crussard–Jaoul (C-J) and Voce analysis were adopted to describe the hardening behavior of the two materials. Using the C-J analysis, it is possible to separately analyze the ferrite and bainite strain hardening and understand which alterations occur to DP steel after being cold rolled. On the other hand, the Voce equation was used to evaluate the dislocation density evolution as a function of the material state. Full article

In this study the strain capacity and work-hardening behavior of bainite (B), bainite + polygonal ferrite (B + PF), and bainite + polygonal ferrite + pearlite (B + PF + P) microstructures are compared. The work hardening exponent (n), instantaneous work hardening value (n_i), and differential Crussard-Jaoul (D_C-J) analysis were used to analyze the deformation behavior. The best comprehensive mechanical properties were obtained by the introduction of the pearlite phase in B + PF dualphase with the tensile strength of 586 MPa and total elongation of 31.0%. The additional pearlite phase adjusted the strain distribution, which increased the initial work hardening exponent and then maintained the entire plastic deformation at a high level, thus delayed necking. The introduction of pearlite reduced the risk of micro-void initiation combined with the high frequency of high angle grain boundaries (HAGBs) in triple-phase steel, which led to a low crack propagation rate. Full article

The ferrite-pearlite microstructure was cold-rolled to form dual phase (DP) steels, the percentage reduction of which varied. To do so, the steels were annealed in two steps and then the workpiece underwent water quenching. Accordingly, a decrease was observed in the average size of the ferrite grains, from above 15 µm to below 2 µm, subsequent to the thermomechanical processing. By an increase in the reduction percentage, the volume fraction of martensite grew. The balance between strength and elongation also improved nearly 3 times, equivalent to approximately 37,297 MPa% in DP in comparison to 11,501 MPa% in the ferrite-pearlite microstructure, even after 50% cold-rolling. Based on Hollomon and differential Crussard-Jaoul (DC–J) analyses, the DP steels under investigation deformed in two and three stages, respectively. The modified C–J (MC–J) analysis, however, revealed that the deformation process took place in four stages. The rate of strain hardening at the onset of the deformation process was rather high in all DP steels. The given rate increased once the size of the ferrite grains reduced; an increase in the volume fraction of martensite due to larger percentage of reduction also contributed to the higher rate of strain hardening. The observation of the fractured surfaces of the tensile specimens indicated ductile fracture of the studied DP steels. Full article

The effect of ultra-fast heating on the microstructures of steel has been thoroughly studied over the last year as it imposes a suitable alternative for the production of ultra high strength steel grades. Rapid reheating followed by quenching leads to fine-grained mixed microstructures. This way the desirable strength/ductility ratio can be achieved while the use of costly alloying elements is significantly reduced. The current work focuses on the effect of ultra-fast heating on commercial dual phase grades for use in the automotive industry. Here, a cold-rolled, low-carbon, medium-manganese steel was treated with a rapid heating rate of 780 °C/s to an intercritical peak temperature (760 °C), followed by subsequent quenching. For comparison, a conventionally heated sample was studied with a heating rate of 10 °C/s. The initial microstructure of both sets of samples consisted of ferrite, pearlite and martensite. It is found that the very short heating time impedes the dissolution of cementite and leads to an interface-controlled α → γ transformation. The undissolved cementite affects the grain size of the parent austenite grains and of the microstructural constituents after quenching. The final microstructure consists of ferrite and martensite in a 4/1 ratio, undissolved cementite and traces of austenite while the presence of bainite is possible. Finally, it is shown that the texture is not strongly affected during ultra-fast heating, and the recovery and recrystallization of ferrite are taking place simultaneously with the α → γ transformation. Full article

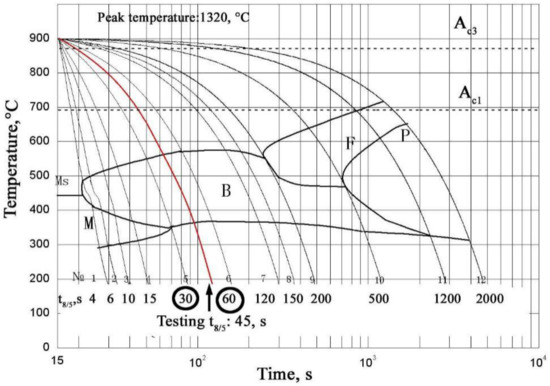

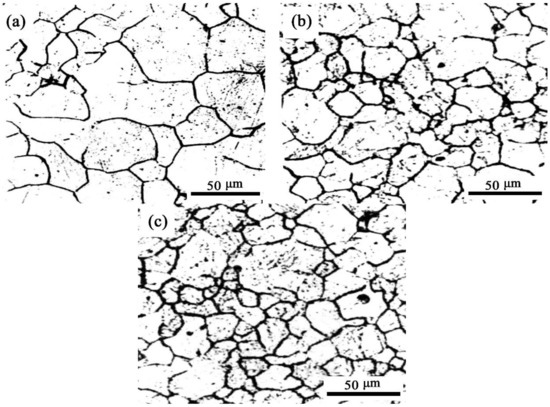

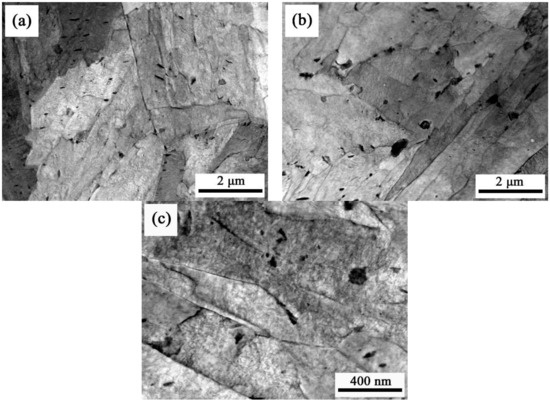

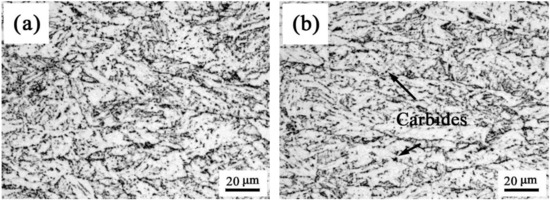

The effects of B, Ti-Nb, and Ti-Nb-B microalloying on the microstructure and properties of the coarse grain heat affected zone (CGHAZ) of C-Mn-Si-Mo wear-resistant steel have been investigated by means of thermal simulation, mechanical property test, microstructure analysis, and theoretical formula calculation. The B, Ti-Nb, and Ti-Nb-B microalloyed C-Mn-Si-Mo wear-resistant steels prepared by a controlled rolling + direct quenching + low temperature (CR + DQ + T) process have martensite/bainite (M/B) dual-phase microstructure and fully-refined effective grain size, which make the base metal to have high hardness and impact toughness. At the heat input of 20 kJ/cm, the impact toughness of CGHAZ of three kinds of microalloyed wear-resistant steels decreased in varying degrees. The main reasons for brittleness were coarse grain embrittlement and microstructural embrittlement. Ti-Nb-B microalloying can effectively prevent grain growth in CGHAZ while avoiding the formation of pearlite, small lump ferrite, and large grain carbides at the grain boundaries, thereby reducing the embrittlement of coarse grain and microstructure. Full article

The annealing process of cold-rolled ferrite/pearlite steel involves numerous metallurgical mechanisms as recovery/recrystallization of deformed phases, ripening of carbide microstructure, and austenite transformation in the intercritical domain. The interactions between these mechanisms govern the morphogenesis of the transformed austenite microstructure and, thus, the final properties of the steel. This paper demonstrates that high energy X-ray diffraction (HEXRD) on synchrotron beamline offers the unique possibility to follow concomitantly these mechanisms in situ during a single experiment. A cold-rolled ferrite-pearlite steel dedicated to the industrial production of Dual-Phase steel serves as case-study. Synchrotron experiments have been conducted in transmission at 100 keV with a 2D detector. Diffraction patterns acquired all along an annealing treatment are first analyzed after circular integration. A Rietveld refinement procedure coupled with a Williamson-Hall approach is used to determine phase transformation and recovery kinetics. In this paper, a new method inspired by the 3D X-ray diffraction tomography is proposed to follow recrystallization kinetics at the same time. It is based on a systematic detection of individual diffraction spots related to newly recrystallized grains appearing on Debye-Scherrer rings. The deduced recrystallization kinetics is compared and validated by more conventional ex situ methods. Full article

Steel has played a primary role as structural and fabricating materials in various industrial applications—including the construction sector. One of the most important properties of steel that required a constant improvement is corrosion resistance specifically in corrosive environment. For this purpose, various approaches have been conducted through different heat treatment parameters to compare its microstructural engineering on chemical and mechanical properties. In this paper, correlation of different microstructure on corrosion resistance and hardness properties have been investigated. Three different heat treatment cycle have been applied on carbon steel with same composition to prepare dual-structure (DS) steel that consisted of ferrite/pearlite and triple-structure (TS) with ferrite/pearlite/bainite and ferrite/bainite/martensite. Phase transformation during heat treatment process was analyzed through in-situ ultra-high temperature confocal microscopy. Effect of corrosion behavior on these steels was investigated by Tafel plot, Scanning Electron Microscopy (SEM), 3D laser scanning confocal microscopy (3DLSCM), and calculation of phase volume fraction by ImageJ. Mechanical test was conducted by Vickers hardness test. It has been found that TS steels that have improvement in corrosion resistance accounted around 5.31% and hardness value for up to 27.34% more than DS steel, because of tertiary phase—bainite/martensite. This corrosion rate was reduced due to decreased numbers of pit growth and lower level of boundary corrosion as bainite/martensite phases emerged. Full article

The present work provides an overview of the work on the interaction between hydrogen (H) and the steel’s microstructure. Different techniques are used to evaluate the H-induced damage phenomena. The impact of H charging on multiphase high-strength steels, i.e., high-strength low-alloy (HSLA), transformation-induced plasticity (TRIP) and dual phase (DP) is first studied. The highest hydrogen embrittlement resistance is obtained for HSLA steel due to the presence of Ti- and Nb-based precipitates. Generic Fe-C lab-cast alloys consisting of a single phase, i.e., ferrite, bainite, pearlite or martensite, and with carbon contents of approximately 0, 0.2 and 0.4 wt %, are further considered to simplify the microstructure. Finally, the addition of carbides is investigated in lab-cast Fe-C-X alloys by adding a ternary carbide forming element to the Fe-C alloys. To understand the H/material interaction, a comparison of the available H trapping sites, the H pick-up level and the H diffusivity with the H-induced mechanical degradation or H-induced cracking is correlated with a thorough microstructural analysis. Full article
