Next Article in Journal
A Study of the Stability Mechanism of the Dispersed Particle Gel Three-Phase Foam Using the Interfacial Dilational Rheology Method
Next Article in Special Issue
Fe-Based Nano-Materials in Catalysis
Previous Article in Journal
Investigation of the Behavior of Hardening Masonry Exposed to Variable Stresses
Previous Article in Special Issue
Highly Efficient Low-Temperature N-Doped TiO2 Catalysts for Visible Light Photocatalytic Applications
Open AccessArticle

Understanding the Interaction between a Steel Microstructure and Hydrogen

Department of Materials, Textiles and Chemical Engineering, Ghent University (UGent), Technologiepark 903, B-9052 Ghent, Belgium
*
Author to whom correspondence should be addressed.
Materials 2018, 11(5), 698; https://doi.org/10.3390/ma11050698
Received: 2 April 2018 / Revised: 23 April 2018 / Accepted: 24 April 2018 / Published: 28 April 2018
(This article belongs to the Special Issue State-of-the-Art Materials Science in Belgium 2017)

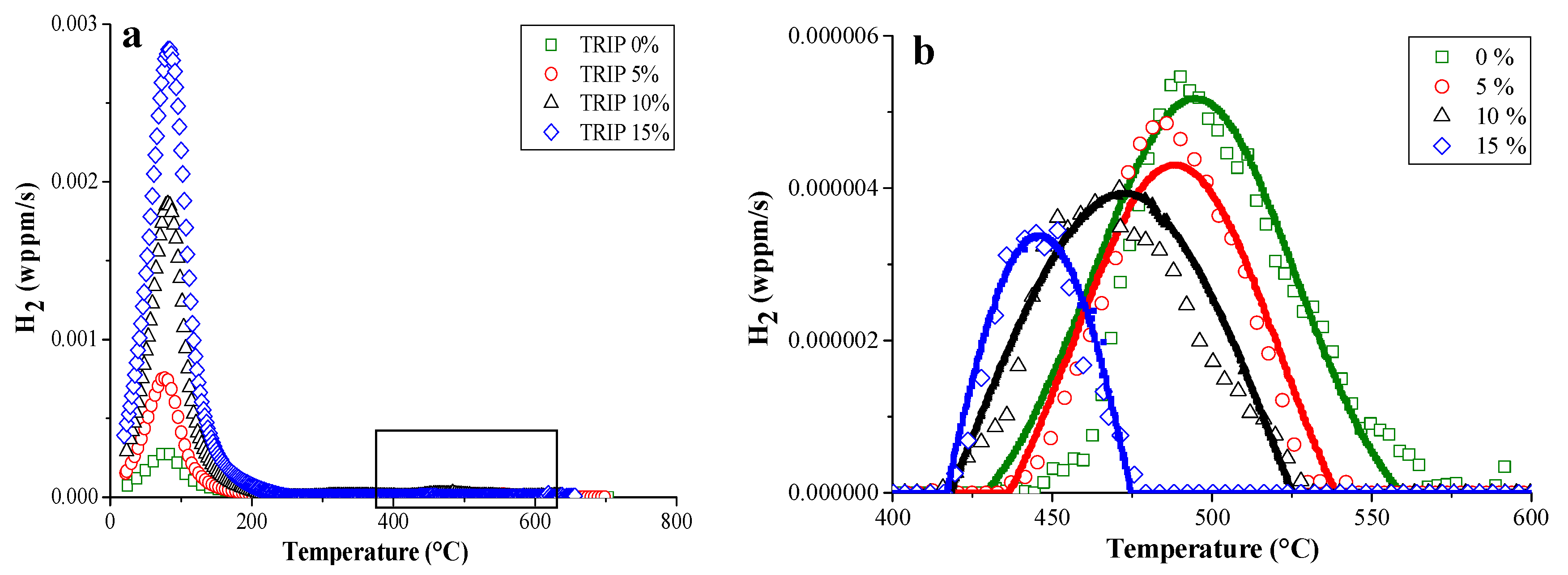

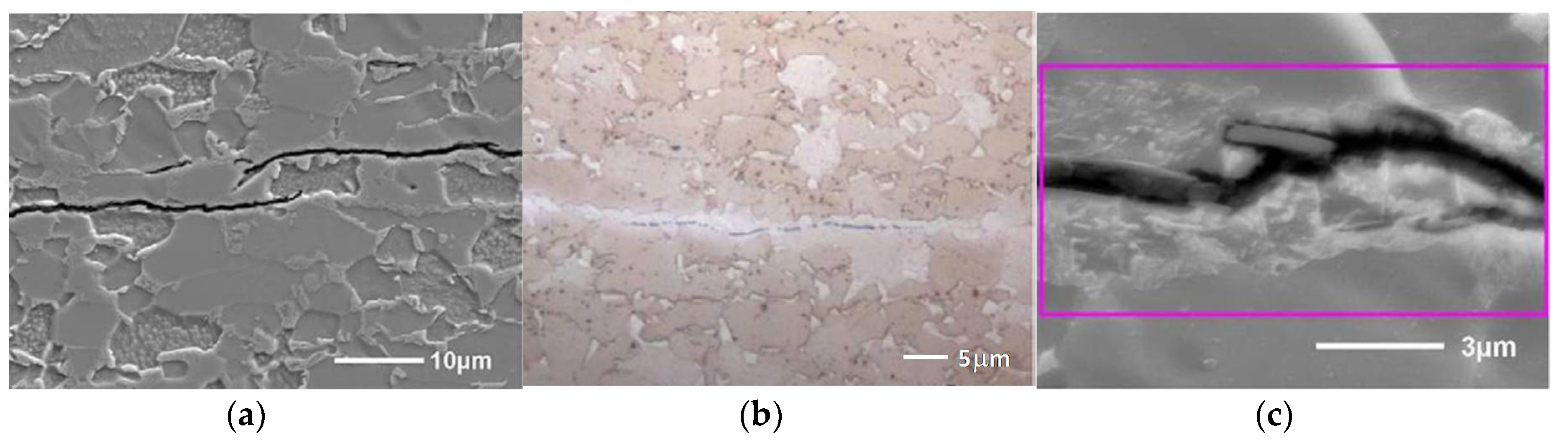

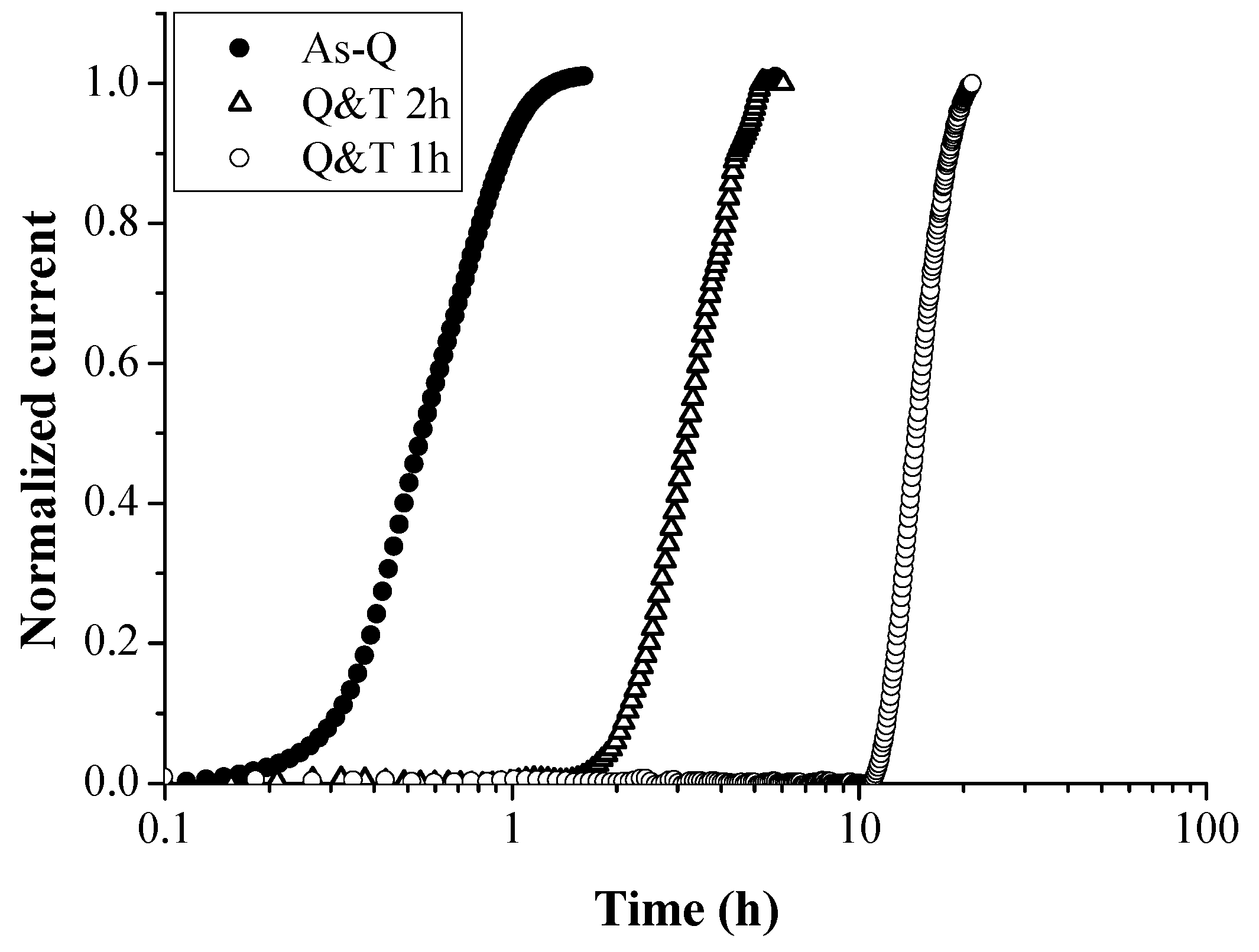

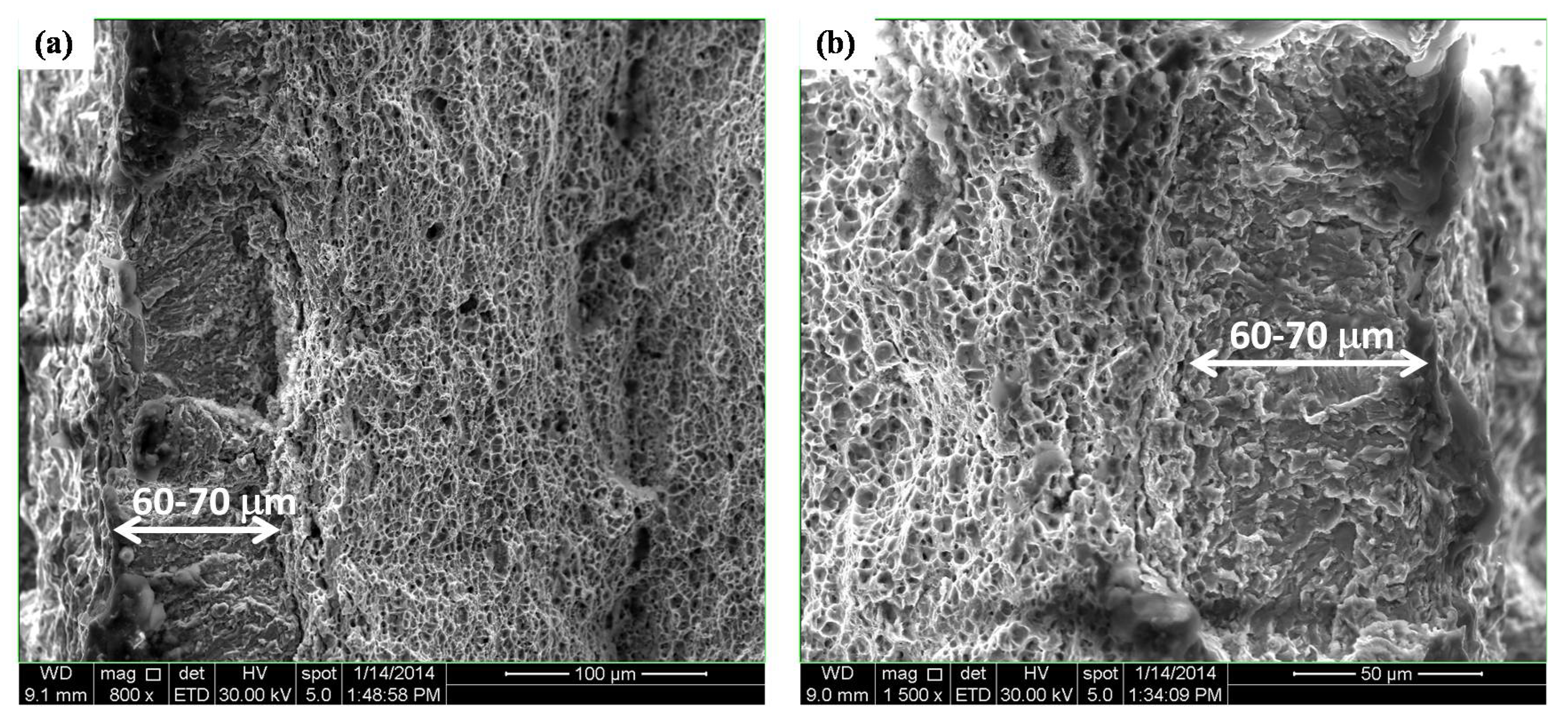

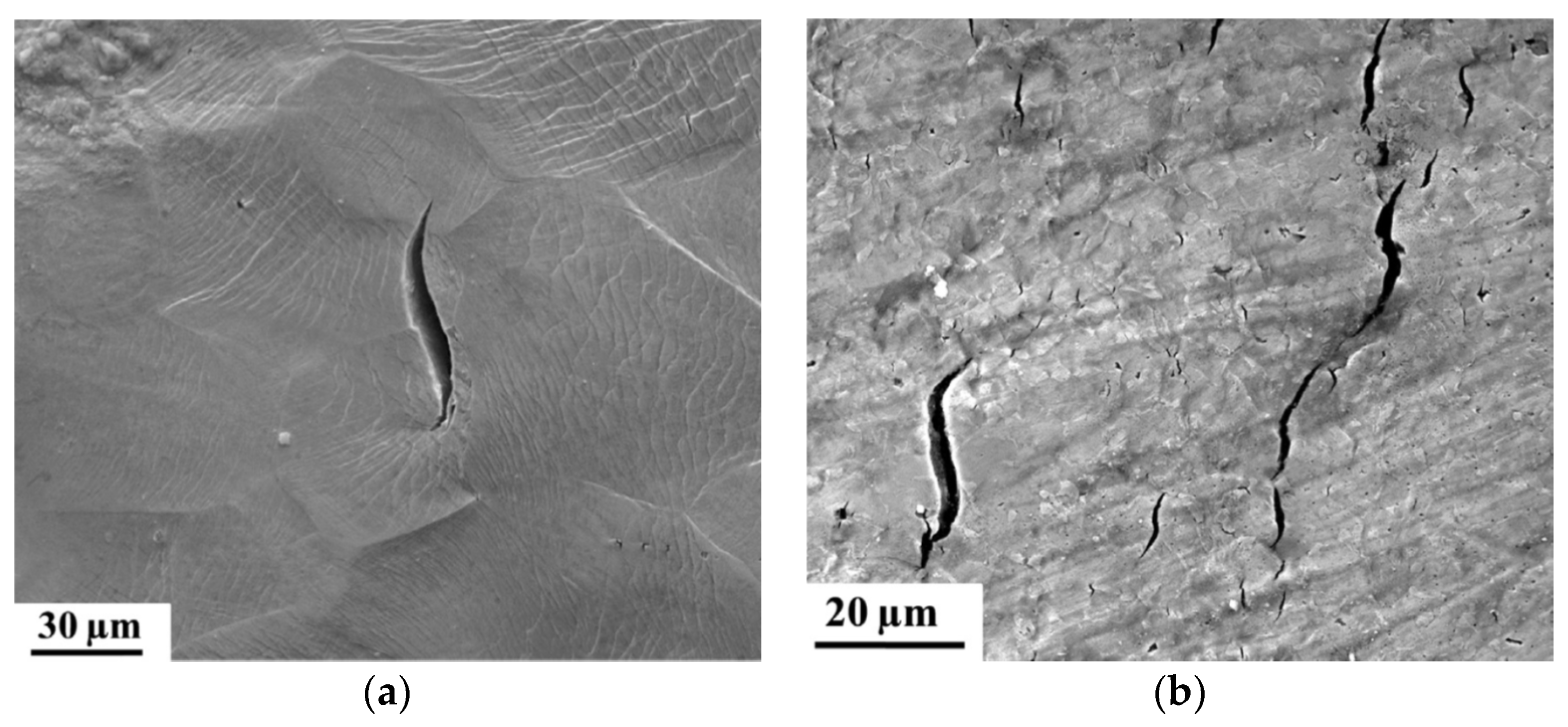

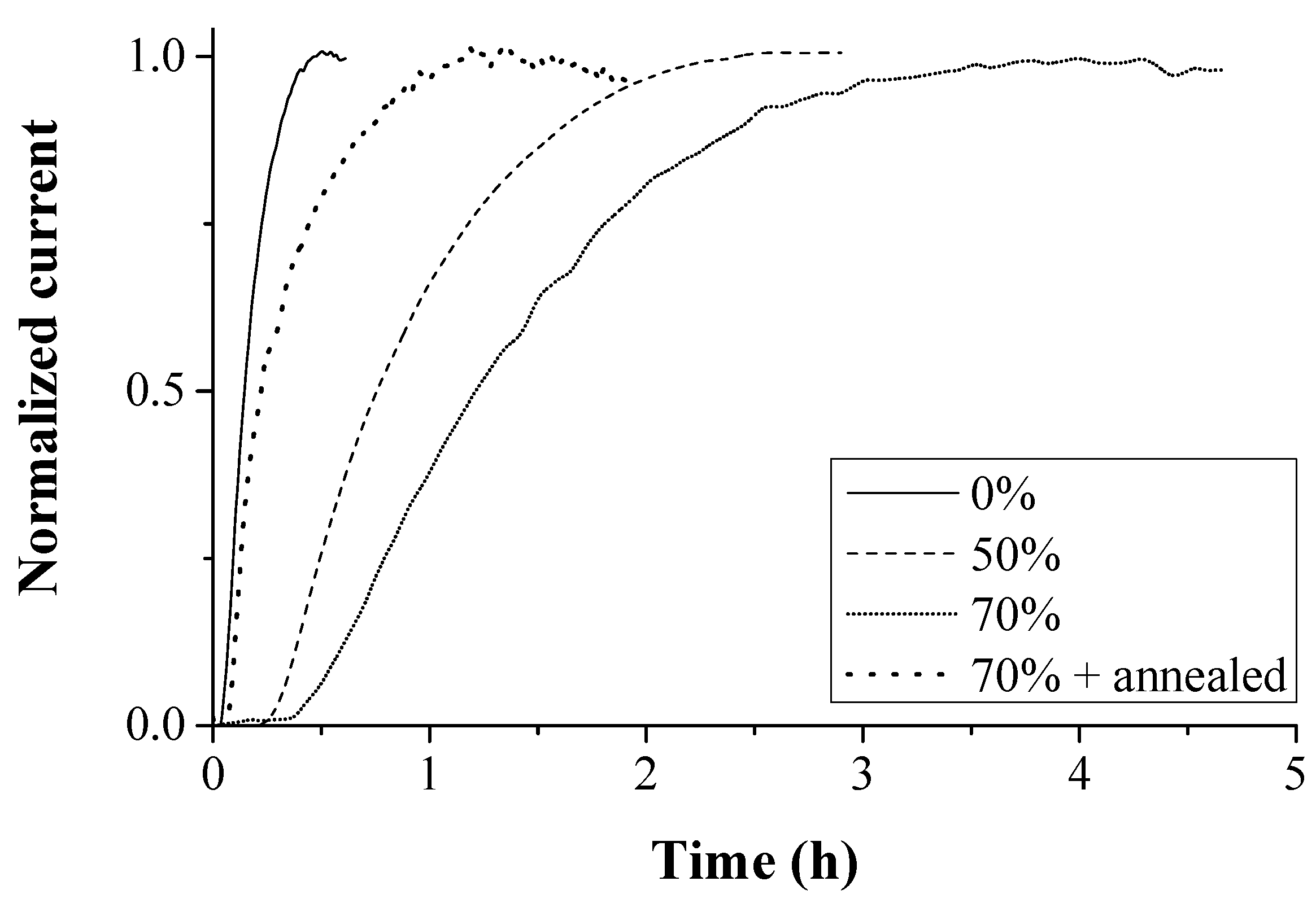

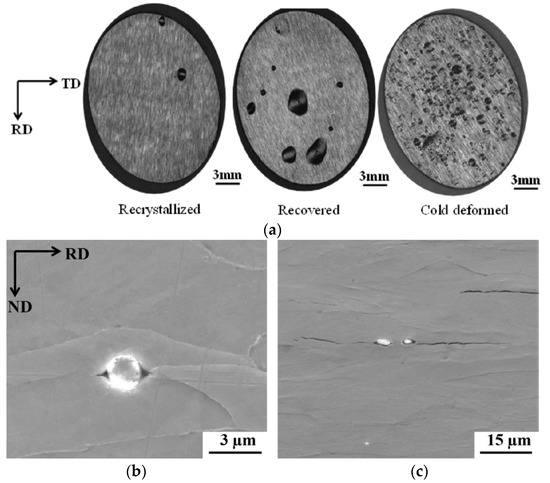

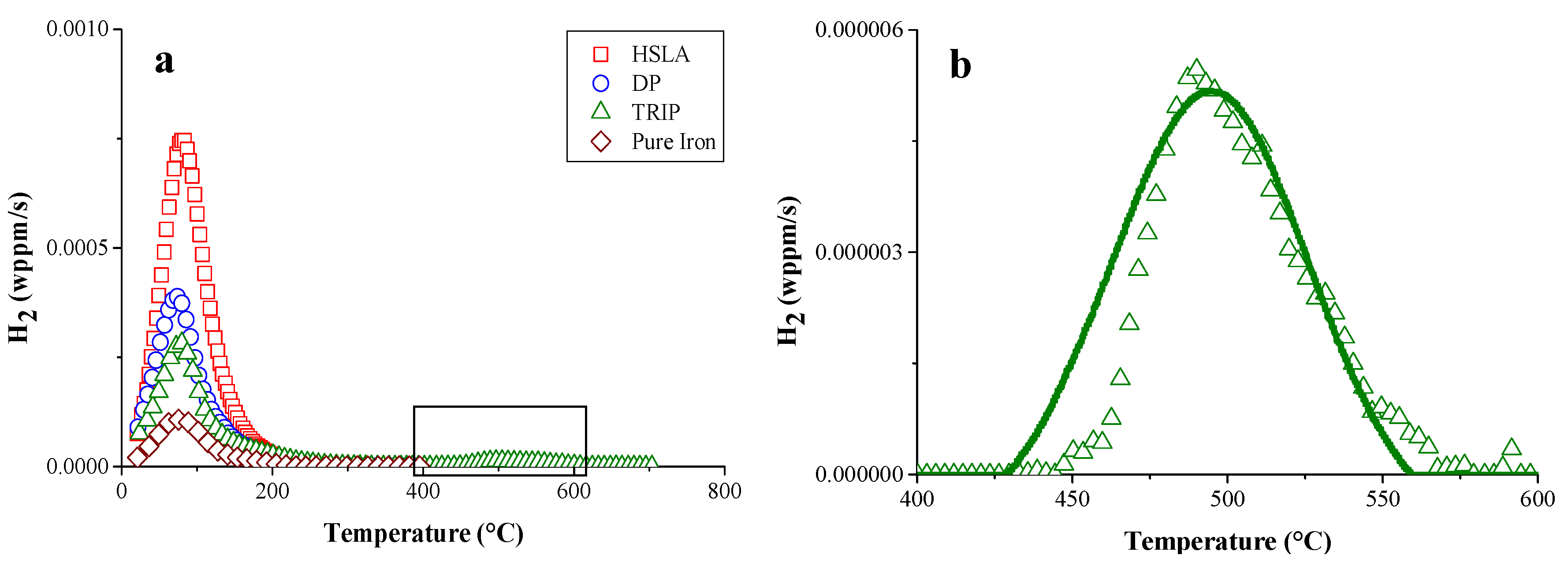

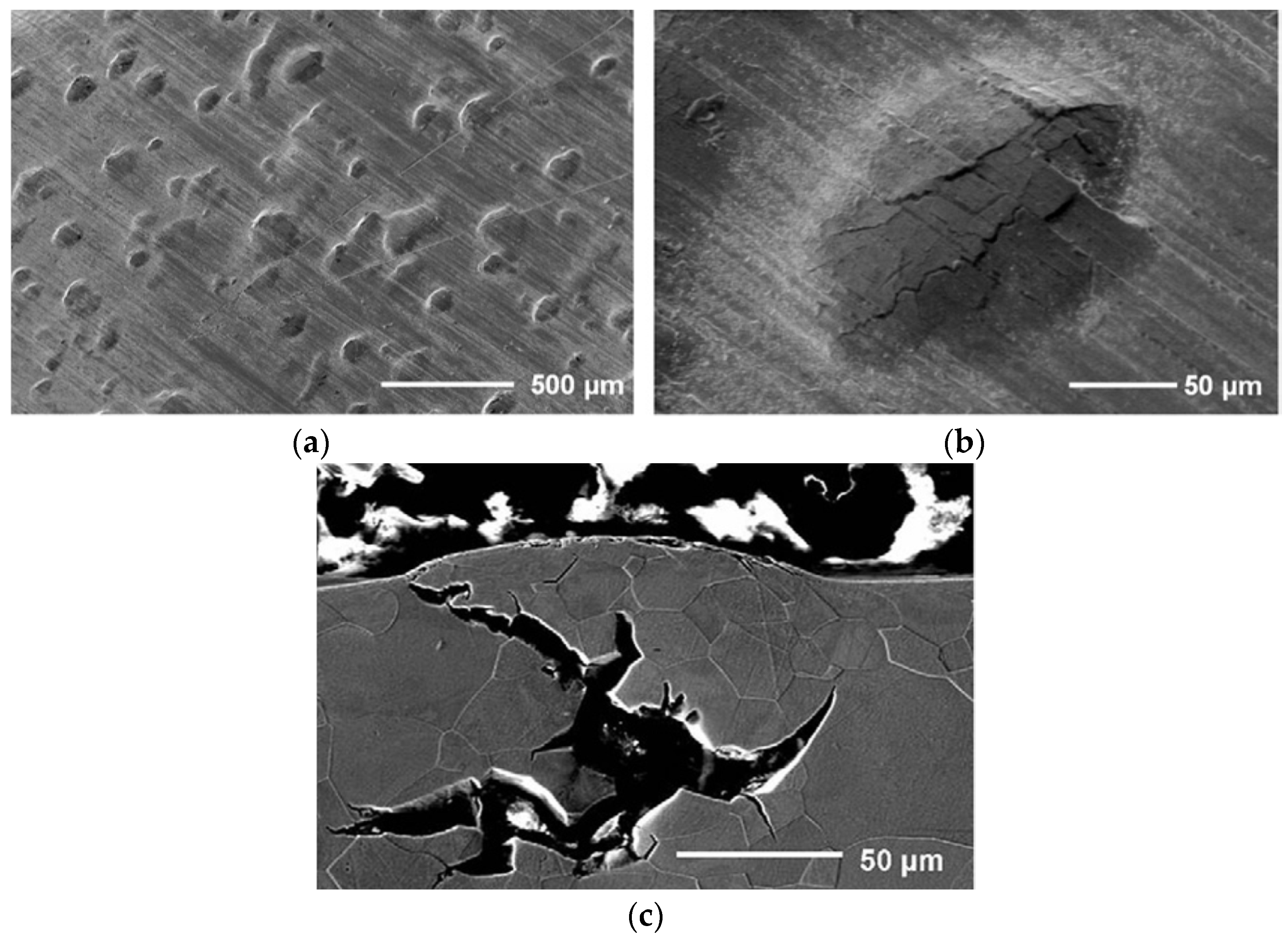

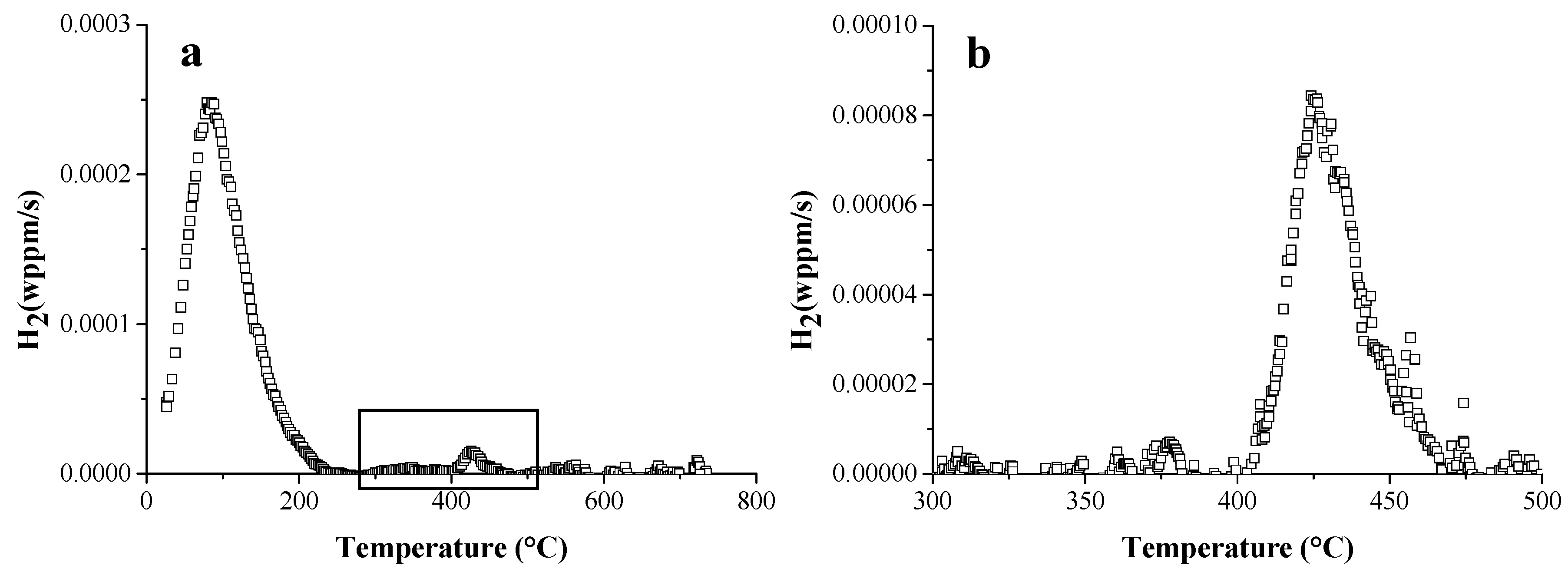

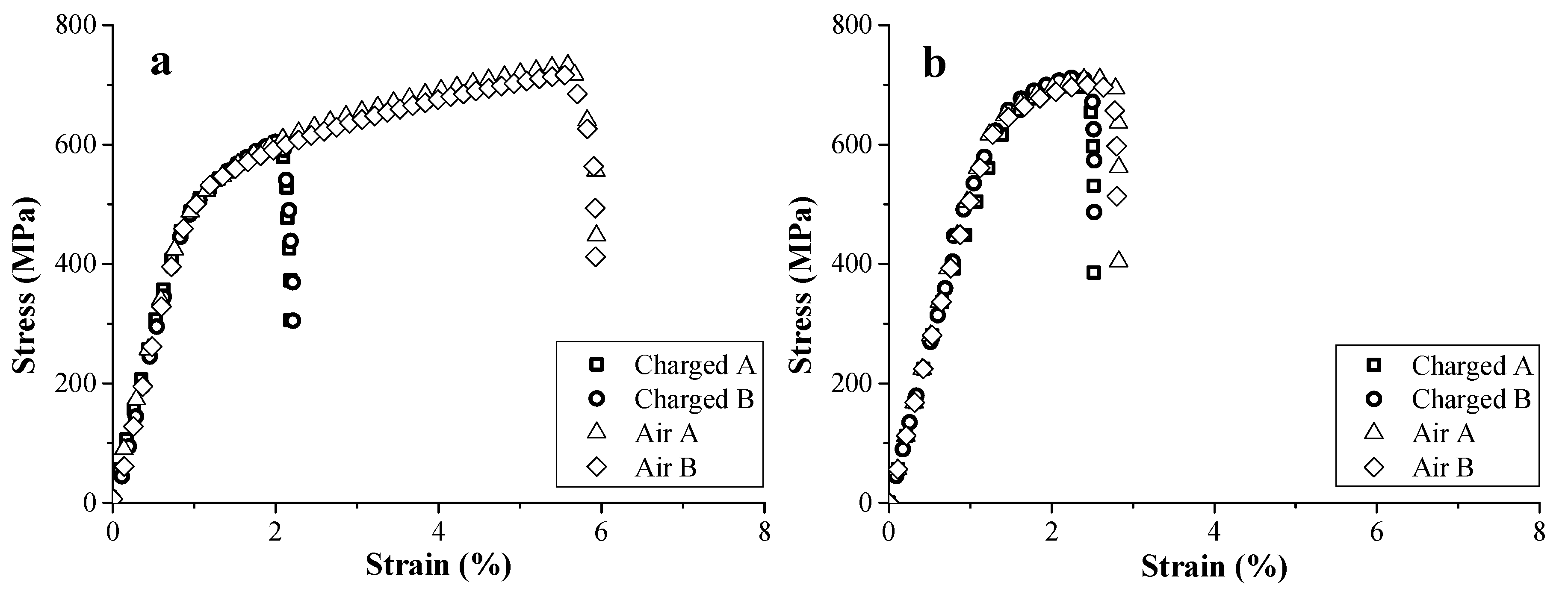

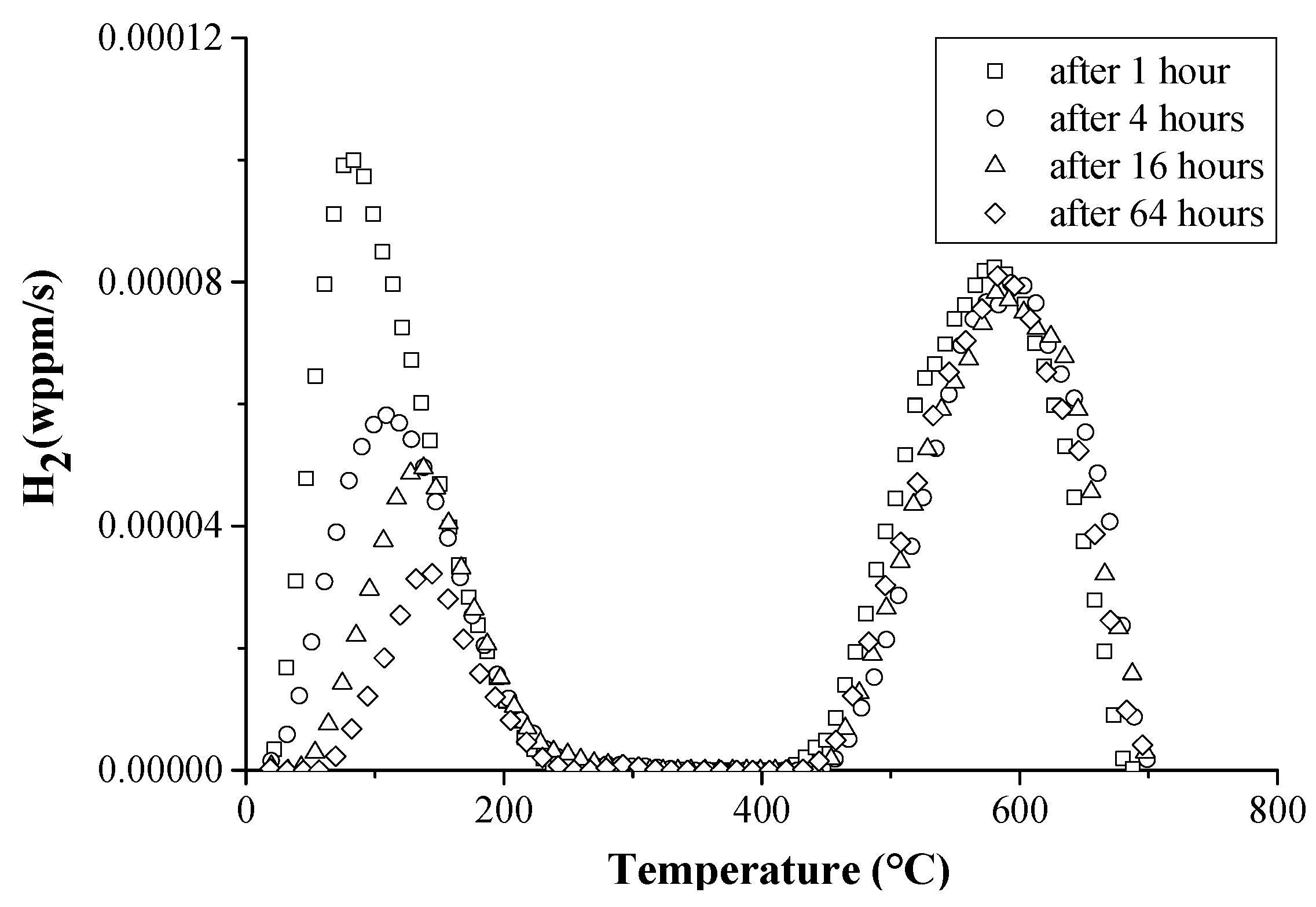

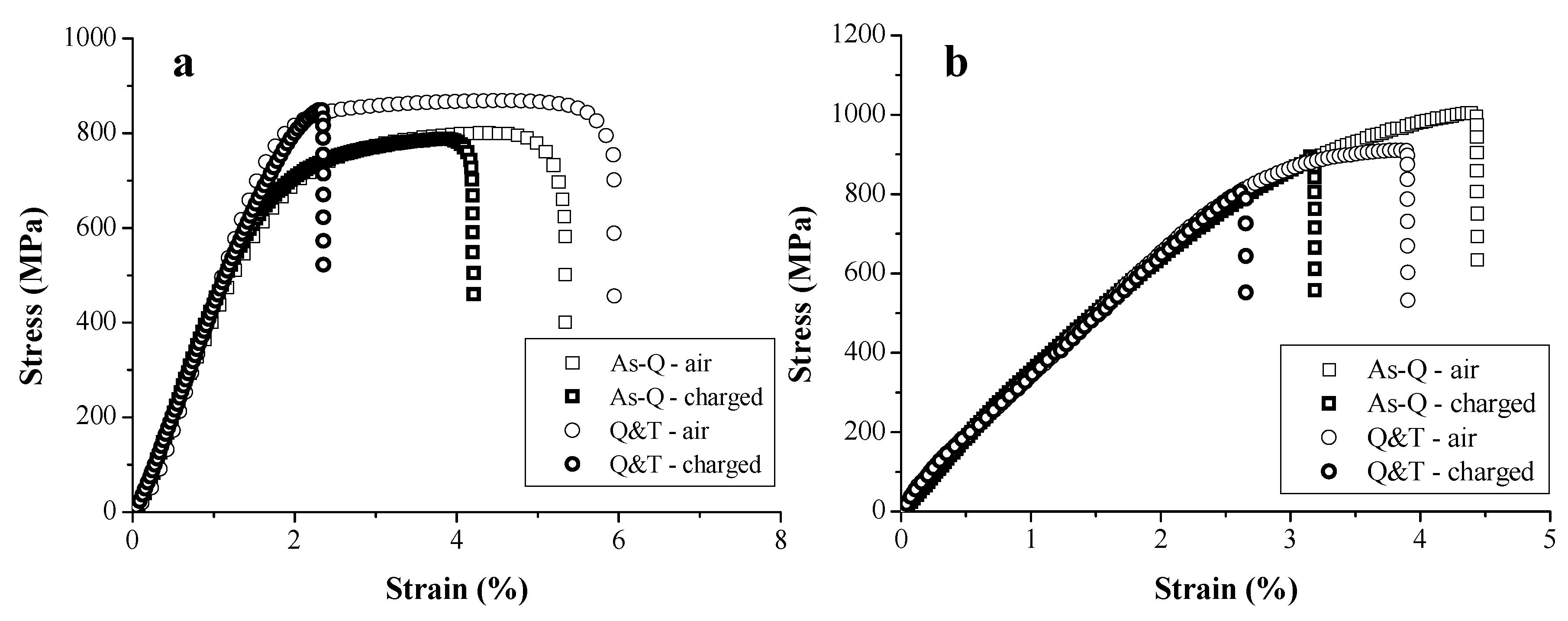

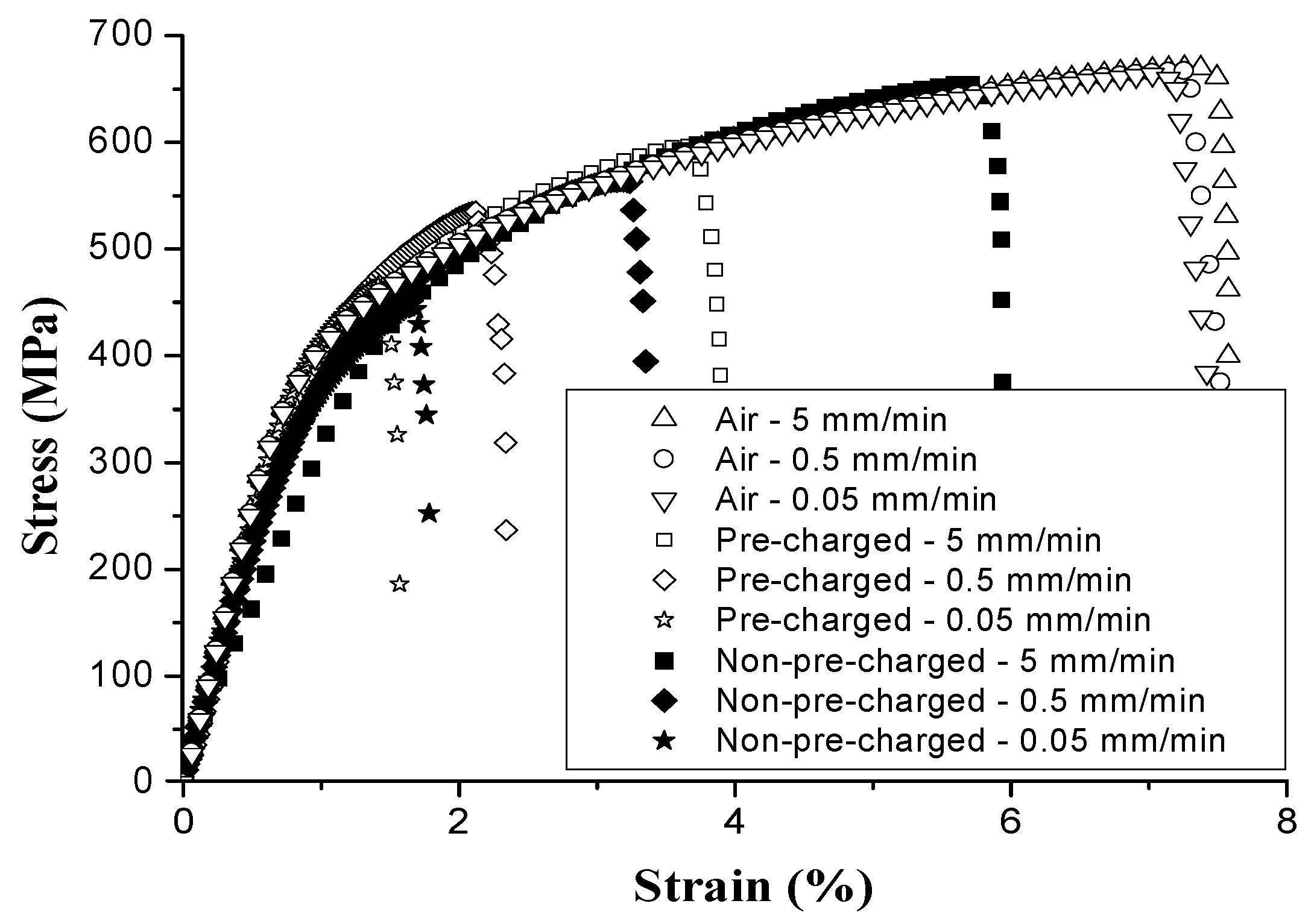

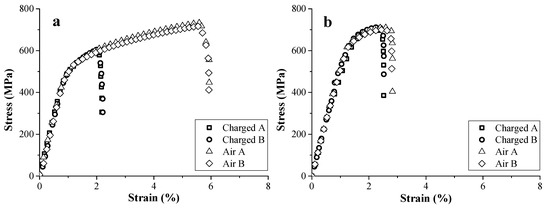

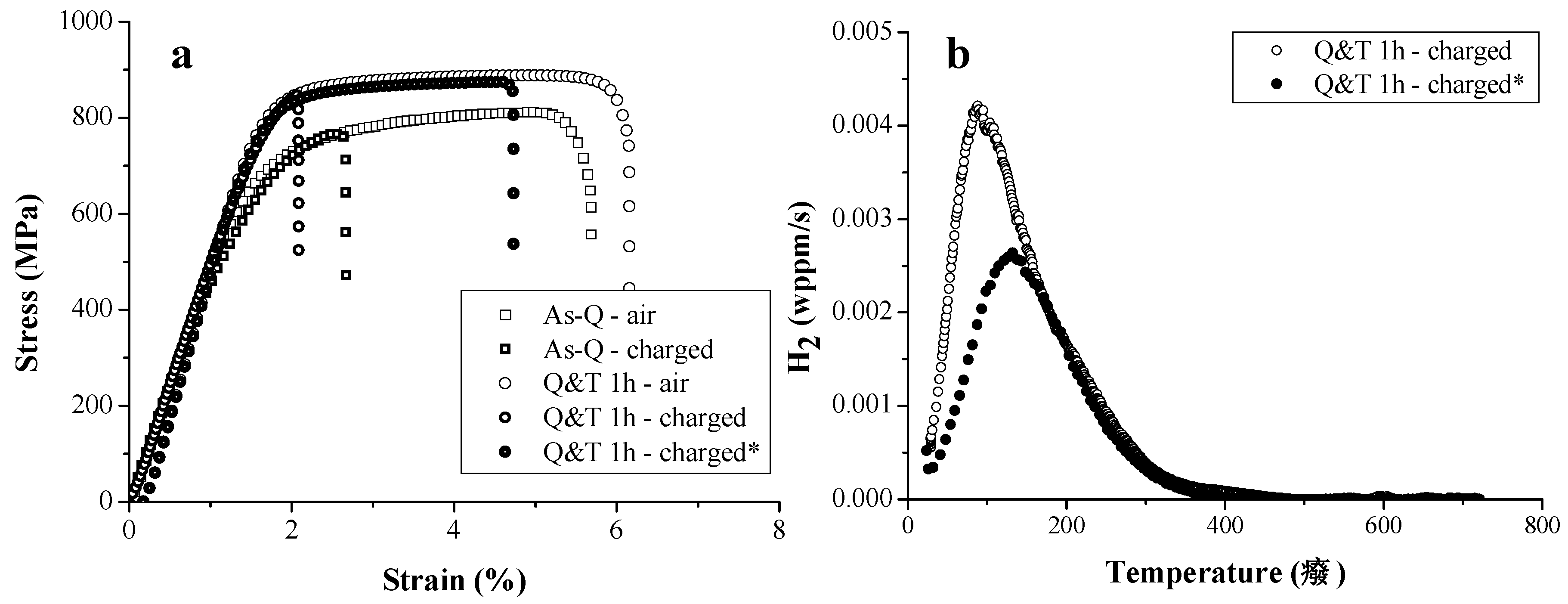

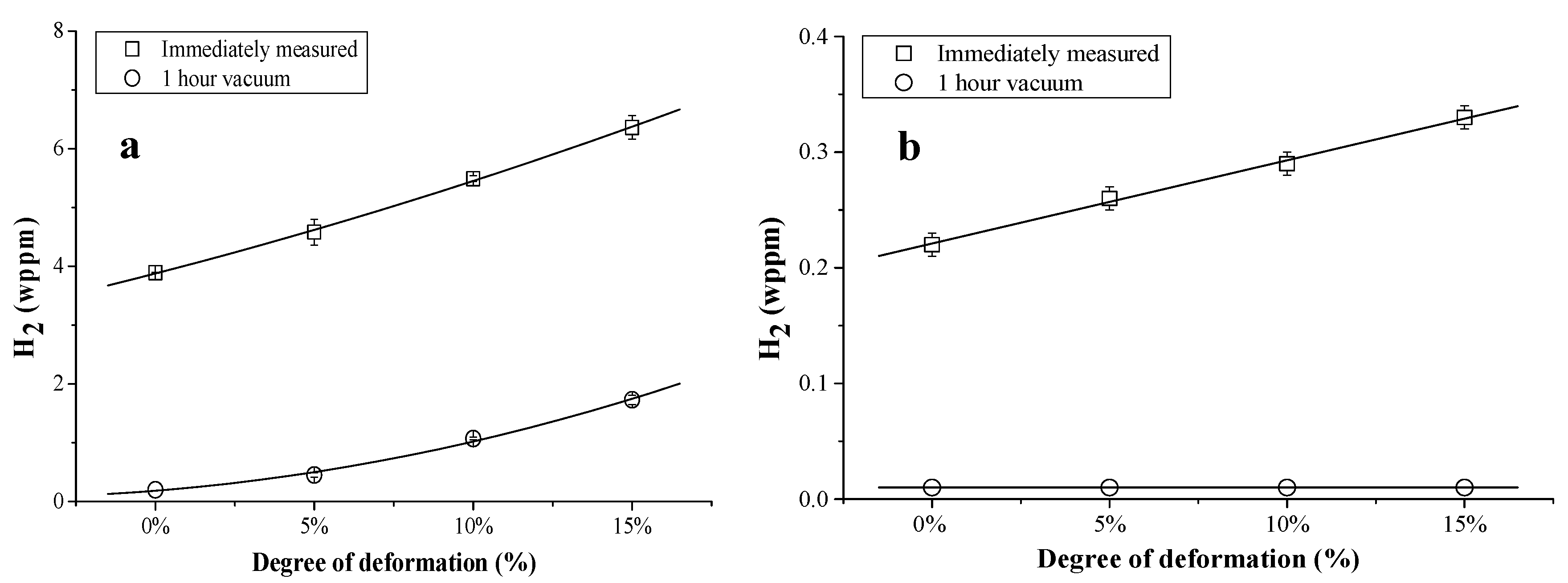

The present work provides an overview of the work on the interaction between hydrogen (H) and the steel’s microstructure. Different techniques are used to evaluate the H-induced damage phenomena. The impact of H charging on multiphase high-strength steels, i.e., high-strength low-alloy (HSLA), transformation-induced plasticity (TRIP) and dual phase (DP) is first studied. The highest hydrogen embrittlement resistance is obtained for HSLA steel due to the presence of Ti- and Nb-based precipitates. Generic Fe-C lab-cast alloys consisting of a single phase, i.e., ferrite, bainite, pearlite or martensite, and with carbon contents of approximately 0, 0.2 and 0.4 wt %, are further considered to simplify the microstructure. Finally, the addition of carbides is investigated in lab-cast Fe-C-X alloys by adding a ternary carbide forming element to the Fe-C alloys. To understand the H/material interaction, a comparison of the available H trapping sites, the H pick-up level and the H diffusivity with the H-induced mechanical degradation or H-induced cracking is correlated with a thorough microstructural analysis. View Full-Text
Keywords: hydrogen embrittlement; hydrogen-induced cracking; thermal desorption spectroscopy; in situ tensile testing; permeation hydrogen embrittlement; hydrogen-induced cracking; thermal desorption spectroscopy; in situ tensile testing; permeation
Show Figures

Figure 1

MDPI and ACS Style

Depover, T.; Laureys, A.; Pérez Escobar, D.; Van den Eeckhout, E.; Wallaert, E.; Verbeken, K. Understanding the Interaction between a Steel Microstructure and Hydrogen. Materials 2018, 11, 698.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
