Search Results (49)

In Arctic regions, ship structures face low temperatures, overloads, thickness effects, and fluctuating stress ratios, which significantly influence the fatigue crack growth (FCG) behavior of marine steels. This study investigates the FCG behaviors of DH36 steel by a series of experiments under the combined effects of low temperatures, overload ratios R_ol, specimen thickness B, and stress ratios R. Experiment results show that the yield strength, ultimate tensile strength, and elastic modulus of DH36 steel exhibit negative correlations with temperature varying within the Arctic temperature range. A reduction in fatigue crack growth rate (FCGR) is observed under the combined effects of low temperature and overload, and the magnitude of decrease shows a positive correlation with R_ol. Notably, low temperatures weaken the FCG retardation effect induced by overload, and this attenuation becomes more pronounced as temperature decreases. Under low temperatures, while maintaining constant peak load, increasing R significantly reduces both initial and terminal stress intensity factor ranges ΔK₀ and ΔK_e, resulting in diminished effective crack driving force and thereby substantially extending FCG life. Although increased B enhances FCGR at low temperatures, thinner plates demonstrate shorter FCG life due to their higher ΔK₀ values. Full article

The objective here is to study the effect of pre-strain on fatigue crack growth (FCG) in 2024-T351 aluminum alloy. Three pre-strain conditions were considered: without pre-strain, compressive and tensile permanent pre-strains of 4%. A numerical approach based on cumulative plastic strain at the crack tip was followed to predict FCG rate. The compressive pre-strain increased FCG rate, while the tensile pre-strain reduced the da/dN relative to the situation without pre-strain. The influence of pre-strain was linked with plasticity-induced crack closure. In fact, a linear trend was obtained between da/dN and ΔK_eff for three crack lengths (a = 16.184; a = 15.048 mm and a = 15.152 mm) and three pre-strain conditions. The increase in the stress ratio from R = 0.1 to R = 0.5 and the elimination of the contact of crack flanks significantly reduced the effect of pre-strain, also pointing to the huge relevance of crack closure in this context. Finally, the effect of pre-strain on da/dN after an overload was also explained by crack closure variations. Full article

The majority of engineering structures are subjected to intricate loading scenarios or possess intricate geometries, resulting in a mixed-mode stress within the component. This study aims to investigate the fracture behavior of these components under mixed-mode loading conditions by examining the relationship among the fatigue stress ratio (R), loading angle, and geometry thicknesses in compact tension shear (CTS) specimens. Using advanced ANSYS simulation techniques, this research explores how these factors affect the fatigue life cycles of engineering materials. To simulate real-world loading scenarios and study various mixed-mode configurations, compact tension shear (CTS) specimens were subjected to three specific loading angles: 30°, 45°, and 60°. These angles were applied in combination with various stress ratios (0.1–0.5) to capture a wide range of loading conditions. This study employed ANSYS Workbench 19.2, featuring cutting-edge technologies such as separating, morphing, and adaptive remeshing (SMART), to precisely model crack growth, calculate fatigue life, and analyze stress distribution. A comparative analysis with experimental data revealed that the loading angle has a profound effect on both the trajectory of fatigue crack growth (FCG) and the number of fatigue life cycles. The results demonstrate that the loading angle significantly influences the trajectory of FCG and the number of fatigue life cycles. Specifically, a loading angle of 45 degrees resulted in the maximum principal and shear stresses, indicating a state of pure shear loading. The findings reveal critical insights into the interaction between stress ratios, geometry thicknesses, fatigue life cycles, and loading angles, enhancing the understanding of engineering components’ behavior under mixed-mode stress situations. Full article

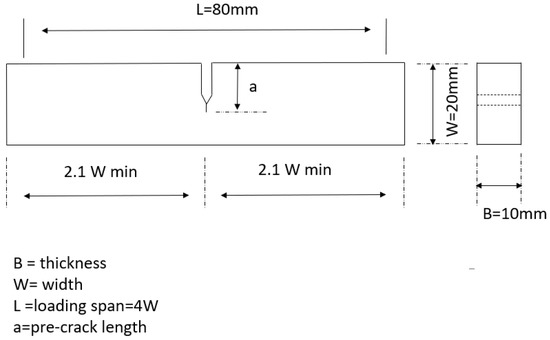

The stop-hole technique is a well-known strategy to extend the fatigue life of cracked components. The ability to estimate fatigue life after the hole is important for safety reasons. The objective here is to develop strategies for the accurate prediction of initiation and propagation life ahead of the stop-hole. Experimental work was developed in a Compact-Tension (CT) specimen made of 7050-T7451 aluminium alloy and with a 3 mm diameter hole. A total number of 625,000 load cycles were required to re-initiate the crack after the hole. Crack initiation life after the hole was estimated using the Theory of Critical Distances combined with the Smith–Watson–Topper parameter. A value of a₀ = 31.83 µm was obtained for El Haddad parameter, which was used to define the critical distance. The predicted life was found to be only 4% lower than the experimental value. The fatigue crack growth (FCG) rate was calculated using a node release strategy, assuming that cyclic plastic deformation is the main damage mechanism and that cumulative plastic strain is the crack driving parameter. A good agreement was found between the numerical predictions of da/dN and the experimental results. The main result, however, is the proposed methodology, which allows predicting the initiation and propagation lives in notched components. Full article

In this article, we discuss an unusual pattern in long-crack behavior at low stress intensity factor ranges ΔK (below ΔK_th), characterized by an initial dip, followed by a plateau, and then an acceleration in fatigue crack growth (FCG) rate. This unanticipated FCG behavior was first observed experimentally in the IMI 834 alloy and reported by Marci in 1996. Such an anomaly is only reported from experimental observation but cannot be understood or explained using the plasticity, roughness, or oxide-induced crack closure assumptions. It also has not been fully explained through either metallurgical analysis or failure mode investigation. The established application of fracture mechanics to the FCG rate (da/dN) assumes that the FCG rate decreases with decreasing ΔK towards the threshold of ΔKth with (da/dN) $\le$ 10⁻⁷ mm/cycle. Yet, some materials exhibit a lack of ΔK threshold dependence for long cracks when tested using constant-K_max or constant-R-ratio testing. An understanding of this anomaly and the related physics poses a scientific challenge. It is also relevant to predict the safe service life of structures subjected to high-frequency and low-amplitude vibrating loads. Here, we provide our interpretation and discuss the significant implications of this phenomenon in the context of damage-tolerant design. Full article

Weathering steel possesses good atmospheric corrosion resistance and is increasingly applied in highway and railway bridges. The fatigue performance of the weld joint is an important issue in bridge engineering. This study experimentally investigates the microstructural properties and fracture crack growth behaviors of a Q370qENH bridge weathering steel weld joint. The FCG parameters of the base steel, butt weld, and HAZs, considering the effect of different plate thicknesses and stress ratios, are analyzed. Microstructural features, microhardness, and fatigue fracture surfaces are carefully inspected. The FCG rates of different weld regions in the stable crack growth stage are obtained using integral formulas based on the Paris and Walker law. The test results indicate that the heating and cooling process during the welding of Q370qENH steel creates improved microstructures with refined grain sizes and fewer impurities, thus leading to improved FCG performances in the HAZ and weld regions. The crack growth rate of Q370qENH weld regions increases with the stress ratio, and the influencing extent increasingly ranks as the base steel, HAZ, and the weld. The thick plate has a slightly slower fatigue crack growth rate for the Q370qENH weld joints. The Q370qENH base steel presents the highest fatigue crack growth rate, followed by the heat-treated and HAZ cases, while the weld area exhibits the lowest FCG rate. The Paris law coefficients of different regions of Q370qENH welds are presented. The collected data serve as a valuable reference for future analyses of fatigue crack propagation problems of Q370qENH steel bridge joints. Full article

Numerical simulation of fatigue crack growth in welded joints is not well represented in the literature, especially from the point of view of material heterogeneity in a welded joint. Thus, several case studies are presented here, including some focusing on fracture, presented by two case studies of mismatched high-strength low-alloyed (HSLA) steel welded joints, with cracks in the heat affected zone (HAZ) or in weld metal (WM). For fatigue crack growth, the extended finite element method FEM (XFEM) was used, built in ABAQUS and ANSYS R19.2, as presented by four case studies, two of them without modelling different properties of the welded joint (WJ). In the first one, fatigue crack growth (FCG) in integral (welded) wing spar was simulated by XFEM to show that its path is partly along welded joints and provides a significantly longer fatigue life than riveted spars of the same geometry. In the second one, an integral skin-stringer panel, produced by means of laser beam welding (LBW), was analysed by XFEM in its usual form with stringers and additional welded clips. It was shown that the effect of the welded joint is not significant. In the remaining two papers, different zones in welded joints (base metal—BM, WM, and HAZ) were represented by different coefficients of the Paris law to simulate different resistances to FCG in the two cases; one welded joint was made of high-strength low-alloyed steel (P460NL1) and the other one of armour steel (Protac 500). Since neither ABAQUS nor ANSYS provide an option for defining different fatigue properties in different zones of the WJ, an innovative procedure was introduced and applied to simulate fatigue crack growth through different zones of the WJ and evaluate fatigue life more precisely than if the WJ is treated as a homogeneous material. Full article

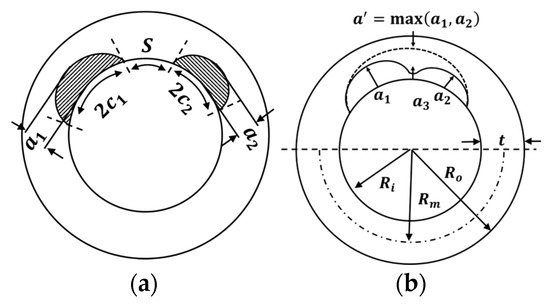

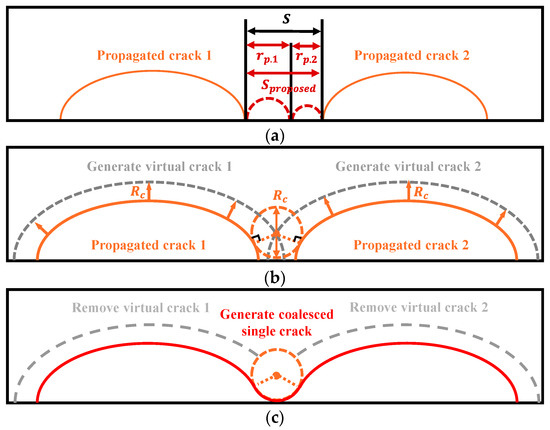

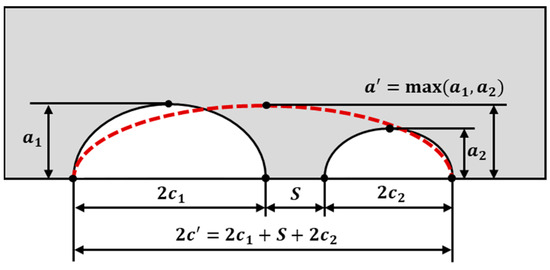

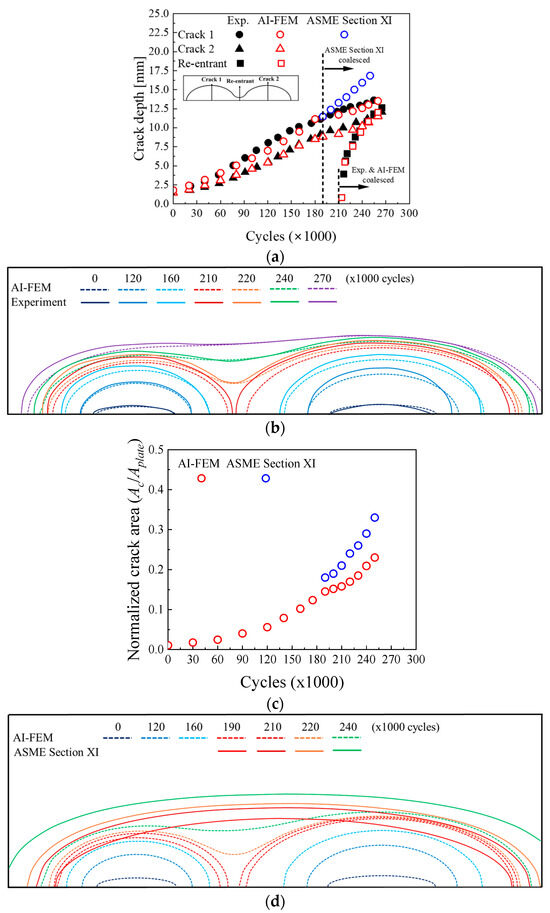

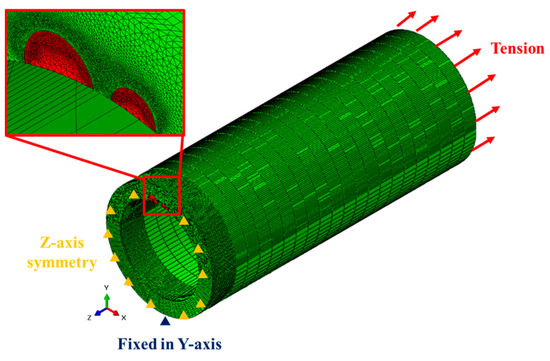

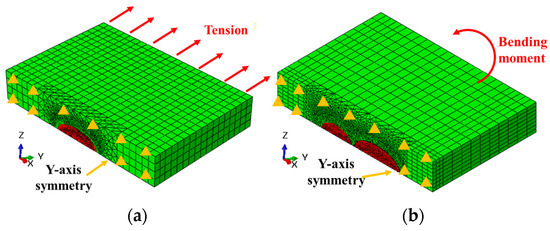

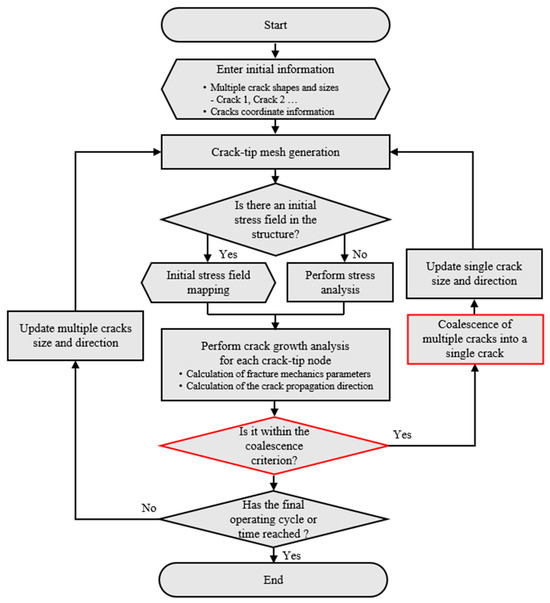

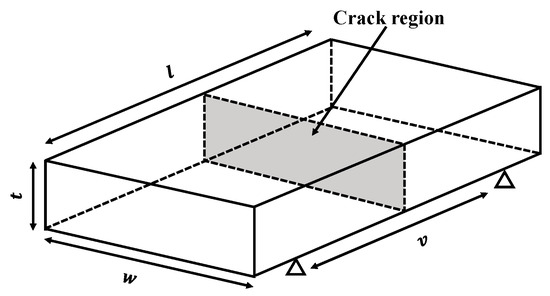

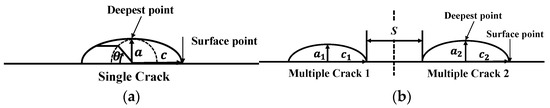

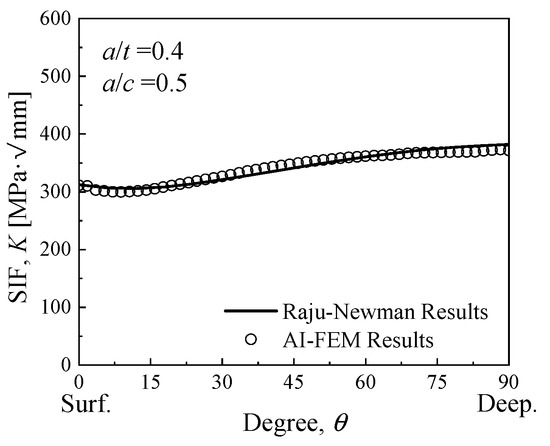

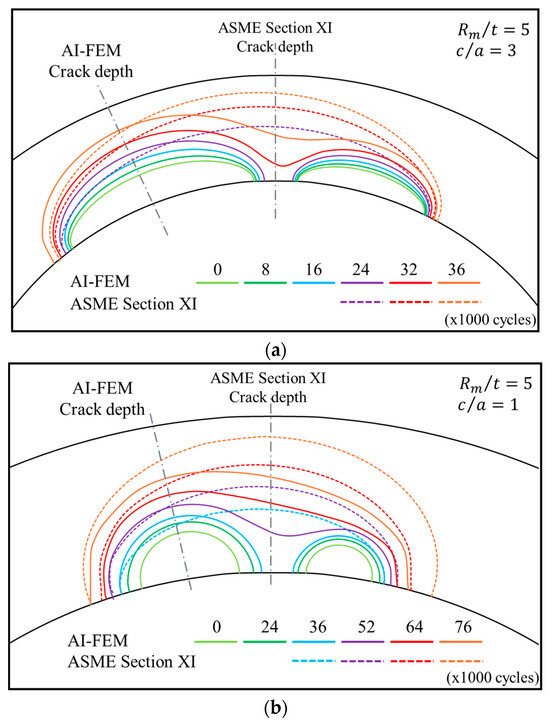

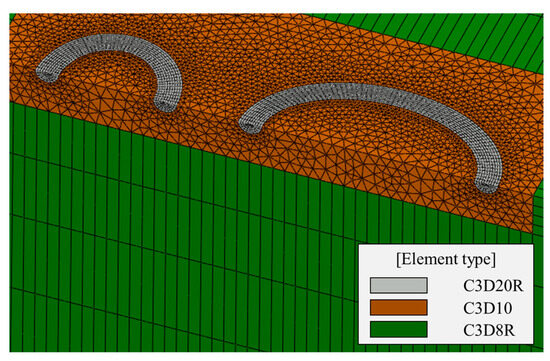

The interactions between multiple cracks significantly influence fracture mechanics parameters, necessitating their consideration in crack assessments. Codes such as ASME Section XI, API 579, BS 7910, and British Energy R6 provide guidelines for crack growth and coalescence, taking crack interactions into account. However, these guidelines often employ idealized crack models, which lead to overly conservative assessments. This study proposes a new criterion for multiple crack coalescence, based on the plastic zone size, to better model the growth and merging of natural cracks. This criterion was implemented using the Advanced Iterative Finite Element Method (AI-FEM), an automated crack-growth simulation program utilizing re-meshing. Fatigue crack growth (FCG) simulations using AI-FEM validated the proposed criterion by comparing it with experimental data. Additionally, the AI-FEM results were compared with those obtained through code-based procedures to evaluate the conservatism of current codes. The findings demonstrate that the proposed criterion closely matches experimental results, providing a more realistic simulation of crack growth and reducing the conservatism of existing codes. Full article

Prior studies into fatigue crack growth (FCG) in fibre-reinforced polymer composites have shown that the two methodologies of Simple-Scaling and the Hartman–Schijve crack growth equation, which is based on relating the FCG rate to the Schwalbe crack driving force, Δκ, were able to account for differences observed in the measured delamination growth curves. The present paper reveals that these two approaches are also able to account for differences seen in plots of the rate of crack growth, da/dt, versus the range of the imposed stress intensity factor, ΔK, associated with fatigue tests on different grades of high-density polyethylene (HDPE) polymers, before and after electron-beam irradiation, and for tests conducted at different R ratios. Also, these studies are successfully extended to consider FCG in an acrylonitrile butadiene styrene (ABS) polymer that is processed using both conventional injection moulding and additive-manufactured (AM) 3D printing. Full article

The reliability of friction stir welded joints is a critical concern, particularly given their potential applications in the aerospace manufacturing industry. This study offers a quasi-in situ observation of the microstructural response during fatigue crack growth (FCG) of a friction stir welded AA2024-T4 joint, aiming to correlate fatigue crack growth behavior with mechanical properties investigated using electron backscatter diffraction (EBSD). Notched compact tension (CT) specimens corresponding to the morphology of the stir zone (SZ), advancing side (AS), and retreating side (RS) were meticulously designed. The findings indicate that the welding process enhances the joint’s resistance to fatigue crack growth, with the base metal exhibiting a shorter fatigue life (i.e., ~10⁵ cycles) compared to the welding zones (SZ ~ 3.5 × 10⁵ cycles, AS ~ 2.5 × 10⁵ cycles, and RS ~ 3.0 × 10⁵ cycles). Crack propagation occurs within the stir zone, traversing refined grains, which primarily contribute to the highest fatigue life and lowest FCG rate. Additionally, cracks initiate in AS and RS, subsequently expanding into the base metal. Moreover, the study reveals a significant release of residual strain at the joint, particularly notable in the Structural-CT-RS (Str-CT-RS) sample compared to the Str-CT-AS sample during the FCG process. Consequently, the FCG rate of Str-CT-AS is higher than that of Str-CT-RS. These findings have significant implications for improving the reliability and performance of aerospace components. Full article

In this article, we characterize and review the unusual lack of threshold in fatigue crack growth (FCG) behavior for some alloys at low values of stress intensity factor ranges ΔK and its implications to damage-tolerant design approaches. This unusual behavior was first observed by Marci in 1996 in IMI 834 alloy. Conventional applications of linear elastic fracture mechanics to FCG analysis at constant R-ratio (or K_max) assumes that (da/dN) decreases monotonically with decreasing ΔK and approaches the threshold value of ΔK_th with (da/dN) $\le$ 10⁻⁷ mm/cycle for a given R (or K_max). However, instead of ΔK threshold behavior, some materials exhibit plateau or acceleration in da/dN rate with decreasing ΔK for long cracks tested in both constant R and K_max conditions. This unusual (da/dN)-ΔK behavior is only observed experimentally but not understood and represents a challenge to scientists and engineers to model the safe fatigue life prediction of structures under low amplitude vibrating loads. Full article

The growth of cracks between plies, i.e., delamination, in continuous fibre polymer matrix composites under cyclic-fatigue loading in operational aircraft structures has always been a very important factor, which has the potential to significantly decrease the service life of such structures. Whilst current designs are based on a ‘no growth’ design philosophy, delamination growth can nevertheless arise in operational aircraft and compromise structural integrity. To this end, the present paper outlines experimental and data reduction procedures for continuous fibre polymer matrix composites, based on a linear elastic fracture mechanics approach, which are capable of (a) determining and computing the fatigue crack growth (FCG) rate, da/dN, curve; (b) providing two different methods for determining the mandated worst-case FCG rate curve; and (c) calculating the fatigue threshold limit, below which no significant FCG occurs. Two data reduction procedures are proposed, which are based upon the Hartman-Schijve approach and a novel simple-scaling approach. These two different methodologies provide similar worst-case curves, and both provide an upper bound for all the experimental data. The calculated FCG threshold values as determined from both methodologies are also in very good agreement. Full article

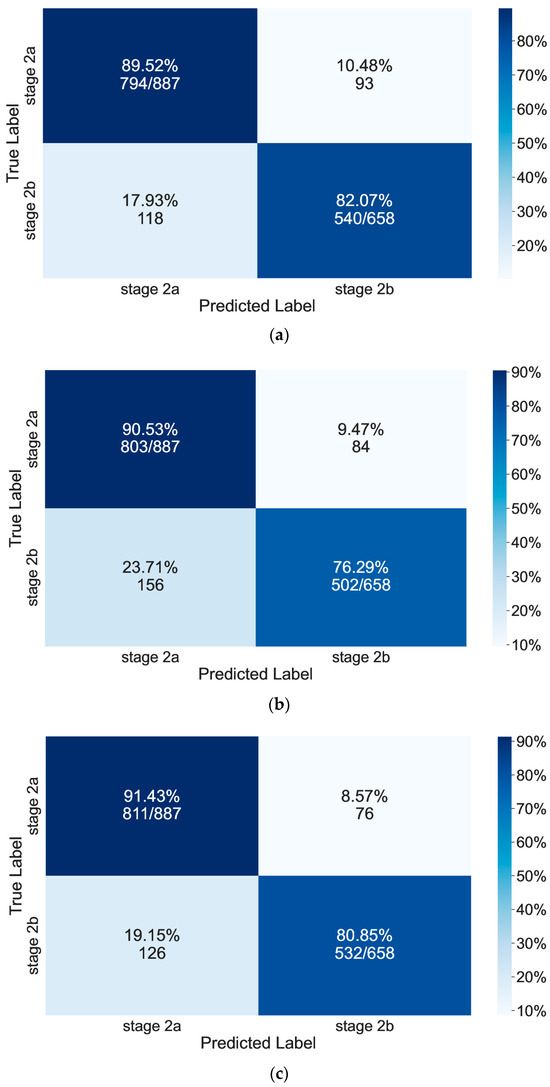

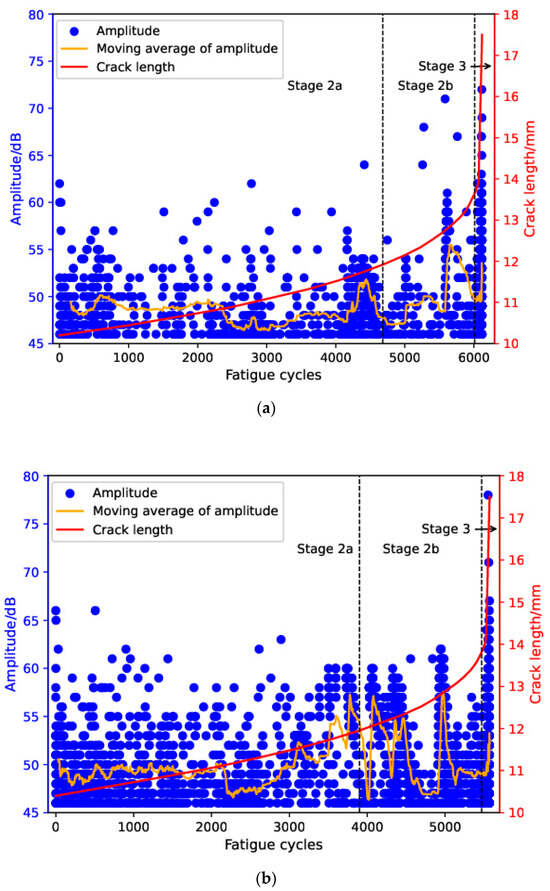

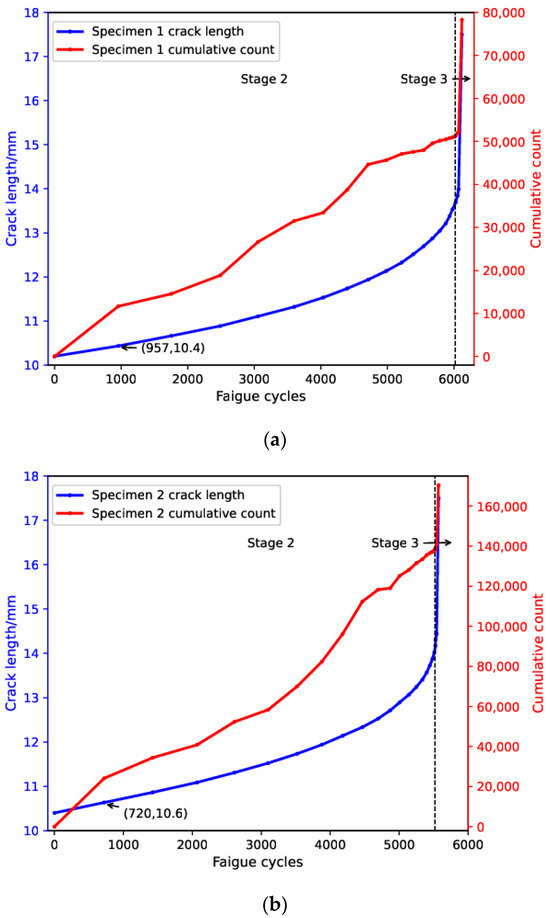

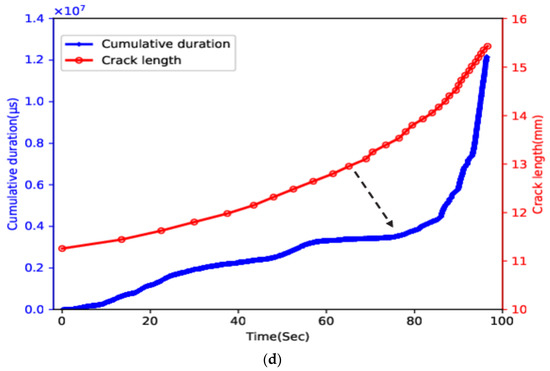

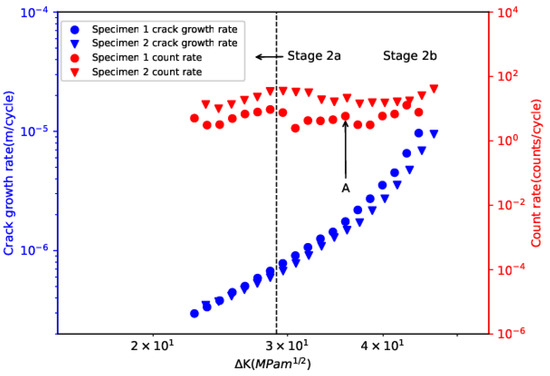

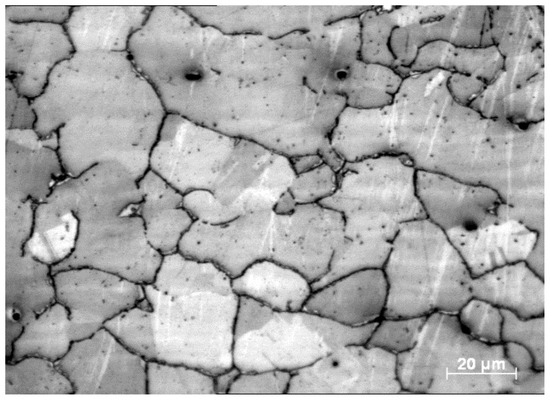

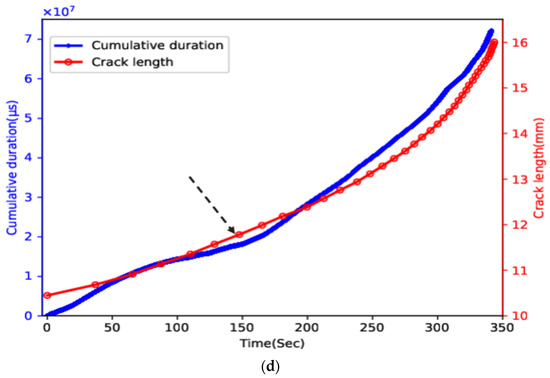

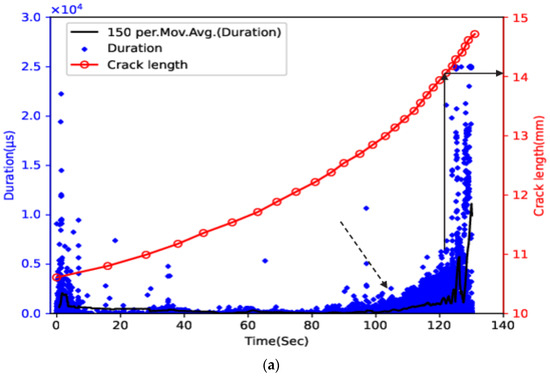

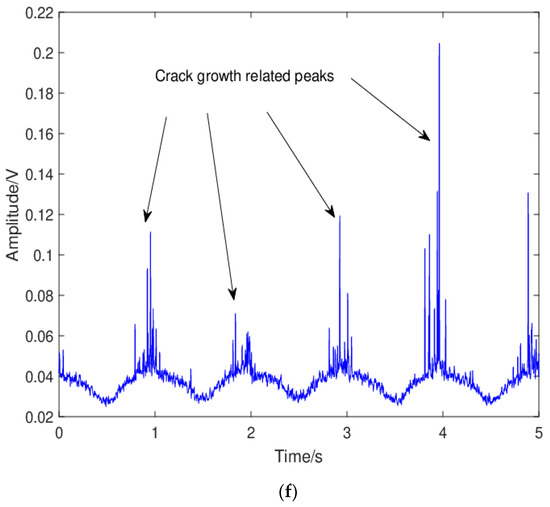

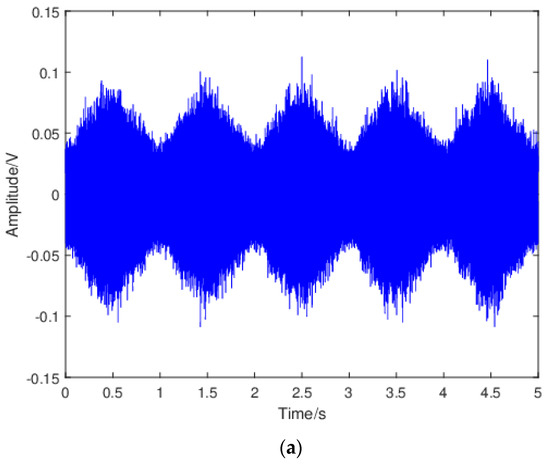

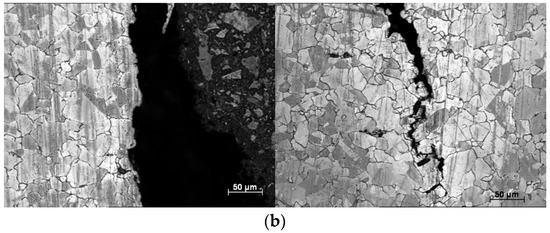

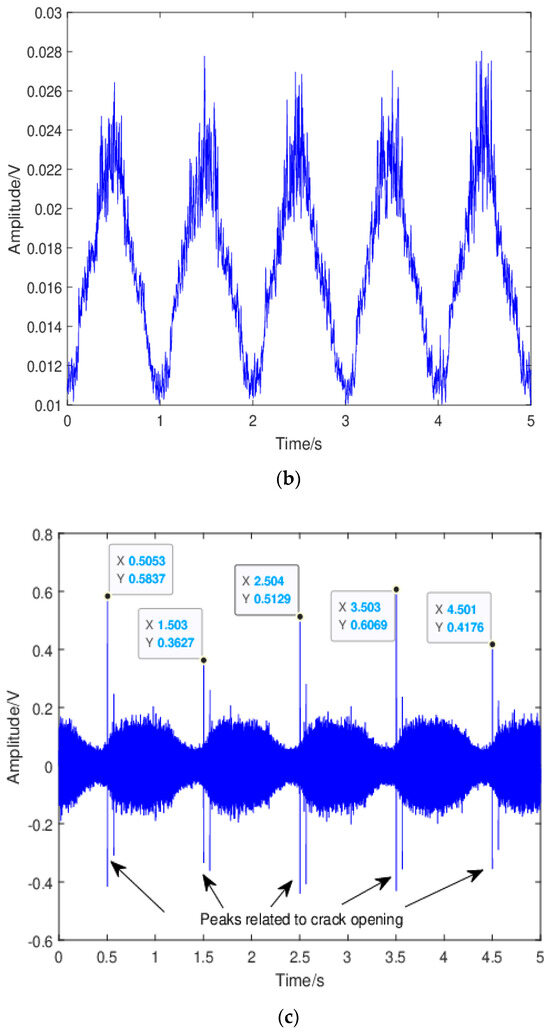

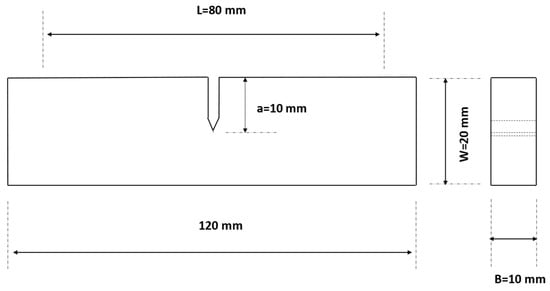

Structural health monitoring (SHM) of fatigue cracks is essential for ensuring the safe operation of engineering equipment. The acoustic emission (AE) technique is one of the SHM techniques that is capable of monitoring fatigue-crack growth (FCG) in real time. In this study, fatigue-damage evolution of Hadfield steel was characterized using acoustic emission (AE) and machine learning-based methods. The AE signals generated from the entire fatigue-load process were acquired and correlated with fatigue-damage evolution. The AE-source mechanisms were discussed based on waveform characteristics and bispectrum analysis. Moreover, multiple machine learning algorithms were used to classify fatigue sub-stages, and the results show the effectiveness of classification of fatigue sub-stages using machine learning algorithms. The novelty of this research lies in the use of machine learning algorithms for the classification of fatigue sub-stages, unlike the existing methodology, which requires prior knowledge of AE-loading history and calculation of ∆K. Full article

The objective of this study is to examine the behavior of fatigue crack growth (FCG) in the mixed mode (I/II) of the AISI 316 austenitic stainless steel alloy, considering mode mixity angles of 30°, 45°, and 60°. This particular alloy is widely used in the marine industry and various structural components because of its exceptional properties, such as high corrosion resistance, good formability, weldability, and high-temperature strength. By investigating the crack growth behavior, the study seeks to provide insights into the material’s durability and potential for long-term use in demanding applications. To analyze fatigue crack growth behavior using linear elastic fracture mechanics (LEFM), this study utilizes compact tension shear (CTS) specimens with varying loading angles. The CTS specimens provide an accurate simulation of real-world loading conditions by allowing for the application of various loading configurations, resulting in mixed-mode loading. The ANSYS Mechanical APDL 19.2 software, which includes advanced features such as separating, morphing, and adaptive remeshing technologies (SMART), was utilized in this study to precisely model the path of crack propagation, evaluate the associated fatigue life, and determine stress intensity factors. Through comparison with experimental data, it was confirmed that the loading angle had a significant impact on both the fatigue crack growth paths and the fatigue life cycles. The stress-intensity factor predictions from numerical models were compared to analytical data. Interestingly, it was observed that the maximum shear stress and von Mises stresses occurred when the loading angle was 45 degrees, which is considered a pure shear loading condition. The comparison shows consistent results, indicating that the simulation accurately captures the behavior of the AISI 316 austenitic stainless steel alloy under mixed-mode loading conditions. Full article

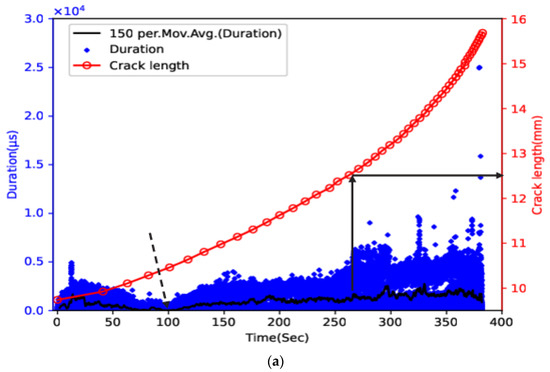

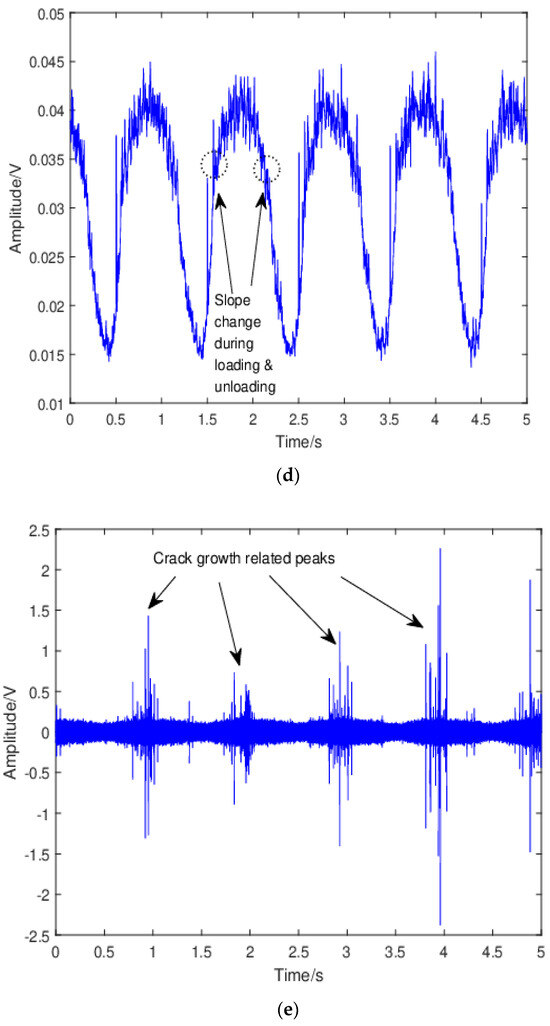

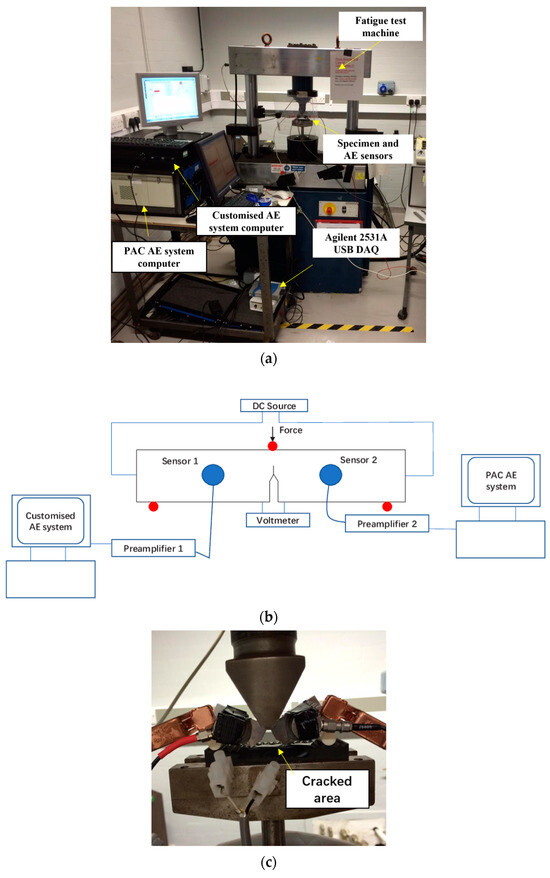

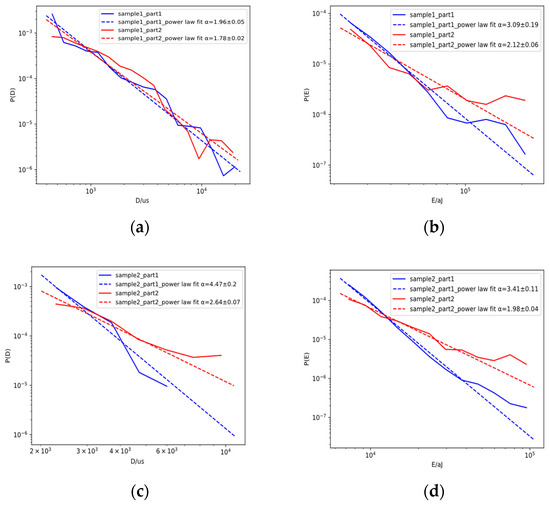

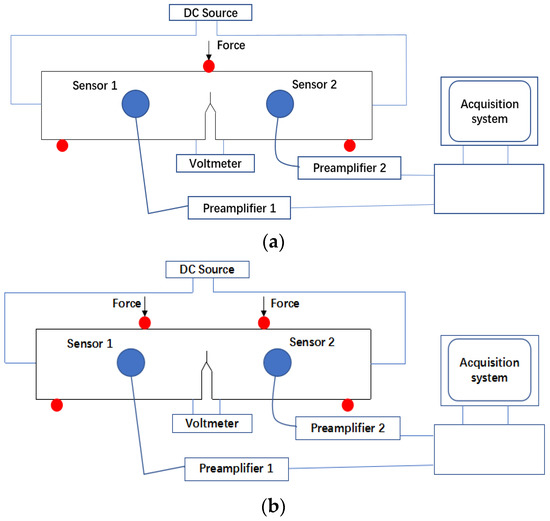

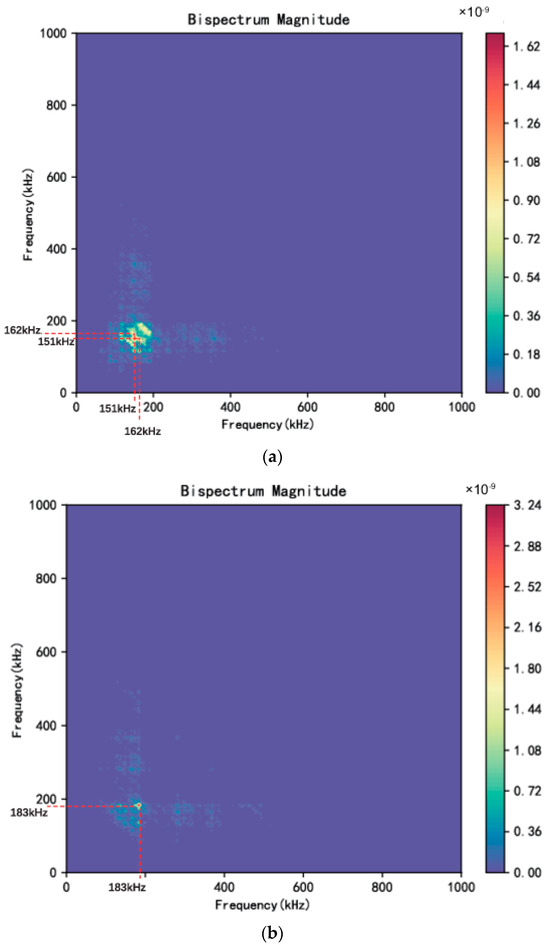

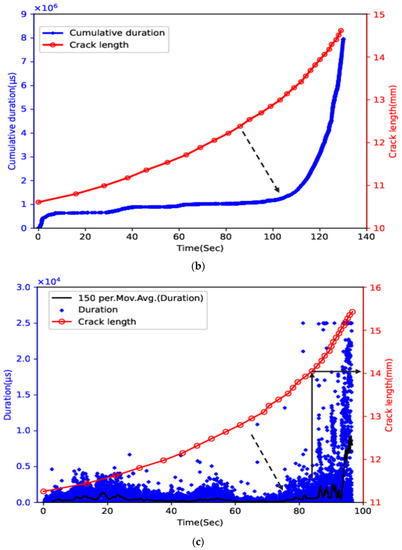

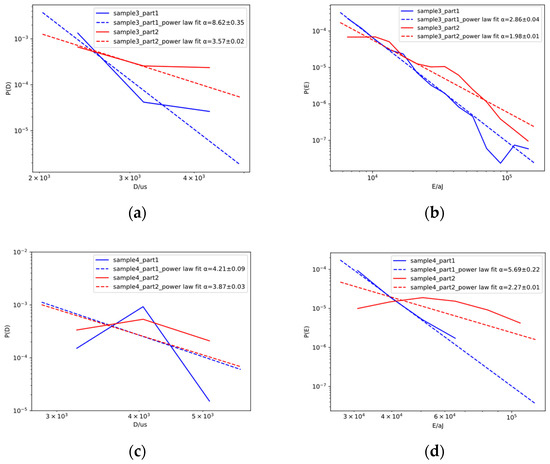

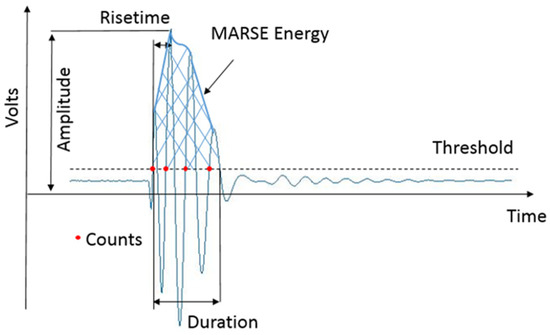

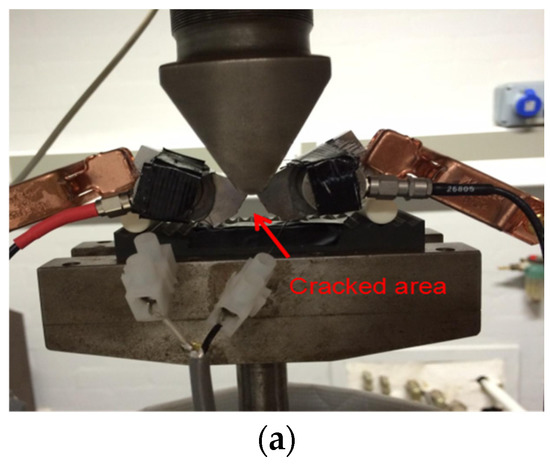

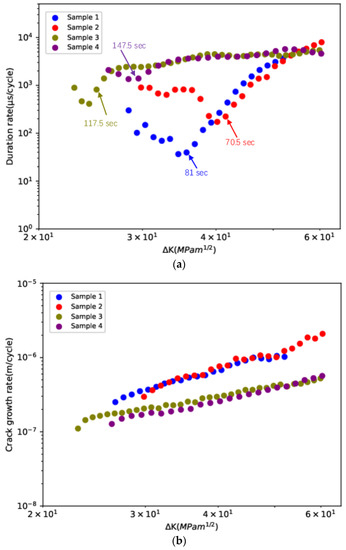

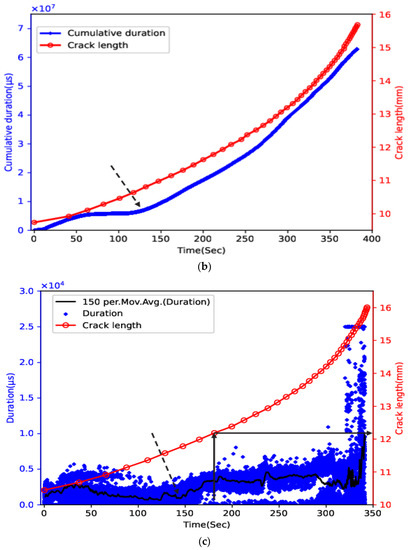

Evaluating the condition of a Hadfield steel crossing nose using existing inspection methods is subject to accessibility and geographical constraints. Thus, the use of conditional monitoring techniques to complement the existing inspection methods has become increasingly necessary. This paper focuses on the study of acoustic emission (AE) behaviour and its correlation with fatigue crack growth in Hadfield steel during bending fatigue tests. The probability density function for acoustic emission parameters was analysed based on the power law distribution. The results show that a sharp increase in the moving average and cumulative sum of the AE parameter can give early warning against the final failure of Hadfield steel. Two parts (Part 1 and Part 2) can be identified using the change in the slope of duration rate (dD/dN) vs. ΔK plot during the stable fatigue crack growth (FCG) process where Paris’s law is valid. The fitted power law exponent of AE parameters is smaller in Part 2 than in Part 1. The novelty of this research lies in the use of the fitted power law distribution of AE parameters for monitoring fatigue damage evolution in Hadfield steel, unlike existing AE fatigue monitoring methodology, which relies solely on the analysis of AE parameter trends. Full article
