Search Results (12)

The storage of highly alkaline red mud (RM) consumes land and threatens the environment, making its reuse crucial. The study used calcium carbide slag to dealkalize it, and analyzed the changes in mineral particles in RM using a CT scan. It then evaluated the stabilization effects of different materials and explored the mechanism of RM solidification through analysis of micro-mechanisms. The results showed that after dealkalization with CCS, RM particles form more agglomerates and the overall structure becomes more compact, and the Na⁺ content in RM decreased from 10.44 wt% to 0.86 wt%. After treatment with stabilization materials, the mechanical strength of low-alkalinity RM was greatly improved, and the stabilization effect of composite slag was the best. When the partial replacement ratio was 12%, the 28 d compressive strength was 4.51 MPa. After soaking in water for one day and night, the strength decreased by 24.3%, which had good stability. This study found that the strength gains were mainly due to crystal substances like Ca₃Al₂O₆ and non-crystalline substances such as C-S-H filling pores and wrapping particles. This study provides a new method for RM stabilization and promotes the utilization of industrial by-products. Full article

Due to compatibility issues between traditional reinforcing materials and the substrate of museum wooden artifacts, interface failure occurs after crack reinforcement, particularly under dry and wet cycling conditions. This significantly compromises the durability of reinforcement. To resolve this issue, dealkalized lignin was grafted onto epoxy acrylate (LEA) to synthesize a novel consolidant with both humidity responsiveness and mechanical compatibility. The resulting LEA exhibited excellent multilayer adsorption capability and demonstrated synchronous and uniform hygroscopic expansion behavior, closely matching that of archeological wood. DMA revealed that LEA2 has an elastic modulus of 261.58 MPa and a Poisson’s ratio of 0.35, comparable to artificially degraded wood, effectively mitigating interface stress caused by rigidity differences. Furthermore, LEA effictively reinforced micron-scale cracks while maintaining the original microstructure of the wooden artifact. This material provides a promising solution to the compatibility challenges of traditional consolidants under humidity fluctuations and offers a new approach for the stable preservation of museum wooden artifacts. Full article

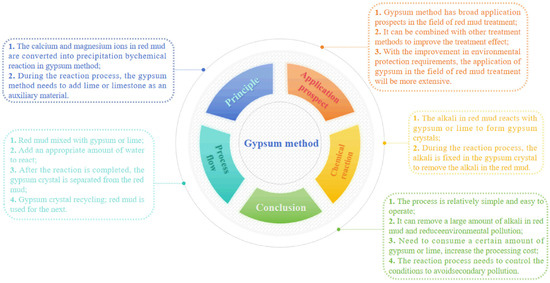

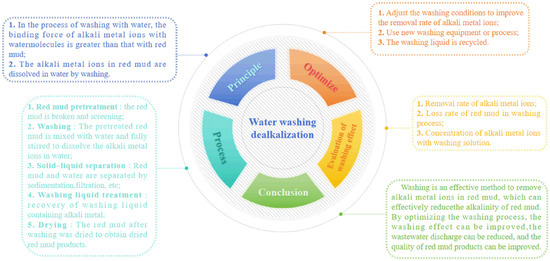

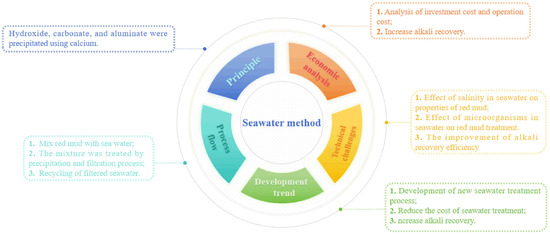

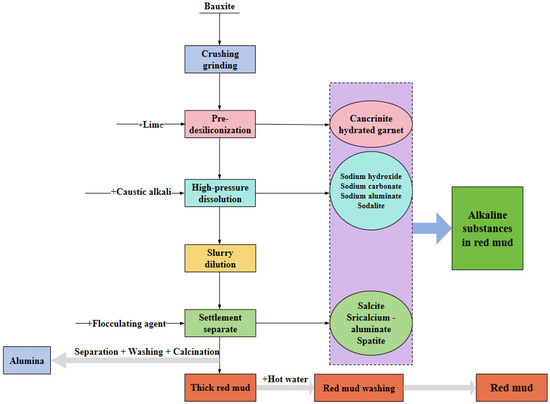

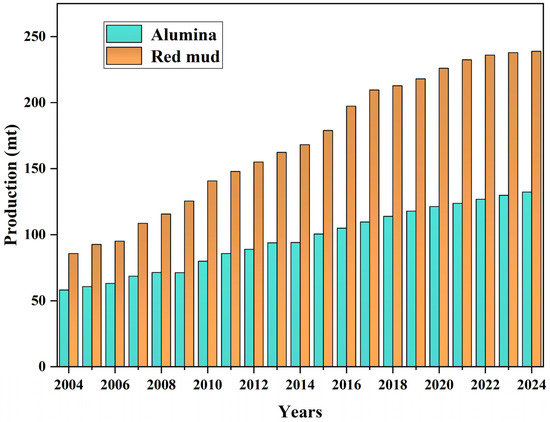

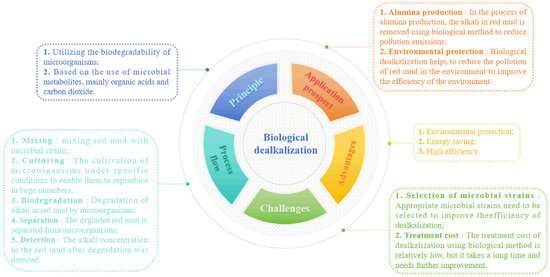

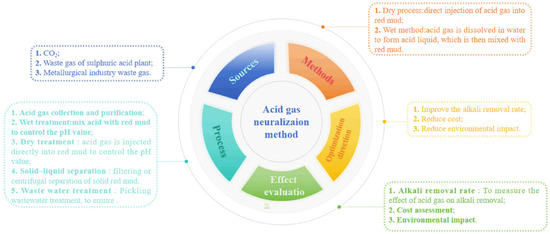

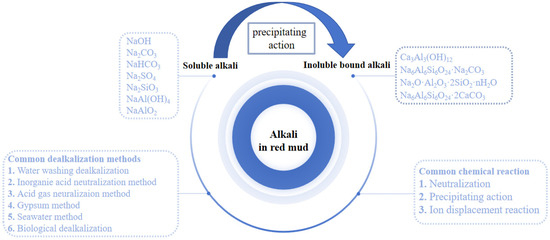

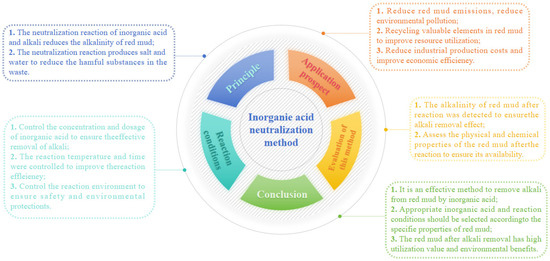

Red mud is a highly alkaline residue generated during the alumina extraction process, and its strong alkalinity significantly hinders its extensive and comprehensive utilization. The alkali in red mud mainly exists in two forms, namely, soluble alkali and insoluble chemically bound alkali. This study aims to provide a comprehensive overview of the dealkalization process progress for red mud, encompassing acid neutralization technology, salt (ion) precipitation or displacement technology, and metallurgical technology. The mechanisms, advantages, and disadvantages associated with each technology are discussed. To enhance readability for readers, mind maps are included for each dealkalization method of red mud. Based on the above analysis, it is advisable to choose the most suitable dealkalization method for red mud, considering its specific properties and the subsequent application strategy. Recommendations regarding future research on red mud dealkalization are proposed. Full article

In this study, a halotolerant bacterial strain was isolated and identified. This bacterium was confirmed to efficiently degrade s-triazine herbicides under saline conditions. The optimal conditions for the metabolism and growth of this strain were determined through single-factor tests. Furthermore, the biodegradation pathways of prometryne (the target compound) by this strain were proposed based on the detection of possible degradation intermediates and genome sequencing analysis. Additionally, a possible halotolerance mechanisms of this strain were also revealed through screening halotolerance-related genes in its genome. The results demonstrated that a halotolerant bacterial strain (designated PC), which completely degraded 20.00 mg/L prometryne within 12 h under saline conditions (30.0 g/L NaCl), was isolated and identified as Paenarthrobacter ureafaciens. The optimal conditions for the metabolism and growth of the strain PC were identified as follows: yeast extract as the additional carbon source with the concentration of ≥0.1 g/L, NaCl concentration of ≤30.0 g/L, initial pH of 7.0, temperature of 35.0 °C, and shaking speed of ≥160 rpm. Furthermore, the strain PC demonstrated efficient removal of other s-triazine herbicides, including atrazine, ametryne, simetryne, and cyanazine. The strain PC might degrade prometryne through a series of steps, including demethylthiolation, deisopropylamination, deamination, dealkalation, decarboxylation, etc., relying on the relevant functional genes involved in the degradation of s-triazine compounds. Furthermore, the strain PC might tolerate high salinity through the excessive uptake of K⁺ into cells, intracellular accumulation of compatible solutes, and production of halophilic enzymes. This study is expected to provide a potentially effective halotolerant bacterium for purifying s-triazine pollutants in saline environments. Full article

The acid neutralization process is widely recognized for its effectiveness in the dealkalization of red mud, and it faces challenges in solid–liquid separation due to the formation of numerous colloidal components. This study investigated the impact of calcium-containing compounds (CaO, CaCl₂, CaCO₃, and CaSO₄) on the solid–liquid separation and the dealkalization efficiency of red mud during the dealkalization process. The sodium leaching efficiency of the red mud reached 95.6% when the red mud was reacted with 8% of sulfuric acid for 10 min with a stirring speed and liquid to solid ratio of 700 r/min and 5:1, respectively. The replacement of sulfuric acid using simulated waste acid reached similar sodium leaching efficiency. However, the filtration rate of red mud becomes exceedingly sluggish using sulfuric acid or simulated waste acid. Adding calcium-containing compounds significantly augments the efficacy of solid–liquid separation in red mud. With a mass content of 2% for CaO or 8% for CaCl₂, the filtration speed experienced a remarkable fivefold and ninefold increase, respectively. Furthermore, a simplification in the composition was observed within the leaching solution derived from red mud, thereby creating favorable conditions for the extraction of sodium. The influence mechanism was investigated with X-ray diffraction, inductively coupled plasma analysis, and scanning electron microscopy. The addition of calcium compounds led to the formation of calcium silicate and iron silicate in the leaching residue, inhibiting the generation of colloidal substances, such as silica gel. Additionally, these compounds increased the size of red mud particles, facilitating the solid–liquid separation process. This study provides valuable technical insights for the dealkalization of red mud. Full article

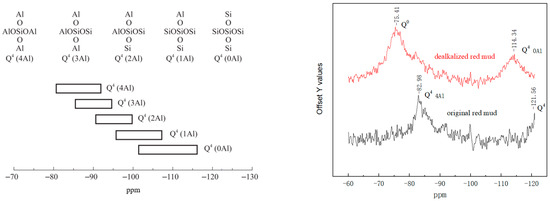

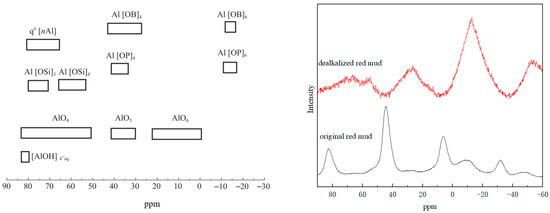

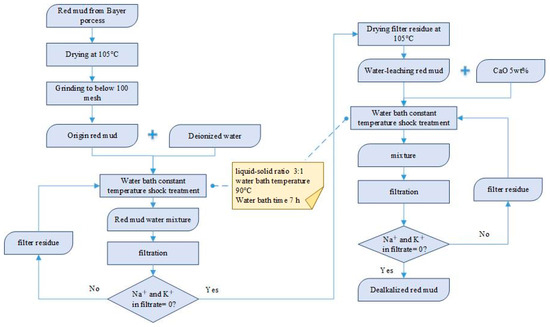

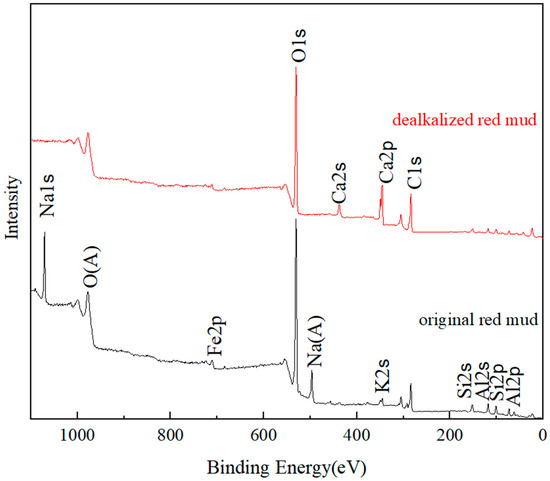

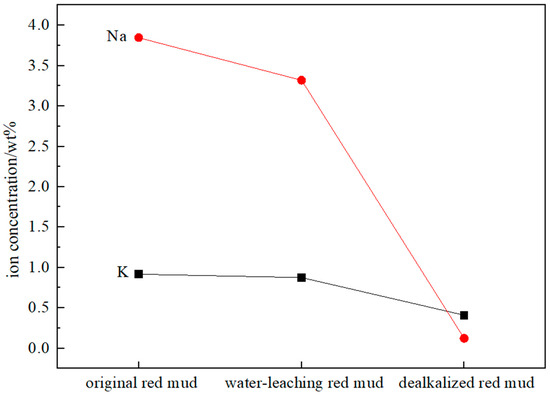

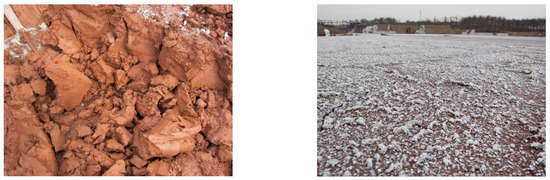

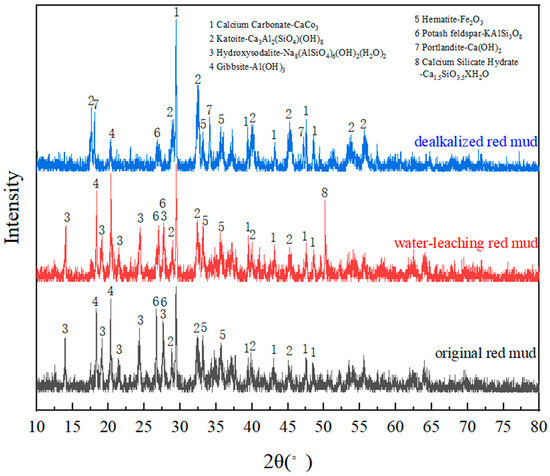

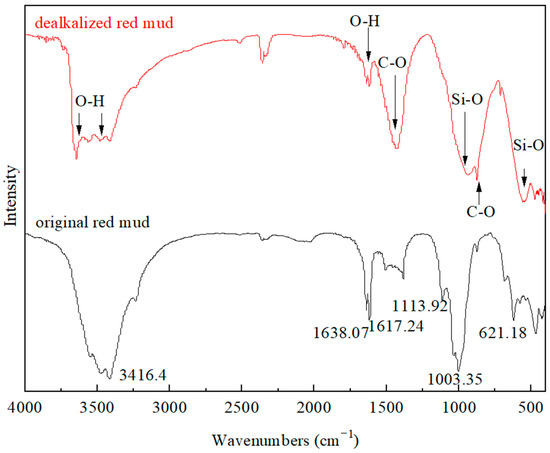

The application of large amounts of red mud in the field of building materials is one of the main ways to reuse this material, but the high alkali content of red mud limits its application. In this paper, the washable alkali, removable alkali, and lattice alkali contents of Bayer red mud were studied, and the occurrence states of potassium and sodium in red mud were studied using XRD, IR, XPS, and NMR. On this basis, the removal mechanism for potassium and sodium in red mud was analyzed. The results showed that the Na in the red mud was mainly deposited in the shelf silicon voids of hydroxy sodalite (Na₈(AlSiO₄)₆(OH)₂(H₂O)₂) in the form of Si-O-Na or Al-O-Na. K is deposited in the shelf silico-oxygen void of potassium feldspar (KAlSi₃O₈) in the form of Si-O-K or Al-O-K. The washable Na and K contents of the mud were 13.7% and 4.47%; the alkali removal agent CaO removed 83.1% and 50.8% of Na and K in the red mud; and the lattice alkali Na and K contents were 3.20% and 44.8%, respectively. In the process of red mud dealkalization, Ca²⁺ ions can enter the internal voids of the hydroxyl sodalite and potassium feldspar silica skeleton and then replace Al³⁺ in the Si-O skeleton and Na⁺ and K⁺ in the skeleton voids. The replacement reaction changes the silica tetrahedron network structure, resulting in the disintegration of the frame-like silica tetrahedron in the hydroxyl sodalite and potassium feldspar, forming an isolated, island-like silica tetrahedron in hydrated garnet. Full article

In this paper, we distinguished the degradation of alkali-activated material (AAM) exposed to sulfuric acid as physical (scaling, spalling, cracking, breaking, etc.) and chemical degradation (neutralization), because the mechanisms of these two types of degradation are different. Then, the effects of curing method, raw materials, and their mixing proportions on the two kinds of degradation of AAMs containing GGBFS were investigated in detail, including liquid-filler ratio, component of alkali activator, chemical admixture, inactive filler alternative to fly ash (FA), addition of municipal waste incineration bottom ash (BA), etc. The experimental results show that (a) small liquid-filler ratio, heat-curing, and the use of blended alkali activator solution of sodium silicate and NaOH can reduce both physical and chemical degradation of AAMs; (b) large GGBFS content or AE agent addition decreases the physical degradation, but increases the chemical degradation; (c) using crushed stone powder to replace FA and adding BA or a retarder would increase the physical and chemical degradation; but (d) the use of drying shrinkage reducer composed of polyether derivatives does not affect acid resistance. We also discussed the applicability and limitation of XRD and SEM-EDS in analyzing the chemical compositions of Ca-rich AAMs exposed to sulfuric acid, and found that (e) XRD analysis can identify the gypsum formation, and the gypsum peak intensity is related to the physical degradation of the Ca-rich AAMs; (f) by SEM-EDS analysis, the decalcification and dealkalization of C-A-S-H gels can be judged from the decrease in the average Ca/Si atomic ratio and the average Na atomic percentage in the acid corrosion area, but dealumination can be only determined from the dissimilarity of Al and Si elemental maps; and (g) if the CaO/SO₃ molar ratio ranges from 0.8 to 1.0, gypsum formation can be estimated. Full article

Co-hydrothermal carbonization (Co-HTC) of sewage sludge (SS) and corn straw (CS) for fuel preparation is a waste treatment method that reduces the pre-treatment cost of solid waste and biomass fuel. Based on the response surface methodology (RSM), a test was designed to prepare SS and CS hydrochars using a hydrothermal high-pressure reactor. The test examined the higher heating value (HHV) and the concentrations of alkali metals and alkaline earth metals (AAEMs) and Cl. The HHV of SS-hydrochar decreased with an increase in reaction temperature, but that of CS-hydrochar increased. The yield of CS-hydrochar was at 26.74–61.26%, substantially lower than that of SS-hydrochar. Co-hydrochar has the advantages of HHV and an acceptable yield. The HHV of co-hydrochar was 9215.51–12,083.2 kJ/kg, representing an increase of 12.6–47.6% over single component hydrochar, while the yield of co-hydrochar was 41.46–72.81%. In addition, the stabilities of AAEM and Cl in the co-hydrochar were Mg > Ca > K > Na > Cl. SS and CS had a synergistic effect on dechlorination efficiency (DE), which had a negative effect on the removal efficiency (RE) of Ca and Na. The optimal hydrocharization conditions were a temperature of approximately 246.14 °C, a residence time of approximately 90 min, and a mixing ratio of SS–CS of approximately 57.18%. The results offer a way to utilize SS and CS by Co-HTC and convert them into low-chlorine and low-alkali fuel, thus pushing the improvement of this promising waste-to-energy technology. Full article

Bauxite residue (red mud) generated during alumina production is a highly alkaline solid waste. The red mud is mainly stored on land, but it can cause harm to the surrounding environment and human health. The transformation of red mud into soil is a feasible method for the large-scale disposal of red mud, but alkali removal is the key process that controls the transformation of red mud into soil. In this study, the calcification dealkalization of red mud with a small particle size was carried out below 100 °C. The results show that the sodium in red mud is predominately distributed in small particles, mainly because the lattice alkali and alkali present between the crystals are exposed to the surface of red mud particles by ball milling. The dealkalization process was controlled by the internal diffusion of the shrinking-core model (SCM), and the apparent activation energy was 23.55 kJ/mol. The dealkalization rate and the Na₂O content of dealkalized red mud reached 92.44% and 0.61%, respectively. The dealkalization rate increased with increasing reaction time, reactant concentration, and leaching temperature, and this result was consistent with the results of the kinetic study. In addition, calcification enhances the flocculation of particles, so the filtration performance of red mud improved. Full article

The alkaline components in red mud represent one of the crucial factors restricting its application, especially for the construction and building industry. The phase state of alkaline components has a significant influence on the dealkalization of red mud. In this work, an environmentally friendly acid leaching strategy is proposed by controlling the phase transformation of red mud during active roasting pretreatment. With a moderate roasting temperature, the alkaline component is prevented from converting into insoluble phases. After acid leaching with a low concentration of 0.1 M, a high dealkalization rate of 92.8% is obtained. Besides, the leachate is neutral (pH = 7) and the valuable metals in red mud are well preserved, manifesting a high selectivity and efficiency of diluted acid leaching. The calcination experiment further confirms the practicability of the strategy in the construction field, where the cementitious minerals can be formed in large quantities. Compared with the traditional acid leaching routes, the diluted acid leaching strategy in this work is acid saving with low valuable element consumption. Meanwhile, the secondary pollution issue can be alleviated. Hence, the findings in this work provide a feasible approach for the separation and recovery of alkali and resource utilization of red mud. Full article

A detailed study on the synthesis of chitosan nanoparticles under ultrasonication is reported in this paper. By using this simple technique, chitosan particles in nanometer range can be easily prepared without using any harmful and expensive chemicals. The results show that increasing the ultrasonic irradiation time and ultrasonic wave amplitude are the key factors for producing discrete chitosan nanoparticles with narrow particle size distribution. The resulting nanoparticles show superior turbidity removal efficiency (75.4%) and dealkalization (58.3%) in wastewater treatment than the bulk chitosan solid (35.4% and 11.1%, respectively), thus offering an eco-friendly and promising approach for treating wastewater via the coagulation/flocculation process. Full article

As a solid waste generated in the alumina industry, red mud poses a significant environmental hazard and a storage problem. In this study, red mud was added to road cement clinker in order to utilize it. The sintering red mud was first de-alkalized, and then mixed with fly ash, clay, limestone, and sandstone, among other materials, to make Portland cement for road clinker. The effect of the addition of red mud on the thermal decomposition characteristics of Portland cement for roads was studied. The existent states of alkali and radioactive elements in Portland cement for road clinker were investigated by XRD and SEM analysis. The research results showed that the addition of red mud in Portland cement for road raw material significantly promoted the decomposition of carbonates in raw material. The major mineral phases of Portland cement for road clinker were C₃S with a polyhedral morphology, quasi-spherical C₂S, and tubular C₄AF. A small part of the alkali combined with the silicate phase to form a solid solution, and most of the alkali combined with S to form vermiform sulfate in the intermediate phase. The radionuclide ²²⁶Ra was mainly distributed in the silicate phase. ²³²Th was mainly distributed in interstitial phases and then silicate phases, while ⁴⁰K was mainly distributed in the interstitial phases. Full article
