Search Results (8)

Reinforcement corrosion significantly reduces the load-bearing capacity, ductility, and energy dissipation of reinforced concrete (RC) structures, thereby increasing their seismic failure risk. To enhance the seismic performance of in-service RC structures, this study employs an FRP mesh–engineered cementitious composite (ECC) retrofitting method and develops a multi-objective optimization decision-making framework. A finite element model incorporating reinforcing steel corrosion, concrete deterioration, and bond–slip effects is first established and validated against experimental results. Based on this model, a six-story RC frame is selected as a case study, and eight alternative FRP mesh–ECC retrofitting schemes are designed. Five core indicators are quantified, namely annual collapse probability, expected annual loss, capital expenditure, carbon emissions, and downtime. The results indicate that FRP mesh–ECC retrofitting can significantly improve the seismic performance of corroded RC structures. The overall uniform retrofitting scheme (SCS-2) achieves the most significant improvements in seismic safety and economic performance, but they are associated with highest capital expenditure and carbon emission. Story-differentiated schemes (SCS-3 to SCS-6) provide a trade-off between performance enhancement and cost–emission control. While partial component-focused schemes (SCS-7 and SCS-8) cut cost and carbon but do not lower seismic downtime. Furthermore, the improved fuzzy-TOPSIS method with interval weights and Monte Carlo simulation indicates that the balanced scheme SCS-1 delivers the most robust performance across five dimensions, with a best probability close to 90%. The results confirm the potential of FRP mesh–ECC retrofitting at both component and structural levels and provide a practical reference for selecting seismic retrofitting strategies for existing RC structures. Full article

Corrosion is a phenomenon that significantly impacts the durability of reinforced concrete (RC) structures, particularly in highly corrosive environments like coastal regions. The existing numerical modelling often relies on complex approaches that are impractical for structural assessment. For this reason, this study proposes a simplified numerical modelling approach to simulate the cyclic behaviour of existing RC framed structures with corrosion levels (η) below 25%. The proposed modelling employs concentrated plasticity hinges for beams and fiber sections for columns, incorporating corrosion-induced degradation through modified backbone curves and material properties based on the corrosion level of the structural element. The modelling approach was validated against experimental results from the literature; the proposed model adequately captures hysteretic energy, lateral load, and deformation capacities, with maximum errors of 11% for maximum lateral load, 12% for ultimate load, and 33% for dissipated energy in RC frames. For isolated columns, the errors were 11, 12, and 22%, respectively. In addition, a maximum difference of 7% was found in the lateral load capacity of the corroded frames associated with the Life Safety limit state. Finally, it was concluded that the proposed methodology is suitable for representing the cyclic behaviour of corroded RC columns and frames and provides engineers with a tool to evaluate the behaviour of corroded structures without resorting to complex models. Full article

The progressive collapse performance of reinforced concrete (RC) building structures has been extensively investigated using the alternate load path method. However, most studies have focused on newly designed structures, with limited attention given to existing buildings. Since progressive collapse can occur at any point during a structure’s service life and at various locations within the structural system, this study examines the progressive collapse behavior of deteriorated RC frames subjected to simulated reinforcement corrosion. This paper presents an investigation into the system-level progressive collapse responses of deteriorated RC frames, which extends the current state of the art in this field. The influence of different material deteriorations, different corrosion locations, different column removal scenarios, and dynamic effects on structural response is explored. According to the results obtained in this research, a significant reduction in progressive collapse resistance can be resulted in with increasing corrosion levels. Notably, only reinforcement corrosion in the beams located directly above the removed column (i.e., within the directly affected part) for the investigated RC frame had a substantial impact on structural performance. In contrast, corrosion in other regions and concrete deterioration exhibited minimal influence in this work. An increased number of corroded floors further reduced collapse resistance. Dynamic progressive collapse resistance was found to be considerably lower than its static counterpart and decreased at a slightly faster rate as corrosion progressed. Additionally, the energy-based method was shown to provide a reasonable approximation of the maximum dynamic responses at different corrosion levels, offering a computationally efficient alternative to full dynamic analysis. Full article

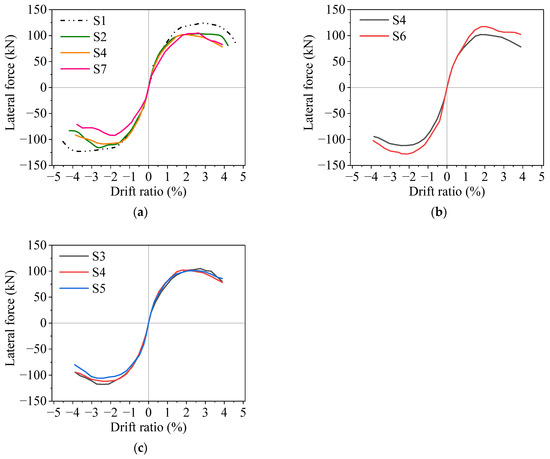

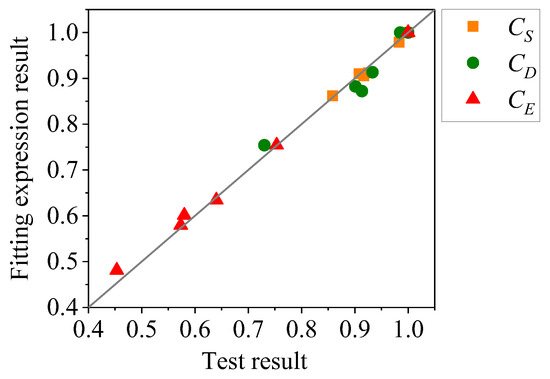

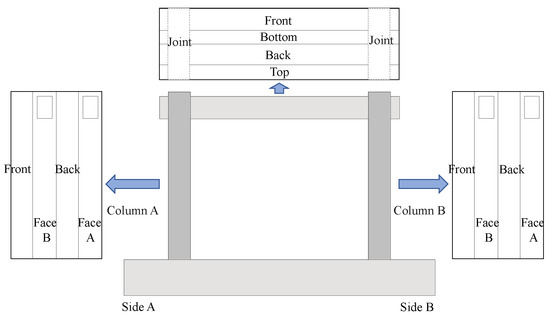

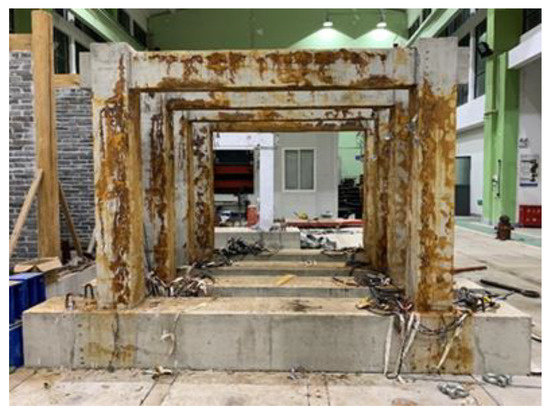

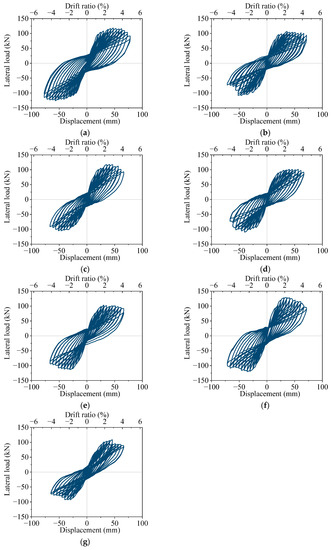

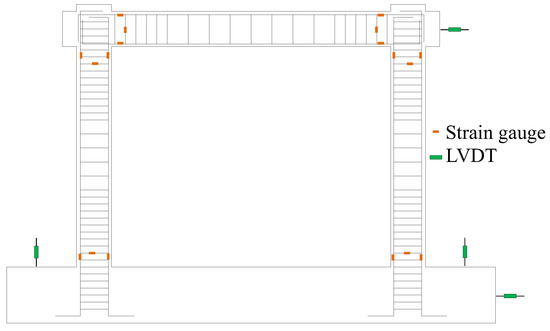

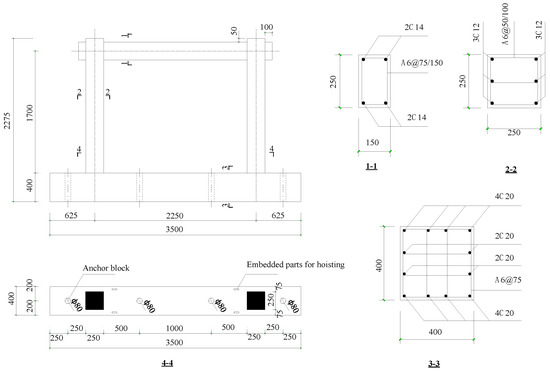

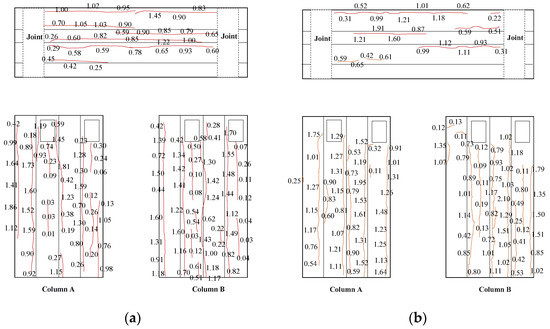

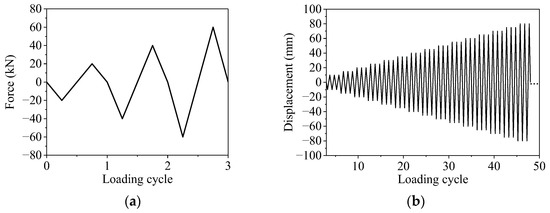

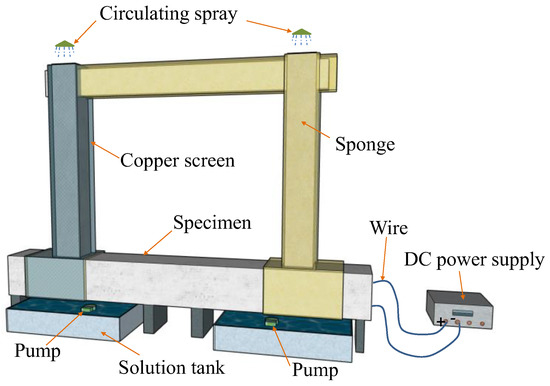

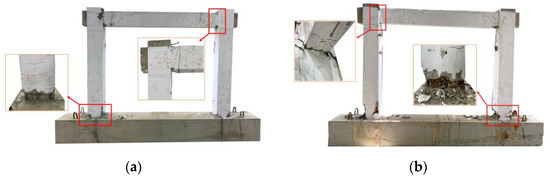

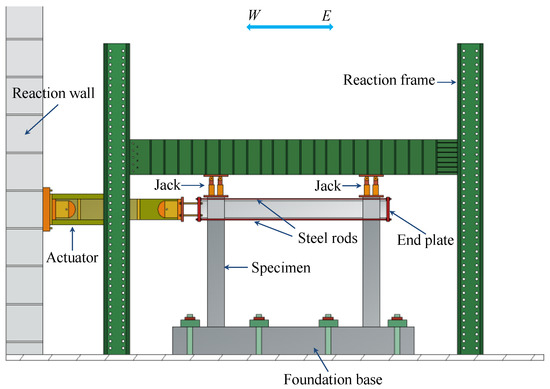

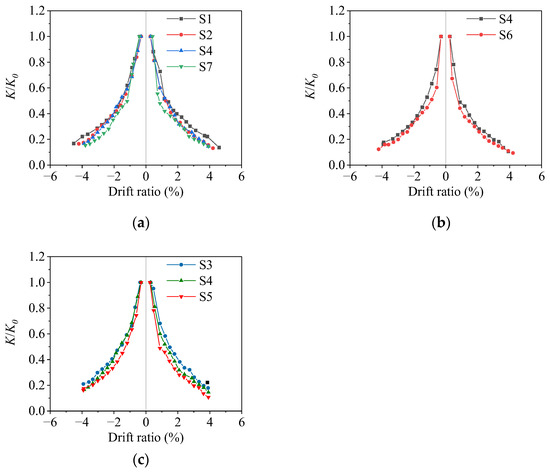

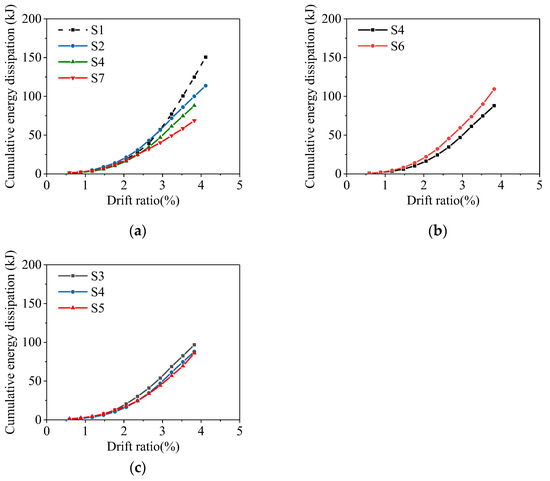

To investigate the effect of non-uniform corrosion on the seismic performance of reinforced concrete (RC) frame structures, seven RC frame specimens, including one uncorroded and six corroded frames, were tested under quasi-static loading. The damage modes, force–displacement hysteresis curves and skeleton curves, stiffness degradation, ductility and the energy dissipation capacity of specimens were studied. The influences of the corrosion degree, non-uniform corrosion characteristic value, and axial compression ratio on the seismic performance of the specimens were analyzed. The test results show that non-uniform corrosion of longitudinal bars has a significant effect on the development of seismic damage in RC frames. In comparison with non-corroded RC frames, the loading carrying capacity of corroded frames with non-uniform corrosion characteristics values of 0.18, 0.59, and 0.72 decreased by 8.5%, 14.8%, and 22.3%, the displacement ductility ratios decreased by 6.7%, 8.7%, and 10.0%, and the total cumulative energy dissipation at ultimate displacement values decreased by 24%, 41%, and 54%. For corroded frames with low axial compressive ratios, the loading carrying capacity and energy dissipation capacity rose with the increase in the axial compression ratio. Full article

Frame buildings are prone to cracking because of their deformation by normal and extreme events such as temperature and earthquakes. Even though the crack widths are limited in the structural design, a cracked cover reduces the corrosion protection of reinforcing steel. Therefore, the load capacity of structures can be compromised prematurely. This paper aims to evaluate the flexo-compressive strength of deteriorated reinforced concrete (RC) elements in the corrosion process. To that end, a methodology to calculate the residual strength capacity was proposed, considering the influences of crack widths and cover width on the corrosion level—structure age relation of RC elements. The strength deteriorations caused by the concrete cracking and the steel corrosion were incorporated according to structure age. The residual strength was studied using parametric analyses, whose variables were the crack width, the cover width, the rebar diameter, and the structure age. The results showed that the cracked frame elements reduced their serviceability life by up to 62%, although their crack widths were within range recommended by the design codes (lesser than 0.30 mm). In 25 years, the corrosion effects reduce the element strength by up to 44%. This is due to the corrosion protection provided by the cracked cover becomes insignificant, reducing the initiation time. Thus, considering the corrosion deterioration can prevent strength overestimations up to 1.46 times. Additionally, according to their current state, the proposed methodology provides a practical estimation of flexo-compressive strength in corroded RC elements. Full article

This study develops three-dimensional (3D) finite element (FE) models of composite retrofits in deficient reinforced concrete (RC) columns and frames. The aim is to investigate critical cases of RC columns with inadequate lap splices of bars or corroded steel reinforcements and the beneficial effects of external FRP jacketing to avoid their premature failure and structural collapse. Similarly, the RC-frame FE models explore the effects of an innovative intervention that includes an orthoblock brick infill wall and an advanced seismic joint made of highly deformable polymer at the boundary interface with the RC frame. The experimental validation of the technique in RC frames is presented in earlier published papers by the authors (as well as for a four-column structure), revealing the potential to extend the contribution of the infills at high displacement ductility levels of the frames, while exhibiting limited infill damages. The analytical results of the advanced FE models of RC columns and frames compare well with the available experimental results. Therefore, this study’s research extends to critical cases of FE models of RC frames with inadequate lap splices or corroded steel reinforcements, without or with brick wall infills with seismic joints. The advanced pseudodynamic analyses reveal that for different reinforcement detailing of RC columns, the effects of inadequate lap-spliced bars may be more detrimental in isolated RC columns than in RC frames. It seems that in RC frames, additional critical regions without lap splices are engaged and redistribution of damage is observed. The detrimental effects of corroded steel bars are somewhat greater in bare RC frames than in isolated RC columns, as all reinforcements in the frame are considered corroded. Further, all critical cases of RC frames with prior damages at risk of collapse may receive the innovative composite retrofit and achieve higher base shear load than the original RC frame without corroded or lap-spliced bars, at comparable top displacement ductility. Finally, the FE analyses are utilized to propose modified design equations for the shear strength and chord rotation in cases of failure of columns with deficiencies or prior damages in RC structures. Full article

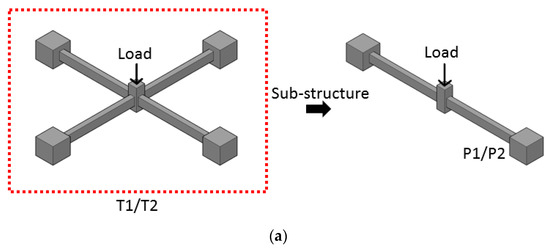

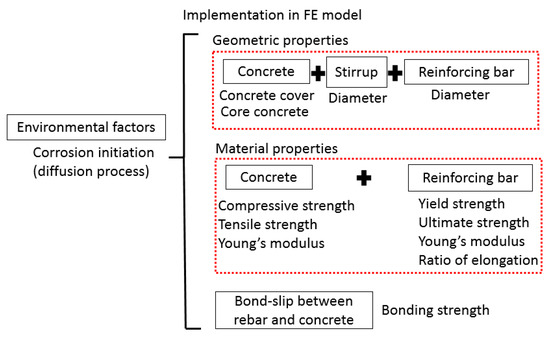

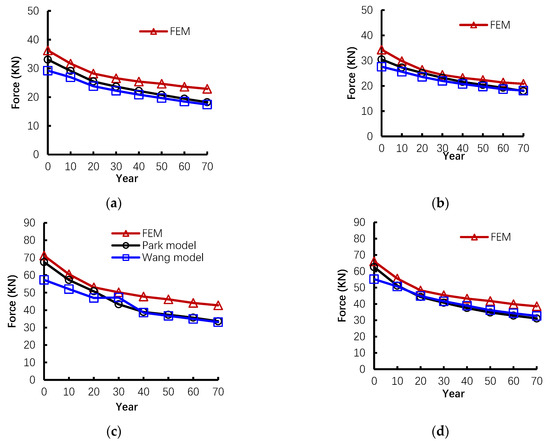

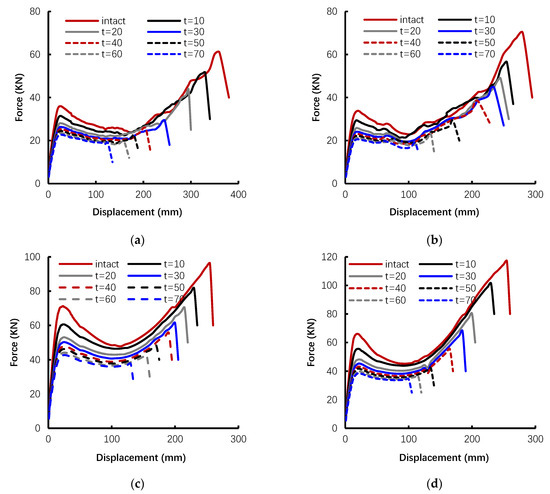

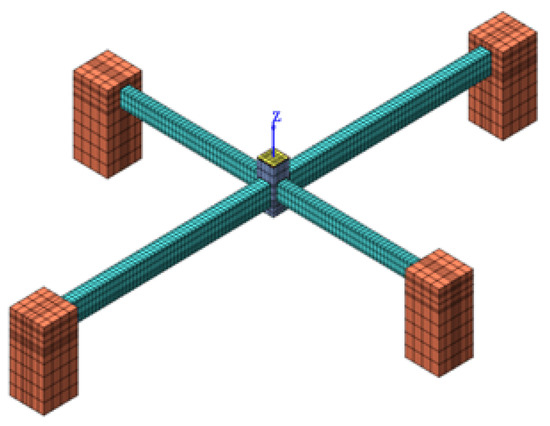

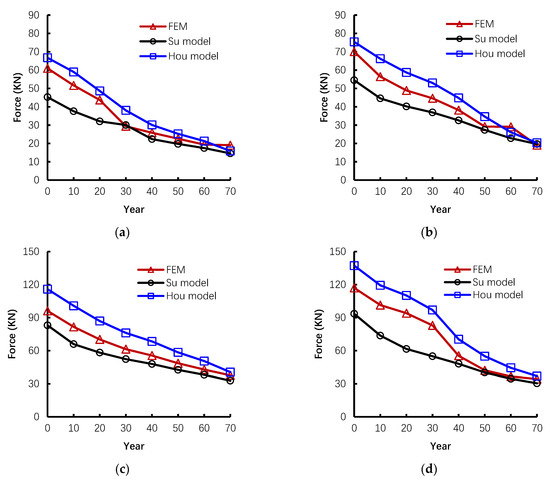

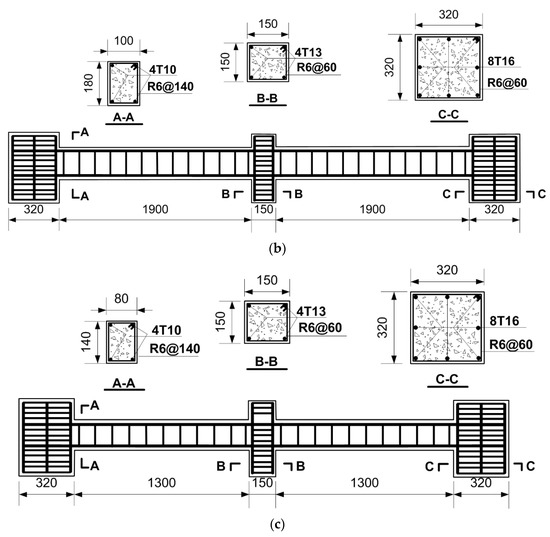

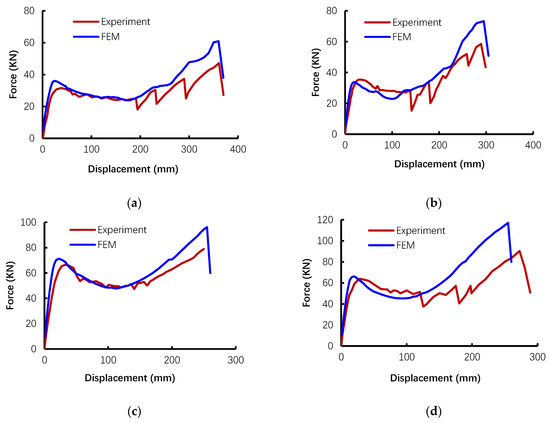

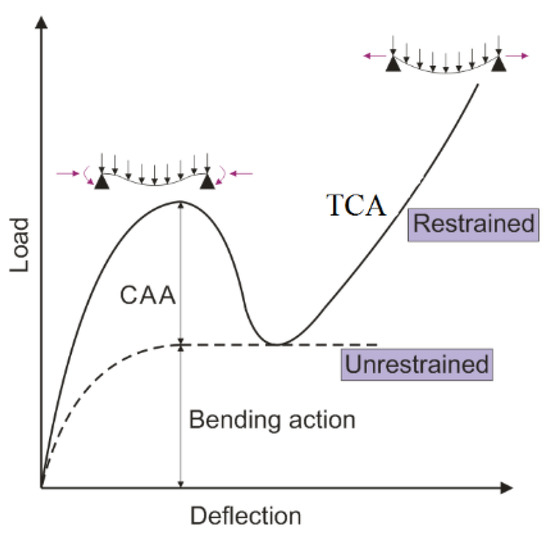

Many negative factors can influence the progressive collapse resistance of reinforced concrete (RC) frame structures. One of the most important factors is the corrosion of rebar within the structure. With increasing severity of corrosion, the duration, robustness, and mechanical performance can be greatly impaired. One specific side effect of rebar corrosion is the significant loss of protection against progressive collapse. In order to quantify the effects of rebar corrosion on load-resisting mechanisms (compressive arch action (CAA) and tensile catenary action (TCA)) of RC frames, a series of numerical investigations were carried out in this paper. The previous experimental results reported in the literature provide a benchmark for progressive collapse behavior as a sound condition and validate the proposed numerical model. Furthermore, based on the verified numerical model, the CAA and TCA with increasing corrosion and an elapsed time from 0 to 70 years are investigated. Comparing with the conventional empirical model, the proposed numerical model has shown the ability and feasibility in predicting the collapse resistance capacity in structures with corroded rebar. Therefore, this numerical modeling strategy provides comprehensive insights into the change of load-resisting mechanisms in these structures, which can be beneficial for optimizing the design. Full article

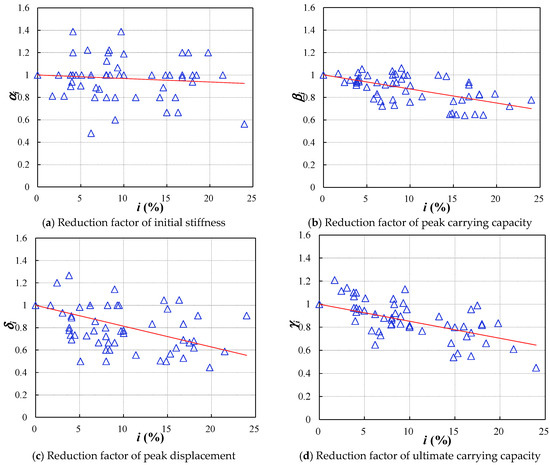

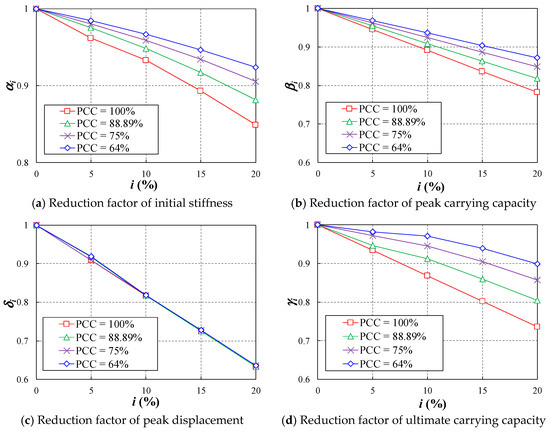

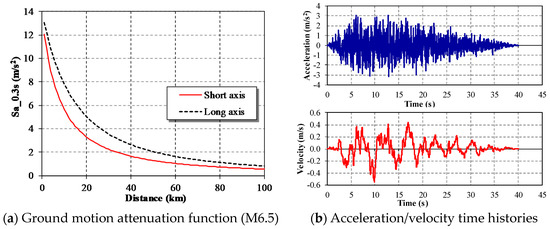

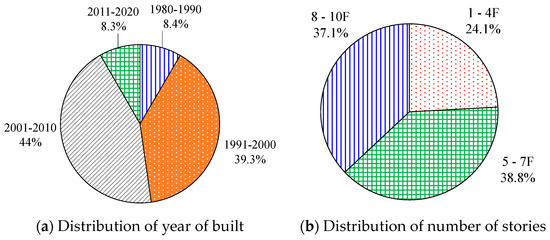

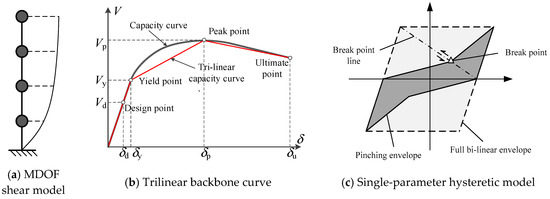

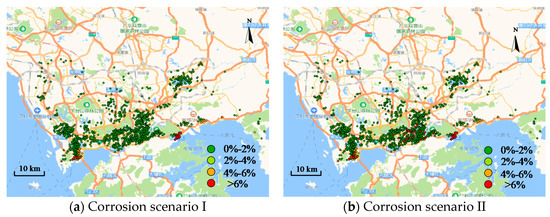

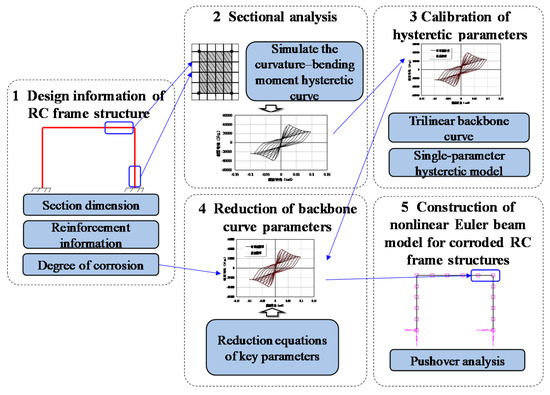

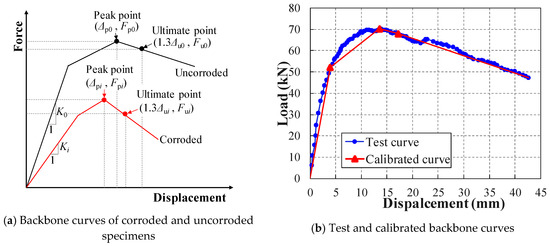

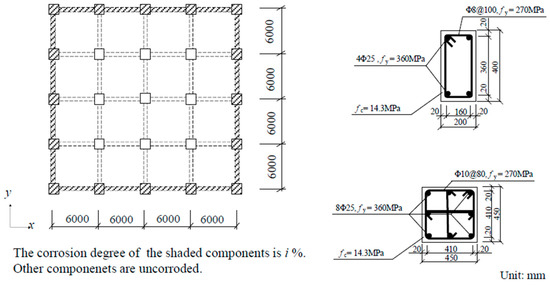

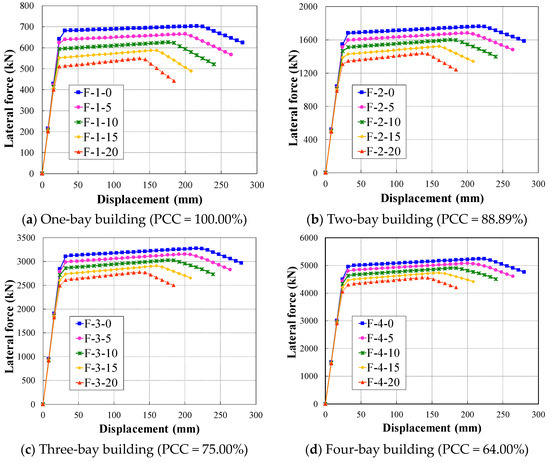

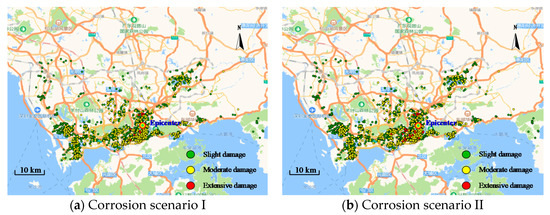

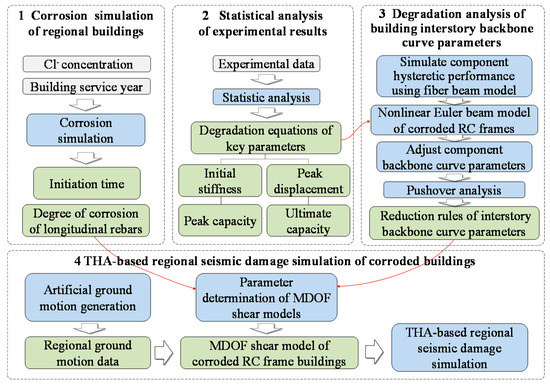

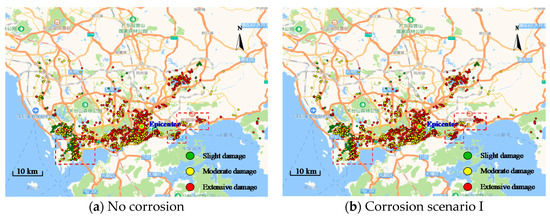

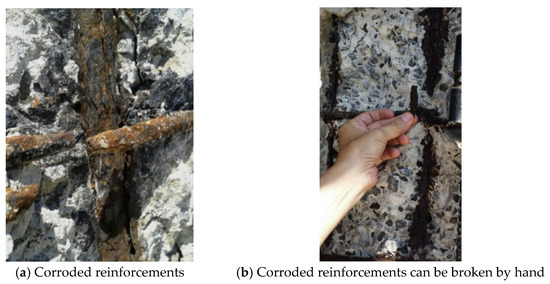

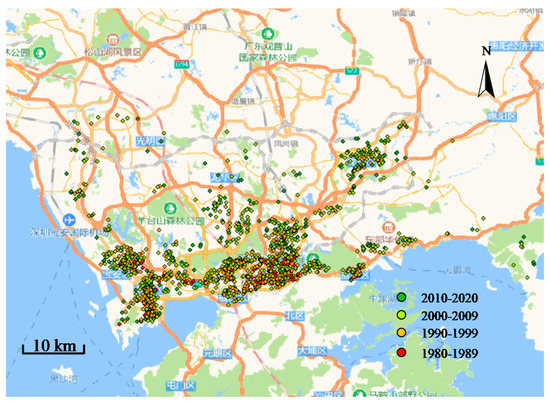

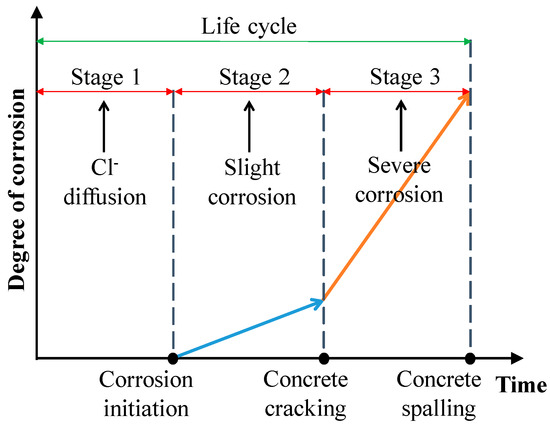

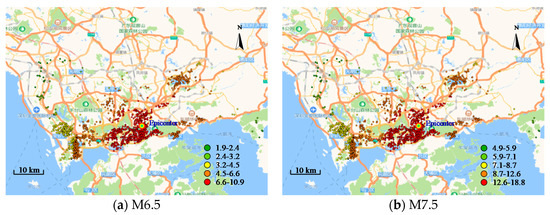

Buildings in coastal cities are susceptible to chloride ion attack and the seismic performance of these buildings can be impaired due to corrosion of reinforcements. In this study, a regional seismic damage simulation method that considers the influence of corrosion-induced seismic performance degradation is proposed. Firstly, the framework of the method is introduced, and the simulation process is presented. Secondly, experimental data of corroded reinforced concrete (RC) components are collected to obtain the reduction rules of component level backbone curve parameters (i.e., initial stiffness, peak carrying capacity, peak displacement, and ultimate carrying capacity). Afterwards, pushover analyses of typical RC frames in different corrosion conditions (i.e., degree of corrosion of components and proportion of corroded components) are conducted to acquire the reduction rules of interstory backbone curve parameters of corroded RC frame structures. Finally, RC frame structures, in Shenzhen city, are simulated using different corrosion scenarios. Simulated results indicate that some buildings along the coastline are affected by airborne chloride-induced corrosion and severe seismic damage can be observed. Moreover, some buildings that are far from the coastline can also experience severe seismic damage due to irregular use of sea sand as constructional material. The proposed method can be used to simulate the seismic performance of corroded RC structures and the outcomes of this study are expected to provide a useful reference for the seismic risk management of coastal cities. Full article
