Search Results (43)

Magnesium whitlockite (Mg-WH) has emerged as a promising biomaterial for bone regeneration due to its compositional similarity to natural bone minerals. This study aimed to systematically modify a dissolution–precipitation synthesis method to produce Mg-WH granules with tailored morphologies and controlled phase compositions for possible use in bone regeneration applications. Three distinct precursor granules were prepared by mixing varying amounts of ammonium dihydrogen phosphate and magnesium hydrogen phosphate with calcium sulfate. The precursors were then transformed into biphasic and single-phase Mg-WH granules by means of immersion in magnesium- and phosphate-containing solutions under controlled conditions. The X-ray diffraction results demonstrated that biphasic materials containing Mg-WH and either calcium-deficient hydroxyapatite (CDHA) or dicalcium phosphate anhydrous (DCPA) formed after 24 h of synthesis, depending on the synthesis conditions. Prolonging the reaction time to 48 h resulted in complete transformation into single-phase Mg-WH granules. Fourier-transform infrared spectroscopy confirmed the presence of functional groups characteristic of Mg-WH, CDHA, and DCPA in the intermediate products. The spectra also indicated the absence of precursor phases and the progressive elimination of secondary phases as the reaction time increased. Scanning electron microscopy analyses revealed notable morphological transformations from the raw granules to the product granules, with the latter exhibiting interlocked spherical and rod-like particles composed of fine Mg-WH rhombohedral crystals. N₂ adsorption–desorption analyses exposed significant differences in the surface properties of the synthesized granules. By varying precursor, reaction solution compositions, and reaction times, the study elucidated the phase evolution mechanisms and demonstrated their impact on the structural, morphological, and surface properties of Mg-WH granules. Full article

This study primarily focused on the acid erosion of enamel and dentin. A detailed examination of the X-ray diffraction data proves that the products of the acid-caused decay of enamel belong to the family of isomorphic bioapatites, especially calcium-deficient hydroxyapatites. They are on a trajectory towards less and less crystallized substances. The increase in Bragg’s parameter d and the decrease in the energy necessary for the changes were coupled with variability in the pH. This was valid for the corrosive action of acid solutions with a pH greater than 3.5. When the processes of natural tooth aging were studied by X-ray diffraction, a clear similarity to the processes of the erosion of teeth was revealed. Scarce data on osteoporotic bones seemed to confirm the conclusions derived for teeth. The data concerning the bioapatite decays were confronted with the cycles of apatite synthesis/decay. The chemical studies, mainly concerning the Ca/P ratio in relation to the pH range of durability of popular compounds engaged in the synthesis/decay of apatites, suggested that the process of the formation of erosion under the influence of acids was much inverted in relation to the process of the formation of apatites, starting from brushite up to apatite, in an alkaline environment. Our simulations showed the shift between the family of bioapatites versus the family of apatites concerning the pH of the reaction environment. The detailed model stoichiometric equations associated with the particular stages of relevant processes were derived. The synthesis processes were alkalization reactions coupled with dehydration. The erosion processes were acid hydrolysis reactions. Formally, the alkalization of the environment during apatite synthesis is presented by introducing Ca(OH)₂ to stoichiometric equations. Full article

Pollen grains, with their resilient sporopollenin exine and defined morphologies, have been explored as bio-templates for the synthesis of calcium phosphate minerals, particularly hydroxyapatite (HAp) and β-tricalcium phosphate (TCP). Various pollen morphologies from different plant species (black alder, dandelion, lamb’s quarters, ragweed, and stargazer lily) were evaluated. Pollen grains underwent acid washing to remove allergenic material and facilitate subsequent calcification. Ragweed and lamb’s quarter pollen grains were chosen as templates for calcium phosphate salts deposition due to their distinct morphologies. The calcification process yielded well-defined spherical hollow particles. The washing step, intended to reduce the protein content, did not significantly affect the final product; thus, justifying the removal of this low-yield step from the synthesis process. Characterisation techniques, including X-ray diffraction, scanning electron microscopy, Fourier-transform infrared spectroscopy, and thermal gravimetric analysis, confirmed the successful calcification of pollen-derived materials, revealing that calcified grains were principally composed of calcium deficient HAp. After calcination, biphasic calcium phosphate composed of HAp and TPC was obtained. This study demonstrated the feasibility of using pollen grains as green and sustainable bio-templates for synthesizing biomaterials with controlled morphology, showcasing their potential in biomedical applications such as drug delivery and bone regeneration. Full article

Recently, thanks to the greater discovery of the mechanisms of facial aging, an alternative to invasive plastic surgery has found space with less invasive aesthetic procedures, also based on an increasingly pressing request. We are specifically referring to dermal filler injection into or under the skin which leads to immediate rejuvenation and aesthetic improvements. In this study, we wanted to analyze the results obtained through the use of NEAUVIA Organic Stimulate, particularly with regard to its effectiveness, which is a cross-linked polymeric hydrogel, containing stabilized sodium hyaluronate 26 mg/mL and calcium hydroxyapatite (1%), glycine and L-proline in buffer pyrogen-free water, in its main indication, namely, the temporary correction of congenital and acquired deficiencies of the soft tissues of the face by intradermal injection. Initially, 70 patients were enrolled, but 10 did not complete the study due to non-observance of the investigation rules, so they were excluded from the protocol. The collected data demonstrate an efficient mechanical effect of the pegylated polymeric acid matrix enriched with low concertation of calcium hydroxyapatite and in accordance with other evidence in vitro and in vivo, and the mechanical support of the interstitial connective space improves the homestays of the anatomical layer rebalancing the physiological activity of the dermis cells. Full article

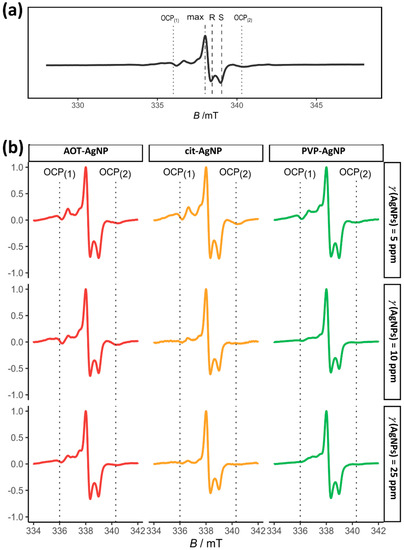

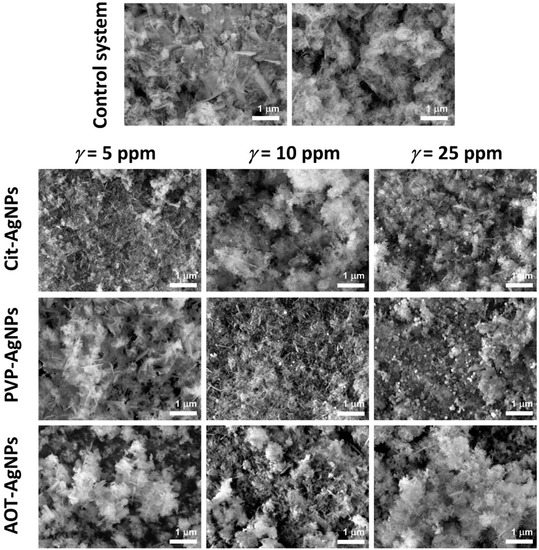

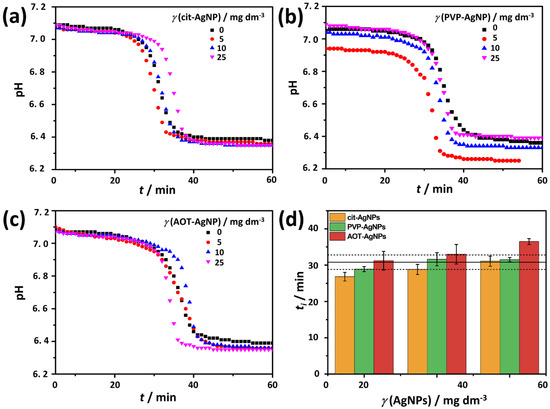

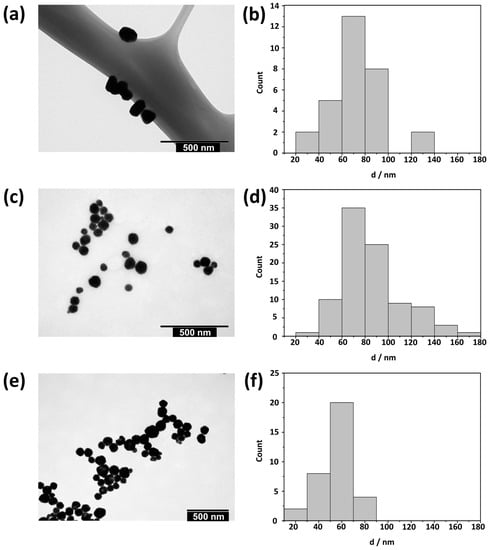

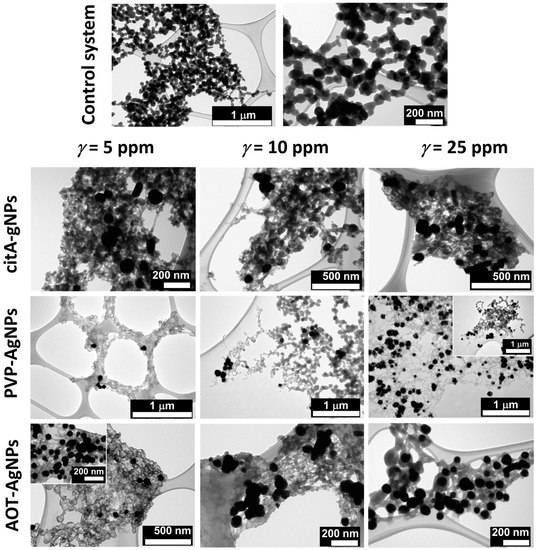

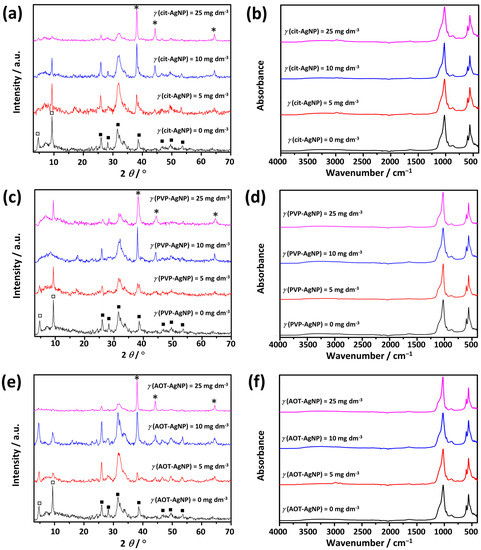

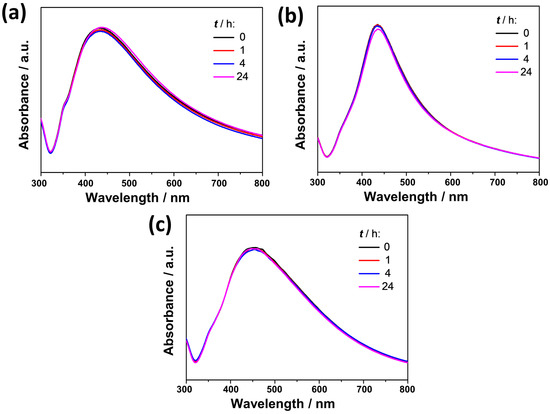

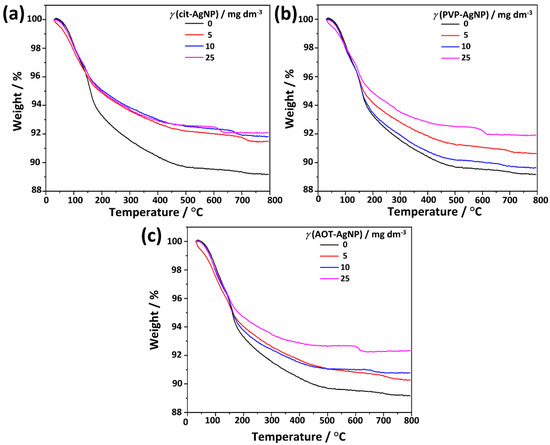

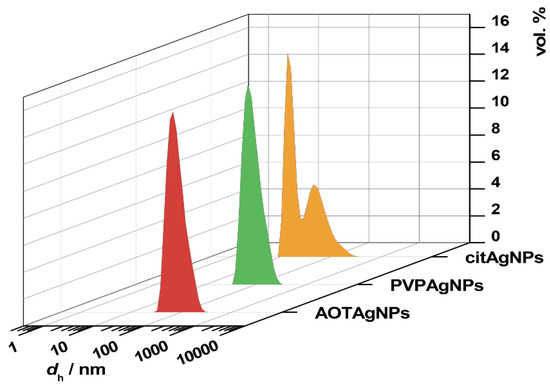

Calcium phosphates (CaPs) composites with silver nanoparticles (AgNPs) attract attention as a possible alternative to conventional approaches to combating orthopedic implant-associated infections. Although precipitation of calcium phosphates at room temperatures was pointed out as an advantageous method for the preparation of various CaP-based biomaterials, to the best of our knowledge, no such study exists for the preparation of CaPs/AgNP composites. Motivated by this lack of data in this study we investigated the influence of AgNPs stabilized with citrate (cit-AgNPs), poly(vinylpyrrolidone) (PVP-AgNPs), and sodium bis(2-ethylhexyl) sulfosuccinate (AOT-AgNPs) in the concentration range 5–25 mg dm⁻³ on the precipitation of CaPs. The first solid phase to precipitate in the investigated precipitation system was amorphous calcium phosphate (ACP). The effect of AgNPs on ACP stability was significant only in the presence of the highest concentration of AOT-AgNPs. However, in all precipitation systems containing AgNPs, the morphology of ACP was affected, as gel-like precipitates formed in addition to the typical chain-like aggregates of spherical particles. The exact effect depended on the type of AgNPs. After 60 min of reaction time, a mixture of calcium-deficient hydroxyapatite (CaDHA) and a smaller amount of octacalcium phosphate (OCP) formed. PXRD and EPR data point out that the amount of formed OCP decreases with increasing AgNPs concentration. The obtained results showed that AgNPs can modify the precipitation of CaPs and that CaPs properties can be fine-tuned by the choice of stabilizing agent. Furthermore, it was shown that precipitation can be used as a simple and fast method for CaP/AgNPs composites preparation which is of special interest for biomaterials preparation. Full article

In this study, the effects of sodium lauryl sulfate and various amino acids (DL-aspartic acid, dodecanedioic acid, and suberic acid) on the formation of calcium-deficient hydroxyapatite via hydrolysis of α-tricalcium phosphate (α-TCP) were investigated; moreover, a combined effect of these additives and ethylene glycol as a synthesis medium was also estimated. The hydrolysis reaction was performed in solutions containing different concentrations of additives in aqueous and mixed aqueous–organic media under solvothermal conditions. It was demonstrated that the nature and the concentration of organic additives influence the phase purity and morphology of the final product. Higher concentrations of sodium lauryl sulfate and dodecanedioic acid induced the formation of impurities in addition to hydroxyapatite, while aspartic and suberic acid did not affect the phase purity. The morphology of the samples varied from plate- to rod-like depending on the concentrations of specific organic additive. Full article

Synthetic octacalcium phosphate (OCP) activates bone tissue-related cells, such as osteoblasts, osteoclasts, and vascular endothelial cells. However, the effect of OCP on tendon-related cell activation remains unknown. This study examined the response of rat tendon stem/progenitor cells (TSPCs) to OCP and related calcium phosphate crystals in vitro. TSPCs were cultured with OCP and Ca-deficient hydroxyapatite (CDHA) obtained from the original OCP hydrolysis to assess the activity of alkaline phosphatase (ALP) and the expression of osteogenesis-related genes. Compared with CDHA, the effect of OCP on promoting the osteogenic differentiation of TSPCs was apparent: the ALP activity and mRNA expression of RUNX2, Col1a1, OCN, and OPN were higher in OCP than in CDHA. To estimate the changes in the chemical environment caused by OCP and CDHA, we measured the calcium ion (Ca²⁺) and inorganic phosphate (Pi) ion concentrations and pH values of the TSPCs medium. The results suggest that the difference in the osteogenic differentiation of the TSPCs is related to the ionic environment induced by OCP and CDHA, which could be related to the progress of OCP hydrolysis into CDHA. These results support the previous in vivo observation that OCP has the healing function of rabbit rotator cuff tendon in vivo. Full article

Peroxo-heteropoly compound PO₄[W(O)(O₂)₂] was synthesized on calcium-deficient hydroxyapatite using a reaction of surface [HPO₄]²⁻ groups on hydroxyapatite with a Na₂[W₂O₃(O₂)₄] aqueous solution. The vibration of [HPO₄]²⁻ at 875 cm⁻¹ became very weak, and the vibration of the peroxo-oxygen bond [O–O]²⁻ at 845 cm⁻¹ appeared in the FT-IR spectrum of the solid product, indicating that PO₄[W(O)(O₂)₂] was formed on the surface of hydroxyapatite. The formed solid sample was further reacted with PdCl₂(PhCN)₂ in an acetone solution to fix PdCl₂ between the O sites on the hydroxyapatite. Elemental analyses proved that the resultant solid contained 1.2 wt.% Pd, implying that PdCl₂ molecules were immobilized on the surface of hydroxyapatite. The hydroxyapatite-based hybrid compound containing Pd and PO₄[W(O)(O₂)₂] was used as a heterogeneous catalyst in a methanol solvent for propylene epoxidation by molecular oxygen in an autoclave batch reaction system. A propylene conversion of 53.4% and a selectivity for propylene oxide of 88.7% were obtained over the solid catalyst after reaction at 363 K for 8 h. The novel catalyst could be reused by a simple centrifugal separation, and the yield of propylene oxide did not decrease after the reaction for five runs. By prolonging the reaction time to 13 h, the highest yield of propylene oxide at 363 K over the solid catalyst was obtained as 53.8%, which was almost the same as that of the homogeneous catalyst containing PdCl₂(PhCN)₂ and [(C₆H₁₃)₄N]₂{HPO₄[W(O)(O₂)₂]₂} for the propylene epoxidation. Methanol was used as a solvent as well as a reducing agent in the propylene epoxidation by molecular oxygen. Small particles of Pd metal were formed on the surface of the hybrid solid catalyst during the reaction, and acted as active species to achieve the catalytic turnover of PO₄[W(O)(O₂)₂] in the propylene epoxidation by molecular oxygen in methanol. Full article

Calcium phosphates (CaP) composites with biomacromolecules and/or nanomaterials have recently emerged as a potential solution to improve the poor mechanical properties and biological response of CaP. Among the methods available for preparation of such composites, precipitation at low temperatures attracts special interest as it allows preservation of the activity of biomacromolecules. However, precipitation of CaP in the presence of two additives is a complex process that needs to be studied in detail to rationalize composite preparation. This study aimed to investigate co-precipitation of CaP on different TiO₂ nanomaterials (TiNMs), including nanoparticles (TiNPs), nanoplates (TiNPls), nanotubes (TiNTs), and nanowires (TiNWs), in the presence of bovine serum albumin (BSA) and chitosan (Chi). The obtained results have shown that both BSA and Chi inhibited transformation of amorphous to crystalline CaP, even in the presence of TiNMs at concentrations that promoted transformation. Chi proved to be a stronger inhibitor due to its more flexible structure. The presence of BSA and Chi did not influence the composition of the CaP formed as calcium-deficient hydroxyapatite (CaDHA) was formed in all the systems. However, both macromolecules influenced the morphology of the formed CaDHA in different ways depending on the type of TiNM used. BSA and Chi adsorbed on all the TiNMs, as confirmed by zeta potential measurements, but this adsorption reduced the amount of CaP formed on TiNMs only in the case of TiNWs. The obtained results contribute to the understanding of the influence of BSA and Chi on CaP precipitation in the presence of nanomaterials and thus to the rational design of CaP-based multi-composite materials. Full article

In this work, we report the synthesis of calcium phosphate–chitosan composite layers. Calcium phosphate layers were deposited on titanium substrates by radio-frequency magnetron sputtering technique by varying the substrate temperature from room temperature (25 °C) up to 100 and 300 °C. Further, chitosan was deposited by matrix-assisted pulsed laser evaporation technique on the calcium phosphate layers. The temperature at the substrate during the deposition process of calcium phosphate layers plays an important role in the embedding of chitosan, as scanning electron microscopy analysis showed. The degree of chitosan incorporation into the calcium phosphate layers significantly influence the physico-chemical properties and the adherence strength of the resulted layers to the substrates. For example, the decreases of Ca/P ratio at the addition of chitosan suggests that a calcium deficient hydroxyapatite structure is formed when the CaP layers are generated on Ti substrates kept at room temperature during the deposition process. The Fourier transform infrared spectroscopy analysis of the samples suggest that the PO₄³⁻/CO₃²⁻ substitution is possible. The X-ray diffraction spectra indicated that the crystalline structure of the calcium phosphate layers obtained at the 300 °C substrate temperature is disturbed by the addition of chitosan. The adherence strength of the composite layers to the titanium substrates is diminished after the chitosan deposition. However, no complete exfoliation of the layers was observed. Full article

This paper presents a proof-of-concept study on the biocolonization of 3D-printed hydroxyapatite scaffolds with mesenchymal stem cells (MSCs). Three-dimensional (3D) printed biomimetic bone structure made of calcium deficient hydroxyapatite (CDHA) intended as a future bone graft was made from newly developed composite material for FDM printing. The biopolymer polyvinyl alcohol serves in this material as a thermoplastic binder for 3D molding of the printed object with a passive function and is completely removed during sintering. The study presents the material, the process of fused deposition modeling (FDM) of CDHA scaffolds, and its post-processing at three temperatures (1200, 1300, and 1400 °C), as well it evaluates the cytotoxicity and biocompatibility of scaffolds with MTT and LDH release assays after 14 days. The study also includes a morphological evaluation of cellular colonization with scanning electron microscopy (SEM) in two different filament orientations (rectilinear and gyroid). The results of the MTT assay showed that the tested material was not toxic, and cells were preserved in both orientations, with most cells present on the material fired at 1300 °C. Results of the LDH release assay showed a slight increase in LDH leakage from all samples. Visual evaluation of SEM confirmed the ideal post-processing temperature of the 3D-printed FDM framework for samples fired at 1300 °C and 1400 °C, with a porosity of 0.3 mm between filaments. In conclusion, the presented fabrication and colonization of CDHA scaffolds have great potential to be used in the tissue engineering of bones. Full article

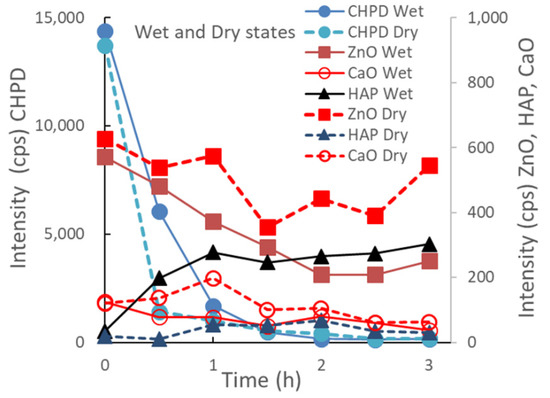

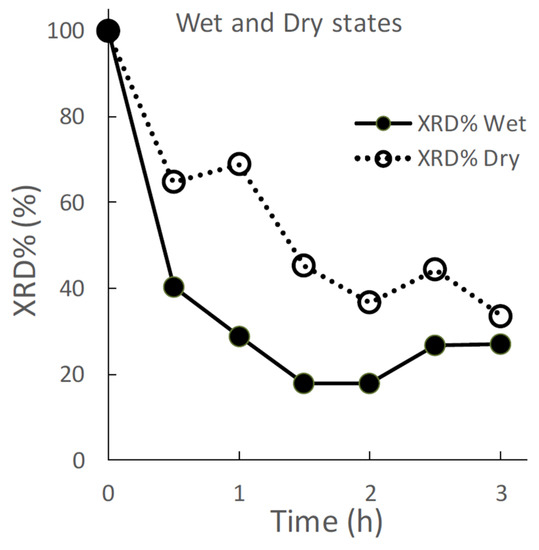

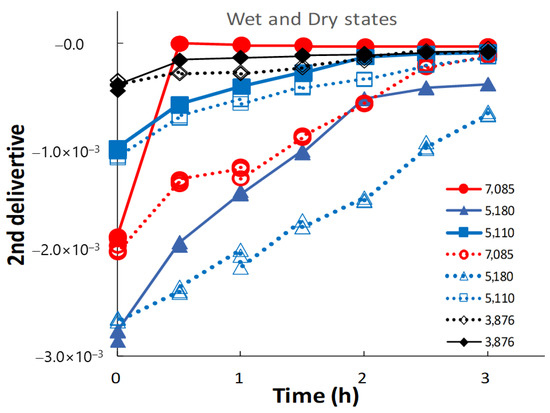

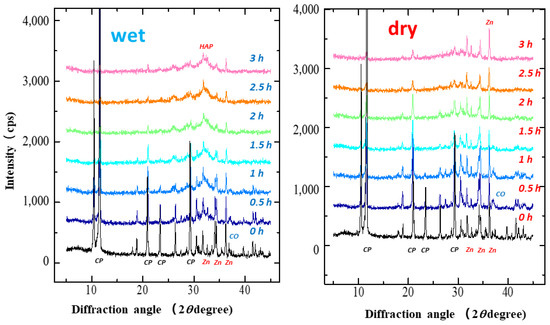

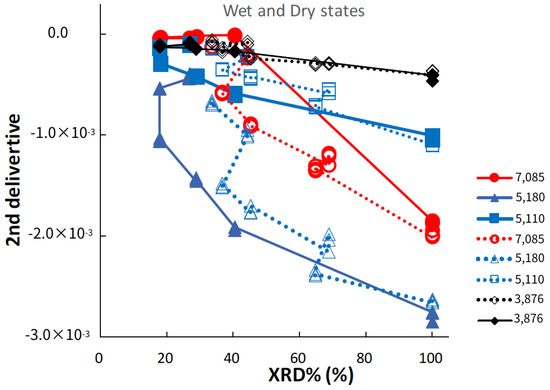

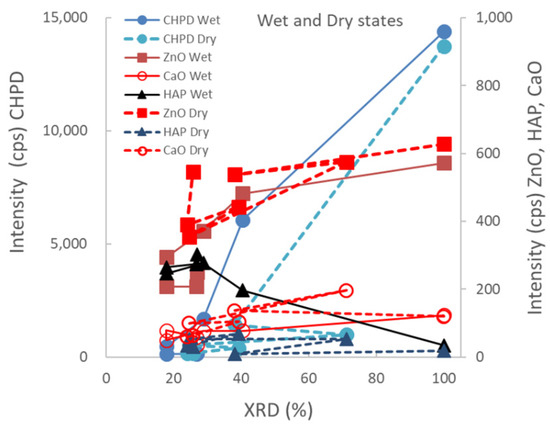

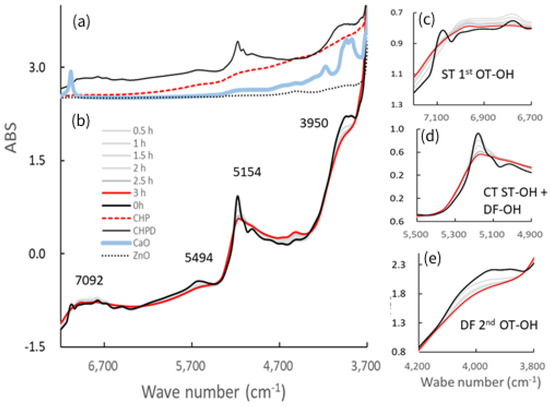

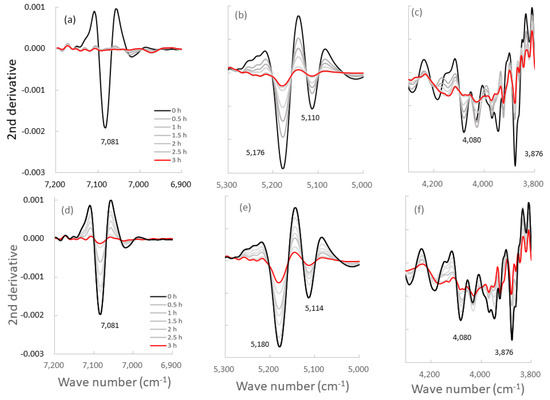

Calcium-deficient zinc-containing calcium phosphate (ZnAP), which has sustained zinc release properties that are effective for treating osteoporosis, can be efficiently synthesized as a biomaterial through wet grinding. To elucidate the physicochemical mechanism of these mechanochemical syntheses, ground products were obtained from the starting material powder (S-CP), consisting of calcium hydrogen phosphate dihydrate (CHPD), calcium oxide (CaO), and zinc oxide (ZnO), by wet and dry grinding for 0–3 h in a centrifugal ball mill. The ground S-CP products were analyzed using powder X-ray diffraction (XRD) and near-infrared spectroscopy (NIRS); the crystal transformations and molecular interactions of the ground products were kinetically analyzed. The XRD and second-derivative NIRS results indicate that the S-CP is primarily transformed into ZnAP via amorphous solid formation in wet grinding, and the reaction follows a consecutive reaction model. In contrast, in dry grinding, the ground product of CHPD and CaO is transformed into an amorphous solid following an equilibrium reaction model; however, ZnO is predominantly not transformed and remains crystalline. Full article

Natural bone tissue is composed of calcium-deficient carbonated hydroxyapatite as the inorganic phase and collagen type I as the main organic phase. The biomimetic approach of scaffold development for bone tissue engineering application is focused on mimicking complex bone characteristics. Calcium phosphates are used in numerous studies as bioactive phases to mimic natural bone mineral. In order to mimic the organic phase, synthetic (e.g., poly(ε-caprolactone), polylactic acid, poly(lactide-co-glycolide acid)) and natural (e.g., alginate, chitosan, collagen, gelatin, silk) biodegradable polymers are used. However, as materials obtained from natural sources are accepted better by the human organism, natural polymers have attracted increasing attention. Over the last three decades, chitosan was extensively studied as a natural polymer suitable for biomimetic scaffold development for bone tissue engineering applications. Different types of chitosan-based biomaterials (e.g., molded macroporous, fiber-based, hydrogel, microspheres and 3D-printed) with specific properties for different regenerative applications were developed due to chitosan’s unique properties. This review summarizes the state-of-the-art of biomaterials for bone regeneration and relevant studies on chitosan-based materials and composites. Full article

Apatite is widely used in medicine as a biomaterial for bone tissue restoration. Properties of apatite depend on its composition, including the Ca/P ratio. This paper shows what range of Ca/P ratio can be attained in apatite by the mechanochemical method of synthesis, providing fast formation of a single-phase product. The synthesis was carried out from a reaction mixture of CaHPO₄ and CaO at different Ca/P ratios in the range of 1.17–2.10. The products were studied by PXRD, FTIR and NMR spectroscopy, HRTEM, and STA. In mixtures with a low initial Ca/P ratio (1.17–1.48), directly in the mill, the formation of calcium orthophosphate with whitlockite structure containing an HPO₄²⁻ group and structural water is shown for the first time. This phosphate has structure similar to that of whitlockites of hydrothermal origin and differs from high-temperature β-tricalcium phosphate that has composition Ca₃(PO₄)₃. A series of samples of apatite was obtained with varied composition, which depends on the initial Ca/P ratio. At Ca/P < 1.67, the formation of two types of calcium-deficient apatite was documented. At Ca/P > 1.67, the existence of two types of calcium-rich apatite is confirmed. Full article

Local drug delivery systems are an effective approach in the treatment of purulent–septic inflammation of bone tissue. Chemically bonded multiphase ceramics based on calcium-deficient carbonate-substituted hydroxyapatite combine resorbability, osteoconductivity, and the possibility of volumetric incorporation of antibiotics. Macroporosity is regulated by the concentration of polyethylene glycol granules introduced into the initial powder composition, followed by their extraction. The selected conditions for the consolidation of the ceramic matrix and the extraction of PEG granules retain the activity of vancomycin, which is confirmed by the results of microbiological studies. The concentration of vancomycin and the porosity affect the local concentration and release of the antibiotic. The incorporation method provides a prolonged release of the antibiotic for up to 31 days. In vivo experiments with bone implantation have shown that chemically bound macroporous ceramics with incorporated vancomycin are a therapeutically effective carrier of the substance during the healing of bone defects in conditions of surrounding purulent–septic inflammation, and can be considered as a carrier for local antibacterial therapy, at the site of implantation. Full article
