Search Results (10)

Bamboo has evolved a highly optimized structural system in its culms, which this study transfers into lightweight fiber composite trusses fabricated by coreless filament winding. Focusing on the structural segmentation involving diaphragms of the biological role model, this design principle was integrated into the additive manufacturing process using a multi-stage winding, a tiling approach, and a water-soluble winding fixture. Through a FE-assisted analytical abstraction procedure, the transition to a carbon fiber material system was considered by determining a geometrical configuration optimized for structural mass, bending deflection, and radial buckling. Samples were fabricated from CFRP and experimentally tested in four-point bending. In mass-specific terms, integrating diaphragms into wound fiber composite samples improved failure load by 36%, ultimate load by 62%, and energy absorption by a factor of 7, at a reduction of only 14% in stiffness. Benchmarking against steel and PVC demonstrated superior mass-specific performance, although mōsō bamboo still outperformed all technical solutions, except in energy absorption. Full article

New asphalt mixtures have been improved by using fibers (polypropylene, polyester, asbestos, carbon, glass, nylon, lignin, coconut, sisal, recycled rubber, PET, wood, bamboo, and cellulose), reducing the temperature and compaction energy for their collocation, minimizing the impact on the environment, increasing the tenacity and resistance to cracking of hot mix asphalt (HMA), preventing asphalt drainage in a Stone Mastic Asphalt (SMA). Hence, this paper aims to evaluate the influence of the chemical (lignin content, ash, viscosity, degree of polymerization, and elemental analysis), morphological (SEM), spectroscopic (FTIR-ATR and XRD), and calorimetric (ATG and DSC) properties of celluloses from bagasse Agave tequilana Weber var. Azul (ABP), corrugated paperboard (CPB) and commercial cellulose fiber (CC) as Schellenberg drainage (D) inhibitors of the SMA. The ABP was obtained through a chemical process by alkaline cooking, while CPB by a mechanical refining process. The chemical, morphological, spectroscopic, and calorimetric properties were similar among the analyzed celluloses, but CPB and ABP cellulose are excellent alternatives to CC cellulose for inhibiting drainage. However, CPB is the most effective at low concentrations. This is attributed to its morphology, which includes roughness, waviness, filament length, orientation, and diameter, as well as its lignin content and crystallinity. Full article

To further improve the manufacturing process and product performance of decorated bamboo filament board, the Box–Behnken response surface analysis method was used to analyze the correlation between the hot-pressing parameters and surface bonding strength, and the optimal process optimization parameters were obtained. In addition, the wettability and color of each group of samples were tested. The results show that the optimum process parameters of decorated bamboo filament boards were 130 °C, 165 s and 2.00 MPa, and the surface bonding strength was 1.58 MPa. The relative error between the measured value and the predicted value was less than 5%. The contact angle of the bamboo filament after hot pressing was higher than without hot pressing. However, there was no correlation between wettability and the hot-pressing parameters. There was no effect on the change in bamboo surface color. This indicates that the temperature range selected in this study meets the requirements of surface color control in production. Full article

One approach to reducing the environmental footprint of conventional polymers is to compound them with bio-based fillers. Plant-based materials have already been successfully used as polymer fillers. In this context, algae-based fillers received minor attention. Due to their unique growth efficiency and ability to capture large amounts of CO₂, the use of algae-based fillers could have economic and ecologic advantages. In this work, a possible use of algae as a sustainable filler for filament materials was technologically evaluated. In practical investigations, conventional polyethylene-terephthalate-glycol (PETG) was mixed with the microalgae spirulina platensis and chlorella vulgaris and extruded to 3D printing filaments. Based on printed test specimens and material samples, the printability, mechanical, and thermal properties of the composite were determined. Filaments with a homogeneous distribution of algae particles and stable diameters up to a filler content of 30 wt.% could be produced. All filaments had good printability and adequate moisture sensitivity for higher algae contents. For 30 wt.% the tensile strength of the produced filaments decreases from 54 MPa to 24 MPa, the flexural strength decreases from 87 MPa to 69 MPa, and the material operating temperature decreases slightly from 70 °C to 66 °C. The addition of smaller amounts of algae results in minor changes regarding the overall performance. The properties of the material were comparable to those of other natural fillers such as wood, bamboo or cork. The main objective of adding bio-based materials to polymeric matrices can be achieved. Our results suggest that algae-based filaments can be produced as a more sustainable and low-cost material. Full article

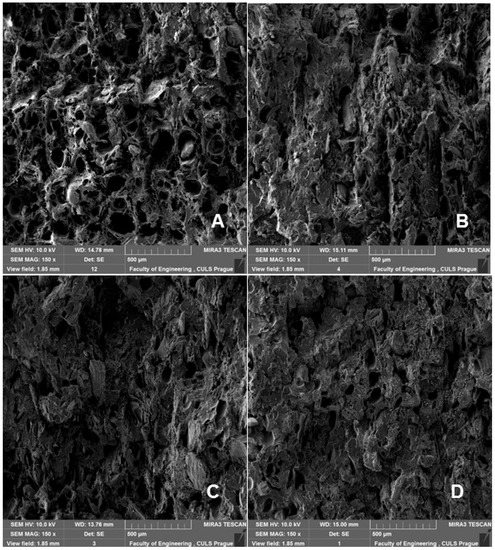

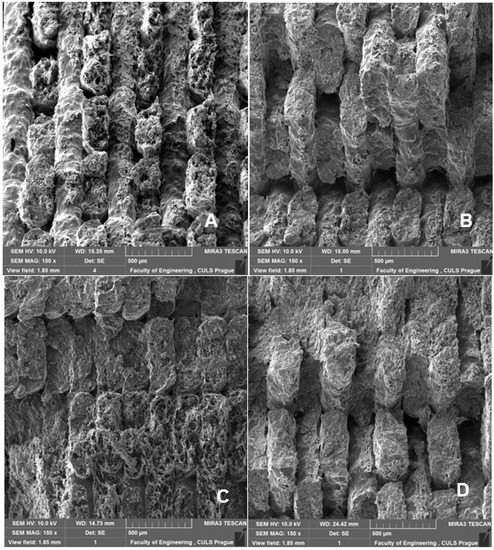

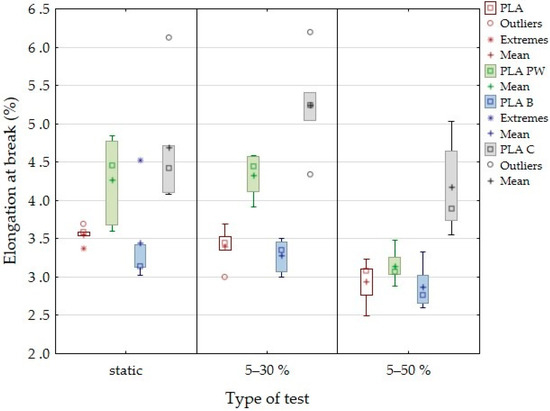

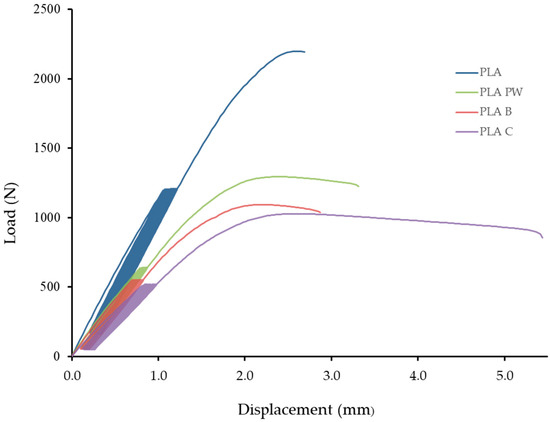

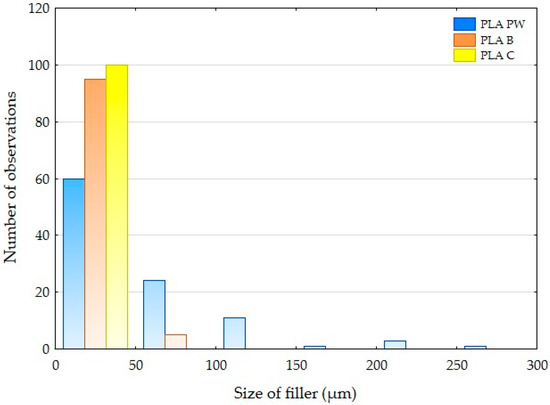

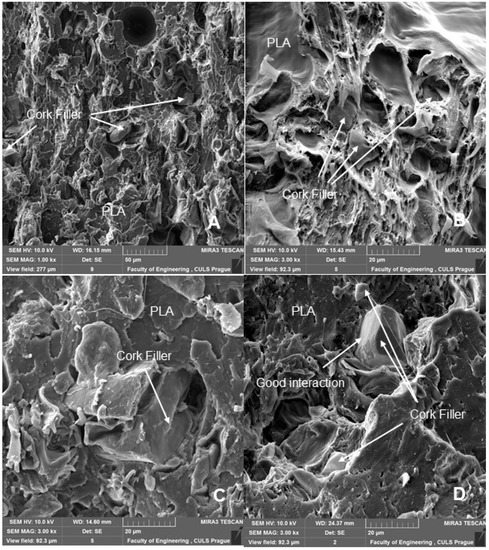

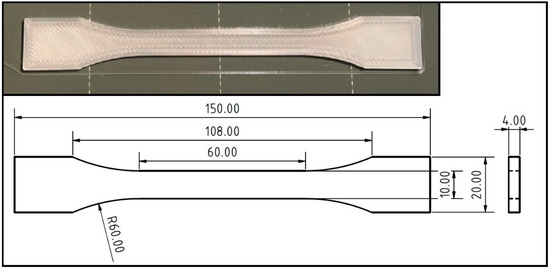

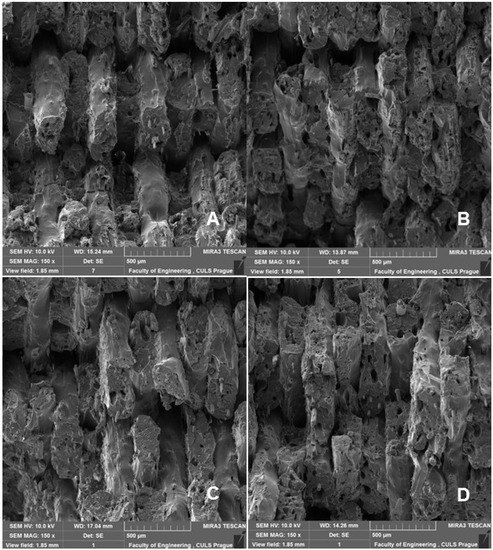

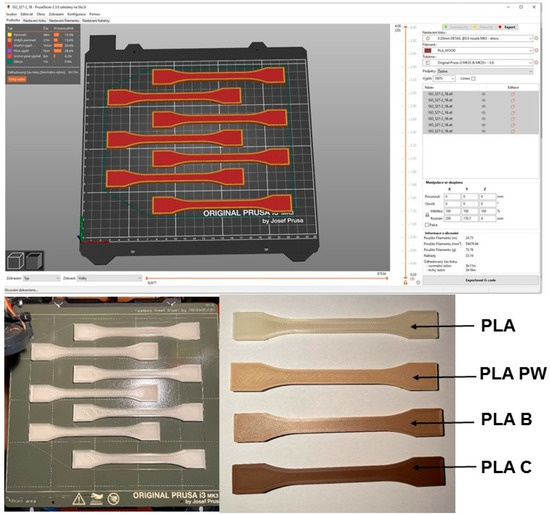

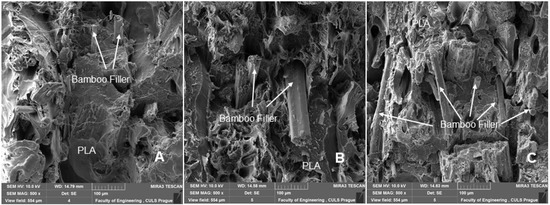

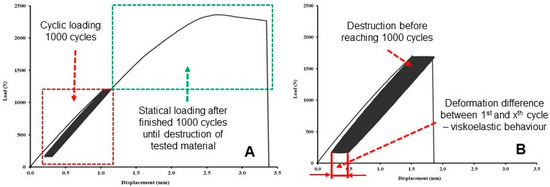

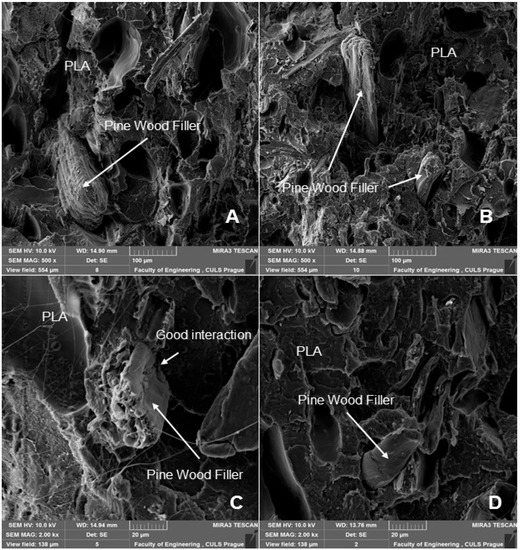

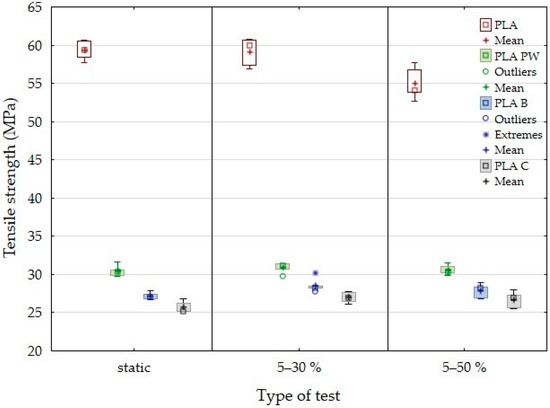

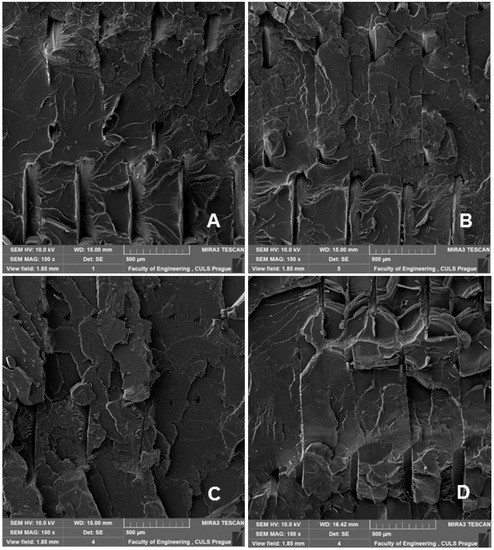

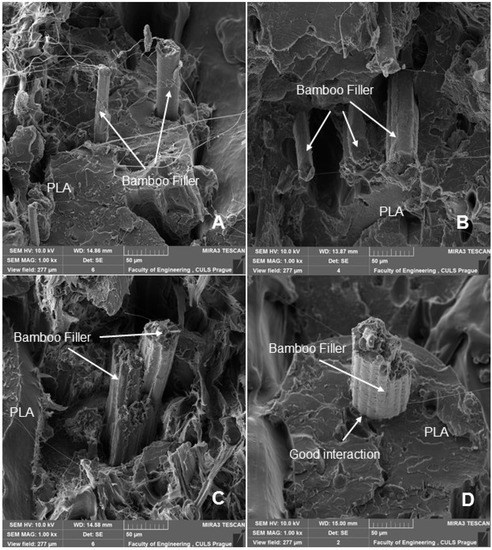

Additive production is currently perceived as an advanced technology, where intensive research is carried out in two basic directions—modifications of existing printing materials and the evaluation of mechanical properties depending on individual production parameters and the technology used. The current research is focused on the evaluation of the fatigue behavior of 3D-printed test specimens made of pure PLA and PLA reinforced with filler based on pinewood, bamboo, and cork using FDM (fused deposition modeling) technology. This research was carried out in response to the growing demand for filaments from biodegradable materials. This article describes the results of tensile fatigue tests and image analysis of the fracture surface determined by the SEM method. Biodegradable PLA-based materials have their limitations that influence their applicability in practice. One of these limitations is fatigue life, which is the cyclic load interval exceeding 50% of the tensile strength determined in a static test. Comparison of the cyclic fatigue test results for pure PLA and PLA reinforced with natural reinforcement, e.g., pinewood, bamboo, and cork, showed that, under the same loading conditions, the fatigue life of the 3D-printed specimens was similar, i.e., the filler did not reduce the material’s ability to respond to low-cycle fatigue. Cyclic testing did not have a significant effect on the change in tensile strength and associated durability during this loading interval for PLA-based materials reinforced with biological filler. Under cyclic loading, the visco-elastic behavior of the tested materials was found to increase with increasing values of cyclic loading of 30%, 50% and 70%, and the permanent deformation of the tested materials, i.e., viscoelastic behavior (creep), also increased. SEM analysis showed the presence of porosity, interlayer disturbances, and at the same time good interfacial compatibility of PLA with the biological filler. Full article

In order to study the performance of the bamboo fiber composites prepared by filament winding, composites reinforced with jute fiber and glass fiber were used as control samples. The structure and mechanical properties of the composites were investigated by scanning electric microscope (SEM), tensile testing, bending testing, and dynamic mechanical analysis. The results demonstrated that the bamboo fiber composites exhibited lower density (0.974 g/cm³) and mechanical properties in comparison of to fiber composite and glass fiber composite, because the inner tissue structure of bamboo fiber was preserved without resin adsorbed into the cell cavity of fibrous parenchyma. The bamboo fibers in composites were pulled out, while the fibers in the surface of composites were torn, resulting in the lowest mechanical performance of bamboo fiber composites. The glass transition temperature of twisting bamboo fiber Naval Ordnance Laboratory (TBF-NOL) composite (165.89 °C) was the highest in general, which indicated that the TBF circumferential composite had the best plasticizing properties and better elasticity, the reason being that the fiber-reinforced epoxy circumferential composite interface joint is a physical connection, which restricts the movement of the molecular chain of the epoxy matrix, making the composite have a higher storage modulus (6000 MPa). In addition, The TBF-NOL had the least frequency dependence, and the circumferential composite prepared by TBF had the least performance variability. Therefore, the surface and internal structures of the bamboo fiber should be further processed and improved by decreasing the twisting bamboo fiber (TBF) diameter and increasing the specific surface area of the TBF and joint surface between fibers and resin, to improve the comprehensive properties of bamboo fiber composites. Full article

Through the past two decades, there has been a continued push for renewable resources and future sustainability of materials and processes. This has prompted more developments of providing environmentally friendly practices and products, both in terms of higher recyclability and greater use of renewable resources. An important area of interest are materials for construction and manufacturing purposes, specifically “green” sustainable reinforcement materials for thermoplastic composite materials. During this time, there has also been an evolution in manufacturing methods. Additive manufacturing (AM) has continued to grow exponentially since its inception for its extensive benefits. This study aims to investigate an additive manufactured composite material that is a greener alternative to other composites that are not reinforced by natural fibers. A bamboo filled polylactic acid (PLA) composite manufactured by fused filament fabrication was evaluated in order to gather mechanical strength characteristics by means of tensile, flexure, compression, impact, and shear tests. In this material, the bamboo reinforcing material and the PLA matrix material can both be sourced from highly renewable resources. In this study, a variety of test samples were manufactured at different manufacturing parameters to be used for mechanical testing. The results were recorded with respect to varying manufacturing parameters (raster angle orientation). It was found that the 0° raster angle orientation performed the best in every category except tensile. Additively manufactured bamboo filled PLA was also seen to have comparable strength to certain traditionally manufactured bamboo fiber reinforced plastics. Full article

Heterocytous cyanobacteria are among the most prolific sources of bioactive secondary metabolites, including anabaenopeptins (APTs). A terrestrial filamentous Brasilonema sp. CT11 collected in Costa Rica bamboo forest as a black mat, was studied using a multidisciplinary approach: genome mining and HPLC-HRMS/MS coupled with bioinformatic analyses. Herein, we report the nearly complete genome consisting of 8.79 Mbp with a GC content of 42.4%. Moreover, we report on three novel tryptophan-containing APTs; anabaenopeptin 788 (1), anabaenopeptin 802 (2), and anabaenopeptin 816 (3). Furthermore, the structure of two homologues, i.e., anabaenopeptin 802 (2a) and anabaenopeptin 802 (2b), was determined by spectroscopic analysis (NMR and MS). Both compounds were shown to exert weak to moderate antiproliferative activity against HeLa cell lines. This study also provides the unique and diverse potential of biosynthetic gene clusters and an assessment of the predicted chemical space yet to be discovered from this genus. Full article

The utilization of polymer-based materials is quickly expanding. The enterprises of today are progressively seeking techniques to supplant metal parts with polymer-based materials as a result of their light weight, simple support and modest costs. The ceaselessly developing requirement for composite materials with new or enhanced properties brings about the preparation of different polymer mixes with various arrangements, morphologies and properties. Fused filament fabrication processes such as 3D-printing are nowadays shaping the actual pathway to a full pallet of materials, from art–craft to biomaterials. In this study, the structural and mechanical behavior of three types of commercially available filaments comprised of synthetic poly(acrylonitrile-co-butadiene-co-styrene) (ABS), poly(lactic acid) (PLA) and poly(lactic acid)/polyhydroxyalkanoate reinforced with bamboo wood flour composite (PLA/PHA BambooFill) were assessed through mechanical testing and optical microscopy, aiming to understand how the modifications that occur in the printed models with internal architecture are influencing the mechanical properties of the 3D-printed material. It has been determined that the material printed from PLA presents the highest compression strength, three-point bending and shock resistance, while the ABS shows the best tensile strength performance. A probability plot was used to verify the normality hypothesis of data for the tensile strength, in conjunction with the Anderson–Darling statistic test. The results of the statistic indicated that the data were normally distributed and that there is a marked influence of the internal architecture of the 3D-printed models on the mechanical properties of the printed material. Full article

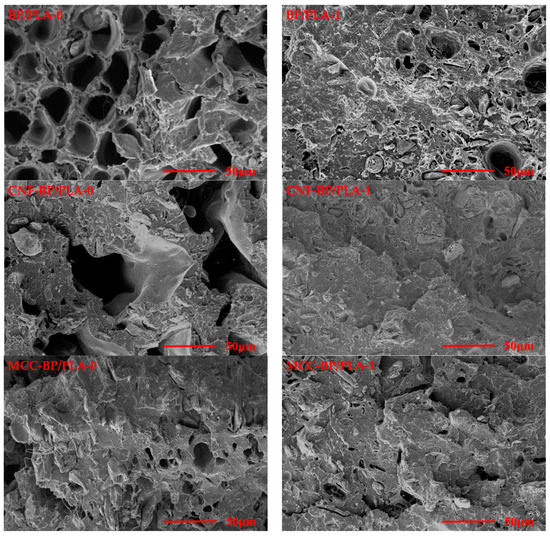

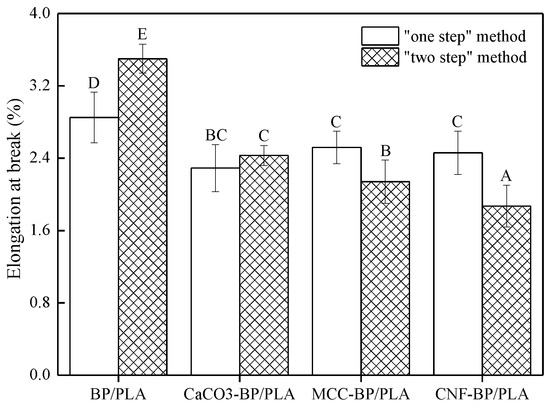

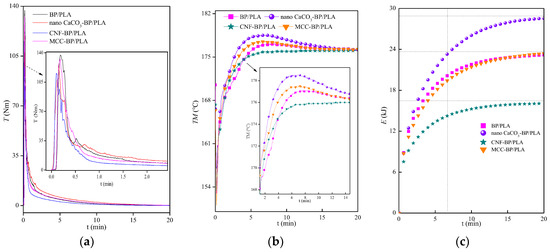

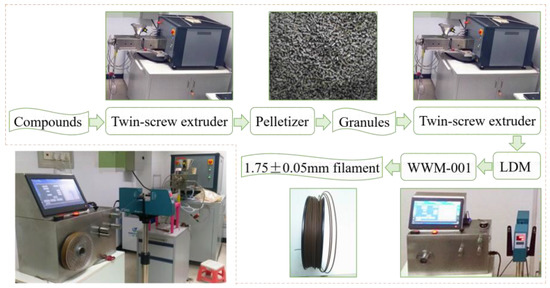

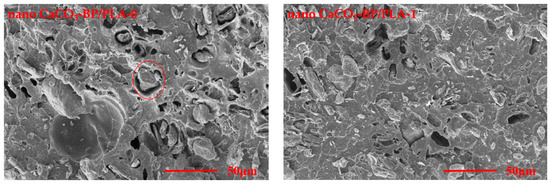

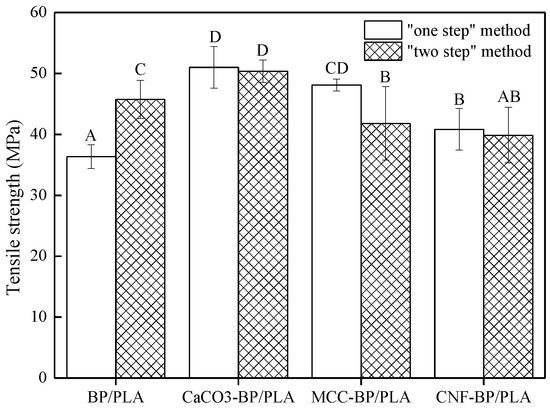

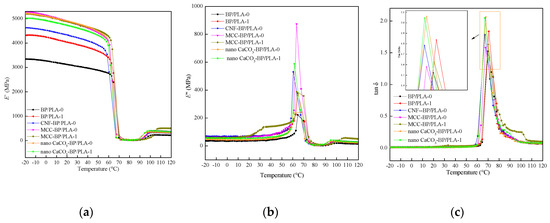

The focus of this report was to understand the tensile properties and dynamic mechanical properties of bamboo powder (BP) reinforced polylactic acid (PLA) composite filaments which were treated with nano calcium carbonate (CaCO₃), cellulose nanofibers (CNF), and micro-crystalline cellulose (MCC) using impregnation modification technology. The storage modulus (E’) of nano CaCO₃-BP/PLA, MCC-BP/PLA, and CNF-BP/PLA composite filaments increased compared with BP/PLA composite filaments before the glass transition temperature T_g. When the temperature was above T_g, the reinforcement effect of nano CaCO₃, MCC, and CNF gradually became less apparent. The loss modulus (E’’) and loss factor (tan δ_max) of the nano CaCO₃-BP/PLA, MCC-BP/PLA, and CNF-BP/PLA composite filaments was higher than that of BP/PLA composite filaments produced by the “one-step” method. The tensile strength (TS) results showed a similar trend. Compared with the control samples, the TS of nano CaCO₃-BP/PLA, MCC-BP/PLA, and CNF-BP/PLA composite filaments produced by the “one-step” method (and the “two-step” method) increased by 40.33% (and 10.10%), 32.35% (and −8.61%), and 12.32% (and −12.85%), respectively. The TS of nano CaCO₃-BP/PLA, MCC-BP/PLA, and CNF-BP/PLA composite filaments produced by the “one-step” method was slightly higher than those produced by the “two-step” method. The elongation at break (EAB) of BP/PLA composite filaments was higher than that of BP/PLA samples treated with nano CaCO₃, MCC, or CNF. The PLA and modified BP were readily accessible through a simple mixing process. The rheological investigation of such mixtures showed that nano CaCO₃, CNF, and MCC have different effects on the processability and rheological properties of composites. Full article
