Search Results (11)

Utilizing a variety of solid wastes to prepare alkali-activated cementitious materials is one of the principal trends in the development of cementitious materials. Commonly used alkali activation precursors such as granulated blast furnace slag (GBFS) and fly ash (FA) will be less available due to resource pressures. Supply limitation is an important reason to research alternative precursors. To realize the high value-added utilization of copper–molybdenum tailings (CMTs), this study adopted the modified sodium silicate solution as an alkaline activator to activate GBFS-FA-CMTs cementitious system to prepare alkali-activated cementitious materials. The influence of CMTs content on the compressive strength of GBFS-FA-CMTs cementitious system was analyzed, and the mechanism of GBFS-FA-CMTs cementitious system was also analyzed through hydration product types, physical phase composition, and microscopic morphology. The results indicated that a paste with the incorporation of CMTs, S50F30C20 (50% GBFS, 30% FA, 20% CMTs), achieved the highest compressive strength of 79.14 MPa, which was due to the filling effect of the CMTs and the degree of participation in the reaction. Pastes with different contents of CMTs, while maintaining a constant CBFS content, exhibited similar strength development. Excessive amounts of CMTs could result in reduced compressive strength. Microstructural analysis revealed that the hydration products were structurally altered by the addition of CMTs. In addition to ettringite, quartz, C(-N)-S-H gel, and calcite, gaylussite was also formed; moreover, the mass of chemically bound water increased, and the microstructure of reaction products became denser. An excess of CMTs may restrict the growth of the hydration gel, leading to more microstructural defects. The study suggests that CMTs could enhance the compressive strength of hardened paste within an alkali-activated slag-fly ash system, possibly due to a filling effect and participation in the chemical reaction. This research confirms the feasibility of using CMTs in alkali-activated cementitious materials. Full article

Copper slag is an industrial residue with a large unutilized fraction. This study presents the development of alkali-activated composites from a copper slag named Koranel^®. The effects of metakaolinite, ordinary Portland cement (OPC) and surfactants were investigated. The reactivity of Koranel with potassium silicate solutions with molar ratio R = SiO₂/K₂O varying from 1 to 2.75, with 0.25 intervals, was investigated using isothermal calorimetry. The reactivity was relatively low at 20 °C; the reaction started after a few hours with a low silica modulus, to several weeks with the highest silica modulus. The substitution of Koranel by OPC (5 wt.%) or by metakaolinite (10–20 wt.%), both led to higher reaction heat and rate; meanwhile, the addition of 2 wt.% polyethylene glycol/2-methyl 2,4 pentanediol delayed the reaction time in the system containing metakaolinite. Raising the curing temperature from 20 °C to 80 °C shortened the setting time of the low reactive systems, from several days to almost instantaneous, opening perspectives for their application in the production of prepreg composite materials. The use of carbon fabric as reinforcement in the alkali-activated matrix led to composite materials with flexural strength reaching 88 MPa and elastic modulus of about 19 GPa—interesting for engineering applications such as high-strength lightweight panels. Full article

Copper smelting slag discharged from mining and high-aluminum fly ash generated during the combustion of coal for energy production are two typical bulk solid wastes, which are necessary to carry out harmless and resourceful treatment. This research proposed an eco-friendly and economical method for the co-consumption of copper smelting slag and high-aluminum fly ash. Cementitious materials were compounded with copper smelting slag and high-aluminum fly ash as the main materials were successfully prepared, with a 28-d compressive strength up to 31.22 MPa, and the heavy metal leaching toxicity was below the limits of the relevant standards. The optimum mechanical properties of the cementitious materials were obtained by altering the material proportion, ball mill rotation speed, and CaO dosage. Under the combined effect of mechanical ball milling at a suitable speed and chemical activation with a certain alkali concentration, the prepared cementitious materials had an initial activation. The pastes of the cementitious materials generated a gel system during the subsequent hydration process. The two steps together improved the mechanical strength of the cured products. The preparation was simple to operate and offered a high stability of heavy metals. The heavy metal contaminants were kept at a low content throughout the process from raw materials to the prepared cured specimens, which was suitable for application in practical environmental remediation projects and could provide effective solutions for ecological environment construction. Full article

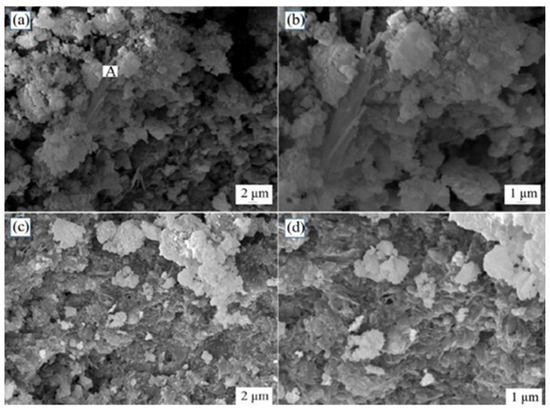

This paper studied the influence of the modulus and dosage of sodium silicate on the hydration of alkali-activated copper-nickel slag (CNS) materials. CNS was used as the main raw material, and ground granulated blast furnace slag (GBFS) powder was selected as the mineral additive. The hydration and hardening mechanisms were discussed. The experimental results showed that [SiO₄]⁴⁻ and [AlO₄]⁵⁻ with a high degree of polymerization in the CNS glassy phase more easily underwent depolymerization-condensation and produced more C-S-H gels when the modulus was small and the sodium silicate dosage was high. When the content of sodium silicate was 7.0% and the modulus of sodium silicate solution was 1.0, the 28-day compressive strength of the material reached 125 MPa. This alkali-activated copper-nickel slag material can be used for mine filling, which has certain economic and ecological benefits. Full article

In an attempt to increase sustainability of construction materials, both ground granulated blast-furnace slag (GGBS) and, less popular, copper slag (CS) can be used in alkali-activated composites. However, such composites are often more susceptible to cracking, triggered by the self-desiccation processes. The addition of superabsorbent polymers (SAP) may enable internal curing of concrete and prevent excessive cracking. Thus, this paper aims to evaluate the effectiveness of SAP as an internal curing agent for alkali-activated slag mortars containing GGBS and CS. The samples were activated by sodium silicate using 6.5% Na₂O by mass of precursor. The evaluation was based on the analysis of mechanical properties, autogenous shrinkage, and water absorption capacity of two types of SAPs. Depending on the type of polymer, a higher alkali concentration in SAP solutions speeds up early age reactions up to 7 days. After this period, SAP collapses and reactions follow at the same pace as the reference sample. In the presence of CS, SAP with higher absorption and smaller particles well-distributed in the mix leads to a higher extension of reactions, observed in higher values of autogenous shrinkage (AS). This results in increased compressive strength of GGBS-CS mortars, achieving values 8.8% greater than the reference sample (without SAP) at 6 months. Although its leads to higher cracking susceptibility, SAP can improve mechanical properties and promote new applications for sustainable material containing copper slag. Full article

Increasing global cement and steel consumption means that a significant amount of greenhouse gases and metallurgical wastes are discharged every year. Using metallurgical waste as supplementary cementitious materials (SCMs) shows promise as a strategy for reducing greenhouse gas emissions by reducing cement production. This strategy also contributes to the utilization and management of waste resources. Controlled low-strength materials (CLSMs) are a type of backfill material consisting of industrial by-products that do not meet specification requirements. The preparation of CLSMs using metallurgical waste slag as the auxiliary cementing material instead of cement itself is a key feature of the sustainable development of the construction industry. Therefore, this paper reviews the recent research progress on the use of metallurgical waste residues (including blast furnace slag, steel slag, red mud, and copper slag) as SCMs to partially replace cement, as well as the use of alkali-activated metallurgical waste residues as cementitious materials to completely replace cement for the production of CLSMs. The general background information, mechanical features, and properties of pozzolanic metallurgical slag are introduced, and the relationship and mechanism of metallurgical slag on the performance and mechanical properties of CLSMs are analyzed. The analysis and observations in this article offer a new resource for SCM development, describe a basis for using metallurgical waste slag as a cementitious material for CLSM preparation, and offer a strategy for reducing the environmental problems associated with the treatment of metallurgical waste. Full article

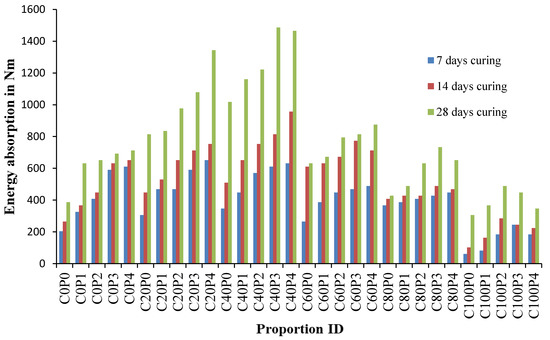

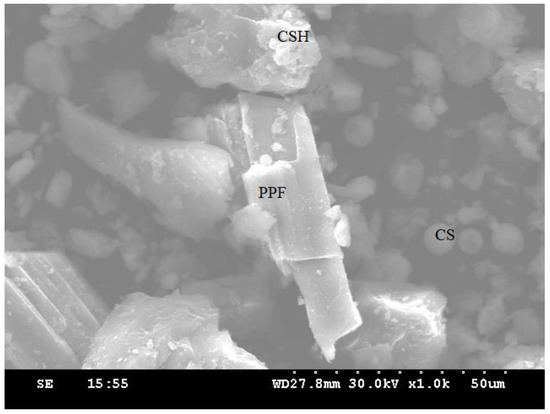

Copper slag (CS) is produced during the smelting process to separate copper from copper ore. The object of the experimental research is to find the optimum percentage of CS and PPF volume fraction when CS replaces fine aggregate, and PPF volume fraction when subjected to impact loading. Copper slag was incorporated as 20%, 40%, 60%, 80% and 100% with PPF of 0.2–0.8% with 0.2% increment. The number of blows on failure of the specimen increases as the fibre volume increases. In addition, the energy absorption of composite concrete is higher than that of ordinary concrete. Concrete with up to 40% CS and 0.6% PPF volume shows a 111.72% increase in the number of blows for failure as compared to the control specimen. The impact resistance at failure was predicted by regression analysis, and very high regression coefficients of 0.93, 0.98 and 0.98 were obtained respectively at 7-, 14- and 28-days curing. In addition to regression analysis, a two-parameter Weibull distribution analysis was used to obtain reliable data on the number of blows at first cracking and eventual failure. The energy absorption at 28-day curing period is 1485.81 Nm which is 284% higher than the control mix. Based on the findings, it can be inferred that adding CS up to 60% densifies the microstructure due to its pozzolanic activity, while polypropylene fibre acts as a micro reinforcement, increasing the number of blows. Full article

Copper slag (CS) remains a challenging industrial by-product with a relatively small utilization fraction. The present study investigated the development of one-part alkali-activated cements based on CS, ground granulated blast furnace slag (GGBS) and a mixture of the two as a precursor. We investigated 5 to 15 wt% solid sodium metasilicate (Na₂SiO₃) and disilicate (Na₂Si₂O₅) as alkaline reagents. Isothermal calorimetry showed that the reactivity of the system was higher for the metasilicate based samples, with early reaction and higher cumulative heat released. Metasilicate based samples also presented a more densified microstructure, lower porosity and higher strength. Better performances were observed with 10 wt% metasilicate/disilicate with respect to the 5 and 15 wt%. The 28-day compressive strength and elastic modulus of 10 wt% metasilicate samples reached 75 MPa and 25 GPa, respectively, and, for paste samples, ranged from 100 wt% GGBS to 50/50 wt% CS/GGBS. The microstructure and calorimetry of the pastes showed that GGBS actively participated in the binding process, whereas CS played a smaller role and acted as a filler and catalyst. The substitution of commercial GGBS by CS up to 50 wt% did not affect the overall performance, thus, bringing CS forward as an economically interesting precursor. Full article

This paper demonstrates the transformation of the industrial residue (copper slag) of a Swedish mining and smelting company “Boliden”, through geopolymerization, into advanced building materials. The main objective of this experimental study is the assessment of the appropriate conditions for the preparation of alkali-activated slag-based geopolymer pastes with further foaming production, by aluminum powder addition. The alkaline-activating solution used was KOH, at a constant concentration (8 M). The effect of crucial operating parameters, such as S/L ratio (3.5–4.5 g/mL) and aluminum powder addition (0.12%–0.22%), on the geopolymer paste were studied, in order to achieve the optimum rheological conditions of the slurry. The physical properties of the materials were examined after the appropriate curing process (24 h at 70 °C), with density values ranging between 805 and 1100 kg/m³. The mechanical performance of the materials ranged between 1.28 and 2 MPa (compressive strength), and from 0.25 to 0.85 MPa (flexural strength), indicating the strong correlation of physical and mechanical properties. To assess the porosity and the size distribution of the voids, image processing techniques were applied on digital images of selected samples. According to these results, the synthesized materials exhibit similar, or even better, properties than the current concrete porous materials. Full article

Alkali-activated copper and nickel slag cementitious materials (ACNCMs) are composite cementitious materials with CNS (copper and nickel slag) as the main materials and GGBFS (ground-granulated blast-furnace slag) as a mineral admixture. In this paper, the activity indexes of CNS with different grinding times were studied using CNS to replace a portion of cement. NaOH, Na₂SO₄, and Na₂SiO₃ activators were used to study the alkaline solution of the CNS glass phase. The effects of the fineness of CNS and the type of activator on the hydration of ACNCMs were investigated via physical/mechanical grinding and chemical activation. The hydration products of ACNCMs were analyzed via XRD, SEM, FT-IR, TG, and MIP. The results of the study revealed that the activity indexes of CNS ground with different grinding times (10, 30 and 50 min) were 0.662, 0.689, and 0.703, respectively. When Na₂SiO₃ was used as the activator, the glass phase dissolved the most Si⁴⁺, Al³⁺, and Ca²⁺, and the respective concentrations in the solution were found to be 2419, 39.55, and 3.38 mg/L. Additionally, the hydration products of ACNCMs were found to have a 28-day compressive strength of up to 84 MPa. Full article
