Search Results (14)

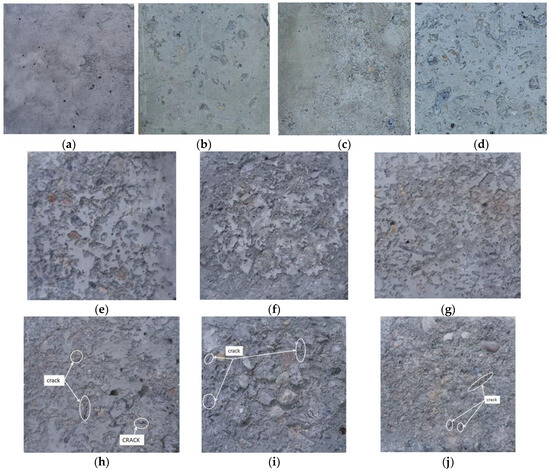

Plain concrete specimens and FRP(Fiber Reinforced Polymer)-reinforced concrete specimens were fabricated to investigate concrete’s mechanical and surface degradation behaviors reinforced with carbon, basalt, glass, and aramid fiber-reinforced polymer under coupled sulfuric acid and freeze–thaw cycles. The compressive strength of fully wrapped FRP cylindrical specimens and the flexural load capacity of prismatic specimens with FRP reinforced to the pre-cracked surface, along with the dynamic elastic modulus and mass loss, were evaluated before and after acid–freeze cycles. The degradation mechanism of the specimens was elucidated through analysis of surface morphological changes captured in photographs, scanning electron microscopy (SEM) observations, and energy-dispersive spectroscopy (EDS) data. The experimental results revealed that after 50 cycles of coupled acid–freeze erosion, the plain cylindrical concrete specimens showed a mass gain of 0.01 kg. In contrast, after 100 cycles, a significant mass loss of 0.082 kg was recorded. The FRP-reinforced specimens initially demonstrated mass loss trends comparable to those of the plain concrete specimens. However, in the later stages, the FRP confinement effectively mitigated the surface spalling of the concrete, leading to a reversal in mass loss and subsequent mass gain. Notably, the GFRP(Glassfiber Reinforced Polymer)-reinforced specimens exhibited the most significant mass gain of 1.653%. During the initial 50 cycles of acid–freeze erosion, the prismatic and cylindrical specimens demonstrated comparable degradation patterns. However, in the subsequent stages, FRP reduced the exposed surface area-to-volume ratio of the specimens in contact with the acid solution, resulting in a marked improvement in their structural integrity. After 100 cycles of acid–freeze erosion, the compressive strength loss rate and flexural load capacity loss rate followed the ascending order: CFRP-reinforced < BFRP(Basalt Fiber Reinforced Polymer)-reinforced < AFRP(Aramid Fiber Reinforced Polymer)-reinforced < GFRP-reinforced < plain specimens. Conversely, the ductility ranking from highest to lowest was AFRP/GFRP > control group > BFRP/CFRP. A probabilistic analysis model was established to complement the experimental findings, encompassing the quantification of hazard levels and reliability indices. Full article

In order to further enhance the erosion resistance of cement concrete pavement materials, this study constructed an apparent rough hydrophobic structure layer by spraying a micro-nano substrate coating on the surface layer of the cement concrete pavement. This was followed by a secondary spray of a hydroxy-silicone oil-modified epoxy resin and a low surface energy-modified substance paste, which combine to form a superhydrophobic coating. The hydrophobic mechanism of the coating was then analysed. Firstly, the effects of different types and ratios of micro-nano substrates on the apparent morphology and hydrophobic performance of the rough structure layer were explored through contact angle testing and scanning electron microscopy (SEM). Subsequently, Fourier transform infrared spectroscopy and permeation gel chromatography were employed to ascertain the optimal modification ratio, temperature, and reaction mechanism of hydroxy-silicone oil with E51 type epoxy resin. Additionally, the mechanical properties of the modified epoxy resin-low surface energy-modified substance paste were evaluated through tensile tests. Finally, the erosion resistance of the superhydrophobic coating was tested under a range of conditions, including acidic, alkaline, de-icer, UV ageing, freeze-thaw cycles and wet wheel wear. The results demonstrate that relying solely on the rough structure of the concrete surface makes it challenging to achieve superhydrophobic performance. A rough structure layer constructed with diamond micropowder and hydrophobic nano-silica is less prone to cracking and can form more “air chamber” structures on the surface, with better wear resistance and hydrophobic performance. The ring-opening reaction products that occur during the preparation of modified epoxy resin will severely affect its mechanical strength after curing. Controlling the reaction temperature and reactant ratio can effectively push the modification reaction of epoxy resin through dehydration condensation, which produces more grafted polymer. It is noteworthy that the grafted polymer content is positively correlated with the hydrophobicity of the modified epoxy resin. The superhydrophobic coating exhibited enhanced erosion resistance (based on hydrochloric acid), UV ageing resistance, abrasion resistance, and freeze-thaw damage resistance to de-icers by 19.41%, 18.36%, 43.17% and 87.47%, respectively, in comparison to the conventional silane-based surface treatment. Full article

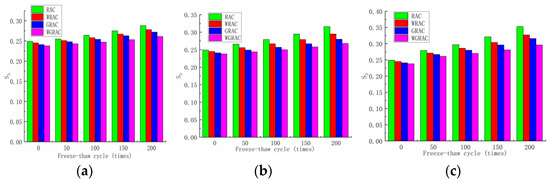

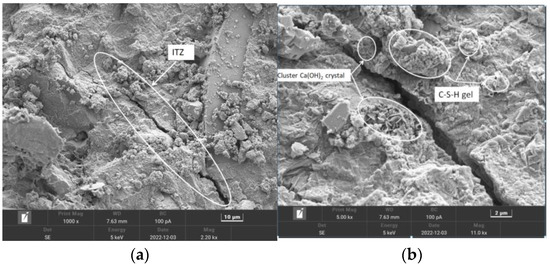

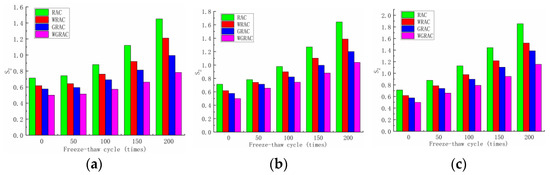

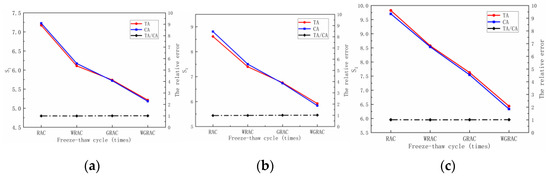

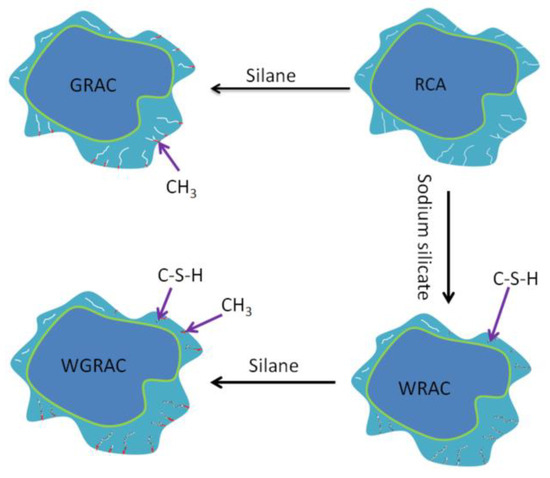

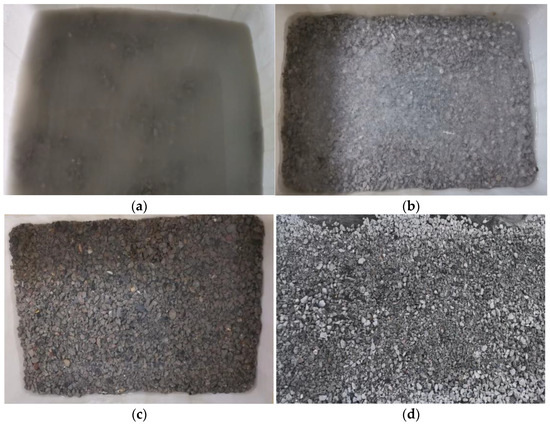

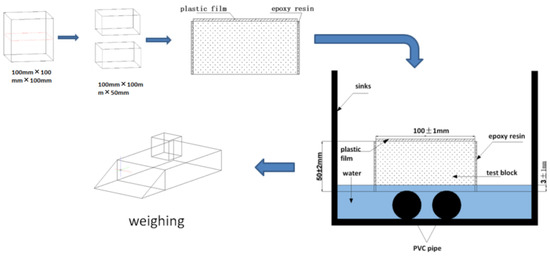

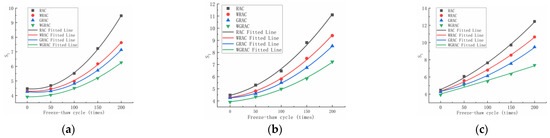

Recycled coarse aggregate is processed through the second crushing, which causes some internal damage, resulting in its physical indicators being far worse than natural coarse aggregate; its durability is relatively poor, and in the northern region, the soil contains a large number of acidic salt ions from the erosion of concrete, resulting in a decline in its durability. In this test, concrete was made from the single and composite immersion of recycled coarse aggregate using 5% water glass and 8% silane solution and subjected to a rapid freeze–thaw test in water, 3.5% NaCl solution, and 5% Na₂SO₄ solution, followed by a capillary water absorption test. The study was conducted to test the durability of recycled concrete, establish the initial capillary water absorption prediction model under freeze–thaw in different media, and analyze the internal structure of the RAC group after freeze–thaw using SEM. The test results showed that the composite-modified water absorption decreased the most, which can effectively improve the durability of recycled concrete, and the chloride salt caused the greatest erosion of recycled concrete and had the least clear water. The predictive model has high accuracy and can be used as a reference for capillary water absorption experiments on recycled concrete. Full article

The preparation of continuous hydroxyapatite film on stone is a promising method of protecting marble from erosion. However, many methods negatively affect the calcium in the substrate and forming of struvite on the dolomite surface, leading to a heterogeneous coating and low efficiency. In this study, a continuous hydroxyapatite coating on dolomitic marble was achieved from graphene enhanced Ca(OH)₂ nanoparticles as the calcium precursor using the sol-gel method. The morphology and the structure of the film was evaluated by a field emission scanning electron microscope coupled with energy dispersive spectroscopy (FESEM-EDS), an optical microscope, Raman spectroscopy, Fourier transform infrared spectroscopy (FTIR), and analytical techniques. Moreover, the color and the contact angle measurements, as well as the simulated acid rain test and freeze–thaw treatment, were performed to assess the chromatic aberration, hydrophilicity, reliability, and durability of the coating. A suppositional combination model among hydroxyapatite, graphene quantum dots, and dolomite were suggested based on structural similarities between the support material and components of the functional coating. The integrality and efficiency of the hydroxyapatite film was improved by compositing with graphene quantum dots. Full article

Magnesium oxysulfate (MOS), mainly composed of magnesium oxide and magnesium sulfate, is a kind of gas-hardening cementing material with low energy consumption and CO₂ emissions. In order to develop environment-friendly cement-based materials, MOS needs to be studied systematically. The paper mainly investigates the influence of citric acid (a retarder) on the working and mechanical properties of MOS paste. In this study, the setting time of fresh MOS paste is determined. The flexural and compressive strengths of hardened specimens exposed to the environment of water dry-wet (D-W) alternations, freeze-thaw (F-T) cycles, and sulfate D-W alternations are investigated. Furthermore, the drying shrinkage (D-S) rate of MOS paste is tested for 3 days and 28 days. The specimens are cured in standard or CO₂ curing environments. A scanning electron microscope energy spectrum (SEM-EDS) is obtained to analyze the morphology of hydration products. Results show that citric acid can increase the setting time of MOS paste. The citric acid and CO₂ curing have a positive effect on the mechanical strengths and the resistance to erosion by water, F-T cycles, and sulfate D-W alternations. The D-S rate decreased in relation to the increasing dosages of citric acid and increased with CO₂ curing. MOS with 0.3% of the total binder material mass shows the best erosion resistance. As observed in the results of SEM-EDS, the CO₂ curing and the citric acid can make the hydration products denser. Full article

Concrete, an integral part of a nuclear power plant (NPP), experiences degradation during their operational lifetime of the plant. In this review, the major causes of concrete degradation are extensively discussed including mechanisms that are specific to NPPs. The damage mechanism could be chemical or physical. The major causes of chemical degradation include alkali–aggregate reactions, leaching, sulfate attack, bases and acids attack, and carbonation. Physical degradation is a consequence of both environmental and mechanical factors combined. These factors are mainly elevated temperature, radiation, abrasion and erosion, salt crystallization, freeze–thaw distortions, fatigue and vibration. Additionally, steel reinforcements, prestressing steels, liner plates, and structural steel also experience degradation. The prospective areas in the structural components of the NPP where the degradation could occur are mentioned and the effective solutions to the causes of degradation are highlighted. These solutions are designed to enhance the physical and chemical characteristics of concrete. Some of the major recommendations include addition of mineral substitutes, use of low water-to-cement ratio as well as low water-to-binder ratio, use of low alkali cement, use of special aggregates and fibers, use of corrosion inhibitors, use of cathodic protection, etc. The review concludes with an overview of present methods and possible recommendations used to enhance the quality of concrete towards preventing concrete degradation and increasing the lifetime of NPPs. Full article

The interface performance of steel fiber-reinforced concrete (SFRC) is a critical factor in determining mechanical properties and durability. The degradation of the concrete matrix and micro-structure interface is caused by environmental erosion, which shortens the service life of the structure design. Considering different volume contents of steel fiber (0%, 1%, 2%), the failure mechanism of SFRC under different environmental erosion conditions was studied through a laboratory test scheme. A total of six environmental factors are selected, including water, sodium chloride solution, sodium sulfate solution, dilute sulfuric acid solution, sodium hydroxide solution, and a freeze-thaw cycle. When subjected to different erosion concentrations and periods, micro-structure and axial bearing capacity deterioration laws are compared and analyzed. A durability equation related to fiber mixture ratio and strength is presented based on the experimental data and the numerical simulation method. The influence of different environments on steel fiber-reinforced concrete is analyzed, and the grey correlation degree of axial compressive strength is analyzed. The experimental results show that steel fiber can effectively improve the concrete axial bearing capacity, but different responses are observed under the various erosion conditions. A freeze-thaw cycle environment has the most significant impact on the axial compressive strength of concrete, followed by the sulfuric acid environment, and other environments have a weaker impact. The research results will provide a theoretical basis for predicting the performance deterioration of SFRC concerning other erosion conditions and periods. Full article

Gel beads are formed when alginate acid reacts with divalent cations, particularly Ca²⁺. As a result of this feature, it is one of the best materials for making gel beads. Furthermore, it swells only slightly at acidic pH, resulting in stable alginate acid beads, but swells and dissolves rapidly at higher pH values, leading to pH-responsive release. Our current study aimed to embed folate-modified chitosan 5FU nanoparticles (FA-CS-5FU-NPs) into calcium alginate beads for colon-targeted delivery. Calcium alginate beads were developed successfully. Based on the method of drying, two types of beads were obtained: freeze-dried folate-modified chitosan 5FU nanoparticles-embedded beads (FA-CS-5FU-NP-Bf) and oven-dried folate-modified chitosan 5FU nanoparticles-embedded beads (FA-CS-5FU-NP-Bo). The size of (FA-CS-5FU-NP-Bf) was significantly larger than (FA-CS-5FU-NP-Bo). Swelling index (SI), erosion index (EI), and water-uptake index (WUI) of (FA-CS-5FU-NP-Bf) beads were significantly higher than FA-CS-5FU-NP-Bo beads at simulated intestinal pH. An insignificant difference was observed in the release rate of 5FU between (FA-CS-5FU-NP-Bf) and FA-CS-5FU-NP-Bo. The release rate of FA-CS-5FU-NPs was significantly higher than FA-CS-5FU-NP-Bf and FA-CS-5FU-NP-Bo. Pharmacokinetic parameters of 5FU solution, FA-CS-5FU-NPs, and FA-CS-5FU-NP-Bo were analyzed. Solution of pure 5FU showed significantly higher C_max and lower AUC, T_1/2, and Vd than both FA-CS-5FU-NPs and FA-CS-5FU-NPs-Bo, suggesting that FA-CS-5FU-NPs and FA-CS-5FU-NPs-Bo have sustained-release behavior. Biodistribution studies also show that maximum drug amounts were found in the colon from nanoparticles-embedded beads. FA-CS-5FU-NPs-Bo avoid releasing drugs in the stomach and small intestine and make them available in the colon region in higher concentrations to target the colon region specifically. Full article

In the Loess Plateau region, the poor structure and properties of loess slopes will cause many types of geological disasters such as landslides, mudflow, land collapse, soil erosion, and ground cracking. In this paper, an eco-friendly polymer composite fertilizer (PCF) based on corn straw wastes (CS) and geopolymer synthesized from loess was studied. The characterization by FT-IR of the PCF confirmed that graft copolymer is formed, while morphological analysis by scanning electron microscopy and energy dispersive spectroscopy showed that geopolymer and urea were embedded in the polymer porous network. The effects of PCF contents on the compressive strength of loess were investigated. The PCF was characterized in terms of surface curing test, temperature and freeze-thaw aging property, water and wind erosion resistance, and remediation soil acidity and alkalinity property, which indicates that PCF can improve loess slope fixation and stability by physical and chemical effects. Moreover, the loess slope planting experiment showed that PCF can significantly increase the germination rate of vegetation from 31% to 68% and promote the survival rate of slope vegetation from 45.2% to 67.7% to enhance biological protection for loess slopes. The PCF meets the demands of building and roadbed slope protection and water-soil conservation in arid and semi-arid regions, which opens a new application field for multifunctional polymer composite fertilizers with low cost and environmental remediation. Full article

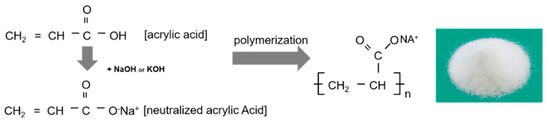

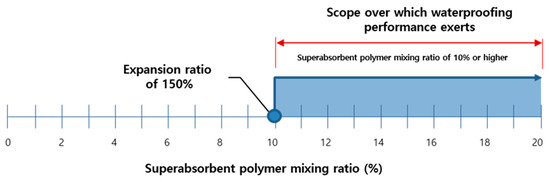

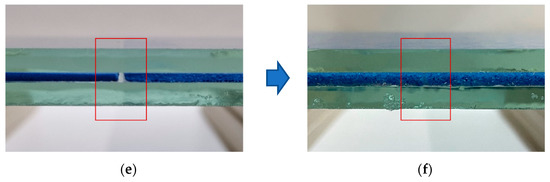

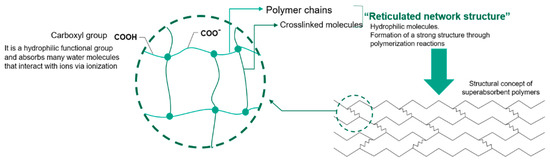

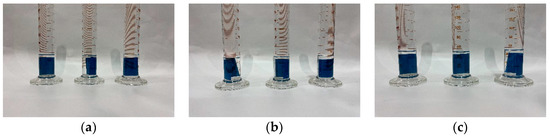

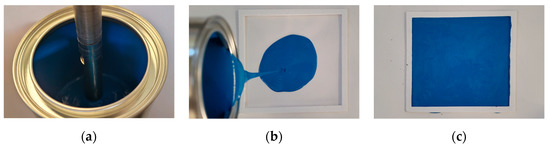

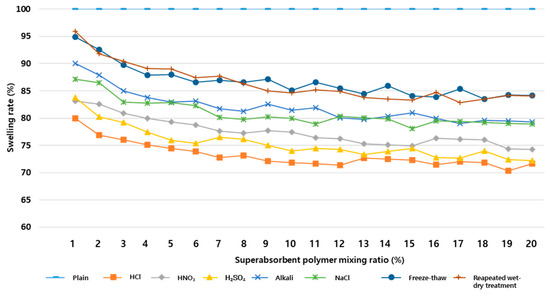

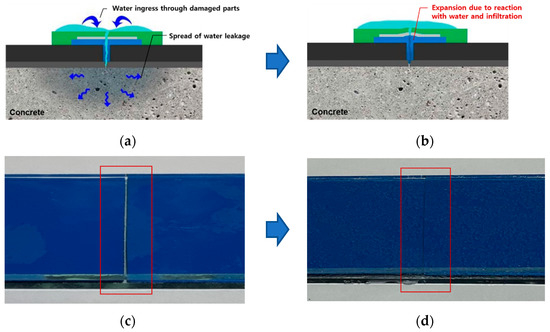

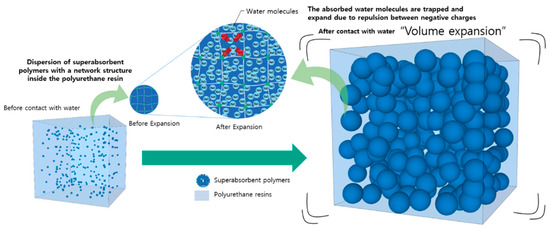

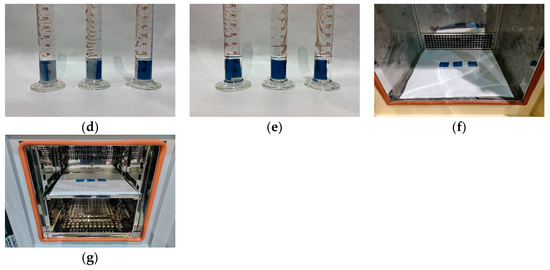

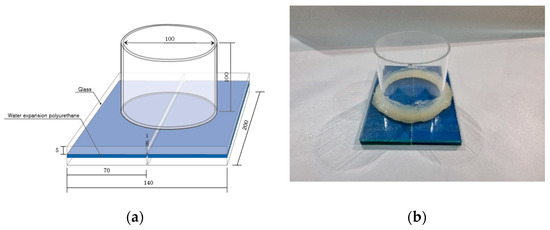

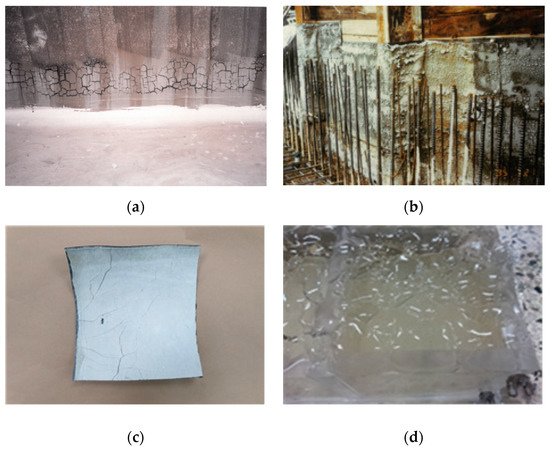

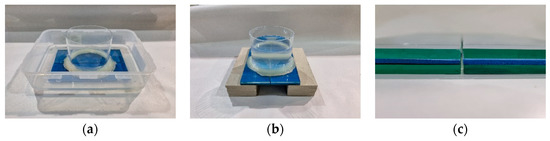

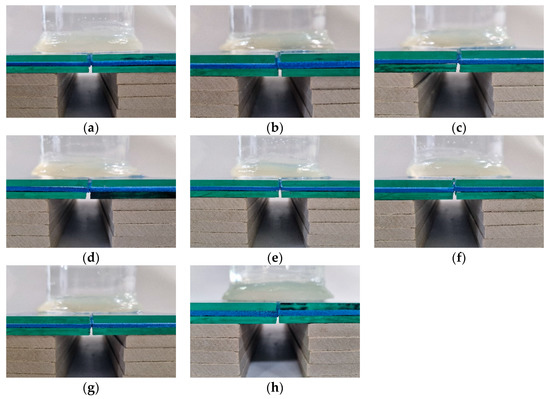

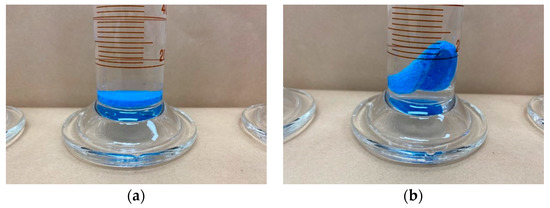

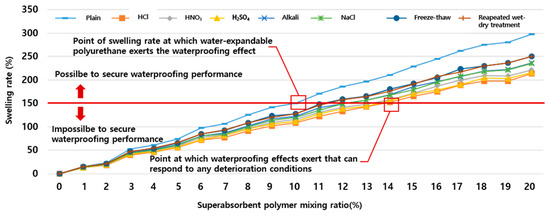

Polyurethanes with water expansion properties are manufactured by incorporating polyurethane resins and superabsorbent polymers. This study aimed to present an optimal mixing ratio of a superabsorbent polymer that can express the effective waterproofing performance of a polyurethane material with water expansion properties. The evaluation results confirmed that the waterproofing performance was exerted at a superabsorbent polymer mixing ratio of more than 10% and an expansion ratio of 150% or more, which were then set as the minimum standard value for ensuring waterproofing performance. In addition, chemical erosion (by hydrochloric acid, sulfuric acid, nitric acid, alkali, and sodium chloride), freeze-thaw, and wet-dry cycles were set as deterioration conditions to determine the optimal mixing ratio for the superabsorbent polymer under conditions of use, and the maximum expansion ratio was evaluated after pretreatment under the deterioration conditions. It was found that, based on the minimum standard value for the waterproofing performance set above, the superabsorbent polymer mixing ratio that can ensure an expansion ratio of 150% or more under all deterioration conditions was 14%. Full article

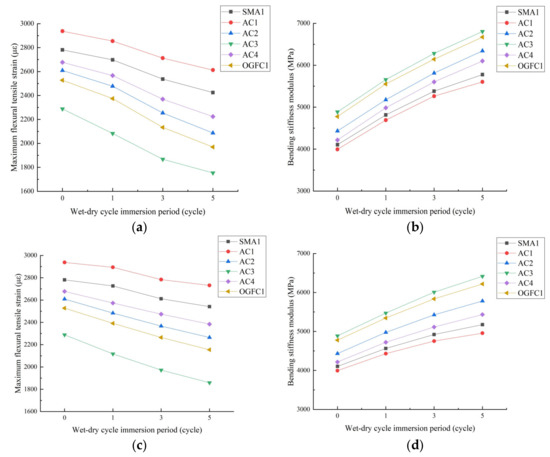

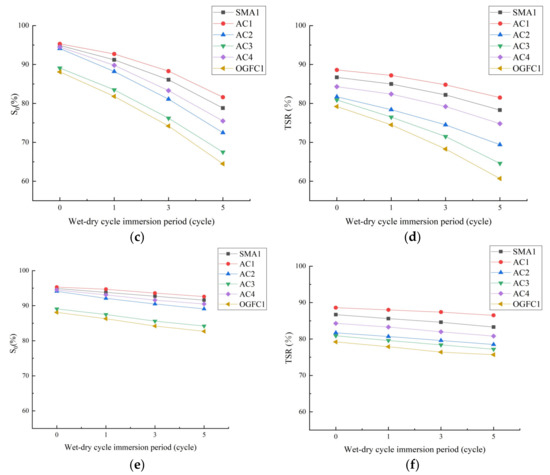

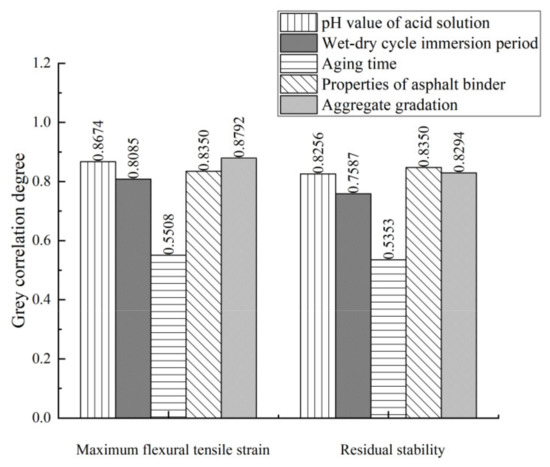

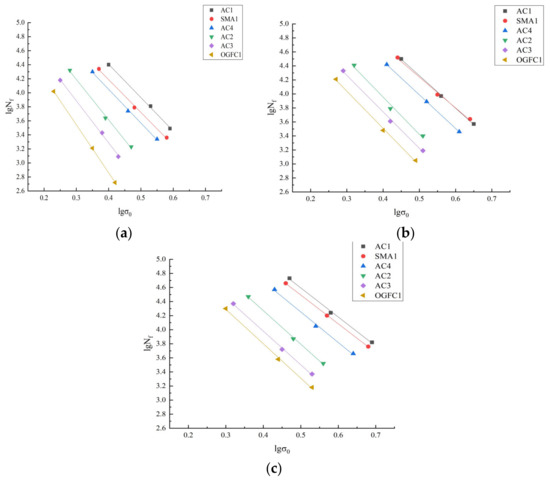

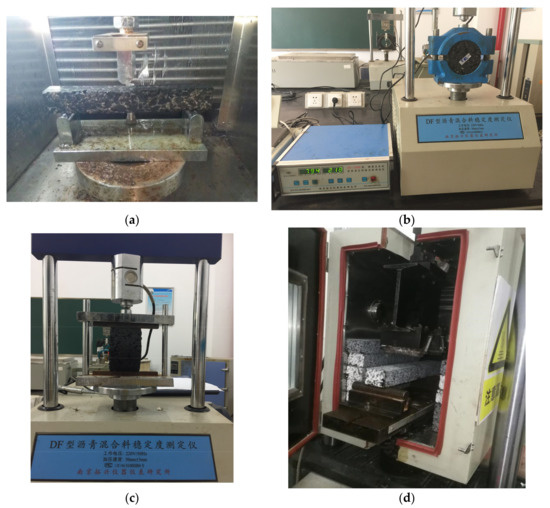

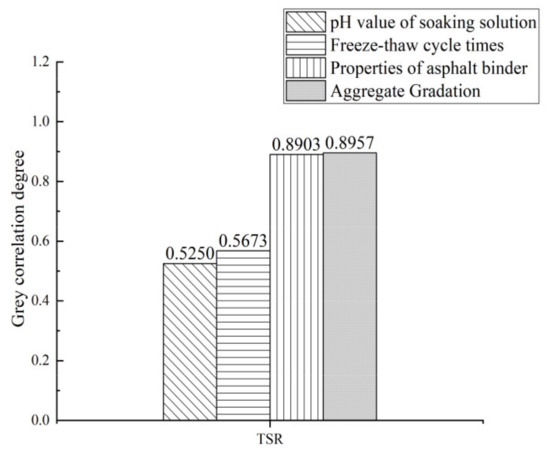

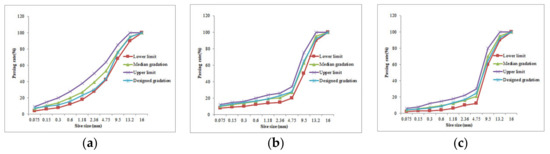

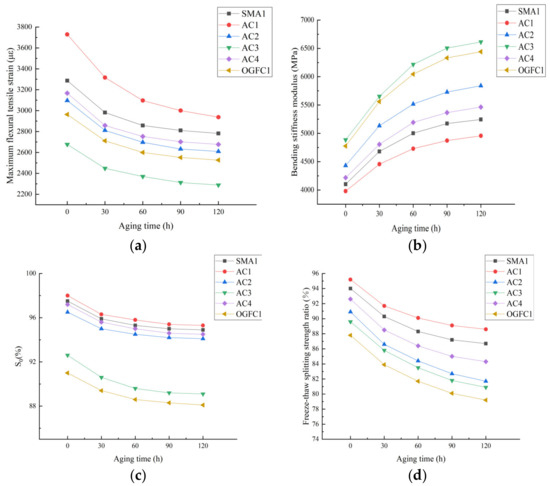

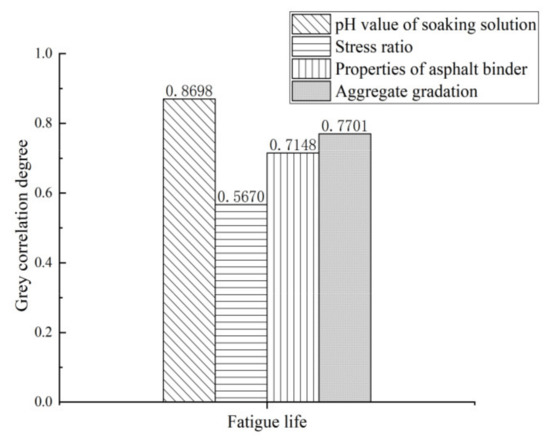

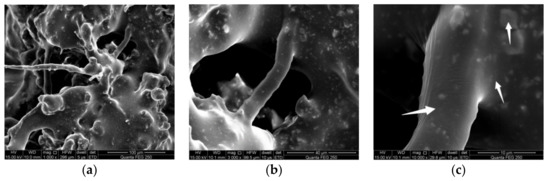

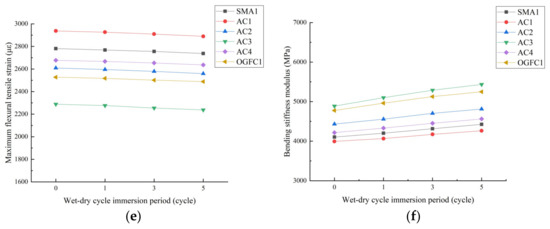

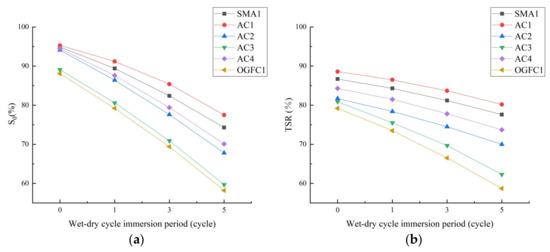

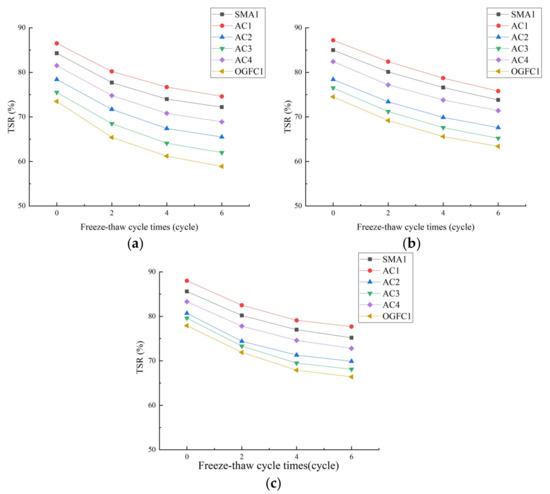

Acid erosion can accelerate the process of early damage of asphalt pavement and decrease the durability of asphalt pavement. However, there are limited research results for asphalt mixtures that can resist acid rain erosion. To systematically evaluate the impact and action law of acid rain erosion on the durability of asphalt mixtures, three gradation schemes were used: periodic dry–wet cycle immersion test, contact angle test and road performance test. The acid rain erosion resistance of epoxy asphalt mixture, SBS-modified asphalt mixture and 70# matrix asphalt mixture were tested from three aspects of anti-aging performance, freeze–thaw cycle performance and fatigue performance. The results show that the erosion of acid rain can significantly decrease the adhesion between asphalt and aggregate, and affects the road performance of the asphalt mixture. Acid rain erosion can significantly decrease the mechanical properties, adhesion and durability of asphalt mixtures. Epoxy asphalt has better physical properties, adhesion and acid rain erosion resistance than 70# matrix asphalt and SBS-modified asphalt. Epoxy asphalt has excellent adhesion due to its polar group, high cohesion and thermosetting resin with low shrinkage, which can effectively resist moisture erosion, spalling and temperature stress cracking, thereby effectively resisting the erosion of acid rain. Epoxy asphalt mixture has the strongest acid rain erosion resistance, which can be further enhanced when used together with waste rubber powder and modified bamboo fiber. On the whole, asphalt mixture with high-density structure and thicker asphalt film can effectively resist acid rain erosion. The durability of asphalt concrete (AC)-type gradation mixture and stone mastic asphalt (SMA)-type gradation mixture are equivalent, and both are superior to open-graded friction courses (OGFC)-type gradation mixture. The gradation of asphalt mixtures and the type of asphalt binder have great influence on their acid rain erosion resistance and durability. In order to realize the directional control of the acid rain erosion resistance and durability of different asphalt mixtures, a multi-parameter comprehensive assessment indicator system between the type and property of asphalt, the gradation of asphalt mixture, and the acid rain resistance and durability of the mixture need to be established in the future. Full article

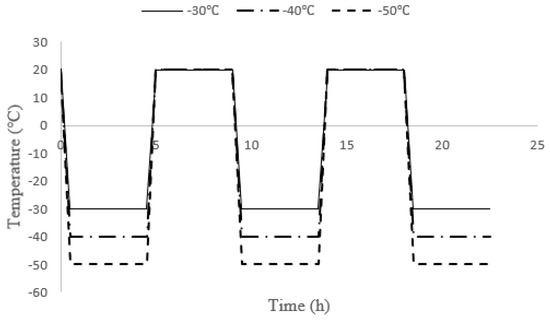

Aiming at the acid-etched freeze-thaw rock for geotechnical engineering in cold regions, chemical damage variables, freeze-thaw damage variables, and force damage variables were introduced to define the degree of degradation of rock materials, the law of damage evolution, the total damage variable of acid-corroded rock under the coupling action of freeze-thaw and confining pressure was deduced. The continuous damage mechanics theory was adopted to derive the damage evolution equation and constitutive model of acid-eroded rock under the coupling action of freeze-thaw and confining pressure. The theoretical derivation method was used to obtain the required model parameter expressions. Finally, the model’s rationality and accuracy were verified by the triaxial compression test data of frozen-thawed rocks. Comparing the test curve’s peak point with the peak point of the model theoretical curve, the results show that the two are in suitable agreement. The damage constitutive model can better reflect the stress-strain peak characteristics of rock during triaxial compression, verifying the rationality and reliability of the model and the method for determining the model parameters. The model extends the damage model of rock under the coupling action of freeze-thaw and confining pressure in the chemical environment and further reveals the damage mechanism and failure law of acid-corroded rock under the coupling action of freeze-thaw and confining pressure. Full article

Microscopic characteristics greatly affect mechanical and physical properties as they exert vital impact on the stability and durability of materials. In this paper, widely distributed sandstone was chosen as the research object. Sandstone was treated with a coupled effect of Freeze–Thaw (F–T) weathering and acid solution, where freeze–thaw cycles were set as 0, 10, 20, 30 and 40 cycles, and the pH of the acid solution were set as 2.8, 4.2, 5.6 and 7.0, respectively. Then, nuclear magnetic resonance was applied to measure the microscopic characteristics of sandstone, then porosity, pore size distribution and permeability before the fractal dimensions were obtained and calculated. Results show that porosity increases when F–T cycles increase, and its increase grows with the pH of acid solution decrease during the first 10 F–T cycles. Macro porosity, meso porosity and micro porosity account for the largest, second largest and smallest ratio of porosity growth. Meso porosity, micro porosity and macro porosity account for the largest, second largest and smallest ratio of total porosity. Permeability increases obviously with F–T cycle increase, while acid erosion exerts little influence on permeability increment overall. Fractal dimensions of meso pores and macro pores increase with F–T cycle increase overall, and they increase with pH decrease overall. Porosity has strong exponentially correlation with permeability. Fractal dimensions of meso pores and macro pores have good linearly correlation with permeability, while correlation between porosity and fractal dimensions are not that obvious. Full article

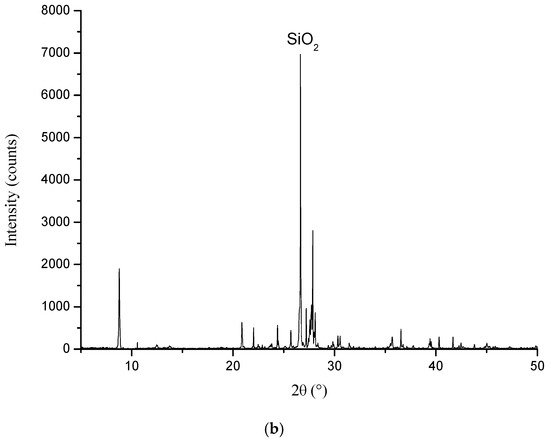

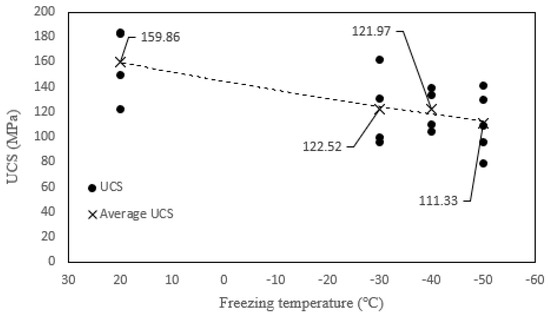

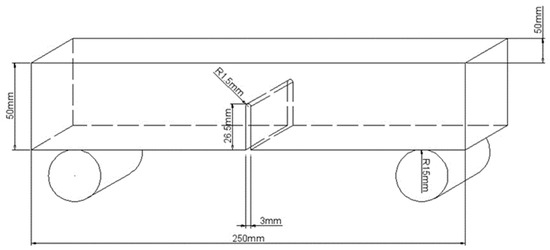

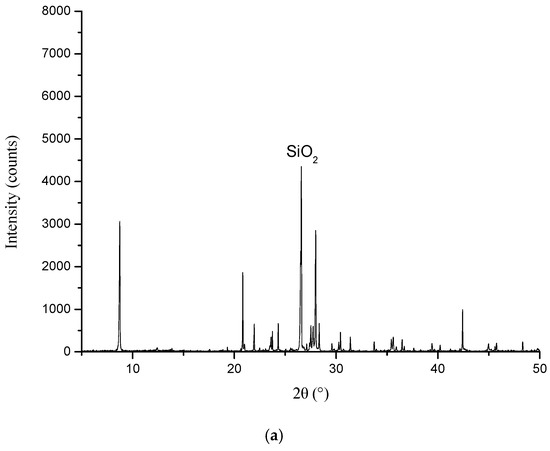

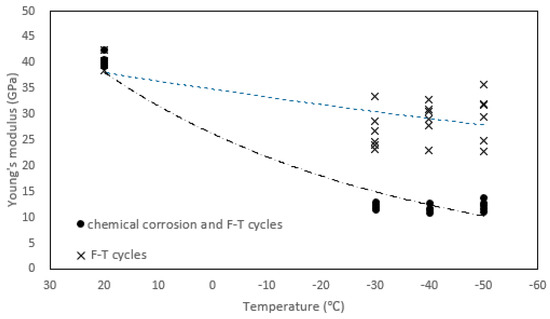

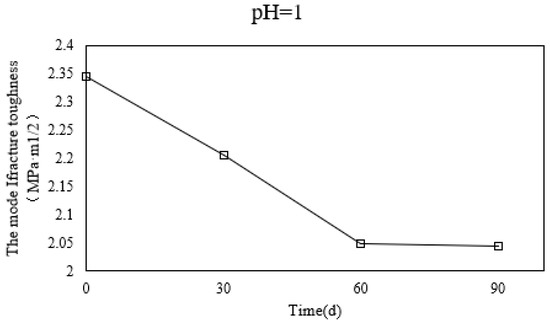

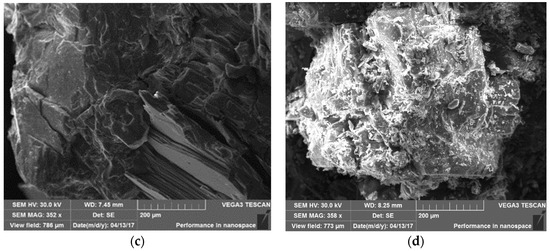

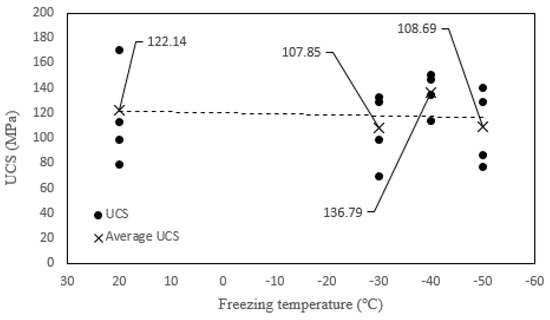

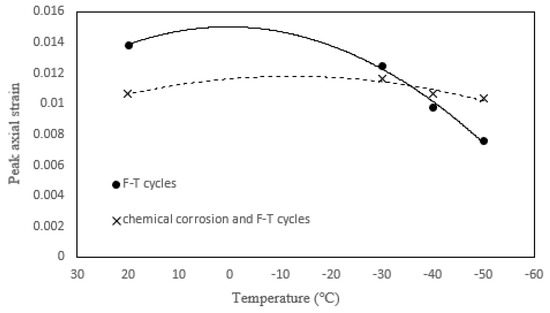

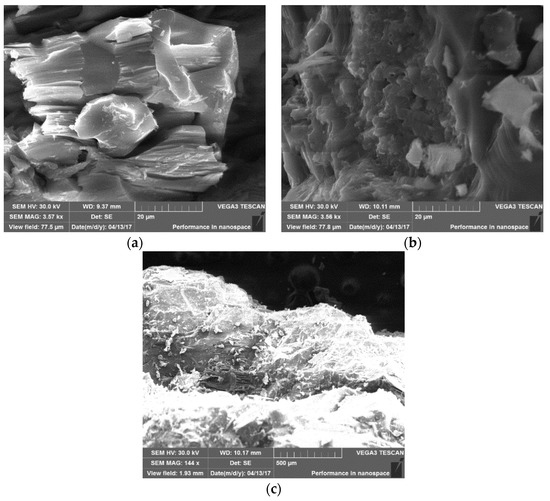

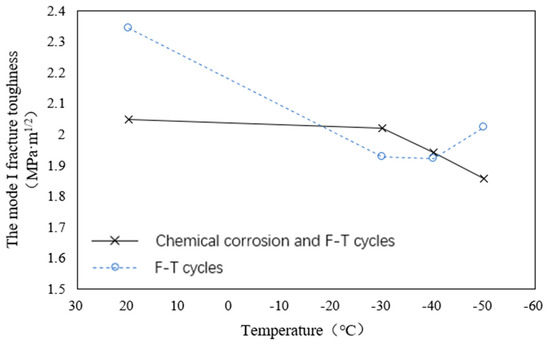

This paper presents an investigation into the coupled effects of chemical corrosion (by Nitric acid solution) and freeze-thaw cycles on the physical and mechanical properties and damage deterioration of tonalite specimens. The experiments included the uniaxial compression test, three-point bending test, the Young’s modulus test, the X-ray diffraction test and the scanning electron microscope test. The damage condition of tonalite specimens was analyzed using scanning electron microscope (SEM). The experimental results reveal that chemical erosion has a significant influence on the propagation of micro cracks and accelerates the development of damage in the tonalite samples under monotonic loading. Due to cementation, no noticeable difference in uniaxial compressive strength was observed between the specimens subjected to combined effects of chemical corrosion and freeze-thaw cycles and those subjected to freeze-thaw cycles only. The amount of cementing materials in the chemically treated samples was found using SEM, which shows that chemical reactions promoted mechanical properties to some extent. Full article
