Search Results (10)

The esterification of 1-methoxy-2-propanol (PM) and acetic acid (AA) is an important reaction for the production of 1-methoxy-2-propyl acetate (PMA). Herein, we used the macroporous ion-exchange resin Amberlyst-35 as a catalyst to explore the effects of reaction conditions on the reaction rate and equilibrium yield of PMA. Under the optimized conditions of a reaction temperature of 353 K, using the initial reactant PM/AA with a molar ratio of 1:3, and a catalyst loading of 10 wt%, the PMA equilibrium yield reached 78%, which is the highest equilibrium yield so far. The reaction equilibrium constants and activity coefficients were estimated to obtain reaction thermodynamic properties, indicating the exothermicity of the reaction. Furthermore, pseudo-homogeneous (PH), Eley–Rideal (ER), and Langmuir–Hinshelwood–Hougen–Watson (LHHW) kinetic models were fitted based on experimental reaction kinetic data. The results demonstrate that the LHHW model is the most consistent with experimental data, indicating a surface reaction-controlled process and exhibiting an apparent activation energy of 62.0 ± 0.2 kJ/mol. This work represents a valuable example of calculating reaction thermodynamics and kinetics, which are particularly essential for promising industrial reactor designs. Full article

Lignocellulosic biomass can uptake CO₂ during growth, which can then be pyrolysed into three major products, biochar (BC), syngas, and bio-oil. Due to the presence of oxygenated organic compounds, the produced bio-oil is not suitable for direct use as a fuel and requires upgrading via hydrodeoxygenation (HDO) and hydrogenation. This is typically carried out over a supported metal catalyst. Regarding circular economy and sustainability, the BC from the pyrolysis step can potentially be activated and used as a novel catalyst support, as reported here. A 15 wt% Ni/BC catalyst was developed by chemically modifying BC with sulfuric acid to improve mesoporous structure and surface area. When compared to the pristine Ni/BC catalyst, sulfuric activated Ni/BC catalyst has excellent mesopores and a high surface area, which increases the dispersion of Ni nanoparticles and hence improves the adsorptive effect and thus catalytic performance. A liquid phase hydrogenation of furfural to 2-methylfuran was performed over the developed 15 wt% Ni/BC catalyst. Langmuir–Hinshelwood–Hougen–Watson (LHHW) kinetic type models for adsorption of dissociative H₂ were screened based on an R² value greater than 99%, demonstrating that the experimental data satisfactorily fit to three plausible models: competitive (Model I), competitive at only one type of adsorption site (Model II), and non-competitive with two types of adsorption sites (Model III). With a correlation coefficient greater than 99% between the experimental rates and the predicted rate, Model III, which is a dual-site adsorption mechanism involving furfural adsorption and hydrogen dissociative adsorption and surface reaction, is the best fit. The Ni/BC catalyst demonstrated comparative performance and significant cost savings over previous catalysts; a value of 24.39 kJ mol⁻¹ was estimated for activation energy, −11.43 kJ mol⁻¹ for the enthalpy of adsorption for H₂, and −5.86 kJ mol⁻¹ for furfural. The developed Ni/BC catalyst demonstrated excellent stability in terms of conversion of furfural (96%) and yield of 2-methylfuran (54%) at the fourth successive experiments. Based on furfural conversion and yield of products, it appears that pores are constructed slowly during sulfuric acid activation of the biochar. Full article

In this study, two materials based on reduced graphene oxide (rGO_H or rGO_E) were synthesized through the Hummers methodology and a more sustainable electrochemical method. These materials were extensively characterized and tested as catalysts in solketal production. Both rGO_H and rGO_E demonstrated significant catalytic activity, achieving 66.18% and 63.97% conversion rates, respectively. The catalytic activity of the synthesized materials was 30 times more efficient than the homogeneous catalyst p-Toluenesulfonic acid. Pseudo-homogeneous and heterogeneous kinetic models were employed to gain further insights into the glycerol ketalization reaction with acetone. The pseudo-homogeneous model suggested that the direct rate constant was lower than the reverse rate constant. In this sense, a reversible bimolecular reaction was proposed. The heterogeneous kinetic models revealed that in the Langmuir-Hinshelwood-Hougen-Watson mechanism, the controlling step of the reaction was the glycerol-acetone surface reaction on the catalyst. In contrast, in the Eley-Rideal mechanism, the reaction was controlled by the adsorbed glycerol on the reaction surface reacting with the available acetone in the bulk fluid. In the reusability tests, the rGO_E catalyst demonstrated superior performance over five consecutive cycles, maintaining the highest activity without needing post-reaction washing or treatment. Full article

The kinetics of methanol synthesis remains debatable for various reasons, such as the lack of scientifically conclusive agreement about reaction mechanisms. The focus of this paper is on the evaluation of the intrinsic kinetics of the methanol synthesis reaction based on CO₂ hydrogenation and the associated reverse water–gas shift as overall reactions. The industrial methanol synthesis catalyst, Cu/ZnO/Al₂O₃/MgO, was used for performing the kinetic studies. An optimal kinetic model was assessed for its ability to predict the experimental data from differential to integral conditions, contrary to the typical fitting of only the integral conditions’ data (common practice, as reported in the literature). The catalyst testing and kinetic evaluations were performed at various temperatures (210–260 °C) and pressures (40–77 bar), and for different stoichiometric numbers (0.9–1.9), H₂/CO₂ ratios (3.0–4.4) and carbon oxide ratios (0.9–1.0), in an isothermal fixed bed reactor, operated in a plug-flow mode. Experiments with CO in the feed were also generated and fitted. Different literature kinetic models with different assumptions on active sites, rate-determining steps, and hence, model formulations were fitted and compared. The original Seidel model appeared to fit the kinetic data very well, but it has twelve parameters. The modified model (MOD) we propose is derived from this Seidel model, but it has fewer (nine) parameters—it excludes CO hydrogenation, but it takes into consideration the morphological changes of active sites and CO adsorption. This MOD model, with three active sites, gave the best fit to all the data sets. Full article

In this work, the photocatalytic activity of nanoparticles (NPs) of zinc oxide synthetized by Prosopis laevigata as a stabilizing agent was evaluated in the degradation of methylene blue (MB) dye under UV radiation. The theoretical study of the photocatalytic degradation process was carried out by a Langmuir–Hinshelwood–Hougen–Watson (LHHW) model. Zinc oxide nanoparticles were synthesized by varying the concentration of natural extract of Prosopis laevigata from 1, 2, and 4% (weight/volume), identifying the samples as ZnO_PL1%, ZnO_PL2%, and ZnO_PL4%, respectively. The characterization of the nanoparticles was carried out by Fourier transform infrared spectroscopy (FT-IR), where the absorption band for the Zn-O vibration at 400 cm⁻¹ was presented; by ultraviolet–visible spectroscopy (UV–vis) the value of the band gap was calculated, resulting in 2.80, 2.74 and 2.63 eV for the samples ZnO_PL1%, ZnO_PL2%, and ZnO_PL4%, respectively; XRD analysis indicated that the nanoparticles have a hexagonal zincite crystal structure with an average crystal size of 55, 50, and 49 in the sample ZnO_PL1%, ZnO_PL2%, and ZnO_PL4%, respectively. The morphology observed by TEM showed that the nanoparticles had a hemispherical shape, and the ZnO_PL4% sample presented sizes ranging between 29 and 45 nm. The photocatalytic study showed a total degradation of the MB in 150, 120, and 60 min for the samples ZnO_PL1%, ZnO_PL2%, and ZnO_PL4%, respectively. Also, the model explains the experimental observation of the first-order kinetic model in the limit of low concentrations of dye, indicating the influence of the mass transfer processes. Full article

Activated bentonites are low-cost acid catalysts used in several reactions. However, their application at an industrial scale is affected by the formation of colloidal suspensions when these bentonites are in aqueous solutions. In order to overcome these limitations, this work proposes obtaining a catalyst based on a composite containing natural bentonite within a silica–resin structure, which allows separating and re-utilizing the catalyst more easily and without centrifugal filtration requirements. By means of characterization techniques, the present study determined that the activated bentonite composite presented a total specific surface area of ~360 m² g⁻¹, ~4 mmol of acid sites per gram of bentonite, and sites with strong acid strength, all of which bestowed activity and selectivity in the solketal synthesis reaction from glycerol and acetone, reaching equilibrium conversion within a short reaction time. Furthermore, the present work developed a Langmuir–Hinshelwood–Hougen–Watson kinetic model, achieving an activation energy of 50.3 ± 3.6 kJ mol⁻¹ and a pre-exponential factor of 6.4 × 10⁶ mol g⁻¹ L⁻¹ s⁻¹, which are necessary for reactor design. Full article

The kinetics for crude glycerol autothermal reforming was studied over S/C ratio of 2.6 and O₂/C ratio of 0.125 using 5% Ni/CeZrCa catalyst. Both power law and mechanistic kinetic models were studied. The overall power law model for crude glycerol autothermal reforming was investigated with a pre-exponential factor of 4.3 × 10¹⁰ mol/g_cat·min and activation energy of 8.78 × 10⁴ J/mol. The reaction orders with respect to crude glycerol, water and oxygen are 1.04, 0.54 and 1.78 respectively. The power law model presented an absolute average deviation of 5.84%, which showed a good correlation between the predicted and experimental rate. Mechanistic models were developed for crude glycerol autothermal reforming. For steam reforming, the Eley–Rideal approach best described the reaction rate with the surface reaction being the rate-determining step (AAD < 10%). The kinetics of the total oxidation reaction was best described by the power law model with an AAD of less than 1%, whereas for the TOR process, the molecular adsorption of crude glycerol with an AAD of 14.6% via Langmuir Hinshelwood Hougen-Watson approach was best. CO₂ methanation resulted in an AAD of 5.8% for the adsorption of carbon dioxide (CO₂) by the Eley–Rideal mechanism. Full article

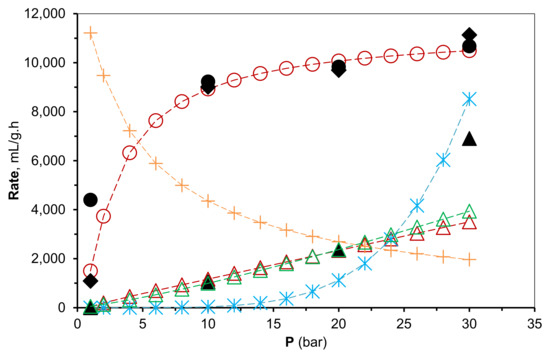

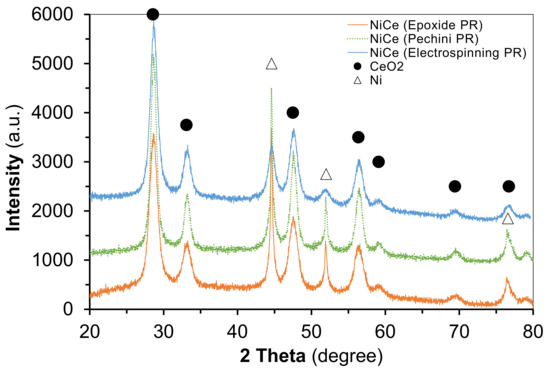

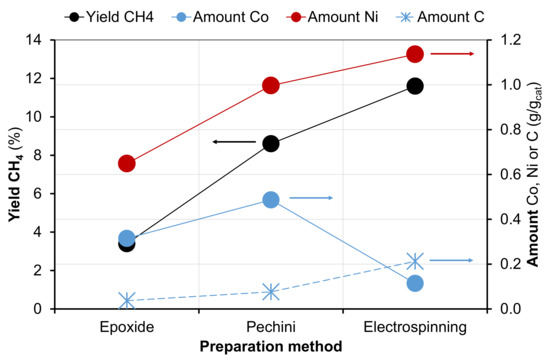

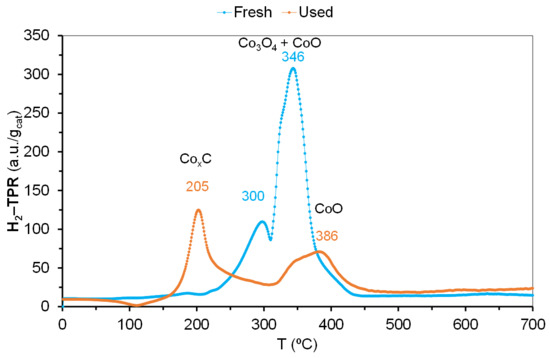

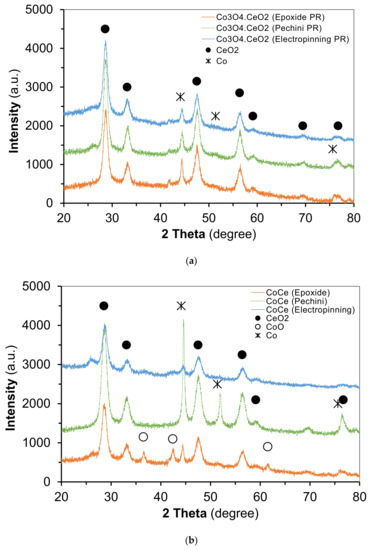

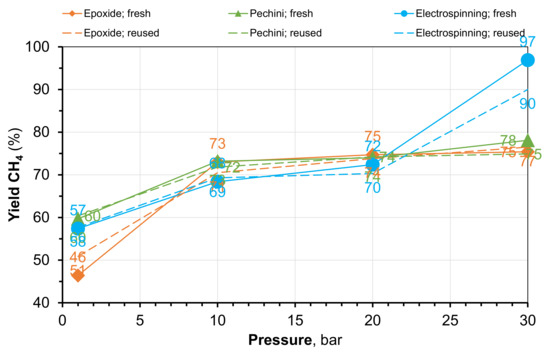

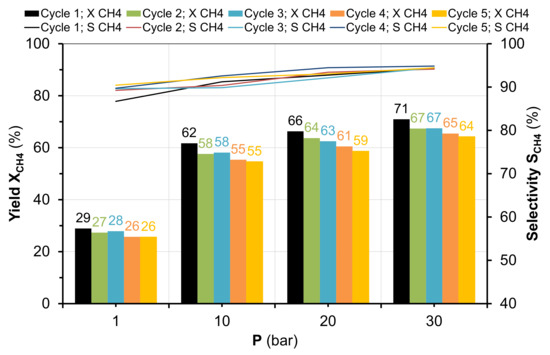

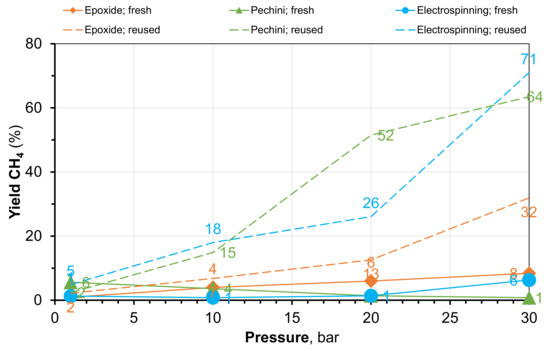

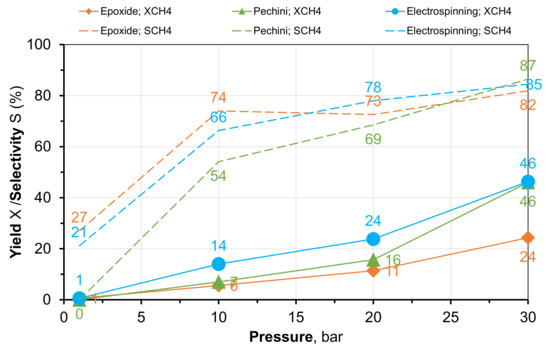

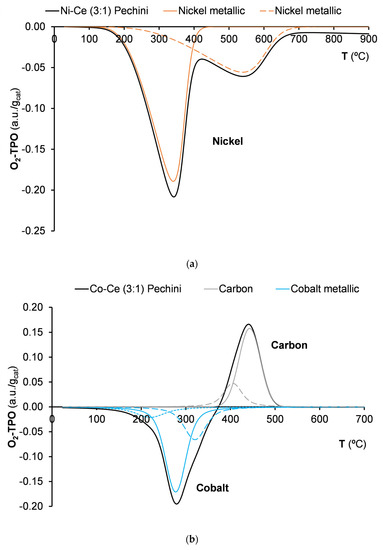

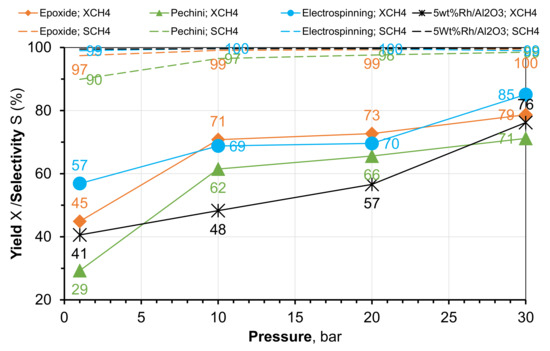

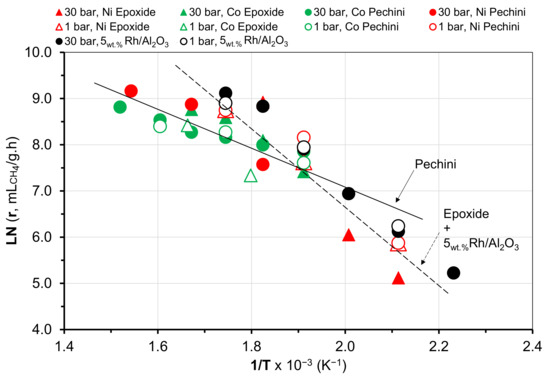

Nickel– and cobalt–cerium bimetallic oxides were used as catalysts for the methanation of CO₂ under pressure. The catalysts’ activity increases with pressure and an increase of just 10 bar is enough to double the yield of methane and to significantly improve the selectivity. The best results were those obtained over nickel–cerium bimetallic oxides, but the effect of pressure was particularly relevant over cobalt–cerium bimetallic oxides, which yield to methane increases from almost zero at atmospheric pressure to 50–60% at 30 bar. Both catalyst types are remarkably competitive, especially those containing nickel, which were always more active than a commercial rhodium catalyst used as a reference (5_wt._% Rh/Al₂O₃) and tested under the same conditions. For the cobalt–cerium bimetallic oxides, the existence of a synergetic interaction between Co and CoO and the formation of cobalt carbides seems to play an important role in their catalytic behavior. Correlation between experimental reaction rates and simulated data confirms that the catalysts’ behavior follows the Langmuir–Hinshelwood–Hougen–Watson kinetic model, but Le Chatelier’s principle is also important to understand the catalysts’ behavior under pressure. A catalyst recycle study was also performed. The results obtained after five cycles using a nickel–cerium catalyst show insignificant variations in activity and selectivity, which are important for any type of practical application. Full article

The hydrogenation of trans,trans-muconic acid was investigated on a Pt/C 5% (wt) catalyst in a batch slurry reactor at constant hydrogen pressure (4 bar) and temperature (323, 333 and 343 K), with the purpose of developing a kinetic model able to predict conversions and product distributions. A dual-site Langmuir–Hinshelwood–Hougen–Watson (LHHW) model with hydrogen dissociation provided good fitting of the experimental data. The model parameters were regressed by robust numerical methods to overcome the computational challenges of the model parameters’ collinearity. Different reaction mechanisms were tested; the best model involved two subsequent hydrogenation steps. The first step yielded from trans,trans-muconic acid a monounsaturated intermediate (trans-2-hexenedioic acid), which was further hydrogenated to adipic acid in the second step. The intermediate was subjected to an equilibrium isomerization with cis-2-hexenedioic acid. The activation energy values and the rate constants were calculated for the reactions, providing the first reference for trans,trans-muconic acid hydrogenation. Full article

The current research presents an experimental approach on the mechanism, kinetic and decay of industrial Pd-Ag supported α-Al₂O₃ catalyst used in the acetylene hydrogenation process. In the first step, the fresh and deactivated hydrogenation catalysts are characterized by XRD, BET (Brunauer–Emmett–Teller), SEM, TEM, and DTG analyses. The XRD results show that the dispersed palladium particles on the support surface experience an agglomeration during the reaction run time and mean particle size approaches from 6.2 nm to 11.5 nm. In the second step, the performance of Pd-Ag supported α-Al₂O₃ catalyst is investigated in a differential reactor in a wide range of hydrogen to acetylene ratio, temperature, gas hourly space velocity and pressure. The full factorial design method is used to determine the experiments. Based on the experimental results ethylene, ethane, butene, and 1,3-butadiene are produced through the acetylene hydrogenation. In the third step, a detailed reaction network is proposed based on the measured compounds in the product and the corresponding kinetic model is developed, based on the Langmuir-Hinshelwood-Hougen-Watson approach. The coefficients of the proposed kinetic model are calculated based on experimental data. Finally, based on the developed kinetic model and plant data, a decay model is proposed to predict catalyst activity and the parameters of the activity model are calculated. The results show that the coke build-up and condensation of heavy compounds on the surface cause catalyst deactivation at low temperature. Full article
