This paper investigates the rotational lift production of translating and rotating wings within a small insect’s Reynolds number range. Using the Reynolds number 1200 of a bumblebee, three wing section profiles were studied: a circular cylinder model as a reference for a blunt body for which the well-known Magnus effect will occur, a flat plate model as a reference for a sharp body for which the Kramer effect will occur, and finally, an elliptical cylinder model as a transition case. Direct force measurement and particle image velocimetry (PIV) experiments were performed to measure the lift produced and the surrounding flow velocity, and the Kutta–Joukowski theorem was applied to analyze the PIV results. The Kutta–Joukowski theorem gives the relationship between lift and circulation on a body moving at constant speed in a real fluid with some constant density. The experimental results were analyzed and verified by comparing them to the computational results. In general, there is reasonable agreement between the experimental and computational results, confirming that the Magnus effect is observed for the circular cylinder model and no Kramer effect is observed for the flat plate model. The elliptical cylinder model does not appear to be blunt enough for the Magnus effect to occur, and it is not sharp enough for the Kramer effect to occur. Full article

A time-stepping, lifting-line solution algorithm for the prediction of the unsteady aerodynamics of morphing wings is presented. The velocity induced by the wake vorticity is determined through a free-wake vortex-lattice model, whereas the Küssner and Schwarz’s unsteady airfoil theory is used to evaluate the sectional loads, and the generalized aerodynamic loads related to body deformation including camber morphing. The wake vorticity released at the trailing edge derives from the bound circulation and is convected downstream as a vortex ring to form the vortex-lattice wake structure. The local bound circulation is obtained by the application of the Kutta–Joukowski theorem extended to unsteady flows. The accuracy of the loads predicted by the proposed solver is assessed by comparison with the predictions obtained by a three-dimensional boundary-element-method solver for potential flows. The two sets of results agree very well for a wide range of reduced frequencies. Full article

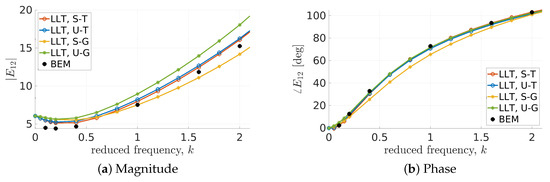

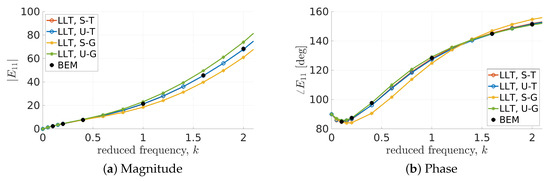

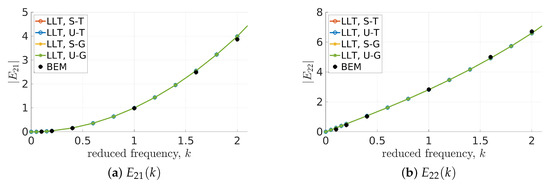

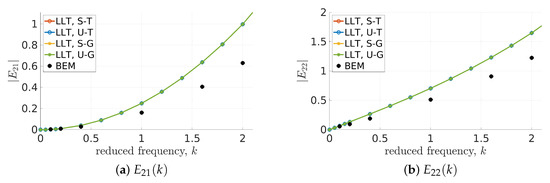

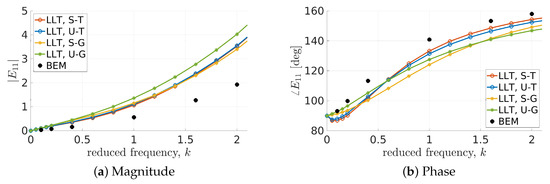

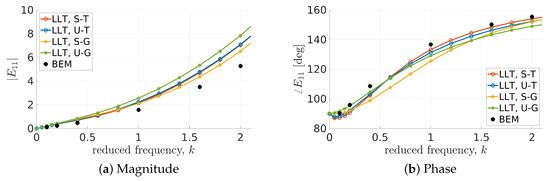

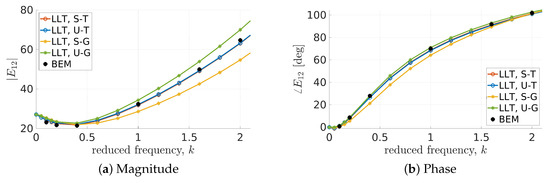

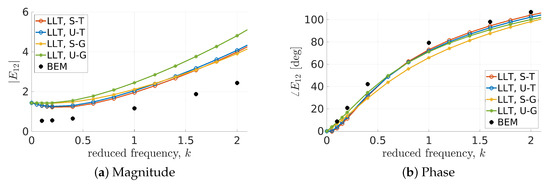

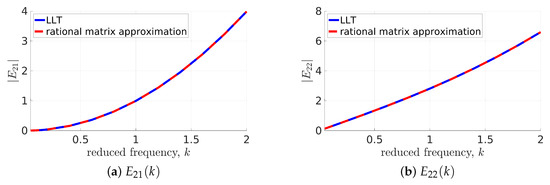

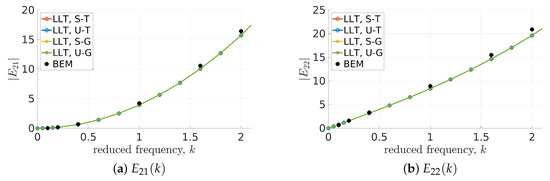

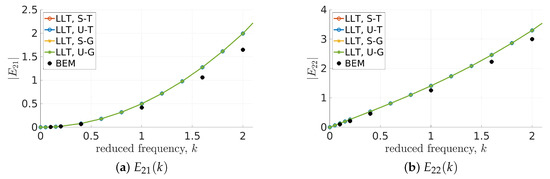

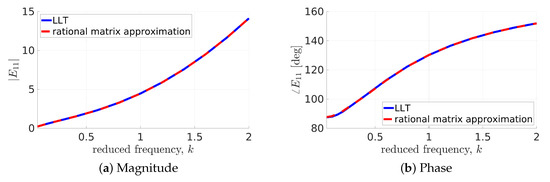

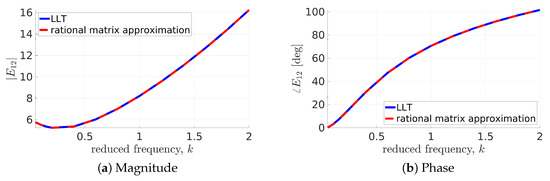

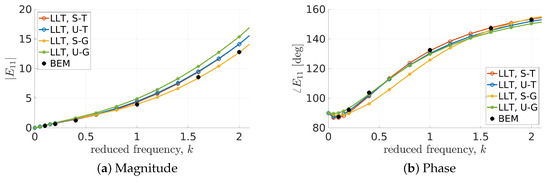

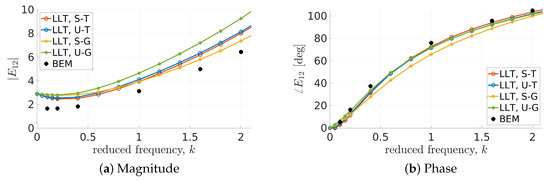

A frequency-domain lifting-line solution algorithm for the prediction of the unsteady aerodynamics of wings is presented. The Biot–Savart law is applied to determine the normalwash generated by the wake vorticity distribution, whereas steady and unsteady airfoil theories (Glauert’s and Theodorsen’s, respectively) are used to evaluate the sectional aerodynamic loads, namely the lift and pitching moment. The wake vorticity released at the trailing edge derives from the bound circulation through the Kutta condition and is convected downstream with the velocity of the undisturbed flow. The local bound circulation is obtained by the application of the Kutta–Joukowski theorem, extended to unsteady flows. Assuming a bending and torsion wing, this paper provides the aerodynamic matrix of the transfer functions, relating the generalised aerodynamic loads to the Lagrangian coordinates of the elastic deformation. Its rational approximation yields a reduced-order state-space aerodynamic model suitable for an aeroelastic stability analysis and control purposes. The numerical investigation examines the influence of both the wake shed/trailed vorticity modelling and different approximations of the Kutta–Joukowski theorem for unsteady flows on the aerodynamic transfer functions given by the developed frequency-domain lifting-line solver. The accuracy of the solver is assessed by comparison with the predictions obtained by a three-dimensional boundary-element-method solver for potential flows. It is shown that, at least for the frequency range considered, regardless of the approximation of the Kutta–Joukowski theorem applied, the formulation based on the Theodorsen theory provides predictions that are in very good agreement with the results from the boundary element method for a slender wing. This agreement worsens as the wing aspect ratio decreases. A lower level of accuracy is obtained by the application of the sectional loads given by the Glauert theory. In this case, the predictions are more sensitive to the approximation used to express the Kutta–Joukowski theorem for unsteady flows. Full article

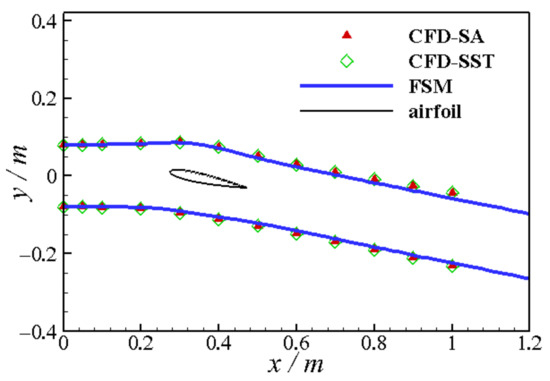

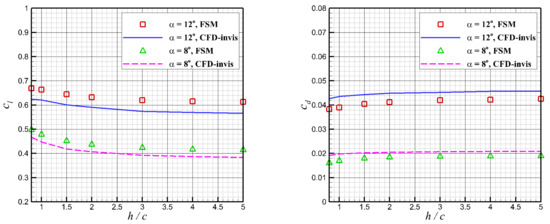

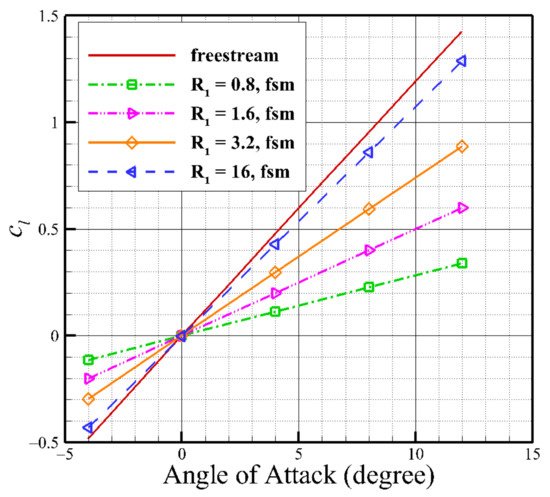

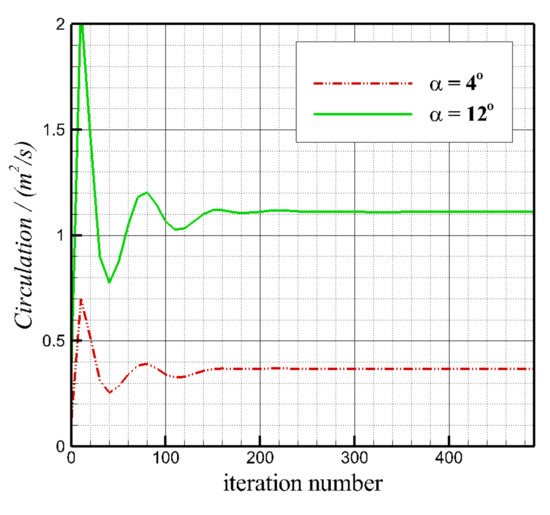

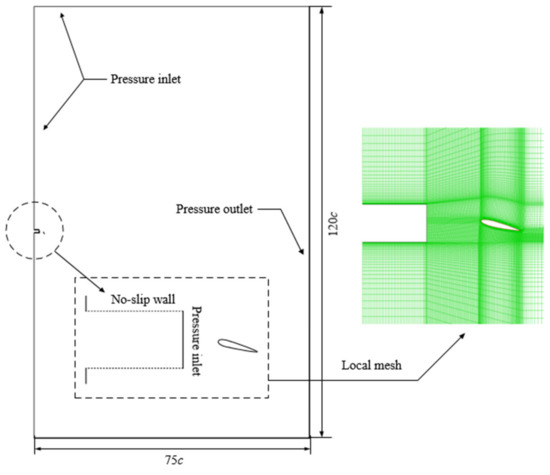

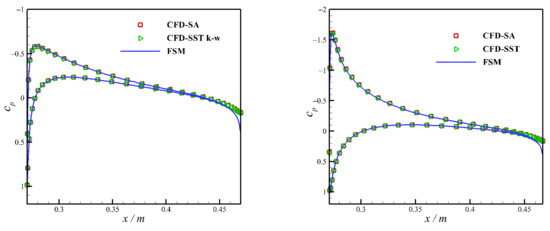

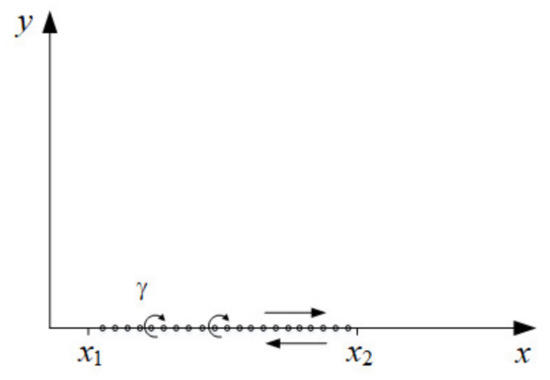

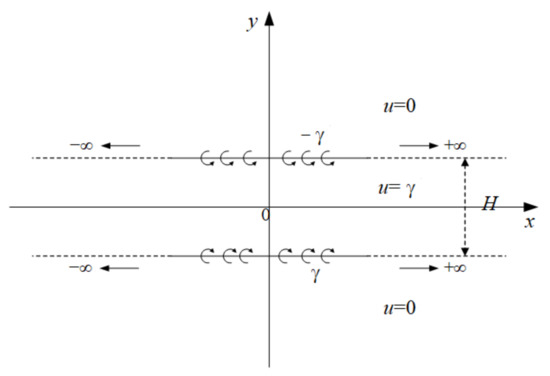

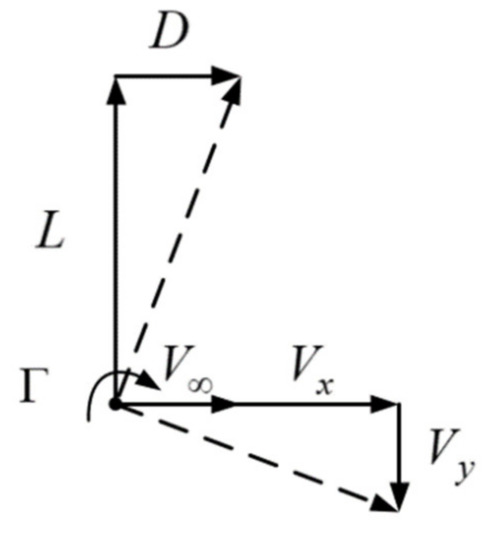

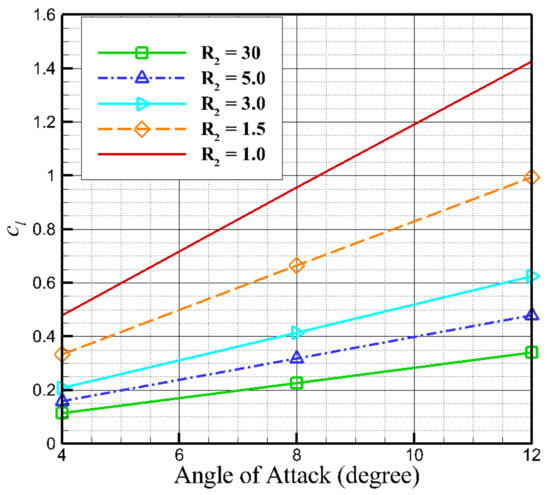

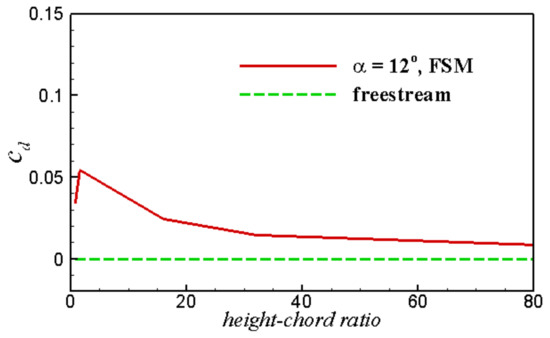

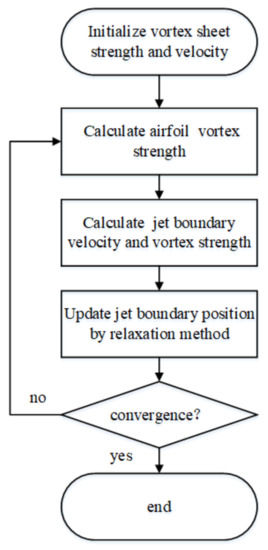

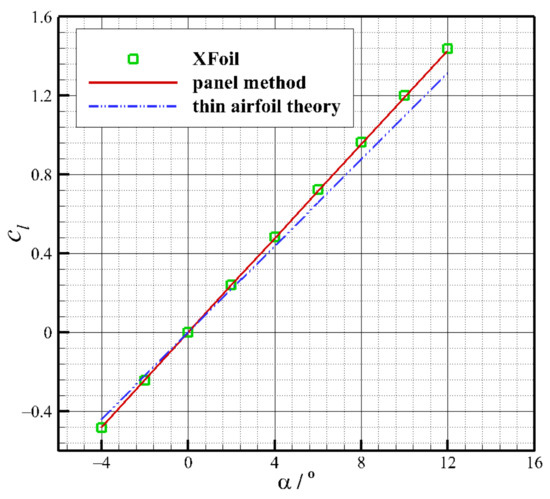

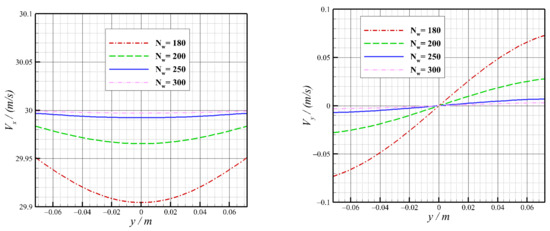

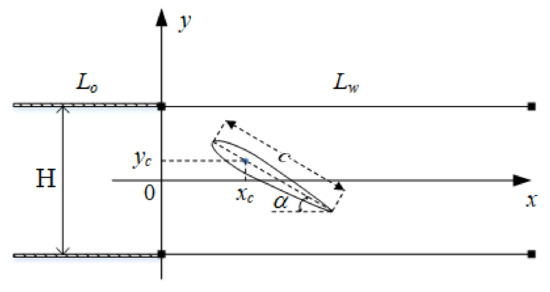

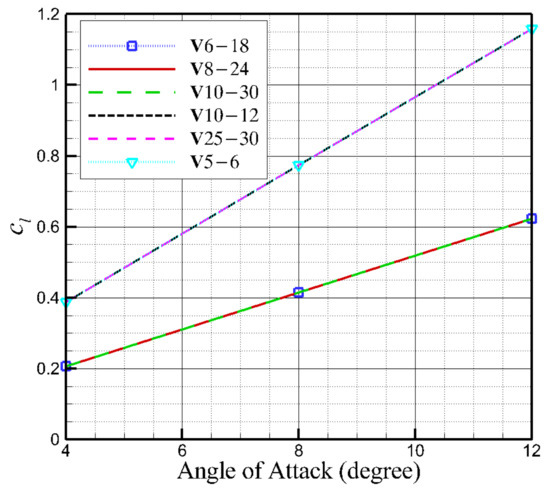

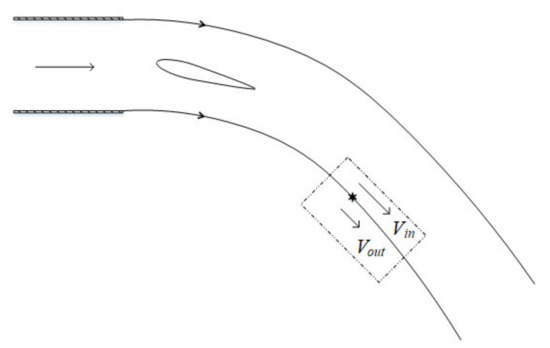

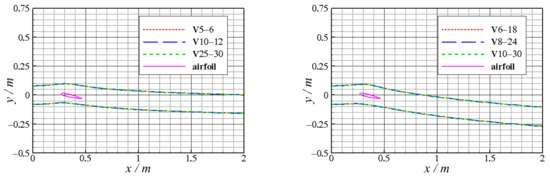

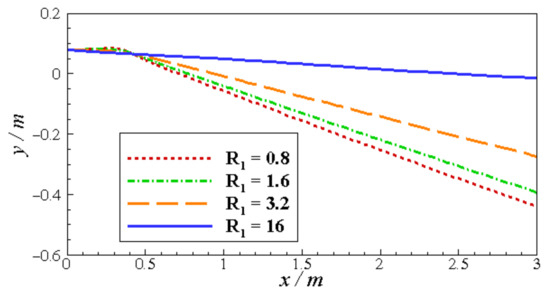

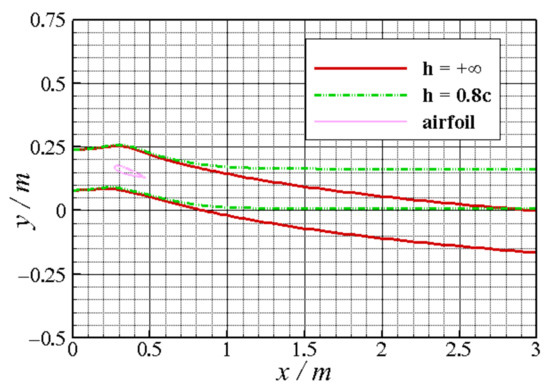

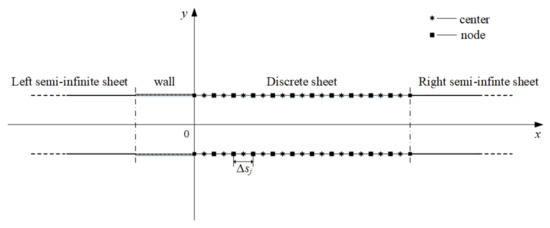

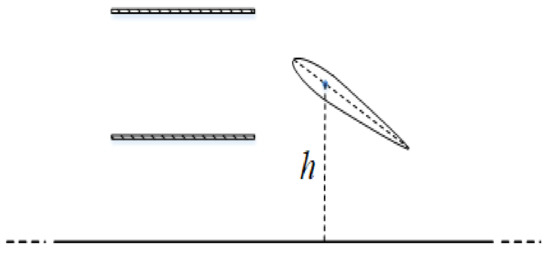

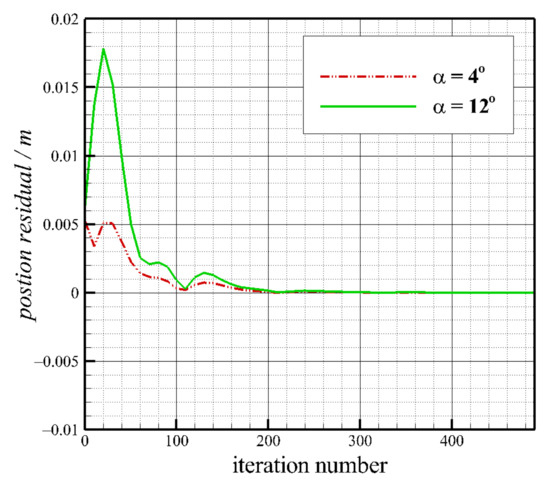

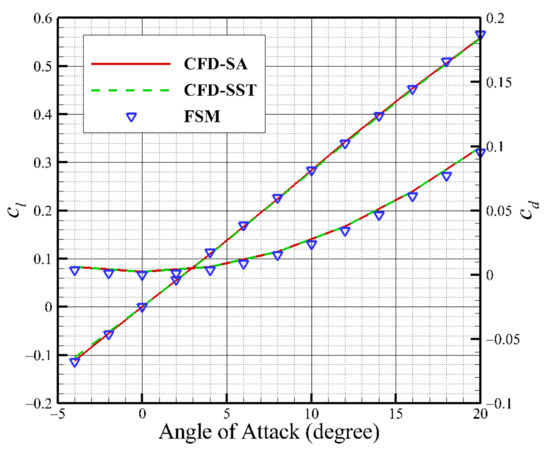

In order to study the aerodynamic interaction of the airfoil and jet flow, the free streamline model and the panel method are combined to develop a fast calculation method for the airfoil in two-dimensional inviscid jet flow. The vortex strength and position of the jet boundary are determined by using the free streamline model and the constant total pressure difference assumption, the circulation of the airfoil is solved by the vortex panel method, and the whole process is coupled by relaxation iteration. Firstly, the convergence and effectiveness of the present method are verified. Next, the influence of the length ratio of jet height to airfoil chord, the velocity ratio of jet velocity to freestream velocity, and the ground effect on airfoil aerodynamics are studied. The results show that the aerodynamic characteristics of the airfoil in finite width jet flow and in freestream have a large difference, and it is important to consider the jet deflection for jet/airfoil interaction. In jet flow, the velocity ratio can be regarded as an aerodynamic similarity parameter for the airfoil. When the jet flow is deflected, the airfoil will not only generate lift but also drag, and the ground effect can be used to decrease drag. The developed method in this paper can not only capture the jet deflection but also has higher calculation efficiency than Computational Fluid Dynamic (CFD), which is beneficial for the preliminary design of a powered-lift device. Full article

To improve the energy extraction performance of the oscillating hydrofoil, the lift force that acts on the oscillating hydrofoil is analyzed. The pressure difference between the oscillating hydrofoil‘s opposing surfaces is dominant to generate the lift force. Forming and shedding of the leading-edge vortex from the hydrofoil surface determines the pressure difference between the opposing surfaces of the oscillating hydrofoil. In this paper, the hydrofoil with different chord flexibility coefficients and maximum offset at the trailing edge are analyzed to obtain the power coefficient, lift coefficient, and moment coefficient of the oscillating hydrofoil. The influence mechanism of chord-wise deformation of the oscillating hydrofoil on the energy extraction performance is explored. According to the Kutta–Joukowsky condition and the Stokes’ theorem, the relationship between the attached vortex on the hydrofoil and the surface pressure of the hydrofoil, the surface pressure difference of the hydrofoil, and the lift force that acts on the hydrofoil are investigated. By quantifying the vortex intensity, the ascending-shedding process of the attached vortex on the hydrofoil is characterized. Finally, the complete influence chain among the chord-wise flexure, the attached vortex on the hydrofoil, and the energy extraction performance of the oscillating hydrofoil is established. Full article

Hydraulic instability is a complex factor causing the vibration of hydro-turbine generator shafting system (HGSS), and the mechanism is the uneven distribution of flow along the circumference. The common reasons for this phenomenon include the inconsistency of the blade exit flow angle, the relay stroke and the guide vane opening. This paper mainly focuses on the research of the hydraulic instability caused by the inconsistency of the blade exit flow angle. Firstly, based on the Kutta-Joukowski theorem, the hydraulic unbalance force model is firstly presented. Then, considering the chain reaction among the hydraulic, mechanical and electrical instability, a combined nonlinear mathematical model of the HGSS is established. Finally, by using numerical simulation, the dynamic characteristics of the HGSS with the changing of the deviation of the blade exit flow angle, the blade exit diameter and the guide vane opening angle are analyzed. Moreover, it is found that the hydraulic instability determines the overall changing trend of the shafting dynamic behaviors. In addition, some stable ranges of the HGSS are distinguished. But above all, these results can efficiently provide a reference for the design and manufacture of hydro-turbine blades and the operation of hydropower stations. Full article

Estimation of force generated by dolphins has long been debated. The problem was that indirect estimates of force production for dolphins resulted in low values that could not be validated. Bubble digital particle image velocimetry (DPIV) measured hydrodynamic force production for swimming dolphins and demonstrated high force production. To validate the bubble DPIV and reconcile force production measurements, two bottlenose dolphins (Tursiops truncatus) performing tail stands were measured with bubble DPIV. Microbubbles were generated from a finely porous hose and compressed air source. Displacement of the bubbles by the propulsive motions of the dolphin was tracked with a high-speed video camera. Oscillations of the dolphin flukes generated strong vortices and a downward directed jet flow into the wake. Application of the Kutta–Joukowski theorem measuring vortex circulations yielded forces up to 997.3 N. Another video camera recorded body height above the water surface to determine the mass-force of the dolphin above the water surface. For the dolphin to hold its position above the water surface, the mass-force approximately balanced the vertical hydrodynamic force from the flukes. The results demonstrated the fluke motions generate high sustained forces roughly equal to the dolphin’s weight out of the water. Bubble DPIV validated high forces measured previously for thrust generated in swimming by animals and demonstrated a more accurate technique compared to standard aerodynamic analysis. Full article
